Microwave-Assisted Extraction for Microalgae: From Biofuels to Biorefinery

Rahul Vijay Kapoore
Thomas O. Butler
Jagroop Pandhal
Seetharaman Vaidyanathan
Department of Chemical and Biological Engineering, The University of Sheffield, Sheffield S1 3JD, UK
Authors to whom correspondence should be addressed.
Biology 2018, 7(1), 18;
Submission received: 3 January 2018 / Revised: 25 January 2018 / Accepted: 12 February 2018 / Published: 15 February 2018
(This article belongs to the Special Issue Microalgal Biotechnology)


The commercial reality of bioactive compounds and oil production from microalgal species is constrained by the high cost of production. Downstream processing, which includes harvesting and extraction, can account for 70–80% of the total cost of production. Consequently, from an economic perspective extraction technologies need to be improved. Microalgal cells are difficult to disrupt due to polymers within their cell wall such as algaenan and sporopollenin. Consequently, solvents and disruption devices are required to obtain products of interest from within the cells. Conventional techniques used for cell disruption and extraction are expensive and are often hindered by low efficiencies. Microwave-assisted extraction offers a possibility for extraction of biochemical components including lipids, pigments, carbohydrates, vitamins and proteins, individually and as part of a biorefinery. Microwave technology has advanced since its use in the 1970s. It can cut down working times and result in higher yields and purity of products. In this review, the ability and challenges in using microwave technology are discussed for the extraction of bioactive products individually and as part of a biorefinery approach.

1. Introduction

To date, the total number of algal taxa which exist is unknown, but Guiry [1] reported that there could be at least 72,500 species with around 30,000 species of microalgae [2]. Since the 1970s the ambition has been to utilise microalgae for biofuels due to concerns regarding oil security and a requirement for reduction in the greenhouse gas emissions, and this has been extensively reviewed [3,4,5]. Similar to land-based plants, microalgae do offer the potential for biodiesel production; however, there is a requirement for improvement in the biosynthesis of triacylglycerides (TAG), critical engineering developments, improvements in mass culture, and further advances in downstream processing, including harvesting and extraction technologies. Currently, the high cost of obtaining biodiesel from microalgae limits commercial development. The estimated cost of biodiesel in photobioreactors with an oil content of 60% is US$3.96–10.56/L, whereas biodiesel from soybeans is tenfold cheaper [6]. Downstream processing of microalgal biomass (harvesting and product extraction) accounts for 70–80% of the total cost and has the most weight in terms of energy consumption [3]. Despite the challenges in producing low value commodities such as biodiesel from microalgae, a few strains have been commercially exploited for the production of animal feeds and high value products (>US$10,000/t) [7], namely, nutraceuticals and cosmeceuticals for human markets including polyunsaturated fatty acids (PUFAs) such as eicosapentaenoic acid (EPA) and docosahexaenoic acid (DHA); carotenoids such as astaxanthin and β-carotene, and phycobiliproteins such as phycocyanin and phycoerythrin. The potential for more diverse microalgal-derived products in recent years has grown rapidly and existing markets have received increased competition.
Microalgal products can be extracted using two processes; dry and wet routes. The dry route involves either spray drying, drum drying, freeze drying, or sun drying prior to extraction. The wet route is a process where the harvested biomass is disrupted to release the intracellular products. The dry processing method for biodiesel production requires 107.3 MJ/kg energy whereas the wet method comparatively uses 42.3 MJ/kg energy (84% of the energy requirement) [8]. It is believed that there is scope to decrease the energy consumption for extraction and transesterification (TE) to as low as 17 MJ/kg through optimisation of the overall wet extraction process [8]. Wet extraction without the need for lyophilisation of cells is therefore more desirable for energy-efficient extraction of intracellular products from microalgae.
Microalgal cell walls often contain algaenan and are notoriously difficult to lyse, often being resistant to chemicals and weak acids/bases [9]. Nannochloropsis and Chlorella strains cells are small (1–2 µm) and spherical and their cell walls are especially difficult to disrupt. Haematococcus cell walls contain a thick sporopollenin cell wall which even hinders acetolysis [10,11]. To date, physico-chemical methods are widely employed for the isolation of intracellular microalgal products. However, they are usually time-consuming and unless carefully controlled, are liable to cause degradation or unwanted chemical changes to the products, particularly carotenoids [12]. Due to the varying structural properties of different biochemical components, the identification of an optimal extraction solvent and technology to extract desired products remains a major challenge in microalgal biotechnology. Microwave-assisted extraction (MAE) offers an alternative green method for cell disruption and extraction of compounds from microalgae [13,14]. It has been critically evaluated for industrial-scale applications, revealing effective cell wall disruption with relatively low energy input, a rapid treatment time and the avoidance of the utilisation of hazardous substances [15].
In this review, we will be focusing on the benefits and challenges of MAE for obtaining microalgal products including lipids, pigments, vitamins, carbohydrates and proteins as individual compounds and/or as part of a biorefinery approach.

2. Current Extraction Methods for Biofuels and High Value Products from Microalgae

The sustainability of biofuel production and high value products largely depends upon efficient extraction of the biochemical components. An ideal extraction method should be more selective towards extraction of specific microalgal products and simultaneously minimise the co-extraction of contaminants. Several methods have been used for extracting biochemical components from microalgae, whereby the initial stage is to disrupt the microalgal cell wall with the appropriate extraction method primarily depending on the rigidity of the cell wall and compounds of interest [16]. Broadly, the extraction methods are categorised as mechanical, chemical, thermal/thermo-chemical, electromagnetic, biological and current (Figure 1) and each have associated advantages and disadvantages (Table 1).
Commonly employed traditional solvent extraction techniques are labour intensive, utilise high quantities of toxic organic solvents, can expose bioactives to excessive light, heat and oxygen, and can result in changes in stereochemistry [17]. For solvent extraction of microalgal lipids, it has been determined that chloroform-methanol (1:1) resulted in the highest yields when comparing seven solvents and four microalgal species [18]. However, the use of toxic solvents such as chloroform and methanol on an industrial-scale will have a great impact on the environment and will pose a risk to human health. Other traditional methods such as grinding and cryogenic grinding with liquid nitrogen are reported to be extremely efficient but they are expensive and impractical for industrial applications.
Among mechanical methods, bead milling has been reported as the most effective method for cell disruption amongst nine different methods tested on two microalgal species with an optimal bead size of 0.5 mm [16]. However, it has been noted to be ineffective for the extraction of lipids from the Chlorophyte, Chlorella vulgaris [31]. Bead beating is often used in laboratories and agitated beads are often used for large-scale applications [32]. Nevertheless, overheating is an issue (also noted for homogenisers) and scale-up is often not economical [31]. Furthermore, beads add complexity to the system as it requires further separation [32]. Mechanical cell presses have been investigated for extraction of lipids from plants such as soybeans but due to the small size of microalgae, they often pass through without being disrupted [31]. Homogenisation and autoclaving have been suggested and have varying degrees of success, but both are considered impractical for large-scale applications [32]. Soxhlet is probably the most utilised method for the extraction of fats and oils from food matrices [33] and nutraceuticals from plant matrices [34]. However, the method is time consuming (~15 h), requires a high volume of toxic solvents [12], and later reported much lower yields of microalgal lipids when compared to other conventional extraction techniques [35].
To mitigate the use of toxic solvents, other chemical and biological methods have been developed as an alternative but often contaminate the cell extract and can create artefacts in the downstream analysis [36]. Biological methods with enzymes such as xylanases, pectinases or cellulases are constrained by economics with enzymes being relatively expensive and sometimes lacking efficiency [32,37]. Various novel physical techniques have been used in order to increase the efficiency of extraction and these include: supercritical fluid extraction [25], ultrasound assisted extraction [12,38], microwave-assisted extraction [12,14,39], pressurized liquid extraction [14,40] and pulse electric field lysis (PEF) [27]. Ultrasound operates in the range of 20–100 MHz and results in cavitation bubbles that expand and cause the cell wall to rupture [41]. Compared to horn sonication, bath sonication has been determined to be more commercially suitable as it only requires a single unit and has a lower power input [15]. Supercritical fluid extraction (SFE) has been suggested as a green technology where carbon dioxide under supercritical conditions is used as a non-toxic extractant in order to separate lipids from cells [13]. Similarly, accelerated solvent extraction (ASE), also known as pressurised liquid extraction (PLE) or pressurised solvent extraction (PSE) is widely applied for extraction of polar and non-polar lipids in corn and oat with various solvents [42] and for bioactive compounds such as antioxidants from two microalgal species, namely, Dunaliella salina and Arthrospira platensis [43]. However, both SFE and ASE are not suitable for scale-up due to high power consumption required for maintenance of high temperature and pressure [35]. Furthermore, a yield of thermo-labile components (such as carotenoids) could be severely compromised due to use of higher temperatures [44]. Pulse electric field lysis (PEF) has also been investigated for the extraction of desired products from microalgae whereby cells are exposed to brief pulses of a strong electric field as in electroporation for the transfer of DNA. Under optimal conditions, electric pulses temporarily cause the pores of the cell wall to open and the chemical contents are released as a form of ‘milking’ of the cells [27,45]. This method is currently constrained by the essential requirement of organic solvents for the extraction of carotenoids [46].
Current methods of extraction are hindered by extraction time, large solvent requirements, high energy inputs, and costly production processes with difficulties in scaling-up [47]. The use of microwaves for the extraction of microalgal compounds has been published frequently since 2008; primarily for lipids but also for other biochemical components including pigments, proteins, and carbohydrates. Microwaves offer the benefit of quick heating in comparison to conventional heating, selective energy dissipation and offer the same direction heat and mass transfer. Microwave extraction cuts down working times and often increases the yield and purity of the extract [12]. Microwaves were reported to result in the highest degree of cell disruption in Nannochloropsis oculata (94.92%) [21]. Overall, MAE offers an environmentally friendly option with reduced solvent requirements and appears to have real viability for the extraction of bioactives, which will be explored in this review.

3. MAE: Introduction and Working Principle

The use of microwave (MW) dielectric heating in analytical laboratories began in the late 1970s. Microwave energy was first described for extraction in 1986 [48]. MAE generates high frequency waves (ranging from 300 MHz (100 cm) to 300 GHz (0.1 cm)) with wavelengths of 0.001–1 m [32]. Microwave chemistry for extraction is where microwave radiation is applied at a frequency near 2.45 GHz (12 cm), causing dielectric heating primarily by absorption of the energy in water and other polar compounds available in wet biomass or a given sample [49].
Microwave heating results from the dissipation of electromagnetic waves in the irradiated medium. The dielectric properties and the average electric field affect the dissipating power. Microwaves cause the vibration of water and other polar molecules within wet biomass, thereby resulting in temperature increases in the intracellular liquids which subsequently causes the water to evaporate and exert pressure on the cell walls leading to cell disruption [50]. In addition, MWs disrupt hydrogen bonds and initiate the migration of dissolved ions, facilitating increased penetration of solvent into the sample [49]. The higher dielectric constant of water ensures that thermal energy is transferred to the cell walls more efficiently with microwave heating [21]. Unlike conventional heating, microwave heating is not constrained by thermal conduction or convection currents, thereby enabling a faster temperature increase [51]. The maximum temperature of the material heated by microwaves is dependent on the rate of heat loss and power applied [51].
There are two major types of microwaves; closed and open vessels. Closed vessel systems rely on controlled temperature and pressure, whereas in an open vessel system, only the part of the extraction vessel containing the sample is focused for microwave irradiation [52]. Recently, solvent-free microwave hydrodistillation (SFME) was adopted for laboratory-scale applications for the extraction of essential oils from different plants and fruits as an environmentally friendly and sustainable alternative [51] but to date, this has not been applied for microalgal biotechnology. SFME uses microwave heating and distillation at atmospheric pressure, where less CO2 is emitted into the atmosphere (200 g CO2/g of essential oil compared to traditional methods emitting 3600 g CO2/g of essential oil) [53]. Microwave hydrodiffusion and gravity (MHG) combines microwave heating and earth gravity at atmospheric pressure [54] allowing the extraction of essential oils without distillation and evaporation that are the most energy consuming processes between the unit operations [55]. There are several key operational factors determining the efficiency of MW extraction such as the species of microalga, power of the MW, temperature, and solvent properties and volumes used [32].

4. MAE of Biochemical Components from Microalgae

Microwaves have been used for obtaining a variety of bioactives from a range of microalgal classes including the Chlorophyceae, Bacillariophyceae, Eustigmatophyceae and Phaeophyceae. The majority of work evaluating the effectiveness of microwaves on extraction has been conducted on lipids followed by pigments, whereas few publications exist on the extraction of carbohydrates, proteins and other compounds of interest such as vitamins.

4.1. Lipids

4.1.1. Pre-Treatment: Lipids as a Feedstock for Biodiesel

A variety of solvents have been investigated for lipid extraction with dry and wet methods using MWs, including hexane, chloroform:methanol (different ratios), and ethanol (Table 2). The ratio of solvent to sample ranged from 1:1 to 400:1 with hexane requiring less volume and chloroform:methanol requiring much higher volumes (Table 2). Different concentrations of starting microalgal biomass were also tested ranging up to 5 g/L dry weight (DW), where higher concentrations of feedstock appeared to have little effect on overall extraction efficiency. The MW operating conditions varied from 45–140 °C, with pressures ranging from 1–80 bar and extraction times of 2.5 min to 60 min (Table 2). To date, only one study has been conducted on comparing dry vs. wet extraction for microalgal lipids using MWs, where the dry method resulted in a 18.95% increase in lipid yield for Scenedesmus obliquus [56].
Hexane is commonly utilised for extraction processes as it is often threefold cheaper than other non-polar solvents such as cyclohexane, easy to recover after extraction (with up to 95% solvent recovery), and has high selectivity for neutral lipids [6,35,47]. MAE of lipids using hexane (wet method) from Nannochloropsis salina only requires 9.89 MJ/kg energy for 24.3% DW fatty acid methyl esters (FAMEs) [57]; whereas chloroform:methanol extraction from Chlorella requires 25.2 MJ/kg energy for 18.7% DW lipid [58]. In addition, MAE with hexane can result in a higher quality oil with higher recoveries for unsaturated and essential fatty acids (FAs) where more than 77% of recoverable oil is extracted in 30 min compared to only 47% using conventional heating [47]. Conversely, it has been determined that [59] extraction method (chloroform:methanol (2:1)) results in a 44.4% increase in biodiesel yield compared to hexane [60]. However, both the solvents are toxic, non-environmentally friendly, pose a health risk to humans and are expensive. Many researchers have directed their approach towards the use of non-chlorinated solvents which are much more economical, less toxic and have a reduced environmental impact compared to chlorinated solvents and more importantly, they have similar lipid extraction efficiencies as that of chlorinated solvents. However, there is no firm evidence and agreement on the use of a single non-chlorinated solvent system for microalgal lipid extraction as there were mixed conclusions reported by various studies in the past literature [16].
Biodiesel (in the form of 40% methyl soyate in ethanol) has been used for lipid extraction from Nannochloropsis sp., resulting in the highest lipid yield to date (56.6% DW), 6.80% higher than using chloroform:ethanol [61]. A high-power input was used (1200 W) with a higher temperature (120 °C) and timespan (50 min); however, the energy input required for this process was not specified [61]. Another promising environmentally friendly method is using protonic ionic liquids which resulted in moderate levels of cell disruption for Chlorella sp. (74.75%) and Chlorococcum sp. (70.03%) in a wet extraction process, but the yields of lipid were low (3.5 and 0.8% DW respectively) [30]. Using hydrogen sulphate ionic liquids in combination with 2% HCl resulted in higher lipid yield (27% DW) for Chlorella sorokiniana [62].
The lipid and biodiesel yield is strongly dependent on the species of microalga investigated along with the MW operating parameters. C. vulgaris and Nannochloropsis sp. were investigated in several studies (Table 2) and consistently attained higher lipid contents (maximum content 31.7 and 38.31% DW, respectively). High lipid recoveries were generally observed with high wattages (>1000 W) and temperatures (>65 °C); however, the effect of the timespan on lipid extraction remains to be elucidated. Furthermore, the use of different solvent ratios within the same solvent system has a large effect on extraction efficiency. Therefore, it is essential to carefully select the optimal extraction solvent system and their ratios prior to their comparison with the conventional solvent systems. The selected solvent system for lipid extraction should also be evaluated for their selectivity towards desired lipid classes of interest with a minimal extraction of non-lipid contaminants. More direct comparisons are needed between different solvent systems for a variety of species and MW operating parameters (wattage, temperature and timespan) with an emphasis on wet processing, as this is better suited for sustainable large-scale production.

4.1.2. Direct Transesterification for Biodiesel Production

Biodiesel is safe, renewable, non-toxic, and biodegradable in water (98% biodegrades in just a few weeks), containing fewer sulphur compounds than diesel [41]. For the formation of biodiesel, lipids need to be transesterified. TE involves the reaction of an oil with an alcohol (often in the presence of a catalyst) to form fatty acid esters and glycerol as a co-product. Triglycerides are converted to diglycerides and then subsequently to lower glycerides with one glyceride yielding one FAME molecule [41]. Microwaves have so far been successfully used for the extraction of lipids from microalgae, but they can also be used for direct transesterification (DT) (Table 3), where extraction and TE are performed in a single step [65,77]. High biodiesel yields can be obtained when using sodium (99.3% conversion) or potassium methoxide (98.5% conversion) as catalysts [41]. However, TE uses high volumes of methanol along with an acid or base and operates under high temperatures.
For biodiesel production, DT using MWs is desirable to reduce processing time and the overall cost of the process; however, fewer publications exist on this approach. To date, the highest biodiesel conversion efficiency using this approach (80.13%) has been obtained for Nannochloropsis sp. using methanol as an extractant and potassium hydroxide as a catalyst at 60–64 °C within 6 min, but this required a high level of energy (127 MJ/kg) [82]. However, there is a desire for a more environmentally friendly solvent/solvent free process with reductions in energy input.

4.1.3. High Value Lipids: EPA and DHA

The omega-3 FAs, EPA and DHA, are of interest in industrial markets with DHA being commercially produced for incorporation into infant formula milk [83]. Cravotto and co-workers [12] obtained a 17.8% oil yield when using hexane as an extractant with MWs compared to Soxhlet, which only yielded 4.8% DW. However, the DHA yield was not reported. Using double sonication and Soxhlet extraction, the fatty acids were found to be comprised of 39.3 and 39.5% DW DHA, respectively; hence, there is scope for extraction from Crypthecodinium cohnii using MWs, but this remains to be elucidated. EPA has been obtained from Nannochloropsis gaditana (1.18% DW) using methanol as an extractant at 30–35 W, 90 °C with a heating time of 10 min (Table 2) [66]. EPA has been observed to occur in Phaeodactylum tricornutum up to 4.9% DW [84] and this may offer a more suitable organism for economic recovery.

4.2. High Value Pigments

Pigments in microalgae encompass chlorophylls and carotenoids. Carotenoids are a family of more than 600 naturally occurring pigments synthesised by higher plants, algae, fungi, and bacteria. Two major groups of carotenoids have been characterised on the basis of their chemical structure; the carotenes (composed of carbon and hydrogen) and the xanthophylls (oxygenated derivatives). In nature, it has been observed that most carotenoids are of the trans form and the cis-isomers are known to be thermodynamically less stable than trans isomers [32]. When dealing with pigments it is essential to develop a method that does not result in the degradation of pigments or induces changes in the stereochemistry. Carotenoids are vulnerable to light, heat and oxygen [85], and light and air can result in a synergistic breakdown of all-trans and cis-isomers [86]. Microwaves operating at 600 W have been observed to convert trans-astaxanthin isomers to cis-isomers [87]. It was not known what temperature the microwave reached and it could be that the temperature led to degradation, as carotenoids are known to degrade at temperatures above 60 °C [88]. It has been reported that temperatures above 75 °C do not increase astaxanthin recovery with microwave technology [89]. Although microwaving caused an isomer change, ultrasound was found to degrade pigments into colourless compounds [87].
Pigment extraction from microalgae, especially Chlorella and Haematococcus, is notoriously difficult due to their cell wall rigidity [9]. MAE can achieve the same yields as hot soaking but in minutes rather than timeframes of 30–60 min [88]. It has been suggested that MAE is effective for obtaining pigments from microalgae which have high mechanical resistance such as diatoms with silica frustules inducing frustules permeabilisation without causing rupturing of the cell [88]. For those species that lack a frustule and thick outer exopolysaccharide envelope, conventional techniques are more suitable in terms of yield and extraction time [88]. To date, chlorophyll-a, chlorophyll-b, astaxanthin, β-carotene and fucoxanthin have been extracted from microalgae (Table 4). With respect to solvents being used for pigment extraction, hexane has been found to be effective for lipid extraction but is poor for polar pigments such as fucoxanthin as hexane is non-polar [40]. Ethanol can be an alternative to hexane as it is non-toxic [6]. However, acetone has been observed to result in the higher extraction efficiency for astaxanthin which has been attributed to its lower polarity [89].
There has been a particular focus on astaxanthin extraction from Haematococcus pluvialis as it has a high selling price of up to US$7000/kg [92] but currently, the cost of production is high (US$3000–3600/kg) [93]. For astaxanthin, each double bond from the polyene chain has been found to exist in two different configurations as geometric isomers cis or trans. The trans astaxanthin in Haematococcus is 81.4% of the isomers [94]. It has been determined that astaxanthin may present three configurational isomers of the trans form (3R, 3′R; 3R, 3′S and 3S, 3′S) with the 3S, 3′S form being the most abundant astaxanthin isomer in nature and in the microalga H. pluvialis and the preferred enantiomer for pigmentation of salmonids in aquaculture [95]. The 3S, 3′S isomer has also been reported to be the most beneficial for human health [96,97]. Mechanical treatment with a homogeniser has resulted in a maximum astaxanthin yield of 1.8% DW with various extraction methods investigated; however, MAE was excluded [11]. For MAE of astaxanthin, the highest yield to date has been 0.80% DW with only 37% recovery using acetic ether at a low temperature (45 °C) [38]. This is a low yield considering astaxanthin is 4% DW of the cells [98]. Using acetone, a 74% astaxanthin recovery could be achieved [89], but the initial content of the starting biomass was not reported. Further work needs to be conducted on obtaining higher recoveries of astaxanthin with a focus on the isomers formed after MAE. It is also possible to exploit the complex life-cycle of H. pluvialis and produce astaxanthin in the motile morphotype that lacks the thick wall of aplanospores [99] and therefore offers higher potential of astaxanthin recovery through MAE.
Another high value pigment of interest is fucoxanthin which can reach US$150/g when sold in capsule form [100] due to its anti-obesity, anticancer, anti-inflammatory and anti-diabetic properties [101]. The highest yields obtained to date were from P. tricornutum using PLE at 100 °C for 10 min (1.63% DW) [40]. With MAE, the highest yields attained have only been 0.46% DW fucoxanthin [14] but this was using a low extraction time (2 min) and a low ratio of solvent:sample (20:1). This is the first study on the extraction of fucoxanthin and further work needs to be conducted as demand is likely to rise. Low yields of other pigments have also been reported for chlorophylls and β-carotene with the maximum yield of β-carotene (0.12% DW) using acetone [88]. Careful optimisation of MAE of pigments is required, ensuring that they are not degraded or undergo isomer changes. Moreover, a thorough optimisation of MAE parameters is required with a focus on using other environmentally friendly and economical solvents for increasing the yield of pigments with particular attention on the energy inputs.

4.3. High Value Proteins, Vitamins, Carbohydrates and Others

In the past few years, other compounds have been extracted from microalgae using MAE such as proteins (phycoerythrin, phycocyanin, allophycocyanin), vitamins and bulk products (carbohydrates and methane) (Table 5). The phycobiliproteins, phycoerythrin, phycocyanin and allophycocyanin are used for food pigmentation and as fluorescent dyes in research. Depending on their applications they can range from US$130–30,000/kg [102,103]. Typically, phycobiliproteins are extracted from microalgae using a freeze-thaw process or hot soaking [104]. Recently, methods without the use of solvents have been investigated using MW technology for efficient extraction (Table 5). Currently, A. platensis can produce phycocyanin up to 20% DW [105]. Using MAE it is possible to extract 0.23% DW phycocyanin from A. platensis using dry biomass (60 °C, 15 min) [91]. This is a low yield and may be attributed to the low power output (400 W), along with an inefficient solvent and low solvent to sample ratio (7:1) (Table 5). However, high power can result in the risk of thermal degradation/deterioration. Additional reports suggest that other thermolabile products (flavonoids) were not increased with the increase in power outputs of 500–1000 W [54]. A solvent-free approach resulted in yields of 3.48% DW phycocyanin at 100 °C from Porphyridium purpureum biomass (dry) [104]. A. platensis is also a valuable source of allophycocyanin with up to 19.8% DW [103]. To date, MAE of allophycocyanin from A. platensis has not been explored but yields of 3.51% DW have been obtained in P. purporeum using a dry method [104]. For phycoerythrin production, P. purporeum has been identified as a good source (3.3% DW) [106] where MAE resulted in a 3.48% DW yield at 40 °C in 10 s, whereas conventional soaking at the same temperature required 60 min for a comparable yield [104]. In MAE it was observed that increasing the time had no further improvements in yields of phycoerythrin, whereas an increase in temperature (50–100 °C) resulted in decreased yields, confirming thermal damage occurs above 40 °C.
Other products of interest extracted from microalgae using MAE are vitamins. Vitamins are essential micronutrients that cannot be synthesized de novo and must be obtained from the diet. Vitamin C (ascorbic acid) and vitamin E (tocopherols) are used as food additives with antioxidant potential [108]. α-tocopherol was obtained from A. platensis at 400 W, 40 °C when extracted for 50 min but the yield was very low (<0.01% DW) [91]. B vitamins are eight essential nutrients that are essential for growth and reproduction, but their intakes are frequently lower than the daily recommendations. Microalgae offer a non-chemical, vegan source of B vitamins as most people obtain B vitamins from cow’s milk and can also be used as a natural source to fortify milk for non-vegans. Two essential B vitamins; vitamin B1 (thiamine) and vitamin B2 (riboflavin) have been identified in microalgae. Vitamin B1 is incorporated in food to treat and prevent thiamine deficiency and those disorders that result from it such as beriberi; vitamin B2 is used to prevent and treat riboflavin deficiency and has been reported to prevent migraines [109]. Thiamine (0.085% DW) and riboflavin (0.010% DW) were obtained from A. platensis but in low yields [91]. Both are water-soluble vitamins and their extraction efficiency increased with the water volume percentage in the solvent. Solvent ratio and extraction time were found to be critical parameters affecting extraction using MWs. Currently, these yields of vitamins are low and further operating parameters of MAE need to be optimised in order to improve the extraction efficiency.
Lastly, from the residual biomass subsequent to lipid extraction, methane can be obtained. To date, using microalgal pre-treatment the highest yield of methane obtained was 307.11 mL methane/g total volatile solids [107]. This yield was 2.4-fold higher than that in a later study by [29]; however, the energy consumption was increased by 1.9-fold (65.4 MJ/kg). Soluble carbohydrates can also be obtained as bulk products from microalgae, but they have not yet been characterised [29]. They have the potential to be used as a feedstock for bioethanol, but energy requirements have to be taken into account. For the extraction of carbohydrates using MWs only, the energy required is 34.3 MJ/kg [29], which is more than that required for lipids (1.18 MJ/kg).

5. MAE vs. Current Extraction Methods

A wide range of cell disruption techniques has been reported for efficient extraction of bioactives from microalgae. MAE has been found to outperform other extraction methods in several comparison studies with a mixed species culture and monocultures of Botryococcus, C. vulgaris, Scenedesmus and Dunaliella tertiolecta for lipid extraction [31,60,71,75] and for EPA production from N. gaditana [66]. However, comparative studies for pigment extractions omitted MAE, such as astaxanthin from H. pluvialis [110] and fucoxanthin from P. tricornutum [40].
MAE has several advantages over conventional extraction methods for cell disruption as a pre-treatment method and for DT methods from lipids. In addition to the excellent recovery of compounds of interest, other key advantages include a single step conversion process, short reaction times, reduced solvent usage, and removal of water (expensive step) is not required; instead, water serves as an excellent solvent for extraction and is non-toxic [8]. In terms of extraction times, soxhlet extraction can take up to 15 hours whereas MAE can only take a few minutes with ten times less solvent for oil extraction [12]. In terms of energy consumption, high pressure homogenisation is the most energy intensive process (529 MJ/kg) for biofuel extraction, whereas microwaving and hydrodynamic cavitation were observed to require the least amount of energy (9.6 and 33 MJ/kg, respectively) [8]. MAE and UAE are considered to be the most economically viable options for extraction of lipids and pigments due to their high degree of efficiency for cell disruption, high yields of bioactives, and rapid extraction rates [21]. UAE has been identified as energy intensive in comparison to MAE, suffering from steep thermal gradients, and has been observed to be insufficient for cell lysis against some microalgal cells such as the diatom Cylindrotheca closterium [88,111].
MAE has been widely investigated for the extraction of lipids; however, reports on the extraction of pigments and other high value products are just starting to appear in the literature and are very few in number. There are difficulties in comparing the literature for extraction efficiency as there are biological (wet/dry, concentration, species and strain) and operational (solvents and microwave settings) variabilities, which need to be kept constant for efficient comparison between different extraction techniques.

6. Recent Trends and Developments: MAE for Microalgae

At a laboratory-scale, MAE has been primarily applied for extraction of individual product components from microalgae (primarily lipids and carotenoids). In order to reduce the cost of the overall process, a transition from a dry to wet method is desirable [112]. Moreover, for biodiesel production, DT rather than a separate extraction and TE process has led to reductions in energy input overall extraction cost [82]. To date, MAE has mainly focused on the extraction of lipids; however, the feasibility of a biorefinery using MAE for the production of lipids, carbohydrates and proteins has been recently investigated [56].
With advances in laboratory-scale MW technology, there have been a few reports of industrial-scale application for the extraction of oil from soybeans and rice bran [113] and volatile and non-volatile organic compounds from baldo leaves (Peumus boldus) [114]. Similarly, the potential of MAE for industrial-scale applications in microalgal biotechnology has been discussed in detail [31]; however, reactor designs need to be developed for sustainable implementation [22]. The cost of maintenance was also highlighted as a bottleneck for upscaling [115] which needs to be addressed. A continuous MAE system has been developed for the rapid extraction of oil from microalgae at a laboratory-scale [47]; however, this was not followed up for large-scale application and requires thorough evaluation of the energy input and overall cost. To date, only one report has extensively compared the industrial-scale application of different extraction techniques for microalgae, where the authors employed a variety of parameters for evaluation and concluded MAE as a moderately suitable technique for scale-up [15]. Overall, as the capital expenditure is high for MAE, the microalgal biorefinery concept needs to be in place in order to offset this cost, but this has not been showcased to date.

7. Challenges Involved in MAE

Although microwaves have been successful to date for obtaining a variety of products, for future process development there are several constraints that need to be addressed. There is a safety concern to consider when using microwaves as they operate at high temperatures and in conjunction with solvents can pose a high risk to the operator [41]. Closed vessel MW systems pose a high risk of injury to analysts due to the use of higher pressures, whereas polytetrafluoroethylene (PTFE) material used in construction does not allow the use of high temperature and the additional cooling step is required to avoid the loss of extracted volatile components [52]. Comparatively, open vessel systems are safer than closed vessel systems but the extraction conditions are less reproducible and many samples cannot be processed simultaneously, requiring longer extraction times to achieve efficiencies similar to that of closed vessel systems [52].
A major challenge with MWs, particularly domestic MWs is the uneven distribution of radiation within the cavity and consequently, energy is not homogeneously dissipated resulting in uneven heating of the sample [116]. The major concerns with MAE is that it is limited to polar solvents and is not suitable for volatile target compounds [26,117]. Once the microalgal extracts have been disrupted and the intracellular contents have been released, an additional separation process is required to remove solid residues [49]. There is a mixture of studies on dry and wet biomass and it is well known that it is more expensive to process dry microalgal material for extraction [8]. For a given product of interest, thorough investigations are required comparing the efficiency of the extraction from the dry and wet material. To date, only one study investigated the extraction efficiency of lipids from Scenedesmus and it was concluded that dry extraction only results in a 16.5% increase in lipid yield [76]. In MAE studies, there is a lack of consistency for the extraction of bioactives of interest with different wattages (30–1400 W), pressures (1–300 bar) and timespans (from 50 s to 50 min) being used for a given species, extractant and concentration/state of the biomass. In addition, there are large variations in the energy consumption for MAE of various bioactives, ranging from 1.2–140.8 MJ/kg for lipid (Table 2) and 34.3 MJ/kg for protein and carbohydrates [29].
Selection of appropriate extraction solvent/solvents and solvent ratios presents a major challenge in MAE and is mainly driven by factors such as selectivity of solvent/solvents towards analyte of interest, the property of solvent to absorb microwaves, the interaction between solvent and matrix and compatibility with subsequent analytical platform employed. From a biofuels perspective, the commonly applied MAE protocols use solvent mixtures which include chloroform and methanol due to their excellent ability to penetrate the cell wall as they have high polarity index values, suggesting higher solubility for all polar lipid compounds. However, both the solvents are toxic, non-environment-friendly, pose a health risk to humans and are expensive. Furthermore, the use of different solvent ratios within the same solvent system has a large effect on extraction efficiency and requires careful optimisation. In MAE, high volumes of solvent are often used in relation to the sample: chloroform:methanol (100:1) used for the extraction of lipid from C. vulgaris and D. tertiolecta [60,71], acetone (100:1) and acetic ether (100:1) for the extraction of astaxanthin from H. pluvialis [38,89]. Overall, all the above constraints represent a major challenge and require careful optimisation in order to explore the full potential of MAE for extraction of commercially viable products from microalgae.

8. Future Prospects: MAE as a Cost Effective Biorefinery Approach

Overall, a wide range of products has been obtained from microalgae using MAE. Lipid extraction (as a precursor for biodiesel) using MAE has potential but requires further optimisation of its process parameters to make the overall process economically sustainable. Although traditionally used at laboratory-scale, MAE has the potential to be upgraded to a commercial scale as demonstrated recently for the production of biodiesel from waste cooking oil [52]. Additionally, it has been revealed that the most promise lies in obtaining biodiesel through DT using MWs, which remains to be explored at an industrial-scale. Isopropanol/hexane has been suggested as the most appropriate solvent for the extraction of proteins and carbohydrates from lipid extracted algae (LEA) biomass [76] but this is unsuitable for a large-scale application. To date, most commercial processes have focused on a single product approach but there have been recent reports on utilising microalgae as a biorefinery and producing multiple products (Figure 2). A biorefinery aims to replace oil with biomass as a feedstock for bioenergy and a spectrum of marketable products utilising different biochemical fractions including lipid, protein, vitamins, carbohydrate and pigments through a sustainable process [6,117]. To date, only Ansari and co-workers [56] focused on a biorefinery approach, whereby lipids were extracted from S. obliquus using MWs, whereas different extraction methods were employed for proteins and carbohydrates. Proteins were deemed the most costly biochemical fraction, followed by lipids and carbohydrates. Carotenoids were omitted from this study. For a successful biorefinery, it was determined that proteins should be extracted first, followed by the extraction of lipids and carbohydrates. However, to date, MAE for industrial-scale applications has not been investigated thoroughly and currently is only suitable for laboratory-scale applications.
In developing the biorefinery platform, more emphasis should be on selecting the correct organism with the most commercial potential. Biofuels from microalgae have been investigated since the 1970s with The Aquatic Species Programme (ASP) revealing that biodiesel had the greatest potential of all biofuels [118]. Nevertheless, biodiesel from microalgae was not and is not cost competitive with oil refinery platforms. Oil production from microalgae in the optimal scenario is US$1.65/L [119] but the current price of Brent crude oil is ~US$50/barrel, equating to US$0.26/L. Therefore, in order to create an economically sustainable biorefinery platform, an involvement of high value products is required.
Currently, there are three microalgal species that have been investigated for producing a suite of products that have commercial potential; P. tricornutum for EPA, chrysolaminarin (carbohydrate) and fucoxanthin [120], P. purpureum for EPA, zeaxanthin, β-carotene, exopolysaccharides and phycobiliproteins [121] and Nannochloropsis sp. for EPA and high value proteins [122]. Due to the higher lipid content and greater biodiesel conversion efficiency of Nannochloropsis sp., there is a greater potential for establishing the economically sustainable microalgal biorefinery using MAE, where biodiesel can be produced in conjunction with EPA, pigments and phycobiliproteins. Phycobiliproteins have been successfully extracted from P. purporeum and thus through process development, this can be applied to Nannochloropsis. However, further work and a detailed life cycle analysis are warranted.
MW technology offers great potential for a biorefinery approach provided the challenges can be addressed with an emphasis on using green solvents and reducing the energy input. Alternatively, a ‘milking’ process where operating parameters are selected which temporarily open pores within the cell wall (as in electroporation) holds promise and can be a viable option for microalgal biotechnology as postulated by [58]. Temporarily opening the pores would release biochemical components into the media, which would result in a simplified extraction process with a reduction in energy requirement and without killing the cells.


The authors acknowledge financial support from EPSRC (EP/E036252/1) and BBSRC (BB/K020633/1).

Author Contributions

Rahul Vijay Kapoore and Thomas O. Butler conceived the paper and contributed equally. Rahul Vijay Kapoore and Thomas O. Butler wrote the paper with guidance from Jagroop Pandhal and Seetharaman Vaidyanathan.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the writing of the manuscript, and in the decision to publish the results.


  1. Guiry, M.D. How many species of algae are there? J. Phycol. 2012, 48, 1057–1063. [Google Scholar] [CrossRef] [PubMed]
  2. Priyadarshani, I.; Rath, B. Commercial and industrial applications of micro algae—A review. J. Algal Biomass Util. Phycospectr. Inc. 2012, 3, 89–100. [Google Scholar]
  3. Chisti, Y. Biodiesel from microalgae. Biotechnol. Adv. 2007, 25, 294–306. [Google Scholar] [CrossRef] [PubMed]
  4. Mata, T.M.; Nio, A.; Martins, A.; Caetano, N.S. Microalgae for biodiesel production and other applications: A review. Renew. Sustain. Energy Rev. 2010, 14, 217–232. [Google Scholar] [CrossRef]
  5. Abu-Ghosh, S.; Fixler, D.; Dubinsky, Z.; Iluz, D. Flashing light in microalgae biotechnology. Biores. Technol. 2016, 203, 357–363. [Google Scholar] [CrossRef] [PubMed]
  6. González-Delgado, Á.-D.; Kafarov, V. Microalgae based biorefinery: Issues to consider. Ciencia Tecnol. Futuro 2011, 4, 5–21. [Google Scholar]
  7. Benemann, J. Microalgae for biofuels and animal feeds. Energies 2013, 6, 5869–5886. [Google Scholar] [CrossRef]
  8. Patil, P.D.; Gude, V.G.; Mannarswamy, A.; Cooke, P.; Nirmalakhandan, N.; Lammers, P.; Deng, S. Comparison of direct transesterification of algal biomass under supercritical methanol and microwave irradiation conditions. Fuel 2012, 97, 822–831. [Google Scholar] [CrossRef]
  9. Cooney, M.; Young, G.; Nagle, N. Extraction of bio-oils from microalgae. Sep. Purif. Rev. 2016, 38, 291–325. [Google Scholar] [CrossRef]
  10. Burczyk, J. Cell wall carotenoids in green algae which form sporopollenins. Phytochemistry 1986, 26, 121–128. [Google Scholar] [CrossRef]
  11. Mendes-Pinto, M.M.; Raposo, M.F.J.; Bowen, J.; Young, A.J.; Morais, R. Evaluation of different cell disruption process on encysted cells of Haematococcus pluvialis. J. Appl. Phycol. 2001, 13, 19–24. [Google Scholar] [CrossRef]
  12. Cravotto, G.; Boffa, L.; Mantegna, S.; Perego, P.; Avogadro, M.; Cintas, P. Improved extraction of vegetable oils under high-intensity ultrasound and/or microwaves. Ultrason. Sonochem. 2008, 15, 898–902. [Google Scholar] [CrossRef] [PubMed]
  13. Esquivel-Hernández, D.A.; Ibarra-Garza, I.P.; Rodríguez-Rodríguez, J.; Cuéllar-Bermúdez, S.P.; de Jesús Rostro-Alanis, M.; Alemán-Nava, G.S.; Saul García-Pérez, J.S.; Parra-Saldívar, R. Green extraction technologies for high-value metabolites from algae: A review. Biofuels Bioprod. Biorefin. 2017, 11, 215–231. [Google Scholar]
  14. Gilbert-López, B.; Barranco, A.; Herrero, M.; Cifuentes, A.; Ibáñez, E. Development of new green processes for the recovery of bioactives from Phaeodactylum tricornutum. Food Res. Int. 2017, 99, 1056–1065. [Google Scholar] [CrossRef] [PubMed]
  15. Al Hattab, M.; Ghaly, A. Microalgae oil extraction pre-treatment methods: Critical review and comparative analysis. J. Fundam. Renew. Energy Appl. 2015, 5, 1–26. [Google Scholar] [CrossRef]
  16. Kapoore, R.V. Mass spectrometry based hyphenated techniques for microalgal and mammalian metabolomics. Ph.D. Thesis, University of Sheffield, Sheffield, UK, August 2014. [Google Scholar]
  17. Denery, J.R.; Dragull, K.; Tang, C.S.; Li, Q.X. Pressurized fluid extraction of carotenoids from Haematococcus pluvialis and Dunaliella salina and kavalactones from Piper methysticum. Anal. Chim. Acta 2004, 501, 175–181. [Google Scholar] [CrossRef]
  18. Ryckebosch, E.; Muylaert, K.; Eeckhout, M.; Ruyssen, T.; Foubert, I. Influence of drying and storage on lipid and carotenoid stability of the microalga Phaeodactylum tricornutum. J. Agric. Food Chem. 2011, 59, 11063–11069. [Google Scholar] [CrossRef] [PubMed]
  19. Spiden, E.M.; Yap, B.H.J.; Hill, D.R.A.; Kentish, S.E.; Scales, P.J.; Martin, G.J.O. Quantitative evaluation of the ease of rupture of industrially promising microalgae by high pressure homogenization. Bioresour. Technol. 2013, 140, 165–171. [Google Scholar] [CrossRef] [PubMed]
  20. Theegala, C.S. Algal cell disruption and lipid extraction: A review on current technologies and limitations. Algal Biorefin. 2015, 419–441. [Google Scholar]
  21. Ali, M.; Watson, I.A. Microwave treatment of wet algal paste for enhanced solvent extraction of lipids for biodiesel production. Renew. Energy 2015, 76, 470–477. [Google Scholar] [CrossRef]
  22. Gong, M.; Hu, Y.; Yedahalli, S.; Bassi, A. Oil Extraction Processes in Microalgae. Recent Adv. Renew. Energy 2017, 1, 377–411. [Google Scholar]
  23. Axelsson, M.; Gentili, F. A single-step method for rapid extraction of total lipids from green microalgae. PLoS ONE. 2014, 9, 17–20. [Google Scholar] [CrossRef] [PubMed]
  24. Seo, J.Y.; Kim, M.G.; Lee, K.; Lee, Y.-C.; Na, J.-G.; Jeon, S.G.; Park, S.B.; Oh, Y.K. Multifunctional nanoparticle applications to microalgal biorefinery. In Nanotechnology for Bioenergy and Biofuel Production; Rai, M., da Silva, S.S., Eds.; Springer International Publishing: Cham, Switzerland, 2017; pp. 59–87. [Google Scholar]
  25. Nobre, B.; Marcelo, F.; Passos, R.; Beir, O.L.; Palavra, A.; Gouveia, L.; Mendes, R. Supercritical carbon dioxide extraction of astaxanthin and other carotenoids from the microalga Haematococcus pluvialis. Eur. Food Res. Technol. 2006, 223, 787–790. [Google Scholar] [CrossRef]
  26. Zheng, H.; Yin, J.; Gao, Z.; Huang, H.; Ji, X.; Dou, C. Disruption of Chlorella vulgaris cells for the release of biodiesel-producing lipids: A comparison of grinding, ultrasonication, bead milling, enzymatic lysis, and microwaves. Appl. Biochem. Biotechnol. 2011, 164, 1215–1224. [Google Scholar] [CrossRef] [PubMed]
  27. Goettel, M.; Eing, C.; Gusbeth, C.; Straessner, R.; Frey, W. Pulsed electric field assisted extraction of intracellular valuables from microalgae. Algal Res. 2013, 2, 401–408. [Google Scholar] [CrossRef]
  28. Biller, P.; Friedman, C.; Ross, A.B. Hydrothermal microwave processing of microalgae as a pre-treatment and extraction technique for bio-fuels and bio-products. Bioresour. Technol. 2013, 136, 188–195. [Google Scholar] [CrossRef] [PubMed]
  29. Passos, F.; Carretero, J.; Ferrer, I. Comparing pretreatment methods for improving microalgae anaerobic digestion: Thermal, hydrothermal, microwave and ultrasound. Chem. Eng. J. 2015, 279, 667–672. [Google Scholar] [CrossRef]
  30. Shankar, M.; Chhotaray, P.K.; Agrawal, A.; Gardas, R.L.; Tamilarasan, K.; Rajesh, M. Protic ionic liquid-assisted cell disruption and lipid extraction from fresh water Chlorella and Chlorococcum microalgae. Algal Res. 2017, 25, 228–236. [Google Scholar] [CrossRef]
  31. Lee, J.Y.; Yoo, C.; Jun, S.Y.; Ahn, C.Y.; Oh, H.M. Comparison of several methods for effective lipid extraction from microalgae. Bioresour. Technol. 2010, 101, S75–S77. [Google Scholar] [CrossRef] [PubMed]
  32. Gong, M.; Bassi, A. Carotenoids from microalgae: A review of recent developments. Biotechnol. Adv. 2016, 34, 1396–1412. [Google Scholar] [CrossRef] [PubMed]
  33. Virot, M.; Tomao, V.; Ginies, C.; Visinoni, F.; Chemat, F. Microwave-integrated extraction of total fats and oils. J. Chromatogr. A. 2008, 1196, 57–64. [Google Scholar] [CrossRef] [PubMed]
  34. García-Ayuso, L.E.; Sánchez, M.; Fernández de Alba, A.; Luque de Castro, M.D. Focused microwave-assisted soxhlet:  An advantageous tool for sample extraction. Am. Chem. Soc. 1998, 70, 2426–2431. [Google Scholar] [CrossRef] [PubMed]
  35. Mercer, P.; Armenta, R.E. Developments in oil extraction from microalgae. Eur. J. Lipid Sci. Technol. 2011, 113, 539–547. [Google Scholar] [CrossRef]
  36. Jaki, B.U.; Franzblau, S.G.; Cho, S.H.; Pauli, G.F. Development of an extraction method for mycobacterial metabolome analysis. J. Pharm. Biomed. Anal. 2006, 41, 196–200. [Google Scholar] [CrossRef] [PubMed]
  37. Günerken, E.; D’Hondt, E.; Eppink, M.H.M.; Garcia-Gonzalez, L.; Elst, K.; Wijffels, R.H. Cell disruption for microalgae biorefineries. Biotechnol. Adv. 2015, 33, 243–260. [Google Scholar] [CrossRef] [PubMed]
  38. Zhao, X.; Zhang, X.; Fu, L.; Zhu, H.; Zhang, B. Effect of extraction and drying methods on antioxidant activity of astaxanthin from Haematococcus pluvialis. Food Bioprod. Process. 2016, 99, 197–203. [Google Scholar] [CrossRef]
  39. Guldhe, A.; Singh, B.; Rawat, I.; Bux, F. Synthesis of biodiesel from Scenedesmus sp. by microwave and ultrasound assisted in situ transesterification using tungstated zirconia as a solid acid catalyst. Chem. Eng. Res. Des. 2014, 92, 1503–1511. [Google Scholar] [CrossRef]
  40. Kim, S.M.; Jung, Y.-J.; Kwon, O.-N.; Cha, K.H.; Um, B.-H.; Chung, D.; Pan, C.H. A potential commercial source of fucoxanthin extracted from the microalga Phaeodactylum tricornutum. Appl Biochem Biotechnol. 2012, 166, 1843–1855. [Google Scholar] [CrossRef] [PubMed]
  41. Vyas, A.P.; Verma, J.L.; Subrahmanyam, N. A review on FAME production processes. Fuel 2010, 89, 1–9. [Google Scholar] [CrossRef]
  42. Moreau, R.A.; Powell, M.J.; Singh, V. Pressurized liquid extraction of polar and nonpolar lipids in corn and oats with hexane, methylene chloride, isopropanol, and ethanol. J. Am. Oil Chem. Soc. 2003, 80, 1063–1067. [Google Scholar] [CrossRef]
  43. Herrero, M.; Cifuentes, A.; Ibañez, E. Sub- and supercritical fluid extraction of functional ingredients from different natural sources: Plants, food-by-products, algae and microalgae: A review. Food Chem. 2006, 98, 136–148. [Google Scholar] [CrossRef]
  44. Gil-Chávez, J.G.; Villa, J.A.; Ayala-Zavala, F.J.; Basilio Heredia, J.; Sepulveda, D.; Yahia, E.M.; González-Aguilar, G.A. Technologies for extraction and production of bioactive compounds to be used as nutraceuticals and food ingredients: An overview. Compr. Rev. Food Sci. Food Saf. 2013, 12, 5–23. [Google Scholar] [CrossRef]
  45. Vinayak, V.; Manoylov, K.; Gateau, H.; Blanckaert, V.; Hérault, J.; Pencréac’h, G.; Marchard, J.; Gordon, R.; Schoefs, B. Diatom milking: A review and new approaches. Mar. Drugs 2015, 13, 2629–2665. [Google Scholar] [CrossRef] [PubMed]
  46. Luengo, E.; Condón-Abanto, S.; Álvarez, I.; Raso, J. Effect of pulsed electric field treatments on permeabilization and extraction of pigments from Chlorella vulgaris. J. Membr. Biol. 2014, 247, 1269–1277. [Google Scholar] [CrossRef] [PubMed]
  47. Balasubramanian, S.; Allen, J.D.; Kanitkar, A.; Boldor, D. Oil extraction from Scenedesmus obliquus using a continuous microwave system—Design, optimization, and quality characterization. Bioresour. Technol. 2011, 102, 3396–3403. [Google Scholar] [CrossRef] [PubMed]
  48. Ganzler, K.; Salgó, A.; Valkó, K. Microwave extraction: A novel sample preparation method for chromatography. J. Chromatogr. A. 1986, 371, 299–306. [Google Scholar] [CrossRef]
  49. Kadam, S.U.; Tiwari, B.K.; O’Donnell, C.P. Application of novel extraction technologies for bioactives from marine algae. J. Agric. Food Chem. 2013, 61, 4667–4675. [Google Scholar] [CrossRef] [PubMed]
  50. Hahn, T.; Lang, S.; Ulber, R.; Muffler, K. Novel procedures for the extraction of fucoidan from brown algae. Process Biochem. 2012, 47, 1691–1698. [Google Scholar] [CrossRef]
  51. Chemat, F.; Rombaut, N.; Meullemiestre, A.; Turk, M.; Perino, S.; Fabiano-Tixier, A.-S.; Abert-Vian, M. Review of green food processing techniques. Preservation, transformation, and extraction. Innov. Food Sci. Emerg. Technol. 2017, 41, 357–377. [Google Scholar] [CrossRef]
  52. Tatke, P.; Jaiswal, Y. An overview of microwave assisted extraction and its applications in herbal drug research. Res. J. Med. Plant. 2011, 5, 21–31. [Google Scholar] [CrossRef]
  53. Zill-E-Huma. Microwave hydro-diffusion and gravity: A novel technique for antioxidants extraction. Ph.D. Thesis, Université d’Avignon, Avignon, France, December 2010. [Google Scholar]
  54. Veggi, P.C.; Martinez, J.; Meireles, M.A.A. Fundamentals of microwave extraction. In Microwave-Assisted Extraction for Bioactive Compounds; Chemat, F., Cravotto, G., Eds.; Springer International Publishing: New York, NY, USA, 2012; pp. 15–52. [Google Scholar]
  55. Périno-Issartier, S.; Zill-e-Huma; Abert-Vian, M.; Chemat, F. Solvent free microwave-assisted extraction of antioxidants from sea buckthorn (Hippophae rhamnoides) food by-products. Food Bioprocess Technol. 2011, 4, 1020–1028. [Google Scholar]
  56. Ansari, F.A.; Shriwastav, A.; Gupta, S.K.; Rawat, I.; Bux, F. Exploration of microalgae biorefinery by optimizing sequential extraction of major metabolites from Scenedesmus obliquus. Ind. Eng. Chem. Res. 2017, 56, 3407–3412. [Google Scholar] [CrossRef]
  57. Reddy, H.K.; Muppaneni, T.; Sun, Y.; Li, Y.; Ponnusamy, S.; Patil, P.D.; Dailey, P. Subcritical water extraction of lipids from wet algae for biodiesel production. Fuel 2014, 133, 73–81. [Google Scholar] [CrossRef]
  58. Cheng, J.; Sun, J.; Huang, Y.; Feng, J.; Zhou, J.; Cen, K. Dynamic microstructures and fractal characterization of cell wall disruption for microwave irradiation-assisted lipid extraction from wet microalgae. Bioresour. Technol. 2013, 150, 67–72. [Google Scholar] [CrossRef] [PubMed]
  59. Folch, J.; Lees, M.; Sloane Stanley, G.H. A simple method for the isolation and purification of total lipids from animal tissues. J. Biol. Chem. 1957, 226, 497–509. [Google Scholar] [PubMed]
  60. Prommuak, C.; Pavasant, P.; Quitain, A.T.; Goto, M.; Shotipruk, A. Microalgal lipid extraction and evaluation of single-step biodiesel production. Eng. J. 2012, 16, 157–166. [Google Scholar] [CrossRef]
  61. Iqbal, J.; Theegala, C. Microwave assisted lipid extraction from microalgae using biodiesel as co-solvent. Algal Res. 2013, 2, 34–42. [Google Scholar] [CrossRef]
  62. Pan, J.; Muppaneni, T.; Sun, Y.; Reddy, H.K.; Fu, J.; Lu, X.; Deng, S. Microwave-assisted extraction of lipids from microalgae using an ionic liquid solvent [BMIM][HSO4]. Fuel 2016, 178, 49–55. [Google Scholar] [CrossRef]
  63. Prabakaran, P.; Ravindran, A.D. A comparative study on effective cell disruption methods for lipid extraction from microalgae. Lett. Appl. Microbiol. 2011, 53, 150–154. [Google Scholar] [CrossRef] [PubMed]
  64. Šoštarič, M.; Klinar, D.; Bricelj, M.; Golob, J.; Berovič, M.; Likozar, B. Growth, lipid extraction and thermal degradation of the microalga Chlorella vulgaris. New Biotechnol. 2012, 29, 325–331. [Google Scholar] [CrossRef] [PubMed]
  65. Lohman, E.J.; Gardner, R.D.; Halverson, L.; Macur, R.E.; Peyton, B.M.; Gerlach, R. An efficient and scalable extraction and quantification method for algal derived biofuel. J. Microbiol. Methods. 2013, 94, 235–244. [Google Scholar] [CrossRef] [PubMed]
  66. Bermúdez Menéndez, J.M.; Arenillas, A.; Menéndez Díaz, J.Á.; Boffa, L.; Mantegna, S.; Binello, A.; Cravatto, G. Optimization of microalgae oil extraction under ultrasound and microwave irradiation. J. Chem. Technol. Biotechnol. 2014, 89, 1779–1784. [Google Scholar] [CrossRef]
  67. Dai, Y.-M.; Chen, K.-T.; Chen, C.-C. Study of the microwave lipid extraction from microalgae for biodiesel production. Chem. Eng. J. 2014, 250, 267–273. [Google Scholar] [CrossRef]
  68. Patrícya, A.; De Souza Silva, F.; Carantino Costa, M.; Lopes, A.C.; Fares, E.; Neto, A.; Leitão, R.C.; Mota, C.R.; dos Santos, A.B. Comparison of pretreatment methods for total lipids extraction from mixed microalgae. Renew. Energy 2014, 63, 762–766. [Google Scholar]
  69. Hernández, D.; Solana, M.; Riaño, B.; García-González, M.C.; Bertucco, A. Biofuels from microalgae: Lipid extraction and methane production from the residual biomass in a biorefinery approach. Bioresour. Technol. 2014, 170, 370–378. [Google Scholar] [CrossRef] [PubMed]
  70. Martinez-Guerra, E.; Gude, V.G.; Mondala, A.; Holmes, W.; Hernandez, R. Extractive-transesterification of algal lipids under microwave irradiation with hexane as solvent. Bioresour. Technol. 2014, 156, 240–247. [Google Scholar] [CrossRef] [PubMed]
  71. Qv, X.-Y.; Zhou, Q.-F.; Jiang, J.-G. Ultrasound-enhanced and microwave-assisted extraction of lipid from Dunaliella tertiolecta and fatty acid profile analysis. J. Sep. Sci. 2014, 37, 2991–2999. [Google Scholar] [CrossRef] [PubMed]
  72. Wahidin, S.; Idris, A.; Raehanah Muhamad Shaleh, S.; Bahru, J. Rapid biodiesel production using wet microalgae via microwave irradiation. Energy Convers. Manag. 2014, 84, 227–233. [Google Scholar] [CrossRef]
  73. Ansari, F.A.; Shriwastav, A.; Gupta, S.K.; Rawat, I.; Guldhe, A.; Bux, F. Lipid extracted algae as a source for protein and reduced sugar: A step closer to the biorefinery. Bioresour. Technol. 2015, 179, 559–564. [Google Scholar] [CrossRef] [PubMed]
  74. Esquivel-Hernández, D.; López, V.; Rodríguez-Rodríguez, J.; Alemán-Nava, G.; Cuéllar-Bermúdez, S.; Rostro-Alanis, M.; Parra Saldívar, R. Supercritical carbon dioxide and microwave-assisted extraction of functional lipophilic compounds from Arthrospira platensis. Int. J. Mol. Sci. 2016, 17, E658. [Google Scholar] [CrossRef] [PubMed]
  75. Garoma, T.; Janda, D. Investigation of the effects of microalgal cell concentration and electroporation, microwave and ultrasonication on lipid extraction efficiency. Renew. Energy 2016, 86, 117–123. [Google Scholar] [CrossRef]
  76. Ansari, F.A.; Gupta, S.K.; Shriwastav, A.; Guldhe, A.; Rawat, I.; Bux, F. Evaluation of various solvent systems for lipid extraction from wet microalgal biomass and its effects on primary metabolites of lipid-extracted biomass. Environ. Sci. Pollut. Res. 2017, 24, 15299–15307. [Google Scholar] [CrossRef] [PubMed]
  77. Koberg, M.; Cohen, M.; Ben-Amotz, A.; Gedanken, A. Bio-diesel production directly from the microalgae biomass of Nannochloropsis by microwave and ultrasound radiation. Bioresour. Technol. 2011, 102, 4265–4269. [Google Scholar] [CrossRef] [PubMed]
  78. Patil, P.D.; Reddy, H.; Muppaneni, T.; Mannarswamy, A.; Schuab, T.; Holguin, F.O.; Lammers, P.; Nirmalakhandan, N.; Cooke, P.; Deng, S. Power dissipation in microwave-enhanced in situ transesterification of algal biomass to biodiesel. Green Chem. 2012, 14, 809–818. [Google Scholar] [CrossRef]
  79. Patil, P.D.; Reddy, H.; Muppaneni, T.; Schaub, T.; Holguin, F.O.; Cooke, P.; Lammers, P.; Nirmalakhandan, N.; Li, Y.; Lu, X.; Deng, S. In situ ethyl ester production from wet algal biomass under microwave-mediated supercritical ethanol conditions. Bioresour. Technol. 2013, 139, 308–315. [Google Scholar] [CrossRef] [PubMed]
  80. Ma, G.; Hu, W.; Pei, H.; Jiang, L.; Song, M.; Mu, R. In situ heterogeneous transesterification of microalgae using combined ultrasound and microwave irradiation. Energy Convers. Manag. 2015, 90, 41–46. [Google Scholar] [CrossRef]
  81. Salgueiro, J.L.; Cancela, Á.; Sánchez, Á.; Maceiras, R.; Pérez, L. Analysis of extraction and transesterification conditions for Phaeodactylum Tricornutum Microalgae. Eur. J. Sustain. Dev. 2015, 4, 89–96. [Google Scholar] [CrossRef]
  82. Patil, P.; Gude, V.; Mannarswamy, A.; Deng, S.; Cooke, P.; Lammers, P. Direct conversion of algal biomass under supercritical methanol and microwave irradiation conditions. In Proceedings of the International Bioenergy & Bioproducts Conference, Atlanta, GA, USA, 14–16 March 2011. [Google Scholar]
  83. Lien, E.L.; Richard, C.; Hoffman, D.R. DHA and ARA addition to infant formula: Current status and future research directions. PLEFA 2017, 128, 26–40. [Google Scholar] [CrossRef] [PubMed]
  84. Yongmanitchai, W.; Ward, P. Growth of and omega-3 fatty acid production by Phaeodactylum tricornutum under different culture conditions. Appl. Environ. Microbiol. 1991, 57, 419–425. [Google Scholar] [PubMed]
  85. Britton, G. Carotenoids. In Natural Food Colorants; Hendry, G.A.F., Houghton, J.D., Eds.; Blackie Academic and Professional: New York, NY, USA, 1996; pp. 197–243. [Google Scholar]
  86. Zhao, P.; Zang, Z.; Xie, X.; Huang, A.; Wang, G. The influence of different flocculants on the physiological activity and fucoxanthin production of Phaeodactylum tricornutum. Process Biochem. 2014, 49, 681–687. [Google Scholar] [CrossRef]
  87. Zhao, L.; Zhao, G.; Chen, F.; Wang, Z.; Wu, J.; Hu, X. Different effects of microwave and ultrasound on the stability of (all-E)-astaxanthin. J. Agric. Food Chem. 2006, 54, 8346–8351. [Google Scholar] [CrossRef] [PubMed]
  88. Pasquet, V.; Chérouvrier, J.R.; Farhat, F.; Thiéry, V.; Piot, J.M.; Bérard, J.B.; Kaas, R.; Serive, B.; Patrice, T.; Cadoret, J.P.; Picot, L. Study on the microalgal pigments extraction process: Performance of microwave assisted extraction. Process Biochem. 2011, 46, 59–67. [Google Scholar] [CrossRef]
  89. Ruen-Ngam, D.; Shotipruk, A.; Pavasant, P. Comparison of extraction methods for recovery of astaxanthin from Haematococcus pluvialis. Sep. Sci. Technol. 2010, 46, 64–70. [Google Scholar] [CrossRef]
  90. Zhao, L.; Chen, G.; Zhao, G.; Hu, X. Optimization of microwave-assisted extraction of astaxanthin from Haematococcus Pluvialis by response surface methodology and antioxidant activities of the extracts. Sep. Sci. Technol. 2009, 44, 243–262. [Google Scholar] [CrossRef]
  91. Esquivel-Hernández, D.A.; Rodríguez-Rodríguez, J.; Rostro-Alanis, M.; Cuéllar-Bermúdez, S.P.; Mancera-Andrade, E.I.; Núñez-Echevarría, J.E.; Saúl García-Pérez, J.; Chandra, R.; Parra-Saldívar, R. Advancement of green process through microwave-assisted extraction of bioactive metabolites from Arthrospira platensis and bioactivity evaluation. Bioresour. Technol. 2017, 224, 618–629. [Google Scholar] [CrossRef] [PubMed]
  92. Nguyen, K.D. Astaxanthin: A Comparative Case of Synthetic vs Natural Production. Available online: (accessed on 14 December 2017).
  93. Li, J.; Zhu, D.; Niu, J.; Shen, S.; Wang, G. An economic assessment of astaxanthin production by large scale cultivation of Haematococcus pluvialis. Biotechnol. Adv. 2011, 29, 568–574. [Google Scholar] [CrossRef] [PubMed]
  94. Yuan, J.P.; Gong, X.D.; Chen, F. Separation and analysis of carotenoids and chlorophylls in Haematococcus lacustris by high-performance liquid chromatography photodiode array detection. J. Agric. Food Chem. 1997, 45, 1952–1956. [Google Scholar] [CrossRef]
  95. Higuera-Ciapara, I.; Félix-Valenzuela, L.; Goycoolea, F.M. Astaxanthin: A review of its chemistry and applications. Crit. Rev. Food Sci. Nutr. 2006, 46, 185–196. [Google Scholar] [CrossRef] [PubMed]
  96. Capelli, B.; Bagchi, D.; Cysewski, G.R. Synthetic astaxanthin is significantly inferior to algal-based astaxanthin as an antioxidant and may not be suitable as a human nutraceutical supplement. Nutrafoods 2013, 12, 145–152. [Google Scholar] [CrossRef]
  97. Guerin, M.; Huntley, M.E.; Olaizola, M. Haematococcus astaxanthin: Applications for human health and nutrition. Trends Biotechnol. 2003, 21, 210–216. [Google Scholar] [CrossRef]
  98. Aflalo, C.; Meshulam, Y.; Zarka, A.; Boussiba, S. On the relative efficiency of two- vs. one-stage production of astaxanthin by the green alga Haematococcus pluvialis. Biotechnol. Bioeng. 2007, 98, 300–305. [Google Scholar] [CrossRef] [PubMed]
  99. Butler, T.; McDougall, G.; Campbell, R.; Stanley, M.; Day, J. Media screening for obtaining Haematococcus pluvialis red motile macrozooids rich in astaxanthin and fatty acids. Biology 2017, 7, E2. [Google Scholar] [CrossRef] [PubMed]
  100. Wu, H.; Li, T.; Wang, G.; Dai, S.; He, H.; Xiang, W. A comparative analysis of fatty acid composition and fucoxanthin content in six Phaeodactylum tricornutum strains from different origins. Chin. J. Oceanol. Limnol. 2016, 34, 391–398. [Google Scholar] [CrossRef]
  101. Heo, S.J.; Yoon, W.J.; Kim, K.N.; Ahn, G.N.; Kang, S.M.; Kang, D.H.; Oh, C.; Jung, W.K.; Jeon, Y.J. Evaluation of anti-inflammatory effect of fucoxanthin isolated from brown algae in lipopolysaccharide-stimulated RAW 264.7 macrophages. Food Chem. Toxicol. 2010, 48, 2045–2051. [Google Scholar] [CrossRef] [PubMed]
  102. Ruiz-Ruiz, F.; Benavides, J.; Rito-Palomares, M. Scaling-up of a B-phycoerythrin production and purification bioprocess involving aqueous two-phase systems: Practical experiences. Process Biochem. 2013, 48, 738–745. [Google Scholar] [CrossRef]
  103. Spolaore, P.; Joannis-Cassan, C.; Duran, E.; Isambert, A. Commercial applications of microalgae. J. Biosci. Bioeng. 2006, 101, 87–96. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Juin, C.; Chérouvrier, J.R.; Thiéry, V.; Gagez, A.L.; Bérard, J.B.; Joguet, N.; Kaas, R.; Cadoret, J.P.; Picot, L. Microwave-assisted extraction of phycobiliproteins from Porphyridium purpureum. Appl. Biochem. Biotechnol. 2015, 175, 1–15. [Google Scholar] [CrossRef] [PubMed]
  105. Vernès, L.; Granvillain, P.; Chemat, F.; Vian, M. Phycocyanin from Arthrospira platensis. Production, extraction and analysis. Curr. Biotechnol. 2016, 4, 481–491. [Google Scholar] [CrossRef]
  106. Kathiresan, S.; Sarada, R.; Bhattacharya, S.; Ravishankar, G.A. Culture media optimization for growth and phycoerythrin production from Porphyridium purpureum. Biotechnol. Bioeng. 2007, 96, 456–463. [Google Scholar] [CrossRef] [PubMed]
  107. Passos, F.; Solé, M.; García, J.; Ferrer, I. Biogas production from microalgae grown in wastewater: Effect of microwave pretreatment. Appl. Energy 2013, 108, 168–175. [Google Scholar] [CrossRef]
  108. Carocho, M.; Barreiro, M.F.; Morales, P.; Ferreira, I.C.F.R. Adding molecules to food, pros and cons: A review on synthetic and natural food additives. Compr. Rev. Food Sci. Food Saf. 2014, 13, 377–399. [Google Scholar] [CrossRef]
  109. Graulet, B.; Girard, C.L. B Vitamins in cow milk. In Dairy in Human Health and Disease across the Lifespan; Watson, R.R., Collier, R.J., Preedy, V.R., Eds.; Academic Press: Cambridge, MA, USA, 2017; pp. 211–224. [Google Scholar]
  110. Dong, S.; Huang, Y.; Zhang, R.; Wang, S.; Liu, Y. Four different methods comparison for extraction of astaxanthin from green alga Haematococcus pluvialis. Sci. World J. 2014. [Google Scholar] [CrossRef]
  111. McMillan, J.R.; Watson, I.A.; Ali, M.; Jaafar, W. Evaluation and comparison of algal cell disruption methods: Microwave, waterbath, blender, ultrasonic and laser treatment. Appl. Energy 2013, 103, 128–134. [Google Scholar] [CrossRef]
  112. Angles, E.; Jaouen, P.; Pruvost, J.; Marchal, L. Wet lipid extraction from the microalga Nannochloropsis sp.: Disruption, physiological effects and solvent screening. Algal Res. 2017, 21, 27–34. [Google Scholar] [CrossRef]
  113. Terigar, B.G.; Balasubramanian, S.; Sabliov, C.M.; Lima, M.; Boldor, D. Soybean and rice bran oil extraction in a continuous microwave system: From laboratory- to pilot-scale. J. Food Eng. 2011, 104, 208–217. [Google Scholar] [CrossRef]
  114. Petigny, L.; Périno, S.; Minuti, M.; Visinoni, F.; Wajsman, J.; Chemat, F. Simultaneous microwave extraction and separation of volatile and non-volatile organic compounds of boldo leaves. From lab to industrial scale. Int. J. Mol. Sci. 2014, 15, 7183–7198. [Google Scholar] [CrossRef] [PubMed]
  115. Ghasemi Naghdi, F.; González González, L.M.; Chan, W.; Schenk, P.M. Progress on lipid extraction from wet algal biomass for biodiesel production. Microb. Biotechnol. 2016, 9, 718–726. [Google Scholar] [CrossRef] [PubMed]
  116. Chen, W.; Sommerfeld, M.; Hu, Q. Microwave-assisted nile red method for in vivo quantification of neutral lipids in microalgae. Bioresour. Technol. 2011, 102, 135–141. [Google Scholar] [CrossRef] [PubMed]
  117. Lee, S.Y.; Cho, J.M.; Chang, Y.K.; Oh, Y.-K. Cell disruption and lipid extraction for microalgal biorefineries: A review. Bioresour. Technol. 2017, 244, 1317–1328. [Google Scholar] [CrossRef] [PubMed]
  118. Sheehan, J.; Dunahay, T.; Benemann, J.; Roessler, P. Look Back at the U.S. Department of Energy’s Aquatic Species Program: Biodiesel from Algae. Close-Out Report. Available online: (accessed on 20 December 2017).
  119. Olivares, J.A. National Alliance for Advanced Biofuels and Bioproducts Synopsis (NAABB). Available online: (accessed on 22 December 2017).
  120. Baoyan, G.; Ailing, C.; Wenyuan, Z.; Aifen, L.; Chengwu, Z. Co-production of lipids, eicosapentaenoic acid, fucoxanthin, and chrysolaminarin by Phaeodactylum tricornutum cultured in a flat-plate photobioreactor under varying nitrogen conditions. J. Ocean Univ. China 2017, 16, 916–924. [Google Scholar]
  121. Coward, T.; Fuentes-Grünewald, C.; Silkina, A.; Oatley-Radcliffe, D.L.; Llewellyn, G.; Lovitt, R.W. Utilising light emitting diodes of specific narrow wavelengths for the optimization and co-production of multiple high-value compounds in Porphyridium purpureum. Bioresour. Technol. 2016, 221, 607–615. [Google Scholar] [CrossRef] [PubMed]
  122. Chua, E.T.; Schenk, P.M. A biorefinery for Nannochloropsis: Induction, harvesting, and extraction of EPA-rich oil and high-value protein. Bioresour. Technol. 2017, 244, 1416–1424. [Google Scholar] [CrossRef] [PubMed]

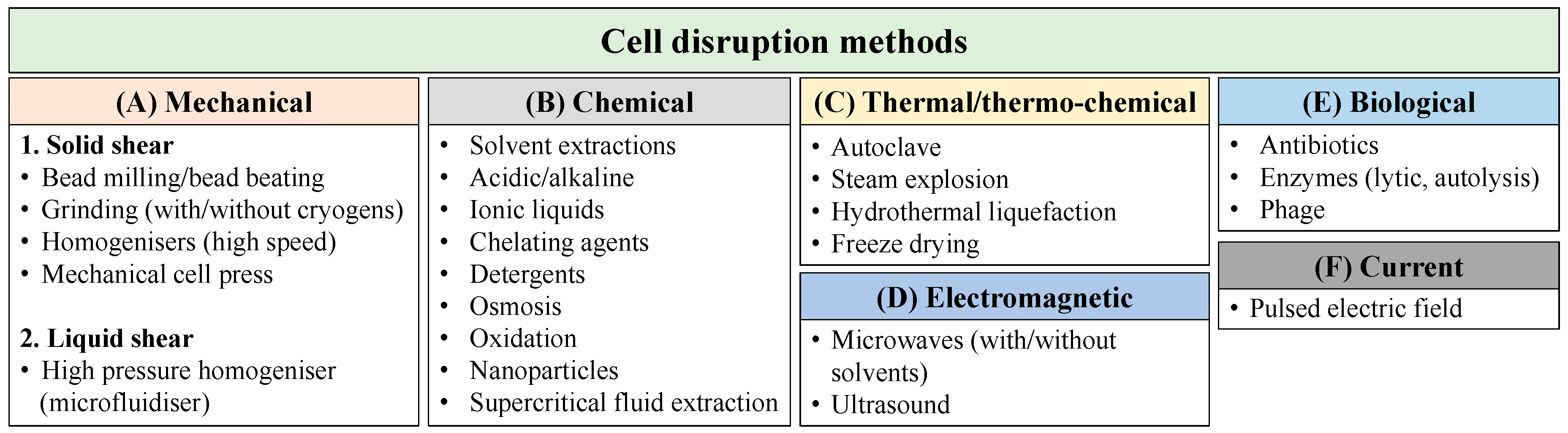

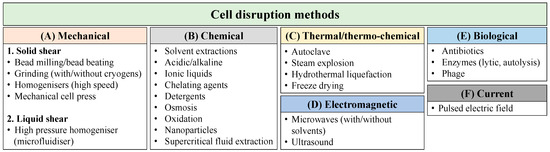

Figure 1. Summary of cell disruption methods used for microalgae.
Figure 1. Summary of cell disruption methods used for microalgae.
Biology 07 00018 g001

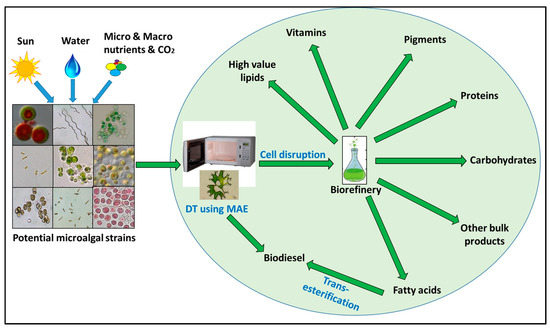

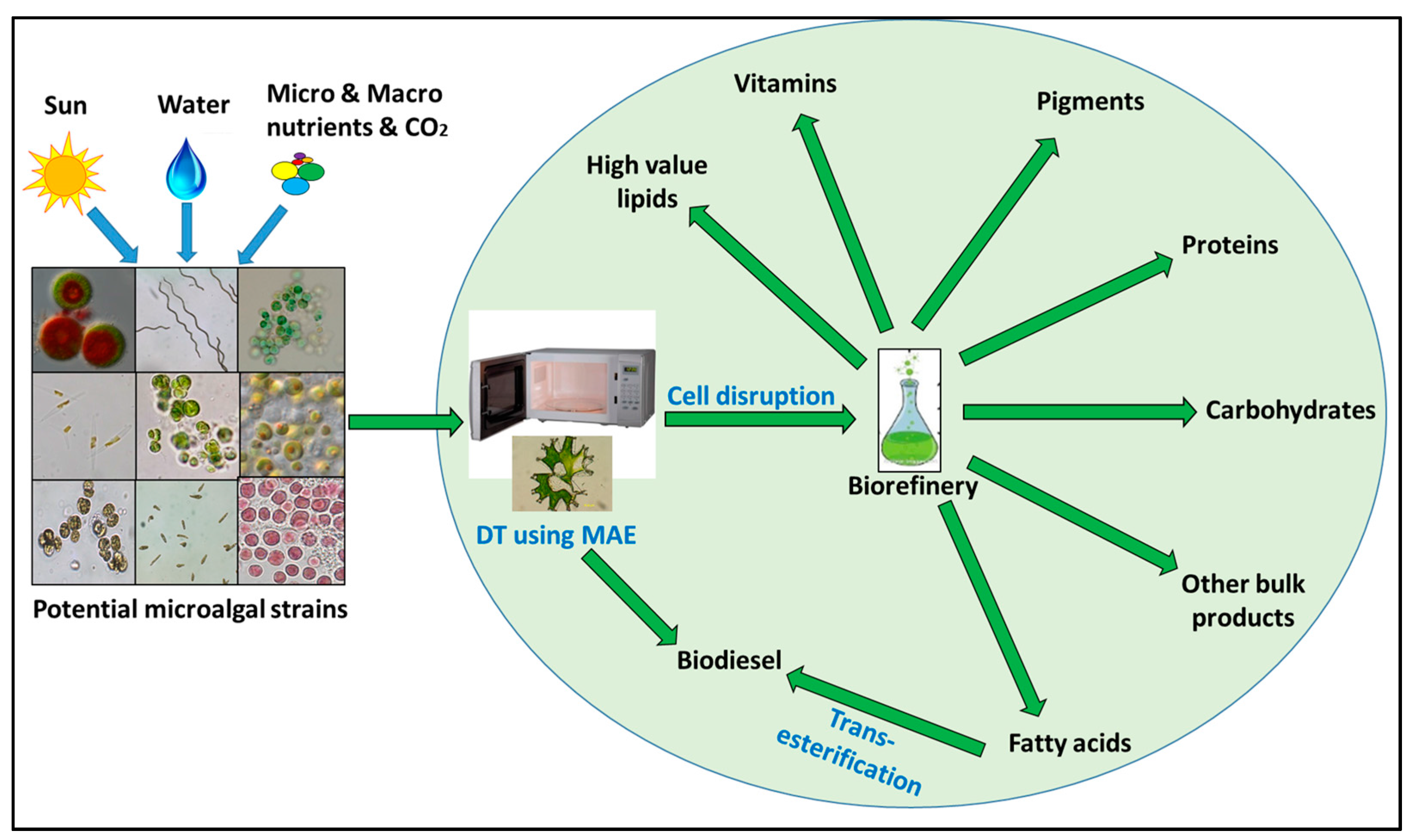

Figure 2. Overview of MAE based biorefinery for microalgal biotechnology.
Figure 2. Overview of MAE based biorefinery for microalgal biotechnology.
Biology 07 00018 g002
Table 1. Advantages and disadvantages of current cell disruption techniques for microalgal biotechnology.
Table 1. Advantages and disadvantages of current cell disruption techniques for microalgal biotechnology.
MethodOperates at Industrial ScaleSuitability for Commercial ApplicationAdvantagesDisadvantagesRef.
High pressure homogeniser-Destruction of cell walls at room temperature, effective for neutral lipid extractionHigh energy input, not effective for extraction of high molecular weight proteins[15,19]
Mechanical cell press-Industry standard for oil recovery from oilseedsInefficient cell disruption, high energy input[20]
Hydrodynamic cavitation-Relatively low energy inputCavitation area limited[21]
Horn sonication++Effective cell wall disruption, low maintenance cost, relatively rapid process, hazardous chemicals are not requiredMultiple units required, cavitation area limited, high operational costs and energy input[15]
Bath sonicationx+++Effective cell wall disruption, minimal maintenance cost, relatively rapid, no hazardous substances requiredHigh operational costs and energy input[15]
Microwavesx++++Effective cell wall disruption and excellent recovery of bioactives, relatively low energy input, fast heating and short reaction time, reduced solvent usageGenerates heat, high maintenance cost[15]
Bead milling/beat beating++Effective cell wall disruption, rapid extractionVaried efficiency across species, additional step required to remove beads, high maintenance costs and energy input[15]
Osmotic shockx-Low energy input, easier to scale-upInefficient cell disruption, generation of waste saltwater, time consuming[22]
Acid/alkali-Low energy inputRequires disposal of acid/alkali after extraction, carotenoid degradation[22]
Enzymatic hydrolysis++Effective cell wall hydrolysis, high selectivity, mild treatment, carotenoid bioactivity not affectedHigh cost of enzymes, longer treatment time, enzymes must be disposed of after use[15]
Autoclavex+Low maintenance costHigh energy input, not suitable for pigments[11,23]
Steam explosion+++++Effective cell wall disruption, low maintenance costs, relatively low energy inputVaried efficiency across species[15]
Freeze drying+Mild operating conditions, drying and extraction can be incorporated in one step, does not affect cellular componentsCell disruption variable and often the integrity of the cell wall is weakened but not disrupted, cost associated with pump maintenance, time consuming, expensive, high energy input[15]
Nanoparticlesx-Non-toxicExpensive, additional step required to remove nanoparticles, technology in its infancy[24]
Supercritical fluid extraction+Polarity of solvent is tunable, fast process, uses non-toxic solvents such CO2, effective for carotenoid extractionExpensive, not suitable for scale-up[13,25]
Grinding (with/without cryogens)x-Quick and efficient at a laboratory-scaleTime consuming, degradation of some of the bioactives[26]
Pulse electric field+High selectivity, mild treatment, carotenoid bioactivity not affected, relatively low energy inputStill in its infancy[27]
Hydrothermal liquefactionx-Uses a wet feedstockHigh variability in recovery, high energy input and temperature, requires expensive catalyst[28,29]
Ionic liquidsx-Low costStill in their infancy, issues over toxicity[30]
Soxhlet extraction+Cost-effective, easy to scale-upLong extraction time, uses large amounts of solvents (often toxic)[12]
✓: Yes; x: No; -: Not suitable; +: Weak; ++: Moderate; +++: High; ++++: Higher; +++++: Very high.
Table 2. Lipids extracted from microalgae by MAE as a pre-treatment method.
Table 2. Lipids extracted from microalgae by MAE as a pre-treatment method.
Microalgal StrainDry/Wet MethodSolvents UsedRatio (Solvent to Sample)Volumes AddedMicrowave SettingsProduct & YieldEnergy Use (MJ/kg)Ref.
Crypthecodinium cohniiDryHexane18:12 g of milled algal powder, 35 mL hexane2.45 GHz, 45 °C, 30 min17.8% oil yieldx[12]
Botryococcus sp.DryChloroform:methanol (1:1)200:10.5 g of algae powder, 100 mL distilled water, 100 mL chloroform:methanol2.45 GHz, 100 °C, 5 min28.1% lipidx[31]
Chlorella vulgaris10% lipid
Scenedesmus sp.10.4% lipid
Scenedesmus obliquusWetHexane1:1Equal volume of hexane to sample after heating2.45 GHz, 1200 W, 95 °C, 30 min (5 min intervals)31.38% wet weight (77% recoverable oil)x[47]
Chlorella sp.DryChloroform:methanol (1:1)400:10.5 g algae, 200 mL chloroform:methanol2.45 GHz, 100 °C, 5 min26 mg/g FAMEsx[63]
Nostoc sp.19 mg/g FAMEs
Tolypothrix sp.21 mg/g FAMEs
Chlorella vulgarisWetChloroform:methanol (1:1)x500 mL culture pelleted2.45 GHz, 100 °C, 5 min18.14% lipidx[26]
Chlorella vulgarisxChloroform:methanol (1:1)100:11 g algae, 100 mL chloroform:methanol300 W, 50 °C, 30 min31.9% DW lipidx[60]
Chlorella vulgaris SAG 211-12DryChloroform:methanol (1:1)100:10.5 g algae, 50 mL distilled water, 50 mL chloroform:methanol2.45 GHz, 1000 W, 2.5 min9.59% DW lipidx[64]
Chlorogleopsis fritcschiiDryDichloromethane25:11 g algae, 10 mL deionised water, 25 mL dichloromethane1200 W, 140 °C, 15 min1.4% DW lipidx[28]
Nannochloropsis oculata11.3% DW lipid
Pseudochoricystis ellipsoidea37.5% DW lipid
Chlorella PY-ZU1 GMWetChloroform:methanol (1:1)50:150 mL algal culture (1 g DW), 50 mL chloroform:methanol80 °C, 10 min18.7% DW lipid25.2[58]
Nannochloropsis sp.WetChloroform:ethanol (1:2)45:13.3 g wet algal paste, 50 mL chloroform, 100 mL ethanol, 40 mL deionised water2.45 GHz, 1200 W, 120 °C, 50 min (5 min ramp, 15 min hold, 30 min cool-down)53% DW lipidx[61]
40% methyl soyate in ethanolx3.3 g wet algal paste, 40% methyl soyate in ethanol56.6% DW lipid
Phaeodactylum tricornutumWetChloroformx45 mL culture pelleted, 5 mL distilled water, 3 mL chloroform2.45 GHz, 1000 W, level 4, 90 °C, 5 min32% (w/w) glyceridesx[65]
Chlorella vulgaris21% (w/w) glycerides
Chlamydomonas reinhardtii7% (w/w) glycerides
Scenedesmus dimorphusWetChloroform:methanol (1:1)40:1200 mg wet algae, 8 mL solvent557 W, 1 min then 254 W, 4 min17.2% DW lipidx[23]
Selanastrum minutum21% DW lipid
Chlorella protothecoides17% DW lipid
Nannochloropsis gaditanaDryMethanolx5 g algae2.45 GHz, 30–35 W, 90 °C, 10 min14.82% DW FAs; 1.18% DW EPA10.9 Wh/g FA[66]
Unknown microalgaDryn-heptane:isopropanol (2:1)x5 g algae1000 W, 40 min28% DW lipidx[67]
Mixed culture of microalgaeDryMethanol:chloroform (1:1)10:1500 mg algae, 2.5 mL methanol, 2.5 mL chloroform, 1.25 mL 1.5% sodium sulphate, 1 mL deionised water400 W, 100 °C, 5 min 30 s (70 s temperature ramp, 45 s hold, 3 cycles)33.7% DW lipidx[68]
Isochrysis sp.DryMethanol:chloroform (1:2)x0.5 g algae, 50 mL distilled water2.45 GHz, 1200 W, 45 °C, 30 MPa, 5 min7.8% DW FFAs; 0.08% DW EPAx[69]
Nannochloropsis gaditana10.8% DW FFAs; 0.47% DW EPA
Scenedesmus almeriensis3.1% DW FFAs; 0.22% DW EPA
Tetraselmis sp.4.8% DW FFAs; 0.1% DW EPA
Scenedesmus sp.DryChloroform:ethanol (1:1)20:140 mL mixture chloroform:ethanol, 2 g DW algae1000 W, 100 °C, 10 min53% lipid1.18[39]
Chlorella sp.DryEthanol12:14 g algae, 48 mL ethanol and 2% NaOH catalyst700 W (50% power), 75–80 °C, 6 min20.1% DW FAMEsx[70]
Dunaliella tertiolectaDryChloroform:methanol (2:1)100:10.2 g algae, 20 mL chloroform:ethanol490 W, 2 min 40 s57.02% lipid recoveryx[71]
160 W, 7 min56.98% lipid recovery
Nannochloropsis salinaWetn-hexane (added after microwave extraction)3:160 mL algal culture, 15 mL n-hexane (biomass loading 25%)1400 W, 205 °C, 25 min, 21.5 bar24.3% DW FAMEs; 1.65% DW EPA9.89[57]
Nannochloropsis sp. (BMRI)WetMethanol:hexane (1:2)x10 mL algal culture2.45 GHz, 1000 W (70% of power), 65 °C, 1 bar, 5 min38.31% DW lipidx[72]
Nannochloropsis oculataWetEthanol:hexane (3:1) (added after microwaving)23:14.3 g algae (1 g dry algae equivalent), 17 mL ethanol, 8 mL distilled water, 5.6 mL hexane2.45 GHz, 1025 W (100% power), 5 min (15 s heating bursts and cooled for 15 min)5.2% DW lipid140.78[21]
Scenedesmus obliquusDryChloroform:methanol (2:1)20:11 g algae, 20 mL chloroform:methanol1000 W, 100 °C, 10 min21.43% DW lipidx[73]
Stigeoclonium sp.; Monoraphidium sp.; Nitzschia sp. & Navicula sp.Wetxx150 mL algal biomass2.45 GHz, 900 W, 3 min5 mg/L FAMEs34.3[29]
Arthrospira platensisDryMethanol:ethyl acetate:light petroleum (1:1:1)17:120 g powder (milled with mortar and pestle)400 W, 70 °C, 1 bar, 15 min1.59% DW FAsx[74]
Chlorella vulgarisDryChloroform:methanol (1:1)7:15 g algae700 W, 50 s (10 s on, 30 s off cycle)31.7% DW lipid2.39 Wh/g[75]
Chlorella sorokinianaDryx10:11 g algae, 5 g hydrogen sulphate ionic liquid, 2% HCl800 W, 120 °C, 60 min27% DW lipidx[62]
Nannochloropsis salina14% DW lipid
Galdieria sulphuraria1 g algae, 5 g hydrogen sulphate ionic liquid22% DW lipid
Scenedesmus obliquus FR751179.1DryChloroform:methanol (2:1)20:11 g algae, 20 mL chloroform:methanol1000 W, 100 °C, 10 min16.53% DW lipidx[76]
Scenedesmus obliquusDryChloroform:methanol (1:1)20:11 g algae, 20 mL chloroform:methanol1000 W, 100 °C, 10 min19.25% DW lipidx[56]
WetChloroform:ethanol (1:1)10.08% DW lipid
Chlorella sp.Wetxx15 g/L dewatered cells (15 mL distilled water), protonic ionic liquid (10:1 ratio to sample)700 W, 3 min3.5% DW lipid (cell disruption 74.75%)x[30]
Chlorococcum sp.0.803% DW lipid (cell disruption 70.03%)
x stands for no information available or provided in the research papers surveyed.
Table 3. Lipids extracted and directly transesterified from microalgae by MW for biodiesel production.
Table 3. Lipids extracted and directly transesterified from microalgae by MW for biodiesel production.
Microalgal StrainDry/Wet MethodSolvents UsedRatio (Solvent to Sample)Volumes AddedMicrowave SettingsProduct & YieldEnergy Use (MJ/kg)Ref.
Nannochloropsis sp.DryMethanol:chloroform (1:2)x1 g of algae2.45 GHz, 1100 W (70% power), 60 °C, 5 min (cycle mode: 21 s on, 9 s off)32% biodieselx[77]
Nannochloropsis salinaDryMethanol1:92 g algae, 24 mL methanol, 2% KOH catalyst2.45 GHz, 800 W (50% power), 60–64 °C, 6 min80.13% FAMEs127[8]
Nannochloropsis salinaDryMethanol1:153% KOH catalyst1400 W, 1400 W, 10 min40.03% DW FAMEsx[78]
Nannochloropsis salinaWetEthanol9:12 g algae, 18 mL ethanol1400 W reduced to 800 W, 245–285 °C, 65–80 bar, 30 min30.9% DW FAMEsx[79]
Chlorella sp.DryEthanol12:14 g algae, 48 mL ethanol and 2% NaOH catalyst700 W (50% power), 78 °C, 6 min17.11% DW FAMEsx[70]
Mixed microalgal cultureDryMethanol8:15 g algae, KFCaO catalyst, 40 mL methanol2.45 GHz, 10–80 W, 60 °C, 45 min58.12% biodieselx[80]
Phaeodactylum tricornutumDryMethoxide12:15 g algae, 60 mL methoxide, 2% NaOH catalyst in methanol2.45 GHz, 800 W, 1 bar, 4 min52% biodiesel conversion efficiencyx[81]
x stands for no information available or provided in the research papers surveyed.
Table 4. Pigments extracted from microalgae by MAE.
Table 4. Pigments extracted from microalgae by MAE.
Microalgal StrainDry/Wet MethodSolvents UsedRatio (Solvent to Sample)Volumes AddedMicrowave SettingsProduct & YieldEnergy Use (MJ/kg)Ref.
Haematococcus pluvialisDryEthanol:ethyl alcohol (2:1)49:19.81 mL solvent 200 mg algae powder141 W, 5 min 30 s0.59% DW astaxanthinx[90]
Haematococcus pluvialisDryAcetone100:10.1 g algae, 10 mL acetone2.45 GHz, 60% of 1200 W output, 75 °C, 5 min74% astaxanthin recoveryx[89]
Dunaliella tertiolectaDryAcetone600:150 mg algae, 30 mL acetone50 W, 56 °C, 1 bar, 3–5 min0.12% DW β-carotene; 0.45% DW chlorophyll-a; 0.13% DW chlorophyll-bx[88]
Cylindrotheca closterium0.42% DW fucoxanthin
Arthrospira platensisDryMethanol:ethyl acetate:light petroleum (1:1:1)16.7:120 g power (milled with mortar and pestle)400 W, 70 °C, 1 bar, 15 min4.27% DW fatty acidsx[74]
0.063% DW carotenoids
Haematococcus pluvialisDryAcetic ether100:15 g algae, 500 mL solvent, 10 mL distilled water, 10 mL n-hexane2.45 GHz, 45 °C, 30 min7.96 mg/100 mg astaxanthin (36.88% yield)x[38]
Arthrospira platensisxEthanol:ammonium acetate (10 mM) (4:1)xx400 W, 60 °C, 1 bar, 15 min0.014% DW β-carotenex[91]
Phaeodactylum tricornutumDryEthanol20:10.5 g algae, 10 mL ethanol2.45 GHz, 850 W, 30 °C, 2 min4.51% DW carotenoids & 0.46% DW fucoxanthin (32.26% recovery)x[14]
x stands for no information available or provided in the research papers surveyed.
Table 5. Other high-value products extracted from microalgae by MAE.
Table 5. Other high-value products extracted from microalgae by MAE.
Microalgal StrainDry/Wet MethodSolvents UsedRatio (Solvent to Sample)Volumes AddedMicrowave SettingsProduct & YieldEnergy Use (MJ/kg)Ref.
Unknown microalgaWetxx150 mL thickened algal biomass900 W, 98 °C, 3 min307.11 mLmethane/g total volatile solids65.4[107]
Porphyridium purpureumDryxx20 mg algae, 7 mL deionised water2.45 GHz, 40 °C, 10 s7.37% DW phycoerythrinx[104]
2.45 GHz, 100 °C, 10 s3.48% DW phycocyanin
2.45 GHz, 100 °C, 1 min3.51% DW allophycocyanin
Stigeoclonium sp.; Monoraphidium sp.; Nitzschia sp. and Navicula sp.Wetxx150 mL algal biomass2.45 GHz, 900 W, 3 min915 mg/L soluble carbohydrates; 127.7 mL/g volatile solids & 193 mg/L protein34.3[29]
Arthrospira platensisDryMethanol:ethyl acetate:light petroleum (1:1:1)16.7:120 g power (milled with mortar and pestle)400 W, 70 °C, 1 bar, 15 min0.000246% DW α-tocopherolx[74]
Arthrospira platensisDryLimonene:ethyl acetate (0.81:1)7:1Unknown starting biomass concentration400 W, 60 °C, 1 bar, 15 min0.085% DW thiaminex[91]
0.01% DW riboflavin
Ethanol:ammonium acetate (10 mM) (4:1)0.23% DW C-phycocyanin
x stands for no information available or provided in the research papers surveyed.

Share and Cite

MDPI and ACS Style

Kapoore, R.V.; Butler, T.O.; Pandhal, J.; Vaidyanathan, S. Microwave-Assisted Extraction for Microalgae: From Biofuels to Biorefinery. Biology 2018, 7, 18.

AMA Style

Kapoore RV, Butler TO, Pandhal J, Vaidyanathan S. Microwave-Assisted Extraction for Microalgae: From Biofuels to Biorefinery. Biology. 2018; 7(1):18.

Chicago/Turabian Style

Kapoore, Rahul Vijay, Thomas O. Butler, Jagroop Pandhal, and Seetharaman Vaidyanathan. 2018. "Microwave-Assisted Extraction for Microalgae: From Biofuels to Biorefinery" Biology 7, no. 1: 18.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
