Assessment of Potential Toxic Effects of RNAi-Based Transgenic Cotton on the Non-Target Predator Harmonia axyridis

by
Haiqin Yao
1,†,
Haonan Xu
2,†,
Jun Yang
1,* and
Weihua Ma
2
1
College of Food Science and Technology, Wuhan Business University, Wuhan 430056, China
2
Hubei Insect Resources Utilization and Sustainable Pest Management Key Laboratory, College of Plant Science and Technology, Huazhong Agricultural University, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biology 2025, 14(9), 1173; https://doi.org/10.3390/biology14091173
Submission received: 24 June 2025 / Revised: 10 August 2025 / Accepted: 11 August 2025 / Published: 2 September 2025
(This article belongs to the Special Issue The Biology, Ecology, and Management of Plant Pests)
Browse Figures
Versions Notes

Simple Summary

The deployment of genetically engineered (GE) crops, particularly RNA interference (RNAi) crops that express double-stranded RNA, has raised biosafety concerns among regulatory authorities, the scientific community, and the public. Such crops may present potential risks to public health, agricultural sustainability, and biodiversity. Natural enemies of insect pests, including the lady beetle Harmonia axyridis, play a crucial role in pest regulation and maintaining ecosystem balance. This study assessed the potential effects of RNAi cotton targeting the pest Adelphocoris suturalis on H. axyridis. Both laboratory and field experiments demonstrated no significant adverse impacts on the beetle’s growth, development, predatory efficacy, or reproductive capacity. Furthermore, the RNAi construct was not effectively transmitted through the food chain. These results support the environmental safety of RNAi cotton within the plant–pest–natural enemy ecological framework. This contributes to the advancement of sustainable agroecosystems, the conservation of biodiversity, and the production of safer food supplies, ultimately benefiting agriculture and society by enhancing crop protection while minimizing ecological risks.

Abstract

Although traditional genetically modified (GM) cotton has reduced lepidopteran pests, secondary pests such as Adelphocoris suturalis Jakovlev (Hemiptera: Miridae) have become increasingly problematic. RNA interference (RNAi)-based insect-resistant plants offer a promising alternative, but their potential ecological risks, particularly within the plant–pest–natural enemy framework, require comprehensive evaluation. As a key natural enemy in cotton agroecosystems, Harmonia axyridis Pallas (Coleoptera: Coccinellidae) plays a vital role in regulating pest populations and thus serves as an important non-target insect for environmental risk assessment. In this study, dsAsFAR transgenic cotton and the non-target insect H. axyridis were used to evaluate potential ecological risks. Based on the sequences of the HaFAR, AsFAR, and GFP genes, dsAsFAR, dsHaFAR, and dsGFP were synthesized in vitro and incorporated into artificial diets fed to H. axyridis, along with a ddH2O control group. No significant differences were observed among the treatments across various developmental stages. Furthermore, H. axyridis was fed aphids that had been reared on either transgenic or non-transgenic cotton plants cultivated in a greenhouse. The findings indicated no significant differences in the growth, development, predatory ability, or fecundity of H. axyridis. These results suggest that transgenic dsAsFAR cotton targeting A. suturalis poses no detectable adverse effects on H. axyridis, supporting the environmental safety of RNAi crops within a plant–pest–natural enemy ecological interaction framework. Moreover, the dsAsFAR expressed in transgenic cotton was not effectively transferred through the food chain to affect homologous gene expression in H. axyridis.

1. Introduction

RNA interference (RNAi) is an evolutionarily conserved post-transcriptional gene silencing (PTGS) phenomenon in which the introduction of dsRNA leads to the degradation of specific mRNA and inhibits the normal expression of target genes [1,2]. Matzke was the first to report the phenomenon of gene silencing caused by tobacco co-transfection [3]. With the rapid development of modern molecular technology, RNAi is increasingly being recognized as one of the leading approaches for managing major agricultural pests due to its environmentally friendly, efficient, and target-specific characteristics [4]. The quality of various crops has been improved by using RNAi technology, for example, via interfering with the function of fatty acid dehydrogenase, which significantly increases the proportion of oleic acid in rapeseed [5]. Including RNAi crops, insect-resistant genetically engineered (IRGE) crops that use RNAi have been released to the market [6]. In order to gain a deeper understanding of their inherent risks to the ecological environment, most countries that have approved the environmental release of RNAi crops have begun to develop regulatory frameworks to evaluate the potential hazards of using this new biotechnology [7,8,9]. However, there has been no standard framework for assessing the environmental risk of RNAi crops in China up to now.
Cotton is widely cultivated as a cash crop worldwide, but its safe production is threatened by various factors, such as agricultural pests, diseases, drought, soil salinization, and so on [10,11]. In view of the above reasons, genetically modified technology has profound implications for cotton cultivation. With the continuous development of molecular biotechnology, the planting area of transgenic cotton has reached more than 90% in China [12]. The popularization and cultivation of traditional genetically modified (GM) insect-resistant cotton has significantly reduced the population density of lepidopteran pests such as cotton bollworms in the field. However, due to large-scale monoculture and a reduction in the use of chemical pesticides, minor pests such as mites and aphids have gradually become rampant and become major pests. Among them, A. suturalis and Apolygus lucorum Meyer—Dür (Heteroptera: Miridae) can cause serious damage to cotton production and quality. Transgenic dsAsFAR cotton can inhibit the fecundity of A. suturalis by silencing its FAR gene expression. This type of dsRNA transgenic cotton can produce significant control effects on field populations of A. suturalis and has great application prospects in production. However, its ecological safety within the plant–pest–natural enemy framework has not yet been fully evaluated. H. axyridis, a common natural enemy insect, plays a crucial ecological role in cotton field ecosystems by preying on various pests. As a representative species in the plant–pest–natural enemy trophic system, H. axyridis is ecologically significant for maintaining pest population balance. Moreover, as a member of the Coleoptera order, H. axyridis has been reported to exhibit higher sensitivity to dsRNA compared to insects from other insect orders, making it an ideal test organism for evaluating the biosafety of transgenic dsRNA cotton in non-target beneficial insects [13].
A previous study conducted by our team found that the direct feeding of dsAsFAR to H. axyridis had no significant impact on their own growth, development, reproduction, or other physiological processes, and that GM cotton does not affect physiological indicators of H. axyridis through the food chain [14]. However, functional genomics research shows that RNAi often induces off-target effects in cells or organisms, which is a major drawback of this technology [15,16,17]. The off-target effects of RNAi on non-target organisms may be sublethal, and such effects may not be readily detectable through biological assays alone. Additionally, organisms possess a vast number of genes, complicating the assessment of these effects. Omics analysis techniques [18] offer a comprehensive approach to detecting the off-target effects of RNAi transgenic crops by examining global transcriptome changes. We employed qRT-PCR to investigate the relationship between dsRNA uptake efficiency and the duration of feeding. Additionally, transcriptome sequencing technology combined with quantitative analysis verification was utilized to assess the off-target effect of dsRNA. Furthermore, to anticipate the potential impact of off-target effects from transgenic dsRNA crops, this study employed RNAi technology to predict the possible consequences for non-target organisms. This approach provides a useful reference for evaluating the safety of non-target organisms consuming transgenic dsRNA crops over multiple generations under field conditions.

2. Materials and Methods

2.1. General Procedures

2.1.1. Insect Rearing

The initial population of H. axyridis was kindly provided by Xingmiao Zhou (Huazhong Agricultural University, Wuhan, China). The beetles were reared for several generations in an artificial climate chamber maintained at 25 ± 2 °C, 65 ± 5% relative humidity, and a 16 h light/8 h dark photoperiod. The insects were fed Acyrthosiphon pisum Harris (Hemiptera: Aphididae) reared on Vicia faba L. (Fabales: Fabaceae). To minimize cannibalism, larvae were placed individually in 90 mm Petri dishes containing moistened tissue paper. Artificial diet was provided daily, and larval development was monitored until adult emergence. The artificial diet was prepared as follows: (1) A dry mixture was made from pig liver powder, yeast, sucrose, linseed oil, olive oil, and β-carotene, thoroughly stirred with distilled water. (2) In parallel, agar and honey were dissolved in distilled water with heating. (3) The heated solution was boiled several times and added to the first mixture, then stirred to homogeneity; (4) The final mixture was dispensed into 24-well plates and stored at 4 °C after cooling below 50 °C.

2.1.2. Cotton Cultivation

Seeds of transgenic dsAsFAR cotton and its non-transgenic parental cultivar (Gossypium hirsutum cv. Jin668) were obtained from Prof. Shuangxia Jin (National Key Laboratory of Crop Genetic Improvement, Huazhong Agricultural University). The dsAsFAR line expresses a 432 bp double-stranded RNA targeting the AsFAR gene, which was introduced via Agrobacterium-mediated transformation using the pHellsgate4 RNAi vector. Both lines were planted in pesticide-free experimental plots (10.5 m × 4.5 m) at Huazhong Agricultural University.

2.2. Experimental Procedures

2.2.1. Trophic Transfer Assay

This assay was designed to evaluate the effect of transgenic cotton on H. axyridis via a tritrophic pathway. At the four-leaf stage, A. pisum aphids were transferred onto transgenic or control cotton plants and reared for three generations to ensure sufficient dsRNA uptake. Second-instar H. axyridis larvae were then introduced into Petri dishes (Φ = 90 mm) containing a fresh cotton leaf and aphid larvae. Life-table parameters—including survival, developmental time, and fecundity—were recorded. Each treatment included three replicates with 20 larvae per replicate.

2.2.2. Artificial Diet Exposure Assay

This direct RNAi assay aimed to determine the effect of orally delivered dsRNA on H. axyridis. Artificial diets were mixed with dsAsFAR, dsHaFAR (positive control), dsGFP (negative control), or ddH2O. Each dsRNA was provided at a concentration 10-fold higher than that expressed in cotton leaves (7 µg/g). One newly molted 4th instar larva (<24 h) was placed in a Petri dish containing the treated diet. The diet was refreshed daily. Upon adult emergence, 10 individuals (6 females and 4 males) were housed in a 12 cm diameter, 10 cm high cylinder with A. pisum and three to four branches of Jasminum nudiflorum Lindl. (Oleaceae: Jasminum) as an oviposition substrate. Life-history traits—such as adult longevity, fecundity, and survival—were monitored. Each treatment was conducted with three replicates of 20 individuals. To ensure the reliability and validity of the experimental data, and to minimize potential confounding factors, the mortality rate of the control groups (artificial diets mixed with dsGFP or ddH2O) were kept below 10%.

2.3. Synthesis of dsRNAs

Pairwise sequence alignment was carried out to obtain the HaFAR gene sequence most homologous to AsFAR, which is expressed in dsAsFAR transgenic cotton (49.55%) from our local H. axyridis transcriptome. Subsequently, dsAsFAR, dsHaFAR, and dsGFP [19] were amplified by PCR using primers containing the T7 promoter (Table S1). The dsRNAs were synthesized using a dsRNA Synthesis Kit (Thermo Fisher Scientific, CA, USA).

2.4. Quantitative Real-Time PCR (qRT-PCR)

Following the manufacturer’s instructions, total RNA was extracted with the RNAiso reagent (Takara, Kyoto, Japan). cDNA was prepared using a reverse transcription kit (Takara, Kyoto, Japan). The 10 μL qRT-PCR reaction mixture consisted of 5 µL of SYBR solution (Takara, Kyoto, Japan), 0.8 µL of specific primers (Table S1), 2.2 µL of double-distilled water, and 2 µL of cDNA. The reaction mixture was placed in a 96-well microplate. The qRT-PCR was performed on the Bio-Rad Detection iQ2 System (Bio-Rad, Hercules, CA, USA). The qRT-PCR program was 95 °C for 30 s, followed by 40 cycles of 95 °C for 5 s and 60 °C for 30 s. The H. axyridis 18S gene was used as an endogenous reference gene for the run. The 2−ΔΔCt method was used to calculate the relative transcript levels of the corresponding genes.

2.5. Off-Target Effects and Transcriptome Analysis

The samples collected above were also used for RNA-Seq on an Illumina platform at MetWare (Wuhan, China). The raw reads were filtered, and the clean reads were de novo assembled into unigenes using Trinity. Transcript abundance was then estimated using RSEM. Differential expression analysis was performed using DESeq2. The screening of differentially expressed genes (DEGs) was based on log2 (fold change) and false discovery rate (FDR). Genes with log2 (fold change) > 1 and FDR < 0.05 were considered DEGs. Several randomly selected DEGs from each group were validated using qRT-PCR. The off-target effects of dsRNA were assessed by analyzing the correlation between the number of matched base pairs and their fold changes for each gene containing continuously matched base pairs, using Perl scripts. Furthermore, two additional sets of non-target genes were also considered. The first one was the homologous genes of the target genes, which were identified using BLASTN (E-value < 1 × 10−10). The second one was genes in the same pathway as the target genes. In addition, the transcriptome was evaluated using the Shannon entropy count, which was calculated using R script. Defining transcriptomic changes as Shannon entropy allowed transcriptome variation to be displayed as a separate metric [20]. The bioinformatic analysis was adopted from our previous study [21]. The enrichment analysis was performed based on the hypergeometric test. For the Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis, the hypergeometric distribution test was performed at the pathway level; for Gene Ontology (GO), it was performed based on the GO term. Data visualization was performed using R (version 4.2.0).

2.6. Statistical Analysis

GraphPad Prism 10.1.2 (Dotmatics, Boston, MA, USA) was used for the statistical analysis of the data. Data from the biological assays were analyzed using one-way ANOVA followed by Tukey’s multiple comparison tests, and data produced by qRT-PCR were analyzed using Student’s t-test.

3. Results

3.1. Uptake Efficiency of dsRNA in H. axyridis

The expression level of dsRNA in dsAsFAR transgenic cotton is 0.7 μg/g. The dsRNA was added to the artificial diet, resulting in a final concentration of 7 μg/g (10-fold higher than in GM cotton) for dsAsFAR, dsHaFAR (positive control), and dsGFP (negative control), respectively. Both the larvae and adults of H. axyridis were fed on all dsRNAs for 3 and 6 days and 3 days, respectively, and then the changes in HaFAR gene expression levels in H. axyridis were detected after 24 h of feeding. The results showed that ingesting dsAsFAR caused no significant interference in the HaFAR expression in H. axyridis larvae and adults (Figure 1A,B). In addition, the dsRNA uptake efficiency did not change significantly when the larvae were fed on dsRNA for different lengths (3 d and 6 d) compared with the positive control (dsHaFAR). However, the positive control exhibited higher RNAi efficiency in H. axyridis adults.

3.2. Effect of Uptake dsRNA on the Life-Table Parameters of H. axyridis

Even though a 10-fold (7 μg/g) high dosage was applied in the feeding test, no significant changes were observed in different developmental stages of H. axyridis that were separately treated with dsRNAs (dsGFP, dsAsFAR, and dsHaFAR) and H2O. The developmental durations of H. axyridis at each instar stage were relatively consistent (Figure 2A). All the survival rates of H. axyridis with dsRNA treatments were above 95%, but there was no significant difference among them (Figure 2B). In addition, the pupal weight (Figure 2C), emergence rate (Figure 2D), adult weight (Figure 2E), number of predations by females (Figure 2F), number of predations by males (Figure 2G), egg production (Figure 2H), and hatching rates (Figure 2I) for populations from all treatments showed no significant differences. Furthermore, the HaFAR gene expression level in the dsHaFAR treatment was significantly decreased compared with other treatments (p-value < 0.05, Figure 2J), indicating that H. axyridis can acquire exogenous dsRNA through feeding. Overall, these results demonstrate that dsAsFAR had no significant effect on the survival, development, predation ability, fecundity, or HaFAR expression of H. axyridis at any stage.

3.3. The Vital Activities of H. axyridis Were Not Affected by the Trophic Transfer Assay

The dsAsFAR transgenic cotton and its parent Jin668 were planted in the greenhouse, and the cotton aphids were transferred to different types of cotton plants for propagation and used to feed H. axyridis. The results showed that no significant difference was observed in the development duration (Figure 3A), survival rate (Figure 3B), pupal and adult weight (Figure 3C,E), number of predations by females (Figure 3F), number of predations by males (Figure 3G), egg production (Figure 3H), or hatching rate (Figure 3I) of H. axyridis when compared with the control treatment, indicating that there was no adverse effect of dsAsFAR transgenic cotton on the survival and development of H. axyridis. Adults of H. axyridis that fed on aphids reared on different types of cotton plants were collected and analyzed by qPCR. The results showed that the dsAsFAR transgenic cotton had no adverse effect on the homologous gene expression of H. axyridis through the trophic transfer assay (Figure 3J).

3.4. Off-Target Effects on Non-Homologous Genes Were Induced by dsAsFAR in H. axyridi

According to the results of H. axyridis consumption of dsRNA, samples of H. axyridis that fed on dsAsFAR and dsGFP for 4 days at the larval and adult stages were sent to transcriptome sequencing. The results showed that exposure to dsAsFAR induced down-regulation of two genes in larvae and eight genes in adults, compared to dsGFP, but not in the HaFAR gene family (Figure 4A, Tables S2 and S3). We randomly selected eight differentially expressed genes (DEGs) for qRT-PCR assays to validate the transcriptome data. The expression profiles of all selected genes were consistent with the transcriptome results in both larvae and adults (Figure 4B,C). KEGG enrichment analysis of DEGs showed that DEGs in dsAsFAR-treated larvae were only significantly enriched in the non-homologous end-joining pathway; however, DEGs in adults were significantly enriched in protein processing in the endoplasmic reticulum, glycosaminoglycan degradation, neutrophil extracellular trap formation, and toxoplasmosis (Figure S1). The results of GO enrichment analysis were consistent with those of KEGG analysis, with both showing no correlation with lipid or wax synthesis (Figure S2). Therefore, we speculate that dsAsFAR may induce the off-target effects of the non-homologous genes in the H. axyridis.

3.5. The Evaluation of Off-Target Effects and Transcriptome Homeostasis

The interference fragment of dsAsFAR we selected did not find a homologous fragment in H. axyridis (E-value < 1 × 10−5). Through analysis of the genes containing continuous matches with dsRNA, the results showed that off-target effects were not correlated with the number of consecutive matching base pairs. Most DEGs of H. axyridis that fed on dsAsFAR have less than 10 consecutive matching base pairs. In addition, we also found that 99.90% to 100% of H. axyridis genes containing continuously matched regions with dsAsFAR were not affected (Table 1). The correlation between the number of matches and their fold changes showed that the highest expression changes were usually detected on genes with fewer consecutive matches (Figure 4D). This indicated that the causal relationships between the number of base matches and changes in their expression levels were diverse. Within the same gene function network, silencing of one gene may induce changes in the expressions of other genes in pathways that interact with level 1 genes (level 2 pathway in Table 2) and so on (level 3 pathway in Table 2).
Shannon entropy of a transcriptome reflects the overall variability in gene expression and can be used to assess potential risks to fundamental biological processes that may arise from exposure to exogenous dsRNA. The results showed that the Shannon entropy values did not change significantly following ingestion of dsAsFAR in both larvae and adults (Figure 4E), which demonstrates that dsAsFAR has no adverse effect on the transcriptome homeostasis of H. axyridis.

4. Discussion

Traditional chemical pesticides have historically played a crucial role in contemporary agriculture by effectively managing insect pests, weeds, and plant pathogens, thereby significantly enhancing crop yields and contributing to global food security. Nonetheless, their extensive application has generated substantial ecological and environmental concerns. Conventional chemical pesticides frequently display broad-spectrum toxicity, which can adversely affect non-target insects and plants. Additionally, these substances have the potential to leach into or run off into adjacent water bodies and soil, thereby amplifying their ecological impact [22].
In contrast, GM technology provides new ideas for increasing crop yields and improving the quality of agricultural products. With the widespread application of IRGE crops and other novel biotechnologies in insect-pest management [19], rather than synthetic insecticides, many concerns about both their negative and positive effects have arisen in many countries. An effective and standardized risk evaluation framework for genetically engineered crops is necessary before their promotion and application. Such a framework not only helps to prevent unintended consequences to public health, agriculture, and conservation, but also facilitates the authentication and communication of the same biotechnology product among governmental regulators worldwide. The more popular IRGE crops are transgenic Bt insect-resistant crops, for which many studies on their environmental risks have been published so far. RNAi technology, as an efficient tool for interpreting sequence function and expression, is widely used in various fields [23], especially in gene function analysis and genetic breeding of plants. For example, transgenic materials with inserted dsRNA have been used to increase tobacco’s resistance to insects [24] and to improve the resistance of cotton to cotton bollworm [25,26]. In addition, by integrating Bt toxin and RNAi, researchers have created transgenic cotton plants that target the juvenile hormone methyltransferase gene in cotton bollworm, effectively postponing insect pairing [27]. Additionally, RNAi has also been used to silence the potato beetle’s highly specific ecdysone-related receptor genes, resulting in a mortality rate up to 80% and a significant reduction in larval weight and pupal weight [28]. Although significant progress has been made in researching these new genetically modified materials, there are still many potential environmental safety risks, including gene drift and off-target effects. Importantly, the off-target problem of RNAi has gradually emerged as RNAi research has deepened [16]. Hence, the off-target effect of dsRNA has become one of the important indicators for the safety evaluation of transgenic dsRNA plants [29,30]. However, there is no conclusive evidence regarding their possible environmental risks.
Natural enemies of insects play a crucial role in agricultural ecosystems [31]. Within the plant–pest–natural enemy framework, previous assessments of the ecological risks associated with insect-resistant IRGE crops have predominantly focused on evaluating their potential effects on the development and survival of beneficial arthropods, especially through trophic transfer assays. For example, Chen et al. reported that miRNA-mediated transgenic rice targeting the stem borer had no significant effect on Apis mellifera Linnaeus (Hymenoptera: Apidae), an essential pollinator [32]. Toxicity evaluations based on trophic transfer within the food chain are comparable to the whole-food animal tests frequently utilized in regulatory assessments of the potential risks posed by IRGE crops to human health. Consequently, it is posited that food chain-based testing constitutes one of the most suitable approaches for assessing the exposure pathways affecting natural enemies within the plant–pest–natural enemy system. Nonetheless, alternative approaches and validation strategies should also be explored prior to its routine implementation. In parallel, animal feeding tests facilitate the administration of significantly elevated doses of specific insecticidal components, thereby incorporating a conservative or worst-case exposure scenario into the risk assessment framework. For instance, the U.S. Environmental Protection Agency recommends employing exposure levels that are 10 times or more than typical field concentrations in laboratory risk assessments [33]. This approach ensures a high degree of safety assurance. Nonetheless, the reliability of these assessments is contingent upon the availability of effective and nutritionally adequate artificial diets. Our study demonstrates that even under 10-fold (7 µg/g) high-dose exposure, dsAsFAR did not negatively impact the development and survival of H. axyridis, a key predator within the cotton plant–pest–natural enemy triad. Similarly, dsRNA targeting Brassicogethes aeneus Fabricius (Coleoptera: Nitidulidae) (dsalphaCOP) exhibited no adverse effects on the parasitoid Nasonia vitripennis Walker (Hymenoptera: Pteromalidae) [34]. Additionally, no toxic effects were observed in other beneficial arthropods, such as Telenomus podisi Ashmead (Hymenoptera: Scelionidae) [35], Propylea japonica Thunberg (Coleoptera: Coccinellidae) [36,37], Cyrtorhinus lividipennis Reuter (Hemiptera: Miridae) [38,39], Ontsira mellipes Ashmead (Hymenoptera: Braconidae) [40], and Coleomegilla maculata DeGeer (Coleoptera: Coccinellidae) [41]. Nonetheless, certain studies indicate that insecticidal dsRNA may present species-specific risks to natural enemies. For instance, dsvATPase-A, which targets Diabrotica virgifera LeConte (Coleoptera: Chrysometidae), has been shown to significantly, albeit marginally, extend the developmental duration of the predator Adalia bipunctata Linnaeus (Coleoptera: Coccinellidae) and to significantly decrease the survival rate of another predator, Coccinella septempunctata Linnaeus (Coleoptera: Coccinellidae) [42,43]. These findings highlight the importance of conducting species-specific safety assessments within the plant–pest–natural enemy interaction framework to ensure a comprehensive ecological risk evaluation for RNAi-based crops. However, one limitation of our study is that we did not assess the multigenerational or long-term effects on H. axyridis, which merits further investigation.
Bioinformatics is a powerful method for identifying off-target effects. Typically, most contemporary research employs bioinformatics during the initial phase of selecting and designing target genes for transgenic dsRNA crops [19]. Specialized software, dsCheck [44] and OfftargetFinder [45], are utilized to conduct off-target searches and to design dsRNA with minimal sequence similarity to non-target genes, thereby reducing the possibility of unintended off-target effects [46]. However, due to the limited availability of sequence information for all species, it is not feasible to predict off-target effects solely through bioinformatics. As scientific research progresses, omics analysis techniques can be employed from a comprehensive perspective to evaluate the off-target effects of RNAi [47]. Additionally, RNAi induces specific effects on the transcriptomes of organisms, which may pose risks due to its potential adverse impacts, such as off-target gene silencing, on non-target species in RNAi-modified crops [21]. These off-target effects in numerous insects have been evaluated using omics technologies [21,32,36]. Taning et al. [48] conducted in silico predictions and identified numerous potential off-target genes when targeting dsRNA for the pollen beetle pest. However, when they tested these candidates in in vivo experiments, no negative effects on bumblebees were observed [48]. In this study, our transcriptomic analysis also identified unintended DEGs that may be induced by dsAsFAR in larvae and adults of H. axyridis. However, a limitation of this study is that to ensure consistency and minimize technical variation, the same RNA samples were used for both RNA-seq and qRT-PCR validation. This approach may introduce circularity and does not fully account for biological variability. Whether these unintended DEGs are truly induced by the inference of AsFAR, and whether further validation with independent RNA samples would yield consistent results, warrants further investigation in future ecological risk assessment. Additionally, our findings indicated that off-target effects were not correlated with the number of consecutive matched base pairs. RNAi could be triggered with as few as seven continuous matched base pairs between the target gene and exogenous dsRNA, as demonstrated in our previous study [21]. This implies that transcriptomes exhibit a high degree of adaptability to external dsRNA, necessitating the consideration of unintended transcriptomic alterations in the safety assessments of RNAi crops for non-target organisms. Nonetheless, these alterations alone do not comprehensively encapsulate potential risks [21]. The application of Shannon entropy could facilitate the evaluation of transcriptome stability [49] and may serve as one of the effective approaches for ecological risk assessment.

5. Conclusions

Compared to classical synthetic pesticides, RNAi offers an innovative, specific, and environmentally sustainable pest control method. Nonetheless, there are multiple challenges to address at the technical, regulatory, and risk assessment levels [20]. In this study, we proposed a biological and ecological risk evaluation framework for RNAi crops on insects’ natural enemies, which includes assessing exposure routes for insecticidal dsRNA; testing food-chain delivery to reflect real-world conditions; conducting animal-feeding tests for worst-case effects; analyzing off-target effects for unintended silencing; and evaluating transcriptomic stability. In addition, our study also revealed that dsAsFAR did not exert any harmful impacts on H. axyridis at either the developmental or transcriptomic levels involving FAR or its related genes. In alignment with previous studies, our results highlight the importance of evaluating RNAi crops on an individual basis for their safety regarding non-target organisms, especially in relation to off-target consequences. Further investigation is necessary to understand the mechanisms involved. We hope this study will support the development of guidelines for biological and ecological risk assessment to minimize the potential negative consequences of RNAi crops under a plant–pest–natural enemy ecological interaction framework.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/biology14091173/s1, Figures S1 and S2: The KEGG analysis of transcriptomes and the GO analysis of transcriptomes, respectively; Tables S1–S3: Primers used for this study, DEGs in H. axyridis adults fed dsGFP vs. dsAsFAR, and DEGs in H. axyridis larvae fed dsGFP vs. dsAsFAR, respectively.

Author Contributions

H.Y.: Conceptualization, investigation, formal analysis, visualization, writing—original draft; H.X.: Investigation; J.Y.: Conceptualization, formal analysis, writing—review and editing; W.M.: Conceptualization, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Biological Breeding-Major Projects (No. 2023ZD04062) and the Start-up Funding from Wuhan Business University (No. ZXQD147).

Data Availability Statement

The raw sequence data are available in the China National Center for Bioinformation (https://ngdc.cncb.ac.cn/) under accession number PRJCA043540.

Acknowledgments

The computations in this paper were run on the bioinformatics computing platform of the National Key Laboratory of Crop Genetic Improvement, Huazhong Agricultural University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Itsathitphaisarn, O.; Thitamadee, S.; Weerachatyanukul, W.; Sritunyalucksana, K. Potential of RNAi applications to control viral diseases of farmed shrimp. J. Invertebr. Pathol. 2016, 147, 76–85. [Google Scholar] [CrossRef]
  2. Zhao, J.H.; Guo, H.S. RNA silencing: From discovery and elucidation to application and perspectives. J. Integr. Plant Biol. 2022, 64, 476–498. [Google Scholar] [CrossRef]
  3. Matzke, M.; Primig, M.; Trnovsky, J.; Matzke, A. Reversible methylation and inactivation of marker genes in sequentially transformed tobacco plants. EMBO J. 1989, 8, 643–649. [Google Scholar] [CrossRef]
  4. Niu, D.; Hamby, R.; Sanchez, J.N.; Cai, Q.; Yan, Q.; Jin, H. RNAs—A new frontier in crop protection. Curr. Opin. Biotech. 2021, 70, 204–212. [Google Scholar] [CrossRef]
  5. Stoutjesdijk, P.A.; Singh, S.P.; Liu, Q.; Hurlstone, C.J.; Waterhouse, P.A.; Green, A.G. hpRNA-mediated targeting of the Arabidopsis FAD2 gene gives highly efficient and stable silencing. Plant Physiol. 2002, 129, 1723–1731. [Google Scholar] [CrossRef] [PubMed]
  6. Luo, M.; Wang, Z.; Li, H.; Xia, K.F.; Cai, Y.; Xu, Z.F. Overexpression of a weed (Solanum americanum) proteinase inhibitor in transgenic tobacco results in increased glandular trichome density and enhanced resistance to Helicoverpa armigera and Spodoptera litura. Int. J. Mol. Sci. 2009, 10, 1896–1910. [Google Scholar] [CrossRef] [PubMed]
  7. Heinemann, J.A. Should dsRNA treatments applied in outdoor environments be regulated? Environ. Int. 2019, 132, 104856. [Google Scholar] [CrossRef]
  8. Heinemann, J.A.; Agapito-Tenfen, S.Z.; Carman, J.A. A comparative evaluation of the regulation of GM crops or products containing dsRNA and suggested improvements to risk assessments. Environ. Int. 2013, 55, 43–55. [Google Scholar] [CrossRef]
  9. National Academies of Sciences; Medicine; Division on Earth; Committee on Genetically Engineered Crops; Past Experience; Future Prospects. Genetically Engineered Crops: Experiences and Prospects; National Academies Press: Washington, DC, USA, 2016. [Google Scholar]
  10. Rengasamy, P. World salinization with emphasis on Australia. J. Exp. Bot. 2006, 57, 1017–1023. [Google Scholar] [CrossRef]
  11. Wu, K.; Guo, Y. The evolution of cotton pest management practices in China. Annu. Rev. Entomol. 2005, 50, 31–52. [Google Scholar] [CrossRef] [PubMed]
  12. Lu, Y.; Jiao, Z.; Wu, K. Early season host plants of Apolygus lucorum (Heteroptera: Miridae) in northern China. J. Econ. Entomol. 2012, 105, 1603–1611. [Google Scholar] [CrossRef]
  13. Roberts, A.F.; Devos, Y.; Lemgo, G.N.; Zhou, X. Biosafety research for non-target organism risk assessment of RNAi-based GE plants. Front. Plant Sci. 2015, 6, 958. [Google Scholar] [CrossRef] [PubMed]
  14. Luo, J.; Liang, S.; Li, J.; Xu, Z.; Li, L.; Zhu, B.; Li, Z.; Lei, C.; Lindsey, K.; Chen, L. A transgenic strategy for controlling plant bugs (Adelphocoris suturalis) through expression of double-stranded RNA homologous to fatty acyl-coenzyme A reductase in cotton. New Phytol. 2017, 215, 1173–1185. [Google Scholar] [CrossRef]
  15. Fedorov, Y.; Anderson, E.M.; Birmingham, A.; Reynolds, A.; Karpilow, J.; Robinson, K.; Leake, D.; Marshall, W.S.; Khvorova, A. Off-target effects by siRNA can induce toxic phenotype. Rna 2006, 12, 1188–1196. [Google Scholar] [CrossRef]
  16. Jackson, A.L.; Bartz, S.R.; Schelter, J.; Kobayashi, S.V.; Burchard, J.; Mao, M.; Li, B.; Cavet, G.; Linsley, P.S. Expression profiling reveals off-target gene regulation by RNAi. Nat. Biotech. 2003, 21, 635–637. [Google Scholar] [CrossRef]
  17. Qiu, S.; Adema, C.M.; Lane, T. A computational study of off-target effects of RNA interference. Nucleic Acids Res. 2005, 33, 1834–1847. [Google Scholar] [CrossRef] [PubMed]
  18. Shahrajabian, M.H.; Sun, W. Survey on multi-omics, and multi-omics data analysis, integration and application. Curr. Pharm. Anal. 2023, 19, 267–281. [Google Scholar] [CrossRef]
  19. Zhou, Z.H.; Yao, Z.T.; Abouzaid, M.; Hull, J.J.; Ma, W.H.; Hua, H.X.; Lin, Y.J. Co-expression network analysis: A future approach for pest control target discovery. J. Agric. Food Chem. 2023, 71, 7201–7209. [Google Scholar] [CrossRef]
  20. Martínez, O.; Reyes-Valdés, M.H. Defining diversity, specialization, and gene specificity in transcriptomes through information theory. Proc. Natl. Acad. Sci. USA 2008, 105, 9709–9714. [Google Scholar] [CrossRef]
  21. Ma, W.; Wu, T.; Zhang, Z.; Hang, L.; Situ, G.; Yin, C.; Ye, X.; Chen, M.; Zhao, X.; He, K.; et al. Using transcriptome Shannon entropy to evaluate the off-target effects and safety of insecticidal siRNAs. J. Integr. Agric. 2022, 21, 170–177. [Google Scholar] [CrossRef]
  22. Chen, Y.; De Schutter, K. Biosafety aspects of RNAi-based pests control. Pest Manag. Sci. 2024, 80, 3697–3706. [Google Scholar] [CrossRef] [PubMed]
  23. Mamta, B.; Rajam, M. RNAi technology: A new platform for crop pest control. Physiol. Mol. Biol. Plants 2017, 23, 487–501. [Google Scholar] [CrossRef] [PubMed]
  24. Thakur, N.; Upadhyay, S.K.; Verma, P.C.; Chandrashekar, K.; Tuli, R.; Singh, P.K. Enhanced whitefly resistance in transgenic tobacco plants expressing double stranded RNA of v-ATPase A gene. PLoS ONE 2014, 9, e87235. [Google Scholar] [CrossRef]
  25. Jin, S.; Singh, N.D.; Li, L.; Zhang, X.; Daniell, H. Engineered chloroplast dsRNA silences cytochrome p450 monooxygenase, V-ATPase and chitin synthase genes in the insect gut and disrupts Helicoverpa armigera larval development and pupation. Plant Biotechnol. J. 2015, 13, 435–446. [Google Scholar] [CrossRef]
  26. Tian, G.; Cheng, L.; Qi, X.; Ge, Z.; Niu, C.; Zhang, X.; Jin, S. Transgenic cotton plants expressing double-stranded RNAs target HMG-CoA reductase (HMGR) gene inhibits the growth, development and survival of cotton bollworms. Int. J. Biol. Sci. 2015, 11, 1296. [Google Scholar] [CrossRef] [PubMed]
  27. Ni, M.; Ma, W.; Wang, X.; Gao, M.; Dai, Y.; Wei, X.; Zhang, L.; Peng, Y.; Chen, S.; Ding, L. Next-generation transgenic cotton: Pyramiding RNAi and Bt counters insect resistance. Plant Biotechnol. J. 2017, 15, 1204–1213. [Google Scholar] [CrossRef] [PubMed]
  28. Hussain, T.; Aksoy, E.; Çalışkan, M.E.; Bakhsh, A. Transgenic potato lines expressing hairpin RNAi construct of molting-associated EcR gene exhibit enhanced resistance against Colorado potato beetle (Leptinotarsa decemlineata, Say). Transgenic Res. 2019, 28, 151–164. [Google Scholar] [CrossRef] [PubMed]
  29. Mat Jalaluddin, N.S.; Othman, R.Y.; Harikrishna, J.A. Global trends in research and commercialization of exogenous and endogenous RNAi technologies for crops. Crit. Rev. Biotechnol. 2019, 39, 67–78. [Google Scholar] [CrossRef]
  30. Christiaens, O.; Whyard, S.; Vélez, A.M.; Smagghe, G. Double-stranded RNA technology to control insect pests: Current status and challenges. Front. Plant Sci. 2020, 11, 451. [Google Scholar] [CrossRef]
  31. Kleijn, D.; Bommarco, R.; Fijen, T.P.; Garibaldi, L.A.; Potts, S.G.; Van Der Putten, W.H. Ecological intensification: Bridging the gap between science and practice. Trends Ecol. Evol. 2019, 34, 154–166. [Google Scholar] [CrossRef]
  32. Chen, J.; Wang, H.; Yang, X.; Chen, G.; Du, L.; Chen, H.; Li, Y.; Peng, Y.; Han, L. Consumption of miRNA-mediated insect-resistant transgenic rice pollen does not harm Apis mellifera adults. J. Agric. Food Chem. 2021, 69, 4234–4242. [Google Scholar] [CrossRef]
  33. Kupferschmidt, K. A lethal dose of RNA. Science 2013, 341, 732733. [Google Scholar] [CrossRef]
  34. Deveux, M.; Christiaens, O.; Smagghe, G.; Taning, N.T.C. Nasonia vitripennis as a parasitoid wasp model for pest-specific dsRNA safety assessment. Entomol. Gen. 2023, 43, 139–146. [Google Scholar]
  35. Castellanos, N.L.; Smagghe, G.; Taning, C.N.T.; Oliveira, E.E.; Christiaens, O. Risk assessment of RNAi-based pesticides to non-target organisms: Evaluating the effects of sequence similarity in the parasitoid wasp Telenomus podisi. Sci. Total Environ. 2022, 832, 154746. [Google Scholar] [CrossRef]
  36. Chen, J.; Sheng, C.-W.; Peng, Y.; Wang, K.; Jiao, Y.; Palli, S.R.; Cao, H. Transcript Level and Sequence Matching Are Key Determinants of Off-Target Effects in RNAi. J. Agric. Food Chem. 2023, 72, 577–589. [Google Scholar] [CrossRef]
  37. Liu, Z.; Wang, Y.; Nanda, S.; Li, Z.; Li, Y.; Guo, M.; Chen, S.; Yang, C.; Pan, H. Oral delivery of dsHvUSP is a promising method for Henosepilachna vigintioctopunctata control with no adverse effect on the non-target insect Propylea japonica. Entomol. Gen. 2023, 43, 157–165. [Google Scholar] [CrossRef]
  38. Dang, C.; Zhang, Y.; Sun, C.; Li, R.; Wang, F.; Fang, Q.; Yao, H.; Stanley, D.; Ye, G. dsRNAs Targeted to the Brown Planthopper Nilaparvata lugens: Assessing Risk to a Non-Target, Beneficial Predator, Cyrtorhinus lividipennis. J. Agric. Food Chem. 2022, 70, 373–380. [Google Scholar] [CrossRef] [PubMed]
  39. Li, H.J.; Zhang, H.H.; Lu, J.B.; Zhang, C.X. Threonyl-tRNA synthetase gene, a potential target for RNAi-based control of three rice planthoppers. Pest Manag. Sci. 2022, 78, 4589–4598. [Google Scholar] [CrossRef]
  40. Wang, X.; Faucher, J.; Dhandapani, R.K.; Duan, J.J.; Palli, S.R. Potential effects of RNA interference of Asian longhorned beetle on its parasitoid. Pest Manag. Sci. 2023, 79, 1557–1565. [Google Scholar] [CrossRef] [PubMed]
  41. Hollowell, H.; Rieske, L.K. Southern pine beetle-specific RNA interference exhibits no effect on model nontarget insects. J. Pest Sci. 2022, 95, 1429–1441. [Google Scholar] [CrossRef]
  42. Haller, S.; Widmer, F.; Siegfried, B.D.; Zhuo, X.; Romeis, J. Responses of two ladybird beetle species (Coleoptera: Coccinellidae) to dietary RNAi. Pest Manag. Sci. 2019, 75, 2652–2662. [Google Scholar] [CrossRef] [PubMed]
  43. Pan, H.; Yang, X.; Romeis, J.; Siegfried, B.D.; Zhou, X. Dietary RNAi toxicity assay exhibits differential responses to ingested dsRNAs among lady beetles. Pest Manag. Sci. 2020, 76, 3606–3614. [Google Scholar] [CrossRef] [PubMed]
  44. Naito, Y.; Yamada, T.; Matsumiya, T.; Ui-Tei, K.; Saigo, K.; Morishita, S. dsCheck: Highly sensitive off-target search software for double-stranded RNA-mediated RNA interference. Nucleic Acids Res. 2005, 33 (Suppl. 2), W589–W591. [Google Scholar] [CrossRef]
  45. Good, R.T.; Varghese, T.; Golz, J.F.; Russell, D.A.; Papanicolaou, A.; Edwards, O.; Robin, C. OfftargetFinder: A web tool for species-specific RNAi design. Bioinformatics 2016, 32, 1232–1234. [Google Scholar] [CrossRef]
  46. Allen, M.L. Comparison of RNAi sequences in insect-resistant plants to expressed sequences of a beneficial lady beetle: A closer look at off-target considerations. Insects 2017, 8, 27. [Google Scholar] [CrossRef]
  47. Kleter, G.A. Food safety assessment of crops engineered with RNA interference and other methods to modulate expression of endogenous and plant pest genes. Pest Manag. Sci. 2020, 76, 3333–3339. [Google Scholar] [CrossRef]
  48. Taning, C.N.T.; Gui, S.; De Schutter, K.; Jahani, M.; Castellanos, N.L.; Christiaens, O.; Smagghe, G. A sequence complementarity-based approach for evaluating off-target transcript knockdown in Bombus terrestris, following ingestion of pest-specific dsRNA. J. Pest Sci. 2021, 94, 487–503. [Google Scholar] [CrossRef]
  49. Carels, N. Assessing RNA-Seq workflow methodologies using Shannon entropy. Biology 2024, 13, 482. [Google Scholar] [CrossRef] [PubMed]
Biology 14 01173 g001

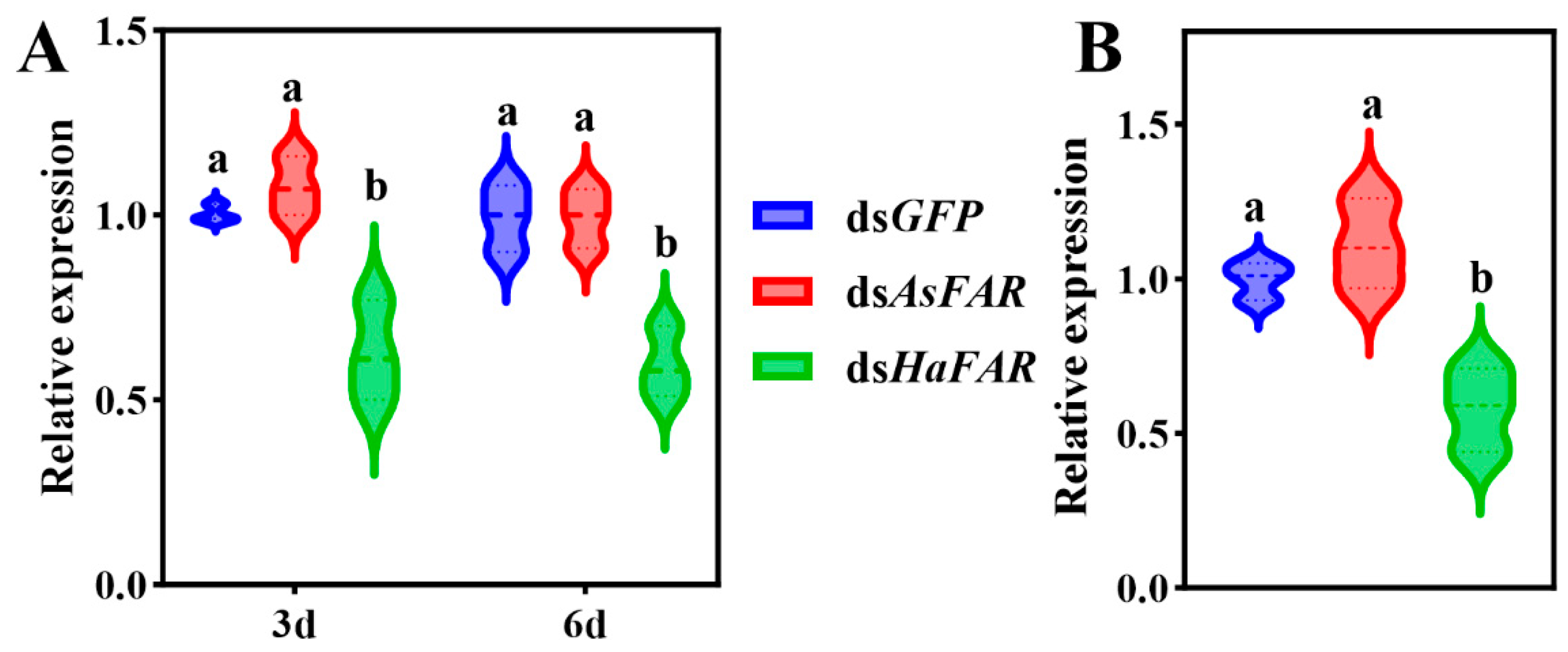

Figure 1. Changes in FAR gene expression in larvae and adults of H. axyridis after feeding on three dsRNAs. (A) Changes in FAR gene expression in larvae of H. axyridis after feeding on three dsRNAs for 3 d and 6 d (F3d (2, 6) = 20.65, P3d = 0.0020; F6d (2, 6) = 19.83 P6d = 0.0023). (B) Changes in FAR gene expression in adults of H. axyridis after feeding three dsRNAs for 3 d (F (2, 6) = 16.25, p = 0.0038). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Different lowercase letters (a, b) indicated significant differences (p-value < 0.05). p-Values are based on multiple comparisons that were performed using one-way ANOVA followed by Tukey’s multiple comparison tests.
Figure 1. Changes in FAR gene expression in larvae and adults of H. axyridis after feeding on three dsRNAs. (A) Changes in FAR gene expression in larvae of H. axyridis after feeding on three dsRNAs for 3 d and 6 d (F3d (2, 6) = 20.65, P3d = 0.0020; F6d (2, 6) = 19.83 P6d = 0.0023). (B) Changes in FAR gene expression in adults of H. axyridis after feeding three dsRNAs for 3 d (F (2, 6) = 16.25, p = 0.0038). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Different lowercase letters (a, b) indicated significant differences (p-value < 0.05). p-Values are based on multiple comparisons that were performed using one-way ANOVA followed by Tukey’s multiple comparison tests.
Biology 14 01173 g001
Biology 14 01173 g002

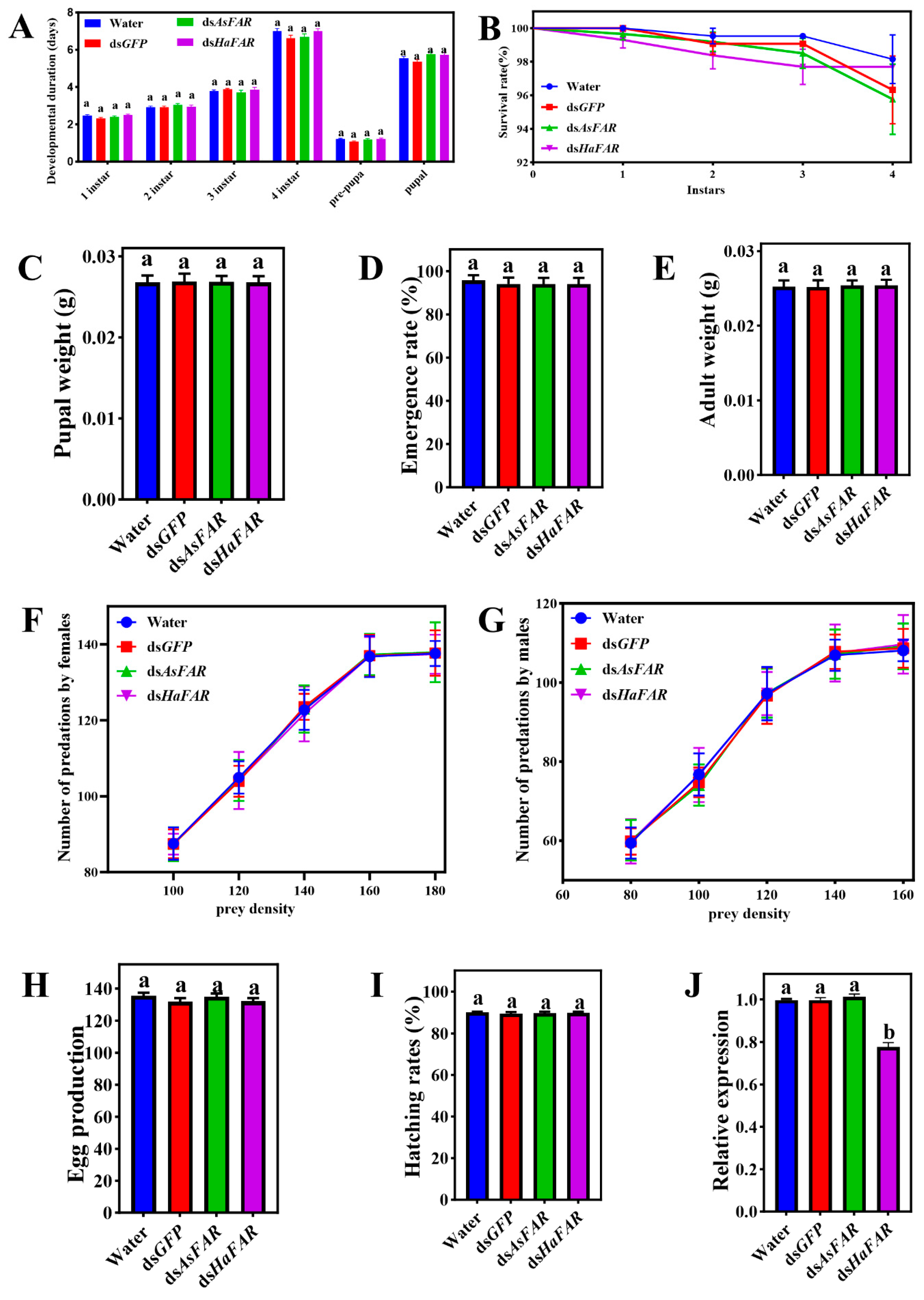

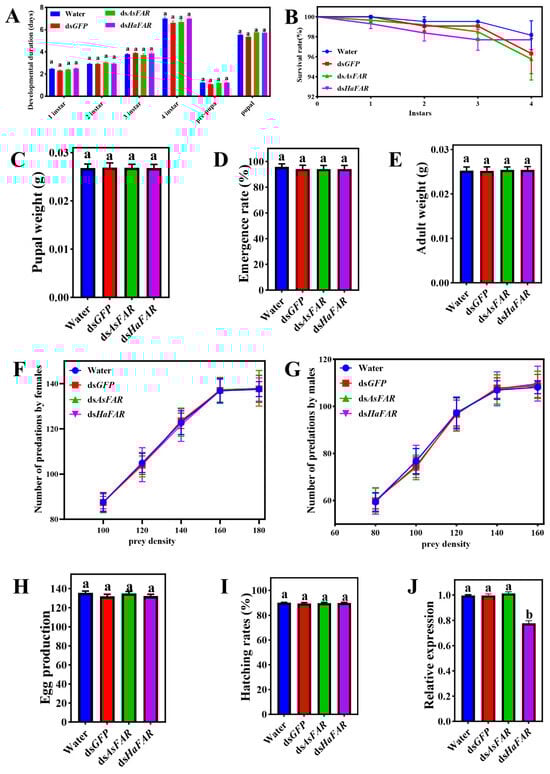

Figure 2. Evaluation of RNA interference of FAR in H. axyridis. Duration of the pre-imaginal stages (A), survival rates (B), pupal weight (F1 instar (3, 282) = 1.85, P1 instar = 0.14; F2 instar (3, 278) = 0.6440, P2 instar = 0.5873; F3 instar (3, 276) = 0.67, P4 instar = 0.5719; F4 instar (3, 268) = 1.556, Ppre-pura = 0.2004; Fpre-pura (3, 268) = 1.533, Ppupal = 0.2063 F (3, 253) = 1.551, p = 0.2019) (C), emergence rate (F (3, 268) = 0.28, p = 0.84) (D), adult weight (F (3, 268) = 0.09, p = 0.97) (E), number of predations by females (F), number of predations by males (G), egg production (F (3, 56) = 0.77, p = 0.51) (H), and hatching rates (F (3, 268) = 0.28, p = 0.84) (I) for populations from all treatments. (J) Changes in FAR expression after feeding dsRNA-mixed artificial diets in H. axyridis (F (3, 8) = 209.14, p = 6.15 × 10−8). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Different lowercase letters (a, b) indicate significant differences (p-value < 0.05). p-Values are based on multiple comparisons that were performed using one-way ANOVA followed by Tukey’s multiple comparison tests.
Figure 2. Evaluation of RNA interference of FAR in H. axyridis. Duration of the pre-imaginal stages (A), survival rates (B), pupal weight (F1 instar (3, 282) = 1.85, P1 instar = 0.14; F2 instar (3, 278) = 0.6440, P2 instar = 0.5873; F3 instar (3, 276) = 0.67, P4 instar = 0.5719; F4 instar (3, 268) = 1.556, Ppre-pura = 0.2004; Fpre-pura (3, 268) = 1.533, Ppupal = 0.2063 F (3, 253) = 1.551, p = 0.2019) (C), emergence rate (F (3, 268) = 0.28, p = 0.84) (D), adult weight (F (3, 268) = 0.09, p = 0.97) (E), number of predations by females (F), number of predations by males (G), egg production (F (3, 56) = 0.77, p = 0.51) (H), and hatching rates (F (3, 268) = 0.28, p = 0.84) (I) for populations from all treatments. (J) Changes in FAR expression after feeding dsRNA-mixed artificial diets in H. axyridis (F (3, 8) = 209.14, p = 6.15 × 10−8). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Different lowercase letters (a, b) indicate significant differences (p-value < 0.05). p-Values are based on multiple comparisons that were performed using one-way ANOVA followed by Tukey’s multiple comparison tests.
Biology 14 01173 g002
Biology 14 01173 g003

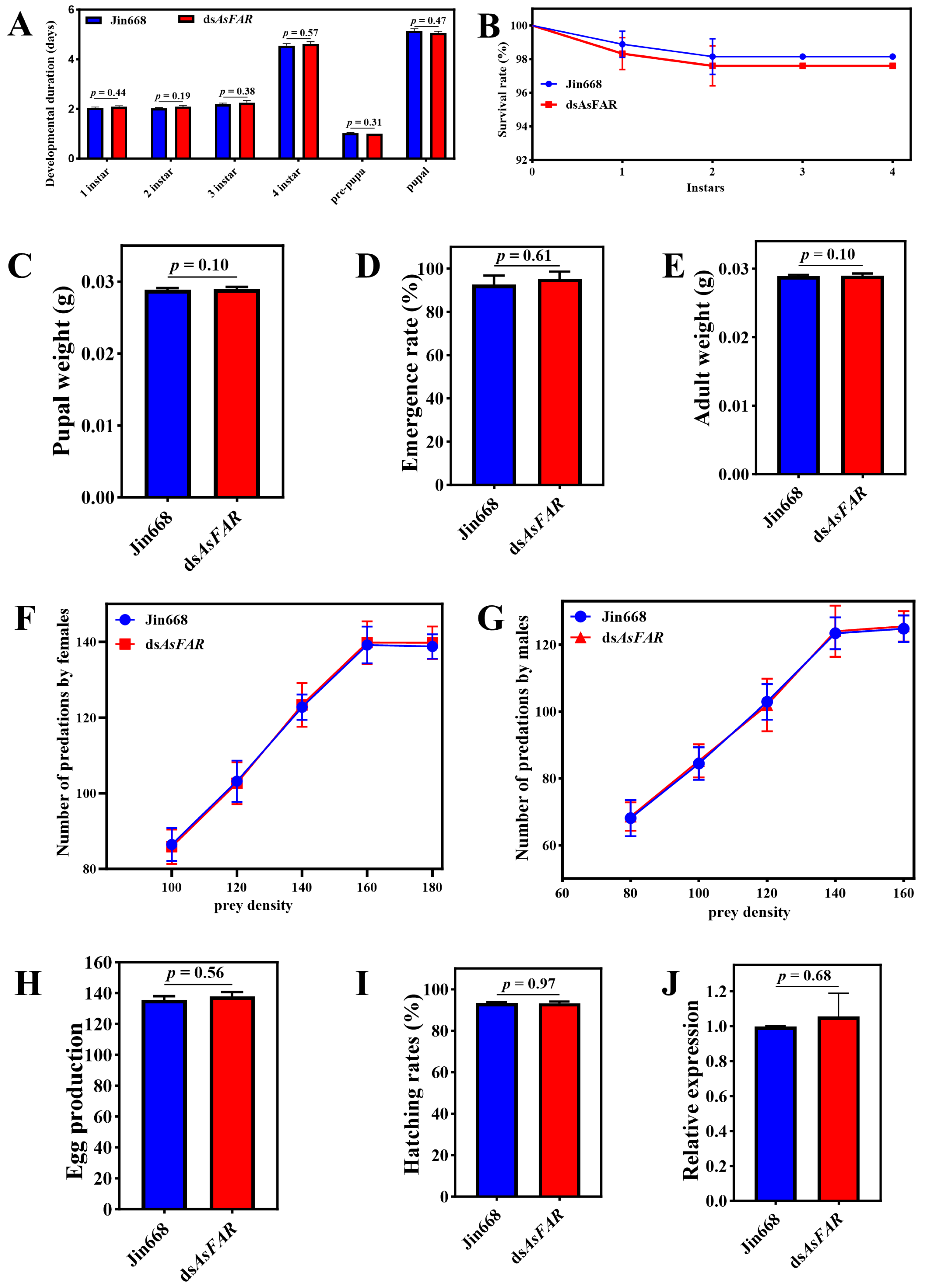

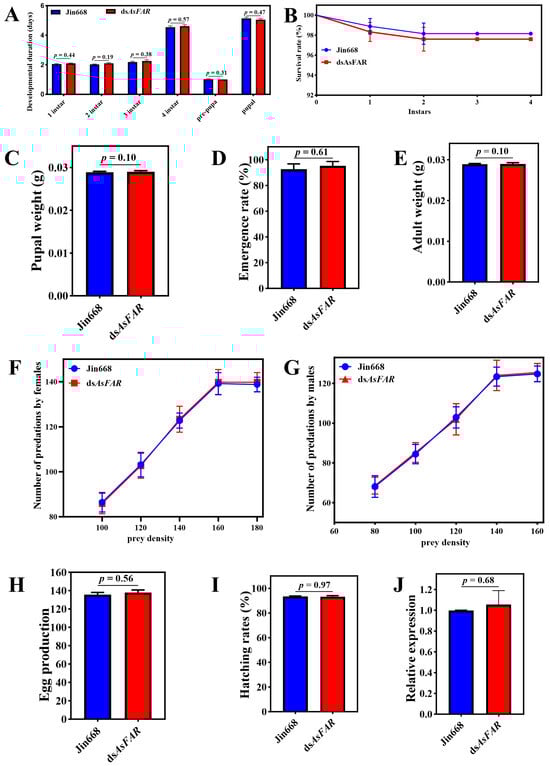

Figure 3. Life-table parameters of H. axyridis through the trophic transfer assay. Duration of the pre-imaginal stages (df1 instar = 82, df2 instar = 80, df3 instar = 80, df4 instar = 80, dfpre-pura = 80, dfpupal = 75) (A), survival rates (B), pupal weight (df = 80) (C), emergence rate (df = 80) (D), adult weight (df = 80) (E), number of predations by females (F), number of predations by males (G), egg production (df = 28) (H), and hatching rates (df = 28) (I) of H. axyridis after feeding on aphids that were reared on dsAsFAR and jin668 cottons (df = 28). (J) Changes in FAR expression after feeding on Jin668 and dsAsFAR cotton in H. axyridis (df = 4). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Each group was compared by Student’s t-test.
Figure 3. Life-table parameters of H. axyridis through the trophic transfer assay. Duration of the pre-imaginal stages (df1 instar = 82, df2 instar = 80, df3 instar = 80, df4 instar = 80, dfpre-pura = 80, dfpupal = 75) (A), survival rates (B), pupal weight (df = 80) (C), emergence rate (df = 80) (D), adult weight (df = 80) (E), number of predations by females (F), number of predations by males (G), egg production (df = 28) (H), and hatching rates (df = 28) (I) of H. axyridis after feeding on aphids that were reared on dsAsFAR and jin668 cottons (df = 28). (J) Changes in FAR expression after feeding on Jin668 and dsAsFAR cotton in H. axyridis (df = 4). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Each group was compared by Student’s t-test.
Biology 14 01173 g003
Biology 14 01173 g004

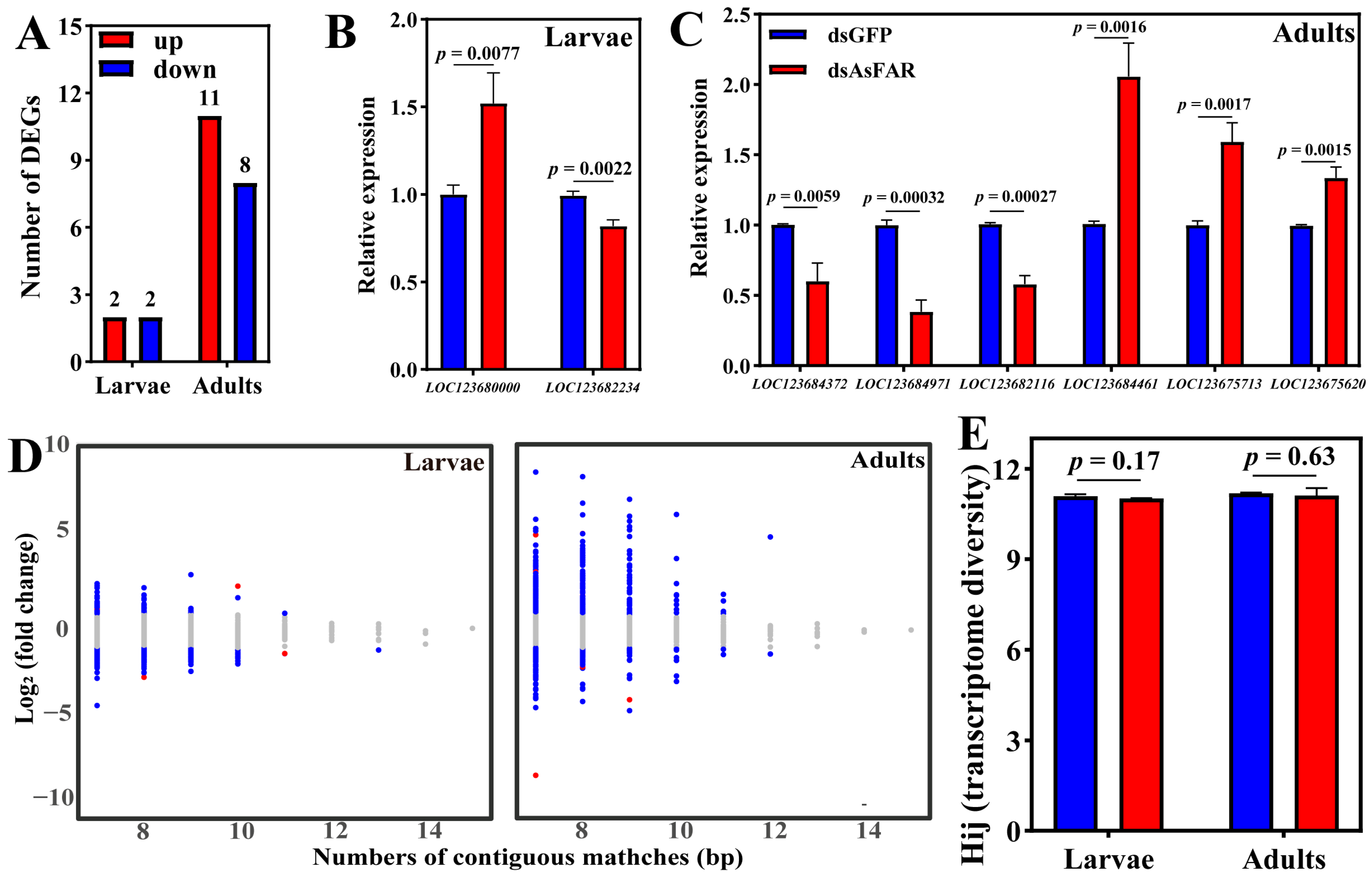

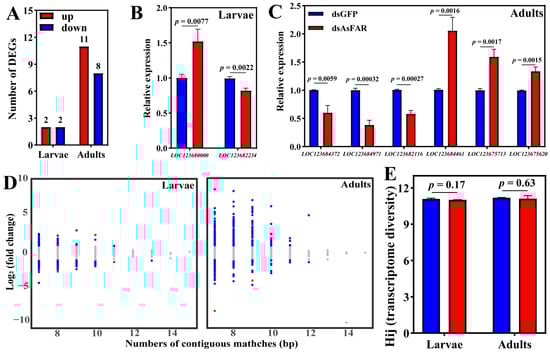

Figure 4. Transcriptome entropy for evaluating siRNA off-effects. Quantitative count of DEGs (A) for transcriptome sequencing and qRT-PCR validation for O. similis larvae (df = 4) (B) and adults (df = 4) (C). (D) The number of base pairs matched is linked with their fold changes for each continuous matched gene. Red, upregulated genes; blue, downregulated genes; gray, no significant genes. (E) The effect of siRNA feed on the Shannon transcriptome entropy (df = 4). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Each group was compared by Student’s t-test.
Figure 4. Transcriptome entropy for evaluating siRNA off-effects. Quantitative count of DEGs (A) for transcriptome sequencing and qRT-PCR validation for O. similis larvae (df = 4) (B) and adults (df = 4) (C). (D) The number of base pairs matched is linked with their fold changes for each continuous matched gene. Red, upregulated genes; blue, downregulated genes; gray, no significant genes. (E) The effect of siRNA feed on the Shannon transcriptome entropy (df = 4). The values are represented as mean ± SD of three replicates. Error bars indicate the standard error of the mean. Each group was compared by Student’s t-test.
Biology 14 01173 g004
Table 1. The silencing of the genes containing continuously matched regions with dsAsFAR in the H. axyridis transcriptome.
Table 1. The silencing of the genes containing continuously matched regions with dsAsFAR in the H. axyridis transcriptome.
No. of Matched Base Pairs (bp)Total No. of GenesNo. and Percentage of Up-Regulated GenesNo. and Percentage of Down-Regulated GenesNo. and Percentage of Non-Significant-Change Genes
754623 (0.05%)3 (0.05%)5456 (99.90%)
837222 (0.05%)1 (0.03%)3719 (99.92%)
912720 (0)1 (0.08%)1271 (99.92%)
103250 (0)0 (0)325 (100%)
111030 (0)0 (0)103 (100%)
12210 (0)0 (0)21 (100%)
1390 (0)0 (0)9 (100%)
1430 (0)0 (0)3 (100%)
1510 (0)0 (0)1 (100%)
Total10,9185 (0.05%)5 (0.05%)10,908 (99.90%)
Table 2. The silencing of the related KEGG genes after dsAsAFR ingestions in H. axyridis.
Table 2. The silencing of the related KEGG genes after dsAsAFR ingestions in H. axyridis.
TranscriptomeKEGG Pathway LevelTotal No. of GenesNo. and Percentage of Up-Regulated GenesNo. and Percentage of Down-Regulated GenesNo. and Percentage of Non-Significant Change Genes
Level 225950 (0.00%)0 (0.00%)2595 (100.00%)
LarvaeLevel 323,9527 (0.03%)3 (0.01%)23,942 (99.96%)
Total26,5477 (0.03%)3 (0.01%)26,537 (99.96%)
Level 22698190 (7.04%)6 (0.22%)2502 (92.74%)
AdultsLevel 325,5451261 (4.94%)39 (0.25%)24,245 (94.91%)
Total28,2431451 (5.14%)45 (0.16%)26,747 (94.70%)
