Article

Enhanced Soil Fertility and Carbon Sequestration in Urban Green Spaces through the Application of Fe-Modified Biochar Combined with Plant Growth-Promoting Bacteria

by
Guoyao Niu
1,
Chiquan He
1,*,
Shaohua Mao
1,
Zongze Chen
1,
Yangyang Ma
1 and
Yi Zhu
2,*
1
School of Environmental and Chemical Engineering, Shanghai University, Shanghai 200444, China
2
Key Laboratory of National Forestry and Grassland Administration on Ecological Landscaping of Challenging Urban Sites, Shanghai Engineering Research Center of Landscaping on Challenging Urban Sites, Shanghai Academy of Landscape Architecture Science and Planning, Shanghai 200232, China
*
Authors to whom correspondence should be addressed.
Biology 2024, 13(8), 611; https://doi.org/10.3390/biology13080611
Submission received: 23 July 2024 / Revised: 7 August 2024 / Accepted: 10 August 2024 / Published: 12 August 2024
(This article belongs to the Special Issue Biology, Ecology and Management of Aquatic Macrophytes and Algae)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

This study investigated the effects of plant growth promoting bacteria (Bacillus clausii) and Fe-modified biochar on soil fertility increases and mechanisms of carbon sequestration. Additionally, the impact on C-cycling-related enzyme activity and the bacterial community was also explored. The study results demonstrate that in comparison to the individual application of FeB and BC, the FeBBC treatment significantly relieves soil alkalization and enhances soil alkali-hydro nitrogen content and aggregate stability (particle size > 0.25 mm), thereby contributing to improved soil fertility and ecological function. Additionally, all biochar treatments exhibit higher soil organic carbon, thereby increasing organic carbon sequestration, particularly in the FeBBC treatment. Compared to a single ecological restoration method, FeBBC treatment can improve soil fertility and carbon sequestration, providing important reference values for urban green space soil ecological restoration projects.

Abstract

The soil of urban green spaces is severely degraded due to human activities during urbanization, and it is crucial to investigate effective measures that can restore the ecological functions of the soil. This study investigated the effects of plant growth promoting bacteria (Bacillus clausii) and Fe-modified biochar on soil fertility increases and mechanisms of carbon sequestration. Additionally, the effects on C-cycling-related enzyme activity and the bacterial community were also explored. Six treatments included no biochar or Bacillus clausii suspension added (CK), only Bacillus clausii suspension (BC), only biochar (B), only Fe-modified biochar (FeB), biochar combined with Bacillus clausii (BBC), and Fe-modified biochar combined with Bacillus clausii (FeBBC). Compared with other treatments, the FeBBC treatment significantly decreased soil pH, alleviated soil alkalization, and increased the alkali-hydro nitrogen content in the soil. Compared to the individual application of FeB and BC, the FeBBC treatment significantly improved aggregates’ stability and positively improved soil fertility and ecological function. Additionally, compared to the individual application of FeB and BC, the soil organic carbon (SOC), particulate organic carbon (POC), and soil inorganic carbon (SIC) contents for the FeBBC-treated soil increased by 28.46~113.52%, 66.99~434.72%, and 7.34~10.04%, respectively. In the FeBBC treatment, FeB can improve soil physicochemical properties and provide bacterial attachment sites, increase the abundance and diversity of bacterial communities, and promote the uniform distribution of carbon-related bacteria in the soil. Compared to a single ecological restoration method, FeBBC treatment can improve soil fertility and carbon sequestration, providing important reference values for urban green space soil ecological restoration.

Graphical Abstract

1. Introduction

Urban green spaces refer to land areas in urban environments where natural and artificial vegetation are the predominant forms of existence [1]. The soil in urban green spaces is a vital constituent of terrestrial ecosystems, playing a crucial role in mitigating climate change and sequestering carbon in the soil [2]. The soil in urban green spaces can increase its nutrient content and enhance its carbon storage capacity through atmospheric carbon dioxide precipitation or decomposition of plant waste [3]. Nevertheless, during the rapid urbanization process, the soil of these urban green spaces is commonly affected by multiple direct or indirect human disturbances or obstacles, resulting in problems such as compaction, high pH, and low soil nutrient and organic matter content, profoundly impacting its ability to fulfill ecological functions [4,5]. Hence, investigating measures to alleviate the degradation of soil fertility and enhance soil carbon sequestration in urban green spaces has emerged as a crucial research focus.
Biochar is a solid carbonaceous material produced by converting carbon rich biomass through thermochemical methods under anaerobic or hypoxic conditions. Previous studies have demonstrated that adding biochar to soil effectively improves soil fertility and increases carbon sequestration [6,7]. Recent research has focused on the functional modification of biochar to enhance its potential applications in carbon sequestration, soil fertility improvement, and environmental pollution remediation [8,9]. Wen et al. [10] indicated that, compared with biochar, iron-modified biochar significantly reduces the pH value and has more potential in alleviating soil alkalization. Wu et al. [11] found that Fe (III)-biochar has a larger specific surface area, pores, and more functional groups, which helps enhance its ability to restore soil ecological functions. Furthermore, Zhang et al. [12] found that the application of Fe3O4-modified biochar in soil resulted in higher organic carbon content and carbon-nitrogen ratio compared to the addition of raw biochar and Fe3O4 alone. Based on these findings, taking advantage of Fe-modified biochar for soil recovery in urban green spaces has great potential [9,13].
Plant Growth-Promoting Bacteria (PGPB) can promote plant growth through direct and indirect effects, thereby increasing soil carbon sequestration [14]. PGPB can directly promote plant growth through the synthesis of growth hormones (IAA) or through the effects of phosphorus solubilization, nitrogen fixation, and potassium solubilization [15]. In addition, PGPB can indirectly promote plant growth by improving soil structure and inhibiting the growth of pathogens [16]. Bacillus sp. is the bacterium that is most frequently utilized for promoting plant growth. Some studies have demonstrated that the inoculation of Bacillus sp. can effectively increase soil nutrient and carbon sequestration [17]. Bacillus clausii is a microorganism that has been recognized for its ability to promote plant growth. Li et al. [18] confirmed the production of extracellular polysaccharides by Bacillus clausii isolated from saline-alkali soil in Xinjiang. The Bacillus clausii B8 strain isolated from soil by Oulebsir-Mohandkaci et al. [19] can produce siderophore, HCN, and IAA, leading to a significant improvement in rapeseed seed germination rate. Although Bacillus clausii has been recognized for its plant growth-promoting attributes, its potential role as a beneficial bacterium in improving soil fertility and carbon sequestration within the context of urban green spaces is yet to be comprehensively elucidated.
Ecological remediation of soils by plants has been widely used and is often attributed to changes in plant and soil microbial communities [20]. However, the comparison of the effects between biotic and abiotic soil ecological remediation materials has not been fully studied. Previous research has demonstrated that biochar can serve as a shelter for bacteria by providing a favorable pore structure and specific surface area, while also supplying essential nutrients for bacterial growth [21,22]. Furthermore, biochar has been observed to enhance the physicochemical properties of soil, stimulate microbial activity, and thus positively affect the soil carbon pool [23]. For example, Jabborova et al. [24] indicated that co-inoculation of biochar and rhizobacteria significantly increased soil SOC and nutrient content. Ren et al. [25] indicated that the combined application of PGPR and biochar significantly increased the soil bacterial diversity index. However, most research mainly focused on the combined biotechnology of biochar and PGPB. In contrast, the effect of Fe-modified biochar combined with Bacillus clausii on improving soil fertility in urban green spaces and carbon sequestration is still unclear.
To fill this knowledge gap, this study aimed to investigate the effects of applied Bacillus clausii, biochar, Fe-modified biochar, biochar combined with Bacillus clausii, and Fe-modified biochar combined with Bacillus clausii on soil fertility in urban green spaces and carbon sequestration and explored the changes in soil C-cycling-related enzyme activity and the bacterial community. We hypothesized that (1) compared to their individual application, the combination of Fe-modified biochar and Bacillus clausii will result in improving soil fertility; (2) the combination of Fe-modified biochar and Bacillus clausii could significantly enhance the ability of soil carbon sequestration; and (3) the combination of Fe-modified biochar and Bacillus clausii can improve enzyme activity and bacterial community composition related to carbon cycling in the soil.

2. Materials and Methods

2.1. Preparation of Soil Samples, Biochar, Bacillus clausii, and Ryegrass Seeds

The soil samples were collected from the green spaces of Shanghai University (31°19′34″ N; 121°24′22″ E). Using a multipoint mixing method, four sampling points were used to collect soil samples from the surface layers (upper 20 cm). The drying method was used to measure the soil moisture content of the field soil samples immediately upon their return to the laboratory. Before being used for the incubation experiment, ensure that the soil is thoroughly mixed and dried using air conditions and passed through a 2 mm sieve. The physicochemical properties of the soil are shown in Table S1.
The biochar (B) was provided by Shanghai Carbon Suo Era Environmental Technology Co., Ltd., Shanghai, China. The biochar was derived from apple wood and obtained using a continuous operation reactor at a temperature of 400 °C for 5 h. The preparation of Fe-modified biochar (FeB) is based on the modification method mentioned by Liu et al. [26]. All the biochar samples were passed through a 2 mm sieve before being used. Bacillus clausii CICC 21104 was provided by the China Center of Industrial Culture Collection (http://www.china-cicc.org/cicc/detail2/?sid=3305, accessed on 14 January 2023), Beijing, China. The ryegrass seeds (Lolium perenne L.) were provided by Beijing Hejia Eco-technology Co., Ltd., Beijing, China.

2.2. Bacterial Inoculum Preparation

Nutrient broth (CM0002, China Center of Industrial Culture Collection, Beijing, China) culture medium was the medium used for culture of Bacillus clausii. Bacillus clausii was inoculated into sterile medium to cultivate and expand at 37 °C for 48 h. We regulated the suspension of Bacillus clausii to 1 × 108 CFU mL−1 and then used it as a standard inoculum.

2.3. Experimental Design

On 1 July 2023, an indoor potted plant experiment was conducted at the artificial climate laboratory of the School of Environmental and Chemical Engineering, Shanghai University. The six treatments are shown in Table 1. Each treatment had three replicates of pots. Firstly, we filled 1200 g soil into pots with an inside diameter of 12 cm and a height of 22 cm. For the CK treatment, no biochar or Bacillus clausii suspension was added. For the Bacillus clausii (BC) treatment, we diluted 10 mL of Bacillus clausii suspension with sterile water to 100 mL, and then fully mixed with the soil in the pot. For the biochar (B) or Fe-modified biochar (FeB) treatment, we fully mixed the biochar or Fe-modified biochar with the soil in the pot at a rate of 2% (w/w), respectively. For the biochar combined with Bacillus clausii (BBC) or Fe-modified biochar combined with Bacillus clausii (FeBBC) treatment, we fully mixed the same above-mentioned doses of biochar or Fe-modified biochar and Bacillus clausii suspension with the soil in the pot. To ensure consistency, add the same doses of sterile water for treatments without Bacillus clausii inoculation.
The ryegrass seeds (Lolium perenne L.) underwent sterilization using a 10% H2O2 solution for 20 min. After sterilization, the seeds were thoroughly rinsed with deionized water until clean and soaked in deionized water for 2 h prior to sowing. All pots were watered with deionized water every two days, and the soil moisture content was maintained at about 60% field soil moisture content. After ten days of growth, 50 seedlings of the same growth were retained in each pot. The incubation experiment lasted 56 days at a controlled temperature of 25 ± 2 °C.

2.4. Samples Analysis

2.4.1. Characterization of Bacillus clausii and Biochar Samples

The pH, element contents (C, N, and H), surface area, pore volume, and pore diameter were selected to characterize the basic properties of biochar samples. A scanning electron microscope with energy dispersive spectrometer (SEM-EDS), Fourier transform infrared (FTIR) spectra, X-ray diffraction (XRD), and X-ray Photoelectron Spectroscopy (XPS) were used to analyze the structural features of biochar samples.
The growth promoting characteristics of Bacillus clausii were evaluated, including IAA production, ammonia production, phosphate solubilization, nitrogen fixation, siderophore production, and the production of carbonic anhydrase. Inoculate Bacillus clausii into the liquid B4 medium for biomineralization experiments to evaluate the effect of Bacillus clausii on carbonate precipitation. The FTIR spectra, XRD, and SEM-EDS were used to analyze the surface morphological characteristics and the composition of the mineralization products.

2.4.2. Analysis of Plant and Soil Samples

Soil and plant samples were taken after the incubation experiment to evaluate the effect of soil treatments on plant biomass and soil. A portion of the freshly collected soil was stored in a refrigerator at −20 °C for the analysis of C-cycling enzyme activity. To analyze the diversity and abundance of bacterial communities, a portion of fresh soil was gathered in sterilized bags and kept it in a refrigerator at −80 °C. The remaining fresh soil was dried under air conditions and then analyzed for soil properties after being sieved.
The basic soil properties pH, alkali-hydro nitrogen, available phosphorus, available potassium, available Fe, free Fe oxide (Fed), and soil aggregates were measured to evaluate the effects of soil treatment on soil fertility and structure. The contents of soil organic carbon (SOC), particle organic carbon (POC), KMnO4-oxidized organic carbon (EOC), dissolved organic carbon (DOC), and soil inorganic carbon (SIC) were measured to evaluate the effects of soil treatment on soil carbon sequestration. This study selected invertase and β-glucosidase to assess the impact of soil treatment on C-cycling enzyme activity. The Supplementary Information provides detailed information on the measured methods.

2.4.3. Analytic Method for Bacterial Community Analysis

Soil samples were processed using the MagAttract® PowerSoil® Pro DNA Kit (QIAGEN, Hilden, Germany) following the manufacturer’s instructions. To analyze bacterial diversity, the V3-V4 hypervariable region of the 16S rRNA genes were amplified with universal primers 338F (5′-ACTCCTACGGGAGGCAGCAG-3′) and 806R (5′-GGACTACHVGGGTWTCTAAT-3′). The raw sequencing data have been deposited into the NCBI Sequence Read Archive (SRA) database (Accession Number: PRJNA1069871).

2.5. Statistical Analysis

To assess significant differences in plant biomass, soil physicochemical properties, soil nutrient content, soil carbon component content, and enzyme activity were examined using a one-way analysis of variance (ANOVA) with Duncan’s multiple range test (p < 0.05). The results were presented as the mean ± standard error of the mean of three replicates. The Pearson correlation analysis method was employed to explore the relationship between soil and environmental factors. A co-occurrence network was constructed using Gephi to visualize the associations between the diversity of different bacterial orders and ecological aspects. A correlation between two nodes was considered to be statistically robust if the Spearman’s correlation coefficient was over 0.8 or less than −0.8 and the p-value was less than 0.05. The software of Excel 2016 and Origin 2022 was used to produce the tables and figures.

3. Results

3.1. Changes in Characteristics of Fe-Modified Biochar

The physicochemical properties of biochar are listed in Table S2. The results showed that the pH and elemental content (C, N, and H) of FeB were significantly decreased. In addition, the specific surface area and Fe content of FeB increased to 9.35 m2 g−1 and 22.63 g kg−1, respectively. SEM analysis clearly revealed the porous structure of biochar, and after Fe-modification, nanoparticles were observed to be loaded into the pores of FeB (Figure S2). FTIR spectroscopy revealed the presence of new absorption peaks at 650 cm−1 and 460 cm−1 in FeB (Figure S1a). XRD analysis demonstrated the presence of characteristic peaks of Fe2O3, Fe3O4, and FeO on the surface of FeB (Figure S1b). After modification, the C-O peak of FeB disappeared, while the peaks corresponding to C-C, C=O, and O-C=O increased (Figure S1d,e).

3.2. Plant Growth-Promoting Characteristics and Biomineralization of Bacillus clausii

The results showed that Bacillus clausii has various plant growth promoting characteristics, such as indole-3-acetic acid (IAA) production, phosphorus solubilization, nitrogen fixation, siderophores production, and carbonic anhydrase production (Table S3). In the biomineralization experiment (Figure S3), the SEM-EDS analysis of the mineralized product (MP) revealed that the main elements of the MPs were C, O, and Ca (Figure S4c,d). The absorption peaks at 875 cm−1, 1401 cm−1, and 1436 cm−1 were the absorption peaks of hexagonal calcium carbonate and calcite, respectively (Figure S4a) [27]. XRD spectrum showed (Figure S4b) that the diffraction peak at 2θ = 29.4° corresponds to the (104) crystal plane of calcite [28].

3.3. Changes in Soil Physicochemical Properties and Fertility of FeB Combined with BC

The effects of various treatments on the physicochemical properties of the soils differ significantly (Table 2). The soil pH significantly decreased in the BC, FeB, and FeBBC treatments. However, the soil pH significantly increased in the B and BBC treatments. Compared with other treatments, in the FeBBC treatments, both the aboveground weight of Lolium perenne L. and the alkali-hydro nitrogen content in the soil remained consistently high (Figure S5). However, FeBBC treatment had a negative effect on both available P and K compared to the BBC treatment. Furthermore, the FeB treatment exhibited a significant decrease in soil available Fe content when compared to the CK. The available Fe and Fed content in the FeBBC-treated soil is significantly increased compared to the BBC treatment, indicating that the combination of FeB and BC positively affects the available Fe and Fed content. After 56 days of incubation, compared with other treatments, there was a significant increase in the specific gravity of soil aggregates (particle size > 0.25 mm) that was observed for the FeBBC treatment (Figure 1f).

3.4. Changes in Soil Carbon Components for FeB Combined with BC

The combination of FeB and BC resulted in elevated levels of SOC content compared to other treatments (Figure 1a). Compared with BC or unmodified biochar (B and BBC) treatments, the higher content of POC was observed for Fe-modified biochar treatments (FeB and FeBBC) (Figure 1c). Furthermore, including BC, FeB, BBC, and FeBBC treatments resulted in significantly higher levels of DOC (Figure 1b). Regarding EOC, the Fe-modified biochar treatments (FeB and FeBBC) exhibited a slight decrease in EOC content compared to the unmodified biochar treatments (B and BBC). However, this difference was not statistically significant (Figure 1d). Among all the treatments, BC and FeB treatments showed lower SIC content, whereas BBC treatment exhibited higher SIC content. Furthermore, when comparing FeB with FeBBC treatment, a significant increase in SIC content was observed in the latter (Figure 1e).

3.5. Changes in Soil C-Cycling-Related Enzyme Activity and Soil Bacterial Diversity for FeB Combined with BC

Among all the treatment groups, the FeB and FeBBC treatments exhibited lower levels of β-glucosidase (Figure 2a). Similar trends were observed in terms of invertase activity among all treatments. The B and FeBBC treatments displayed higher levels of invertase activity, while no significant differences were observed between the other treatment groups (Figure 2b).
The changes in the alpha diversity of soil bacterial communities are shown in Table 3. The results of this study suggested that the gene sequence utilized accurately reflects the composition of bacterial communities in the soil samples. This conclusion is supported by the high Goods coverage, ranging from 99.59% to 100.00%. The FeBBC treatment resulted in a diverse bacterial community, as demonstrated in Table 3. However, the BBC treatment provided the least diversity in the community. Likewise, the number of ASVs correlates with the trend of similarity in the alpha diversity index. The Venn diagram analysis revealed variations in the ASVs among different treatments (Figure S6). The number of treatment-specific ASVs ranged from 1684 to 2292, and the highest value was observed for the FeBBC treatment, which suggests that the FeBBC treatment improved the environment for microbial survival. Furthermore, a total of 533 ASVs were found to be shared among all treatments, as depicted in Figure S6. These core bacterial groups primarily included Proteobacteria, Acidobacteriota, Actinobacteruota, Chloroflexi, and Firmicutes.

3.6. Changes in Bacterial Community Composition for FeB Combined with BC

The relative abundance of dominant phyla in bacterial communities and the heatmaps of 30 dominant bacterial orders are shown in Figure 3, respectively. The focus of this study will be on taxonomic groups that are closely linked to carbon decomposition/fixation in soil. The result showed that the dominant C-cycling-related bacterial taxa included the Proteobacteria, Acidobacteriota, Actinobacteriota, Chloroflexi, Firmicutes, Myxococcota, and Gemmatimonadota. Compared with unmodified biochar, the relative abundance of Proteobacteria, Firmicutes, and Gemmatimonadota increased with Fe-modified biochar treatment. Actinobacteriota and Chloroflexi were less abundant in the FeBBC-treated soil than in the BBC-treated soil. Moreover, the abundance of Acidobacteriota for the unmodified biochar treatment was higher than that for the Fe-modified biochar treatment. The distribution of C-cycling-related bacteria treated with FeBBC was uniform compared to adding FeB or BC alone. Notably, the FeBBC treatment exhibited a higher relative abundance of Rhizobiales, Burkholderiales, Sphingomonadales, and Gemmatimonadales than the BBC treatment. Additionally, the relative abundance of Myxococcales in the FeBBC-treated soil decreased in comparison to the FeB treatment (Figure 3b).

3.7. Exploring the Correlations between Environmental Factors and Bacterial Communities

Pearson correlation analysis (Figure 4a) revealed significant positive correlations between soil pH and available P, available K, and β-glucosidase activity. Moreover, SOC demonstrated significant positive correlations with the aboveground weight of Lolium perenne L., particulate organic carbon, and invertase activity. As illustrated in Figure 4b, the co-occurring network analysis revealed significant negative correlations between soil pH and Chloroflexales and Sphingomonadales. A significant negative correlation between SOC and Myxococcales was also revealed.

4. Discussion

4.1. Characteristics of Biochar and Fe-Modified Biochar

The main reason for the significant decrease in the pH value of FeB was the hydrolysis of Fe3+ on the surface of FeB [10]. This indicated that adding acidic FeB to soil will positively impact the pH, alleviating soil alkalization. In addition, an increase in the specific surface area of FeB and the porous structure observed via SEM indicates that FeB had more adsorption sites, which was beneficial for the survival of bacteria. FTIR spectroscopy revealed the presence of new absorption peaks at 650 cm−1 and 460 cm−1, indicating the successful loading of Fe2O3 and Fe3O4, which is also confirmed in the XRD analysis [29]. XPS spectroscopy shows that the changes in different functional groups on the surface of FeB indicate that the increased aromaticity of FeB and alterations in its surface characteristics can impact its interaction with various soil environmental factors, consequently influencing the composition of bacterial communities within the soil.

4.2. Characteristics of Bacillus clausii

The results in Table S3 indicate that Bacillus clausii exhibited positive traits for plant growth promotion. The mineralization experiment’s products were mainly carbonates, as determined with SEM-EDS, FTIR, and XRD characterization analysis. The findings of this study provide evidence that Bacillus clausii is capable of producing carbonic anhydrase, an enzyme that facilitates the conversion of CO2 into carbonate. This enzymatic activity is advantageous for the sequestration of inorganic carbon in soil, contributing to its overall carbon storage capacity.

4.3. Effect of FeB Combined with BC Improves Soil Physicochemical Properties and Fertility

In this study, the high pH of biochar itself and the hydrolysis of soluble alkaline substances led to an increase in soil pH in the B and BBC treatments, exacerbating soil alkalization. In accordance with our first hypothesis, both FeB and BC treatments had a positive effect on reducing the soil pH value. Moreover, compared with an individual application, the combined application of FeB and BC resulted in a more significant decrease in soil pH value. The hydrolysis of Fe3+ on the surface of Fe-modified biochar released a large amount of H+, and consequently reduced soil pH [10]. In addition, this phenomenon may also be attributed to FeB providing a favorable habitat for Bacillus clausii, which in turn secretes organic acids. These organic acids not only contribute to the reduction in soil pH but also facilitate the dissolution of inorganic phosphates that are present [30].
In this study, the aboveground fresh and dry weight of Lolium perenne L. were significantly increased in the FeBBC treatment (Figure S5). This is because the addition of Fe-modified biochar provided a larger contact area for plant roots to absorb nutrients from the soil, and improved plant growth under the action of plant growth promoting bacteria. Compared with BBC or FeB treatments, the highest alkali-hydro nitrogen content in soil was observed with the FeBBC treatment. This may be attributed to the ability of FeB to regulate the C/N ratio in the soil by altering the soil pH, thereby affecting the availability of nitrogen in the soil. Additionally, as shown in Table S3, Bacillus clausii in the FeBBC treatment exhibited characteristics such as IAA production and nitrogen fixation, promoting plant growth and enhancing the effectiveness of nitrogen in the soil [31]. Comparatively, the utilization of FeBBC led to a significant decrease in the availability of soil P and K in comparison to the BBC treatment. These findings align with previous studies that observed reduced soil phosphorus availability upon adding Fe-modified biochar [11]. The decrease in the soil availability of P may have been related to the combination of phosphorus anions and iron hydroxides, which reduces the bioavailability of phosphorus in the soil. In addition, the low pH value of the soil and the adsorption of Fe-modified biochar may also be the reasons for the decrease in soil nutrients (P and K). The application of iron-modified biochar may inhibit the activity of iron reducing bacteria [32]. In addition, the adsorption of biochar and the binding of available Fe and phosphorus reduced the content of available Fe in the FeB treatment soil [33]. Compared with the BBC treatment, adding FeB and BC also led to a significant increase in available Fe content in the soil, which was attributed to the role of the siderophore produced by Bacillus clausii (Table S3).
After 56 days of incubation, compared to the BBC treatment, the FeBBC treatment exhibited a significant increase in the proportion of aggregates (particle size > 0.25 mm). The result showed a negative correlation between pH value and Fed (Figure 4a), indicating that soil pH influenced the formation of Fed. The introduction of exogenous Fe oxides through Fe-modified biochar played a crucial role in forming macroaggregates in the soil. It possesses the ability to bind with soil organic carbon, resulting in the formation of organic iron composite colloids [34,35]. In addition, our research results indicated that the higher aboveground biomass of plants and the richness and diversity of the soil bacterial communities in the FeBBC treatment increased the production of bacterial and plant viscous substances, consequently promoting the formation of aggregates. Therefore, the results of this study indicated that the combination of FeB and BC had great potential in alleviating soil alkalization, increasing soil alkali-hydro nitrogen content, and improving soil aggregate structure.

4.4. Effect of FeB Combined with BC Improves Soil Carbon Sequestration

It is well-established that adding biochar to the soil has been proven to significantly increase SOC content by providing exogenous organic carbon [36]. The results of this study were consistent with the previous studies, and our findings demonstrated higher SOC content in all biochar treatments. In accordance with our second hypothesis, compared with individual application, the combination of FeB and BC significantly enhanced the content of SOC in soil, and SOC reached its highest values for the FeBBC treatment. The highest content of SOC in the FeBBC treatment may be attributed to the high specific surface area of FeB and the creation of a suitable environment for microbial survival by providing nutrients, increasing the colonization of bacterial communities, and promoting plant growth, thus increasing SOC content. In our study, the result showed a notable positive correlation between SOC and the aboveground weight of Lolium perenne L. (Figure 4a), confirming that Lolium perenne L. growth contributes to the accumulation of SOC.
Compared with CK treatment, BC treatment showed no significant difference in POC. However, the higher POC content observed with FeBBC treatment can be attributed to the high surface activity of the Fe oxide on the surface of Fe-modified biochar, which can increase the carbon content. It also strengthens the bonding between soil clay particles and organic molecules and forms water-stable soil aggregates, preventing microorganisms’ rapid degradation of POC [26]. It is worth noting that higher DOC content was observed in Fe-modified biochar treatments (Figure 1b). This observation may be attributed to the biological pathway of Fe3+ reduction, which had been previously shown to increase DOC content [37]. After 56 days of BC treatment, the concentrations of DOC and EOC continued to increase. This may be attributed to the fact that BC could promote the secretion of a large amount of low-molecular weight organic compounds by ryegrass roots and enhanced bacterial activity, and thus accelerated the decomposition of soil organic matter. In terms of EOC, after modification, the active functional groups on the surface of FeB were removed (Figure S1d,e), and the pore volume and pore diameter were decreased (Table S2). This may be the reason for the decrease in EOC content in Fe-modified biochar treatments compared to unmodified biochar treatments.
The higher SIC content with the BBC treatment may be explained by its higher soil pH (Figure 1e). The significant decrease in SIC content with the BC and FeB treatments may be attributed to the growth of Lolium perenne L. Evidence has shown that plant roots absorb inorganic carbon from the soil during their growth process and convert it into organic carbon to meet plant growth needs [38]. The combination of FeB and BC resulted in a higher SIC content than individual applications. This may have occurred because the added Bacillus clausii inoculant produced carbonic anhydrase, which was beneficial for converting CO2, generated by atmospheric or biological respiration into carbonates. In addition, a short-term study found that carbonic anhydrase had the highest activity at pH 7.5, and the presence of Fe3+ enhanced the activity of carbonic anhydrase [39]. Therefore, the results of this study indicated that compared with individual applications, the combination of FeB and BC can significantly increase the content of SOC, POC, and SIC, promoting soil carbon sequestration.

4.5. Effect of FeB Combined with BC Improves C-Cycling-Related Enzyme Activity and Bacterial Community

The activity of enzymes related to carbon cycling in soil serves as a crucial indicator reflecting changes in soil organic matter (SOM). The decrease in β-glucosidase activity observed with the FeB and FeBBC treatments may be attributed to the co-localization of carbon and microorganisms on the surface of FeB in the soil, improving carbon utilization efficiency and reducing the production demand for β-glucosidase [40]. Compared with CK, there was no significant difference in the invertase activity between the BC treatment and FeB treatment, while the invertase activity with the FeBBC treatment significantly increased. The higher bacterial community richness may be responsible for the increase in invertase activity during FeBBC treatment. Furthermore, it has been established that a soil environment with a neutral to slightly alkaline pH promotes increased bacterial and enzymatic activity [41].
Bacterial communities play a crucial role in urban soil ecosystems, and changes in their structure can significantly impact the cycling of elements urban green spaces. In this study, it was observed that the richness and diversity of bacterial communities were significantly lower in all treatments except for the FeBBC treatment. This finding aligns with a study conducted by Zheng et al. [42], which also reported a reduction in bacterial richness with the addition of biochar. In addition, the competition between the inoculated Bacillus clausii and the local microbial community is weak and the colonization rate is limited [43]. The dramatically higher richness and diversity of bacterial communities in the FeBBC treatment, which may be attributed to the fact that positively charged Fe oxides on the surface of Fe-modified biochar can combine with negatively charged bacteria through electrostatic attraction, making them less prone to leaching in the soil and increasing the bacterial colonization rate.
Relative to the unmodified biochar treatment, the dominant C-cycling-related bacterial taxa increased under Fe-modified biochar treatment included Proteobacteria, Firmicutes, and Gemmatimonadota. The relative abundance of Proteobacteria is the highest in soils that have high levels of labile organic carbon. The order Rhizobiales (Alphaprotobacteria) is genetically capable of degrading various plant organic compounds [44]. Compared with unmodified biochar, the higher relative abundance of Rhizobiales with FeBBC treatment indicated that the addition of FeBBC had a good promoting effect on plant growth. The order Sphingomonadales and Burkholderiales belong to the phylum Proteobacteria, which can utilize various organic compounds or more refractory compounds like aromatics in the soil as a carbon source [45,46]. Meanwhile, the result indicated that the abundance of Sphingomonadales negatively correlated with the soil pH (Figure 4b). These observations suggested that Sphingomonadales demonstrated higher activity in neutral and slightly alkaline environments. Firmicutes bacteria are particularly responsive to an increase in recalcitrant carbon sources in the soil [26]. Therefore, the input of stable organic carbon may promote the rapid growth of Firmicutes in FeBBC-treated soil. The colonization of Bacillus clausii was indicated by the relative abundance of Bacillales belonging to Firmicutes increasing during FeBBC treatment. Gemmatimonadales contain diverse genes associated with organic carbon metabolism; they can utilize carbon and play a significant role in soil carbon fixation [47]. Therefore, the increase in relative abundance of carbon cycling-related bacteria indicated that Fe-modified biochar treatment was more effective at improving soil environment (pH and fertility) than unmodified biochar treatment.
The Acidobacteriota is a crucial bacterial community in soil that plays a significant role in the degradation of complex organic compounds [48]. The Actinobacteriota includes various microorganisms such as Micromonosporales and Gaiellales. The order Micromonosporales could encode multiple enzymes that aid in the degrading of organic C compounds [44]. The order of Gaiellales had been proven to be involved in the degradation of polycyclic aromatic hydrocarbons [49]. They play an important role in the degradation of various labile and stubborn carbon compounds. The lower relative abundance of Acidobacteriota and Actinobacteriota with FeBBC treatment indicated potential carbon sequestration and reduction in carbon dioxide emissions. According to several studies, Chloroflexi were typically found in anaerobic or nutrient-deficient environments [50]. The degrading overall of complex organic compounds is associated with Chloroflexi’s relative abundance in agricultural soils [47]. In addition, the result indicated that the abundance of Chloroflexales had negatively correlated with the soil pH (Figure 4b), The lower relative abundance of Chloroflexi with FeBBC treatment indicated that the addition of FeB combined with BC could improve the soil environment and could enhance soil fertility and aeration. The results indicated a significant negative correlation between Myxococcales and SOC. It has been confirmed that the extracellular hydrolytic enzymes secreted by Myxococcales play a crucial role in promoting the decomposition of complex carbon sources [47]. The lower relative abundance of Myxococcales with FeBBC treatment indicated that it was beneficial for reducing soil carbon mineralization. Therefore, the FeBBC treatment has a higher rate of soil carbon sequestration because Acidobacteriota, Actinobacteriota, Chloroflexi, and the order Myxococcales have lower relative abundance than the BBC treatment.

5. Conclusions

In conclusion, this study innovatively combined Fe-modified biochar (FeB) with Bacillus clausii (BC) to restore the ecological function of urban green soil. The results showed that the combination of FeB and BC effectively alleviates soil alkalization, improves soil fertility, and increases soil carbon sequestration. Additionally, the combination of FeB and BC significantly increased the activity of invertase and the richness and diversity of bacterial communities in the soil, promoting the uniform distribution of carbon cycle-related bacteria in the soil. The results clearly indicate that the combined application of FeB and BC has greater potential in improving soil fertility and increasing soil carbon sequestration in urban green spaces compared to their individual applications. These results provide a reference solution for the future restoration of soil ecological functions and provide a solid theoretical basis for restoring the ecological functions of urban green space soil and achieving sustainable management of urban or agricultural soil.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biology13080611/s1, Figure S1: FTIR (a) and XRD (b) of biochar and Fe-modified biochar samples. Fe2p (c) XPS spectrum of Fe-modified biochar. (d,e) are the C1s spectra of biochar and Fe-modified biochar, respectively; Figure S2: SEM-EDS images of biochar and Fe-modified biochar: SEM results of biochar (a) and Fe-modified biochar (b), and the corresponding EDS results of biochar (c) and Fe-modified biochar (d); Figure S3: Biomineralization experiments of carbonic anhydrase from Bacillus clausii. The experimental treatment with Bacillus clausii is represented by (a,c), while the control treatment without Bacillus clausii is represented by (b,d); Figure S4: FTIR (a), XRD (b), and SEM-EDS images of mineralization products (MPs). SEM (c) results for MPs, and the corresponding EDS (d) results for MPs; Figure S5: Effects of plant fresh (a) and dry weights (b) in different treatments. CK: Control; BC: Bacillus clausii; B: Biochar; FeB: Fe-modified biochar; BBC: Biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii; Figure S6: Venn diagram of exclusive and shared bacterial ASVs with different treatments. CK: Control; BC: Bacillus clausii; B: Biochar; FeB: Fe-modified biochar; BBC: Biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii; Table S1: The physicochemical properties of soil; Table S2: The physicochemical properties of biochar (B) and Fe-modified biochar (FeB); Table S3: Plant growth-promoting bacterial traits of Bacillus clausii; Text S1: Methods of plant characterization; Text S2: Methods of soil characterization; Text S3: Methods of biochar characterization; Text S4: Methods of Bacillus clausii characterization.

Author Contributions

G.N.; Conceptualization, Methodology, Validation, Investigation, Writing—Original Draft. C.H.; Conceptualization, Resources, Data Curation, Writing—Review and Editing, Funding acquisition. S.M.; Investigation, Writing—Review and Editing. Z.C.; Investigation, Writing—Review and Editing. Y.M.; Investigation. Y.Z.; Resources, Investigation, Project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the Shanghai Municipal Agricultural and Rural Committee Extension Project (2022) 2-6 and the Shanghai Greening and Urban Appearance Management Bureau’s research project G190201.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated during and/or analyzed during the current study are available from the corresponding author on reasonable request.

Conflicts of Interest

All authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Abbreviations

AFe, available Fe; AK, available K; AN, alkali-hydro nitrogen; AP, available P; ASVs, amplicon sequence variants; B, biochar; BBC: biochar combined with Bacillus clausii; BC, Bacillus clausii; BGA, β-glucosidase activity; Chao: species richness estimator; CK, control; DOC, dissolved organic carbon; EOC, KMnO4-oxidized organic carbon; FeB, Fe-modified biochar; FeBBC: Fe-modified biochar combined with Bacillus clausii; Fed, free Fe oxides; FTIR, Fourier transform infrared; IA, invertase activity; IAA, indole-3-acetic acid; MP, mineralized product; POC, particulate organic carbon; PGPB, Plant growth-promoting bacteria; SEM-EDS, scanning electron microscope with energy dispersive spectrometer; SOC, soil organic carbon; SIC, soil inorganic carbon; XPS, X-ray Photoelectron Spectroscopy; XRD, X-ray diffraction.

References

  1. Feng, X.J.; Sun, X.Y.; Li, S.Y.; Zhang, J.D.; Hu, N. Relationship study among soils physicochemical properties and bacterial communities in urban green space and promotion of its composition and network analysis. Agron. J. 2021, 113, 515–526. [Google Scholar] [CrossRef]
  2. O’Riordan, R.; Davies, J.; Stevens, C.; Quinton, J.N.; Boyko, C. The ecosystem services of urban soils: A review. Geoderma 2021, 395, 115076. [Google Scholar] [CrossRef]
  3. Vasenev, V.; Kuzyakov, Y. Urban soils as hot spots of anthropogenic carbon accumulation: Review of stocks, mechanisms and driving factors. Land Degrad. Dev. 2018, 29, 1607–1622. [Google Scholar] [CrossRef]
  4. Li, G.; Sun, G.X.; Ren, Y.; Luo, X.S.; Zhu, Y.G. Urban soil and human health: A review. Eur. J. Soil Sci. 2018, 69, 196–215. [Google Scholar] [CrossRef]
  5. Ungaro, F.; Maienza, A.; Ugolini, F.; Lanini, G.M.; Baronti, S.; Calzolari, C. Assessment of joint soil ecosystem services supply in urban green spaces: A case study in Northern Italy. Urban For. Urban Green. 2022, 67, 127455. [Google Scholar] [CrossRef]
  6. Kumar, A.; Singh, E.; Mishra, R.; Lo, S.-L.; Kumar, S. A green approach towards sorption of CO2 on waste derived biochar. Environ. Res. 2022, 214, 113954. [Google Scholar] [CrossRef] [PubMed]
  7. Zhao, P.; Palviainen, M.; Koster, K.; Berninger, F.; Bruckman, V.J.; Pumpanen, J. Effects of Biochar on Fluxes and Turnover of Carbon in Boreal Forest Soils. Soil Sci. Soc. Am. J. 2019, 83, 126–136. [Google Scholar] [CrossRef]
  8. Nath, H.; Sarkar, B.; Mitra, S.; Bhaladhare, S. Biochar from Biomass: A Review on Biochar Preparation Its Modification and Impact on Soil Including Soil Microbiology. Geomicrobiol. J. 2022, 39, 373–388. [Google Scholar] [CrossRef]
  9. Wang, J.; Wang, S. Preparation, modification and environmental application of biochar: A review. J. Clean. Prod. 2019, 227, 1002–1022. [Google Scholar] [CrossRef]
  10. Wen, E.; Yang, X.; Chen, H.; Shaheen, S.M.; Sarkar, B.; Xu, S.; Song, H.; Liang, Y.; Rinklebe, J.; Hou, D.; et al. Iron-modified biochar and water management regime-induced changes in plant growth, enzyme activities, and phytoavailability of arsenic, cadmium and lead in a paddy soil. J. Hazard. Mater. 2021, 407, 124344. [Google Scholar] [CrossRef]
  11. Wu, L.; Zhang, S.; Wang, J.; Ding, X. Phosphorus retention using iron (II/III) modified biochar in saline-alkaline soils: Adsorption, column and field tests. Environ. Pollut. 2020, 261, 114223. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, Y.; Zhao, C.; Chen, G.; Zhou, J.; Chen, Z.; Li, Z.; Zhu, J.; Feng, T.; Chen, Y. Response of soil microbial communities to additions of straw biochar, iron oxide, and iron oxide–modified straw biochar in an arsenic-contaminated soil. Environ. Sci. Pollut. Res. 2020, 27, 23761–23768. [Google Scholar] [CrossRef]
  13. Bao, Z.; Shi, C.; Tu, W.; Li, L.; Li, Q. Recent developments in modification of biochar and its application in soil pollution control and ecoregulation. Environ. Pollut. 2022, 313, 120184. [Google Scholar] [CrossRef]
  14. Ajijah, N.; Fiodor, A.; Pandey, A.K.; Rana, A.; Pranaw, K. Plant Growth-Promoting Bacteria (PGPB) with Biofilm-Forming Ability: A Multifaceted Agent for Sustainable Agriculture. Diversity 2023, 15, 112. [Google Scholar] [CrossRef]
  15. Khatoon, Z.; Huang, S.; Rafique, M.; Fakhar, A.; Kamran, M.A.; Santoyo, G. Unlocking the potential of plant growth-promoting rhizobacteria on soil health and the sustainability of agricultural systems. J. Environ. Manag. 2020, 273, 111118. [Google Scholar] [CrossRef]
  16. Li, H.; Qiu, Y.; Yao, T.; Ma, Y.; Zhang, H.; Yang, X. Effects of PGPR microbial inoculants on the growth and soil properties of Avena sativa, Medicago sativa, and Cucumis sativus seedlings. Soil Tillage Res. 2020, 199, 104577. [Google Scholar] [CrossRef]
  17. Colo, J.; Hajnal-Jafari, T.I.; Duric, S.; Stamenov, D.; Hamidovic, S. Plant Growth Promotion Rhizobacteria in Onion Production. Pol. J. Microbiol. 2014, 63, 83–88. [Google Scholar] [CrossRef]
  18. Li, X.; Chen, X.; Wang, H.; Cai, Q. Identification of An Alkalophilic Strain and Activities of Its Extracelluar Polysaccharide. Pharm. Biotechnol. 2008, 15, 370–374. [Google Scholar]
  19. Oulebsir-Mohandkaci, H.; Benzina-Tihar, F.; Hadjouti, R. Exploring biofertilizer potential of plant growth-promoting rhizobacteria Bacillus clausii strain B8 (MT305787) on Brassica napus and Medicago sativa. Not. Bot. Horti Agrobot. Cluj-Napoca 2021, 49, 12484. [Google Scholar] [CrossRef]
  20. Bhanse, P.; Kumar, M.; Singh, L.; Awasthi, M.K.; Qureshi, A. Role of plant growth-promoting rhizobacteria in boosting the phytoremediation of stressed soils: Opportunities, challenges, and prospects. Chemosphere 2022, 303, 134954. [Google Scholar] [CrossRef]
  21. Zhu, X.; Chen, B.; Zhu, L.; Xing, B. Effects and mechanisms of biochar-microbe interactions in soil improvement and pollution remediation: A review. Environ. Pollut. 2017, 227, 98–115. [Google Scholar] [CrossRef]
  22. Khadem, A.; Raiesi, F.; Besharati, H.; Khalaj, M.A. The effects of biochar on soil nutrients status, microbial activity and carbon sequestration potential in two calcareous soils. Biochar 2021, 3, 105–116. [Google Scholar] [CrossRef]
  23. Sarfraz, R.; Hussain, A.; Sabir, A.; Ben Fekih, I.; Ditta, A.; Xing, S. Role of biochar and plant growth promoting rhizobacteria to enhance soil carbon sequestration—A review. Environ. Monit. Assess. 2019, 191, 251. [Google Scholar] [CrossRef] [PubMed]
  24. Jabborova, D.; Wirth, S.; Kannepalli, A.; Narimanov, A.; Desouky, S.; Davranov, K.; Sayyed, R.Z.; El Enshasy, H.; Malek, R.A.; Syed, A.; et al. Co-Inoculation of Rhizobacteria and Biochar Application Improves Growth and Nutrientsin Soybean and Enriches Soil Nutrients and Enzymes. Agronomy 2020, 10, 1142. [Google Scholar] [CrossRef]
  25. Ren, H.; Li, Z.; Chen, H.; Zhou, J.; Lv, C. Effects of Biochar and Plant Growth-Promoting Rhizobacteria on Plant Performance and Soil Environmental Stability. Sustainability 2022, 14, 10922. [Google Scholar] [CrossRef]
  26. Liu, S.; Kong, F.; Li, Y.; Jiang, Z.; Xi, M.; Wu, J. Mineral-ions modified biochars enhance the stability of soil aggregate and soil carbon sequestration in a coastal wetland soil. Catena 2020, 193, 104618. [Google Scholar] [CrossRef]
  27. Srivastava, S.; Bharti, R.K.; Verma, P.K.; Thakur, I.S. Cloning and expression of gamma carbonic anhydrase from Serratia sp. ISTD04 for sequestration of carbon dioxide and formation of calcite. Bioresour. Technol. 2015, 188, 209–213. [Google Scholar] [CrossRef]
  28. Zheng, T.; Qian, C. Influencing factors and formation mechanism of CaCO3 precipitation induced by microbial carbonic anhydrase. Process Biochem. 2020, 91, 271–281. [Google Scholar] [CrossRef]
  29. Lu, J.; Yang, Y.; Liu, P.; Li, Y.; Huang, F.; Zeng, L.; Liang, Y.; Li, S.; Hou, B. Iron-montmorillonite treated corn straw biochar: Interfacial chemical behavior and stability. Sci. Total Environ. 2020, 708, 134773. [Google Scholar] [CrossRef]
  30. Khalil, H.M.A.; Hassan, R.M. Raising the Productivity and Fiber Quality of Both White and Colored Cotton Using Eco-Friendly Fertilizers and Rice Straw. Int. J. Plants Res. 2015, 5, 122–135. [Google Scholar]
  31. Ren, H.; Lv, C.; Fernández-García, V.; Huang, B.; Yao, J.; Ding, W. Biochar and PGPR amendments influence soil enzyme activities and nutrient concentrations in a eucalyptus seedling plantation. Biomass Convers. Biorefin. 2019, 11, 1865–1874. [Google Scholar] [CrossRef]
  32. Hu, J.; Dong, H.; Xu, Q.; Ling, W.; Qu, J.; Qiang, Z. Impacts of water quality on the corrosion of cast iron pipes for water distribution and proposed source water switch strategy. Water Res. 2018, 129, 428–435. [Google Scholar] [CrossRef] [PubMed]
  33. Manirakiza, N.; Şeker, C.; Negiş, H. Effects of Woody Compost and Biochar Amendments on Biochemical Properties of the Wind Erosion Afflicted a Calcareous and Alkaline Sandy Clay Loam Soil. Commun. Soil Sci. Plant Anal. 2021, 52, 487–498. [Google Scholar] [CrossRef]
  34. Liu, L.; Zhang, S.; Chen, M.; Fei, C.; Zhang, W.; Li, Y.; Ding, X. Fe-modified biochar combined with mineral fertilization promotes soil organic phosphorus mineralization by shifting the diversity of phoD-harboring bacteria within soil aggregates in saline-alkaline paddy soil. J. Soils Sediments 2022, 23, 619–633. [Google Scholar] [CrossRef]
  35. Cai, L.; Yang, Y.; Chong, Y.; Xiong, J.; Wu, J.; Ai, X.; Guo, Q.; Yuan, Y.; Li, Z. Higher Soil Aggregate Stability in Subtropical Coniferous Plantations Than Natural Forests Due to Microbial and Aggregate Factors. Forests 2022, 13, 2110. [Google Scholar] [CrossRef]
  36. Smith, J.L.; Collins, H.P.; Bailey, V.L. The effect of young biochar on soil respiration. Soil Biol. Biochem. 2010, 42, 2345–2347. [Google Scholar] [CrossRef]
  37. Guo, Z.; Kang, Y.; Wu, H.; Li, M.; Hu, Z.; Zhang, J. Enhanced removal of phenanthrene and nutrients in wetland sediment with metallic biochar: Performance and mechanisms. Chemosphere 2023, 327, 138523. [Google Scholar] [CrossRef]
  38. He, C.; Wang, X.; Wang, D.; Zhao, Z.; Wang, F.; Cheng, L.; Feng, H.; Zhang, P. Impact of Spartina alterniflora invasion on soil bacterial community and associated greenhouse gas emission in the Jiuduansha wetland of China. Appl. Soil Ecol. 2021, 168, 104168. [Google Scholar] [CrossRef]
  39. Sharma, T.; Sharma, A.; Xia, C.L.; Lam, S.S.; Khan, A.A.; Tripathi, S.; Kumar, R.; Gupta, V.K.; Nadda, A.K. Enzyme mediated transformation of CO2 into calcium carbonate using purified microbial carbonic anhydrase. Environ. Res. 2022, 212, 113538. [Google Scholar] [CrossRef]
  40. Tian, J.; Wang, J.; Dippold, M.; Gao, Y.; Blagodatskaya, E.; Kuzyakov, Y. Biochar affects soil organic matter cycling and microbial functions but does not alter microbial community structure in a paddy soil. Sci. Total Environ. 2016, 556, 89–97. [Google Scholar] [CrossRef]
  41. Khan, M.N.; Li, D.; Shah, A.; Huang, J.; Zhang, L.; Núñez-Delgado, A.; Han, T.; Du, J.; Ali, S.; Sial, T.A.; et al. The impact of pristine and modified rice straw biochar on the emission of greenhouse gases from a red acidic soil. Environ. Res. 2022, 208, 112676. [Google Scholar] [CrossRef]
  42. Zheng, H.; Liu, D.; Liao, X.; Miao, Y.; Li, Y.; Li, J.; Yuan, J.; Chen, Z.; Ding, W. Field-aged biochar enhances soil organic carbon by increasing recalcitrant organic carbon fractions and making microbial communities more conducive to carbon sequestration. Agric. Ecosyst. Environ. 2022, 340, 108177. [Google Scholar] [CrossRef]
  43. Ji, C.; Liu, Z.; Hao, L.; Song, X.; Wang, C.; Liu, Y.; Li, H.; Li, C.; Gao, Q.; Liu, X. Effects of Enterobacter cloacae HG-1 on the Nitrogen-Fixing Community Structure of Wheat Rhizosphere Soil and on Salt Tolerance. Front. Plant Sci. 2020, 11, 111094. [Google Scholar] [CrossRef] [PubMed]
  44. Ibrahim, M.M.; Guo, L.; Wu, F.; Liu, D.; Zhang, H.; Zou, S.; Xing, S.; Mao, Y. Field-applied biochar-based MgO and sepiolite composites possess CO2 capture potential and alter organic C mineralization and C-cycling bacterial structure in fertilized soils. Sci. Total Environ. 2022, 813, 152495. [Google Scholar] [CrossRef]
  45. Shivaji, S.; Ray, M.K.; Shyamala Rao, N.; Saisree, L.; Jagannadham, M.V.; Seshu Kumar, G.; Reddy, G.S.N.; Bhargava, P.M. Sphingobacterium antarcticus sp. nov., a Psychrotrophic Bacterium from the Soils of Schirmacher Oasis, Antarctica. Int. J. Syst. Evol. Microbiol. 1992, 42, 102–106. [Google Scholar] [CrossRef]
  46. Nicolitch, O.; Feucherolles, M.; Churin, J.L.; Fauchery, L.; Turpault, M.P.; Uroz, S. A microcosm approach highlights the response of soil mineral weathering bacterial communities to an increase of K and Mg availability. Sci. Rep. 2019, 9, 14403. [Google Scholar] [CrossRef]
  47. Ibrahim, M.M.; Zhang, H.; Guo, L.; Chen, Y.; Heiling, M.; Zhou, B.; Mao, Y. Biochar interaction with chemical fertilizer regulates soil organic carbon mineralization and the abundance of key C-cycling-related bacteria in rhizosphere soil. Eur. J. Soil Biol. 2021, 106, 103350. [Google Scholar] [CrossRef]
  48. Wang, S.; Li, T.; Zheng, Z.; Chen, H.Y.H. Soil aggregate-associated bacterial metabolic activity and community structure in different aged tea plantations. Sci. Total Environ. 2019, 654, 1023–1032. [Google Scholar] [CrossRef]
  49. Lin, W.; Fan, F.; Xu, G.; Gong, K.; Cheng, X.; Yuan, X.; Zhang, C.; Gao, Y.; Wang, S.; Ng, H.Y.; et al. Microbial community assembly responses to polycyclic aromatic hydrocarbon contamination across water and sediment habitats in the Pearl River Estuary. J. Hazard. Mater. 2023, 457, 131762. [Google Scholar] [CrossRef]
  50. Yamada, T.; Sekiguchi, Y. Cultivation of Uncultured Chloroflexi Subphyla: Significance and Ecophysiology of Formerly Uncultured Chloroflexi ‘Subphylum I’ with Natural and Biotechnological Relevance. Microbes Environ. 2009, 24, 205–216. [Google Scholar] [CrossRef]
Biology 13 00611 g001

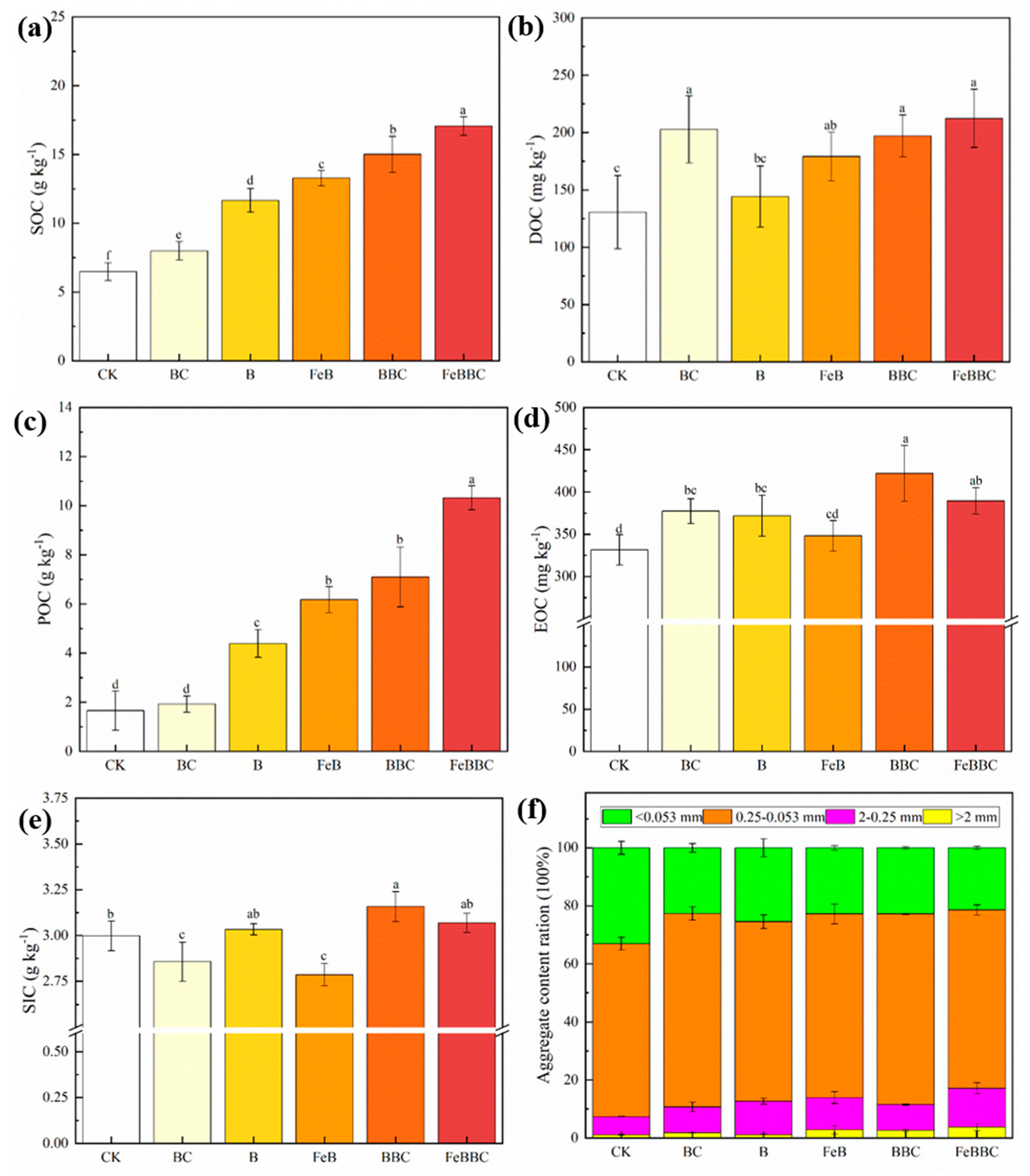

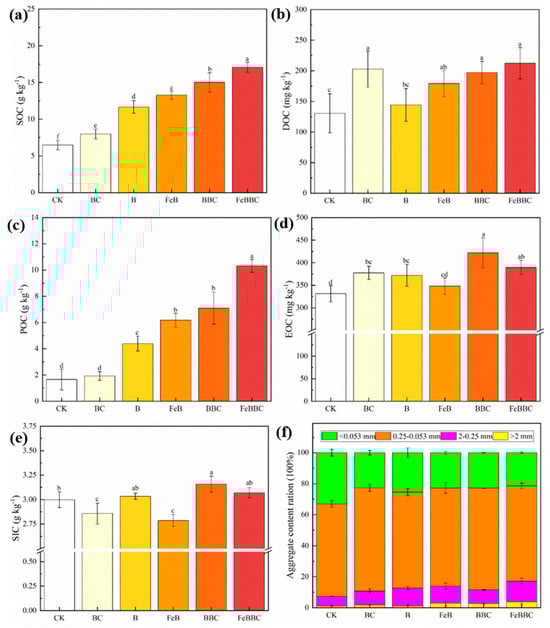

Figure 1. Mean contents of soil organic carbon (SOC) (a), dissolved organic carbon (DOC) (b), particulate organic carbon (POC) (c), KMnO4-oxidized organic carbon (EOC) (d), soil inorganic carbon (SIC) (e), and aggregate content ration (f) in the different treatments. Different letters indicate significant differences between the treatments and control (p < 0.05). CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Figure 1. Mean contents of soil organic carbon (SOC) (a), dissolved organic carbon (DOC) (b), particulate organic carbon (POC) (c), KMnO4-oxidized organic carbon (EOC) (d), soil inorganic carbon (SIC) (e), and aggregate content ration (f) in the different treatments. Different letters indicate significant differences between the treatments and control (p < 0.05). CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Biology 13 00611 g001
Biology 13 00611 g002

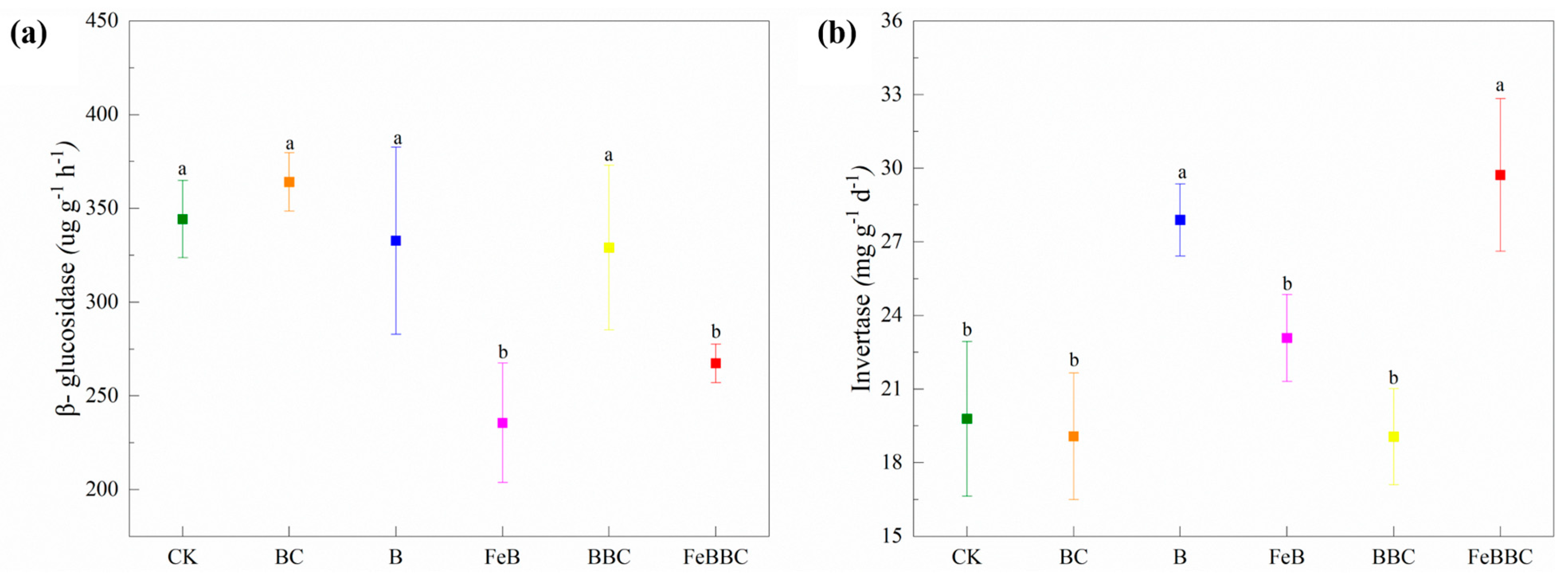

Figure 2. Changes in soil C-cycling-related enzyme activity in different treatments: β-glucosidase (a) and invertase (b). Different lowercase letters indicate significant differences between the treatment groups (p < 0.05). CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Figure 2. Changes in soil C-cycling-related enzyme activity in different treatments: β-glucosidase (a) and invertase (b). Different lowercase letters indicate significant differences between the treatment groups (p < 0.05). CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Biology 13 00611 g002
Biology 13 00611 g003

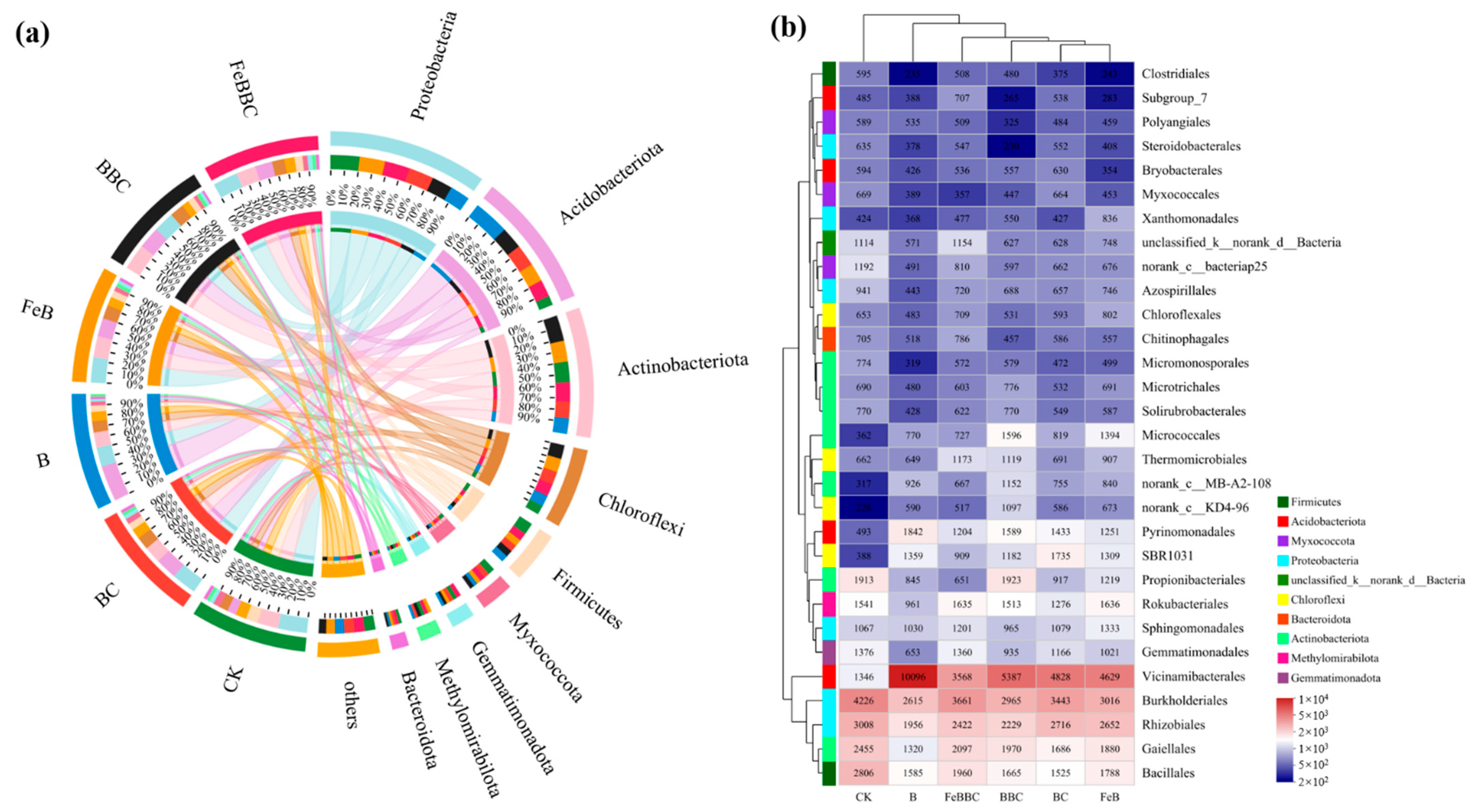

Figure 3. The relative abundance (a) of dominant species of bacterial communities. Heatmap diagram (b) of the dominant 30 bacterial orders in different treatments. CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Figure 3. The relative abundance (a) of dominant species of bacterial communities. Heatmap diagram (b) of the dominant 30 bacterial orders in different treatments. CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Biology 13 00611 g003
Biology 13 00611 g004

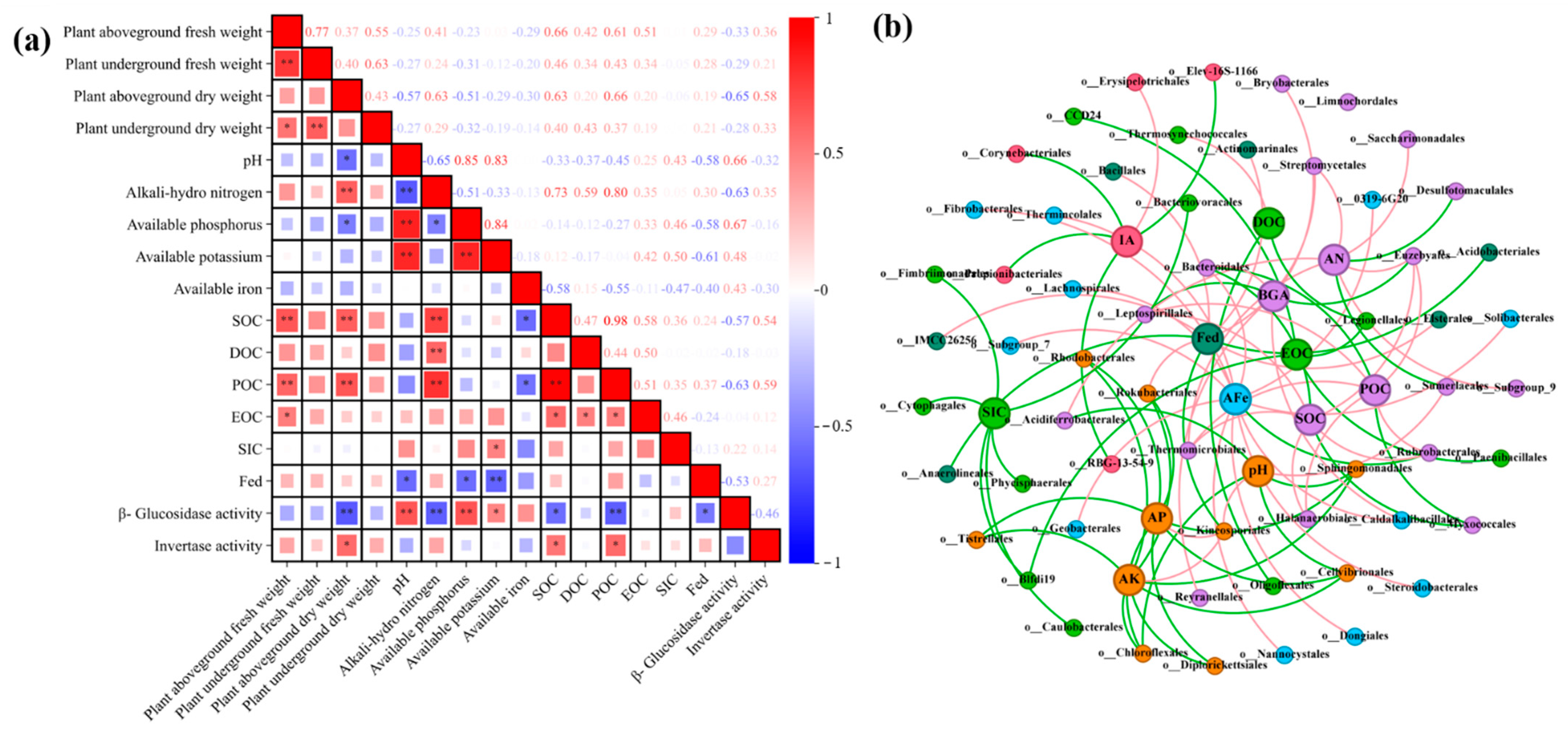

Figure 4. Pearson correlations (a) between soil environmental factors among all treatments. * and ** indicate significant correlations at p < 0.05 and 0.01, respectively. Co-occurring network (b) of the dominant 200 bacterial orders and environmental factors based on correlation analysis. The nodes in the network are colored based on modularity class. The connections stand for a strong (Spearman’s ρ > 0.8) and significant (p < 0.05) correlations. The red and green lines represent positive and negative correlations, respectively. Abbreviations: AP, available P; AN, alkali-hydro nitrogen; AK, available K; AFe, available Fe; IA, invertase activity; BGA, β-glucosidase activity.
Figure 4. Pearson correlations (a) between soil environmental factors among all treatments. * and ** indicate significant correlations at p < 0.05 and 0.01, respectively. Co-occurring network (b) of the dominant 200 bacterial orders and environmental factors based on correlation analysis. The nodes in the network are colored based on modularity class. The connections stand for a strong (Spearman’s ρ > 0.8) and significant (p < 0.05) correlations. The red and green lines represent positive and negative correlations, respectively. Abbreviations: AP, available P; AN, alkali-hydro nitrogen; AK, available K; AFe, available Fe; IA, invertase activity; BGA, β-glucosidase activity.
Biology 13 00611 g004
Table 1. Experimental treatments settings.
Table 1. Experimental treatments settings.
SamplesBiochar
(%)		Bacillus clausii Suspension
(1 × 108 CFU mL−1) (mL)		Lolium perenne L.
CK××√
BC×10√
B2×√
FeB2×√
BBC210√
FeBBC210√
Soil (g)1200
Lolium perenne L. (Number)50
Incubation cycle (d)56
Note: CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Table 2. Soil physicochemical properties after incubation for 56 days.
Table 2. Soil physicochemical properties after incubation for 56 days.
SamplespHAP (mg kg−1)AN (mg kg−1)AK (mg kg−1)AFe (mg kg−1)Fed (mg kg−1)
CK8.15 ± 0.02 b7.36 ± 0.82 c17.97 ± 1.07 d81.31 ± 2.75 c13.54 ± 0.50 b5.63 ± 0.13 ab
BC8.12 ± 0.02 c7.59 ± 0.23 bc20.77 ± 0.81 bc93.02 ± 2.53 b19.15 ± 1.35 a4.40 ± 0.68 c
B8.33 ± 0.01 a8.73 ± 0.60 a18.67 ± 2.65 cd124.34 ± 9.21 a12.64 ± 0.13b cd4.64 ± 0.55 c
FeB7.86 ± 0.02 d6.14 ± 0.48 d22.63 ± 1.46 b77.77 ± 3.80 c11.94 ± 0.70 cd5.65 ± 0.46 ab
BBC8.32 ± 0.02 a8.35 ± 0.26 ab21.93 ± 0.40 b117.46 ± 6.10 a11.31 ± 0.75 d4.98 ± 0.21 bc
FeBBC7.82 ± 0.01 e6.75 ± 0.13 cd25.43 ± 1.07 a80.51 ± 7.34 c12.76 ± 0.42 bc5.86 ± 0.14 a
Note: AP, available P; AN, alkali-hydro nitrogen; AK, available K; AFe, available Fe; Fed, free Fe oxides; CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Table 3. Changes in the richness and diversity of soil microbial communities.
Table 3. Changes in the richness and diversity of soil microbial communities.
SampleASVsAceChaoGoods Coverage (%)ShannonSimpson
CK39163994.393937.6799.597.470.0012
BC36903734.583702.9599.737.590.0009
B35363556.613538.8499.877.520.0009
FeB34533453.003453.00100.007.470.0011
BBC34243461.453431.9599.787.410.0012
FeBBC40774113.064081.8599.807.610.0009
Note: ASVs: Amplicon sequence variants; Ace: Ace index; Chao: Species richness estimator; Goods coverage: Microbial analysis depth; Shannon: The Shannon index; Simpson: The Simpson index. CK: control; BC: Bacillus clausii; B: biochar; FeB: Fe-modified biochar; BBC: biochar combined with Bacillus clausii; FeBBC: Fe-modified biochar combined with Bacillus clausii.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Niu, G.; He, C.; Mao, S.; Chen, Z.; Ma, Y.; Zhu, Y. Enhanced Soil Fertility and Carbon Sequestration in Urban Green Spaces through the Application of Fe-Modified Biochar Combined with Plant Growth-Promoting Bacteria. Biology 2024, 13, 611. https://doi.org/10.3390/biology13080611

AMA Style

Niu G, He C, Mao S, Chen Z, Ma Y, Zhu Y. Enhanced Soil Fertility and Carbon Sequestration in Urban Green Spaces through the Application of Fe-Modified Biochar Combined with Plant Growth-Promoting Bacteria. Biology. 2024; 13(8):611. https://doi.org/10.3390/biology13080611

Chicago/Turabian Style

Niu, Guoyao, Chiquan He, Shaohua Mao, Zongze Chen, Yangyang Ma, and Yi Zhu. 2024. "Enhanced Soil Fertility and Carbon Sequestration in Urban Green Spaces through the Application of Fe-Modified Biochar Combined with Plant Growth-Promoting Bacteria" Biology 13, no. 8: 611. https://doi.org/10.3390/biology13080611

APA Style

Niu, G., He, C., Mao, S., Chen, Z., Ma, Y., & Zhu, Y. (2024). Enhanced Soil Fertility and Carbon Sequestration in Urban Green Spaces through the Application of Fe-Modified Biochar Combined with Plant Growth-Promoting Bacteria. Biology, 13(8), 611. https://doi.org/10.3390/biology13080611

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
