Article

Third Molar Eruption in Dental Panoramic Radiographs as a Feature for Forensic Age Assessment—Presentation of a New Non-Staging Method Based on Measurements

by
Maximilian Timme
1,*,†,
Jostin Bender
1,†,
Laurin Steffens
1,
Denys Shay
1,2 and
Andreas Schmeling
1
1
Institute of Legal Medicine, University Hospital Münster, Röntgenstraße 23, 48149 Münster, Germany
2
Department of Epidemiology, Harvard T.H. Chan School of Public Health, 677 Huntington Ave, Boston, MA 02115, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biology 2023, 12(11), 1403; https://doi.org/10.3390/biology12111403
Submission received: 16 October 2023 / Revised: 31 October 2023 / Accepted: 2 November 2023 / Published: 5 November 2023
(This article belongs to the Special Issue Recent Advances in Forensic Anthropology: From Experience to Current Applications and Innovative Approaches)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

The aim of the study was to develop a method for assessing the eruption of mandibular wisdom teeth based on measurements, rather than using fixed stages within the framework of the forensic age assessment. A total of 423 dental panoramic radiographs (DPRs) from individuals aged 15 to 25 were examined, and measurements were taken by two independent examiners. It was possible to develop a method comparing the distances between certain dental landmarks and a simplified radiological occlusal plane. The results revealed moderate correlations between these measurements and individuals’ chronological ages. Intra- and inter-rater reliability for the new method were excellent. In conclusion, this study proposes a novel and promising method for assessing the eruption status of mandibular wisdom teeth in forensic age assessment using DPRs. Further research is needed to validate these findings through reference studies.

Abstract

The evaluation of third molar eruption in dental panoramic radiographs (DPRs) constitutes an evidence-based approach for forensic age assessment in living individuals. Existing methodologies involve staging morphological radiographic findings and comparing them to reference populations. Conversely, the existing literature presents an alternative method where the distance between third molars and the occlusal plane is measured on dental plaster models. The aim of this study was to adapt this measurement principle for DPRs and to determine correlation between eruption and chronological age. A total of 423 DPRs, encompassing 220 females and 203 males aged 15 to 25 years, were examined, including teeth 38 [FDI] and 48. Two independent examiners conducted the measurements, with one examiner providing dual assessments. Ultimately, a quotient was derived by comparing orthogonal distances from the mesial cementoenamel junctions of the second and third molars to a simplified radiological occlusal plane. This quotient was subsequently correlated with the individual’s age. We estimated correlations between age and quotients, as well as inter- and intra-rater reliability. Correlation coefficients (Spearman’s rho) between measurements and individuals’ ages ranged from 0.555 to 0.597, conditional on sex and tooth. Intra-rater agreement (Krippendorf’s alpha) ranged from 0.932 to 0.991, varying according to the tooth and sex. Inter-rater agreement ranged from 0.984 to 0.992, with distinctions drawn for different teeth and sex. Notably, all observer agreement values fell within the “very good” range. In summary, assessing the distance of third molars from a simplified occlusal plane in DPRs emerges as a new and promising method for evaluating eruption status in forensic age assessment. Subsequent reference studies should validate these findings.

1. Introduction

Forensic age assessment has emerged as a focal point in forensic science research [1,2,3,4,5,6,7,8,9,10,11,12]. Within the field of forensic age assessment, dental methods have maintained their significance and continue to be integral components of relevant professional recommendations [13,14,15]. Determining the age of living individuals, whose age is unknown for various reasons or whose age claims are subject to doubt, poses a substantial challenge within the domain of forensic dentistry [16,17,18,19,20].
A dental feature for which the correlation with age is well substantiated by good evidence is the eruption of the mandibular third molars in the dental panoramic radiograph (DPR) [21,22,23,24,25,26,27,28]. A major advantage of eruption as an age assessment feature is its predominantly genetic determination and its substantial independence from external factors [29,30,31]. Various methods exist for assessing third molar eruption in DPR, and a commonality across all these methods is the description of eruption using defined morphological stages, corresponding to an ordinal scale [21,32,33,34,35]. Thus, in these methods, eruption is conceptualized as a categorical variable. Previously, our group demonstrated that among the existing staging classifications, the 2012 classification proposed by Olze et al. is particularly well suited for future studies [36].
Within the forensic science community, there has been a long-standing debate among experts regarding the suitability of methods that rely on the assignment of fixed morphologic stages for age assessment [37]. While numerous studies have substantiated the suitability of individual methods [21,22,24,26,36], others argue that reliance on fixed morphologic stages has inherent limitations and is subjective [37,38]. For example, it has been proposed that when assigning specific developmental stages, intermediate phases may sometimes be neglected, creating the impression of a sudden shift from one stage to a higher one. To illustrate, an individual may remain categorized within a particular stage for an extended period and then progress to a higher stage from one day to the next. Critics highlight this aspect as a significant shortcoming of staging methods [37]. Some propose capturing age estimation characteristics through metric variables, described using parametric methods [37,38,39,40]. This perspective suggests replacing morphological stages with measurements. However, as of now, there is insufficient evidence to conclusively assert the practical superiority or tangible benefits of parametric methods.
In 2005, Wedl and Friedrich introduced a method for eruption assessment based on measurements [41]. The authors measured the distance of the third molars from the occlusal plane in both the upper and lower jaw. Specifically, dental plaster models were articulated, and interocclusal records of the third molar regions against the sagittal occlusal curve (Spee-curve) were obtained. These records were subsequently meticulously measured to the nearest tenth of a millimeter using a caliper. In addition, each model had to be accompanied by a corresponding DPR. In the radiographs, an assessment was conducted to determine whether the teeth were appropriately aligned in their axes or if any other impediments to eruption were present. Hence, X-ray imaging was not employed to directly assess the eruption process itself, but rather to ascertain the feasibility of the analyses on the dental plaster models.
It is worth mentioning that Wedl and Friedrich did not identify a relationship between the distance of the third molars from the occlusal plane and age. The scatterplots corresponding to their findings did not exhibit a discernible trend [41]. In summary, it is imperative to acknowledge that this method, which necessitates the availability of dental models and radiographic images, presents a formidable challenge. Furthermore, the measurements conducted within this framework exhibit a high degree of intricacy. Nonetheless, the pursuit of a parametric methodology for evaluating the eruption of third molars persists.
The objective of the present study was to develop a measurement-based method for assessing the eruption of mandibular third molars in the DPR and to examine its correlation with age and its reliability.

2. Materials and Method

The dental panoramic radiographs, which were all digital, were obtained from a university dental clinic (Münster, North Rhine-Westphalia, Germany).
For this study, the age range was selected to encompass the eruption of mandibular third molars as comprehensively as possible. In line with the existing literature on the subject, an age range of 15 to 25 years was chosen [36]. Furthermore, the aim was to achieve a balanced distribution between sexes. The overall objective was to gather a total of 25 radiographic images per age group and sex.
The inclusion criteria for this study required sufficient image quality to facilitate the radiological detection of teeth 38 (FDI) and 48. First, sufficient sharpness of the images was checked visually. Then, positioning errors of the examined person in the X-ray device were elicited by visual assessment. For this assessment, the scientifically validated rules of thumb were used [42,43].
Additionally, individuals with displaced or retained third molars were excluded. Retentions were assessed based on established clinical criteria, with an exclusion criterion of an angle exceeding 30 degrees in the mesial direction [44,45]. Disto-angulation always resulted in exclusion, regardless of the degree. Cases in which lesions or dental treatments on the first and second molar made it impossible to assign the simplified occlusal plane were also excluded. Furthermore, individuals displaying evidence of genetic eruption disorders or other impediments to eruption were excluded.
The dental clinic encompassed various specialized departments. Consequently, the study cohort comprised a convenience sample of individuals seeking treatment across the domains of dental surgery, orthodontics, prosthodontics, and conservative dentistry [46,47]. Furthermore, the radiographic images, originally captured for clinical purposes, underwent retrospective assessment in alignment with the current research inquiry.
It was imperative that the precise ages of the participants at the time of their X-ray examinations were well documented. The radiographs were scrutinized in DICOM format, employing suitable workstations equipped with synedra Personal View software version 22.0.0.2 (developed by synedra information technologies GmbH, Innsbruck, Austria). The assessment process routinely made use of the software’s magnification and gray-level adjustment tools. The examining panel comprised two board-certified dentists. One of the two dentists performed two independent evaluations. There were 6 weeks between the evaluations.
The methodology was determined during a first separate phase of the study. Within the scope of this preliminary investigation, various approaches were compared using 50 DPRs from the subsequent study sample. For example, different reference points were compared, different variants of the occlusal plane and different axes of the connecting lines. The correlation with age and the reliabilities were also determined during this preliminary examination. The procedure published here proved to be the most practical and accurate among them.
In the process of measurement, the following steps were performed:
Initially, a zoom-in procedure was applied to focus on the specific region of interest, ensuring that the mandibular teeth from the first to the third molars were fully visualized. Subsequently, the simplified occlusal plane was delineated within the image. This plane was defined as extending from the radiologically highest mesial point of the first molar to the radiologically highest distal point of the second molar. From the simplified occlusal plane, two perpendicular lines were then introduced. The first perpendicular line extended from the occlusal plane to the radiological mesial cementoenamel junction (CEJ) of the second molar. The second perpendicular line extended from the occlusal plane to the mesial CEJ of the third molar. The length of these two perpendicular lines is measured, and a quotient is calculated. The length is recorded in millimeters with one decimal place where they were used as dimensionless numbers for a quotient. The quotient is then correlated with the individual’s age as a measure for age assessment (Figure 1 and Figure 2).
Spearman’s rank correlation coefficient evaluated the correlation between age and quotient [48]. Krippendorff’s alpha was used to evaluate agreement between and within raters [49,50]. Repeatability for one rater and the reproducibility of the two raters were investigated as means of evaluating the reliability of the method. Confidence intervals were calculated at the 95% level.

3. Results

For the present study, a total of 423 out of the 550 originally approached digital DPRs from 220 females and 203 males aged 15.04 to 25.98 years were included in the study. Table 1 shows the composition of the study cohort by age and sex.
The main reason for the exclusion of radiographs was a displacement of the third molars of more than 30 degrees and the absence or pathological changes on the first and second molars, which made it impossible to define the simplified occlusal plane. Additionally, in multiple radiographs, the lower third molar was missing or affected by pathologies.
The coefficients of the correlation between quotient and age ranged between ρ = 0.555 and ρ = 0.597, depending on the tooth and sex (Table 1). Based on these values, the correlations for tooth 38 were slightly lower for both sexes compared to tooth 48. However, given the almost entirely overlapping 95% confidence intervals for both sexes and both teeth, this observation appeared to be statistically non-significant at an alpha of 0.05 (Table 1). All values fall within the realm of moderate correlation, defined as a correlation coefficient range between 0.41 and 0.60 [48]. However, when examining the upper limit of the 95% confidence intervals, these values also encompass the domain of strong correlation, typically established between 0.61 and 0.80 [48].
Intra-rater agreement values ranged from α = 0.932 to α = 0.991 (Table 2). Notably, among males, tooth 48 exhibited slightly lower values compared to the other assessments.
As all values exceeded 0.8, according to Krippendorff, one can infer a high level of agreement [49,50]. According to Landis and Koch, values above 0.81 are classified as “almost perfect” [51].
Inter-rater agreement values ranged from α = 0.984 to α = 0.992 (Table 3), falling within a similar range as the intra-rater agreement values (Table 4). They can also be categorized within the “almost perfect” range according to Landis and Koch [51].

4. Discussion

The present study introduces a measurement-based method for assessing the eruption of mandibular third molars in DPR, as opposed to stage-based approaches. Principally, the study delves into the correlation between eruption and chronological age. The primary aim of this study was not to proffer regression formulas suitable for immediate utility, nor to provide practically actionable reference values.
Devising the actual methodology presented a unique challenge and was formulated following a preliminary investigation that involved the comparison of various approaches using 50 DPRs from the present sample.
For our feasibility study of a new methodology, all distoangulated teeth were first excluded without consideration of the degree of displacement. This decision was based on the assumption that the distoangulation in some ways contributes to impaction, because the tooth tends to go in the direction towards to bone. A possible bias should be excluded here. However, a subsequent study should examine the influence of distoangulation of the teeth on the method more specifically.
The development of the method commenced with the inquiry into the optimal means of transferring the occlusal plane onto the radiographic image. Ultimately, the decision was made to employ a simplified occlusal plane that could be generated within a minimized, magnified image frame. This approach was designed to enable work within the selected and magnified image frame and thus substantially streamline the process. In addition, distortions due to possible projection errors should be kept as low as possible. Consequently, the first and second molars were designated as reference points. Since specific cusps in the DPR are challenging to delineate, clearer reference points were established to define the simplified occlusal plane. The radiologically highest cuspal points, mesially on the first molar and distally on the second molar, were found to be unequivocal reference points, irrespective of whether they were buccal or lingual cusps. The emphasis was on the clarity of the point.
Next, the measurement points on the teeth needed to be established. This consideration stems from the fact that the DPR is not isometric and distortions regularly occur in the DPR, especially in the molar region [52,53,54,55,56,57]. This means that the measurement of absolute numbers in the DPR should be dispensed with to the extent possible. Therefore, a quotient should be calculated in each instance—in contrast to the simple measurement of the distance of the third molar from the occlusal plane. In addition, it was important for the individual lengths in the quotient to be as close as possible in the horizontal plane, given the various distortions present in the DPR. Consequently, measurement points should be defined on the second and third molars. Using a cusp tip was ruled out, as by definition, for the second molar, it lies on, or at least very close to, the occlusal plane, which would make the measurement exceedingly challenging and yield a value close to zero. The mesial CEJ of both teeth were found to be remarkably distinct and practical for implementation. It is important to note that this method requires the CEJ to be clearly discernible for its application. This restricts the method’s applicability to adequately mineralized teeth. In practice, this aspect did not pose a limitation within the examined age groups.
We then considered the angle for measuring the distance between the reference points and the simplified occlusal plane. Initially, the aim was to align with the axis of each tooth. However, in practice, this approach proved to be impractical, as the preliminary investigations revealed substantial discrepancies in inter-observer agreement. Therefore, a compromise was adopted, significantly simplifying the procedure. It was determined that the orthogonal line to the occlusal plane passing through the reference point should be utilized. This simplification resulted in a significant reduction in potential errors.
The excellent inter-observer agreement values obtained in the current study demonstrate the high reproducibility of this methodology.
In comparison to the method introduced by Wedl and Friedrich in 2005, significant improvements have been achieved with the current approach [41]. Unlike the Wedl and Friedrich method, which necessitated the creation of dental plaster models and bite registration, our method eliminates these requirements. Additionally, it is noteworthy that while the Wedl and Friedrich method utilized a DPR to identify correct tooth axes and potential impactions, it ultimately assessed only those teeth that had already erupted through the gingiva. In contrast, our proposed method allows for the evaluation of teeth still completely encased within the bone.
Furthermore, Wedl and Friedrich did not find a correlation between the distance of third molars from the occlusal plane and chronological age [41]. This discrepancy may arise from differences in the studied cohorts or potential limitations in their methodology.
This study, as measured by Spearman’s rho, revealed only a moderate correlation between the calculated quotient and chronological age [48]. Naturally, it is imperative to consider whether this is indicative of a methodological limitation. Thus, the DPR is subject to its inherent distortion, especially in the molar region [52,53,54,55,56,57], which affects any radiological method of evaluating the eruption using DPR to a certain extent. These effects would not occur with methods that do not require DPR or use an isometric X-ray method. Here, some studies have been published in the past using cone-beam computed tomography (CBCT) for age assessment [58,59,60,61]. This method is isometric and would thus solve the problem of distortions. However, this approach can be criticized for its greater radiation dispersion than DPR. In addition, studies on the use of magnetic resonance imaging (MRI) for age assessment on teeth have also been published in the past [24,62,63]. Here, the radiation disposition is completely omitted. Promising results were also obtained for the assessment of third molar eruption on MRI for age assessment [24]. Whether these results can be transferred the method presented in the present study should be verified in the future-whereby, of course, it must be stated that the calculation of a quotient could be dispensed with in the case of isometric methods, since it is legitimate in such isometric methods to measure distances directly. However, the considerably higher costs, the effort required for the examination and the significantly more limited availability must be mentioned as disadvantages for the use of MRI in age assessment.
In addition, it must be assumed that minor forms of angulation, which were below the exclusion limit, could nevertheless have influenced the results. Moreover, this problem is also independent of imaging. In the future, further studies must clarify what influence such minor forms actually have.
However, it is crucial to note that these results for correlation between age and eruption align with the findings reported in the relevant literature. Our group previously reported Spearman’s rho values of 0.583 (males) and 0.445 (females) for the Olze et al. Method [36]. Conversely, Olze et al. themselves indicated η-coefficients ranging from 0.610 to 0.699 for their method [21]. Therefore, it’s worth noting that other research groups have identified correlations categorized as “Moderate” and “Strong“ [48]. However, it is prudent to exercise caution when attributing the differences between our results and those from the literature, as these disparities are likely influenced by sample heterogeneity.
Overall, determination of the eruption of mandibular third molars in the DPR is a fast, cost-effective and straightforward method for forensic age assessment. The limitation arises from the only moderate correlation between feature and age. Potentially, the correlation could be further improved in the future by even more specific inclusion or exclusion criteria. This could include, for example, the question of how to deal with minor forms of angulation.
Nonetheless, it can be tentatively concluded that the introduction of the measurement-based method presented here does not lead to a substantial improvement in the correlation between the characteristic and chronological age. Considering the call from some forensic age assessment experts to replace morphology-based stage classifications with measurement-based methods [37,38], it can be assumed that the limitations of the characteristics for use in forensic age assessment ultimately stem from the inherent variability of the characteristic itself. Regardless of the evaluation method employed, each characteristic will ultimately retain its statistically acknowledged level of imprecision.
In light of this perspective, one must consider the substantial additional elaboration required when applying the present method compared to a stage-based approach that does not involve measurements. The authors justify this increased effort not primarily based on the correlation with chronological age but rather due to the improved inter-rater reliability it offers.
In comparison to data from the literature regarding stage-based methods on DPR, the present inter-rater agreement yields significantly better results. Our group explored various stage-based approaches within a cohort of 211 DPRs from individuals aged 15 to 25 years [36]. Their findings favored the method proposed by Olze et al. in 2012 as the most suitable. Our groups previously reported Krippendorff’s alpha values for inter-rater agreement of 0.797 (males) and 0.792 (females) for the Olze et al. method, which outperformed the other methods they investigated, all of which yielded inferior results [36]. It is worth noting, however, that our group conducted their investigations with three different examiners, making direct comparisons challenging [36]. Other authors report a Cohens kappa of 0.76 for inter-rater reliability for the Olze et al. method [64]. For the visual clinical assessment of intraoral eruption, values as high as 100% for inter-rater reliability have been published [65].
Nevertheless, it can be reasonably assumed that the present measurement-based method benefits from clear reference points for measurement. Furthermore, the inherent ambiguity in stage-based methods, particularly in borderline cases, is obviated by this approach, as no staging decisions are necessitated.
Looking ahead to the future of forensic age assessment, it becomes evident that the path leads toward fully automated procedures reliant on artificial intelligence [66,67,68,69,70,71,72,73,74,75]. This prompts a broader question about the relevance of the present research. On the one hand, the journey towards automated age assessment is a long one, and some proposed methods involve even greater complexity and resource demands than established ones. Reliable methods will continue to be necessary until the full establishment of automated and practicable procedures.
On the other hand, studies such as the one at hand contribute to a fundamental understanding of the characteristics and principles underlying age assessment as a process. The authors contend that this understanding will remain essential in evaluating the results of automated software, even when fully automated methods become prevalent. From the authors’ perspective, research like the present study thus plays a crucial and irreplaceable role in advancing foundational knowledge in this field.

5. Conclusions

The measurement-based method presented in this study for assessing mandibular third molar eruption in DPR shows potential for future research applications, demonstrating high reliability.
Although the correlation between eruption and chronological age was moderate, this finding is consistent with the previous literature. Such moderate correlation, across different studies, suggests that the imprecision stems from the inherent variability of the eruption process itself, rather than the analysis method used.

Author Contributions

M.T.: conceptualization, methodology, validation, writing—original draft, visualization, writing—review and editing; J.B.: software, investigation, resources, data curation, visualization, writing—review and editing; L.S.: methodology, investigation, visualization, writing – review and editing; D.S.: software, formal analysis, data curation, writing- review and editing; A.S.: conceptualization, validation, resources, writing—original draft, supervision, project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

All examinations were performed with the approval of the responsible ethics committee of the Medical Association Westfalen-Lippe and the University of Münster (AZ 2019-322-f-S), and in accordance with national law.

Informed Consent Statement

Patient consent was waived due to the entirely anonymized and retrospective evaluation of the data. The procedure was approved by the responsible ethics committee.

Data Availability Statement

The datasets generated during the current study are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kazmi, S.; Zaidi, S.J.A.; Reesu, G.V.; Shepherd, S. Dental age estimation using the Kvaal method-an evaluation of length and width ratios: A systematic review. Forensic Sci. Med. Pathol. 2023, 1–10. [Google Scholar] [CrossRef] [PubMed]
  2. Murali, K.; Nirmal, R.M.; Balakrishnan, S.; Shanmugam, S.; Altaf, S.K.; Nandhini, D. Age Estimation using Cephalometrics—A Cross-Sectional Study among Teenagers of Salem District, Tamil Nadu. J. Pharm. Bioallied Sci. 2023, 15, S725–S728. [Google Scholar] [CrossRef] [PubMed]
  3. Ruder, T.D.; Kuhnen, S.C.; Zech, W.-D.; Klaus, J.B.; Lombardo, P.; Ith, M. Standards of practice in forensic age estimation with CT of the medial clavicular epiphysis-a systematic review. Int. J. Leg. Med. 2023, 1–10. [Google Scholar] [CrossRef] [PubMed]
  4. Alvarado Muñoz, E.; Requena Calla, S.R. Accuracy of age estimation using root dentin translucency in Peruvian adults. A pilot study. J. Forensic Odontostomatol. 2023, 41, 19–26. [Google Scholar]
  5. Song, Y.; Yang, H.; Ge, Z.; Du, H.; Li, G. Age estimation based on 3D pulp segmentation of first molars from CBCT images using U-Net. Dentomaxillofac. Radiol. 2023, 52, 20230177. [Google Scholar] [CrossRef]
  6. Rathore, A.; Puri, N.; Singh, B.; Kaur, K.; Singh, B.; Singh, S. Mandibular Teeth as Predictors in Forensic Age Estimation: A Cone-Beam Computed Tomography-Based Pulp Volume Regression Study. Contemp. Clin. Dent. 2023, 14, 11–17. [Google Scholar] [CrossRef]
  7. Seo, H.; Hwang, J.; Jung, Y.-H.; Lee, E.; Nam, O.H.; Shin, J. Deep focus approach for accurate bone age estimation from lateral cephalogram. J. Dent. Sci. 2023, 18, 34–43. [Google Scholar] [CrossRef]
  8. Beltran-Aroca, C.M.; Lopez-Alcaraz, M.; Perez-Jorge, P.; Velazquez-Gomez, J.L.; Font-Ugalde, P.; Girela-Lopez, E. Forensic age estimation: Comparison and validation of the Iscan method in 3D reconstructions using a surface scanner in a Spanish population. Int. J. Leg. Med. 2023, 137, 773–785. [Google Scholar] [CrossRef]
  9. Pereira, C.P.; Santos, R.; Nushi, V.; Lameiro, M.V.; Antunes, P.; Carvalho, R.; Major, T.; AlQahtani, S.J. Dental age assessment: Scoring systems and models from the past until the present-how is it presented in the court? Int. J. Leg. Med. 2023, 137, 1497–1504. [Google Scholar] [CrossRef]
  10. Zangpo, D.; Uehara, K.; Kondo, K.; Yoshimiya, M.; Nakatome, M.; Iino, M. A novel method to estimate adult age from the lumbar vertebral body using 3D PMCT images in Japanese. Leg. Med. (Tokyo) 2023, 61, 102215. [Google Scholar] [CrossRef]
  11. Widek, T.; De Tobel, J.; Ehammer, T.; Genet, P. Forensic age estimation in males by MRI based on the medial epiphysis of the clavicle. Int. J. Leg. Med. 2023, 137, 679–689. [Google Scholar] [CrossRef] [PubMed]
  12. Luo, S.; Fan, F.; Zhang, X.-T.; Liu, A.-J.; Lin, Y.-S.; Cheng, Z.-Q.; Song, C.-X.; Wang, J.-J.; Deng, Z.-H.; Zhan, M.-J. Forensic age estimation in adults by pubic bone mineral density using multidetector computed tomography. Int. J. Leg. Med. 2023, 137, 1527–1533. [Google Scholar] [CrossRef]
  13. Schmeling, A.; Grundmann, C.; Fuhrmann, A.; Kaatsch, H.-J.; Knell, B.; Ramsthaler, F.; Reisinger, W.; Riepert, T.; Ritz-Timme, S.; Rösing, F.W.; et al. Criteria for age estimation in living individuals. Int. J. Leg. Med. 2008, 122, 457–460. [Google Scholar] [CrossRef] [PubMed]
  14. Schmeling, A.; Dettmeyer, R.; Rudolf, E.; Vieth, V.; Geserick, G. Forensic Age Estimation. Dtsch. Arztebl. Int. 2016, 113, 44–50. [Google Scholar] [CrossRef] [PubMed]
  15. Müller, N. Zur Altersbestimmung beim Menschen unter Besonderer Berücksichtigung der Weisheitszähne; Med Diss Erlangen-Nürnberg: Erlangen, Germany, 1990. [Google Scholar]
  16. Lewis, J.M.; Senn, D.R. Forensic Dental Age Estimation: An Overview. J. Calif. Dent. Assoc. 2015, 43, 315–319. [Google Scholar] [CrossRef] [PubMed]
  17. Biggerstaff, R.H. Forensic dentistry and the human dentition in individual age estimations. Dent. Clin. N. Am. 1977, 21, 167–174. [Google Scholar] [CrossRef]
  18. Schmeling, A.; Geserick, G.; Reisinger, W.; Olze, A. Age estimation. Forensic Sci. Int. 2007, 165, 178–181. [Google Scholar] [CrossRef]
  19. Verma, M.; Verma, N.; Sharma, R.; Sharma, A. Dental age estimation methods in adult dentitions: An overview. J. Forensic Dent. Sci. 2019, 11, 57–63. [Google Scholar] [CrossRef]
  20. Verma, A.K.; Kumar, S.; Rathore, S.; Pandey, A. Role of dental expert in forensic odontology. Natl. J. Maxillofac. Surg. 2014, 5, 2–5. [Google Scholar] [CrossRef]
  21. Olze, A.; Peschke, C.; Schulz, R.; Ribbecke, S.; Schmeling, A. Beurteilung der Weisheitszahneruption: Vergleich von zwei Stadieneinteilungen. Rechtsmedizin 2012, 22, 451–455. [Google Scholar] [CrossRef]
  22. Olze, A.; Peschke, C.; Schulz, R.; Schmeling, A. Studies of the chronological course of wisdom tooth eruption in a German population. J. Forensic Leg. Med. 2008, 15, 426–429. [Google Scholar] [CrossRef]
  23. Olze, A.; van Niekerk, P.; Ishikawa, T.; Zhu, B.L.; Schulz, R.; Maeda, H.; Schmeling, A. Comparative study on the effect of ethnicity on wisdom tooth eruption. Int. J. Leg. Med. 2007, 121, 445–448. [Google Scholar] [CrossRef] [PubMed]
  24. Widek, T.; Genet, P.; Merkens, H.; Boldt, J.; Petrovic, A.; Vallis, J.; Scheurer, E. Dental age estimation: The chronology of mineralization and eruption of male third molars with 3T MRI. Forensic Sci. Int. 2019, 297, 228–235. [Google Scholar] [CrossRef] [PubMed]
  25. Guo, Y.; Yan, C.; Lin, X.; Zhou, H.; Pan, F.; Wei, L.; Tang, Z.; Liang, F.; Chen, T. Studies of the chronological course of third molars eruption in a northern Chinese population. Arch. Oral Biol. 2014, 59, 906–911. [Google Scholar] [CrossRef] [PubMed]
  26. Kutesa, A.M.; Rwenyonyi, C.M.; Mwesigwa, C.L.; Muhammad, M.; Nabaggala, G.S.; Kalyango, J. Dental age estimation using radiographic assessment of third molar eruption among 10-20-year-old Ugandan population. J. Forensic Dent. Sci. 2019, 11, 16–21. [Google Scholar] [CrossRef]
  27. Schmeling, A.; Olze, A.; Pynn, B.R.; Kraul, V.; Schulz, R.; Heinecke, A.; Pfeiffer, H. Dental age estimation based on third molar eruption in First Nation people of Canada. J. Forensic Odontostomatol. 2010, 28, 32–38. [Google Scholar]
  28. Olze, A.; van Niekerk, P.; Schulz, R.; Schmeling, A. Studies of the chronological course of wisdom tooth eruption in a Black African population. J. Forensic Sci. 2007, 52, 1161–1163. [Google Scholar] [CrossRef]
  29. Kreiborg, S.; Jensen, B.L. Tooth formation and eruption-lessons learnt from cleidocranial dysplasia. Eur. J. Oral Sci. 2018, 126 (Suppl. S1), 72–80. [Google Scholar] [CrossRef]
  30. Almonaitiene, R.; Balciuniene, I.; Tutkuviene, J. Factors influencing permanent teeth eruption. Part one—General factors. Stomatologija 2010, 12, 67–72. [Google Scholar]
  31. Cahill, D.R.; Marks, S.C. Tooth eruption: Evidence for the central role of the dental follicle. J. Oral Pathol. 1980, 9, 189–200. [Google Scholar] [CrossRef]
  32. Willmot, S.E.; Hector, M.P.; Liversidge, H.M. Accuracy of estimating age from eruption levels of mandibular teeth. DAJ 2018, 26, 56–62. [Google Scholar] [CrossRef]
  33. AlQahtani, S.J.; Hector, M.P.; Liversidge, H.M. Brief communication: The London atlas of human tooth development and eruption. Am. J. Phys. Anthropol. 2010, 142, 481–490. [Google Scholar] [CrossRef] [PubMed]
  34. Haavikko, K. The formation and the alveolar and clinical eruption of the permanent teeth. An orthopantomographic study. Suom. Hammaslaak. Toim. 1970, 66, 103–170. [Google Scholar] [PubMed]
  35. Gambier, A.; Rérolle, C.; Faisant, M.; Lemarchand, J.; Paré, A.; Saint-Martin, P. Contribution of third molar eruption to the estimation of the forensic age of living individuals. Int. J. Leg. Med. 2019, 133, 625–632. [Google Scholar] [CrossRef]
  36. Timme, M.; Viktorov, J.; Steffens, L.; Streeter, A.; Karch, A.; Schmeling, A. Third molar eruption in orthopantomograms as a feature for forensic age assessment—A comparison study of different classification systems. Int. J. Leg. Med. 2023, 137, 765–772. [Google Scholar] [CrossRef]
  37. Mörnstad, H.; Staaf, V.; Welander, U. Age estimation with the aid of tooth development: A new method based on objective measurements. Scand. J. Dent. Res. 1994, 102, 137–143. [Google Scholar] [CrossRef]
  38. Liversidge, H.M.; Lyons, F.; Hector, M.P. The accuracy of three methods of age estimation using radiographic measurements of developing teeth. Forensic Sci. Int. 2003, 131, 22–29. [Google Scholar] [CrossRef]
  39. Liversidge, H.M.; Molleson, T.I. Developing Permanent Tooth Length as an Estimate of Age. J. Forensic Sci. 1999, 44, 917–920. [Google Scholar] [CrossRef]
  40. Carels, C.E.; Kuijpers-Jagtman, A.M.; van der Linden, F.P.; Van’t Hof, M.A. Age reference charts of tooth length in Dutch children. J. Biol. Buccale 1991, 19, 297–303. [Google Scholar]
  41. Wedl, J.S.; Friedrich, R.E. Die Abstandsmessung der Weisheitszähne zur Okklusionsebene als forensisch-odontologisches Hilfsmittel zur Bestimmung des chronologischen Alters. Arch. Kriminol. 2005, 215, 77–84. [Google Scholar]
  42. Rondon, R.H.N.; Pereira, Y.C.L.; do Nascimento, G.C. Common positioning errors in panoramic radiography: A review. Imaging Sci. Dent. 2014, 44, 1–6. [Google Scholar] [CrossRef] [PubMed]
  43. Leyli, B. Fehlpositionierungsbedingte “Verzerrungen“ der Panoramaschichtaufnahme; Med Diss Hamburg: Hamburg, Germany, 2005. [Google Scholar]
  44. Archer, W.H. Die Chirurgie des Mundes und der Zähne; Medica: Stuttgart, Germany, 1955. [Google Scholar]
  45. Wolf, H.; Haunfelder, D. Zahnärztliche Mundchirurgie für Studierende der Zahnheilkunde; Berlinische Verlagsanstalt: Berlin, Germany, 1960. [Google Scholar]
  46. Raithel, J. Quantitative Forschung: Ein Praxiskurs; Lehrbuch, 2., durchgesehene Auflage; VS Verlag für Sozialwissenschaften: Wiesbaden, Germany, 2008; ISBN 978-3-531-16181-5. [Google Scholar]
  47. Boslaugh, S. Encyclopedia of Epidemiology; SAGE Publications, Inc.: Thousand Oaks, CA, USA, 2008; ISBN 978-1-4129-2816-8. [Google Scholar]
  48. Prion, S.; Haerling, K.A. Making Sense of Methods and Measurement: Spearman-Rho Ranked-Order Correlation Coefficient. Clin. Simul. Nurs. 2014, 10, 535–536. [Google Scholar] [CrossRef]
  49. Krippendorff, K. Content Analysis: An Introduction to Its Methodology, 2nd ed.; Sage: Thousand Oaks, CA, USA, 2004; ISBN 978-0-7619-1544-7. [Google Scholar]
  50. Hayes, A.F.; Krippendorff, K. Answering the Call for a Standard Reliability Measure for Coding Data. Commun. Methods Meas. 2007, 1, 77–89. [Google Scholar] [CrossRef]
  51. Landis, J.R.; Koch, G.G. The measurement of observer agreement for categorical data. Biometrics 1977, 33, 159–174. [Google Scholar] [CrossRef] [PubMed]
  52. Larheim, T.A.; Svanaes, D.B.; Johannessen, S. Reproducibility of radiographs with the Orthopantomograph 5: Tooth-length assessment. Oral Surg. Oral Med. Oral Pathol. 1984, 58, 736–741. [Google Scholar] [CrossRef] [PubMed]
  53. Welander, U.; Wickman, G. Image Distortion in Narrow Beam Rotation Radiography: A Mathematical Analysis. Acta Radiol. Diagn. 1978, 19, 507–512. [Google Scholar] [CrossRef] [PubMed]
  54. Tronje, G.; Eliasson, S.; Julin, P.; Welander, U. Image Distortion in Rotational Panoramic Radiography: II. Vertical Distances. Acta Radiol. Diagn. 1981, 22, 449–455. [Google Scholar] [CrossRef]
  55. Tronje, G.; Welander, U.; McDavid, W.D.; Morris, C.R. Image Distortion in Rotational Panoramic Radiography: I. General Considerations. Acta Radiol. Diagn. 1981, 22, 295–299. [Google Scholar] [CrossRef]
  56. Thanyakarn, C.; Hansen, K.; Rohlin, M.; Akesson, L. Measurements of tooth length in panoramic radiographs. 1. The use of indicators. Dentomaxillofac. Radiol. 1992, 21, 26–30. [Google Scholar] [CrossRef]
  57. Ezoddini Ardakani, F.; Zangouie Booshehri, M.; Behniafar, B. Evaluation of the distortion rate of panoramic and periapical radiographs in erupted third molar inclination. Iran. J. Radiol. 2011, 8, 15–21. [Google Scholar]
  58. Asif, M.K.; Nambiar, P.; Mani, S.A.; Ibrahim, N.B.; Khan, I.M.; Sukumaran, P. Dental age estimation employing CBCT scans enhanced with Mimics software: Comparison of two different approaches using pulp/tooth volumetric analysis. J. Forensic Leg. Med. 2018, 54, 53–61. [Google Scholar] [CrossRef] [PubMed]
  59. Marroquin Penaloza, T.Y.; Karkhanis, S.; Kvaal, S.I.; Nurul, F.; Kanagasingam, S.; Franklin, D.; Vasudavan, S.; Kruger, E.; Tennant, M. Application of the Kvaal method for adult dental age estimation using Cone Beam Computed Tomography (CBCT). J. Forensic Leg. Med. 2016, 44, 178–182. [Google Scholar] [CrossRef] [PubMed]
  60. Pinchi, V.; Pradella, F.; Buti, J.; Baldinotti, C.; Focardi, M.; Norelli, G.-A. A new age estimation procedure based on the 3D CBCT study of the pulp cavity and hard tissues of the teeth for forensic purposes: A pilot study. J. Forensic Leg. Med. 2015, 36, 150–157. [Google Scholar] [CrossRef] [PubMed]
  61. Biuki, N.; Razi, T.; Faramarzi, M. Relationship between pulp-tooth volume ratios and chronological age in different anterior teeth on CBCT. J. Clin. Exp. Dent. 2017, 9, e688–e693. [Google Scholar] [CrossRef]
  62. Baumann, P.; Widek, T.; Merkens, H.; Boldt, J.; Petrovic, A.; Urschler, M.; Kirnbauer, B.; Jakse, N.; Scheurer, E. Dental age estimation of living persons: Comparison of MRI with OPG. Forensic Sci. Int. 2015, 253, 76–80. [Google Scholar] [CrossRef]
  63. Guo, Y.; Olze, A.; Ottow, C.; Schmidt, S.; Schulz, R.; Heindel, W.; Pfeiffer, H.; Vieth, V.; Schmeling, A. Dental age estimation in living individuals using 3.0 T MRI of lower third molars. Int. J. Leg. Med. 2015, 129, 1265–1270. [Google Scholar] [CrossRef]
  64. Karadayi, B.; Kaya, A.; Kolusayın, M.O.; Karadayi, S.; Afsin, H.; Ozaslan, A. Radiological age estimation: Based on third molar mineralization and eruption in Turkish children and young adults. Int. J. Leg. Med. 2012, 126, 933–942. [Google Scholar] [CrossRef]
  65. Putul, M.; Konwar, R.; Dutta, M.; Basumatary, B.; Rajbongshi, M.C.; Thakuria, K.D.; Sarma, B. Assessment of Age at the Stages of the Eruption of Third Molar Teeth among the People of North-Eastern India. Biomed. Res. Int. 2021, 2021, 9714121. [Google Scholar] [CrossRef]
  66. der Mauer, M.A.; Well, E.J.; Herrmann, J.; Groth, M.; Morlock, M.M.; Maas, R.; Säring, D. Automated age estimation of young individuals based on 3D knee MRI using deep learning. Int. J. Leg. Med. 2021, 135, 649–663. [Google Scholar] [CrossRef]
  67. Saint-Martin, P.; Rérolle, C.; Dedouit, F.; Rousseau, H.; Rougé, D.; Telmon, N. Evaluation of an automatic method for forensic age estimation by magnetic resonance imaging of the distal tibial epiphysis—A preliminary study focusing on the 18-year threshold. Int. J. Leg. Med. 2014, 128, 675–683. [Google Scholar] [CrossRef]
  68. Peng, L.-Q.; Guo, Y.-C.; Wan, L.; Liu, T.-A.; Wang, P.; Zhao, H.; Wang, Y.-H. Forensic bone age estimation of adolescent pelvis X-rays based on two-stage convolutional neural network. Int. J. Leg. Med. 2022, 136, 797–810. [Google Scholar] [CrossRef] [PubMed]
  69. Bunyarit, S.S.; Nambiar, P.; Naidu, M.; Asif, M.K.; Poh, R.Y.Y. Dental age estimation of Malaysian Indian children and adolescents: Applicability of Chaillet and Demirjian’s modified method using artificial neural network. Ann. Hum. Biol. 2022, 49, 192–199. [Google Scholar] [CrossRef] [PubMed]
  70. Fan, F.; Ke, W.; Dai, X.; Shi, L.; Liu, Y.; Lin, Y.; Cheng, Z.; Zhang, Y.; Chen, H.; Deng, Z. Semi-supervised automatic dental age and sex estimation using a hybrid transformer model. Int. J. Leg. Med. 2023, 137, 721–731. [Google Scholar] [CrossRef] [PubMed]
  71. Stern, D.; Payer, C.; Giuliani, N.; Urschler, M. Automatic Age Estimation and Majority Age Classification From Multi-Factorial MRI Data. IEEE J. Biomed. Health Inform. 2019, 23, 1392–1403. [Google Scholar] [CrossRef] [PubMed]
  72. Stern, D.; Ebner, T.; Bischof, H.; Grassegger, S.; Ehammer, T.; Urschler, M. Fully automatic bone age estimation from left hand MR images. Med. Image Comput. Comput. Assist. Interv. 2014, 17, 220–227. [Google Scholar] [CrossRef]
  73. Vila-Blanco, N.; Carreira, M.J.; Varas-Quintana, P.; Balsa-Castro, C.; Tomas, I. Deep Neural Networks for Chronological Age Estimation from OPG Images. IEEE Trans. Med. Imaging 2020, 39, 2374–2384. [Google Scholar] [CrossRef]
  74. Kim, J.R.; Shim, W.H.; Yoon, H.M.; Hong, S.H.; Lee, J.S.; Cho, Y.A.; Kim, S. Computerized Bone Age Estimation Using Deep Learning Based Program: Evaluation of the Accuracy and Efficiency. AJR Am. J. Roentgenol. 2017, 209, 1374–1380. [Google Scholar] [CrossRef]
  75. Lanitis, A.; Draganova, C.; Christodoulou, C. Comparing different classifiers for automatic age estimation. IEEE Trans. Syst. Man. Cybern. B Cybern. 2004, 34, 621–628. [Google Scholar] [CrossRef]
Biology 12 01403 g001
Figure 1. Example figure from the cohort with a little advanced eruption of tooth 38 (FDI) of a 15-year-old female. Lengths A and B given in millimeters. The occlusal plane has simplified representation as described in the method.
Figure 1. Example figure from the cohort with a little advanced eruption of tooth 38 (FDI) of a 15-year-old female. Lengths A and B given in millimeters. The occlusal plane has simplified representation as described in the method.
Biology 12 01403 g001
Biology 12 01403 g002

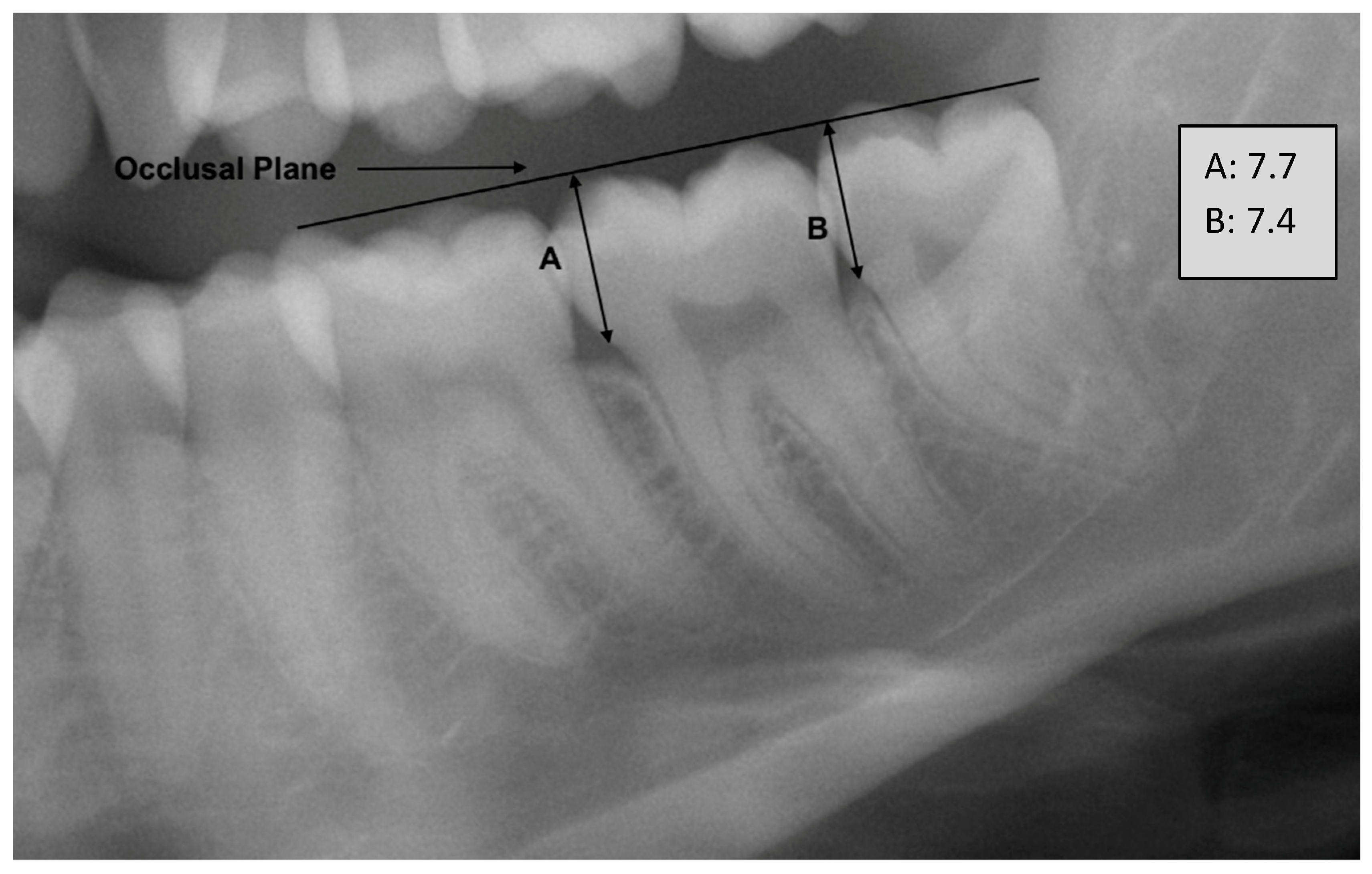

Figure 2. Example figure from the cohort with fully advanced eruption of tooth 38 [FDI] of a 25-year-old female. Lengths in millimeters. The occlusal plane has simplified representation as described in the method.
Figure 2. Example figure from the cohort with fully advanced eruption of tooth 38 [FDI] of a 25-year-old female. Lengths in millimeters. The occlusal plane has simplified representation as described in the method.
Biology 12 01403 g002
Table 1. Age and sex distribution of the sample.
Table 1. Age and sex distribution of the sample.
AgeFemales
(n)		Males
(n)		Total
(n)
15211839
16182341
17202141
18222042
19212041
20201737
21202040
22181533
23242145
24161430
25201434
Total (n)220203423
Table 2. Spearman correlation (ρ) between stage and age, for each tooth and sex. The basis for the data is the second assessment run of one of the examiners.
Table 2. Spearman correlation (ρ) between stage and age, for each tooth and sex. The basis for the data is the second assessment run of one of the examiners.
ToothSexSpearman ρ 95% LCL95% UCL
38Male0.557 0.4410.637
48Male0.581 0.4550.671
38Female0.555 0.4230.647
48Female0.597 0.4760.688
LCL: lower confidence limits; UCL: upper confidence limits.
Table 3. Krippendorff coefficients (α) measuring intra-rater repeatability for each tooth by sex.
Table 3. Krippendorff coefficients (α) measuring intra-rater repeatability for each tooth by sex.
ToothSexKrippendorff’s α95% LCL95% UCL
38Male0.9840.9680.99
48Male0.9320.7350.993
38Female0.9860.9770.989
48Female0.9910.9880.993
LCL: lower confidence limits; UCL: upper confidence limits.
Table 4. Krippendorff coefficients (α) measuring inter-rater reliability for each tooth by sex.
Table 4. Krippendorff coefficients (α) measuring inter-rater reliability for each tooth by sex.
ToothSexKrippendorff’s α95% LCL95% UCL
38Male0.9840.9710.988
48Male0.9860.9830.99
38Female0.9920.990.994
48Female0.990.9860.992
LCL: lower confidence limits; UCL: upper confidence limits.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Timme, M.; Bender, J.; Steffens, L.; Shay, D.; Schmeling, A. Third Molar Eruption in Dental Panoramic Radiographs as a Feature for Forensic Age Assessment—Presentation of a New Non-Staging Method Based on Measurements. Biology 2023, 12, 1403. https://doi.org/10.3390/biology12111403

AMA Style

Timme M, Bender J, Steffens L, Shay D, Schmeling A. Third Molar Eruption in Dental Panoramic Radiographs as a Feature for Forensic Age Assessment—Presentation of a New Non-Staging Method Based on Measurements. Biology. 2023; 12(11):1403. https://doi.org/10.3390/biology12111403

Chicago/Turabian Style

Timme, Maximilian, Jostin Bender, Laurin Steffens, Denys Shay, and Andreas Schmeling. 2023. "Third Molar Eruption in Dental Panoramic Radiographs as a Feature for Forensic Age Assessment—Presentation of a New Non-Staging Method Based on Measurements" Biology 12, no. 11: 1403. https://doi.org/10.3390/biology12111403

APA Style

Timme, M., Bender, J., Steffens, L., Shay, D., & Schmeling, A. (2023). Third Molar Eruption in Dental Panoramic Radiographs as a Feature for Forensic Age Assessment—Presentation of a New Non-Staging Method Based on Measurements. Biology, 12(11), 1403. https://doi.org/10.3390/biology12111403

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
