Article

Endophytic Pseudomonas sp. from Agave palmeri Participate in the Rhizophagy Cycle and Act as Biostimulants in Crop Plants

by
Qiuwei Zhang
*,
Kathryn L. Kingsley
and
James F. White
*
Department of Plant Biology, School of Environmental and Biological Sciences, Rutgers University, New Brunswick, NJ 08901, USA
*
Authors to whom correspondence should be addressed.
Biology 2022, 11(12), 1790; https://doi.org/10.3390/biology11121790
Submission received: 28 October 2022 / Revised: 3 December 2022 / Accepted: 7 December 2022 / Published: 9 December 2022
(This article belongs to the Section Plant Science)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

As a result of increasing public pushback against chemical fertilizers in agriculture, farmers and agricultural companies are becoming more interested in environmentally friendly alternatives for boosting crop yields. These alternatives, called biostimulants, come from a variety of sources, one of which is the plant itself. Endophytes, defined as microorganisms that live within plant tissues without causing any apparent harm, have emerged as potential substitutes for traditional fertilizers. In this study, we showed that a group of bacterial endophytes taken from Palmer’s agave exhibit growth-promoting effects in a variety of crops. We used confocal microscopy to track one of these endophytes from Palmer’s agave and demonstrated that it enters other plants’ tissues and participates in the rhizophagy cycle, a process by which microbes cycle between the soil and roots and bring nutrients into the plant. Tracking of this endophyte also suggests a mechanism by which endophytes or their cell contents may be moved throughout the plant. These results provide further insights into the mechanisms behind the way in which endophytes promote growth in plants.

Abstract

Plant growth-promoting bacteria are generating increasing interest in the agricultural industry as a promising alternative to traditional chemical fertilizers; however, much of the focus has been on rhizosphere bacteria. Bacterial endophytes are another promising source of plant growth-promoting bacteria, and though many plants have already been prospected for beneficial microbes, desert plants have been underrepresented in such studies. In this study, we show the growth-promoting potential of five strains of endophytic Pseudomonas sp. isolated from Agave palmeri, an agave from the Sonoran Desert. When inoculated onto Kentucky bluegrass, clover, carrot, coriander, and wheat, endophytic Pseudomonas sp. increased seedling root lengths in all hosts and seedling shoot lengths in Kentucky bluegrass, carrot, and wheat. Transformation of the Pseudomonas sp. strain P3AW to express the fluorescent protein mCherry revealed that Pseudomonas sp. becomes endophytic in non-native hosts and participates in parts of the rhizophagy cycle, a process by which endophytic bacteria cycle between the soil and roots, bringing in nutrients from the soil which are then extracted through reactive oxygen-mediated bacterial degradation in the roots. Tracking of the Pseudomonas sp. strain P3AW also provided evidence for a system of endophyte, or endophyte cell content, transport via the vascular bundle. These results provide further evidence of the rhizophagy cycle in plants and how it relates to growth promotion in plants by biostimulant bacteria.

1. Introduction

As the world moves further into the 21st century, the agricultural industry must grapple with the twin challenges of increasing crop yield to feed a growing global population while simultaneously reducing large-scale human and ecosystem damage from overreliance on agrochemicals and irrigation. As such, there has been increasing interest from agricultural companies in developing and utilizing biostimulants as an alternative to traditional chemical fertilizers to help enhance crop productivity without incurring additional damage to the environment [1,2,3,4].
While there are many types of biostimulants, bacterial biostimulants have garnered much attention due to their natural occurrence in soils and within plant tissues. There have been many studies focused on using plant growth-promoting rhizobacteria (PGPR) such as Rhizobium spp., Bacillus spp., Klebsiella spp., and Arthrobacter spp. as biostimulants [5,6,7,8], but another promising source of bacterial biostimulants are endophytes, which are defined as microbes that live within plant tissues without causing apparent harm to their hosts [9,10]. Endophytes have been shown to increase host growth, though the mechanisms behind this growth-promoting ability are still not entirely understood [11,12,13,14]. Though endophytes from a variety of hosts, such as tomato (Solanum lycopersicum), rice (Oryza sativa L.), wheat (Triticum sp.), eagle fern (Pteridium aquilinum), Indian olive (Olea ferruginea Royle), and creeping woodsorrel (Oxalis corniculate) have been investigated for their growth-promoting properties [12,15,16,17,18], much less is known about the growth-promoting properties of desert plant endophytes.
As farmlands continue to experience more extreme weather events, particularly drought, as a result of climate change [19,20,21,22,23], crop yields are predicted to decline [24,25]. Decreasing yields and increasing human populations, especially in arid regions, necessitates the discovery and development of new technologies that can alleviate the impacts of extreme and prolonged heat waves on crops while simultaneously boosting productivity [26,27]. Endophytes from desert plants may be one such technology that can be employed against drought-induced crop damage. Desert plants, such as Agave palmeri, are unique in that they are specialized to survive in drought-like conditions with high temperatures, high salt concentrations, and low rainfall. While they have a variety of physical adaptations that aid in their survival in arid locales, the endophytes that they have cultivated might be a part of their survival strategy as well. Endophytes have been shown to increase host tolerance to a variety of abiotic stresses and can confer such resistance even to non-native host species [28,29,30].
A previous meta-analysis of desert plant endophytes has shown that the Proteobacteria are the largest phylum of bacterial endophytes in desert plants, with Pseudomonas being the most abundant genus within the Proteobacteria endophytes found in desert plants [31]. Fluorescent Pseudomonas spp. in particular are well-known as biocontrol agents and plant growth promoters [32,33,34,35,36], which makes them ideal biostimulant candidates. In addition, they are commonly found in both soils and plant tissues [37,38,39]. Their ability to proliferate in both environments may be a sign that members of this genera contribute to plant growth promotion via the “rhizophagy cycle”.
First coined by Paungfoo-Lohienne et al. (2013) [40], the rhizophagy cycle hypothesis posits that important plant nutrients may be acquired in the roots via a process by which endophytic bacteria cycle between the soil and roots, bringing in nutrients from the soil which are then extracted through reactive oxygen-mediated degradation of the microbes within the root cells [40,41,42]. Endophytes participating in the rhizophagy cycle may be responsible for bringing in important plant nutrients from the rhizosphere. It is currently unknown if all bacteria have the capacity to participate in the rhizophagy cycle or if participation is limited only to certain genera or phyla.
In this study, we sought to describe the plant growth-promoting properties of several strains of fluorescent and non-fluorescent Pseudomonas sp. isolated from A. palmeri growing in the Sonoran Desert and demonstrate their participation in the rhizophagy cycle.

2. Materials and Methods

2.1. Collection, Isolation, and Characterization of Endophytes from A. palmeri Seeds

Seed pods were randomly selected and collected from wild A. palmeri in Arizona, USA at AZ State Rt. 289, Mile 3 Marker (31.424525, −111.010064) and stored at 4 °C. To isolate endophytes from agave seeds, the seeds were surface-sterilized with 4% NaOCl for 1 h under continuous agitation. After 1 h, the NaOCl was decanted and excess NaOCl was removed from seed surfaces by rinsing with sterile DI H2O for 5 min; this was repeated 6 times or until the scent of chlorine had disappeared. Surface-sterilized seeds were placed onto Yeast Extract Sucrose (YES) agar (10 g yeast extract, 10 g sucrose, and 15 g agar in 1 L) and allowed to germinate. Bacterial growth was subcultured onto Luria-Bertani (LB) agar (Sigma-Aldrich, St. Louis, MO, USA).
After isolation, bacterial strains were tested for 6 characteristics: fluorescence, lipopeptide production, casein digestion, gelatinase activity, nitrogen fixation, and phosphate solubilization activity.
Fluorescence was determined by growing the strains at room temperature on LB agar. After 48 h, the plates were placed under a UV lamp and visually assessed for signs of fluorescence.
Lipopeptide production was determined by inoculating the strains into YES broth (10 g yeast extract, and 10 g sucrose in 1 L) at room temperature. After 24 h, a 500 μL sample of inoculated broth was placed onto Parafilm M and visually assessed for changes in droplet shape as a result of surfactant-related surface tension compared to the uninoculated broths.
Casein digestion activity was determined by subculturing the strains on Skim Milk Agar (14 g dry milk powder, 5 g pancreatic digest of casein, 2.5 g yeast extract, 1 g sucrose, and 15 g agar in 1 L) and allowing them to grow at room temperature. After 48 h, the plates were evaluated for any changes in transparency around the bacterial streak.
Gelatinase activity was determined by inoculating the strains into test tubes filled with Nutrient Gelatin Agar (120 g gelatin, 5 g peptone, and 3 g beef extract in 1 L) via an agar stab and allowing them to grow at 37 °C for 48 h. The test tubes were then placed in an ice bath for 30 min and evaluated for gelatin liquefaction.
Nitrogen fixation was determined by subculturing the strains on Jensen’s N-Free Medium (20 g sucrose, 2 g CaCO3, 1 g K2HPO4, 0.5 g MgSO4, 0.5 g NaCl, 0.1 g FeSO4, 0.005 g Na2MoO4, and 15 g agar in 1 L) at room temperature. After 1 week, the plates were evaluated for any signs of bacterial growth.
Phosphate solubilization was determined by subculturing the strains on Pikovskaya’s Agar (10 g dextrose, 0.5 g yeast extract, 5 g Ca3(PO4)2, 0.5 g K2HPO4, 0.2 g KCl, 0.1 g MgSO4, 0.0001 g MnSO4, 0.0001 g FeSO4, and 15 g agar in 1 L) at room temperature. After 1 week, the plates were evaluated for any changes in transparency around the bacterial streak.

2.2. Identification of Endophytic Bacteria from A. palmeri

Purified bacterial cultures were grown and maintained on LB agar at room temperature. At a timepoint 24 h prior to DNA collection, the endophytes were subcultured onto fresh LB agar and allowed to grow at room temperature. DNA was collected from endophyte cultures using the GenElute Bacterial Genomic DNA Kit (Sigma-Aldrich). A total of 4 genes were chosen for sequencing: 16S rRNA, atpD (ATP synthase β-subunit), carA (carbamoyl phosphate synthase small subunit), and recA (recombinase A). The genes were amplified via PCR using the primers listed in Table 1 and sent to Genewiz (South Plainfield, NJ, USA) for sequencing. Sequences were compared to the GenBank database using NCBI nBLAST and phylogenetic tree construction in order to obtain an identification.
Maximum likelihood (ML) phylogenetic trees were constructed using the MEGA11: Molecular Evolutionary Genetics Analysis version 11 software [44]. ML analyses were performed using the Kimura-2 parameter substitution model with discrete gamma distribution and invariant sites for the 16S rRNA gene, and the Tamura 3-parameter substitution model with discrete gamma distribution for the atpD, carA, and recA genes. The ML Heuristic model used was Nearest-Neighbor-Interchange. Clade stability was assessed using a bootstrap analysis with 1000 replicates.

2.3. Surface Sterilization and Inoculation of Crop Seeds

Five crop species were used to test for biostimulant properties: Kentucky bluegrass ‘Midnight’ (Poa pratensis), red clover (Trifolium pratense), cilantro (Coriandrum sativum), carrot (Daucus carota var sativa), and winter wheat (Triticum sp.). Red clover was used to evaluate rhizophagy participation.
Clover and coriander seeds were surface-sterilized with 4% NaOCl for 30 min or 1 h, respectively, under continuous agitation. After the pre-requisite amount of time had passed, the sodium hypochlorite was decanted and excess NaOCl was removed from seed surfaces by rinsing with sterile DI H2O for 5 min; this was repeated 6 times or until the scent of chlorine had disappeared.
Kentucky bluegrass, carrot, and wheat seeds were first placed in an oven at 50 °C for 48 h before being surface-sterilized as described above for the coriander seeds.

2.4. Biostimulation Testing

Crop seeds were inoculated either with individual strains of Pseudomonas sp. or inoculated with a Pseudomonas sp. mix composed of strains P3AW, AY2, WCY, and WC. To inoculate the seeds, the bacterial strains were grown on LB agar 24–48 h prior to inoculation. A bacterial suspension of the desired strain(s) was created by suspending the agar-grown strains in sterile DI water until they reached a concentration of 108 CFU/mL. The seeds were then soaked in the suspension for 10 min and placed into the growth substrate. All plants were grown at room temperature under a 12 h light/dark cycle in the laboratory under normal laboratory conditions.
The growth substrate was composed of Sunshine Mix #8 (Sun Gro Horticulture, Agawam, MA, USA) that had been filtered through a 2 mm sieve. A total of 100 mL of filtered soil mix was added to a Magenta box and sterilized by autoclaving for 60 min a total of three times, with 24 h elapsing between each autoclave session. A total of 31 mL of sterile DI H2O was added to each box to moisten the soil. A total of 10 seeds were placed into each box. Containers were separated into two groups: uninoculated and inoculated, with each treatment having at least 3 replicates.
The average seed germination per treatment was calculated by counting the number of seeds that had germinated per box.
All statistical analyses were performed using R Statistical Software (v.4.2.2) and R Commander [45,46,47,48].

2.5. Drought Resistance Testing

Wheat seeds were inoculated with a Pseudomonas sp. mix composed of strains P3AW, AY2, WCY, and WC. Inoculation of the seeds followed the same protocol as described in the biostimulation tests. The growth substrate used was the same as described in the biostimulation tests. Containers were separated into 4 treatment groups: irrigated with uninoculated seeds, drought with uninoculated seeds, irrigated with Pseudomonas inoculation, and drought with Pseudomonas inoculation, each with 3 replicates. Both groups were irrigated with 10 mL of water, with the irrigated group watered every 3 days and the drought group watered every 6 days.
The average seed germination per treatment was calculated by counting the number of seeds that had germinated per box.
All statistical analyses were performed using R Statistical Software and R commander (v.4.2.2) [45,46,47,48].

2.6. Transformation of Pseudomonas sp. for mCherry Expression

To induce mCherry expression in Pseudomonas sp. isolated from A. palmeri, the isolates were transformed with plasmid pSEVA237R_Pem7, a self-replicating, broad-host-range plasmid that is not inserted chromosomally and does not contain any transposons [49]. pSEVA237R_Pem7 contains an mCherry gene expressed under the constitutive promoter Pem7 and a kanamycin resistance gene, allowing for the continuous production of mCherry under kanamycin selection. The plasmid was extracted from Escherichia coli DH5α using the NucleoSpin Plasmid Mini Kit (Macherey-Nagel, Düren, Germany).
Pseudomonas sp. cells were grown overnight in 5–10 mL of a 1:1 Potato Dextrose Broth (PDB) + Nutrient Broth (NB) mixture (PDB: Sigma-Aldrich; NB: Sigma-Aldrich) at 23 °C (OD600 = 2.5) and collected via centrifugation at 14,000 rpm for 5 min. The cells were washed thrice with 1 mL of 300 mM sucrose, then resuspended in 100 μL of 300 mM sucrose. A total of 500 ng of plasmid DNA was added to 100 μL of cell suspension and the mixture was transferred to a 2 mm electroporation cuvette (Bio-Rad, Hercules, CA, USA). The cells were electroporated at 2.5 kV/cm, 25 μF, and 200 Ω using a Gene Pulser (Bio-Rad, Hercules, CA, USA), then immediately resuspended in 1 mL of PDB + NB and incubated at 23 °C for 2 h. After incubation, 100 μL of cell suspension was plated onto 1:1 Nutrient Agar (NA) + Potato Dextrose Agar (PDA) plates (NA: 8 g NB, and 15 g agar in 1 L; PDA: Sigma-Aldrich) amended with 50 μg/mL of kanamycin. Visibly pink colonies were cultured further on PDA + NA agar plates amended with kanamycin, and mCherry production was confirmed using a confocal microscope (Zeiss LSM 710; Carl Zeiss, Oberkochen, Germany).

2.7. Confocal Microscopy of Intracellular Bacteria

Clover seeds were inoculated with Pseudomonas sp. P3AW:mCherry (henceforth referred to as P3AW:mCherry) using the same procedure as described in the inoculation section. Inoculated seeds were placed into agarose plates amended with 75 μg/mL kanamycin to induce the continued production of mCherry. The seeds were allowed to grow in the agar for 3–4 days in a 12 h day–night cycle before they were subjected to high levels of CO2 (5–6 g of CO2 per 1 L of air) for 24 h.
Leaf tissue samples were lightly scraped and stained with Calcofluor White M2R (Sigma-Aldrich, St. Louis, MO, USA) and SYTO13 (Life Technologies, Carlsbad, CA, USA) before being viewed on a Zeiss LSM 710 confocal microscope. Root tissue samples were stained with Calcofluor White M2R and SYTO13 but not scraped prior to viewing. The 405 nm, 488 nm, and 594 nm lasers were used to excite the Calcofluor White M2R, SYTO13, and mCherry stains, respectively. Double staining with SYTO13 and mCherry was utilized to distinguish between mCherry-producing P3AW:mCherry and other background artifacts that also fluoresce red, such as auto-fluorescing chloroplasts.

3. Results

3.1. Categorization and Identification of Endophytic Bacteria

Eleven strains of bacteria were isolated from the seeds of Agave palmeri and then tested for their growth-promoting capabilities. Five strains in particular showed greater promise as biostimulants, with the following biochemical properties listed in Table 2. Strains P3AW, P3BW, AY2, and WCY are yellow-green in color, while strain WC is a transparent, almost-white color.

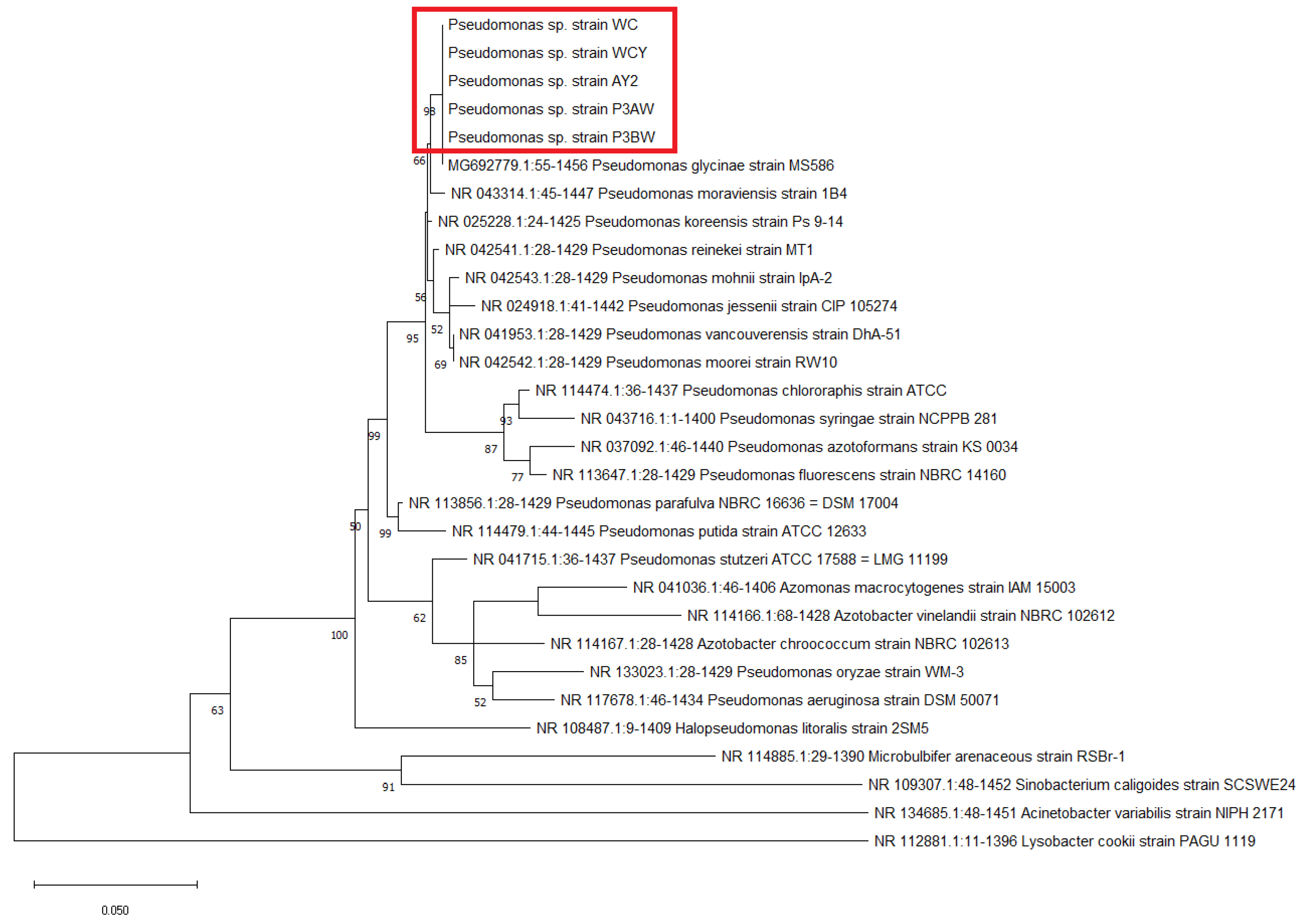

Molecular-based identification of the five strains were conducted using the 16S rRNA, atpD, carA, and recA genes. All strains were identified as part of the genus Pseudomonas based on GenBank database matches, however, a species-level identification could not be achieved due to close clustering of the five strains with other Pseudomonas species (Figure 1, Figure A1, Figure A2 and Figure A3). The closest match to the five strains was Pseudomonas glycinae, isolated from soybean rhizospheres. The 16S rRNA sequences were uploaded to GenBank under the accession numbers listed in Table 2.

3.2. Inoculation of Seeds with Individual Pseudomonas sp.

Individual Pseudomonas sp. were inoculated onto Kentucky bluegrass and red clover seeds to determine the efficacy of individual strains as biostimulants and to ascertain if there were any negative effects of applying individual strains to crops. After 8 weeks (Kentucky bluegrass) or 6 weeks (red clover) of growth, seedlings roots and shoots were measured to evaluate growth-promoting capabilities.
A visual comparison of the Kentucky bluegrass seedlings (Figure 2) revealed that uninoculated control seedlings had little to no root mass, while inoculated seedlings had substantially longer roots with greater soil adsorption. In addition, inoculated seedlings had much longer blades compared to the control seedlings. Overall, strains P3AW, P3BW, WCY, and WC appeared to be comparable in terms of growth-promotional effects, while strain AY2 appeared to confer greater growth-promoting effects.

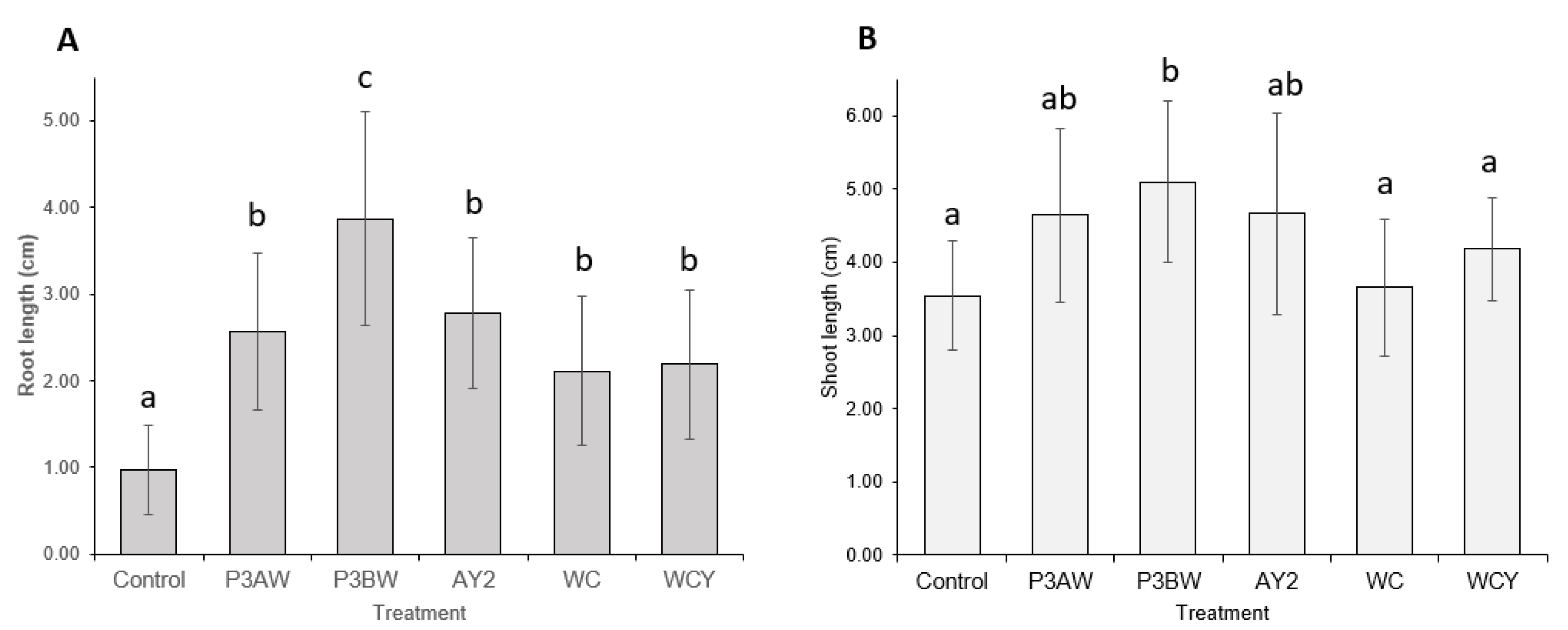

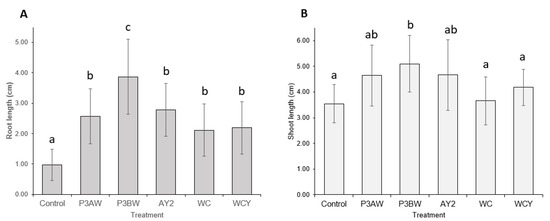

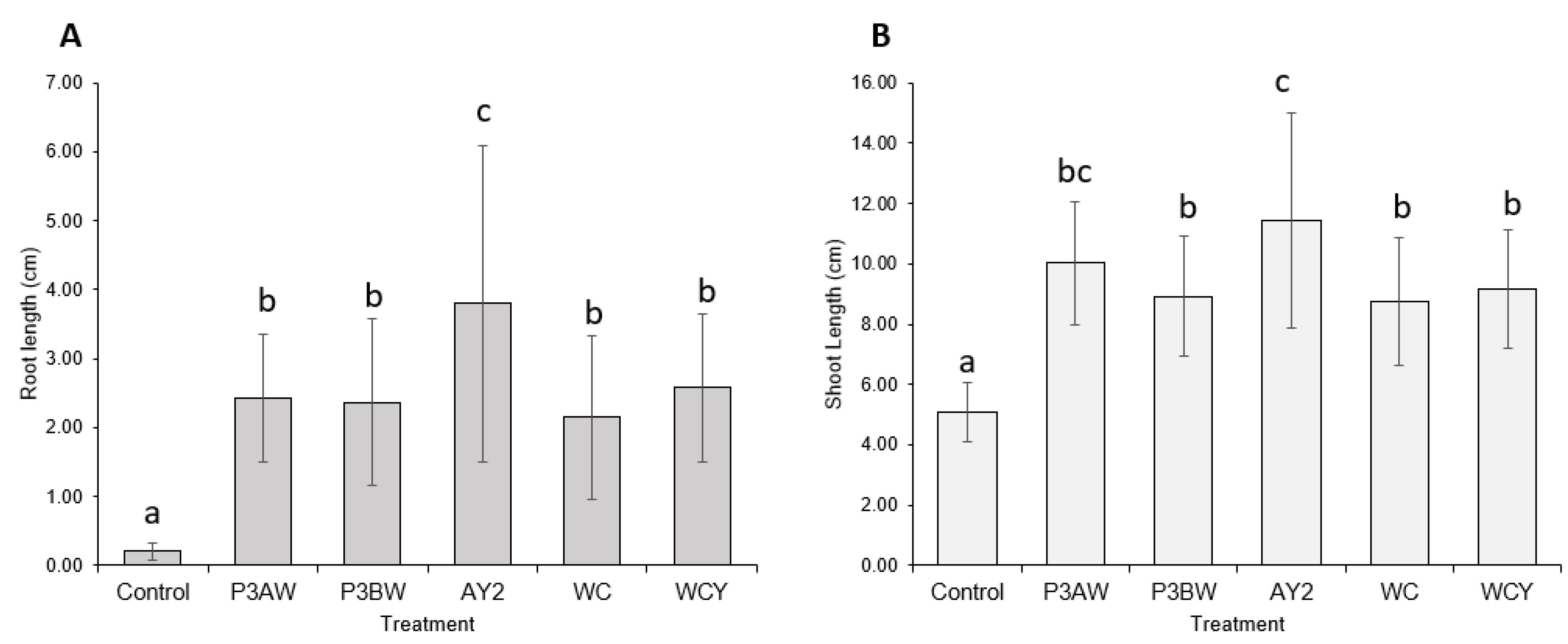

Statistical analysis supported the notion that the addition of Pseudomonas sp. strains to Kentucky bluegrass enhances seedling growth, as significant increases in both the root length (Figure 3A) and shoot length (Figure 3B) of inoculated seedlings were seen. As with the visual comparison, strains P3BW, WCY, and WC appeared to be comparable in terms of growth-promoting effects. Strain AY2 appeared to be significantly better than all other strains for root-length promotion but only significantly better than strains P3BW, WC, and WCY for shoot-length promotion. No notable reductions in the germination rate between the control and inoculated seedlings was observed, though strain AY2 seemed to boost the average germination rate by 16% compared to non-inoculated plants (Table A1).
A visual comparison of red clover seedlings revealed similar results to the Kentucky bluegrass seedlings (Figure 4). Again, the inoculated seedlings had longer roots and greater soil adsorption compared to the uninoculated control seedlings. Strains AY2, WC, and WCY appeared to confer comparable root-length enhancements, while strains P3AW and P3BW appeared to confer the greatest root-length enhancements. However, it was impossible to visually determine if there were any noticeable enhancements to shoot length.
Statistical analysis confirmed that inoculation with any of the five Pseudomonas sp. strains significantly improved the root length of red clover seedlings, though strain P3BW conferred the greatest root-length enhancements (Figure 5A). However, only strain P3BW significantly improved shoot length (Figure 5B). No notable reductions in the germination rate between the control and inoculated seedlings was observed, though strains P3BW, AY2, and WCY appeared to increase the average germination rate by 60%, 47%, and 33%, respectively (Table A1).

3.3. Inoculation of Seeds with a Mixture of Pseudomonas sp.

Since the endophytic Pseudomonas sp. were isolated from the same A. palmeri seeds, we wanted to test if the strains could be used together as an endophytic mix or synthetic community instead of as individual endophytes. Since the efficacy of the strains as a mixture of bacteria was unknown, we did not wish to overload the seedlings by inoculating them with too many strains. Strain P3BW was chosen to be omitted due to its similarity to strain P3AW in terms of chemical activity, as we wanted to test non-redundant strains to assess their plant growth-promoting effects as a microbial community.
Due to seed availability and difficulties in fully sterilizing seeds, preliminary studies on the effects of single inoculation on other seedlings were conducted on agarose plates to determine which other hosts would be best. Carrot and coriander were chosen due to an increased gravitropic response in inoculated seedlings, and, as such, carrot and coriander seeds were inoculated with a mix of strains P3AW, AY2, WC, and WCY. After 2 weeks of growth, seedling roots and shoots were measured.
A visual comparison of inoculated and uninoculated carrot seedlings (Figure 6) revealed that inoculated seedlings had noticeably greater root and shoot lengths, greater soil adsorption, and larger cotyledons. Some inoculated seedlings had already grown the first true leaf, while none of the uninoculated seedlings exhibited true leaf growth. Statistical analysis confirmed that inoculation with a mix of Pseudomonas sp. Strains significantly improved the root (Figure 7A) and shoot lengths (Figure 7B) of carrot seedlings. However, the improvement in root length was superior to the improvement in shoot length. In addition, inoculation with a Pseudomonas sp. mix was able to increase the germination rate by 25% (Table A1).
A visual comparison of inoculated and uninoculated coriander seedlings (Figure 8) reveals that inoculated seedlings had noticeably greater root length, greater soil adsorption, and larger cotyledons. The germination rate was slightly reduced by 10% when inoculated with a Pseudomonas sp. mix (Table A1). This may be due to the way coriander seeds germinate, where a single seed produces two seedlings. The failure of one seed to germinate would lead to a loss of two seedlings instead of one, doubling any differences in the germination rate.

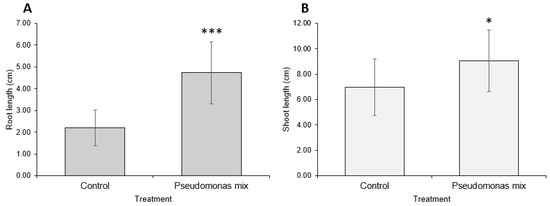

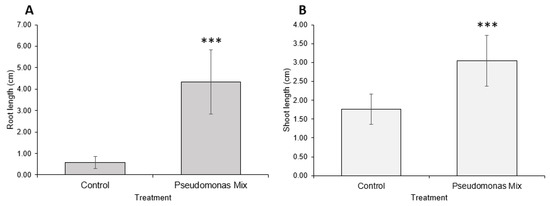

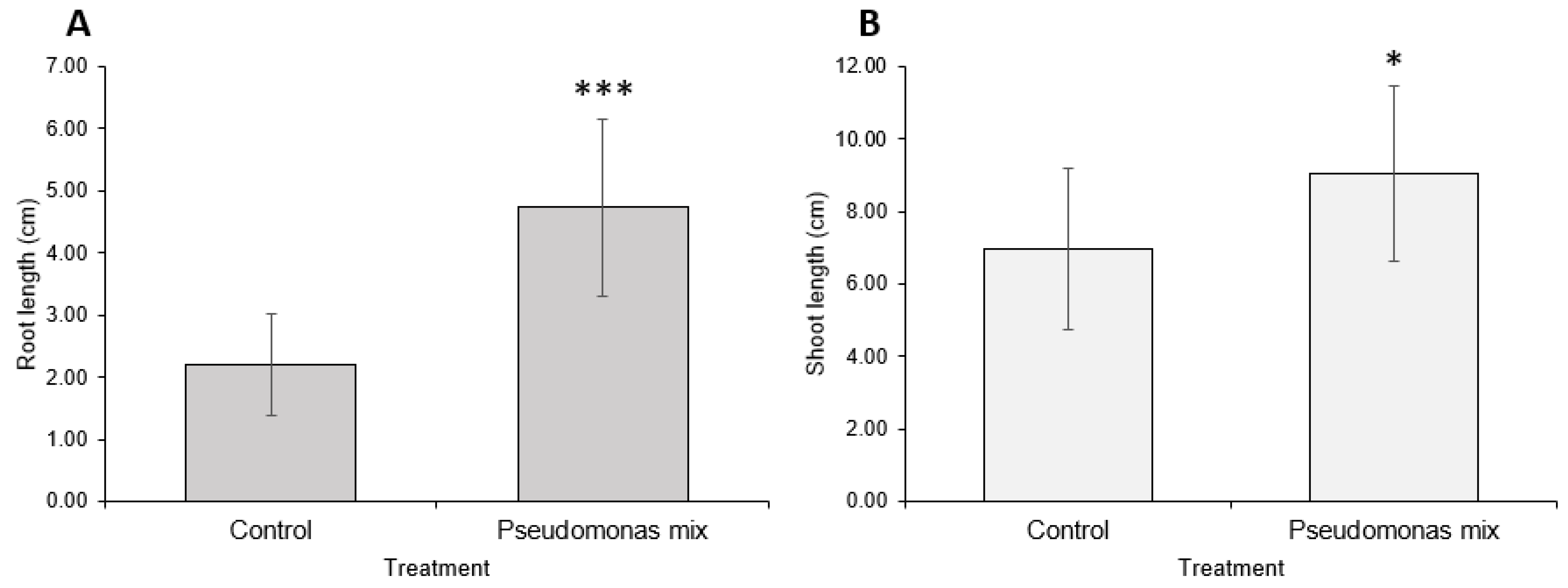

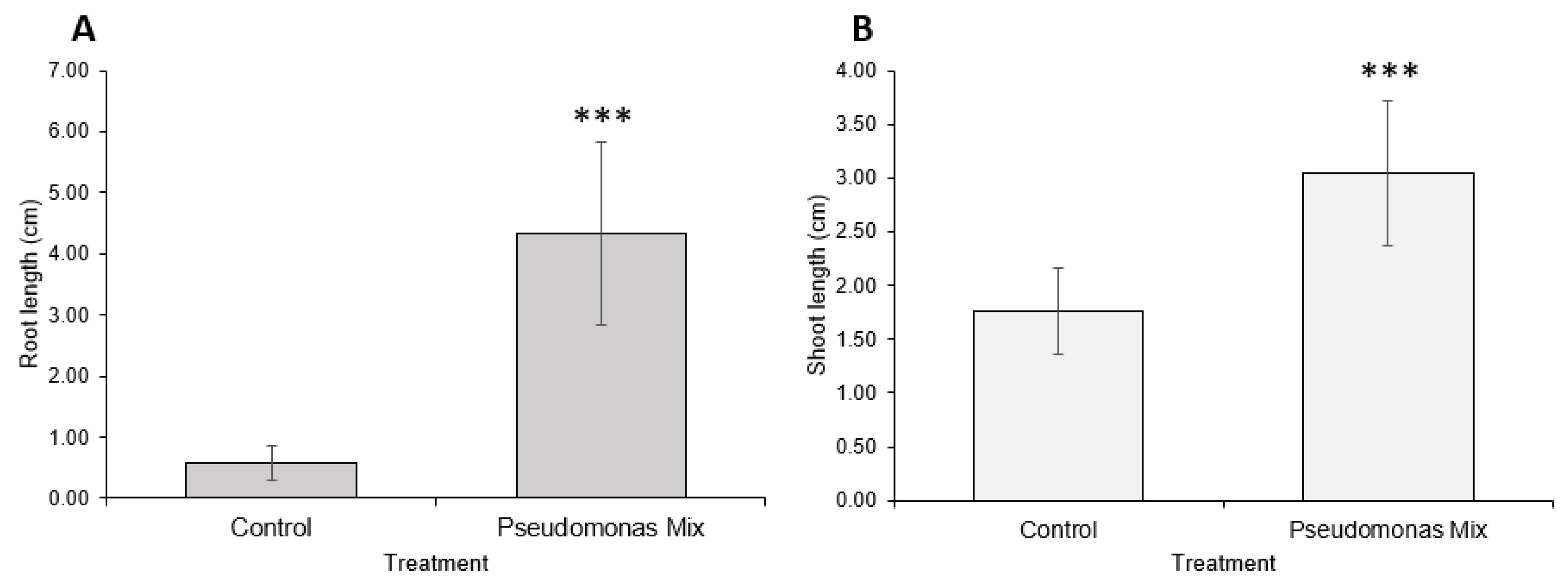

Statistical analysis confirmed that inoculation with a mix of Pseudomonas sp. strains significantly improved root (Figure 9A) and shoot lengths (Figure 9B) of coriander seedlings. However, shoot-growth promotion was weaker compared to root-growth promotion.

3.4. Assessment of Drought Resistance Induced by a Mixture of Pseudomonas sp.

Wheat was chosen as the model crop for drought resistance testing due to its status as one of the world’s most popular crops, and due to its susceptibility to drought stress. After 3 weeks of growth, seedling root and shoots were measured.

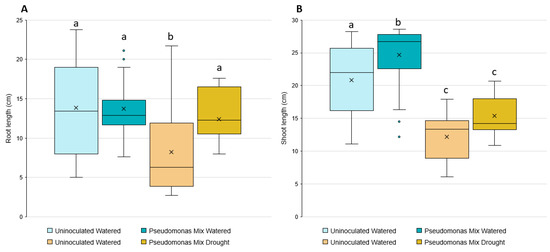

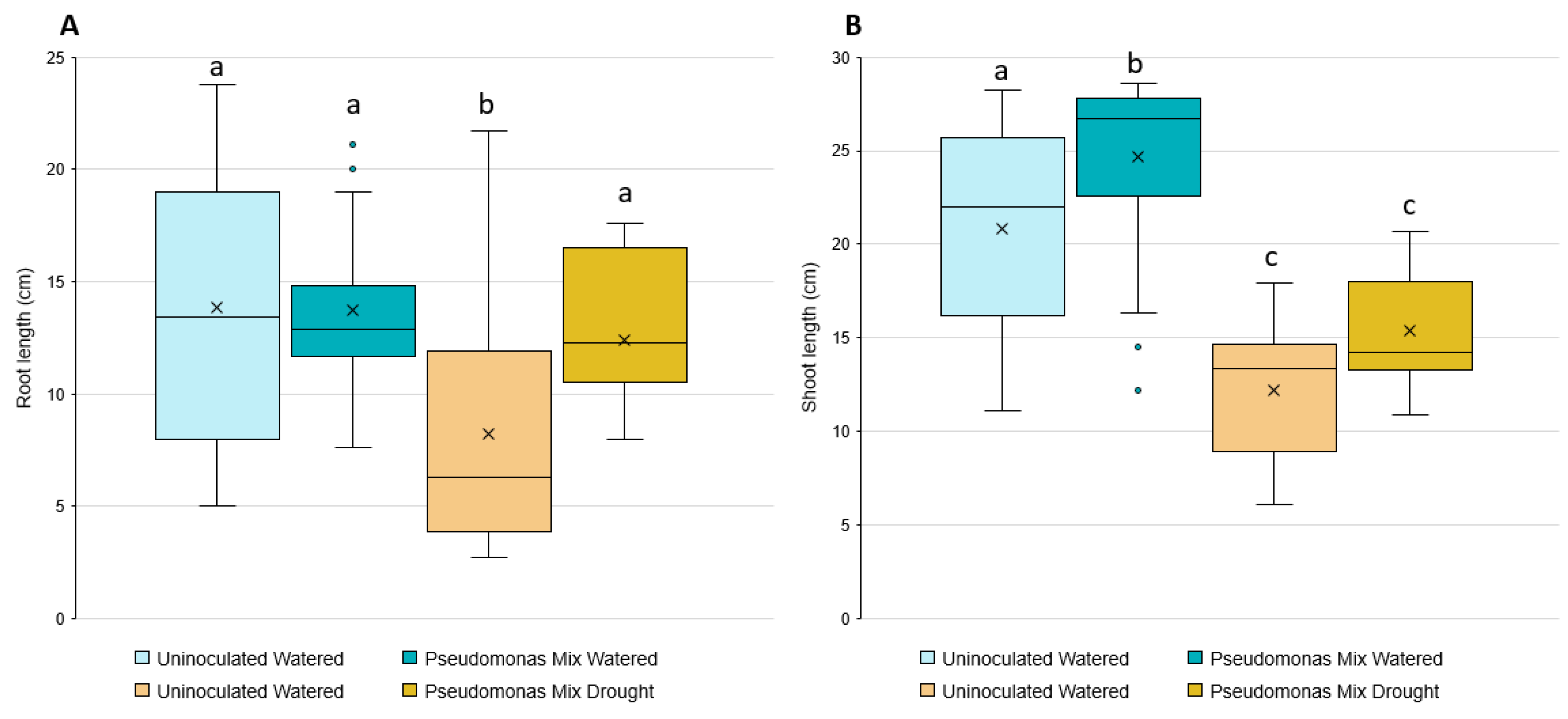

Statistical analysis showed that inoculated seedlings have significantly longer root lengths when grown in drought conditions (Figure 10A); however, no significant changes in root length were observed in seedlings grown in irrigated conditions. The inoculation-related increase in root length under drought conditions only increased root length relative to the uninoculated seedlings also grown under drought conditions, allowing the inoculated seedlings to reach similar root lengths as the irrigated groups.
The shoot-growth analysis results (Figure 10B) were the opposite of the root-length results—the inoculated seedlings only showed a significant increase in irrigated conditions, not drought conditions. While there was a small increase in shoot length between inoculated and uninoculated seedlings grown under drought stress, it was not a statistically significant difference.
Germination rates seemed to be greatly affected by the presence of Pseudomonas sp. (Table A2). This is especially notable in drought conditions, where inoculated boxes averaged 5.5 germinated seeds per box while uninoculated boxes averaged 8 germinated seeds per box, a decrease of 31%. The average number of dead seedlings per box remained the same regardless of inoculation (Table A2).

3.5. Tracking Pseudomonas sp. in Clover Tissues Using mCherry

To ensure that the triple-staining system involving Calcofluor White, SYTO13, and mCherry would function in clover and allow for the tracking of P3AW:mCherry in clover tissues with minimal false positives, a validation study was first conducted in the root tissues. The validation test involved viewing inoculated and uninoculated clover root caps under a confocal microscope to ensure that each stain localized to the correct areas and to determine if there were any auto-fluorescing artifacts within clover roots. The results of the test are shown in Figure 11.
In both uninoculated and inoculated roots, emissions could be detected in the low-wavelength blue (Figure 11a,e) and medium-wavelength green spectrum (Figure 11b,f). The blue emissions can be found surrounding the cells and are in the shape of the cell wall, suggesting that Calcofluor White can be used to stain and view the cell wall in the triple-staining system. The green emissions can be found scattered within the cells, but are particularly strong near the nucleus, suggesting that SYTO13 can be used to non-specifically stain DNA in the triple-staining system.
In uninoculated roots, very faint emissions could be detected in the high-wavelength red spectrum (Figure 11c), while in the inoculated roots, strong emissions could be detected in the red spectrum (Figure 11g). The relatively low level of red spectrum emissions in the uninoculated roots compared to the high level of emissions in the inoculated roots suggests that there is little to no red autofluorescence within clover root tissues. The overlap in green and red emissions between Figure 11b,c suggests that some small amount of red emissions in clover root tissue is due to spectral crosstalk.
The combined channel images of the uninoculated root tissue (Figure 11d) shows no orange or gold areas indicative of true overlap between the green spectrum of SYTO13 and the red spectrum of mCherry, indicating no areas where DNA and mCherry are expressed simultaneously. Meanwhile, the P3AW:mCherry-inoculated roots (Figure 11h) shows much overlap between the green and red spectra, indicating that there are several areas where DNA and mCherry overlap. The presence of such an overlap can be contributed to intact P3AW:mCherry or the simultaneous existence of free-floating DNA and mCherry. The lack of overlap in uninoculated tissues combined with the presence of an overlap in the inoculated tissues shows that the triple-staining system is valid for the detection of mCherry and P3AW:mCherry in clover roots.
Following the successful validation of the triple-staining system, we attempted to discern where exactly P3AW:mCherry localizes inside clover roots. To distinguish between free-floating DNA and mCherry and intact P3AW:mCherry, we looked for circular areas of green and red spectrum overlap around 1 μm in size, which are present in inoculated tissues (Figure 11h) but not in uninoculated tissues (Figure 11d).
Images from the confocal microscopy on inoculated root cells are shown in Figure 12. The presence of intact P3AW:mCherry inside the borders of the cell walls of sloughed-off root cap cells (Figure 12a,b), epidermal cells (Figure 12c), and sclerenchyma cells (Figure 12d) shows that P3AW:mCherry becomes endophytic inside of clover roots and can enter clover root cells. Their exact position within the root cells is harder to distinguish, as the cell membrane was not stained. In root cap and epidermal cells, it appears that P3AW:mCherry is found close to the cell wall (Figure 12a–c), while in sclerenchyma cells, it appears that P3AW:mCherry is found around the nucleus or the central vacuole (Figure 12d). Three-dimensional confocal videos of root cap cells (Videos S1 and S2) appear to confirm that P3AW:mCherry is found in the cell periphery.
In order to determine if P3AW:mCherry participates in the rhizophagy cycle, we also investigated its localization in root hairs specifically. Confocal microscopy revealed that the circular L-forms of P3AW:mCherry are found within both the developing (Figure 13a) and developed (Figure 13b) root hairs, and that they appear to congregate at the root hair tips. P3AW:mCherry was also observed exiting the root hair through an opening in the cell wall (Figure 14). The bacteria that exit the root hair in this manner are surrounded by a cloud of free-floating mCherry and DNA, which may be a result of bacterial degradation by the plant.
These results suggest that P3AW:mCherry does participate in at least part of the rhizophagy cycle, namely the phases where the bacteria become endophytic inside plant cells, are partially degraded by the plant, and then exit the root via the root hairs.
If P3AW:mCherry is indeed degraded for nutrients in the plant roots, then its cell contents, namely mCherry and DNA, should also be trackable through plant tissues as those contents are moved through the plant. Indeed, a mixture of mCherry and DNA was found in the xylem of inoculated roots and shoots (Figure 15). It is unknown whether the mCherry and DNA are free-floating in water or contained as part of intact P3AW:mCherry since there appear to be no distinct circular L-forms. This suggests that P3AW:mCherry, or its cell contents, are transported from the roots to the shoots via the xylem. Additionally, non-degraded P3AW:mCherry was found in the vascular bundle (Figure A1).
We also attempted to determine the localization of P3AW:mCherry in the shoot, using the cotyledons. P3AW:mCherry was observed in the peripheries of the guard cells, similar to their localization in the roots (Figure 16b). P3AW:mCherry was also observed escaping from open stomata (Figure 16c,d), indicating that P3AW:mCherry can be found in the shoots.

4. Discussion

As the agricultural industry becomes increasingly interested in harnessing the power of biostimulants in lieu of traditional agrochemicals, beneficial microbes originating from plants, such as rhizobacteria, mycorrhizae, and endophytes, have garnered greater attention from the research community. Many plants have been prospected for their beneficial microbes, though desert plants have often been left out of such studies.
In this study, we investigated the endophytic Pseudomonas sp. of A. palmeri, an agave species native to the Sonoran Desert of the American southwest, and assessed their potential as biostimulants as well as the possible mechanisms behind any biostimulant activity.
Previous findings show that Pseudomonas spp. are potent root-growth promoters [50,51], though they can also improve shoot growth [52]. The root- and shoot-length results from testing individual and a synthetic community of Pseudomonas sp. strains on Kentucky bluegrass, clover, carrot, and coriander corroborate these results (Figure 3, Figure 5, Figure 7 and Figure 9). Additional evidence of root-growth promotion can also be seen with the increases in soil adsorption around the roots of inoculated seedlings (Figure 2, Figure 4, Figure 6 and Figure 8).
Though no direct data was taken on soil aggregation, the increased amount of soil adsorption suggests that the Pseudomonas sp. Is capable of increasing soil aggregation around host roots. Polysaccharides and other metabolites produced by bacteria in the rhizosphere contribute positively to soil aggregation around plant roots [53,54,55,56], so increased soil aggregation may be a byproduct of bacteria metabolism in the rhizosphere. However, an increase in soil aggregation may also be due to increased root exudate production by the host. Previous studies have shown that increased root exudate production is correlated with increased soil aggregation around the root [57,58]. This increase in root exudate production may be caused by exudate leakage as a result of root damage, particularly when Pseudomonas sp. are escaping the root hair tips (Figure 14), but it may also be a result of deliberate host selection for beneficial microbes. Plants are known to use root exudates as a way to attract beneficial microbes [59,60,61] and a study on flax (Linum usitatissinum L.) and tomatoes has shown that host plants will select for specific soil Pseudomonads instead of the entire Pseudomonas soil community [62]. It is possible that the tested host plants are producing more exudates to continuously attract and maintain these beneficial Pseudomonas sp. strains in the rhizosphere.
One possible reason that non-native hosts may be selecting for Pseudomonas sp. strains from agave is the production of siderophores. Pseudomonas spp. are known to produce iron-chelating compounds known as siderophores, one of which is the fluorescent siderophore pyoverdine [63,64]. Pyoverdine is a yellow-green compound which glows blue under UV light. Four out of the five strains in this study were yellow-green in color and fluoresce blue under UV light (Table 2), which may be a sign that they are producing pyoverdine. Siderophores are known to increase plant growth [65,66,67], which may contribute to preferential host selection for these particular strains. Lemanceau et al.’s research on flax and tomatoes revealed that hosts selected for fluorescent Pseudomonads over other non-fluorescent Pseudomonads [62], lending credence to the idea that non-native hosts are producing root exudates to attract Pseudomonas sp. strains.
Other reasons for the selection of agave Pseudomonas sp. strains may include their nitrogen-fixing ability or their phosphate solubilization ability. Both nitrogen and phosphorous are essential to plant growth and are abundant in the environment, but they are often in forms that are inaccessible to the plant as atmospheric nitrogen and insoluble phosphorus [68,69]. Nitrogen fixation and phosphate solubilization are methods by which microbes can increase the amount of plant-available nitrogen and phosphorus in the soil and rhizosphere, thus selection for microbes that are able to participate in these processes would be beneficial for the plant. However, strain WC is notable for not being able to produce pyoverdine, fix nitrogen, or solubilize phosphate. This points to another reason that non-native hosts are selecting for agave Pseudomonas sp. in place of or in addition to the characteristics listed above. Further investigation into the plant-microbe interactions between agave Pseudomonas sp. would help to shed light on this matter.
Nevertheless, depending on the environment they are grown in, plants are able to change the types of microbes they select for. Research into the microbiomes of plants growing in desert regions shows that plants in dry areas are able to naturally acquire drought-resistant microbiomes [70,71]. Since the Pseudomonas sp. strains in this study were originally isolated from wild agave, they may have been selected by their native agave host for their ability to increase drought tolerance. However, the tests on wheat subjected to drought stress do not provide any inconclusive results about the ability of Pseudomonas sp. to confer greater drought tolerance. Data on root lengths suggests that inoculation with Pseudomonas sp. increases root length, and subsequently, water intake, in arid environments (Figure 10), while data on the germination rate suggests that inoculation with Pseudomonas sp. harms the ability for seeds to germinate in drought conditions. Perhaps these particular strains are not entirely compatible with the wheat cultivar used. A study on rhizospheric Pseudomonas aeruginosa showed that, despite the strain’s plant growth-promoting ability, it inhibited seed germination in wheat and corn [72]. Additionally, a study on Pseudomonas chlororaphis revealed that inoculation with P. chlororaphis inhibited seed germination in barley and wheat, but not cucumber or rice, and that the inhibition of seed germination was correlated with the strain’s ability to induce systemic disease resistance [73]. We see the same pattern of notable seed germination inhibition in wheat but not in other hosts that were inoculated with Pseudomonas sp. from agave, suggesting that the decrease in seed germination is host-species-specific and that decreased seed germination comes at the cost of improving the host’s response to pathogens. In this case, though seed germination may be inhibited, Pseudomonas sp. may still prove to be a beneficial microbe by decreasing yield loss from disease.
It is also entirely possible that the results do not match the way in which plants would respond in real-life drought conditions due to the way in which the seedlings were grown in limited volumes of soil inside a drainage-free container. Other studies on the effect of Pseudomonas spp. on plant response to salt stress and drought stress conclude that the application of Pseudomonas spp. improves growth response in high salt or low water conditions [72,74,75,76,77] and other studies on the application of desert plant microbes to non-desert plants show that inoculation with desert plant microbes will improve the host’s response to drought stress [78,79]. More research, ideally in the field, needs to be conducted to gain further insight into how Pseudomonas sp. from agave affects plants’ response to drought and salt stress.
Additional testing to explore the effects of Pseudomonas sp. on crops should be conducted over longer periods of time and in the field to determine the true potential and efficacy of the endophytic Pseudomonas sp. strains as biostimulants.
While the application of Pseudomonas sp. resulted in growth promotion in the various crop hosts, one point of uncertainty was whether or not the Pseudomonas sp. strains were providing the biostimulant effects by entering the host tissues or simply by interacting with the host at the surface level without becoming an endophyte. The inability to track the target microbe once it has been inoculated onto the host plant is one of the main problems facing endophyte research, but one possible solution is to track the microbe is by introducing fluorescent proteins or other markers into the strain of interest. The studies performed with P3AW:mCherry show that bacteria transformed with a plasmid to express mCherry are viewable and trackable inside plant tissues using confocal microscopy (Figure 11), making it easy to tell whether or not the strain of interest becomes endophytic, as well as determine where it localizes in host tissues. Other fluorescent proteins, such as green fluorescent protein (GFP) or yellow fluorescent protein (YFP), can potentially be substituted for mCherry if alternative DNA and cell wall stains are used. However, a downside of the plasmid transformation approach is that the host plant must be grown in a substrate containing antibiotics, which limits the tracking studies to the seedling stage due to chloroplast sensitivity to antibiotics. A better approach would be to insert the fluorescent protein production gene directly into the strain’s genome, but this approach would only be feasible if the strain of interest’s genome has already been sequenced. Researchers who wish to conduct preliminary testing on a large variety of newly isolated strains would be better off using plasmid transformation.
Using the plasmid-transformation approach, we were able to show endophytism and the localization of Pseudomonas sp. in tissues and cells (Figure 12, Figure 13, Figure 14, Figure 15 and Figure 16). Previous studies conducted on the rhizophagy cycle via light microscopy have suggested that bacterial endophytes are found in plant cells between the cell wall and the cell membrane [41,42,80]. The results of this study confirm that bacterial endophytes do enter plant cells and can be found near the cell wall (Figure 12 and Figure 16b), though we have not been able to confirm whether or not they are in the space between the cell wall and cell membrane. Further studies need to be conducted with transformed plants displaying fluorescent-protein-tagged membranes to determine if Pseudomonas sp. P3AW:mCherry or other endophytes are found inside the cytoplasm, between the cell wall and cell membrane, or in both locations.
Using plasmid transformation and confocal microscopy tracking, we were also able to show that Pseudomonas sp. participates in some parts of the rhizophagy cycle, most notably the internalization of bacteria in the roots (Figure 2) and the expulsion of bacteria via the root hairs (Figure 13 and Figure 14). The participation of Pseudomonas sp. in the rhizophagy cycle would partially explain its biostimulant properties. Pseudomonas spp. are commonly found in the rhizosphere and within plant tissues as endophytes [81,82,83,84,85,86]. As the rhizophagy cycle involves the expulsion of bacterial endophytes into the soil, the ability for this genus to survive and proliferate in soil conditions may make it more valuable as a biostimulant endophyte.
We posit that endophytes which are able to survive outside host tissues may play a greater role in nutrient acquisition and biostimulation due to their ability to participate in the rhizophagy cycle. NaOCl washes are effective at removing many endophytes from plant seeds but fail to remove tightly associated endophytes that cannot be cultured (unpublished data). However, even though these endophytes are still present in the tissues, these disinfected plants do not grow very well, especially when compared to plants that have been re-inoculated with a culturable endophyte (Figure 2 and Figure 4) [30,87]. Even within groups of culturable endophytes, there are certain strains that are more effective at biostimulation than others. Common endophytic biostimulant bacteria include members of the genus Bacillus and Pseudomonas [88,89,90,91,92], which are both commonly found in soil. It could be that endophytes from genera that are commonly found in soils are more effective as biostimulants compared to endophytes from other genera due to their ability to survive in both root tissues and the rhizosphere soil surrounding it.
Endophyte participation in the rhizophagy cycle may also contribute to nutrient uptake in roots by increasing root hair length, and thus increasing root surface area. The results of this study provide more evidence towards the idea that root endophytes will gather at the tips of root hairs before exiting the root hair tip (Figure 13 and Figure 14), a process that lengthens the root hairs [41,93]. Previous studies implicate reactive oxygen species (ROS) as key signalers during root growth and development, specifically in the formation of root hairs and lateral roots [94,95,96]. While the results of these studies suggest that ROS are the main drivers of root development and root hair formation, it may be that the interaction between ROS and endophytic microbes via the rhizophagy cycle plays an equally large, if not larger, role in root development and nutrient acquisition. For instance, a previous study on nutrient deprivation in Arabidopsis thaliana showed that N and K deficiency caused ROS concentrations to increase in the root hairs [97]. This increase in ROS in the root hairs may be the plant’s attempt to degrade more endophytic bacteria to gather additional nutrients as part of the rhizophagy cycle, which then contributes to root hair growth.
Whilst confirming the localization of Pseudomonas sp. in plant roots, we found additional evidence to support the idea that Pseudomonas sp. were being degraded in the roots. As plants normally move nutrients absorbed through the roots to the shoots using the xylem and phloem, nutrients extracted by bacteria degraded via the rhizophagy cycle cell contents are expected to be visible in the vascular bundle. Indeed, P3AW:mCherry cell contents could be seen in the xylem of both the roots (Figure 15b) and shoots (Figure 15c) of inoculated clover, which suggests the nutrients and other bacterial metabolites generated through ROS degradation are transported up into the shoots via the xylem. This adds further credence to the idea that microbes are increasing nutrient uptake in plants not only via secretion-based signaling, but also by releasing their accumulated nutrients via plant-mediated ROS degradation.
In addition, we also noted the presence of non-degraded P3AW:mCherry in the vascular bundle (Figure A4), which may point to bacterial endophytes being exchanged between roots and shoots via the vascular tissues, but may also point to bacterial endophytes using vascular tissues, particularly the phloem, as sugar-rich sanctuaries to reproduce away from ROS degradation. Bacteria may also move via the xylem as well, though we have not been able to see distinct L-forms that indicate intact bacteria in the xylem. More work needs to be performed to determine what kind of a role the vascular tissues play in regards to bacterial endophyte movement and organization within the plant, but the results of this study point to a possible system of endophyte and endophyte-product exchange happening via the vascular tissue of plants, where both endophytes and their cell contents can be moved throughout the plant.
The movement of bacterial endophytes through the plant, particularly via the vascular tissue, may also offer new insights into how endophytes spread amongst plant populations. Currently, it is believed that endophytes are passed vertically from parent to child via the seed, or horizontally from unrelated plants via the soil. However, we were able to catch an instance of endophytes exiting the plant via the stomata, suggesting an aerial route of spread (Figure 16c,d). Similar to how fungal endophytes can use leaves for aerial dispersal, bacterial endophytes may also use leaves for aerial dispersal. Bacteria may exit from open stomata and get carried into neighboring patches of soil, where they can then reproduce and enter new hosts.

5. Conclusions

Endophytic Pseudomonas sp. isolated from A. palmeri improved root length and root soil adsorption when inoculated onto various novel crop hosts. Depending on the host, the strains could also improve shoot length, and there is some evidence that inoculation improves seedling response to drought stress, particularly in the roots. Transformation of the Pseudomonas sp. strain P3AW to express the fluorescent protein mCherry verified that it becomes endophytic in the roots and shoots of non-native hosts and confirmed its localization to the cell peripheries, near the cell wall. Pseudomonas sp. were photographed congregating near the tips of developing root hairs and in the process of being ejected from the root hair tip, supporting the idea that Pseudomonas sp. strains participate in the rhizophagy cycle. Additional photos of free-floating mCherry and DNA in the root and shoot xylem suggest that endophytic Pseudomonas sp. or their cell contents are being transported from the roots into the shoots, lending further credence to the hypothesis that the bacterial cells are being degraded for nutrients. The results of this study provide additional evidence of the rhizophagy cycle in plants and how it relates to growth promotion in plants by biostimulant bacteria.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biology11121790/s1. Video S1: Video showcasing a 3D confocal stack of P3AW:mCherry-inoculated clover root cap cells, viewed from the side. P3AW:mCherry cells (orange globules) can be seen at the peripheries of the cells, near the cell wall. The stack was generated using the Zen 3.6 (blue edition) software (Carl Zeiss). Video S2: Video showcasing a 3D confocal stack of P3AW:mCherry-inoculated clover root cap cells, viewed from the front. P3AW:mCherry cells (orange globules) can be seen mainly near the peripheries of the cells, near the cell wall. The stack was generated using the Zen 3.6 (blue edition) software (Carl Zeiss).

Author Contributions

Conceptualization, Q.Z., K.L.K. and J.F.W.; methodology, Q.Z., K.L.K. and J.F.W.; validation, Q.Z., K.L.K. and J.F.W.; formal analysis, Q.Z., K.L.K. and J.F.W.; investigation, Q.Z.; resources, Q.Z. and J.F.W.; data curation, Q.Z. and J.F.W.; writing—original draft preparation, Q.Z. and J.F.W.; writing—review and editing, Q.Z., K.L.K. and J.F.W.; visualization, Q.Z.; supervision, J.F.W.; project administration, K.L.K. and J.F.W.; funding acquisition, J.F.W. All authors have read and agreed to the published version of the manuscript.

Funding

No external funding was used for this project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated are in the article.

Acknowledgments

We kindly thank Víctor de Lorenzo and the de Lorenzo lab (Centro Nacional de Biotecnología, Madrid, Spain) for providing us with the pSEVA231R plasmid.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table
Table A1. Average number of seeds germinated per magenta box by plant host and by inoculated strain. Each box contained a total of 10 seeds. ± refers to standard deviation.
Table A1. Average number of seeds germinated per magenta box by plant host and by inoculated strain. Each box contained a total of 10 seeds. ± refers to standard deviation.
PlantUninoculatedP3AWP3BWAY2WCWCYMix (P3AW, AY2, WC, WCY)
KY Bluegrass8.33 ± 1.258.67 ± 1.258.00 ± 0.829.67 ± 0.477.67 ± 2.628.33 ± 0.47n/a
Clover5.00 ± 1.416.00 ± 1.638.00 ± 1.637.33 ± 0.476.00 ± 0.816.67 ± 0.47n/a
Carrot6.67 ± 1.25n/an/an/an/an/a8.33 ± 1.70
Coriander7.00 ± 1.41n/an/an/an/an/a6.33 ± 0.47
Table
Table A2. Average number of wheat seeds germinated per magenta box by treatment. Each box contained a total of 10 seeds. ± refers to standard deviation.
Table A2. Average number of wheat seeds germinated per magenta box by treatment. Each box contained a total of 10 seeds. ± refers to standard deviation.
TreatmentIrrigated,
Uninoculated		Irrigated,
Inoculated		Drought,
Uninoculated		Drought,
Inoculated
Average # of Germinated Seeds Per Box9.25 ± 0.437.75 ± 1.798.00 ± 1.875.50 ± 1.12
Average # of Dead
Seedlings Per Box		003.25 ± 1.483.25 ± 0.43
Biology 11 01790 g0a1 550

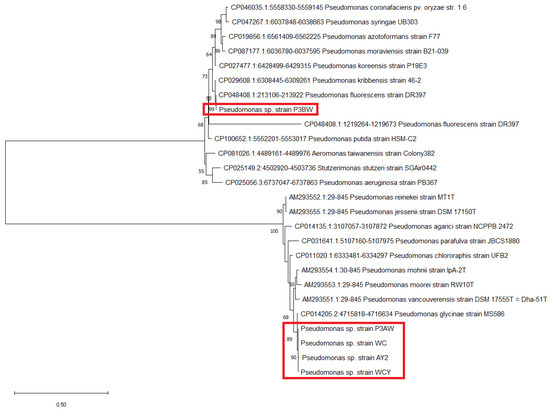

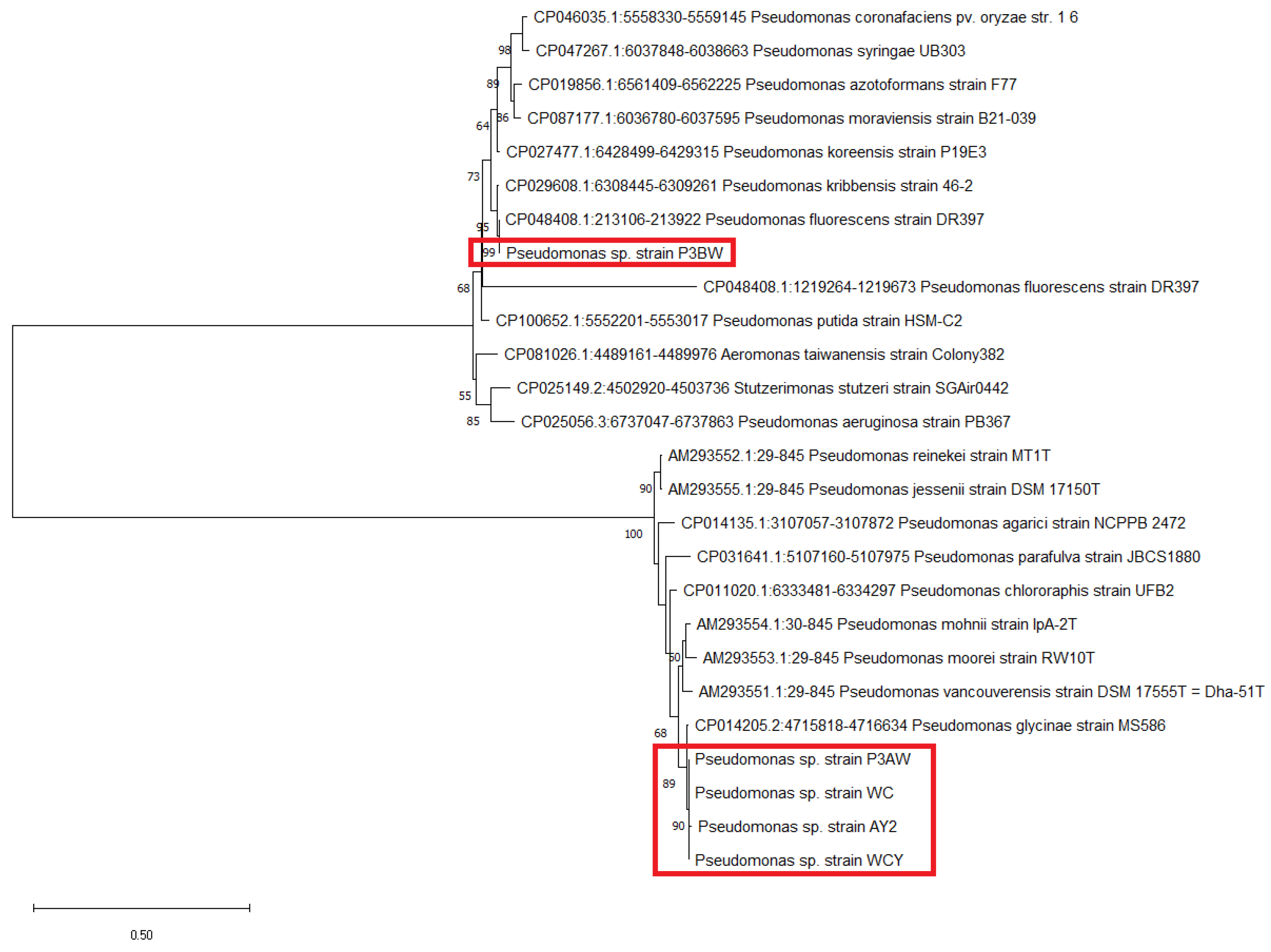

Figure A1. Maximum likelihood phylogenetic tree of Pseudomonas sp. strains based on the atpD gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. strains from Agave palmeri are circled by the red box.
Figure A1. Maximum likelihood phylogenetic tree of Pseudomonas sp. strains based on the atpD gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. strains from Agave palmeri are circled by the red box.
Biology 11 01790 g0a1
Biology 11 01790 g0a2 550

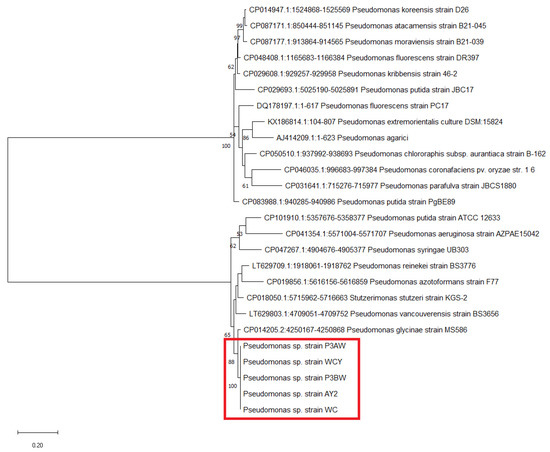

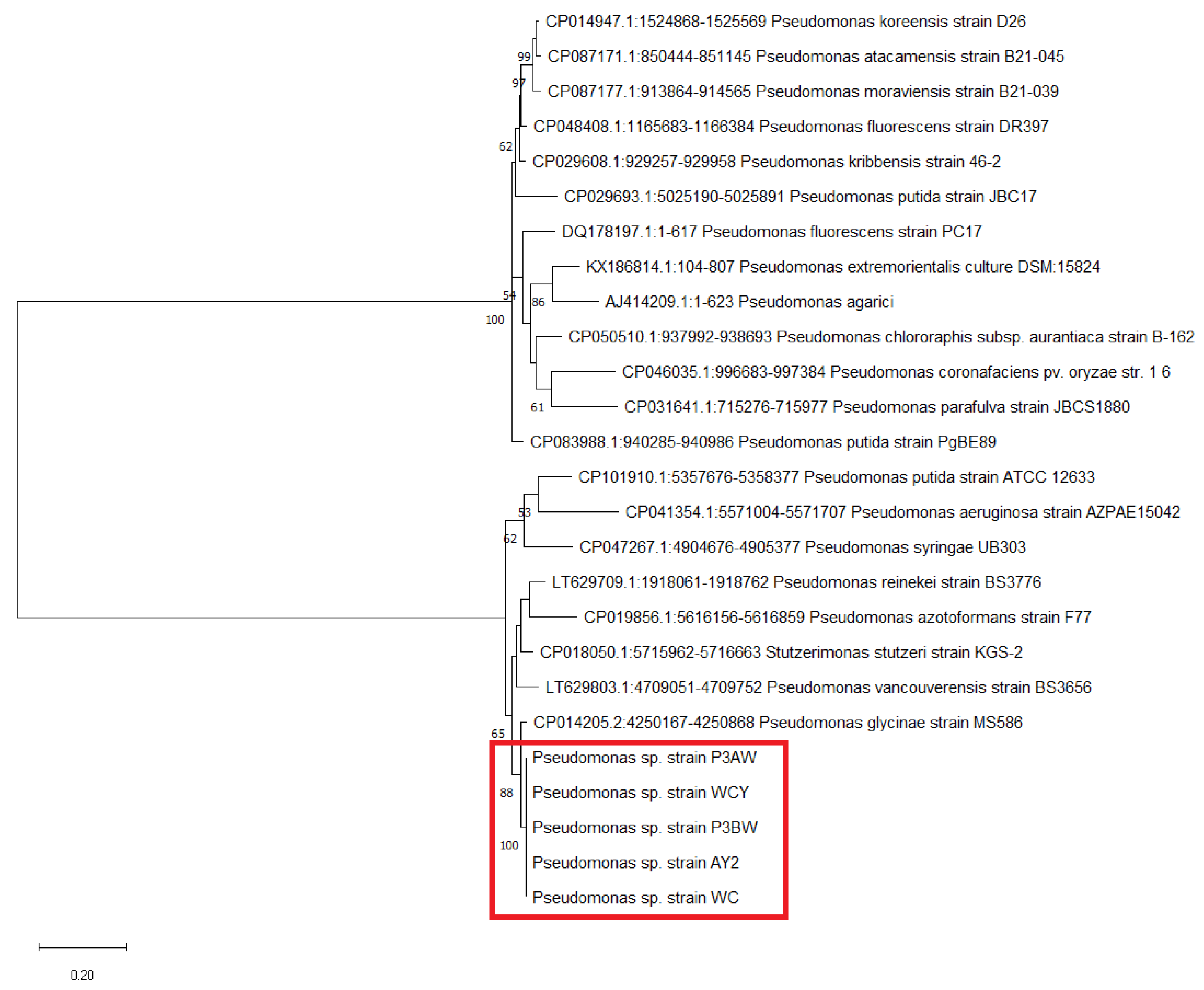

Figure A2. Maximum likelihood phylogenetic tree of Pseudomonas sp. strains based on the carA gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. Strains from Agave palmeri are circled by the red box.
Figure A2. Maximum likelihood phylogenetic tree of Pseudomonas sp. strains based on the carA gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. Strains from Agave palmeri are circled by the red box.
Biology 11 01790 g0a2
Biology 11 01790 g0a3 550

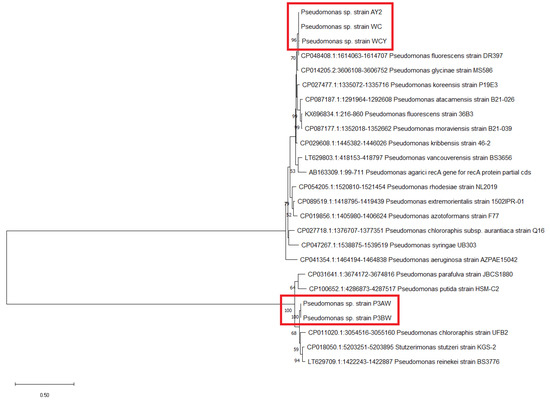

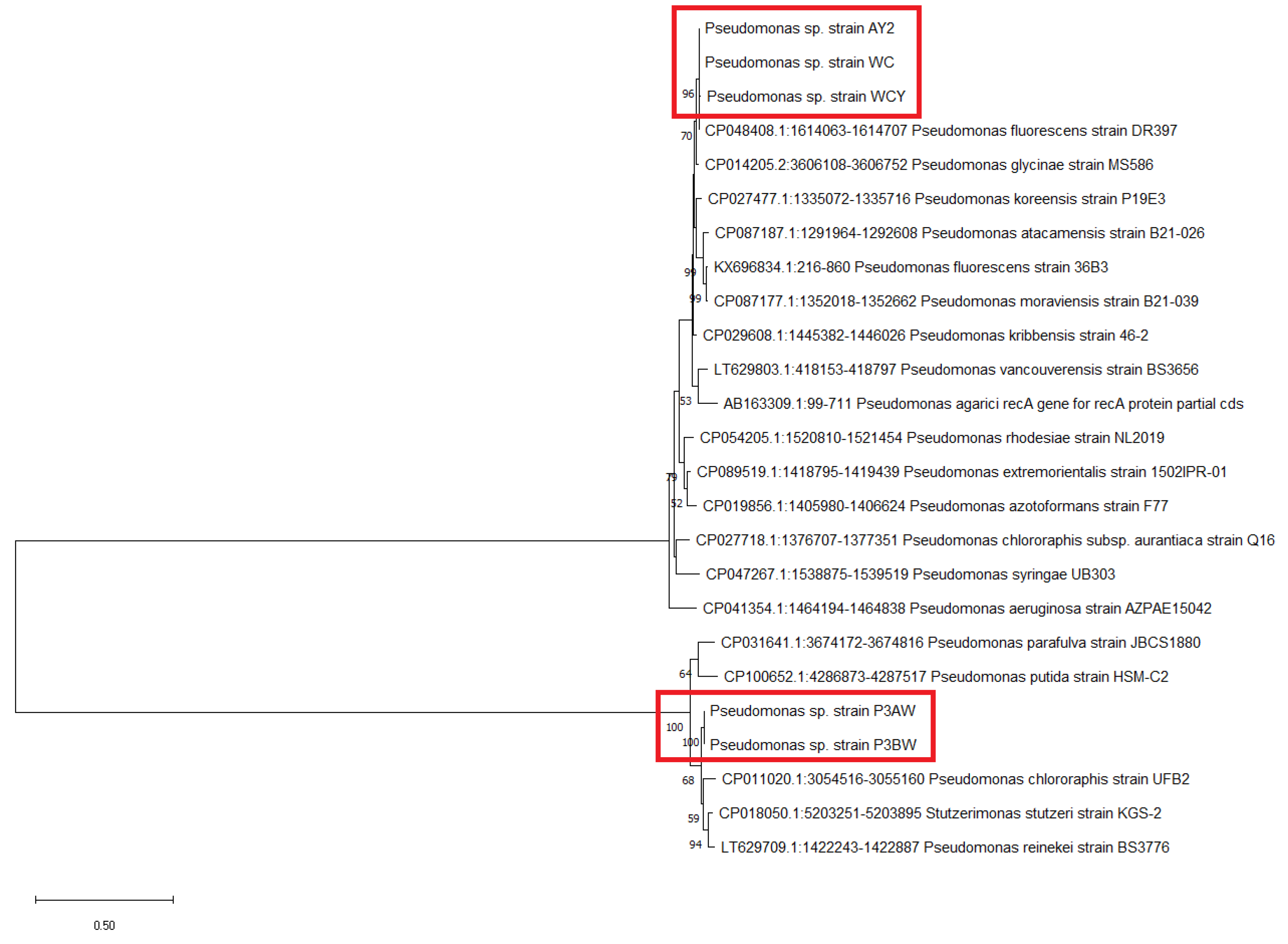

Figure A3. Maximum likelihood phylogenetic tree of Pseudomonas sp. Strains based on the recA gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. strains from Agave palmeri are circled by the red box.
Figure A3. Maximum likelihood phylogenetic tree of Pseudomonas sp. Strains based on the recA gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. strains from Agave palmeri are circled by the red box.
Biology 11 01790 g0a3
Biology 11 01790 g0a4 550
Figure A4. P3AW:mCherry in the vascular bundle in inoculated clover roots. Scale bar = 15 μm.
Figure A4. P3AW:mCherry in the vascular bundle in inoculated clover roots. Scale bar = 15 μm.
Biology 11 01790 g0a4

References

  1. Brown, P.; Saa, S. Biostimulants in Agriculture. Front. Plant Sci. 2015, 6, 671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Calvo, P.; Nelson, L.; Kloepper, J.W. Agricultural Uses of Plant Biostimulants. Plant Soil 2014, 383, 3–41. [Google Scholar] [CrossRef] [Green Version]
  3. Rouphael, Y.; Colla, G. Editorial: Biostimulants in Agriculture. Front. Plant Sci. 2020, 40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Russo, R.O.; Berlyn, G.P. The Use of Organic Biostimulants to Help Low Input Sustainable Agriculture. J. Sustain. Agric. 1991, 1, 19–42. [Google Scholar] [CrossRef]
  5. Bhattacharyya, P.N.; Jha, D.K. Plant Growth-Promoting Rhizobacteria (PGPR): Emergence in Agriculture. World J. Microbiol. Biotechnol. 2012, 28, 1327–1350. [Google Scholar] [CrossRef]
  6. Gupta, G.; Parihar, S.S.; Ahirwar, N.K.; Snehi, S.K.; Singh, V. Plant Growth Promoting Rhizobacteria (PGPR): Current and Future Prospects for Development of Sustainable Agriculture. J Microb Biochem Technol 2015, 7, 096–102. [Google Scholar]
  7. Maheshwari, D.K.; Dheeman, S.; Agarwal, M. Phytohormone-Producing PGPR for Sustainable Agriculture. In Bacterial Metabolites in Sustainable Agroecosystem; Springer: Berlin/Heidelberg, Germany, 2015; pp. 159–182. [Google Scholar]
  8. Prasad, M.; Srinivasan, R.; Chaudhary, M.; Choudhary, M.; Jat, L.K. Plant Growth Promoting Rhizobacteria (PGPR) for Sustainable Agriculture: Perspectives and Challenges. In PGPR Amelioration in Sustainable Agriculture; Elsevier: Amsterdam, The Netherlands, 2019; pp. 129–157. [Google Scholar]
  9. Hallmann, J.; Quadt-Hallmann, A.; Mahaffee, W.; Kloepper, J. Bacterial Endophytes in Agricultural Crops. Can. J. Microbiol. 1997, 43, 895–914. [Google Scholar] [CrossRef]
  10. Wilson, D. Endophyte: The Evolution of a Term, and Clarification of Its Use and Definition. Oikos 1995, 73, 274–276. [Google Scholar] [CrossRef]
  11. Hamayun, M.; Afzal Khan, S.; Ahmad, N.; Tang, D.-S.; Kang, S.-M.; Na, C.-I.; Sohn, E.-Y.; Hwang, Y.-H.; Shin, D.-H.; Lee, B.-H.; et al. Cladosporium sphaerospermum as a New Plant Growth-Promoting Endophyte from the Roots of Glycine max (L.) Merr. World J. Microbiol. Biotechnol. 2009, 25, 627–632. [Google Scholar] [CrossRef]
  12. Rashid, S.; Charles, T.C.; Glick, B.R. Isolation and Characterization of New Plant Growth-Promoting Bacterial Endophytes. Appl. Soil Ecol. 2012, 61, 217–224. [Google Scholar] [CrossRef]
  13. Santoyo, G.; Moreno-Hagelsieb, G.; del Carmen Orozco-Mosqueda, M.; Glick, B.R. Plant Growth-Promoting Bacterial Endophytes. Microbiol. Res. 2016, 183, 92–99. [Google Scholar] [CrossRef] [PubMed]
  14. Varma, A.; Verma, S.; Sudha; Sahay, N.; Bütehorn, B.; Franken, P. Piriformospora Indica, a Cultivable Plant-Growth-Promoting Root Endophyte. Appl. Environ. Microbiol. 1999, 65, 2741–2744. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Rungin, S.; Indananda, C.; Suttiviriya, P.; Kruasuwan, W.; Jaemsaeng, R.; Thamchaipenet, A. Plant Growth Enhancing Effects by a Siderophore-Producing Endophytic Streptomycete Isolated from a Thai Jasmine Rice Plant (Oryza sativa L. Cv. KDML105). Antonie Leeuwenhoek 2012, 102, 463–472. [Google Scholar] [CrossRef] [PubMed]
  16. Herrera, S.D.; Grossi, C.; Zawoznik, M.; Groppa, M.D. Wheat Seeds Harbour Bacterial Endophytes with Potential as Plant Growth Promoters and Biocontrol Agents of Fusarium Graminearum. Microbiol. Res. 2016, 186, 37–43. [Google Scholar] [CrossRef] [PubMed]
  17. Igarashi, Y.; Iida, T.; Yoshida, R.; Furumai, T. Pteridic Acids A and B, Novel Plant Growth Promoters with Auxin-like Activity from Streptomyces hygroscopicus TP-A0451. J. Antibiot. 2002, 55, 764–767. [Google Scholar] [CrossRef] [Green Version]
  18. Afridi, M.S.; Mahmood, T.; Salam, A.; Mukhtar, T.; Mehmood, S.; Ali, J.; Khatoon, Z.; Bibi, M.; Javed, M.T.; Sultan, T.; et al. Induction of Tolerance to Salinity in Wheat Genotypes by Plant Growth Promoting Endophytes: Involvement of ACC Deaminase and Antioxidant Enzymes. Plant Physiol. Biochem. 2019, 139, 569–577. [Google Scholar] [CrossRef]
  19. Dai, A. Drought under Global Warming: A Review. Wiley Interdiscip. Rev. Clim. Chang. 2011, 2, 45–65. [Google Scholar] [CrossRef] [Green Version]
  20. Trenberth, K.E.; Dai, A.; Van Der Schrier, G.; Jones, P.D.; Barichivich, J.; Briffa, K.R.; Sheffield, J. Global Warming and Changes in Drought. Nat. Clim. Chang. 2014, 4, 17–22. [Google Scholar] [CrossRef]
  21. Wang, G. Agricultural Drought in a Future Climate: Results from 15 Global Climate Models Participating in the IPCC 4th Assessment. Clim. Dyn. 2005, 25, 739–753. [Google Scholar] [CrossRef]
  22. Christensen, O.; Christensen, J. Intensification of Extreme European Summer Precipitation in a Warmer Climate. Glob. Planet. Chang. 2004, 44, 107–117. [Google Scholar] [CrossRef]
  23. Alfieri, L.; Burek, P.; Feyen, L.; Forzieri, G. Global Warming Increases the Frequency of River Floods in Europe. Hydrol. Earth Syst. Sci. 2015, 19, 2247. [Google Scholar] [CrossRef]
  24. Ray, D.K.; West, P.C.; Clark, M.; Gerber, J.S.; Prishchepov, A.V.; Chatterjee, S. Climate Change Has Likely Already Affected Global Food Production. PLoS ONE 2019, 14, e0217148. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.; Ye, W.; Wang, M.; Yan, X. Climate Change and Drought: A Risk Assessment of Crop-Yield Impacts. Clim. Res. 2009, 39, 31–46. [Google Scholar] [CrossRef]
  26. Parry, M.; Rosenzweig, C.; Iglesias, A.; Fischer, G.; Livermore, M. Climate Change and World Food Security: A New Assessment. Glob. Environ. Chang. 1999, 9, S51–S67. [Google Scholar] [CrossRef] [Green Version]
  27. Sangiorgio, D.; Cellini, A.; Donati, I.; Pastore, C.; Onofrietti, C.; Spinelli, F. Facing Climate Change: Application of Microbial Biostimulants to Mitigate Stress in Horticultural Crops. Agronomy 2020, 10, 794. [Google Scholar] [CrossRef]
  28. Baldani, V.D.; Baldani, J.I.; Döbereiner, J. Inoculation of Rice Plants with the Endophytic Diazotrophs Herbaspirillum seropedicae and Burkholderia spp. Biol. Fertil. Soils 2000, 30, 485–491. [Google Scholar] [CrossRef]
  29. Khan, A.L.; Waqas, M.; Asaf, S.; Kamran, M.; Shahzad, R.; Bilal, S.; Khan, M.A.; Kang, S.-M.; Kim, Y.-H.; Yun, B.-W.; et al. Plant Growth-Promoting Endophyte Sphingomonas sp. LK11 Alleviates Salinity Stress in Solanum pimpinellifolium. Environ. Exp. Bot. 2017, 133, 58–69. [Google Scholar] [CrossRef]
  30. Verma, S.K.; Kingsley, K.L.; Bergen, M.S.; Kowalski, K.P.; White, J.F. Fungal Disease Prevention in Seedlings of Rice (Oryza sativa) and Other Grasses by Growth-Promoting Seed-Associated Endophytic Bacteria from Invasive Phragmites australis. Microorganisms 2018, 6, 21. [Google Scholar] [CrossRef] [Green Version]
  31. Zhang, Q.; White, J.F. Bioprospecting Desert Plants for Endophytic and Biostimulant Microbes: A Strategy for Enhancing Agricultural Production in a Hotter, Drier Future. Biology 2021, 10, 961. [Google Scholar] [CrossRef]
  32. Bagnasco, P.; De La Fuente, L.; Gualtieri, G.; Noya, F.; Arias, A. Fluorescent Pseudomonas spp. as Biocontrol Agents against Forage Legume Root Pathogenic Fungi. Soil Biol. Biochem. 1998, 30, 1317–1322. [Google Scholar] [CrossRef]
  33. Couillerot, O.; Prigent-Combaret, C.; Caballero-Mellado, J.; Moënne-Loccoz, Y. Pseudomonas fluorescens and Closely-Related Fluorescent Pseudomonads as Biocontrol Agents of Soil-Borne Phytopathogens. Lett. Appl. Microbiol. 2009, 48, 505–512. [Google Scholar] [CrossRef] [PubMed]
  34. O’sullivan, D.J.; O’Gara, F. Traits of Fluorescent Pseudomonas spp. Involved in Suppression of Plant Root Pathogens. Microbiol. Rev. 1992, 56, 662–676. [Google Scholar] [CrossRef] [PubMed]
  35. Sharma, A.; Johri, B.N. Combat of Iron-Deprivation through a Plant Growth Promoting Fluorescent Pseudomonas Strain GRP3A in Mung Bean (Vigna radiata L. Wilzeck). Microbiol. Res. 2003, 158, 77–81. [Google Scholar] [CrossRef] [PubMed]
  36. Vyas, P.; Gulati, A. Organic Acid Production in Vitro and Plant Growth Promotion in Maize under Controlled Environment by Phosphate-Solubilizing Fluorescent Pseudomonas. BMC Microbiol. 2009, 9, 174. [Google Scholar] [CrossRef] [Green Version]
  37. Cho, J.-C.; Tiedje, J.M. Biogeography and Degree of Endemicity of Fluorescent Pseudomonas Strains in Soil. Appl. Environ. Microbiol. 2000, 66, 5448–5456. [Google Scholar] [CrossRef] [Green Version]
  38. Moin, S.; Ali, S.A.; Hasan, K.A.; Tariq, A.; Sultana, V.; Ara, J.; Ehteshamul-Haque, S. Managing the Root Rot Disease of Sunflower with Endophytic Fluorescent Pseudomonas Associated with Healthy Plants. Crop Prot. 2020, 130, 105066. [Google Scholar] [CrossRef]
  39. Ramesh, R.; Joshi, A.; Ghanekar, M. Pseudomonads: Major Antagonistic Endophytic Bacteria to Suppress Bacterial Wilt Pathogen, Ralstonia solanacearum in the Eggplant (Solanum melongena L.). World J. Microbiol. Biotechnol. 2009, 25, 47–55. [Google Scholar] [CrossRef]
  40. Paungfoo-Lonhienne, C.; Schmidt, S.; Webb, R.I.; Lonhienne, T.G. Rhizophagy—A New Dimension of Plant–Microbe Interactions. Mol. Microb. Ecol. Rhizosphere 2013, 1, 1199–1207. [Google Scholar] [CrossRef]
  41. White, J.F.; Kingsley, K.L.; Verma, S.K.; Kowalski, K.P. Rhizophagy Cycle: An Oxidative Process in Plants for Nutrient Extraction from Symbiotic Microbes. Microorganisms 2018, 6, 95. [Google Scholar] [CrossRef] [Green Version]
  42. White, J.F.; Torres, M.S.; Verma, S.K.; Elmore, M.T.; Kowalski, K.P.; Kingsley, K.L. Evidence for Widespread Microbivory of Endophytic Bacteria in Roots of Vascular Plants through Oxidative Degradation in Root Cell Periplasmic Spaces. In PGPR Amelioration in Sustainable Agriculture; Elsevier: Amsterdam, The Netherlands, 2019; pp. 167–193. [Google Scholar]
  43. Hilario, E.; Buckley, T.R.; Young, J.M. Improved Resolution on the Phylogenetic Relationships among Pseudomonas by the Combined Analysis of AtpD, CarA, RecA and 16S RDNA. Antonie Leeuwenhoek 2004, 86, 51–64. [Google Scholar] [CrossRef]
  44. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef] [PubMed]
  45. R Core Team R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2022.
  46. Fox, J. Using the R Commander: A Point-and-Click Interface for R; Chapman and Hall/CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar]
  47. Fox, J. The R Commander: A Basic Statistics Graphical User Interface to R. J. Stat. Softw. 2005, 14, 1–42. [Google Scholar] [CrossRef] [Green Version]
  48. Fox, J.; Bouchet-Valat, M. Rcmdr: R Commander, R Package Version 2.8-0; 2022. Available online: https://socialsciences.mcmaster.ca/jfox/Misc/Rcmdr/ (accessed on 8 December 2022).
  49. Martínez-García, E.; Goñi-Moreno, A.; Bartley, B.; McLaughlin, J.; Sánchez-Sampedro, L.; Pascual del Pozo, H.; Prieto Hernández, C.; Marletta, A.S.; De Lucrezia, D.; Sánchez-Fernández, G.; et al. SEVA 3.0: An Update of the Standard European Vector Architecture for Enabling Portability of Genetic Constructs among Diverse Bacterial Hosts. Nucleic Acids Res. 2020, 48, D1164–D1170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Hall, J.A.; Peirson, D.; Ghosh, S.; Glick, B. Root Elongation in Various Agronomic Crops by the Plant Growth Promoting Rhizobacterium Pseudomonas putida GR12–2. Isr. J. Plant Sci. 1996, 44, 37–42. [Google Scholar] [CrossRef]
  51. Glick, B.R.; Liu, C.; Ghosh, S.; Dumbroff, E.B. Early Development of Canola Seedlings in the Presence of the Plant Growth-Promoting Rhizobacterium Pseudomonas putida GR12-2. Soil Biol. Biochem. 1997, 29, 1233–1239. [Google Scholar] [CrossRef]
  52. Jiménez-Gómez, A.; Saati-Santamaría, Z.; Kostovcik, M.; Rivas, R.; Velázquez, E.; Mateos, P.F.; Menéndez, E.; García-Fraile, P. Selection of the Root Endophyte Pseudomonas brassicacearum CDVBN10 as Plant Growth Promoter for Brassica napus L. Crops. Agronomy 2020, 10, 1788. [Google Scholar] [CrossRef]
  53. Chotte, J.-L. Importance of Microorganisms for Soil Aggregation. In Microorganisms in Soils: Roles in Genesis and Functions; Springer: Berlin/Heidelberg, Germany, 2005; pp. 107–119. [Google Scholar]
  54. Alami, Y.; Achouak, W.; Marol, C.; Heulin, T. Rhizosphere Soil Aggregation and Plant Growth Promotion of Sunflowers by an Exopolysaccharide-Producing Rhizobium sp. Strain Isolated from Sunflower Roots. Appl. Environ. Microbiol. 2000, 66, 3393–3398. [Google Scholar] [CrossRef] [Green Version]
  55. Amellal, N.; Burtin, G.; Bartoli, F.; Heulin, T. Colonization of Wheat Roots by an Exopolysaccharide-Producing Pantoea Agglomerans Strain and Its Effect on Rhizosphere Soil Aggregation. Appl. Environ. Microbiol. 1998, 64, 3740–3747. [Google Scholar] [CrossRef] [Green Version]
  56. Martin, J.P.; Martin, W.P.; Page, J.; Raney, W.; De Ment, J. Soil Aggregation. Adv. Agron. 1955, 7, 1–37. [Google Scholar]
  57. Habib, L.; Morel, J.; Guckert, A.; Plantureux, S.; Chenu, C. Influence of Root Exudates on Soil Aggregation. Symbiosis 1990, 9, 87–91. [Google Scholar]
  58. Robert, M.; Chenu, C. Interactions between Soil Minerals and Microorganisms. In Soil Biochemistry; CRC Press: Boca Raton, FL, USA, 1992; pp. 307–404. [Google Scholar]
  59. Badri, D.V.; Vivanco, J.M. Regulation and Function of Root Exudates. Plant Cell Environ. 2009, 32, 666–681. [Google Scholar] [CrossRef]
  60. Allard-Massicotte, R.; Tessier, L.; LÚcuyer, F.; Lakshmanan, V.; Lucier, J.-F.; Garneau, D.; Caudwell, L.; Vlamakis, H.; Bais, H.P.; Beauregard, P.B. Bacillus subtilis Early Colonization of Arabidopsis thaliana Roots Involves Multiple Chemotaxis Receptors. MBio 2016, 7, e01664-16. [Google Scholar] [CrossRef] [Green Version]
  61. Scharf, B.E.; Hynes, M.F.; Alexandre, G.M. Chemotaxis Signaling Systems in Model Beneficial Plant–Bacteria Associations. Plant Mol. Biol. 2016, 90, 549–559. [Google Scholar] [CrossRef]
  62. Lemanceau, P.; Corberand, T.; Gardan, L.; Latour, X.; Laguerre, G.; Boeufgras, J.; Alabouvette, C. Effect of Two Plant Species, Flax (Linum usitatissinum L.) and Tomato (Lycopersicon esculentum Mill.), on the Diversity of Soilborne Populations of Fluorescent Pseudomonads. Appl. Environ. Microbiol. 1995, 61, 1004–1012. [Google Scholar] [CrossRef] [Green Version]
  63. Meyer, J.-M. Pyoverdines: Pigments, Siderophores and Potential Taxonomic Markers of Fluorescent Pseudomonas Species. Arch. Microbiol. 2000, 174, 135–142. [Google Scholar] [CrossRef]
  64. Cornelis, P.; Matthijs, S. Pseudomonas siderophores and Their Biological Significance. In Microbial Siderophores; Springer: Berlin/Heidelberg, Germany, 2007; pp. 193–203. [Google Scholar]
  65. Scavino, A.F.; Pedraza, R.O. The Role of Siderophores in Plant Growth-Promoting Bacteria. In Bacteria in Agrobiology: Crop Productivity; Springer: Berlin/Heidelberg, Germany, 2013; pp. 265–285. [Google Scholar]
  66. Zablotowicz, R.M.; Tipping, E.M.; Lifshitz, R.; Kloepper, J.W. Plant Growth Promotion Mediated by Bacterial Rhizosphere Colonizers. In The rhizosphere and Plant Growth; Springer: Berlin/Heidelberg, Germany, 1991; pp. 315–326. [Google Scholar]
  67. Kloepper, J.W.; Leong, J.; Teintze, M.; Schroth, M.N. Enhanced Plant Growth by Siderophores Produced by Plant Growth-Promoting Rhizobacteria. Nature 1980, 286, 885–886. [Google Scholar] [CrossRef]
  68. Richardson, A.E. Soil Microorganisms and Phosphorus Availability. In Soil Biota: Management in Sustainable Farming Systems; Pankhurst, C.E., Doube, B.M., Gupta, V.S.S.R., Grace, P.R., Eds.; CSIRO: Mellbourne, Australia, 1994; pp. 50–62. [Google Scholar]
  69. Rodríguez, H.; Fraga, R. Phosphate Solubilizing Bacteria and Their Role in Plant Growth Promotion. Biotechnol. Adv. 1999, 17, 319–339. [Google Scholar] [CrossRef]
  70. Marasco, R.; Rolli, E.; Ettoumi, B.; Vigani, G.; Mapelli, F.; Borin, S.; Abou-Hadid, A.F.; El-Behairy, U.A.; Sorlini, C.; Cherif, A.; et al. A Drought Resistance-Promoting Microbiome Is Selected by Root System under Desert Farming. PLoS ONE 2012, 7, e48479. [Google Scholar] [CrossRef]
  71. Cherif, H.; Marasco, R.; Rolli, E.; Ferjani, R.; Fusi, M.; Soussi, A.; Mapelli, F.; Blilou, I.; Borin, S.; Boudabous, A.; et al. Oasis Desert Farming Selects Environment-Specific Date Palm Root Endophytic Communities and Cultivable Bacteria That Promote Resistance to Drought. Environ. Microbiol. Rep. 2015, 7, 668–678. [Google Scholar] [CrossRef] [Green Version]
  72. Tiwari, S.; Lata, C.; Chauhan, P.S.; Nautiyal, C.S. Pseudomonas putida Attunes Morphophysiological, Biochemical and Molecular Responses in Cicer arietinum L. during Drought Stress and Recovery. Plant Physiol. Biochem. 2016, 99, 108–117. [Google Scholar] [CrossRef]
  73. Kang, B.-R.; Han, S.-H.; Zdor, R.E.; Anderson, A.J.; Spencer, M.; Yang, K.-Y.; Kim, Y.-H.; Lee, M.-C.; Cho, B.-H.; Kim, Y.-C. Inhibition of Seed Germination and Induction of Systemic Disease Resistance by Pseudomonas chlororaphis O6 Requires Phenazine Production Regulated by the Global Regulator, GacS. J. Microbiol. Biotechnol. 2007, 17, 586–593. [Google Scholar]
  74. Mohamed, H.; Gomaa, E. Effect of Plant Growth Promoting Bacillus subtilis and Pseudomonas fluorescens on Growth and Pigment Composition of Radish Plants (Raphanus sativus) under NaCl Stress. Photosynthetica 2012, 50, 263–272. [Google Scholar] [CrossRef]
  75. Sandhya, V.; Ali, S.Z.; Grover, M.; Reddy, G.; Venkateswarlu, B. Effect of Plant Growth Promoting Pseudomonas spp. on Compatible Solutes, Antioxidant Status and Plant Growth of Maize under Drought Stress. Plant Growth Regul. 2010, 62, 21–30. [Google Scholar] [CrossRef]
  76. Bano, A.; Fatima, M. Salt Tolerance in Zea mays (L). Following Inoculation with Rhizobium and Pseudomonas. Biol. Fertil. Soils 2009, 45, 405–413. [Google Scholar] [CrossRef]
  77. Sarma, R.K.; Saikia, R. Alleviation of Drought Stress in Mung Bean by Strain Pseudomonas aeruginosa GGRJ21. Plant Soil 2014, 377, 111–126. [Google Scholar] [CrossRef]
  78. Eke, P.; Kumar, A.; Sahu, K.P.; Wakam, L.N.; Sheoran, N.; Ashajyothi, M.; Patel, A.; Fekam, F.B. Endophytic Bacteria of Desert Cactus (Euphorbia trigonas Mill) Confer Drought Tolerance and Induce Growth Promotion in Tomato (Solanum lycopersicum L.). Microbiol. Res. 2019, 228, 126302. [Google Scholar] [CrossRef]
  79. Zahra, T.; Hamedi, J.; Mahdigholi, K. Endophytic Actinobacteria of a Halophytic Desert Plant Pteropyrum olivieri: Promising Growth Enhancers of Sunflower. 3 Biotech 2020, 10, 514. [Google Scholar] [CrossRef]
  80. Thomas, P.; Sekhar, A.C. Live Cell Imaging Reveals Extensive Intracellular Cytoplasmic Colonization of Banana by Normally Non-Cultivable Endophytic Bacteria. AoB Plants 2014, 6, plu002. [Google Scholar] [CrossRef] [Green Version]
  81. Barzanti, R.; Ozino, F.; Bazzicalupo, M.; Gabbrielli, R.; Galardi, F.; Gonnelli, C.; Mengoni, A. Isolation and Characterization of Endophytic Bacteria from the Nickel Hyperaccumulator Plant Alyssum bertolonii. Microb. Ecol. 2007, 53, 306–316. [Google Scholar] [CrossRef]
  82. Berg, G.; Krechel, A.; Ditz, M.; Sikora, R.A.; Ulrich, A.; Hallmann, J. Endophytic and Ectophytic Potato-Associated Bacterial Communities Differ in Structure and Antagonistic Function against Plant Pathogenic Fungi. FEMS Microbiol. Ecol. 2005, 51, 215–229. [Google Scholar] [CrossRef] [Green Version]
  83. Davison, J. Plant Beneficial Bacteria. Bio/Technol. 1988, 6, 282–286. [Google Scholar] [CrossRef]
  84. Liu, Y.; Zuo, S.; Xu, L.; Zou, Y.; Song, W. Study on Diversity of Endophytic Bacterial Communities in Seeds of Hybrid Maize and Their Parental Lines. Arch. Microbiol. 2012, 194, 1001–1012. [Google Scholar] [CrossRef] [PubMed]
  85. Rainey, P.B. Adaptation of Pseudomonas fluorescens to the Plant Rhizosphere. Environ. Microbiol. 1999, 1, 243–257. [Google Scholar] [CrossRef] [PubMed]
  86. Truyens, S.; Weyens, N.; Cuypers, A.; Vangronsveld, J. Bacterial Seed Endophytes: Genera, Vertical Transmission and Interaction with Plants. Environ. Microbiol. Rep. 2015, 7, 40–50. [Google Scholar] [CrossRef]
  87. White, J.F.; Chang, X.; Kingsley, K.L.; Zhang, Q.; Chiaranunt, P.; Micci, A.; Velazquez, F.; Elmore, M.; Crane, S.; Li, S.; et al. Endophytic Bacteria in Grass Crop Growth Promotion and Biostimulation. Grass Res. 2021, 1, 1–9. [Google Scholar] [CrossRef]
  88. Cochard, B.; Giroud, B.; Crovadore, J.; Chablais, R.; Arminjon, L.; Lefort, F. Endophytic PGPR from Tomato Roots: Isolation, in Vitro Characterization and in Vivo Evaluation of Treated Tomatoes (Solanum Lycopersicum L.). Microorganisms 2022, 10, 765. [Google Scholar] [CrossRef] [PubMed]
  89. Gagné-Bourque, F.; Mayer, B.F.; Charron, J.-B.; Vali, H.; Bertrand, A.; Jabaji, S. Accelerated Growth Rate and Increased Drought Stress Resilience of the Model Grass Brachypodium Distachyon Colonized by Bacillus subtilis B26. PLoS ONE 2015, 10, e0130456. [Google Scholar] [CrossRef] [PubMed]
  90. Jayakumar, A.; Padmakumar, P.; Nair, I.C.; Radhakrishnan, E. Drought Tolerant Bacterial Endophytes with Potential Plant Probiotic Effects from Ananas comosus. Biologia 2020, 75, 1769–1778. [Google Scholar] [CrossRef]
  91. Mowafy, A.M.; Fawzy, M.M.; Gebreil, A.; Elsayed, A. Endophytic Bacillus, Enterobacter, and Klebsiella Enhance the Growth and Yield of Maize. Acta Agric. Scand. Sect. B—Soil Plant Sci. 2021, 71, 237–246. [Google Scholar] [CrossRef]
  92. Subramanian, P.; Mageswari, A.; Kim, K.; Lee, Y.; Sa, T. Psychrotolerant Endophytic Pseudomonas sp. Strains OB155 and OS261 Induced Chilling Resistance in Tomato Plants (Solanum lycopersicum Mill.) by Activation of Their Antioxidant Capacity. Mol. Plant-Microbe Interact. 2015, 28, 1073–1081. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. White, J.F.; Kingsley, K.L.; Zhang, Q.; Verma, R.; Obi, N.; Dvinskikh, S.; Elmore, M.T.; Verma, S.K.; Gond, S.K.; Kowalski, K.P. Endophytic Microbes and Their Potential Applications in Crop Management. Pest Manag. Sci. 2019, 75, 2558–2565. [Google Scholar] [CrossRef] [PubMed]
  94. Carol, R.J.; Dolan, L. The Role of Reactive Oxygen Species in Cell Growth: Lessons from Root Hairs. J. Exp. Bot. 2006, 57, 1829–1834. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Eljebbawi, A.; Guerrero, Y.d.C.R.; Dunand, C.; Estevez, J.M. Highlighting Reactive Oxygen Species as Multitaskers in Root Development. Iscience 2021, 24, 101978. [Google Scholar] [CrossRef]
  96. Tsukagoshi, H. Control of Root Growth and Development by Reactive Oxygen Species. Curr. Opin. Plant Biol. 2016, 29, 57–63. [Google Scholar] [CrossRef]
  97. Shin, R.; Berg, R.H.; Schachtman, D.P. Reactive Oxygen Species and Root Hairs in Arabidopsis Root Response to Nitrogen, Phosphorus and Potassium Deficiency. Plant Cell Physiol. 2005, 46, 1350–1357. [Google Scholar] [CrossRef]
Biology 11 01790 g001 550
Figure 1. Maximum likelihood phylogenetic tree of Pseudomonas sp. strains based on the 16S rRNA gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. strains from A. palmeri are circled by the red box.
Figure 1. Maximum likelihood phylogenetic tree of Pseudomonas sp. strains based on the 16S rRNA gene. The number at the branches indicates the percentage of occurrences of that branch over 1000 bootstrap replications, with values under 50% hidden. Pseudomonas sp. strains from A. palmeri are circled by the red box.
Biology 11 01790 g001
Biology 11 01790 g002 550
Figure 2. Visual comparison of Kentucky bluegrass seedlings inoculated with individual Pseudomonas sp. strains. Total number of seedlings germinated = 25, 25, 22, 23, 20, and 23, from left to right.
Figure 2. Visual comparison of Kentucky bluegrass seedlings inoculated with individual Pseudomonas sp. strains. Total number of seedlings germinated = 25, 25, 22, 23, 20, and 23, from left to right.
Biology 11 01790 g002
Biology 11 01790 g003 550
Figure 3. Kentucky bluegrass growth promotion by individual Pseudomonas sp. strains. (A) Root and (B) shoot lengths of 8-week-old Kentucky bluegrass seedlings inoculated with different Pseudomonas sp. strains. Error bars represent standard deviation. Different letters represent significant differences among treatments according to Tukey’s HSD test (p ≤ 0.05).
Figure 3. Kentucky bluegrass growth promotion by individual Pseudomonas sp. strains. (A) Root and (B) shoot lengths of 8-week-old Kentucky bluegrass seedlings inoculated with different Pseudomonas sp. strains. Error bars represent standard deviation. Different letters represent significant differences among treatments according to Tukey’s HSD test (p ≤ 0.05).
Biology 11 01790 g003
Biology 11 01790 g004 550
Figure 4. Visual comparison of red clover seedlings inoculated with individual Pseudomonas sp. Strains. Total number of seeds germinated = 14, 18, 21, 22, and 19, from left to right.
Figure 4. Visual comparison of red clover seedlings inoculated with individual Pseudomonas sp. Strains. Total number of seeds germinated = 14, 18, 21, 22, and 19, from left to right.
Biology 11 01790 g004
Biology 11 01790 g005 550
Figure 5. Red clover growth promotion by individual Pseudomonas sp. Strains. (A) Root and (B) shoot lengths of 6-week-old red clover seedlings inoculated with different Pseudomonas sp. Strains. Error bars represent standard deviation. Different letters represent significant differences among treatments according to Tukey’s HSD test (p ≤ 0.05).
Figure 5. Red clover growth promotion by individual Pseudomonas sp. Strains. (A) Root and (B) shoot lengths of 6-week-old red clover seedlings inoculated with different Pseudomonas sp. Strains. Error bars represent standard deviation. Different letters represent significant differences among treatments according to Tukey’s HSD test (p ≤ 0.05).
Biology 11 01790 g005
Biology 11 01790 g006 550
Figure 6. Visual comparison of carrot seedlings inoculated with a Pseudomonas sp. mix. Total number of seedlings germinated = 29, and 31, from top to bottom.
Figure 6. Visual comparison of carrot seedlings inoculated with a Pseudomonas sp. mix. Total number of seedlings germinated = 29, and 31, from top to bottom.
Biology 11 01790 g006
Biology 11 01790 g007 550
Figure 7. Carrot growth promotion by a mix of Pseudomonas sp. strains. (A) Root and (B) shoot lengths of 2-week-old carrot seedlings inoculated with Pseudomonas sp. P3AW, AY2, WC, and WCY. Error bars represent standard deviation. Asterisks represent the p value of the Student’s T-test conducted between the control and the experimental group. ns = p > 0.05, * = p ≤ 0.05, ** = p ≤ 0.01, *** = p ≤ 0.001.
Figure 7. Carrot growth promotion by a mix of Pseudomonas sp. strains. (A) Root and (B) shoot lengths of 2-week-old carrot seedlings inoculated with Pseudomonas sp. P3AW, AY2, WC, and WCY. Error bars represent standard deviation. Asterisks represent the p value of the Student’s T-test conducted between the control and the experimental group. ns = p > 0.05, * = p ≤ 0.05, ** = p ≤ 0.01, *** = p ≤ 0.001.
Biology 11 01790 g007
Biology 11 01790 g008 550
Figure 8. Visual comparison of coriander seedlings inoculated with a Pseudomonas sp. mix. Total number of seedlings germinated = 22, and 16, from top to bottom.
Figure 8. Visual comparison of coriander seedlings inoculated with a Pseudomonas sp. mix. Total number of seedlings germinated = 22, and 16, from top to bottom.
Biology 11 01790 g008
Biology 11 01790 g009 550
Figure 9. Coriander growth promotion by a mix of Pseudomonas sp. strains. (A) Root and (B) shoot lengths of 2-week-old coriander seedlings inoculated with Pseudomonas sp. P3AW, AY2, WC, and WCY. Error bars represent standard deviation. Asterisks represent the p value of the Student’s T-test conducted between the control and the experimental group. ns = p > 0.05, * = p ≤ 0.05, ** = p ≤ 0.01, *** = p ≤ 0.001.
Figure 9. Coriander growth promotion by a mix of Pseudomonas sp. strains. (A) Root and (B) shoot lengths of 2-week-old coriander seedlings inoculated with Pseudomonas sp. P3AW, AY2, WC, and WCY. Error bars represent standard deviation. Asterisks represent the p value of the Student’s T-test conducted between the control and the experimental group. ns = p > 0.05, * = p ≤ 0.05, ** = p ≤ 0.01, *** = p ≤ 0.001.
Biology 11 01790 g009
Biology 11 01790 g010 550
Figure 10. Induction of wheat drought resistance by a mix of Pseudomonas sp. strains. Box and whisker plots are used to show the (A) root and (B) shoot lengths of 3-week-old inoculated and uninoculated wheat seedlings in the presence or absence of drought stress. Blue colored bars represent seedlings grown in irrigated conditions. Yellow bars represent seedlings grown in drought conditions. Boxes encompass the interquartile range (Q1–Q3), whiskers outline the minimum and maximum data points. Xs inside boxes indicate the mean, dots outside the whiskers indicate outliers. Different letters represent significant differences among treatments according to Tukey’s HSD test (p ≤ 0.05).
Figure 10. Induction of wheat drought resistance by a mix of Pseudomonas sp. strains. Box and whisker plots are used to show the (A) root and (B) shoot lengths of 3-week-old inoculated and uninoculated wheat seedlings in the presence or absence of drought stress. Blue colored bars represent seedlings grown in irrigated conditions. Yellow bars represent seedlings grown in drought conditions. Boxes encompass the interquartile range (Q1–Q3), whiskers outline the minimum and maximum data points. Xs inside boxes indicate the mean, dots outside the whiskers indicate outliers. Different letters represent significant differences among treatments according to Tukey’s HSD test (p ≤ 0.05).
Biology 11 01790 g010
Biology 11 01790 g011 550
Figure 11. Validation of confocal microscopy as a method to track P3AW:mCherry in clover cells. (a–d) Sloughed-off root cells of uninoculated plants. (e–g) Sloughed-off root cells of P3AW:mCherry-inoculated plants. (a,e) Fluorescence of Calcofluor-White-stained cell walls using the 405 nm laser. (b,f) Fluorescence SYTO-13-stained DNA using the 488 nm laser. (c,g) Fluorescence of mCherry using the 594 nm laser. (d,h) Combined fluorescence images using all three lasers. No fluorescence was detected in either (b) or (c). Scale bar = 10 µm.
Figure 11. Validation of confocal microscopy as a method to track P3AW:mCherry in clover cells. (a–d) Sloughed-off root cells of uninoculated plants. (e–g) Sloughed-off root cells of P3AW:mCherry-inoculated plants. (a,e) Fluorescence of Calcofluor-White-stained cell walls using the 405 nm laser. (b,f) Fluorescence SYTO-13-stained DNA using the 488 nm laser. (c,g) Fluorescence of mCherry using the 594 nm laser. (d,h) Combined fluorescence images using all three lasers. No fluorescence was detected in either (b) or (c). Scale bar = 10 µm.
Biology 11 01790 g011
Biology 11 01790 g012 550
Figure 12. P3AW:mCherry localizes to the cell periphery near the cell wall. (a) Front view and (b) side view of sloughed-off root cells of P3AW:mCherry-inoculated clover. Side view of (c) epidermal cells and (d) sclerenchyma cells of P3AW:mCherry-inoculated clover. The arrows point to the spherical L-forms of P3AW:mCherry, which can be found near the cell periphery, close to the cell wall. Scale bar = 10 μm.
Figure 12. P3AW:mCherry localizes to the cell periphery near the cell wall. (a) Front view and (b) side view of sloughed-off root cells of P3AW:mCherry-inoculated clover. Side view of (c) epidermal cells and (d) sclerenchyma cells of P3AW:mCherry-inoculated clover. The arrows point to the spherical L-forms of P3AW:mCherry, which can be found near the cell periphery, close to the cell wall. Scale bar = 10 μm.
Biology 11 01790 g012
Biology 11 01790 g013 550
Figure 13. P3AW:mCherry gathers at the root hair tips at the root hair tips of inoculated clover roots. P3AW:mCherry L-forms can be seen in (a) a root hair primordial and (b) a fully formed root hair. The arrows point to the root hair tip. Scale bar = 10 μm.
Figure 13. P3AW:mCherry gathers at the root hair tips at the root hair tips of inoculated clover roots. P3AW:mCherry L-forms can be seen in (a) a root hair primordial and (b) a fully formed root hair. The arrows point to the root hair tip. Scale bar = 10 μm.
Biology 11 01790 g013
Biology 11 01790 g014 550
Figure 14. P3AW:mCherry are expelled at the root hair tips. (a) A 2D image of intact P3AW:mCherry cells, along with free-floating mCherry and DNA, escaping a root hair primordial. (b) The same scene is rendered as a 3D confocal stack. Scale bar = 15 μm.
Figure 14. P3AW:mCherry are expelled at the root hair tips. (a) A 2D image of intact P3AW:mCherry cells, along with free-floating mCherry and DNA, escaping a root hair primordial. (b) The same scene is rendered as a 3D confocal stack. Scale bar = 15 μm.
Biology 11 01790 g014
Biology 11 01790 g015 550
Figure 15. DNA and mCherry in the xylem of P3AW:mCherry inoculated clover plants. (a) Root xylem of an uninoculated plant. (b) DNA and mCherry in the root xylem of an inoculated plant. (c) DNA and mCherry in the cotyledon xylem of an inoculated plant. Scale bar = 15 μm.
Figure 15. DNA and mCherry in the xylem of P3AW:mCherry inoculated clover plants. (a) Root xylem of an uninoculated plant. (b) DNA and mCherry in the root xylem of an inoculated plant. (c) DNA and mCherry in the cotyledon xylem of an inoculated plant. Scale bar = 15 μm.
Biology 11 01790 g015
Biology 11 01790 g016 550
Figure 16. P3AW:mCherry being ejected through an open stoma in the cotyledons of inoculated clover plants. (a) A 2D image of the stomata and guard cells of an uninoculated clover plant. (b) A 2D image of the guard cells of an P3AW:mCherry-inoculated clover plant. (c) A 2D and (d) 3D image of a plume of P3AW:mCherry cells escaping from the stoma opening. Scale bar = 20 μm.
Figure 16. P3AW:mCherry being ejected through an open stoma in the cotyledons of inoculated clover plants. (a) A 2D image of the stomata and guard cells of an uninoculated clover plant. (b) A 2D image of the guard cells of an P3AW:mCherry-inoculated clover plant. (c) A 2D and (d) 3D image of a plume of P3AW:mCherry cells escaping from the stoma opening. Scale bar = 20 μm.
Biology 11 01790 g016
Table
Table 1. Primers used in the identification of A. palmeri seed endophytes.
Table 1. Primers used in the identification of A. palmeri seed endophytes.
GeneForward Primer (5′–3′)Reverse Primer (5′-3′)Source
16S rRNAAGAGTTTGATCCTGGCTCAGCTACGGCTACCTTGTTACGAWhite Lab
atpDCTGGGCCGSATCATGGACGGTCCATGCCCAGGATSGCGHilario, Buckley, and Young [43]
carATTCAACACCGCCATGACCGGTGATGRCCSAGGCAGATRCCHilario, Buckley, and Young [43]
recATCSGGYAARACCACSCTGACRTACCAGGCRCCGGACTTCTHilario, Buckley, and Young [43]
Table
Table 2. Strains of endophytic bacteria isolated from A. palmeri, their characteristics, and GenBank accession numbers.
Table 2. Strains of endophytic bacteria isolated from A. palmeri, their characteristics, and GenBank accession numbers.
StrainFluorescenceLipopeptide ProductionCasein DigestionGelatinase ActivityN
Fixation		P
Solubilization		16S rRNA GenBank Accession No.
P3AW✓ (blue-green)✓✓✓✓✓OP584654
P3BW✓ (blue-green)✓✓✓✓✓OP584655
AY2✓(blue-green)✓✓✓✓✓OP584656
WCXXXXXXOP584657
WCY✓(blue-green)✓XXX✓OP584658
✓ = strain displays the characteristic; X = strain does not display the characteristic.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, Q.; Kingsley, K.L.; White, J.F. Endophytic Pseudomonas sp. from Agave palmeri Participate in the Rhizophagy Cycle and Act as Biostimulants in Crop Plants. Biology 2022, 11, 1790. https://doi.org/10.3390/biology11121790

AMA Style

Zhang Q, Kingsley KL, White JF. Endophytic Pseudomonas sp. from Agave palmeri Participate in the Rhizophagy Cycle and Act as Biostimulants in Crop Plants. Biology. 2022; 11(12):1790. https://doi.org/10.3390/biology11121790

Chicago/Turabian Style

Zhang, Qiuwei, Kathryn L. Kingsley, and James F. White. 2022. "Endophytic Pseudomonas sp. from Agave palmeri Participate in the Rhizophagy Cycle and Act as Biostimulants in Crop Plants" Biology 11, no. 12: 1790. https://doi.org/10.3390/biology11121790

APA Style

Zhang, Q., Kingsley, K. L., & White, J. F. (2022). Endophytic Pseudomonas sp. from Agave palmeri Participate in the Rhizophagy Cycle and Act as Biostimulants in Crop Plants. Biology, 11(12), 1790. https://doi.org/10.3390/biology11121790

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
