Mid-Infrared Ultra-Short Pulse Generation in a Gas-Filled Hollow-Core Photonic Crystal Fiber Pumped by Two-Color Pulses

Abstract

We show numerically that ultra-short pulses can be generated in the mid-infrared when a gas filled hollow-core fiber is pumped by a fundamental pulse and its second harmonic. The generation process originates from a cascaded nonlinear phenomenon starting from a spectral broadening of the two pulses followed by an induced phase-matched four wave-mixing lying in the mid-infrared combined with a dispersive wave. By selecting this mid-infrared band with a spectral filter, we demonstrate the generation of ultra-short 60 fs pulses at a 3–4 µm band and a pulse duration of 20 fs can be reached with an additional phase compensator.

1. Introduction

In recent years, there has been growing interest in mid-infrared (MIR) sources driven by demanding applications such as gas sensing [1], food inspection [2], life and molecular sciences [3] or the creation of secondary sources [4]. An excellent method for light generation in the MIR is to combine some laser properties with nonlinear photonic devices to create down-converted frequencies. For example, high-power sources can be made from several efficient nonlinear crystals, chosen for their optimal phase-matching conditions and absorption bands to achieve an optical parametric amplification effect or difference frequency generation. Alternative devices at lower power are based on other transparent materials such as in silicon-, lithium niobate- or chalcogenide-based waveguides [5,6,7] or specific nonlinear fibers with soft-glass materials [8].

In this manuscript, we propose to generate ultra-short pulses in the MIR by pumping a gas-filled hollow-core photonic crystal fiber (HC-PCF) with two different pulses to create an efficient phase-matched process. The HC-PCFs offer significant advantages to handle and convert ultra-short pulses. In particular, they offer a high damage threshold, which allows the propagation of high peak power [9]. In addition, the frequency conversion from the pump to the MIR can be engineered with the dispersion of the waveguide and the gas contribution, i.e., the phase matching can be tuned in real time by changing the gas pressure. Outstanding progress has also been achieved to reduce the loss of HC-PCFs in the MIR [10,11], for example, with a transmission loss of ~25–50 dB/km now being obtained by minimizing the interaction between the core guided mode and the silica walls of the cladding of an inhibited-coupling hollow-core fiber [10]. Recently, anti-resonant HC-PCFs have also gained interest [12] due to their properties, including a wide tunability of the spectral transmission bands from the ultra-violet (UV) to MIR [13,14,15] with low loss, high damage threshold [16] and a single mode propagation by choosing specific geometries [17]. Several impressive works on ultra-short pulse generation in the MIR with gas filled HC-PCFs have been reported, such as pulse compression [18], supercontinuum and MIR dispersive wave generation [13,19,20] and adiabatic down conversion from four wave mixing (FWM) processes in a tapered fiber [21]. In the later case, the HC-PCF is pumped by two picosecond pulses and seeded with a chirped signal to overlap with the conversion spectral band. In our approach, only two ultra-short pump pulses are injected and spectrally broadened in the HC-PCF. FWM are directly induced from the two broad-band pulses capable of generating pulses at 3 and 4 µm with a duration of 20 fs.

In this manuscript, we report ultra-fast MIR generation in a hollow-core photonic crystal fiber from two color pulses and we discuss the dynamics of the mechanism originating from the cascaded nonlinear phenomenon, including phase modulation and phase-matched four-wave mixing processes.

2. Anti-Resonant Fibers and Numerical Methods

2.1. Properties of the Hollow-Core Photonic Crystal Fiber

The chosen HC-PCF geometry is a negative curvature fiber based on a single-ring structure surrounding by a hollow-core. This type of fiber generally supports a large family of high-order modes but in a specific condition (d = 0.68D with d and D the tube and core diameters, respectively), it can provide a single mode LP₀₁ operation [17]. A schematic view is shown in the inset of Figure 1 with our chosen parameters.

The HC-PCF structure is composed of a central hollow core with D = 150 µm surrounded by seven evenly and non-touching capillaries attached to the inner surface of a thick-walled capillary. The tube diameter is set at 102 µm to ensure a robust single-mode propagation. The wall thickness t equals 0.2 µm and the gap between tube g equals 7.3 µm. The LP₀₁ mode at 1030 nm supported by this HC-PCF has also been simulated by the finite element method (insert in Figure 1), and it also confirms the great advantage of propagating waves in the MIR with low loss since the overlap of the spatial profile with the silica structure is weak, even if the glass is highly absorbent in the MIR. For example, the power fraction of the LP₀₁ mode at 3 µm that overlaps with the glass is less than 10⁻³% and the estimated transmission loss is much lower than 1 dB/m.

The group velocity dispersion, β₂, is firstly analytically calculated for the fundamental mode from empirical formulae [22] derived from a modification of the Marcatelli and Schmelzer’s capillary model [23] to take into account the anti-resonant reflection. The effective index n_eff is first calculated as the function of the wavelength λ [22]:

$$n_{eff}=\sqrt{n_{gas}^2-{\left(\frac{u_{01}\lambda }{2\pi R_{eff}}\right)}^2+\frac{{\sigma }_1{\lambda }^2}{{\lambda }^2-{\left(2t\sqrt{n_g^2-1}\right)}^2}}$$

(1)

where u₀₁ = 2.405 is the first zero of the Bessel function of the first kind, n_g = 1.45 is the refractive index of silica. σ₁~1.05 × 10⁻⁸ represents the strength of the resonance band. n_gas is the refractive index of the gas. In Equation (1), the empirical formula for the effective radius R_eff is also included from:

$$R_{eff}=\left(\frac{f_{1}D}{2}\right)\left(1-\frac{f_2{\lambda }^2}{Rt}\right)$$

(2)

where f₁ = 1.10 and f₂ = 0.05 are two dimensionless parameters obtained from [22].

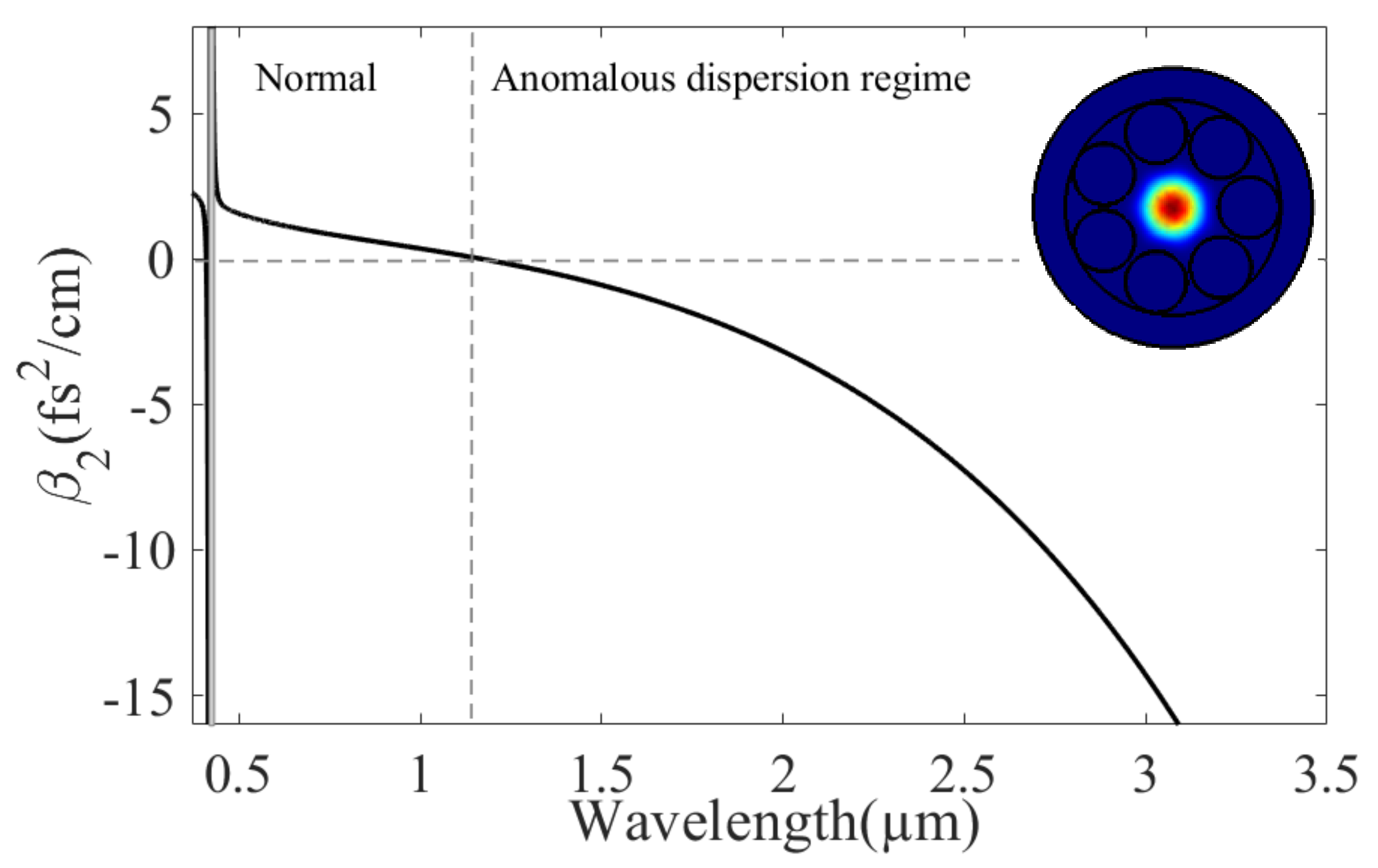

From Equation (1), the propagation constant is calculated as the function and then, β₂ is calculated. Figure 1 shows the dispersion curve as a function of the wavelength for an HC-PCF filled with argon at a pressure of 5 bar, including the resonance band located at ~420 nm. The second resonance band emerges at a lower wavelength and is outside the spectral domain of the FWM bands.

This pressure was chosen to obtain a zero-dispersion wavelength (ZDW) in the near infrared at 1170 nm. The effective area A_eff ~992 µm² was also calculated from the model [22] and was assumed constant for the spectral range.

2.2. Numerical Method for the Nonlinear Pulse Propagation

The general principle for MIR generation is to pump the HC-PCF using two different ultra-short pulses, P₁ and P₂, with spectra centered at 1030 and 515 nm, corresponding to the emission of an ultra-fast ytterbium-doped fiber laser and a second harmonic generator. The two pulses lie in the normal dispersion regime and the spectra broaden during the propagation in the fiber. Then, the MIR light was generated from a phase-matched FWM between several created spectral components. In order to understand the concept and dynamics in great detail, we conducted numerical simulations by integrating the generalized nonlinear Schrödinger equation using the split-step Fourier method with a step size of ~5 µm

$$\frac{\partial A}{\partial z}-{\displaystyle \sum _{n\ge 2}\frac{i^{n+1}}{n!}{\beta }_n\frac{{\partial }^{n}A}{\partial T^n}}=i\gamma (1+i{\tau }_{shock}\frac{\partial }{\partial T}){\left|A\right|}^{2}A$$

(3)

describing the evolution along the fiber length z of the complex total electric field A(z,T). In our configuration, we used 2048 points and a temporal resolution of 1.15 fs, leading to a temporal window of ~2.4 ps.

The initial field corresponds to the total field composed of P₁ and P₂; i.e.,

$$A(z=0,T)=A_1\exp (i({\omega }_1-{\omega }_c).T)+A_2\exp (i({\omega }_2-{\omega }_c).T)$$

(4)

where ω₁ (ω₂) and A₁ (A₂) are the angular frequency and the electric field amplitude of the pump P₁ (P₂), respectively. In our simulation, we chose to center the frequency grid between the two pumps; at ω_c, corresponding to a wavelength of ~686 nm. Accordingly, we chose T in Equation (3) as the time in the frame moving at the group velocity β_1c at ω_c.

The complete propagation constant β is calculated in the frequency domain from the empirical model (Section 2.1) starting from the second-order expansion term; i.e., the zero- and first-order terms evaluated at ω_c were removed. The time derivative in the right-hand side is important to take into account the shock term on a time scale of ${\tau }_{shock}=\frac{1}{{\omega }_c}-{\left[\frac{1}{n_{eff}(\omega )}\frac{\partial n_{eff}(\omega )}{\partial \omega }\right]}_{\omega c}$ [24]. γ is the nonlinear term that allows for the generation of the new frequency components according to $\gamma =\frac{{\omega }_c\cdot n_2}{A_{eff}.c}$ with the argon nonlinear index n₂ equal to 4.86 × 10⁻²³ m²/W and c, the speed of light.

3. Continuum Generation

3.1. Generated Continuum from a Dual-Pump Scheme

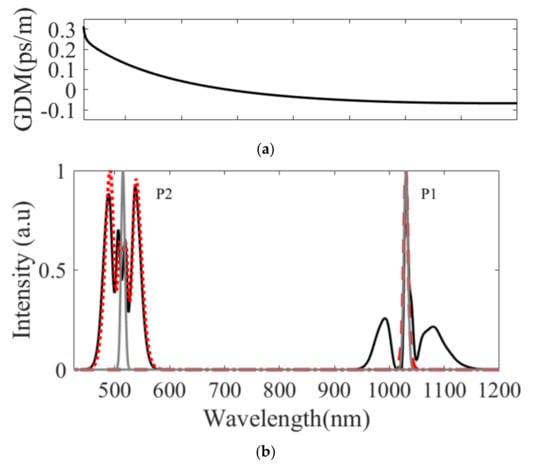

The light is generated in the MIR from a cascade of nonlinear processes in the argon-filled HC-PCF pumped by the two pump pulses. The initial pulses P₁ and P₂ have a duration of 180 fs and 50 fs at Full-Width at Half Maximum (FWHM) at the Fourier transform limit. The corresponding spectral bandwidths are Δλ₁~9 nm and Δλ₂~8 nm at FWHM. The group delay mismatch (GDM) between the two pulses is ~176 fs/m (Figure 2a) and we consider a total fiber length of 50 cm to ensure a temporal overlap during the propagation.

At the input fiber, the energies are 12 µJ for P₁ and 20 µJ for P₂, and the peak powers reach 63 and 390 MW. At first, each spectrum broadens along the fiber. Figure 2b shows the spectra for a 50 cm long fiber (black solid-line). For comparison, the spectra are also displayed when only P₁ (red dashed-line) or P₂ (red dotted-line) is injected into the HC-PCF. Clearly, the spectral broadening of P₂ is mostly due to self-phase modulation (SPM) since P₁ does not significantly affect the spectral shape; i.e., the spectra are similar with or without P₁. Alternatively, SPM has a negligible contribution to P₁ and the phase modulation of P₁ is induced by P₂. This cross-phase modulation (XPM) allows for the generation of a broad-bandwidth centered at 1030 nm, even for a weaker pulse P₁ [25].

3.2. Frequency Generation Mechanism and Dynamics

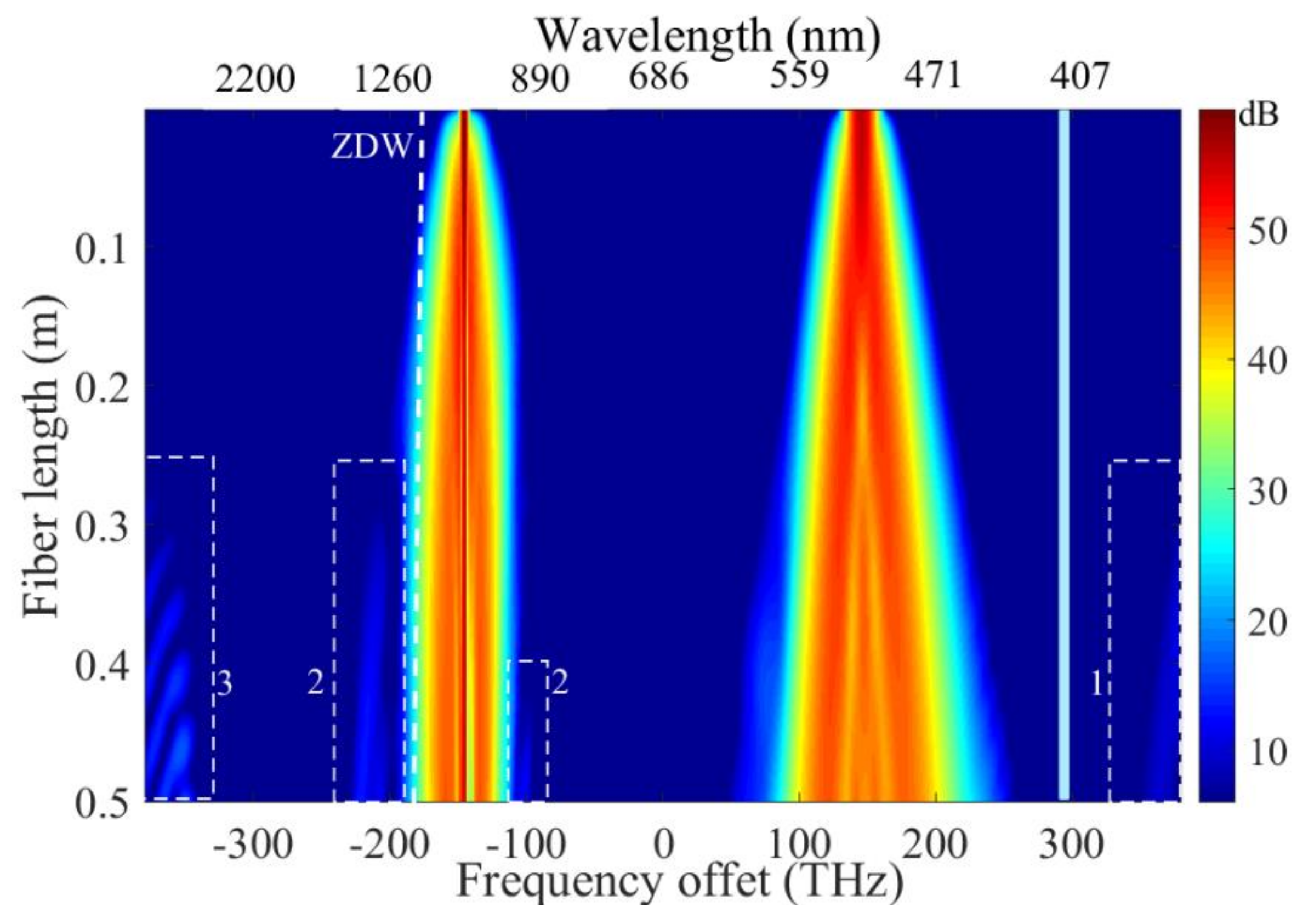

Figure 3 displays the total spectrum as a function of the fiber length on a logarithmic scale. During the pulse propagation, the two pumps symmetrically undergo spectral broadening due to the phase modulations and a portion of the pump energy enters into the anomalous dispersion regime at z~10 cm. In addition, the spectral tail of the broadened pulse P₂ extends and overlaps with phase-matched frequencies in which the energy transfer process takes place. Other spectral components are generated in the UV at ~374 nm (zone 1), and in the near-IR (zone 2) and MIR (zone 3) due to the interaction of the two main pulses with a large spectral bandwidth to achieve phase-match processes mostly from a FWM. For example, the radiation at (zone 1) results from the FWM process between the pump (P₂) seeded with P₁, leading to an angular frequency of 2ω₂-ω₁. The origin of the other FWM in the infrared will be detailed in the following paragraphs.

As observed in Figure 3, the MIR band is only efficiently generated when the signal at ~620 nm is created from the early spectral broadening process of P₂. Firstly, the P₂ spectrum broadens during propagation due to SPM and at ~30 cm, the spectral tail reaches the visible band of the FWM and MIR waves are generated. We also observed that the band at 1.2 µm arises at z~30 cm once the signal at 850 nm arises from the spectral broadening of P₁.

The infrared FWMs relies on a degenerated phase-matched process involving one strong pump pulse (i.e., P₁). A weak wave, at the angular frequency ω_s, seeds the FWM process and originates from the broadening of either the second pulse P₂ (for Zone 3) or P₁ (for zone 2). One idler band is generated in the MIR at the angular frequency ω_i, and then it will be selected with band-pass filters. In order to reach an ultrashort pulse, a broad-band FWM is required and we benefit from a pump pulse (P₁) with a broad spectral bandwidth [26,27].

The phase-mismatch inside the HC-PCF, κ, is defined by the sum of a linear contribution that depends on the properties of the fiber, the gas and a nonlinear term:

$$\kappa =\left\{2{\beta }_p({\omega }_1)-{\beta }_s({\omega }_s)-{\beta }_i({\omega }_i)\right\}+2\gamma P_{P1}$$

(5)

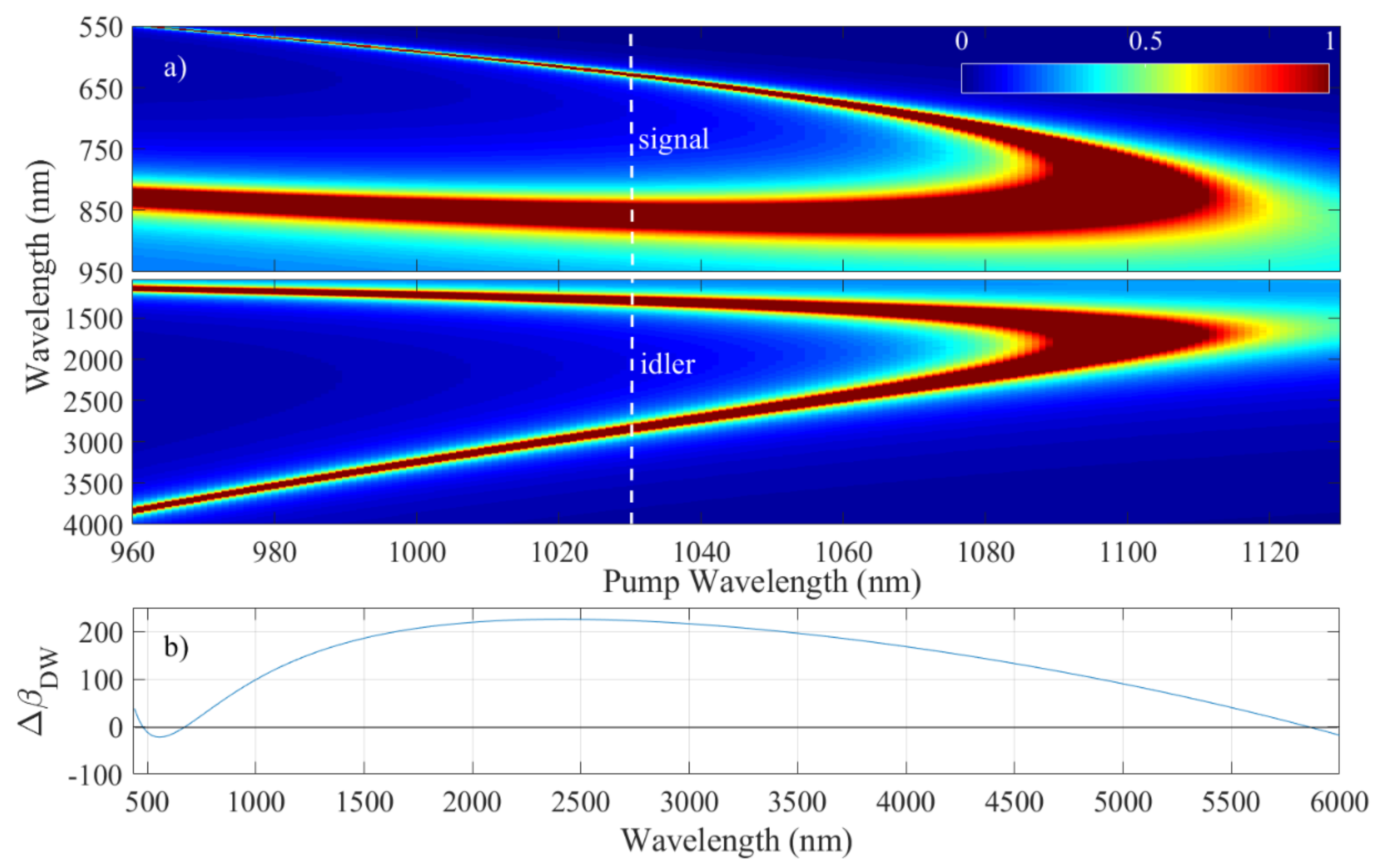

where β_p,s,i is the wave vector of each photon (pump, signal, idler) and P_p1 is the pump peak power. Figure 4 corresponds to the analytically calculated coherence length, i.e., 1/κ, as a function of the pump wavelength. This wavelength range corresponds to the bandwidth of the pulse P₁. For this estimation, the peak power P_p1 was kept constant (63 MW), although the instanstaneous power variation modifies the phase-matching condition.

The coherence length is maximum when the pump wavelength lies in the normal dispersion regime (β₂ > 0) and only a part of the P₁ spectrum plays a role in the FWM. Several bands arise around the pump wavelengths. For example, two side-band pairs (signal/idler) are located at 0.85/1.2 and 0.62/2.8 µm for a pump wavelength set at 1030 nm (vertical white lines in Figure 4a). The locations of these bands are in good agreement with those observed in the numerical simulations (zone 2 and 3, Figure 3). In addition, it is important to note that the visible band overlaps with the spectrum of P₂ that allows for the MIR band to be generated. The MIR spectrum obtained from the numerical simulations (Figure 3) is displayed in Figure 5. It has a bandwidth (FWHM) of 1000 nm and exhibits several lobes with maxima at 3.4 and 4.2 µm. This structure is probably a result of the modulated spectrum of P₁ that directly influences the shape of the band [26].

In addition to this wide spectral band, we can also note that a weaker peak arises at ~5.5 µm, defined as a dispersive wave (DW) seeded by the spectral tail of the FWM band. This separate sideband radiation lies in the anomalous dispersion regime and is resonantly amplified by the pulse P₂ in the normal dispersion regime [20,28], according to the phase matching condition of the DW given by [19]:

$$\begin{array}{l}\mathsf{\Delta }{\beta }_{DW}=\beta (\omega )-\left\{\beta ({\omega }_2)+{\beta }_1({\omega }_2)\left[\omega -{\omega }_2\right]+\gamma P_{p2}\left[\frac{\omega }{{\omega }_2}\right]\right\}\\ \end{array}$$

(6)

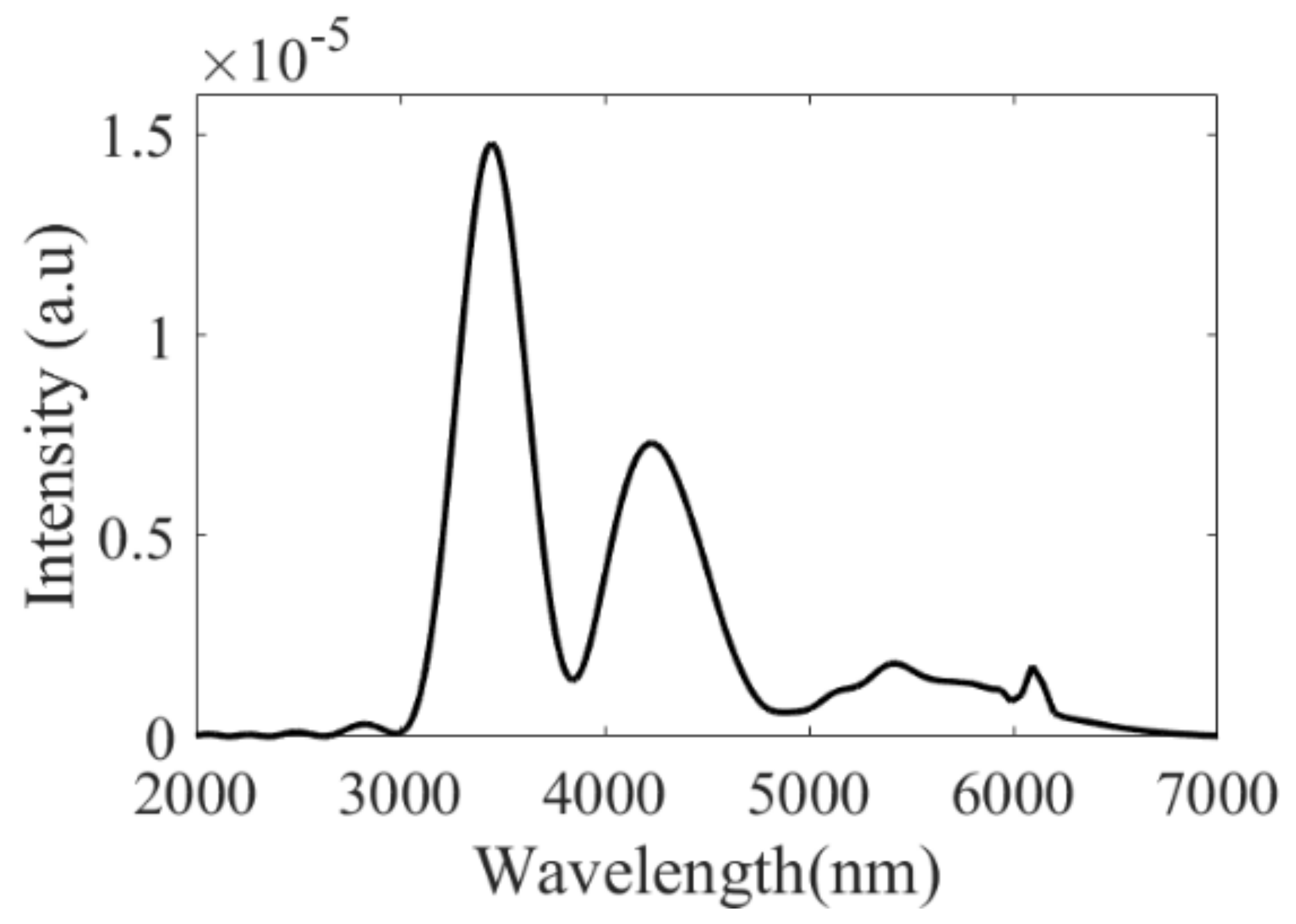

where P_p2 is peak power of P₂. This phase-mismatch is plotted in Figure 4b. The perfect phase-matching is obtained when Δβ_DW becomes zero at 5.8 µm, in good agreement with the observed weak MIR band (Figure 5).

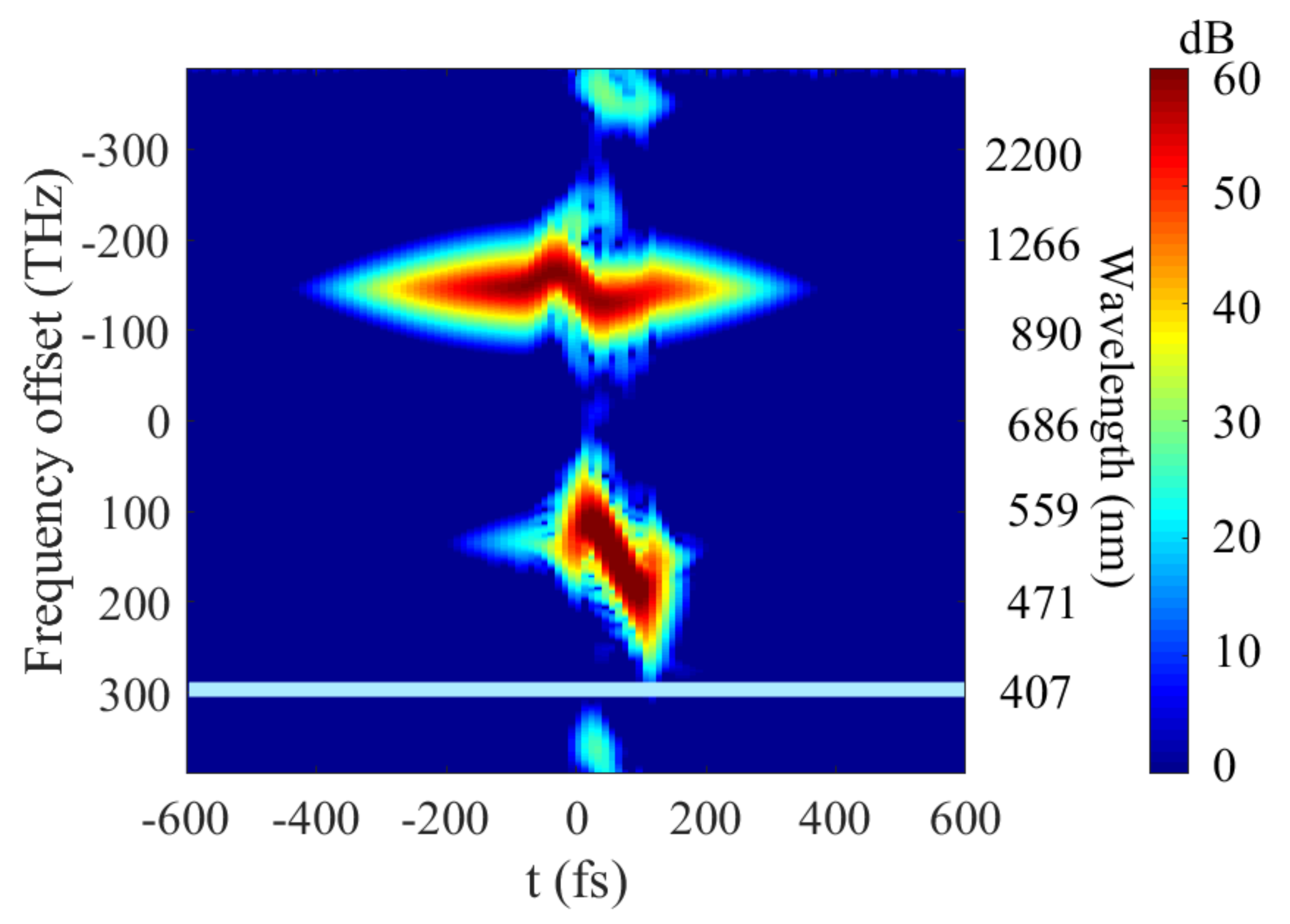

As observed in Figure 3, this MIR band evolves during propagation in the HC-PCF and their origins can also be discussed from the spectrogram (Figure 6), where we show the time-frequency distribution of the total field at the fiber output. During the propagation, the two pulses accumulated some temporal phase and, therefore, the instantaneous frequencies are quasi-linearly spread in time. As the spectral broadening of P₁ is due to the XPM with P₂, this chirp is only observed during the pulse overlap. Similarly, the additional bands (in the UV, NIR and MIR) can be generated only once the two pumps overlap. Each pulse owns a defined spectral bandwidth that evolves along the fiber (Figure 3). From Figure 6, we can also observe that the MIR band has a spectro-temporal distribution. In fact, the pump and signal chirps are transferred to the idler [27], creating the spectro-temporal distribution [26,29].

3.3. Pulse Properties of the Filtered Mid-Infrared Continuum

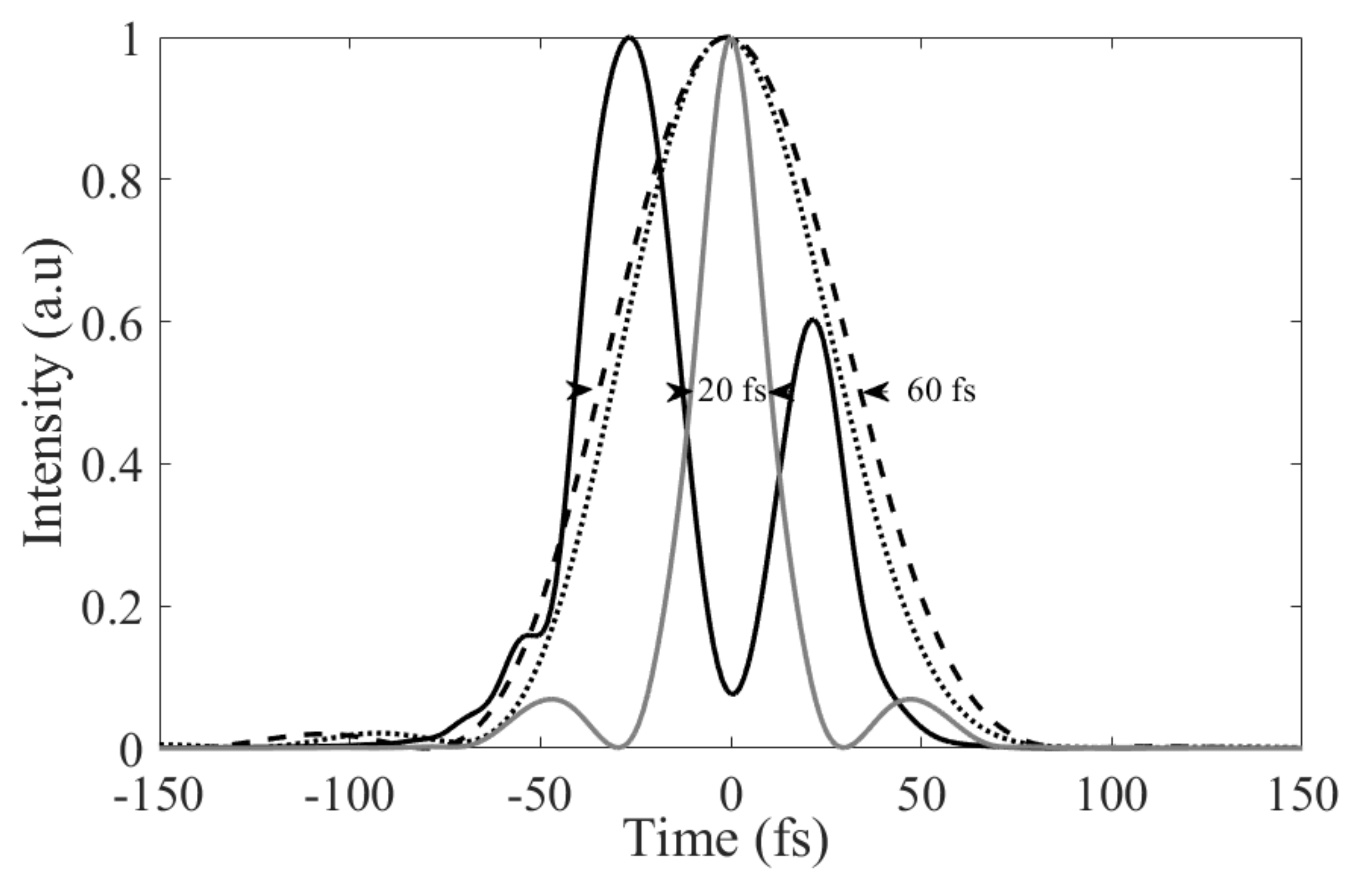

At the output of the HC-PCF, the MIR band is selected with a flat-top bandpass filter and the pulse shape is directly calculated. By selecting the MIR band between 3 and 5 µm, the temporal shape exhibits two peaks separated by 48 fs (blak solid-line in Figure 7). This structured temporal profile is due to the uncompensated phase acquired during the propagation and nonlinear conversion in the fiber. At the HC-PCF output, the accumulated phase can be compensated in order to reach an ultra-short pulse duration of ~20 fs (grey solid-line in Figure 7). When each lobe is filtered, the temporal profile has a bell-shape with a duration of ~60 fs at 3.4 µm or 4.2 µm without any phase compensation (black dashed and dotted-lines-Figure 7). An energy of a few nJ is obtained at the fiber output. Therefore, this scheme is highly desirable to develop a simple and robust pre-amplifier to seed a subsequent ultra-fast amplifier in the MIR.

4. Conclusions

We numerically demonstrated that ultra-short pulses at 3 and 4 µm can be generated through the interaction of a fundamental pulse and its harmonics in a HC-PCF filled with argon. The generation process originates from a cascaded nonlinear phenomenon starting from spectral broadening of the two pulses followed by an induced phase-matched four wave-mixing. The selected MIR band can directly provide sub-60 fs pulses and a duration of ~20 fs is expected if a system of phase compensation is used. This technique can be easily implemented since it relies on available laser systems and state-of-the-art anti-resonant fibers. The method is very promising to access MIR spectral ranges in the ultra-short pulse regime in a robust fiber system.
