Mineralogical Asbestos Assessment in the Southern Apennines (Italy): A Review

by
Maria Carmela Dichicco
1,
Michele Paternoster
1,2,
Giovanna Rizzo
1,* and
Rosa Sinisi
1
1
Department of Sciences, University of Basilicata, Campus di Macchia Romana, Viale dell’Ateneo Lucano 10, 85100 Potenza, Italy
2
Istituto Nazionale di Geofisica e Vulcanologia, Sezione di Palermo, Via Ugo La Malfa 153, 90146 Palermo, Italy
*
Author to whom correspondence should be addressed.
Fibers 2019, 7(3), 24; https://doi.org/10.3390/fib7030024
Submission received: 14 February 2019 / Revised: 12 March 2019 / Accepted: 13 March 2019 / Published: 19 March 2019
(This article belongs to the Special Issue Mineral Fibres)
Browse Figures
Versions Notes

Abstract

:
This paper deals with petrography and mineralogy of serpentinitic rocks occurring in the Southern Apennines (Italy) with the aim to review the already available literature data and furnish new details on asbestos minerals present in the studied area. Two sites of Southern Italy were taken into account: the Pollino Massif, at the Calabrian-Lucanian border, and the surroundings of the Gimigliano and Mt. Reventino areas where serpentinites of Frido Unit are mainly exposed. Textural and mineralogical features of the studied rocks point to a similar composition for both sites including asbestos minerals such as chrysotile and tremolite-actinolite series mineral phases. Only in the Pollino Massif serpentinites edenite crystals have been detected as well; they are documented here for the first time. This amphibole forms as fibrous and/or prismatic crystals in aggregates associated with serpentine, pyroxene, and calcite. Metamorphism and/or metasomatic alteration of serpentinites are the most probable processes promoting the edenite formation in the Southern Apennine ophiolitic rocks.

1. Introduction

In the last decade, many researchers have focused on serpentinites cropping out in the ophiolitic sequences and have aimed to assess and monitor their potential as asbestos-bearing lithotypes, since asbestos occurrence in mafic and ultramafic rocks that undergo ocean floor metamorphism is relatively common [1,2,3,4]. In Italy, the occurrence of these rocks is documented both in the Alps and Apennines. These outcrops extend from the Ligurian-Piedmont through the Tuscan-Emilian Apennines as far as Val Tiberina and continue, in disjointed groupings, to the Calabrian-Lucanian Apennines [5].
As is known, the definition of asbestos used by regulatory agencies [6] for identification includes the following six mineral species: chrysotile, crocidolite, tremolite, actinolite, amosite, and anthophyllite [7]. Among these minerals, only chrysotile is a sheet silicate; the other minerals are included within the amphibole supergroup. Silicate minerals belonging to the serpentine and amphibole groups are flexible, heat-resistant, and chemically inert. These minerals usually occur with an elongated and/or bladed prismatic habit, although they may be acicular or fibrous as well. In the European countries, fibers having a length ≥5 μm, a width <3 μm, and an aspect ratio >3 are defined as “asbestos” by Directive 2003/18/CE.
Asbestos is classified as a carcinogen material of Category 1 by the world health authorities [8]. Several authors ascribe the fibers’ toxicity to their morphology and size, chemical-physical characteristics, surface reactivity, and biopersistence [9]. It is known that the presence of impurities (i.e., Fe, Ni, and Ti) in the ideal chemical composition in asbestos fibers, even in small amounts, affects their chemical and physical properties, size, and shape [10,11,12,13]. Moreover, according to in vitro studies on biological-system–mineral interactions, both characteristics (impurities and size) are considered to be responsible for its pathological effects [14,15].
In this paper, we present data related to petrography and mineralogy of serpentinites in representative sites at the Pollino Massif (Calabrian-Lucanian boundary) and Gimigliano-Mt. Reventino (Sila Piccola, Northern Calabria), with the principal aim to review the main modes of occurrence of asbestos minerals in the Southern Apennines.

2. Ophiolitic Sequences in Southern Italy

The Southern Apennines is a fold-and-thrust chain developed between the Upper Oligocene and the Quaternary during the convergence between the African and European plates [16,17,18]. The ophiolitic sequences incorporated in the Southern Apennine chain are related to the northwest subduction of the oceanic lithosphere pertaining to the Ligurian sector (divided in the Frido Unit and North Calabrian Unit) of the Jurassic Western Tethys. They crop out in the northeastern slope of the Pollino Ridge, along with the Calabria-Lucanian border zone, and in the Gimigliano-Mt. Reventino Unit (Sila Piccola, Southern Italy) (Figure 1). At the Calabrian-Lucanian boundary, the investigated sites are on well-exposed outcrops along road cuts, active and inactive quarries or in the proximity of villages (Pietrapica quarry, Timpa Castello quarry, Fagosa quarry, and Fosso Arcangelo, San Severino Lucano, Rovine Convento Sagittale localities, Mt. Nandiniello and Ghiaia quarry) (Figure 2), whereas close to the Gimigliano town the outcrops are in correspondence of quarries at Sila Piccola, Northern Calabria [5,19,20,21].
In the following sections, details on geological setting and formations of both sites are presented.

2.1. The Pollino Massif Serpentinites

According to several authors [22,23,24,25], the Frido Unit forms the uppermost thrust sheet of southern Apennines and tectonically overlies the North Calabrian Units, which in turn are split in different thrust sheets [25]. The Frido Unit is characterized by HP/LT metamorphic sequences developed between Upper Jurassic to the Upper Oligocene [26,27,28,29] and references therein. The ophiolitic rocks in the Frido Unit, from the bottom to the top, consist of tectonized serpentinite [30,31,32,33,34,35], metabasalt [36], metagabbro, metapillow lavas [37], dismembered metadoleritic and rodingite dykes [28,38,39,40], and sedimentary cover [41]. The serpentinites are englobed in tectonic slices and are associated with metadolerite dykes and continental crust rocks that mainly consist of weathered granofels, garnet gneiss, garnet–biotite gneiss, leucocratic biotite gneiss, and lenticular bodies of amphibolite [42]. As suggested by Knott [23], the Frido Unit underwent a polyphase blueschist to greenschist facies metamorphism developed in the deeper portions of the Liguride accretionary wedge.
In the Pollino Massif, the serpentinite rocks are cataclastic and massive. Cataclastic serpentinites show a high degree of fracturing and deformation. The millimeter to centimeter fractures are almost filled by exposed white and grey fibrous minerals [30,32,33]. Fibers occur as both large and elongate minerals developed over slickensided surfaces and/or as very fine-grained phases pervading the whole rock. Massive serpentinites show a low fracturing and deformation without exposed fibers.

2.2. The Gimigliano-Mt. Reventino Serpentinites

The Gimigliano-Mt. Reventino (Sila Piccola, Figure 1) occurs in the northern sector of the Calabrian-Peloritan Orogen [43,44]. According to Ogniben [45,46], the Northern Calabria sector consists of three main tectonic complexes: the Apennine Units Complex, at the bottom, made up of Mesozoic sedimentary and metasedimentary terranes; the allochthonous Alpine Liguride Complex, in the intermediate position, consisting of a series of Cretaceous-Paleogene metamorphic units that include metapelites, ophiolites, and carbonates; the Calabride Complex, at the top, with granites, gneisses, and metasedimentary deposits derived from Hercynian and pre-Hercynian terranes. The Mt. Reventino area is characterized mainly by lenses of metabasalts and serpentinites limited by low angle tectonic systems, with metapelites, metalimestones, and metarenites of uncertain ages of the Frido Unit (Liguride Complex). The massive-banded metabasalts and serpentinites lenses constitute the upper part of Mt. Reventino [43]. In the ophiolitic bodies, ascribed to the Liguride Complex of oceanic derivation [46,47,48,49], the serpentinites occupy the cores of the major tight folds and are partially or completely surrounded by isolated bodies of metabasalts and subordinate metadolerites [43]. In the Gimigliano-Mt. Reventino two different types of serpentinites occur as foliated and massive rocks. Mostly dark green serpentinites crop out as massive bodies that only sometimes are weakly foliated and cut by serpentine and calcite veins [5,19,20,21].

3. Analytical Methods

In this paper, we report and discuss data available in literature referring to the petrographical and mineralogical studies performed on serpentinites from selected sites of southern Apennines. In particular, data here presented are from Dichicco et al. [32,33], Punturo et al. [19], Bloise et al. [5], and Campopiano et al. [20].
The petrographic characterization was carried out by optical microscopy on thin sections of rock samples. Percentages for fibrous minerals have been calculated by means of point-counting modal analysis following the EPA/600/R93-116 method. The mineralogical compositions have been obtained by using X-ray diffraction (XRD) on bulk rock powder. Specific analyses on single minerals were performed by μ-Raman spectroscopy, FT-IR spectroscopy, SEM-EDS, and electron microprobe (EMP) analyses. Details of analytical conditions are reported in the following papers: Dichicco et al. [32,33], Punturo et al. [19], and Bloise et al. [5].

4. Previous Studies and New Findings

4.1. Asbestos Minerals in Serpentinites from the Pollino Massif

Serpentinites are characterized by an original pseudomorphic texture and mylonitic-cataclastic structures (Table 1). They are made up of fibrous minerals accounting for the 55% of the total mineral composition. The mineralogical assemblage consists of serpentine group minerals, amphibole minerals (mainly tremolite-actinolite series), titanite, clinopyroxene, clinochlore, magnetite, Cr-spinel, talc, quartz, and carbonate phases. The serpentinites are cross-cut by a micro-network of nanometer to millimeter veins filled by fibrous serpentine and serpentine ± amphiboles, amphibole minerals, and calcite ± amphiboles [32]. Chrysotile occurs as short and fine-fibers in the matrix and in the contact between vein and rock. Chrysotile occurs preferentially in serpentinites that have undergone some degree of recrystallization, in which the serpentine minerals have developed interlocking microstructures. Primary magmatic clinopyroxene occurs in partially preserved grains. The amphibole shows acicular, fibrous, and elongated habitus and forms in veins and/or in the rock matrix as crowns around the clinopyroxene porphyroclasts [32].
Serpentine (lizardite, chrysotile, and antigorite) and amphibole-like (actinolite, d = 8.31 Å; tremolite, d = 2.94 Å) minerals have been detected by XRD analysis and represent the dominant phases of the studied samples. The 2:1 phyllosilicate (clinochlore, d = 4.74 Å) and iron oxides (magnetite, d = 2.52 Å) also occur as subordinate phases along with different types of carbonates (calcite, d = 3.04; aragonite, d = 3.38; dolomite, d= 2.88) (Table 2).
Serpentine group minerals were also identified by μ-Raman spectroscopy. Chrysotile is distinguished from the other minerals of the serpentine group by means of an antisymmetric band at about 3699 cm−1, with a tail toward lower wavenumbers, and a less pronounced peak at about 3691 cm−1 [32]. As reported by Dichicco et al. [32,33], different types of amphibole minerals also occur in the analyzed rocks. In the μ-Raman spectra of the OH vibrational region, the amphibole shows two peaks, the most intense of which is at 3675–3673 cm−1 (Mg; Mg; Mg), the second most intense at 3660–3663 cm−1 (Mg; Mg; Fe). The number and relative intensity of these bands represent pure tremolite and almost pure tremolite with a small percentage of Fe2+ (Fe-tremolite). The presence of Fe2+ is confirmed by FT-IR [33]. No Fe3+ is present, owing to the absence of absorption bands at Δ = 50 cm−1 from the tremolite reference band in the FT-IR spectrum [33,52,53,54,55,56].
Secondary Electron observations by ESEM analyses show asbestos tremolite fibers that are straight, flexible and approximately 100 μm in length. The EDS chemical analysis shows that amphibole crystals are homogeneous, without zoning, although some crystals display different amounts of SiO2, CaO, MgO, Fe2O3, Al2O3, and Na2O in the rim and core [33].
The microchemical composition of most amphiboles detected by EMPA is typical of Ca-amphiboles, including tremolite and Mg-Fe-hornblende (Table 3) [56].
In addition, the EMP analysis revealed for the first time the presence of edenite in the serpentinites rocks of the Frido Unit. As shown in Figure 3, in the serpentinites of the Pollino Massif, edenite crystals grow with a fibrous habitus and form aggregates often associated with serpentine, diopside, and calcite.
Results of the EMP analysis performed on selected fibrous crystals of edenite are shown in Table 4. Major element compositional range of this amphibole is as follows: SiO2 = 51.264–54.293 wt%, CaO = 23.64–25.507 wt%, MgO = 16.332–17.680 wt%, Al2O3 = 0.259–2.709 wt%, and FeOtot = 1.257–2.852 wt% [57]. In addition, in the edenite crystals, low amounts of several trace elements, such as Mn, Cr, and Ni, are also present.

4.2. Asbestos Minerals in Serpentinites from Gimigliano-Mt. Reventino

The serpentinites show remnants of the original protogranular texture, which is inherited from their harzburgitic-lherzolitic protoliths [5,19]. The mineral assemblage is made of serpentine group minerals and magnetite ± tremolite-actinolite ± chlorite ± clinopyroxene ± Cr-spinel, and calcite [5,19] (Table 1). The serpentine group minerals, together with small magnetite grains, completely replaced the original olivine and orthopyroxene crystals that appear as pseudomorphic aggregates showing typical net-like and mesh textures [5,19]. According to Punturo et al. [19], clinopyroxene is in the rarely preserved holly-leaf shaped Cr-spinels that, in most cases, are quite completely retrogressed to magnetite and chlorite. Different vein systems, filled by serpentine group minerals, cross-cut the rock. In general, serpentine fibers may be oriented either perpendicular to the vein selvages (“cross” serpentine) or according to their elongation directions (“lamellar” serpentine). Minor calcite and talc flake aggregates or actinolite-tremolite fibers may occur within the serpentine matrix.
The X-ray diffraction analysis revealed that these rocks are mainly constituted of serpentine group minerals, followed by chlorite and tremolite [5,19] (Table 2). Calcite was detected less frequently and in low amounts. μ-Raman spectroscopy identified chrysotile, lizardite, and antigorite. In the spectral region associated with the structural bending characterization, serpentine group minerals are characterized by very similar μ-Raman spectra. In chrysotile, the characteristic ν5 (e) bending vibrations of the SiO4 tetrahedra are shown at 388 and 344 cm–1. Lizardite shows a very similar pattern to chrysotile [5], whereas antigorite displays a characteristic band occurring at 1042 cm–1 and an intense band at 683 cm–1. The two bands observed at 378 and 634 cm–1 appear to be slightly shifted when compared with the same vibrations present in the chrysotile spectrum [5]. Similarly to the serpentinites of the Pollino Massif, the tremolite of Gimigliano-Mt. Reventino rocks is characterized by the presence only of Fe2+ detected by FT-IR analysis [57]. The Fe3+ presence is excluded because of the absence of the absorption bands at Δ = −50 cm−1. Further, the FT-IR and SEM-EDS analyses confirmed the presence of antigorite, chrysotile, and fibrous minerals, from the tremolite–actinolite series, in the samples from Mt. Reventino [20,21,58].

5. Discussion and Conclusions

Data presented in this study display a very similar mineralogical composition for both the considered serpentinites including serpentine group minerals, amphiboles, pyroxene, chlorite, talc, titanite, magnetite, and carbonates. However, compared to the serpentinites from Northern Calabria, the Pollino Massif serpentinites are characterized also by the presence of quartz, dolomite, and edenite.
Based on textural and mineralogical data, quartz and dolomite are always found in association with, talc likely suggesting their formation during a metasomatic event. According to Boschi et al. [59], in fact, serpentine minerals may easily alter to talc + dolomite assemblage as the following reaction:
2Mg3Si2O5(OH)4 + 3CO2 + 3CaCO3 → Mg3Si4O10(OH)2 + 3CaMg(CO3)2 + 3H2O
serpentine + CO2-rich fluid + calcite → talc + dolomite + aqueous fluid
Instead, quartz may be thought as the result of the direct precipitation from migrating fluids that, as stated by Moore and Rymer [60], may become enriched with dissolved silica during the alteration of serpentine and other primary silicates of mafic and ultramafic rocks.
As regards edenite, the presence of such a mineral within the serpentinitic rocks from the ophiolitic sequence of Southern Apennines is documented here for the first time. Edenite is a double chain silicate mineral of the amphibole group with the following general formula: NaCa2(Mg,Fe)5[Si7AlO22](OH)2 [61]. This is a rare mineral in the ophiolitic sequences although its presence has been documented in the oceanic serpentinites from the Mid-Atlantic Ridge and the Greater Antilles (Cuba, Dominican Republic) [62,63], where it testifies a medium to high metamorphism. As suggested by Bucher and Frey [64], the edenite formation is linked to the greenschist-amphibolite facies transition. In particular, such a mineral is produced by albite-consuming reactions in volcanic rocks, as albite + tremolite = edenite + 4 quartz, or in basic rocks, as olivine + labradorite + H2O = ortopyroxene + edenite + spinel [61], and occurs during metamorphic events that promote systematic changes of the amphibole composition (from tremolite to edenite).
However, metasomatic processes not correlated to metamorphism can also be responsible for the formation of edenite or (more commonly) fluoro-edenite crystals. The F-edenite of Biancavilla, a village located in the etnean volcanic complex of Eastern Sicily (Southern Italy), is an example of an amphibole not metamorphic in origin. According to Comba et al. [65], the Sicilian F-edenite is found in voids and fractures of the benmoreitic lava covering the Mt. Calvario or in highly weathered pyroclastic products and scoriae that have been involved by metasomatizing hot fluids during volcanism or processes linked to it.
Regardless of process promoting edenite formation, it is worth noting that this amphibole, similarly to the more common asbestos minerals, may crystallize with fibrous habit and thus could represent a mineral harmful for human health, although edenite is currently not regulated by the Directive 2003/18/EC of the European Parliament either by the European Council of 27th March 2003. In addition, our data highlight that edenite crystals host different types of trace metals that could increase their toxicity as suggested by Bloise et al. [13] for the other asbestos minerals.
As a consequence, we believe that further detailed field and laboratory investigations are needed to improve our knowledge on edenite formation in the serpentinitic rocks of the Southern Apennines in order to better constrain the mode of occurrence of this “potentially harmful” mineral at the Pollino Massif.

Author Contributions

Conceptualization, G.R. and R.S.; methodology (EMPA measurements on edenite crystals), M.C.D. and M.P.; resources, G.R. and M.C.D.; data curation, M.C.D., G.R., and R.S.; writing—original draft preparation, M.C.D., M.P., G.R., and R.S.; supervision, G.R.

Funding

This research was funded by a Giovanna Rizzo grant, RIL2016.

Acknowledgments

The authors wish to thank the Centro Nacional de Microscopia Electrónica of the Universidad Complutense de Madrid (España) for the electron microprobe analyses. This work has received financial support from University of Basilicata.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Belluso, E.; Compagnoni, R.; Ferraris, G. Occurrence of Asbestiform Minerals in the Serpentinites of the Piemonte Zone, Western Alps; Giornata di Studio in ricordo del Prof. Stefano Zucchetti; Politecnico di Torino: Torino, Italy, 1994; pp. 57–64. [Google Scholar]
  2. Groppo, C.; Rinaudo, C.; Cairo, S.; Gastaldi, D.; Compagnoni, R. Micro-Raman spectroscopy for a quick and reliable identification of serpentine minerals from ultramafics. Eur. J. Mineral. 2006, 18, 319–329. [Google Scholar] [CrossRef]
  3. Hendrickx, M. Naturally occurring asbestos in eastern Australia: A review of geological occurrence, disturbance and mesothelioma risk. Environ. Geol. 2009, 57, 909–926. [Google Scholar] [CrossRef]
  4. Vignaroli, G.; Ballirano, P.; Belardi, G.; Rossetti, F. Asbestos fibre identification vs. evaluation of asbestos hazard in ophiolitic rock mélanges, a case study from the Ligurian Alps (Italy). Environ. Earth Sci. 2013, 72, 3679–3698. [Google Scholar] [CrossRef]
  5. Bloise, A.; Punturo, R.; Catalano, M.; Miriello, D.; Cirrincione, R. Naturally occurring asbestos (NOA) in rock and soil and relation with human activities: The monitoring example of selected sites in Calabria (southern Italy). Ital. J. Geosci. 2016, 135, 268–279. [Google Scholar] [CrossRef]
  6. Virta, R.L. Mineral Commodity Profiles: Asbestos; USGS Circular 1255-KK; US Geological Survey (USGS): Reston, VA, USA, 2005; p. 56.
  7. Nichols, M.D.; Young, D.; Davis, G. Guidelines for Geologic Investigations of Naturally Occurring Asbestos in California; Special publication; California Geological Survey Public Information Offices: Los Angeles, CA, USA, 2002; p. 124.
  8. IARC Working Group on the Evaluation of Carcinogenic Risks to Humans, and World Health Organization. Overall Evaluations of Carcinogenicity: An Updating of IARC Monographs; World Health Organization: Geneva, Switzerland, 1987; Volume 1–42. [Google Scholar]
  9. Mossman, B.T.; Lippmann, M.; Hesterberg, T.W.; Kelsey, K.T.; Barchowsky, A.; Bonner, J.C. Pulmonary endpoints (lung carcinomas and asbestosis) following inhalation exposure to asbestos. J. Toxicol. Environ. Health 2011, 14, 76–121. [Google Scholar] [CrossRef] [PubMed]
  10. Bloise, A.; Belluso, E.; Barrese, E.; Miriello, D.; Apollaro, C. Synthesis of Fe-doped chrysotile and characterization of the resulting chrysotile fibres. Cryst. Res. Technol. 2009, 44, 590–596. [Google Scholar] [CrossRef]
  11. Bloise, A.; Barrese, E.; Apollaro, C.; Miriello, D. Flux growth and characterization of Ti- and Ni-doped forsterite single crystals. Cryst. Res. Technol 2009, 44, 463–468. [Google Scholar] [CrossRef]
  12. Bloise, A.; Belluso, E.; Fornero, E.; Rinaudo, C.; Barrese, E.; Cappella, S. Influence of synthesis condition on growth of Ni-doped chrysotile. Microporous Mesoporous Mater. 2010, 132, 239–245. [Google Scholar] [CrossRef]
  13. Bloise, A.; Barca, D.; Gualtieri, A.F.; Pollastri, S.; Belluso, E. Trace elements in hazardous mineral fibres. Environ. Pollut. 2016, 216, 314–323. [Google Scholar] [CrossRef] [PubMed]
  14. Loreto, C.; Carnazza, M.L.; Cardile, V.; Libra, M.; Lombardo, L.; Malaponte, G.; Martinez, G.; Musumeci, G.; Papa, V.; Cocco, L. Mineral fiber-mediated activation of phosphoinositide-specific phospho-lipase c in human bronchoalveolar carcinoma-derived alveolar epithelial A549 cells. Int. J. Oncol. 2009, 34, 371–376. [Google Scholar]
  15. Pugnaloni, A.; Giantomassi, F.; Lucarini, G.; Capella, S.; Bloise, A.; Di Primo, R.; Belluso, E. Cytotoxicity induced by exposure to natural and synthetic tremolite asbestos: An in vitro pilot study. Acta Histochem. 2013, 115, 100–112. [Google Scholar] [CrossRef] [PubMed]
  16. Gueguen, E.; Doglioni, C.; Fernandez, M. On the post-25 Ma geodynamic evolution of the western Mediterranean. Tectonophysics 1998, 298, 259–269. [Google Scholar] [CrossRef]
  17. Cello, G.; Mazzoli, S. Apennine tectonics in southern Italy: A review. J. Geodyn. 1999, 27, 191–211. [Google Scholar] [CrossRef]
  18. Doglioni, C.; Gueguen, E.; Harabaglia, P.; Mongelli, F. On the origin of west-directed subduction zones and applications to the western Mediterranean. In The Mediterranean Basins: Tertiary Extension within the Alpine Orogen; Durand, B., Jolivet, L., Horváth, F., Séranne, M., Eds.; Special Publications Geological Society: London, UK, 1999; Volume 156, pp. 541–561. [Google Scholar]
  19. Punturo, R.; Bloise, A.; Critelli, T.; Catalano, M.; Fazio, E.; Apollaro, C. Environmental implications related to natural asbestos occurrences in the ophiolites of the Gimigliano-Mount Reventino Unit (Calabria, Southern Italy). Int. J. Environ. Res. 2015, 9, 405–418. [Google Scholar]
  20. Campopiano, A.; Olori, A.; Spadafora, A.; Rosaria Bruno, M.; Angelosanto, F.; Iannò, A.; Iavicoli, S. Asbestiform minerals in ophiolitic rocks of Calabria (southern Italy). Int. J. Environ. Health Res. 2018, 28, 134–146. [Google Scholar] [CrossRef] [PubMed]
  21. Apollaro, C.; Fuoco, I.; Vespasiano, G.; De Rosa, R.; Cofone, F.; Miriello, D.; Bloise, A. Geochemical and mineralogical characterization of tremolite asbestos contained in the Gimigliano-Mount Reventino Unit (Calabria, south Italy). J. Mediterr. Earth Sci. 2018, 1, 5–15. [Google Scholar]
  22. Knott, S.D. The Liguride Complex of southern Italy—A Cretaceous to Paleogene accretionary wedge. Tectonophysics 1987, 142, 217–226. [Google Scholar] [CrossRef]
  23. Knott, S.D. Structure, kinematics and metamorphism of the Liguride complex, southern Apennines, Italy. J. Struct. Geol. 1994, 16, 1107–1120. [Google Scholar] [CrossRef]
  24. Monaco, C.; Tansi, C.; Tortorici, L.; De Francesco, A.M.; Morten, L. Analisi geologico-strutturale dell’Unità del Frido al confine calabro-lucano (Appennino Meridionale). Mem. Soc. Geol. Ital. 1991, 47, 341–353. [Google Scholar]
  25. Monaco, C.; Tortorici, L. Tectonic role of ophiolite-bearing terranes in building of the Southern Apennines orogenic belt. Terra Nova 1995, 7, 153–160. [Google Scholar] [CrossRef]
  26. Cirrincione, R.; Monaco, C. Evoluzione tettonometamorfica dell’Unità del Frido (Appennino Meridionale). Mem. Soc. Geol. Ital. 1996, 51, 83–92. [Google Scholar]
  27. Tortorici, L.; Catalano, S.; Monaco, C. Ophiolite-bearing melanges in southern Italy. Geol. J. 2009, 44, 153–166. [Google Scholar] [CrossRef]
  28. Sansone, M.T.C.; Rizzo, G.; Mongelli, G. Petrochemical characterization of mafic rocks from Ligurian ophiolites, southern Apennines. Int. Geol. Rev. 2011, 53, 130–156. [Google Scholar] [CrossRef]
  29. Laurita, S.; Prosser, G.; Rizzo, G.; Langone, A.; Tiepolo, M.; Laurita, A. Geochronological study of zircons from continental crust rocks in the Frido Unit (Southern Apennines). Int. J. Earth Sci. 2014, 104, 179–203. [Google Scholar] [CrossRef]
  30. Dichicco, M.C.; Laurita, S.; Paternoster, M.; Rizzo, G.; Sinisi, R.; Mongelli, G. Serpentinite Carbonation for CO2 Sequestration in the Southern Apennines: Preliminary Study. Energy Procedia 2015, 76, 477–486. [Google Scholar] [CrossRef]
  31. Dichicco, M.C.; De Bonis, A.; Mongelli, G.; Rizzo, G.; Sinisi, R. Naturally occurring asbestos in the southern Apennines: Quick µ-Raman Spectroscopy identification as a tool of environmental control. In Proceedings of the 13th International Conference on Protection and Restoration of the Environment, Mykonos Island, Greece, 3–8 July 2016. [Google Scholar]
  32. Dichicco, M.C.; De Bonis, A.; Mongelli, G.; Rizzo, G.; Sinisi, R. μ-Raman spectroscopy and X-ray diffraction of asbestos’ minerals for geo-environmental monitoring: The case of the southern Apennines natural sources. Appl. Clay Sci. 2017, 141, 292–299. [Google Scholar] [CrossRef]
  33. Dichicco, M.C.; Laurita, S.; Sinisi, R.; Battiloro, R.; Rizzo, G. Environmental and Health: The Importance of Tremolite Occurence in the Pollino Geopark (Southern Italy). Geosciences 2018, 8, 98. [Google Scholar] [CrossRef]
  34. Dichicco, M.C.; Castiñeiras, P.; Galindo Francisco, C.; González Acebrón, L.; Grassa, F.; Laurita, S.; Paternoster, M.; Rizzo, G.; Sinisi, R.; Mongelli, G. Genesis of carbonate-rich veins in the serpentinites at the Calabria-Lucania boundary (southern Apennines). Rend. Online Soc. Geol. Ital. 2018, 44, 143–149. [Google Scholar] [CrossRef]
  35. Rizzo, G.; Laurita, S.; Altenberger, U. The Timpa delle Murge ophiolitic gabbros, southern Apennines: Insights from petrology and geochemistry and consequences to the geodynamic setting. Period. Mineral. 2018, 87, 5–20. [Google Scholar]
  36. Mazzeo, F.C.; Zanetti, A.; Aulinas, M.; Petrosino, M.; Arienzo, I.; D’Antonio, M. Evidence for an intra-oceanic affinity of the serpentinized peridotites from the Mt. Pollino ophiolites (southern Ligurian Tethys): Insights into the peculiar tectonic evolution of the southern Apennines. Lithos 2017, 284, 367–380. [Google Scholar] [CrossRef]
  37. Vitale, S.; Fedele, L.; Tramparulo, F.; Ciarcia, S.; Mazzoli, S.; Novellino, A. Structural and petrological analyses of the Frido Unit (southern Italy): New insights into the early tectonic evolution of the southern Apennines-Calabrian Arc system. Lithos 2013, 168–169, 219–235. [Google Scholar] [CrossRef]
  38. Sansone, M.T.C.; Prosser, G.; Rizzo, G.; Tartarotti, P. Spinel peridotites of the Frido unit ophiolites (southern Apennines Italy): Evidence for oceanic evolution. Period Miner. 2012, 81, 35–59. [Google Scholar]
  39. Sansone, M.T.C.; Tartarotti, P.; Prosser, G.; Rizzo, G. From ocean to subduction: The polyphase metamorphic evolution of the Frido unit metadolerite dykes (southern Apennine, Italy). Multiscale structural analysis devoted to the reconstruction of tectonic trajectories in active margins. J. Virtual. Explor. Electron. Ed. 2012, 41, 3. [Google Scholar]
  40. Sansone, M.T.C.; Rizzo, G. Pumpellyite veins in the metadolerite of the Frido unit (southern Apennines-Italy). Period. Mineral. 2012, 81, 75–92. [Google Scholar]
  41. Spadea, P. Calabria-Lucania ophiolites. Boll. Geofis. Teorica Appl. 1994, 36, 271–281. [Google Scholar]
  42. Laurita, S.; Rizzo, G. Blueschist metamorphism of metabasite dykes in the serpentinites of the Frido Unit, Pollino Massif. Rend. Online Soc. Geol. Ital. 2018, 45, 129–135. [Google Scholar] [CrossRef]
  43. Alvarez, W. Structure of the Monte Reventino greenschist folds: A contribution to untangling the tectonic-transport history of Calabria, a key element in Italian tectonics. J. Struct. Geol. 2005, 27, 1355–1378. [Google Scholar] [CrossRef]
  44. Liberi, F.; Piluso, E. Tectonometamorphic evolution of the ophiolites sequences from Northen Calabrian Arc. Ital. J. Geosci. 2009, 128, 483–493. [Google Scholar]
  45. Ogniben, L. Schema introduttivo alla geologia del confine calabro-lucano. Mem. Soc. Geol. Ital. 1969, 8, 453–763. [Google Scholar]
  46. Ogniben, L. Schema Geologico della Calabria in base ai dati odierni. Geol. Rom. 1973, XII, 243–585. [Google Scholar]
  47. Piluso, E.; Cirrincione, R.; Morten, L. Ophiolites of the Calabrian Peloritani Arc and their relationships with the Crystalline Basement, Catena Costiera and Sila Piccola, Calabria, Southern Italy. GLOM 2000 Excursion Guide-Book 2000, 25, 117–140. [Google Scholar]
  48. Pezzino, A.; Angi, G.; Fazio, E.; Fiannacca, P.; Lo Giudice, A.; Ortolano, G.; Punturo, R.; Cirrincione, R.; De Vuono, E. Alpine metamorphism in the aspromonte massif: Implications for a new framework for the southern sector of the Calabria-Peloritani Orogen, Italy. Int. Geol. Rev. 2008, 50, 423–441. [Google Scholar] [CrossRef]
  49. Cirrincione, R.; Fazio, E.; Heilbronner, R.; Kern, H.; Mengel, K.; Ortolano, G.; Pezzino, A.; Punturo, R. Microstructure and elastic anisotropy of naturally deformed leucogneiss from a shear zone in Montalto (southern Calabria, Italy). Geol. Soc. Lond. Spec. Publ. 2010, 332, 49–68. [Google Scholar] [CrossRef]
  50. Vitale, S.; Ciarcia, S.; Fedele, L.; Tramparulo, F. The Ligurian oceanic successions in southern Italy: The key to decrypting the first orogenic stages of the southern Apennines-Calabria chain system. Tectonophysics 2018. [Google Scholar] [CrossRef]
  51. Whitney, D.L.; Evans, B.W. Abbreviations for names of rock-forming minerals. Am. Mineral. 2010, 95, 185–187. [Google Scholar] [CrossRef]
  52. Dichicco, M.C. Genesis of Carbonate-Rich Veins in the Serpentinites Outcropping at the Calabria-Lucania Boundary (Southern Apennines). Ph.D. Thesis, University of Basilicata, Potenza, Italy, 10 April 2018, unpublished. [Google Scholar]
  53. Raudsepp, M.; Turnock, A.C.; Hawthorne, F.C.; Sherriff, B.L.; Hartman, J.S. Characterization of synthetic pargasitic amphiboles (NaCa2Mg4M3+Si6Al2O22(OH, F)2; M3+ = Al, Cr, Ga, Fe, Sc, In) by infrared spectroscopy, Rietveld structure refinement, and 27Al, 29Si, and 19F MAS NMR spectroscopy. Am. Mineral. 1987, 72, 580–593. [Google Scholar]
  54. Ballirano, P.; Andreozzi, G.B.; Belardi, G. Crystal chemical and structural characterization of fibrous tremolite from Susa Valley, Italy, with comments on potential harmful effects on human health. Am. Mineral. 2008, 93, 1349–1355. [Google Scholar] [CrossRef]
  55. Pacella, A.; Ballirano, P.; Cametti, G. Quantitative chemical analysis of erionite fibres using a micro-analytical SEM-EDX method. Eur. J. Mineral. 2016, 28, 257–264. [Google Scholar] [CrossRef]
  56. Dichicco, M.C.; Laurita, S.; Mongelli, G.; Rizzo, G.; Sinisi, R. Environmental problems related to serpentinites in the Pollino Geopark (Southern Appennine). In 89° Congresso congiunto SGI-SIMP, Rendiconti Online; Società Geologica Italiana: Catania, Italy, 2018; p. 578. [Google Scholar]
  57. Skogby, H.; Rossman, G.R. The intensity of amphibole OH bands in the infrared absorption spectrum. Phys. Chem. Miner. 1991, 18, 64–68. [Google Scholar] [CrossRef]
  58. Campopiano, A.; Olori, A.; Cannizzaro, A.; Ianno, A.; Capone, P.P. Quantification of tremolite in friable material coming from Calabrian ophiolitic deposits by infrared spectroscopy. J. Spectroscop. 2015, 2015, 974902. [Google Scholar] [CrossRef]
  59. Boschi, C.; Früh-Green, G.L.; Escartín, J. Occurrence and significance of serpentinite-hosted, talc-and amphibole-rich fault rocks in modern oceanic settings and ophiolite complexes: An overview. Ofioliti 2006, 31, 129–140. [Google Scholar]
  60. Moore, D.E.; Rymer, M.J. Talc-bearing serpentinite and the creeping section of the San Andreas fault. Nature 2007, 448, 795. [Google Scholar] [CrossRef]
  61. Deer, W.A.; Howie, R.A.; Zussman, H.J. Introduzione ai Minerali che Costituiscono le Rocce; Zanichelli Editore S.P.A.: Modena, Italy, 1994. [Google Scholar]
  62. Garcìa-Casco, A.; Torres-Roldán, R.L.; Milla, G.; Millán, P.; Schneider, J. Oscillatory zoning in eclogitic garnet and amphibole, Northern Serpentinite Melange, Cuba: A record of tectonic instability during subduction? J. Metamorph. Geol. 2002, 20, 581–598. [Google Scholar] [CrossRef]
  63. Deschamps, F.; Guillot, S.; Godard, M.; Andreani, M.; Hattori, K. Serpentinites act as sponges for fluid-mobile elements in abyssal and subduction zone environments. Terra Nova 2011, 23, 171–178. [Google Scholar] [CrossRef]
  64. Bucher, K.; Frey, M. Petrogenesis of Metamorphic Rocks; Springer-Verlag: Berlin, Germany, 2002; 341p. [Google Scholar]
  65. Comba, P.; Gianfagna, A.; Paoletti, L. Pleural Mesothelioma Cases in Biancavilla are Related to a New Fluoro-Edenite Fibrous Amphibole. Arch. Environ. Health Int. J. 2003, 58, 229–232. [Google Scholar] [CrossRef]
Fibers 07 00024 g001 550

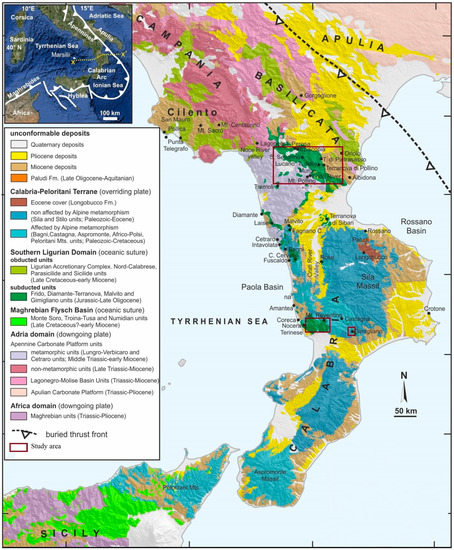

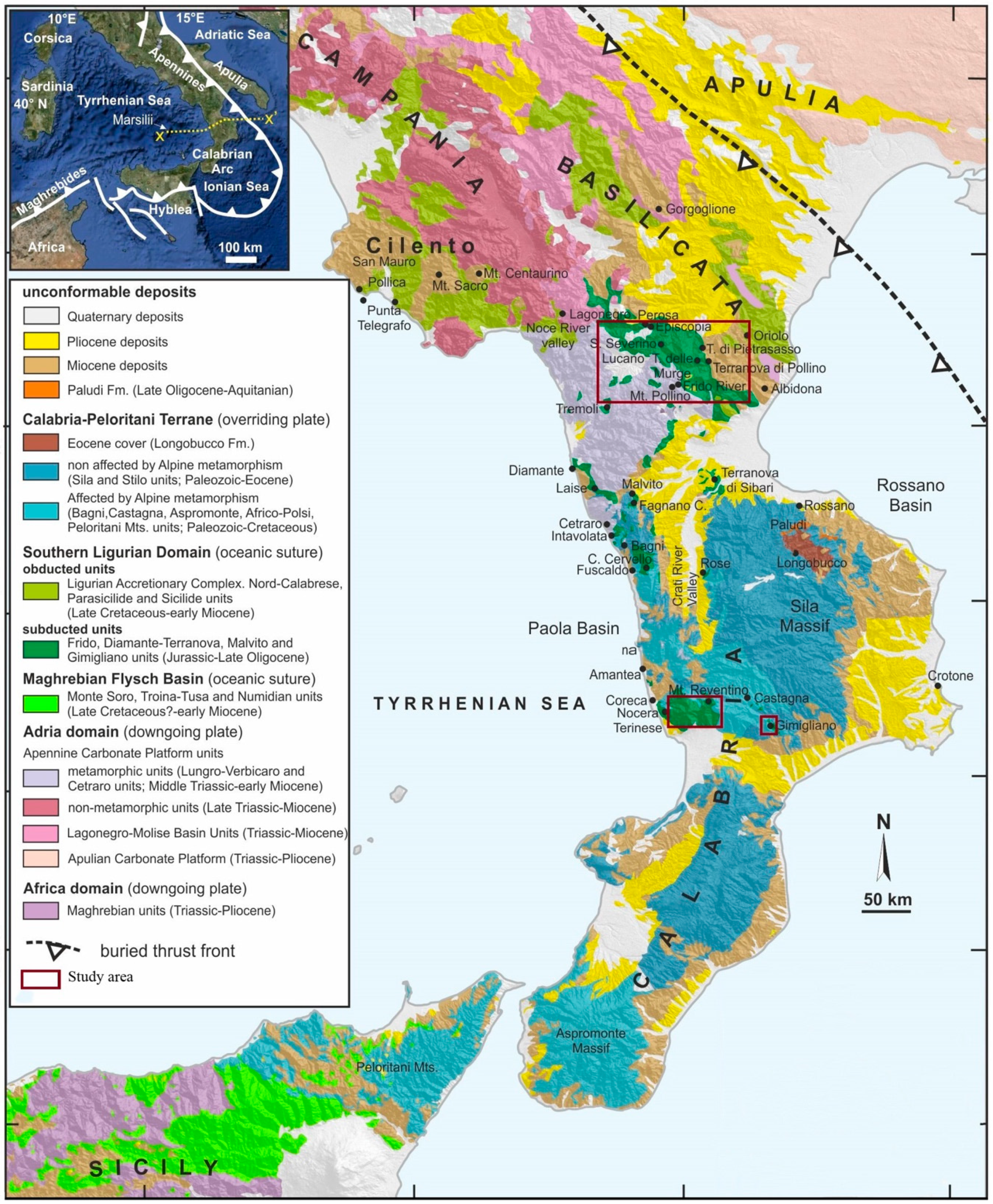

Figure 1. Geological sketch map of the Southern Apennines-Calabria-Peloritani chain and location of the study areas (modified after [50]).
Figure 1. Geological sketch map of the Southern Apennines-Calabria-Peloritani chain and location of the study areas (modified after [50]).
Fibers 07 00024 g001
Fibers 07 00024 g002 550

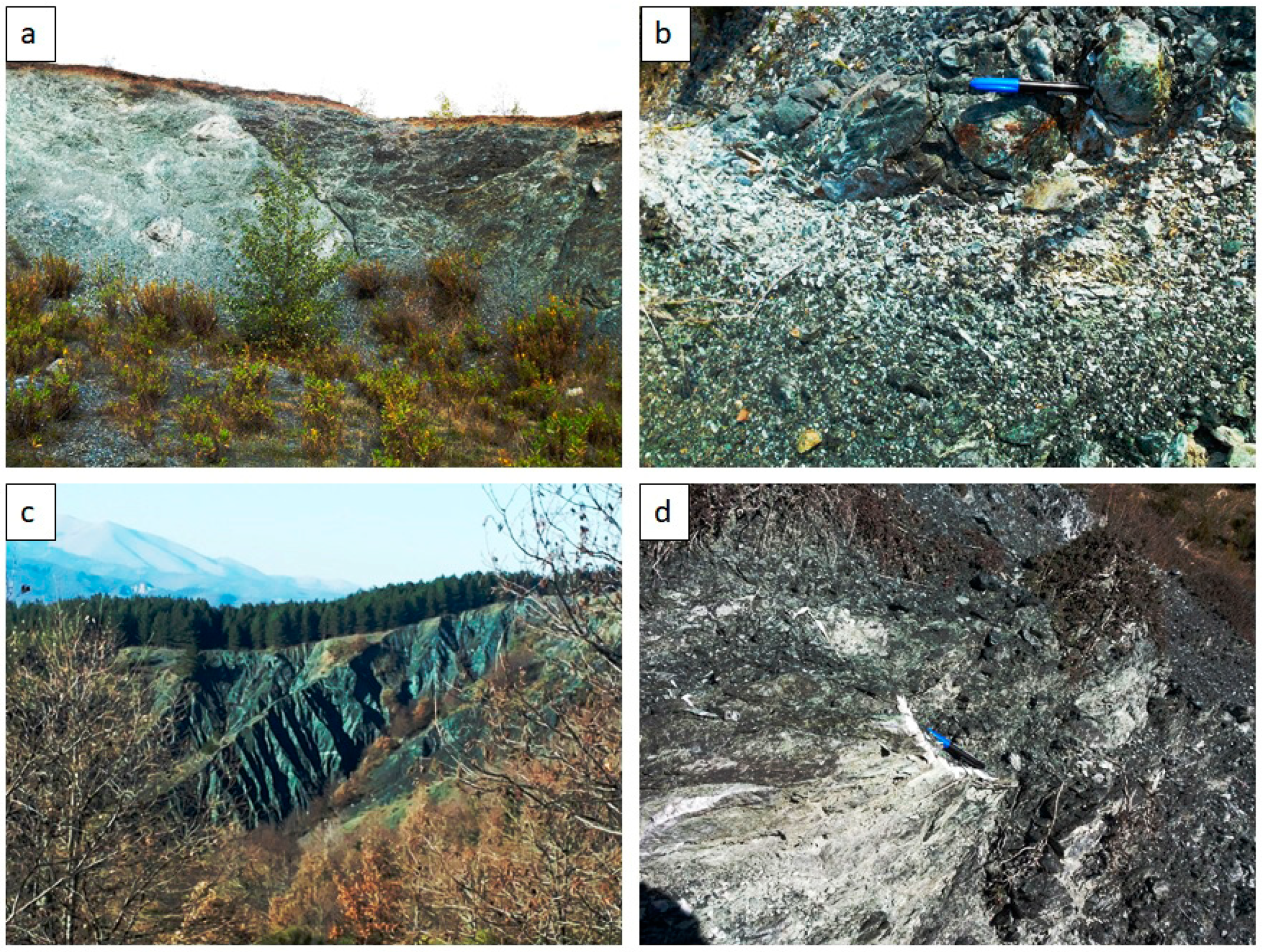

Figure 2. Serpentinite outcrops of the Pollino Massif: (a) Fagosa quarry, (b) Mt. Nandiniello, (c) Fosso Arcangelo site, and (d) San Severino Lucano site.
Figure 2. Serpentinite outcrops of the Pollino Massif: (a) Fagosa quarry, (b) Mt. Nandiniello, (c) Fosso Arcangelo site, and (d) San Severino Lucano site.
Fibers 07 00024 g002
Fibers 07 00024 g003 550
Figure 3. Secondary-electron image of serpentinite of the Pollino Massif showing (a) edenite, diopside, and calcite; (b) edenite crystals with both fibrous habit.
Figure 3. Secondary-electron image of serpentinite of the Pollino Massif showing (a) edenite, diopside, and calcite; (b) edenite crystals with both fibrous habit.
Fibers 07 00024 g003
Table
Table 1. Textural features and mineralogical assemblages of serpentinites from the study areas. Abbreviations of mineral names are from Whitney and Evans [51].
Table 1. Textural features and mineralogical assemblages of serpentinites from the study areas. Abbreviations of mineral names are from Whitney and Evans [51].
LocalityTextureMineral AssemblageFibrous Minerals
Pollino Massif 1Pseudomorphic texture and mylonitic-cataclastic structuresSrp ± Mag ± Tr-Act- Ed *-Hbl ± Clc ± Cpx ± Spl ± Ttn ± Cal ± Dol ± Tlc ± QzTremolite, antigorite, chrysotile, edenite*
Gimigliano-Mt. Reventino 2Protogranular textureSrp ± Mag ± Tr-Act ± Chl ± Cpx ± Spl ± Cal ± TlcTremolite, antigorite, chrysotile
1 Data from [32,33,52], 2 Data from [5,19,20,21], * This study.
Table
Table 2. Mineral assemblage of the studied serpentinites as detected by XRD, where (+ + +) = major phase, (++) = minor phase (<10%), (+) = trace phase, and (−) = absent.
Table 2. Mineral assemblage of the studied serpentinites as detected by XRD, where (+ + +) = major phase, (++) = minor phase (<10%), (+) = trace phase, and (−) = absent.
LocalitySerpentineMagnetiteAmphiboleCarbonatePyroxeneTalcQuartzTitaniteSpinelClinochlore
Pollino Massif 1+++++++++++++++++
Gimigliano-Mt. Reventino 2+++++++++––+++
1 This study, 2 Data from [5,19,20,21].
Table
Table 3. Chemistry of selected fibrous tremolite and Mg-Fe-hornblende crystals in the serpentinites of the Pollino Massif.
Table 3. Chemistry of selected fibrous tremolite and Mg-Fe-hornblende crystals in the serpentinites of the Pollino Massif.
N. Analysis73767778799110913098102
Oxides (wt%)----------
SiO254.58857.39255.67452.0453.73557.54755.01557.33751.65755.263
P2O50.031n.d.n.d.0.010.0160.0280.0240.057n.d.0.005
TiO20.1580.0110.0590.4330.2680.0750.059n.d.0.4820.065
Al2O32.7980.4791.5595.2823.5431.3692.509n.d.5.4841.871
Cr2O30.2240.0070.0920.4250.4860.0090.225n.d.0.5020.006
MnO0.1380.0890.0450.0260.1190.0820.0820.0220.030.17
FeO3.9253.1472.4753.2313.0642.6632.4012.0122.8717.065
NiO0.1080.090.050.0820.0760.045n.d.n.d.0.1390.05
MgO23.123.41524.40822.60223.23623.52423.62323.44521.8120.999
CaO11.42713.57412.84511.95912.06312.27312.52313.65312.4219.68
Na2O1.1920.090.4591.1871.1440.3580.8130.071.2961.995
K2O0.002n.d.0.0140.0080.0140.0140.0160.0220.0280.015
Fn.d.0.093n.d.0.0390.023n.d.0.0370.032n.d.n.d.
Cln.d.0.0180.0190.0040.020.0110.0060.010.0270.003
Sum97.69198.36297.69597.31197.79297.99697.31696.64596.74197.186
Final wt% values
MnO0.000.090.000.000.000.080.000.020.000.00
Mn2O30.150.000.050.030.130.000.090.000.030.19
FeO0.000.090.000.000.000.540.000.350.000.00
Fe2O34.363.392.753.593.412.362.671.853.197.85
H2O+2.142.142.172.052.102.182.152.182.052.15
Sum100.28100.88100.1599.74100.26100.4299.7699.0399.12100.14
SpeciesTrTrTrTrTrTrTrTrMg-Fe-HblMg-Fe-Hbl
Formula Assignments T (ideally 8 apfu)
Si7.4937.8007.6197.2077.3897.8137.5617.9077.2097.628
Al0.4530.0770.2510.7920.5740.1850.4060.0000.7910.304
Ti0.0160.0010.0060.0000.0280.0000.0060.0000.0000.007
Fe3+0.0360.1230.1230.0000.0080.0000.0250.0900.0000.061
T subtotal8.0008.0017.9998.0008.0008.0007.9998.0008.0008.000
Formula Assignments C (ideally 5 apfu)
Cr0.0240.0010.0100.0470.0530.0010.0240.0000.0550.001
Mn3+0.0160.0000.0050.0030.0140.0000.0100.0000.0040.020
Fe3+0.4140.2250.1600.3740.3440.2410.2510.1020.3350.755
Ni0.0120.0100.0060.0090.0080.0050.0000.0000.0160.006
Mg4.5344.7444.8194.4524.5814.7114.7154.8204.4294.219
C subtotal5.0005.0015.0005.0005.0005.0005.0004.9655.0015.001
Formula Assignments B (ideally 2 apfu)
Mg0.1930.0000.1600.2140.1820.0500.1250.0000.1080.102
Ca1.6811.9771.8401.7751.7771.7851.8442.0001.8571.432
Na0.1260.0230.0000.0110.0410.0940.0310.0000.0350.467
B subtotal2.0002.0002.0002.0002.0001.9992.0002.0002.0002.001
Formula Assignments A (from 0 to 1 apfu)
Ca0.0000.0000.0440.0000.0000.0000.0000.0170.0000.000
Na0.1910.0000.1220.3080.2640.0000.1860.0190.3160.067
K0.0000.0000.0020.0010.0020.0020.0030.0040.0050.003
A subtotal0.1910.0000.1680.3090.2660.0020.1890.0400.3210.070
Sum T,C,B,A15.19115.00215.16715.30915.26615.00115.18815.00515.32215.072
n.d. = not detected.
Table
Table 4. Chemistry of selected fibrous edenite crystals in serpentinites samples from the Pollino Massif.
Table 4. Chemistry of selected fibrous edenite crystals in serpentinites samples from the Pollino Massif.
N. Analysis5051575861636869707778
Oxides (wt %)
SiO253.34754.45153.06953.45253.38754.12952.79952.95554.29351.26453.878
P2O50.0090.0200.0220.0570.0130.0140.0060.0150.0020.0100.051
TiO20.0060.0060.0170.0250.0000.0120.0410.0120.0210.0020.023
Al2O30.9580.2591.5290.8580.7470.4862.7090.7850.3821.8690.388
Cr2O30.0150.0000.0160.0000.0240.0130.0000.0060.0030.0000.007
MnO0.1510.0610.1840.0820.0360.1240.1200.1240.1370.1470.124
FeO1.2571.2692.3031.7671.3421.8522.2331.9611.4352.0372.852
NiO0.0140.0430.0000.0500.0610.0000.0000.0480.0260.0000.010
MgO17.68017.07616.51216.91717.50616.72016.33216.70417.10117.06616.990
CaO23.64025.34024.52924.83324.71625.22824.07924.94925.50724.55525.405
Na2O0.1020.0570.1450.0910.0710.0760.1180.0620.1020.0400.056
K2O0.0460.0280.0360.0370.0070.0000.0140.0260.0000.0180.005
F0.0000.0000.0140.0000.0000.0240.0200.0000.0000.0130.000
Cl0.0230.0160.0730.0280.0140.0110.0160.0020.0130.0130.007
Sum97.2498.6398.4398.1997.9298.6898.4897.6599.0297.0299.80
Final wt % values
Mn2O30.170.070.210.090.040.140.130.140.150.160.14
Fe2O31.401.412.561.961.492.062.482.181.602.263.17
H2O+2.122.112.082.102.112.102.092.102.102.092.09
Sum99.52100.88100.79100.49100.19101.00100.8399.98101.3099.36102.22
SpeciesEdEdEdEdEdEdEdEdEdEdEd
Formula Assignments T (ideally 8 apfu)
Si7.5737.6477.4857.5527.5537.6077.4217.5327.6057.3517.516
P0.0010.0010.0010.0030.0010.001n.d.0.001n.d.0.0010.003
Al0.1600.0430.2540.1430.1250.0800.4490.1320.0630.3160.064
Ti0.0010.0010.0020.003n.d.0.0010.0040.0010.002n.d.0.002
Fe3+0.1490.1490.2580.2090.1590.2180.1260.2330.1680.2440.333
T subtotal7.8847.8418.0007.9107.8387.9078.0007.8997.8387.9127.918
Formula Assignments C (ideally 5 apfu)
Cr0.002n.d.0.002n.d.0.0030.001n.d.0.001n.d.n.d.0.001
Mn3+0.0180.0070.0220.0100.0040.0150.0140.0150.0160.0180.015
Fe3+n.d.n.d.0.014n.d.n.d.n.d.0.137n.d.n.d.n.d.n.d.
Ni0.0020.005n.d.0.0060.007n.d.n.d.0.0050.003n.d.0.001
Mg3.7423.5753.4723.5633.6923.5033.4223.5423.5713.6483.533
C subtotal3.7643.5873.5103.5793.7063.5193.5733.5633.5903.6663.550
Formula Assignments B (ideally 2 apfu)
Ca2.0002.0002.0002.0002.0002.0002.0002.0002.0002.0002.000
B subtotal2.0002.0002.0002.0002.0002.0002.0002.0002.0002.0002.000
Formula Assignments A (from 0 to 1 apfu)
Ca1.5961.8131.7071.7591.7471.7991.6261.8021.8281.7731.797
Na0.0280.0160.0400.0250.0190.0210.0320.0170.0280.0110.015
K0.0080.0050.0060.0070.001n.d.0.0030.005n.d.0.0030.001
A subtotal1.6321.8341.7531.7911.7671.8201.6611.8241.8561.7871.813
Sum T,C,B,A15.28015.26215.26315.28015.31115.24615.23415.28615.28415.36515.281
n.d. = not detected.

Share and Cite

MDPI and ACS Style

Dichicco, M.C.; Paternoster, M.; Rizzo, G.; Sinisi, R. Mineralogical Asbestos Assessment in the Southern Apennines (Italy): A Review. Fibers 2019, 7, 24. https://doi.org/10.3390/fib7030024

AMA Style

Dichicco MC, Paternoster M, Rizzo G, Sinisi R. Mineralogical Asbestos Assessment in the Southern Apennines (Italy): A Review. Fibers. 2019; 7(3):24. https://doi.org/10.3390/fib7030024

Chicago/Turabian Style

Dichicco, Maria Carmela, Michele Paternoster, Giovanna Rizzo, and Rosa Sinisi. 2019. "Mineralogical Asbestos Assessment in the Southern Apennines (Italy): A Review" Fibers 7, no. 3: 24. https://doi.org/10.3390/fib7030024

APA Style

Dichicco, M. C., Paternoster, M., Rizzo, G., & Sinisi, R. (2019). Mineralogical Asbestos Assessment in the Southern Apennines (Italy): A Review. Fibers, 7(3), 24. https://doi.org/10.3390/fib7030024

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
