Next Article in Journal / Special Issue
The Significance and Insignificance of Carbon Nanotube-Induced Inflammation
Previous Article in Journal
Energy Transfer between Er3+ and Pr3+ for 2.7 μm Fiber Laser Material
Article Menu

Export Article

Open AccessArticle
Fibers 2014, 2(1), 34-44;

Hierarchically Self-Assembled Nanofiber Films from Amylose-Grafted Carboxymethyl Cellulose

Graduate School of Science and Engineering, Kagoshima University, 1-21-40 Korimoto, Kagoshima 890-0065, Japan
Research Center for Environmentally Friendly Materials Engineering, Muroran Institute of Technology, 27-1 Mizumoto-cho, Muroran, Hokkaido 050-8585, Japan
Author to whom correspondence should be addressed.
Received: 18 November 2013 / Revised: 21 January 2014 / Accepted: 22 January 2014 / Published: 28 January 2014
(This article belongs to the Special Issue Nanofibres: Friend or Foe?)
Full-Text   |   PDF [783 KB, uploaded 28 January 2014]   |

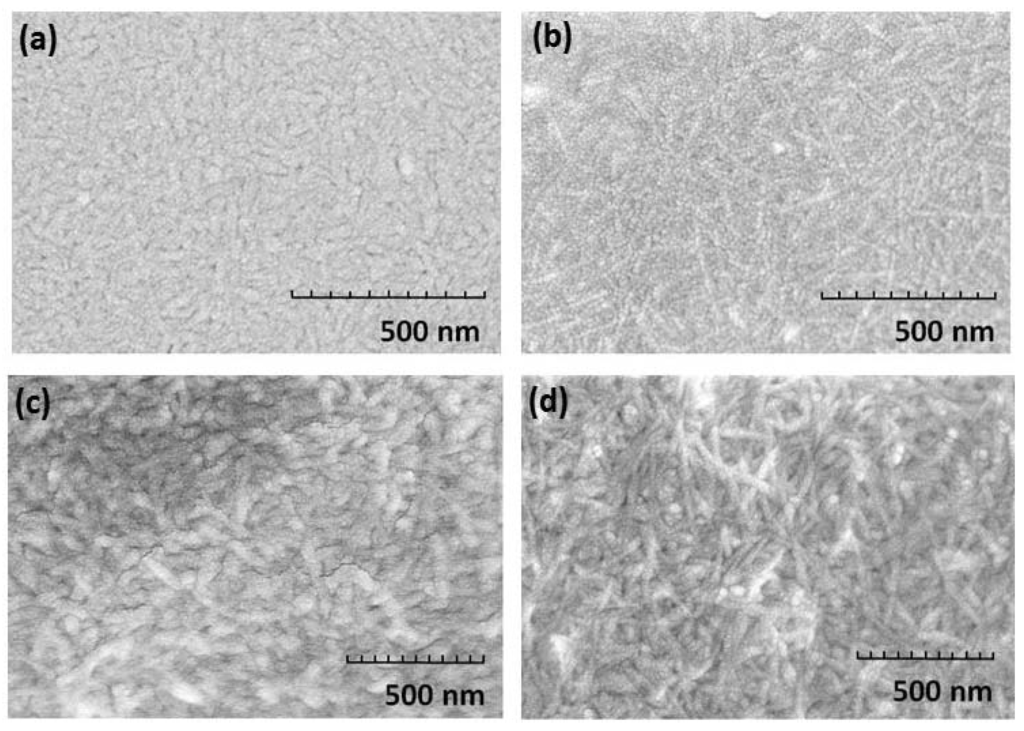

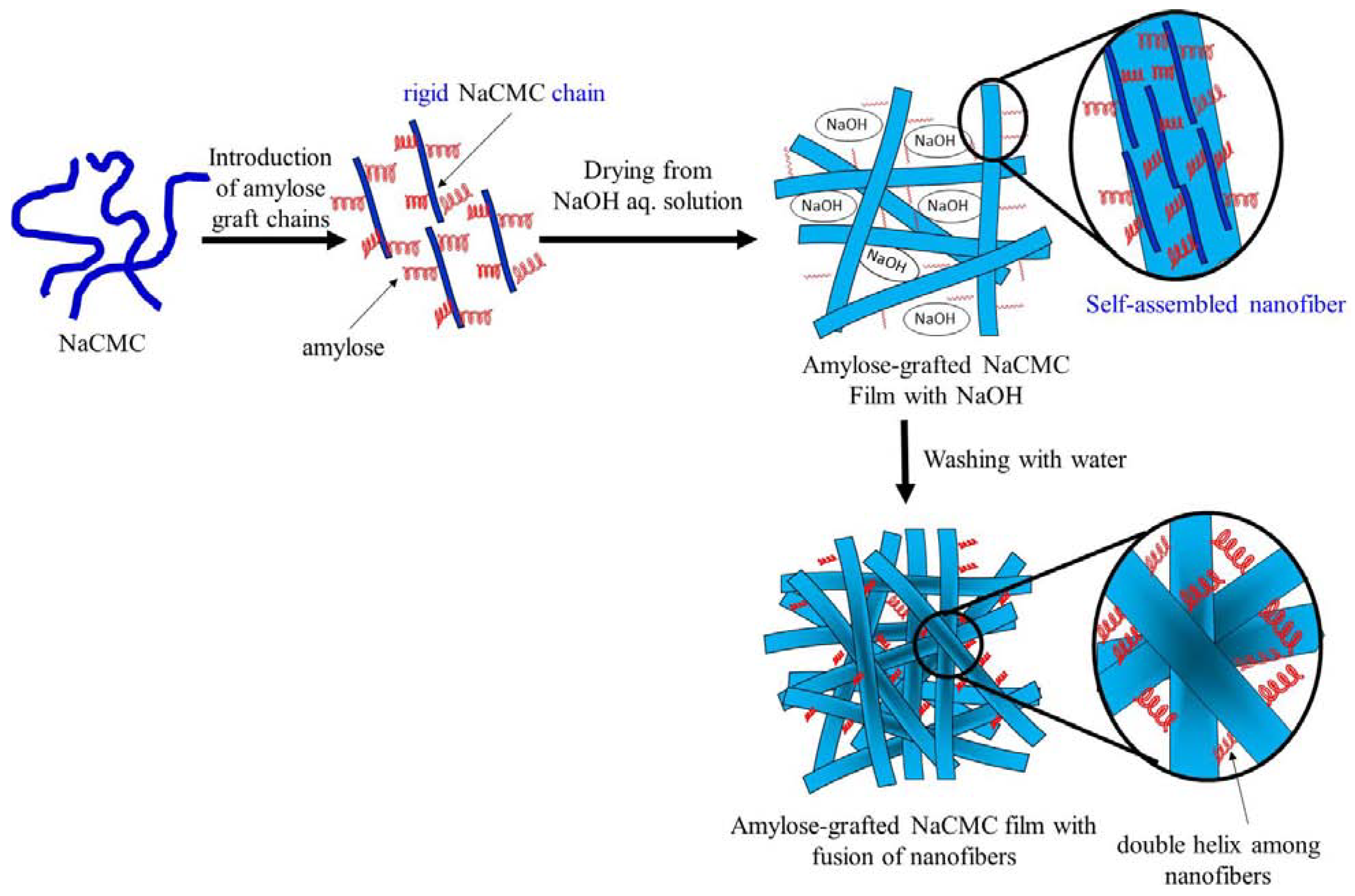

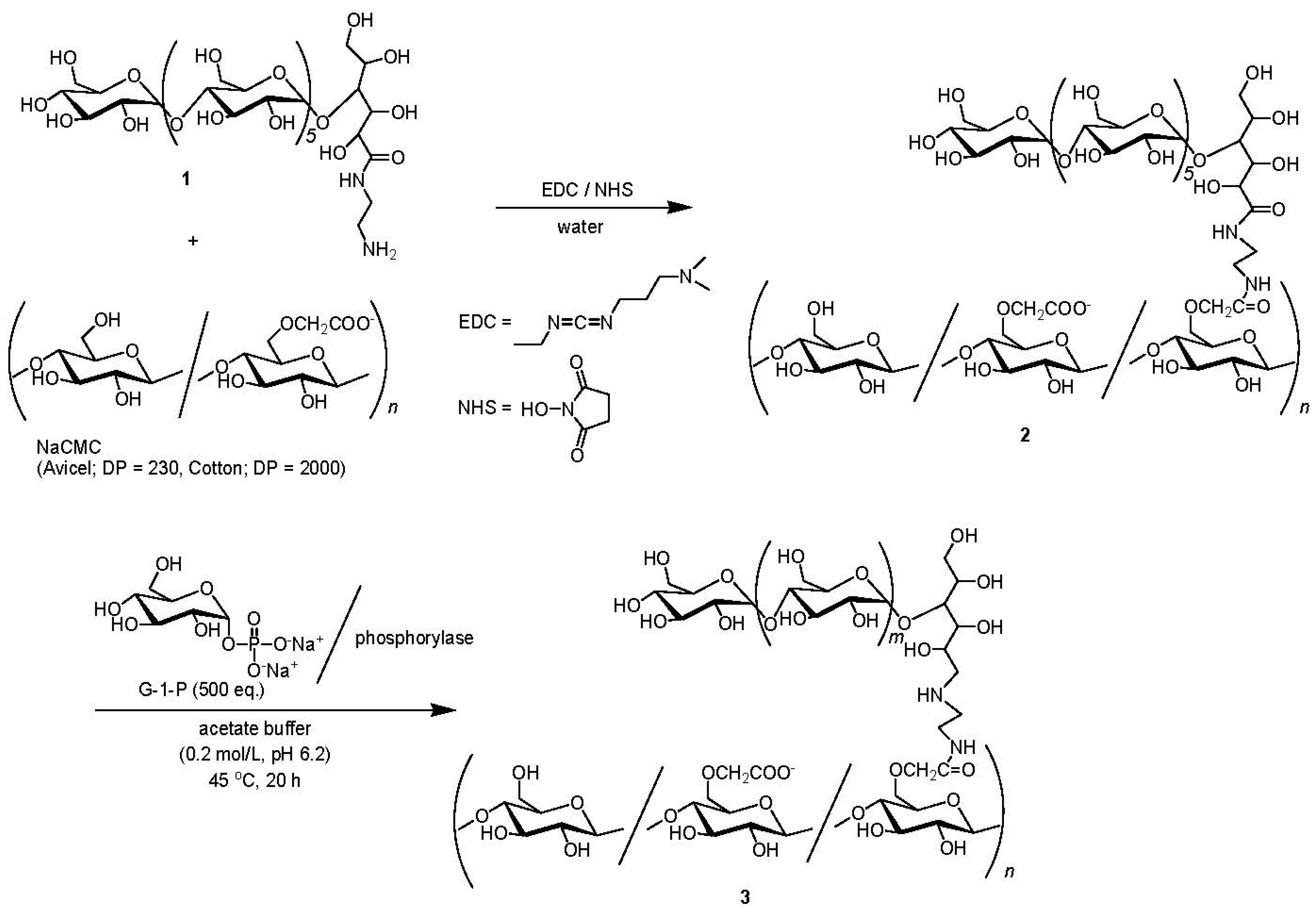

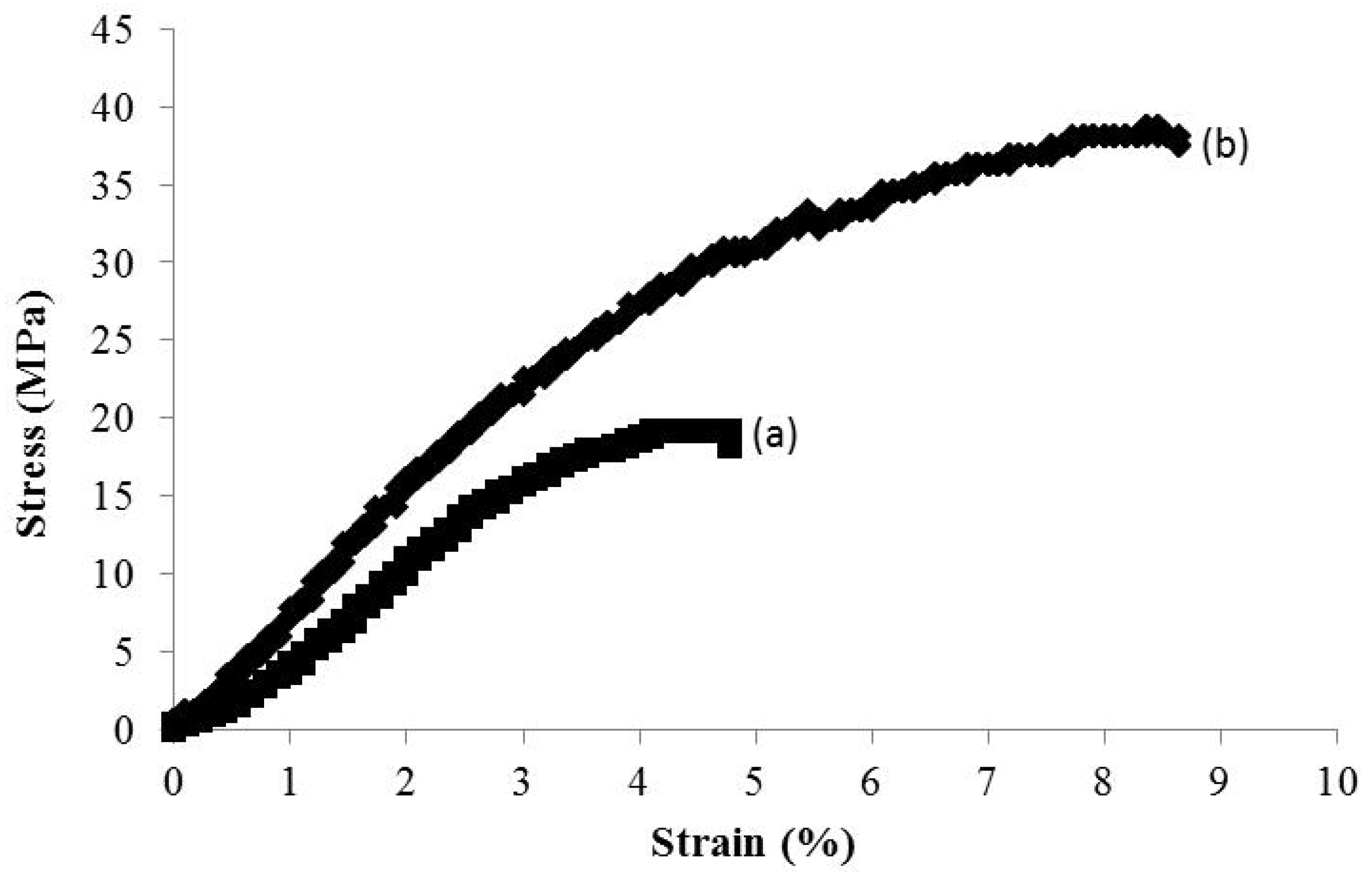

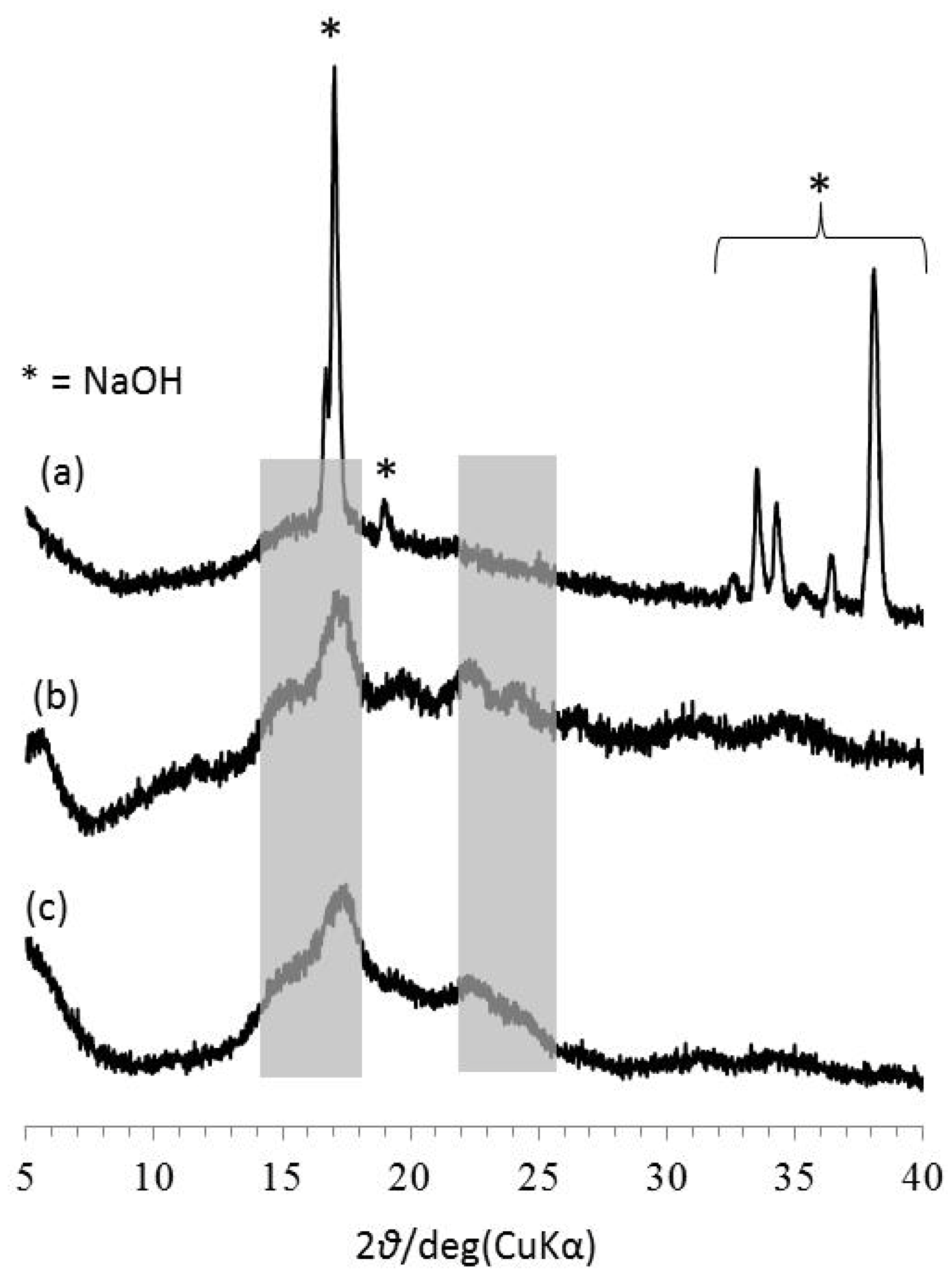

In this paper, we report the formation of hierarchically self-assembled nanofiber films from amylose-grafted sodium carboxymethyl celluloses (NaCMCs) that were synthesized by a chemoenzymatic approach. First, maltooligosaccharide primer-grafted NaCMCs were prepared by a chemical reaction using two kinds of NaCMCs with different degrees of polymerization (DPs) from Avicel and cotton sources. Then, phosphorylase-catalyzed enzymatic polymerization of α-d-glucose 1-phosphate from the nonreducing ends of the primer chains on the products was conducted to produce the prescribed amylose-grafted NaCMCs. The films were obtained by drying aqueous alkaline solutions of the amylose-grafted NaCMCs. The scanning electron microscopy (SEM) image of the film fabricated from the material with the higher DP from the cotton source showed a clear, self-assembled, highly condensed tangle of nanofibers. The SEM image of the material with the lower DP from the Avicel source, on the other hand, showed an unclear nanofiber morphology. These results indicate that the DPs of the main chains in the materials strongly affected the hierarchically self-assembled nanofiber formation. The SEM images of the films after washing out the alkali, furthermore, showed that the fibers partially merged with each other at the interfacial area owing to the double helix formation between the amylose-grafted chains. The mechanical properties of the films under tensile mode also depended on the self-assembled morphologies of the amylose-grafted NaCMCs from the different sources. View Full-Text
Keywords: self-assembled nanofiber; amylose; carboxymethyl cellulose; chemoenzymatic self-assembled nanofiber; amylose; carboxymethyl cellulose; chemoenzymatic

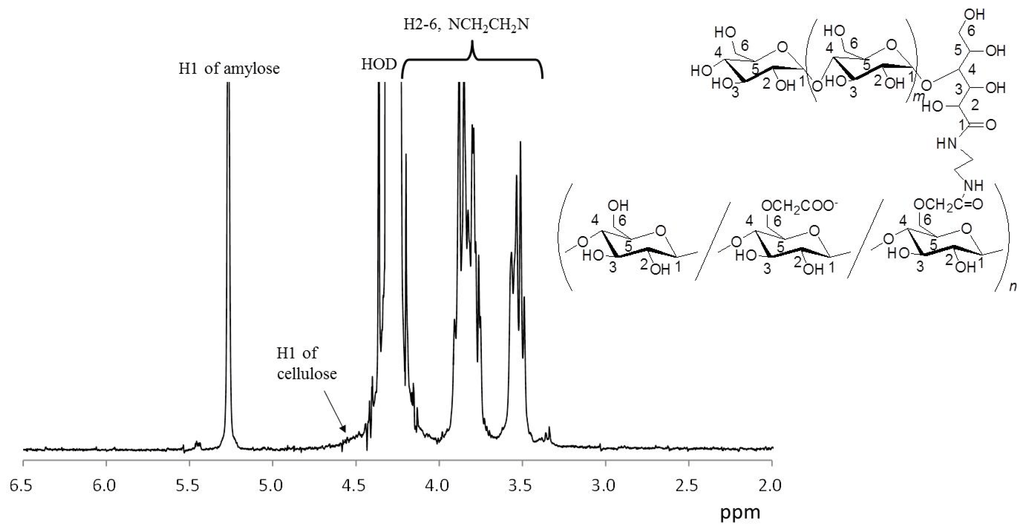

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Hatanaka, D.; Takemoto, Y.; Yamamoto, K.; Kadokawa, J.-I. Hierarchically Self-Assembled Nanofiber Films from Amylose-Grafted Carboxymethyl Cellulose. Fibers 2014, 2, 34-44.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Fibers EISSN 2079-6439 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
