A Review of Fibre Reinforced Polymer Structures

Abstract

This paper reviews Fibre Reinforced Polymer (FRP) composites in Civil Engineering applications. Three FRP types are used in Structural Engineering: FRP profiles for new construction, FRP rebars and FRP strengthening systems. Basic materials (fibres and resins), manufacturing processes and material properties are discussed. The focus of the paper is on all-FRP new-build structures and their joints. All-FRP structures use pultruded FRP profiles. Their connections and joints use bolting, bonding or a combination of both. For plate-to-pate connections, effects of geometry, fibre direction, type and rate of loading, bolt torque and bolt hole clearance, and washers on failure modes and strength are reviewed. FRP beam-columns joints are also reviewed. The joints are divided into five categories: web cleated, web and flange cleated, high strength, plate bolted and box profile joints. The effect of both static and cyclic loading on joints is studied. The joints’ failure modes are also discussed.

1. Introduction

Masonry, timber, steel and concrete are traditional materials that have been used in construction for the last 100 years. Fibre Reinforced Polymer (FRP) is a relatively new material, which has been used in buildings and bridges for over 50 years. FRP use in marine, automotive and aerospace industries dates back to the 1930s [1,2]; it has also been used in rail, sport, and wind turbines. Construction uses about a quarter of globally produced FRPs [3,4,5]. Figure 1 shows the market share of FRPs by applications. FRP composites have fibres encased in a polymer resin. For structural use, glass, carbon, or aramid fibres are usually embedded in polyester, vinylester or epoxy resins. The fibres give strength and stiffness, whilst the resin glues the fibres together; it also protects the fibres and transfers forces between them [1,2].

Lightweight, high strength, corrosion resistance and expected durability over their lifetime are the key benefits of FRPs [6,7,8]. Glass or carbon fibre reinforced polymer (GFRP or CFRP) shapes are used in structural applications. GFRP is more common due to its electrical insulation and electromagnetic transparency, whereas CFRP is electro-conductive [9]. GFRP is also less energy intensive to produce than CFRP. FRPs generally have linear-elastic stress–strain behaviour up to failure. This is described as a brittle failure, a type of sudden failure without enough warning. Due to brittle nature of FRPs, concepts of stress redistribution and plasticity are often discarded [10]. FRPs also have relatively poor transverse or shear strength [11]. There are also concerns about behaviour of FRP at elevated temperatures and exposure to fire [6]. There are three types of FRPs in Civil Engineering: (1) All-FRP structures for new-build; (2) FRP rebars; (3) FRP strengthening systems. This paper reviews the applications, materials, and manufacturing. The focus is on all-FRP structures, especially their connections and joints.

There is a good amount of research on members in all-FRP structures. The challenge lies in dealing with the connections and joints for FRP members. FRP joint details are currently copied from steel design practice, which mostly leads to oversized FRP components. Due to no plastic redistribution, stress concentrations around bolt holes are higher than ductile streel material, whilst anisotropy and low transverse properties of FRPs add yet more complexity [1]. Whilst there are no agreed design codes for all-FRP structures, there are design guides though and manufacturers’ manuals [9,12,13,14,15,16,17]; however, they have no legal standing. The designers usually rely on the design guides produced by manufacturers. FRP is a heterogenous material, which has lengthwise strength comparable with structural steel and transverse strength about a third of the longitudinal value. However, the material capacity of FRPs is rarely utilised, as the design is often controlled by deflections rather than strength.

Joints between FRP members can be bolted, bonded or hybrid—combining bolting and bonding [7]. Bolted joints are useful for demountable structures, but bolt holes create stress concentrations due to discontinuity of fibres and can lead to moisture ingress [18]. Adhesively bonded joints use the maximum strength and stiffness of fibres without disturbing fibres, but they result in sudden failure and are affected by humidity and high temperatures [10]. Manufacturers [9,12,13] recommend using bolted or hybrid joints, and discourage use of adhesive bonding alone. Combining bolting and bonding may not be needed, as the load is mainly taken by the adhesive due to stiff load path, but there are benefits of hybrid joints in some situations. Adhesive bonding is good at taking shear loads, while bolting is the best at transferring direct tension and transverse loads. Fatigue life and fire performance of hybrid joints is better than bolted or bonded joints alone. Hybrid joints resist load in all directions too; they can be used in high temperature environment, if the extra cost of fabrication is justified [19,20,21,22].

Major review papers on FRP joints in buildings have been written by Mottram [23,24] and Turvey [25] with a review period from 1980s to 2014. These papers discuss testing arrangement, joint configurations and moment-rotation response of pultruded FRP connections and joints in detail. The present paper gives a wider perspective of FRPs in Civil Engineering with a focus on FRP plate-to-plate connections and member joints, presenting a good state-of-the-art review of FRPs in Structural Engineering from 1980s to 2021. It is vital to create awareness about structural use of FRP in structural engineering community and academia. The paper also provides a reasonable database for typical material properties, applications, manufacturing processes and current design guidelines. Over 160 documents have been reviewed from 21 different countries. The documents per country are identified as: Japan: 1, China: 3, Canada: 8, Switzerland: 11, USA: 36, Saudi Arabia: 2, South Africa: 1, Belgium: 1, Portugal: 6, UK: 66, Denmark: 2, Germany: 1, Italy: 9, Sweden: 3, Norway: 1, Russia: 1, Netherlands: 2, Ireland: 1, Korea: 1, Egypt: 5, Greece 2 and Australia: 3.

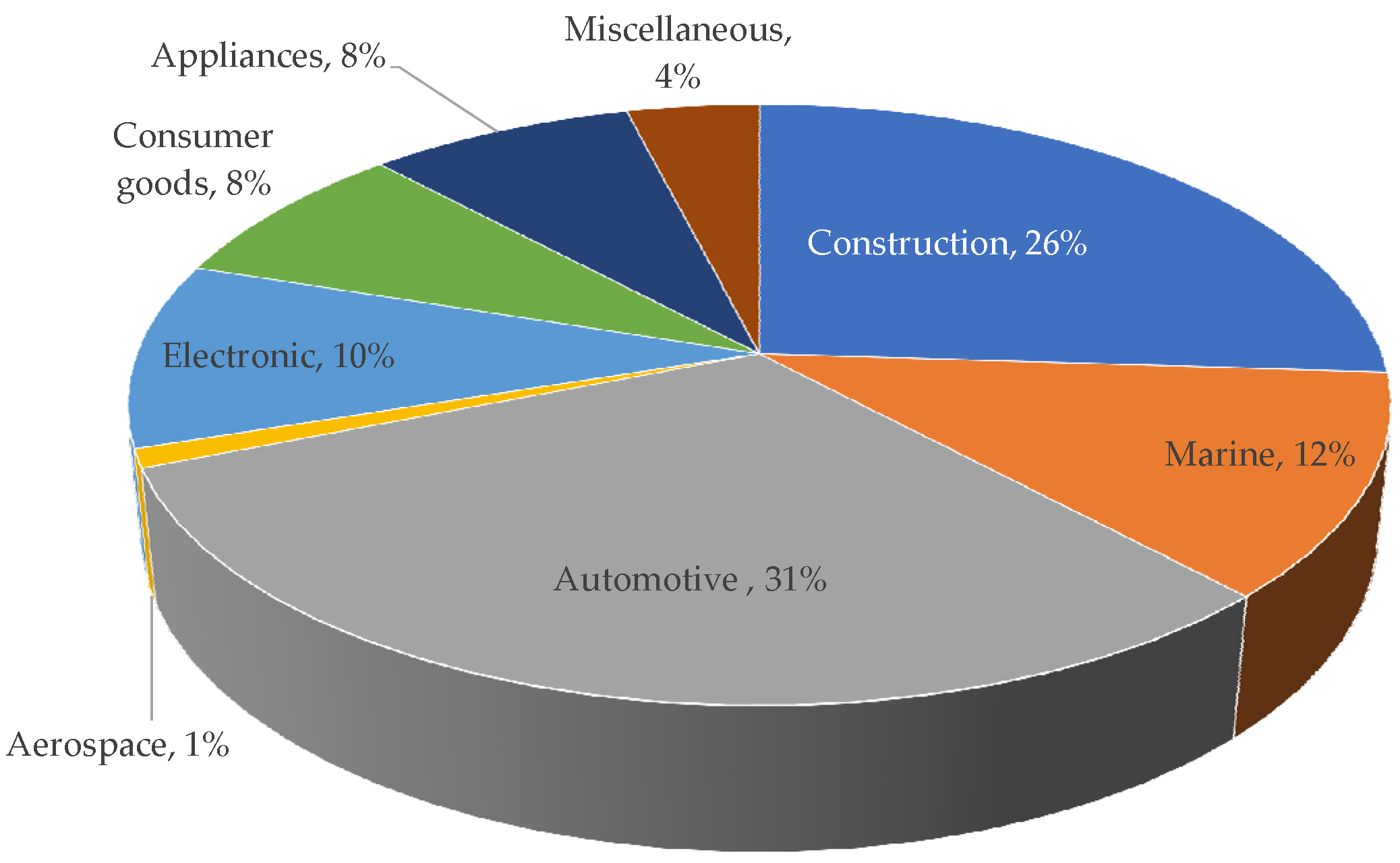

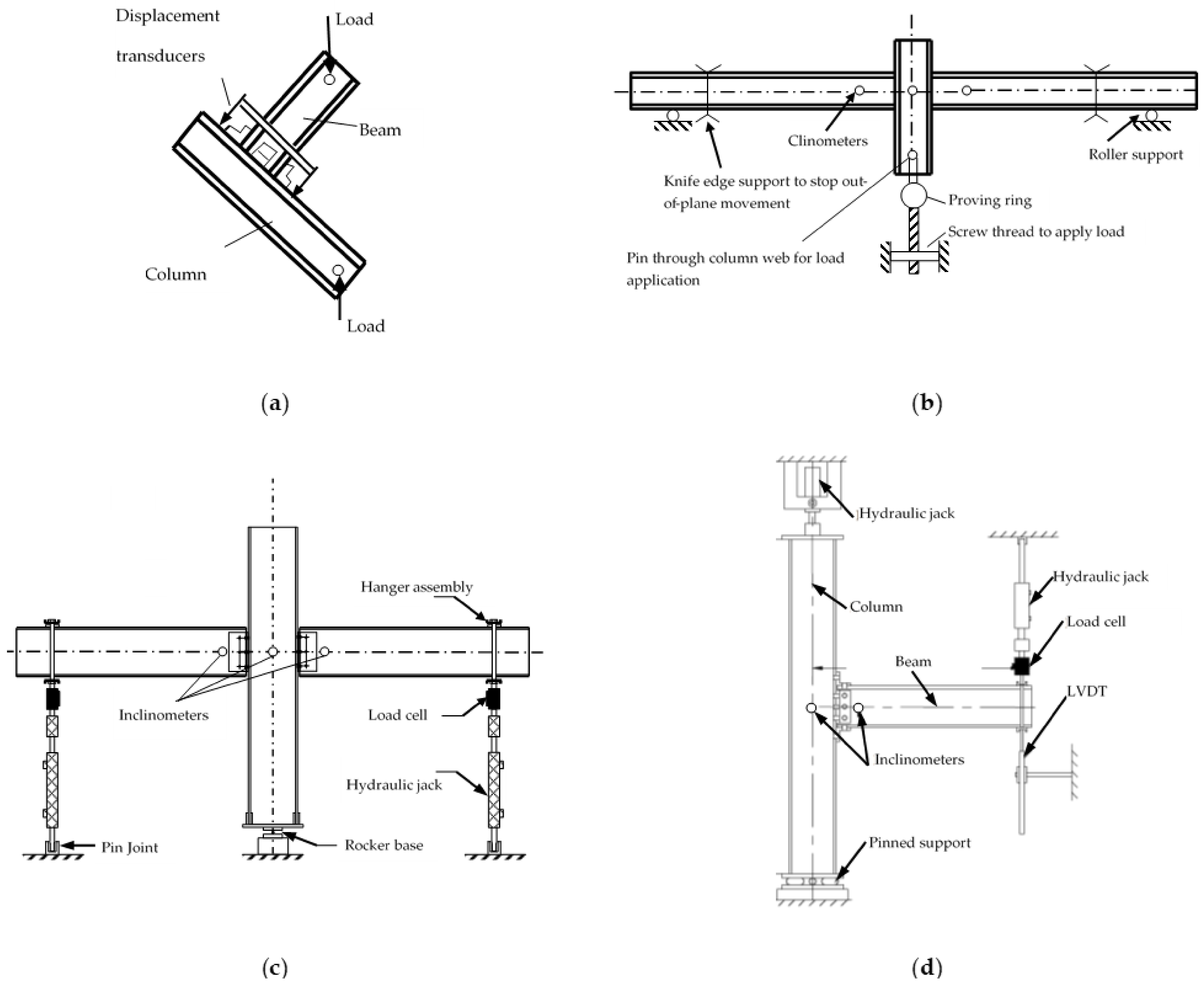

A comprehensive review of monotonic and cyclic response of beam–column joints together with FRP plate-to-plate connections is presented in this paper. Substantial research on cyclic behaviour of FRP joints has emerged in past five years, which has not been reviewed in any other review papers in [23,24,25]. This paper is novel in a sense that it reviews a good number of publications on cyclic performance of FRP joints published in last five years. The main emphasis of the paper is on experimental studies on FRP connections and joints. The studies on numerical modelling of FRP joints are not included in this review paper; moreover, this paper presents the key findings from past papers in a tabular format for easy understanding of the readers by identifying the major knowledge gaps in FRP joints and the need for future research in those areas. The paper is beneficial for structural engineers and researchers for quick and easy access to main conclusions from research on FRP connection and joints in last 40 years.

The objective of this paper is to review research conducted on all-FRP connections and joints subjected to monotonic and cyclic loading, in addition to providing a wider context of FRP’s use as reinforcing bars in concrete and use in repair and rehabilitation of existing structures. To the author’s knowledge, no review paper exists on cyclic performance of all-FRP joints. This paper addresses the gap in knowledge. Main findings from various papers are presented as bullet points for identifying key research and development areas for future. Most past review papers focus on niche research areas of FRP in Civil Engineering. This paper not only provides a review of all-FRP joints but also discusses broader use of FRP in other Civil Engineering applications; this makes it a key reference paper for both structural engineers and academics for the state-of-the-art research in FRP.

Structural Engineering applications of FRP composites are discussed in Section 2. All-FRP structures for new-build including buildings and bridges are briefly reviewed. Then, FRP rebars, grids, prestressing tendons, and formwork for use in concrete structures are reviewed. The section also highlights use of FRP sheets, plates, strips and fabrics for repair and rehabilitation of existing structures. Section 3 is about materials and manufacturing of FRP composites. Different fibres and resins are discussed. Health issues and mitigation measures related to polymer resins are also discussed. Manufacturing processes, such as pultrusion, hand layup and other methods are described. Major research on FRP plate-to-plate connections subjected to in-plane forces is reviewed in Section 4. The effects of geometry, lateral restraint, fastener parameters, fibre orientation and multi-bolted configurations are reviewed. Typical failure modes, such as net-tension, shear-out, cleavage and bearing are reviewed. Section 5 deals with FRP frame joints between members. The joints subjected to both monotonic and cyclic loading are reviewed. The main findings from research in FRP connections and joints are presented in a tabular format. Section 6 is about setbacks and future of FRP composites in Civil Engineering. Finally, conclusions and research needs are presented in Section 7.

2. FRP Applications

2.1. All-FRP New-Build Structurs

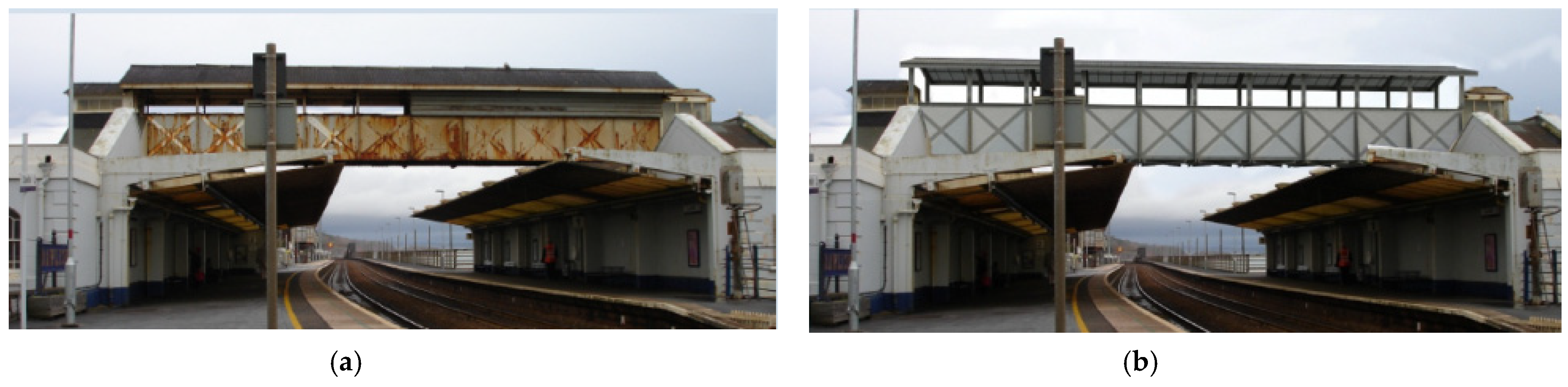

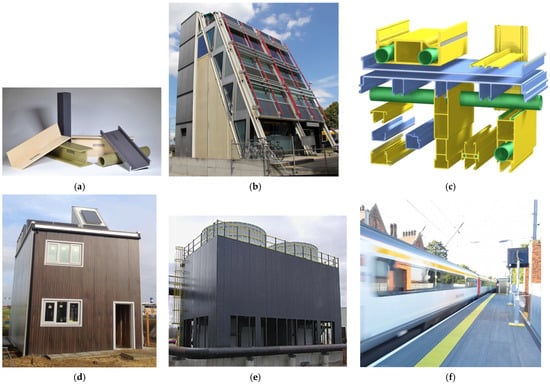

All-FRP new-build structures mainly use pultruded fibre reinforced shapes. Pultrusion is an automatic process for producing constant section profiles on a mass scale (details at Section 3.2.1). The FRP shapes look like structural steel sections but behave similarly to wood [26]. The standard profiles are produced as I, H, C, leg-angle and tubular sections, see Figure 2a. FRP elements have been used in building systems, bridges, cooling towers, chemical and food processing plants, railway platforms and marine structures [7,8,27,28,29,30]. The first mobile five-storey FRP building Eyecatcher (Figure 2b) was exhibited in 1999 at Swiss Building Fair. Later, it was relocated to another location in Basel, where it still exists as an office building. The building had three adhesively bonded parallel frames with wooden decks. Bolted joints were only used where needed for dismantling [26,31].

Startlink Lightweight Building System (SLBS) was introduced in the UK in 2012, resulting in construction of a pultruded FRP test house at the developer’s site in Bourne, Lincolnshire, UK. The prototype/concept modular FRP profiles are shown in Figure 2c. However, these concept profiles and their snap-fit connections were not pursued further. Much simpler and fewer pultruded FRP profiles, with easy to assemble connections, were used in the construction of the actual test house. This all-FRP test house was supported on composite piles; and it was built just in two weeks [32,33], see Figure 2d. The Startlink test house does not exist anymore. It has been taken down; and the author is not aware if it has been constructed anywhere else in the UK.

FRPs are also used in cooling tower industry. Cooling towers are used for heating, cooling, ventilation and industrial purposes. GFRP profiles can resist corrosion and exposure to water often encountered in cooling towers. Manufactures [9,12] supply bespoke and standard FRP elements for cooling towers, see Figure 2e. GFRP railway platforms are also becoming popular due to speed of construction and ease of assembly [9,13,34], see Figure 2f. FRP composites are also used in secondary structures; these include insulated ladders, floor gratings, stairways with handrails, working platforms and walkways and building façade panels [1]. Bridge engineering applications of FRP are presented in Figure 3 and are discussed next.

Corrosion and fatigue resistance, high strength-to-weight ratio and formability are some of the desirable properties of FRP for bridges [3,41]. FRPs have been used to repair, replace, or retrofit existing steel or concrete bridges. FRP is used in new footbridge and highway bridges. Critical elements in bridges are generally hybrids-FRP and traditional materials. Global developments in FRP bridges are reviewed in a recent paper [3]. FRP bridges in the UK are reviewed in [42], the US in [43,44] and the Netherlands in [39]. FRP bridges are fabricated using standard or bespoke FRP elements [45]. Aberfeldy, Scotland cable stayed bridge was the first major FRP composite footbridge completed in 1992. The 113 m long bridge had pultruded GFRP composite deck supported by aramid cables attached to GFRP A-frames. It carried pedestrians and golf buggies on a golf course, see Figure 3a. Only foundations were constructed from concrete [36,42,45].

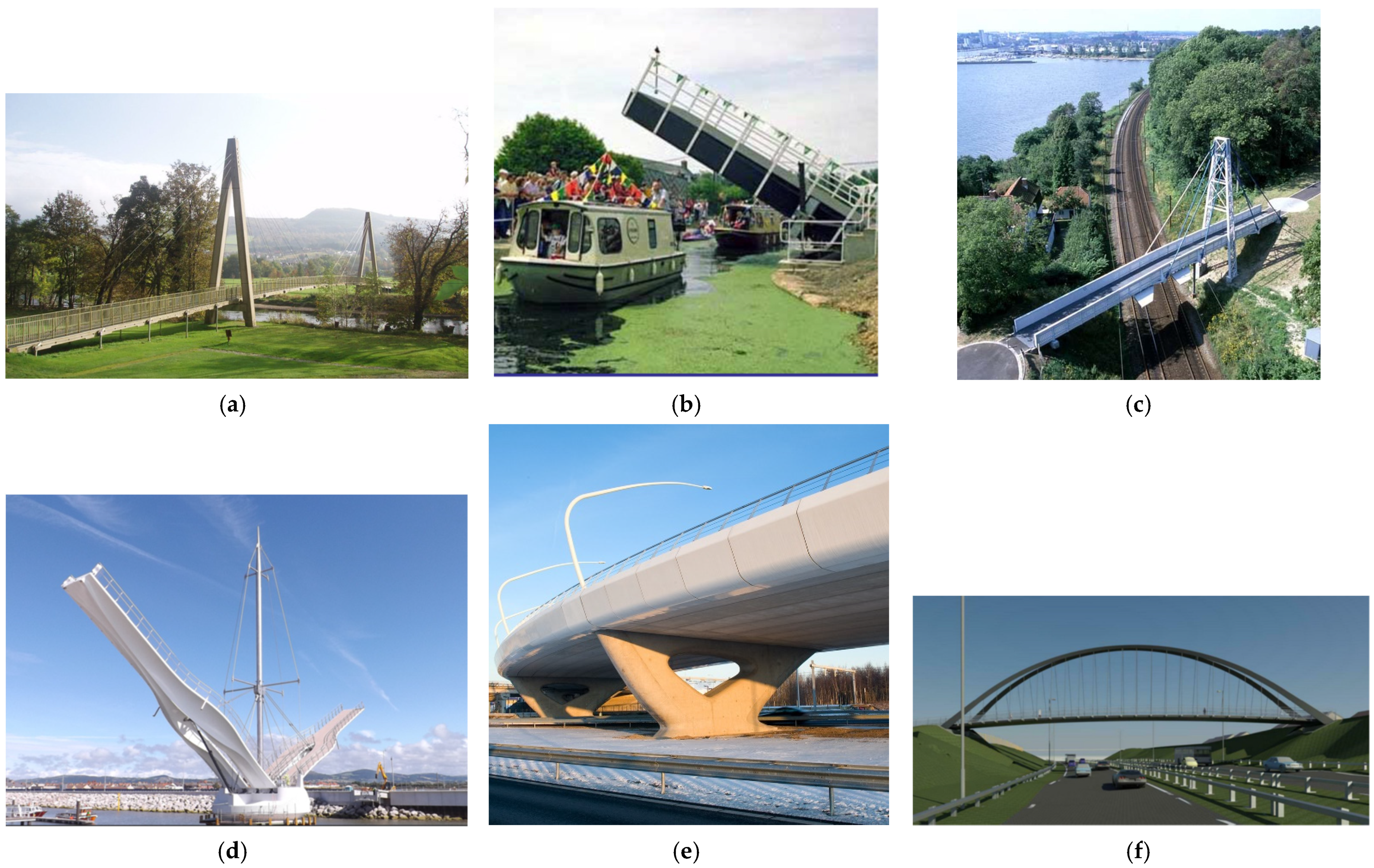

The first ever FRP road bridge is the Bonds Mill Lift bridge near Gloucester, UK (Figure 3b); it was constructed over a canal in 1994. The bridge had a multi-cellular box girder filled with structural foam to resist local bending from wheel loads [15,36,42,45]. The lightweight bridge elements helped in mechanical lifting system [45]. The first FRP composite bridge in the USA was constructed over no-name Creek, Kensas in 1996. The bridge used decks with glass FRP laminated skin and corrugated core [15]. Similarly, in Kolding, Denmark, an all-FRP cable stayed footbridge was constructed in 1997, see Figure 3c. It was the first FRP bridge over a busy railway line in Europe. The bridge girders and pylons were pultruded GFRP. Only bolts and abutments were stainless steel [37]. In 2011, a new all-FRP bridge was constructed at Dawlish rail station in Exeter, UK to replace a rusty steel bridge. The new FRP bridge mimicked the shape of the old steel bridge, see Figure 4. The new FRP bridge survived 2014 storms; it remained undamaged and corrosion free [46,47].

The best example of combining carbon and glass FRPs is the Pont y Ddraig or the Dragons bridge (Figure 3d) at Rhyl Harbour, North Wales, built in 2013. This double bascule footbridge uses the freedom in geometry and lightweight of FRP materials. It had two mirroring, 32 m long decks hinged on a central caisson. The decks can be lifted for navigation by cables running up to a central stainless steel tower. They are made from resin-infused FRPs [15,38]. FRP edge elements were used in the fly-over Waarderpolder in Haarlem, Netherlands (Figure 3e). Use of FRP edge elements removes durability concerns inherent to steel and concrete edge elements, and give more freedom and choice in geometry [39]; moreover, the FRP edge elements are also aesthetically pleasing. The proposed Emersons Green East FRP cycle footbridge will be constructed in Bristol, UK, see Figure 3f. The bridge will have carbon fibre reinforced polymer (CFRP) arch ribs that will support glass fibre reinforced polymer (GFRP) deck. Structural health monitoring equipment will also be installed on the bridge for research [40].

2.2. FRP as Reinforcement

FRP reinforcements have been used in structural engineering since 1950s. Today, FRP rebars, grids, fabrics, strips, prestressing tendons, and formwork are commercially available [2,48]. FRP reinforcements are suitable in aggressive conditions, such as alkaline, corrosive and chemical environments. Lightweight and electromagnetic neutrality are other benefits of FRP rebars, especially glass FRPs. Carbon, glass, aramid fibre reinforced polymer bars are commonly used. Research in FRP reinforcement is quite developed compared to all-FRP pultruded structures. Several design guides for FRP rebars are available too. In Europe, the task group 5.1 (formerly 9.3) produced technical report fib 40 [48] for FRP reinforcement in concrete structures. Also, The Concrete Society has its TR55 [49] design guide for strengthening applications including FRP rebars [50]. In the USA, ACI 440.1R-15 [51] deals with design of concrete members with FRP bars. FRP reinforcements and their applications are shown in Figure 5. Design of bridge beams prestressed with CFRP bars or cables is given in NCHRP research report 907 [52].

2.3. FRP in Strengthening Applications

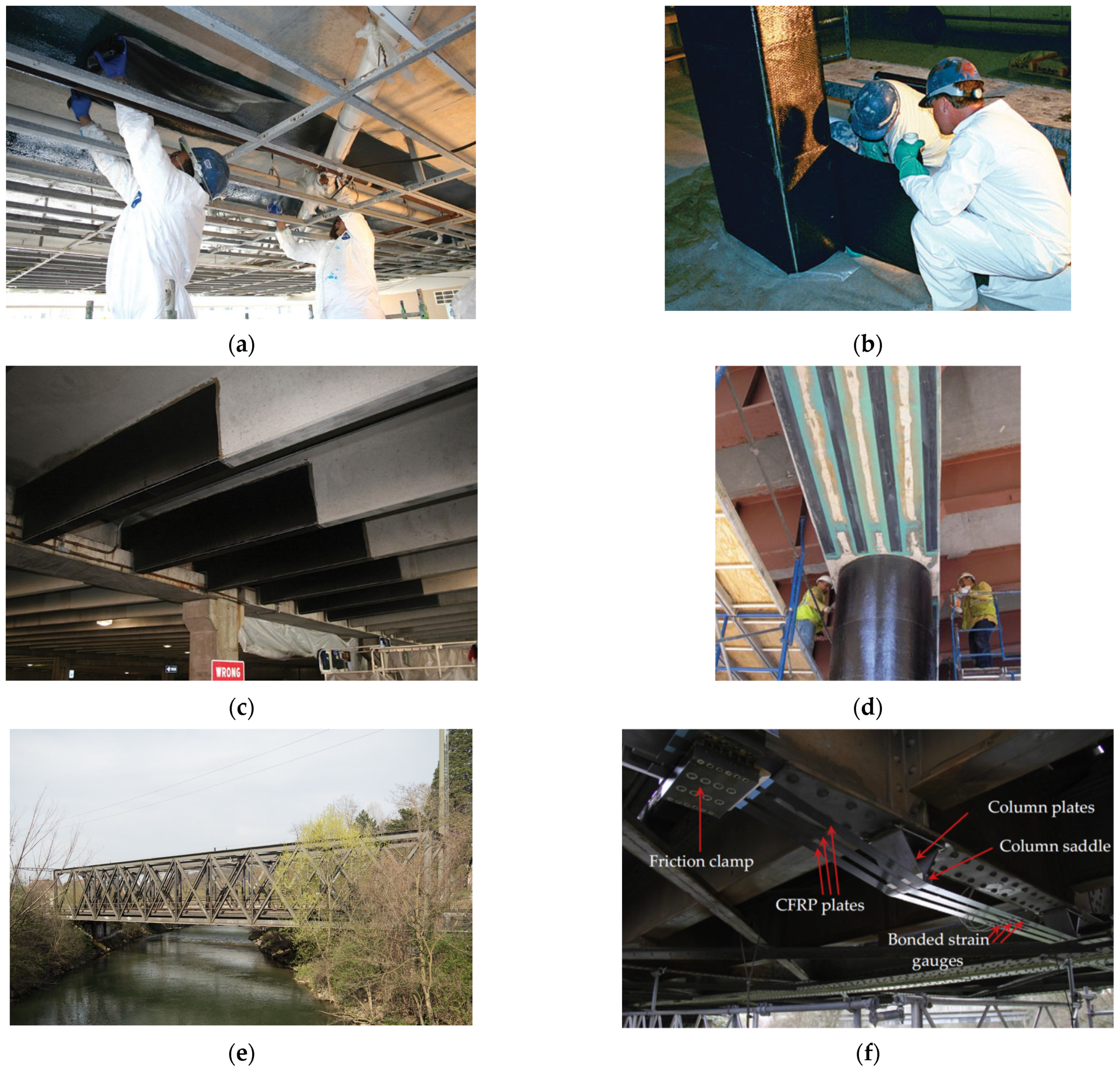

Research, design and practice are well advanced for FRP use as strengthening material. FRP can be used for repair and strengthening of existing structures. Externally bonded reinforcements can be used to reinforce concrete, timber, steel and masonry structures [53]. Design guidelines for externally bonded FRP systems concrete structures are available in Europe (CEB-FIP fib bulletin 14 [54]) and America (ACI 440.2R-17 [55]). Various other guidelines have also been produced in USA, Japan and Italy [56,57,58,59,60,61,62,63,64] for FRP strengthening applications. Different design guides for FRP strengthening are compared in [65]. Environmental actions, poor design, lack of maintenance or accidental events cause deterioration to existing structures [54]. Strengthening of these structures with FRP systems not only restores them, but enhances their strength, too. FRP for strengthening is available as strips, sheets and fabrics.

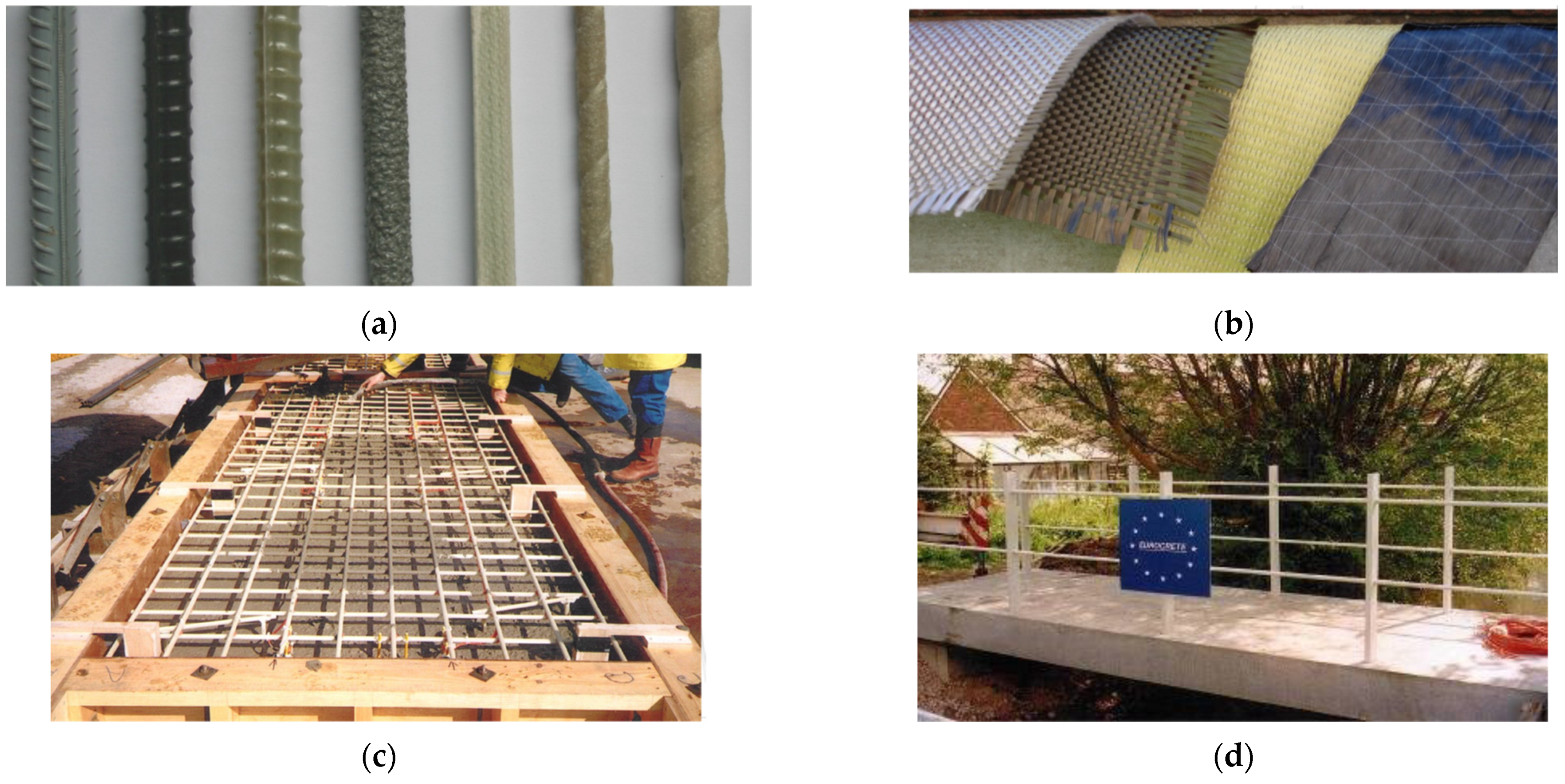

Figure 5. FRP as a reinforcement: (a) FRP rebars [48,66]; (b) FRP fabrics [66]; (c) FRP bars in 1995 Fidgett Footbridge Chalgrove-Oxfordshire, UK [66]; (d) Completed Fidgett Footbridge [66].

Figure 5. FRP as a reinforcement: (a) FRP rebars [48,66]; (b) FRP fabrics [66]; (c) FRP bars in 1995 Fidgett Footbridge Chalgrove-Oxfordshire, UK [66]; (d) Completed Fidgett Footbridge [66].

FRP strengthening can be applied in-situ using hand layup or can be prefabricated off-site in a factory. Hand or wet layup consists of applying epoxy resin to woven fabric sheets or flexible fibre sheets to produce FRP sheets bonded to concrete members. The prefabrication method involves pultrusion for FRP plates bonded to beams and slabs or filament winding for making FRP shells for confining columns [67]. Pultrusion and filament winding manufacturing processes are discussed later in Section 3. FRP strengthening of concrete slabs, columns and beams [68] using FRP sheets is shown in Figure 6a–c. Flexural strengthening of beams with FRP plates and FRP wrapping of concrete column [66] is presented in Figure 6d. Next shown in Figure 6e is the 120 years old Münchenstein Railway Bridge in Switzerland; this is a metallic rivetted bridge. Traditional strengthening solution using steel plates or bonded CFRP plates were discarded due to unsmooth rivetted surfaces. Ghafoori et al. [69] came up with innovative ideas of fatigue strengthening and wireless monitoring for this bridge. They used CFRP unbonded prestressed plates with wireless sensors to strengthen fatigue prone areas of the bridge [69], as shown in Figure 6f. Other FRP strengthening techniques for bridges are discussed in [70].

CFRP ropes have been used as a strengthening method to improve strength, stiffness and seismic response of reinforced concrete beam-to-column joints in a recent paper [71]. The authors used X-shaped CFRP ropes to strengthen both sides of exterior beam–column joints. The six specimens were subjected to reverse cyclic loading. Hysteretic curves, load capacities, failure modes, stiffness and energy dissipation were determined to compare reinforced and non-reinforced joints. CFRP ropes significantly increased strength and seismic performance of the joints. The cracking in strengthened specimens did not appear in the joint area but there was some cracking close to the beam side. Strengthening of concrete T-beams using U-jacketing method with externally bonded CFRP sheets is studied in [72]. The authors used T-shaped shear-critical RC beams under four-point bending. CFRP sheets were used as external transverse reinforcement. CFRP strengthened beams showed enhanced shear capacity. But debonding of CFRP from concrete surface could not be prevented. The authors applied the mechanical anchorage system to U-jacketing, which delayed debonding resulting in about 70% increase in shear capacity. Application of three plies of CFRP sheets led to a 72% increase in shear capacity compared to the control specimen. The authors also compared their experimental results with various American and European design codes.

3. Materials and Manufacturing

This section is about raw materials and manufacturing processes for making FRP shapes—bars, profiles and sheets.

3.1. Constituent Materials

3.1.1. Fibres

Glass, carbon and aramid are the most common synthetic fibres. Synthetic fibres are man-made, usually formed by chemical processes. Their properties are given in Table 1. Glass fibres are used to make FRP profiles, rebars and sheets. They come in four different grades:

• E-glass (electrical glass);
• A-glass (window glass);
• C-glass (corrosion resistant, also known as AR-glass or alkali- resistant glass);
• S-glass (Structural or high-strength glass).

Glass fibre is an isotropic material. It has a bright white colour. E-glass is mostly used for structural shapes due to its electrical insulation. A and C grades are used in specialized structural products. Due to high strength, S-glass is used in the aerospace industry [1,2]. S-glass is 3–4 times more expensive than E-glass. E-glass fibres benefit from high strength and relatively low cost. Some disadvantages of E-glass fibres include low modulus, low humidity and alkaline resistances and reduced long-term rupture strength [73,74].

Table 1. Properties of fibres and thermosetting polymer resins [1,2].

Material		Grade	Density (g/cm3)	Tensile Modulus (GPa)	Tensile Strength (MPa)	Max Elongation (%)	Fibre Architecture	Glass Transition Temperature (°C)
Fibre	Glass	E	2.57	72.5	3400	2.5	Isotropic	-
		A	2.46	73.0	2760	2.5
		C	2.46	74.0	2350	2.5
		S	2.47	88.0	4600	3.0
	Carbon	Standard	1.70	250.0	3700	1.2	Anisotropic	-
		High strength	1.80	250.0	4800	1.4
		High modulus	1.90	500.0	3000	0.5
		Ultrahigh modulus	2.10	800.0	2400	0.2
	Aramid	-	1.40	70.0–190.0	2800–4100	2.0–2.4	Anisotropic
Polymer Resin	Polyester	-	1.20	4.0	65	2.5	-	70–120
	Epoxy	-	1.20	3.0	90	8.0	-	100–270
	Vinylester	-	1.12	3.5	82	6.0	-	102–150
	Phenolic	-	1.24	2.5	40	1.8	-	260
	Polyurethane	-	varies	2.9	71	5.9	-	135–140 [75]

Table 1. Properties of fibres and thermosetting polymer resins [1,2].

Material		Grade	Density (g/cm3)	Tensile Modulus (GPa)	Tensile Strength (MPa)	Max Elongation (%)	Fibre Architecture	Glass Transition Temperature (°C)
Fibre	Glass	E	2.57	72.5	3400	2.5	Isotropic	-
		A	2.46	73.0	2760	2.5
		C	2.46	74.0	2350	2.5
		S	2.47	88.0	4600	3.0
	Carbon	Standard	1.70	250.0	3700	1.2	Anisotropic	-
		High strength	1.80	250.0	4800	1.4
		High modulus	1.90	500.0	3000	0.5
		Ultrahigh modulus	2.10	800.0	2400	0.2
	Aramid	-	1.40	70.0–190.0	2800–4100	2.0–2.4	Anisotropic
Polymer Resin	Polyester	-	1.20	4.0	65	2.5	-	70–120
	Epoxy	-	1.20	3.0	90	8.0	-	100–270
	Vinylester	-	1.12	3.5	82	6.0	-	102–150
	Phenolic	-	1.24	2.5	40	1.8	-	260
	Polyurethane	-	varies	2.9	71	5.9	-	135–140 [75]

Carbon fibres are generally used for strengthening applications: CFRP strips, sheets, rebars and prestressing tendons. Carbon fibres have high tensile, creep and fatigue strengths. Their tensile modulus is higher than glass and aramid fibres; they have excellent chemical resistance and low moisture absorption. Anisotropy, high production cost and thermal conductivity are their drawbacks. Carbon fibres have a charcoal-black colour. Carbon fibre strands are known as tow, and they are produced in four grades:

• Standard modulus (SM);
• Intermediate modulus (IM);
• High strength (HS);
• Ultrahigh modulus (UHM).

Aramid or Kevlar fibres are not common in structural engineering; yet, they are still used in FRP bars and tendons. Relatively low compressive strength (500–1000 MPa) and moisture absorption and high price make aramid fibres less suitable for structural Engineering. Aramid fibres have high energy absorption due to their high toughness properties. Their applications include bulletproof vests, helmets and automotive crash attenuators [1,2,73]. Glass fibre is good all-rounder, carbon fibre has high stiffness and aramid withstands impact [9]. Stress–strain behaviour of all fibre types is linear-elastic. Fibres are used in various forms [73]:

• Rovings—parallel bundles of continuous untwisted filaments;
• Yarn—bundles of twisted filaments;
• Fibre mats with chopped or continuous fibres;
• Woven and non-woven fabrics;
• Stitched fabrics, grid, mesh and fleece;
• Carbon fibre tows.

3.1.2. Polymer Resins

Resin or matrix acts as a binder in the FRP composites. Resin protects fibres and ensures load transfer between them; it also stops buckling of fibres under compression. There are two types of polymer resins—thermosetting and thermoplastic resins. Thermosetting resins have cross-linked molecular structure; their shape does not change once set or cured. Due to flowy nature and good adhesive properties, it is easy to place fibres in thermoset resins [1,73]. There are five types of thermoset resins: polyester, epoxy, vinylester, phenolic and polyurethane. Typical properties of thermoset resins are given in Table 1.

Thermoplastic resins are not cross-linked; they do not set and remain plastic, softening on heating with the ability to change to any other shape. They can be recycled and reprocessed, and it is hard to insert fibres though in a thermoplastic resin due to its gluey nature and poor binding ability. Thermoplastic resins include polypropylene, polyamide, polyethylene and polybutylene [1]. Thermoplastic resins are less strong and stiff than thermoset resins. Polyphenylene and polyimide thermoplastic composites are used in aerospace industry. Thermoplastic resins are rarely used in structural Engineering FRP products. FRP structural shapes mainly use thermoset resins [2]. All resins are prone to UV radiation. They require additives and surface fleece/veil for protection. Resins are isotropic and show nonlinear viscoelastic stress–strain behaviour [1,73].

Epoxy resins are used as a matrix for FRP composites or as adhesives to connect FRP shapes. Epoxy is mainly used for strengthening applications (sheets and strips). Their use in FRP tendons and cables is also common. Due to high cost and difficulty in processing, epoxy is not used in structural profiles. Polyester and vinylester resins are widely used to make FRP profiles and bars. Due to its corrosion resistance and durability, most FRP bars use vinylester matrix. Vinylester is more expensive than polyester. Most manufacturers [9,12,13] produce identical FRP profiles in both polyester and vinylester matrices [2]. Phenolic resins are the oldest and have superior fire resistance; their cost is similar to polyester, and their use in FRP parts is very limited. Phenolic resin is used in FRP gratings and strips. Polyurethane resin has high toughness, producing high tensile and impact strength FRP composite when used with glass fibres. Polyurethane costs about the same as vinylester.

There are health issues related to resins in construction industry. Limited research exists on health effects of resins. Several health concerns associated with use of epoxy resins are documented in a report by the Health and Safety Executive UK [76]. Skin contact with epoxy causes allergic contact dermatitis (eczema), often known as skin sensitisation [77]. Dust or sprays generated by use of epoxy can also cause respiratory irritation. Some protective measures to reduce skin sensitisation effects include the use of protective equipment, such as gloves, clothing and goggles. Instruction for workers about potential risks of using epoxy could also reduce sensitisation. Barrier creams and protective spray coatings against epoxy resins can also be good control measures [76,77,78].

3.1.3. Other Materials—Additives and Fillers

Fillers are used in resins to reduce the cost and improve properties of FRP shapes. Fillers reduce shrinkage, improve fire rating and prevent cracking in resins. Fillers can improve hardness and creep performance, and fatigue and chemical resistance. The typical filler content ranges from 10–30% of the resin weight. While the filler can improve some properties, it reduces mechanical properties and durability. Additives are used for variety of reasons: UV protection, fire resistance, shrinkage reduction, pigments for colour, mould removal, and electrical and thermal insulation. Additives are used in small amount, less than 1% of the resin content. The physical and mechanical properties of FRP are affected by additives [1].

3.2. Manufacturing Process

There are two FRP manufacturing processes for structural use: pultrusion (automatic) and hand layup or wet layup (manual method). Pultrusion is used for FRP rebars, FRP strips for external strengthening and FRP profiles. Hand layup is used for FRP sheets on site for strengthening of existing structures [1,2].

3.2.1. Pultrusion

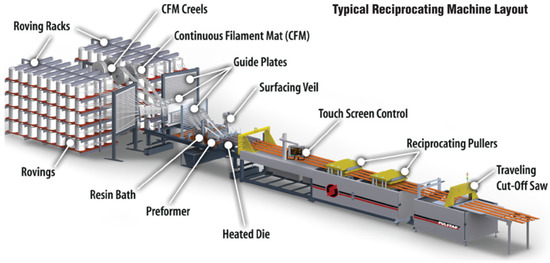

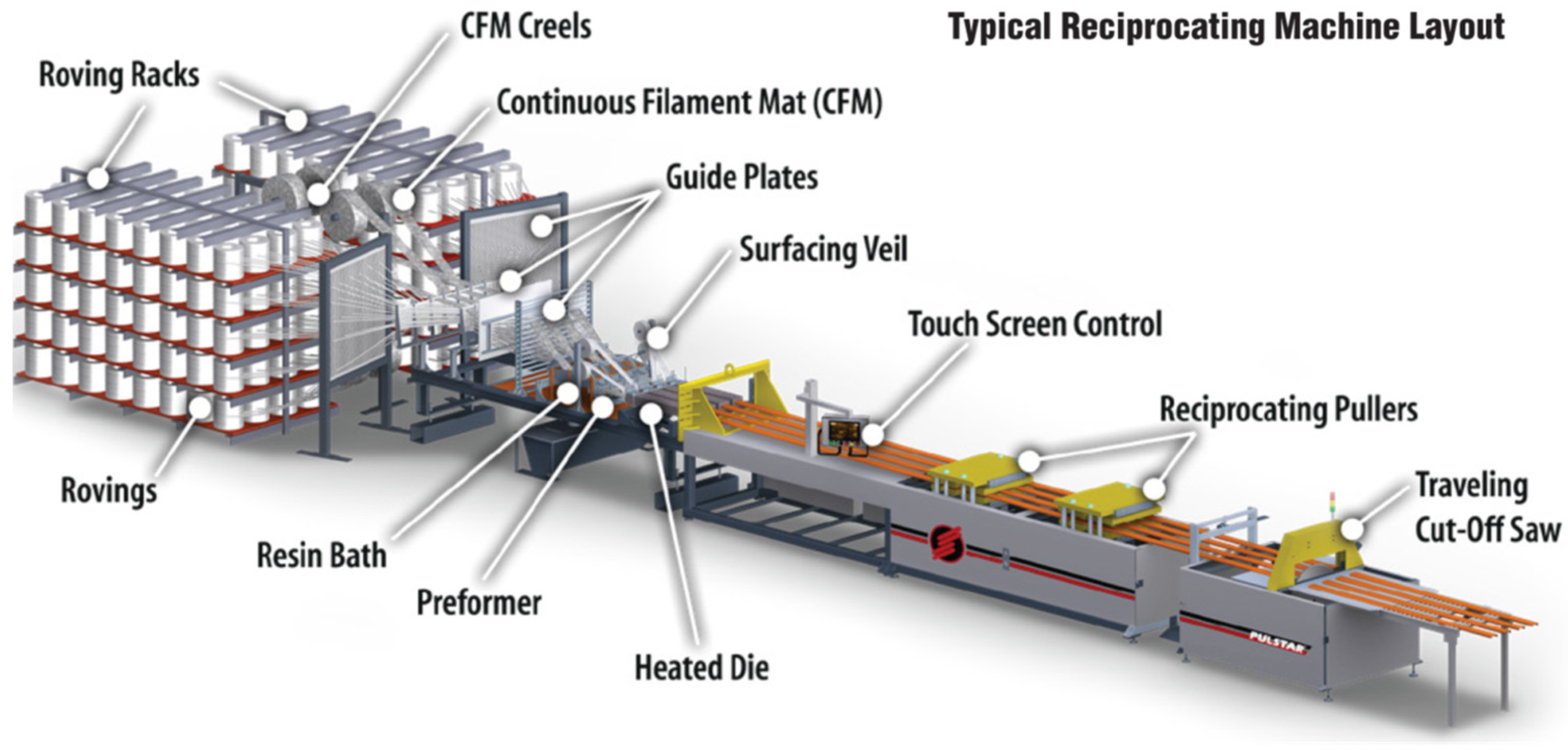

Pultrusion is the cost-effective way of producing FRP bars, profiles and strips [79,80]. It is the only automatic method for making constant section FRP shapes. Pultrusion is used to produce I-beam, wide-fanged, channel and multi-cellular profiles. Pultrusion is divided into two phases: fibre system and matrix system. In fibre system, different reinforcements (fibre bundles, mats and surface veil) are fed through the guide plate that shape the profile [1,2,81]. The fibre bundles are called rovings for glass fibres and tows for carbon fibres [82]. Schematic diagram of pultrusion process is shown in Figure 7. The unidirectional rovings or tows provide the strength along the length of the profile. While, the continuous filament or strand mat, woven roving or stitched fabric give the strength across the width of the profile. Polyester surface veils are also added for surface finishing and protection. These resin-rich veils also provide corrosion and ultraviolet resistance. In matrix systems, dry fibres are impregnated with resin and allowed to cure (solidify) in a heated mould. The FRP material is then pulled to give it tensile strength [1,2,81]. Pultrusion has six stages [1]: (1) set of spools stacked on creels for fibre reinforcement handling; (2) preforming guides; (3) resin impregnation bath; (4) forming and curing die; (5) pulling system; (6) cutting system.

A typical pultruded FRP profile has a middle layer sandwiched between two outer layers. The middle layer uses unidirectional roving bundles running in the direction of pultrusion. The two outer layers use fibre mats, either continuous filament mat (CFM), chopped strand mat (CSM) or woven fabrics. Two polyester surface veils are also added to the outer layers [2,23,81]. Typically, the fibre volume in pultruded FRP profiles ranges from 35% to 50% [82]. For FRP bars and strips the fibre percentage ranges from 50% to 60% of the volume of FRP shape [2]. Typical mechanical properties of glass reinforced wide-flanged profiles with vinylester resin are given in

Table 2. Mechanical properties of pultruded FRP wide-flanged profiles (Glass reinforced Vinylester shapes 6–13 mm thick) [2,6,7].

Estimated Fibre Volume	25–40%
Fibre architecture	Roving and mat
Strength (MPa)	Tensile	Longitudinal	207–317
		Transverse	48–83
	Compressive	Longitudinal	207–359
		Transverse	110–138
	Shear	In-plane	31–48
		Out-of-plane	27–31
	Flexural	Longitudinal	207–338
		Transverse	69–131
	Bearing	Longitudinal	207–269
		Transverse	179–234
Modulus (GPa)	Tensile	Longitudinal	18–28
		Transverse	6–10
	Compressive	Longitudinal	18–26
		Transverse	7–13
	Shear	In-plane	3.0–3.4
	Flexural	Longitudinal	11–14
		Transverse	6–12
Poisson’s ratio	Longitudinal		0.33–0.35

. A comparison of steel and FRP (glass, carbon, aramid FRP) rebars’ tensile properties is given in

Table 3. Comparion of tensile properties of steel and FRP rebars (with volume fraction of fibre from 50 to 75%) [48].

Property	Material
	Steel	GFRP	CFRP	AFRP
Longitudinal modulus (GPa)	200	35 to 60	100 to 580	40 to 125
Longitudinal tensile strength (MPa)	450 to 700	450 to 1600	600 to 3500	1000 to 2500
Ultimate tensile strain (%)	5 to 20	1.2 to 3.7	0.5 to 1.7	1.9 to 4.4

, as per fib 40 [48]. Other mechanical properties of FRP rebars are adapted from [48,83,84] and presented in

Table 4. Typical mechanical properties of GFRP, CFRP and AFRP reinforcing bars [48,83,84].

Property	GFRP	CFRP	AFRP
	E-Glass/Epoxy	Carbon/Epoxy	Kevlar 49/Epoxy
Fibre volume fraction	0.55	0.65	0.60
Density (kg/m3)	2100	1600	1380
Longitudinal modulus (GPa)	39	177	87
Transverse modulus (GPa)	8.6	10.8	5.5
In-plane shear modulus (GPa)	3.8	7.6	2.2
Major Poisson’s ratio	0.28	0.27	0.34
Minor Poisson’s ratio	0.06	0.02	0.02
Longitudinal tensile strength (MPa)	1080	2860	1280
Transverse tensile strength (MPa)	39	49	30
In-plane shear strength (MPa)	89	83	49
Ultimate longitudinal tensile strain (%)	2.8	1.6	1.5
Ultimate transverse tensile strain (%)	0.5	0.5	0.5
Longitudinal compressive strength (MPa)	620	1875	335
Transverse compressive strength (MPa)	128	246	158

. Mechanical properties of FRP sheets, strengthening strips and fabrics are not given in this paper. Typical material properties of commercially produced FRP sheets, strengthening strips and fabrics for strengthening purpose can be found on page 29–30 Table 1.2 and Table 1.3 in L. C Bank’s book [2].

3.2.2. Hand or Wet Layup

Hand layup is commonly used for FRP strengthening sheets and fabrics; it is a manual method that involves stacking layers of fibres in the resin system. After curing, the solid FRP part takes the form of the mould. This method is also known as laminating or wet layup. Hand layup can be used onsite or off-site; when used in a factory, FRP parts are produced in a mould. The FRP part is removed from the mould after curing. FRP sandwich panels for bridge applications use hand layup in an off-site plant; however, many structural engineering applications, strengthening for example, require onsite production. In that case, a proper connection must exist between FRP elements and structural part to be strengthened; thus, epoxy resins, which have high adhesive properties, are used with carbon or glass fibres [1,2]. Carbon fibre tow sheet is used for strengthening applications. It contains dry carbon fibre aligned lengthwise, glass fibre scrim cloth aligned at 45 degrees and epoxy adhesive. The thickness of the sheet is about 0.3 mm and is available in 30 to 100 cm widths. Woven or stitched glass or carbon fibre fabrics can also be used for strengthening purposes.

3.2.3. Other Manufacturing Processes

Other processes produce single unit instead of continuous production in pultrusion [2]. They include [1]: (1) filament winding; (2) centrifugation; (3) resin transfer moulding (RTM); (4) resin infusion moulding (RIM) and (5) vacuum-assisted resin transfer moulding (VARTM). FRP tubular sections and piles are produced through filament winding. In this process, resin-saturated fibre roving or tow is wound around a cylindrical mandrel. A mandrel is a tapered cylinder against which material can be forged or shaped. After curing, the part is removed from the mandrel. RTM, RIM and VARTM methods are used for producing FRP bridge decks and jackets for column strengthening [1,2].

3.3. Sustainabilty of FRP Materials

Performance and economy used to be the main criteria for the material choice in the past. Sustainability approach requires engineers to select materials based on environmental factors, energy consumption, social and economic factors, and performance criterion. Sustainability also accounts for whole life cycle assessment from extraction, production and use to disposal/recycling [85]. Polymer matrices require triple the amount of energy for production as compared with steel. Glass fibres are less energy intensive to produce than carbon fibres. The light weight of FRP reduces energy input for transportation. The carbon footprint for transportation of steel and concrete is much higher than FRP composites. The lightweight and speed of construction reduces the environmental impact of FRPs [86].

For quantifying ecological impact of materials, embodied energy related to greenhouse gases must be known. The energy needed for extraction, processing, manufacturing and transportation is termed as embodied energy; it quantifies the impact at the beginning of the material’s life span instead of the whole life cycle [86]. Due to corrosion and chemical resistance and less maintenance, the expected life span of FRPs is considered long; however, FRPs structures have not been in existence long enough to quantify their life span. FRP materials have lower embodied energy than traditional materials, such as steel and concrete. In the context of sustainability, the embodied energy of any material should consider durability, local availability, decomposition, recycling and waste management. While FRPs meet many of these aspects, recycling remains the toughest challenge, hindering its sustainable use. Unlike steel and timber, recycling of FRPs is limited. Only 1% of FRP composites can be recycled [86], which is not financially viable considering the cost of recycling process.

4. FRP Plate-to-Plate Bolted Connections

Pultruded FRP plate-to-plate bolted connections depend on various parameters: geometry, bolts, material properties, pultrusion direction, and lateral restraint. Plate-to-plate FRP connections are used in trusses or bracing. The load transfer between members and connections takes place through in-plane forces parallel to the member axis. The members can be single or double overlapping, replicated as single-lap or double-lap shear plate-to-plate connections [2]. Generally, tensile load is applied to these connections.

4.1. Failure Modes

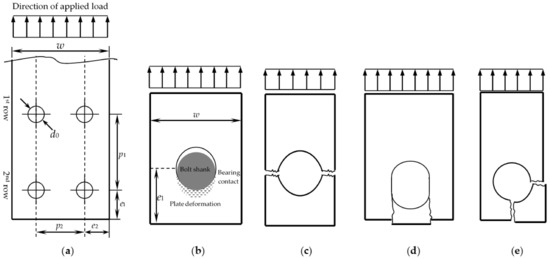

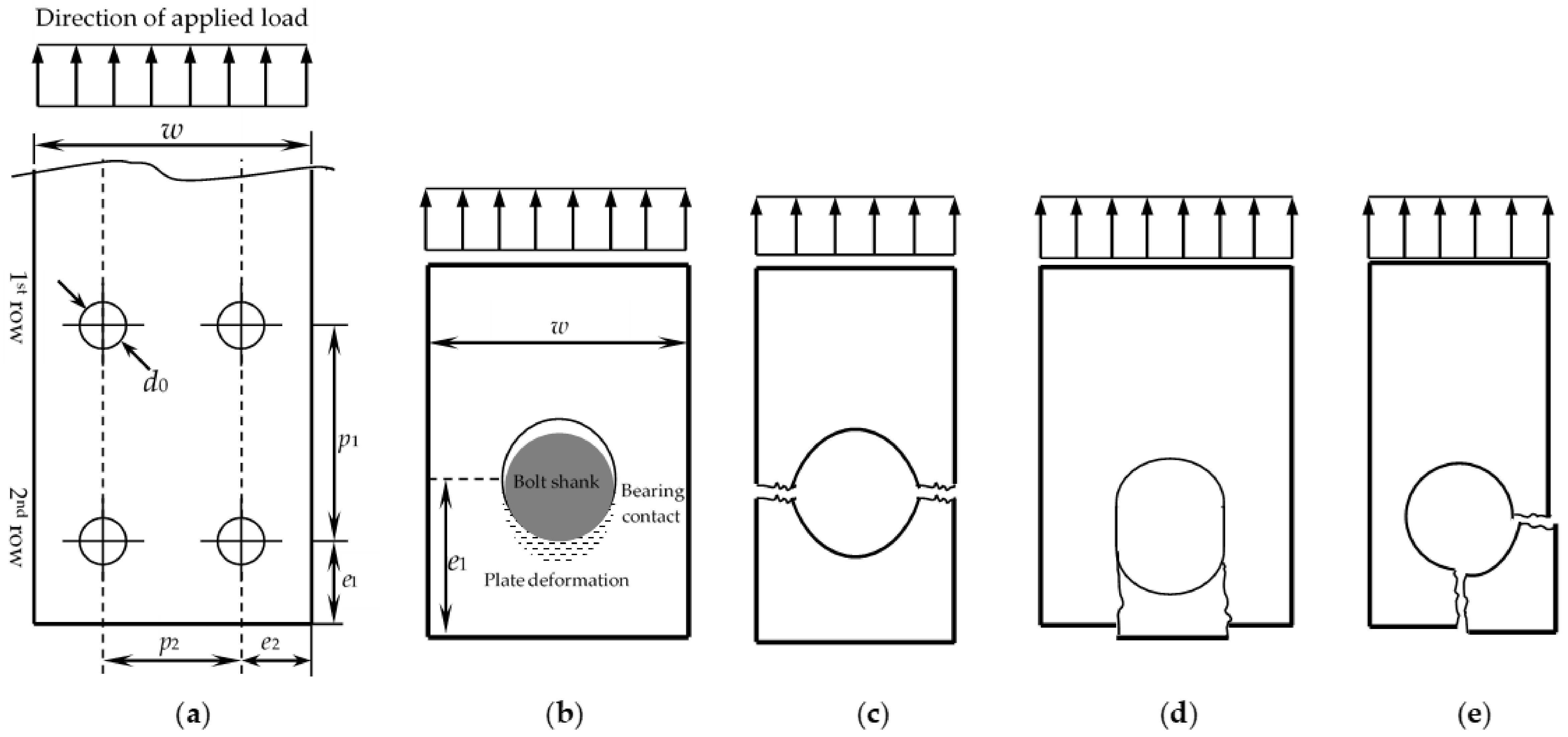

The failure modes of a single-bolt FRP plate-to-plate connection are identified as: bearing, net-tension, shear-out and cleavage. The plate-to-plate connection geometry and the failure modes are shown in Figure 8. Bolt shear failure does not happen as bolts are generally stronger than FRP plates. Stainless steel bolts are used in practice to deal with environmental effects.

4.1.1. Bearing Failure

Bearing failure is the localised compression failure in the FRP plate near the bolt. It is the most desirable and the only failure that is less brittle. Bearing is a damage tolerant failure that happens when plate width-to-hole diameter ratio is high. It relies on lateral restraint that can delay delamination cracking. The failure is progressive in nature, indicated by local buckling of fibres and crushing of resin. A less common name of the bearing failure is the longitudinal shear failure [23,87,88,89,90,91,92]. Bearing failure has been extensively researched in [87,88,89,93,94,95,96]. Bearing failure can be ensured by sizing the connection geometry properly (generally e₁/d₀ > 3 and w/d₀ ≥ 4 or higher) [2,23,96].

4.1.2. Net-Tension Failure

Net-tension failure happens when bolt diameter is large and plate width small. Hart-Smith [97] was the pioneer in establishing theoretical basis for this failure; it happens in multi-row connections near the first row [23,98]. Net-tension is a brittle failure and should be avoided; sudden cracking transverse to the load direction occurs in this failure, and it is likely to happen when the edge distance, e₂ is small.

4.1.3. Shear-Out Failure

Shear-out is another tension-type failure. This happens when the end distance is small (e₁/d₀ ≤ 4). Mostly, it is a consequence of bearing failure with short end distance. The shear-out and net-tension are in-plane (2D) failure modes, whereas bearing is a 3D failure mode. Shear-out is a brittle failure mode [23,97,99]. Theoretical models for shear-out failure are given in the seminal paper by Hollmann [100].

4.1.4. Cleavage Failure

Cleavage failure is a combination of net-tension and shear-out failures. It is a tension-type failure that initiates at the end of the plate instead of the bolt vicinity. Cleavage failure happens when both end, e₁ and edge, e₂ distances are short. Also, it occurs when percentage of fibres in the longitudinal direction of FRP plate is high [23,97,101].

4.2. Effect of Geometry

The connection geometry is the single most important criterion controlling failure modes and strength. The geometric parameters include plate width and thickness (w and t), hole diameter (d₀), end and edge distances (e₁ and e₂), and pitch and gauge length (p₁ and p₂). The parameters are shown in Figure 8a. Past research is reviewed, and main findings are given in Table 5. Seminal research work on geometric parameters for single-bolted double-lap shear connections is presented by Rosner and Rizkalla [93,102,103]. Later, Turvey [104,105,106] carried out research on effects of width and end distance. Following general conclusions can be drawn from research described in Table 5:

• Bearing failure is a pseudo-ductile failure giving us warning before failure;
• Connections should be designed for bearing failure, if practically possible;
• Bearing failure is enforced if e₁/d₀ > 3 and w/d₀ ≥ 4;
• Shear-out failure happened when e₁/d₀ ≤ 4;
• Net-tension failure happened when w/d₀ ≤ 3;
• Net-tension and cleavage are brittle failures and should be avoided;
• Increase in plate thickness and width increases connection resistance;
• For values beyond e₁/d₀ > 2.5 and w/d₀ > 4, there is no change in connection resistance;
• Bolt-diameter-to-plate-thickness ratio should be in the range of 1.0 ≤ (d/t) ≤ 1.5 for ensuring the ductile bearing failure mode.

4.3. Effect of Fibre Orientation

The influence of angle between tensile load and fibre direction is important. The connection strength is maximum when the tensile load is aligned with pultrusion direction. The fibre orientation affects failure modes too. Following conclusions are drawn from various research papers presented in Table 5:

• Strength and stiffness decrease when pultrusion angle changes from 0° to 90°;
• Bearing failure happens for off-axis pultrusion angle lower than 45°;
• Net-tension failure occurs for off-axis pultrusion angle greater than 45°.

4.4. Effect of Fastener Parameters and Lateral Restraint

Bolt material, bolt tightening, threaded and plain pins, clearance hole and lateral restraint affect connection resistance. Following conclusions can be drawn from the papers reviewed in Table 5:

• Connection strength with FRP bolt is about half the strength using steel bolt;
• Bolt thread reduces bearing strength; threaded pin-bearing strength is 0.6 of the plain pin-bearing strength;
• Pin-bearing strength is reduced by 20–30% by hot-wet aging
• Clearance hole of 1.6 and 6.4 mm leads to 2% and 9% reduction, respectively, in connection resistance compared with no-clearance condition;
• Bolt clearance hole of 1.6 to 2 mm is acceptable for ease in fabrication;
• Lightly clamped (3 Nm) and fully clamped (30 Nm) connections showed a 45% and 80% increase in load compared to pin-bearing state (0 bolt torque with no lateral restraint);
• Bolt torque increases connection resistance;
• Bolt tightening cannot be relied on due to viscoelastic nature of FRP;
• Connection strength increases with confinement area.

4.5. Multi-Bolted Connections

Practical pultruded FRP connections use several bolts. The analysis procedures are mainly developed from single-bolted connections. Designing multi-bolted FRP connection based on data from single-bolted tests could be unsafe. Bearing failure in single-bolted connection can easily turn into net-tension failure in multi-bolted configuration. In multi-bolted connections, first row transfers more load than other rows [92]. Abd-El-Naby and Hollaway [107] performed main research using two-bolted FRP connections. The main points from this and other papers are summarised in Table 5. Following conclusions can be drawn:

• The strongest connection that can fail in bearing has only single row of bolts;
• The failure in multi-bolted connections is either net-tension or cleavage;
• Connection resistance may not be sum of load per bolt;
• First row transfers more load than the other rows;
• Connection strength depends on bolts numbers but may not be directly proportional;
• Only 25% increase in strength is achieved by adding a second row with two bolts;
• Resin injected bolted connections are suitable for FRP bridges;
• Basalt FRP bolts can replace steel bolts.

Table 5. Main findings and test parameters for FRP plate-to-plate connections.

Parameter	Researcher	Set Up	e1/d0	w/d0	Main Findings
Geometry	Rosner, Rizkalla [93,102,103]	Double-lap	0.9–10	1.2–12.2	Strength increases up to e1/d0 = 5; strength increases with plate thickness For e1/d0 ≤ 1: Cleavage failure: e1/d0 ≥ 4: Bearing failure
	Abd-El-Naby and Hollaway [108]	Double-lap: high fibre volume			Bearing failure cannot be achieved with low shear strength of FRP Critical end distance (after that no strength increase) depends on width
	Turvey and Cooper [104]	Double-lap	2–8	2–8	Criterion for bearing failure: For wide plates (w/d0 ≥ 7): e1/d0 = 6; For other plates (4 < w/d0 < 6): e1/d0 > 6
	Wang [90]	Bearing load via steel pin and no lateral restraints	1–5	2–8	e1/d0 > 1.5 had little effect on strength; increase in w/d0 increases strength Bearing strength is decreased when hole size is enlarged Bearing failure happens if e1/d0 ≥ 1.5 and w/d0 ≥ 4 in longitudinal direction and net-tension failure in transverse direction
	Turvey [105,106]	Single-lap	1.5–4		For values beyond e1/d0 > 2.5 and w/d0 > 4 no change in strength
	Lee [109]	Double-lap	2–7	5–7	e1/d0 = 2 shear-out failure and e1/d0 ≥ 2 bearing failure; e1/d0 ≥ 4 no load increase w/d0 = 3 net-tension failure, w/d0 > 5 recommended
Fibre orientation	Rosner [102,103]	Double-lap			Strength in 0° greater than 45° and 90° fibre direction
	Turvey, Cooper [101,110]	Double-lap Fibre: 0°, 30°, 45°, 90°	2–6	4–10	For e1/d0 > 2.5 connection strength is steady and bearing failure dominates Strength and stiffness decrease with the-off-axis-angle.
	Yuan and Liu [111]	Double-lap, Fibre: 0°, 15°, 30°, 45°, 60°, 75°, 90°	3	7	Pultruded FRP nine-layer flat sheet Strength decreases as pultrusion angle changes from 0° to 90°. Bearing failure: angle lower than 45° and net-tension: angle more than 45°
Fastener parameters	Erki [112]	Double-lap			Connection strength with FRP rod is half the strength with steel rods Strong bolt—FRP plate fails and weak bolt—bolt fails
	Yuan et al. [113]	Double-lap			Connection strength decreases with increase in clearance hole 1.6 mm clearance leads to 2% reduction and 6.4 mm results in 9% reduction
	Mottram [87,89,94,114]	Semi-notched FRP samples with pin			Threaded pin-bearing strength is 0.6 of the plain, conforms to ASCE [14] Pin-bearing strength reduced by 20–30% by hot-wet aging
Lateral restraint	Abd-El-Naby [108]	Double-lap			Strength increased with confinement area by tight bolts or plates
	Cooper Turvey [101]	Double-lap			Lightly clamped (3 Nm) and fully clamped (30 Nm) connections showed 45% and 80% increase in failure load, respectively, compared with pin-bearing condition
	Khashaba [115]				Bearing strength increased with tightening torque
	Yuan and Liu [111]	Double-lap			Strength increases with the level of bolt torque (varied 0–34 Nm)
Multi-bolted connections	Hart-Smith [97]	Theoretical model			Seminal paper—proposed semi-empirical formulae for multi-bolt joint
	Abd-El-Naby [107]	Double-lap			Two bolts in series and aim—mechanism of load transfer and failure mode Load per bolt is equal to load taken by single-bolted connection
	Prabhakaran [116,117]	Double-lap (Row × bolts): (2 × 1), (1 × 2) and (2 × 2)			Strength of two bolts in series (2 × 1) or parallel (1 × 2) is identical. Connections failed either due to block shear or net-tension. Strength depends on the number of bolts but may not be directly proportional Bolt tightening had little influence on bolt load distribution
	Hassan [118,119]	Double-lap (2 × 1), (1 × 2) (3 × 1), (1 × 3) and (2 × 2) Fibre: 0, 45, 90	2–5	9.9–14.8	Failure affected by plate width, end distance and pultrusion axis Load shared equally in bolts placed in series (1 × 2) and (1 × 3) Only 25% increase in strength by adding a second row with two bolts Proposed a model for strength of multi-bolt connection
	Ascione [120]	Double-lap 9 bolts			Nine bolts in 3 rows used, middle row took 26% and outer rows 37%
	Mottram [98]	Theoretical			Used Hart-Smith [97] method to predict net-tension strength The predicted strengths agree with experimental strengths
	Abdelkerim [121,122]	Double-lap BFRP			BFRP bolts can replace steel bolts Joining methods: bonded/bolted, resin injected and bi-directional BFRP layers increased loading capacity by 30–60%.
	Qureshi [123,124,125,126]	Double-lap			Resin injected bolted connections resist fatigue and slip in FRP bridges
	Mottram, Turvey [88,127]	Review papers			Multi-row connections have net-tension or cleavage failure in general Structural integrity of PFRP connections is unknown

Table 5. Main findings and test parameters for FRP plate-to-plate connections.

Parameter	Researcher	Set Up	e1/d0	w/d0	Main Findings
Geometry	Rosner, Rizkalla [93,102,103]	Double-lap	0.9–10	1.2–12.2	Strength increases up to e1/d0 = 5; strength increases with plate thickness For e1/d0 ≤ 1: Cleavage failure: e1/d0 ≥ 4: Bearing failure
	Abd-El-Naby and Hollaway [108]	Double-lap: high fibre volume			Bearing failure cannot be achieved with low shear strength of FRP Critical end distance (after that no strength increase) depends on width
	Turvey and Cooper [104]	Double-lap	2–8	2–8	Criterion for bearing failure: For wide plates (w/d0 ≥ 7): e1/d0 = 6; For other plates (4 < w/d0 < 6): e1/d0 > 6
	Wang [90]	Bearing load via steel pin and no lateral restraints	1–5	2–8	e1/d0 > 1.5 had little effect on strength; increase in w/d0 increases strength Bearing strength is decreased when hole size is enlarged Bearing failure happens if e1/d0 ≥ 1.5 and w/d0 ≥ 4 in longitudinal direction and net-tension failure in transverse direction
	Turvey [105,106]	Single-lap	1.5–4		For values beyond e1/d0 > 2.5 and w/d0 > 4 no change in strength
	Lee [109]	Double-lap	2–7	5–7	e1/d0 = 2 shear-out failure and e1/d0 ≥ 2 bearing failure; e1/d0 ≥ 4 no load increase w/d0 = 3 net-tension failure, w/d0 > 5 recommended
Fibre orientation	Rosner [102,103]	Double-lap			Strength in 0° greater than 45° and 90° fibre direction
	Turvey, Cooper [101,110]	Double-lap Fibre: 0°, 30°, 45°, 90°	2–6	4–10	For e1/d0 > 2.5 connection strength is steady and bearing failure dominates Strength and stiffness decrease with the-off-axis-angle.
	Yuan and Liu [111]	Double-lap, Fibre: 0°, 15°, 30°, 45°, 60°, 75°, 90°	3	7	Pultruded FRP nine-layer flat sheet Strength decreases as pultrusion angle changes from 0° to 90°. Bearing failure: angle lower than 45° and net-tension: angle more than 45°
Fastener parameters	Erki [112]	Double-lap			Connection strength with FRP rod is half the strength with steel rods Strong bolt—FRP plate fails and weak bolt—bolt fails
	Yuan et al. [113]	Double-lap			Connection strength decreases with increase in clearance hole 1.6 mm clearance leads to 2% reduction and 6.4 mm results in 9% reduction
	Mottram [87,89,94,114]	Semi-notched FRP samples with pin			Threaded pin-bearing strength is 0.6 of the plain, conforms to ASCE [14] Pin-bearing strength reduced by 20–30% by hot-wet aging
Lateral restraint	Abd-El-Naby [108]	Double-lap			Strength increased with confinement area by tight bolts or plates
	Cooper Turvey [101]	Double-lap			Lightly clamped (3 Nm) and fully clamped (30 Nm) connections showed 45% and 80% increase in failure load, respectively, compared with pin-bearing condition
	Khashaba [115]				Bearing strength increased with tightening torque
	Yuan and Liu [111]	Double-lap			Strength increases with the level of bolt torque (varied 0–34 Nm)
Multi-bolted connections	Hart-Smith [97]	Theoretical model			Seminal paper—proposed semi-empirical formulae for multi-bolt joint
	Abd-El-Naby [107]	Double-lap			Two bolts in series and aim—mechanism of load transfer and failure mode Load per bolt is equal to load taken by single-bolted connection
	Prabhakaran [116,117]	Double-lap (Row × bolts): (2 × 1), (1 × 2) and (2 × 2)			Strength of two bolts in series (2 × 1) or parallel (1 × 2) is identical. Connections failed either due to block shear or net-tension. Strength depends on the number of bolts but may not be directly proportional Bolt tightening had little influence on bolt load distribution
	Hassan [118,119]	Double-lap (2 × 1), (1 × 2) (3 × 1), (1 × 3) and (2 × 2) Fibre: 0, 45, 90	2–5	9.9–14.8	Failure affected by plate width, end distance and pultrusion axis Load shared equally in bolts placed in series (1 × 2) and (1 × 3) Only 25% increase in strength by adding a second row with two bolts Proposed a model for strength of multi-bolt connection
	Ascione [120]	Double-lap 9 bolts			Nine bolts in 3 rows used, middle row took 26% and outer rows 37%
	Mottram [98]	Theoretical			Used Hart-Smith [97] method to predict net-tension strength The predicted strengths agree with experimental strengths
	Abdelkerim [121,122]	Double-lap BFRP			BFRP bolts can replace steel bolts Joining methods: bonded/bolted, resin injected and bi-directional BFRP layers increased loading capacity by 30–60%.
	Qureshi [123,124,125,126]	Double-lap			Resin injected bolted connections resist fatigue and slip in FRP bridges
	Mottram, Turvey [88,127]	Review papers			Multi-row connections have net-tension or cleavage failure in general Structural integrity of PFRP connections is unknown

5. FRP Bolted Frame Joints

In plate-to-plate connection configuration, typically in a truss, the connections transfer only axial forces. Connecting elements and bolts are aligned with the member axis. The load path in the plate-to-plate connections has in-plane forces only. In contrast, the members in frame joints are usually connected at right angles. Joining parts and bolts are not aligned with the centroid of the members. This generates moment due to out-of-plane forces. The moment leads to prying forces at the top and compressive forces at the bottom of the joint. The forces transferred by frame joints can be bending moment, shear, axial forces and torsion [2,23]. Different beam-column joint test arrangements used in past research are shown in Figure 9. Findings from joints subjected to monotonic and cyclic loads are presented in

Table 6. Main findings for FRP frame joints subjected to monotonic loading.

Researcher	Set Up	Sizes	Joint Configuration	Main Findings
Bank [129,130,131]	Direct Compression	▪ Members: 203 × 203 × 9.5 mm WF ▪ Cleats: FRP 152 × 152 × 12.7 mm angles ▪ Bolts: 19 mm FRP threaded rods tightened to 41 Nm bolt torque	▪ Beam-column joint ▪ Flange-web (FW) cleated ▪ FW with column angle stiffener ▪ FW with built-up top part ▪ FW with built-up top and bottom part	For economical design, semi-rigid analysis recommended Combined bolting and bonding recommended Observed failure modes were tensile tearing of column web-flange junction and angle cracking Moment increased by adding angle stiffener to the column A prototype joint with built-up part using T-flange, gusset plate and tubular stiffeners presented Wrapped angle FRP flange cleat was also used
Mottram [24,132,133,134]	Double cantilever	▪ Members: 203 × 203 × 9.5 mm and 254 × 254 × 12.7 mm WF ▪ Cleats: FRP or steel 152 × 152 × 12.7 mm and 102 × 102 × 12.7 ▪ Bolts: 16 mm steel with 23 and 100 Nm torque	▪ Beam-column joint ▪ FW cleated ▪ FW cleated with bonding ▪ Pre-preg cleat piece	Top cleat was identified as the main weakness and bespoke L-shaped pre-preg cleat proposed Steel cleat or cleat with different fibre architecture and manufacturing process proposed To exploit semi-rigid action bolting, bonding or combination must be tried First failure or damage onset introduced: Damage at which fibres exposed to allow water ingress First failure is associated with prying due to hogging moments Adhesive bonding leads to brittle failure and cannot be used on its own
Mosallam [135,136]	Direct compression	▪ Members: 102 × 102 × 6.3 mm WF ▪ Cleats: FRP 75 × 75 × 9.5 mm ▪ Bolts: 12.7 mm pultruded threaded rods brightened to 40 Nm bolt torque	▪ Beam-column joint ▪ Flange cleated with threaded FRP rods	Universal connector (UC) developed to eliminate delamination cracking of top cleat UC connector improved the strength and stiffness of joints Failure modes: flange separation from web (tension), punching of web into flange (compression)
Qureshi [27,28,29,137]	Double cantilever	▪ Members: 203 × 203 × 9.5 mm and 254 × 254 × 9.5 mm WF ▪ Cleats: FRP or steel 75 × 75 × 10 mm or 100 × 100 × 10 mm ▪ M16 steel bolts finger tight	▪ Beam-column joint ▪ FW cleated ▪ Steel and FRP cleats	The main aim was to establish serviceability deflection limits Deflection limit for FRP beams is span/340, which is not far from deflection limit (span/360) for steel beams with brittle finishes Failure was delamination cracking with FRP cleats and tensile tearing of column with steel cleats No bolt clearance used (about 0.1–0.3 mm) First failure or damage onset happened at about half of the joint’s moment capacity Middle bolt found redundant; joint performed equally well with two bolts
Turvey [138,139,140,141,142]	Double cantilever	▪ Varies	▪ Beam-column joint ▪ FW cleated ▪ Steel and FRP cleats	Thicker cleats will attract more initial stiffness Stainless steel cleats did not show any sign of yielding Failure was due to shear-out of bolts in beam web and failure of tension flange of beam Tensile strength of FRP angles 76 × 6.4 mm and 76 × 9.5 mm is tested in [141] and 102 × 6.4 mm in [142] These leg-angles possess a tensile strength (tying resistance) in excess of 4 kN [141,142]
Qureshi [80]	Tension pull test	▪ Beam: 254 × 254 × 9.53 mm and 203 × 203 × 9.53 mm WF; Cleats: FRP 100 × 9.53 mm and 75 × 9.53 mm equal leg-angles	▪ Beam pulled against stiff base	Seminal paper to determine tying resistance of pultruded FRP joints FRP web cleats possess tying resistance in excess of 4.5 kN required by ASCE Pre-Standard [14] An expression for tying resistance proposed that predicted strengths within 5% of experiments
Smith [143,144,145]	Direct Compression	▪ Members: 102 × 51 × 6.35 mm I-beam and box-section column	▪ FRP I-beam and box sections ▪ FW cleated	Proposed a monolithic cuff connection unit that required no bolting Box-beam joints with cuff connection performed better than I-beam joints with seated angles
Zafari [33,146]	Single cantilever	▪ Bespoke floor beams and stud columns developed for STARTLINK house [27]	▪ Beam-column dowel connections bolted and bonded ▪ Portal frame with rigid joints	Two physical tests on joints in STARTLINK house [27] portal frame Hybrid joint with dowels and bonding was rigid; and the joint with dowels only was semi-rigid Hybrid and dowel joints had three and two times more moment than ULS moment, respectively Bracing suggested for more flexible joint with tight-fitting dowel connections
Russo [147,148,149]	Simply supported beam	▪ Members: 152 × 43 × 9.5 mm two “C” profiles joined with plate 78 × 152 × 15 mm. ▪ Gusset plate: 230 × 362 × 15 ▪ 14 mm steel bolts; torque: 20 Nm	▪ Beam-column joints with pultruded FRP plates	Flexural strength of FRP plate joints was 20 times higher than flange or web cleated joints. Shear-out and bearing failure was dominant; net-tension and cleavage failure did not occur Global joint behaviour is not affected by the stiffness of pultruded profiles Global behaviour of beam–column joint is influenced by progressive damage in FRP plates Both symmetric and asymmetric multi-bolted FRP plates are tested
Zhang [150]	Single cantilever	▪ Members: FRP SHS 102 × 102 × 9.5 ▪ Steel tube and flange plate sleeve connector	▪ Beam-column joints between FRP box profiles using a steel sleeve connector	Bonded sleeve connections developed for joining FRP box beams and columns Sleeve connector was made by welding a steel tube to a steel endplate All joints were classified as semi-rigid Longer bond length specimens failed by yielding of plate and shorter bond length by adhesive failure Thickness of endplate and bond length were two main criteria for establishing failure
Martins [151,152,153]	Single cantilever and full frame	▪ Members: GFRP I-section 150 × 75 × 8 mm ▪ Stainless steel cleats 3, 6 and 8 mm with stainless steel rods and bolts	▪ I-profiles and box profiles beam–column joints	Developed a steel connecting system for joints between box profiles Bolt edge distance is the governing criterion for either shear-out or bearing failure modes Joints between I-profiles also tested and initial strength and stiffness prediction model proposed Joints with thin steel cleats failed by yielding of steel and thick cleats by tensile failure of web-flange junction of the connecting column
Ascione [18,154]	Single cantilever	▪ Members: 200 × 100 × 10 mm I-sections and 50 × 50 × 6 mm leg-angles	▪ I-profiles and box profiles beam–column joints	Use of CFRP fabric wrap for seat angles changed failure from brittle to pseudo-ductile mode Bonded joints showed similar strength as bolted joints In bonded joints, failure happened in column’s web-flange junction similar to bolted joints Strengthening column with stiffener plate and leg-angles can increase its strength by 40%
Mosallam [155]	Web-flange junction tests	▪ Members: 200 × 100 × 10 and 160 × 80 × 8 mm	▪ Tension pull tests on web-flange junction of WF sections	Web-flange junction strength depends on location pull; end point pull about 2/3 of midpoint Cracking appeared in the form of inverted V leading to complete separation of web from flange The paper highlighted inherent weakness of web-flange junction of off-the-shelf FRP profiles

and

Table 7. Main findings for FRP frame joints subjected to cyclic loading.

Researcher	Set Up	Sizes	Joint Configuration	Main Findings
Bruneau and Walker [156]	Simply support beam	▪ Members: 203 × 101 × 9.53 mm WF FRP ▪ Joints: various angles and T-Stub	▪ Beam–column joint ▪ Web and flanged cleated with column stiffener plates	The first paper on cyclic response of rigid beam–column joints; bonded and bolted joints used Weakness of web-flange junction of I-shaped profiles led to only 35% of the predicted capacity Steel-like joint detailing can be inefficient for use in FRP Alternative manufacturing process suggested for seismic worthiness of FRP joints
Mosallam [135]	Direct compression	▪ Members: 102 × 102 × 6.3 mm WF ▪ Cleats: FRP 75 × 75 × 9.5 mm ▪ Bolts: 12.7 mm pultruded threaded rods brightened to 40 Nm bolt torque	▪ Beam–column joint ▪ Flange cleated with threaded FRP rods	The authors developed “Universal” Connector to connect PFRP members Both bolted and hybrid—combined bolted/bonded joints used Rotational stiffness of hybrid joints was five times higher than bolted only joints Low dissipated energy exhibited with no ductility and linear moment-rotation response Some ductility shown in the testing was attributed to use of composite rods
Smith [144,145], Singamsethi [157], Carrion [158]	Direct compression	▪ 100 × 50 mm box FRP sections	▪ Beam–column connected by bonded cuff system	Monolithic composite cuff connections using VARTM manufacturing process, developed to connect PFRP box profiles Adhesive bonding used to connect cuff with box sections Thicker cuffs showed brittle behaviour and thinner cuffs showed ductile response Energy dissipation not discussed; papers focused on cuff connector instead of cyclic response of the joints
Zhang, Qiu [150,159,160]	Single cantilever or beam splice connection	▪ Members: 102 × 102 × 9.5 mm box FRP sections	▪ Bonded sleeve connection joining beam-beam or beam–column	Sleeve connector produced by welding a steel tube to a steel endplate Failure modes observed were progressive cohesive failure at FRP beam-steel tube interface, yielding of steel endplate and rupture of the web-flange junction of the beams Number of bolts had marginal effect on moment-rotation response; joints classified as semi-rigid Splice connections should be designed in a way that failure is governed by steel plate yielding
Martins [161,162]	Single cantilever	▪ Members: 120 × 120 × 10 mm box FRP sections	▪ Beam–column sleeve system for box FRP profiles	Sleeve connection with one, two and four bolts were tried Tests with sleeve using two bolts gave the best overall performance Cyclic sway with infill walls also tested; walls had major effect on frame behaviour Infilled frame showed more strength, stiffness and energy dissipation compared to unfilled frame
Razaqpur [163]	Single cantilever	▪ Members: 102 × 102 × 9.5 mm box FRP sections	▪ Beam–column joint	Bonded joint between a tubular FRP profile and built-up beam composed of channel sections Strength, stiffness and fatigue studied under static and cyclic loads Hybrid joints (bolted and bonded) had 82% more loading capacity than bolted only joints Bonded joint failure moment was about a third of moment capacity of the beam Bonded joint could sustain about 200 loading and unloading cycles
Qureshi [8,128]	Single cantilever	▪ Members: 150 × 100 × 10 mm FRP I-beam and 150 × 100 steel column ▪ 50 × 50 × 6 mm steel or FRP angles	▪ Beam–column joint	Shear-out, debonding, and delamination cracking failure modes observed Bonding delayed start of cracking in FRP cleats and members Hybrid joints showed twice as much stiffness as bolted joints Flange cleated and flange/web cleated joints showed similar behaviour Dissipated energy of hybrid joints was about 75% higher than bolted joints

, respectively. Pros and cons of various test set ups are given in

Table 8. Advantages and limitations of different test set ups and joint configurations.

Test Set Up	Joint Configuration	Advantages and Findings	Limitations
Direct compression	-	Easy to set up in a universal testing machine Tensile or compressive force can be applied at free ends Joint rotation can be determined by either displacement transducers or clinometers	Both stub members subjected to axial loads (tension or compression) In real frames, axial forces are unlikely to exist in beams
Simply supported beam	-	One half of the beam bolted to column and the other rests on simple supports It produces two identical bolted joints Joints are loaded by pulling the stub column	Two halves of the beam can be misaligned with respect to the central column
Double cantilever beam	-	Column-double cantilever beam is the most realistic and common test up It loads the beams in a similar manner to real frames The locations of load points correspond to points of contraflexure in real beams with uniformly distributed load	The test arrangement is somewhat complicated than the other test set ups
Single cantilever beam	-	A single cantilever beam is connected with single column fixed at both ends It represents edge beams in real frame Rotations are measured via LVDTs or inclinometers at webs of beam and column	It requires more fixtures than double cantilever beam The column needs to be fixed properly as it takes bending moment
Full scale frame	-	It is based on testing the real frame structure Cyclic sway and gravity loads can be applied in this setup simultaneously	It is the most complex and expensive of all test arrangements
-	Cleated joints	Both flange and web cleated joints can be used with FRP or steel equal leg-angles It can give pinned or semi-rigid joints Bolted or hybrid (bolted and bonded) joints can be used These joints are mainly used with I-shaped beams and columns	Delamination cracking can happen in FRP web cleats Unwanted outward flexural deformation in FRP column can occur due to use of steel cleats
-	Sleeve/cuff joints	Bonded or bolted cuff/sleeve joints are useful for connecting tubular beams and columns Buckling is eliminated by use of box sections Semi-rigid moment-rotation behaviour can be achieved with this configuration	The sleeve/cuff joint configuration is only limited to use with tubular sections Test set up can be complex

.

5.1. Joints Subjected to Monotonic Loading

Research in pultruded FRP member joints is mainly focused on tests using steel-like joint detailing. FRP has no plasticity and adhesive is not like welding in steel. Bolting is the main fastening method preferred by manufactures. It may lead to local stress concentrations due to discontinuity of fibres. Adhesive bonding alone does not resist out-of-plane or prying forces. It may not be suitable in high temperature environments. The effort since 1980s has been towards the development of various FRP connectors. These connectors have a different fibre architecture and are produced through other methods than pultrusion. Most research is on joints subjected to static loading.

Joints subjected to static monotonic loading are reviewed in Table 6. Following generalised conclusions can be drawn from past research:

• Steel-like joint detailing is not suitable for FRP joints;
• Use of FRP cleats leads to delamination cracking at the heel of the angle;
• Use of steel cleats results in tensile tearing of column flange from web;
• Adhesive bonding on its own is not suitable for FRP joints;
• Hybrid joints combining bolting and bonding are suggested for fail-safe mechanism;
• Semi-rigid analysis is suggested due to limited commercially available FRP profiles;
• Top cleat is the main weakness in FRP joints for I-shaped sections;
• Connectors using different fibre architecture are proposed to replace top cleat;
• First failure defined as start of hairline cracking or audible acoustic emissions;
• First failure or damage onset is related to prying due to hogging moments;
• Cuff/sleeve connectors with steel tube and plate are useful for joining box sections;
• Serviceability deflection limit for FRP beams is span/340;
• FRP web cleats possess sufficient tying resistance for robustness;
• The flexural strength of beam–column joints using pultruded FRP plate sandwiched between built-up channel sections is about 20 times higher than the conventional beam–column joints with web/flange cleats;
• In a three bolted web cleated joint, the middle bolt is unnecessary.

5.2. Joints Subjected to Cyclic Loading

Research on FRP joints subjected to cyclic loading is limited. There is some research on joints between FRP box profiles, but it mainly deals with creating prototype connectors for box sections instead of joints’ cyclic behaviour. In the absence of any design code for FRP cyclic testing, cyclic loading has mainly been established from steel codes. Energy dissipation has been a key performance indicator for the cyclic response. Research papers are reviewed in Table 7 and main points are summarised. It is hard to generalise from very limited empirical data available, but the author has tried to come to some reasonable conclusions from review of past papers. More research is needed to validate some generalisations made here. Following conclusions can be drawn from the review:

• Steel-like joints are inefficient in resisting cyclic loading;
• Web-flange junction of I-shaped profiles is the weakest spot;
• Alternative manufacturing suggested for producing cleat pieces;
• Most joint details produced low dissipated energy and almost no ductility.
• FRP frames with infill walls showed better cyclic performance;
• Hybrid joints produced higher dissipated energy than bolted only joints;
• Bonded sleeve joints and joints between tubular profile and built-up channel sections showed promising cyclic behaviour;
• Flange cleated or web and flanged cleated combined showed same cyclic response and therefore, flange cleats are redundant as they make no difference to cyclic joint behaviour;
• Only steel connecting components are used to join tubular sections; no effort made to try FRP connecting elements;
• A guide for cyclic testing of FRP joints should be developed; presently FRP testing relies heavily on testing procedures from steel structures;
• Several cyclic loading protocols are dependent on yielding of steel, which is absent in FRP

6. Setbacks and Future

The major setbacks to wider application of FRP in Civil Engineering are lack of legal design codes, steel-like detailing for all-FRP structures [164], lack of ductility, scarce information about fire and durability performance and lack of simplified FRP design books for structural engineers. At present, some evolving design guides are available: Eurocomp [17], ASCE Pre-Standard for pultruded FRP [14], FRP bridges [15] and the Italian guide for pultruded FRP elements [16]; however, these guides have no legal status. A comparison of these guides is presented elsewhere [23]. The main benefits of FRPs are their high strength, lightweight and corrosion resistance. While in the repair and rehabilitation market, FRPs have shown good progress over last three decades, all-FRP structures still need their fair place in construction industry. This will be possible if whole life cost of FRP assets is considered and legally binding design codes are produced.

7. Conclusions and Research Growth Areas

The paper presents a review on FRP structures. Material properties, applications, manufacturing processes, and connections and joints are reviewed. FRP composites present a unique opportunity for structural engineers to adopt an environmentally friendly material. With an ecological impact of about a third of traditional materials [165], glass FRP can lead to low carbon construction. The global market for glass FRP is valued at 9.7 billion USD in 2021 [166] and it is set to grow in next decade. We are best placed now than ever to exploit the competitive properties of FRP composites.

Detailed conclusions relevant to FRP connections and joints are presented in Section 4 and Section 5. The review leads to following general conclusions:

• Joint detailing from steel structures is not suitable for FRP structures;
• There is no design code for FRP beam-to-column joints;
• Available formulae for beam–column joints are taken from plate-plate connections;
• Design of FRP members is controlled by serviceability deflections;
• Tubular members are better suited for FRP structures due to high buckling resistance;
• Use of FRP cleats leads to delamination cracking;
• Use of steel cleats results in outward flexural deformation in I-shaped FRP columns;
• Choice of FRP section sizes is limited; semi-rigid analysis may help in better economy
• Bearing is the most desirable and ductile failure in plate-plate connections;
• Connection strength depends on geometry, lateral restraint, fastener parameters, fibre orientation and number of bolt rows.

Further research is needed in following areas:

• FE modelling with progressive failure can be useful to estimate joints’ behaviour;
• Environmental considerations, fire performance and durability should be studied;
• A comparison between single-lap and double-lap plate-to-plate connections;
• Extreme loading conditions, such as blast, earthquake, dynamic and impact loads.
• Robustness and disproportionate collapse of all-FRP structures;
• Plate thickness, pitch and gauge distance, staggered bolts should be investigated;
• More research is needed on serviceability deflection limits for different joint detailing.
