Ductility and Stiffness of Laminated Veneer Lumber Beams Strengthened with Fibrous Composites

Abstract

The paper presents the results of experimental research on unstrengthened and strengthened laminated veneer beams subjected to 4-point bending. Aramid, glass and carbon sheets with high tensile strength (HS) and ultra-high modulus of elasticity (UHM) glued to external surfaces with an epoxy resin adhesive were used as reinforcement. Two reinforcement layouts were used: (1) sheets glued along the bottom surface and (2) sheets glued to the bottom and side surfaces. Based on the test results, the flexural strength, flexural ductility and stiffness were estimated. Compared to the reference beams, the maximum bending moment was higher by 15%, 20%, 30% and by 16%, 22% and 35% for the Aramid Fiber Reinforced Polymers (AFRP), Glass Fiber Reinforced Polymers (GFRP) and Carbon Fiber Reinforced Polymers (CFRP) HS sheets, respectively. There was no significant increase in the flexural bending capacity for beams reinforced with UHM CFRP sheets. Similar values of bending ductility indices based on deflection and energy absorption were obtained. Higher increases in ductility were observed for AFRP, GFRP and CFRP HS sheets in “U” reinforcement layout. The average increase in bending stiffness coefficient ranged from 8% for AFRP sheets to 33% for UHM CFRP sheets compared to the reference beams.

1. Introduction

Bending strengthening of timber beams is required, inter alia, due to increasing load values (resulting, for example, from a change in the way of use), compensation for degradation of the mechanical properties of wood (decreasing their strength and stiffness with crack extension [1]) or the need to reduce excessive deflections. In the case of reinforced elements made of glued laminated timber, they can be made of lower-grade timber or with a smaller cross-section and thus lighter timber. It is also reasonable to commercially use lower-grade, faster-growing species of trees. Strengthened elements are characterized by a higher uniformity of properties, and thus greater repeatability in the process of production.

A common method of strengthening bending members to increase load bearing capacity, stiffness and ductility parameters is the incorporation of additional elements to strengthen the existing beam. Several reinforcement layouts have been tested in 3- and 4-point bending tests. Reinforcement inserts can take the form of sheets [2,3], bars [4,5,6], laminates, plates or other structural shapes (T-sections, C-sections, I-sections, etc.) connected to the reinforced element by means of mechanical fasteners or structural adhesives. The reinforcement can be placed outside or inside the cross-section, in the tension and/or compression zone of the beam. Elements made of solid timber, glued laminated timber or engineering wood products can be strengthened. Conventional reinforcement of such elements is made of steel or aluminum. Composite materials are currently gaining popularity though. In addition to design requirements, the choice of reinforcement measurements is also constrained by other factors such as aesthetic aspects, cost, access to the reinforced element or fire protection requirements.

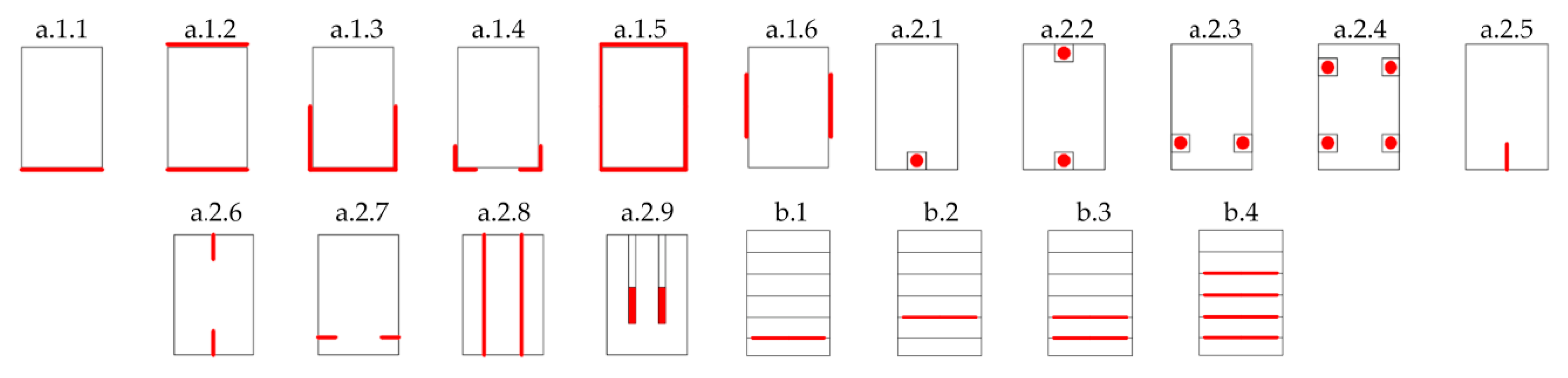

Figure 1 shows strengthening layouts examples. Configurations marked with a.1 correspond to the external reinforcement, whereas a.2 to the internal reinforcement. Layouts “b” present the reinforcement techniques used at the stage of production [7].

Since bent wooden beams normally fail due to brittle fracture in the tensile zone, placing the reinforcement on the tensile surfaces is an effective way to increase the flexural capacity. The application of the reinforcement shifts the position of the neutral axis towards the bottom surface of the element. As a result, an increase in the value of strains in the compression zone is observed in relation to the strains in the tension zone.

For many years, the basic material used to strengthen structural timber elements was steel and other metals. The analysis of the validity of using steel profiles of the S275J0 class (U-shaped) for strengthening solid, laminated and old ceiling beams was presented by González-Bravo et al. [8]. The sections were screwed to the upper surfaces, resulting in a 45% to 98% increase in stiffness and a 27% to 58% increase in flexural capacity in comparison to the reference structural elements. The increase in load capacity and stiffness was also obtained by using aluminum facings glued to the lower and upper surfaces of the bent beam [9]. Plasticization in the compression zone occurred before failure in the tension zone for beams reinforced with steel bars [10]. A 48% increase in the maximum load capacity and a 28% increase in stiffness were obtained for spruce beams reinforced with steel bars—the reinforcement ratio was 0.82% [11]. Soriano et al. [12] obtained a significant increase in stiffness at a symmetrical layout of steel bars both in the compression and tension zone. The use of punched metal plate fasteners did not bring favorable results in strengthening the bent timber beams [13]. An overview of techniques for repairing and strengthening timber structures in historical buildings using stainless steel components is presented in [14].

Tapes, sheets and bars made of synthetic resin reinforced with Aramid, basalt [15,16,17], glass or carbon fibers [18] have been the subject of numerous research papers aimed at strengthening solid [19] or laminated timber beams. The first papers started to appear in the 1960s [20]. Hybrid [21], natural (flax, hemp) fibers [22] or a combination of materials reinforced with various fibers within one element were used less frequently. Carbon fibers (due to the effectiveness of reinforcement [23,24,25,26,27,28,29,30,31]) and glass fibers [32,33,34,35,36,37] (for economic reasons) were commonly used as external and internal reinforcement. CFRP composites are characterized by high tensile strength and modulus of elasticity—depending on the mechanical properties of the reinforced beam, it is possible to achieve an increase in load capacity and stiffness by over 100%. Elements made of lower grade timber can be reinforced with GFRP materials that should provide the required increase in flexural bending capacity but may not be sufficient in terms of stiffness. Increasing the flexural bending capacity of the elements can cause failure due to the shear forces involved. In such cases, reinforcement against bending and shear may be required. The strength and stiffness of strengthened element may be enhanced by increasing reinforcement ratio [38]. The application of CFRP laminates to strengthen full-size bent LVL beams, glued into pre-drilled grooves along the bottom surface and applied to the underside of the beams, is described in [39,40]. Experimental investigation of timber beams strengthened with U-shape steel sections and carbon fiber-reinforced plastic is presented in [41].

General comments on ductility in the design of timber structures were provided by Jorissen and Fragiacomo [30]. According to them, the main reasons for designing the ductile structures are as follows:

• failure occurs after large deformations that will alert users in the event of unforeseen loads (e.g., increased snow loads);
• the load capacity of the structure is increased in relation to the values estimated based on elastic analysis (by redistributing stresses and forces);
• reliability of the structure is increased. Ductility is a way of ensuring the possibility of transferring increased displacements and rotations in the event of failure of one of the system’s elements;
• energy dissipation under seismic loads is ensured.

Shekarchi et al. [42] used the µ_Δ index to assess the ductility of timber beams reinforced with GFRP profiles. The beam displacement for the point u_u in the middle of the span was assumed at the load equal to 0.8 F_max for the descending part of the load versus deflection curve (after exceeding the peak load). Point at yield was considered according to the elastic-plastic equivalent of plasticisation while maintaining the original stiffness and load-bearing capacity of the system. Depending on the adopted reinforcement layout, the observed increase in deflection ductility was from 25% to 79%. The energy absorption of the reinforced elements increased by a maximum of 209.32%.

Nadir et al. [43] achieved a 44.37% and 46.36% increase in the ductility index µ_E for glued laminated timber beams reinforced with one and two layers of GFRP sheet, for which the degree of reinforcement in the tension zone was 2.5% and 5%. Slightly higher values were observed when using CFRP sheets. The tests were carried out on elements on a laboratory scale.

The effectiveness of reinforcement of timber beams reinforced with CFRP bands was the subject of the study [44]. The tests were carried out on a laboratory scale, using beams subjected to 4-point bending. It was found that the ductility (determined using the index µ_E) increases with the increase of the degree of reinforcement in the tension zone. The greatest increase was noticed when the value reached the level of 0.59%.

The Naaman and Jeong [45] formula was also used to assess the ductility of T-beams with a laminated timber web with a reinforced concrete flange, reinforced against bending with GFRP sheets [46].

Yusof [47] analysed the ductility of bent timber beams reinforced with bars and carbon laminates using indices based on energy absorption and deflection values. Higher percentages of increment were recorded using indices based on energy absorption.

A detailed review of the principles of designing timber joints concerning ductility, taking into account a discussion on several ductility indices and the determination of characteristic points, was presented by Ottenhaus et al. in [48]. Experimental ductility tests of the reinforced joints are discussed in [49].

Analysis of the global and local value of the bending stiffness coefficient EI for glued laminated timber beams reinforced with FRP composites are presented in [5,36], and for the repaired elements in publication [50]. Application of Basalt Fiber Reinforced Polymer (BFRP) bars with a diameter of 12 mm bonded into the grooves cut in the lowest layer allowed to obtain an increase in stiffness and maximum bending moment by 10% and 23%, respectively [5]. Comparable gains were achieved using 1.2 mm thick GFRP laminates glued to the bottom of the beam and between the two bottom layers [36]. Renovation of cracked laminated beams that were bent to failure and then repaired by gluing glass fiber reinforced bars did not allow to recover the original global and local value of flexural stiffness [50]. The percentage value of the restored stiffness increased with the increase of the degree of the cross-section reinforcement. A greater percentage increase in global versus local stiffness was also very characteristic.

The quotient of the global stiffness coefficients k_g for load values of 1/3F_max and F_max was used in [51] as an index describing the effect of high strength steel cords reinforcement on the behaviour of bent timber beams. A slight influence of the reinforcement on the increase of stiffness and load-bearing capacity in the elastic range was observed, with a satisfactory increase in the load-bearing capacity and ductility. The authors, Corradi and Borri, used this parameter also when assessing the stiffness of solid timber beams reinforced with GFRPs made in the process of pultrusion [52]. The analysis of static behaviour of timber beams, supported by experimental and numerical studies, taking into account the assessment of the impact of the number of reinforcement layers (GFRP flat bars), fixed with mechanical fasteners on the on the beams’ stiffness is presented in [33].

Significant increase in the average value of stiffness k_g in bending and reduction in scatter of standard deviation values were observed for solid timber beams (fir and oak), reinforced with CFRP and GFRP sheets [53]. Stiffness was estimated as the quotient of the load increment and the corresponding deflection increment for the loads 0.1 and 0.5 F_max. The slope of the linear part of the load-deflection graph, covering the loading force range from 30% to 60%, was used to assess the stiffness of laminated beams reinforced with CFRP sheets in [54].

Comparison of the values of experimental and numerical changes of the total stiffness coefficient k_g in the linear-elastic range for beams reinforced with composite sheets are described in paper [55].

2. Materials and Methods

The subject of the research was the analysis of the static work of laminated veneer lumber (LVL) beams strengthened with composites and reference beams. Four types of polyester matrix composite sheets were used in the research: Aramid Fiber Reinforced Polymer (AFRP), Glass Fiber Reinforced Polymer (GFRP), High Strength Carbon Fiber Reinforced Polymer (HS CFRP) and Ultra-High Modulus Carbon Fiber Reinforced Polymer (UHM CFRP).

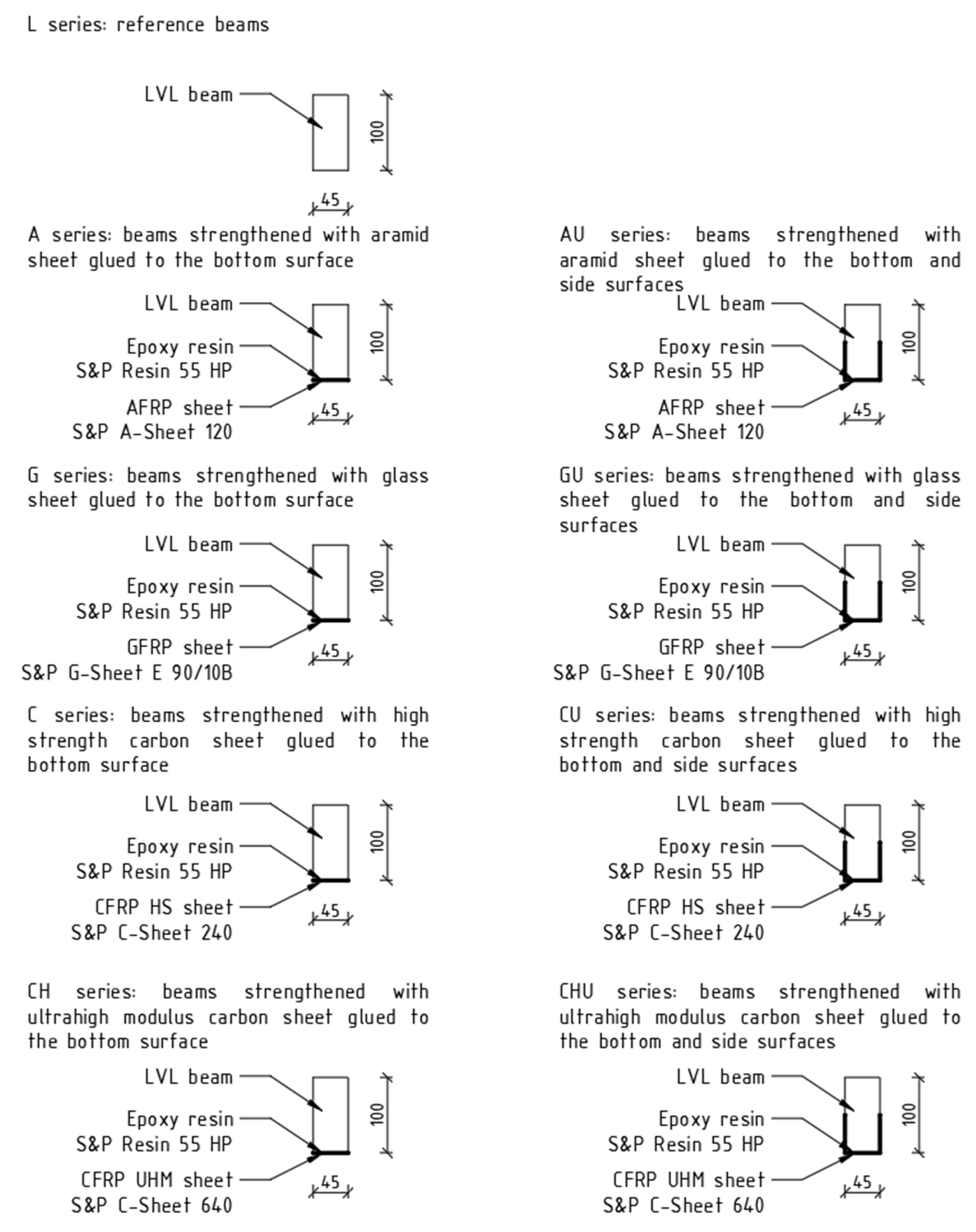

The scope of tests included the preparation of nine series (3 beams for each series) in the following configurations (Figure 2):

• LVL series—reference beams;
• LVLC series—beams strengthened with 4.5 cm wide high strength carbon sheet glued to the bottom surface (reinforcement ratio, ρt = 0.33%);
• LVLCU series—beams strengthened with 14.5 cm wide high strength carbon sheet glued to the bottom and side surfaces (reinforcement ratio, ρt = 1.07%);
• LVLCH series—beams strengthened with 4.5 cm wide ultra-high modulus carbon sheet glued to the bottom surface (reinforcement ratio, ρt = 0.19%);
• LVLCHU series—beams strengthened with 14.5 cm wide ultra-high modulus carbon sheet glued to the bottom and side surfaces, ρt = 0.61%);
• LVLA series—beams strengthened with 4.5 cm wide aramid sheet glued to the bottom surface itki (reinforcement ratio, ρt = 0.20%);
• LVLAU series—beams strengthened with 14.5 cm wide aramid sheet glued to the bottom and side surfaces (reinforcement ratio, ρt = 0.64%);
• LVLG series—beams strengthened with 4.5 cm wide glass sheet glued to the bottom surface (reinforcement ratio, ρt = 0.31%);
• LVLGU series—beams strengthened with 14.5 cm wide glass sheet glued to the bottom and side surfaces (reinforcement ratio, ρt = 0.99%).

2.1. Materials

The pilot tests were carried out on laboratory scale beams. The nominal dimension of the beams were 45 × 100 × 1700 mm. Each beam consisted of fifteen 3 mm thick veneer layers with a generally unidirectional grain arrangement. The beams were tested in the edge-wise orientation. The direction of the veneer fibers coincided with the longitudinal axis. Selected mechanical and physical properties of laminated veneer lumber are presented in

Table 1. Mechanical and physical properties of laminated veneer lumber (exposed by manufacturer) [56].

Parameter	Value
Bending strength (edgewise condition) fm,0,edge [MPa]	44
Bending strength (flatwise condition) fm,0,flat [MPa]	50
Tensile strength parallel to the grain ft,0 [MPa]	36
Tensile strength perpendicular to the grain ft,90,edge [MPa]	0.9
Compression strength parallel to the grain fc,0 [MPa]	40
Compression strength perpendicular to the grain (edgewise condition) fc,90,edge [MPa]	7.5
Shear strength parallel to the grain fv,0,edge [MPa]	4.6
Modulus of elasticity in bending E [GPa]	14
Shear modulus G [MPa]	600
Density ρd [kg/m3]	550

.

CFRP sheets have a fabric-like structure with carbon fibers arranged in layers, rectilinearly and unidirectionally. The fibers laid in the main direction are stabilized (bonded) with transverse polyester fibers. UHM CFRP sheet is characterized by much greater stiffness, which makes it less flexible for shaping. AFRP sheet has a structure similar to the CFRP sheet—aramid fibers are arranged in one direction and are bound with polyester fibers. In GFRP sheets (made of E fibers), the fibers are arranged in layers, in a wavy way (they pass in the form of a wave between the transverse and longitudinal directions) and bidirectionally with a fiber content of 90% and 10% in the main direction and transverse direction, respectively. The fabrics were cut to the assumed sizes with the use of scissors. The specification of the composite sheets used is presented in

Table 2. Technical data of composite sheets (exposed by manufacturer) [57].

Parameter	AFRP Sheet	GFRP Sheet	HS CFRP Sheet	UHM CFRP Sheet
Modulus of elasticity Ef [GPa]	≥120	≥73	≥265	≥640
Tensile strength ft,f [MPa]	≥2900	≥3400	≥5100	≥2600
Fiber mass mf [kg/m2]	0.290	0.800	0.600	0.400
Sheet mass ms [kg/m2]	0.320	0.880	0.630	0.430
Density ρf [kg/m3]	1450	2600	1800	2120
Elongation at rupture εf [%]	2.5	4.5	1.7–1.9	0.4
Design thickness tf [mm]	0.200	0.308	0.333	0.189

.

The sheets were glued with a two-component, solvent-free adhesive, based on epoxy resin with the amine hardener. The technical data of the adhesive is presented in

Table 3. Technical data of epoxy resin (exposed by manufacturer) [57].

Parameter	Value
Modulus of elasticity Ek [MPa]	≥3200
Density ρk [kg/m3]	1200–1300
Compressive strength fc,k [MPa]	≥100

. In the case of CFRP and GFRP sheets (with a more compact structure and higher basis weight), a wet application was used with the simultaneous impregnation of the veneer surface. AFRP sheets were applied dry by pressing against the surface of the veneer covered with glue. Lamination was carried out with the use of a brush and a rubber trowel. The sheets were placed by hand, with the load bearing fibers in the required direction. After laying the fabric, the adhesive between the sheet and the application surface was spread with the rubber trowel from the centre towards the outer edges—along the fibers only. The excess adhesive was removed and applied to the outer surface of the sheet. Particular attention was paid to the proper coating of the composite material edges. Adhesive consumption was approximately one kilogram of the adhesive compound for each square meter of the sheet.

Before starting the reinforcement application, the surface of the beams was sanded with a belt grinder (using 120-grade sandpaper) and cleaned. The corners of the reinforced elements (for the U-type reinforcement layout) were rounded using a milling machine—the curve radius was 6.25 mm. There were no cavities or cracks in the areas of reinforcement application. After the reinforcement was applied, the beams were stored in the laboratory until the test was performed.

2.2. Methods

The test were conducted at the Laboratory for Strength of Materials of the Kielce University of Technology (Kielce, Poland). An MTS-320 universal testing machine (MTS Systems GmbH, Berlin, Germany) was used to carry out the 4-point bending test. The tests were carried out following the guidelines given in standards [58,59]. The loading rate was assumed at 7 mm/min, so that the failure of the unreinforced beams took place within the recommended time interval of 300 s ± 120 s. Regardless of the reinforced beams test length, the previously established kinematic conditions were not changed. The first significant decrease in the loading force was assumed as the moment of failure.

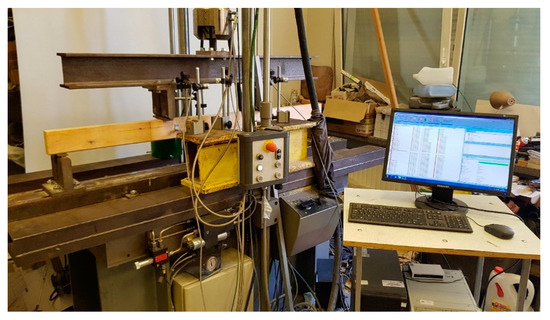

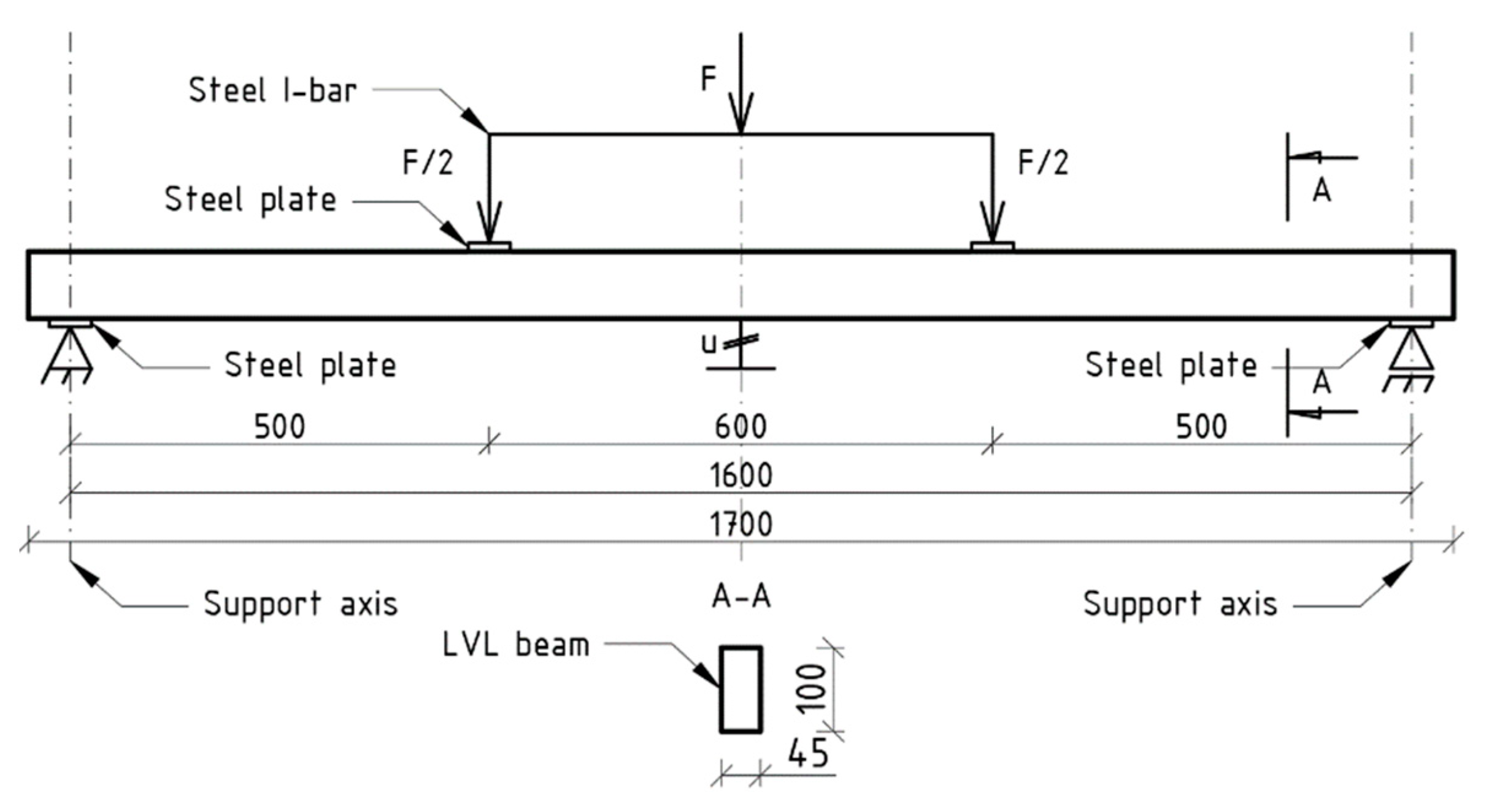

The diagram of the static test setup is shown in Figure 3, and its view presented in Figure 4. The beams were loaded symmetrically with two concentrated forces. The concentrated force supplied by actuator of the testing machine was divided into components using a steel I-bar. The total length of the beams was seventeen-fold height of the cross section. They were oriented in such a way as to ensure that the length of the support span was equal to 16-fold height of the cross-section. The distance between the point at which the concentrated force was applied and the nearest support was five-fold height of the cross-section. Steel guide plates were used in order to distribute the load over a larger area and prevent local indentations on the supports and at the point of the concentrated force application.

During the research, the following parameters were recorded:

• the loading force value F [N], displacement of the hydraulic actuator head u_s [mm] (which can be equated with the displacement of the beam at the points of application of the concentrated load) and test time t [s]—with the use of a computer set connected to the universal testing machine MTS-320;
• deflection in the center of the beam at the extreme lower fibers under tension u [mm]—measurement performed using an inductive sensor of the Hottinger Baldwin Messtechnik system;
• failure mode—description and photographic documentation.

The data recording frequency was 5 Hz.

After the tests, the moisture content of the elements was checked using a Tanel WRD-100 resistance hygrometer. The value of the average moisture content of the laminated veneer timber at the time of the test is presented in

Table 4. Average moisture content value of laminated veneer lumber in each series.

Series	LVL	LVLA	LVLAU	LVLG	LVLGU	LVLC	LVLCU	LVLCH	LVLCHU
Moisture content [%]	14.8	14.0	14.5	14.1	14.5	14.3	13.6	15.1	13.7

.

3. Results

3.1. Bending Strength

The analytical model of the reinforced beams was created using the equivalent cross-section method, in which the reinforcement is taken into account by a proportional increase of the geometrical dimensions of the timber beam cross-section [60,61]. Modulus of Rupture (MOR) determines the maximum normal stress occurring in the outermost fibers subjected to compression or tension, determined for the maximum value of the bending moment recorded in the 4-point bending test. The calculations were made for the reinforced beams, using the geometric characteristics of the equivalent cross-section, assuming a linear stress distribution over the depth of the cross section. The maximum normal stress was estimated on the basis of the experimental data according to the formula (based on [60]):

$$MOR=\frac{M_{max}·{ z}_f}{I_{y,zast}}$$

(1)

where: M_max—maximum bending moment; z_f—distance between neutral axis and outermost fibers subjected to compression or tension; I_y,zast—moment of inertia of equivalent cross-section about y axis.

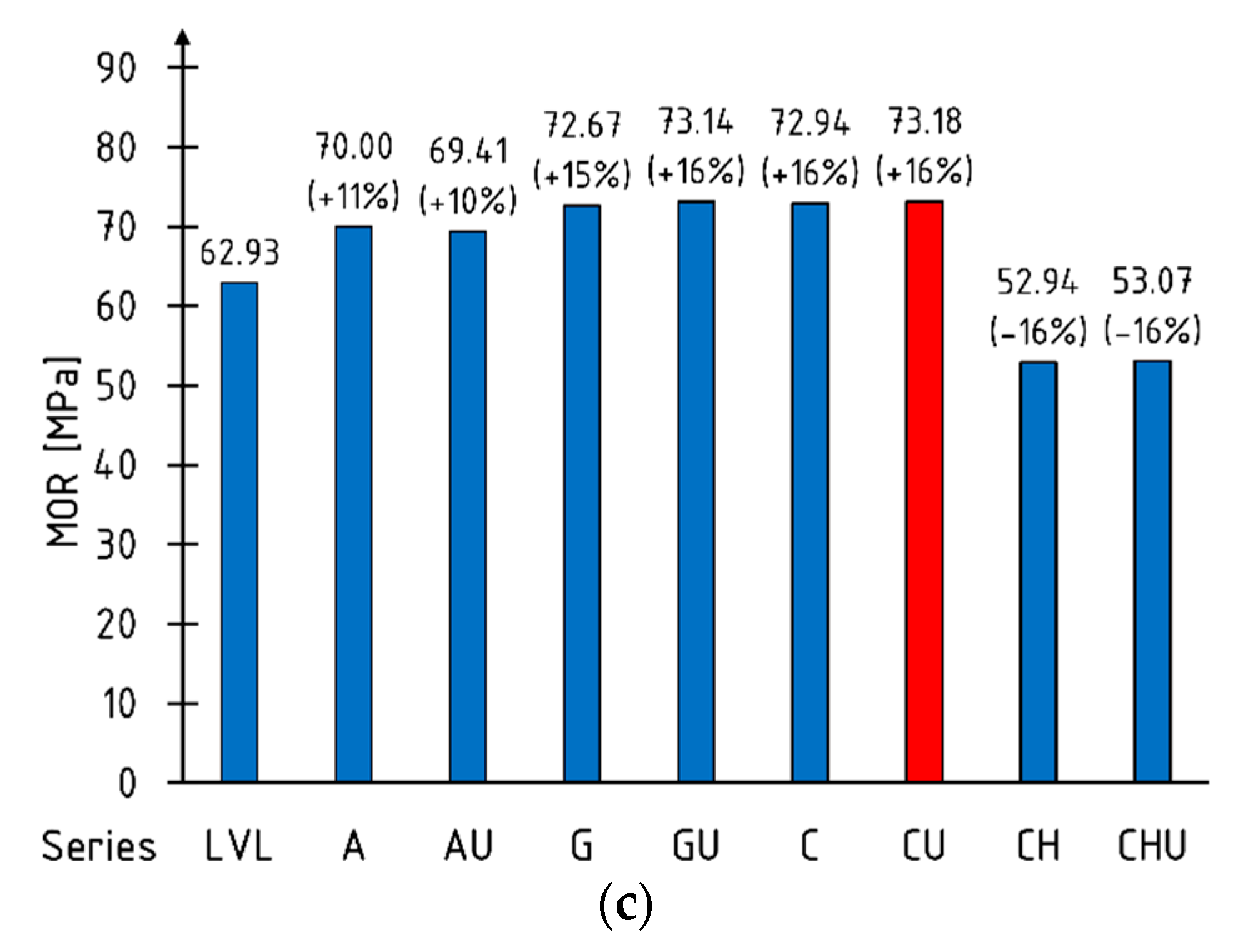

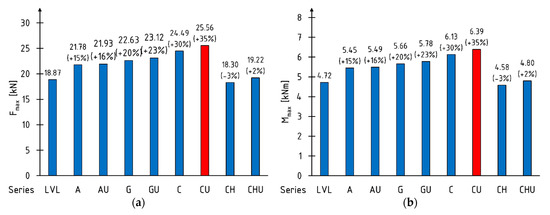

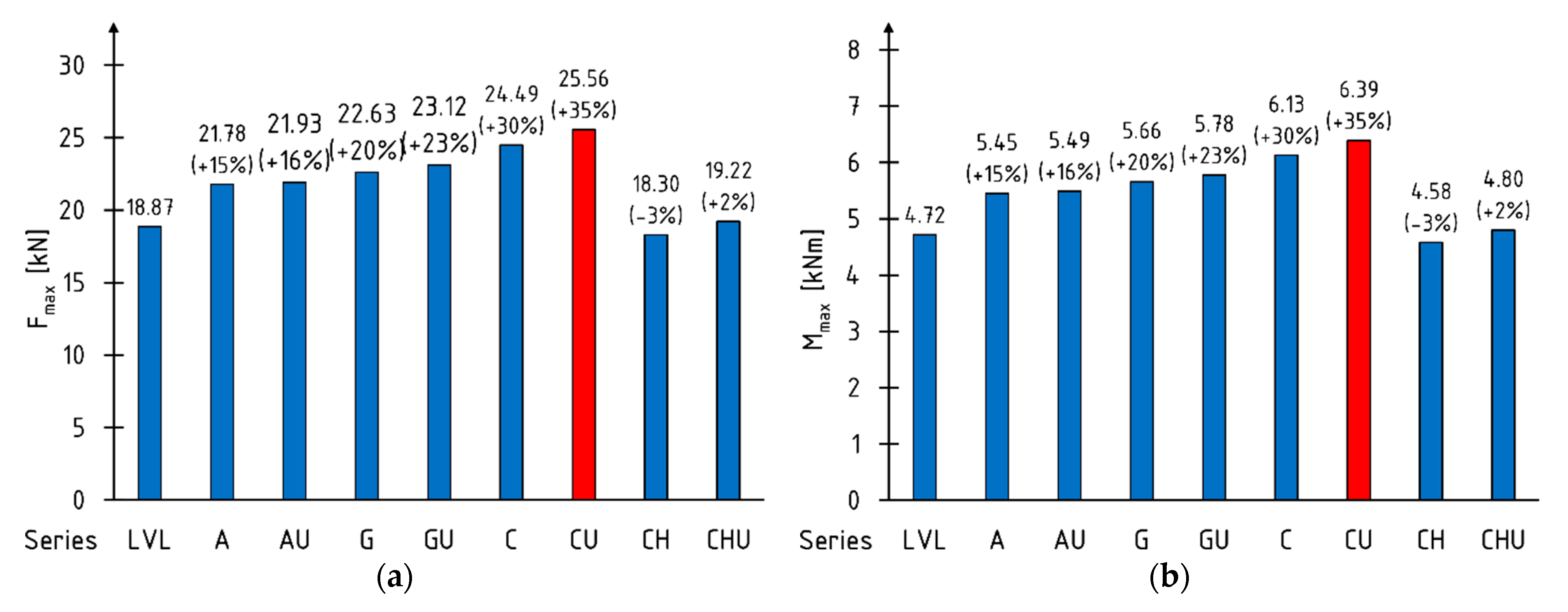

Figure 5 shows the average values of the maximum bending moment, loading force and modulus of rupture. The percentages of the increment in relation to the reference beams are shown in brackets. Extreme (maximum) values are marked with red fill pattern.

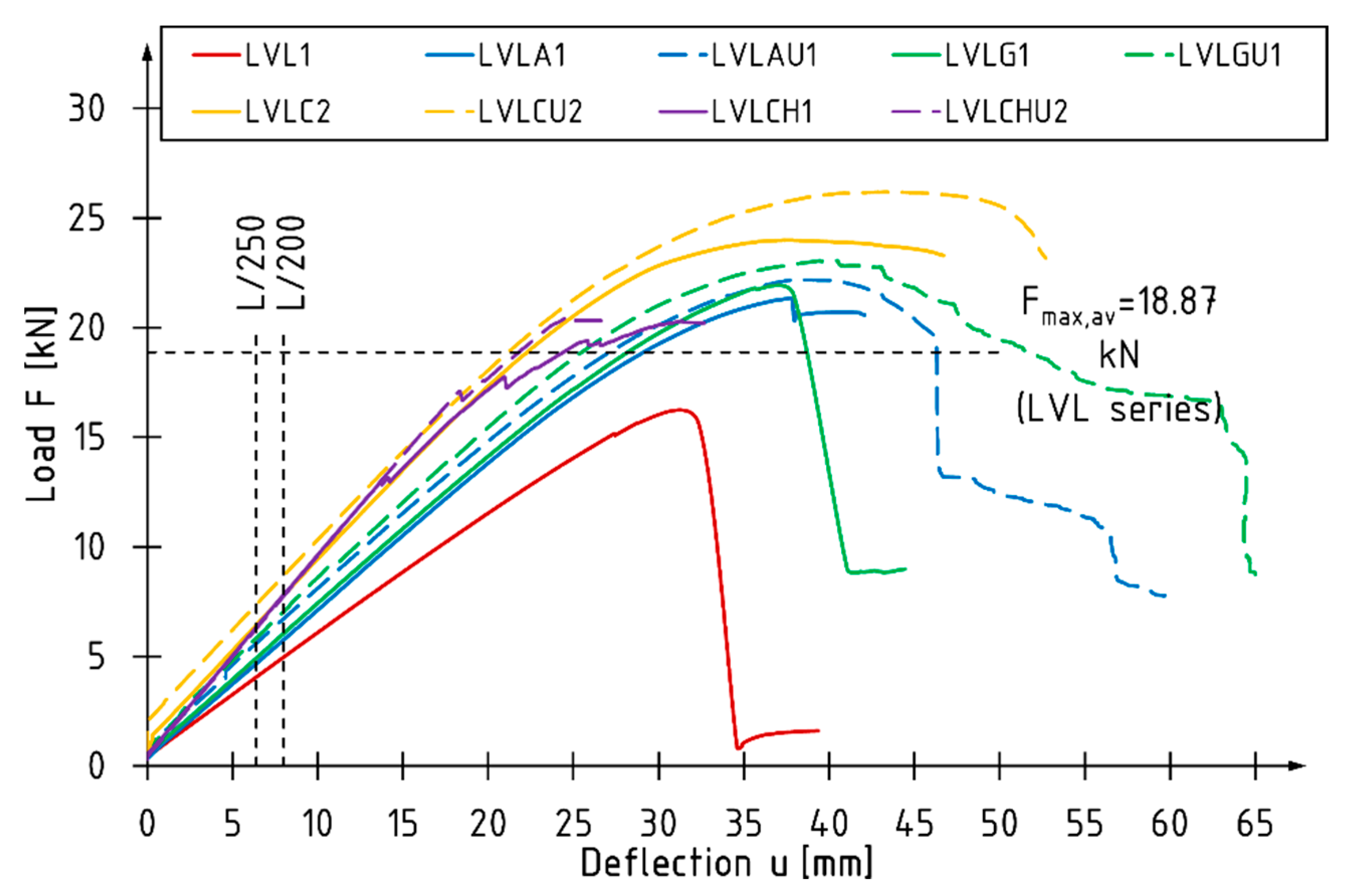

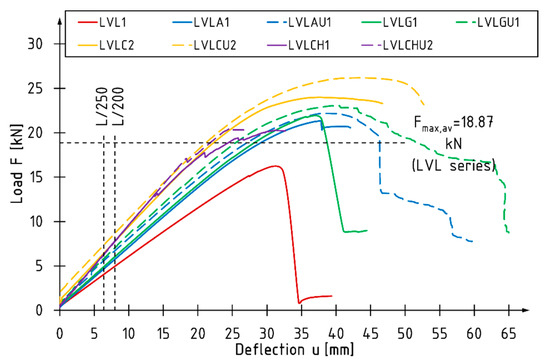

Figure 6 shows the relationship between the loading force and the deflection for selected tested beams. As can be seen, the value of deflection and loading force increases with increasing reinforcement ratio and coverage value of side surface with composite material.

3.2. Ductility

Ductility is defined as the ability to withstand plastic deformation while maintaining the required level of load bearing capacity until failure. Element deformation can be considered in terms of deflection, curvature or strain [62,63]. Based on this definition, ductility can be expressed in terms of deformation measures (dimensionless deformation rates) or energy absorption (dimensionless energy rates). In the case of beams reinforced with steel bars, for which plastic deformations can be unequivocally determined, the ductility can be determined as the ratio of the limit value of the deformation to the value at the yield point. For the elements reinforced with FRP materials, determining the yield point may be difficult or even impossible.

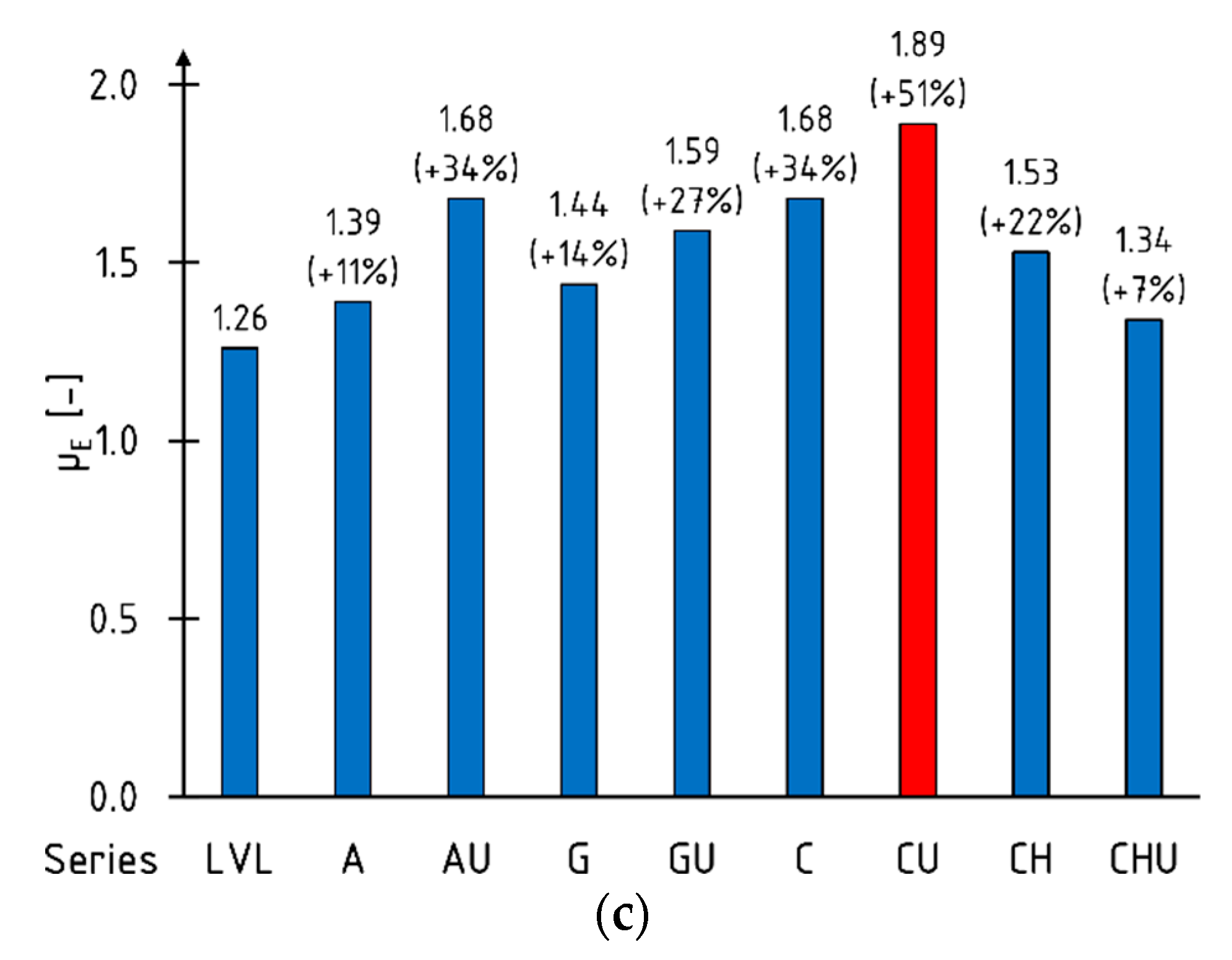

The ductility analysis was carried out with the use of three indicators, hereinafter referred to as D, µ_Δ, and µ_E.

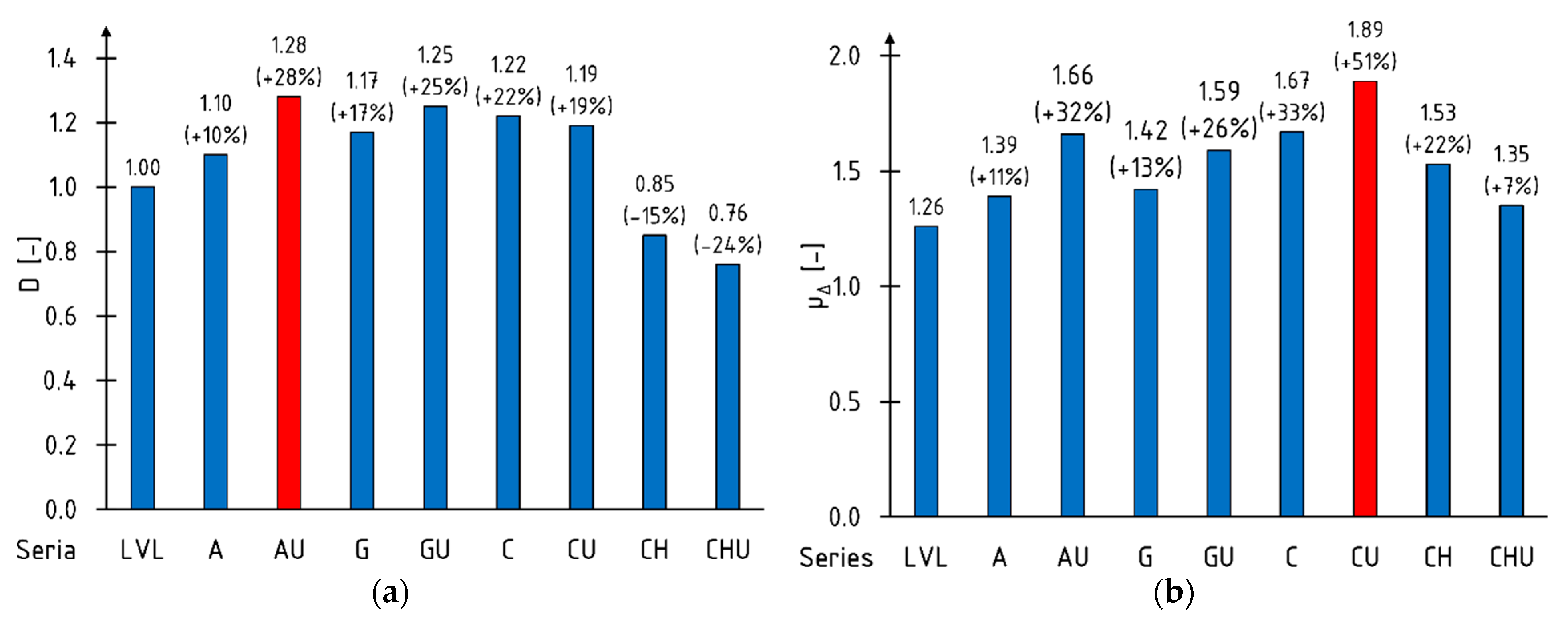

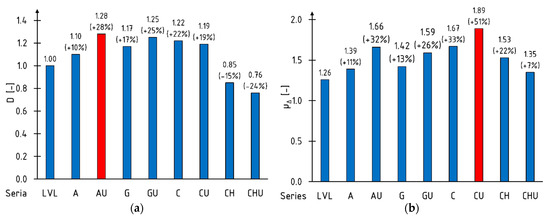

The simplest measure of ductility, marked with the symbol D, of a timber beam reinforced with FRP material, is based on a comparison of the unreinforced element deflection value with the reinforced element deflection, according to the following formula [22]:

$$D=\frac{u_{Fmax,w}}{u_{Fmax,nw}},$$

(2)

where: u_Fmax,w—deflection at maximum load of strengthened beam; u_Fmax,nw—deflection at maximum load of unstrengthened beam.

As defined in the index above, “D” of the reference elements is equal to 1.

The deflection ductility index µ_Δ is defined as the ratio of the ultimate deflection to the deflection at yield point, according to the following formula [64]:

$${\mu }_{\Delta }=\frac{u_u}{u_y},$$

(3)

where: u_u—ultimate deflection; u_y—deflection at yield point.

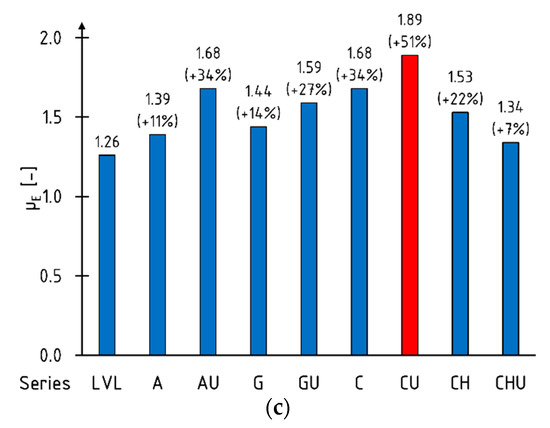

Ductility index µ_E is expressed as the quotient of the total and elastic energy as follows [45]:

$${\mu }_E=\frac{1}{2}·\left(\frac{W_{tot}}{W_e}+1\right),$$

(4)

where: W_tot—total energy; W_e—elastic energy.

The elastic energy can be estimated based on the area of a triangle, one of the vertices of which is at the point of failure of the beam. The remaining corners of the triangle rest on the horizontal axis. Their positions are determined by leading two straight lines through the point of destruction: vertical and the inclined one, which is parallel to the linear-elastic part of the load-deflection plot [62,65]. An alternative method used in many studies to determine the areas under the curve is the integration of a polynomial approximating the bending behaviour in the range defined by the characteristic points, such as the beginning of the test, the limit of the proportionality, plasticity or element failure [47].

The yield point of the elements was determined according to the guidelines given in the study [66]. The maximum deflection value was taken at the point of significant load drop. The energy was determined by integrating fifth-degree polynomials from the beginning of the test to the characteristic point. Figure 7 shows the average values of ductility indices. Extreme (maximum) values are marked with red fill pattern.

Almost identical values of the bending ductility of beams on a laboratory scale were obtained using indices µ_Δ and µ_E. The highest percentage increase in ductility was achieved with the use of HS CFRP sheets, amounting to more than 30% when applying the reinforcement to the bottom of the beam (LVLC series) and over 50% for the U-type reinforcement (LVLCU series). A negative value of the D index percentage increase for the beams reinforced with UHM CFRP sheets resulted from lower deflection at maximum load compared to reference beams.

3.3. Stiffness

Global stiffness coefficient k_g for beams on a laboratory scale was determined based on the deflection of the beam measured at the level of the outermost tensile fibers in the middle of the span of the element and the corresponding load. On the sections of the “load-deflection” dependence graph, the limit deflection values for the serviceability limit state, adopted according to [67], and the equation of the trend lines were marked (Figure 8). The analysis was performed using the slope of the regression line. The results of the statistical analysis are presented in

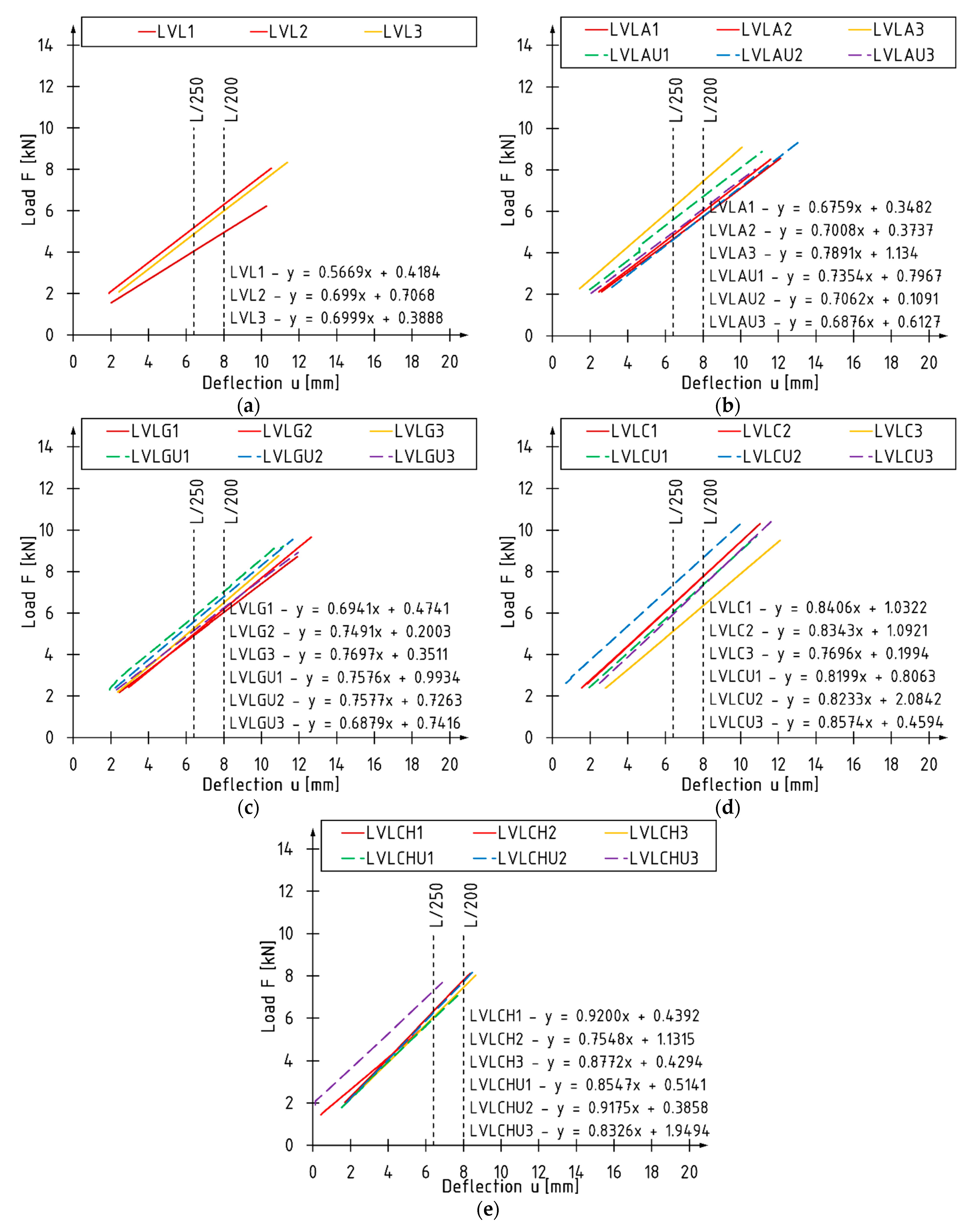

Table 5. Stiffness analysis.

Slope of Linear Function a [kN/mm]	x [kN/mm]	s [kN/mm]	Vs [%]	R [kN/mm]
L1: 0.5669; L2: 0.699; L3: 0.6999	0.655	0.077	11.68	0.133
A1: 0.6759; A2: 0.7008; A3: 0.7891	0.722 (+10%)	0.059	8.24	0.113
AU1: 0.7354; AU2: 0.7062; AU3: 0.6876	0.710 (+8%)	0.024	3.40	0.048
G1: 0.6941; G2: 0.7491; G3: 0.7697	0.738 (+13%)	0.039	5.30	0.076
GU1: 0.7576; GU2: 0.7577; GU3: 0.6879	0.734 (+12%)	0.040	5.48	0.070
C1: 0.8406; C2: 0.8343; C3: 0.7696	0.815 (+24%)	0.039	4.82	0.071
C1: 0.8199; CU2: 0.8233; CU3: 0.8574	0.834 (+27%)	0.021	2.49	0.038
CH1: 0.9200; CH2: 0.7548; CH3: 0.8772	0.851 (+30%)	0.086	10.08	0.165
CHU1: 0.8547; CHU2: 0.9175; CHU3: 0.8326	0.868 (+33%)	0.044	5.07	0.085

Symbols: x—arithmetic means; s—standard deviation; V_s—coefficient of variation; R—range.

.

The smallest increases in the average value of the global stiffness coefficient, amounting to about 10%, were recorded for beams reinforced with aramid and glass sheets characterized by lower values of the modulus of elasticity compared to carbon sheets. The percentage increase for beams reinforced with carbon sheets of high tensile strength was over 20%, and for sheets with ultra-high modulus of elasticity—over 30%. With the increase of the composite sheet modulus of elasticity, the percentage increase grew. A higher increase of k_g coefficient when using CFRP sheets was obtained for the U-type reinforcement layout. This phenomenon was not observed in the case of beams reinforced with AFRP and GFRP sheets.

3.4. Failure Modes

The reference beams (LVL series) failed at the maximum bending moment zone in brittle fashion. The failure of these beams resulted from the exceed of strength in the tension zone. Figure 9a shows typical failure of a reference beam.

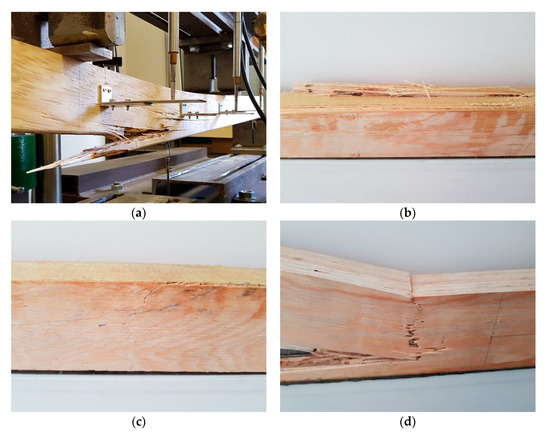

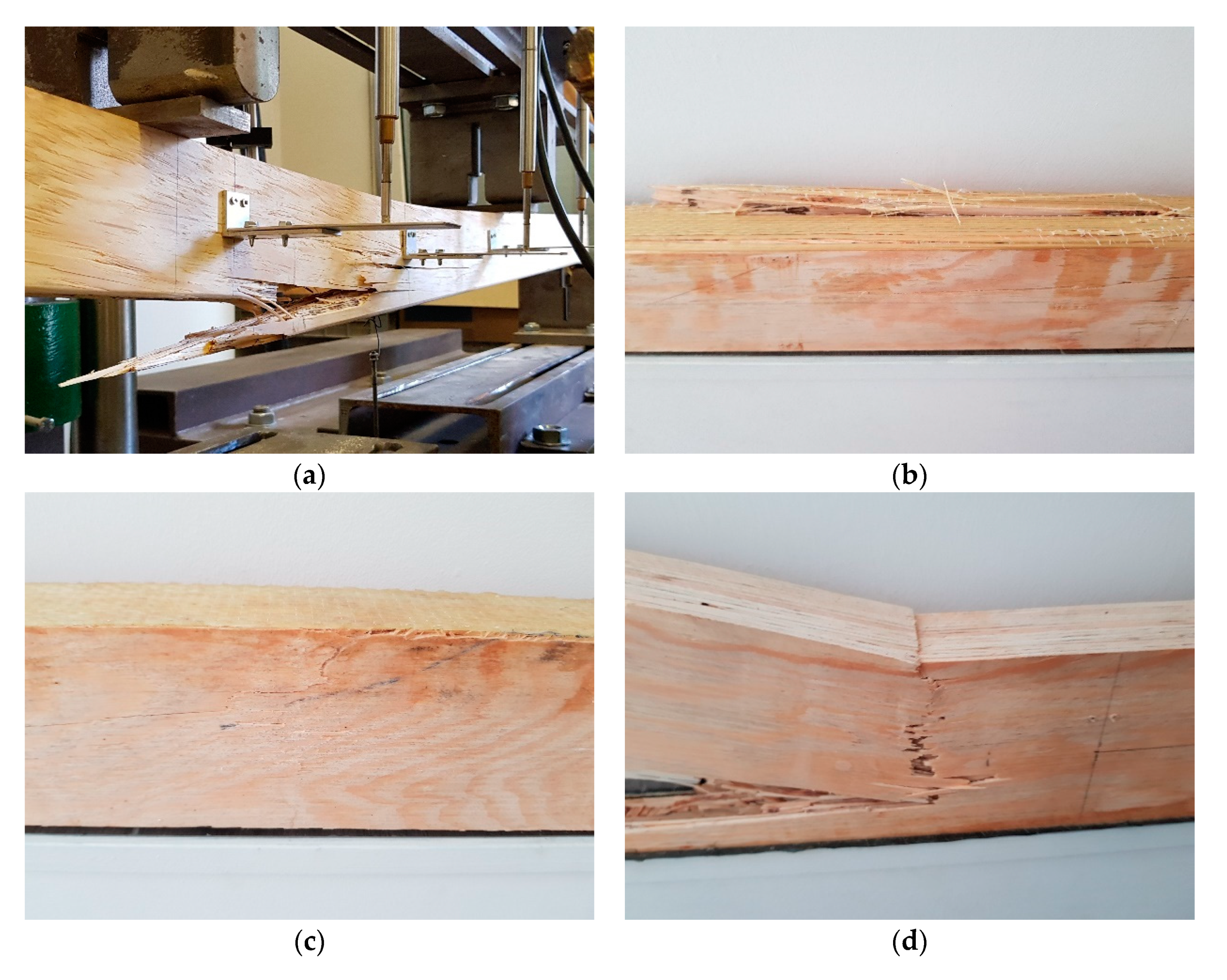

Greater variation of strengthened beams was recorded. Failure modes of strengthened beams:

• Rupture of composite reinforcement with failure of timber in tension zone (Figure 9b)—typical failure mode for beams strengthened with AFRP and CFRP sheet bonded to the underside;
• Brittle fracture of timber beam in tension zone, with no rupture of composite reinforcement (Figure 9c)—typical failure mode for beams strengthened with GFRP bonded to the underside;
• Shear failure (Figure 9d)—single example recorded for beam strengthened with one layer of CFRP sheet bonded to the underside;
• Sudden rupture of composite fibers which caused splitting the beam—single example (Figure 9e);

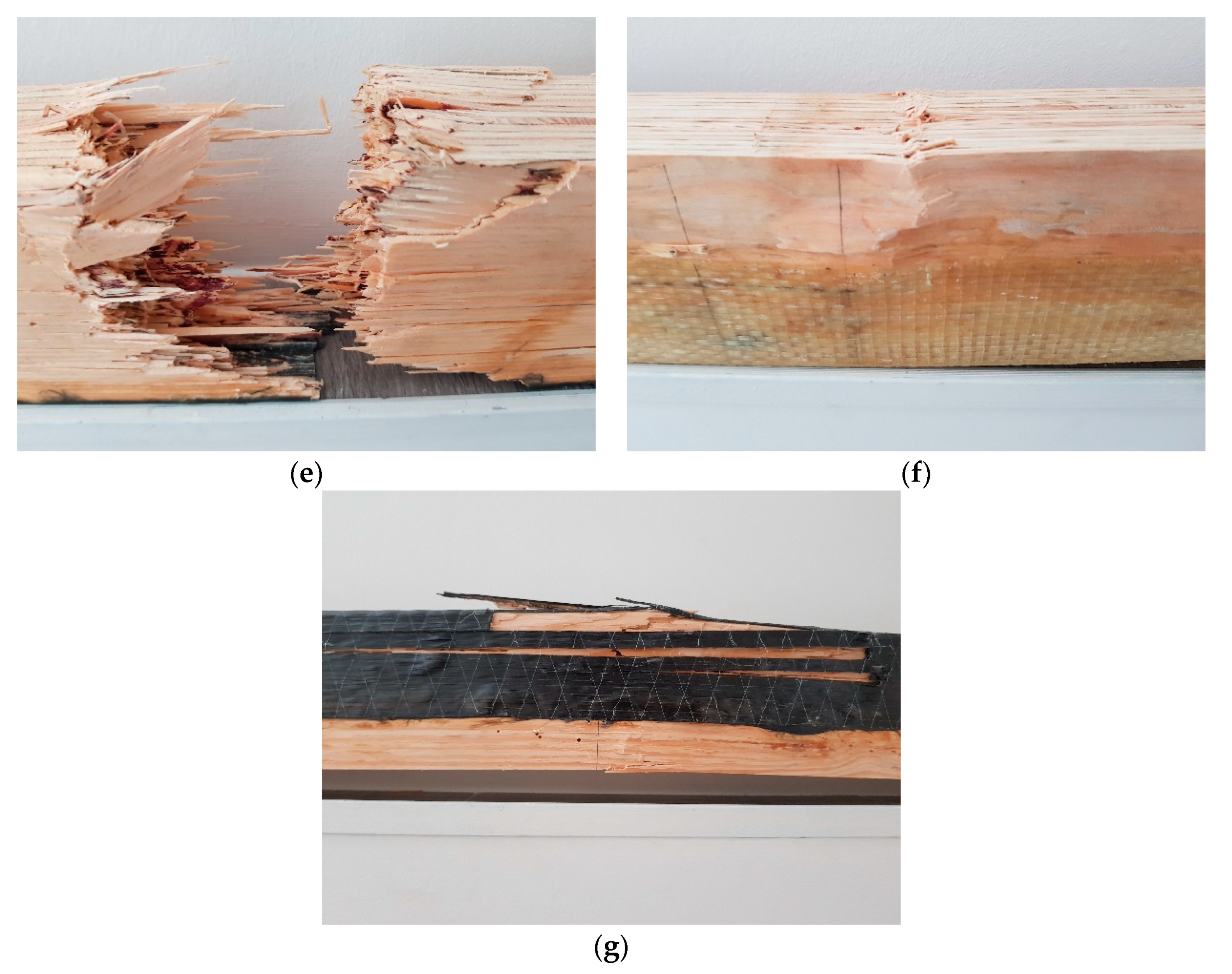

• Failure of timber in compression zone (kink-bands), with no rupture of composite reinforcement (Figure 9f)—typical failure for beams strengthened with GFRP sheets in U-configuration;
• Failure of timber in compression zone (kink-bands), with rupture of composite reinforcement (Figure 9g)—typical failure for beams strengthened with AFRP and CFRP sheets in U-configuration.

4. Conclusions

The subject of the research were laminated veneer lumber beams strengthened with AFRP, GFRP, HS CFRP and UHM CFRP sheets, glued to the external surfaces of the structural elements with an structural adhesives based on epoxy resin. Two reinforcement layouts were used: reinforcement with sheets glued to the bottom of the beam and U-type reinforcement. The following conclusions can be put forth:

• The time to failure and loading force increases with increasing reinforcement ratio and coverage value of side surface with composite material.
• The higher the modulus of elasticity of composite sheet was, the greater increase of bending stiffness was obtained. The largest percentage increase in the bending stiffness coefficient k_g, over 30% in comparison with reference beams, was obtained for the LVLCH and LVLCHU series.
• Generally, the higher the tensile strength of composite sheet was, the greater increase in load bearing capacity was achieved. It is not applicable for composite materials with low value of elongation at rupture, as in the case of UHM CFRP.
• Similar values of the flexural ductility of unreinforced and reinforced beams were obtained when using ductility indices based on plastic deformation—an index based on deflection µ_Δ and energy absorption µ_E.
• The ductility, based on comparison of deflection values—index D, of beams strengthened with ultra-high modulus carbon sheets decreased.
• The highest ductility was found in the beams strengthened with HS CFRP sheet which is characterized by high tensile strength, high modulus of elasticity and sufficient elongation at rupture—to withstand elongation of fibers corresponding to the increasing deflection.
