Next Article in Journal
Effect of Linseed (Linum usitatissimum) Mucilage and Chitosan Edible Coatings on Quality and Shelf-Life of Fresh-Cut Cantaloupe (Cucumis melo)
Next Article in Special Issue
The Implication of Benzene–Ethanol Extractive on Mechanical Properties of Waterborne Coating and Wood Cell Wall by Nanoindentation
Previous Article in Journal
Continuous Composition Spread and Electrochemical Studies of Low Cobalt Content Li(Ni,Mn,Co)O2 Cathode Materials
Open AccessArticle

A Comparative Study of Multifunctional Coatings Based on Electrospun Fibers with Incorporated ZnO Nanoparticles

1
Engineering Department, Public University of Navarre, Campus Arrosadía S/N, 31006 Pamplona, Spain
2
Institute for Advanced Materials (INAMAT), Public University of Navarre, Campus Arrosadía S/N, 31006 Pamplona, Spain
3
Centre of Advanced Surface Engineering, AIN, 31191 Cordovilla, Spain
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(6), 367; https://doi.org/10.3390/coatings9060367
Received: 13 May 2019 / Revised: 29 May 2019 / Accepted: 3 June 2019 / Published: 4 June 2019
(This article belongs to the Special Issue Coatings and Interfaces)

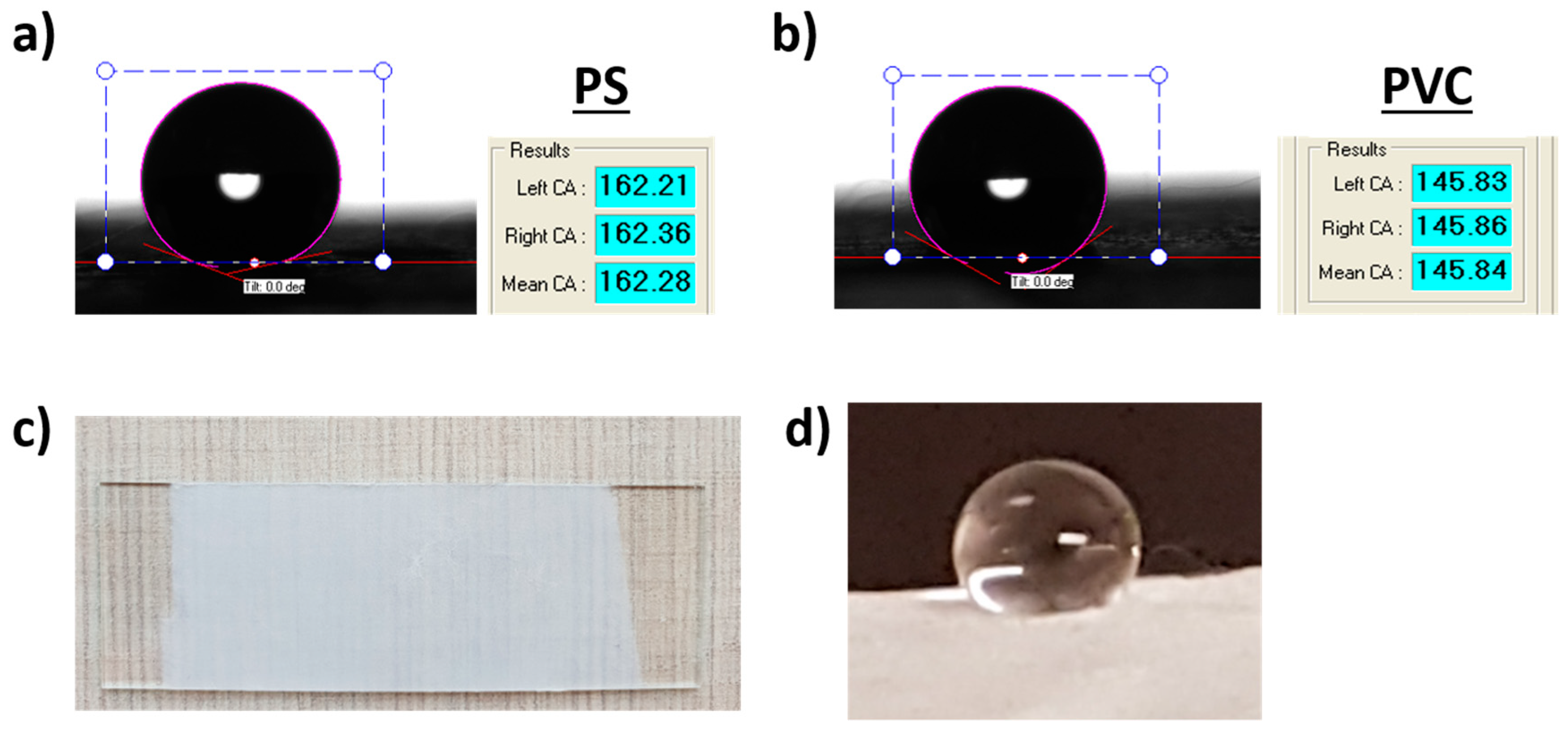

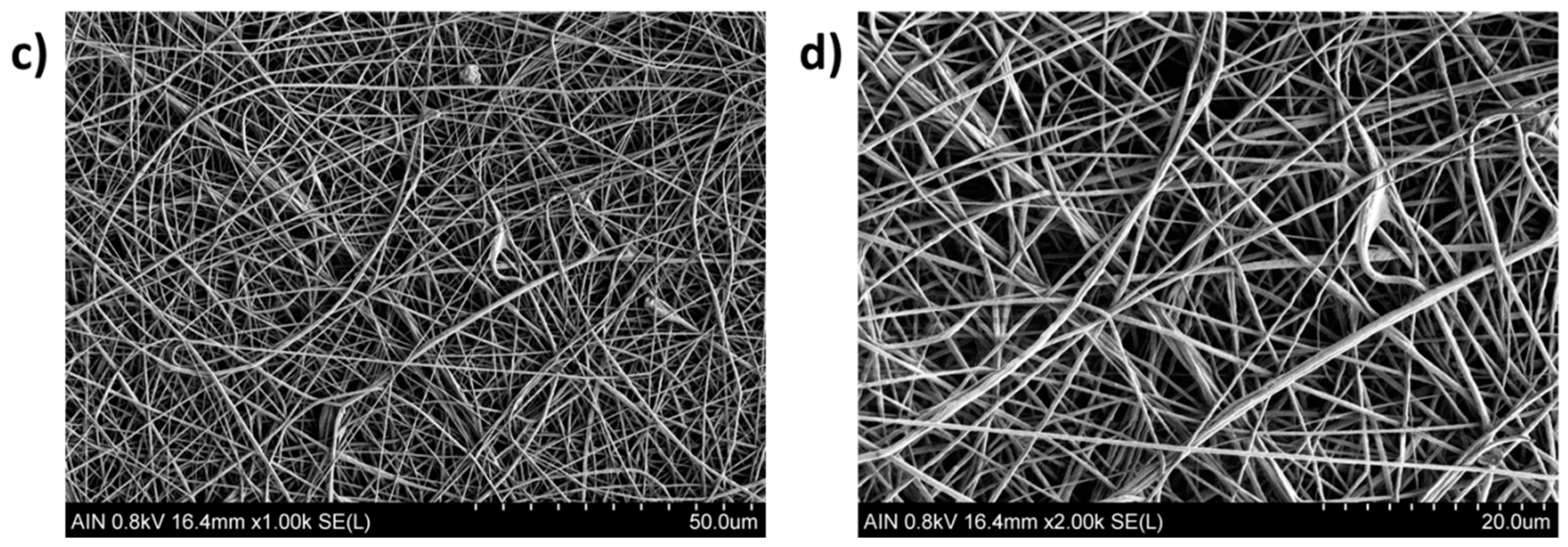

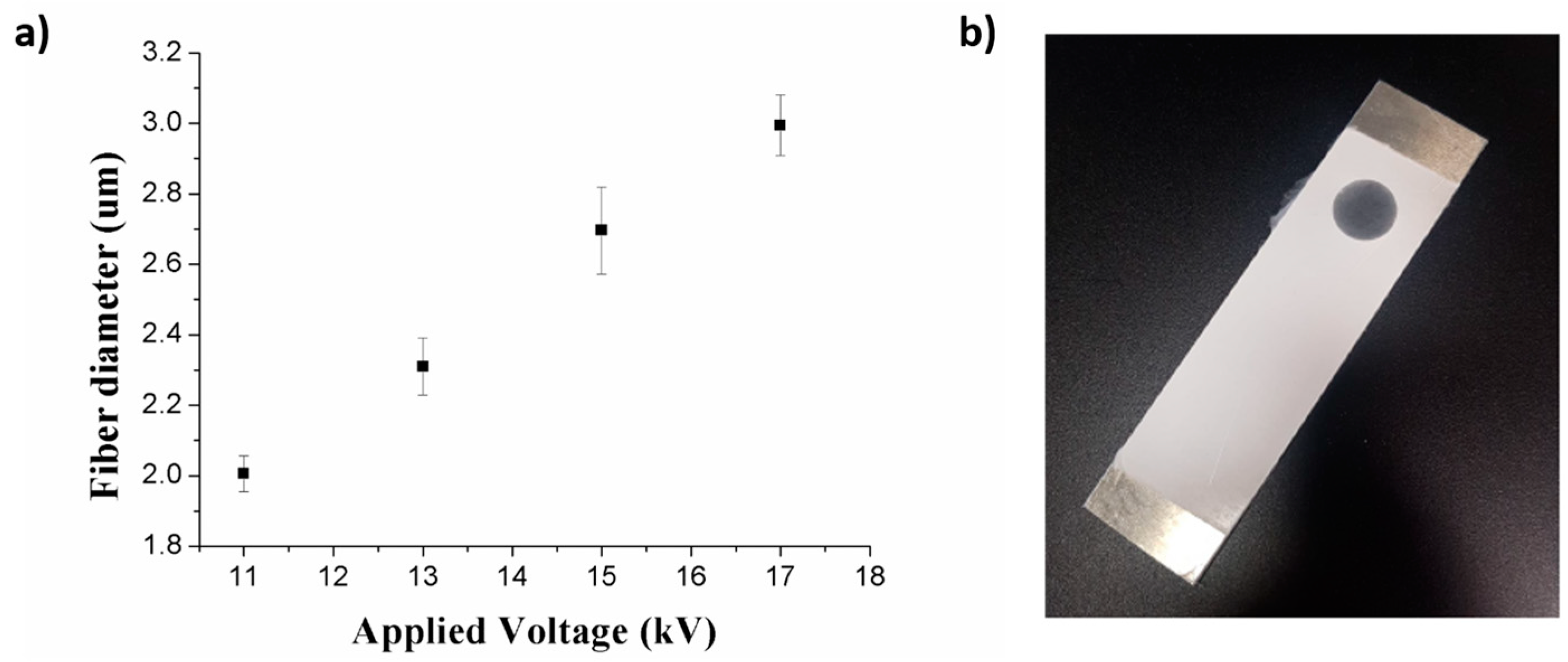

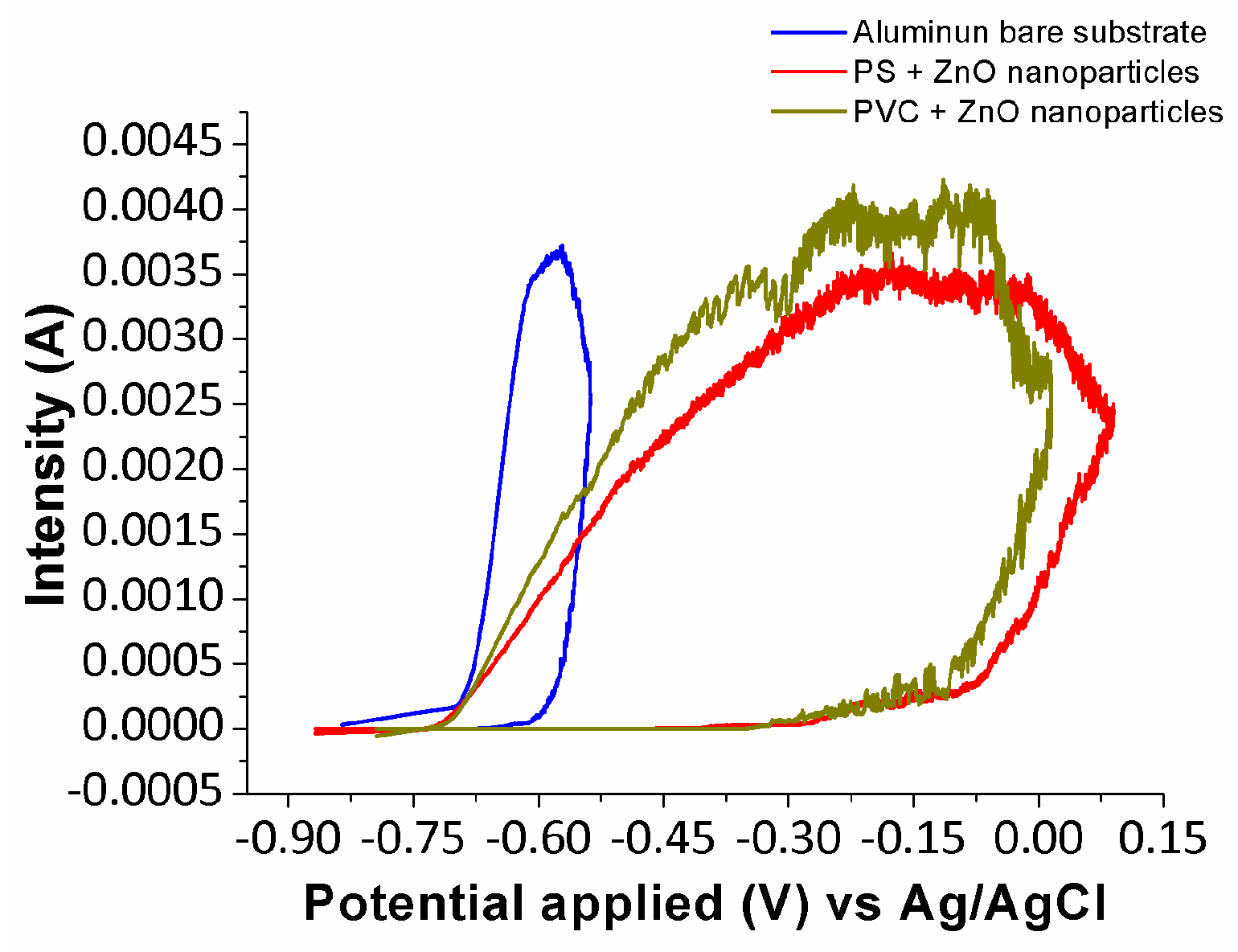

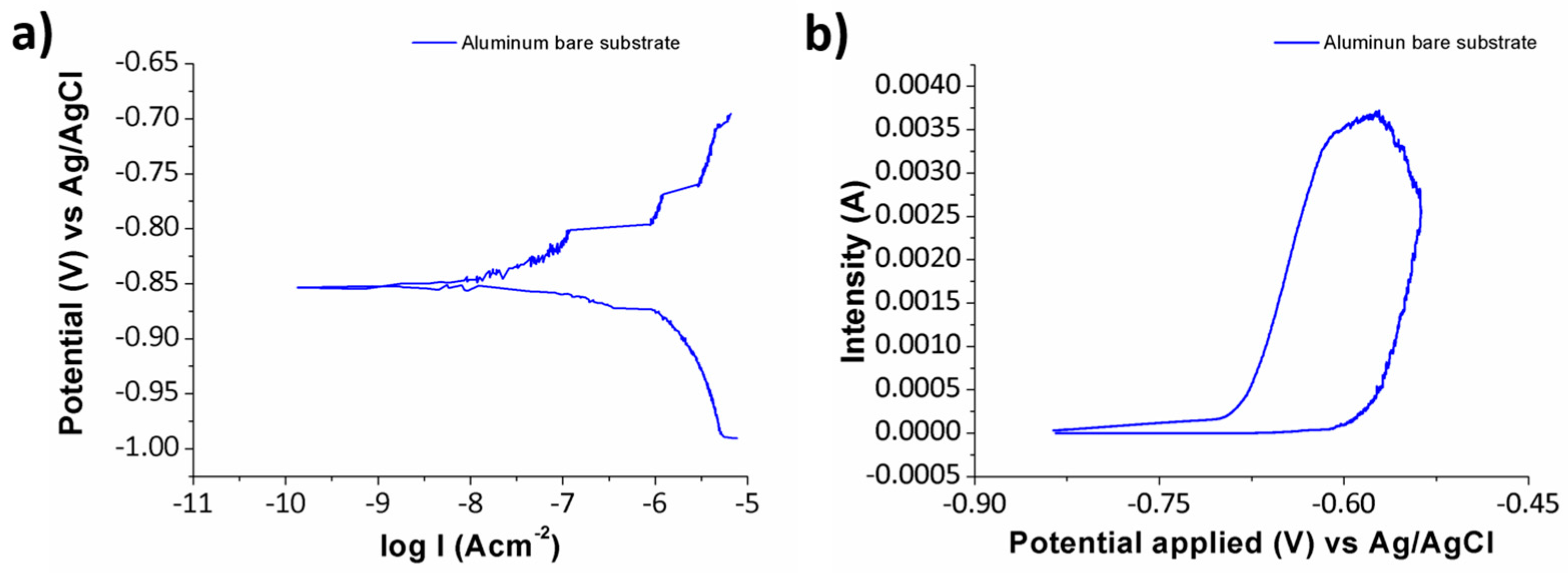

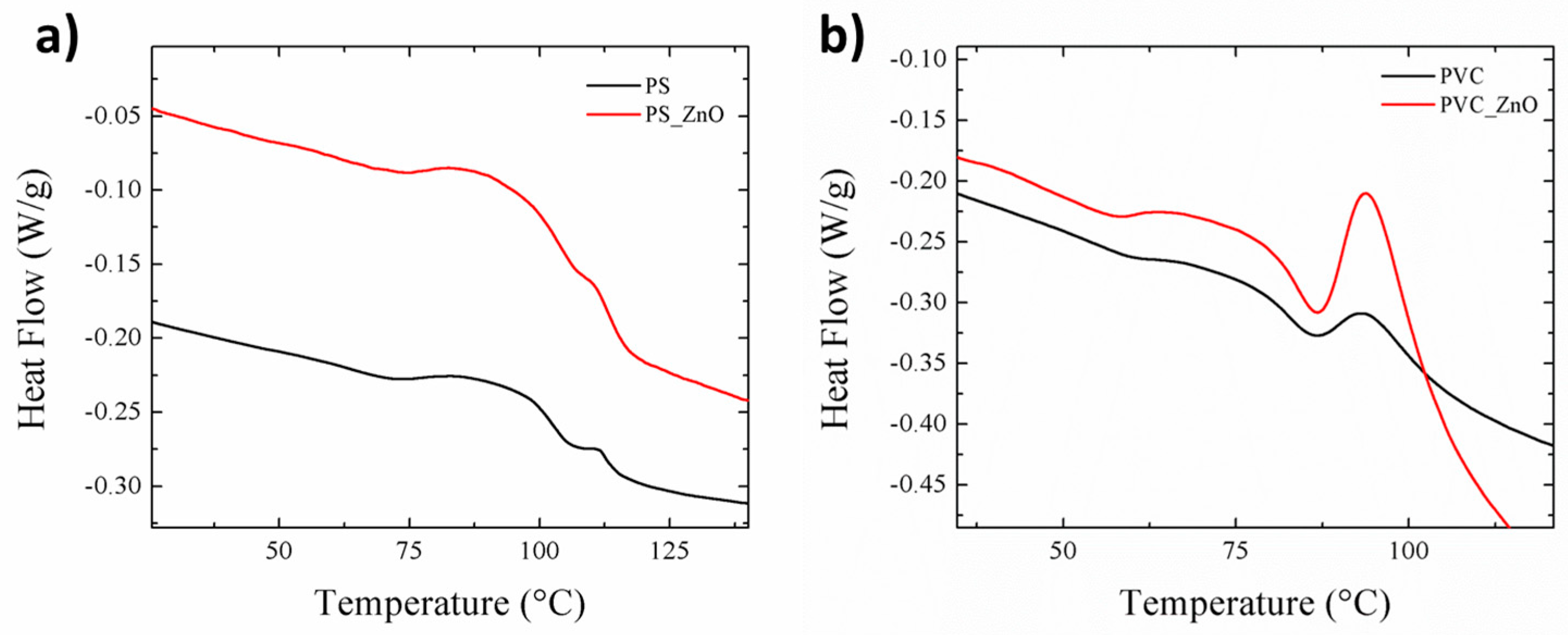

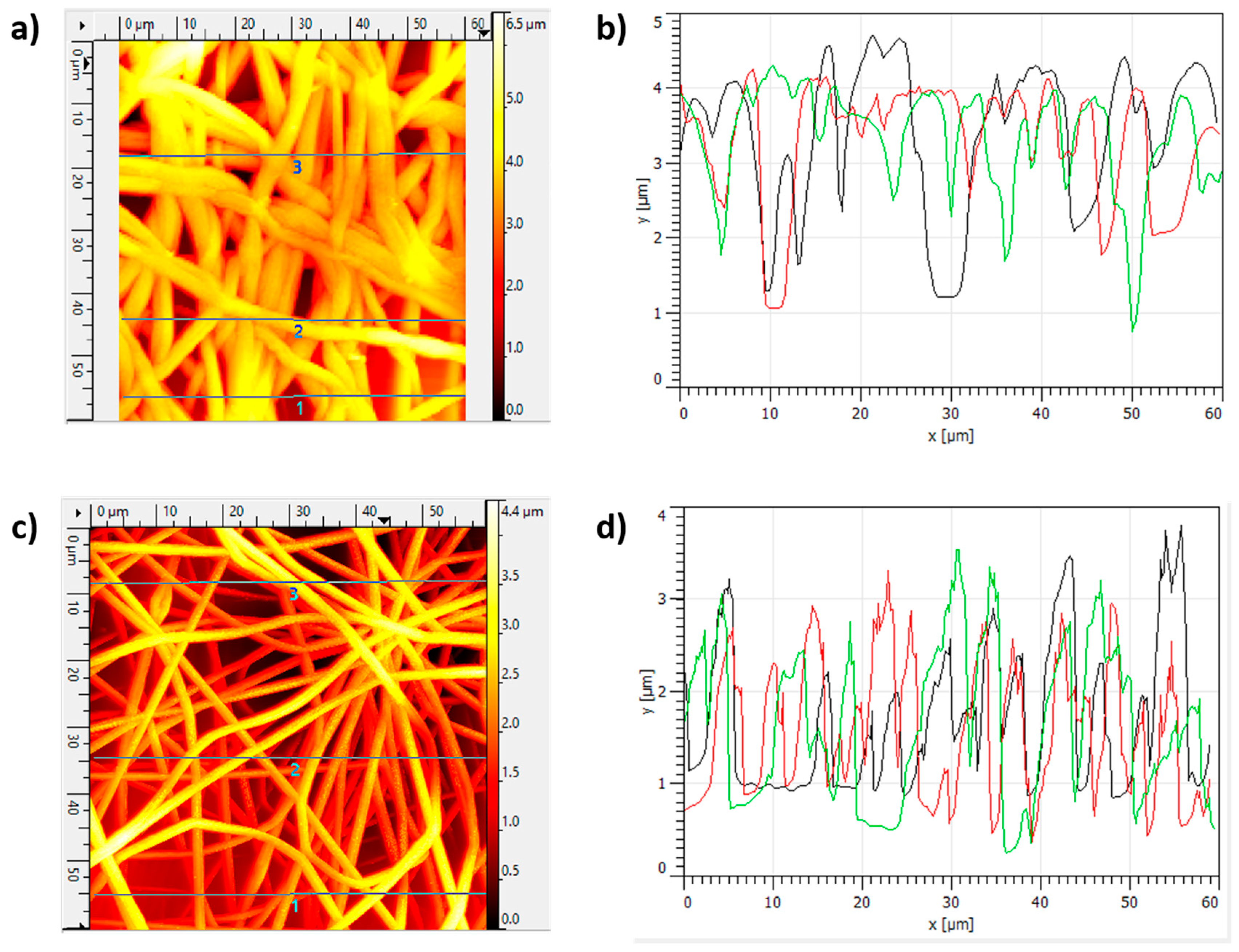

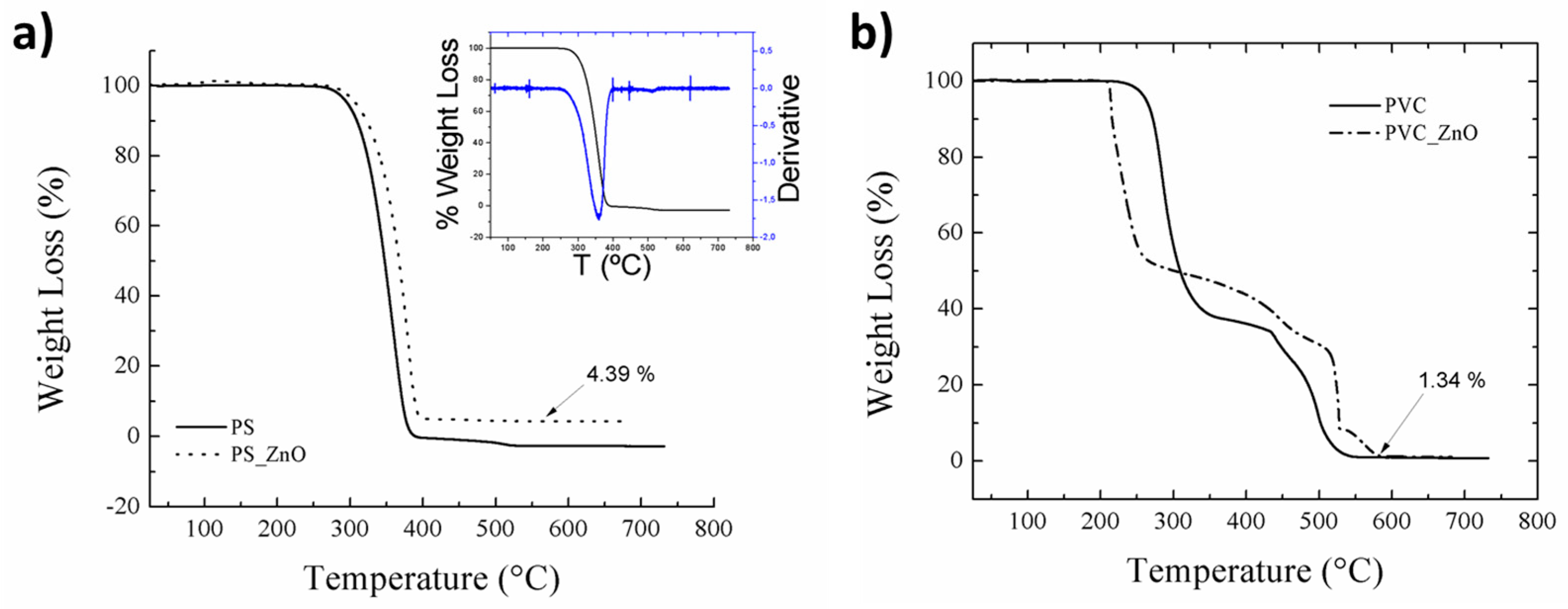

In this work, polymeric fibers of polystyrene (PS) with incorporated ZnO nanoparticles have been deposited onto an aluminum alloy substrate (6061T6) by using the electrospinning technique. In order to optimize the deposition process, the applied voltage and flow rate have been evaluated in order to obtain micrometric electrospun fibers with a high average roughness and superhydrophobic behavior. Thermogravimetric analysis (TGA) has also been employed in order to corroborate the amount of ZnO incorporated into the electrospun fibers, whereas differential scanning calorimetry (DSC) has been performed in order to determine the glass transition temperature (Tg) of the polymeric electrospun fibers. In addition, a specific thermal treatment (Tg + 20 °C) of the synthesized electrospun fibers has been evaluated in the resultant corrosion resistance. A comparative study with previously reported results corresponding to polyvinyl chloride (PVC) fibers is carried out along this paper to show the changes in behavior due to the different compositions and fiber diameters. The coating has produced an important reduction of the corrosion current of the aluminum substrate in two orders of magnitude, showing also an important enhancement against pitting corrosion resistance. Finally, this deposition technique can be used as an innovative way for the design of both superhydrophobic and anticorrosive surfaces in one unique step over metallic substrates with arbitrary geometry. View Full-Text
Keywords: electrospinning; polystyrene; polyvinyl chloride; superhydrophobic surfaces; corrosion protection electrospinning; polystyrene; polyvinyl chloride; superhydrophobic surfaces; corrosion protection
Show Figures

Figure 1

MDPI and ACS Style

Rivero, P.J.; Iribarren, A.; Larumbe, S.; Palacio, J.F.; Rodríguez, R. A Comparative Study of Multifunctional Coatings Based on Electrospun Fibers with Incorporated ZnO Nanoparticles. Coatings 2019, 9, 367.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
