Current Status on Pulsed Laser Deposition of Coatings from Animal-Origin Calcium Phosphate Sources

Abstract

The aim of this paper is to present the current status on animal-origin hydroxyapatite (HA) coatings synthesized by Pulsed Laser Deposition (PLD) technique for medical implant applications. PLD as a thin film synthesis method, although limited in terms of surface covered area, still gathers interest among researchers due to its advantages such as stoichiometric transfer, thickness control, film adherence, and relatively simple experimental set-up. While animal-origin HA synthesized by bacteria or extracted from animal bones, eggshells, and clams was tested in the form of thin films or scaffolds as a bioactive agent before, the reported results on PLD coatings from HA materials extracted from natural sources were not gathered and compared until the present study. Since natural apatite contains trace elements and new functional groups, such as CO₃²⁻ and HPO₄²⁻ in its complex molecules, physical-chemical results on the transfer of animal-origin HA by PLD are extremely interesting due to the stoichiometric transfer possibilities of this technique. The points of interest of this paper are the origin of HA from various sustainable resources, the extraction methods employed, the supplemental functional groups, and ions present in animal-origin HA targets and coatings as compared to synthetic HA, the coatings’ morphology function of the type of HA, and the structure and crystalline status after deposition (where properties were superior to synthetic HA), and the influence of various dopants on these properties. The most interesting studies published in the last decade in scientific literature were compared and morphological, elemental, structural, and mechanical data were compiled and interpreted. The biological response of different types of animal-origin apatites on a variety of cell types was qualitatively assessed by comparing MTS assay data of various studies, where the testing conditions were possible. Antibacterial and antifungal activity of some doped animal-origin HA coatings was also discussed.

1. Introduction

In the last few decades, the field of bone tissue engineering has been widely studied and expanded for addressing bone-related traumas. By combining biomaterials and cells for bone tissue ingrowth, an efficient and viable alternative to allografts or autografts could be delivered.

Bioactive materials represent a vast bioengineering research field with tremendous interest for the production of durable implants and bone substitutes able to bypass rejection difficulties.

Calcium phosphates (CaP) are bio-ceramic materials used especially for orthopedic and dental medical applications [1,2]. Synthetic hydroxyapatite (HA), with the complex chemical formula Ca₁₀(PO₄)₆(OH)₂, is the most well-known CaP material, and is frequently used in implantology due to its close chemical composition and crystallographic structure resemblance with the mineral phase of vertebrate bones (50% in mass and 70% in volume) [3,4,5]. We stress upon that the mineral constituent of vertebrate skeletal systems mainly consists of a calcium-deficient HA, doped with various ions [6]. According to the biomimetic approach, a material designed to repair the skeletal system must be similar to the biological one in terms of composition, stoichiometry, the crystallinity degree, morphology, and functionality. It was reported that HA can promote new bone in-growth through the osteoconduction mechanism without eliciting local or systemic toxicity, inflammation, or foreign body response [7,8,9]. When an HA-based ceramic is implanted, a fibrous tissue-free layer containing carbonated apatite forms on its surfaces and contributes to the implant bonding to the bone. This results in earlier implant stabilization and superior fixation of the implant to the surrounding tissues [8,9,10]. Moreover, the development of microbial biofilms onto the surface of medical devices or human tissues represents a worrying health problem, which can lead to a high diversity of biofilm-associated infections, with increasing incidence [11]. Therefore, the antimicrobial properties of HA are also of key importance [12,13]. Taking into account all these demands, one could, therefore, explain the large interest for synthesis and deposition of apatites enriched with biologically-active ions or molecules, as well as more resorbable (soluble) CaPs.

Despite its excellent bone regeneration properties, HA has also some important disadvantages: HA-based ceramics are very brittle in bulk [14] and are characterized by poor mechanical properties, especially in liquid media. Therefore, HA-based materials cannot be used in bulk for orthopedic devices, which must withstand the application of high loads during their lifetime [15]. To overcome these drawbacks, HA can be applied as a coating onto the surface of metallic or polymeric implants, which aim to significantly improve implants’ overall performances, by successfully combining the excellent bioactivity of the ceramic with the mechanical advantages of the substrate implants [14,16].

Various techniques have been and are continuously developed to obtain HA. In this respect, they can be categorized in two main paths of producing HA: (i) the first one implies the use of chemical routes, and (ii) the second one involves extracting it naturally, from biogenic, mammalian, or fish bone sustainable, low-cost resources (further denoted as BioHA).

For depositing CaP coatings onto metallic implants, the industrial technique of choice is plasma-spraying, due to the synthesis speed, large area of deposition, and work in an ambient atmosphere [17]. However, HA coatings produced using this technique are prone to cracking and delamination and, because of high-processing temperatures, could contain residual decomposition phases. In this respect, current interests are quickly advancing toward two focused research directions: (i) increasing the biomimicry of HA-based coatings with respect to the composition and structure of bone apatite, and (ii) improving or even discovering alternative deposition techniques, which can allow for the achievement of novel HA (doped) coatings with increased mechanical and biological characteristics.

When compared to other physical vapor deposition techniques, i.e. thermal evaporation or sputtering, the pulsed laser deposition (PLD) technique stands as a simple, versatile, rapid, and cost-effective method, which can enable precise control of thickness and morphology for the fabrication of high-quality films [18,19]. The main advantage of the PLD technique applied for HA-based bio-ceramics is represented by its capacity to grow stoichiometric films with a controlled degree of crystallinity and thickness. By this method, one can assure the flexibility to control the morphology, phase, crystallinity, and chemical composition of obtained CaPs. These characteristics have a special influence over bio-resorption or dissolution, which are directly involved in the process of films’ osseointegration.

Taking into account all these aspects, the aim of the current review is to emphasize the advantages of using animal-origin HA coatings as viable substitutes of synthetic HA ones, which are fabricated by the PLD technique for implantable applications. Conclusions will be drawn, future perspectives will be advanced, and a series of recommendations will be highlighted.

2. Review of Literature

A digital search was performed using Web of Science (http://apps.webofknowledge.com), following the criteria described below.

2.1. Inclusion Criteria

1. Articles written in English. 2. Use of animal-origin HA materials for physical-chemical, in vitro and in vivo studies. 3. Pulsed laser deposition as the technique used for the synthesis of animal-origin HA coatings. 4. Articles written starting from the year 2001.

2.2. Exclusion Criteria

1. Non-English articles. 2. Nanoparticles. 3. Other deposition techniques (such as Plasma spraying, Magnetron sputtering, etc.) used for the synthesis of animal-origin HA coatings.

After the review process, a total of 49 articles met the inclusion criteria and were further assessed in detail and parts of the reported results were considered and discussed in this review.

3. BioHA vs. Synthetic HA

Various methods have been used to obtain HA due to its attractive biological properties and resemblance to the mineral part of the bone. There are two main categories of methods used to produce HA.

(i) The first one, which is generally utilized due its reliability, implies the use of inorganic synthesis by different methods, such as hydrothermal [20,21], co-precipitation [22,23], or sol-gel [24]. However, these approaches are, on one hand, polluting and time-consuming, and, on the other hand, quite expensive [25,26]. Moreover, the resulting synthetic HA, which is a stoichiometric material with Ca/P ratio of 1.67, does not completely match the chemical composition of bone [27].

(ii) Thus, researchers managed to find alternative, low-cost methods to produce HA, such as obtaining it from biogenic, mammalian, or natural fish bone (sustainable/renewable) sources. BioHA is a carbonated, non-stoichiometric Ca-deficient material with a reduced degree of crystallinity. Therefore, it differs from synthetic HA in terms of composition, stoichiometry, crystal size/morphology, crystallinity degree, degradation rate, and overall biological performance. One should also note that there might exist some concerns about the use of natural HA because of the potential risk of dangerous diseases transmission, when the material is not well-prepared [27]. However, when all health security issues are handled [28,29], then HA derived directly from sustainable, low production cost materials (such as animal bones) has a composition that closely matches the morphological and structural architecture of the inorganic components of the human bone. In fact, it has been reported that HA obtained from biowaste such as eggshells, bovine bones, fish-scales, and fish bones can lead to overall properties and behavior comparable or even better than synthetic ones due to the similarities of bone apatites [2,30,31]. However, in order to completely benefit from the previously mentioned advantages against synthetic HA, BioHA should be extracted in a controlled manner, i.e., from resources for which one knows the exact alimentation and way of life of animals, since this could directly influence the overall quality of the final product, HA.

Functional groups from biological apatites can be substituted with trace amounts of cations (Na⁺, Mg²⁺, and K⁺), anions (F⁻, Cl⁻, SiO₄⁴⁻ and CO₃²⁻), or, in some cases, by both [2,32,33], either adsorbed on the surface of the crystal or incorporated in the lattice structure [34,35,36,37]. Specifically, in the apatite structure, the carbonate ions can replace either the hydroxyl or the phosphate ion sites, which leads to a type-A or type-B structure [38]. If these substitutions take place simultaneously, a type-AB substitution occurs, as in the case of the bone mineral [32,39,40]. One should note that the mineral bone substitutions with various trace elements are considered directly responsible for the modifications in crystallinity, solubility, and biological response [41] and, therefore, they play a key role in the performance of hard tissues and the overall osseointegration process. As a consequence, alternative methods used to modify the HA structure by incorporating different ions to improve the osteoconductive properties of synthetic HA is currently of interest to the scientific community [2].

Apatite crystals produced in the biological system are different in many ways from the crystals obtained using synthetic precursors. The apatite crystals grown in the living system bear smaller crystallite size. Therefore, they have a large surface area, which further allows them to absorb an extra number of ions. In short, biological minerals tend to attain an organized structure in a very short time [42].

Table 1. Sample acronyms related to different materials used throughout the review and their explanation.

Sample Code	Sample Description
Ti	Titanium (control specimen or deposition substrate)
HAsyn	Synthetic hydroxyapatite
DHA	Dentine hydroxyapatite
BHA	Bovine hydroxyapatite
SHA	Ovine (sheep) hydroxyapatite
BHA:Li	Bovine hydroxyapatite doped with Li2O
BHA:CIG	Bovine hydroxyapatite doped with commercial inert glass
SHA:Ti	Ovine (sheep) hydroxyapatite doped with titanium
BHA:MgF	Bovine hydroxyapatite doped with MgF2
BHA:MgO	Bovine hydroxyapatite doped with MgO
BHA:LiC	Bovine hydroxyapatite doped with Li2CO3
BHA:LiP	Bovine hydroxyapatite doped with Li3PO4

introduces the sample codes, which will be further used in the text.

The use of BioHA comes from the ambition and continuous efforts of researchers to attain biomimetism. While the chemically-synthesized HA is similar to the mineral part of the bone, it lacks trace elements and functional groups that modify the chemical formula of the natural HA in bone. Because of the fact that it is too laborious and probably impossible to chemically synthesize HA with the right amounts of trace elements and functional groups, an easy method is to isolate the biological HA from bones of various animals, to transform it into powder, and to press it into pellets that will be further used as PLD targets. Mammalian bones contain a higher source of ions and trace elements [43,44,45,46], with Mg²⁺ and Na⁺ being the most frequently found ones. One notes that the presence of Na⁺ and Mg²⁺ ions alongside HA play an important role in the development of teeth and bone, whereas their absence could cause bone loss and fragility [2]. Other trace elements such as K⁺, Sr²⁺, Zn²⁺, Si⁴⁺, Ba²⁺, F^-, and Al^- have been identified. However, the overall concentration of these elements can vary and this is due to differences in the diet of the animals [47].

BioHA mainly differentiates from chemically synthesized HA by the presence of carbonate ions. The Ca₁₀(PO₄)₆(OH)₂ complex formula of pure HA changes into:

Ca_10-x(PO₄)_6-x(CO₃)_x(OH)_2-x

where 0 ≤ x ≤ 2 [48].

Another possibility can be that in (PO₄)³⁻ sites to find hydrogen phosphate (HPO₄)²⁻ ions [49]. Winand et al. [50] proposed a general formula for hydrogen phosphate-containing apatites:

Ca_10-x(PO₄)_6-x(HPO₄)_x(OH)_2-x

where 0 ≤ x ≤ 2.

However, it is highly possible that BioHA can concomitantly have substitutions with CO₃²⁻ and HPO₄²⁻ groups. Hence, Combes et al. [37] advanced the following formula:

Ca_10-x(PO₄)_6-x(CO₃ or HPO₄)_x(OH or 1/2CO₃)^2-x

where 0 ≤ x ≤ 2.

It should be mentioned that various studies showed a deviation of OH⁻ groups in the composition of bone-extracted apatites as compared to the standard HA formula. A possible explanation could be that PO₄³⁻ groups are reactive with water molecules trapped in the lattice or from the surrounding medium, which results in the formation of hydrogen phosphate:

H₂O + PO₄³⁻ → HPO₄²⁻ + OH⁻.

Trace elements in the composition of BioHA materials are commonly determined qualitatively by spectroscopic techniques. It should be noted that there are chemical methods that involve dissolution of the mineral part of the bone and identification of constituents, but they are susceptible to post-decomposition chemical reactions. For metallic ions such as Na, K, Al, and Sr, it is believed that they do not influence the apatite properties, as long as they remain in the normal concentrations known for the human body. However, by accumulation following diet intake, some elements’ increased content might cause biological reactions such as bone weakening or induction of osteoporosis.

A trace element with a clear effect on bones is fluorine, which forms in bone apatites fluoride ions. In addition, 99% of fluorine in most organisms is accumulated in bones in the form of fluorides (as e.g. NaF) [51]. In the human body, the fluorine content is of 0.05% to 0.1%. Its presence favorizes an increase of bone density, but, in high content, causes a disease called fluorosis, in which bones become hard and brittle. Studies suggest that fluoride also has anti-plaque properties. It was reported that amine fluoride and stannous fluoride possess bactericidal properties against oral bacteria [52].

Dopants may have an important role in the structure and properties of BioHA coatings. For the crystallites size function of dopant materials in the case of BioHA coatings synthesized by PLD, the reader is guided to consult

Table 2. Crystalline coherence length in the case of BioHA coatings synthesized by PLD, function of doping materials. Determinations were performed along the c-axis [(002) crystal plane] and a-axis [(300) crystal plane] by applying the Scherrer Equation.

Sample Material	D002 (nm)	D300 (nm)	D002/D300	Reference
HAsyn	59.2	47.4	1.25	[53]
SHA	50.1	48.5	1.03	[25]
BHA	152.8	103.8	~1.47	[54]
SHA:Ti	41.6	32.1	1.30	[25]
BHA:Li	83.5	56	1.49	[53]
BHA:CIG	48.9	23.4	2.1
BHA:MgF	100.0	89.6	~1.11	[54]
BHA:MgO	169.7	141.2	~1.20

. Duta et al. [25] observed that a percentage of 1.5 wt.% Ti in composition of PLD targets from SHA causes synthesis of layers with a reduced degree of crystallinity. Deposited SHA coatings without Ti display a crystallinity degree of ~30%, while, for the ones doped with Ti, deposited in the same experimental conditions, the crystallinity degree dropped to 7% only.

BHA was doped with various elements in order to identify their role on the crystallinity of the obtained coatings. Thus, it was shown that by inserting 1 wt.% lithium into the BHA target, a film with a higher degree of crystallinity could be obtained, as compared to undoped BHA structures. A mix of 10% commercial bioinert glass and 90% BHA could produce a film consisting mainly of HA with small crystallites (48.9 nm in length vs. 83.5 nm for BHA:Li and 71 nm for BHA coatings) and a high degree of anisotropy (D002/D300 = 2.1 vs. 1.49 in the case of BHA:Li and 1.34 in the case of BHA coatings) [53].

In FTIR investigations, bands characteristic to carbonate groups were identified both in targets and films made of BHA. The lines peaking at (1419, 1457, and 1544 cm⁻¹, respectively) were characteristic to C–O asymmetric stretching and were present in both spectra of targets and films.

In the case of bovine HA doped with MgF₂ (BHA:MgF) structures [54], the dopant indirectly induced the presence of MgO traces caused during sintering of the targets by partial oxidation of MgF₂. The amount of MgF₂ in targets was of 2% and the amount transformed in MgO was estimated to be of 0.4 wt.%. However, in films, peaks of MgF₂ were not identified, but only supplemental weak MgO peaks were observed. This can hint toward the possible structural substitution of the Mg²⁺ cations (in the Ca²⁺ sites) and F⁻ anions (in the OH⁻ group sites) into the HA lattice during the deposition process. By incorporating MgF₂ in the BHA structure, the HA crystallites’ length was reduced from 152 to 100 nm, while the ratio between length and width, D300/D002, dropped from 1.47 to 1.11. Mihailescu et al. [54] also inserted 5 wt.% MgO in BHA targets and observed that, in this case, crystallites length increased from 152 to 170 nm. The D300/D002 dropped from 1.47 to 1.20.

One notes that, in the case of MgF₂ doping, FTIR investigations revealed the disappearance of the (OH)⁻ bands from the synthesized coatings. Moreover, supplemental vibration bands have been recorded at ~876 to 873 cm⁻¹, which is ascribed to the overlapping of the characteristic peaks of (HPO₄)²⁻ and (CO3)²⁻ groups.

4. Preparation of Materials

Powder Preparation

It is important to mention that all the experimental procedures used for the fabrication of animal-origin HA materials are conducted in accordance with the European Regulations [28] and ISO 22442-1 standard [29].

4.1.1. Extraction of HA from Mammalian Bones

BioHA, is usually extracted from bones and teeth of various animals. To obtain the raw materials, cortical bones originating from bovines or swine are the choices generally reported in various studies tackling the extraction of natural/biological HA [2,41]. Two possible explanations for this preference might be advanced: (i) the immediate availability of cow and sheep bones in commercial shops and abattoirs to the difference of more exotic sources such as marine animals, and (ii) the extracellular matrix of bovine bones is mainly composed of HA nanocrystals and collagen fibers. The bones represent 11% of pork, 15% of beef, and 16% of sheep carcasses, respectively. Due to human consumption of these animals’ meat, billions of tons of such by-products are generated every year. Moreover, millions of tons of eggshells are thrown out as waste material yearly. Part of these by-products are repurposed as ingredients for pet food, fertilizers, or in pharmaceutic and cosmetic industries. Their applicability can be increased to the biomedical sector, where bones can be used as grafts, scaffolds, or as raw materials for the production of HA for coating of implants [2,55].

BioHA powders are usually obtained from the cortical part of the femoral bones of freshly slaughtered animals (received from slaughter houses, which use the other animal parts for general consumption) [11]. Bones are generally delivered on ice to laboratories and, before use, they are submitted to a veterinary control. HA derived from animal bones is generally prepared following a three-step procedure: (i) mechanical cleaning of soft tissue, (ii) deproteinization in the alkali media, and (iii) calcination at temperatures sufficiently high to remove any remnant organic and biological hazardous components. Additionally, all bones are thoroughly washed and/or boiled with distilled water. After this preliminary step of washing and drying, the bones are cut off, gently checked for any remnant ligaments and soft tissues and further processed. Next, bone marrows are extracted, and all other unwanted soft tissue residues or macroscopic adhering impurities and substances are removed from shafts. Then, the shafts are cut off into slices, cleaned, and washed with distilled water. Cleaned parts are deproteinized in either sodium hypochlorite, hydrogen peroxide, diammonium hydrogen phosphate, acetone, or NaOH solutions [56,57,58,59]. After washing and drying, for the calcination process, the bone pieces are heated in a furnace (at various temperatures ranging from 350 °C to 1400 °C, for 1 to 18 h in air (

Table 3. Preparation of HA powders derived from mammalian bones, presented in the order of the calcination temperature.

Source Material	Pre-Treatment	Calcination		Dopants	Reference
		[°C]	Time [min]
Bovine bones (femur)	Immersion in 2.6 wt.% sodium hypochlorite solution for 14 days	−	–	–	[68]
Bovine bones (femur)	Boiling in distilled water for 2.5 h, ultrasonication with acetone for 5 min, dried at 120 °C for 12 h in an oven	350–900	180	–	[69]
Bovine bones	Boiling in deionized water for 30 min, petroleum ether with constant agitation at 30 °C and sodium hydroxide solution, drying in a vacuum oven at 1.33 Pa and 70 °C for 5 h	400–900	180	–	[66]
Bovine bones (femur)	Boiling water followed by sun drying	500–1400	120–240	–	[70]
Bovine, caprine, and galline bones	Autoclave at 100 °C for 1 h, rinsing with water and drying for 3 h at 70 °C in a box oven	600–1000	120	–	[62]
Bovine bones	Applying direct flame from a gas torch to the cleaned bones	600–1100	180	–	[71]
Bovine bones	Boiling with water for 2 to 3 h, drying in an oven at 80 °C for 72 h	600–1100	180	–	[72]
Human, bovine, porcine bones	Boiling in distilled water for 30 min, immersion in ethanol, hydrogen peroxide, formaldehyde solution, drying in a vacuum oven at 50 °C for three days	600–1200	1080	–	[61]
Bovine bones	Immersion for 14 days in an alkali solution of 1% sodium hypochlorite	700	240	1 wt.% Li2CO3, 1 wt.% Li3PO4	[60]
Bovine bones	Washing by water and acetone, drying at 160 °C for 48 h	750	360	–	[30]
Bovine bones	Boiling in distilled water for 8 h, drying overnight at 200 °C	800	180	–	[73]
Bovine bones (femur)	Keeping in boiling distilled water for 2 h, heated at 60 °C for 24 h	800	120	–	[74]
Bovine bones	Boiling for 15 min, filtrating, washing with distilled water for several times and drying at 100 °C in a vacuum oven for 48 h	800–1100	180	–	[75]
Ovine and bovine bones	Immersion for 14 days in an alkali solution of 1% sodium hypochlorite	850	240	1.5 wt.% Ti	[53]
Veal bones	Sodium hydroxide solution in a beaker, neutralization with distilled water, drying in an oven	850	180	–	[64]
Calf bones	Sodium hydroxide solution in a beaker, neutralization with distilled water, drying in an oven	850	180	–	[65]
Bovine bones (femur)	Cleaning and washing with distilled water, immersion for 14 days in an alkali solution of 1% sodium hypochlorite	850	240	1 wt.% of Li2CO3 and Li3PO4	[11]
Bovine bones	Washing by water and acetone, drying at 160 °C for 48 h	850	60	–	[76]
Bovine bones	Boiling and sun drying	900	120	–	[77]
Bovine bones	Boiling in distilled water for 3 h, drying in an oven at 100 °C for 24 h	900	120	–	[78]
Bovine bones (femur)	Immersion for 14 days in an alkali solution of 1% sodium hypochlorite	1000	240	5 wt.% MgO, 2 wt.% MgF2	[54]
Ovine dentine bones	Cleaning and washing, drying at 750 °C for 5–6 h	1000	240	1.5 wt.% Ti	[25]
Camelus dromedarius bones (femur)	Boiling in distilled water for 1 h, washing with a strong water jet, drying at 100 °C, for 60 min, drying at RT for 7 days, immersion in acetone for 1 h, washing with distilled water	1000	180	–	[79]
Sheep teeth	Cleaning and washing, drying at 750 °C for 5 to 6 h	1000–1300	240	–	[63]
Human dentine, ovine, and bovine bones	Immersion for 14 days in an alkali solution of 1% sodium hypochlorite	1100	240	–	[80]
Bovine bones	Boiling in deionized water for 30 min, petroleum ether with constant agitation at 30 °C and sodium hydroxide solution, drying in a vacuum oven at 1.33 Pa and 70 °C for 5 h	1200	120–240	–	[67]
Bovine bones	Boiling in distilled water for 2 h, heating in an electrical furnace at 500 °C for 6 h	1200	240	–	[81]

), in order to completely remove the organic matter from the bones. One should emphasize that the as-prepared powders are biologically safe due to the high temperature fabrication route, which not only favors the crystallization of the material, but also completely prevents any risk of diseases transmission, since no pathogen can survive to such extreme conditions [25,53,54,60]. The resulting calcined bone specimens are cooled to room temperature (RT) by slow furnace cooling. Then, they are generally crushed inside an agate crucible, using a mortar and pestle, prior to undergoing ball-milling to fine powders (i.e., with particles of submicron size).

Figueiredo et al. [61] performed a comparative study of the structural and chemical properties of both human and animal bone-derived HA, submitted to different calcination temperatures (600, 900, and 1200 °C, respectively). The obtained results indicated that the calcination temperature strongly influenced the properties of the bone samples. At higher temperatures, pure HA could be obtained, which presents higher crystallinity degrees, larger crystallite sizes, and a less porous structure. Figueiredo et al. concluded that the mammalian bone samples calcined at 600 °C exhibited the most promising combination of chemical composition and structure that could be exploited to provide good alternatives to synthetic apatite and/or allogeneic bone.

The viability of producing biogenic HA from bio-waste animal bones (bovine, caprine, and galline), by heat treatments in air atmosphere at different temperatures (600–1000 °C) was demonstrated by Ramesh et al. [62]. Among the three types of investigated animal bones, it was demonstrated that the bovine-derived HA was stable for all investigated temperatures, while those produced from both caprine and galline bones exhibited signs of decomposition, with the appearance of the β-TCP phase at temperatures beyond 700 °C. In addition, the bovine and caprine bones presented hardness values comparable with the ones of the human cortical bone, while, for galline bone samples, higher porosity levels and low hardness values were inferred.

Akyurt et al. [63] produced HA from sheep teeth, by calcination and sintering at different temperatures (1000–1300 °C). Compression strength and microhardness measurements were performed and the obtained results were the best in the case of samples sintered at 1300 °C. This behavior was attributed to the F-content presence in the enamel structure.

Gheisari et al. [64] prepared natural HA-Hardystonite (HT) ceramics with different percentages of HT (5, 10, and 15 wt.%, respectively). Their results showed that the mechanical properties of HA increased and the bioactivity behavior improved with the addition of HT to natural HA. The maximum value of the density was inferred for the 10 wt.% HT samples, which was attributed to the formation of HT silicate phases between the matrix particles and formation of glass bonds. Moreover, the 15 wt.% HT nanocomposite samples had the lower cold crushing strength as compared to the other ones investigated in the paper, which was due to the overlapping of glass bonds. Simulated body fluid test results indicated that the Si content increased in the samples with a higher amount of HT. Consequently, the number of Si-OH nucleation sites expands and the formation of apatite layers takes place along with an increase in the ceramics’ bioactivity. In a similar study, Khandan et al. [65] reported on natural HA-diopside (Di) bio-ceramics, with different Di content (10, 20, and 30 wt.%, respectively). The obtained results indicated that an elevated content of Di in the samples determined an increase of both the density on the surface and the adhesion values. In order to maintain a surface free of cracks, Khandan et al. indicated the optimum values for voltage, time, and temperature as being 50 V, 10 min, and 850 °C, respectively.

Barakat et al. [30] proposed in their study three different methods to extract HA from bovine bones, which include thermal decomposition, subcritical water, and alkaline hydrothermal processes. One advantage of the first method was to produce an HA nano-rode rather than the nanoparticles obtained by using the other two proposed methods. However, the morphological investigations illustrated smaller-size particles in the case of subcritical and alkaline hydrothermal processes, as compared to thermal decomposition. Barakat et al. concluded that the proposed methods are simple and cheap, which are two important advantages that might advance their use for large scale applications.

Giraldo-Betancur et al. [66] reported on a physical-chemical comparison of synthetic and biological HA. The bio-HA samples originated from bovine bones and were prepared by using three different treatments (defat, alkaline, and calcination). It was indicated that the calcination and alkaline processes delivered crystalline HA, which presented a comparable quality to the synthetic one. In addition, it was illustrated that the calcination process was appropriate to obtain HA with the minor and major elements that appear in the natural bone tissue. After applying the alkaline process, a crystallinity degree greater than 62% was detected. Moreover, the surface of the alkaline sample presented a transition behavior between dense and porous morphology. In a similar study, Rincón-López et al. [67] performed a comparative study on the physical-chemical properties and biological behavior of sintered-bovine-derived HA and commercial HA. It was demonstrated that highly crystalline HA could be obtained from bovine bones. One should note that the Na⁺ and Mg²⁺ ions intrinsically presented in HA of bovine origin seemed to influence the sintering behavior evolving to ceramics with lower porosity and coarser microstructure compared to those obtained with synthetic HA. Both these studies indicated the possibility to use HA derived from bovine bones as a viable alternative to synthetic HA for biomedical applications.

In Table 3, the details for HA powder preparation using mammalian sources are summarized.

The colour of the resulting powders (Table 3) is either milky-white or green.

For more information on BioHA extraction methods from mammalian bones, the reader can consult additional information contained in references from Table 3.

4.1.2. Extraction of HA from Fish Sources

Even though fish bones represent a rich source of calcium, phosphate, and carbonate [2], there are scarce reports on HA synthesis from these natural sources for biomedical applications [82]. In general, fish bones originate from fisheries, which capture fish and use it mainly for obtaining meat, oil, or some low-value fertilizers [2]. The fish bones are collected after gently removing the flesh parts from the entire fish. The bones are washed with a hot water jet or steam to remove all types of proteins and other organic impurities. The cleaned bony parts are further treated with reagents such as NaOH [83]. Similar to the case of mammalian bones, after washing and drying, the bone pieces are subjected to heating at various temperatures ranging from 100 to 1200 °C, for 1 to 12 h in air (see

Table 4. Preparation of HA powders derived from fish sources, presented in order of the calcination temperature.

Source Material	Pre-Treatment	Calcination		Reference
		[°C]	Time [min]
Cuttlefish bones	Heating at 200 °C for 6, 12, and 24 h and drying	100–1200	60	[84]
Sword fish and tuna bones	Boiling in water for 1 h and washing by a strong water jet, drying at RT in air for 24 h	600–950	720	[85]
Fish bone wastes	Incineration at 300 °C for 3 h	750	300	[88]
Fish scale	Hydrolyzation under 1% protease N for 2.5 h, and 0.5% flavourzyme for 0.5 h, stirring and heating in boiling water for 10 min, drying by hot air, and storing at –20 °C	800	240	[86]
Cod fish bones	Immersion in CaCl2·2H2O, Ca(C2H3O2)2 and NaF solutions, for different time intervals, stirring at 75 °C	900–1200	60	[87]
Tuna bones	Washing with hot water for two days, mixing with 1.0% sodium hydroxide and acetone, drying at 60 °C for 24 h	900	300	[83]
Shark tooth enameloid	Keeping in boiling water for 3 h, drying in a laboratory oven at 60 °C for 24 h	950	720	[89]
Dentine and enameloid of shark teeth and deer antlers	Boiling water for 3 h and drying in a laboratory oven at 60 °C for 24 h	950	720	[90,91,92]

), to completely eliminate any organic matter from the bones. The resulting calcined fish bone specimens are cooled to RT by slow furnace cooling. Afterward, the specimens are either hand-crushed with a mortar and pestle or ball-milled to fine powders (Table 3). One notes that the color of the resulting powders (Table 4) is white.

Venkatesan et al. [83] isolated HA from fish sources by applying alkaline hydrolysis and thermal calcination methods. An increase in the particle size from 0.3 to 1.0 μm was observed when using the thermal calcination method, which is due to the particle agglomeration. HA obtained by the second method are of a nanorod shape, with 17–71 nm in length and 5–10 nm in width. Thermal calcination, in comparison to alkaline hydrolysis, produced HA with a higher crystallinity degree.

Kannan et al. [84] used hydrothermal transformation of aragonitic cuttlefish bones at 200 °C and calcination at temperatures up to 1200 °C to produce porous HA scaffolds with different levels of fluorine substitution (46% and 85%) on the OH sites. The F incorporation in the HA lattice determined a lowering of the unit cell volume because of the reduction of the a-axis length. The crystallites formed were close in size to bone-like apatite and were orientated along the a-axis rather than the c-axis. An type-AB carbonated apatite was also detected.

Boutinguiza et al. [85] reported on BioHA obtained from sword and tuna fish bones. The prepared powders consisted of a B-type carbonate HA with a Ca/P ratio higher than that of stoichiometric HA due to carbonate ions substituting phosphates. The presence of minor elements such as Na, K, Mg, and Sr substituting Ca was also indicated. The calcination treatment performed at 600 °C delivered a B-type carbonated HA. When reaching 950 °C, β-TCP was present in a minor amount and the carbonate content decreased. This indicated a partial decomposition of the material. It was concluded that these fish bone-derived materials originate from sustainable and cheap sources and could, therefore, represent a promising future alternative to synthetic HA for medical applications.

Huang et al. [86] compared the composition and biological properties of bio-waste HA derived from fish scale with those of synthetic HA. The experimental results indicated that the fish HA materials presented nano-sized particles with a high Ca/P ratio. Compared to synthetic HA, the sintering process increased porosity and surface roughness for fish-derived HA. The alkaline phosphate assay and von Kossa staining demonstrated that the fish-HA particles promoted osteogenic differentiation and mineralization of MG63 cells. Taking into account these results, one should recommend fish scales as a cost-effective and environmentally-friendly source for producing HA.

Piccirillo et al. [87] produced apatite-based and tricalcium phosphate-based materials from codfish bones, by annealing at temperatures between 900 °C and 1200 °C. Single phase HA, chlorapatite, and fluorapatite were obtained using CaCl₂ and NaF solutions, respectively. One should note that this was the first study to report on compositional modifications of natural origin materials used to tailor the relative concentrations of elements. The obtained results indicated that, by using a simple and effective valorization technique, the conversion of this by-product into a viable compound for biomedical applications can be attained.

In Table 4, the details for HA powder preparation using fish resources are summarized.

For more information on BioHA extraction methods from fish sources, the reader can consult additional information contained in references from Table 4.

4.1.3. Extraction of HA from Biogenic Sources

Every year, impressive quantities of biogenic resources such as eggshells, sea shells, and other calcite materials are disposed of as waste by restaurants, hatcheries, bakeries, or homes [2]. Due to the fact that they are very cheap and accessible, eggshells represent an important source of calcium precursor required for the synthesis of HA.

In general, the preparation procedure to extract CaO from shells consists first in washing them with boiling water or steam to completely remove all impurities. In the next step, the shells are crushed to fine powders, which is followed by heating at elevated temperatures. The resulting CaO reacts with phosphorous precursors to prepare HA by following a protocol detailed in Reference [93].

Starting from eggshells, Elizondo-Villarreal et al. [94] synthesized HA using a simple hydrothermal approach. The obtained product was a mixture of HA and CaHPO₄ in a 3:1 ratio, with HA morphology in the form of whiskers. It was concluded that the obtained physical-chemical characteristics of HA should advance this type of material for dental prosthesis applications.

HA was prepared by Chaudhuri et al. [95] from eggshells and a solvent such as dipotassium phosphate. An appropriate amount of eggshells-derived CaO was immersed in K₂HPO₄ solution, for different soaking times, to obtain nanocrystalline HA. Both grain size and pH indicated a slight decreasing tendency with increasing soaking time. The lattice strain also showed similar behavior with increasing soaking time. The proposed procedure for the low-temperature synthesis of large-scale HA is rather simple, low cost, and eco-friendly.

Tamasan et al. [96] reported on the preparation and characterization of powders consisting of the different phases of CaPs obtained from marine-origin raw materials of sea-shells (Sputnik sea urchins and Trochidae I. concavus) in reaction with H₃PO₄. In the developing CaP powders, hot-plate, and ultrasound methods were used. In the Sputnik sea urchins samples, brushite was found to be predominant, while calcite was shown to exist as a small secondary phase. For the second analyzed material, monetite and HA phases were identified. A thermal treatment performed at 850 °C resulted in flat-plate whitlockite crystals (β-MgTCP) for both samples, regardless of the fabrication method.

Gunduz et al. prepared biphasic bioceramic nano-powders of HA and β-TCP [97] from shells of a sea snail, by using a novel mechano-chemical method. When compared to the conventional hydrothermal method, this chemical method is simple and economic, due to inexpensive and safe equipment. The characteristics of the as-produced powders, along with their biological origin, should advance these materials for further consideration and experimentation to fabricate nanoceramic biomaterials.

In

Table 5. Preparation of HA powders derived from biogenic sources, presented in the order of the calcination temperature.

Source Material	Pre-Treatment	Calcination		Reference
		[°C]	Time [min]
Shell of sea snail	Cleaning thoroughly from sand particles and other foreign materials, drying, solution of H3PO4, hot-plate stirring at 80 °C for 8 h, filtration, and drying at 100 °C overnight in an incubator.	400–800	240	[97]
Sputnik Sea urchin and sea snail shells	Heating on a hotplate at 80 °C for 15 min	450–850	240	[96]
Chicken eggshells	Cleaning with distilled water and keeping into 1 M H2O2 solution for a week, drying at 90 °C	700	300	[94]
Egg shell	Cleaning and washing with flowing distilled water, drying at 300 °C for 1 h	850–900	180	[95]
Eggshells	Cleaning in boiling water	900	120	[98]
Hen eggshell	Stripping the membrane off the eggshell, rinsing with water, drying	1000	180	[99]

, the details for HA powder preparation using biogenic resources are summarized.

For more information on BioHA extraction methods from biogenic sources, the reader can consult additional information contained in references from Table 5.

5. Pulsed Laser Deposition Method

5.1. Method Overview

To the difference of wet synthesis methods, plasma-assisted techniques offer important advantages, such as: (i) a much faster process for surface deposition, (ii) industrial scaling, (iii) a stoichiometric transfer of the target composition in the synthesized structures, (iv) a better uniformity in terms of morphology and composition, (v) a lower porosity, and (vi) a decreased tendency of the deposited structures to crack or delaminate [100,101]. In the biomedical domain, for the fabrication of CaP coatings for bone implant applications, the most applied plasma-assisted techniques are radio-frequency magnetron sputtering and PLD [102].

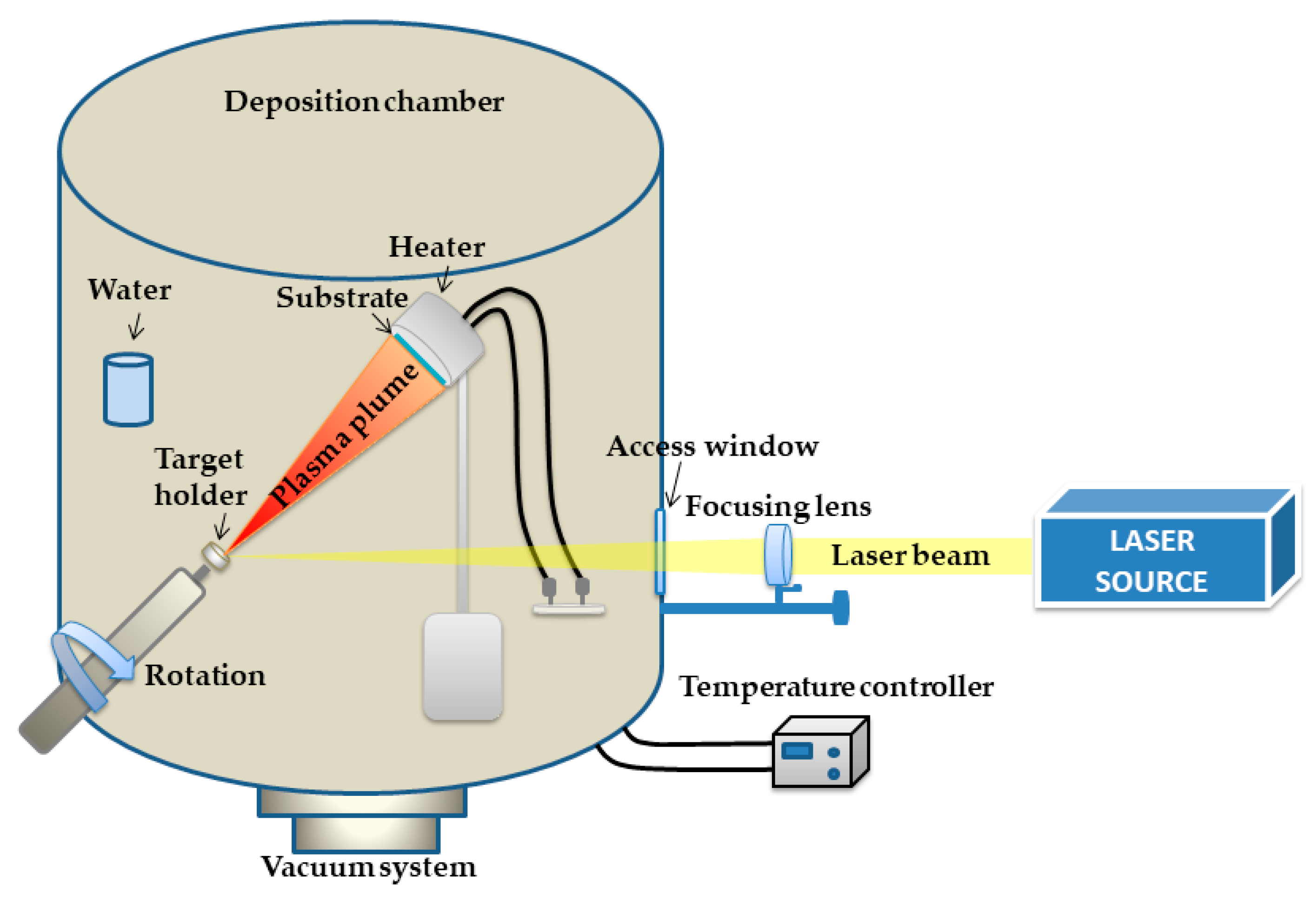

PLD is a thin films synthesis technique consisting of the ablation by a focused, high power, pulsed laser beam of a solid target in a vacuum environment and the condensation of the resulting vapor phase on a deposition substrate placed parallel to the holder [19]. The most basic set-up consists of a vacuum chamber, a laser source, a focusing lens, a target holder rotated by a motor, and a substrate usually placed on a heater with the role to increase film adherence and promote crystallinity.

The wavelengths of choice for the laser sources used for ablation are in the UV range due to the higher penetration depth of this type of beam in the target material as compared to visible or IR laser sources and higher photon energy that allows for a more efficient vaporization of the target [103]. Popular laser sources used in PLD experiments are excimer lasers such as ArF [104], KrF [105], or XeCl [106] emitting at 193, 248, or 308 nm, respectively, or a solid-state laser such as a Nd:YAG [107], which emits at 266 nm.

To increase the amount of evaporated target material to the detriment of expulsed liquid or solid phases, lasers emitting in a pulsed regime, with pulse durations in the nanoseconds-picoseconds range, are generally used [108]. In these regimes, the absorption process occurs on a much shorter time-scale as compared to the thermal diffusion process. The surface layers of the target reach temperatures of tens of thousands of K and are instantly vaporized. A plasma plume consisting of atoms, ions, electrons, molecules, free radicals, and condensed particles expands at supersonic speed and is accelerated toward the substrate (on a direction perpendicular on the target), where the deposition takes place [109].

If a solid collector is placed in front of the target at a distance approximately equal to the plasma plume’s length, the material condenses and, pulse-by-pulse, a thin film is grown [110]. If the placement of the substrate is closer to the target than the plasma plume’s length, the material will be deposited and, subsequently, washed by the plasma plume, with the deposition being inefficient and uncontrollable. Similarly, if the distance is larger than the plume’s length, the deposition will also be inefficient, since the film thickness is inversely proportional to the square of the target–to–substrate distance. Femtosecond laser sources are not considered optimal for thin film synthesis. Due to the high energy of the ablated species, the growing film is heavily bombarded by high speed particles, which makes the process inefficient and results in films with defects, vacancies, or made of small solid particles ripped from the target surface [111].

Due to the high temperatures generated on the target surface, any type of material can be ablated and, therefore, a wide variety of targets can be used for thin film deposition.

The technique is versatile in terms of process output. By independent control of the deposition temperature, background pressure, and substrate positioning, one can change the film’s crystallinity, composition, adherence, surface roughness, and/or thickness [18]. The use of multiple targets irradiated subsequently allows for the deposition of multi-layered structures [112].

Moreover, the PLD technique can be easily adapted to increase the range of applications: by limiting the number of pulses, one can deposit nanoparticles instead of thin films [113]. Two targets of different materials can be irradiated simultaneously and the intermixing plasma plumes can create a compositional library on a substrate [114]. By irradiating a frozen target made from an organic compound dissolved into a matrix material, an organic thin film can be laser deposited without degradation of the target material in a variation of the method, denominated MAPLE, i.e. Matrix Assisted Pulsed Laser Evaporation [115].

The film growth by PLD also offers different types of advantages over other deposition techniques, such as:

• The irradiation source is situated outside the deposition chamber, which offers a high degree of flexibility in using the material, set-up, and adjustment of deposition parameters;
• most solid materials can be laser ablated and deposited as films;
• due to the laser operating in a pulsed regime, the film growth rate can be controlled with a highly precise degree (10⁻² –10⁻¹ nm/pulse);
• in optimal conditions, the stoichiometry of the deposited layer coincides with the one of the targets, even for very complex materials with a high degree of instability;
• the high energy of ablated species determines the synthesis of extremely adherent layers;
• one can obtain species with electronic states different from the equilibrium ones and new, metastable phases of the material;
• even though their thickness might have very low values, the films uniformly cover the substrate and prevent the release of ions from the implant into the body;
• when reducing the thickness, the risk of delamination decreases.

Like all the other synthesis techniques, PLD presents some disadvantages too, such as a low deposition rate, an applicability domain limited to compounds that are not sensible to thermal decomposition and degradation that appears during processing by prolonged exposure to UV laser radiation, the presence of droplets (of a different composition and dimensions), and a low deposition area (no bigger than a few cm²). The last two drawbacks can be diminished or even eliminated by additional set-ups [18,116].

5.2. BioHA Targets Preparation

The powders obtained following the protocols mentioned in Section 4 are generally pressed and the resulting pellets are heat-treated in a furnace, to reach compactness by eliminating air bubbles and water vapors. The as-sintered pellets are compact and tough (Figure 1) and can be used as targets in the PLD experiments [11,25,53,54,60,80].

The Importance of Thermal Treatments in the Case of Targets

Even though CaP bio-ceramics possess excellent biomedical characteristics, their poor mechanical behavior determined focused research to find viable solutions to this important drawback.

The properties, efficiency, phase purity, and size distribution of HA extracted from natural resources, especially from bones, depend upon factors like the extraction technique, the calcination temperature, and the nature of bones [2]. HA derived from natural resources (such as animal bones) is available in unlimited supply and can be produced by calcination methods [27,117]. Ozyegin et al. [117] reported that sintered BHA is safe from potentially transmitted diseases such as bovine spongiform encephalopathy (“mad cow disease”). The manufacturing of these powders is easy to carry out and economically viable [2,117]. Prions, which are the smallest proteinaceous infectious particles, can resist inactivation by procedures that modify nucleic acids and are able to transmit alone an infectious disease, which causes harm to the host tissue [118]. Thus, the temperature generally applied for calcination is around 850 °C and it was demonstrated that no disease transmission pathogens (including prions) can survive to such high temperatures [2,27,117]. However, a special calcination regime has to be carefully selected in order to remove all organic matter and enhance the crystallinity of HA, while avoiding thermal decomposition of the final product, HA [2].

5.3. Substrates Used as Pulsed Laser Deposition Collectors

In general, for the fabrication of bio-implants and bio–devices, there are five classes of materials used: (i) metallic materials, (ii) polymers, (iii) ceramics, (iv) composites, and (v) natural materials.

The most commonly used metals and alloys for medical device applications include stainless steels, cobalt-based alloys, and commercially-pure titanium and its alloys [119]. The last ones are generally preferred for bone-replacement applications mainly due to their intrinsic resistance. These materials have been widely used as endosseous implant materials in dentistry and orthopedics due to their high strength, good corrosion resistance, no allergic problems, low density, and excellent biocompatibility [120]. Moreover, the thin oxide layer, which is naturally formed on their surface, is acting as a protective barrier, which confers its well-known resistance among metals to corrosion in physiological conditions. However, it is far from being an ideal material from a medical point of view because of its insufficient bioactivity when implanted in the human body [121].

Polymers represent the largest class of biomaterials, which have gained greater attention due to some important advantages such as (i) ease of fabrication to various complex shapes and structures, (ii) wide range of bulk compositions and physical properties, and (iii) easy tailoring of surface properties [119].

Ceramics are inorganic compounds of metallic or non-metallic materials. When used for skeletal or hard tissue repairing, they are referred to as bio-ceramics. These bio-ceramics can be classified as bioinert (e.g. alumina, zirconia), bioresorbable (e.g. TCP), bioactive (e.g. HA, bioactive glasses, glass ceramics), and porous (e.g. HA coatings on metallic substrates for tissue in-growth).

A composite consists of two or more materials, characterized by a combination of the best physical and chemical characteristics of each component materials. In the biomedical field, composite materials are generally designed for superior mechanical and biological properties. They can be classified as a function of the (i) matrix material and (ii) bioactivity of the composite. In the first case, there are three types of composite materials: (i) polymer matrix composites, (ii) metal matrix composites, and (iii) ceramic matrix composites. For the second case, there are: (i) bioinert composites, (ii) bioactive composites, and (iii) bioresorbable composites.

Collagen and glycosaminoglycans are the most commonly used natural materials for clinical applications [122] due to a series of important advantages, such as: (i) easy recognition by the biological environment due to their similarity with the macromolecular substances, (ii) possibility to by-pass toxicity-related issues, chronic inflammation, or lack of recognition by cells (which generally occurs when dealing with synthetic materials), and (iii) biodegradable nature of the materials, which permits their use for focused applications, where a specific function is needed for a limited period of time [123].

In general, prior to the coating process and immediately after it, special attention needs to be paid to the surface preparation of various types of used substrates. In this respect, different substrate preparation techniques have been reported, from simple to complex ones, with their own peculiarities. Thus, simple substrate preparation procedures include cleaning or degreasing to remove any remnant surface contamination because of manufacturing conditions or improper storage. Solvents like acetone, ethylic alcohol, and/or distilled water might be used in this case, always keeping in mind the nature and properties of the used substrates. By contrast, more complex substrate preparation techniques include (i) mechanical modification of the surface, by sand-blasting [124], grit-blasting [125,126], polishing [127,128], or grinding [129], and (ii) chemical treatments, modifications, or functionalization, using chemical activation [130], alkaline treatments [131], anodization [124,125], acid-etching [124,125,126], oxidizing [132], and many other actions [124,133]. Additional physical treatments, resulting in various types of surface modifications, were briefly discussed in Reference [133]. After CaP synthesis, the applied post-deposition treatments are intended to (i) provide crystallization/recrystallization of various phases, (ii) improve their fixation to the substrate, and (iii) evaporate traces of solvent(s) that might remain trapped within the deposited structures.

5.4. Pulsed Laser Deposition Experimental Set-Up

A PLD experimental set-up is typically composed of a UV laser source, a vacuum stainless-steel deposition chamber (Figure 2), equipped with a rotating target, a fixed substrate holder, and pumping systems. Following target irradiation, a plasma cloud expands, either in vacuum or in different gas atmospheres, and the vapors are collected on substrates (generally placed parallel to the targets and heated up to a temperature in the range of 350–600 °C), in the form of thin, adherent films [18]. In this respect, amorphous or crystalline, extremely adherent, stoichiometric, and dense or porous structures from various complex materials can be synthesized, even at relatively low deposition temperatures, by varying the experimental parameters that are mainly related to the (i) laser (fluence, wavelength, pulse-duration, and repetition rate), and (ii) deposition conditions (target-to-substrate distance, substrate temperature, nature, and pressure of the environment) [19,134,135].

Due to the possibility to independently vary a large number of parameters (such as the wavelength, fluence, pulse repetition frequency, energy, target preparation, target–to–substrate distance, substrate temperature, area of the laser spot, deposition geometry, nature, and pressure of the gas in the deposition chamber), PLD represents a versatile technique to produce films with a high diversity of morphological and structural characteristics, which are superior to the ones appertaining to conventional deposition techniques (fast processing, safety in functioning, and low production costs) [18,19,116,136].

The substrate temperature during film synthesis by PLD is usually situated in the range of 350 to 600 °C. This way, one can assure the fabrication of highly crystalline and phase-pure films [137]. Moreover, lower or higher values for substrate temperature can be chosen to obtain layers with fine textures or different roughness, with improved adherence to the substrate, depending on the intended applications.

Various experimental conditions used for PLD synthesis of BioHA coatings have been reported in the literature. They are summarized in

Table 6. Different experimental conditions used for PLD synthesis of BioHA coatings.

HA Source Material/Used Substrate	Type of Laser Used	Target-to-Substrate Separation Distance [cm]	Energy [mJ]	Temperature during Deposition [°C]	Water Vapor Atmosphere [mbar]	Pulse Frequency [Hz]	Number of Applied Laser Pulses	Reference
Enameloid of shark teeth/Ti6Al4V disc	ArF* (193 nm)	–	320	460	0.15–0.45	10	–	[89]
Ovine and bovine bone/Ti disc and Si wafer	KrF* (248 nm)	5	330	500	0.50	10	15,000	[53]
Human dentine, ovine, and bovine bones/Ti disc and Si wafer			350					[80]
Bovine bone/Ti disc and Si wafer								[54]
Sheep dentine/Ti disc and Si wafer			330					[25]
Bovine bone/Ti disc and Si wafer			360					[60]
Bovine bone/Ti disc								[11]

. The results from these papers will be thoroughly analyzed and discussed in Section 6.

5.5. Thermal Treatments Applied to Pulsed Laser Deposited Coatings

BioHA coatings are generally amorphous when deposited by PLD. HA loses (OH)⁻ molecules and on the deposition substrate a mix of CaPs is formed. The most prominent of them are tricalcium phosphate (TCP) and octacalcium phosphate. The process is reversible and a post-deposition thermal treatment around 500 °C in water vapors leads to conversion of the deposited amorphous and non-apatite phases into more stable compounds, like HA. In addition, their crystallinity and corrosion resistance increase, and the residual stress is considerably reduced [138,139,140,141]. It is also important to note that, the presence of water during the post-deposition heat treatment also plays an important role in this conversion [142,143].

Dinda et al. [144] have reported that a post-deposition thermal treatment at 300 °C can produce pure, adherent, and crystalline HA coatings, which will not dissolve in simulated body fluids.

Post-deposition thermal treatments, generally performed in air or enriched water-vapor atmospheres, are of key importance. Their role is, on one hand, to restore the stoichiometry of the synthesized compounds and, on the other hand, to improve the overall crystalline status of the coatings [53].

The sintering temperature and atmosphere are considered as important parameters able to tailor the strength and toughness of HA [145]. For example, sintering at elevated temperatures has the tendency to eliminate the functional group OH in the HA matrix and this would result in the decomposition of the HA phase to form α-TCP, β-TCP, and tetra-calcium phosphate [145].

6. Characterization of Pulsed Laser Deposited Coatings of Undoped and Doped Animal-Origin Hydroxyapatite

The purpose of CaP coatings that cover metallic medical prostheses is to ensure biomimetism, i.e. to “mislead” the human body that the newly implanted device is very similar to its bones and, thus, start osteoblasts proliferation and osseous matrix synthesis. There is no perfect coating technique and the existence of shortcomings for each of them determined the implementation of others, among which PLD is worth mentioning due to its advantages such as stoichiometric transfer and precise thickness control.

For characterization of the PLD synthesized coatings, the most common investigation techniques are: Scanning Electron Microscopy (SEM) for surface morphology and cross-sectional investigations, Energy-dispersive X-ray spectroscopy (EDS) for Ca/P ratio determinations, profilometry or Atomic Force Microscopy (AFM) for surface parameters valuation, X-ray diffraction (XRD) for crystalline status, stress, crystallites size, and orientation investigations, Fourier Transform InfraRed (FTIR) spectroscopy for identification of chemical bonds, pull-out bonding strength or scratch tests for assessment of films’ adherence to the substrate, and in vitro and in vivo tests. Therefore, we will concentrate in the following sections on these techniques for comparing the morphological, structural, and functional properties of PLD coatings synthesized from targets made of CaPs obtained from animal sources.

6.1. Morphological and Compositional Analyses

PLD coatings have general surfaces covered by round particles, which are further denominated as “droplets.” Their presence on the surface can be explained like this: following target surface laser irradiation, the surface top layers are instantly vaporized. Part of the pulse energy is transformed into heat, which is concentrated in a subsurface layer. Therefore, due to heat accumulation, a mix of liquid and gaseous phases is generated. A bubble is formed, which expands until the top solid layer breaks and a plasma plume is released. The shockwave of the plume splashes the liquid phase on the target surface and liquid droplets are released with supersonic speeds reaching the substrate. Their number and diameter depend on the type of deposited material as well as pressure in the deposition chamber and on the laser parameters [18]. Droplets can be trapped using ingenious particle captors or off-axis geometries in order to obtain particle-free films. However, in the case of biological applications, a rough morphology could be beneficial for osteoblast proliferation and droplet-containing films are considered acceptable.

Sheep derived HA (SHA) coatings synthesized by PLD using a KrF* excimer laser source [25] also had an irregular morphology composed of spherical particles whose distribution could be approximated by a Gaussian fitting centered around a mean diameter of 1 µm. The particles size varied between 0.35 to 3.5 µm. An interesting observation was made for SHA doped with Ti (SHA:Ti, 1.5 wt.%) coatings. The particle number on the surface almost doubled as compared to undoped material, which produced rougher surfaces. When depositing coatings with the same number of laser pulses from SHA and SHA:Ti targets, Duta et al. [25] obtained thicker SHA coatings as compared to SHA:Ti ones (1.8 vs. 1.2 µm, respectively).

In Reference [53], Duta et al. conducted a comparison between film morphology in the case of SHA and BHA doped with Li₂O or a commercial inert glass. In all cases, the coatings displayed the morphology with round micronic droplets covering the surface. There were no big differences between particles diameter. However, a variation in the number of particles/cm² was statistically significant.

Table 7. Droplets density in the case of synthetic HA and different BioHA coatings synthesized by PLD, using the same experimental conditions.

Sample Material	Density (Particles/cm2)
SHA	(5.5 ± 0.8) × 107
BHA:Li	(11.2 ± 0.7) × 107
BHA:CIG	(13.3 ± 1.1) × 107
HAsyn	(1.4 ± 0.5) × 107

summarizes these differences.

The coatings’ thickness decreased in the following order: HA_syn, BHA:Li, SHA, BHA:CIG (3.71 ± 0.15 µm → 3.52 ± 0.16 µm → 2.95 ± 0.21 µm → 2.79 ± 0.02 µm). The roughness of the films decreased in the same order with values of 0.76 ± 0.1 for HA_syn, 0.71 ± 0.06 for BHA: Li, 0.61 ± 0.05 for SHA and 0.77 ± 0.03 µm for BHA:CIG, respectively [53].

To the difference, Mihailescu et al. [54] obtained smooth surfaces of BHA coatings on which a low number of spherical droplets appeared as sputtered. Their diameter ranged from 1.6 to 2.5 μm. The beginning of an organization of some droplets into clusters could be assumed from the SEM images. For BHA doped with MgF₂ and MgO, deposited in the same experimental conditions, a clear increase of the droplets’ density was observed. They tend to accumulate in a majority in clusters of particles, with only a few isolated particles being identified. BHA doped with MgO (BHA:MgO) displayed the largest area of film surface covered by particle clusters. Apparently, the mean size of the droplets was very similar between undoped and doped materials.

In the case of BHA doped with Li₂CO₃ and Li₃PO₄ structures (further denoted as BHA:LiC and BHA:LiP) [60], the films’ surface was flat, with isolated round droplets, sputtered on the surface. Most droplets were more than half embedded in the film mass, which is an indicative for their high velocity at the moment of impact with the surface. The droplets’ number quantification was performed on four randomly chosen SEM fields and the obtained values were of (2.2 ± 0.2) × 10⁴ particulates/mm² (for BHA), (2.8 ± 0.2) × 10⁴ particulates/mm² (for BHA:LiC) and (1.5 ± 0.1) × 10⁴ particulates/mm² (for BHA:LiP) [60].

From the cross-sectional SEM images, thicknesses of ~8.5, ~7.2, and ~6 µm, respectively, were inferred for BHA, BHA:LiC, and BHA:LiP coatings [60].

Comparative SEM micrographies showing different surface morphologies, which correspond to titanium and various types of BioHA coatings synthesized by PLD, using the same deposition conditions, are presented in Figure 3.

Thickness of the PLD synthesized coatings can play an important role on their morphology, especially in the case of rough substrates. In Reference [89], films deposited in a water-vapor atmosphere onto Ti substrates were significantly thinner as compared to the ones deposited in vacuum. The calculated deposition rates were 3.5 nm/min for depositions conducted in water vapors, and 18.1 nm/min for depositions performed in vacuum. Therefore, films deposited in water vapors were thin and mimicked the Ti surface morphology. For deposition times under 30 min, surface features were not evident. For deposition times between 30 and 120 min, surface features became prominent. Aggregates of globular shape became visible at magnifications of 5000×, while at 20,000×, the droplets appeared to be made of elongated acicular crystalline structures of < 1 μm in length.

In general, the EDS quantitative measurements are performed during SEM investigations to determine the elemental distribution in the synthesized films and to estimate the Ca/P ratio.

A cross-sectional SEM image and its corresponding EDS spectra in the case of a BHA:CIG coating synthesized by PLD is presented in Figure 4. A compact structure of the coating can be observed. Moreover, the presence of trace elements (Na, Mg, Si, etc.) is also emphasized. A quasi-stoichiometric target-to-substrate transfer is reported in which the inferred Ca/P molar ratio is ~1.70. This value is typical to natural bone due to multiple doping with trace elements and functional groups.

6.2. Structural Investigations

GIXRD patterns of post-deposition treated BioHA coatings synthesized by PLD should display the characteristic peaks of HA [hexagonal, P63/m (176) space group, ICDD: 00-009-0432] [25]. It is quite possible that the GIXRD patterns contain, besides the HA peaks, some pronounced humps (centered at 2θ ≈ 30°), which are proof of an amorphous phase in the deposited films. Duta et al. [25] reported for SHA films deposited by PLD a crystallinity degree of ∼35%. The starting powders for PLD targets displayed in the XRD patterns some peaks that could be associated to MgCO₃ (ICDD: 01-086-2345) and CaMg₂ (ICDD: 00-013-0450) phases. However, after the deposition, these crystalline peaks were not present in the GIXRD patterns [25].

Some typical XRD patterns of HA_syn and BioHA coatings undoped or doped with Li₂O (further denoted as BHA:Li) synthesized by PLD are presented comparatively in Figure 5. One can observe that the most intensive peaks of the patterns in Figure 5 appertain to the Ti peaks of the substrate (ICDD: 44-1294). The fabricated coatings consisted of an HA phase with different degrees of crystallinity, as observed from the diffracted intensity variation and the mean crystallite sizes estimated from the FWHM of (002) and (300) XRD lines [53]. It is visible in Figure 5 that a more pronounced crystallinity corresponds to BHA:Li films. In addition, several weak lines were also identified whose origin might be due to a small percent of oxygen-deficient titanium oxides. Their formation might be due to the substrate oxidation during the post-deposition treatments [53].

Another way to identify BioHA is by means of characteristic functional groups that can be detected by FTIR. Besides the characteristic HA bands of ν3 asymmetric stretching mode of (PO₄)³⁻ groups (1010–982, 1063–1023, and 1091–1090 cm⁻¹, respectively), the ν1 symmetric stretching mode of (PO₄)³⁻ groups (961–945 cm⁻¹), ν4 bending mode of (PO₄)³⁻ groups (558–553 and 600–594 cm⁻¹, respectively), and the peak at ∼630 cm⁻¹ characteristic to (OH)⁻ groups, in the case of BioHA, which is a band centered at 874–870 cm⁻¹, could be present in the spectra, assigned to (HPO₄)²⁻ groups.

In the case of BHA targets and films, Duta et al. [53] identified small traces of hydrogen phosphorus fluoride hydrate (ICDD:77-0136) and brushite in the PLD targets [CaPO₃(OH)·2H₂O, ICDD:11-0293]. These traces were not present in the films obtained from irradiating these targets. Both targets and films displayed low amounts of fluorine besides the main HA phase. Popescu et al. [60] identified in BHA targets and films only FTIR bands corresponding to carbonate groups besides the characteristic orthophosphate bands of HA.

In the case of HA obtained from shark teeth, Hidalgo-Robatto et al. [89] reported on depositions conducted in water vapors. Depending on the pressure, different degrees of crystallinity were obtained. Under 0.25 mbar, spectra revealed a singular broad peak centered at ~31°, while, for a pressure of 0.45 mbar, the characteristic peaks for apatites located at 29.4, 32.1, and 33.4°, respectively, were present. In the FTIR spectra, besides the characteristic groups of CaPs, a peak associated with carbonate groups was present at 870 cm⁻¹. Depending on the deposition conditions, the importance of this peak varied. As the vapor pressure increased, the intensity of carbonate bands also increased. The CO₃²⁻/PO₄³⁻ ratio was 30% higher in the BioHA coating deposited at 0.45 mbar H₂O vapors as compared to the case of depositions conducted without water vapors. F1s transition peaks were also shown by XPS in the PLD targets and in deposited films. Based on FTIR, XRD, and XPS results, one could conclude that films deposited by PLD from shark-derived HA contained a hydrated and fluorinated carbonated HA.

6.3. Bonding Strength Tests

The bonding strength at the bio-functional coating–substrate interface is considered a critical parameter for the fabrication, successful implantation, and long-term stability of implant-type structures, since it governs both the initial stability and long-term functioning of the medical devices [16,146].

The bounding strength values inferred for Ti, BHA, and doped BHA coatings synthesized by PLD are presented in Figure 6. The raw data of the obtained results reported in References [25,53,54,60,80] were plotted together for comparison reasons only.

First, in order to verify the quality of the bonding adhesive, control tests are carried out on bare Ti substrates. The adherence values determined at the stainless-steel dolly/Ti substrate interface were of ∼60 MPa. We note that this value is in accordance with the specifications provided by the manufacturer [147].

Duta et al. [53] recorded for the case of HA_syn coatings, adherence values generally similar to the ones reported in literature for HA films synthesized by PLD [148,149]. Significantly higher values were measured in the case of SHA and BHA:Li coatings. The decreased value of adherence registered for the BHA:CIG structure was attributed to the intrinsic friability of the glassy doping phase under mechanical stress [53].

Duta et al. [25] performed comparative pull-out adherence tests between SHA and SHA:Ti structures. The values recorded for SHA coatings were of ~55 MPa, while, for the doped ones, the values were of ~64 MPa. The increase in bonding strength of SHA:Ti coatings was due to the presence of the Ti-Ca segregation at the interface with the substrate. One notes that, during post-deposition annealing treatments, atomic inter-diffusion processes are known to take place at the coating–Ti substrate interface [150,151,152]. In general, this leads to the strengthening of the films’ adherence by smoothing the interface between the two different materials. Therefore, the existence at the interfacial region of a segregated Ti-Ca inter-layer could accommodate an easier and more homogeneous inter-diffusion during the progress of the heat-treatments [25].

Mihailescu et al. [54] investigated the bonding strength for BHA and doped BHA structures. Compared to BHA coatings, the addition of MgF₂ and MgO seemed to result in an improvement of the films’ adherence to the Ti substrate with mean bonding strength values of ~49 and ~56 MPa, respectively, being measured [54].

Popescu et al. [60] reported on similar coating adherence values of (42–46) MPa, in the case of BHA and BHA:LiC coatings. These values are in agreement with the ones inferred by Duta et al. [80]. A decrease of the bonding strength down to ~33 MPa was recorded in the case of BHA:LiP structures, which was attributed to the existence of a larger content of the amorphous counterpart [60].

It is important to emphasize that the bonding strength response measured for all coatings synthesized by PLD (Figure 6) was superior to the minimum mandatory value of 15 MPa imposed by international standard 13779-2 [153] in the case of implant-type coatings used for load-bearing applications.

6.4. In vitro Biological Observations

6.4.1. Bioactivity Effect

The most common method to qualitatively assess BioHA coatings’ biocompatibility and cells’ proliferation is the MTS assay, while cells’ toxicity can be determined by using a lactate dehydrogenase (LDH) activity test. The MTS assay is based on the use of a tetrazolium compound (3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium, inner salt – MTS) that is chemically reduced by viable cells into formazan, which is soluble in tissue culture medium. Since the production of formazan is proportional to the number of living cells, the intensity of the produced color can be used as an indicator of cell proliferation.

LDH (or LD) is an enzyme involved in energy production that is found in almost all of the body’s cells. Elevated levels of LD usually indicate some type of cell damage. LD levels will typically peak as the cellular destruction begins. Thus, if a substrate is cytotoxic, the detected LD levels will be high. In Reference [25], tests were conducted according to the ISO standard 10993-5 [154].

In literature, the biocompatibility of synthesized coatings was assessed by the MTS tests, by applying different protocols. In this respect, human mesenchymal stem cells (hMSC) were seeded on Ti and various BioHA surfaces and the obtained results are plotted in Figure 7a,b and reported in References [25,60].

In Figure 7a, one can observe that the cells’ proliferation was better in the case of doped BHA coatings with respect to undoped ones. The proliferation increase was demonstrated to be in a direct relation with the augmentation of the polar component of the surface-free energy. Therefore, the beneficial effect of Li₂CO₃-doping could be emphasized [60].

After 24 and 48 h, the proliferation capacity of cells grown on the surface of SHA and SHA:Ti coatings was improved as compared to Ti surfaces for the same time intervals (Figure 7b). In addition, cell death at 24 h of growth was tested by using the LDH method [25].

Lithium is a trace metal in organisms. In pharmacy, it is used in composition of various drugs for the treatment of bipolar affective disorder and depression [155]. Lithium was also administered in drugs for treating osteoporosis in the last 20 years [156,157] due to its proven ability to enhance osteogenesis [158]. Despite its proven efficacy [159], there are reports when lithium administration determined side effects such as thirst and excessive urination, nausea, diarrhea, tremor, weight gain, sexual dysfunction, dermatological effects, and long-term effects on the thyroid gland, kidneys, and parathyroid glands [160]. However, recent studies challenge this negative perception of lithium administration, stating that intoxication occurs only when the concentration is higher than 1.5 mmol/L, and its main adverse effects can be properly monitored and managed [11,161,162,163].

Hidalgo-Robatto et al. [89] tested BioHA coatings (obtained from shark teeth) synthesized by PLD using a pre-osteoblastic cell line MC3T3-E1. The BioHA was compared to synthetic HA and a control of tissue culture polystyrene. Cell morphology was similar in the case of synthetic HA and BioHA. Both coatings were able to promote healthy morphology on the cells. MC3T3-E1 cells made contact with neighboring cells and covered the entire surface of their respective coatings. The MTT assay showed after seven days from seeding, an intense proliferation of cells on the biological apatite coatings, which is significantly higher than the proliferation on the synthetic HA coatings or the control by the MTS assay. After 21 days, all tested materials had higher values of cell proliferation than on day 7 and displayed similar absorbance values. Alkaline phosphatase (ALP) activity was tested as a measure of osteoblastic activity and bone formation. Statistically significant higher ALP activity was quantified on the BioHA coatings compared to both the synthetic HA and TCP, which presented lower values in the same range. After 21 days of incubation, both types of apatite coatings apparently manifested higher levels of ALP activity as compared to TCP values. Overall, BioHA seemed to accelerate osteogenic activity as compared to synthetic HA due to its fluoride content and its trace elements such as Na and Mg.

Doping of BioHA with various elements can drastically increase the cellular response toward PLD synthesized coatings. In such a study, the surfaces of medical-grade Ti, SHA, and SHA:Ti coatings (the precursor material for PLD targets was a mix of SHA powder and 1.5 wt.% Ti powder) were seeded with human mesenchymal stem cells (hMSC) [25]. On all types of samples, cells displayed the same typical morphology: small dimensions, well-spread, and having a polygonal shape. They have established liaisons with neighbouring cells by thin cellular extensions. The lowest proliferation value was reached for the SHA coatings, with respect to both SHA:Ti ones and controls (bare Ti and polycarbonate) [25]. The experiments also showed an important cell number growth (of ∼60%) in the case of SHA:Ti coated samples. The proliferation increase of SHA:Ti vs. SHA was found statistically significant (p < 0.05). The LDH results showed that both SHA and SHA:Ti coatings fostered a good cells’ cytocompatibility. However, the amount of cells that underwent apoptosis and death was lower in the case of the polycarbonate control and SHA:Ti coatings. SHA structures presented almost double cell apoptosis death as compared to SHA:Ti ones. The dead cells’ index (percent of dead cells from the total number of cells) was lower than 4.5% for all cases, which constitutes another proof of the good cytocompatibility of the PLD coatings. The beneficial effect of Ti doping in HA has not been yet completely elucidated. Duta et al. [25] advanced its lower degree of crystallinity as a possible explanation for the superior biocompatibility of SHA:Ti, which generated the premises for a better interaction with the organic component of the mesenchymal cell culture media. Ca²⁺ ions released by dissolution may act as binders for organic moieties from culture media with roles in the healthy development of cells. A similar interpretation of enhanced protein binding by HA:Ti has been advanced by Kandori et al. [164] and Wei et al. [165], respectively.

In Reference [60], the influence of lithium doping of BHA on the biological response of the same type of cells was tested. The cells were stained with calcein/EthD-1 in order to evaluate the viable ones and the morphology of hMSC was observed three days after seeding on the surface of undoped and doped coatings. BHA:LiC and BHA:LiP samples produced a decrease in cell spreading without significantly modifying cell viability. Cells were adherent on the tested materials and exhibited typical fibroblast-like characteristics, with dendrites and prominent nuclei. There was no visible difference between lithium-doped BHA coatings and control materials (bare Ti and undoped BHA samples), as shown in Figure 8.

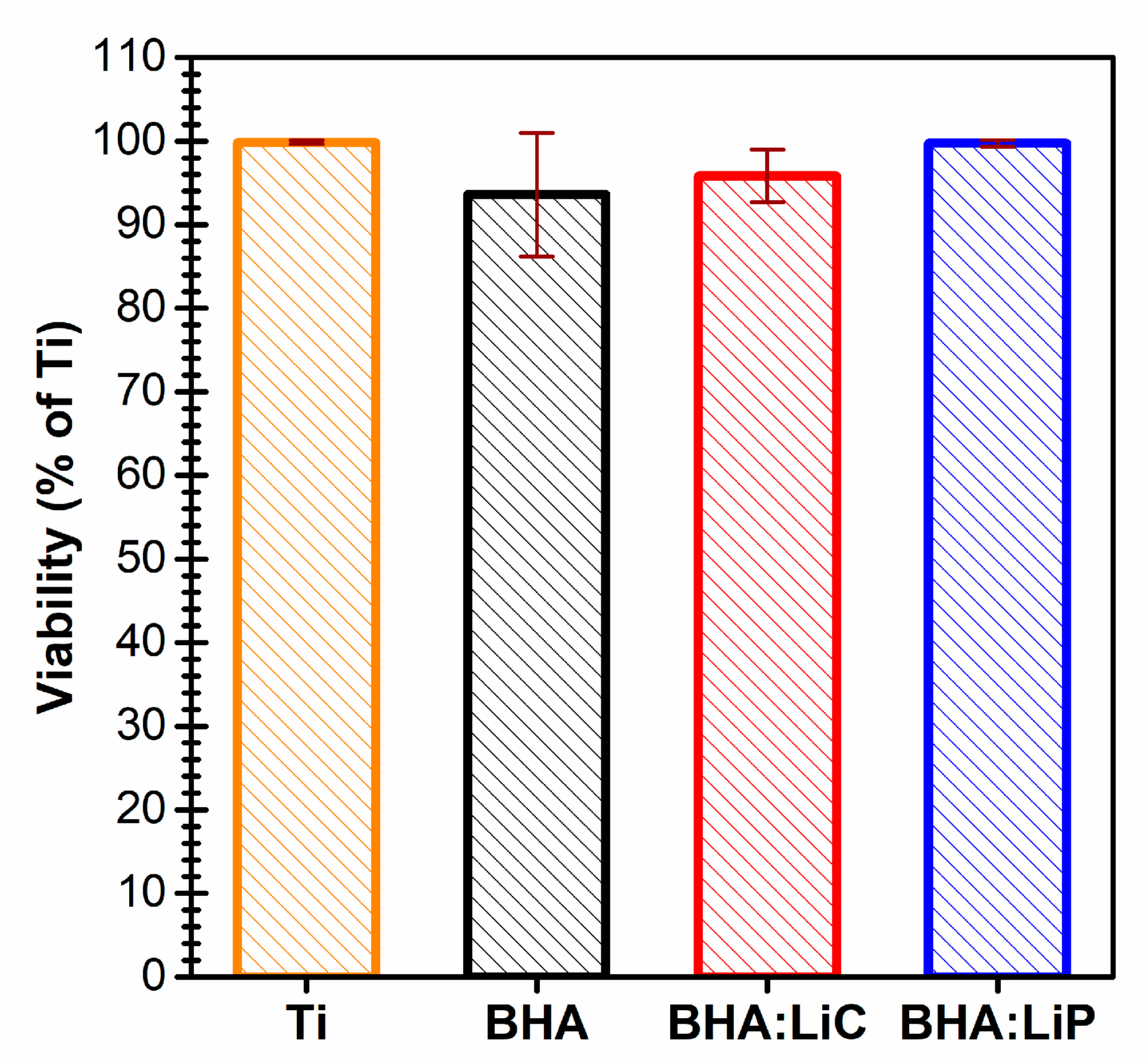

The in vitro cellular viability of hMSC grown for 72 h on Ti, BHA, and doped BHA coatings was assessed using the calcein AM/EthD-1 [60] method and the results are presented in Figure 8.

Based on relative intensity of calcein and EthD-1 signals on resulting scatter-grams, positive from negative cell populations could be distinguished. Compared to BHA samples, lithium-doped and MgF₂-doped surfaces led to a slight improved growth of hMSC cells, whilst, for BHA:CIG and BHA:MgO surfaces, a reduced cellular viability was inferred (Figure 8).

The high biocompatibility of BHA:LiC coatings was assumed to be favored by the highest wettability and overall surface energy, as well as by an augmented contribution of the polar component of the surface energy. Other studies report in favor of this hypothesis that, in order to enhance the cellular response (including here adhesion, spreading, and cytoskeletal organization), an optimal window for the contact angle in the range of 60° to 80° between surface and water molecules should exist [166,167,168]. In this case, the cell proliferation results are in good agreement with this rationale, with the best results being obtained for coatings to elicit a water contact angle of ~72° and the highest polar component.

Dos Santos et al. [169] and Redey et al. [170] reported that the higher polar component of carbonated HA and natural calcium carbonated surfaces induced an increased osteoblast and osteoclast adhesion, respectively. Furthermore, Zhao et al. [171] indicated that a higher surface free energy is connected with the increased production of bone ALP and osteocalcin, in the case of MG63 osteoblastic cells grown on hydroxylated Ti surfaces.

6.4.2. Antibacterial Effect

Mihailescu et al. [54] tested BHA and BHA:MgF or BHA:MgO against gram-positive Micrococcus sp. and gram-negative Enterobacter sp. for 72 h. The BHA coatings and Ti substrate used as controls had no antibacterial effect. When BHA was doped with MgF₂, and pulsed laser deposited on a substrate, it exhibited a slight anti-biofilm activity (1 log reduction of viable cell counts as compared to bare Ti) toward Enterobacter sp. The highest anti-biofilm activity was observed for the BHA:MgO coatings, which inhibited the Enterobacter sp. biofilm in all development stages, Micrococcus sp. biofilm at 24 and 72 h, and C. albicans biofilm at 48 h.

In Reference [172], it was shown that MgO exhibits stronger bactericidal activity as compared to TiO₂. Two hypotheses explaining the decrease of the number of biofilm-embedded cells could be considered, i.e. (i) the surface coatings prevent the microbial/bacteria adhesion and (ii) the coatings exhibit a microbicidal activity, which kills the cells before or after contact with the coated surfaces. The second hypothesis is supported by the results of the minimal inhibitory concentration assay showing an increased microbicidal activity of BHA:MgO and BHA:MgF coatings as compared to BHA against the tested strains. No cytotoxic activity of deposited coatings against human cells was revealed during tests on Hep2 cells. It has been reported in literature that pure Mg is highly effective against Staphylococcus aureus (S. aureus) [173]. Numerous studies tested the antibacterial efficiency of MgO against bacteria. Sawai et al. [174] demonstrated the efficiency of MgO powders against S. aureus and Escherichia coli, while Gayathri et al. [175] created a doped HA containing Mg in the form of nanoparticles that had antibacterial efficiency, but also insecticide action, which killed the larvae of three mosquito species. Photoluminescence studies conducted by Sawai et al. [174] showed that MgO slurries generate active oxygen species such as O^2- and this seems to be the most probable cause for bacterial apoptosis. These oxygen species form in wet media hydroxyl radicals and hydrogen peroxide. Hydroxyl radical is the most reactive oxygen radical, able to interact with almost every type of molecule of the living cells of bacteria and fungi, which causes irreversible damage to cellular components and, eventually, apoptosis [176].

Mg is not toxic for the human organism in a dose of 200 to 400 mg per day. The Food and Nutrition Board of the Institute of Medicine in the United States has set an upper tolerable limit of 350 mg per day for supplemental magnesium. In larger doses, it can induce nausea and vomiting, muscle pain and weakness, confusion, and cardiac arrhythmias [177].

BHA and BHA doped with lithium compounds such as carbonate and phosphate (i.e., BHA:LiC or BHA:LiP coatings) proved antibacterial and antifungal activity against S. aureus and C. albicans strains [11], which was an unexpected discovery. After 24 h, all tested coatings manifested inhibitory activity for S. aureus colonies. After 48 and 72 h from inoculation, the antibacterial effect was much more visible. Therefore, a drastic decrease in the number of CFU/mL of 2 to 4 logs at these two-time intervals was recorded (Figure 9).

Representative SEM images of S. aureus biofilm developed on the surface of Ti and BHA:Li structures are given in Figure 10, at a magnification of 10,000×. One can observe that the density of S. aureus cells was significantly more reduced on BHA:Li surfaces as compared to Ti ones, which is in good agreement with the quantitative results presented in Figure 9.

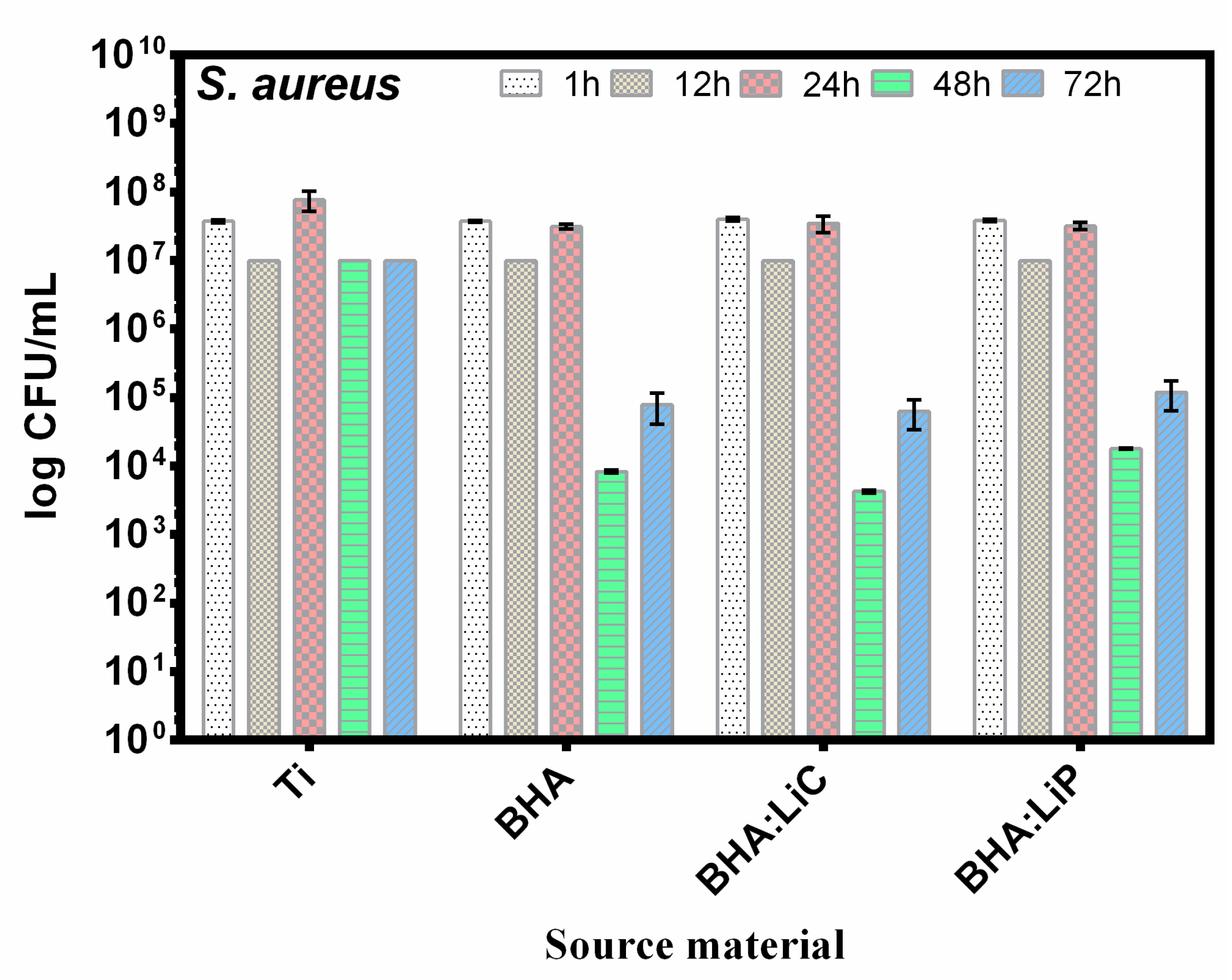

BHA:LiC coatings exhibited a slightly increased antimicrobial activity against S. aureus biofilm, as compared to BHA and BHA:LiP ones. In the case of C. albicans, the antifungal activity started to be pronounced after 12 h of incubation and with a drastic decrease of the fungal biofilm after 48 and 72 h, respectively (Figure 11).

Again, the order of efficiency in reducing colonies was BHA:LiC > BHA:LiP > BHA. SEM images revealed that, when grown on the surface of Ti, C. albicans produced biofilms, with interconnected cells through filaments, while, when seeded on the surface of the synthesized BHA or doped BHA coatings, the cells were ovoid and adhered in isolated unicellular forms, with completely absent filaments (Figure 12).

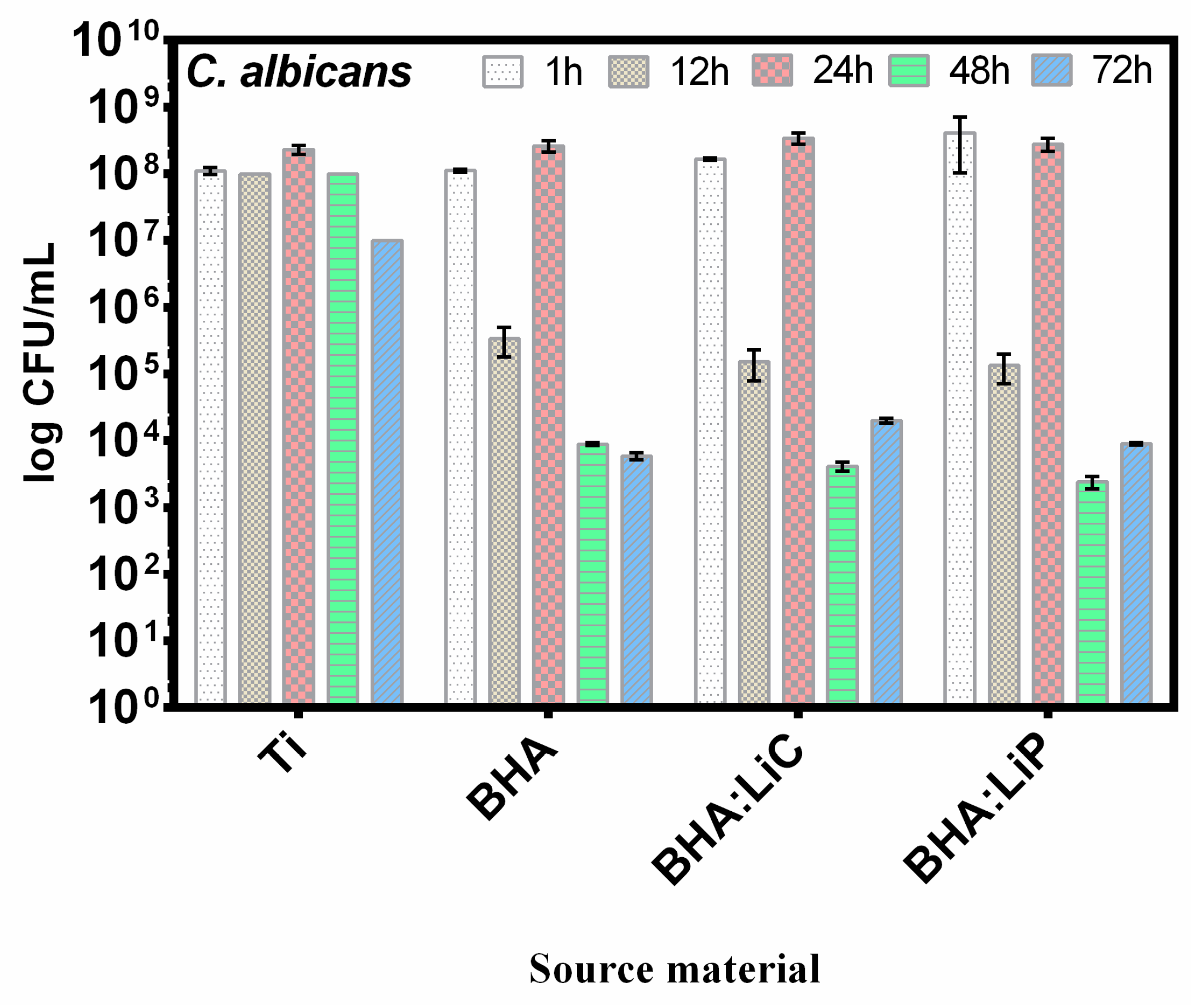

Representative SEM images of C. albicans biofilm developed on the surfaces of Ti and BHA:Li structures are given in Figure 12, at a magnification of 10,000×. While bare Ti samples were completely covered by a continuous layer of cells, the number of yeast cells developed on the surface of BHA:Li coatings was significantly decreased. They adhered exclusively in isolated, unicellular form, without interconnecting filaments. Duta et al. [11] assessed the antibacterial and antifungal activity of BioHA coatings to one of the following factors: (i) difference in polarity between negative-coated surfaces (associated with the presence of hydroxyl hydrophilic functional groups) and S. aureus/C. albicans biofilms matrix, which is also negatively charged, due to its main component, represented by self-produced exopolysaccharides, (ii) coatings will facilitate the formation of a highly alkaline medium, which consequently leads to the destruction of lipids that are the main component of microbial cell membrane, or (iii) the smooth surfaces of the films, which reduce the contact area between material surface and bacterial cells, or (iv) metal accumulation inside bacterial cells, followed by the cellular wall disruption, and, eventually, cellular lysis.

6.5. In Vivo Tests

In vitro tests were demonstrated to play a key role in the biological assessment of biomaterials by offering in-sight information on their possible behavior in a biological environment. On the other hand, to understand the complex processes that might occur in a living system and to provide accurate data to completely validate the performances of a given biomaterial designed for clinical trials, in vivo tests are extremely important and should, therefore, follow in vitro ones.

In the literature, there are many in vivo reports on CaPs, but, to the best of our knowledge, there are few works only on HA coatings synthesized by PLD, and, unfortunately, no studies at all on BioHA coatings synthesized by PLD. However, the authors of this review are confident that future in vivo studies of BioHA coatings should deliver interesting results, since BioHA materials proved many times to possess important advantages over synthetic HA. In the following paragraphs, a selection of the papers dealing with PLD of synthetic HA will be considered and the obtained results will be reviewed.

The main purpose of CaP coatings is to stimulate and accelerate new bone formation around an implant [178], and most of the reported research studies revealed positive and favorable effects in this direction [179]. In general, the spectrum of animals used for testing CaP coatings synthesized by PLD is reduced, and this includes rats, rabbits, mini-pigs, dogs, goats, or sheep [14]. The advantages and disadvantages of different animal models used were discussed in Reference [139].

Chen et al. [180] synthesized using PLD fluoridated synthetic HA (HA:F) structures onto Ti implants and inserted them into rat femurs. By using microcomputed tomography, histology, and sequential polychromatic fluorescent investigations, their osteo-inductive and osseointegration activity in comparison with that of uncoated Ti implants was assessed. The results of their study demonstrated that HA:F-coated implants were characterized by superior osteogenesis and osseointegration properties (1.5 times more new bone at one week and more than four times more new bone at 4 and 8 weeks, respectively) as compared to bare (uncoated) Ti specimens, which can advance them as viable candidates for future applications in dentistry.

Mroz et al. [181] reported on Mg-doped HA coatings fabricated by PLD onto porous Ti implants, which were introduced in rabbit femoral bones for six months. The evaluation of bone–implant interaction and bone volume in the region of interest were performed. Histopathological investigations showed that all implants integrated well with the surrounding bone with ingrowth of newly formed bone into the pores of the implants. No inflammatory or foreign body reaction were noticed at the implant site. They note that, a significant increase in bone volume for Mg-doped HA implants, as compared to uncoated implants, was detected.

Peraire et al. [182] conducted a comparative study of the biological stability and the osteo-conductivity of HA coatings produced by PLD and plasma spraying. The functionalized grit-blasted titanium rods were implanted in the proximal tibia of mature New Zealand White rabbits. The obtained data suggested superior bone growth (percentage of bone contact) in the case of HA–PLD coatings (86%) as compared to the HA–PS coatings (67%) or the uncoated grit-blasted titanium (69%), after a period of 24 weeks implantation. Taking into consideration these results, the initiation of clinical evaluation of this coating method for medical applications was encouraged.

Mihailescu et al. [183] reported on synthetic HA, Mn²⁺-doped carbonated HA and octacalcium phosphate (OCP) coatings fabricated by PLD onto Ti implants for insertion in the tibia bones of New Zealand White female rabbits. The bone–implants bonding was assessed by a tensile (pull-out) test. The measured value of the pull-out force was found to be more than double in the case of CaP-functionalized Ti implants, as compared to the control (uncoated) ones. In addition, the pull-out force increased by 25% for the Mn²⁺-doped carbonated HA and 10% in OCP-coated implants, in comparison with the synthetic HA-coated implants. Mihailescu et al. concluded that nanostructured CaP depositions manifested a significant potential for improving the performance of functionalized Ti implants in bone, and the composition and structure of the CaP coating have a significant influence on their biological effect.

Dostalova et al. [184] functionalized by PLD the surface of Ti6Al4V dental implants with HA coatings. Coated and uncoated implants were inserted into the lower jaw of mini-pigs. The evaluation of implants’ osseointegration degree was assessed by polarized and fluorescent light microscopy with computer image processing. The results of the study proved that the osseointegration of the coated layer was superior for HA coatings (~77.2%) than the integration of uncoated Ti implants (~65.2%). With the owned advantage of delivering an inert and osseoconductive ceramic coating, the same team concluded that the PLD could be a viable method for coating metallic implants.

7. Conclusions and Perspectives

When animal-origin calcium phosphates (CaPs) are tackled, pulsed laser deposition (PLD) could be one of the most interesting choices for coating synthesis. If synthetic hydroxyapatite (HA) has a complex molecule with a large number of atoms and functional groups difficult to transfer in form of thin films by physical deposition techniques, natural apatites become even more complicated to transfer because of new functional groups and substitution ions, which further complicate the molecule. PLD is renowned for the ability to transfer stoichiometrically very complex molecules and this advantage should make it one of the premiere candidates for the transfer of such complex materials.

The most common sources for obtaining animal-origin HA for PLD targets are swine, ovine, and bovine teeth or bones. They are immersed in alkali solutions and further calcinated at ~800 °C to remove the organic parts. The powder resulting after grinding and milling can be pressed into targets or mixed with various doping agents to change mechanical or biocompatibility properties.

Coatings’ morphology depends on the thickness, the origin of the natural apatite, and on the doping agents. In general, films are covered by round droplets that originate from the expulsion of the liquid phase during target irradiation. Their number and size can drastically differ depending on the experimental conditions. Usually, films in the range of hundreds of nanometers mimic the substrate morphology (especially if it is rough), with surface features that are not evident. Thickness seems to be dependent on the experimental conditions (number of pulses, laser fluence, and gas pressure), but also on the type of apatite. Studies on coatings synthesized in the same experimental conditions on sheep, cow, and cow-HA and bio-glass revealed different thicknesses for different types of materials.

Structural differences between synthetic HA and animal-origin apatites or between different types of animal origin-apatites cannot be shown by X-ray diffraction only. All these materials display the same crystalline peaks in the diffraction patterns. Differences appear in Fourier transform infrared spectroscopy that contain, in the case of animal-origin HA, bands corresponding to (HPO₄)²⁻ or (CO₃)²⁻ groups.

In terms of adherence to the substrate, PLD synthesized coatings from doped or undoped animal-origin HA could easily surpass the mandatory value of 15 MPa of bonding strength established by international standards for biocompatible coatings to be used in implantology.

Biocompatibility of animal-origin HA was consistently being reported as surpassing that of synthetic HA both in cells morphology, cells proliferation, and bioactivity. Moreover, when doped with Ti or Li₂CO₃, the effect was a boost in cell proliferation.

Animal-origin HA could be, therefore, a reliable, promising, safe, and, most importantly, low-cost source for coatings that reach biomimetism. For PLD, the field is still in his incipient development, with numerous possibilities to expand in terms of natural-HA sources, doping agents, or morphology and structural control of the obtained coatings. The transfer from PLD, which is essentially a laboratory technique to an industrial coating technique also belongs to the future.

Besides their often-increased bioactivity as compared to synthetic HA, BioHA coatings can display antibacterial and antifungal properties, which are not present in the case of synthetic HA. Undoped or BioHA doped with MgO, or carbonates and phosphates of lithium, were active against various microorganisms. Possible explanations for this property could be the presence of dopants, which have antibacterial and antifungal properties by themselves, the smoother surfaces of PLD deposited BioHA films, which reduce the contact area between coating and bacteria, and the metal ions accumulation inside microorganisms followed by the membrane disruption and cell apoptosis.

The authors of this review express their confidence that the future of biomimetic coatings belongs to the natural-origin CaPs source materials and their perfect transfer and delicate tuning in terms of thickness, crystallinity, and functional groups can be optimally studied using PLD as deposition method.
