Next Article in Journal
Review of Micro–Nanoscale Surface Coatings Application for Sustaining Dropwise Condensation
Next Article in Special Issue
Synthesis and Properties of Electrodeposited Ni–Co/WS2 Nanocomposite Coatings
Previous Article in Journal
Synthesis and Morphological Characterization of Nanoporous Aluminum Oxide Films by Using a Single Anodization Step
Previous Article in Special Issue
Effects of Surface Microstructures on Superhydrophobic Properties and Oil-Water Separation Efficiency
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Coatings 2019, 9(2), 116;

Surfactant-Free Electroless Codeposition of Ni–P–MoS2/Al2O3 Composite Coatings

Jiangsu Key Laboratory of Precision and Micro-Manufacturing Technology, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
College of Engineering, Nanjing Agricultural University, Nanjing 210031, China
Key Laboratory of Modern Agricultural Equipment and Technology, Ministry of Education/High-tech Key Laboratory of Agricultural Equipment & Intelligentization of Jiangsu Province, Jiangsu University, Zhenjiang 212013, China
Jiangsu Key Laboratory of Advanced Manufacturing Technology, Huaiyin Institute of Technology, Nanjing 223003, China
Faculty of Engineering and Environment, University of Southampton, Southampton SO17 1BJ, UK
Production Engineering, Machine Design and Automation, Department of Mechanical Engineering, Katholieke Universiteit Leuven (KU Leuven), Leuven 3001, Belgium
Author to whom correspondence should be addressed.
Received: 20 December 2018 / Revised: 1 February 2019 / Accepted: 10 February 2019 / Published: 13 February 2019
(This article belongs to the Special Issue Superhydrophobic Coatings for Corrosion and Tribology)
Full-Text   |   PDF [5187 KB, uploaded 15 February 2019]   |

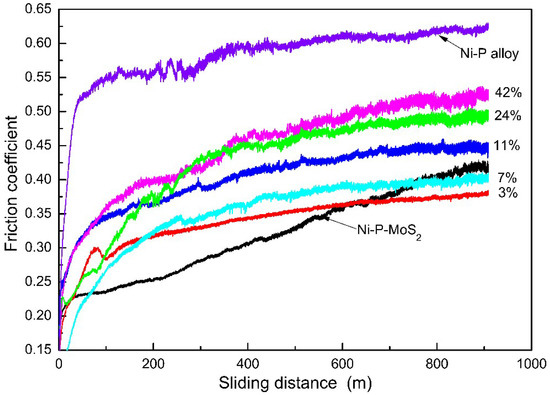

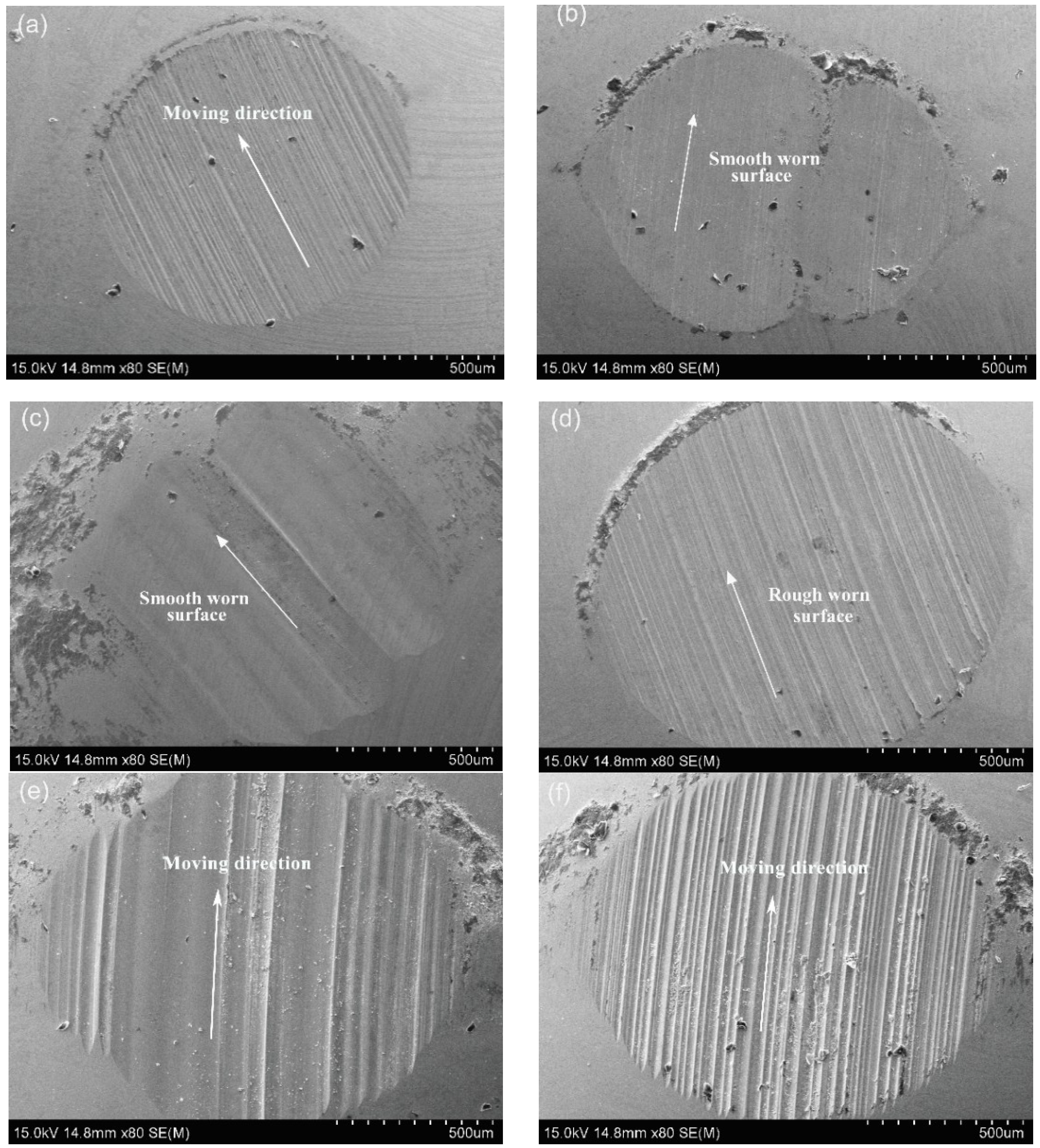

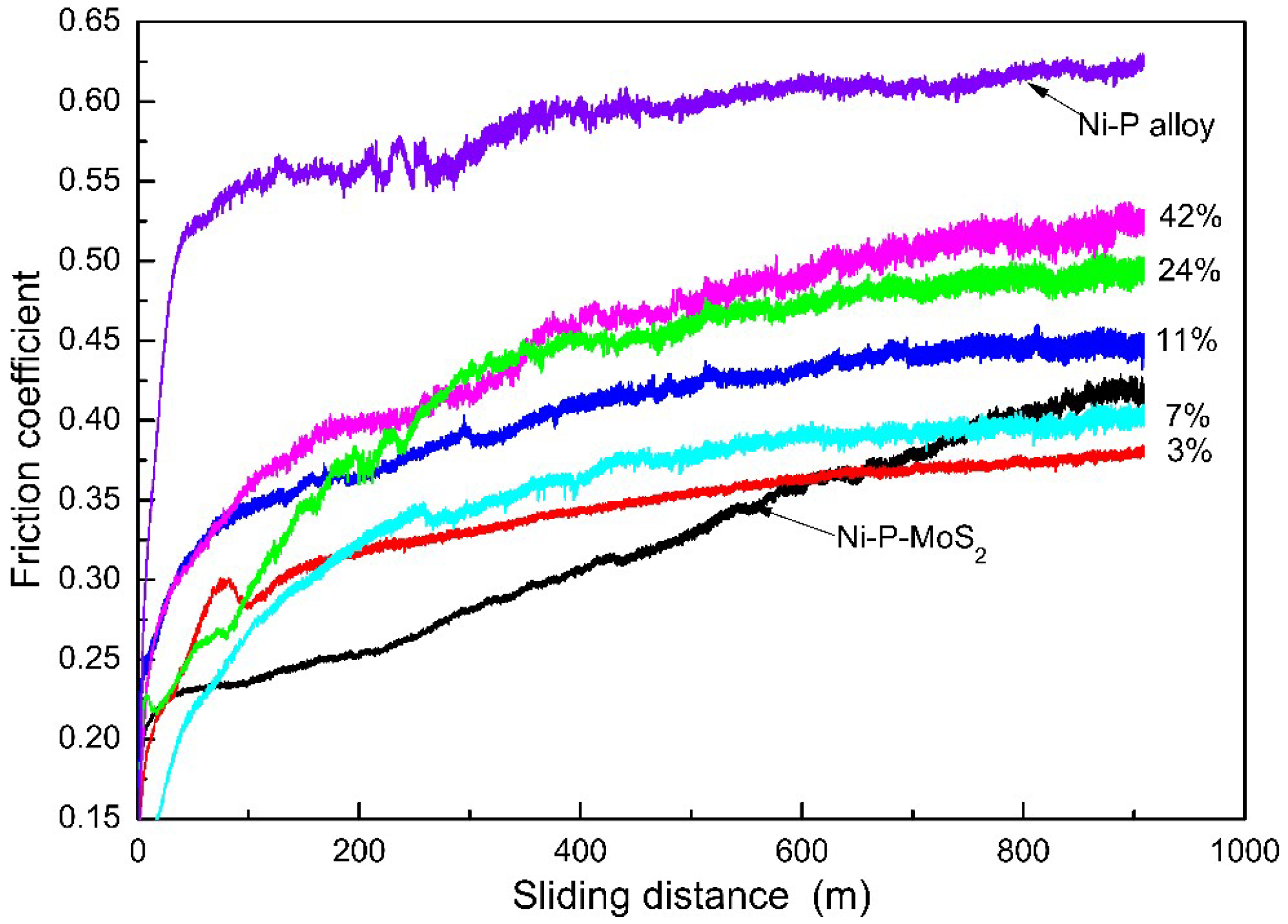

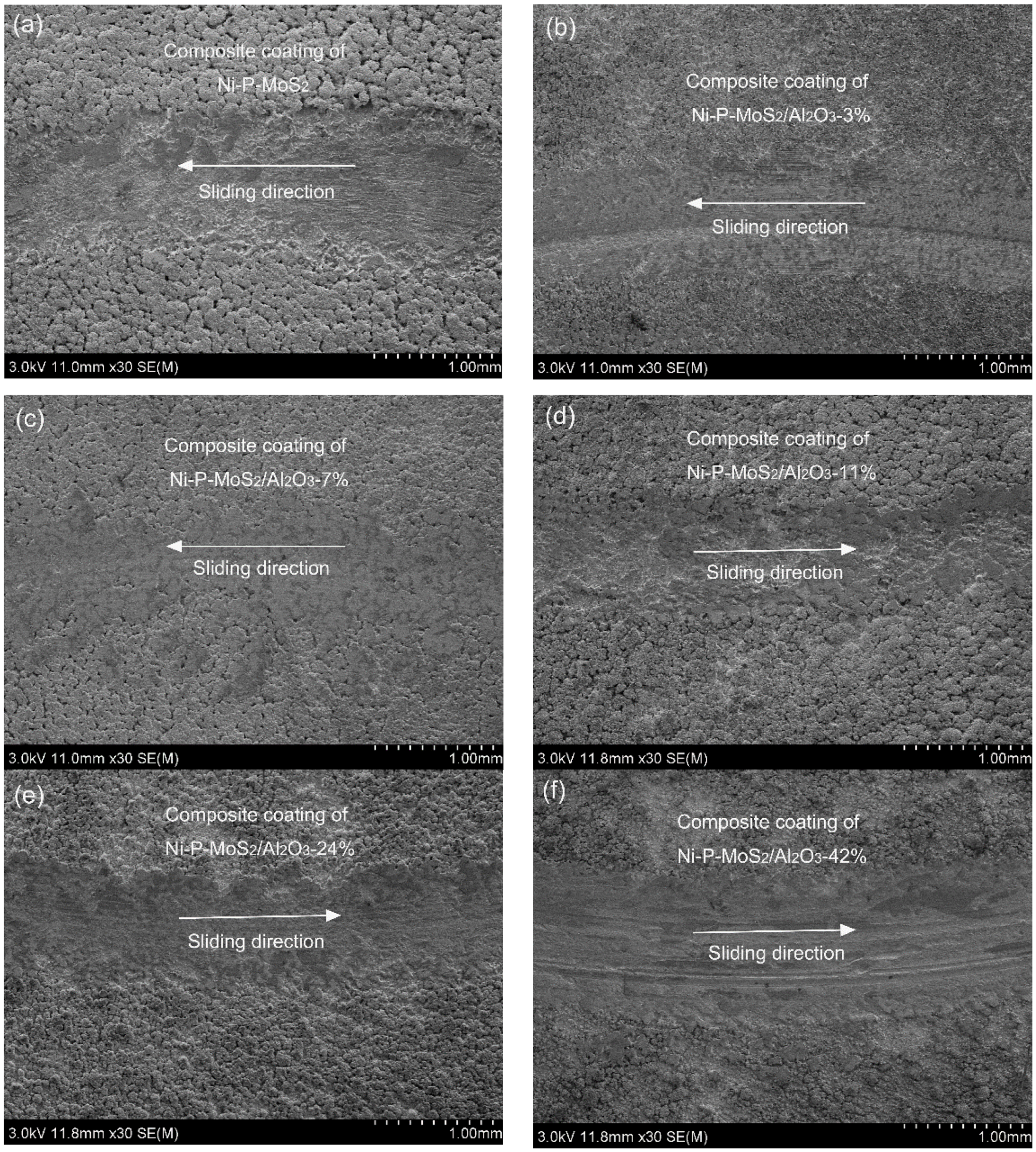

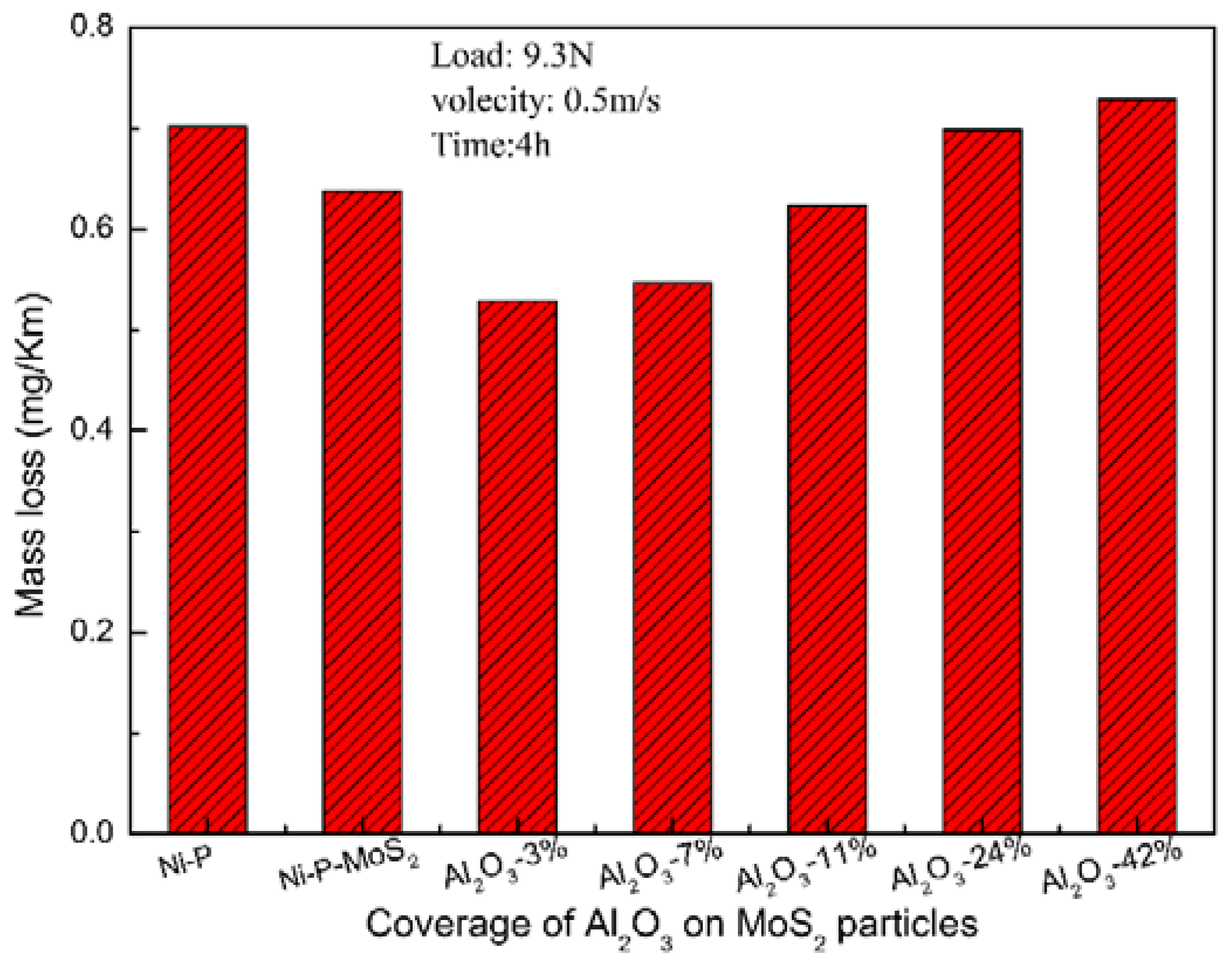

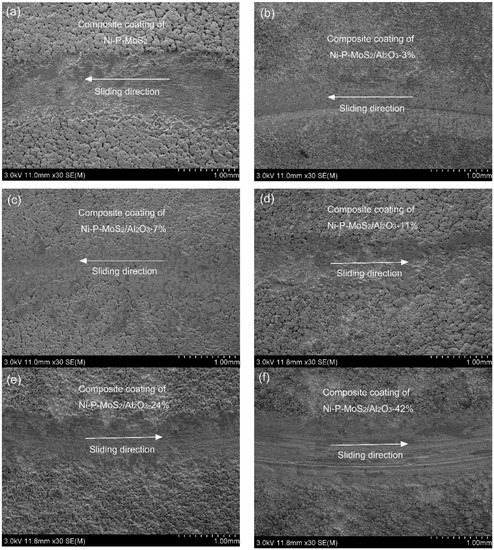

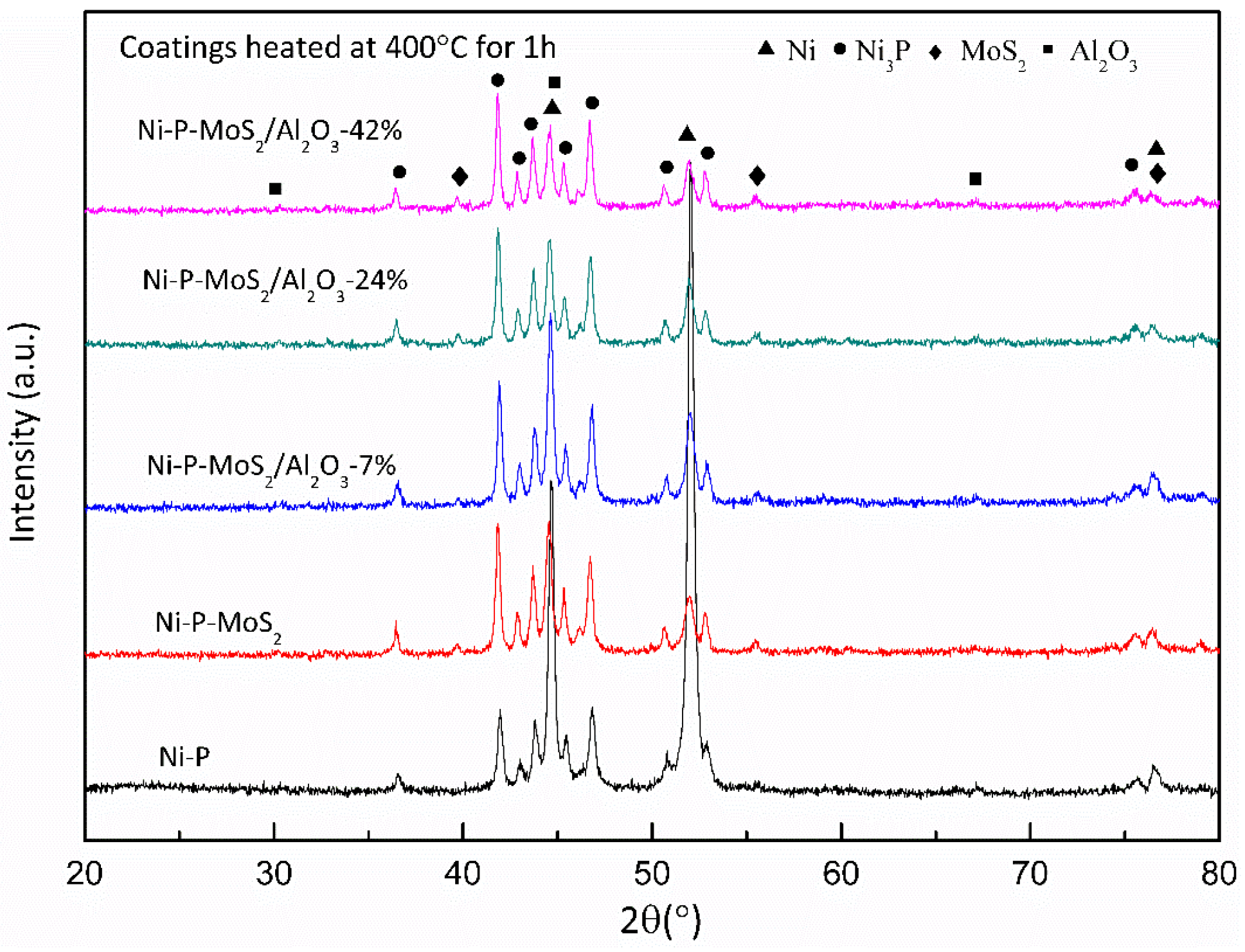

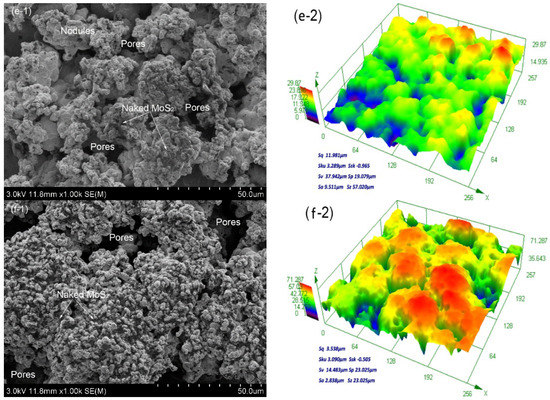

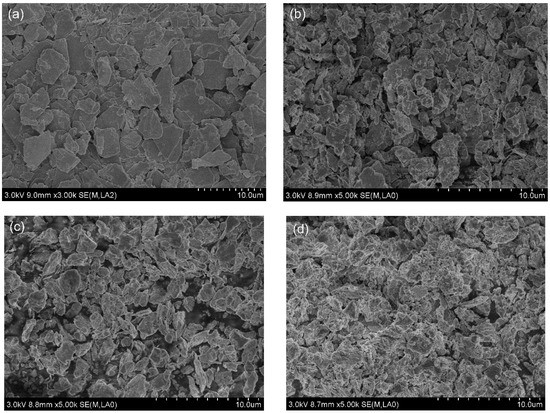

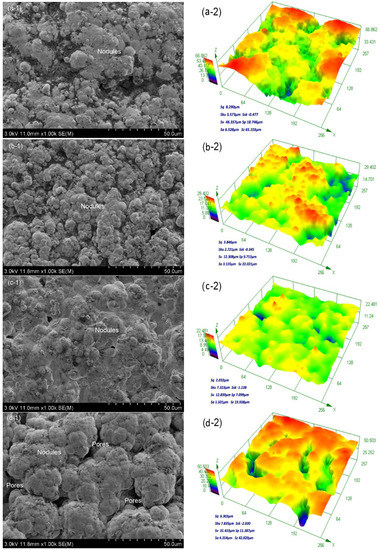

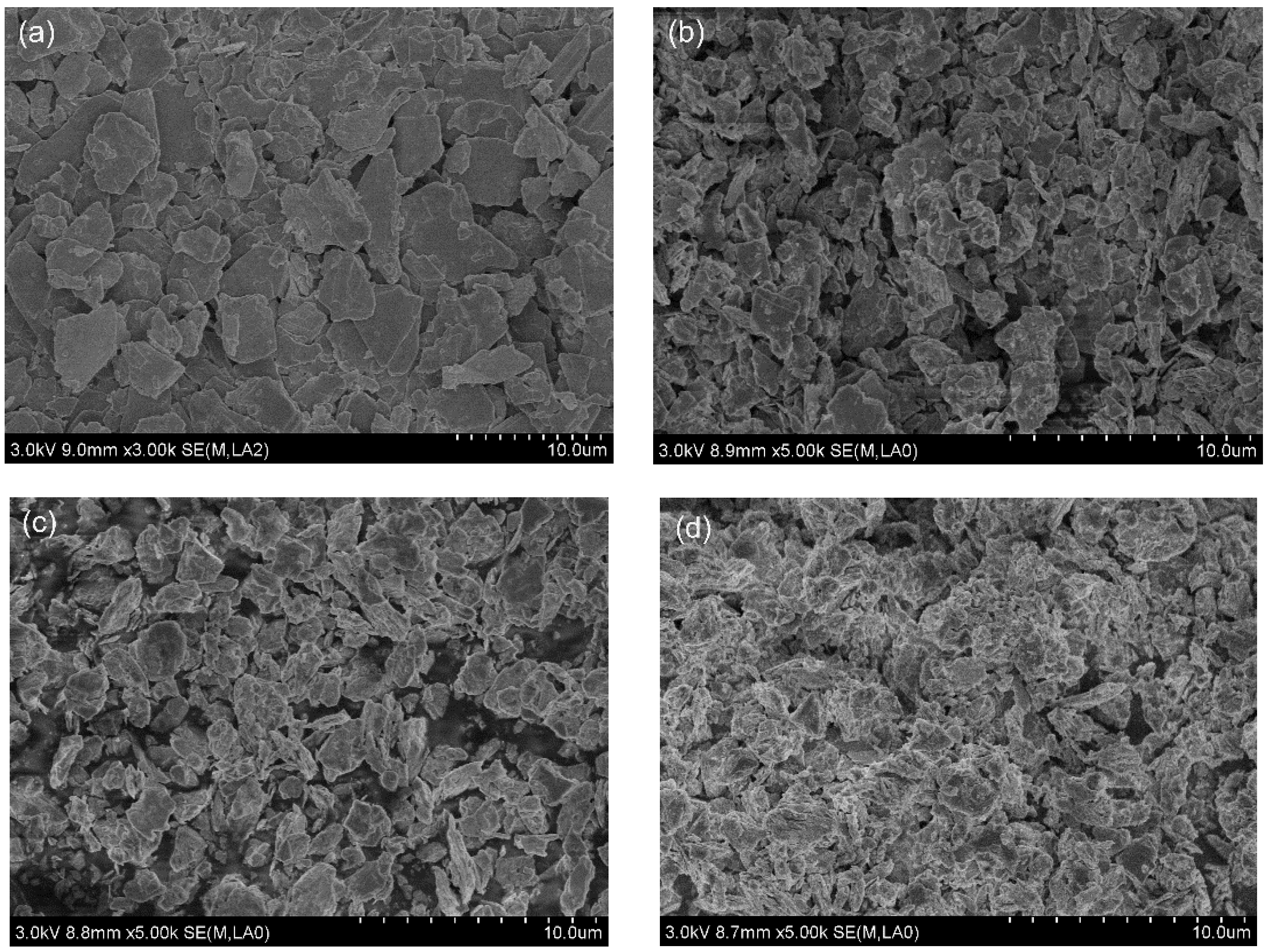

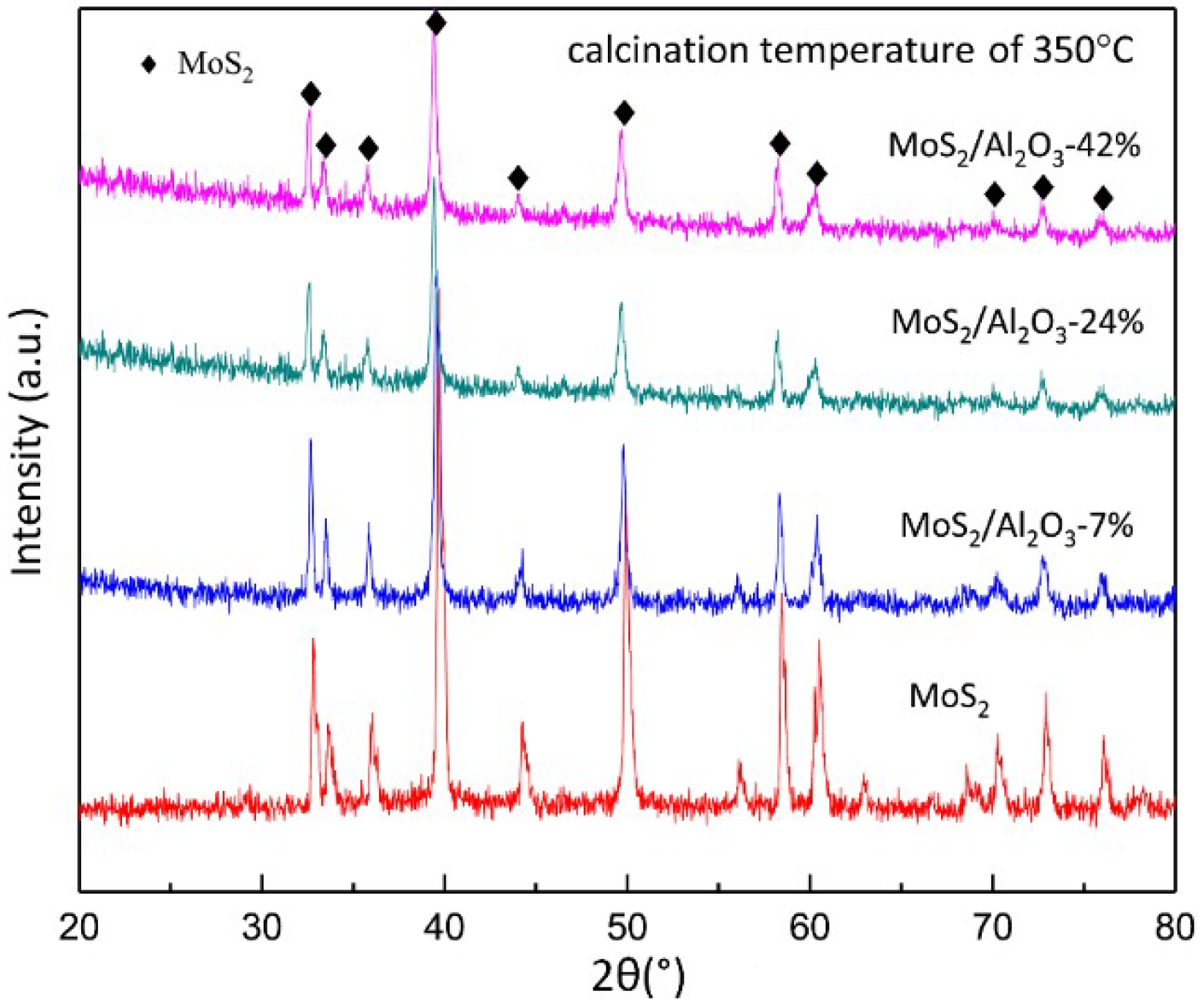

This paper presents the influence of an inorganic Al2O3 layer over MoS2 particles on the tribological performance of electroless Ni–P–MoS2/Al2O3 composite coatings fabricated without using surfactants. The Al2O3-coated MoS2 particles were prepared by a heterogeneous nucleation process. The dry sliding tests of the composite coatings were tested against a WC ball. SEM was used to observe the surface morphology of particles, composite coatings, and worn surfaces. The results indicate that the coverage of an Al2O3 coating on MoS2 particles significantly affects the surface morphology, frictional coefficient and wear loss of the composite coatings. The incorporation of Al2O3-coated MoS2 particles with lower coverage (up to 7% of Al2O3) could obtain compact surface structure of composite coatings, which contribute to reduced wear loss. However, higher coverage would lead to loose surface structure of the composite coatings, and thus increase their wear loss. View Full-Text
Keywords: electroless composite coating; Al2O3-coated particles; MoS2 particles; wear resistance; surfactant electroless composite coating; Al2O3-coated particles; MoS2 particles; wear resistance; surfactant

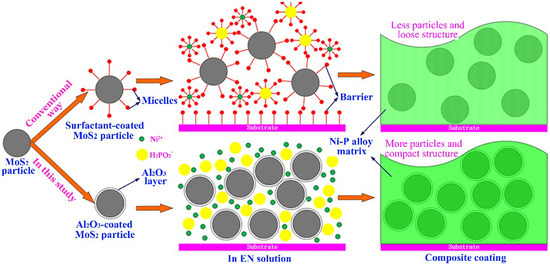

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liu, P.; Zhu, Y.; Shen, Q.; Jin, M.; Zhong, G.; Hou, Z.; Zhao, X.; Wang, S.; Yang, S. Surfactant-Free Electroless Codeposition of Ni–P–MoS2/Al2O3 Composite Coatings. Coatings 2019, 9, 116.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
