Next Article in Journal
Functionalized Electrospun Fibers for the Design of Novel Hydrophobic and Anticorrosive Surfaces
Next Article in Special Issue
Increase in Efficiency of End Milling of Titanium Alloys Due to Tools with Multilayered Composite Nano-Structured Zr-ZrN-(Zr,Al)N and Zr-ZrN-(Zr,Cr,Al)N Coatings
Previous Article in Journal
Dental Adhesion Enhancement on Zirconia Inspired by Mussel’s Priming Strategy Using Catechol
Previous Article in Special Issue
The Effect of Laser Power on the Interface Microstructure of a Laser Remelting Nano-SiC Modified Fe-Based Ni/WC Composite Coating
Article Menu
Issue 9 (September) cover image

Export Article

Open AccessArticle

Electrodeposition Behavior of Polycrystalline Ni–Mo–La Composite in Alkaline Solution

1
Xingzhi College, Zhejiang Normal University, Jinhua 321004, China
2
College of Mechanical Engineering & Automation, Fuzhou University, Fuzhou 350116, China
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(9), 299; https://doi.org/10.3390/coatings8090299
Received: 7 June 2018 / Revised: 9 August 2018 / Accepted: 12 August 2018 / Published: 24 August 2018
(This article belongs to the Special Issue Nanocomposite Coatings)
  |
PDF [9970 KB, uploaded 24 August 2018]
  |

Abstract

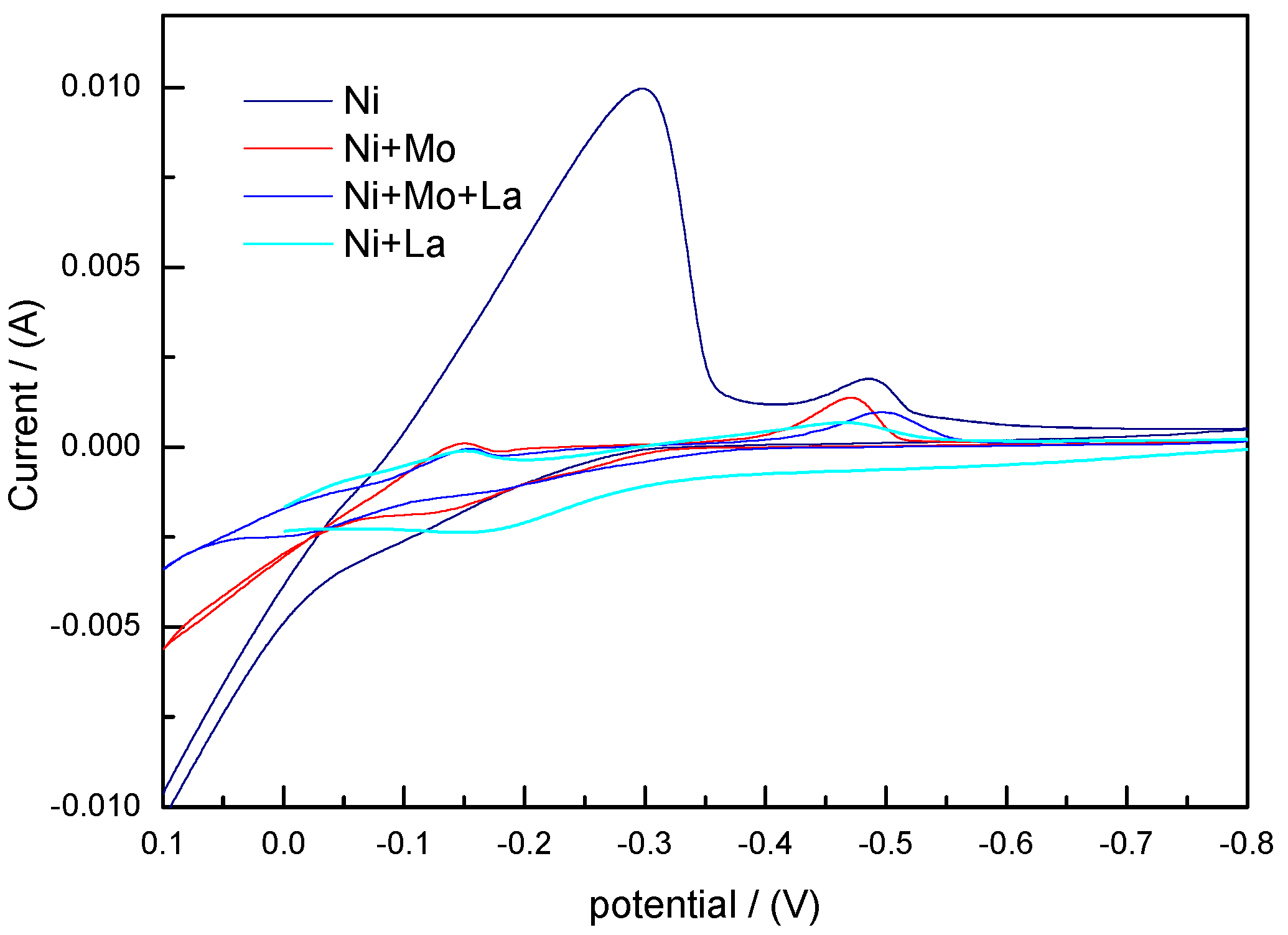

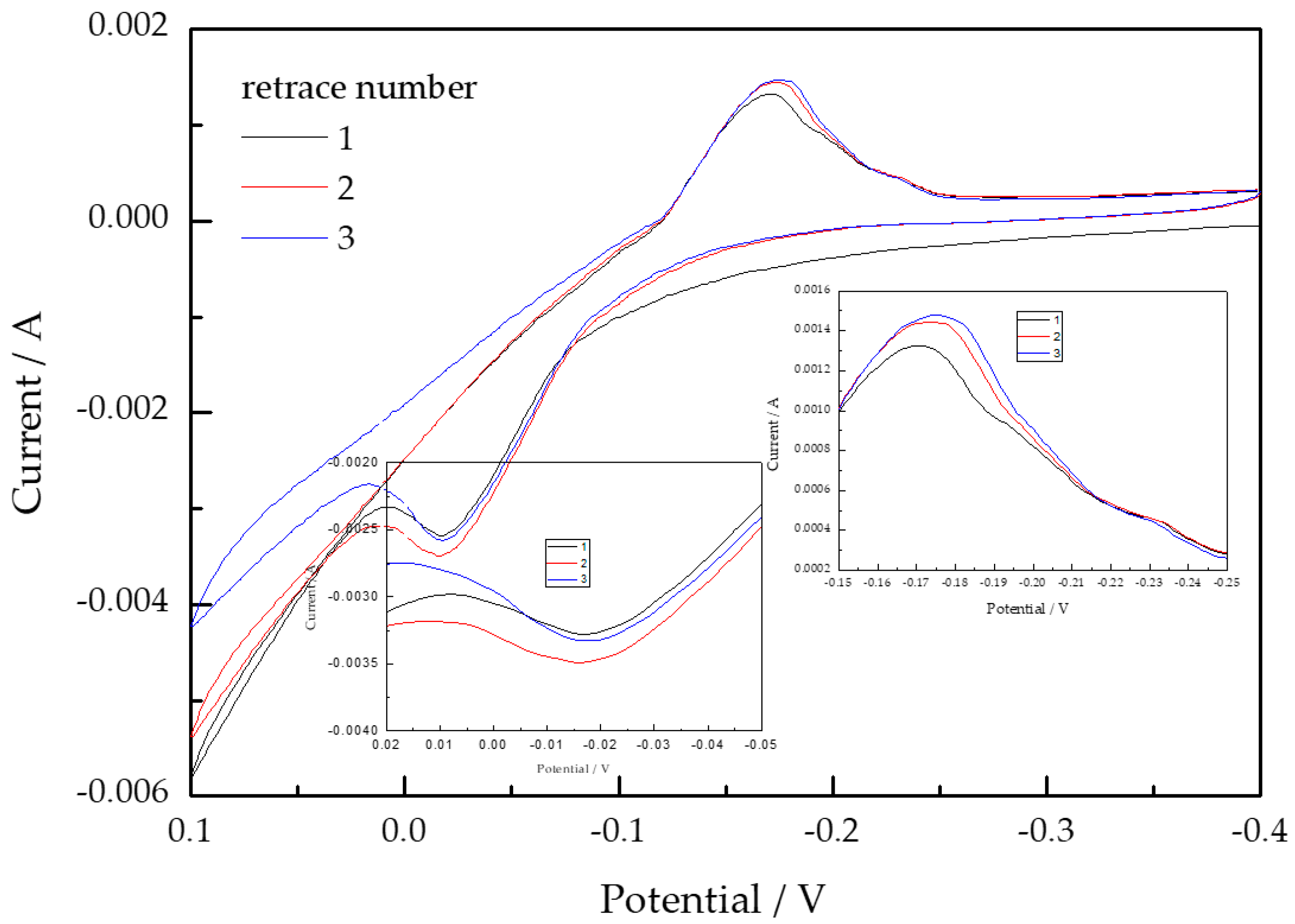

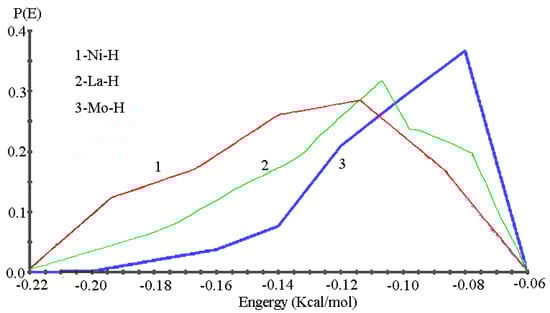

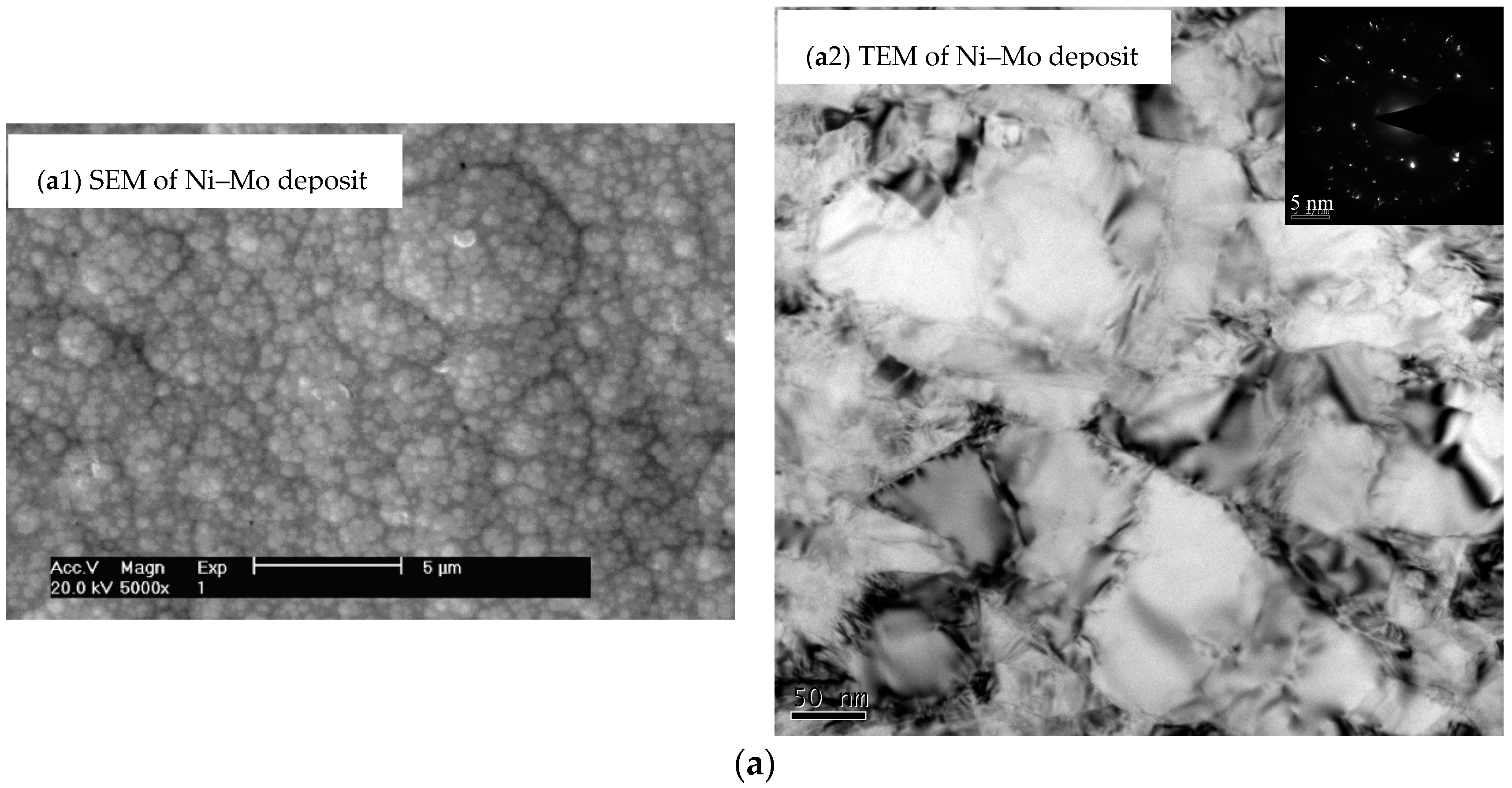

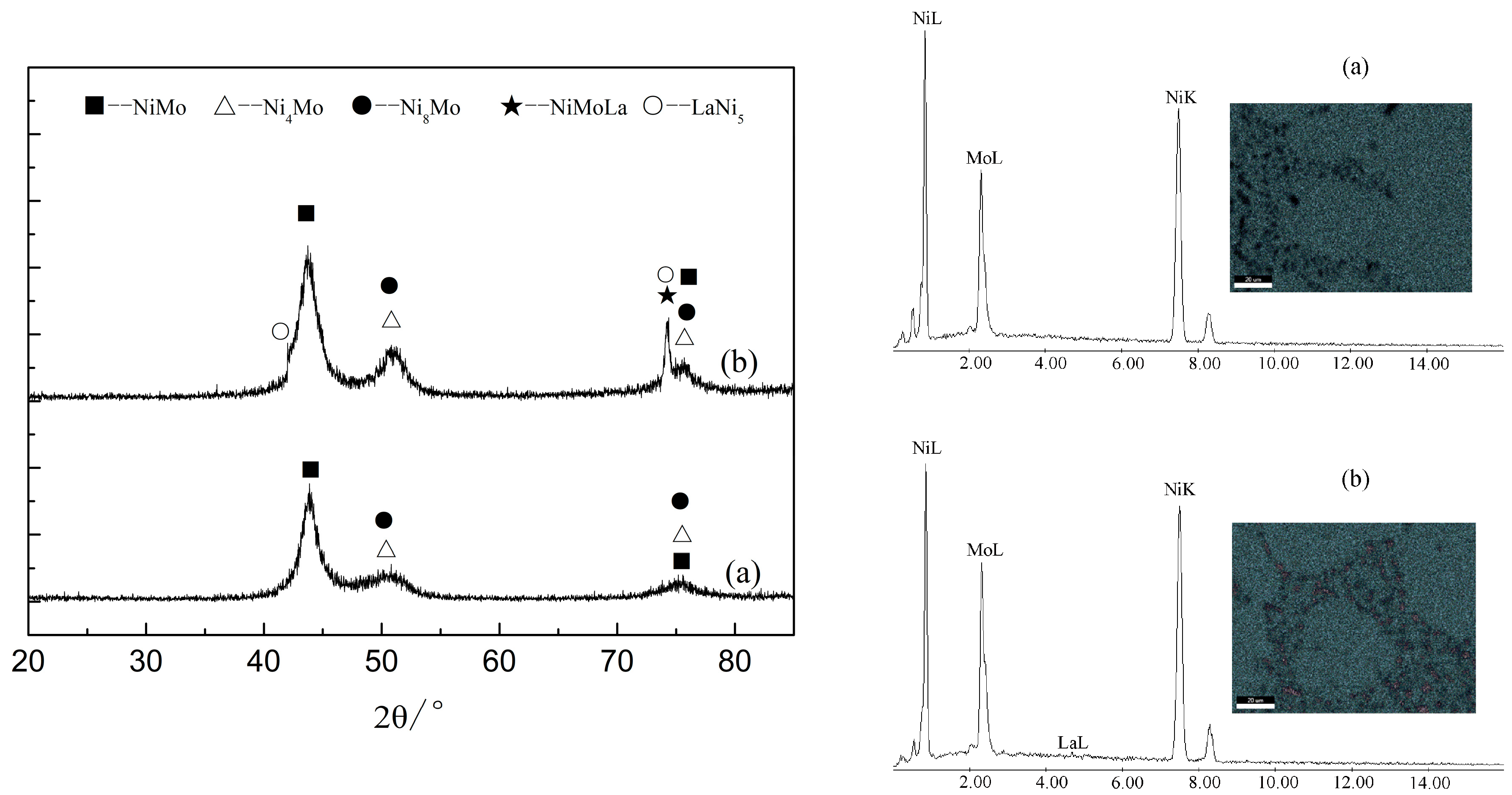

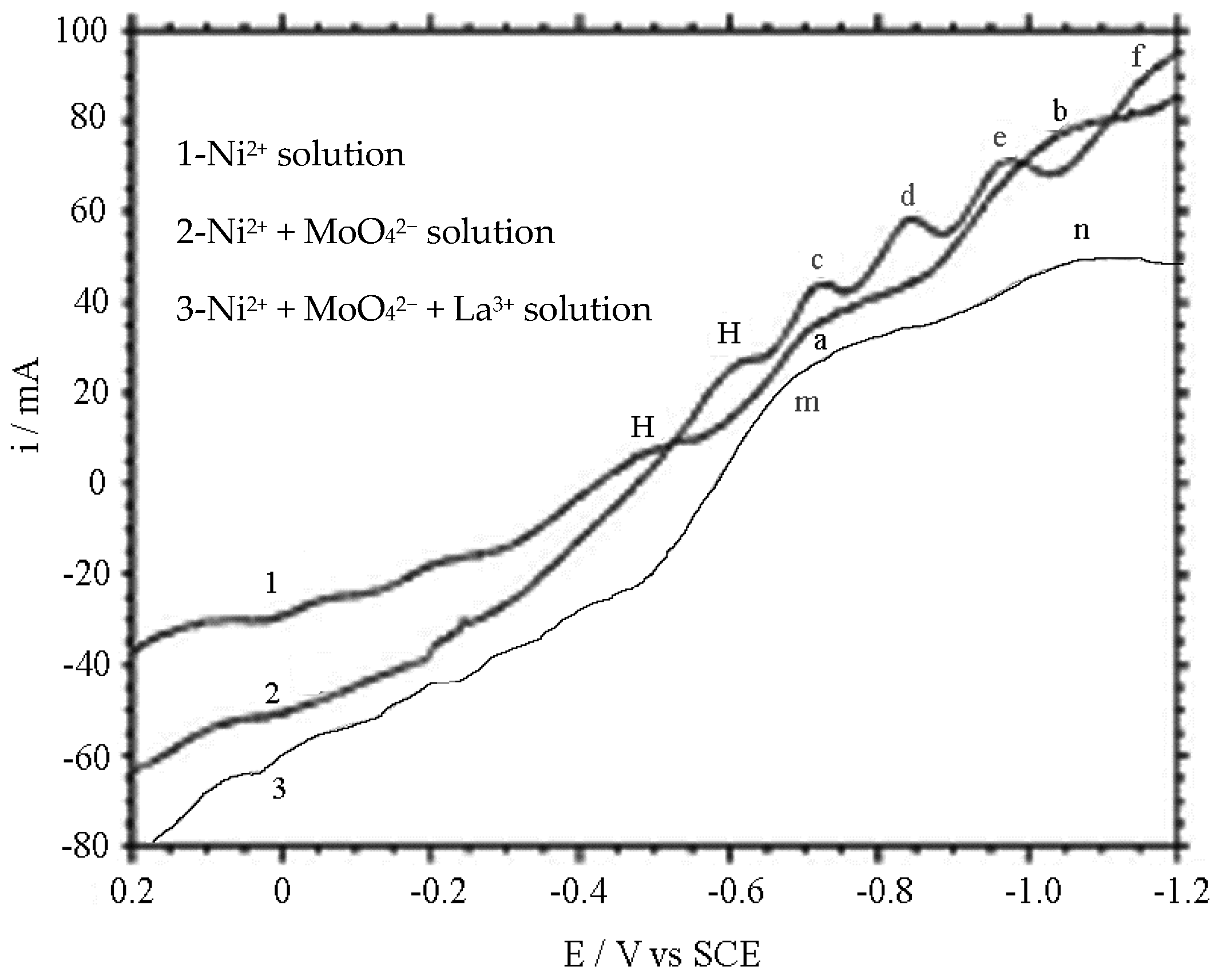

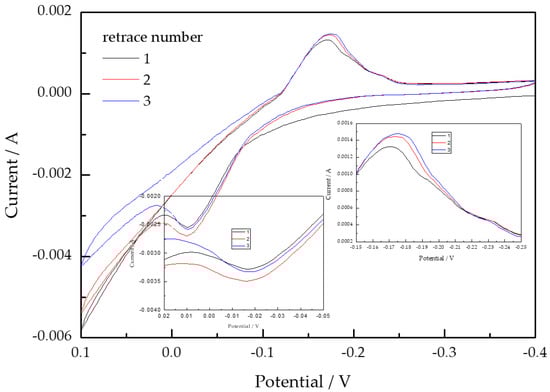

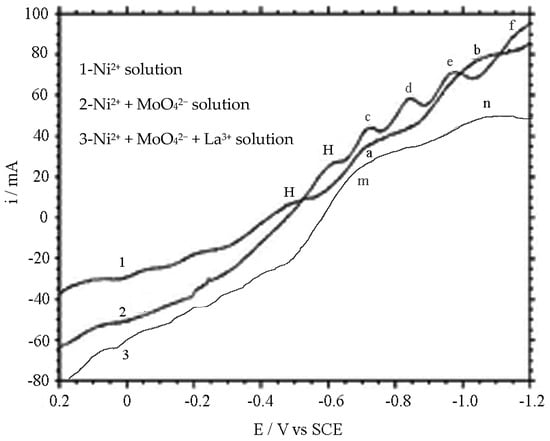

The polycrystalline Ni–Mo–La composite coating was obtained by electrodeposition through the addition of La3+ ions into Ni, Mo ions main salt weak alkaline solution. The obtained composite contain 0.92 at.% La. According to the law of ionic activity, the redox reaction of three kinds of metal atoms was studied by polarography and cyclic voltammetry. It was found that the addition of lanthanum ions changed the composite structural, phase, and element, and the OH ions were deduced during the electrodeposition in alkaline solution. The introduction of lanthanum and molybdenum ions negatively shifted the reduction potential of nickel ions and broadened the peaks significantly in the deposition process, retarding the reduction and deposition rate of Ni ions, which was characterized by a multi-step reduction process of Mo and La metal atoms. View Full-Text
Keywords: polycrystalline; Ni–Mo–La composite; cyclic voltammetry; formation behavior polycrystalline; Ni–Mo–La composite; cyclic voltammetry; formation behavior
Figures

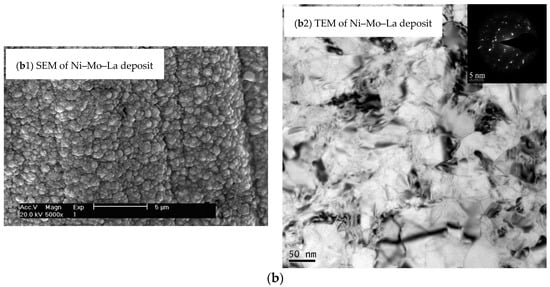

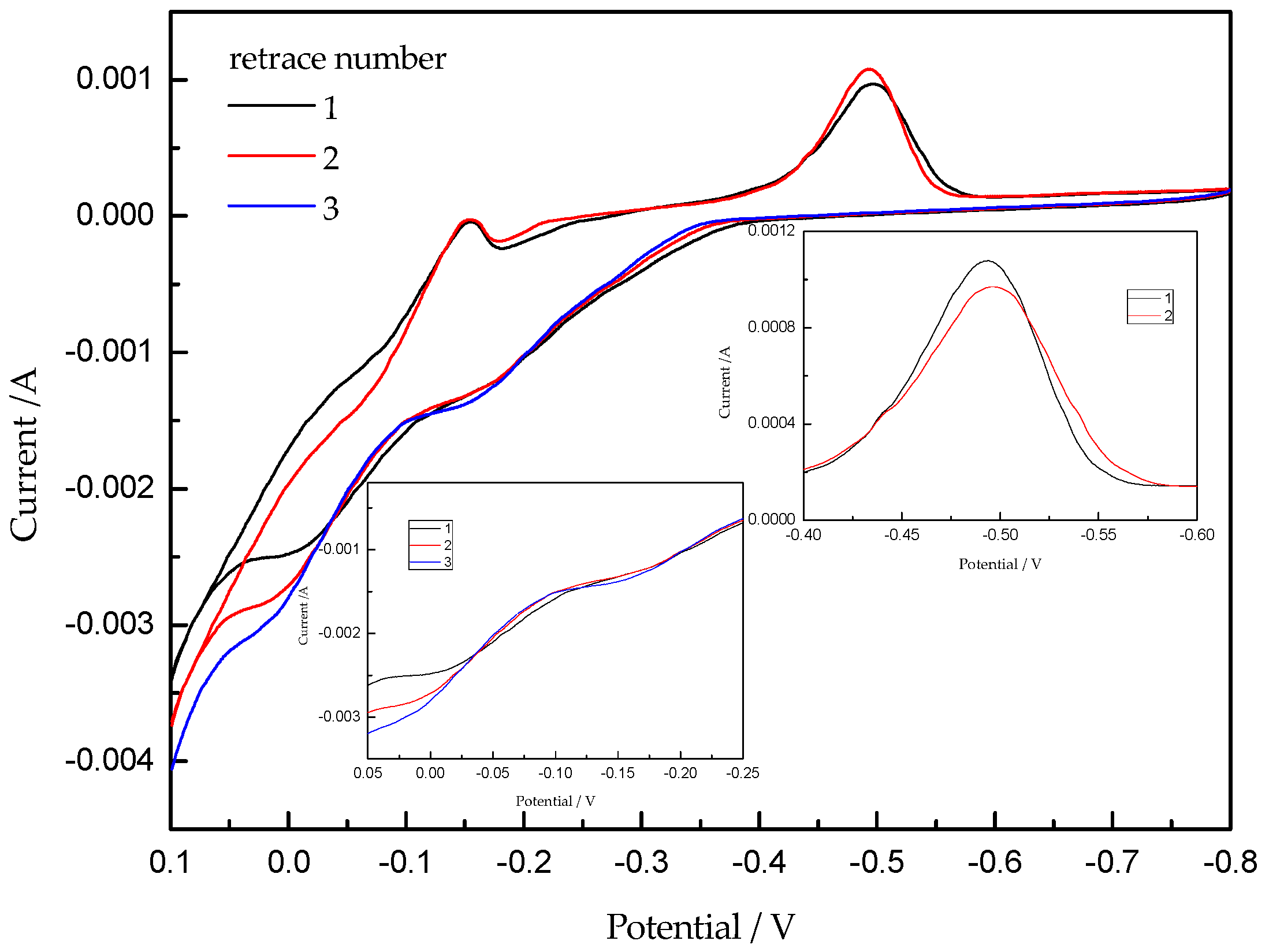

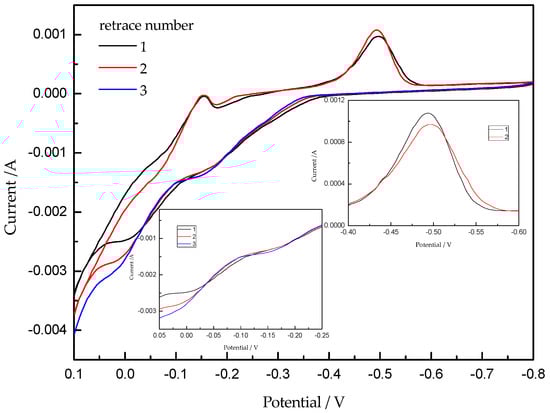

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Li, N.; Chen, W.; Lu, L.; Gao, C. Electrodeposition Behavior of Polycrystalline Ni–Mo–La Composite in Alkaline Solution. Coatings 2018, 8, 299.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
