Next Article in Journal
In Situ Plasma Monitoring of PECVD nc-Si:H Films and the Influence of Dilution Ratio on Structural Evolution
Next Article in Special Issue
Metal Fluorides as Lithium-Ion Battery Materials: An Atomic Layer Deposition Perspective
Previous Article in Journal
A Ladder-Type Organosilicate Copolymer Gate Dielectric Materials for Organic Thin-Film Transistors
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessFeature PaperArticle

Catalytic Performance of Ag2O and Ag Doped CeO2 Prepared by Atomic Layer Deposition for Diesel Soot Oxidation

ASTRaL Team, Laboratory of Green Chemistry, School of Engineering Science, Lappeenranta University of Technology, Sammonkatu 12, FI-50130 Mikkeli, Finland
R & D Centre for Low-Cost Plasma and Nanotechnology Surface Modification, Masaryk University, Kotlářská 267/2, 611 37 Brno, Czech Republic
Author to whom correspondence should be addressed.
Coatings 2018, 8(7), 237;
Received: 31 May 2018 / Revised: 28 June 2018 / Accepted: 28 June 2018 / Published: 4 July 2018
(This article belongs to the Special Issue Atomic Layer Deposition)
PDF [7182 KB, uploaded 4 July 2018]

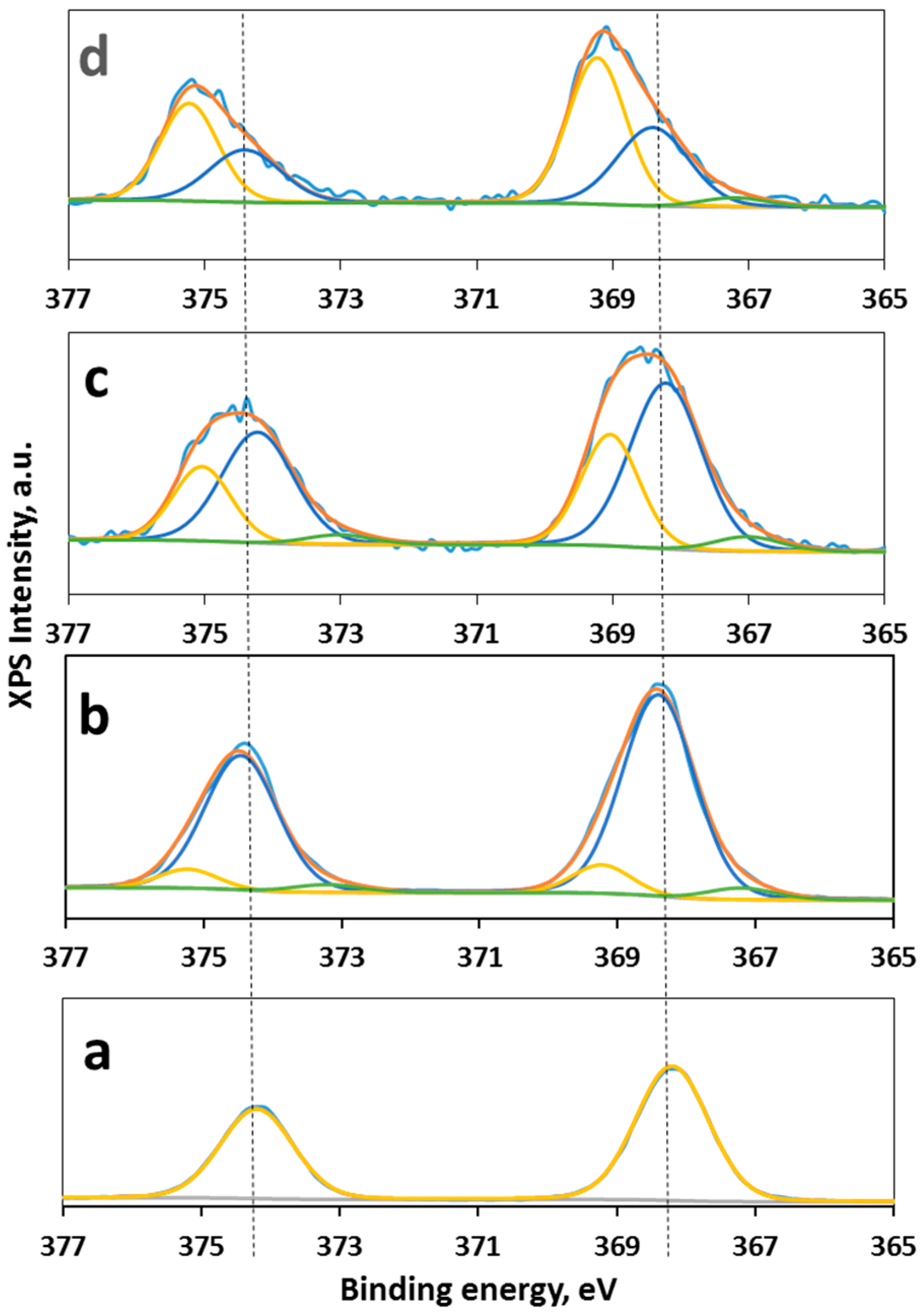

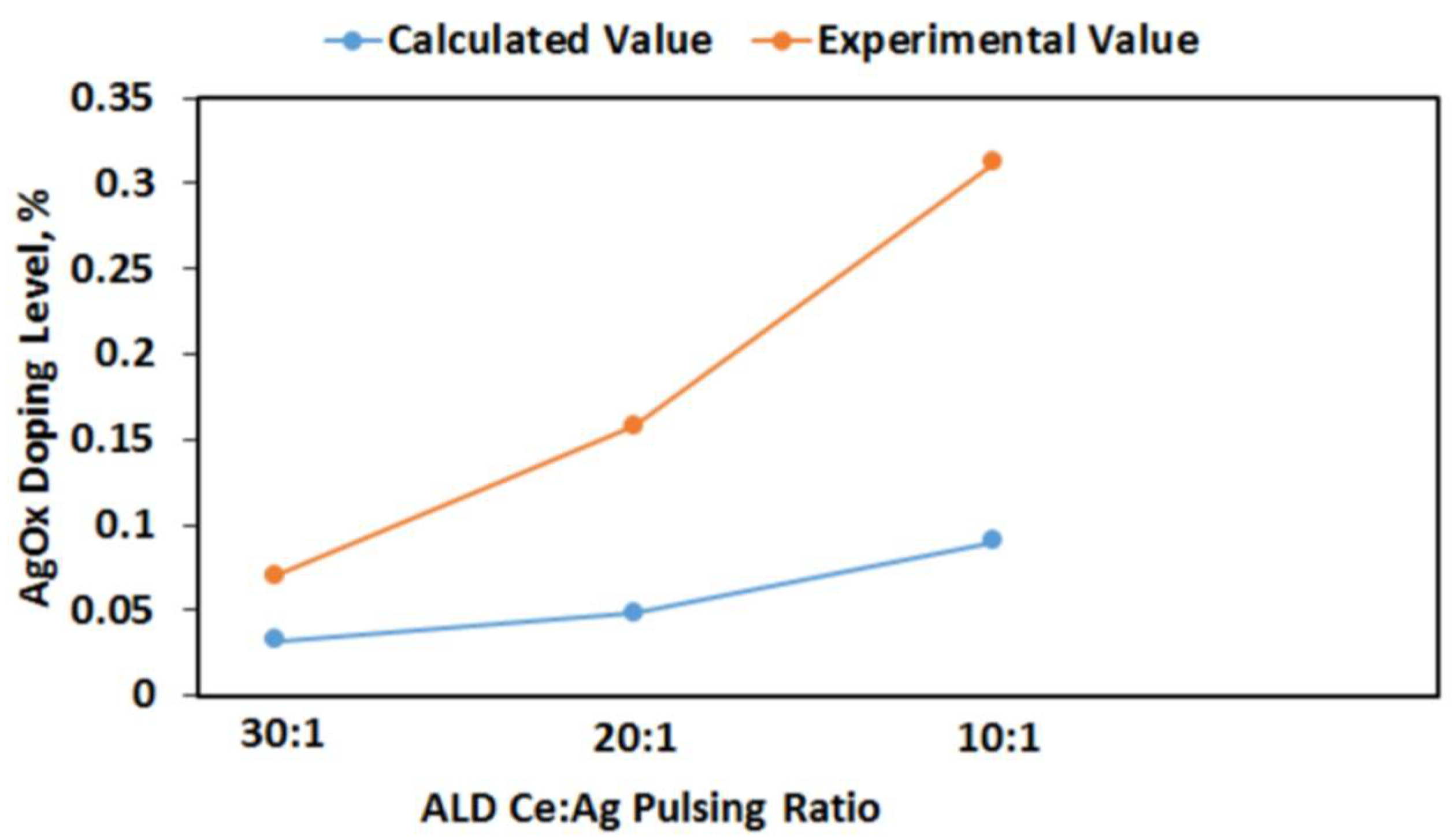

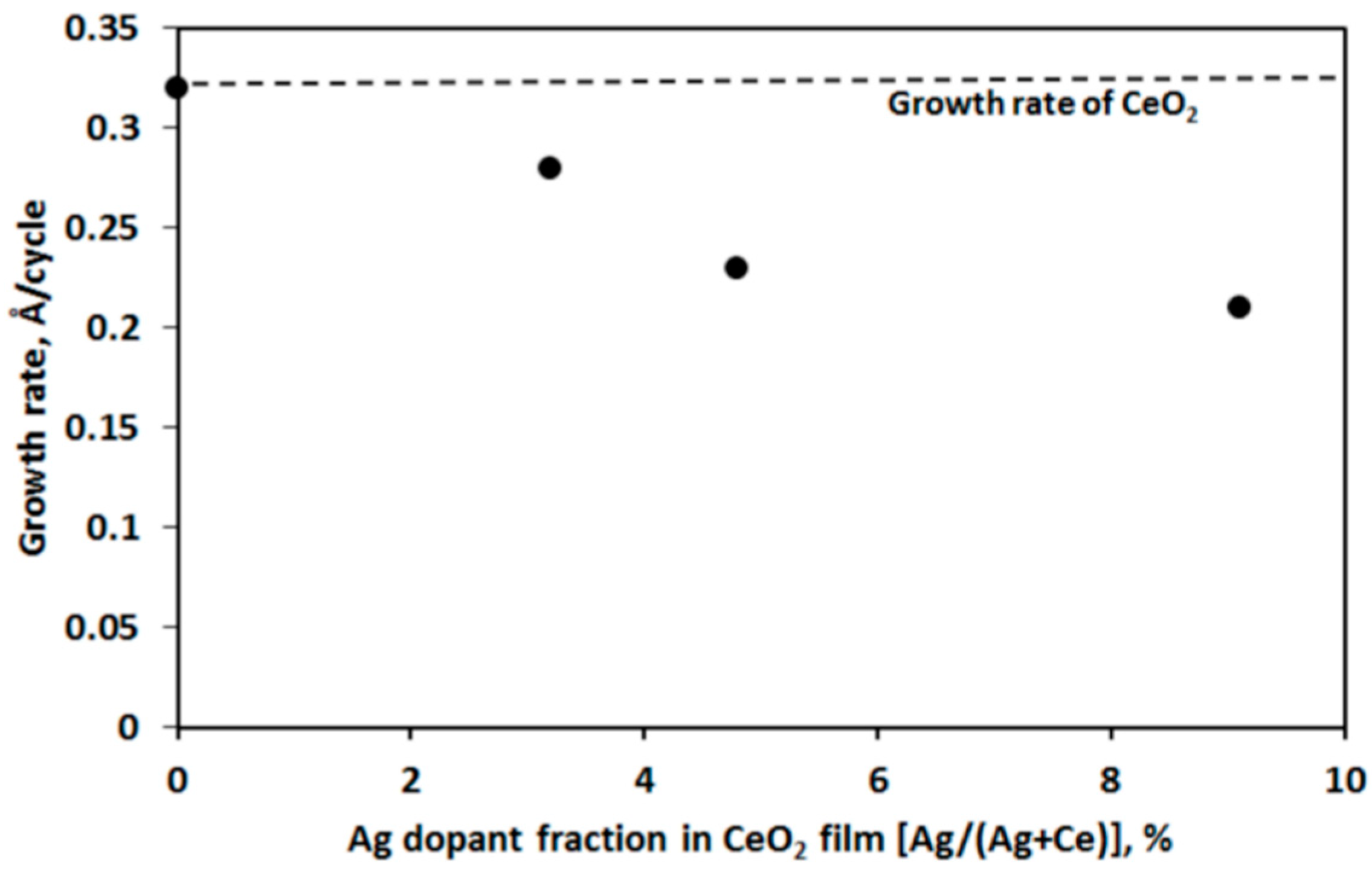

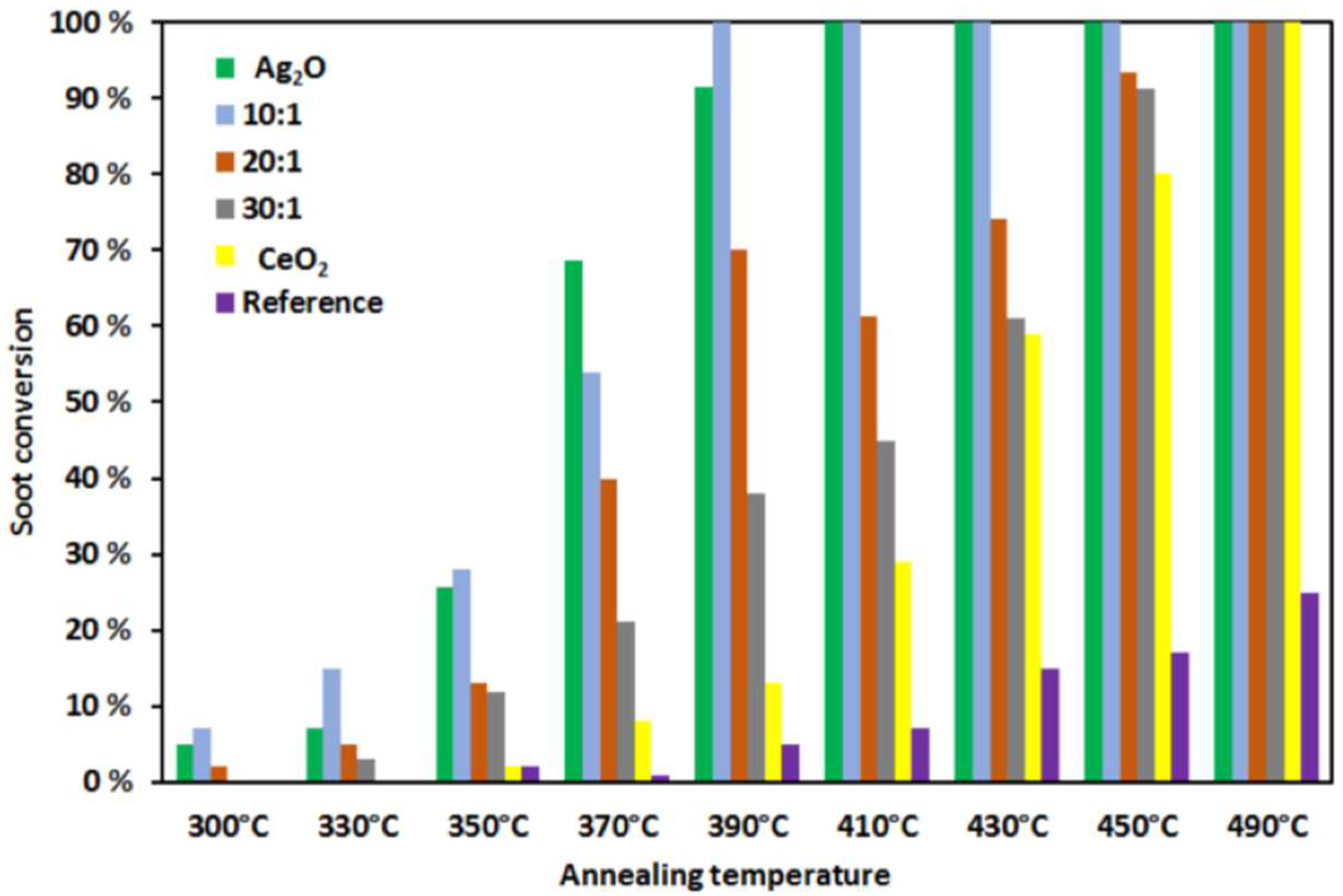

The catalytic behaviour of Ag2O and Ag doped CeO2 thin films, deposited by atomic layer deposition (ALD), was investigated for diesel soot oxidation. The silver oxide was deposited from pulses of the organometallic precursor (hfac)Ag(PMe3) and ozone at 200 °C with growth rate of 0.28 Å/cycle. Thickness, crystallinity, elemental composition, and morphology of the Ag2O and Ag doped CeO2 films deposited on Si (100) were characterized by ellipsometry, X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), atomic force microscopy (AFM), and field emission scanning electron microscopy (FESEM), respectively. The catalytic effect on diesel soot combustion of pure Ag2O, CeO2, and Ag doped CeO2 films grown on stainless steel foil supports was measured with oxidation tests. Nominally CeO2:Ag 10:1 doped CeO2 films were most effective and oxidized 100% of soot at 390 °C, while the Ag2O films were 100% effective at 410 °C. The doped films also showed much higher stability; their performance remained stable after five tests with only a 10% initial reduction in efficiency whereas the performance of the Ag2O films reduced by 50% after the first test. It was concluded that the presence of Ag+ sites on the catalyst is responsible for the high soot oxidation activity. View Full-Text
Keywords: silver oxide; cerium oxide; oxidation; diesel soot; catalysis; ALD silver oxide; cerium oxide; oxidation; diesel soot; catalysis; ALD

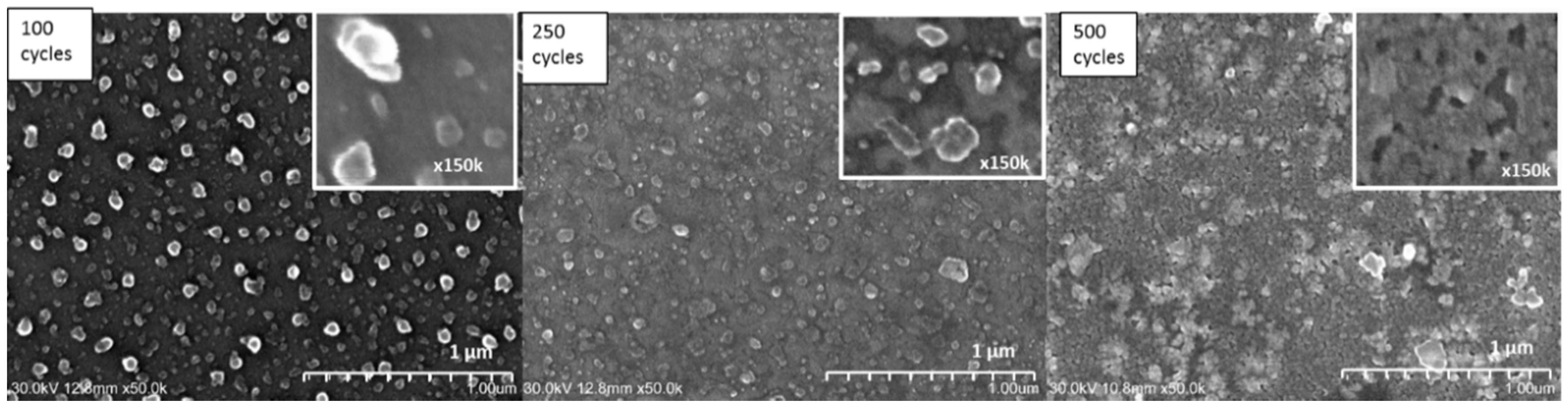

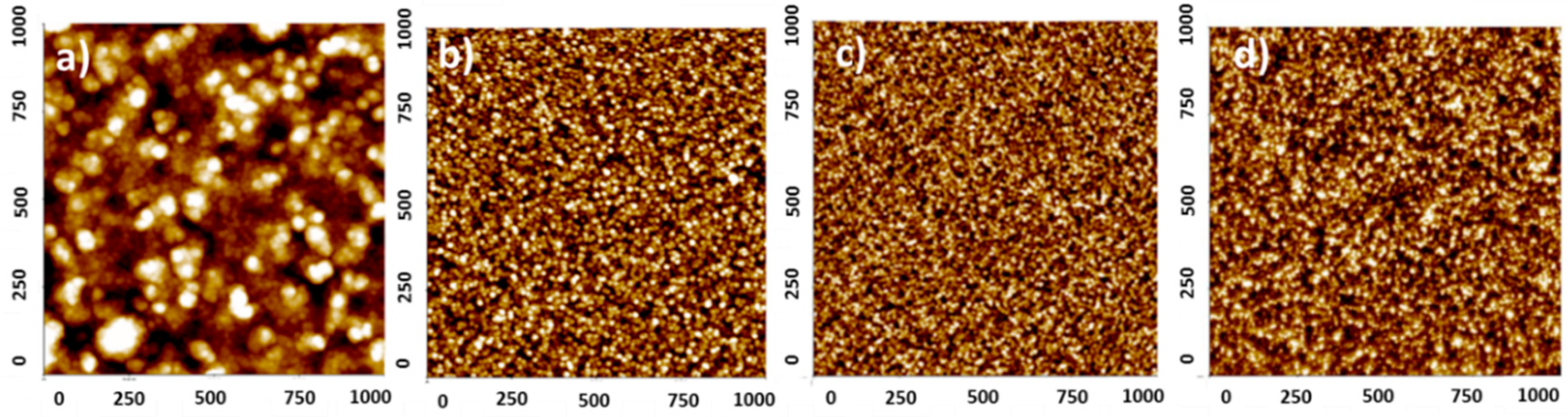

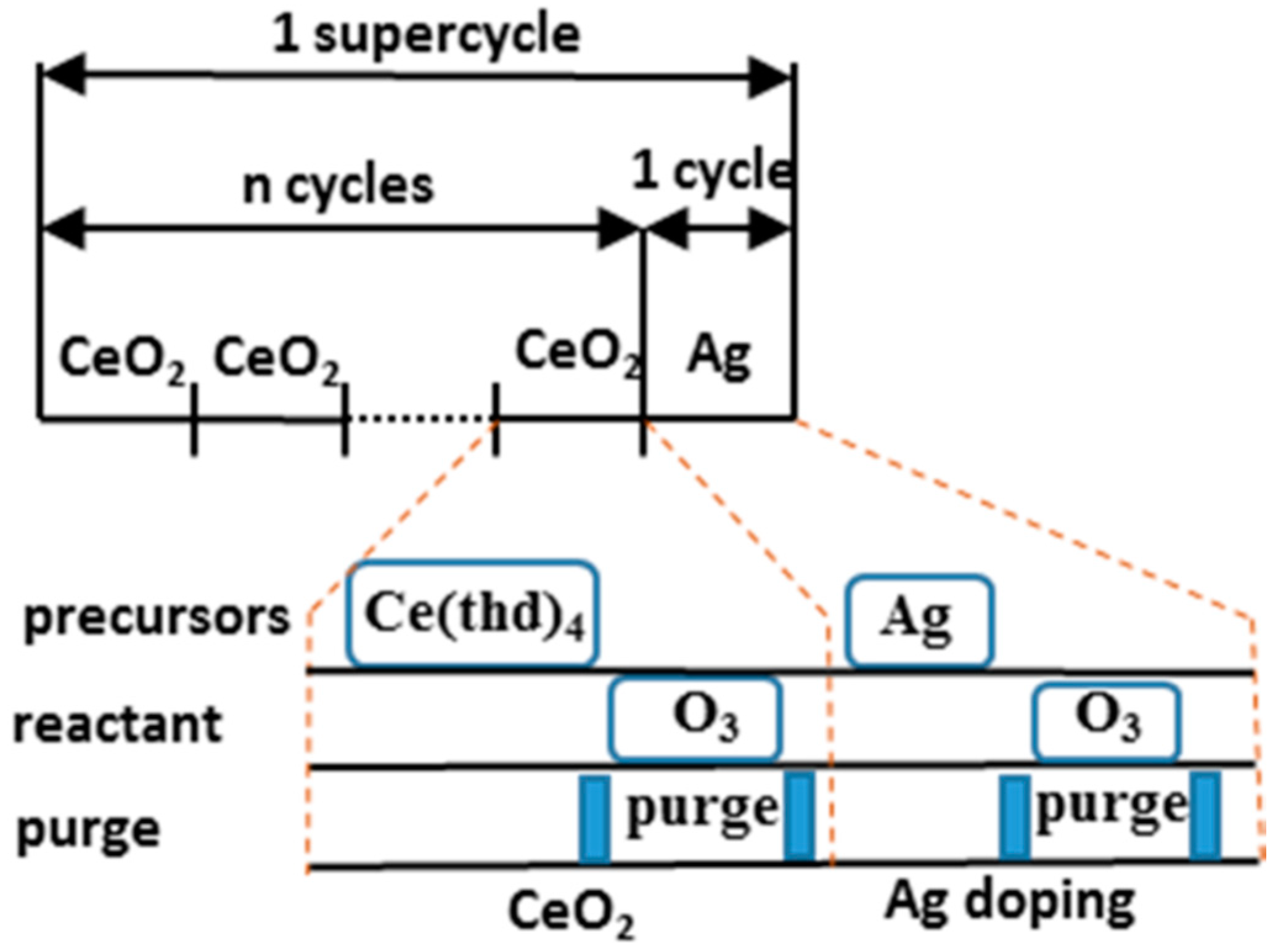

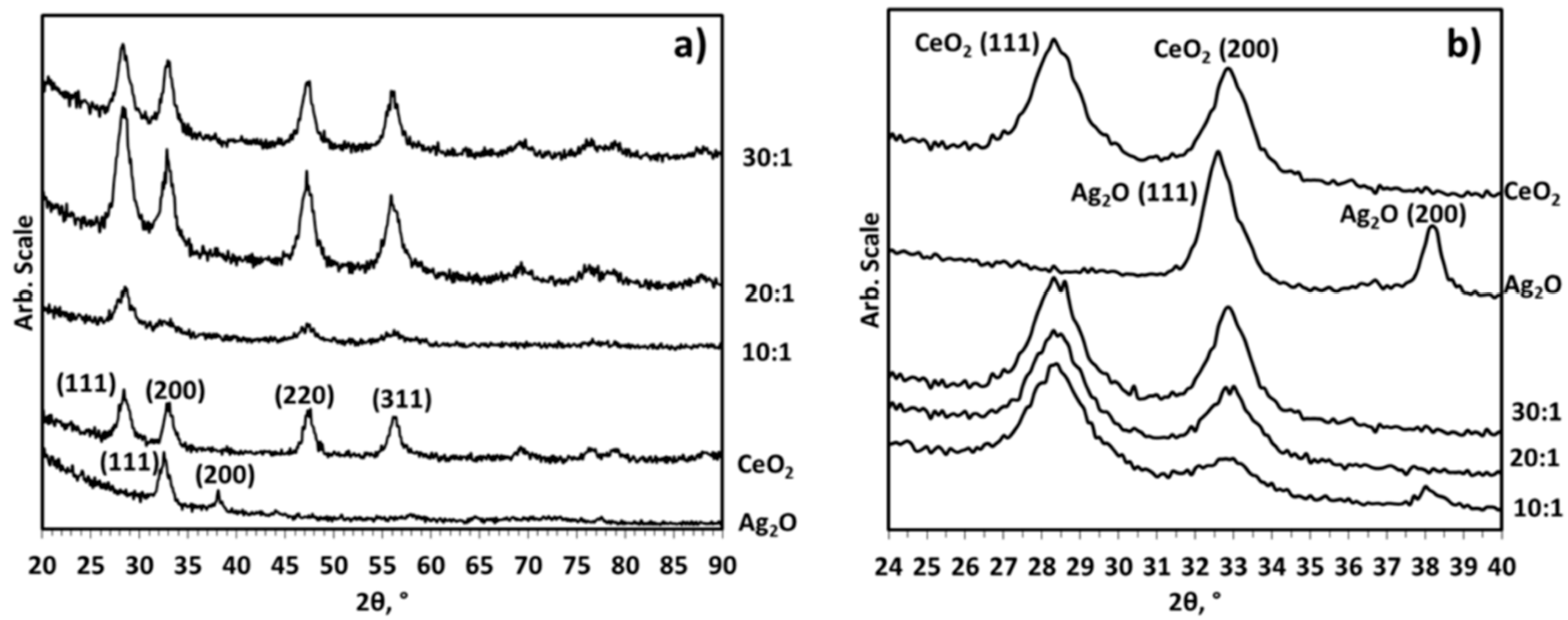

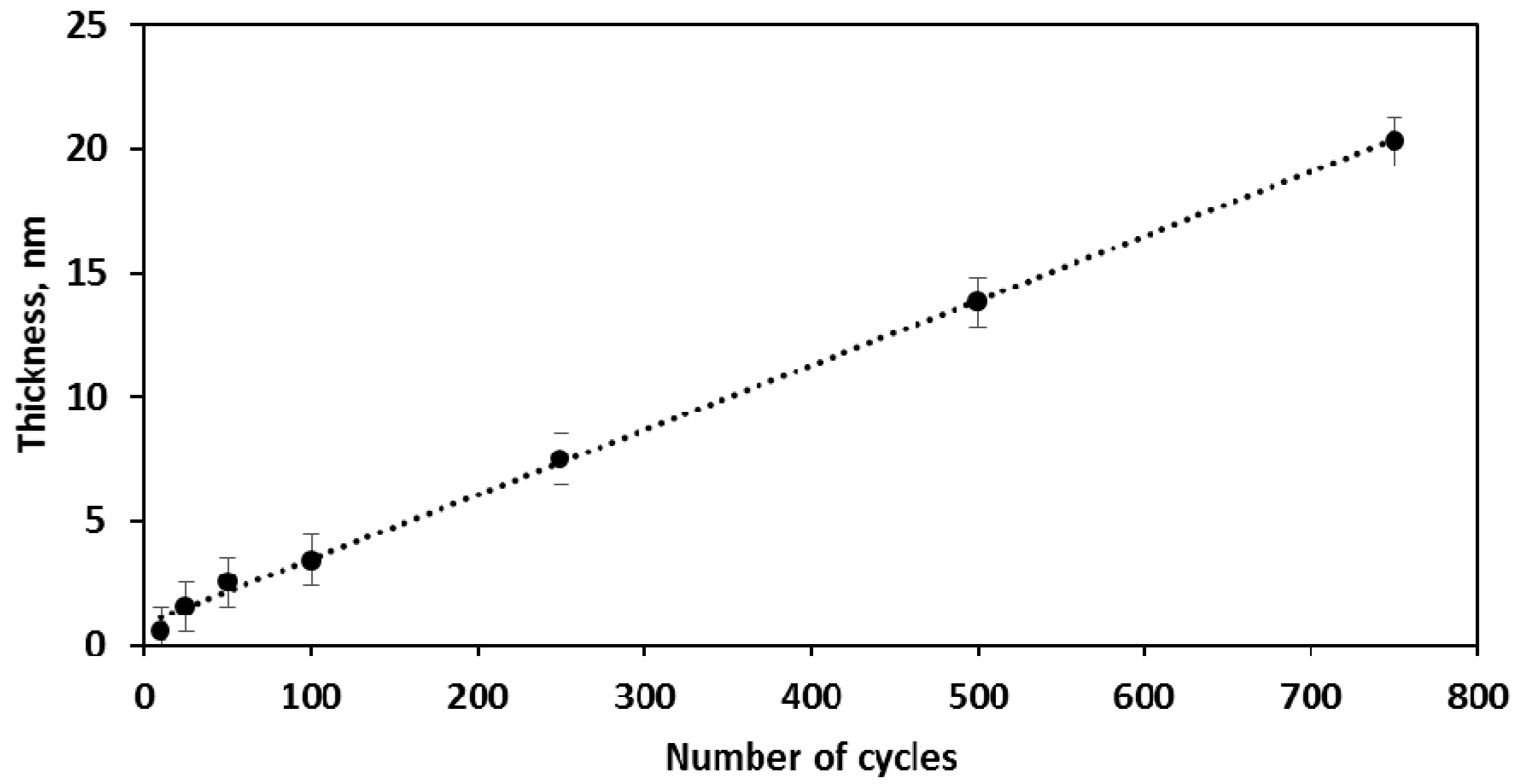

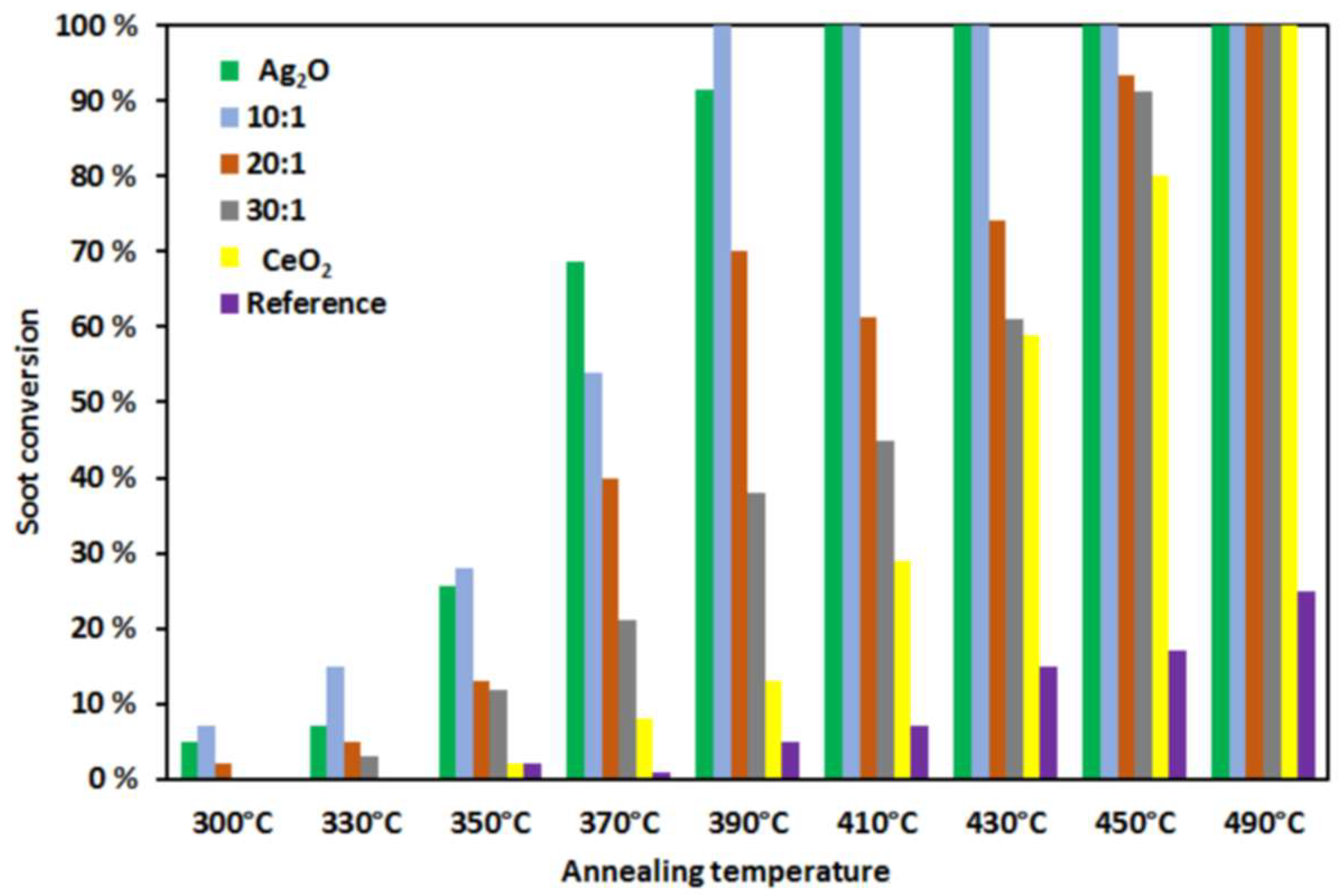

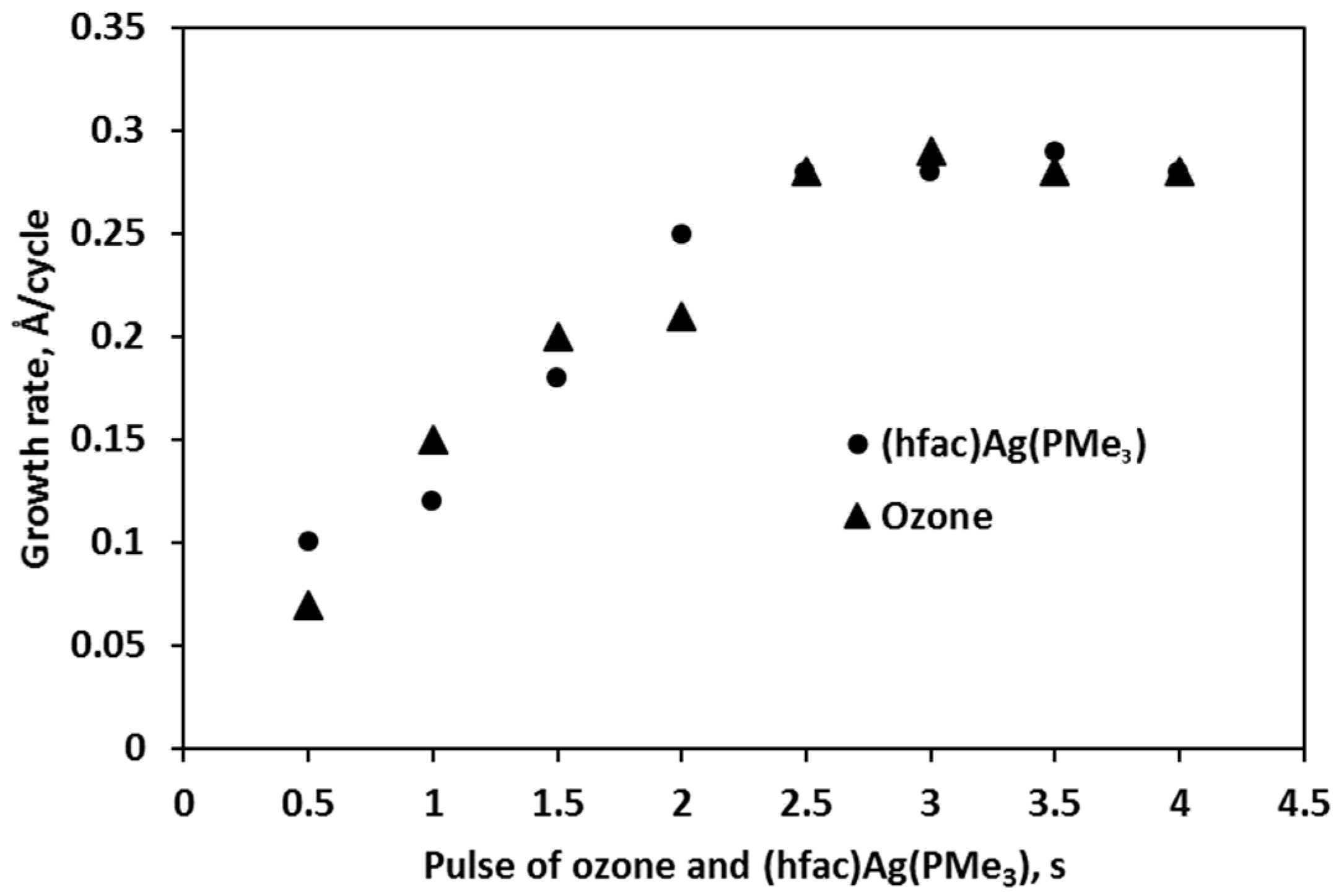

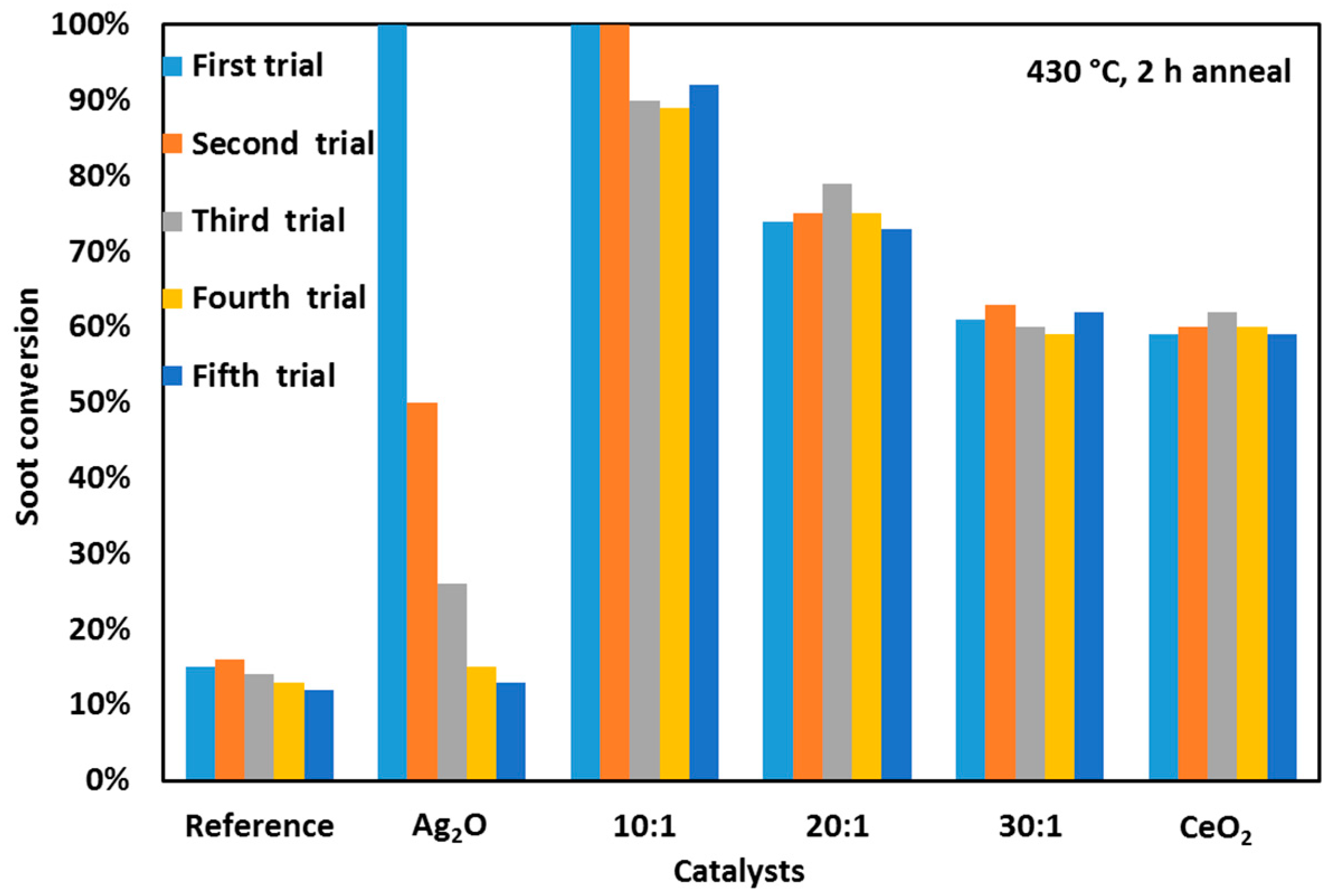

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ivanova, T.V.; Homola, T.; Bryukvin, A.; Cameron, D.C. Catalytic Performance of Ag2O and Ag Doped CeO2 Prepared by Atomic Layer Deposition for Diesel Soot Oxidation. Coatings 2018, 8, 237.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
