Next Article in Journal
Thermo-Mechanical Finite Element Modeling of the Laser Treatment of Titanium Cold-Sprayed Coatings
Next Article in Special Issue
Corrosion Resistance of Boronized, Aluminized, and Chromized Thermal Diffusion-Coated Steels in Simulated High-Temperature Recovery Boiler Conditions
Previous Article in Journal
On the Activity Enhancing Role of Iron Oxide for Noble Metal Oxidation Catalysts: A CVD-Based Study with Differently Structured Combinations of Pt and FeOx Coatings on Al2O3
Previous Article in Special Issue
Influence of Lamellar Interface Morphology on Cracking Resistance of Plasma-Sprayed YSZ Coatings
Open AccessArticle

Oxidation Behavior of MoSi2-Coated TZM Alloys during Isothermal Exposure at High Temperatures

Department of Materials Science and Engineering, Hanbat National University, Daejeon 34158, Korea
Agency for Defense System, Yuseong P.O. Box 35-5, Daejeon 34060, Korea
Author to whom correspondence should be addressed.
Coatings 2018, 8(6), 218;
Received: 15 May 2018 / Revised: 7 June 2018 / Accepted: 8 June 2018 / Published: 11 June 2018
(This article belongs to the Special Issue Coatings for Harsh Environments)
PDF [4219 KB, uploaded 12 June 2018]

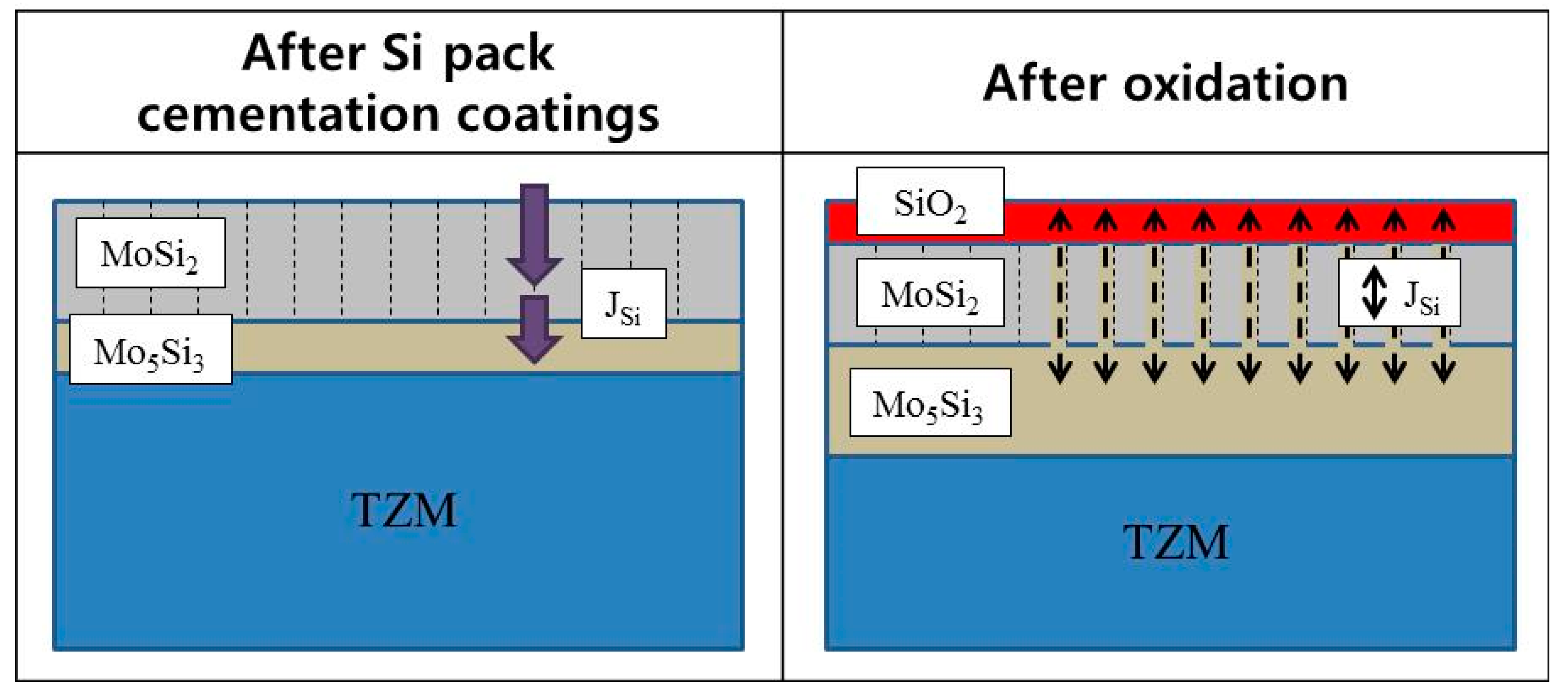

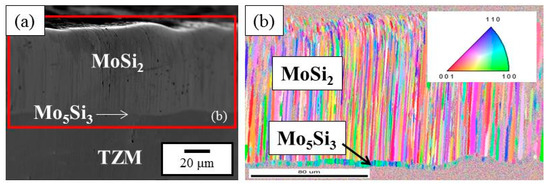

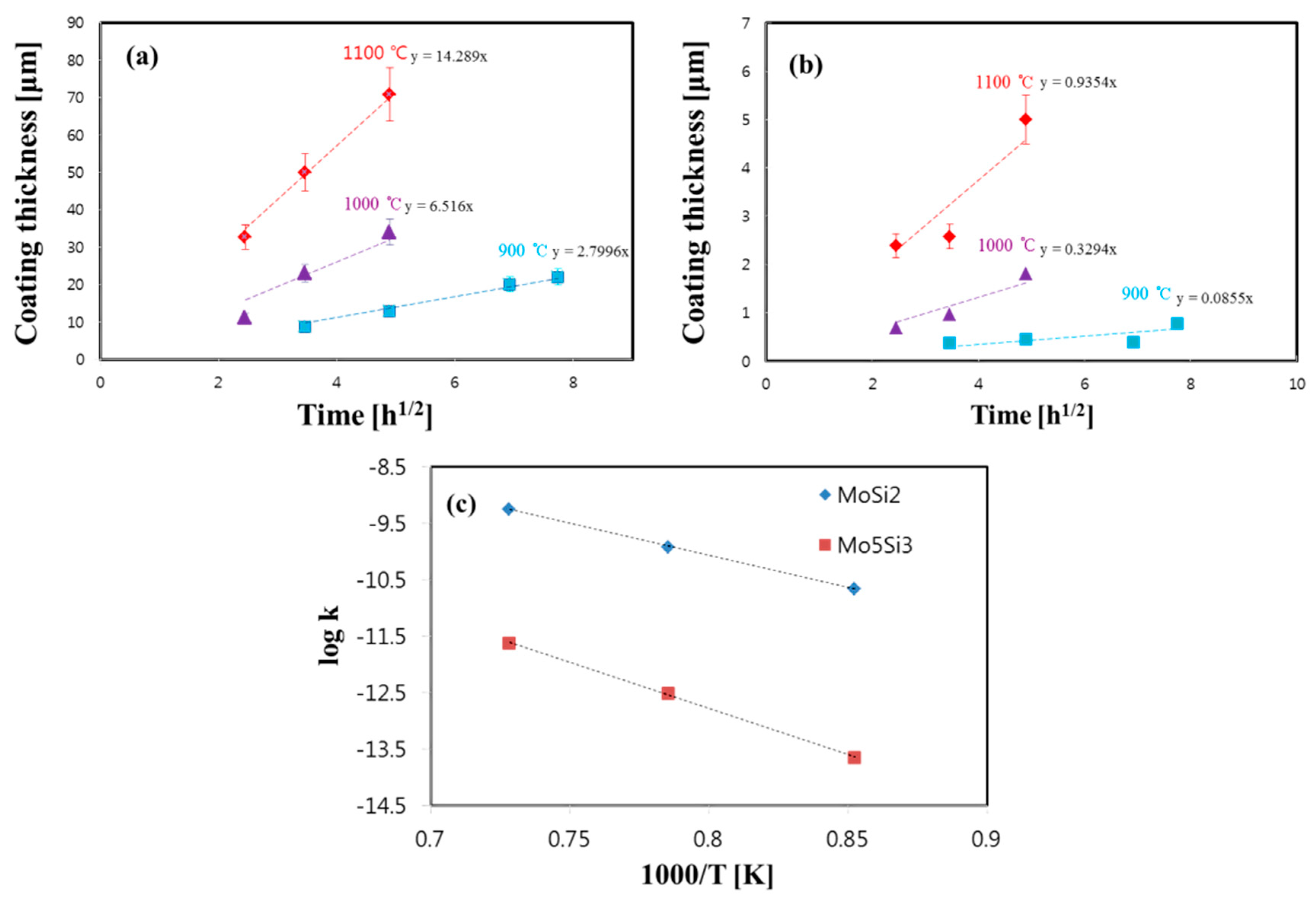

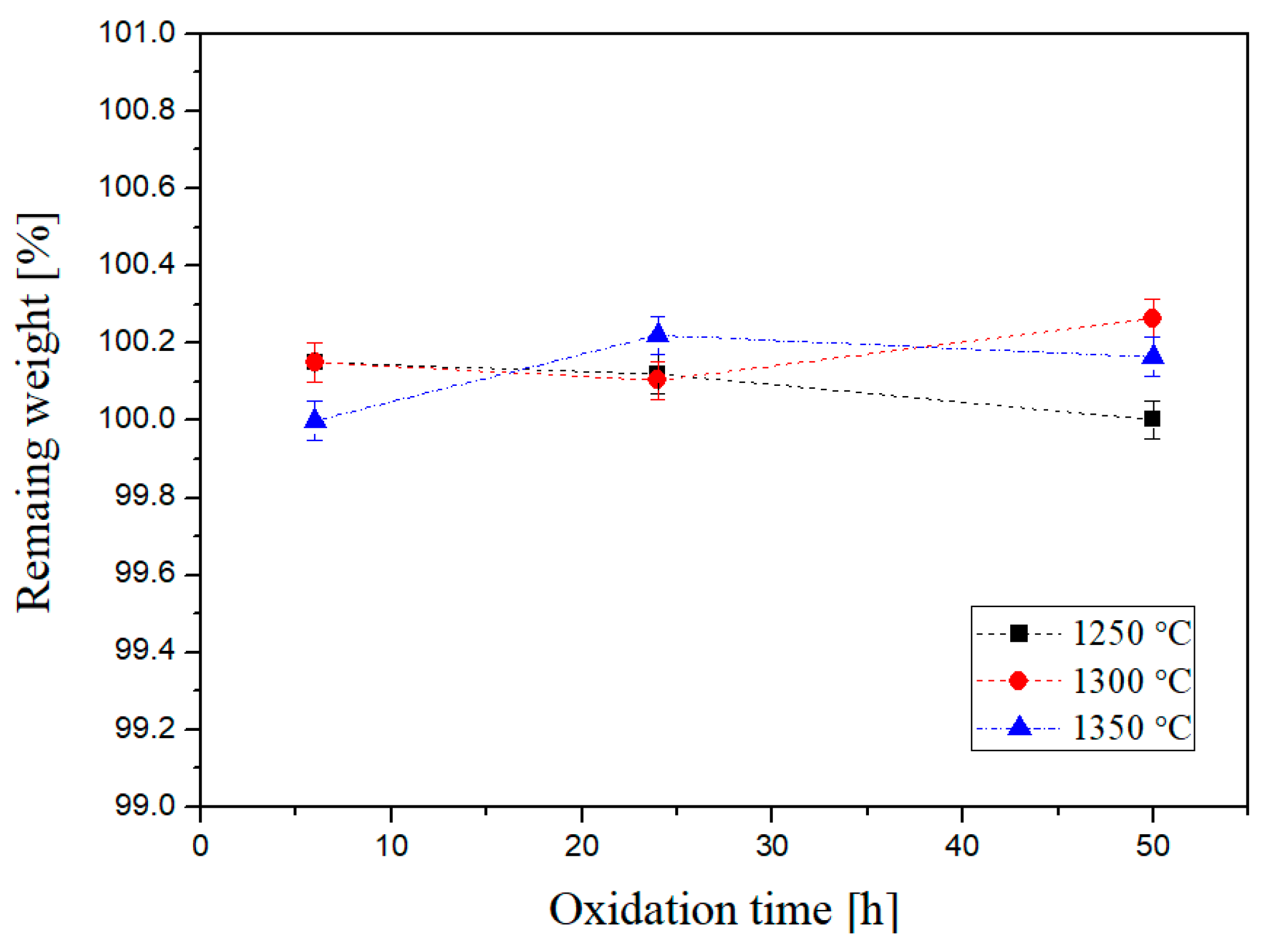

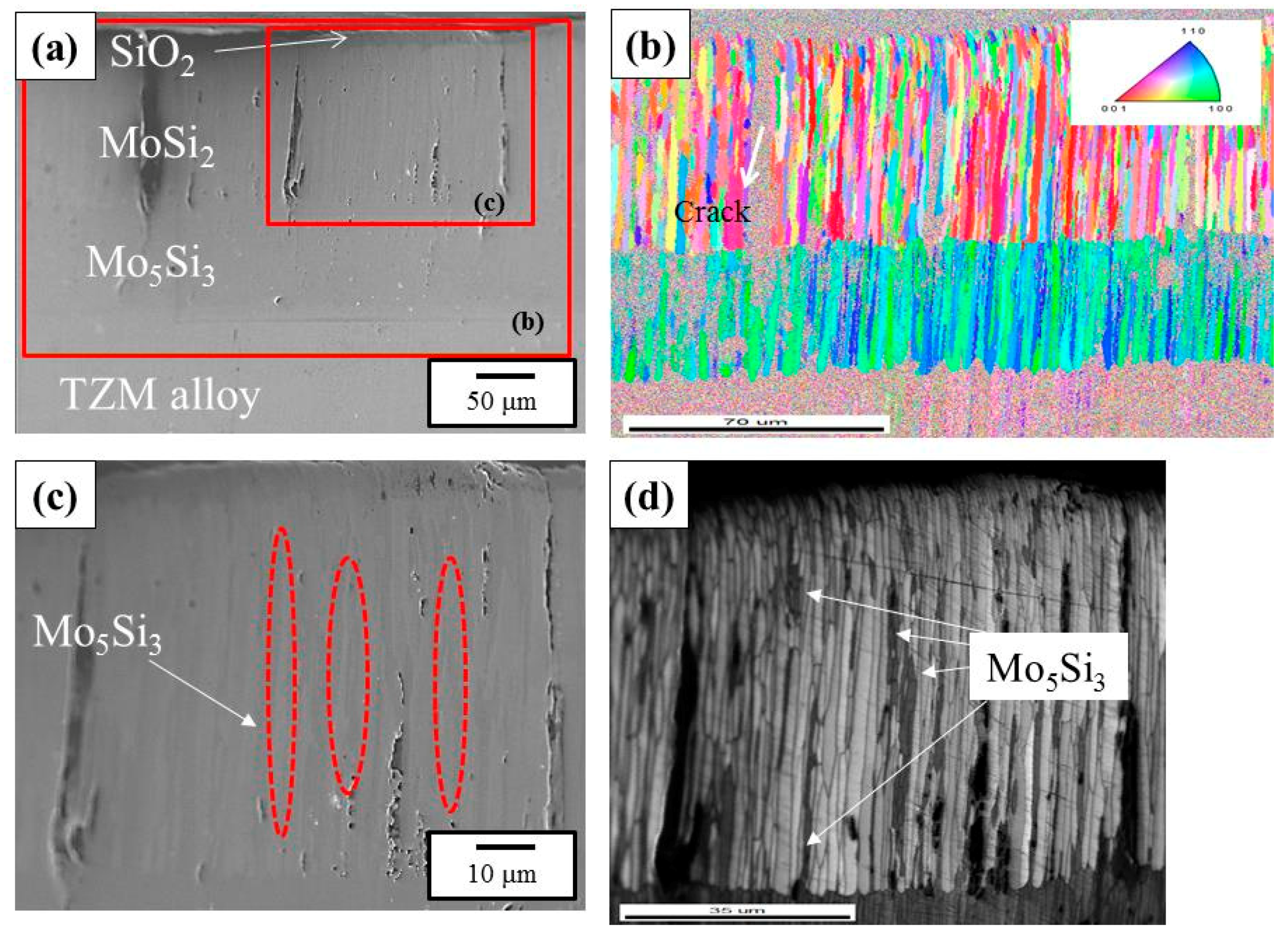

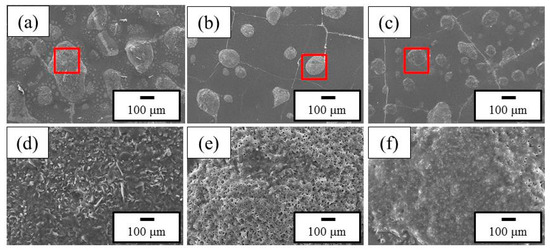

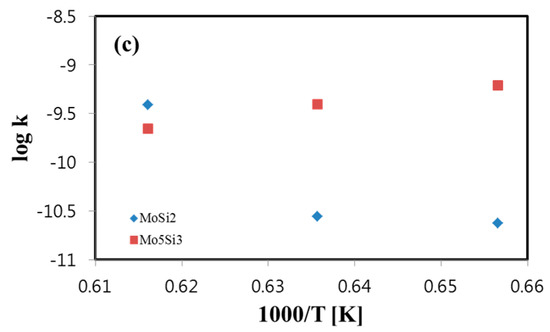

Coating properties and oxidation behaviors of Si pack cementation-coated TZM (Mo-0.5Ti-0.1Zr-0.02C) alloys were investigated in order to understand the stability of the coating layer at high temperatures up to 1350 °C in an ambient atmosphere. After the pack cementation coatings, MoSi2 and Mo5Si3 layers were formed. When MoSi2-coated TZM alloys were oxidized in air at high temperatures, the Si in the outer MoSi2 layer diffused and formed SiO2. Also, due to the diffusion of Si, the MoSi2 layer was transformed into a columnar shaped Mo5Si3 phase. During isothermal oxidation, the Mo5Si3 phase was formed both within the coated MoSi2 layer and between the MoSi2 and the substrate. The coating properties and the oxidation behavior of the Si pack-coated TZM alloys were discussed along with the identification of growth kinetics. View Full-Text
Keywords: TZM alloys; pack cementation; oxidation TZM alloys; pack cementation; oxidation

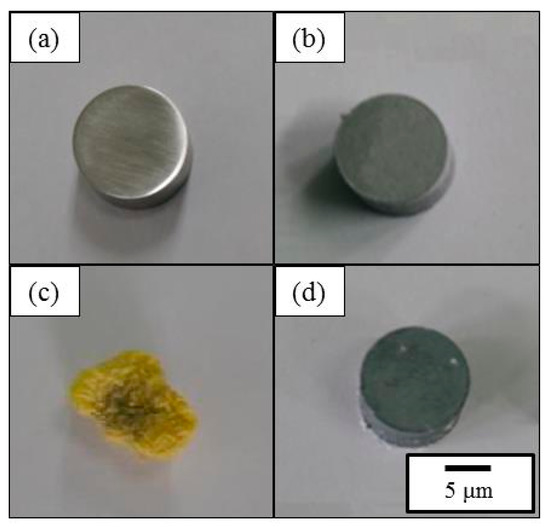

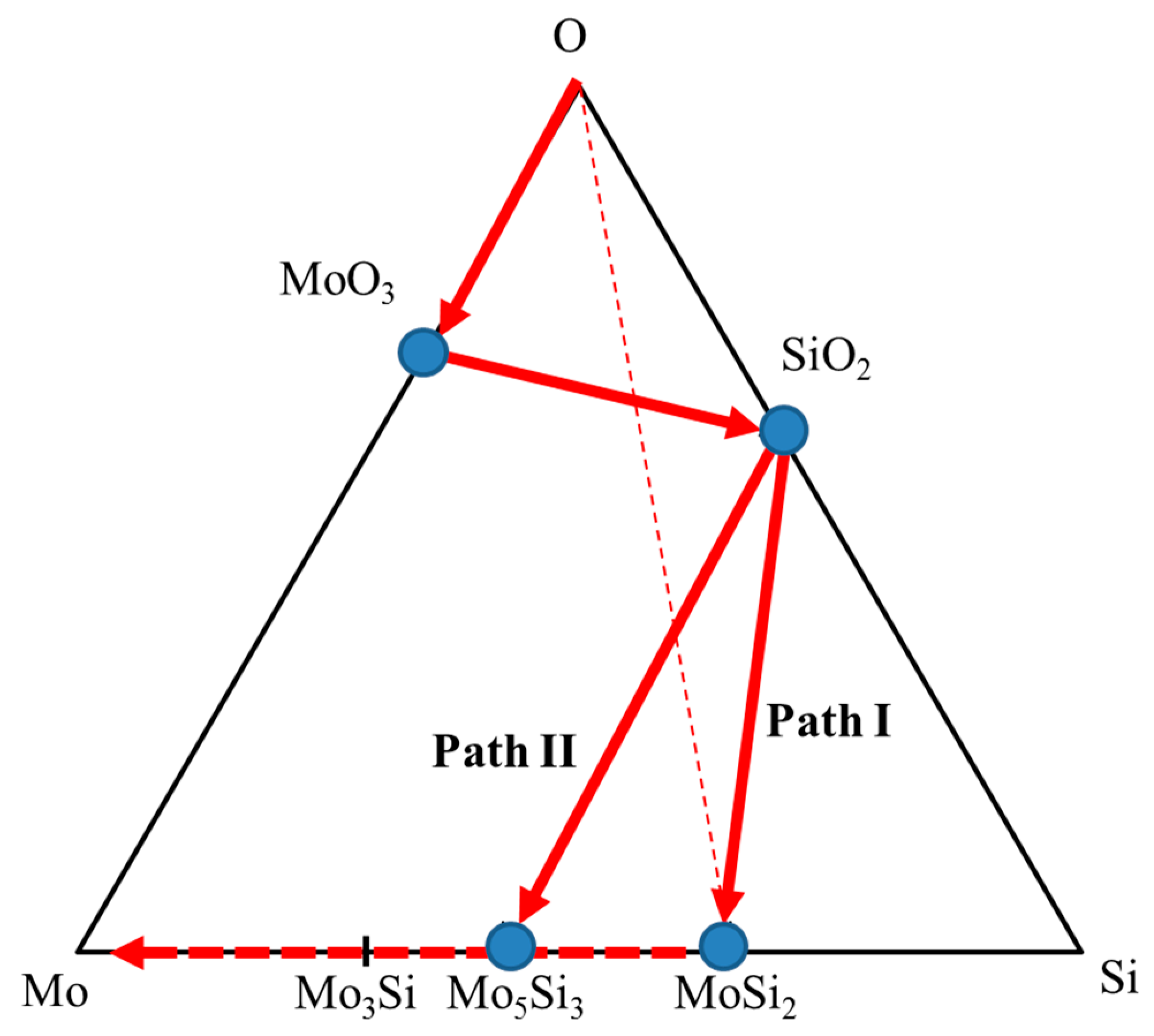

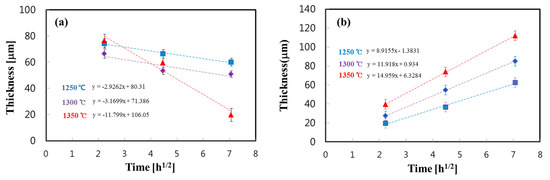

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Choi, K.; Kim, Y.J.; Kim, M.K.; Lee, S.; Lee, S.; Park, J.S. Oxidation Behavior of MoSi2-Coated TZM Alloys during Isothermal Exposure at High Temperatures. Coatings 2018, 8, 218.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
