Next Article in Journal
Fabrication of Self-healing Superhydrophobic Surfaces from Water-Soluble Polymer Suspensions Free of Inorganic Particles through Polymer Thermal Reconstruction
Previous Article in Journal
Efficiently Extracted Cellulose Nanocrystals and Starch Nanoparticles and Techno-Functional Properties of Films Made Thereof
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle

Evaluation of Thermal Degradation of DLC Film Using a Novel Raman Spectroscopy Technique

School of Mechanical Engineering, Guizhou University, Guiyang 550025, China
Department of Mechanical Engineering, Texas Tech University, Lubbock, TX 79409, USA
Author to whom correspondence should be addressed.
Coatings 2018, 8(4), 143;
Received: 5 March 2018 / Revised: 28 March 2018 / Accepted: 4 April 2018 / Published: 16 April 2018
PDF [8321 KB, uploaded 3 May 2018]

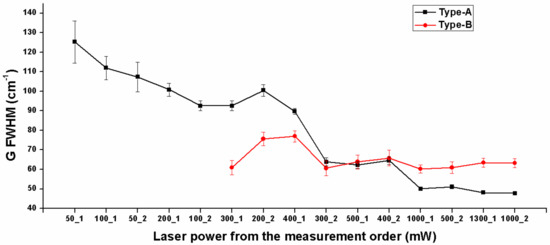

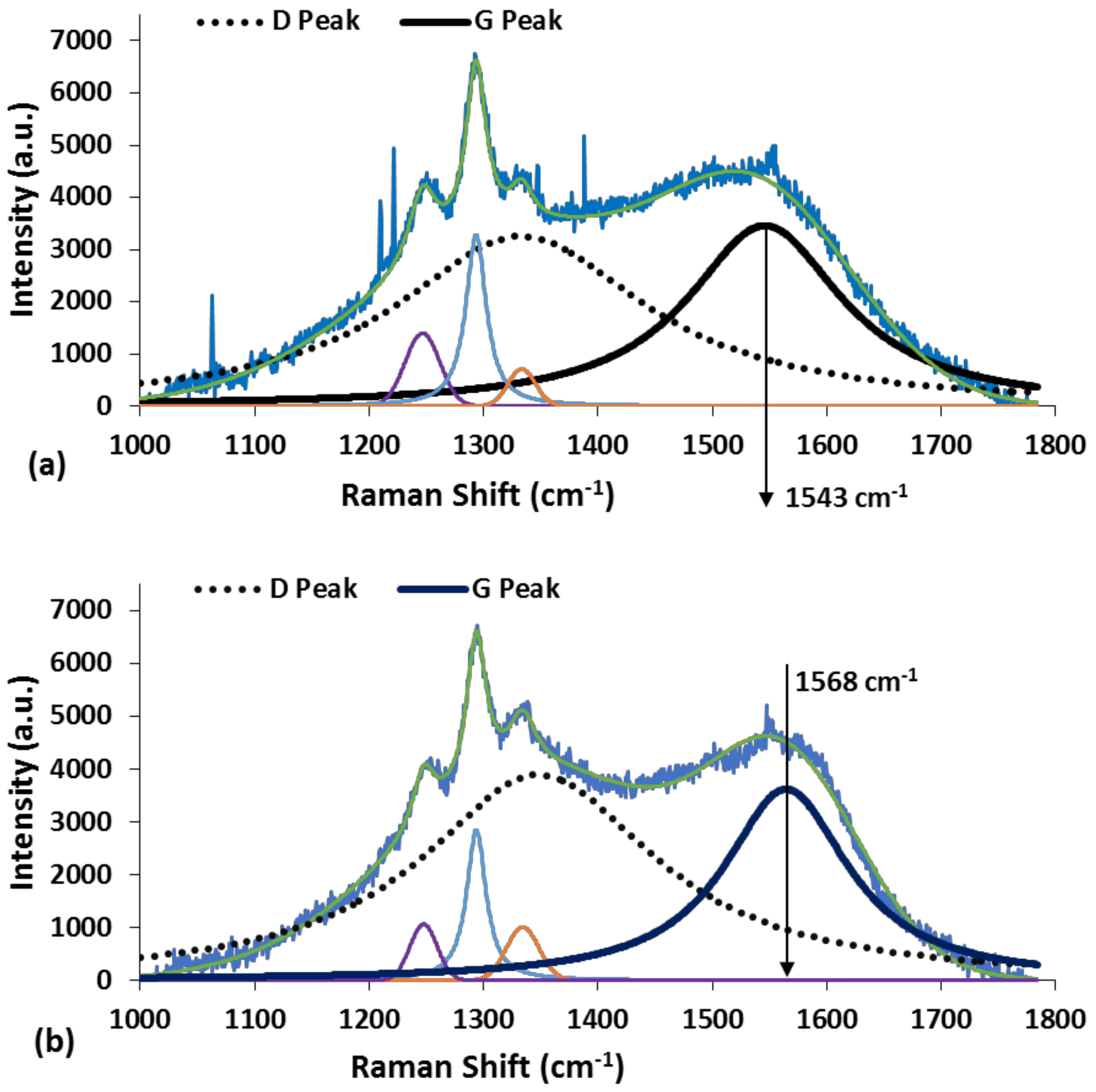

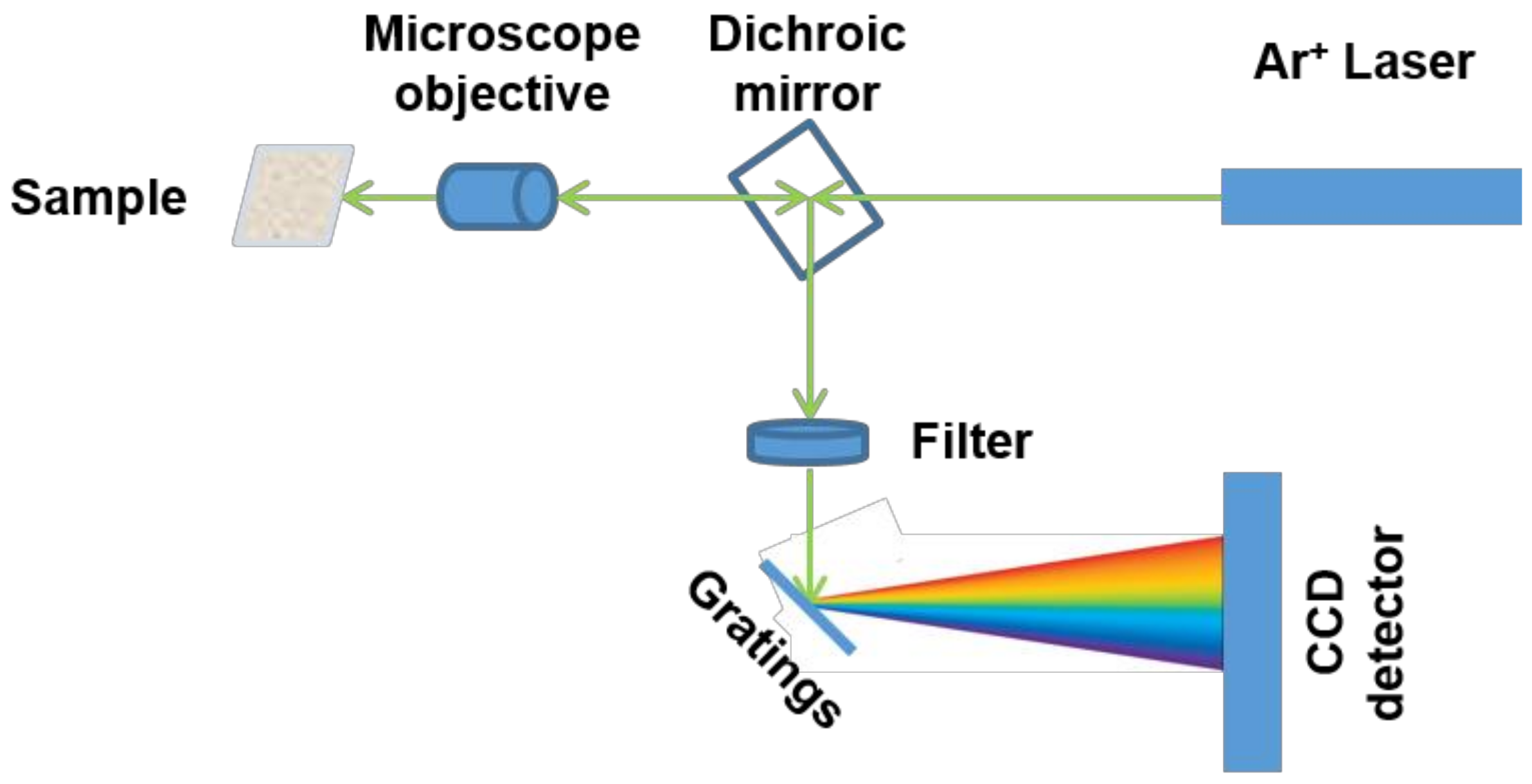

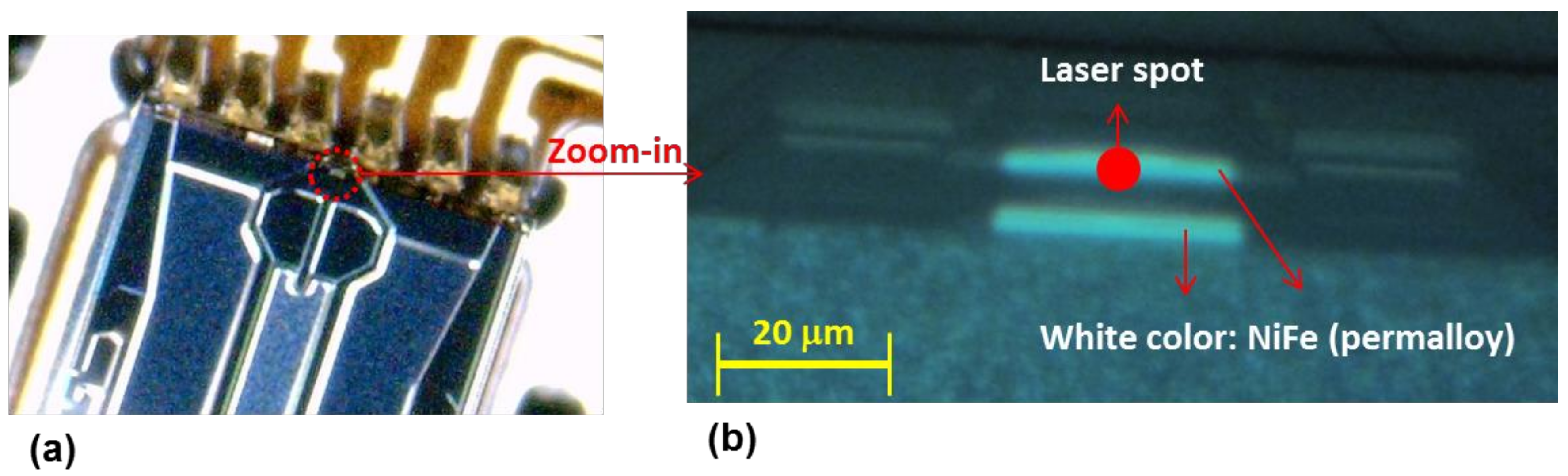

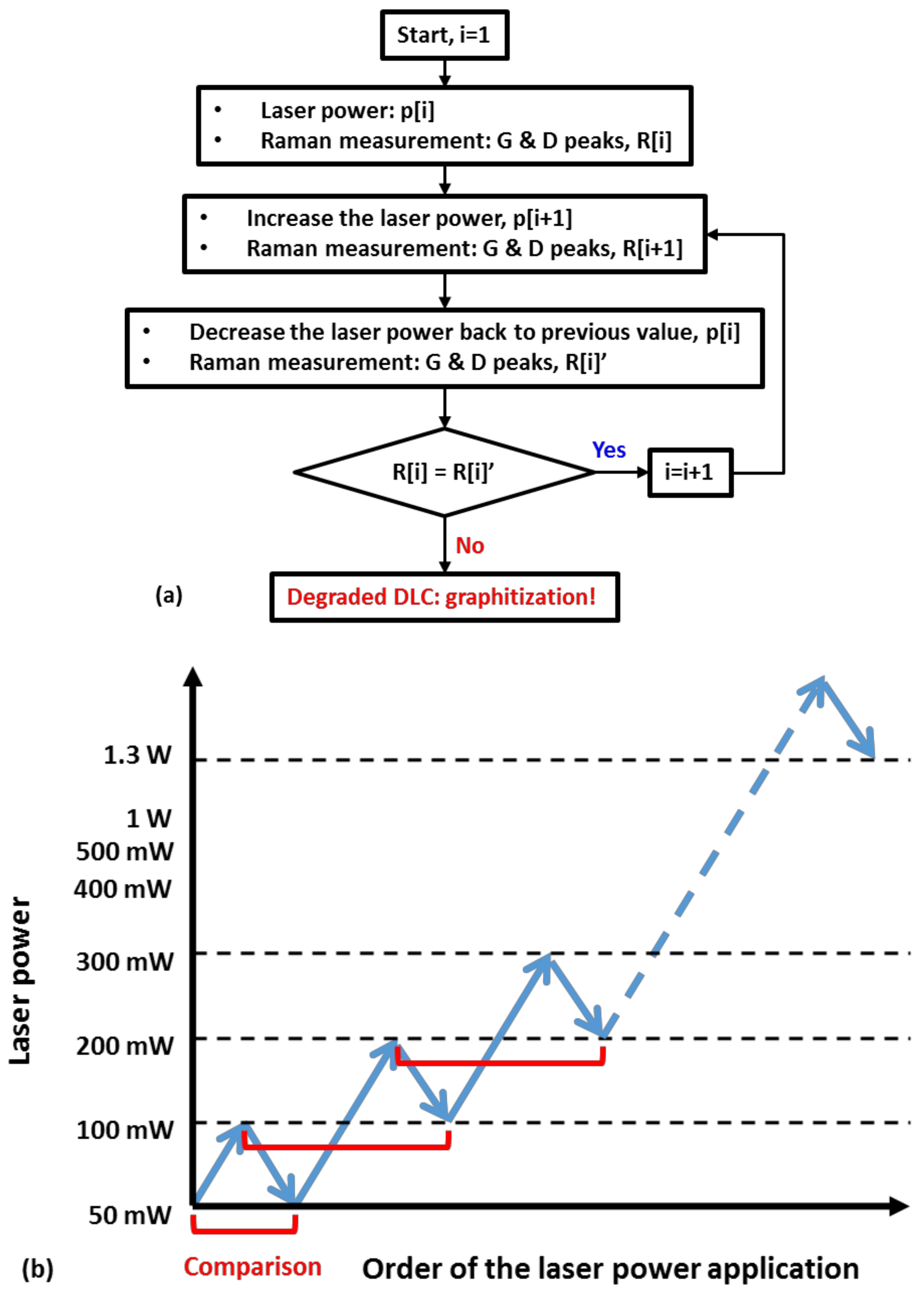

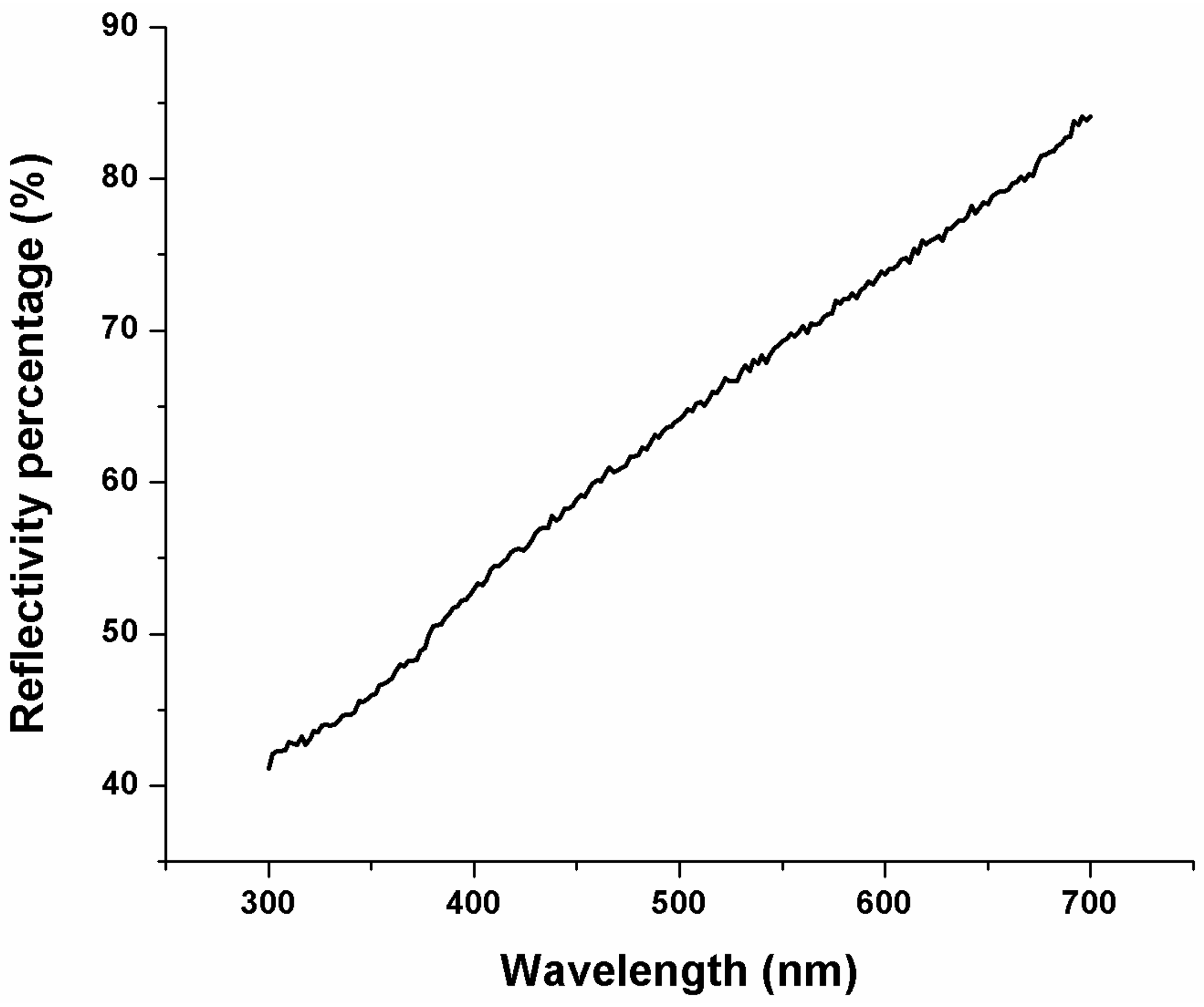

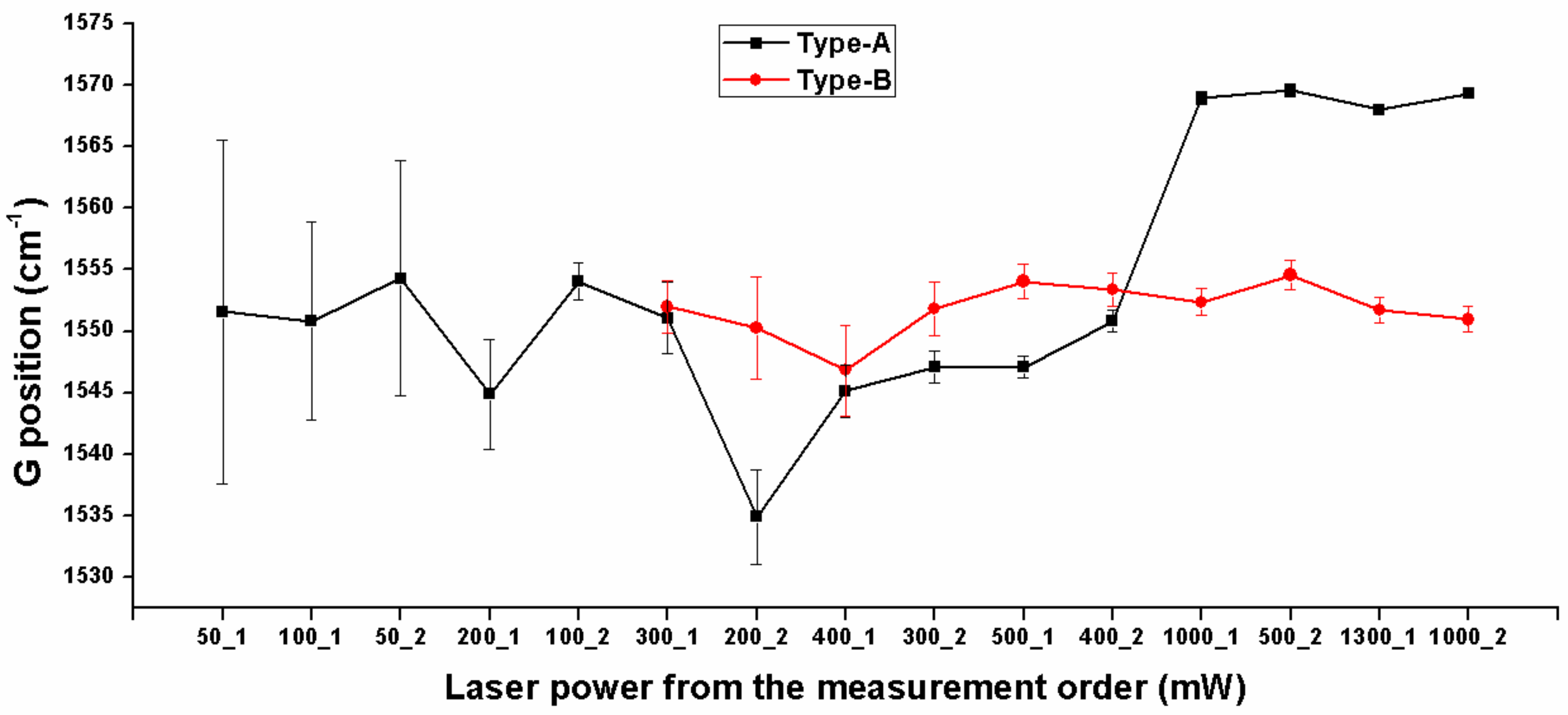

Diamond-like carbon (DLC) films are extensively used in various industries due to their superior protective and lubrication properties. However, DLC films including sp2 and sp3 carbon bonding are metastable materials, which can be thermally degraded (or graphitized) at elevated temperature. In this study, a novel Raman spectroscopy technique was developed to evaluate the in-situ thermal stability of DLC films. When a laser beam is applied onto a DLC film, the surface temperature can increase depending on the laser power, laser duration time, and surface reflectivity. Based on this laser heating concept, the Raman spectrum data of DLC films (i.e., G peak position and width) were obtained at the controlled Raman laser power, which enabled to determine the critical temperature to initiate the thermal degradation of DLC films. Two different designs of DLC film (i.e., types A and B with different initial sp2-to-sp3 ratio) were prepared and their thermal stability was evaluated using the proposed Raman spectroscopy technique. From the systematic data analysis and comparison, it could be observed that the type-A DLC film showed the significant change of Raman parameters (i.e., G peak position and width) at lower laser power value (=lower temperature) than the type-B DLC film, which indicated that the type-B DLC film had better thermal stability. View Full-Text
Keywords: DLC films; thermal stability; micro-Raman spectroscopy; graphitization DLC films; thermal stability; micro-Raman spectroscopy; graphitization

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

He, M.; Yeo, C. Evaluation of Thermal Degradation of DLC Film Using a Novel Raman Spectroscopy Technique. Coatings 2018, 8, 143.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
