Next Article in Journal
The Use of a Saturated Long Carbon Chain Sodium Monocarboxylate for the Corrosion Inhibition of Lead Objects in Atmospheric Conditions and in Acetic Acid Corrosive Solutions
Previous Article in Journal
Comparative Study of the Corrosion Resistance of Air-Plasma-Sprayed Ca2SiO4 and Al2O3 Coatings in Salt Water
Open AccessArticle

The Electrical and Structural Properties of Nitrogen Ge1Sb2Te4 Thin Film

Department of Physics, Faculty of Sciences, University of Craiova, A.I. Cuza No. 1, Craiova 200585, Romania
Coatings 2018, 8(4), 117; https://doi.org/10.3390/coatings8040117
Received: 24 January 2018 / Revised: 20 March 2018 / Accepted: 21 March 2018 / Published: 23 March 2018
  |
PDF [9860 KB, uploaded 3 May 2018]
  |

Abstract

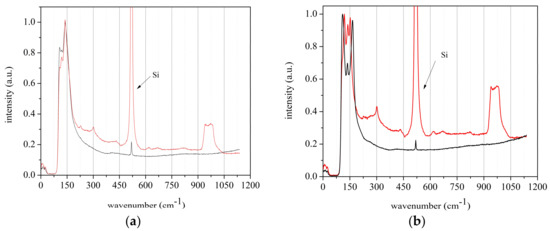

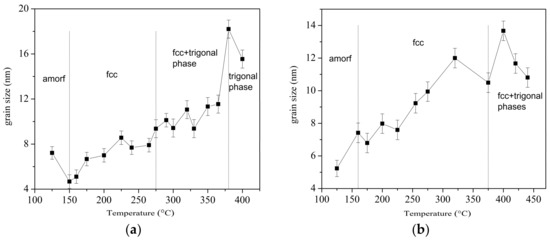

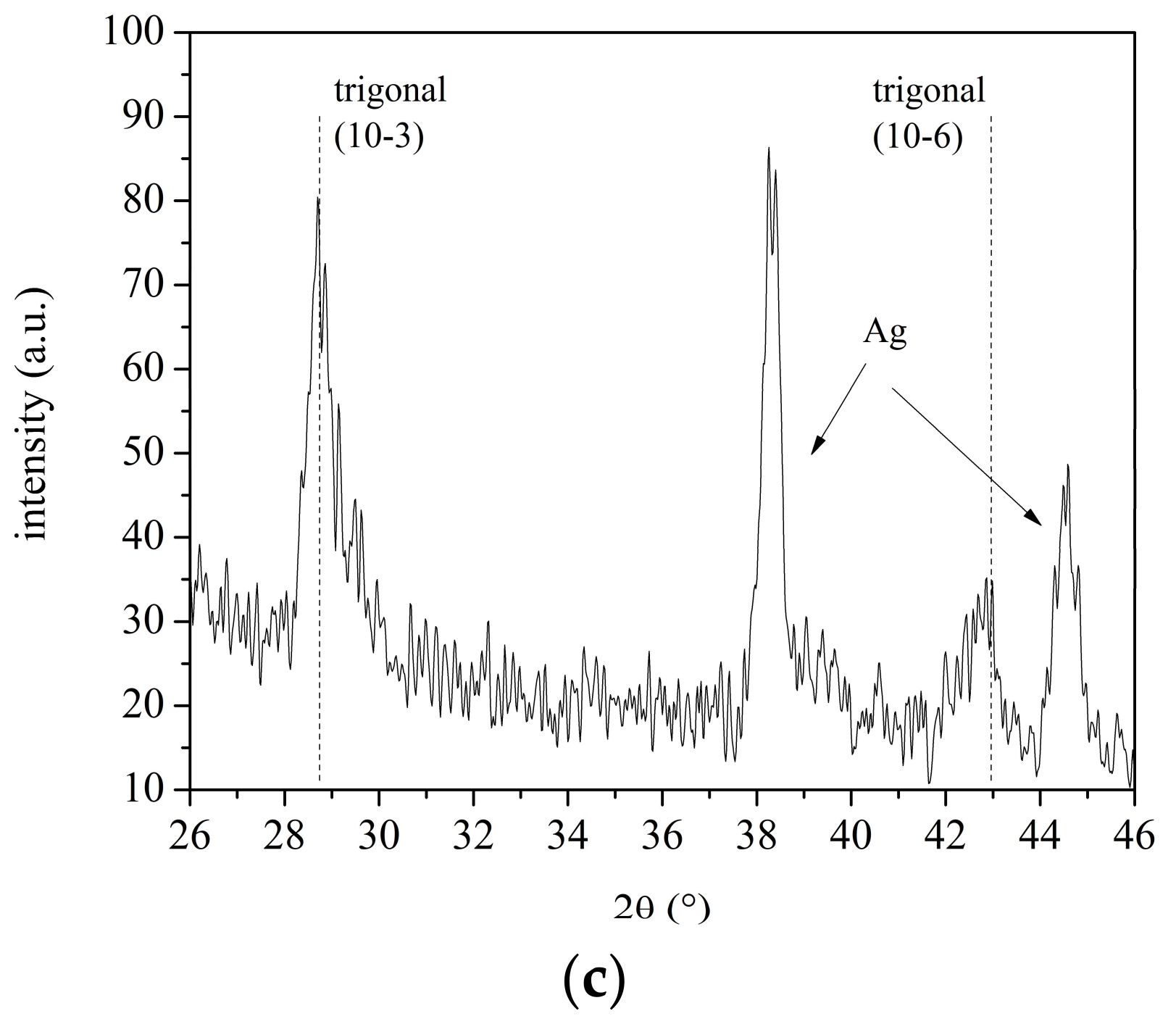

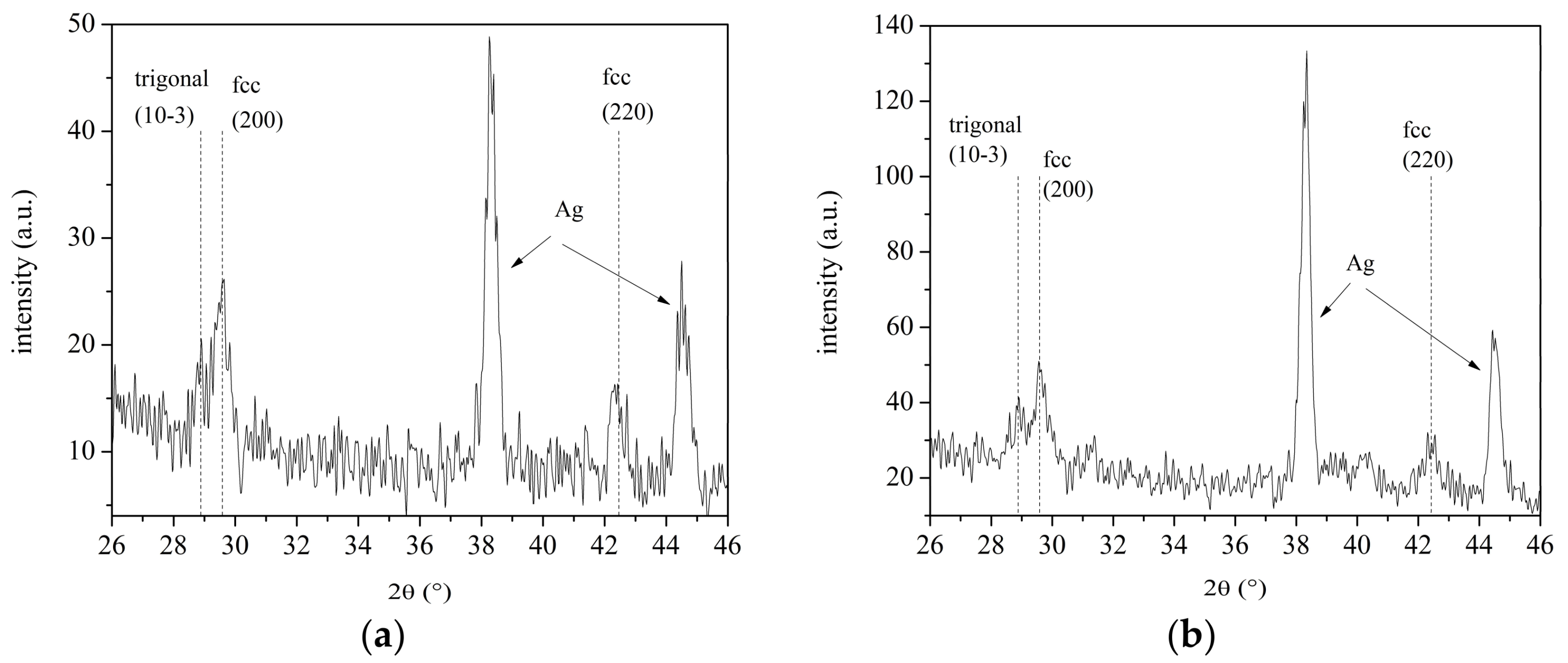

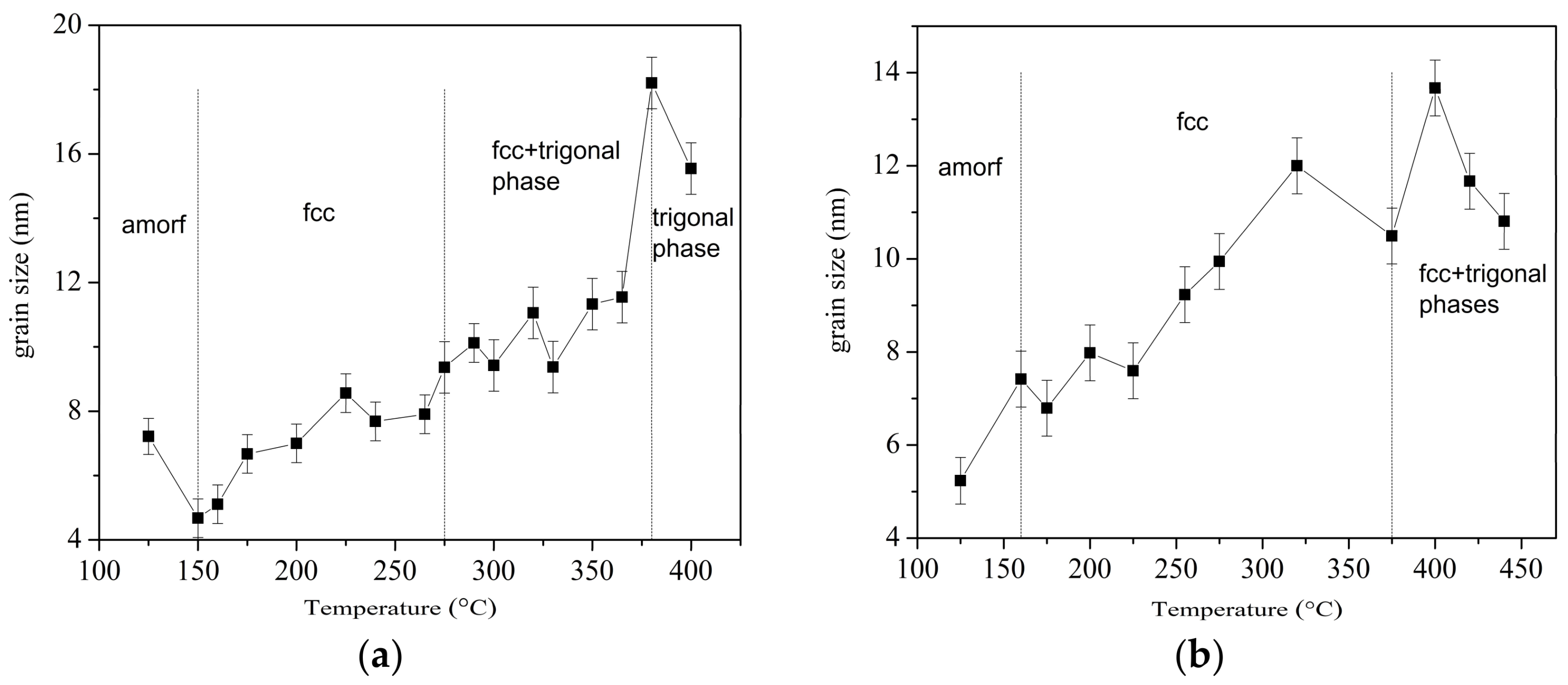

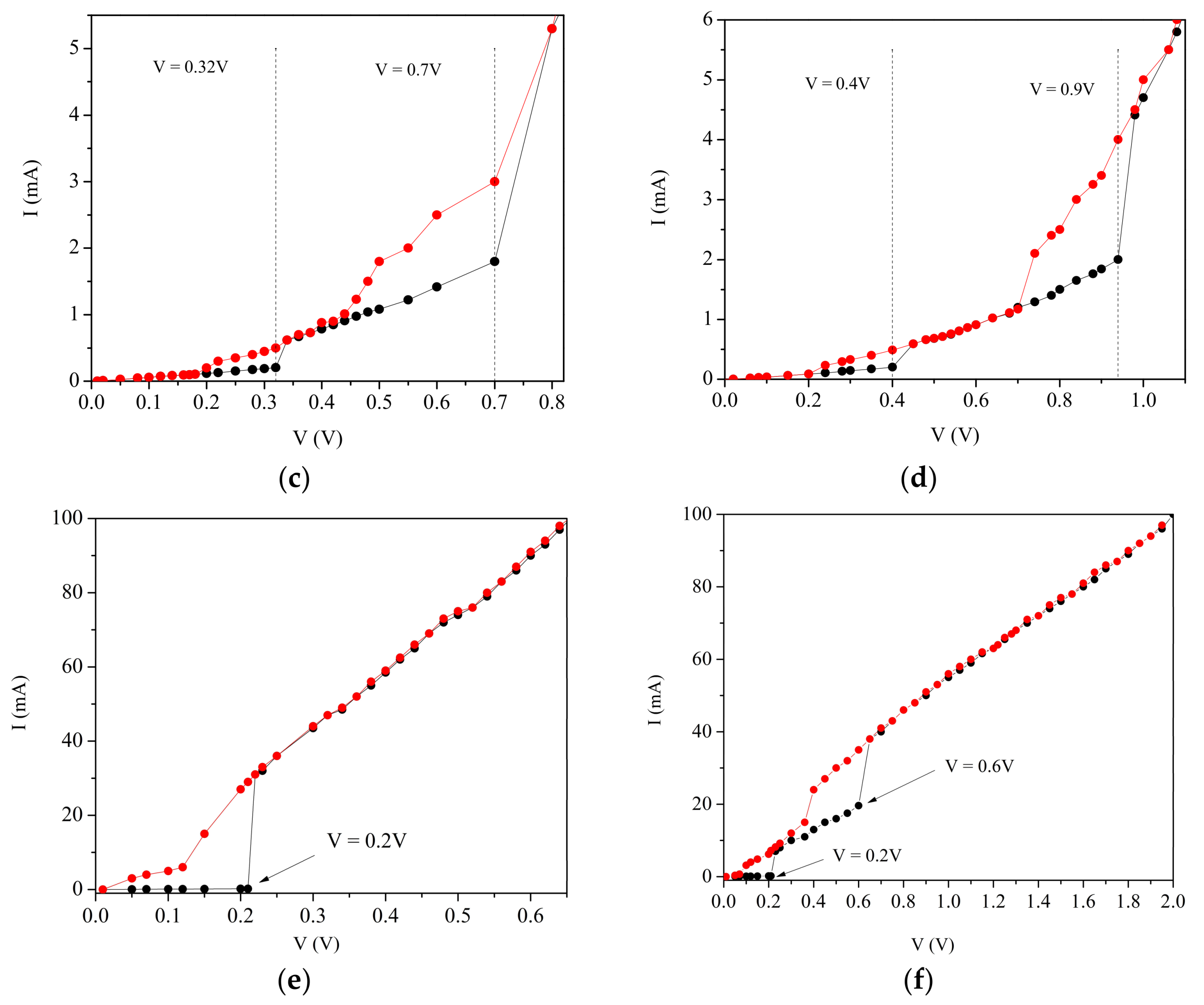

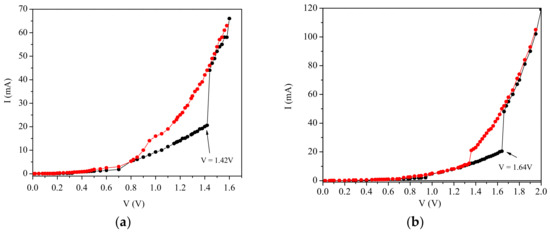

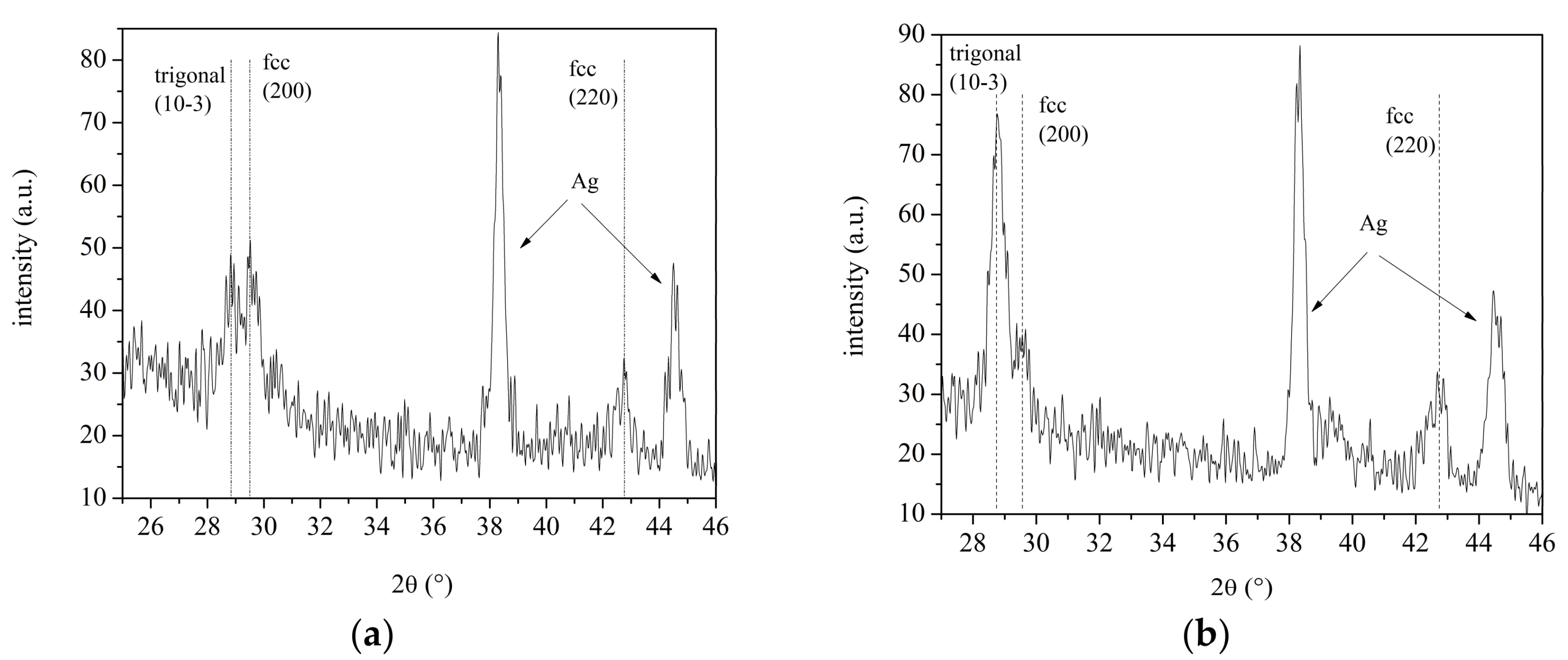

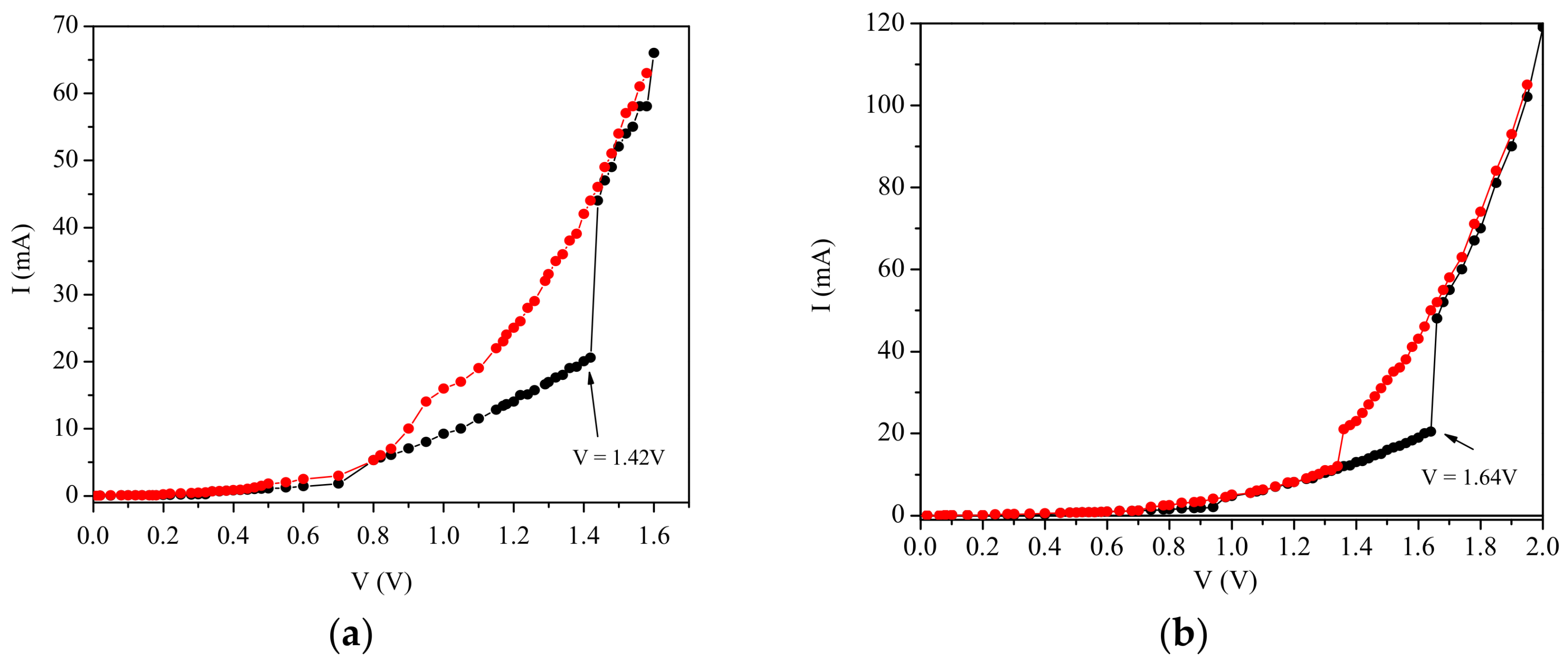

The present work describes the process of obtaining thin films of Ge1Sb2Te4 by means of the short-pulse High Power Impulse Magnetron Sputtering (HiPIMS) technique. The Ge1Sb2Te4 (GST-124) and nitrogen Ge1Sb2Te4 (nitrogen GST-124) films were obtained in HiPIMS plasma ignited in Ar/GST-124 and Ar/N2/GST-124, respectively. In particular, the possibility of tailoring the electrical properties of films for applications in the phase change memory (PCM) cells was investigated. The IV measurements performed in a voltage sweeping mode on GST-124 and nitrogen GST-124 show that the threshold switching voltage varies as a function of nitrogen level in HiPIMS plasma. Amorphous-to-crystalline trigonal phase transition of the films was induced by thermal annealing, and structural changes were identified using X-ray diffraction and Raman scattering spectroscopy. The most intense bands appeared for the annealed layers in the range of 138–165 cm−1, for GST-124, and 138–150 cm−1 for nitrogen GST-124, respectively. View Full-Text

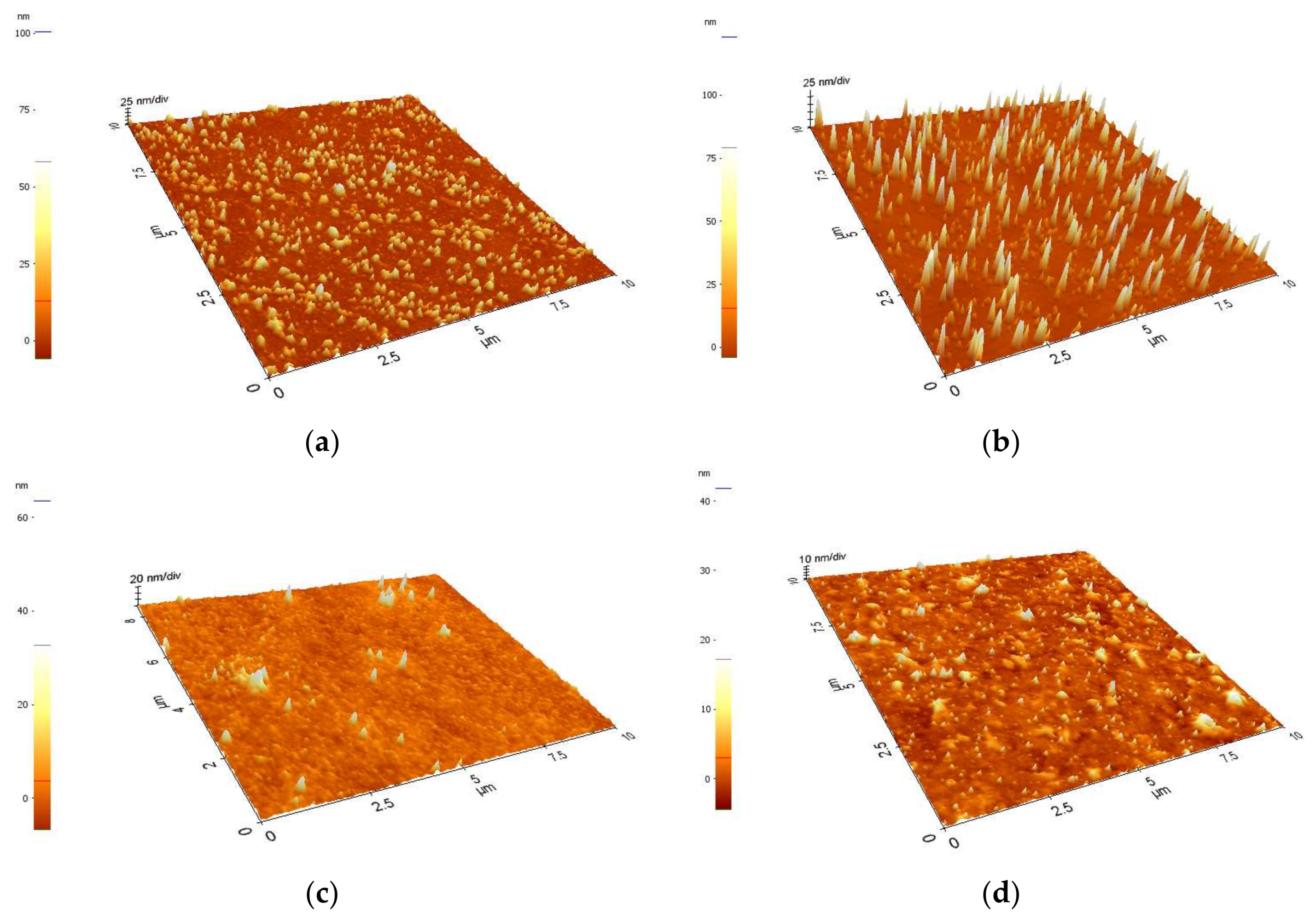

Keywords: chacogenide GST-124; phase mixing; IV characteristics; XRD; Raman; AFM chacogenide GST-124; phase mixing; IV characteristics; XRD; Raman; AFM
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Osiac, M. The Electrical and Structural Properties of Nitrogen Ge1Sb2Te4 Thin Film. Coatings 2018, 8, 117.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
