Next Article in Journal
Investigation of Coated Cutting Tool Performance during Machining of Super Duplex Stainless Steels through 3D Wear Evaluations
Next Article in Special Issue
Influence of Grit-Blasting and Hydrofluoric Acid Etching Treatment on Surface Characteristics and Biofilm Formation on Zirconia
Previous Article in Journal
Process Parameter Settings and Their Effect on Residual Stresses in WC/W2C Reinforced Iron-Based Arc Sprayed Coatings
Previous Article in Special Issue
Ti-SLActive and TiZr-SLActive Dental Implant Surfaces Promote Fast Osteoblast Differentiation
Open AccessArticle

Characteristics of RF-Sputtered Thin Films of Calcium Phosphate on Titanium Dental Implants

1
Department of Mechanical Engineering, Ming Chi University of Technology, 84 Gung-juan Rd., Taishan Dist., New Taipei City 24301, Taiwan
2
Institute of Mechanical and Electrical Engineering, Ming Chi University of Technology, New Taipei City 24301, Taiwan
*
Author to whom correspondence should be addressed.
Coatings 2017, 7(8), 126; https://doi.org/10.3390/coatings7080126
Received: 30 June 2017 / Revised: 14 August 2017 / Accepted: 14 August 2017 / Published: 16 August 2017
(This article belongs to the Special Issue Dental Implant Surface: Science and Technology)

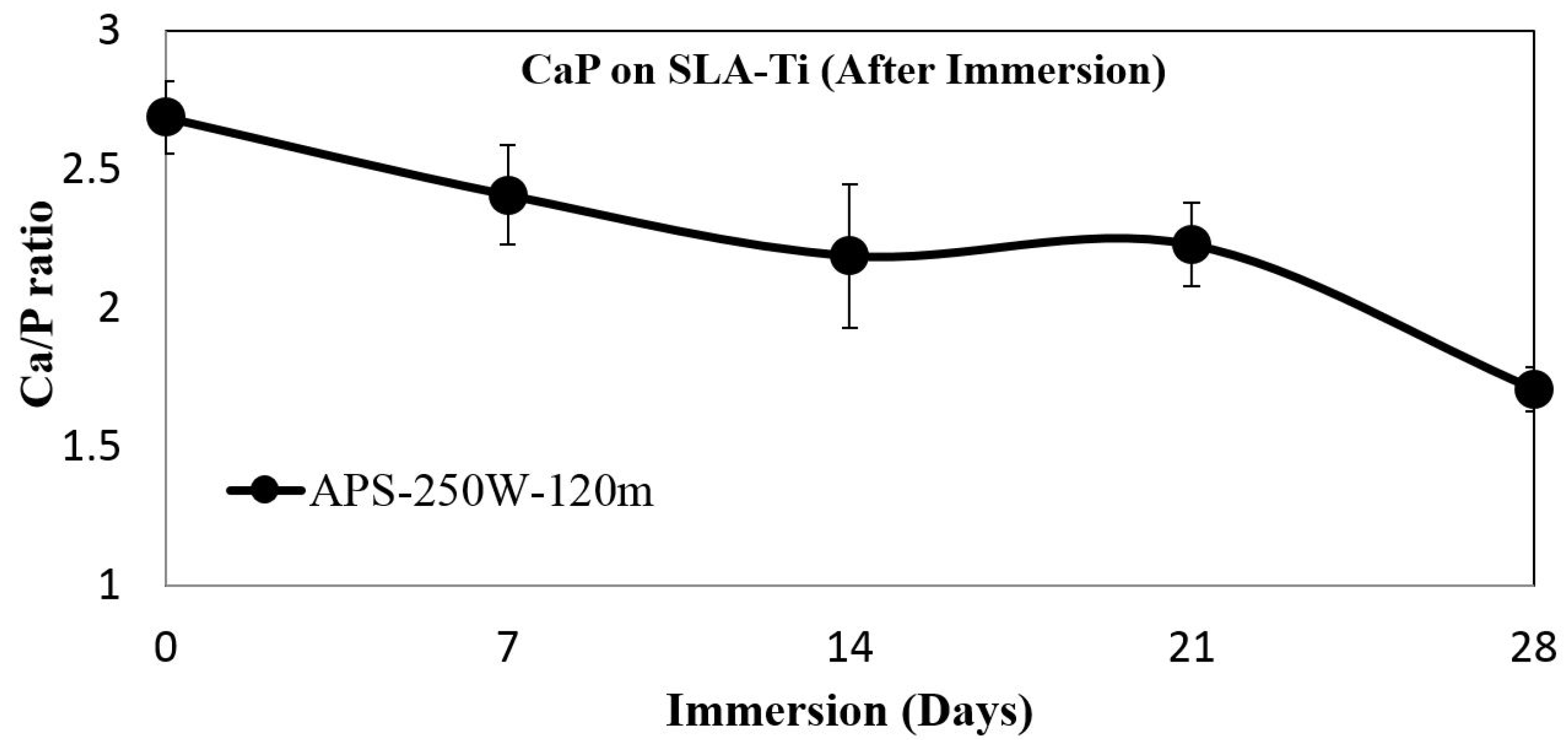

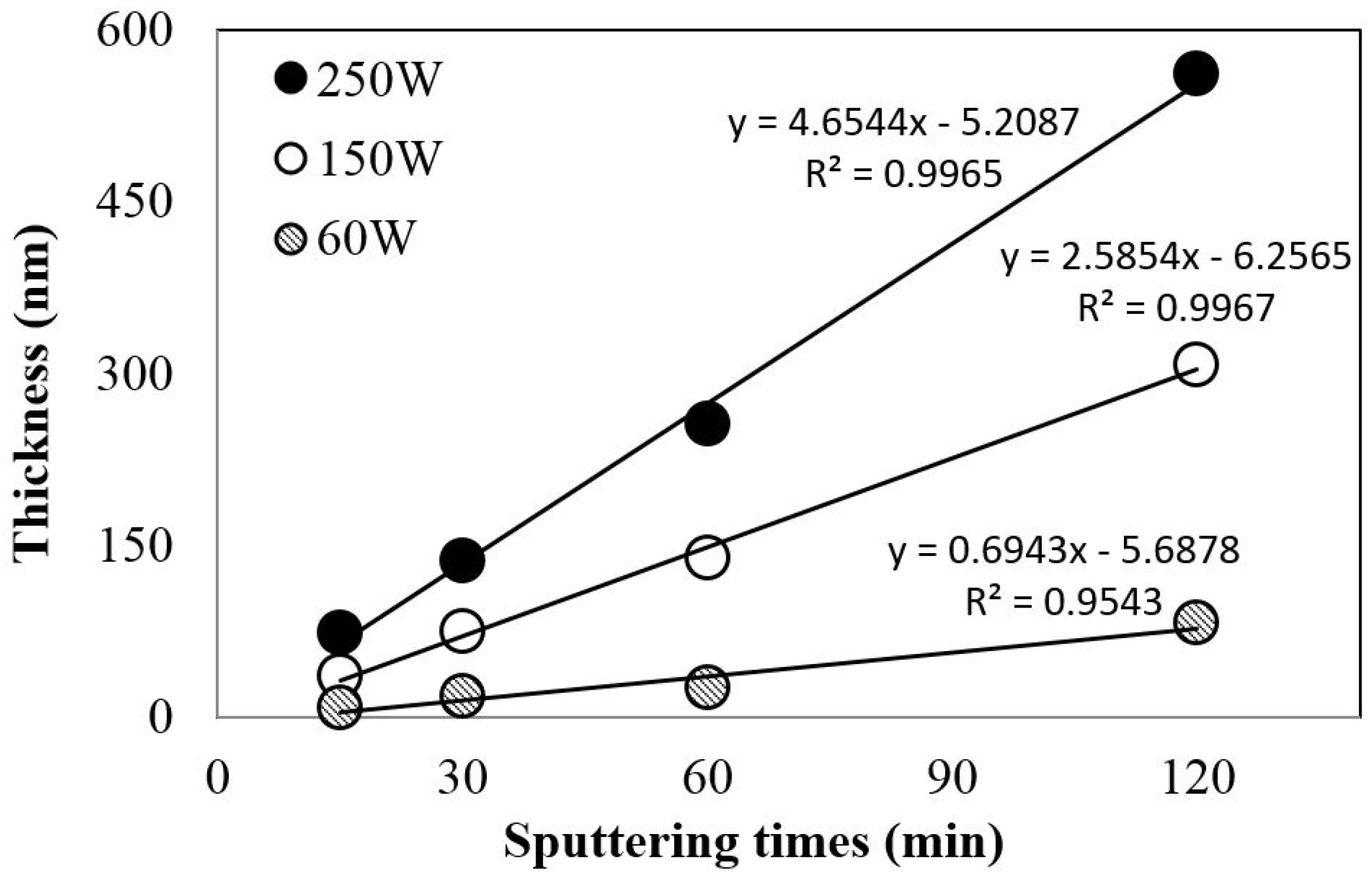

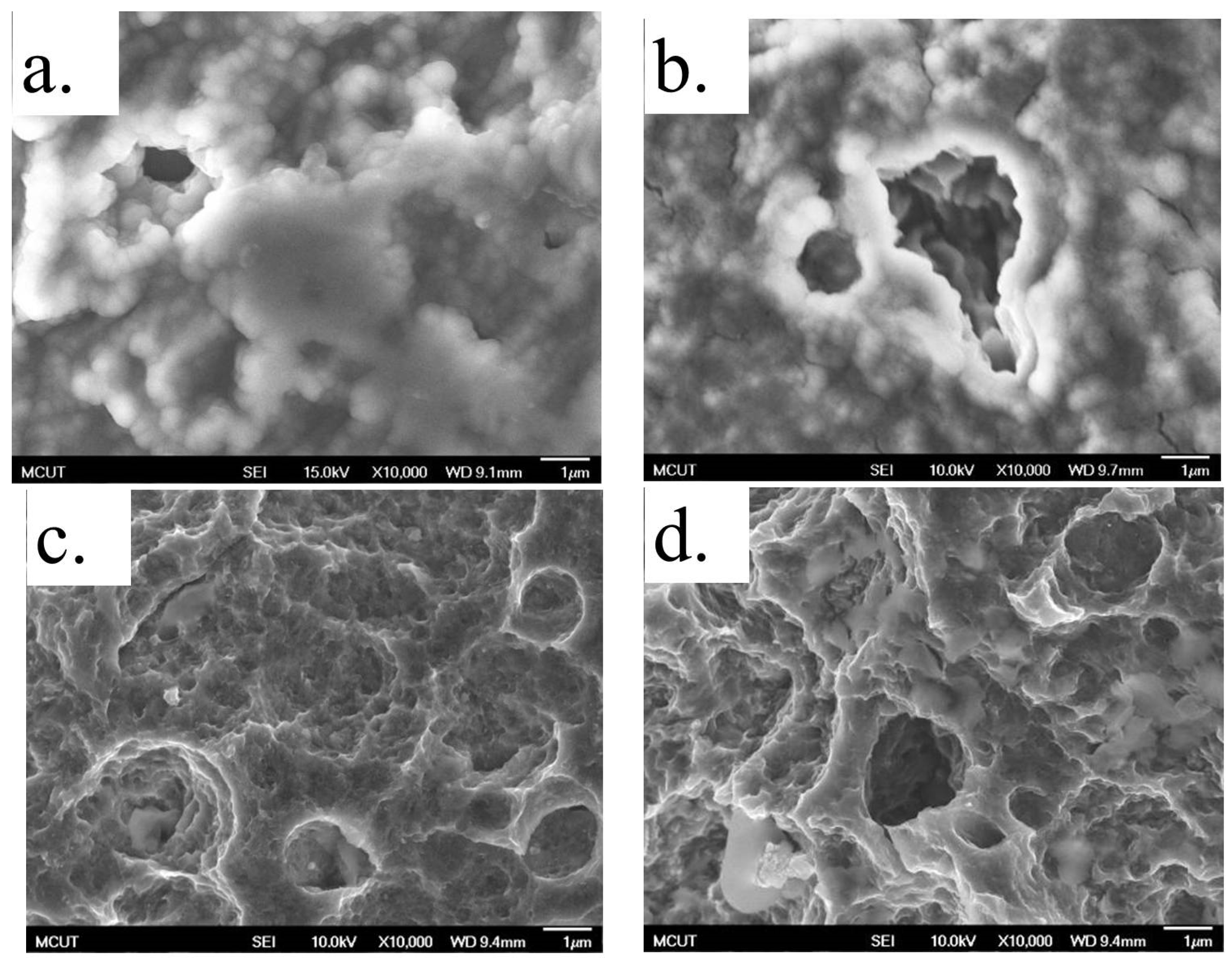

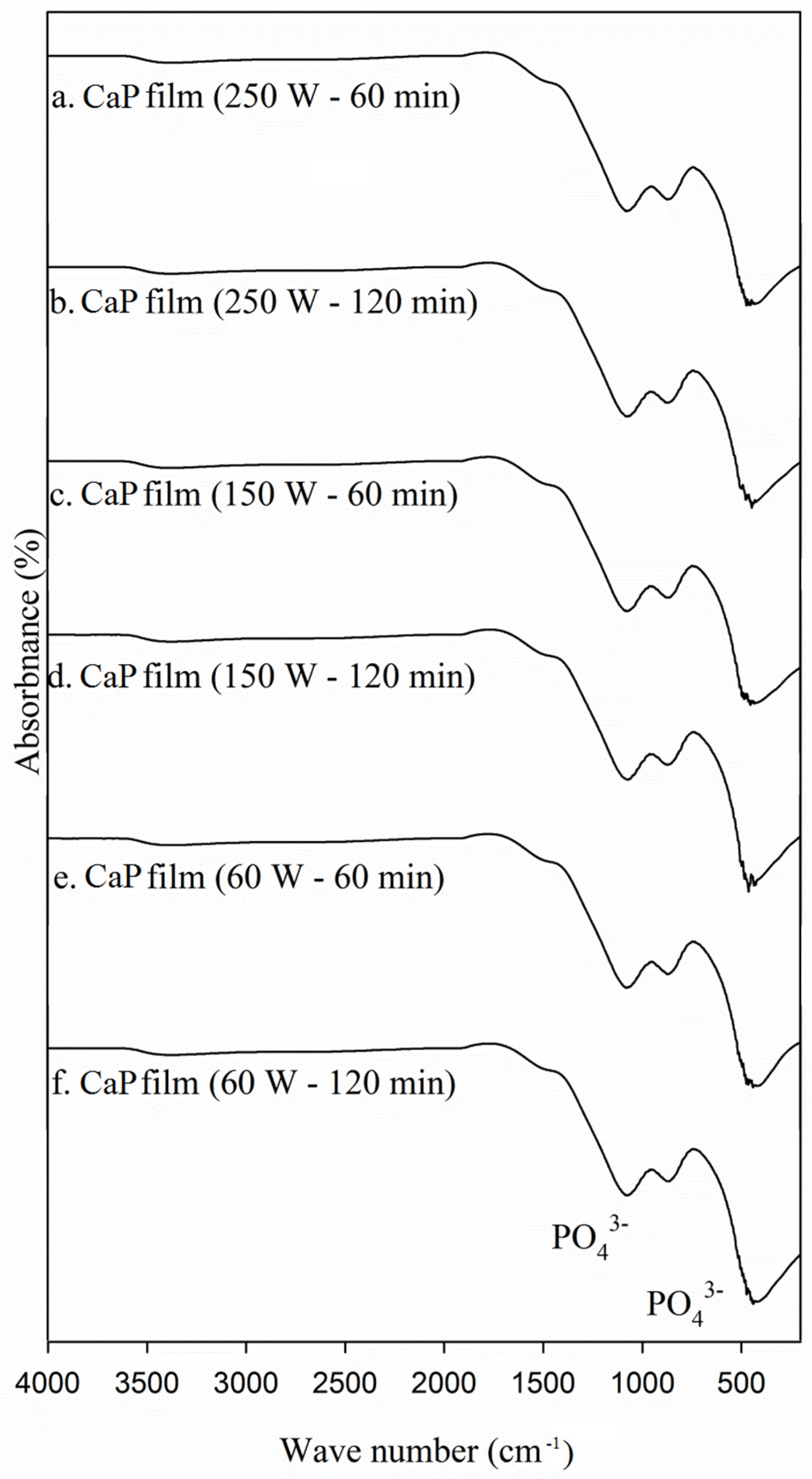

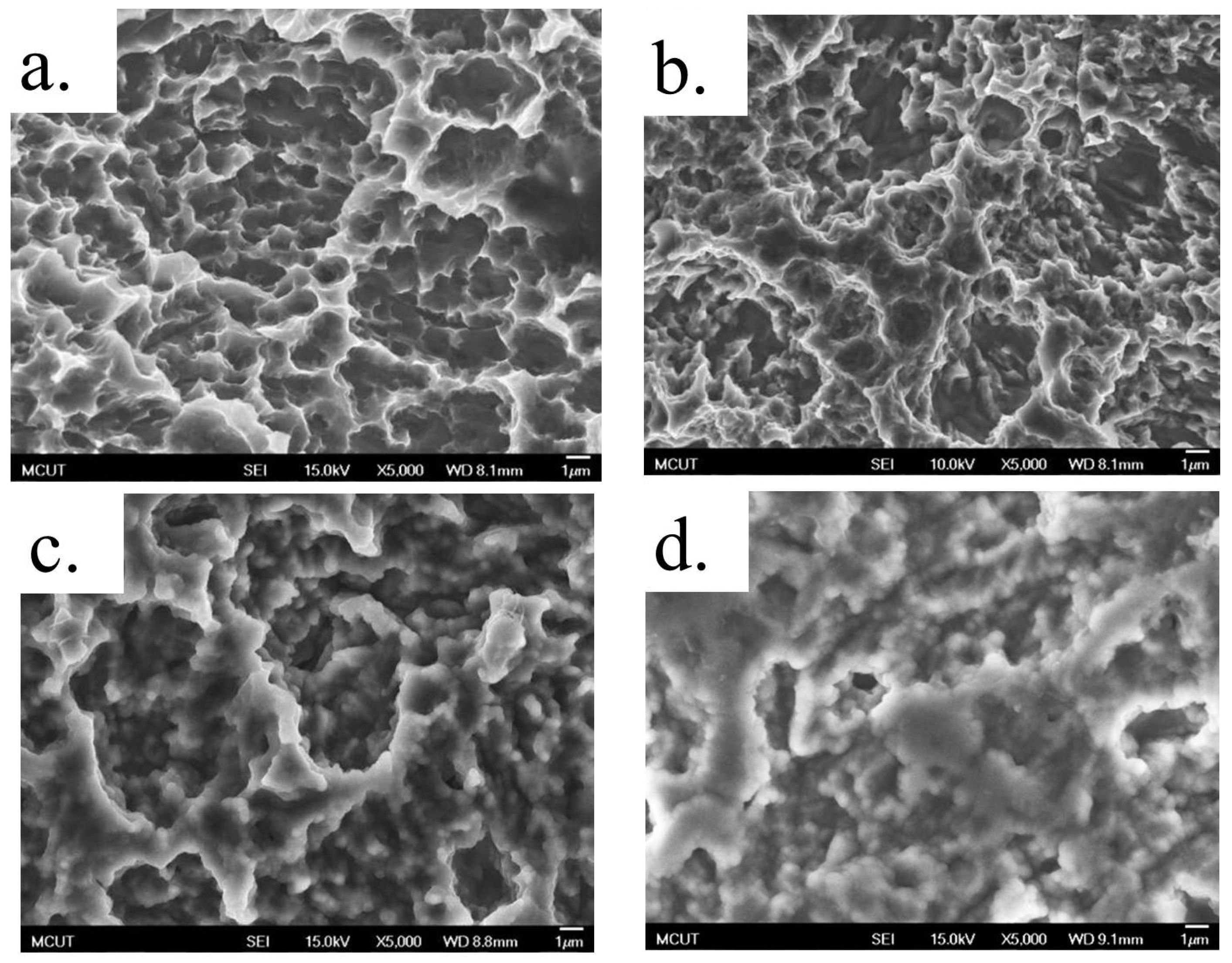

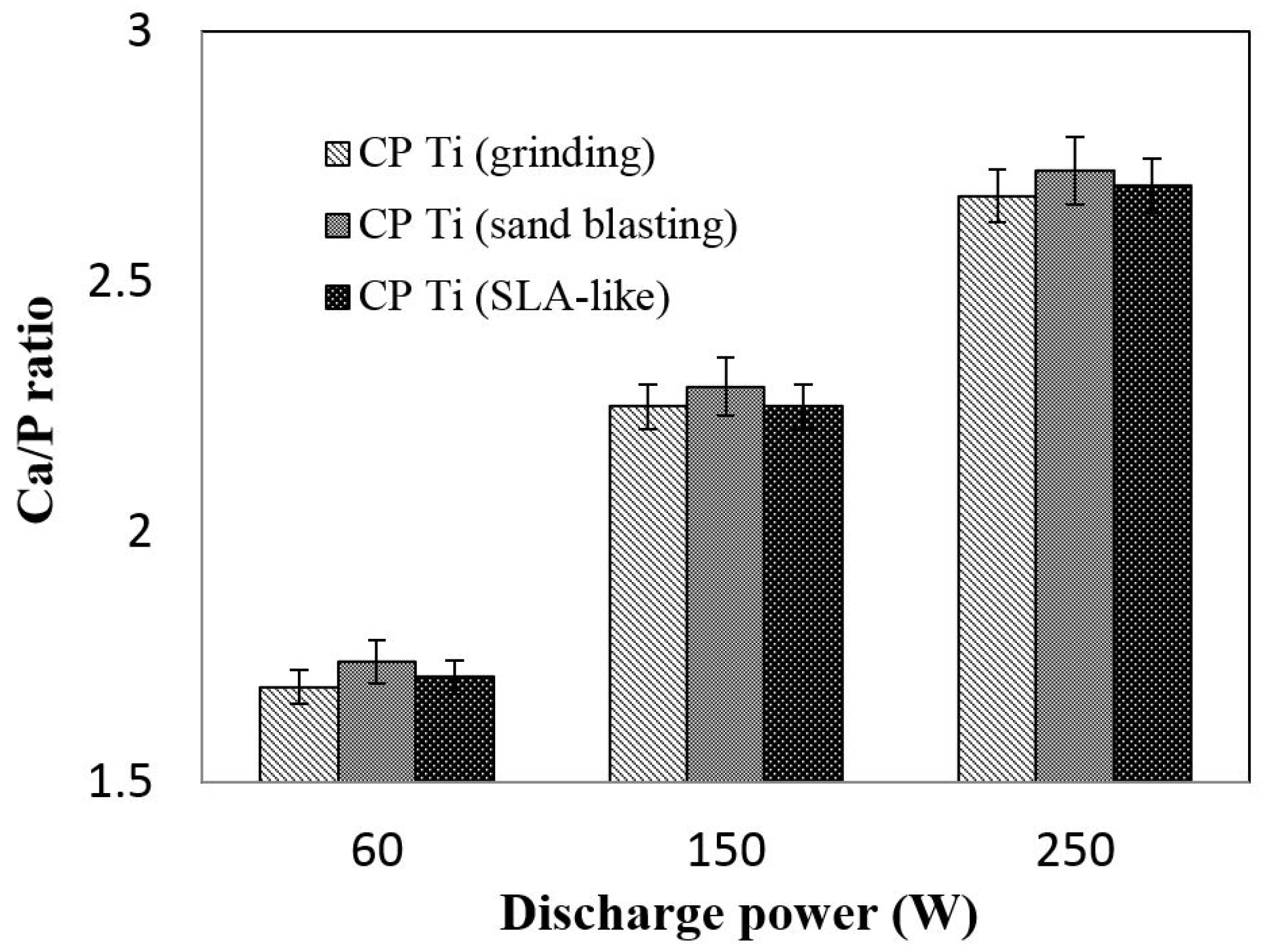

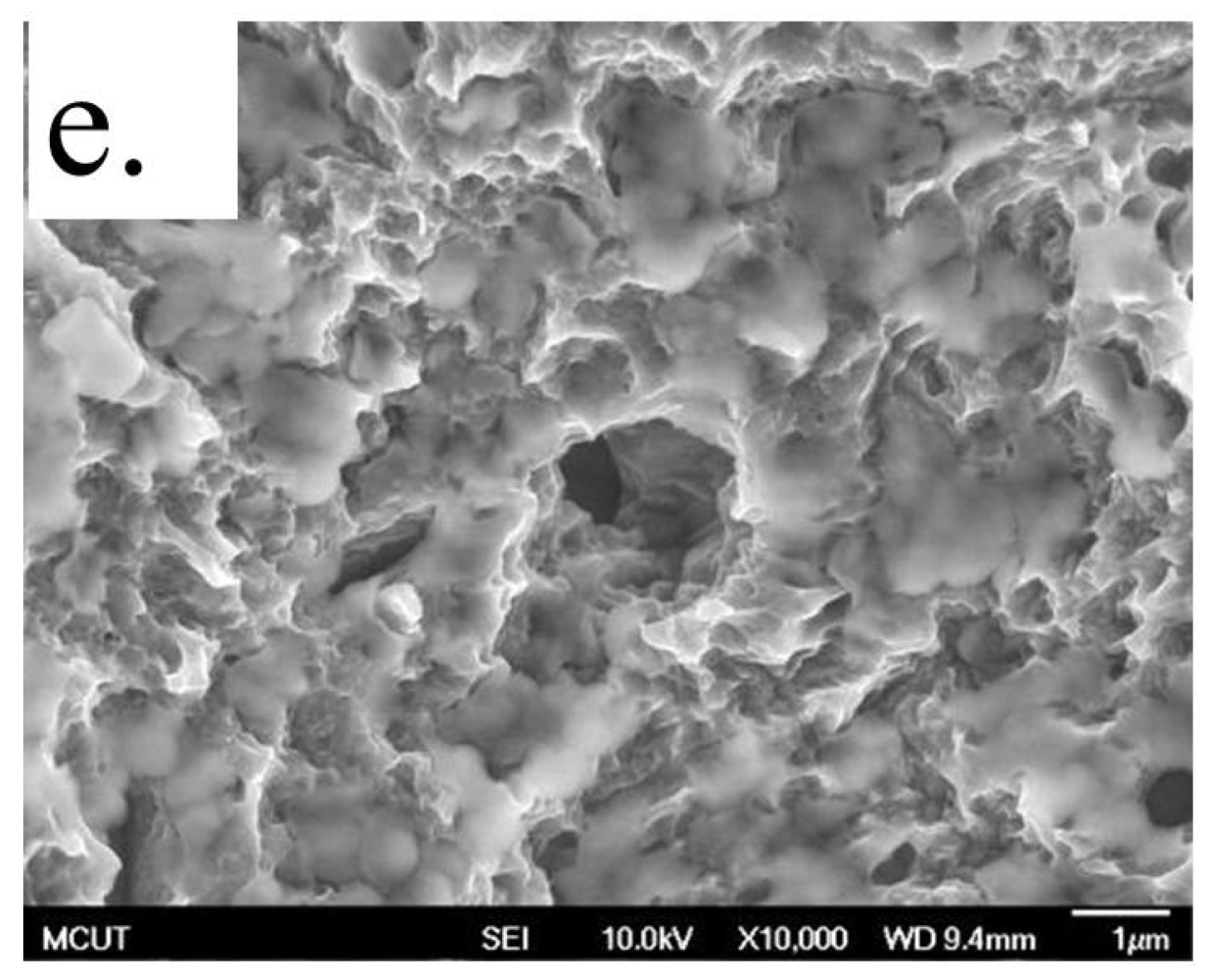

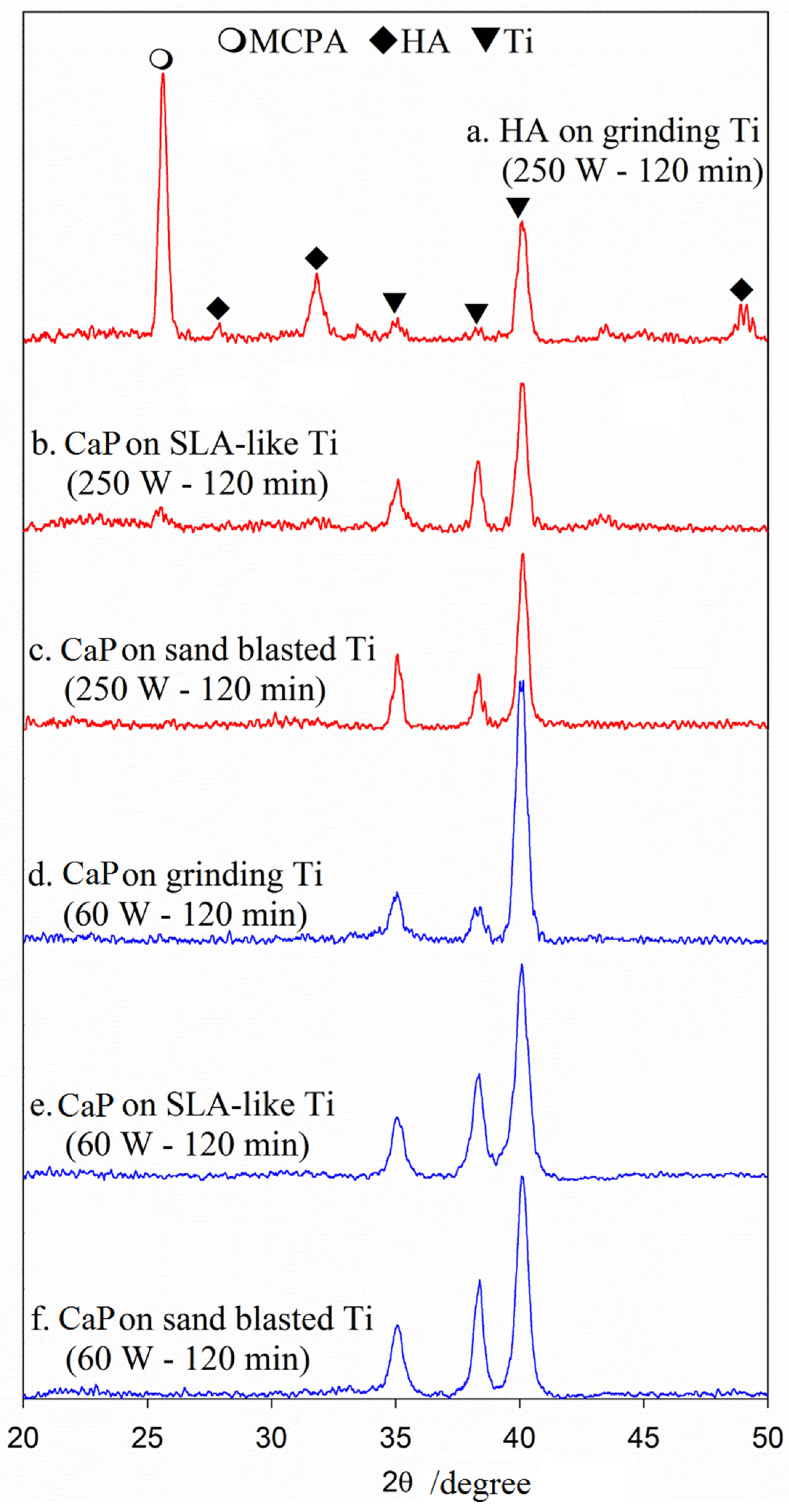

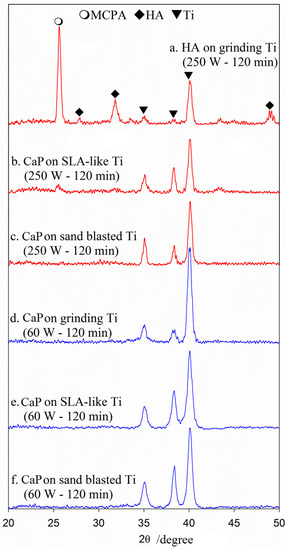

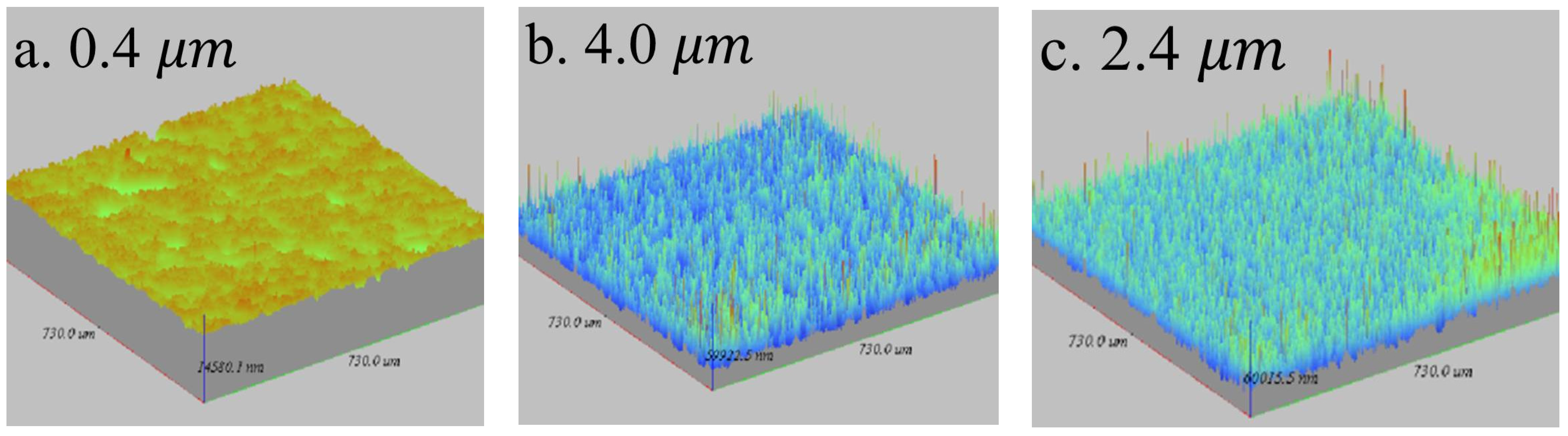

Hydroxyapatite (HA) coatings on titanium have been investigated for many years, and have demonstrated advantageous biocompatibility in dental implants. Animal experiments have demonstrated that the biological response to plasma-sprayed HA-coated implants shows disadvantages in terms of adherence, thickness uniformity, and long-term osseointegration effects. Determining how to resolve the degradation problem of HA in the body by improving osseointegration and stability in alveolar bones has become an increasingly researched topic. The present study investigated the film characteristics and dissolution properties of calcium phosphate (CaP) coatings obtained by radio-frequency (RF) sputtering of a self-developed atmospheric plasma spray (APS) HA target. The experimental parameters varied, including RF power (60–250 W), sputtering time (15–120 min), and substrate roughness (0.4–4 μm). Analyses were conducted using synchrotron X-ray diffraction, Fourier transform infrared spectroscopy (FTIR), white light interferometry, and scanning electron microscopy combined with energy-dispersive X-ray spectroscopy (EDS). EDS analysis showed that the Ca/P ratio increased as the discharge power was increased. The analysis results also showed that a lower surface roughness resulted in higher crystallinity, because a larger surface-free energy was attained during sputtering. In-plane texturing has been proven when HA films are sputtered onto substrates of varying roughness, within appropriate deposition parameters. FTIR analysis revealed the presence of the principal PO43- bonds in the deposited calcium phosphate films. The CaP films induced calcium phosphate precipitation when immersed in simulated body fluid (SBF), suggesting that, based on in vitro bioactive behavior, the proposed combined surface modification can be used in dental implants. View Full-Text
Keywords: RF sputtering; atmospheric plasma spray (APS); calcium phosphate; hydroxyapatite; dental implant RF sputtering; atmospheric plasma spray (APS); calcium phosphate; hydroxyapatite; dental implant
Show Figures

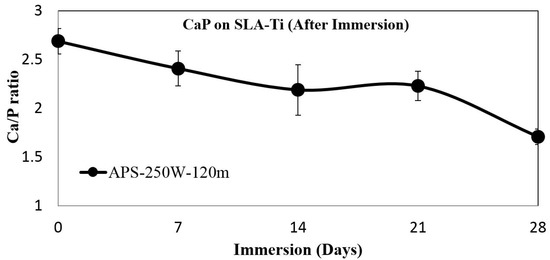

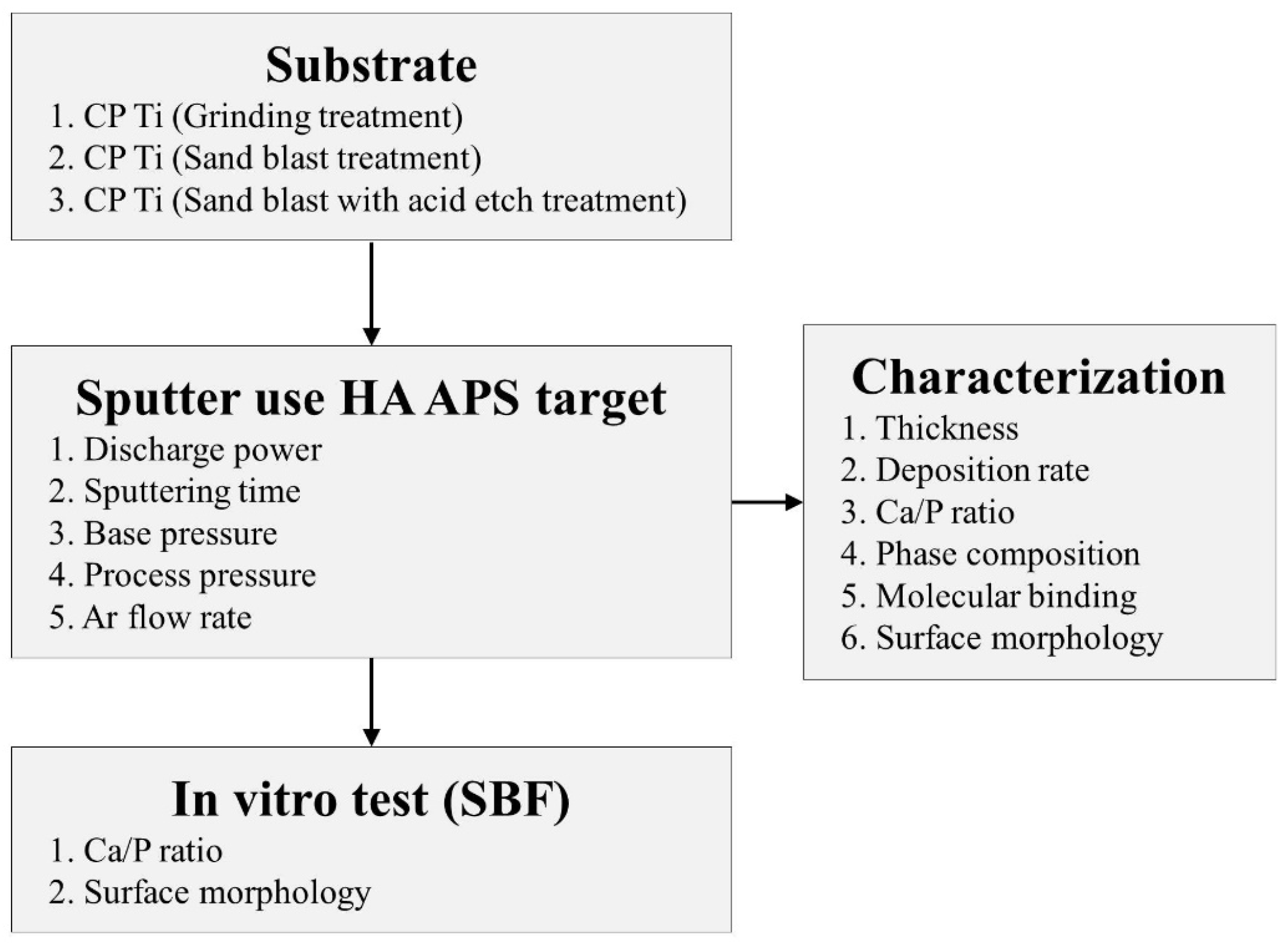

Figure 1

MDPI and ACS Style

Hung, K.-Y.; Lai, H.-C.; Feng, H.-P. Characteristics of RF-Sputtered Thin Films of Calcium Phosphate on Titanium Dental Implants. Coatings 2017, 7, 126.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
