Article

Structure and Properties of C/N-Containing Fe3O4 Oxide Films Prepared by Oxynitriding Treatment

by
Yue Yu
1,†,
Duo Ma
1,†,
Tong Zhang
1,*,
Yufei Wang
1,
Yupeng Wei
1,
Mingxuan Shi
1,
Yuquan Cai
2,
Meigui Cai
2,
Peisheng Li
3,
Yongfeng Xin
3 and
Jinquan Sun
1,*
1
College of Material Science and Technology, Shandong University of Science and Technology, Qingdao 266510, China
2
Yujie Bearing Manufacturing Co., Ltd., Liaocheng 252000, China
3
Shandong Shenggong Inspecting Technology Co., Ltd., Dongying 257029, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Coatings 2026, 16(5), 628; https://doi.org/10.3390/coatings16050628
Submission received: 28 April 2026 / Revised: 15 May 2026 / Accepted: 19 May 2026 / Published: 21 May 2026
Versions Notes

Abstract

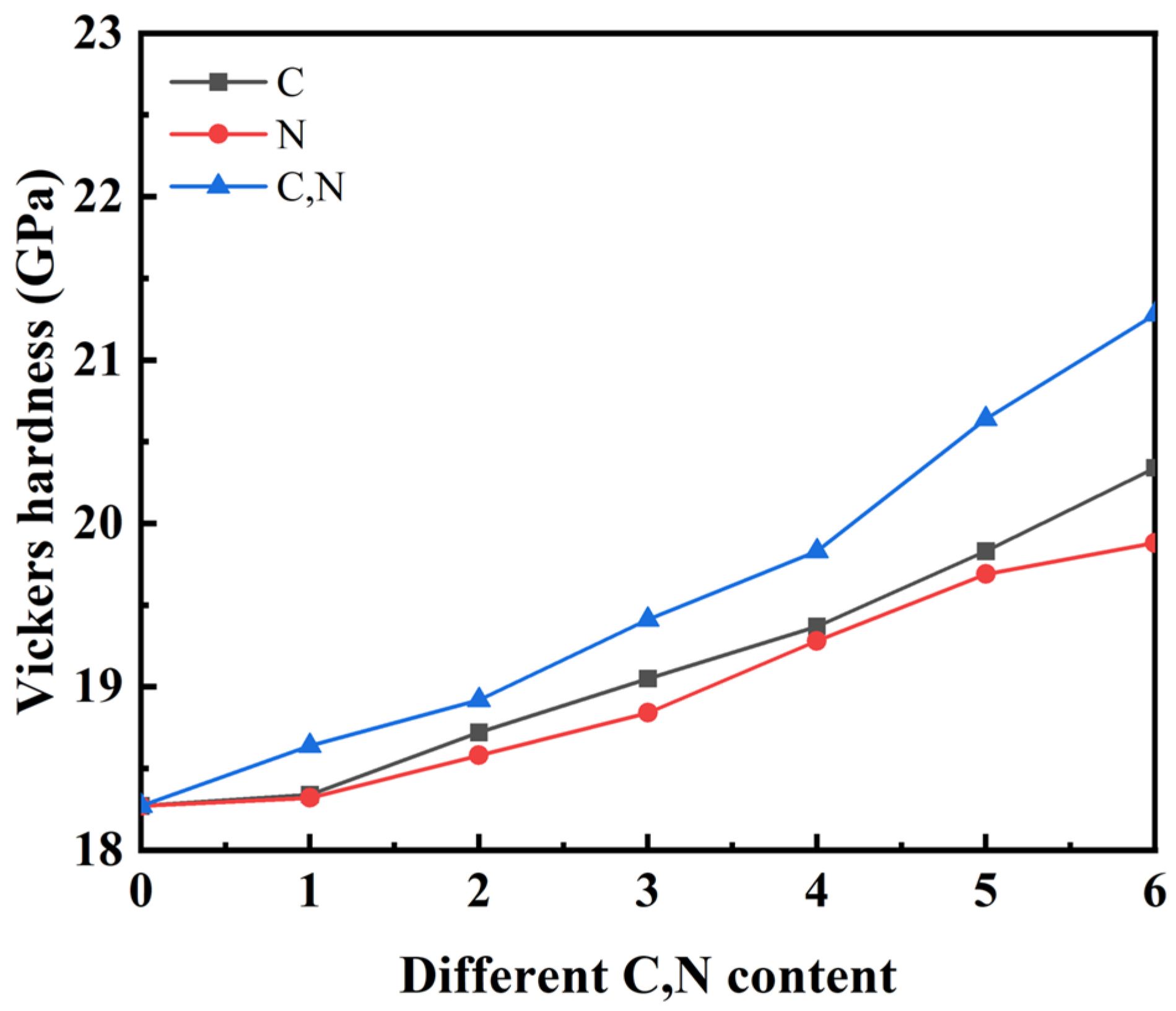

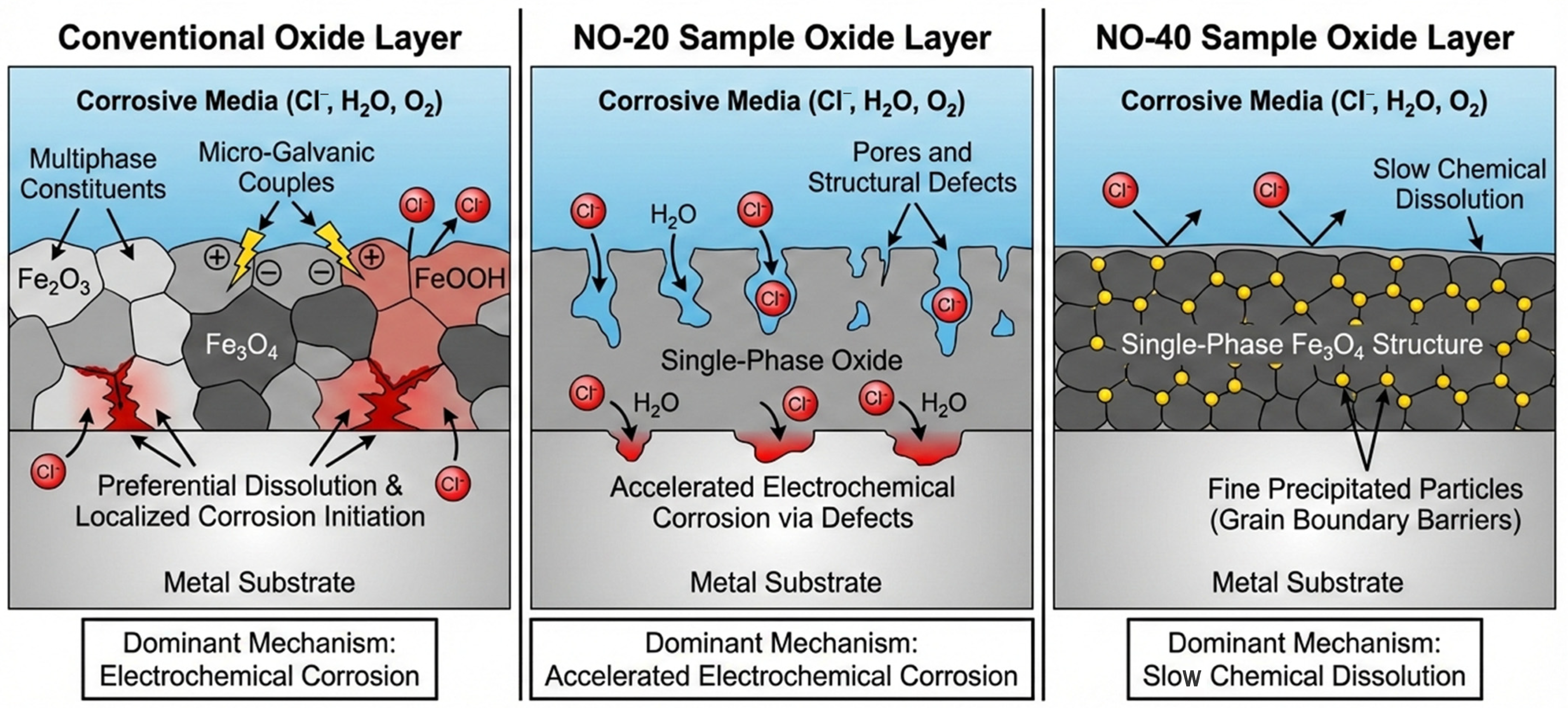

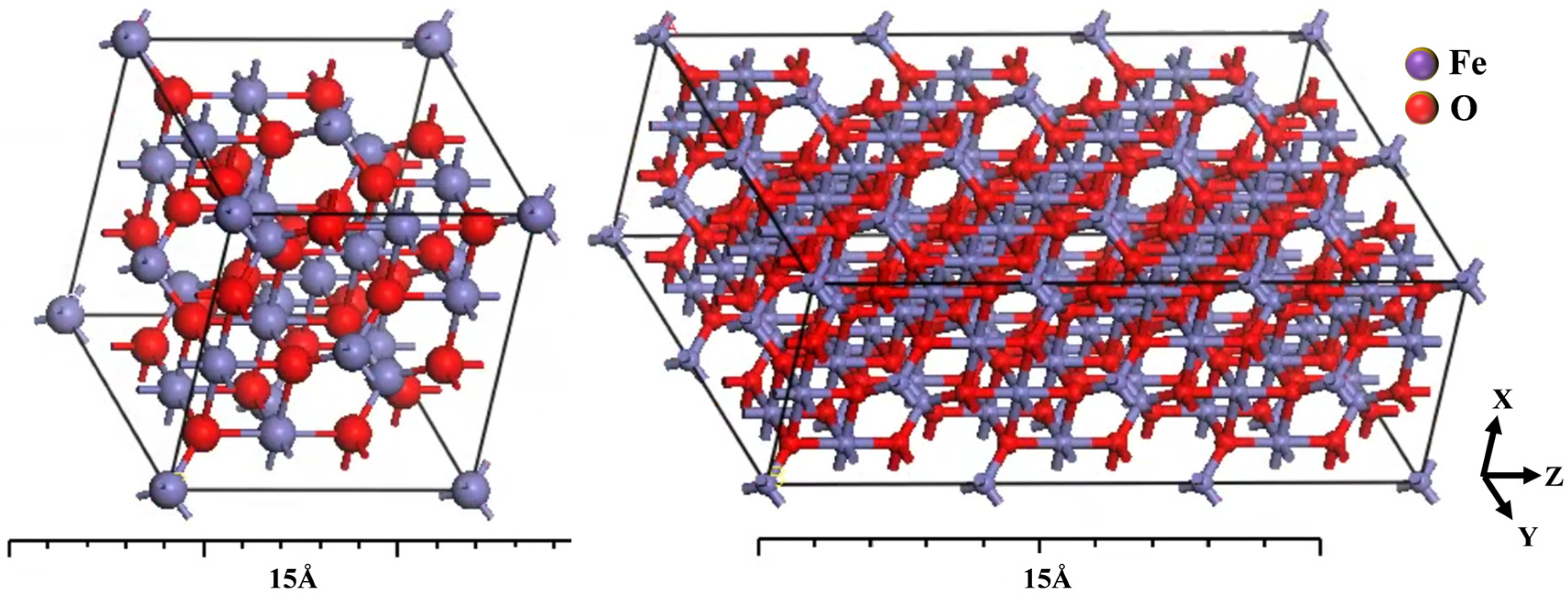

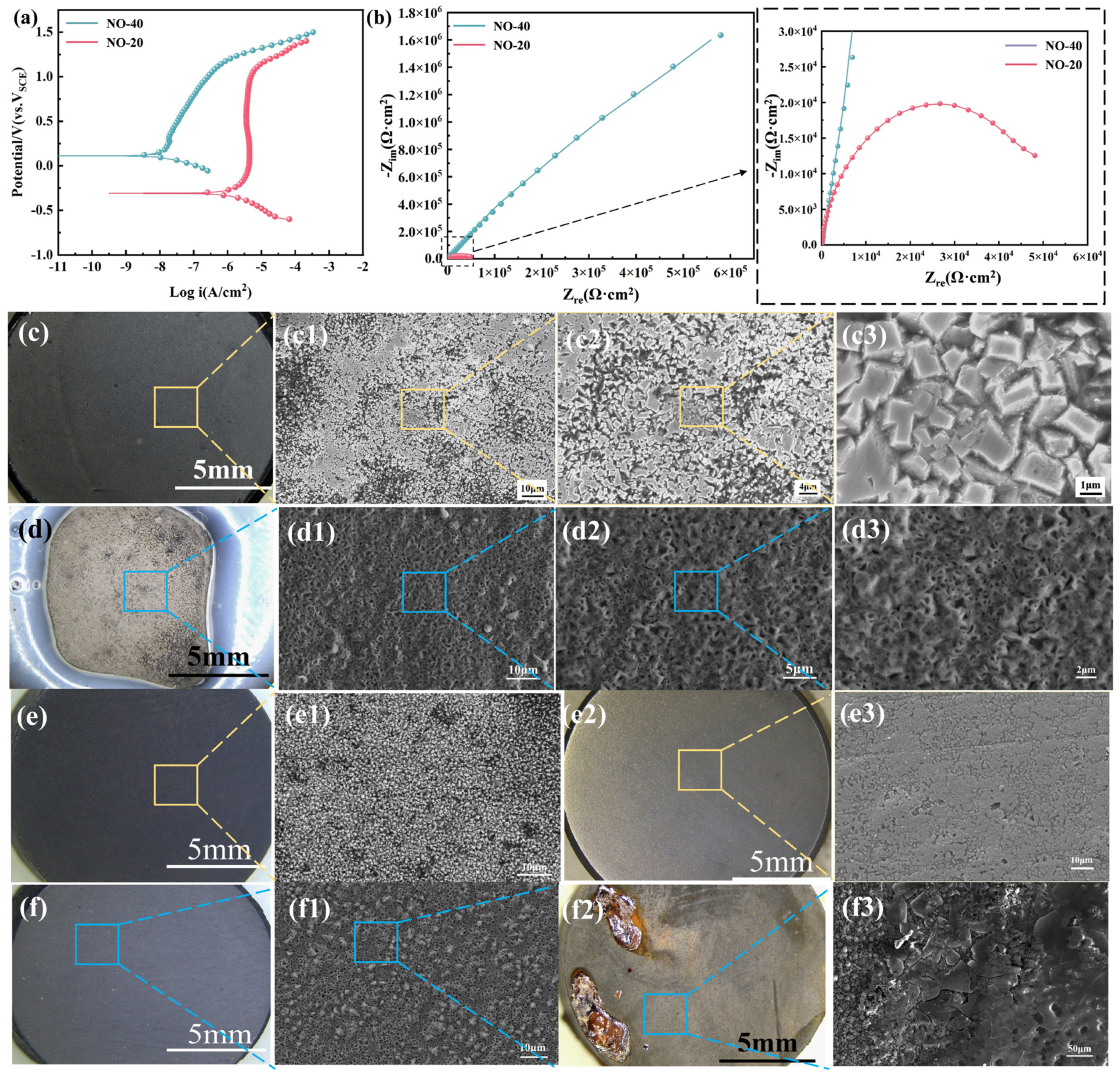

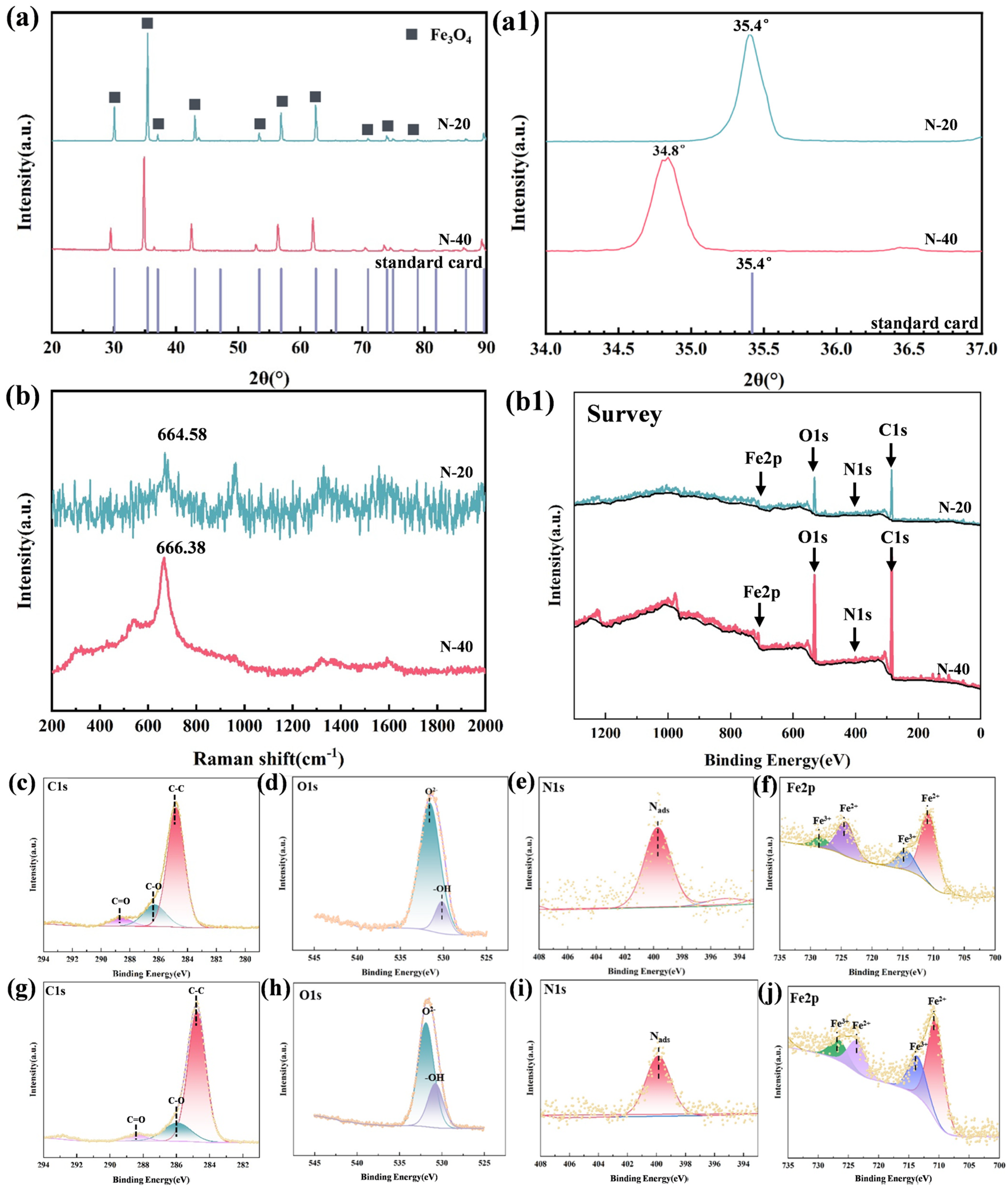

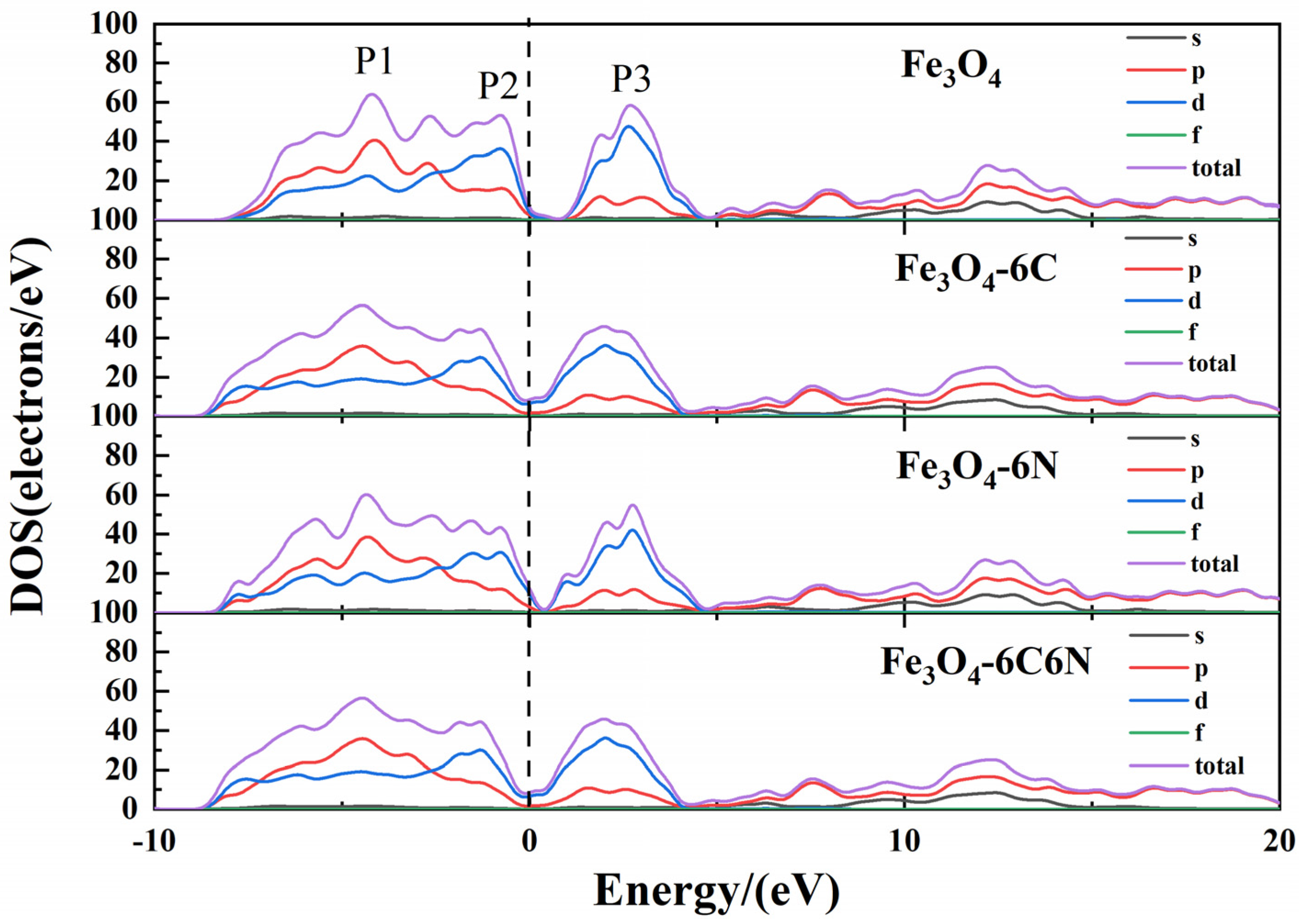

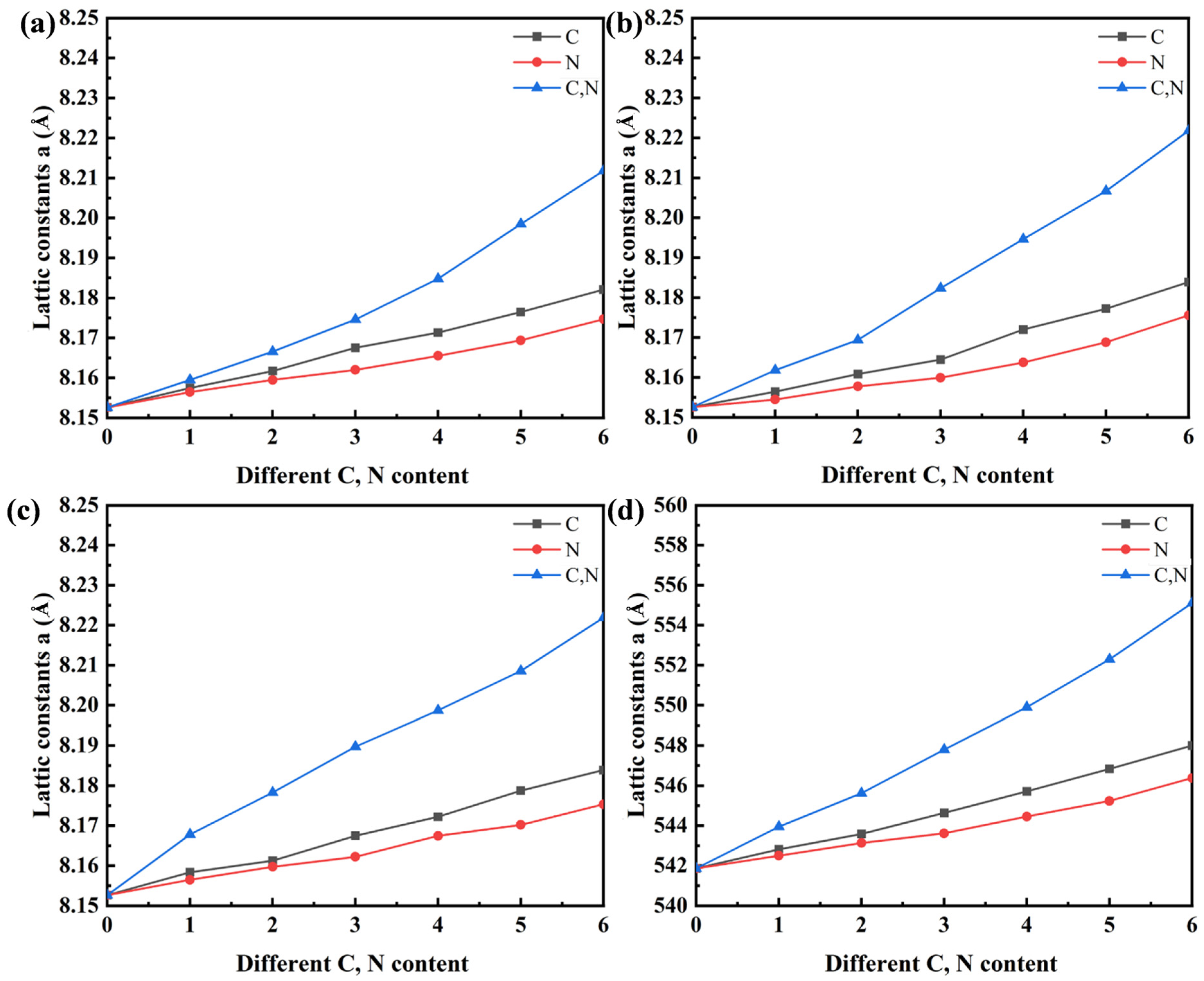

In this study, C/N-containing Fe3O4 oxide films over an inner nitride layer were fabricated on 45# steel by oxynitriding to improve corrosion resistance in chloride-containing environments. The films exhibited a dense polyhedral structure, with nanoscale Fe3O4 precipitates at grain boundaries. Nitrogen and carbon were uniformly distributed within the oxide grains, inducing lattice expansion and modifying the Fe-O bonding environment. First-principles calculations based on C/N substitution models suggested that C/N incorporation may increase the unit cell volume, strengthen lattice bonding, and enhance the theoretical hardness of Fe3O4. The optimally doped films exhibited outstanding corrosion resistance, with a corrosion potential of 0.115 VSCE, a corrosion current density of 3.16 × 10−10 A/cm2 in 3.5 wt.% NaCl solution, and a corrosion-free lifetime of up to 3600 h in neutral salt spray testing. This superior performance is attributed to the synergistic effects of the compact single-phase magnetite layer, grain boundary precipitates, and modified electronic structure, which collectively inhibit chloride ingress and convert localized electrochemical attack into uniform corrosion. The experimental results are consistent with first-principles predictions, which clarified the mechanism of nitrogen doping in material corrosion protection from a mechanistic perspective.
Keywords: Fe3O4 oxide film; corrosion resistance; nitrogen and carbon doping; first-principle calculations Fe3O4 oxide film; corrosion resistance; nitrogen and carbon doping; first-principle calculations
