Research Progress on Transparent Conductive Properties of SnO₂ Thin Films

Abstract

As a core candidate material for indium-free transparent conductive oxides, tin dioxide (SnO₂) thin films are gradually replacing indium tin oxide (ITO) and becoming a research focus in the field of optoelectronic devices, thanks to their excellent physicochemical stability, wide bandgap characteristics, and abundant tin resource reserves. This review focuses on SnO₂ thin films. Firstly, it elaborates on the tetragonal rutile crystal structure characteristics of SnO₂ and the transparent conductive mechanism based on oxygen vacancies and doping elements to regulate free electron concentration, while clarifying the key parameters for evaluating their transparent conductive properties. Subsequently, it systematically summarizes the research progress in preparing SnO₂ transparent conductive thin films via physical methods and chemical methods in recent years. It compares the microstructure and transparent conductive properties of thin films prepared by different methods, and analyzes the regulatory laws of preparation processes, doping types, and film thickness on their optoelectronic properties. Furthermore, this work supplements the current application status of SnO₂ thin films in devices. Meanwhile, the core performance differences between indium-free tin-based thin film devices and ITO-based devices are compared. Finally, we have summarized the advantages and challenges of physical and chemical methods in the preparation of SnO₂ thin films. It also forecasts the application potential of interdisciplinary integration of physical–chemical methods and the development of new doping systems in the preparation of high-performance SnO₂ transparent conductive thin films. This review aims to provide theoretical guidance and technical references for the selection and process optimization of SnO₂ transparent conductive thin films in fields such as photovoltaic devices and flexible optoelectronic equipment.

1. Introduction

Transparent metal oxide thin films have been among the most extensively studied materials over the past decade, owing to their broad application prospects—for instance, in the fabrication of technical components for optical technologies, solar cells, and gas sensors [1]. Optical transparency and electrical conductivity are the key properties for their use as transparent conductive electrodes in various optoelectronic devices, which depend on their sheet resistance range [2]. However, it is challenging to simultaneously stabilize optical transparency and electrical conductivity in a single host material, as there is a trade-off between these two critical properties. For example, glass is transparent but intrinsically insulating, while metals are conductive yet opaque [3].

Currently, indium tin oxide (ITO) is the most commonly and widely researched and applied oxide electrode material, and it is also the one that has been commercially produced on a large scale [4,5]. ITO thin films exhibit numerous excellent properties, demonstrating remarkable advantages in terms of light transmittance, resistivity, adhesion, and corrosion resistance [6,7]. Nevertheless, ITO still has several drawbacks: first, its sheet resistance is relatively high, typically reaching tens or even hundreds of ohms [8], making it difficult to adapt to the rapid development of modern technology; second, ITO has poor or no flexibility, and according to the frontier orbital theory, the work function of ITO electrodes cannot match the energy levels of organic semiconductors, leading to a large interfacial contact potential difference that impairs the performance of optoelectronic devices; finally, indium (In) in ITO transparent conductive oxides has a scarce natural reserve but a high actual demand—scarcity drives up prices and manufacturing costs, which fails to meet the requirements of long-term large-scale production and market demand.

Therefore, research on indium-free transparent conductive oxides is particularly crucial. SnO₂ thin films are renowned for their chemical and thermal stability in atmospheric environments and high optical transmittance. Thanks to these characteristics, SnO₂ thin films have diverse applications, such as in gas sensing, lithium-ion batteries, solar cells, and catalysts for various organic reactions [9]. These versatile applications are associated with their photophysical, chemical, and electronic properties, which can be tailored by regulating factors like the size, shape, crystallinity, and electronic state of tin oxide nanoparticles [10].

Today, the most intensively studied and technically widely applied indium-free transparent metal oxide materials are zinc oxide (ZnO), SnO₂, and titanium oxide (TiO₂)—the latter at least attracting attention in the research field. We comparatively analyzed the characteristics of the aforementioned materials as well as In₂O₃ in

Table 1. Performance comparison of TCO materials [11].

Materials	ZnO	SnO2	In2O3	TiO2
Mineral name	Zincite	Cassiterite	/	Anatase
Average metal amount in the Earth’s crust, ppm	132	40	0.1	4.1 × 103
Bandgap Eg (300 K), eV	3.4 (dir.)	3.6 (dir.)	2.7 (indir.) 3.75 (dir.)	3.2 (dir.)
Crystal structure	Hexagonal, wurtzite	Tetragonal, rutile	Cubic, bixbyite	Tetragonal, anatase
Space group (number)	P63mc (no. 186)	P42mnm (no. 136)	Ia$\overline{3}$ (no. 206)	I41/amd (no. 141)
Melting point, °C	1975	1620	1910	1843
Metal melting point, °C	420	232	157	1668
Densityρ, g cm−3	5.67	6.99	7.12	3.89
Cost	Middle	Middle	High	Low

.

Based on the data in Table 1 and the characteristics of SnO₂, the average content of its metallic constituent (tin) in the Earth’s crust is 40 ppm. Although this is lower than that of ZnO (132 ppm) and TiO₂ (4100 ppm), it is far more abundant than In₂O₃ (0.1 ppm). With a direct band gap of 3.6 eV at 300 K, SnO₂ is a wide-bandgap semiconductor, which endows it with excellent transparency in the visible light range while retaining semiconductor properties, making it suitable for optoelectronic device applications. It has a tetragonal rutile crystal structure with a space group of P4₂/mm (No. 136), a structure that imparts good physicochemical stability and strong weather resistance to the material. SnO₂ itself has a melting point of 1620 °C, much higher than that of metallic tin (232 °C), indicating good structural stability in high-temperature environments.

More importantly, SnO₂ can be mass-produced via chemical and physical methods with a high degree of process maturity. In the future, researchers will further advance the applications of SnO₂ by controlling doping elements, heterojunction structures, and grain sizes. Therefore, this paper selects SnO₂ as the research object and systematically reviews SnO₂ thin films in terms of their physical and chemical preparation methods as well as transparent conductive properties.

2. Structure of SnO₂

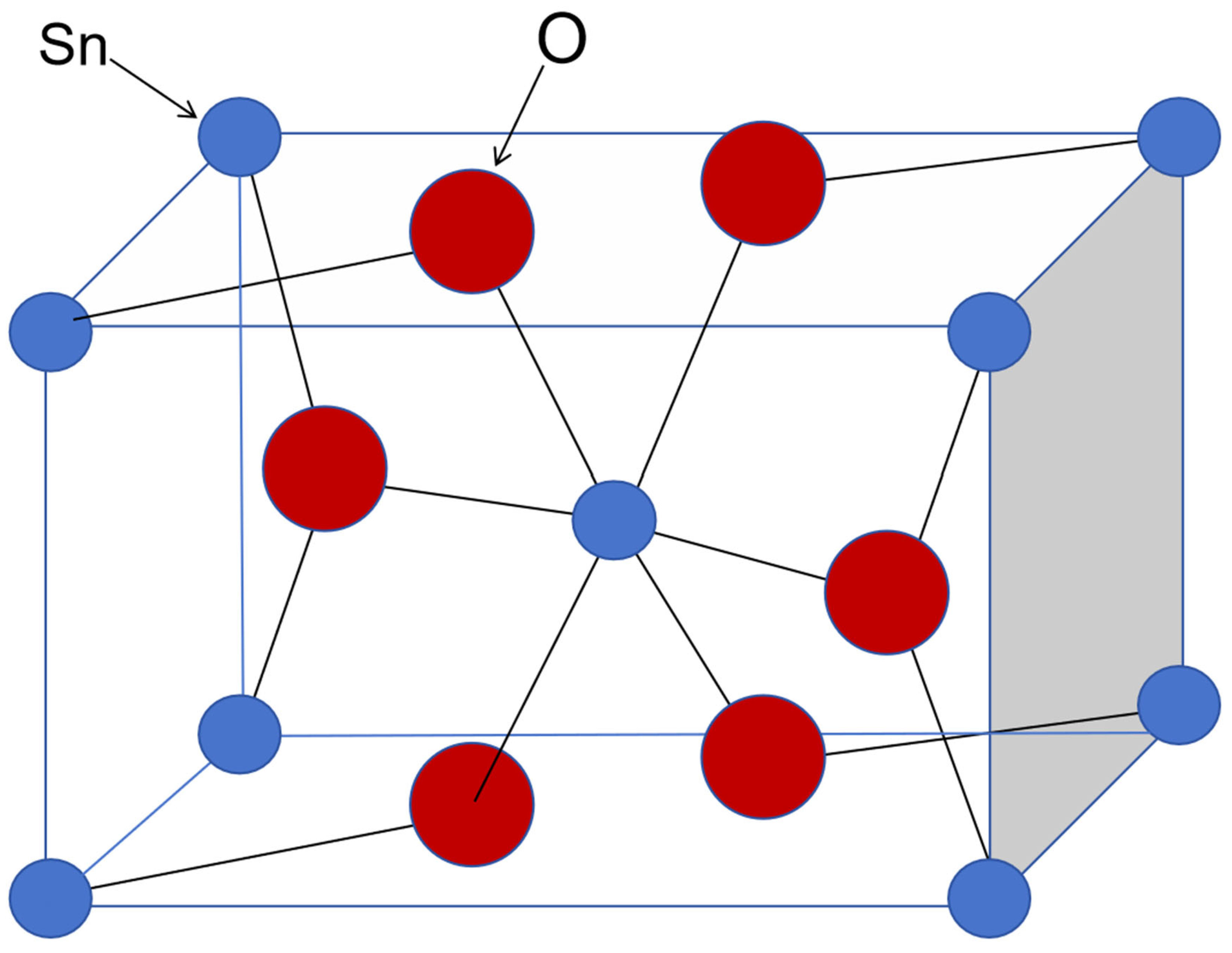

The high transparency of SnO₂ thin films in the visible light region and high reflectivity in the infrared region make them highly attractive as transparent thermally reflective materials [12]. Typically, SnO₂ thin films are n-type semiconductors with a wide band gap (the band gap of bulk materials at room temperature is 3.6 eV) and are known to have a tetragonal rutile structure [13,14], with a space group of P4₂/mnm. The unit cell contains 6 atoms, namely 2 tin atoms and 4 oxygen atoms, as shown in Figure 1. Each tin atom is located at the center of 6 oxygen atoms, which are approximately at the vertices of a regular octahedron; each oxygen atom is surrounded by 3 tin atoms, which are approximately at the vertices of an equilateral triangle [15].

This crystal structure endows SnO₂ thin films with unique physical and chemical properties. Owing to the tetragonal rutile structure of SnO₂, the interatomic bonding is strong, which imparts high hardness and excellent chemical stability to the films. This stability enables SnO₂ thin films to maintain their performance under various environmental conditions and remain less susceptible to external factors. Meanwhile, the wide band gap of SnO₂ thin films gives them high transparency in the visible light region and high reflectivity in the infrared region—characteristics that render SnO₂ thin films highly promising for applications in fields such as optical devices and thermally reflective coatings. In addition, the n-type semiconductor property of SnO₂ thin films also opens up possibilities for their use in electronic devices, such as transparent conductive electrodes.

3. Optoelectronic Properties of SnO₂ Transparent Conductive Thin Films

The electrical conductivity of SnO₂ thin films is mainly derived from free electrons within the films, which are primarily provided by oxygen vacancies and doping elements. The presence of oxygen vacancies leads to local charge imbalance in the films, thereby generating free electrons; these electrons can move freely under an electric field, endowing the films with electrical conductivity. Meanwhile, doping with other elements (e.g., fluorine (F), antimony (Sb), etc.) can further increase the concentration of free electrons in the films and enhance their electrical conductivity.

In terms of transparency, the wide band gap of SnO₂ thin films gives them high transmittance for visible light. When the photon energy is lower than the band gap energy, photons cannot be absorbed and thus can transmit through the films. This enables SnO₂ thin films to exhibit excellent transparency in the visible light region, making them suitable for optoelectronic devices that require transparent conductive electrodes.

In addition, the transparent conductive properties of SnO₂ thin films are also affected by factors such as preparation processes, film thickness, and surface morphology. Different preparation processes result in differences in the internal structure, defect states, and distribution of doping elements in the films, which in turn affect their transparent conductive performance.

3.1. Optical Properties of SnO₂

Film thickness and surface morphology also affect the scattering and absorption of light, thereby altering the transparency of the films. Therefore, when preparing SnO₂ transparent conductive films, these factors need to be comprehensively considered to obtain film materials with excellent performance. To calculate the direct band gap of the samples, the following formula was used [16]:

(αhν)² = A(hν − Eg)

(1)

where α, hν, and Eg represent the absorption coefficient, incident radiation energy, and optical band gap, respectively, and A is a constant. The band gap energy can be obtained by plotting the curve of (αhν)² versus hν and extrapolating the linear portion of the curve to the point where the energy is zero. The absorption coefficient α can be estimated by the following equation:

α = 2.303 × log₁₀(1/T)/t

(2)

where T is the optical transmittance of the film at a wavelength of 550 nm, and t is the thickness of the film. The transmission coefficient is calculated by the following formula:

T = (∫T(λ)V(λ)dλ)/(∫V(λ)dλ)

(3)

where V(λ) is the luminous spectral efficiency, and T(λ) is the measured transmittance of the film system.

3.2. Electrical Properties of SnO₂

Resistivity, a key indicator for evaluating the electrical conductivity of thin films, can be accurately measured by the four-probe method. Sheet resistance reflects the resistance characteristics of a thin film per unit area and is closely related to the film’s thickness and resistivity.

The resistivity ρ of each film was calculated using the following formula:

ρ = R_sh × t

(4)

where t denotes the thickness of the film. To evaluate the optoelectronic performance of transparent conductive films, the Haacke formula was used to determine the figure of merit (FOM), which is a combination of sheet resistance and optical transmittance [17].

ϕ = T/R_sh

(5)

where T and R_sh represent the transmittance at 550 nm and sheet resistance of each film, respectively. To characterize the carrier transport capability of transparent conductive films, the calculation of carrier concentration and carrier mobility is also essential.

ρ = 1/(nqμ)

(6)

where n is the carrier concentration, q is the elementary charge, and μ is the carrier mobility. The electrical conductivity σ of a material (the reciprocal of resistivity, σ = 1/ρ) is determined by the carrier transport capability, with the conductivity formula given as:

σ = nqμ

(7)

These formulas provide strong theoretical support for an in-depth understanding and optimization of the transparent conductive properties of SnO₂ thin films.

3.3. Physical Conduction Mechanism of SnO₂

Native oxygen vacancy (O_v) defects exist in pristine SnO₂. When oxygen atoms escape from the lattice, free electrons are generated (O_v → O_v⁺ + e⁻), endowing the film with intrinsic n-type conductivity. Doping serves as a crucial strategy to enhance the conductive performance of transparent conductive films, which enables the regulation of carrier concentration and defect structure by introducing dopants such as Sb and F. Taking Sb as an example, when Sb acts as a donor impurity, Sb³⁺ ions substitute for Sn⁴⁺ ions in the lattice. To maintain electrical neutrality, one free electron is released per substitution, thus significantly increasing the carrier concentration.

The electron transport process of SnO₂ transparent conductive films is jointly affected by intragranular scattering and grain boundary scattering. Intragranular scattering includes ionized impurity scattering and lattice vibration scattering. An increase in doping concentration introduces more ionized impurity centers, thereby enhancing intragranular scattering. Elevated temperatures intensify lattice vibration scattering, which in turn impacts the Hall mobility. At grain boundaries, the disordered atomic arrangement and high defect density form a “potential barrier region” for electron transport. Electrons have to overcome the potential barrier when crossing grain boundaries, resulting in hindered movement, namely grain boundary scattering. This is the dominant limiting factor for carrier mobility in nanocrystalline SnO₂ films.

To better explain the electrical conductivity of SnO₂, we need to introduce Matthiessen’s Rule:

1/μ_hall = 1/μ_opt + 1/μ_g.b.

(8)

In the formula, μ_hall refers to the Hall mobility, which we define as the total mobility. In contrast, μ_hall describes the total scattering intensity, namely the sum of intragranular scattering and grain boundary scattering. μ_opt denotes the optical mobility, where μ_opt is used to characterize intragranular scattering; μ_g.b. represents the grain boundary mobility, with 1/μ_g.b. specifically quantifying the effect of grain boundary scattering. The grain size increases with the rise in doping concentration, leading to a reduction in grain boundary scattering and a corresponding increase in grain boundary mobility. Although a higher doping concentration introduces more ionized impurity centers and thus enhances intragranular scattering, the negative impact is far outweighed by the positive effect of reduced grain boundary scattering.

When the carrier concentration reaches a sufficiently high level, SnO₂ enters a degenerate semiconductor state. A large number of electrons fill the empty states at the bottom of the conduction band, which shifts the Fermi level to a higher energy [18]. This results in a slight increase in the apparent band gap observed in optical experiments, a phenomenon known as the Burstein–Moss effect [19]. The magnitude of the Burstein–Moss effect (band gap widening ΔE_g) serves as a direct characterization of carrier concentration and band structure in the conduction mechanism:

ΔE_g = ℏ²(3π²N_opt)^2/3/(2m_eh)

(9)

m_eh is the reduced mass of electron–hole pairs, and N_opt is the optical carrier concentration. This effect leads to the “filling” of the conduction band, causing the motion states of electrons in the conduction band to deviate from the parabolic type (i.e., the non-parabolicity of the conduction band is enhanced), thereby affecting the effective mass of electrons.

m = m₀[1 + 2Pℏ²(3π²N_opt)^2/3/m₀]^1/2

(10)

m is the electron effective mass, while m₀ and P are the effective mass at the conduction band edge and the non-parabolicity parameter, respectively. In the physical conduction mechanism, m is the core parameter affecting carrier mobility.

μ = qτ/m

(11)

τ is the electron relaxation time. It can be seen that the variation in m induced by the Burstein–Moss effect is an important contributing factor to the “competition of scattering mechanisms” in the conduction mechanism.

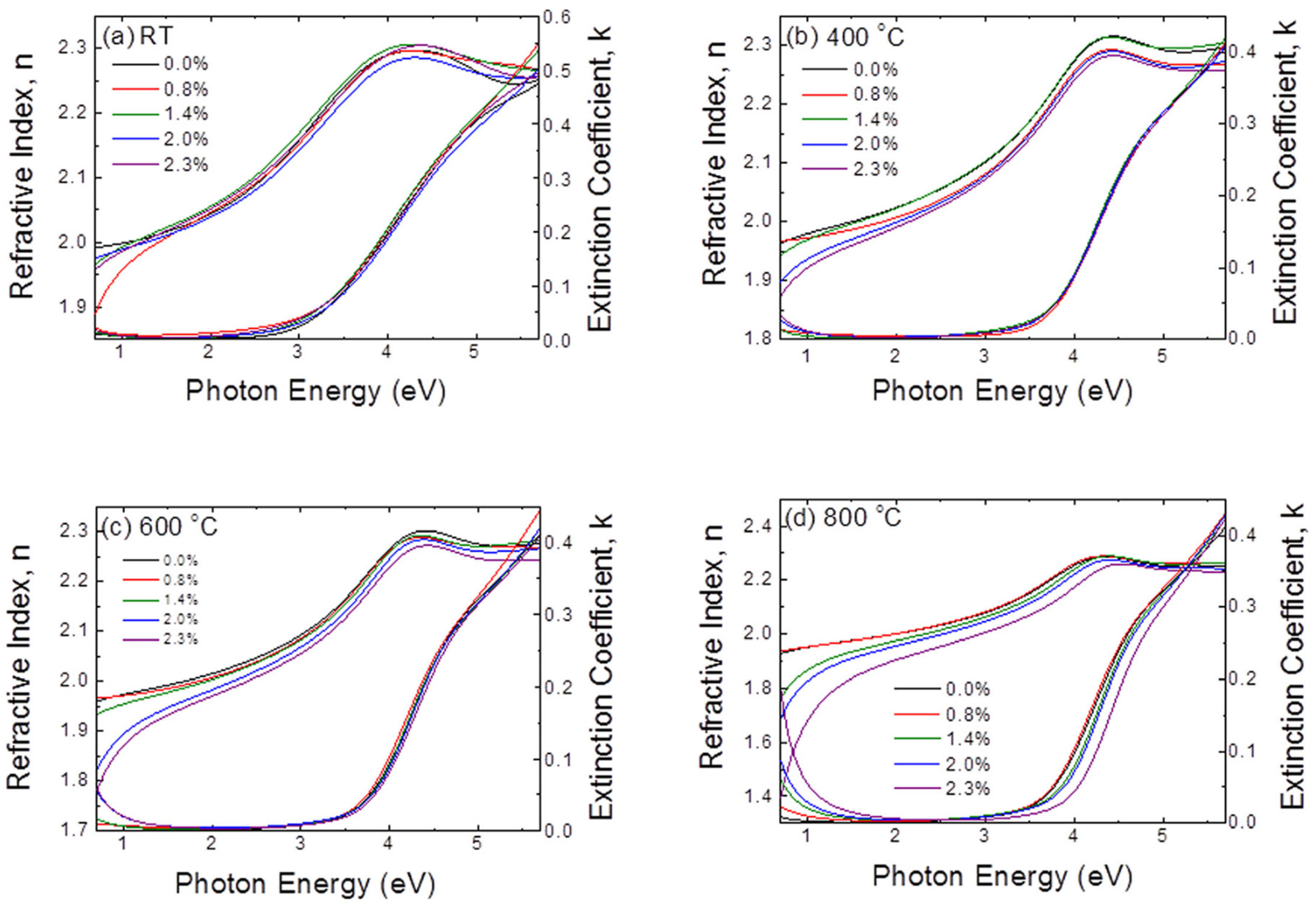

Hyeon Seob So et al. [20] systematically investigated the effects of the Burstein–Moss effect and temperature on the conductive properties of SnO₂ via Sb doping. It was found that an increase in Sb doping concentration widened the optical band gap due to the Burstein–Moss effect, increased the grain size from 5.7 nm to 7.8 nm, and elevated the effective mass from 0.245 m₀ to 0.4 m₀. The carrier concentration and mobility increased from 2.6 × 10¹⁹ cm⁻³ and 1.0 cm²/(V·s) to 2.0 × 10²⁰ cm⁻³ and 7.2 cm²/(V·s), respectively. The band diagrams under different temperatures and doping concentrations are shown in Figure 2.

4. Research Progress on SnO₂ Transparent Conductive Thin Films

As is well known, the fabrication of thin films is of great importance in modern micro- and nano-devices, as thin film materials can be easily assembled into complex structures to meet the requirements of different applications. For this reason, SnO₂ thin films have been extensively investigated and exhibit enormous potential in the miniaturization of optoelectronic, photovoltaic, and solar cell devices. In the subsequent sections, we will review the various physical and chemical methods employed by different researchers to fabricate SnO₂ thin films in the past, and discuss the relationship between these deposition methods and the optoelectronic properties of SnO₂ thin films.

Due to the significant heterogeneity in preparation processes and measurement conditions, direct horizontal comparison of the optoelectronic performance data of SnO₂-based transparent conductive films across different studies is fundamentally limited. Therefore, we will introduce an additional thickness normalization term, with 100 nm as the standard thickness, and the formula is as follows:

FOM_norm = T/R_sh(t/100)

(12)

FOM_norm is the thickness-normalized figure of merit, and t is the actual film thickness (nm), which enables the comparison of the comprehensive optoelectronic properties of films with different thicknesses. To eliminate the interference of thickness on the evaluation of conductive properties, the formula is introduced as follows:

ρ_norm = ρ × (t/100)

(13)

4.1. Research Progress on SnO₂ Transparent Conductive Thin Films Prepared by Magnetron Sputtering

In recent years, the mainstream physical methods for depositing SnO₂ transparent conductive films include magnetron sputtering, pulsed laser deposition (PLD), and atomic layer deposition (ALD)—all of which belong to physical vapor deposition (PVD).

PVD is a technology that converts solid material sources into a gaseous phase through physical processes (rather than chemical reactions) and then deposits the vapor onto substrate surfaces to form thin films; it is one of the core technologies in the field of thin film fabrication.

Magnetron sputtering, as the most widely used thin film deposition technique within PVD, operates on the core principle of bombarding the target surface with high-energy ions to sputter target atoms/molecules, which then deposit onto the substrate surface to form thin films. Compared with conventional sputtering, it introduces a magnetic field to constrain electron movement, significantly increasing the deposition rate and reducing substrate temperature rise. It is a mainstream industrial/research method for fabricating high-quality, large-area thin films with high adhesion, and is commonly used in the preparation of transparent conductive films such as SnO₂, ZnO, and TiO₂.

Based on the power supply mode and target type, magnetron sputtering is mainly classified into the following types: direct current (DC) magnetron sputtering, radio frequency (RF) magnetron sputtering, pulsed magnetron sputtering, and reactive magnetron sputtering.

Compared with other methods, magnetron sputtering enables large-area (e.g., coated glass, wafer-scale) and continuous production, and the uniformity of the prepared films is far superior to that of PLD and sol–gel methods. It is the only method that can simultaneously meet the needs of laboratory research and industrial mass production. Additionally, the films exhibit strong adhesion, high density, controllable oxygen vacancy concentration, uniform distribution of doping elements, and a stable resistivity in the range of 10⁻³~10⁻⁴ Ω·cm. Wissal Belayachi et al. [21] prepared undoped SnO₂ films at substrate temperatures ranging from 100 °C to 400 °C via RF magnetron sputtering technology, among which the films deposited at 100 °C exhibited the optimal performance. The undoped SnO₂ films showed a minimum resistivity of 4.45 × 10⁻³ Ω·cm, an average visible light transmittance of 83.6%, an optical band gap of 3.86 eV, a work function of 5.02 eV, and a FOM of 5.77 × 10⁻⁴ Ω⁻¹.

4.1.1. Multi-Structured SnO₂ Transparent Conductive Thin Films

In 1955, Gillham et al. proposed the oxide/metal/oxide (OMO) multilayer structure, which exhibits a transmittance of >80% and a low sheet resistance [22]. In addition, the OMO multilayer structure is thinner than traditional transparent conductive oxides, thus reducing the production cost. The sheet resistance of the OMO multilayer structure is lower than that of the single-layer structure. However, when the thickness of the metal layer increases, the transmittance decreases due to reflection and absorption, i.e., there exists a trade-off between optical transmittance and electrical conductivity [12]. Therefore, it is crucial to determine the optimal thickness of the metal layer.

In 2020, Min-Ho Hwang et al. [23] sputtered SnO₂/Ag-Ni/SnO₂ multilayer films with different Ni contents on quartz and p-type Si substrates using a magnetron sputtering system, where the metal layer was deposited via an RF and DC magnetron co-sputtering system. The FOM of the as-deposited SnO₂/Ag/SnO₂ multilayer structure was 14.5 × 10³ Ω⁻¹, and it decreased with the increase in annealing temperature. However, the FOM of the SnO₂/Ag–Ni/SnO₂ multilayer structure increased when the annealing temperature was raised to 550 °C. The highest FOM value of 23.8 × 10³ Ω⁻¹ was achieved for the SnO₂/Ag–Ni (3.2 at%)/SnO₂ multilayer structure annealed at 550 °C. The Ag-Ni (3.2 at%) multilayer films annealed at 550 °C exhibited a maximum transmittance of 83% in the wavelength range of 400–700 nm.

In 2020, Shahidi et al. [24] fabricated SnO₂/Ag/SnO₂ multilayer structures with different Ag layer thicknesses (15 nm, 25 nm) on glass substrates using a dual-target RF/DC magnetron sputtering system. They comparatively investigated the effects of glancing angle deposition (GLAD) technology (substrate tilted at 75°) and normal deposition on the performance of the structures. The results showed that GLAD technology could significantly enhance the transmission coefficient and FOM in the visible light region. For the sample with a 15 nm Ag layer, the transmission coefficient increased from 86.40% to 88.19%, and its FOM increased from 1.38 × 10⁻² Ω⁻¹ to 2.46 × 10⁻² Ω⁻¹. The sample with a 25 nm Ag layer exhibited a minimum sheet resistance of 5.19 Ω/□.

In 2021, Wang et al. [25] successfully prepared SnO₂/Ag/SnO₂ three-layer transparent conductive films on float glass via magnetron sputtering technology. The total thickness of the films was only 120 nm, much lower than that of commercial fluorine-doped tin oxide (FTO). These films demonstrated excellent optoelectronic properties: visible light transmittance of 85.0%, sheet resistance of 6.71 Ω/□, carrier concentration of 8.28 × 10²¹ cm⁻³, and resistivity of 7.38 × 10⁻⁵ Ω·cm. After annealing optimization, single-step annealing at 200 °C yielded the optimal film performance: sheet resistance of 5.92 Ω/□, visible light transmittance of 87.0%, carrier concentration of 8.32 × 10²¹ cm⁻³, and mobility of 13.51 cm²/(V·s).

4.1.2. Doped SnO₂ Transparent Conductive Thin Films

Nguyen Thi Kim Chung et al. [26] prepared Zn-doped SnO₂(ZTO) and Zn-N co-doped SnO₂ (ZNTO) films on quartz/Si substrates via direct current (DC) magnetron sputtering. Among these films, the ZNTO-8 film with 8 wt% ZnO doping exhibited the best comprehensive performance, featuring a visible light transmittance of over 85%, a minimum resistivity of 6.3 × 10⁻³ Ω·cm, a hole mobility of 7.66 cm²/(V·s), a hole concentration of 1.3 × 10²⁰ cm⁻³, and a band gap of 3.92 eV. This study represents an emerging exploration in the field of p-type SnO₂: the synergistic effect of Zn and N is employed to suppress charge compensation, endowing the films with p-type conductive characteristics and thus providing a new strategy for breaking through the bottleneck of p-type conductivity. However, it should be clarified that this study is only an exploratory attempt for p-type SnO₂. Its technological maturity, stability, and repeatability still require further verification. There exists an essential distinction between this approach and the mature application of standard n-type SnO₂, and these two should not be regarded as equally mature technical routes for transparent conductive oxides.

Wenbo Gong et al. [27] prepared ITO films by pulsed DC magnetron sputtering, using rotationally sintered ceramic targets of In₂O₃ doped with 3 wt% and 5 wt% Sb as raw materials, under an argon-oxygen atmosphere (O₂ content: 0%–4%) and a substrate temperature of 150 °C. The ITO film doped with 3 wt% Sb achieved a maximum Hall mobility of 32.2 cm²/(V·s), while the film doped with 5 wt% Sb had a minimum resistivity of 4.5 × 10⁻⁴ Ω·cm. All films exhibited an average transmittance of over 88% in the wavelength range of 400–1100 nm. B.L. Zhu et al. [28] prepared antimony-doped tin dioxide (ATO) films at different RF powers (PRF) under two oxygen flow rates (FO₂) via magnetron sputtering, followed by rapid thermal annealing (RTA) treatment. After RTA treatment, the crystallinity of the films was significantly improved, the compressive stress was converted to tensile stress, and no significant changes were observed in the surface morphology. Meanwhile, their electrical conductivity was enhanced remarkably, and the band gap increased significantly. The ATO films exhibited a visible light transmittance of 76.35%–80.86%, a sheet resistance of 51.7–91.9 Ω/□, and a FOM of 1.03–1.67 × 10⁻³ Ω⁻¹.

4.2. Research Progress on SnO₂ Transparent Conductive Thin Films Prepared by Pulsed Laser Deposition

Pulsed Laser Deposition (PLD) is an important branch of Physical Vapor Deposition (PVD). Its core principle is to use high-energy pulsed laser beams to focus and bombard the target surface, causing the target to undergo instantaneous melting, vaporization, and even plasma formation (ablation); the plasma plume is then transported toward the substrate and deposited to form thin films. This deposition technology has been widely applied to various oxides, nitrides, and carbides, and is also used for fabricating metal systems, even polymers or fullerenes [29].

Compared with other methods for preparing SnO₂ transparent conductive films, PLD technology has the advantages of precise doping element ratio, extremely high crystallinity, and a defect density from 10¹⁶ cm⁻³ to 10¹⁹ cm⁻³, making it the optimal method for investigating doping mechanisms and grain boundary effects. It can be used to fabricate SnO₂ films with high-entropy doping and multilayer heterostructures, which are suitable for novel optoelectronic devices. However, its disadvantages—such as poor large-area uniformity of the films and a low deposition rate of only 0.1–1 nm/min—prevent it from being adapted for industrial continuous production.

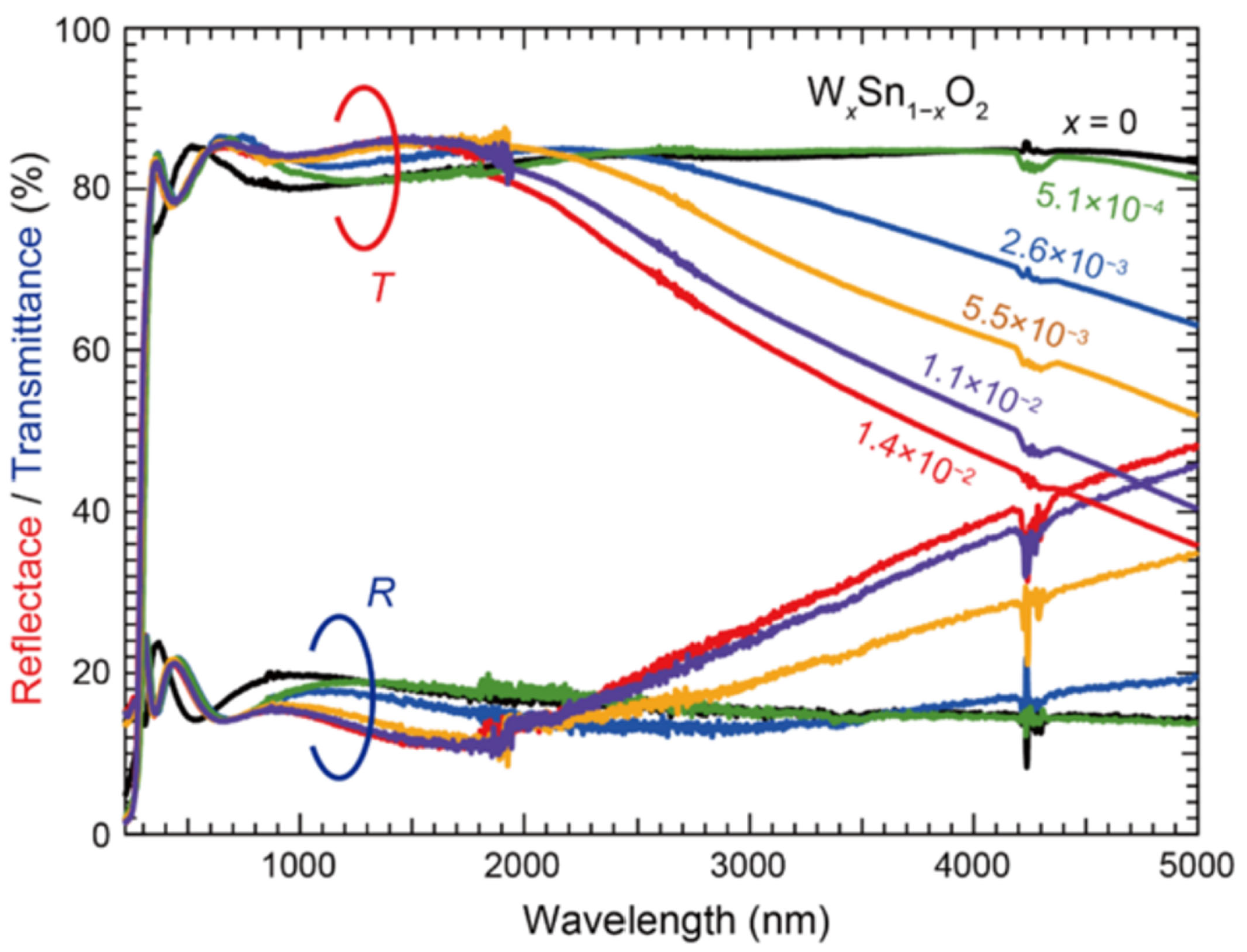

In 2022, Michitaka Fukumoto et al. [30] fabricated W-doped SnO₂ (WTO) epitaxial films on TiO₂ (001)/Al₂O₃(10_10) substrates via PLD technology. The optimal WTO film (W content x = 1.4 × 10⁻²) exhibited a Hall mobility of 136 cm²/(V·s), a carrier concentration of 2.1 × 10²⁰ cm⁻³, and a sheet resistance of 13.0 Ω/□, with excellent transmittance in the wavelength range of 300–2000 nm as shown in Figure 3.

In 2023, Harisha Kumar K et al. [31] successfully fabricated cadmium (Cd)-doped tin oxide (Cd:SnO₂, CTO) transparent conductive films with different Cd doping concentrations on glass substrates via PLD technology, and systematically analyzed their structural, optical, and electrical properties. Among them, the film doped with 3 wt% Cd exhibited the optimal performance: it had the lowest sheet resistance (300.9 Ω/□) and resistivity (2.04 × 10⁻³ Ω·cm), a transmittance of over 80% in the visible and near-infrared regions, and an optical band gap ranging from 3.40 to 3.49 eV. The film possessed a tetragonal rutile structure (with lattice parameters a = 4.742 Å and c = 3.177 Å), and with the increase in Cd doping concentration, the surface roughness decreased while the grain size increased.

4.3. Research Progress on SnO₂ Transparent Conductive Thin Films Prepared by Atomic Layer Deposition

ALD is a vapor-phase thin film deposition technology based on self-limiting surface reactions. Its core principle is to alternately introduce precursors into the reaction chamber in the form of pulses, enabling precise growth of thin films through layer-by-layer, atomic/molecular-level surface chemical reactions. Between each precursor pulse, the reaction chamber is purged with an inert gas. By appropriately adjusting the experimental conditions, this process can be carried out via saturated steps. Under such conditions, the growth process is stable, and the thickness increment per deposition cycle remains constant. This self-limiting growth mechanism facilitates the growth of conformal films with precise thickness over large areas [32]. The growth of different multilayer structures is also relatively straightforward [33]. These advantages make the ALD method highly attractive in the microelectronics field, and it can be used to fabricate next-generation integrated circuits [34].

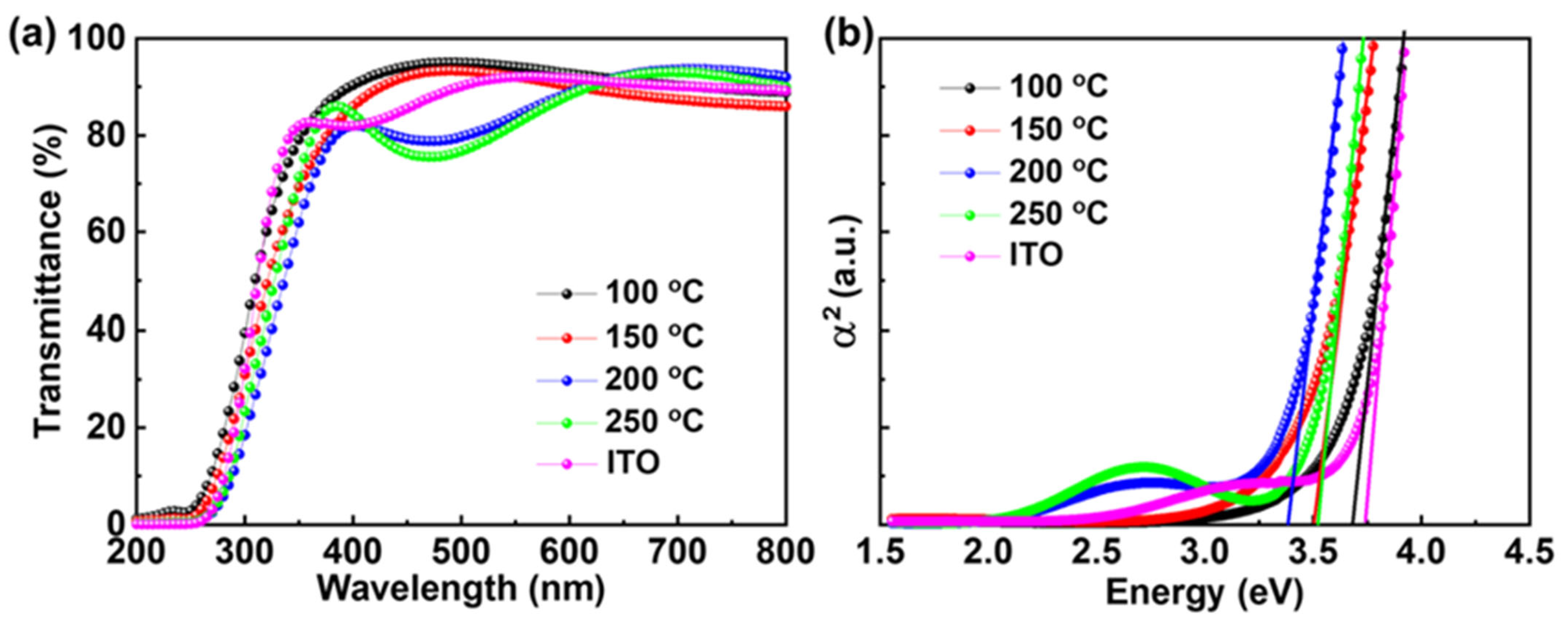

Jung-Hoon Lee et al. [35] fabricated undoped SnO₂ transparent conductive electrodes (TCEs) via low-temperature ALD technology. At a deposition temperature of 250 °C, the SnO₂ films exhibited a sheet resistance of 98 Ω/□, a resistivity as low as 1.6 × 10⁻³ Ω·cm, a carrier concentration of 7.3 × 10²⁰ cm⁻³, and a carrier mobility of 5.3 cm²/(V·s). The transmittance and Tauc plots of SnO₂ films at different deposition temperatures are shown in Figure 4.

Umme Farva et al. [36] successfully deposited low-temperature, high-quality SnO₂ films via ALD using tetrakis (dimethylamino) tin (TDMASn) and ozone plasma as precursors. With the increase in deposition temperature, the optical band gap energy of the SnO₂ films decreased from 3.4 eV to 3.1 eV. At a relatively low deposition temperature of 115 °C, the obtained films exhibited a high resistivity of 7.3 × 10² Ω·cm; in contrast, at a higher growth temperature of 200 °C, nearly impurity-free films with low resistivity (8.9 × 10⁻⁴ Ω·cm) were achieved, along with a high carrier concentration (1.4 × 10²¹ cm⁻³) and a mobility of 12.5 cm²/(V·s). The prepared films exhibited an optical transmittance of 81%–97% in the visible light region at all growth temperatures.

Gyeong Ryul Lee et al. [37] prepared SnO_2−x films via thermal ALD using water (H₂O) as the reactant. For the 18 nm-thick n-type SnO_2−x films, the mobility reached 21.55 cm²/(V·s) and the carrier concentration reached 3.3 × 10¹⁹ cm⁻³. However, the study also found that the mobility of SnO_2−x films annealed in nitrogen decreased to approximately 50% of the initial value after being placed in a humid environment for 2–3 days.

Liangge Xu et al. [38] prepared tin oxide (SnO_x) films at 250 °C by ALD combined with layer-by-layer argon plasma treatment. After plasma treatment, the Hall mobility of the tin oxide films decreased from 18.25 cm²/(V·s) to 12.06 cm²/(V·s), the sheet resistance was 139.6 Ω/□, the carrier concentration increased from 5.12 × 10²⁰ cm⁻³ to 4.425 × 10²⁰ cm⁻³, and the resistivity was 1.117 × 10⁻³ Ω·cm. The tin oxide films maintained good optical transparency over a broad wavelength range from 400 nm to 2500 nm, with a visible light transmittance of over 82.3%.

4.3.1. Multi-Structured SnO₂ Transparent Conductive Films

Hyunwoo Park et al. [39] fabricated SnO₂/Au/SnO₂ multilayer structures via ALD by depositing upper and lower SnO₂ film layers with a thickness of 20 nm each, combined with inserting a Au intermediate layer of 3~12 nm thickness via electron beam evaporation. With the increase in Au thickness, the carrier concentration increased from 1.99 × 1020 cm⁻³ to 2.37 × 10²² cm⁻³, the Hall mobility increased from 1.26 cm²/(V·s) to 11.96 cm²/(V·s), and the resistivity decreased from 2.49 × 10⁻² Ω·cm to 2.21 × 10⁻⁵ Ω·cm. The sample with a 6 nm Au layer achieved a transmittance of 82.7% at 550 nm.

Namgue Lee et al. [40] applied the synergistic effect of microwave (MW) radiation and gold nanoparticles (NPs) to SnO₂ films grown via ALD. For the SnO₂ films with gold nanoparticles added during microwave radiation, their carrier concentration, Hall mobility, and resistivity were 1.45 × 10²² cm⁻³, 5.4 cm²/(V·s), and 7.93 × 10⁻⁵ Ω·cm, respectively. These electrical properties were significantly enhanced compared with the as-deposited SnO₂ films. The optical transmittance of SnO₂ films with Au NPs after microwave irradiation was 70.0%.

4.3.2. Doped SnO₂ Transparent Conductive Films

Jangho Bae et al. [41] doped aluminum (Al) at three different positions (bottom, middle, and top) of SnO₂ films via super-cycle ALD technology. Al doping at the middle position most significantly reduced the carrier concentration, which was as low as 1.31 × 10²⁰ cm⁻³.

4.4. Research Progress on SnO₂ Transparent Conductive Thin Films Prepared by Spray Pyrolysis

Chemical methods [42,43,44,45,46] are low-cost and easy-to-operate routes for preparing SnO₂ transparent conductive films, which do not require vacuum equipment. Their core principle is to realize film formation through the conversion of liquid-phase precursors, with the mainstream methods including spray pyrolysis, sol–gel method, and others.

Spray pyrolysis is characterized by one-step film formation, a high deposition rate (on the order of μm/h), and the ability to prepare large-area films [47,48]. It does not require a vacuum, and the equipment cost is only 1/10 that of magnetron sputtering and PLD. Its core principle is to atomize a solution containing tin precursors and doping salts into microdroplets, which are sprayed onto a preheated substrate via a carrier gas (e.g., N₂); the droplets directly form SnO₂ films through solvent evaporation, thermal decomposition, and oxidation reactions [49].G. Kiruthiga et al. [50] prepared SnO₂ TCO films with molar concentrations ranging from 0.1 M to 0.5 M via nebulized spray pyrolysis technology at a deposition temperature of 350 ± 10 °C. After annealing some of the samples at 300 °C for 3 h, the crystallinity and grain size of the films were significantly improved (e.g., the grain size of the 0.1 M sample increased from 74.83 nm to 85.36 nm), the optical band gap increased from 3.71 eV to 3.75 eV, and the transmittance in the visible light region (400–800 nm) was approximately 70%. Taking the 0.5 M concentration as an example, the resistivity was 3.65 × 10⁻³ Ω·cm, the carrier mobility was 83.65 cm²/(V·s), and the carrier concentration was 1.91 × 10¹⁹ cm⁻³.

4.4.1. Sb Doped SnO₂ Transparent Conductive Thin Films

Nandarapu Purushotham Reddy et al. [51] prepared 5 wt% ATO films on glass substrates via a low-cost spray pyrolysis method. The ATO films maintained a tetragonal rutile phase (JCPDS 41-1445). Optically, the transmittance at 550 nm reached 80%, and the optical band gap decreased from 3.87 eV (pure SnO₂) to 3.82 eV. Electrically, the ATO films exhibited a sheet resistance as low as 12.18 Ω/□, a resistivity of 6.09 × 10⁻⁴ Ω·cm, a carrier concentration of 6.20 × 10²⁰ cm⁻³, a mobility of 16.49 cm²/(V·s), and a FOM of 8.23 × 10⁻³ Ω⁻¹.

R. Ramarajan et al. [52] deposited highly conductive barium (Ba) and Sb co-doped SnO₂ films on glass via an economical and efficient spray pyrolysis method. The film co-doped with 2 wt% Ba and 5 wt% Sb (BATO2) exhibited a relatively high average transmittance of approximately 85% in the visible light region, with an estimated direct band gap value of 3.71 eV. The BATO2 film also showed a relatively low resistivity (4.415 × 10⁻⁴ Ω·cm) and sheet resistance (23.14 Ω/□). The carrier concentration of the BATO2 film was 47.3 × 10²⁰ cm⁻³, the carrier mobility was 22.20 cm²/(V·s), and the FOM was 1.05 × 10⁻² Ω⁻¹. Compared with films with other doping concentrations, it possessed superior optoelectronic properties.

Md. Faruk Hossain et al. [53] prepared pure SnO₂ and ATO films with Sb doping concentrations of 5% and 10% on glass substrates at 400 °C via low-cost nebulized spray pyrolysis. The average visible light transmittance of pure SnO₂ was over 85%, which decreased to above 73% after Sb doping. Sb doping reduced the resistivity from 1.61 × 10⁻³ Ω·cm to 3.92 × 10⁻⁴ Ω·cm, increased the carrier concentration from 8.30 × 10¹⁹ cm⁻³ to 7.02 × 10²¹ cm⁻³, but decreased the mobility from 54.74 cm²/(V·s) to 2.26 cm²/(V·s). The sheet resistance decreased from 134.41 Ω/□ to 32.73 Ω/□. Ultimately, the film doped with 5% Sb achieved the highest FOM of 1.38 × 10⁻³ Ω⁻¹, while the FOM decreased at 10% Sb doping due to the reduction in transmittance.

D. Paul Joseph et al. [54] prepared undoped SnO₂, 5 wt% Sb-doped SnO₂, and SnO₂ films co-doped with 5 wt% Sb and different Li concentrations (1, 3, 5 wt%) (LATO1, LATO3, LATO5) on glass substrates via spray pyrolysis, and systematically investigated the effect of Li-Sb co-doping on their properties. All films were polycrystalline tetragonal SnO₂. The LATO5 film exhibited an average transmittance of 87.9% at 550 nm and a direct optical band gap of 4.06 eV; electrically, the LATO5 film showed the optimal performance: a carrier concentration of 7.54 × 10²⁰ cm⁻³, a mobility of 7.221 cm²/(V·s), a resistivity as low as 1.57 × 10⁻³ Ω·cm, and a sheet resistance of 32.38 Ω/□. Additionally, the FOM of the LATO5 film reached 8.56 × 10⁻³ Ω⁻¹. Li-Sb co-doped SnO₂ films are potential alternative materials for transparent conductive electrodes.

4.4.2. F Doped SnO₂ Transparent Conductive Thin Films

Roy G. Gordon [55] systematically reviewed the selection criteria and applications of transparent conductors, with a focus on comparing the physicochemical properties of various materials. Among these, fluorine-doped SnO₂ films prepared by spray pyrolysis exhibit low production cost, high optoelectronic performance, as well as excellent chemical and mechanical durability. The films feature a sheet resistance of 8 Ω/□, a FOM of 3 Ω⁻¹, and a resistivity of 200 Ω·cm. This work has laid a foundation for subsequent research on SnO₂-based transparent conductive films.

Adithya Nath R et al. [56] prepared highly a-axis-oriented FTO films on glass substrates via a low-cost spray pyrolysis method. The results showed that a molar concentration of 1.2 M (sample FM3) was the optimal doping condition, and the corresponding films exhibited the best performance: a tetragonal rutile structure, a grain size of 47.90 nm, a resistivity of 0.47 × 10⁻³ Ω·cm, a carrier concentration of 71.32 × 10¹⁹ cm⁻³, a mobility of 31.06 cm²/(V·s), and a sheet resistance of 266 Ω/□.

When preparing FTO films via ultrasonic spray pyrolysis, Myeong-Hun Jo et al. [57] innovatively introduced NaOH as a functional additive (without the need for additional NH₄F). The chemical reaction between NaOH and HF accelerated F⁻ dissociation, thereby increasing the F doping concentration. The results showed that 5 vol% NaOH (5NaOH-FTO) was the optimal additive dosage. Under this condition, the FTO film exhibited an F doping concentration of 3.57 at%, a carrier concentration increased to 7.81 × 10²⁰ cm⁻³, a Hall mobility of 27.18 cm²/(V·s), a sheet resistance reduced to 5.3 ± 0.16 Ω/□, and a resistivity of 2.94 Ω·cm.

P. Karthick et al. [58] prepared FTO films at a substrate temperature of 350 °C via atomized spray pyrolysis, using HF as the fluorine source and SnCl₂·2H₂O as the tin source. The F doping concentration reached 6.1 at%, the maximum visible light transmittance was 81%, the minimum room-temperature resistivity was 9.0 × 10⁻⁴ Ω·cm, the carrier concentration was 7.34 × 10²⁰ cm⁻³, and the Hall mobility was 11.8 cm²/(V·s).

Indrajit Mondal et al. [59] fabricated Al/SnO₂ hybrid transparent conductive electrodes via crack template method combined with spray pyrolysis, and obtained Al/F-SnO₂ electrodes through fluorination with Selectfluor solution. The electrode adopted an Al mesh with a line width of 10 μm as the conductive framework, and 200 nm-thick SnO₂ was spray-deposited to fill the non-conductive regions; an FTO-like surface was formed after fluorination. It exhibited excellent core properties: a transmittance of ~83% at 550 nm, a sheet resistance of 5.5 Ω/□, a resistivity of 2.8 × 10⁻⁵ Ω·cm, and high-temperature stability up to 500 °C.

4.4.3. Other Elements Doped SnO₂ Transparent Conductive Films

R. Ramarajan et al. [60] further deposited niobium-doped tin oxide (NTO) films on large-area (10 × 10 cm²) glass substrates via a facile chemical spray pyrolysis technique. The films achieved an average visible light transmittance of 75%, a room-temperature carrier concentration of 9.33 × 10¹⁹ cm⁻³, a mobility of 39.4 cm²/(V·s), a resistivity of 1.69 × 10⁻³ Ω·cm, and a minimum sheet resistance of 26.5 Ω/□ in the central region.

This group also [61] prepared 4 wt% tantalum (Ta)-doped SnO₂ (TTO) films on 10 × 10 cm² glass substrates via chemical spray pyrolysis. The films exhibited a visible light transmittance of 81% at 550 nm and a band gap of 3.77 eV; they also showed outstanding electrical properties: a room-temperature carrier concentration of 5.42 × 10²¹ cm⁻³, a mobility of 41.7 cm²/(V·s), a resistivity of 4.55 × 10⁻⁴ Ω·cm, a sheet resistance of 26 Ω/□, and FOM of 6.15 × 10⁻³ Ω⁻¹.

E. R. Mawarnis et al. [62] prepared SnO₂ films with different aluminum (Al) doping concentrations (0, 3, 5, 7, 10 wt%) on glass substrates via ultrasonic spray pyrolysis, and applied them to transparent thin-film heaters (TTFH). It was found that 5 wt% Al doping was the optimal concentration, under which the films exhibited the best performance: a visible light transmittance of 87% at 550 nm, a resistivity as low as 3.54 × 10⁻⁴ Ω·cm, and a maximum FOM of 54.5 × 10⁻³ Ω⁻¹.

Ramarajan Ramanathan et al. [63] prepared Ag-doped SnO₂ (ASO) films with different Ag doping concentrations (0, 0.1, 0.2, 0.3, 0.4, 0.5 wt%) via spray pyrolysis, aiming to develop indium-free n-type TCOs to replace ITO/FTO electrodes for application in dye-sensitized solar cells. It was found that 0.4 wt% (ASO4) was the optimal concentration, and the films exhibited excellent performance: a visible light transmittance of 88.7%, a band gap of 3.73 eV, a resistivity as low as 2.26 × 10⁻⁴ Ω·cm, a sheet resistance of 18.6 Ω/□, and stable resistance at 400 °C.

4.5. Research Progress on SnO₂ Transparent Conductive Thin Films Prepared by Sol–Gel Method

Sol–gel technology has been developed over the past 50 years as an alternative method for preparing glasses and ceramics at significantly lower temperatures. The initial system is a solution in which various polymerization and polycondensation processes gradually form a solid-phase network. The formed sol first undergoes a series of operations: gelation, drying, pressing, drawing, and casting, which result in various structural and phase transformations. This enables the formation of powders, fibers, coatings, bulk monolithic products, etc., from the same initial composition [64]. Various reactions that affect the composition and structure of xerogels occur at each stage of the sol–gel process. Studies have shown that the core of the sol–gel method is to prepare a homogeneous sol from precursors and convert it into a gel. Subsequently, the solvent in the gel is removed from the gel structure, and the remaining gel is dried.

Among various synthetic methods for preparing tin oxide, the sol–gel method has numerous advantages over other methods. In addition, this method is characterized by reduced processing temperature, better uniformity, controllable stoichiometry, and ease of forming dense bulk materials, thin films, or nanoparticles [65].

Different Elements Doped SnO₂ Transparent Conductive Thin Films

Sivakumar et al. [66] prepared pure SnO₂ and Ga-doped SnO₂ (GTO) films with 1, 3, and 5 at% Ga concentrations on glass substrates via the sol–gel spin-coating method, and systematically investigated the effect of Ga doping on their properties. Ga doping caused the visible light transmittance to decrease from 85% to 74% and the band gap to narrow from 3.92 eV to 3.68 eV. In terms of electrical properties, Ga doping increased the sheet resistance from 62.8 Ω/□ to 76.2 Ω/□ and the resistivity from 2.63 × 10⁻³ Ω·cm to 3.2 × 10⁻³ Ω·cm. The pure SnO₂ film exhibited the best comprehensive optoelectronic properties, with FOM of 3.3 × 10⁻³ Ω⁻¹, while the 5 at% Ga-doped sample had the lowest FOM of 0.7 × 10⁻³ Ω⁻¹. Although Ga doping can regulate the properties of SnO₂, pure SnO₂ is more suitable for the requirements of optoelectronic devices.

This group also [67] prepared undoped SnO₂ films and SnO₂ films with Ti doping concentrations of 1–5 at% on glass substrates via the sol–gel spin-coating method. All films possessed a polycrystalline tetragonal rutile structure with the main orientation along the (110) direction; Ti doping enhanced the (211) orientation and reduced the grain size from 28.33 nm to 10.62 nm. The average visible light transmittance of undoped SnO₂ was over 85%, which decreased to 77% for the 5 at% Ti-doped sample, and the optical band gap decreased from 3.91 eV to 3.73 eV. When the Ti doping concentration reached 3 at%, the sheet resistance and resistivity decreased to the minimum values of 38.6 Ω/□ and 1.62 × 10⁻³ Ω·cm, respectively. The 2 at% Ti-doped SnO₂ film achieved the highest FOM (3.66 × 10⁻³ Ω⁻¹).

Harish Sharma Akkera et al. [68] prepared pure SnO₂ and Bi-doped SnO₂ (Bi:SnO₂) TCO films with different bismuth (Bi) doping concentrations on glass substrates via the sol–gel spin-coating method. The results showed that all films exhibited a polycrystalline tetragonal rutile structure with the (110) crystal plane as the preferred orientation; with the increase in Bi doping concentration, the grain size and crystallinity decreased, while the lattice parameters and dislocation density increased. Optically, all films had an average transmittance of over 76% in the visible light region, and the optical band gap energy reached a maximum value of 4.22 eV at 3 at% Bi doping. In terms of electrical properties, the 3 at% Bi-doped film exhibited the lowest sheet resistance (38.8 Ω/□) and resistivity (1.62 × 10⁻³ Ω·cm). And then, they [69] prepared pure SnO₂ and Sm³⁺:SnO₂ transparent conductive oxide films with different samarium (Sm) doping concentrations (1, 2, 3, 4, 5 at%) on glass substrates via the sol–gel spin-coating method, and systematically characterized their structural, optical, and electrical properties. With the increase in Sm doping concentration, the crystallite size decreased from 13.6 nm to 6.6 nm, the grain size reduced from 54 nm to 16 nm, and the surface roughness increased to 20.4 nm. Optically, the visible light transmittance of pure SnO₂ reached 86%, which decreased to 77% (5 at% Sm doping) after Sm doping, and the optical band gap reached a maximum value of 4.23 eV at 3 at% Sm doping. In terms of electrical properties, the 3 at% Sm-doped film exhibited the lowest sheet resistance (36.2 Ω/□) and resistivity (1.73 × 10⁻³ Ω·cm), with FOM of 2.45 × 10⁻³ Ω⁻¹.

Vedaste Uwihoreye et al. [70] prepared a series of tantalum-doped tin dioxide films (Sn_1−xTa_xO₂, x = 0.001, 0.01, 0.02, 0.03) via a low-cost sol–gel spin-coating method. Among them, the Sn_0.98Ta_0.02O₂ film exhibited the highest conductivity of 855 S/cm and a resistivity of 1.17 × 10⁻³ Ω·cm, with a carrier concentration of 2.3 × 10²⁰ cm⁻³ and a mobility as high as 23 cm²/(V·s). This series of films showed extremely high optical transparency of 89.5% in the visible light region. The optical band gap of the films increased from 3.96 eV (pure tin dioxide) to 4.24 eV (Sn_0.98Ta_0.02O₂ film).

Harish Sharma Akkera et al. [71] grew pure and strontium (Sr)-doped SnO₂ films on glass substrates via sol–gel spin-coating technology. The Sr-doped SnO₂ films exhibited an optical transmittance of over 76% in the visible light region. The optical Eg of the pure SnO₂ film was 3.89 eV, while the band gap energy decreased with the increase in Sr doping concentration, with the minimum band gap of 3.78 eV obtained in the 5 at% Sr:SnO₂ film. The minimum sheet resistance of 32 Ω/□ and FOM of 3.8 × 10⁻³ Ω⁻¹ were observed in the 3 at% Sr:SnO₂ film.

In 2025, Wang et al. [72] proposed a novel sol–gel evaporation method to prepare ATO transparent conductive electrodes under atmospheric pressure without vacuum conditions. By optimizing the Sb doping content to 5 at%, heating temperature to 500 °C, and holding time to 30 min, the prepared ATO films exhibited a visible light transmittance of >80%, a sheet resistance as low as 12 Ω/□, a resistivity of 3.22 × 10⁻⁴ Ω·cm, a carrier concentration of 1.79 × 10²¹ cm⁻³, a mobility of 10.84 cm²/(V·s), and FOM of 1.14 × 10⁻² Ω⁻¹.

The

Table 2. Optoelectronic characteristic parameters of SnO₂ transparent conductive films by different methods.

Materials	Methods	Transmittance (%)	Sheet Resistance (Ω/□)	ρ (Ω·cm)	ρnorm (Ω·cm)	n (cm−3)	μ [cm2/(V·s)]	FOM (Ω−1)	FOMnorm (Ω−1)	Thickness (nm)	Ref.
SnO2	RF magnetron sputtering	83.6 (Vis-avg)	23.14	6.90 × 10−3	2.94 × 10−3	6.78 × 1019	20.7	10.5 × 10−3	16.28 × 10−3	155	[21]
SnO2/Ag–Ni/SnO2	RF/DC magnetron sputtering	83 (Vis-avg)	11.5	1.5 × 10−1	1.11 × 10−1	/	/	23.8 × 10−3	17.6 × 10−3	74	[23]
SnO2/Ag/ SnO2	RF/DC magnetron sputtering	Over 88 (550 nm)	5.19	/	/	/	/	13.8 × 10−3	24.15 × 10−3	175	[24]
SnO2/Ag/ SnO2	RF/DC magnetron sputtering	85 (Vis-avg)	5.92	7.38 × 10−5	8.86 × 10−5	8.32 × 1021	13.51	19.8 × 10−3	23.76 × 10−3	120	[25]
Zn&N co-doped SnO2	DC magnetron sputtering	85 (Vis-avg)	14.0	6.3 × 10−3	2.84 × 10−2	1.3 × 1020	7.66	38.2 × 10−3	172 × 10−3	450	[26]
Sb doped ITO	DC magnetron sputtering	Over 88 (Vis-avg)	40.9	4.5 × 10−4	4.95 × 10−4	8.5 × 1020	32.2	15.2 × 10−3	16.72 × 10−3	110	[27]
Sb doped SnO2	RF magnetron sputtering	84.23 (Vis-avg)	51.7	1.55 × 10−3	4.65 × 10−3	3.2 × 1020	12.8	1.67 × 10−3	5.01 × 10−3	300	[28]
W-doped SnO2	PLD	88 (Vis-avg)	13.0	1.82 × 10−3	2.55 × 10−3	2.1 × 1020	136	21.4 × 10−3	29.96 × 10−3	140	[30]
Cd-doped SnO2	PLD	89.96 (550 nm)	300.9	2.04 × 10−3	1.38 × 10−3	3.06 × 1021	10.0	1.15 × 10−3	0.78 × 10−3	68	[31]
SnO2	ALD	85 (550 nm)	98	1.60 × 10−3	2.4 × 10−3	7.30 × 1020	5.3	0.287 × 10−3	0.42 × 10−3	150	[35]
SnO2	ALD	90 (Vis-avg)	29.7	8.9 × 10−4	2.67 × 10−4	1.4 × 1021	12.5	20.2 × 10−3	6.06 × 10−3	30	[36]
SnO2−x	thermal ALD	/	63.3	1.14 × 10−3	/	3.30 × 1019	21.55	1.07 × 10−3	/	18	[37]
SnOx	PEALD	83.5 (Vis-avg)	139.6	1.12 × 10−3	0.90 × 10−3	4.43 × 1020	12.06	1.02 × 10−3	0.82 × 10−3	80	[38]
SnO2/Au/SnO2	ALD	82.7 (550 nm)	20.7	9.53 × 10−5	4.38 × 10−5	9.93 × 1021	6.59	15.6 × 10−3	7.18 × 10−3	46	[39]
Au NPs on SnO2	ALD	83.4 (500 nm)	6.90	7.93 × 10−5	9.12 × 10−5	1.45 × 1022	5.40	24.8 × 10−3	28.52× 10−3	115	[40]
Al-doped SnO2	super-cycle ALD	/	426.4	4.17 × 10−3	/	1.31 × 1020	115.7	/	/	/	[41]
SnO2	nebulized spray pyrolysis	67 (Vis-avg)	38.5	3.65 × 10−3	3.47 × 10−5	1.91 × 1019	83.65	/	/	9500	[50]
ATO	spray pyrolysis	80 (550 nm)	12.18	6.09 × 10−4	3.45 × 10−3	6.20 × 1020	16.49	8.23 × 10−3	41.15× 10−3	500	[51]
Ba-Sb Co-doped SnO2	spray pyrolysis	85 (550 nm)	23.14	4.415 × 10−4	1.14 × 10−3	4.73 × 1021	22.20	10.5 × 10−3	27.09× 10−3	258	[52]
ATO	nebulized spray pyrolysis	82 (550 nm)	96.592	1.16 × 10−3	1.39 × 10−3	5.12 × 1020	10.6	1.39 × 10−3	1.67 × 10−3	120	[53]
Li-Sb Co-doped SnO2	spray pyrolysis	87.9 (550 nm)	32.38	1.57 × 10−3	7.65 × 10−3	7.54 × 1020	7.221	8.56 × 10−3	41.69× 10−3	487.4	[54]
FTO	spray pyrolysis	70	29.1	4.7 × 10−3	7.90 × 10−3	18.44 × 1020	4.13	7.8 × 10−3	131.04 × 10−3	1680	[56]
FTO with NaOH	ultrasonic spray pyrolysis	80.8 (Vis-avg)	5.3	2.94 × 10−4	20.88 × 10−4	7.81 × 1020	27.18	15.6 × 10−3	110.76 × 10−3	710	[57]
FTO	nebulized spray pyrolysis	81 (550 nm)	250	9.0 × 10−3	32.4 × 10−3	7.34 × 1020	9.6	1.25 × 10−3	4.5 × 10−3	360	[58]
Al/F-SnO2	spray pyrolysis	83 (550 nm)	4.8	2.1 × 10−5	1.26 × 10−4	8.7 × 1020	14.5	17.1 × 10−3	102.6 × 10−3	600	[59]
Nb-doped SnO2	spray pyrolysis	75 (550 nm)	26.5	1.69 × 10−3	1.158 × 10−2	9.33 × 1019	39.4	2.47 × 10−3	16.92× 10−3	685	[60]
TTO	spray pyrolysis	81 (550 nm)	26	4.55 × 10−4	4.0 × 10−3	5.42 × 1021	41.7	6.15 × 10−3	54.12× 10−3	880	[61]
Al-doped SnO2	ultrasonic spray pyrolysis	84 (550 nm)	408.20	3.54 × 10−4	1.26 × 10−3	2.38 × 1020	16.65	54.52 × 10−3	194.63 × 10−3	357	[62]
Ag-doped SnO2	spray pyrolysis	88.7 (550 nm)	18.6	2.26 × 10−4	5.09 × 10−4	4.24 × 1021	42.24	472 × 10−3	1062 × 10−3	225	[63]
Ga-doped SnO2	sol–gel	74 (550 nm)	76.2	3.20 × 10−3	1.35 × 10−2	1.7 × 1019	8.6	0.7 × 10−3	2.94 × 10−3	420	[66]
Ti-doped SnO2	sol–gel	80 (550 nm)	42.3	1.77 × 10−3	7.43 × 10−3	3.2 × 1019	11.2	3.66 × 10−3	15.4 × 10−3	420	[67]
Bi-doped SnO2	sol–gel	78 (550 nm)	38.8	1.62 × 10−3	6.8 × 10−3	3.4 × 1019	12.0	4.2 × 10−3	17.64× 10−3	420	[68]
Sm-doped SnO2	sol–gel	80 (550 nm)	36.2	1.73 × 10−3	8.27 × 10−3	3.5 × 1019	11.5	3.32 × 10−3	15.87× 10−3	478	[69]
TTO	sol–gel	89 (550 nm)	29.25	1.17 × 10−3	4.68 × 10−3	2.33 × 1020	23.0	9.82 × 10−3	39.28× 10−3	400	[70]
Sr-doped SnO2	sol–gel	78 (550 nm)	32.6	1.53 × 10−3	7.20 × 10−3	3.8 × 1019	11.8	3.8 × 10−3	17.86× 10−3	470	[71]
ATO	sol–gel	81 (550 nm)	12	3.22 × 10−4	8.53 × 10−4	1.79 × 1021	10.84	11.4 × 10−3	30.21× 10−3	265	[72]

has collected Optoelectronic characteristic parameters of SnO₂ transparent conductive films by different methods.

5. The Influence of Different Preparation Methods on the Optoelectronic Properties of SnO₂ Transparent Conductive Thin Films

5.1. The Influence of Physical Methods on the Optoelectronic Properties of SnO₂ Transparent Conductive Thin Films

We summarized the effects of different physical methods on the optoelectronic properties of the prepared SnO₂ transparent conductive films, as well as their typical structural characteristics, processes, and the advantages, disadvantages, and application prospects of different preparation methods. It can be seen from

Table 3. Comparison of the influences of different physical methods on the optoelectronic properties of SnO₂ transparent conductive thin films.

Aspect	Magnetron Sputtering	Pulsed Laser Deposition	Atomic Layer Deposition
Resistivity Range (Ω·cm)	7.38 × 10−5~6.3 × 10−3	2.04 × 10−3	7.93 × 10−5~1.6 × 10−3
Carrier Concentration Range (cm−3)	1.3 × 1020~8.32 × 1021	2.1 × 1020	3.3 × 1019~2.37 × 1022
Sheet Resistance Range (Ω/□)	5.19~91.9	13.0~300.9	98.0~102.4
FOM Range (Ω−1)	0.58 × 10−3~23.8 × 103	-	-
Visible Light Transmittance Range	76.35%~88.19%	>80%	70.0%~97.0%
Advantages	Large-area production, balanced performance, flexible process	High crystallinity, precise doping, wide-band transmittance	Atomic precision, good conformality, low-temperature deposition

that the core breakthrough of physical methods for preparing SnO₂ transparent conductive films lies in the precise regulation of the film microstructure achievable by these methods, thereby significantly enhancing their transmittance and electrical conductivity. Via sputtering deposition, ALD, PLD, and other methods, researchers have successfully prepared SnO₂ films with high density, excellent uniformity, and controllable crystallinity.

Each physical method has its own advantages and disadvantages. Magnetron sputtering has prominent advantages: it enables large-area continuous production, achieves a balanced resistivity and transmittance, and allows flexible process regulation. However, its crystallinity is inferior to that of PLD, and high-performance systems rely on metal composite layers, resulting in a complex structure. PLD delivers top-tier crystallization quality with a defect density of <10¹⁵ cm⁻³, precise doping, and excellent broadband transmittance. Nevertheless, it is difficult to achieve mass production due to its low deposition rate (0.1–1 nm/min) and poor large-area uniformity. ALD features atomic-level precision and low-temperature compatibility, making it suitable for complex structures. However, it suffers from large resistivity fluctuations, poor environmental stability of some films, and low efficiency.

In the future, targeted breakthroughs are required for the three methods. For magnetron sputtering, it is feasible to develop high-FoM pure SnO₂ systems without metal composite layers to simplify the structure, while optimizing the process to improve crystallinity. For PLD, technologies such as magnetic field assistance can be integrated to enhance the deposition rate and uniformity, expanding its specialized applications in high-precision optoelectronic devices. For ALD, it is necessary to optimize precursors and modification processes to reduce resistivity fluctuations and improve stability, and explore multi-chamber continuous deposition to adapt to the mass production of small and medium-sized devices. In addition, the cross-integration of the three methods (e.g., ALD for seed layer preparation + MS for thickness enhancement) may break through performance bottlenecks and promote the application of SnO₂ films in more fields.

5.2. The Influence of Chemical Methods on the Optoelectronic Properties of SnO₂ Transparent Conductive Thin Films

We have summarized the influence of different chemical methods on the optoelectronic properties of the prepared SnO₂ transparent conductive films, as well as the preparation processes of SnO₂ transparent conductive films, and the advantages, disadvantages and application prospects of different chemical preparation methods. The specific contents are shown in

Table 4. Comparison of the influences of different chemical methods on the optoelectronic properties of SnO₂ transparent conductive thin films.

Aspect	Spray Pyrolysis	Sol–Gel Method
Resistivity Range (Ω·cm)	2.8 × 10−5~3.65 × 10−3	1.17 × 10−3~3.2 × 10−3
Carrier Concentration Range (cm−3)	1.91 × 1019~7.02 × 1021	2.3 × 1020~1.79 × 1021
Sheet Resistance Range (Ω/□)	5.3~880	12~880
FOM Range (Ω−1)	0.378 × 10−3~47.3 × 10−3	0.7 × 10−3~11.4 × 10−3
Visible Light Transmittance Range	70%~89.68%	74%~89.5%
Advantages	Low cost, fast deposition, large-area preparation, no vacuum equipment	Low processing temp, good uniformity, controllable stoichiometry, diverse product forms
Limitations	Transmittance decreases with high doping, poor stability at extreme conditions	Slow deposition efficiency, high doping leads to reduced crystallinity, high sheet resistance

.

Chemical methods are low-cost routes for preparing SnO₂ transparent conductive films, which do not require vacuum equipment and facilitate large-scale fabrication. Spray pyrolysis features a high deposition rate and enables large-area film formation, with a minimum resistivity of 2.8 × 10⁻⁵ Ω·cm and a maximum transmittance of up to 89.68%. However, high doping levels lead to a decrease in transmittance, and the stability is insufficient under extreme conditions. The sol–gel method has the advantages of low processing temperature and excellent compositional uniformity, and can produce SnO₂ products with diverse morphologies; nevertheless, it suffers from low deposition efficiency, high-concentration doping reduces film crystallinity, and the sheet resistance is generally high. Overall, although chemical methods have significant cost advantages, the consistency and stability of optoelectronic properties are still inferior to those of physical methods, and high-performance systems rely on precise doping and process regulation.

In the future, chemical methods need to focus on performance optimization and process upgrading. For spray pyrolysis, it is feasible to develop novel doping systems (e.g., multi-element co-doping) to balance the relationship between doping concentration and transmittance, while optimizing the atomization and substrate temperature processes to improve the environmental stability of films. For the sol–gel method, new precursors or composite processes (e.g., precise regulation via spin-coating + annealing) can be introduced to reduce the crystallinity loss caused by high doping, and rapid film-forming technologies can be explored to improve production efficiency. In addition, the combination of chemical and physical methods (e.g., seed layer preparation via chemical methods + thickness enhancement via physical methods) can retain the low-cost advantage while improving the electrical properties of films, which is expected to promote the large-scale application of SnO₂ films in low-cost scenarios such as civilian photovoltaic and flexible optoelectronic devices.

5.3. Trade-Off of Scattering Mechanisms in the Preparation of SnO₂ Transparent Conductive Films: Grain Boundary Scattering vs. Ionized Impurity Scattering

The electrical properties of SnO₂ transparent conductive films depend crucially on carrier transport efficiency, while scattering mechanisms are the key factors restricting carrier mobility. In different preparation processes, there exists a significant trade-off between grain boundary scattering dominated by chemical methods (e.g., spray pyrolysis, sol–gel method) and ionized impurity scattering dominated by high-quality films prepared via physical methods (e.g., magnetron sputtering, PLD, ALD). This difference stems from the essential distinctions in film microstructure, defect states, and doping uniformity, which directly affect the optimization direction of film optoelectronic properties and their adaptability to application scenarios.

5.3.1. Essence of Grain Boundary Scattering and Ionized Impurity Scattering

Chemical methods realize film formation through the conversion of liquid-phase precursors, which tend to produce polycrystalline structures with small grain sizes and high grain boundary density. As disordered regions between grains, grain boundaries disrupt lattice periodicity and thus impede the carrier transport path. Carriers undergo elastic scattering at grain boundaries due to lattice mismatch and defect enrichment (e.g., oxygen vacancies, impurity segregation), resulting in reduced mobility. The scattering intensity is positively correlated with grain boundary density: the smaller the grain size, the more the grain boundaries, and the more pronounced the scattering effect.

Physical methods achieve direct film deposition via vapor-phase deposition, enabling precise control over film microstructure and the fabrication of high-quality films with high crystallinity and large grains, where grain boundary scattering is significantly suppressed. At this point, ionized impurities introduced by doping become the primary source of carrier scattering. Doping elements (e.g., F, Sb, W) form charged centers after ionization, exerting Coulomb attraction or repulsion on carriers and causing deflection of carrier motion trajectories. The scattering intensity is related to the concentration of ionized impurities and carriers; high doping levels enhance Coulomb interaction and thus intensify the scattering effect.

5.3.2. Trade-Off Between Mobility and Carrier Concentration

Chemical methods: Grain boundary scattering limits the improvement of mobility. To ensure conductivity, it is necessary to increase carrier concentration through high doping, but high doping further exacerbates grain boundary scattering, leading to a compromise of “low mobility–high concentration”. For instance, the 5 at% Sb-doped SnO₂ film prepared by the sol–gel method [72] achieves a carrier concentration of 1.79 × 10²¹ cm⁻³, but its mobility is only 10.84 cm²/(V·s), and it has to rely on high carrier concentration to compensate for the conductivity loss caused by low mobility.

Physical methods: Low grain boundary scattering maintains high mobility, enabling low resistivity without extremely high doping levels, and thus achieving a more optimal match between carrier concentration and mobility. For example, the SnO₂/Ag/SnO₂ multilayer film prepared by magnetron sputtering [25] exhibits a carrier concentration of 8.32 × 10²¹ cm⁻³ and a mobility of 13.51 cm²/(V·s), with a resistivity as low as 7.38 × 10⁻⁵ Ω·cm, demonstrating the performance advantages dominated by ionized impurity scattering.

5.3.3. Trade-Off Between Process Cost and Performance Stability

Chemical methods: Although grain boundary scattering leads to relatively low mobility, these processes do not require vacuum equipment, with a cost only 1/10 of that of physical methods. Moreover, the high carrier concentration brought by high doping ensures sufficient conductivity for films applied in medium-and low-demand scenarios. However, defect enrichment at grain boundaries reduces film stability. For example, SnO₂ films prepared by spray pyrolysis are prone to redox reactions at grain boundaries under high-temperature and high-humidity conditions, resulting in resistivity drift.

Physical methods: Ionized impurity scattering can be optimized by precise control of doping concentration. The films feature high crystallinity and good stability, meeting the requirements of high-precision optoelectronic devices (e.g., flexible displays, infrared detectors). Nevertheless, physical methods involve expensive equipment and low deposition rates, leading to high costs for large-scale production.

5.3.4. Synergistic Restriction Between Transmittance and Conductivity

Chemical methods: High doping increases carrier concentration but intensifies light scattering and impurity absorption at grain boundaries, resulting in decreased transmittance. For example, the transmittance of spray pyrolysis-prepared SnO₂ films doped with 5 wt% Sb decreases from 85% (pure SnO₂) to 80%; when the Sb doping level reaches 10%, the transmittance further drops to 73%, reflecting the synergistic negative effects of grain boundary scattering and light absorption [51,53].

Physical methods: High crystallinity reduces grain boundary light scattering, and the light absorption effect of ionized impurities is more controllable, enabling films to achieve both high transmittance and high conductivity simultaneously. For instance, the SnO₂/Ag-Ni/SnO₂ multilayer film prepared by magnetron sputtering achieves a transmittance of 83% and an FOM as high as 23.8 × 10³ Ω⁻¹, which is far superior to similar films prepared by chemical methods [23].

6. SnO₂ Transparent Conductive Films in Devices

SnO₂ exhibits excellent stability in environments such as oxygen and humidity [73], which is highly beneficial for enhancing device stability when it is employed as a charge transport layer. Caruso et al. [74] demonstrated that compared with TiO₂ nanosheets, the device incorporating SnO₂ nanosheet electron transport layer combined with C₆₀ shows superior storage stability. Below, we discuss the stability of SnO₂ films prepared by different methods and with doping, as well as the performance analysis of indium-free devices and ITO-based devices.

6.1. Preparation via Physical Methods

Mengjia Li et al. [75] fabricated high-quality SnO₂ electron transport layers (ETLs) at room temperature using electron beam (E-beam) evaporation technology, and achieved dual passivation of SnO₂/perovskite interface defects with 11-maleimidoundecanoic acid (11MA). The rigid device achieved an optimal performance of 22.08% power conversion efficiency (PCE); the unencapsulated device retained 80% of its initial efficiency after storage for 2000 h in an environment with 10%–30% relative humidity (RH). The flexible device exhibited a PCE of 15.73% with stable performance after 1000 bending cycles, and large-area devices with a size of 10–600 mm² were successfully prepared simultaneously.

Nulati Yesibolati et al. [76] deposited an amorphous HfO₂ passivation layer on the surface of SnO₂/reduced graphene oxide (rGO) anodes using atomic layer deposition (ALD) technology. The anode coated with 6 ALD cycles delivered a capacity of 853 mAh/g after 100 cycles at a current density of 150 mA/g, with the initial Coulombic efficiency increased from 53.6% to 61.7% and the charge transfer resistance (Rct) significantly reduced.

Peng Sun et al. [77] proposed an oxygen-assisted glancing angle deposition technology to fabricate oxygen-vacancy-free SnO₂ vertical nanopillar (NP) electron transport layers (ETLs) on FTO and ITO-PET substrates in one step, which were further applied in flexible perovskite solar cells (fPSCs). The large-area flexible device with an area of 1 cm² achieved a champion PCE of 14.9%, retaining 90% of its initial efficiency after storage for 800 h in a 75% RH environment, and only 20% efficiency attenuation after 400 manual bending cycles with a bending radius of 12 mm.

Matthew Kam et al. [78] prepared SnO₂ electron transport layers by room-temperature RF magnetron sputtering technology, which were successfully applied in perovskite solar cells (PSCs) on rigid FTO glass substrates and flexible ITO-PEN substrates with the device structure of FTO/ITO-PEN → SnO₂ → MAPbI₃ → Spiro-OMeTAD → Au. The optimized rigid device (with 40 nm SnO₂, sputtering pressure of 0.25 Pa, and O₂:Ar ratio of 5:50) achieved a champion PCE of 12.82%, retaining 93% of its initial efficiency after 192 h storage in dry air. The flexible device exhibited a PCE of 5.88%, maintaining >90% of its initial performance after 100 bending cycles with a bending radius of 2 cm. Notably, all devices were fabricated in an air environment with >65% RH.

6.2. Preparation via Chemical Methods

Fengjiu Yang et al. [79] prepared SnO₂ electron transport layers (ETMs) on PEN/ITO substrates by a low-temperature solution method, and successfully developed fPSCs with both high PCE and excellent bending durability. The device achieved a PCE of 17.1% and a stabilized power output (SPO) of 17.0% with a photoactive area of 0.1 cm²; the large-area device with 1.0 cm² still maintained a PCE of 16.2%, retaining 76.5% of its initial PCE after 2000 bending cycles with a small bending radius of 4.0 mm.

Yuran Zhang et al. [80] fabricated SnO₂/silver nanowire (AgNWs)/colorless polyimide (CPI) composite flexible transparent conductive films via solution processing. The core performance parameters were as follows: light transmittance over 80% at 550 nm, minimum sheet resistance of only 10.0 Ω sq⁻¹, and surface roughness as low as 13.3 nm. The film showed no peeling after 10 tape peeling tests, with the resistance increased by only 10% after 4000 bending cycles with a bending radius of 3 mm. When applied as the top electrode in bifacial perovskite solar cells (PSCs), it achieved a PCE of 6.34% under illumination (close to 8.72% of the ITO side). Meanwhile, it could serve as a flexible transparent heater, heating up to 85 °C within 250 s under a voltage of 6 V with good heating stability.

Lei Ning et al. [81] doped water-soluble DAC-AA into SnO₂ colloids to prepare SnO₂ nanocrystal electron transport layers on PEN/ITO substrates. The device structure (from bottom to top) was PEN/ITO substrate → SnO₂-DAC-AA ETL → α-FAPbI₃ perovskite photoactive layer → Spiro-OMeTAD hole transport layer (HTL) → MoO₃/Ag electrode. The champion device achieved a PCE of 23.87% with an active area of 0.092 cm², and a PCE of 22.41% with a large area of 1 cm². The encapsulated device retained 91.1% of its initial efficiency after storage for 900 h under 85 °C/85% RH conditions, and maintained 92.5% of its initial performance after 10,000 bending cycles with a bending radius of 6 mm.

6.2.1. Doping Synergistic Passivation

Patrick Mwinzi Mwathe et al. [82] prepared undoped SnO₂, FTO, and palladium-doped SnO₂ films via spray pyrolysis technology, and systematically investigated their optoelectronic properties through a post-treatment process of 450 °C air annealing combined with 450 °C nitrogen passivation. The optimal F doping concentration was 16.41 at%; annealing further improved conductivity (increased carrier mobility), while passivation slightly increased resistivity but enhanced stability. These results indicate that the combined strategy of doping + annealing + passivation can prepare SnO₂-based films with high conductivity, high transparency, and high stability.

Xing Guo et al. [83] realized synergistic doping and passivation of SnO₂/perovskite interface defects by doping InCl₃ into SnO₂ ETLs via a two-step spin-coating method. The champion PCE was improved from 19.1% to 20.8%, with the short-circuit current density (Jsc) reaching 24.12 mA/cm². The unencapsulated device retained 78% of its initial PCE after storage for 960 h in a 30% RH environment, and the defect density was reduced from 7.76 × 10¹⁴ cm⁻³ to 5.46 × 10¹⁴ cm⁻³.

Fengxuan Chen et al. [84] achieved synergistic optimization of defects by doping SnF₂ into SnO₂ ETLs. The PCE was enhanced from 21.43% to 22.65%, the fill factor (FF) increased from 80.01% to 82.12%, with the open-circuit voltage (V_oc) reaching 1.14 V and Jsc reaching 24.15 mA/cm². The unencapsulated device retained 90% of its initial efficiency after storage for 1000 h in a nitrogen environment.

6.2.2. Undoped Interface Passivation

Buried interface engineering is an effective method to suppress heterointerfacial defects. Organic amine salts with permeation selectivity have been used for the post-treatment of perovskites to passivate halide defects and charged defects [85].

Xu et al. [86] introduced reduced glutathione (GSH) small molecules on the surface of SnO₂ ETLs to achieve dual passivation of SnO₂/perovskite heterointerfacial defects. The champion device achieved a PCE of 21.66% (11.3% higher than that of the unmodified device with 19.47% PCE), and the hysteresis index was reduced from 0.087 to 0.012. The unencapsulated device retained more than 80% of its initial PCE after storage for 672 h in a 30%–40% RH environment.

Tongle Bu et al. [87] proposed a universal potassium ion (K⁺) interface passivation strategy, which treated slot-die printed SnO₂ ETLs with KOH to successfully solve the hysteresis phenomenon and improve the performance of SnO₂-based PSCs. This strategy can promote perovskite grain growth and passivate SnO₂/perovskite interface defects. The unencapsulated device only showed 5% efficiency degradation after dark storage for 30 days, with performance loss no more than 30% after 1800 bending cycles.

Ershuai Jiang et al. [88] modified SnO₂ ETLs via passivation with phosphoric acid. When the optimized phosphoric acid doping concentration was 7.4 at%, the electron mobility of SnO₂ was increased by about 3 times, the visible light transmittance was improved, and photon loss was reduced. The perovskite solar cell based on this phosphoric acid-passivated SnO₂ ETL achieved a champion PCE of 21.02%, with Jsc of 23.20 mA/cm², V_oc of 1.17 V, and FF of 77.40%.

6.2.3. SnO₂ Thin-Film Transistors

Won-Yong Lee et al. [89] prepared SnO₂ thin-film transistors (TFTs) via the sol–gel method, using Y₂O₃ as the passivation layer, and systematically investigated the effect of annealing time (5/15/30 min) on device performance. The optimized SnO₂:Y₂O₃ TFTs (with 15 min annealing) exhibited excellent comprehensive performance, including a field-effect mobility of 7.59 (cm²/(V·s), a threshold voltage (VTH) of 9.16 V, a subthreshold swing (SS) of 0.88 V/decade, an on-off current ratio of approximately 1 × 10⁸, excellent bias stability, and good performance retention after storage for 90 days in air.

Changmin Lee et al. [90] fabricated SnO₂ TFTs via the sol–gel method with Y₂O₃ as the passivation layer. The devices showed a field-effect mobility of 5.7 ± 0.3 cm²/(V·s), a subthreshold swing of 1.1 ± 0.2 V/decade, a threshold voltage of +6.8 ± 0.4 V, an on-off current ratio of 6.1 ± 0.3 × 10⁷, and excellent bias stability.

6.3. Comparison of Stability of SnO₂ Films Prepared by Chemical and Physical Methods

In summary, SnO₂ films prepared by physical methods have greater advantages in environmental and mechanical stability, while chemical methods excel in process cost, device efficiency improvement, and scalability potential. Both methods enhance stability through “structure optimization/defect passivation” and are suitable for different application scenarios. The comparison of stability of SnO₂ films prepared by chemical and physical methods is shown in

Table 5. Comparison of stability of SnO₂ films prepared by chemical and physical methods.

Comparison Dimension	Physical Methods	Chemical Methods
Environmental Stability	Excellent: 10% decay after 800 h (75% RH); 80% retention after 2000 h (10%–30% RH); 93% retention after 192 h (dry air)	Good: 80%+ retention after 672 h (30%–40% RH); 90% retention after 1000 h (N2); passivation needed for high humidity
Mechanical Stability	Superior: 20% decay after 400 bends (12 mm radius); >90% retention after 100 bends (2 cm radius); 10% resistance rise after 4000 bends (3 mm radius)	Good: 76.5% PCE retention after 2000 bends (4 mm radius); 92.5% retention after 10,000 bends (6 mm radius); slightly higher decay than physical methods
Advantages	High film uniformity, low defects	Simple process, low cost, solution-processable/scalable printing
Disadvantages	High equipment cost, scaling difficulty, vacuum required for some processes	Film density affected by solvents, interface degradation under high humidity
Device Efficiency	Moderate–high: Max 22.08% (rigid), 15.73% (flexible)	Higher: Max 23.87% (rigid, DAC-AA doped), 17.1% (flexible, low-temp solution)
Application Scenarios	High-stability flexible electronics, outdoor PV modules, long-lifetime energy storage	Low-cost scalable PV modules, flexible wearables, short-to-medium-term optoelectronics

.

6.4. Performance Comparison of Indium-Free Tin-Based Films/Devices vs. ITO Counterparts

Whether tin dioxide can replace ITO depends on its integration feasibility into practical devices. Dye-sensitized solar cells (DSSCs), as third-generation solar cells based on the “dye-sensitization” mechanism, offer advantages including simple structure, low fabrication cost, flexible design, and excellent low-light response. Their core principle involves light energy absorption by dye molecules to achieve charge separation and transport, converting solar energy into electrical energy. Indium-free SnO₂-based materials are the core alternative electrode choice for DSSCs to realize low-cost and large-scale applications, with their significance reflected in four key dimensions: resource availability, performance, cost, and application compatibility, directly addressing the critical drawbacks of traditional ITO electrodes.

This section systematically compares indium-free tin-based films with conventional ITO films in terms of key device application performance metrics, with specific parameters shown in the

Table 6. Comparison of device performance metrics of different elements doped SnO₂ films.

DSSC Electrode	Voc (mV)	Jsc (mA/cm2)	Fill Factor (%)	η (%)	Rs (Ω)	R1 (Ω)	R2 (Ω)	Ref.
ITO	0.73	15.1	65.0	7.15	12.94	1.68	1.81	[91]
FTO	0.72	15.8	76.0	8.7	20.0	0.76	-	[92]
TTO	0.71	7.27	63.1	3.26	71.69	144.4	16.21	[60]
ATO	0.69	9.16	64.03	4.05	60.93	23.61	7.17	[51]
TO	0.222	3.88	0.338	0.29	235	2145	14	[63]
ASO	0.82	9.29	0.615	4.69	12.6	76	98	[63]

below.

As the conventional transparent electrode for DSSCs, ITO demonstrates exceptional core photovoltaic performance and charge transport efficiency. Its open-circuit voltage V_oc reaches 730 mV, short-circuit current density J_sc is 15.1 mA/cm², fill factor (FF) is 65.0%, and the final power conversion efficiency η attains 7.15%, which is significantly superior to that of various indium-free SnO₂-based devices. In terms of charge transport, ITO exhibits a series resistance R_s of only 12.94 Ω, with the photoanode-electrolyte interface resistance R₁ and counter electrode-electrolyte interface resistance (R₂) as low as 1.68 Ω and 1.81 Ω, respectively, enabling smooth charge transport and minimal recombination loss.

In contrast, among indium-free SnO₂-based devices, the top-performing silver-doped SnO₂ exhibits a slightly higher V_oc (820 mV) than ITO and an R_s (12.6 Ω) close to that of ITO, but its J_sc (9.29 mA/cm²), FF (61.5%), and η (4.69%) are still markedly inferior. Furthermore, its R₁ (76 Ω) and R₂ (98 Ω) are much higher than those of ITO. For TTO and ATO, their V_oc values are comparable to those of ITO, but their J_sc is less than 62% of ITO’s level, with R_s as high as 71.69 Ω and 60.93 Ω, respectively, and relatively high R₁, resulting in power conversion efficiencies of only 3.26% and 4.05%. Undoped SnO₂ lags behind across all performance parameters, with an η of merely 0.29%, which barely meets the practical application requirements of DSSCs.

In the dimensions of cost and practicality, the performance advantages of ITO are offset by its resource scarcity and high preparation cost. Indium, the key constituent of ITO, has extremely low crustal abundance and volatile market prices, coupled with complex high-vacuum fabrication processes, which restrict the large-scale application of DSSCs. In contrast, indium-free SnO₂-based devices take tin—a highly abundant and widely distributed element—as the core raw material, completely eliminating the dependence on indium. Additionally, they can be deposited over large areas via low-cost processes such as spray pyrolysis and sol–gel method. Some materials (e.g., TTO) also possess favorable high-temperature stability and compatibility with flexible substrates, making them more suitable for large-scale production and diversified application scenarios. Overall, ITO still dominates in terms of performance, but indium-free SnO₂-based devices have emerged as an important alternative electrode candidate for DSSCs due to their advantages in resource availability and cost-effectiveness, as well as the potential of certain performance parameters. Future optimization of doping strategies and reduction in interface resistance are expected to further narrow the performance gap with ITO.

7. Conclusions

This review systematically elaborates on the research progress of SnO₂ thin films as TCOs, clarifying their core advantages and application potential in replacing ITO. SnO₂ is an n-type wide-bandgap semiconductor with a bandgap of 3.6 eV at room temperature and a tetragonal rutile crystal structure, exhibiting excellent physicochemical stability. Moreover, the content of tin in the Earth’s crust is much higher than that of indium. Its optoelectronic properties mainly depend on the regulation of free electron concentration by oxygen vacancies and doping elements (e.g., F, Sb), while also being affected by the microstructure of the thin film and preparation processes.

In terms of preparation technologies, physical and chemical methods have their respective focuses: among physical methods, magnetron sputtering has become the mainstream due to its large-area continuous production capacity and balanced performance; PLD can achieve high crystallinity and precise doping; ALD offers atomic-level precision but needs improvement in stability. Chemical methods (spray pyrolysis, sol–gel method) feature low cost and no need for vacuum equipment, yet high doping tends to cause a decrease in light transmittance and damage to crystallinity, which requires improvement through multi-element co-doping and process optimization. By regulating the crystallinity and defect density of thin films, both types of methods can produce high-performance thin films with a resistivity as low as 2.8 × 10⁻⁵ Ω·cm and visible light transmittance exceeding 89%.

At the device application level, SnO₂ thin films fabricated by physical methods exhibit superior environmental stability and mechanical stability, whereas those prepared via chemical methods demonstrate great potential in large-scale devices due to their low cost and solution processability. Through modification strategies including doping synergistic passivation and interface passivation, SnO₂ thin films have achieved a maximum photoelectric conversion efficiency (PCE) of 23.87% in perovskite solar cells, along with excellent bending durability in flexible devices. When comparing indium-free tin-based devices with ITO-based counterparts, although ITO still holds advantages in photovoltaic performance and charge transport efficiency, indium-free SnO₂-based devices have emerged as a crucial alternative owing to their resource and cost benefits. Moreover, certain parameters have shown the potential to surpass those of ITO-based devices.

Future research needs to specifically break through technical bottlenecks: physical methods should simplify the structure of magnetron-sputtered metal composite layers and improve PLD efficiency; chemical methods need to balance the relationship between doping and light transmittance; meanwhile, promote the cross integration of physical–chemical methods (e.g., chemical seed layer + physical thickening) to balance cost and performance.

First, priority should be given to establishing a unified performance reporting template and data standardization processing scheme, clarifying key parameters such as film thickness and measurement conditions to improve the comparability of data from different studies. Second, it is necessary to conduct stability tests under practical scenarios such as high temperature and high humidity, and hydrogen plasma exposure in accordance with International Electrotechnical Commission (IEC) standards, so as to establish an industry-recognized rating system. Meanwhile, efforts should be made to develop new doping systems with high mobility and low absorption, screen high-valence and small atomic radius dopants through first-principles calculations, and optimize carrier transport efficiency. In addition, research and development of scalable Atomic Layer Deposition (ALD) and Continuous Atomic Layer Deposition (C-ALD) technologies should be promoted to improve deposition rate and uniformity, meet the requirements of large-scale production, and further tap the application potential of SnO₂ thin films in solar cells, flexible displays and other fields.

In summary, relying on indium-free characteristics, tunable optoelectronic properties, and mature processes, SnO₂ thin films have clear prospects for large-scale applications in photovoltaic, flexible optoelectronic devices and other fields, providing key technical support for the development of next-generation transparent conductive electrodes.
