Preparation of Superhydrophobic Hydroxyapatite Coating on AZ31 Mg Alloy by Combining Micro-Arc Oxidation and Liquid-Phase Deposition

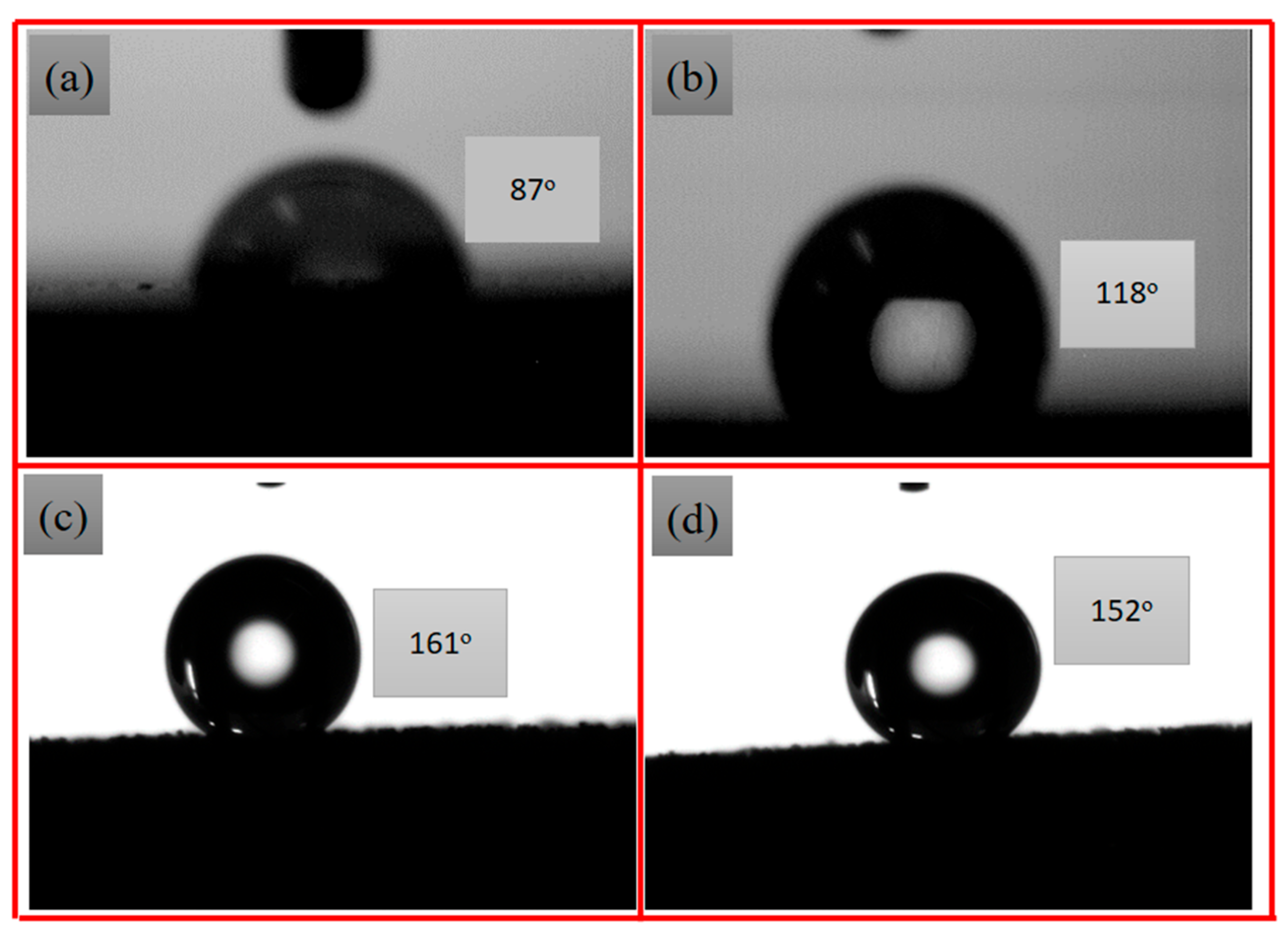

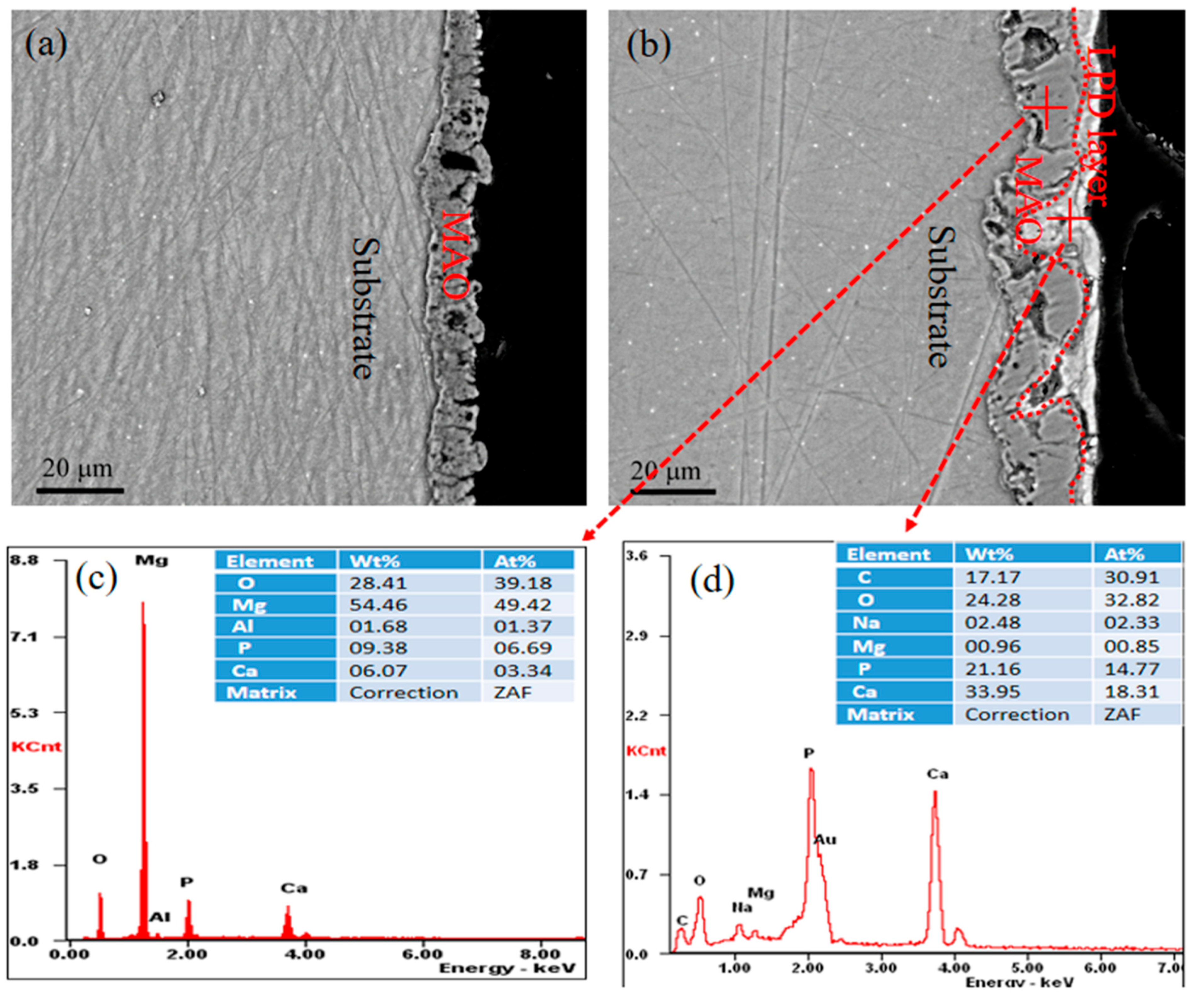

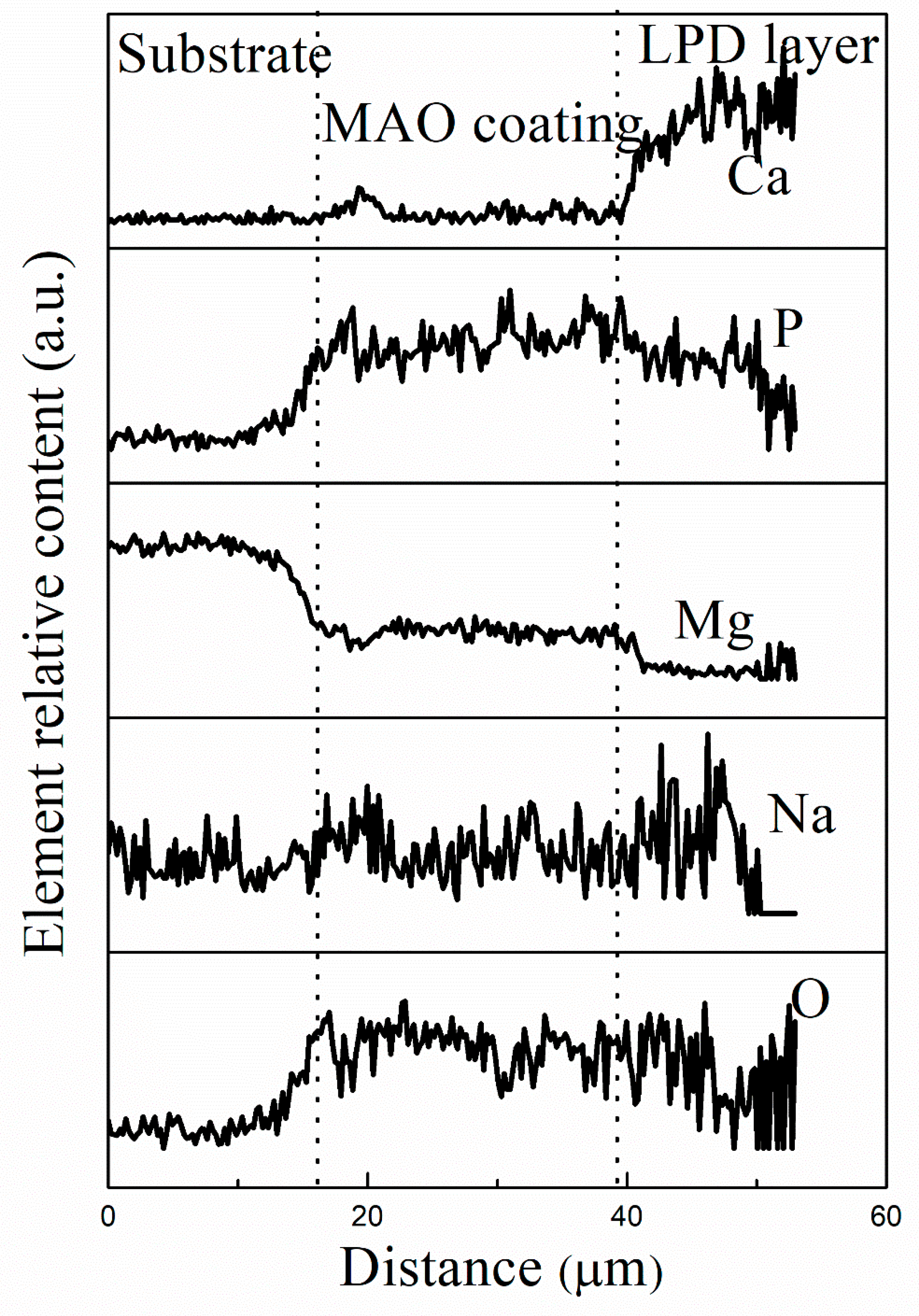

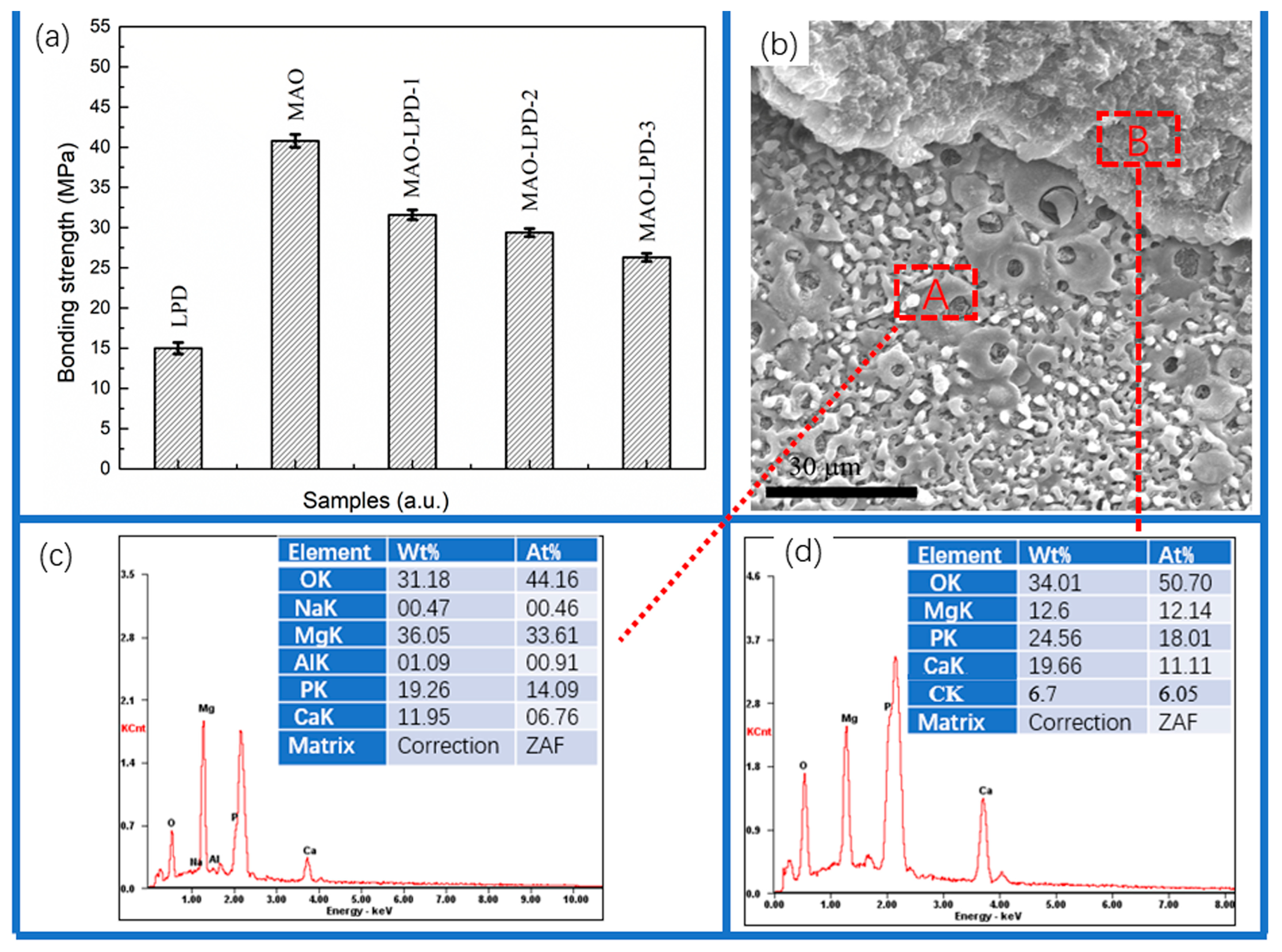

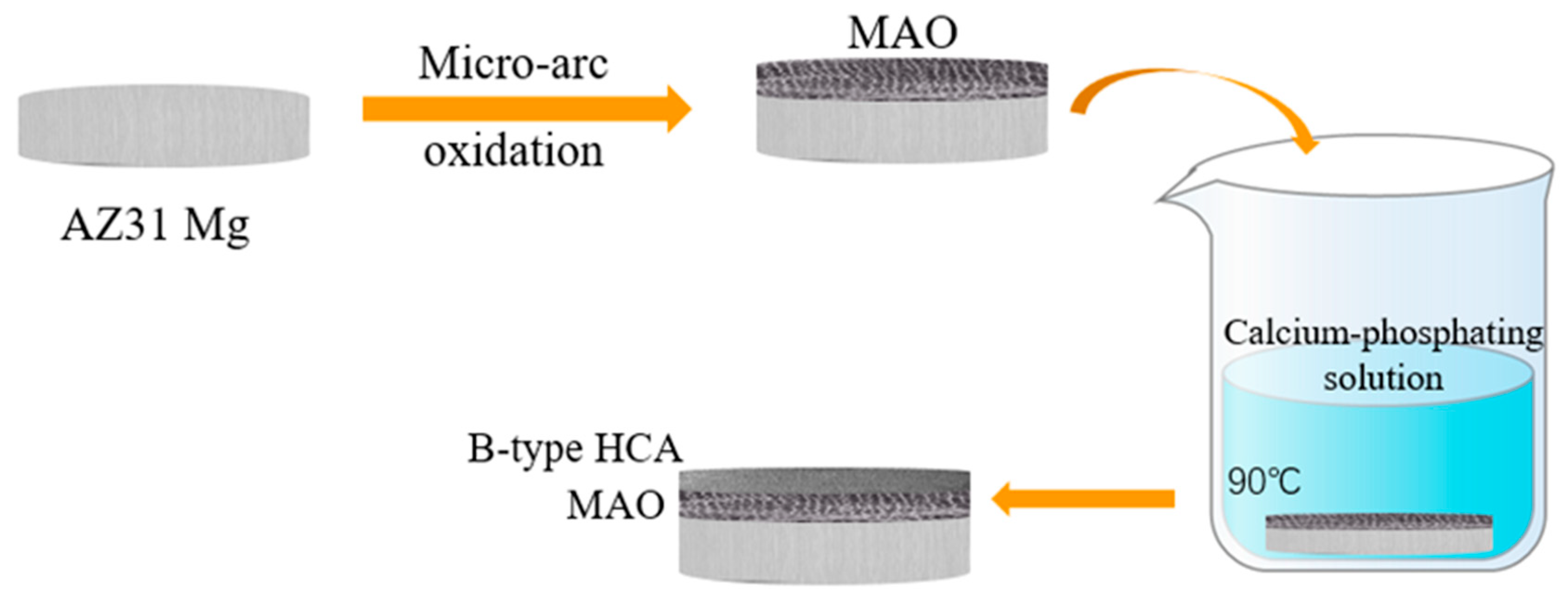

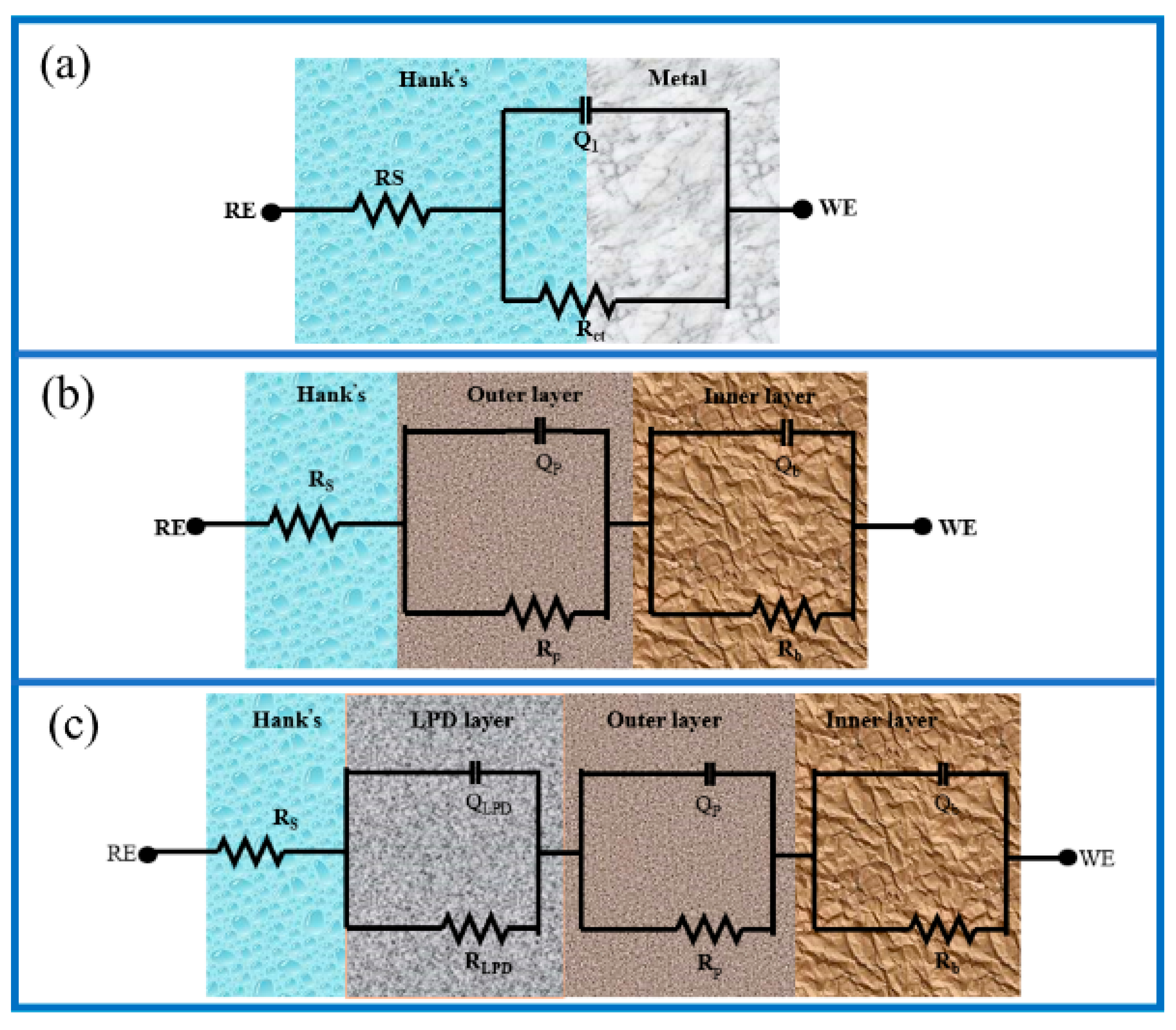

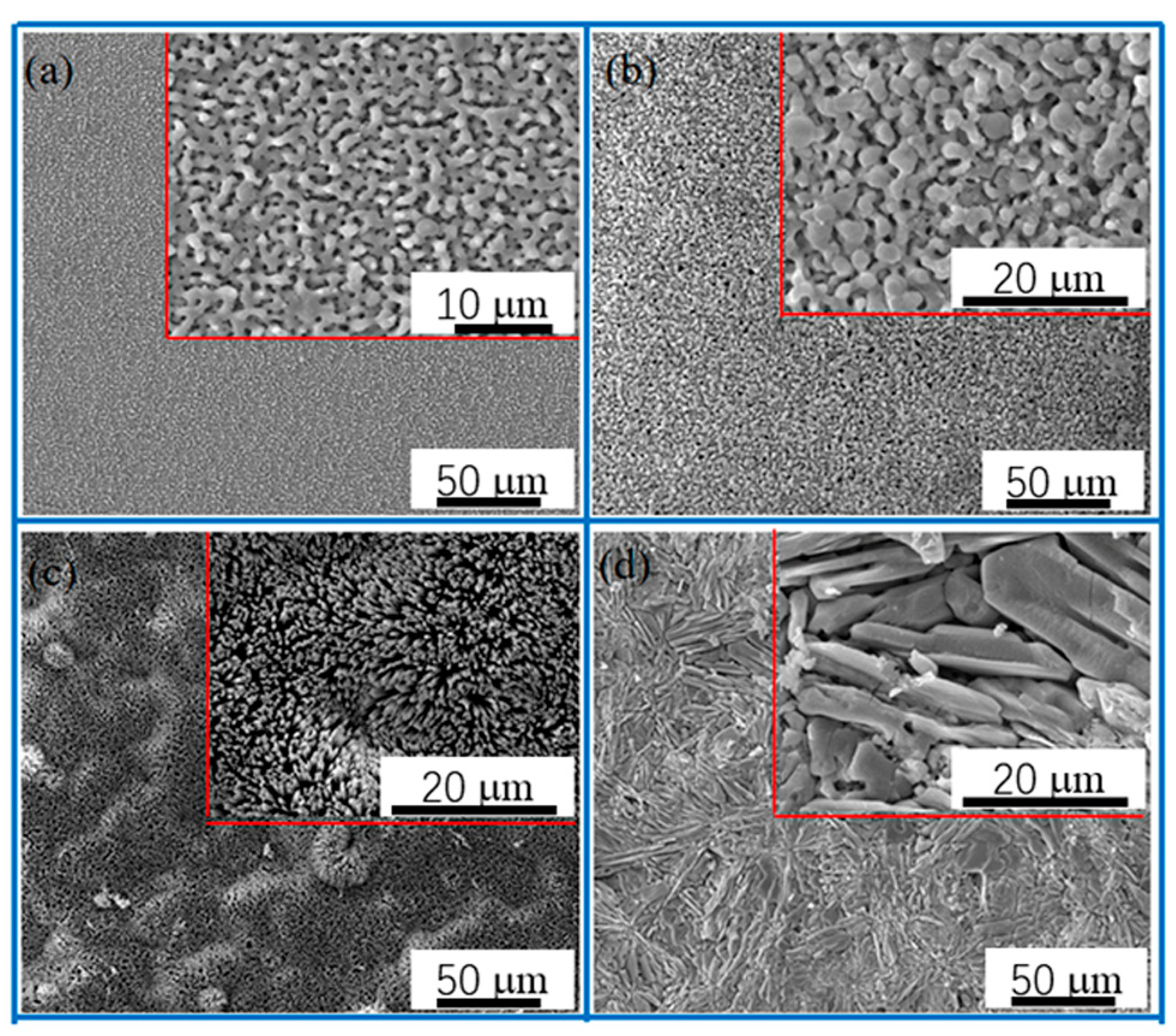

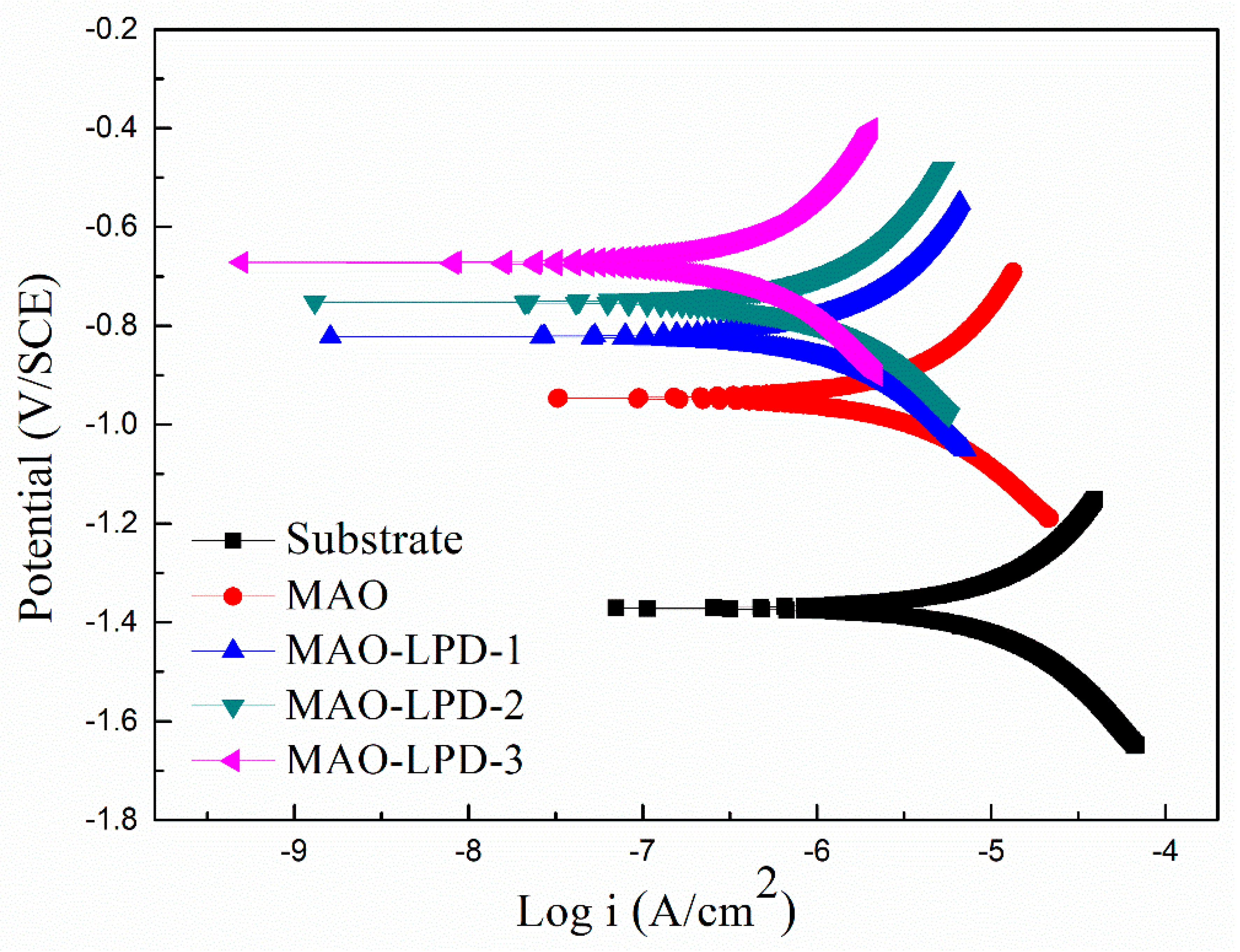

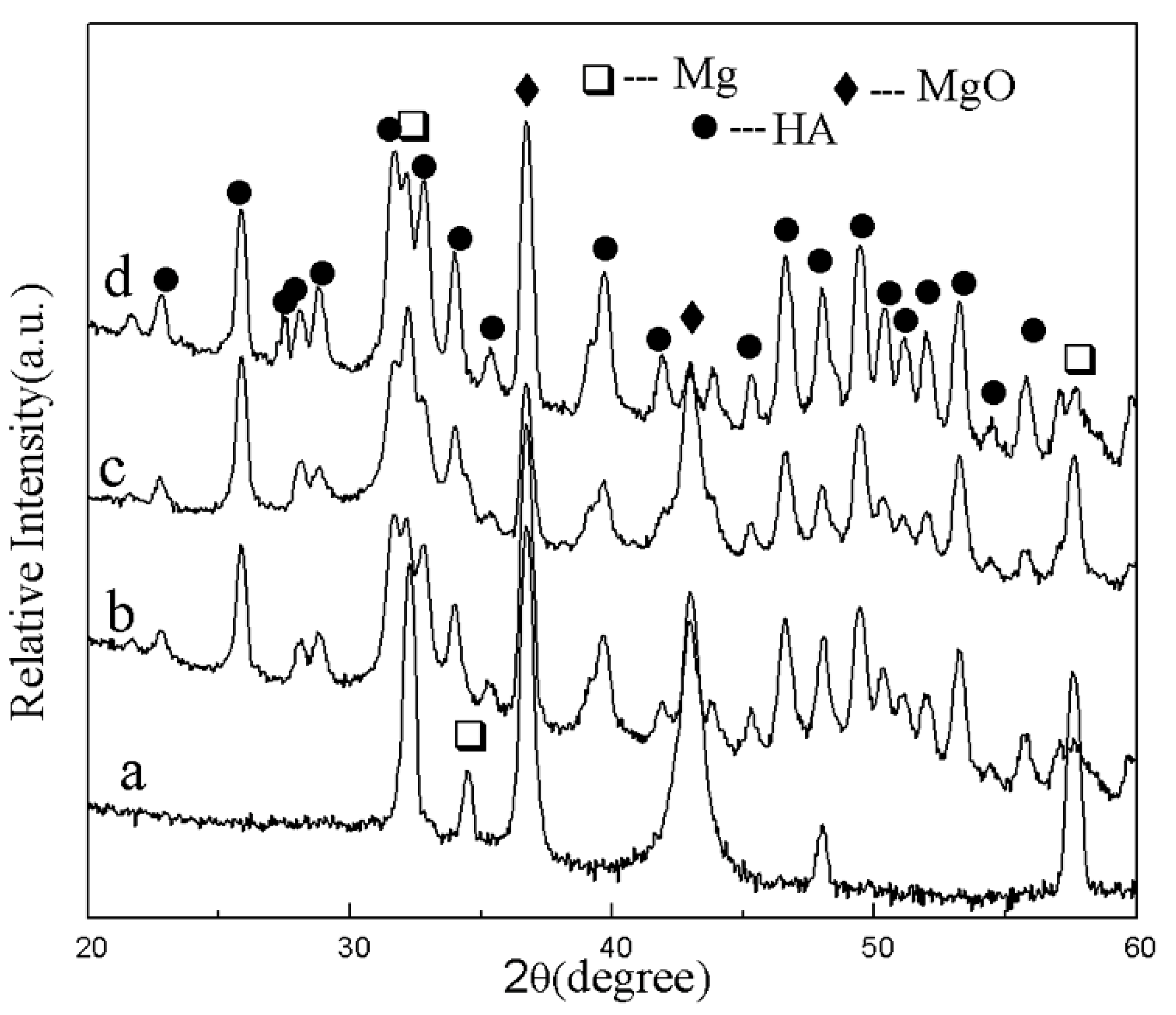

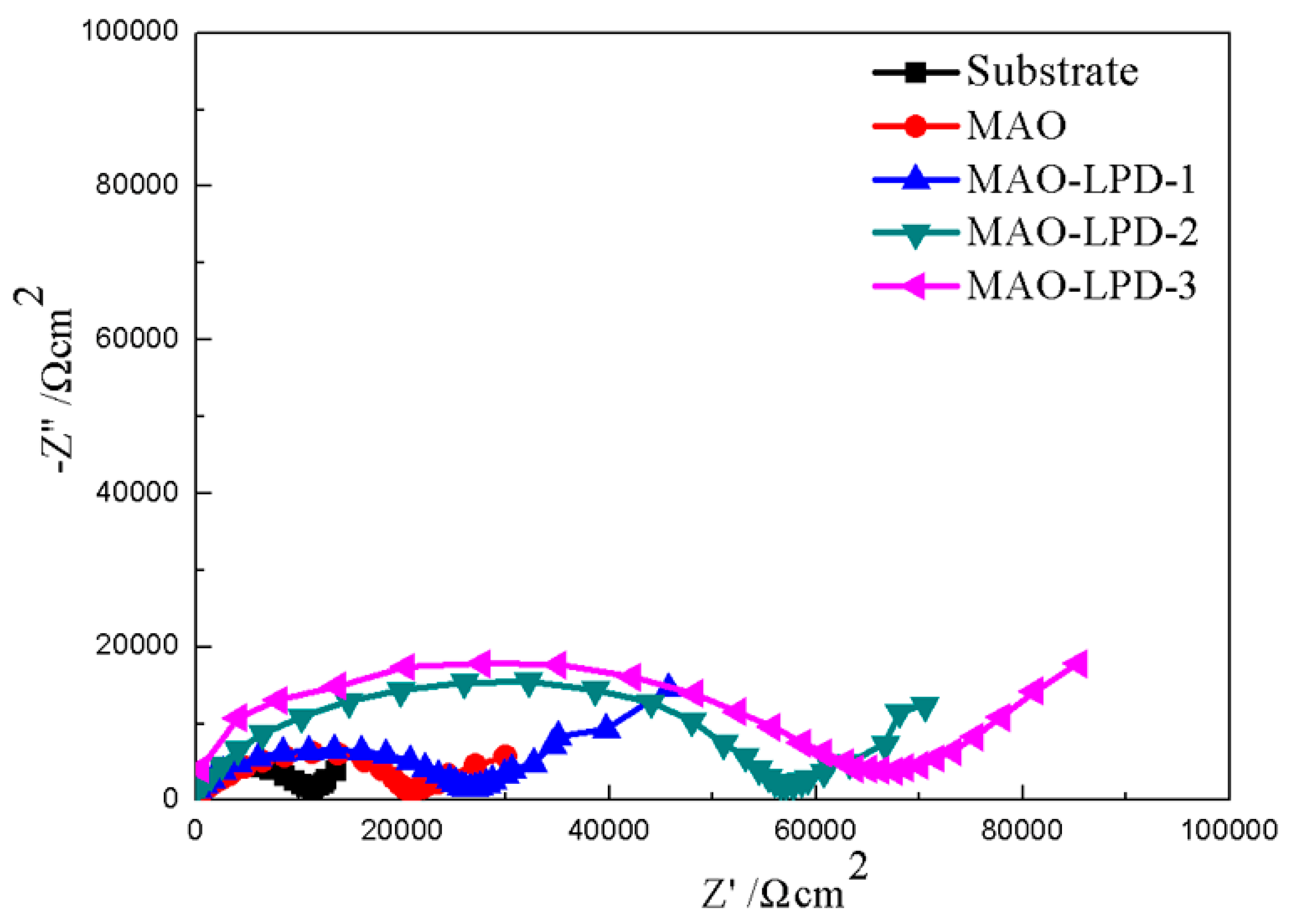

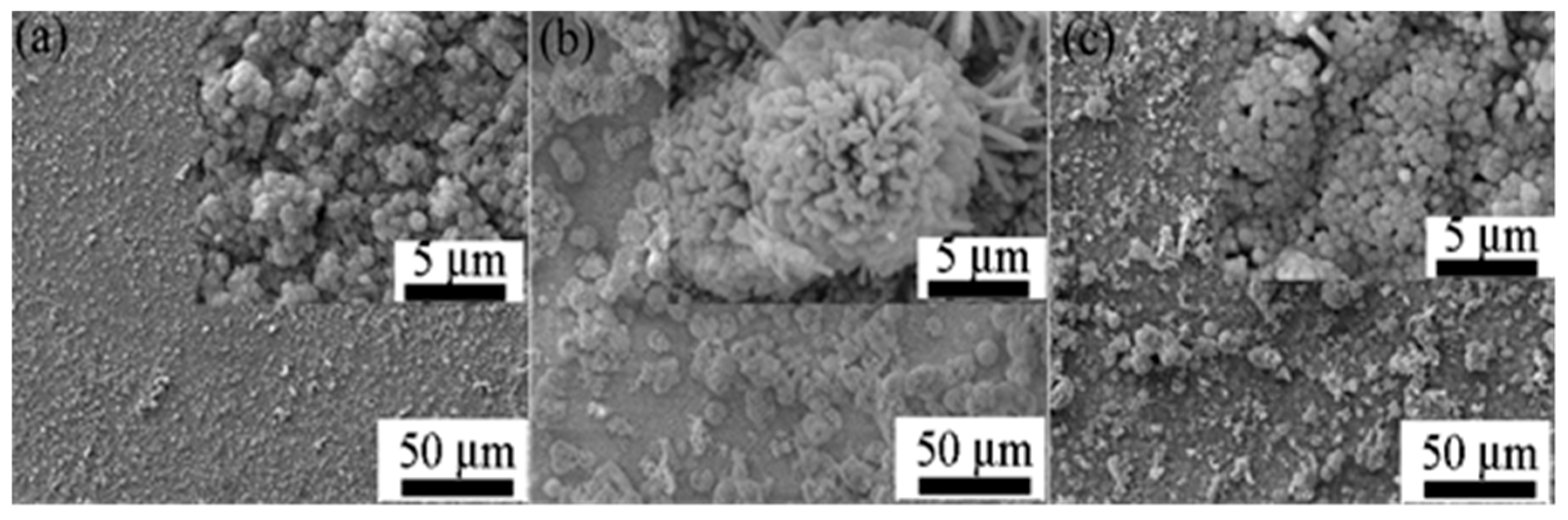

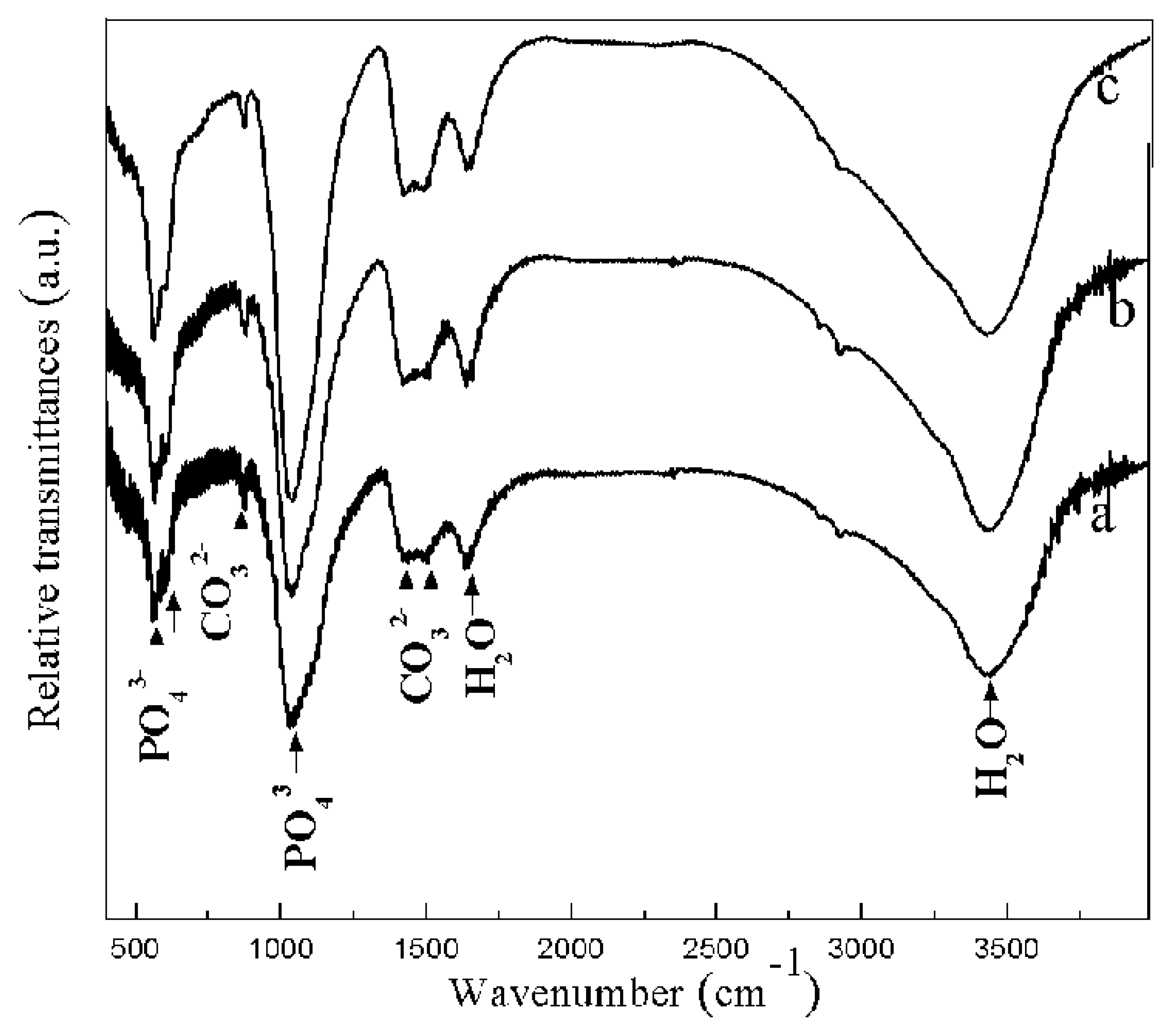

Magnesium as a biodegradable metal implant has garnered attention. Nevertheless, its rapid degradation rate and insufficient osseointegration restrict its clinical applications. In order to enhance the corrosion resistance and bioactivity of magnesium alloys, superhydrophobic hydroxyapatite (HA) layers were synthesized on micro-arc oxidized (MAO)-treated AZ31B magnesium alloy through liquid-phase deposition. This study examined the surface morphology, phase composition, bonding strength, wettability, electrochemical properties, and in vitro mineralization of the synthesized coatings. The study results demonstrated that the improved corrosion resistance of composite coatings in Hank’s solution is due to the formation of a protective HA layer. The inclusion of the MAO coating significantly enhances the bonding strength between the hydroxyapatite (HA) layer and the bare magnesium alloy. The concentration of NaH₂PO₄ affects both the microstructure and wettability. The composite coating exhibited excellent osseointegration capabilities, with new HA layers observed after immersing the samples in simulated body fluid (SBF) solution for three days. These findings suggest that the combination of MAO and solution treatment presents a promising method for enhancing biocompatibility and reducing magnesium degradation, thus making it a viable option for biodegradable implant applications.
