Enhancement of (100) Orientation and Dielectricity in PZT Thin Films Prepared by Radio Frequency Magnetron Sputtering Method

1
Department of Electromechanical and Vehicle Engineering, Taiyuan University, Taiyuan 030032, China
2
Key Laboratory for Micro/Nano Technology and Systems of Liaoning Province, Dalian University of Technology, Dalian 116024, China
*
Author to whom correspondence should be addressed.
Coatings 2025, 15(3), 336; https://doi.org/10.3390/coatings15030336
Submission received: 12 November 2024 / Revised: 9 December 2024 / Accepted: 10 December 2024 / Published: 14 March 2025

Abstract

:
PZT thin films with a sol–gel-derived seed layer of Pb1.2(Zr0.3, Ti0.7)O3 were deposited on Pt/Ti/SiO2/Si substrates via the magnetron sputtering process. The purpose of this present study was to investigate the influence of sputtering process parameters and heat treatment parameters on the crystal orientation, microstructure, and dielectric behaviors of PZT films. X-ray diffraction (XRD) analysis shows that the (100) orientation degree of the PZT films first increases and then decreases with the increase in oxygen partial pressure during sputtering. The PZT film annealed at a temperature of 550 °C exhibits a pure (100) perovskite phase. There are no significant changes in crystal orientation and the (100) orientation degree with increasing annealing time. An improved surface density, more uniform grains, and clear grain boundaries were detected by scanning electron microscope (SEM) characterization as the annealing time increased to 30 min. Optimal dielectricity was obtained in the film deposited on an O2/Ar composition of 10/90 with a sputtering pressure of 2 Pa and annealed at 600 °C for 30 min, which presents a permittivity of 852 and a loss factor of 0.026 at a frequency of 1 kHz and a remanent polarization of 18.5 μC/cm2.

1. Introduction

PZT thin films are widely used in ferroelectric registers and microactuators because of their excellent ferroelectricity and piezoelectricity [1,2,3]. There are many methods for preparing PZT thin films, such as sol–gel, RF sputtering, PLD, and so on. Among them, the RF sputtering method is widely employed due to its high yield, low introduction of impurities, uniform film surface, and small surface roughness [4,5].
The performance of PZT depends on many process conditions, such as the sputtering atmosphere, sputtering pressure, annealing temperature, annealing time, and buffer layer, when preparing the films by RF sputtering. Bi et al. [6] used radio frequency magnetron sputtering to prepare a Pb(Zr0.52, Ti0.48)O3 thin film on a Pt electrode under the deposition parameters of a pure Ar atmosphere, sputtering pressure of 2 Pa, gas flow rate of 24 mL/min, and sputtering power of 40 W. The remaining polarization strength of the film reached 18.7 μC/cm2, while the coercive field strength was only 28.6 kV/cm, which was successfully applied to ferroelectric film memory. Bose et al. deposited PZT thin films on a Ti substrate and found that the film exhibited tightly packed and uniformly sized grains under a sputtering pressure of 2.9 Pa, and several cracks penetrating the surface could be observed. When the pressure decreased to 0.7 Pa and 0.4 Pa, circular flower garlands of different shapes and sizes (about 0.4–1.2 µm) with a fine particle matrix were observed on the surface of the film. They believe that the circular flower wreath is made of perovskite PZT. Further comparison shows that a sputtering pressure of 0.7 Pa is more favorable for the transformation of PZT thin films into perovskite structures [7].
A study reported that the change in dielectric constant when O2/Ar changes is due to the different concentrations of oxygen vacancies in the film [8]. They accumulate at the grain boundaries because of too many oxygen vacancies, causing the domain wall motion to weaken during polarization, resulting in a decreased dielectric constant. Zhou et al. [9] pointed out that the leakage current density first decreases and then increases with the increase in O2/(Ar + O2). The smallest leakage current density and largest residual polarization are obtained when O2/(Ar + O2) is 0.5%, which is different from the optimal O2/Ar of 0.65/45 reported by Wan et al. [8]. Bose et al. [10] reported that PZT films prepared with an O2/Ar of 1/9 exhibit the highest residual polarization strength of 35 μC/cm2 and the lowest coercive field strength of 125 kV/cm. The phase purity of the films is affected by the O2/Ar ratio during sputtering, as reported by Bose et al. [11]. They believe that the optimal O2/Ar ratio is 20/80, and PZT films deposited at O2/Ar ratios of 30/70 or 40/60 exhibit second phases such as PbO, ZrO2, and pyrochlore structures. Therefore, there is no consensus on the influence of the sputtering atmosphere on the microstructure and electrical properties of PZT thin films.
The formation of pure perovskite PZT films generally requires a transformation process, in which the amorphous film first transforms into the pyrochlore phase at a certain temperature and then transforms into a stable perovskite phase. Bose et al. [10,12] mentioned that the transition temperature from the pyrochlore phase (Pb2(Zr, Ti)2O6) to the perovskite phase is approximately 525 °C in sputtered PZT thin films. Frunza et al. [13] found that the perovskite phase began to appear when the annealing temperature reached 600 °C, and an excellent perovskite phase without residual pyrochlore phase was observed at 650 °C. Nevertheless, Singh et al. argued that the pyrochlore phase occurs when the annealing temperature is below 600. The amount that the pyrochlore phase reduced and the perovskite phase increased corresponded to the increased annealing temperature. It is not until 750 °C that the film is completely transformed into the pure perovskite phase [14]. Previous studies have shown that the transition temperature from amorphous PZT to the pyrochlore phase and then to the perovskite phase has been controversial. Therefore, further exploration of annealing temperature and time is also a key issue in the preparation of PZT thin films.
In the present study, PZT thin films were deposited on Pt (111)/Ti/SiO2/Si(100) substrates through the RF sputtering method. The influence of the Pb1.2(Zr0.3, Ti0.7)O3 seed layer on the properties of RF-sputtered PZT thin films was compared. Then, the effects of the sputtering parameters and heat treatment parameters on the microstructure, crystal orientation, and electrical properties of PZT films were systematically investigated.

2. Experimental Procedure

2.1. Sample Preparation

In this work, the traditional solid-phase synthesis method was employed to prepare the PZT ceramic target. Pure PbO (99%), ZrO2 (99.5%), and TiO2 (99.5%) powders were weighed according to the stoichiometric ratio of Pb1.1(Zr0.52, Ti0.48)O3 (from China National Pharmaceutical Group Chemical Reagent Co., Ltd., Shanghai, China) and stirred for 3 h using a QM-3SP2 planetary ball mill, in which the 10% excess Pb was added to the targets to compensate for lead volatility. Alcohol was used as the mixing medium. After drying, the mixture was calcined at 800 °C for 2 h in an alumina crucible and ball milled again for 24 h. An amount of polyvinyl alcohol solution was added as a binder after the powder was dried, and the powder was cold pressed in a stainless steel mold. Then, the paste was incubated at 600 °C for 15 min before being coated. The paste was placed in an alumina crucible and calcined for 2 h at 1200 °C. The sintered sample was ground flat on both sides and cleaned to obtain the PZT ceramic target.
PZT thin films were deposited on Pt electrodes using the magnetron sputtering process. Firstly, the SiO2 layer (1 μm) was formed on a 2-inch Si substrate using the thermal oxidation method. Then, Pt/Ti bottom electrodes of approximately 200 nm were deposited by direct current sputtering. Next, the Pt electrodes were washed in acetone, alcohol, and deionized water for 5 min and then baked on a hot plate to remove moisture before finally being placed on the sputtering chamber stand. After vacuuming to 3.0 × 10−5 Pa, Ar and O2 mixed gases (mL/min) were introduced to the chamber using different sputtering atmospheres (O2/Ar = 0/90, 5/90, 10/90, 15/90, and 25/90) in different experiments. The throttle was adjusted to stabilize the sputtering pressure (0.5 Pa, 2 Pa, 3.5 Pa, and 5 Pa), and then the thin film was deposited. After 2 h, the samples were processed using traditional annealing methods and air atmosphere at different temperatures (525 °C, 550 °C, 575 °C, 600 °C, and 625 °C) as well as times (10 min, 20 min, 30 min, and 40 min). The specific parameters are shown in Table 1.

2.2. Characterization of Properties

An X-ray diffractometer (D8 Bruker, Bruker, Ettlingen, Germany) at a scanning range of 20–60°, with a step size of 0.02° and a scanning speed of 4°/min, was used to examine the crystal structure of the PZT thin films. The microstructure of the films was characterized using an SU8200 scanning electron microscope (Hitachi, Tokyo, Japan) at a magnification of 120,000 times. Pt top electrodes with a diameter of 1.2 mm were fabricated using direct current sputtering to measure electricity. An impedance analyzer (4294A, Agilent Technologies, Santa Clara, CA, USA) with a frequency range of 0.1 kHz to 100 kHz was employed to measure the dielectric properties of the PZT thin films. Specifically, the capacitance C of the Pt/PZT/Pt structure was first measured at a bias voltage of 1 V, and the loss factor could be directly obtained by the instrument. Then, the effective contact area A, film thickness d, and free space dielectric constant ε0 were combined to obtain the εr of the films (εr = Cd/ε0A). The P-E hysteresis loops were determined by means of a modified Sawyer–Tower circuit.

3. Results and Discussion

We selected an oxygen argon mixture of 5/90 and a sputtering pressure of 1.5 Pa to deposit a seedless PZT film on a Pt electrode, according to Table 1. Simultaneously, an annealing temperature of 600 °C and an annealing time of 30 min were selected. The XRD diffraction pattern is shown in Figure 1. The film exhibits a polycrystalline perovskite phase with (100) and (110) preferred, accompanied by some pyrochlore phase. The permittivity (εr) and loss factors (tanδ) of the film at a frequency of 0.1 kHz were measured to be 441.2 and 0.351, respectively, indicating poor dielectric properties.
Figure 2 shows the surface and cross-sectional morphology of the seedless PZT film. It can be seen from Figure 2a that the surface of the film exhibits poor uniformity and smaller grain size, and the grain boundaries are blurred. A large number of precipitation particles with a diameter of about 100 nm appear on the surface. Gong et al. proposed a similar particle as PbO previously [15]. From the cross-sectional morphology in Figure 2b, a non-dense film structure with a thickness of 800 nm can also be observed, which is consistent with the XRD results. Kim et al. reported that the crystallization temperature of 650 °C is required for PZT films deposited directly on Pt electrodes, and it is difficult to control the orientation of the film. Polycrystalline-oriented PZT films are even less resistant to the lattice mismatch caused by mismatched thermal expansion coefficients during annealing [16].
To reduce the lattice mismatch between a PZT film and substrate, a seed layer is usually introduced to enhance the electrical properties of the films [17,18]. In this article, a Pb1.2(Zr0.30, Ti0.70)O3 seed precursor solution was prepared and spin-coated on Pt substrates using the sol–gel method. The deposited films were preheated at 150 °C for 5 min to remove moisture, pyrolyzed at 400 °C for 5 min to eliminate organics, and annealed at 650 °C for 10 min. The above steps were executed several times to obtain a thickness of 100 nm. For ease of description, the seed layer is referred to as Sample 1. Then, the PZT film was deposited on Sample 1 according to the parameters of the seedless PZT film and denoted as Sample 2. The XRD diffraction patterns of Sample 1 and Sample 2 are shown in Figure 3. It can be observed that both exhibit a (100) preferred orientation, and Sample 2 has a higher degree of (100) orientation, which is ascribed to the guiding role of lead oxide. In fact, PbO appeared on the surface of the films as relatively high amounts of Pb element were introduced to the Pb1.2(Zr0.30, Ti0.70)O3 seed layer, which provided a good lattice model for the growth of Sample 2 along a (100) orientation [19]. Sample 2 exhibits a promising εr of 867 and tanδ of 0.028, respectively, at a frequency of 1 kHz. Compared with the film without a seed layer, its dielectric properties were significantly improved. The PZT thin films discussed next were all deposited on the Pb1.2(Zr0.30, Ti0.70)O3 seed layer.

3.1. Effect of Sputtering Atmosphere on Film Properties

We selected a sputtering pressure of 1.5 Pa to deposit the PZT films, as well as an annealing temperature of 600 °C and an annealing time of 30 min. The XRD diffraction patterns of the films deposited in different sputtering atmospheres (O2/Ar = 0/90, 5/90, 10/90, 15/90, and 25/90) are shown in Figure 4. It can be noted that all the films exhibit the (100) preferred orientation. Wang et al. reported that post-deposited thin films grow along the substrate orientation when using combination processes (PLD/RF, sol–gel/RF, etc.) to prepare multilayer films [20]. However, the PZT films in this work exhibit certain differences in crystal orientation with the sputtering atmosphere changes.
Compared to the crystal orientation of the buffer layer, the second phase near 2θ diffraction angles of 36.2°and 53.5°appear in the film with an O2/Ar of 0/90. Some researchers believe that this is due to the excess Pb pyrochlore phase formed by a pure argon atmosphere [10]. When the O2/Ar ratio increases to 5/90, a hump is still observed around 53.5°, which is because the low oxygen content causes oxygen deficiency in the film, resulting in an oxygen-deficient pyrochlore phase [9]. With the O2/Ar ratios increasing to 10/90, 15/90, and 25/90, the pure perovskite phase is detected in the PZT films, and the (100) preferred orientation is significantly improved compared with the seed layer. We calculated the (100) orientation degree of all the films. It was found that it first increases and then decreases with the increase in oxygen content, and the maximum orientation degree was obtained at an O2/Ar ratio of 10/90. As is well known, the phase purity of PZT films depends on many factors, such as target composition, sputtering, and the annealing process. In Bose et al.’s study, the sputtering pressure and substrate temperature were 4.8 Pa and 400 °C, respectively, while they were 1.5 Pa and 25 °C in this research. Therefore, the optimal O2/Ar ratio is different in this study compared to Bose’s research due to the difference in pressure and substrate temperature during deposition.

3.2. Effect of Sputtering Pressure on Film Properties

We selected an O2/Ar composition of 10/90 to prepare the PZT films, as well as an annealing temperature of 600 °C and an annealing time of 30 min. The XRD patterns of the films deposited at different sputtering pressures (0.5 Pa, 2 Pa, 3.5 Pa, and 5 Pa) are shown in Figure 5. It can be seen that PZT films preferentially grow along the (100) direction without the appearance of the pyrochlore phase.
The dielectric properties of the PZT thin films under different sputtering pressures are shown in Figure 6. It can be inferred from the graph that the εr and tanδ of these films first increase and then decrease with the increase in sputtering pressure at a certain frequency. When the sputtering pressure varies within the range of 0.5~3.5 Pa, the εr changes and reaches its maximum at 2 Pa. With further increasing the sputtering pressure to 5 Pa, the εr decreases sharply, reaching only 456 at 1 kHz. The XRD and dielectric test results indicate that the most suitable pressure for PZT film preparation is 2 Pa during sputtering.

3.3. Effect of Annealing Temperature on Film Properties

We selected an O2/Ar composition of 10/90 and a sputtering pressure of 2 Pa to prepare the PZT films, as well as a holding time of 30 min. The XRD patterns of the films were obtained at different annealing temperatures (525 °C, 550 °C, 575 °C, 600 °C, and 625 °C), as shown in Figure 7. It can be observed that all the films exhibit (100) preferred orientation. The excellent (100) preferred orientation degrees of 75.2% and 73.8% were obtained in the films with annealing temperatures of 575 °C and 600 °C, respectively, which show an increase of 28.9% and 26.7% compared with the 525 °C annealed film. The PZT film with an annealing temperature of 525 °C exhibits a hump near the 2θ angle of 29.2°, indicating the presence of the pyrochlore phase in the film. However, the hump disappears with increasing temperature in the range of 550–625 °C, which means that the PZT films are completely transformed into the perovskite phase. Many studies indicate that PZT films by RF sputtering exhibit the pyrochlore phase under an annealing temperature below 600 °C. Only when the temperature reaches 650–750 °C can films show the pure perovskite phase, and the residual pyrochlore phase is completely eliminated [13,14]. Compared with these results, the annealing temperature of 550 °C, at which the PZT film prepared in this work completely transforms into the perovskite phase, is reduced. This may be attributed to the fact that the solid-phase epitaxial effect between the PZT layers deposited by the sol–gel method and RF sputtering decreased the annealing temperature to obtain the perovskite phase during heat treatment, and the same preferred orientation as that of the sol–gel seed layer was obtained [20].
The SEM morphology of PZT films at annealing temperatures of 550 °C and 600 °C is shown in Figure 8. It can be seen from Figure 8a that the film surface is flat. The grains are uniform and mostly distributed between 30 and 50 nm, but a few microcracks are exhibited. After annealing at 600 °C, the grain size significantly increased to 200–300 nm, and the surface microcracks disappeared, as shown in Figure 8b. In fact, the surface morphology of thin films is mainly determined by the annealing temperature on the growth rate and steady-state nucleation rate. Smaller critical nucleation densities and steady-state grain nucleation rates are achieved at lower annealing temperatures, resulting in the formation of small grains. After increasing the annealing temperature, the significant increase in the critical nucleation density and grain nucleation rate promotes the acceleration of grain growth, leading to the formation of large grains.
The variation in εr with the frequency of PZT films annealed at different temperatures is shown in Figure 9. It can be observed that the εr of all films gradually decreases with the increase in frequency, which is ascribed to various polarization factors, such as electrons, ions, and space charges. It is worth noting that the εr increases first and then decreases with the increase in annealing temperature at a fixed frequency. Optimal permittivity is obtained in the sample annealed at 600 °C, which shows an εr of 1156 at 1 kHz. The εr of the film annealed at 525 °C is only 352, mainly due to the deterioration of dielectric properties caused by the presence of the pyrochlore phase inside the film due to the low annealing temperature.
Figure 10 depicts the ferroelectric properties of PZT thin films prepared at different annealing temperatures. For an annealing temperature of 525 °C, the P-E loop of the film shows a significant deviation in the direction of the electric field axis. After increasing the annealing temperature to above 550 °C, promising P-E loops are obtained. An enhanced Pr (27 μC/cm2) for the film annealed at 575 °C in comparison to that of 550 °C and 600 °C may be ascribed to the excellent (100) orientation, which decreases the lattice domain switching resistance and improves the movement of domain walls. The film annealed at 600 °C also exhibits larger Pr (18.5 μC/cm2) and smaller Ec (55 kV/cm), and its P-E loop is more symmetrical. It can be seen that the increase in annealing temperature promotes the crystallization of the film, thereby improving its ferroelectric properties.

3.4. Effect of Annealing Time on Film Properties

We selected an O2/Ar composition of 10/90 and a sputtering pressure of 2 Pa to prepare the PZT films, as well as an annealing temperature of 600 °C. Figure 11 shows the XRD patterns of the films at different annealing times of 10 min, 20 min, 30 min, and 40 min. It can be observed that all films exhibit a highly (100) preferred orientation, and there is no significant change in the crystal orientation structure and (100) degree with increasing annealing time.
Figure 12 shows the surface morphology of the samples prepared with annealing times of 10 min, 30 min, and 40 min. As is shown in Figure 12a, unclear grain boundaries, poor film density, small grains, and partial microcracks were demonstrated in the film with an annealing time of 10 min. When the annealing time was increased to 30 min, an improved surface density, more uniform grains, and clear grain boundaries were observed, and the grain size was concentrated between 100 and 200 nm. With increasing the annealing time to 40 min, further increased grain size but decreased compactness were presented. This phenomenon indicates that holding time is particularly important for improving the crystallization properties of the films. There is insufficient time for the film to complete the transformation into the perovskite phase under a short insulation time. However, a longer insulation time promotes the volatilization and diffusion rate of Pb, reducing the surface uniformity of the film. The decreasing uniformity can easily cause an increase in surface stress and cracking of the film, leading to a decrease in the device’s electromechanical coupling ability, deterioration of fatigue performance, and a decrease in stability and reliability. In this work, PZT thin films with moderate grain size and uniform surface morphology were obtained by annealing at 600 °C for 30 min.
The variation in the εr and tanδ of the films with frequency at different annealing times is shown in Figure 13, which indicates that the annealing time has a significant impact on the dielectric properties of the films. For the samples annealed at 10 min and 20 min, the εr and tanδ decay rapidly in the low-frequency stage, which is attributed to the presence of more space charges or increased contributions from interface polarization inside the film [21,22]. Optimal dielectricity is obtained in the film annealed with 30 min, which presents a permittivity of 852 and a loss factor of 0.026 at a frequency of 1 kHz, respectively. This result is consistent with the microstructure characterization of the film. Therefore, this study believes that PZT thin films annealed for 30 min demonstrate the best dielectric properties.

4. Conclusions

In this study, we prepared PZT thin films with a sol–gel-derived Pb1.2(Zr0.3, Ti0.7)O3 seed layer on Pt/Ti/SiO2/Si substrates using the RF magnetron sputtering method. The dependence of crystal orientation, microstructure, and dielectric behaviors on the sputtering process and heat treatment parameters were investigated. XRD analysis demonstrates the (100) orientation degree of the films first increases and then decreases with the increase in O2/Ar ratios during sputtering, and the mixed phase containing the pyrochlore phase transforms into a pure perovskite phase. The excellent (100) preferred orientation degree of 83.2% is obtained in the film with an O2/Ar ratio of 10/90. The XRD and dielectric test results indicate that the most suitable pressure for PZT film preparation is 2 Pa during sputtering. The pure (100) perovskite phase was detected in the film annealed at a temperature of 550 °C, which indicates that the annealing temperature of the PZT films deposited in this work is reduced. SEM analysis shows that the film processed with an annealing time of 30 min exhibits more uniform grains, clear grain boundaries, and improved surface density. For the film with an O2/Ar composition of 10/90, a sputtering pressure of 2 Pa, an annealing temperature of 600 °C, and a holding time of 30 min, superior dielectricity (εr = 852, tanδ = 0.026) measured at 1 kHz and ferroelectricity (Pr = 18.5 μC/cm2, Ec = 55 kV/cm) were obtained. The experience gained from this work is expected to provide a reference for the preparation of PZT thin films.

Author Contributions

Methodology, X.W.; Software, X.W.; Validation, X.W.; Formal analysis, X.W.; Writing—original draft, X.W.; Writing—review & editing, H.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This paper was supported by the Talent Introduction and Research Launch Project of Taiyuan University (No. 24TYKY223), the Shanxi Natural Science Foundation for Youth (No. 202203021212017), and the National Natural Science Foundation of China (No. 51775088).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujii, T.; Hishinuma, Y.; Mita, T.; Naono, T. Characterization of Nb-doped Pb(Zr,Ti)O3 films deposited on stainless steel and silicon substrates by RF-magnetron sputtering for MEMS applications. Sens. Actuators A Phys. 2010, 163, 220–225. [Google Scholar] [CrossRef]
  2. Bretos, I.; Jiménez, R.; Wu, A.; Kingon, A.I.; Vilarinho, P.M.; Calzada, M.L. Activated Solutions Enabling Low-Temperature Processing of Functional Ferroelectric Oxides for Flexible Electronics. Adv. Mater. 2014, 26, 1405–1409. [Google Scholar] [CrossRef] [PubMed]
  3. Tommasi, A.; Coletta, G.; Balma, D.; Marasso, S.; Perrone, D.; Canavese, G.; Stassi, S.; Bianco, S.; Cocuzza, M.; Pirri, C. Process optimisation of a MEMS based PZT actuated microswitch. Microelectron. Eng. 2014, 119, 137–140. [Google Scholar] [CrossRef]
  4. Thongrit, P.; Horprathum, M.; Pengpat, K.; Bintachitt, P. Effects of Annealing Temperature on Crystal Structure and Microstructure of PZT Thin Films (52/48) Prepared by RF Magnetron Sputtering. Integr. Ferroelectr. 2021, 223, 173–184. [Google Scholar] [CrossRef]
  5. Thongrit, P.; Chananonnawathorn, C.; Horprathum, M.; Triamnak, N.; Lertvanithphol, T.; Eitssayeam, S.; Pengpat, K.; Bintachitt, P. Improving the microstructure and properties of PZT thin films via annealing prepared by RF magnetron sputtering using Pb(Zr0.52Ti0.48)O3 target. Ceram. Int. 2023, 49, 12912–12924. [Google Scholar] [CrossRef]
  6. Bi, Z.; Zhang, Z.; Hu, M. Research on the process of preparing PZT thin films by RF magnetron sputtering. Bull. Chin. Ceram. Soc. 2005, 4, 6–9. [Google Scholar]
  7. Bose, A.; Sreemany, M. Influence of processing conditions on the structure, composition and ferroelectric properties of sput-tered PZT thin films on Ti-substrates. Appl. Surf. Sci. 2014, 289, 551–559. [Google Scholar] [CrossRef]
  8. Wan, J. Research on Crystallization Mechanism and Orientation Control of PZT Thin Films. Ph.D. Thesis, University of Electronic Science and Technology of China, Chengdu, China, 2015. [Google Scholar]
  9. Zhou, D.; Yang, C.T.; Yang, Y.X.Y.; Zhang, Y.; Zhu, W.X.; Li, X.M.; Fang, Z.X.; Hu, Q.J. Influence of oxygen partial pressure on the properties of PZT thin film deposited by RF magnetron sputtering. Mater. Res. Innov. 2015, 19, S9-360–S9-363. [Google Scholar] [CrossRef]
  10. Bose, A.; Sreemany, M.; Bysakh, S. Influence of processing parameters on the growth characteristics and ferroelectric properties of sputtered PZT thin films on stainless steel substrates. Appl. Surf. Sci. 2013, 282, 202–210. [Google Scholar] [CrossRef]
  11. Bose, A.; Sreemany, M.; Halder, S.K.; Bhattacharyya, D.K.; Sen, S.; Sivakumar, S.M.; Buravalla, V.; Srinivasa, A.R. Preparation and characterization of PZT thin films. Am. Inst. Phys. 2008, 1029, 279–289. [Google Scholar]
  12. Habouti, S.; Lahmar, A.; Dietze, M.; Solterbeck, C.-H.; Zaporojtchenko, V.; Es-Souni, M. Substrate heterostructure effects on interface composition, microstructure development and functional properties of PZT thin films. Acta Mater. 2009, 57, 2328–2338. [Google Scholar] [CrossRef]
  13. Frunza, R.; Ricinschi, D.; Gheorghiu, F.; Apetrei, R.; Luca, D.; Mitoseriu, L.; Okuyama, M. Preparation and characterisation of PZT films by RF-magnetron sputtering. J. Alloys Compd. 2011, 509, 6242–6246. [Google Scholar] [CrossRef]
  14. Singh, R.; Chakraborty, B.; Singh, N.; Bahadur, H.; Goel, T.; Chandra, S. Compositional and structural analysis of RF magnetron sputtered La3+-modified PZT thin films. J. Mech. Work. Technol. 2009, 209, 991–997. [Google Scholar] [CrossRef]
  15. Gong, W.; Li, J.-F.; Chu, X.; Gui, Z.; Li, L. Preparation and characterization of sol–gel derived (100)-textured Pb(Zr,Ti)O3 thin films: PbO seeding role in the formation of preferential orientation. Acta Mater. 2004, 52, 2787–2793. [Google Scholar] [CrossRef]
  16. Kim, T.S.; Kim, J.H.; Lee, J.K.; Jung, H.J. Influences of sol-gel derived thin Pb(Zr0.52Ti0.48)O3 layers as a buffer on RF sputtered Pb(Zr0.52Ti0.48)O3 thin films. Integr. Ferroelectr. 1995, 10, 55–61. [Google Scholar] [CrossRef]
  17. Wu, J.; Xiao, D.; Zhu, J.; Zhu, J.; Tan, J. Highly (100)-oriented (Pb1−xLax)Ti1−x/4O3/Pb(Zr0.20Ti0.80)O3/(Pb1−xLax)Ti1−x/4O3 multilayered thin films by RF magnetron sputtering. Phys. Status Solidi A 2007, 204, 2362–2368. [Google Scholar] [CrossRef]
  18. Mukherjee, D.; Hordagoda, M.; Lampen, P.; Phan, M.H.; Srikanth, H.; Witanachchi, S.; Mukherjee, P. Simultaneous enhancements of polarization and magnetization in epitaxial Pb(Zr0.52Ti0.48)O3/La0.7Sr0.3MnO3 multiferroic heterostructures enabled by ultrathin CoFe2O4 sandwich layers. Phys. Rev. B 2015, 91, 054419. [Google Scholar] [CrossRef]
  19. Sigov, A.S.; Vorotilov, K.A.; Zhigalina, O.M. Effect of Lead Content on Microstructure of Sol-Gel PZT Structures. Ferroelectrics 2012, 433, 146–157. [Google Scholar] [CrossRef]
  20. Wang, Z.; Kokawa, H.; Maeda, R. In situ growth of lead zirconate titanate thin films by hybrid process: Sol–gel method and pulsed-laser deposition. Acta Mater. 2005, 53, 593–600. [Google Scholar] [CrossRef]
  21. Zhu, X.; Zhu, J.; Zhou, S. Growth behavior, dielectric properties, and microstructure of PZT nanoferroelectric thin films. J. Chin. Electron Microsc. Soc. 2008, 27, 346–351. [Google Scholar]
  22. Wen, B.; Zhang, Y.; Liu, X.; Ma, L.; Wang, X. Fatigue improvement in modified lead zirconate titanate ceramics through employment of La0.8Sr0.2MnO3 buffer layers. Ceram. Int. 2013, 39, 219–225. [Google Scholar] [CrossRef]

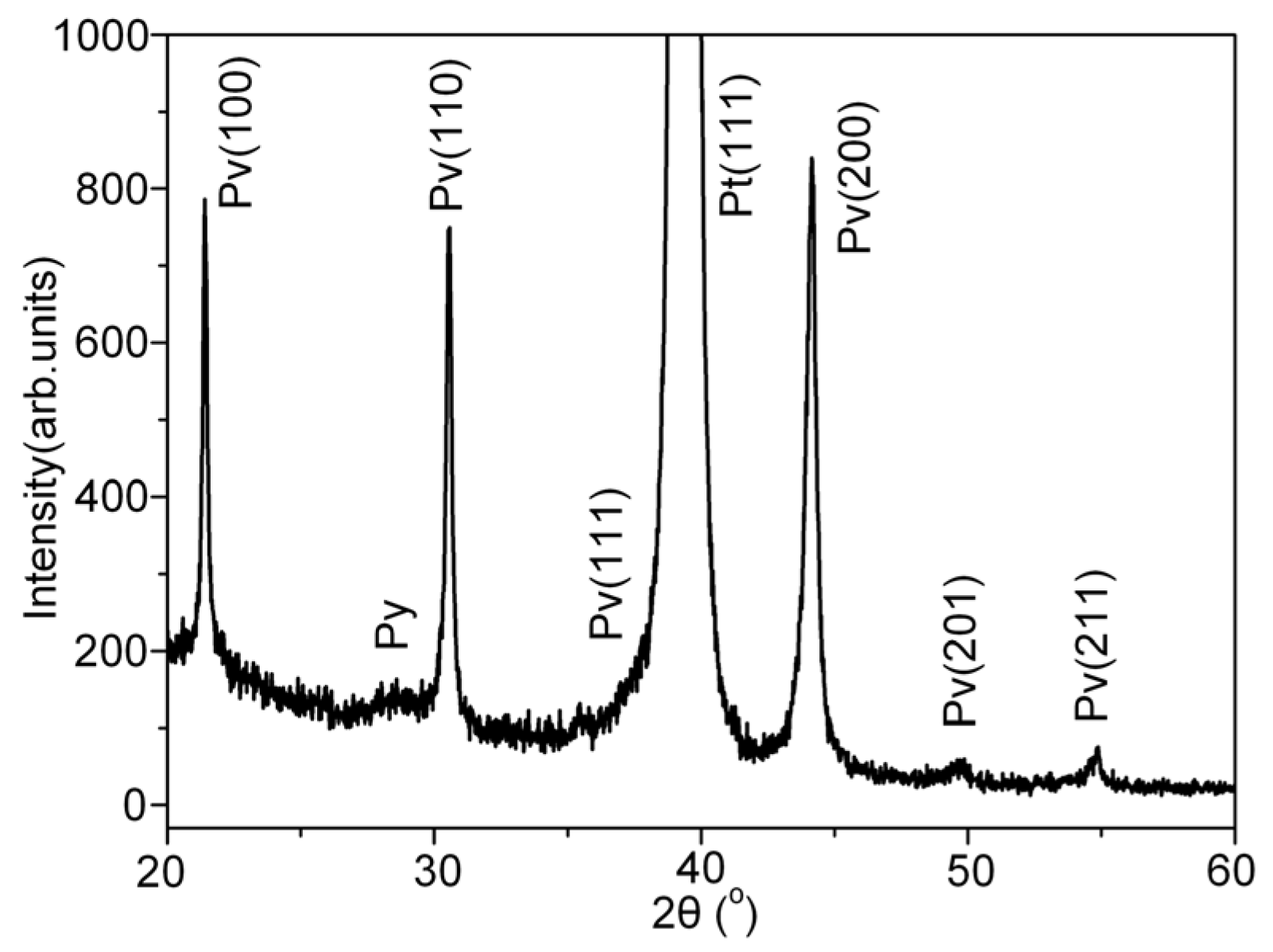

Figure 1. XRD pattern of PZT film without seed layer.
Figure 1. XRD pattern of PZT film without seed layer.
Coatings 15 00336 g001

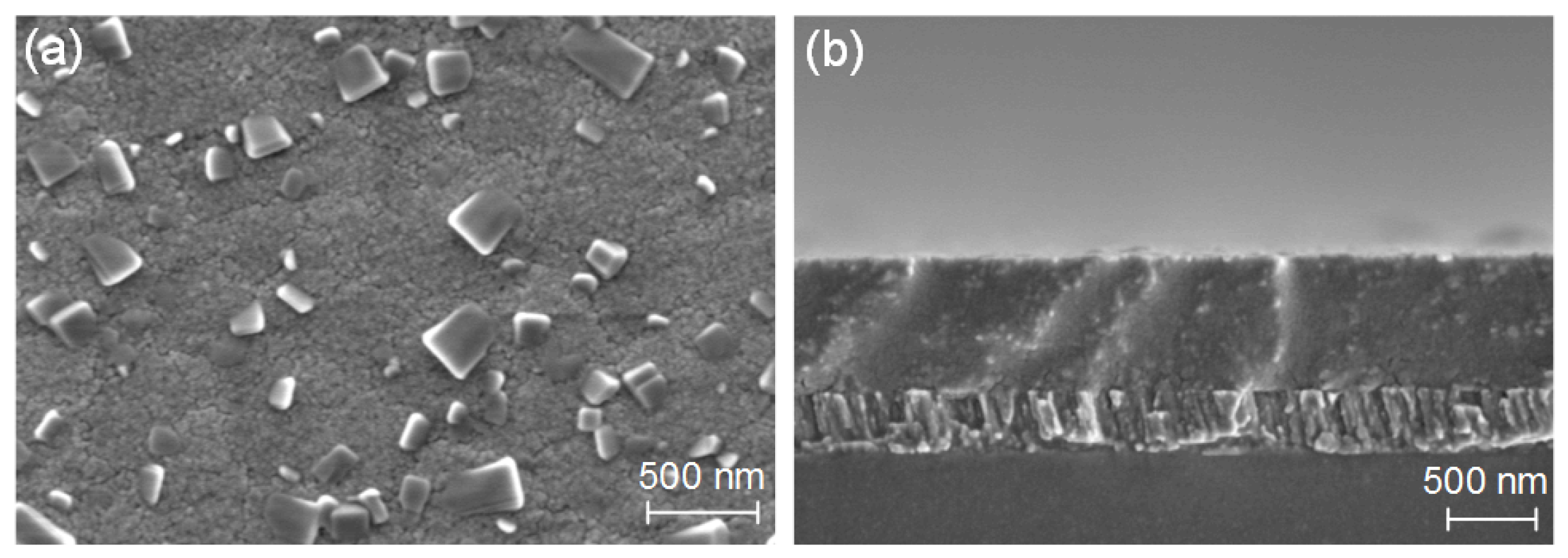

Figure 2. SEM characterization results of PZT film without seed layer: (a) surface morphology; (b) cross-section morphology.
Figure 2. SEM characterization results of PZT film without seed layer: (a) surface morphology; (b) cross-section morphology.
Coatings 15 00336 g002

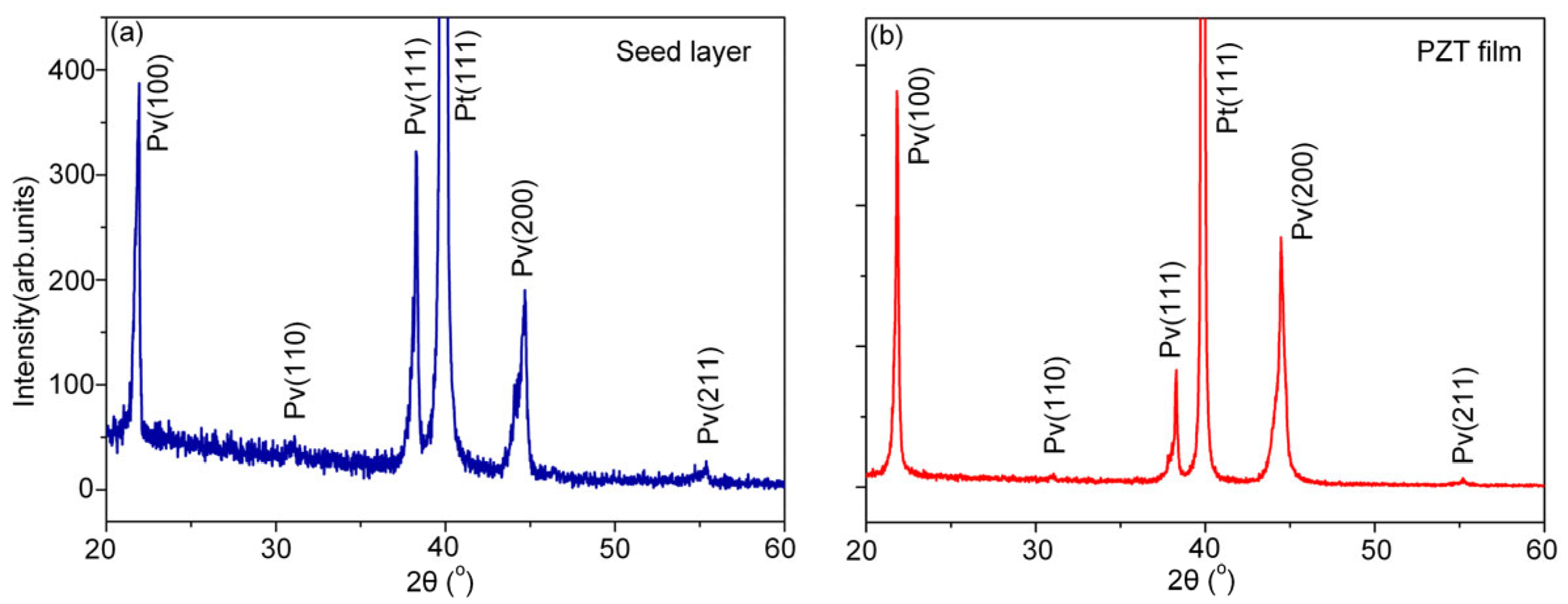

Figure 3. XRD patterns of different films: (a) Sample 1; (b) Sample 2.
Figure 3. XRD patterns of different films: (a) Sample 1; (b) Sample 2.
Coatings 15 00336 g003

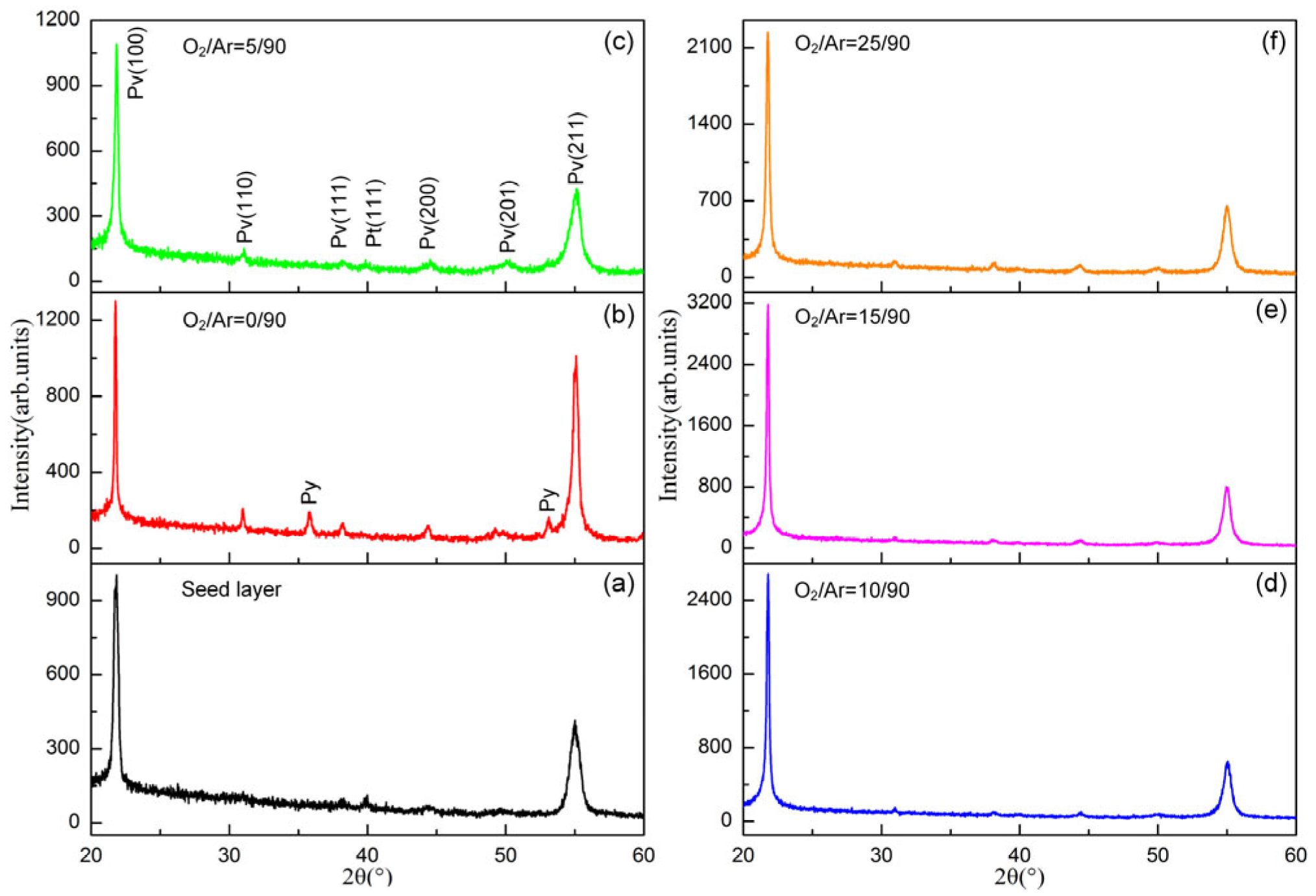

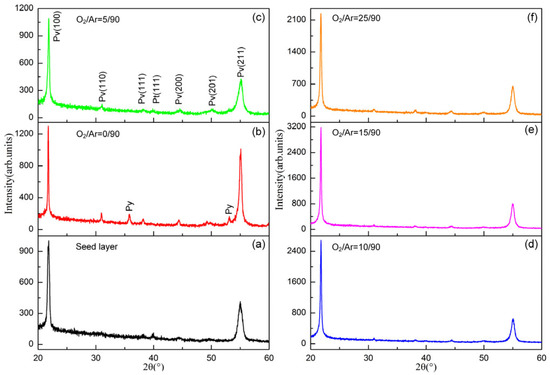

Figure 4. XRD patterns of PZT thin films under different sputtering atmospheres: (a) Seed layer; (b) 0/90; (c) 5/90; (d) 10/90; (e) 15/90; (f) 25/90.
Figure 4. XRD patterns of PZT thin films under different sputtering atmospheres: (a) Seed layer; (b) 0/90; (c) 5/90; (d) 10/90; (e) 15/90; (f) 25/90.
Coatings 15 00336 g004

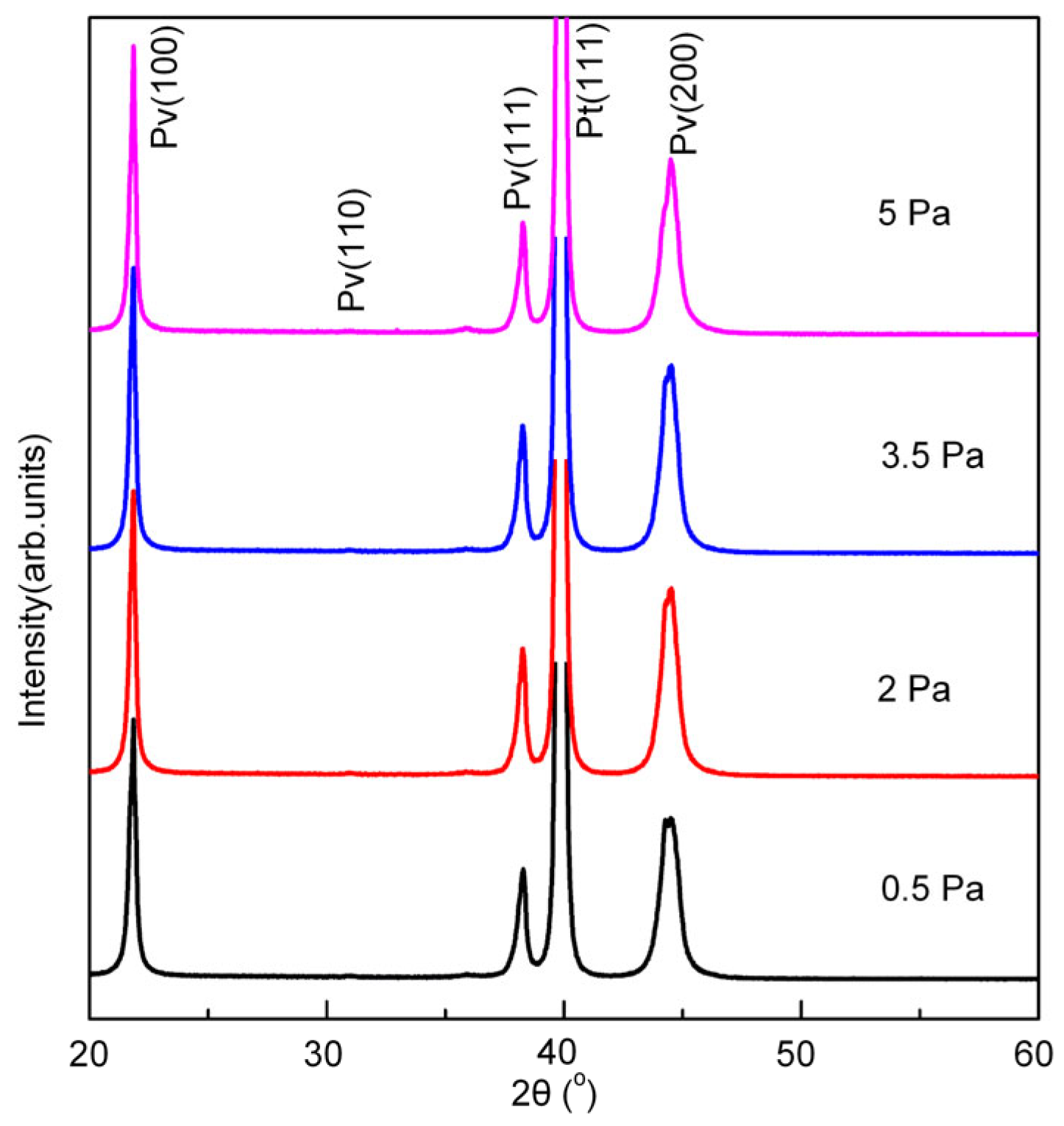

Figure 5. XRD patterns of PZT films under different sputtering pressures.
Figure 5. XRD patterns of PZT films under different sputtering pressures.
Coatings 15 00336 g005

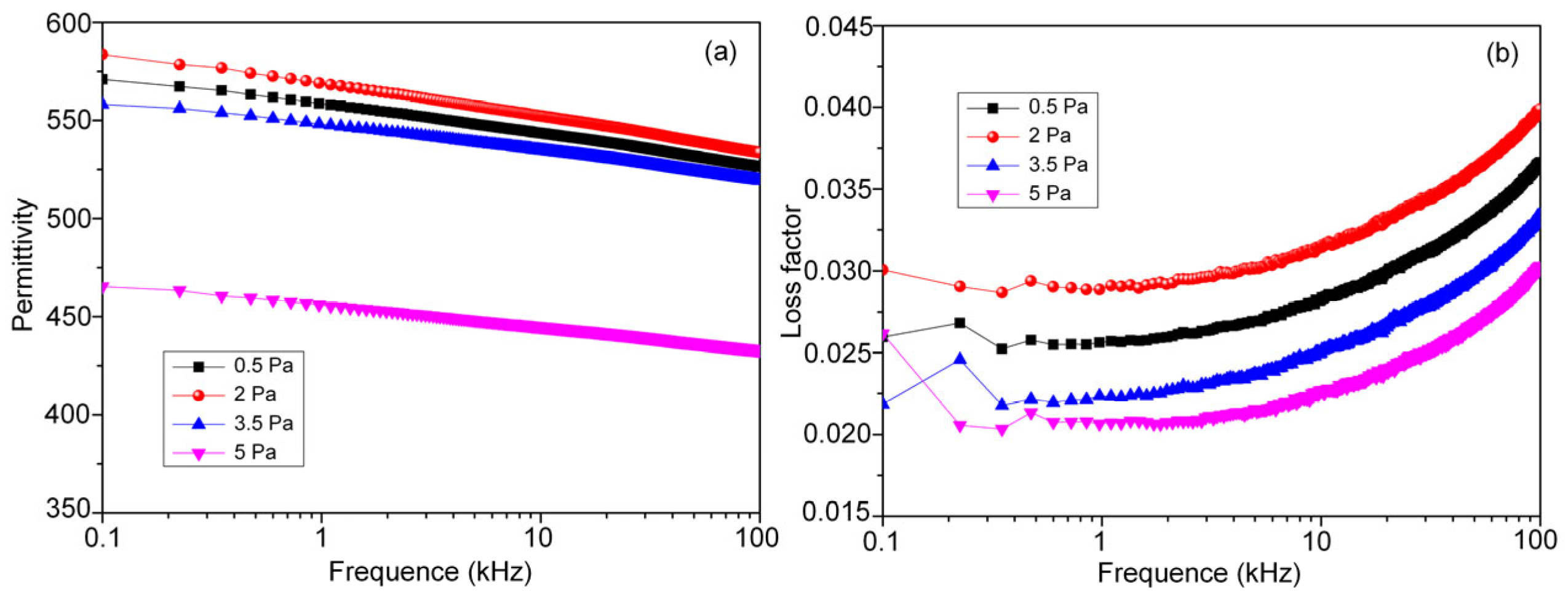

Figure 6. Dielectric properties of PZT thin films under different sputtering pressures: (a) permittivity; (b) loss factor.
Figure 6. Dielectric properties of PZT thin films under different sputtering pressures: (a) permittivity; (b) loss factor.
Coatings 15 00336 g006

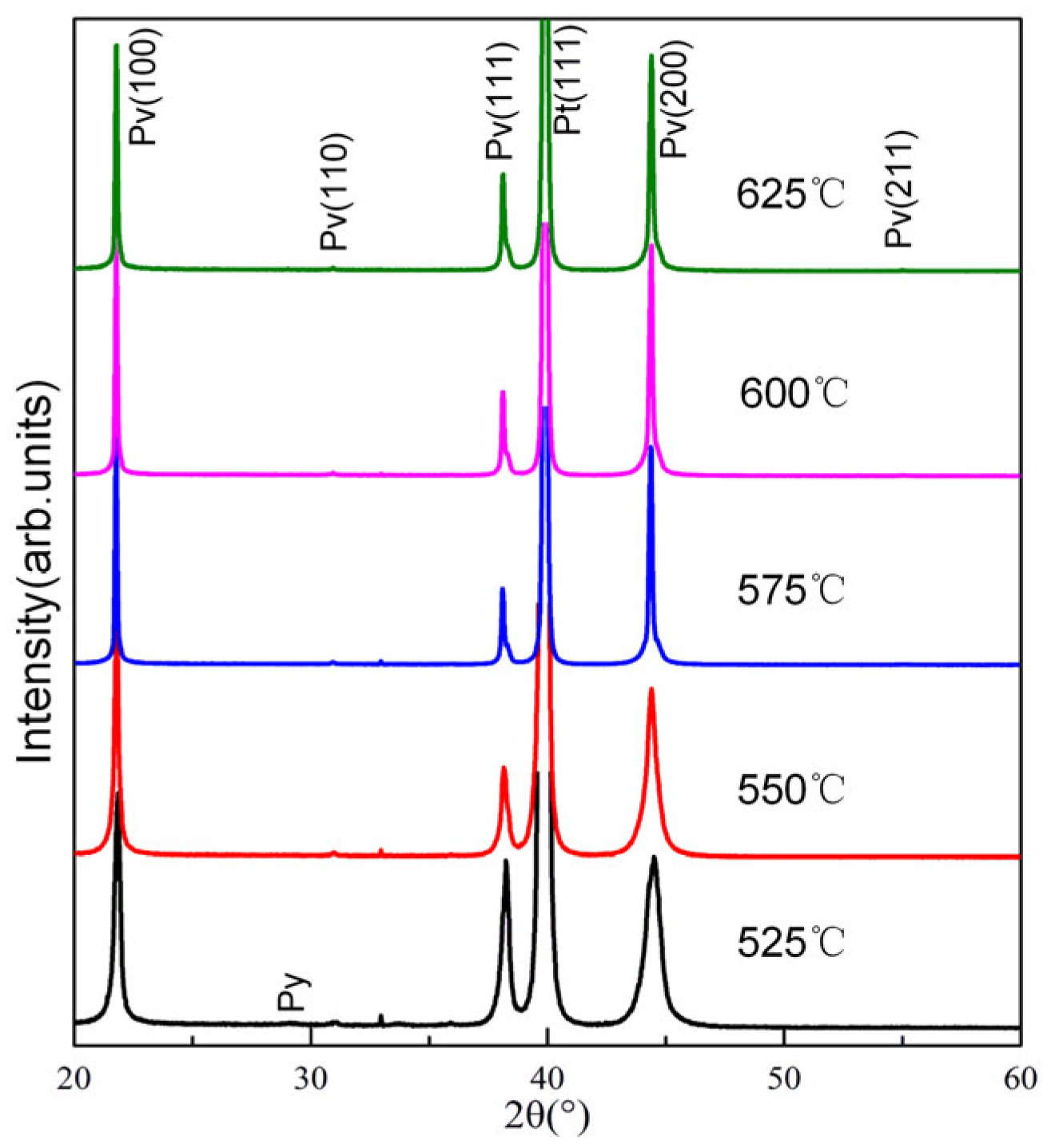

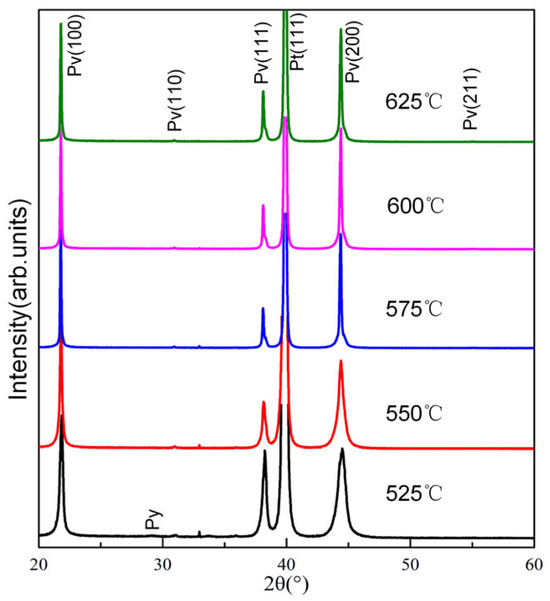

Figure 7. XRD patterns of PZT films under different annealing temperatures.
Figure 7. XRD patterns of PZT films under different annealing temperatures.
Coatings 15 00336 g007

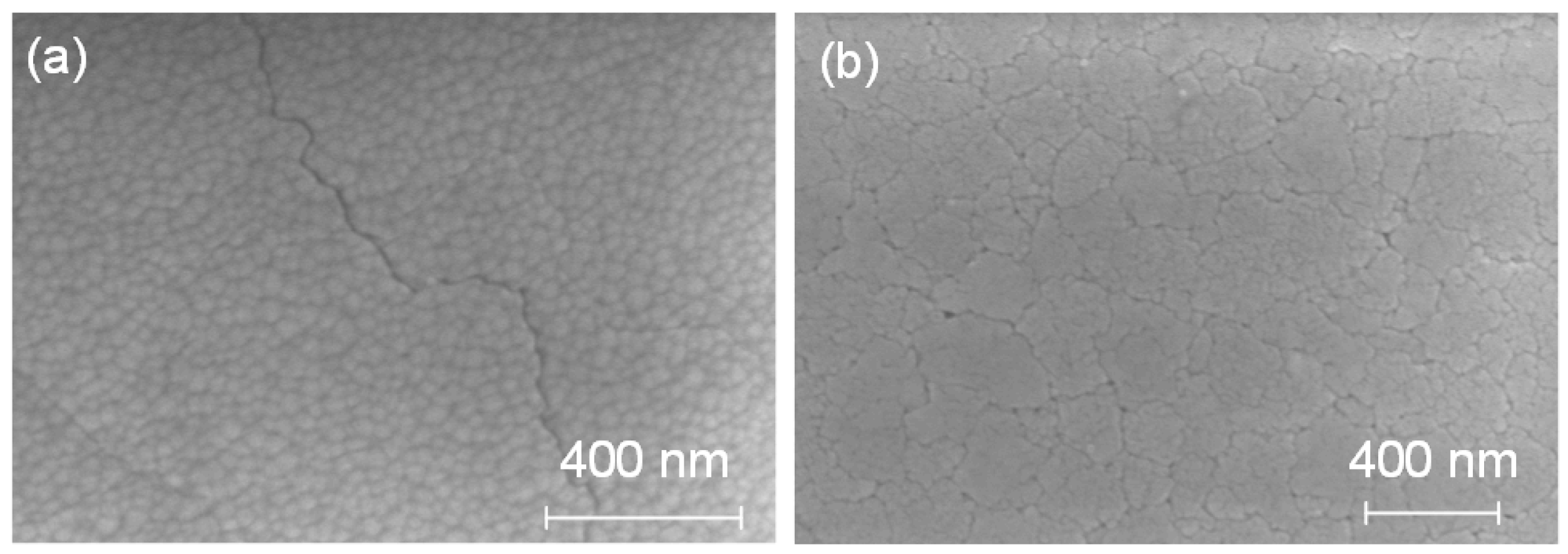

Figure 8. Surface morphology of the films annealed at different temperatures: (a) 550 °C; (b) 600 °C.
Figure 8. Surface morphology of the films annealed at different temperatures: (a) 550 °C; (b) 600 °C.
Coatings 15 00336 g008

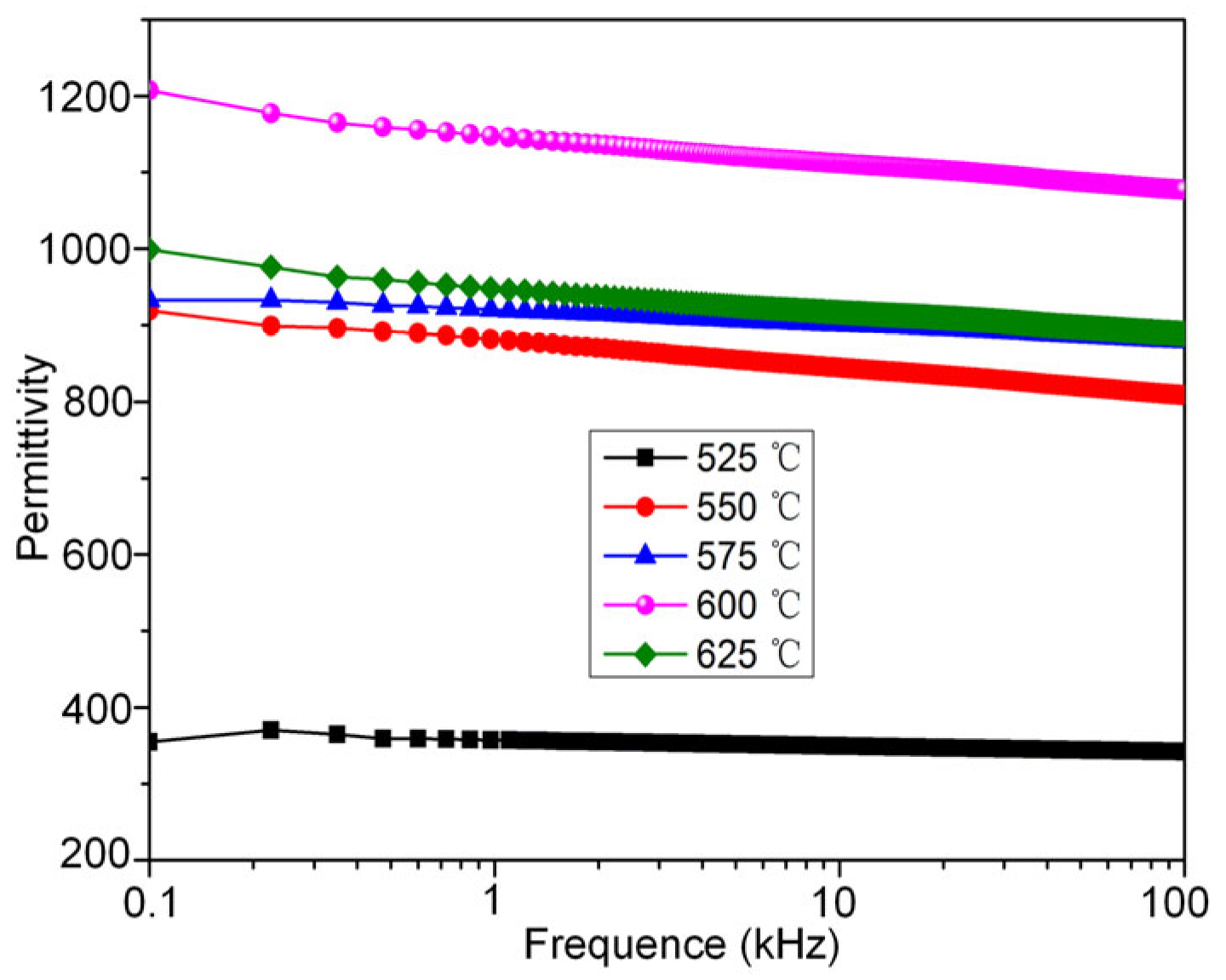

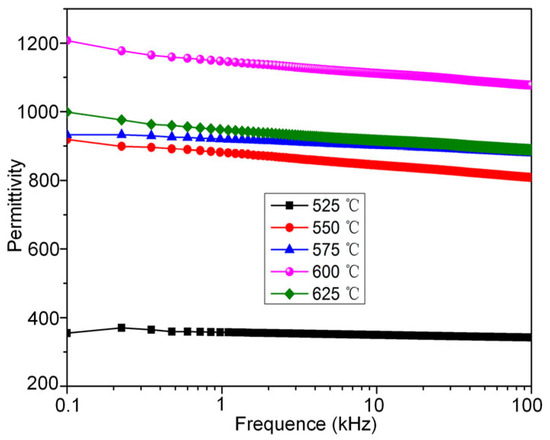

Figure 9. Dielectric properties of PZT films under different annealing temperatures.
Figure 9. Dielectric properties of PZT films under different annealing temperatures.
Coatings 15 00336 g009

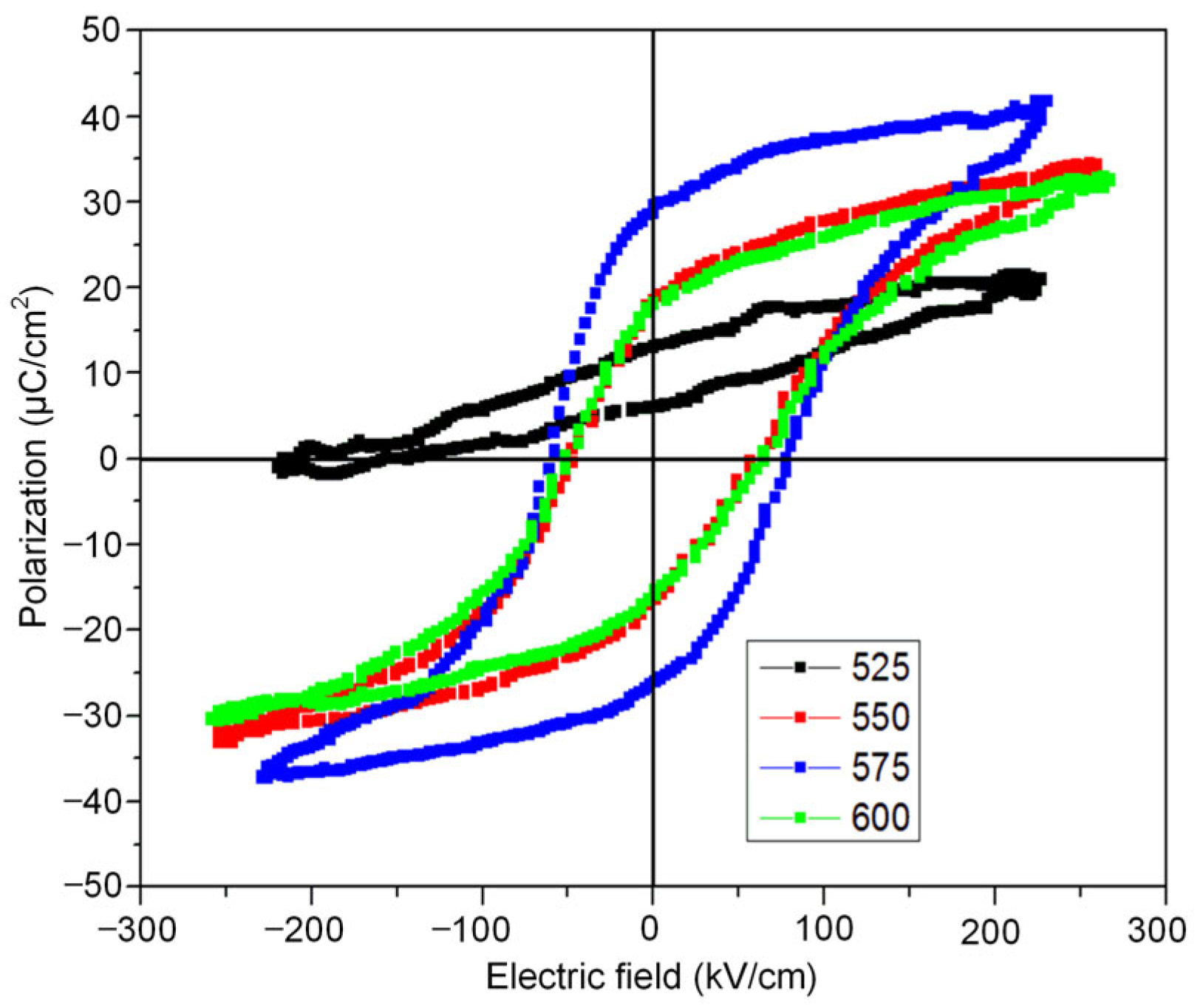

Figure 10. P-E hysteresis loops of PZT films under different annealing temperatures.
Figure 10. P-E hysteresis loops of PZT films under different annealing temperatures.
Coatings 15 00336 g010

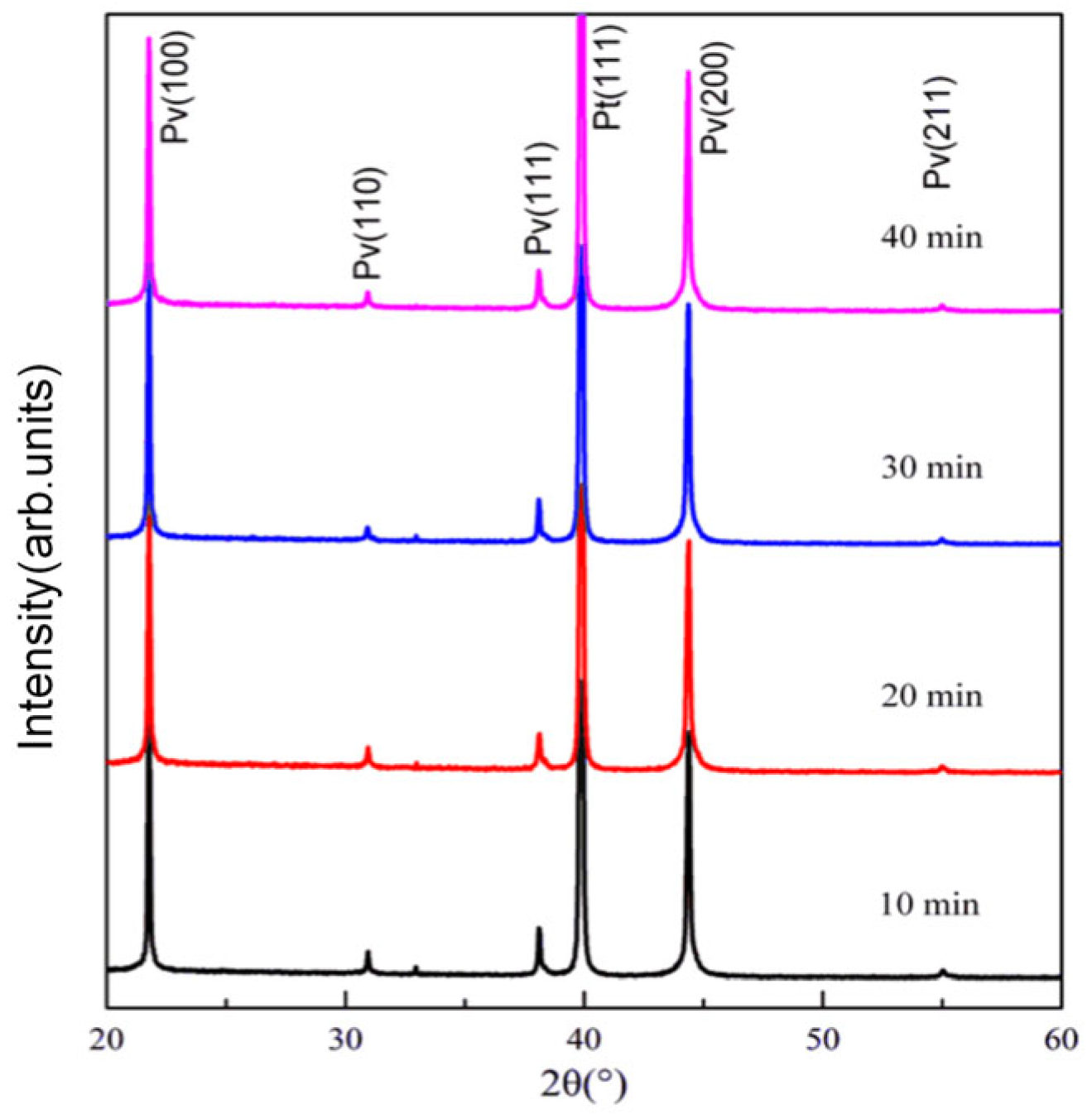

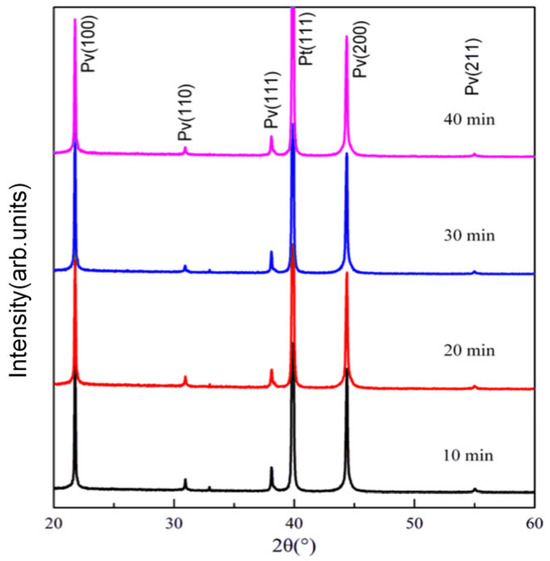

Figure 11. XRD results of PZT films under different annealing times.
Figure 11. XRD results of PZT films under different annealing times.
Coatings 15 00336 g011

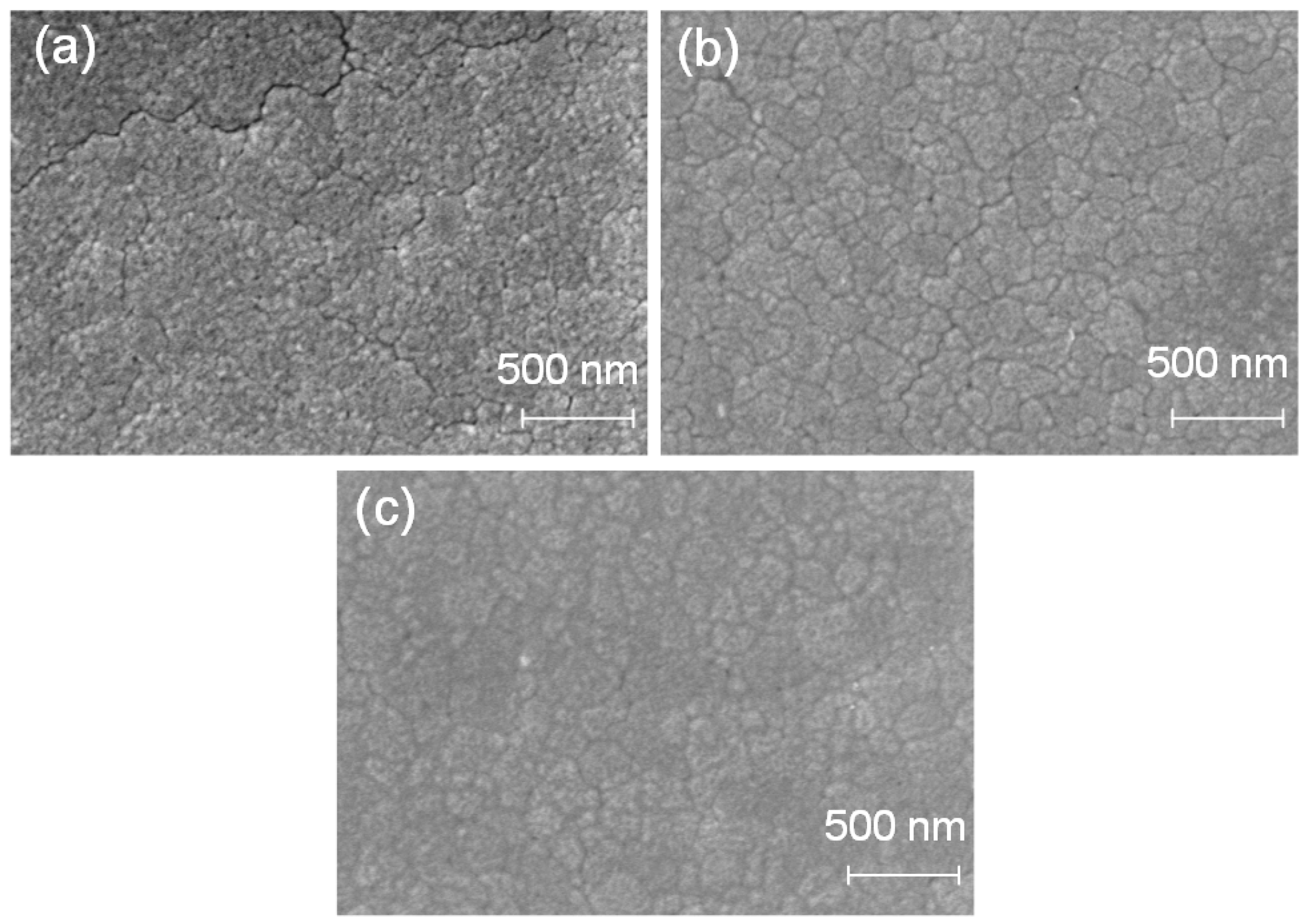

Figure 12. Surface morphology of PZT films under different annealing times: (a) 10 min; (b) 30 min; (c) 40 min.
Figure 12. Surface morphology of PZT films under different annealing times: (a) 10 min; (b) 30 min; (c) 40 min.
Coatings 15 00336 g012

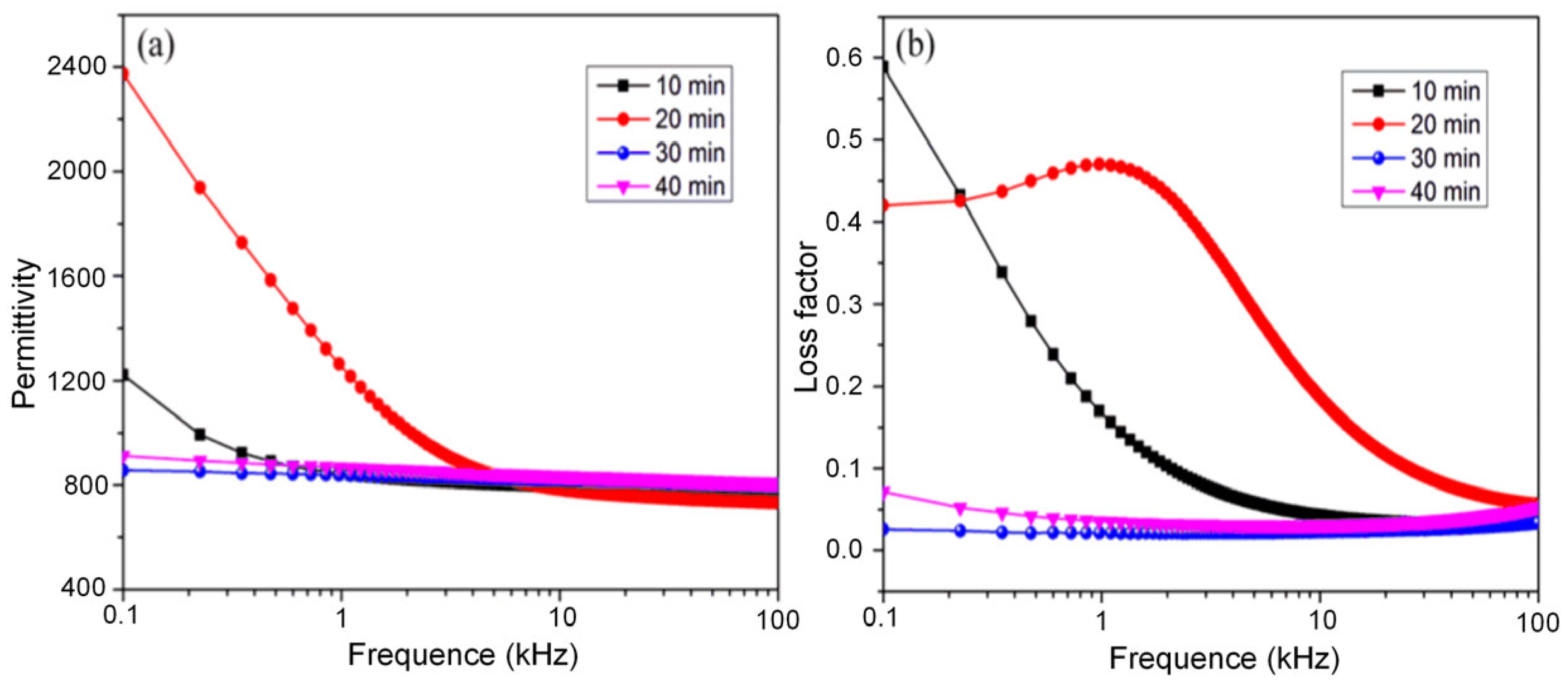

Figure 13. Dielectric properties of PZT films under different annealing times: (a) permittivity as a function of frequency; (b) dielectric loss as a function of frequency.
Figure 13. Dielectric properties of PZT films under different annealing times: (a) permittivity as a function of frequency; (b) dielectric loss as a function of frequency.
Coatings 15 00336 g013
Table 1. Sputtering parameters of PZT films.
Table 1. Sputtering parameters of PZT films.
TargetPb1.1(Zr0.52, Ti0.48)O3 Ceramic Disc
Target diameter60 mm
RF power100 W
Base pressure3.0 × 10−5 Pa
Sputtering pressure0.5 Pa, 1.5 Pa, 2 Pa, 3.5 Pa, 5 Pa
Sputtering temperature25 °C
Sputtering gasO2/Ar (0/90, 5/90, 10/90, 15/90, 25/90)
Annealing temperature525 °C, 550 °C, 575 °C, 600 °C, 625 °C
Annealing time10 min, 20 min, 30 min, 40 min
