Mechanistic Study of Surface Nanocrystallization for Surface Modification in High-Strength Low-Alloy Steel

Abstract

This study systematically investigates the surface nanocrystallization of 35CrMo steel induced by Ultrasonic Surface Rolling Processing (USRP). It reveals the formation of a gradient nanostructure, where martensite lath fragmentation under high-frequency impacts leads to a surface layer of equiaxed nanocrystals and high-density dislocations. This novel microstructure yields exceptional surface integrity: roughness is minimized to 0.029 μm due to plastic flow, residual stress is transformed into high compressive stress, and surface microhardness is significantly enhanced by 32.3%, primarily governed by grain refinement and dislocation strengthening. Consequently, the treated material exhibits a 28.9% reduction in wear mass loss, which is directly attributed to the combined effects of the strengthened gradient layer’s improved load-bearing capacity and the effective suppression of crack initiation by compressive residual stresses. Our findings not only provide direct microstructural evidence for classic strengthening theories but also offer a practical guide for optimizing the surface performance of high-strength alloy components.

1. Introduction

Surface engineering technologies play a pivotal role in enhancing material performance. Traditional surface modification methods for high-strength steel primarily include heat treatment, electroplating, and spraying. While these techniques enhance surface properties to some extent, each exhibits distinct drawbacks. Heat treatment processes such as surface hardening, carburizing, and nitriding significantly improve surface hardness and wear resistance but often result in uneven hardness distribution and may induce surface cracking and deformation [1]. Furthermore, heat treatment processes are complex, energy-intensive, and demand sophisticated equipment. Electroplating forms a uniform coating to enhance corrosion resistance, but the coating exhibits weak adhesion to the substrate, prone to peeling, and the plating solutions pose environmental and health hazards [2]. Spraying techniques such as thermal spraying and plasma spraying can form thicker coatings to improve wear and corrosion resistance. However, the bond strength between the coating and substrate is often insufficient, and internal defects may exist, compromising performance [3]. Among high-strength steels, surface nanocrystallization has garnered significant attention due to its ability to overcome the traditional strength-toughness trade-off via grain boundary strengthening and dislocation pinning effects. By refining the grain size in the material’s surface layer to the nanoscale (<100 nm), this technique significantly improves strength, wear resistance, and fatigue life without altering chemical composition—a limitation inherent to conventional methods such as carburizing or nitriding [4]. Severe plastic deformation (SPD)-based techniques, including surface mechanical attrition treatment (SMAT), laser shock peening (LSP), and ultrasonic shot peening (USP), enable the formation of gradient nanostructures. However, challenges such as non-uniform processing and excessive heat-affected zones persist [5,6].

Ultrasonic Surface Rolling Processing (USRP) represents an advanced surface strengthening technology that combines static rolling pressure with high-frequency ultrasonic vibration. Its unique advantage lies in promoting dislocation multiplication and grain refinement while avoiding thermal damage. Zhou Changming [7] conducted ultrasonic surface rolling experiments on 7075 aluminum alloy and established a dynamic load-stress strain-grain structure constitutive relationship. Liu Zifang [8] et al. investigated the effect of different USPR rolling passes on the surface of 304 stainless steel. The strengthening mechanisms of USRP are threefold. The reciprocating vibration of the rolling head (amplitude: 10–50 μm) induces cyclic plastic deformation, leading to martensite lath fragmentation and the formation of equiaxed nanocrystals. Dynamic loading introduces gradient-distributed residual compressive stresses, effectively suppressing crack initiation. A “micro-forging” action reduces surface roughness, minimizing stress concentration sites. Compared to conventional rolling, USRP improves energy efficiency by over 30% and achieves deeper hardened layers [9,10].

35CrMo steel is a low-alloy high-strength steel suitable for ultrasonic rolling. As a typical alloy structural steel, 35CrMo primarily consists of carbon (C), chromium (Cr), and molybdenum (Mo), with carbon content typically ranging from 0.32% to 0.40%, chromium from 0.80% to 1.10%, and molybdenum from 0.15% to 0.25%. The incorporation of these alloying elements markedly improves the mechanical properties of the steel, including strength, toughness, and heat resistance. In particular, the alloying effects of Cr and Mo play a critical role in enhancing its overall performance. Owing to these properties, this high-strength alloy steel is extensively employed in the manufacture of components that endure high loads and impact stresses. Its prevalent use in critical applications subject to high-cycle loading—such as in aerospace and automotive parts—necessitates a substantial improvement in surface hardness, wear resistance, and fatigue resistance, while retaining sufficient core toughness [11]. Conventional quenching and tempering processes struggle to meet the aforementioned surface performance requirements (insufficient surface hardness, potential residual tensile stresses). Therefore, ultrasonic rolling is employed to strengthen alloy surfaces, enabling them to operate under more demanding conditions and expanding their application scope. Yang et al. [12] employed USRP to modify Gh4169 high-temperature alloy specimens, achieving significant improvements in surface roughness, the surface microhardness was effectively enhanced to 791 HK. Research by Wang et al. [13] indicates that after surface grain nanostructuring treatment of 40Cr steel using USRP, its surface plastic deformation intensifies, the number of dislocations in the surface layer crystals increases, accompanied by the formation of numerous dislocation tangles, and a cellular structure emerges internally. USRP treatment applied to high-dislocation-energy metals such as cast aluminum, 40Cr steel, and 45 steel reveals that grain nanostructuring arises from repeated impact loading [14].

To gain a deeper understanding of the surface modification mechanisms of USRP on high-strength steel and to overcome the limitations of previous studies, firstly, in terms of process design, this study innovatively employs variable-parameter USRP to treat quenched and tempered 35CrMo steel. Secondly, on the mechanistic level, through in situ TEM observations and EBSD analysis, capture the complete dynamic sequence of dislocation evolution during USRP. Furthermore, by combining X-ray stress analysis and nanoindentation testing, the synergistic strengthening mechanism between the gradient nanostructure and the residual stress field is elucidated. Subsequently, this study tested the mechanical properties of the 35CrMo steel surface after USRP treatment to demonstrate the strengthening effect of surface nanostructuring on high-strength steel. This study not only provides a new approach for surface strengthening of high-strength steels, but the revealed ultrasonic plastic deformation mechanisms may also be extended to difficult-to-machine materials such as titanium alloys and nickel-based superalloys, provides a scientific basis for subsequent strengthening and expansion studies on other alloys.

2. Materials and Methods

The heat treatment process for the experimental 35CrMo steel consisted of austenitizing at 850 °C for 1 h with subsequent oil quenching, followed by tempering at 500 °C for 1 h, and final air cooling to room temperature to complete the quenching and tempering treatment. After quenching and tempering, 35CrMo steel achieves high strength and hardness, but its surface corrosion resistance is average. While it maintains good strength and creep resistance in medium-to-high-temperature environments, its oxidation resistance weakens above 560 °C.

The USRP was conducted according to the following procedure. First, the specimens were machined into disks with a diameter of 60 mm and a thickness of 10 mm. To ensure a consistent initial surface condition and facilitate subsequent USRP treatment, the surface to be processed was pre-machined by turning to achieve a surface roughness (Ra) of approximately 0.4 μm. A rectangular area of 40 × 30 mm was selected on the disk specimen, and USRP was applied using a zigzag path. The process was automatically carried out by the equipment once the program was set. The USRP treatment was performed on a HKX30-1060/5 high-quality oscillatory processing equipment (Jinan, China) for difficult-to-machine metal components, which consists of a machining center and an ultrasonic generator. In this experiment, the influence of USRP on surface modification was investigated by varying the cylinder pressure (see

Table 1. Ultrasonic rolling process parameters.

Number	Cylinder Pressure (Mpa)	Ultrasonic Frequency (KHz)
1	0.2	23.5
2	0.35	23.5
3	0.5	23.5

for the specific range). The process parameters of USRP exert a profound influence on the machining outcomes, where improper settings may result in either insufficient processing or over-processing, leading to surface fatigue of the material. Therefore, this study employs optimized parameters determined through extensive preliminary experiments.

Phase analysis was conducted via X-ray diffraction (XRD) using a TTR III diffractometer equipped with a Cu target (Beijing, China). The measurements were performed over a 2θ range of 20° to 90° at a scanning rate of 5°/min.

Residual stresses on the surfaces of both as-turned and USRP-treated samples were measured using a Rigaku SmartLab X-ray diffractometer (Tokyo, Japan), with the testing direction aligned along the rolling direction (RD). Block specimens with dimensions of 10 × 10 × 5 mm were used for these measurements.

Three-dimensional surface morphology of the as-machined and USRP-processed samples was analyzed using a Leica TCS SP8 laser scanning confocal microscope (Wetzlar, Germany) to quantify changes in surface roughness parameters such as Ra. Microstructural examination of cross-sectional samples was carried out using an Olympus-BX41M optical microscope (Hangzhou, China) and a Zeiss Auriga focused ion beam-field emission dual-beam scanning electron microscope (Oberkochen, Germany). After vibration polishing, electron backscatter diffraction (EBSD) analysis was performed on the cross-sections to characterize the gradient grain structure induced by USRP.

The phase distribution, elemental composition, dislocations, and twins in the near-surface region were further analyzed using an FEI Talos F200X G2 transmission electron microscope (Shanghai, China).

Microhardness measurements were taken under various conditions using an INNOVATEST micro-Vickers hardness tester (Shanghai, China) with a load of 0.01 kg applied for 10 s. Microhardness was measured point-by-point along the cross-section near the surface, with a spacing of 30 μm from the top downwards. The profiling was terminated upon reaching the unstrengthened region. The final value for each point was determined by averaging three individual measurements.

Friction and wear tests were performed on both as-turned and USRP-treated samples using a UTM-6103 tribometer (Shenzhen, China). A rotational wear motion mode was employed to simulate friction behaviors commonly encountered under practical service conditions, thereby yielding more applicable experimental data. The tests were conducted at a rotational speed of 200 r/min for 30 min under a normal load of 12 N at room temperature.

3. Results and Discussion

3.1. Effects of Rolling Processing on Surface Morphology and Roughness

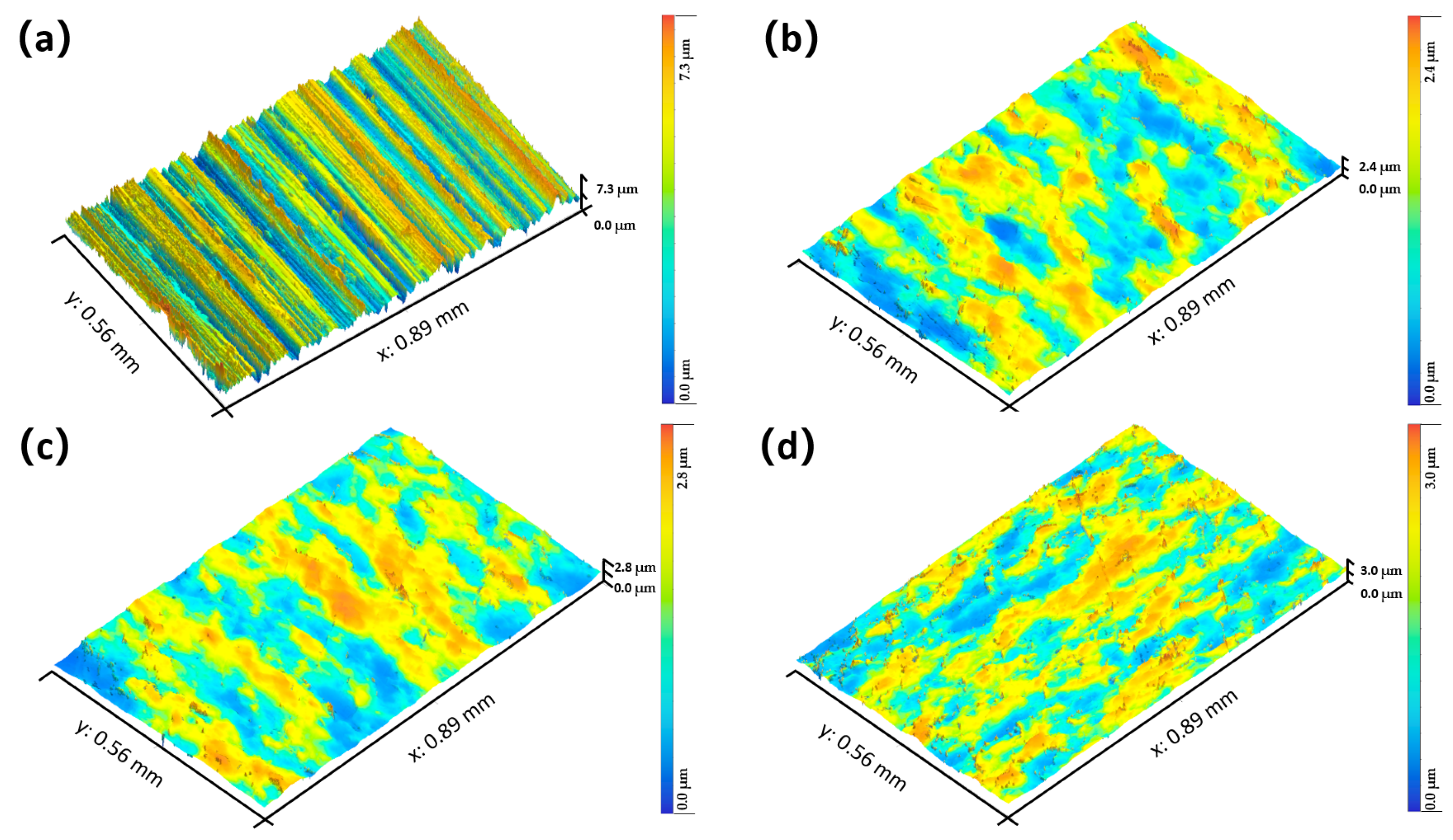

Figure 1 displays the three-dimensional surface morphologies of four different specimens: hard-turned (HT), USRP-0.20 MPa, USRP-0.35 MPa, and USRP-0.50 MPa. The as-turned 35CrMo steel surface exhibits numerous deep scratches and grooves. After USRP treatments under different parameters that was mentioned in Table 1, the surface topography undergoes significant changes. Under the combined effect of ultrasonic high-frequency impact and rolling, pronounced plastic deformation occurs on the material surface, effectively eliminating scratches and grooves and achieving a “peak-removing and valley-filling” effect, resulting in a near-mirror finish [15].

As the static pressure of the ultrasonic roller increases, fine metallic particles gradually become visible on the sample surface, accompanied by the formation of a relief-like morphology resembling a layered structure [16,17], which is attributed to enhanced flow-induced plastic deformation near the surface. However, when the static pressure exceeds a critical threshold, over-rolling occurs, introducing excessive plastic deformation and new surface defects such as cracks, protrusions, or depressions, thereby increasing surface roughness.

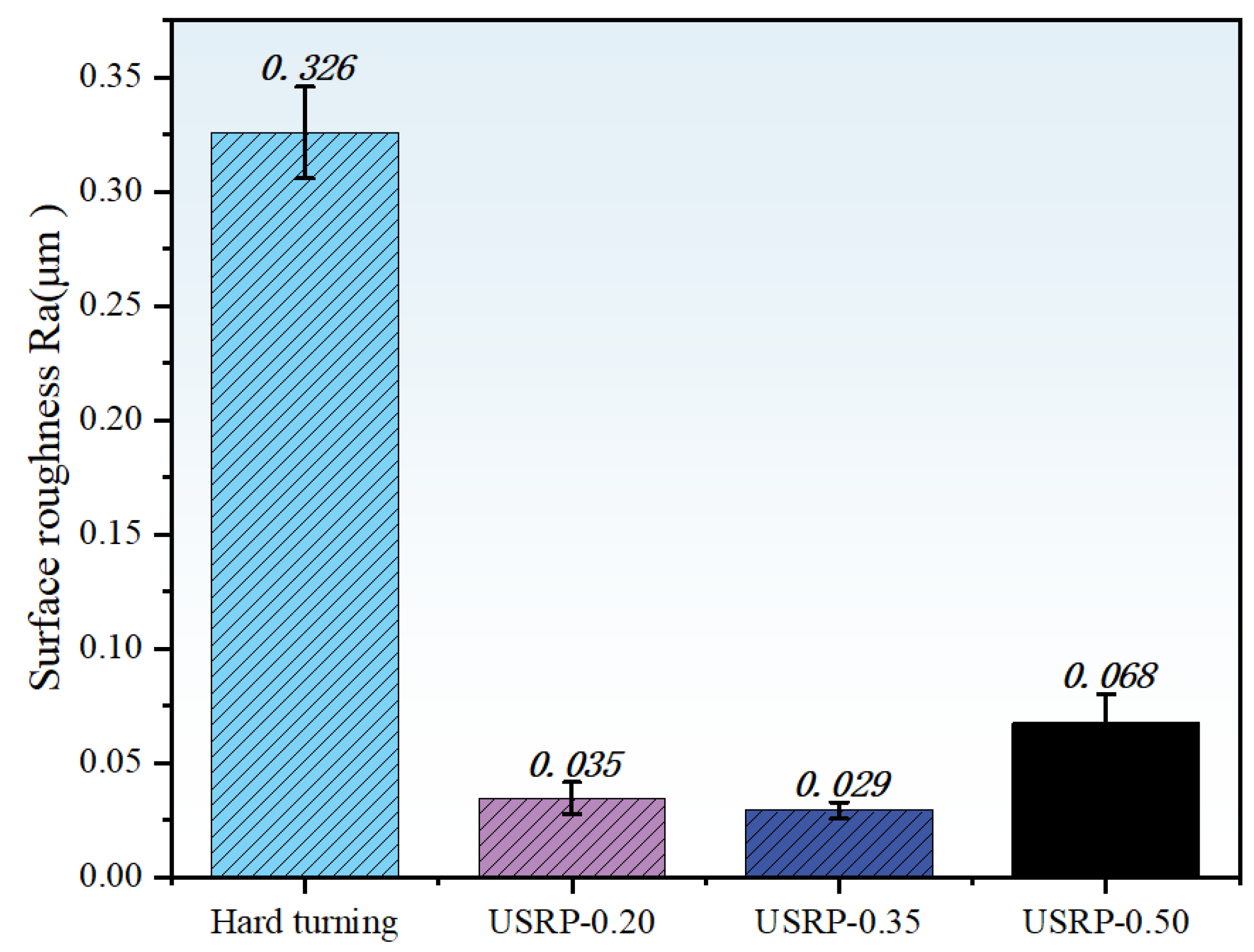

In summary, USRP effectively reduces surface roughness, provided that the static pressure is controlled to avoid the negative effects associated with over-rolling. Based on the quantitative analysis of surface topographies (Figure 1), the surface roughness values under different conditions were obtained, as summarized in Figure 2. The results indicate that compared to the hard-turned sample (with an arithmetic mean deviation, R_a = 0.326 μm), the R_a values of the USRP-0.20 MPa and USRP-0.35 MPa samples were significantly reduced to 0.034 μm and 0.043 μm, respectively. However, when the static pressure increased to 0.50 MPa, the R_a value rebounded to 0.067 μm, consistent with the previous analysis.

These findings demonstrate that while USRP generally improves surface quality, excessive static pressure may introduce adverse effects, thereby diminishing the enhancement in surface integrity. Therefore, precise control of the rolling parameters is essential in practical applications to achieve optimal surface quality.

3.2. Residual Stress Distribution After Rolling Process

Residual stress refers to the internal stress that remains in a material after external forces are removed, typically resulting from material heterogeneity, manufacturing processes (such as welding, forging, or quenching), or differences in thermal expansion coefficients. Residual stresses can be categorized into residual tensile stress and residual compressive stress. Residual tensile stress may promote crack propagation and degrade mechanical properties, whereas residual compressive stress helps inhibit crack initiation and growth, thereby enhancing fatigue resistance. USRP induces severe plastic deformation in the near-surface region, leading to the formation of a high gradient of residual compressive stress [18,19].

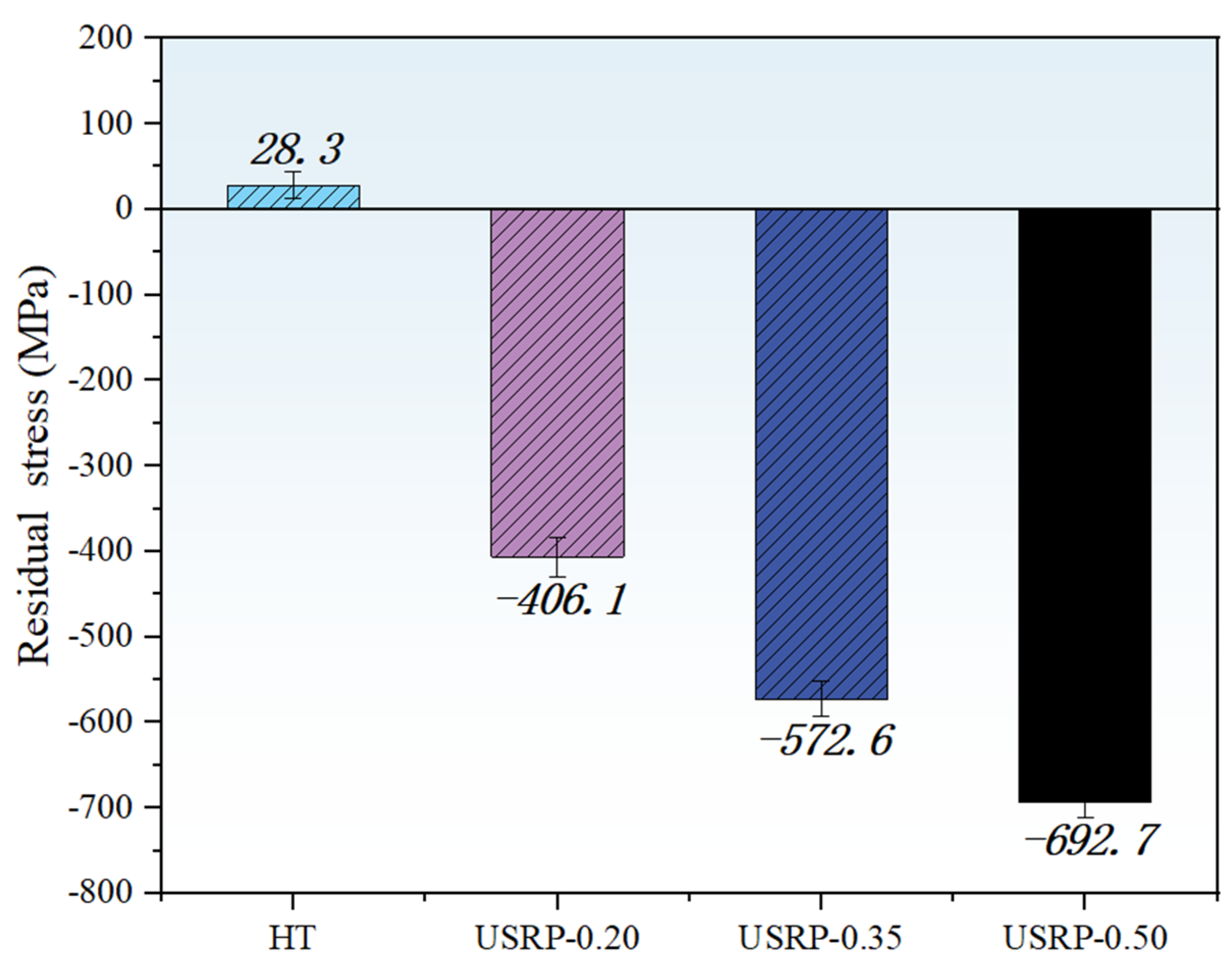

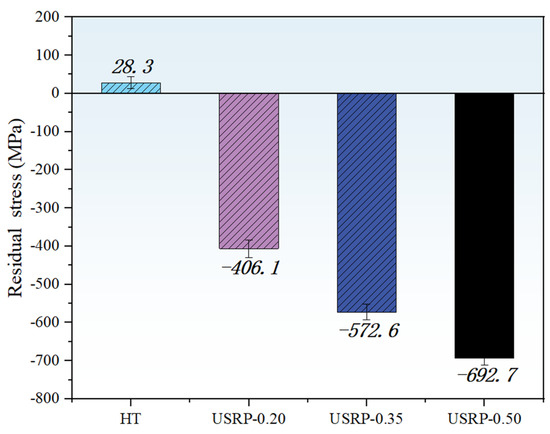

Figure 3 shows the changes in surface residual stress of 35CrMo steel before and after USRP treatment. For the HT sample, the residual stress was measured parallel to the turning marks, while for the USRP-treated samples, the measurement direction was aligned with the tool path (consistent with the turning direction). The untreated turned specimen exhibited a residual tensile stress of approximately 28.3 MPa, indicating that the hard turning process introduced tensile deformation in the surface. After USRP treatment, the surface of the 35CrMo steel showed compressive residual stresses. These stresses primarily originate from lattice distortion induced by compressive deformation during the rolling process [20].

As the static pressure increased, the surface compressive residual stress significantly intensified, rising from –401.6 MPa under USRP-0.20 MPa to –692.7 MPa under USRP-0.50 MPa. This indicates that higher rolling pressure effectively enhances the residual compressive stress state at the surface.

It is noteworthy that the residual compressive stress formed in the surface and near-surface regions of 35CrMo steel is primarily induced by plastic deformation during the rolling process. Specifically, the external force applied by the tool head causes the material to undergo severe plastic strain, resulting in substantial dislocation multiplication and a notable increase in surface compressive stress. Furthermore, mutual mechanical interaction between refined grains also contributes to the generation of compressive stress.

Residual compressive stress effectively inhibits crack initiation and propagation, whereas residual tensile stress may reduce the load-bearing capacity of the material. Therefore, the high-compressive-residual-stress layer introduced by USRP can significantly enhance the load-carrying capacity of 35CrMo steel and prolong the service life of components.

3.3. Microscopic Morphology After Rolling Process

This The microscopic morphology of the four specimens exhibits distinct flow-induced plastic deformation characteristics in their surface layers. Systematic microstructural observations reveal significant transformations within the material.

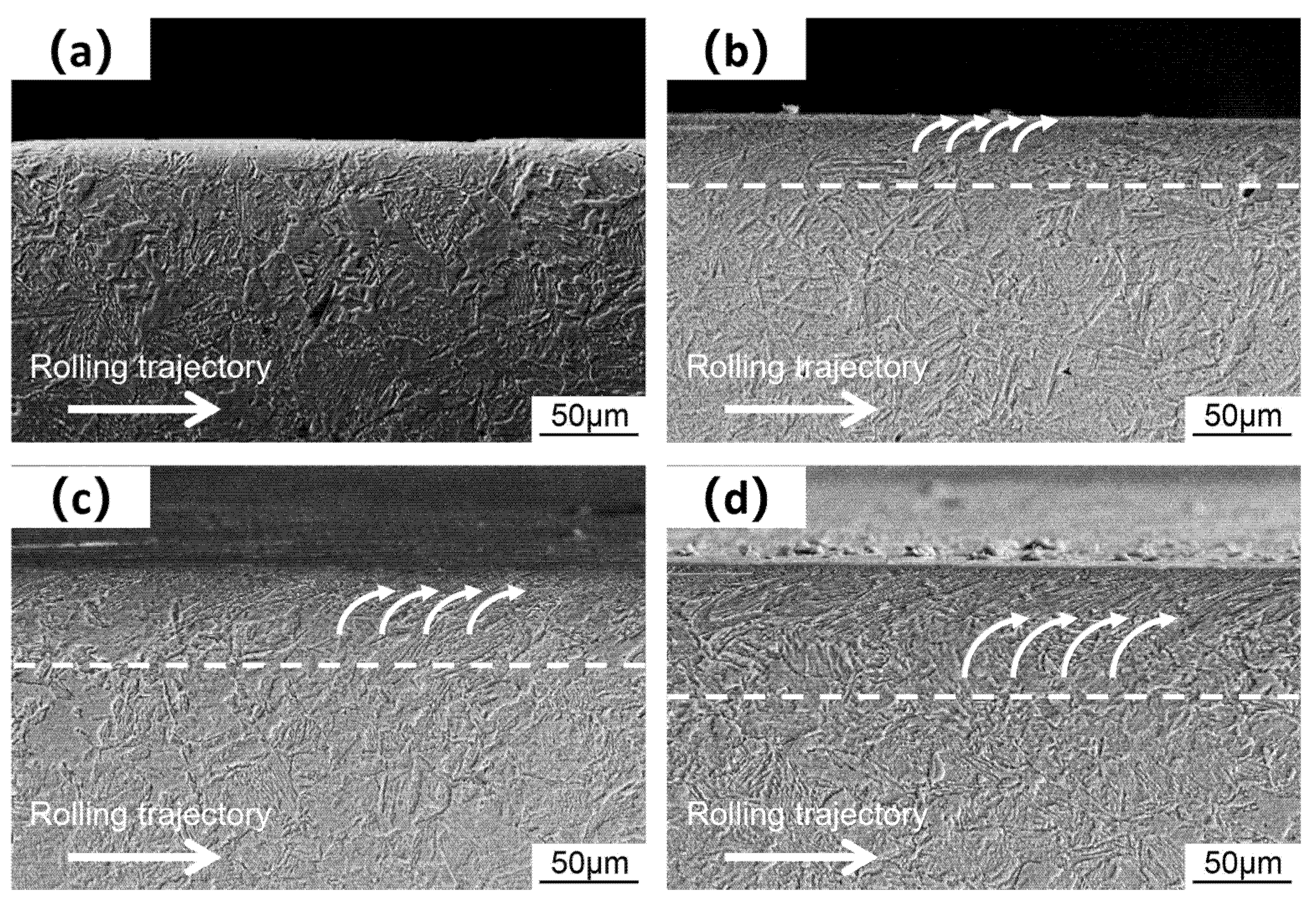

As illustrated in Figure 4, SEM imaging demonstrates that USRP induces pronounced alterations in the morphological features of the 35CrMo steel surface microstructure. The surface edges become remarkably sharp, while the original “white layer zone” transitions into an extremely thin “black layer zone” [21]. This transformation directly reflects a fundamental shift in the deformation mechanism of the surface layer.

Comparative analysis indicates that conventional turning primarily induces tensile deformation aligned parallel to the surface, whereas ultrasonic surface rolling imposes intense compressive deformation predominantly oriented perpendicular to the surface. Further microstructural characterization reveals that Ultrasonic Surface Rolling Processing not only induces compressive deformation along the normal direction but also generates distinct micro-torsional features in the surface martensite and tempered sorbite structures, with preferential alignment parallel to the rolling tool trajectory. Crucially, increasing static pressure within the process parameters significantly enhances both the magnitude and penetration depth of this torsional deformation, manifesting as (i) intensified plastic strain in surface metallic structures, (ii) pronounced grain fragmentation and refinement, and (iii) increasingly complex plastic flow patterns [22,23], ultimately forming gradient-strengthened layers with a thickness proportional to the cylinder pressure.

Microstructural observation alone is insufficient to comprehensively elucidate the gradient strengthening mechanism induced by ultrasonic rolling on the 35CrMo surface. Figure 5 presents the EBSD morphologies of the most severely deformed USRP-0.50MPa specimen at varying depths. Since the ultrafine grains in the topmost layer are prone to damage and difficult to capture, the analysis initiates from the subsurface grain layer. The results demonstrate that martensite at different depths undergoes varying degrees of plastic deformation. Notably, significant grain refinement occurs in the subsurface region (~30 μm below the surface), exhibiting a gradient distribution characteristic with increasing depth (Figure 5(a1–a3)). Specifically, within the 30~100 μm depth range, the extent of plastic deformation gradually diminishes. While grain sizes increase compared to the surface layer, they maintain a high density of subgrain boundaries, forming a transitional deformed microstructure. Beyond 300 μm toward the matrix, the subgrain boundary density drops sharply, and grains progressively revert to the original heat-treated coarse crystals of the 35CrMo matrix. This phenomenon arises from the plastic deformation of surface grains under high-frequency impact and rolling. Such a surface-to-core gradient distribution not only ensures high surface strength but also prevents abrupt property transitions that could lead to hardened layer exfoliation, achieved through progressive subgrain boundary transitions.

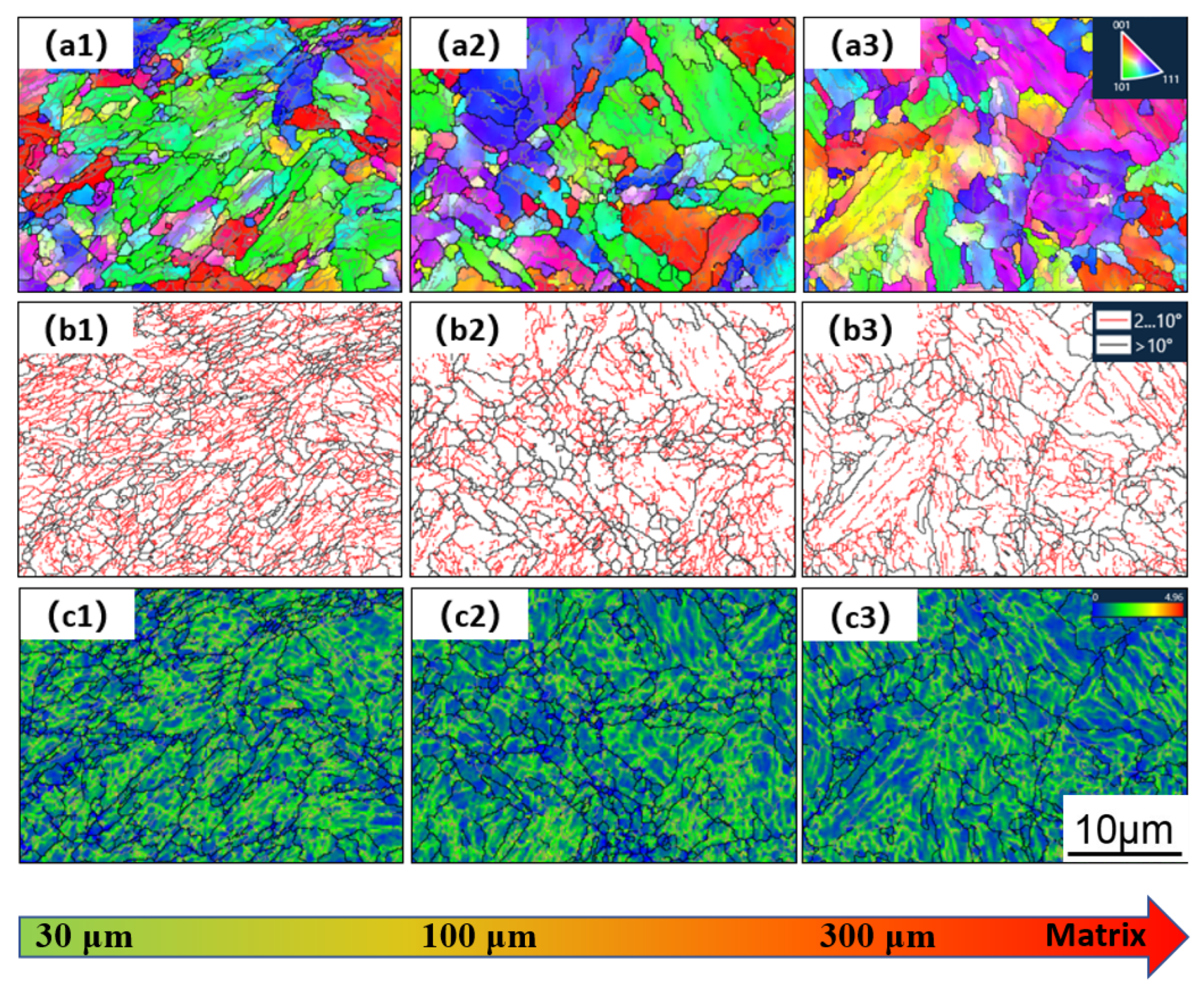

Figure 5(b1–b3) presents the grain boundary distribution characteristics in the specimen’s surface layer, where low-angle grain boundaries are marked in red and high-angle grain boundaries in black. As illustrated, the population density of LAGBs progressively decreases with increasing depth within the plastically deformed zone. Figure 5(c1–c3) further displays the kernel average misorientation (KAM) mapping of the cross-section, revealing that the geometrically necessary dislocation (GND) density follows a similar depth-dependent trend as LAGBs. This phenomenon is attributed to the cumulative plastic strain effect induced by USRP, wherein shear-generated dislocations continuously accumulate at prior martensite lath boundaries. Such accumulation promotes the formation of both geometrically necessary boundaries (GNBs) and incidental dislocation boundaries (IDBs), which collectively accelerate the transformation of lath martensite into nanocrystalline grains [24,25]. Microstructural investigations demonstrate that within the top 30 μm severely deformed layer, the lath martensite undergoes fragmentation into equiaxed nanocrystals under high-energy impacts. In contrast, the subsurface region (∼100 μm depth) develops ultrafine grains with short lamellar structures. During this process, intensive dislocation annihilation occurs near the surface, forming subgrain boundaries that subsequently evolve into high-angle grain boundaries under high-stress–strain conditions. According to the Hall-Petch relationship, the refined grain size contributes proportionally to the material’s yield strength. This substantial grain refinement effectively enhances both strength and toughness, providing a theoretical foundation for 35CrMo steel strengthening.

To gain deeper insight into the ultrafine grain formation mechanism under USRP, the USRP-0.50 MPa sample, which experienced the most severe deformation, was selected for detailed analysis of the near-surface microstructure before and after processing using transmission electron microscopy (TEM). As shown in Figure 6, the primary microstructure of the untreated material consists of three constituents: undecomposed martensite, lamellar tempered sorbitte, and retained austenite. It is worth noting that the tempering temperature significantly influenced the microstructure, resulting in incomplete tempering. The resulting sorbitic structure clearly exhibits martensitic characteristics, accompanied by carbide aggregation, indicating insufficient diffusion during the tempering process.

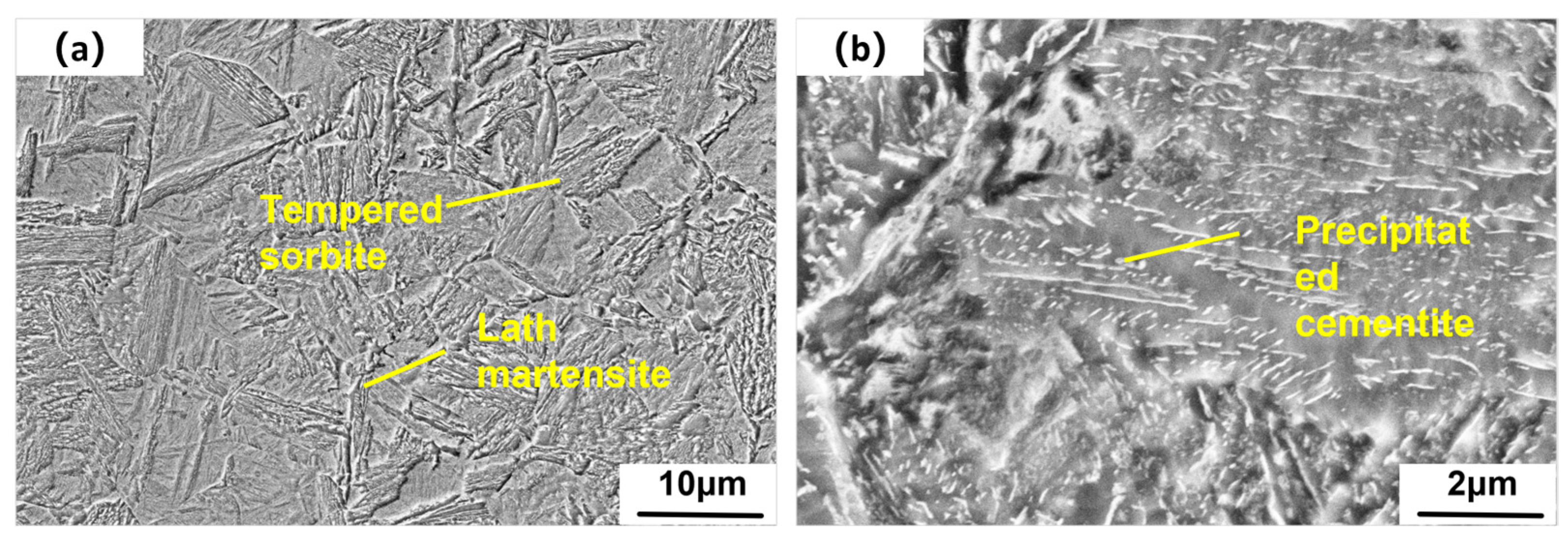

Figure 6a shows that the microstructure of the untreated sample is predominantly martensitic. The matrix contains a high density of parallel lath martensite with clearly defined boundaries and a moderate dislocation density. Additionally, a small amount of precipitated cementite is present between the martensite laths, as shown in Figure 6b.

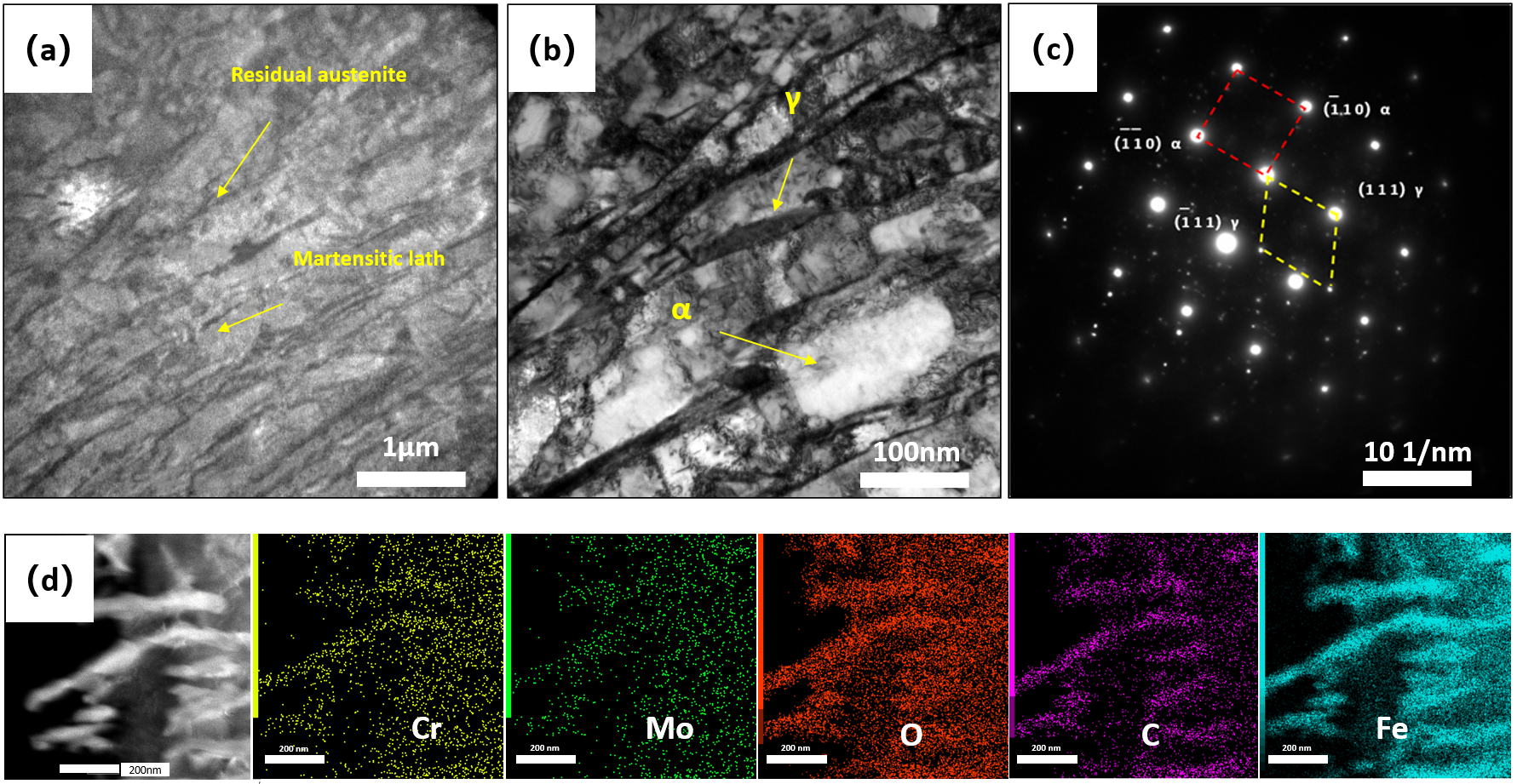

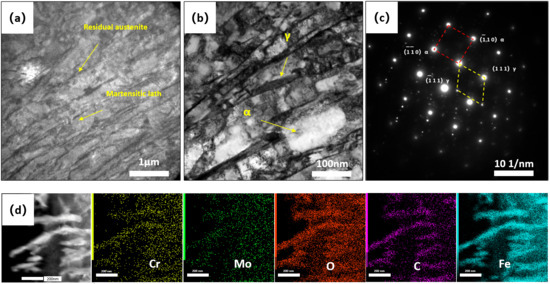

TEM analysis indicates that the selected-area electron diffraction (SAED) pattern corresponding to Figure 7a exhibits overlapping diffraction spots from both α (ferrite/martensite) and γ (austenite) phases, confirming that the crystallographic relationship between the retained austenite and the martensitic matrix is close to the Kurdjumov–Sachs (K–S) orientation relationship [26]. Furthermore, a number of short rod- or bar-shaped carbides are observed within the material.

Table 2. Atomic mass ratio of elements in carbides.

Element	Weight Fraction (%)
Fe	88.57
C	6.81
Cr	0.91
Mo	0.31
O	3.14

presents the EDS point analysis results (elemental content in weight percentage) for the locations marked in Figure 7. The atomic ratio of Fe to C, calculated based on their atomic weights (Fe/C ≈ 22/7), confirms that the precipitate is Fe₃C.

Following USRP, significant microstructural modifications are observed in the near-surface region of 35CrMo steel (Figure 8). In contrast to the untreated microstructure characterized by lath martensite and thin-film retained austenite, the high-energy impacts and rolling effects introduced by USRP induce severe plastic deformation in the surface layer. The original martensite laths undergo elongation and fragmentation under shear stress, ultimately transforming into fine equiaxed nanocrystalline grains. Concurrently, dislocation density within grain boundaries increases substantially, leading to progressive blurring of lath boundaries.

As a body-centered cubic (BCC) material with high stacking fault energy, 35CrMo steel primarily accommodates plastic deformation through dislocation slip mechanisms. The USRP treatment facilitates microstructural reorganization through two dominant effects: formation of nanocrystalline grains via severe plastic deformation and significant enhancement of dislocation density.

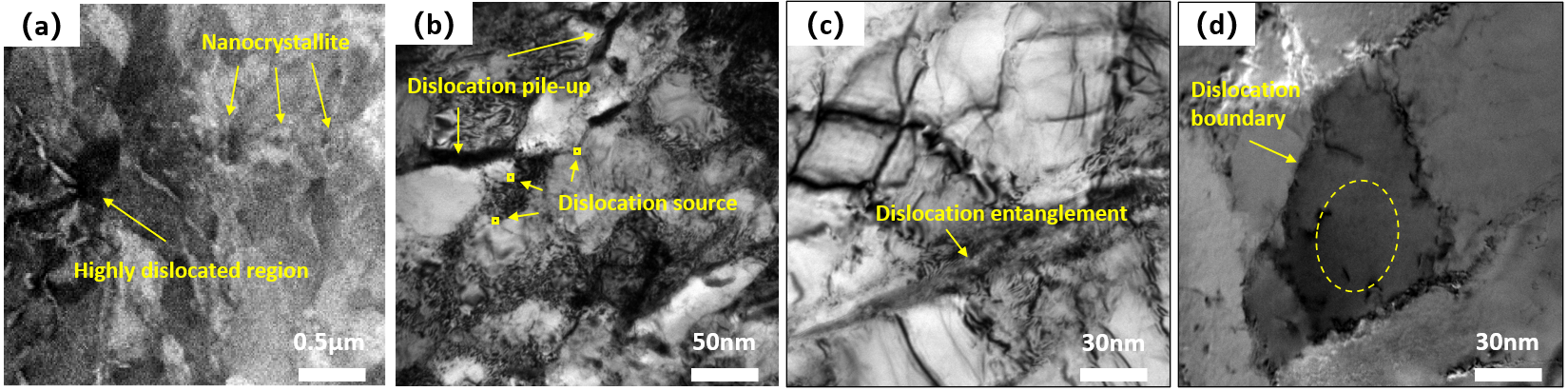

STEM was further employed to analyze dislocation behavior and substructure evolution within the severe plastic deformation region (Figure 8). As evidenced in Figure 8b, the high-magnification microstructural analysis reveals significant grain refinement in the surface layer following Ultrasonic Surface Rolling Processing. Figure 8c provides detailed insight into the dislocation dynamics, demonstrating that dislocation lines nucleate from multiple sites along martensite boundaries and propagate preferentially from high-density to low-density regions, exhibiting characteristic dynamic propagation behavior. The dislocations migrate through the martensite matrix until their motion is effectively hindered by either martensite lath boundaries or high-angle grain boundaries, resulting in the formation of distinct dislocation pile-up zones.

In regions of severe dislocation entanglement, the system undergoes energy minimization through two primary mechanisms: (i) dislocation annihilation and (ii) rearrangement into lower-energy configurations. This process facilitates the formation of well-defined dislocation cells and substructures. Progressive deformation leads to the accumulation and subsequent absorption of dislocations at low-angle subgrain boundaries, as quantitatively demonstrated in Figure 8d. This phenomenon is accompanied by a measurable reduction in dislocation density and a concomitant increase in misorientation angles of subgrain boundaries. The effect of impact and rolling forces generated by the USRP tool effectively induces the development of high-density dislocation tangles and substantial grain refinement to the nanoscale regime. These microstructural modifications collectively contribute to remarkable enhancements in surface performance characteristics like wear resistance and microhardness.

The present findings demonstrate that USRP treatment effectively optimizes the surface integrity of 35CrMo steel through controlled microstructural refinement and dislocation engineering, offering significant potential for industrial applications requiring superior mechanical performance.

3.4. Analysis of Surface Properties After Rolling Processes

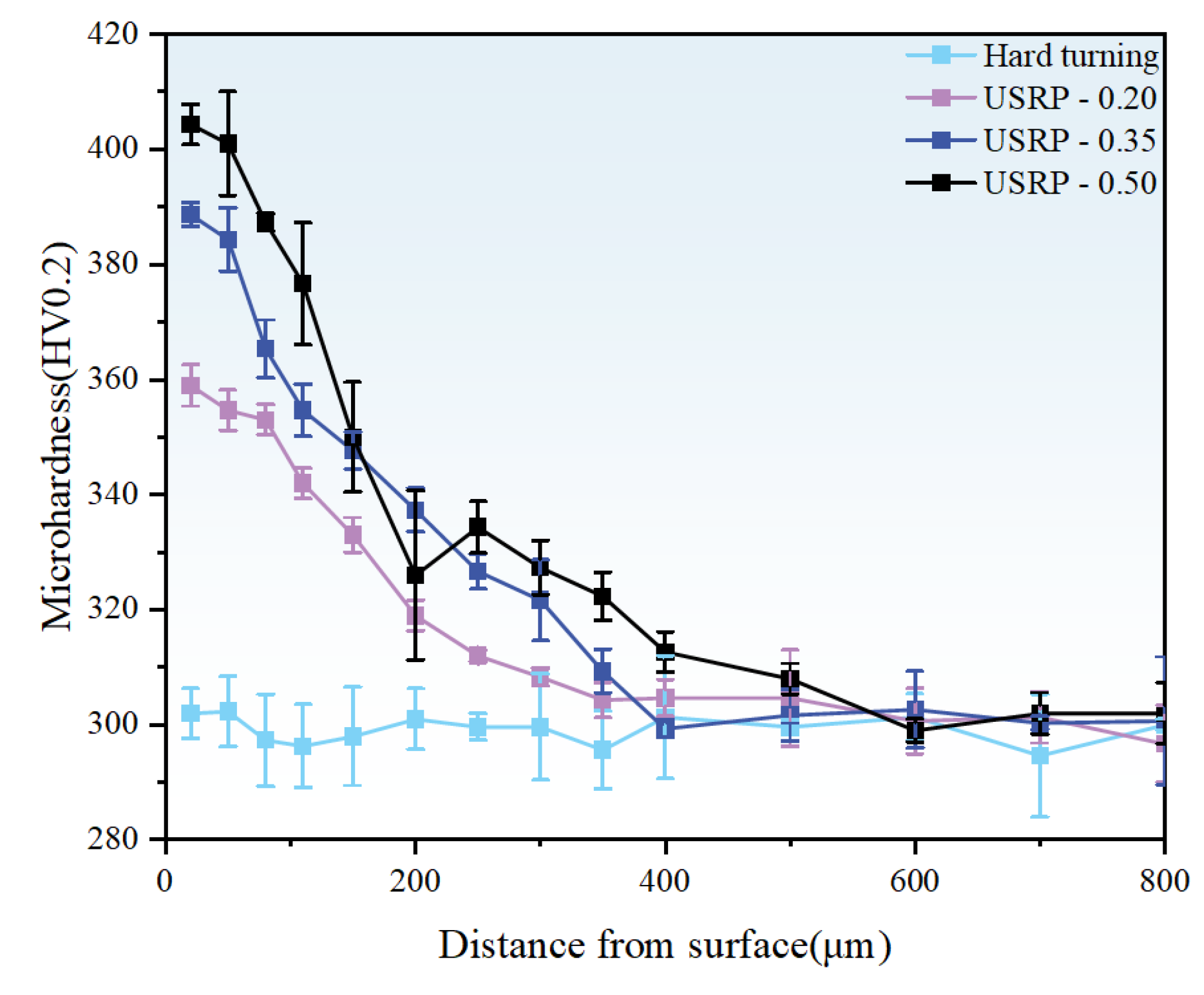

Systematic evaluation of the mechanically processed specimens revealed substantial improvements in surface mechanical properties. As illustrated in Figure 9, microhardness measurements along the depth profile demonstrate distinct differences between conventionally turned specimens and those subjected to Ultrasonic Surface Rolling Processing under varying parameters. The baseline hardness of the turned specimens averaged 306 HV, showing only marginal surface hardening (typically <5% increase) attributable to conventional machining-induced work hardening effects.

In contrast, USRP-treated specimens exhibited remarkable surface strengthening, with the degree of enhancement showing clear pressure dependence. Three distinct processing pressures (0.20 MPa, 0.35 MPa, and 0.50 MPa) produced progressively greater surface hardening, achieving peak hardness values of 359 HV (+17.3%), 388 HV (+26.7%), and 405 HV (+32.3%), respectively. More importantly, the hardness profiles revealed characteristic gradient distributions, with values decreasing gradually from the surface to the unaffected bulk material. This gradient behavior became more pronounced with increasing rolling pressure, with the effective hardened layer depth extending to approximately 300 μm at the maximum applied pressure of 0.50 MPa.

This phenomenon can be theoretically explained from the perspective of material micromechanisms: USRP effectively activates surface work hardening by promoting extensive dislocation multiplication within the material. Simultaneously, the process induces microstructural modifications including grain refinement, carbide refinement and deformation, all of which collectively contribute to the significant enhancement of microhardness [27]. From a microstructural standpoint, the gradient variation of microhardness along the depth direction exhibits strong correlation with the graded distributions of grain size, grain boundary density, and dislocation concentration. Theoretical analysis suggests that the microhardness enhancement can be satisfactorily interpreted through Taylor’s dislocation strengthening mechanism and the Hall-Petch effect [28]. Furthermore, residual stress state represents another crucial factor influencing surface strengthening. Experimental investigations reveal that USRP treatment can induce considerable residual compressive stress with substantial penetration depth in the specimen surface layer, which aligns well with the findings reported by Carlsson and Larsson [29,30]. Notably, under the present experimental conditions, USRP treatment not only remarkably improves surface hardness but also achieves an effective hardening depth that significantly exceeds the thickness of the gradient refined grain layer. This phenomenon may be attributed to the synergistic effects of high-density dislocations and residual stress fields induced by the process. The wear resistance of the metal surface also demonstrates substantial improvement after rolling treatment. The friction coefficient, serving as a direct indicator of material durability, typically correlates with wear severity and material loss rate—higher values generally correspond to more severe wear phenomena and faster material degradation. Experimental data (Figure 10) reveal that during the initial stage of friction tests, significant fluctuations in friction coefficient occur due to the absence of a stable tribo-oxidation film on the workpiece surface. As relative motion proceeds between contact surfaces, oxidation reactions gradually take place and form a protective oxide layer. This oxide film effectively prevents direct contact between friction pairs, consequently reducing friction coefficient fluctuations and establishing a stable wear regime in the system.

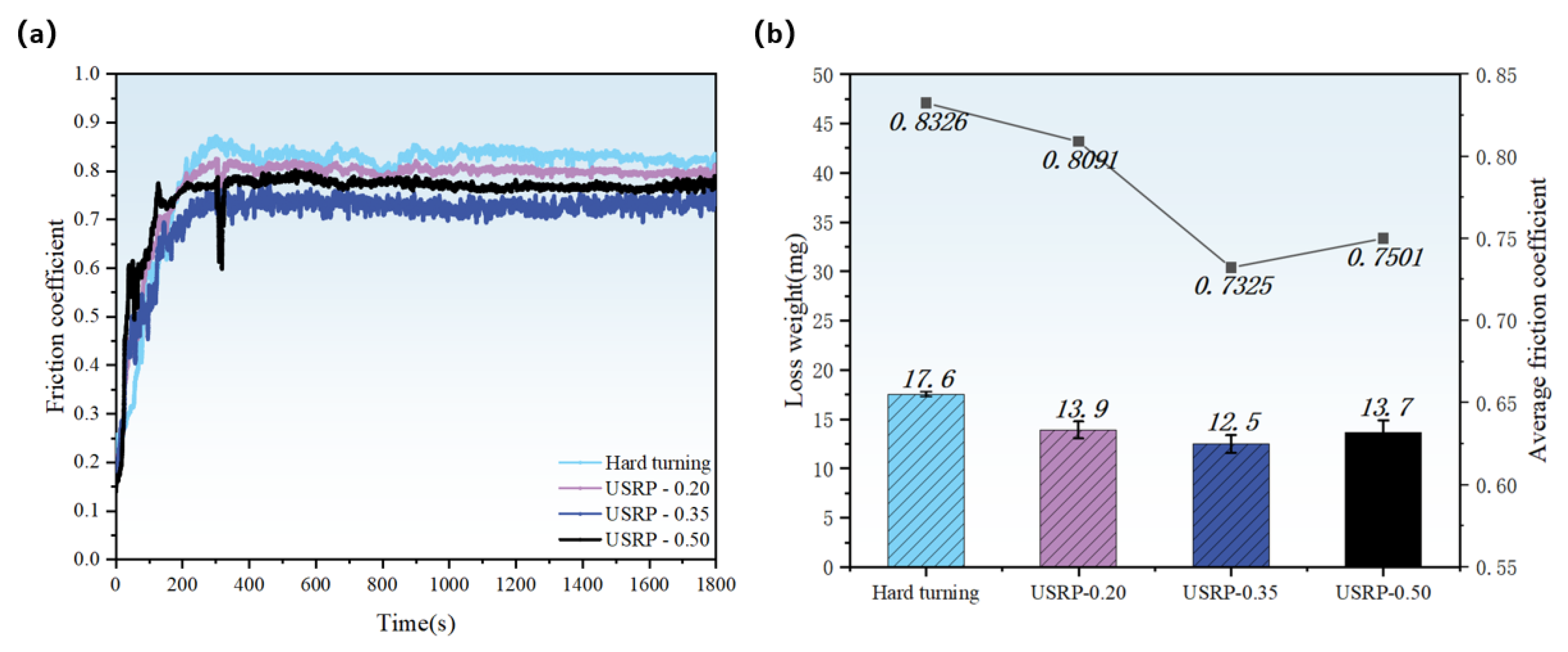

Quantitative results from the friction and wear tests (Figure 10) clearly demonstrate that USRP significantly improved the tribological properties of 35CrMo steel. The as-turned specimen exhibited the most substantial fluctuation in the coefficient of friction and the highest mass loss, indicating poor frictional stability and inferior wear resistance. In comparison, all USRP-treated specimens showed markedly enhanced frictional stability. The effectiveness of the treatment was found to be highly dependent on the applied static pressure. Specifically, the USRP-0.35 MPa sample displayed the smallest variation in friction coefficient and the lowest mass loss, representing a 28.9% reduction compared to the as-turned condition. The mass losses of the USRP-0.20 MPa and USRP-0.50 MPa samples were reduced by 21.1% and 22.2%, respectively. This behavior suggests that insufficient static pressure results in inadequate surface hardening, while excessively high pressure may introduce surface damage and microscopic defects, thereby increasing the risk of material degradation. More precisely, low static pressure leads to insufficient enhancement of surface hardness, whereas high static pressure can impair surface integrity through the formation of micro-defects, ultimately compromising wear performance.

Furthermore, under the three static pressure conditions investigated (listed in order of increasing magnitude), the USRP-treated specimens exhibited mass loss reductions of 21.1%, 28.9%, and 22.2% relative to the as-turned sample, unequivocally confirming the efficacy of USRP in improving the wear resistance of 35CrMo steel.

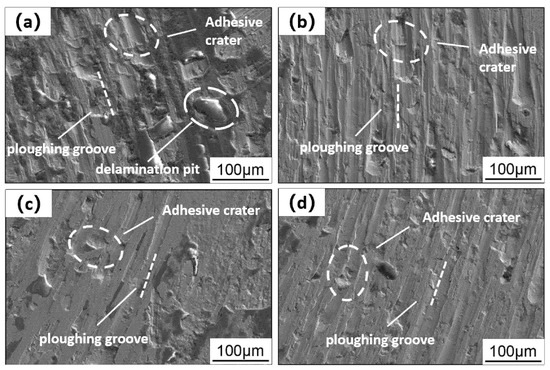

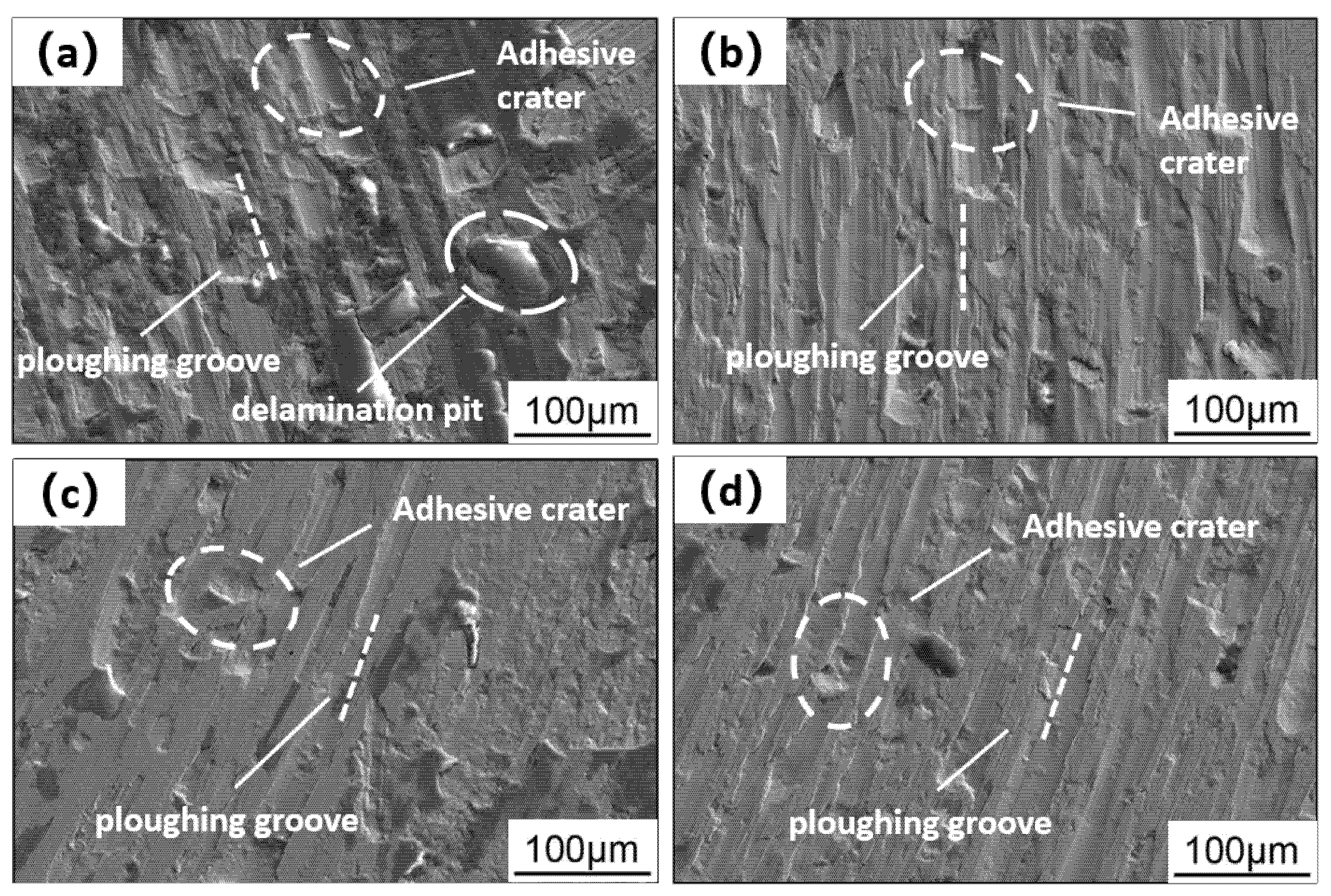

SEM examination of the worn surface morphology (Figure 11), combined with elemental distribution analysis (Figure 12), revealed the principal failure features and mechanisms of 35CrMo steel during the wear process. As shown in Figure 11, all worn surfaces exhibited characteristic morphological patterns. Grooves formed by the penetration and plowing action of the hard SiC counterpart into the 35CrSteel surface during sliding, providing clear evidence of abrasive wear. Spalling areas accompanied by microcracks indicated that under repeated shear stress, localized stresses exceeding the fatigue strength of the material surface initiated crack formation and propagation, ultimately leading to delamination wear. Adhesion pits resulting from local bonding at contact points with the counterpart and subsequent material tearing under shear stress were identified as characteristics of adhesive wear.

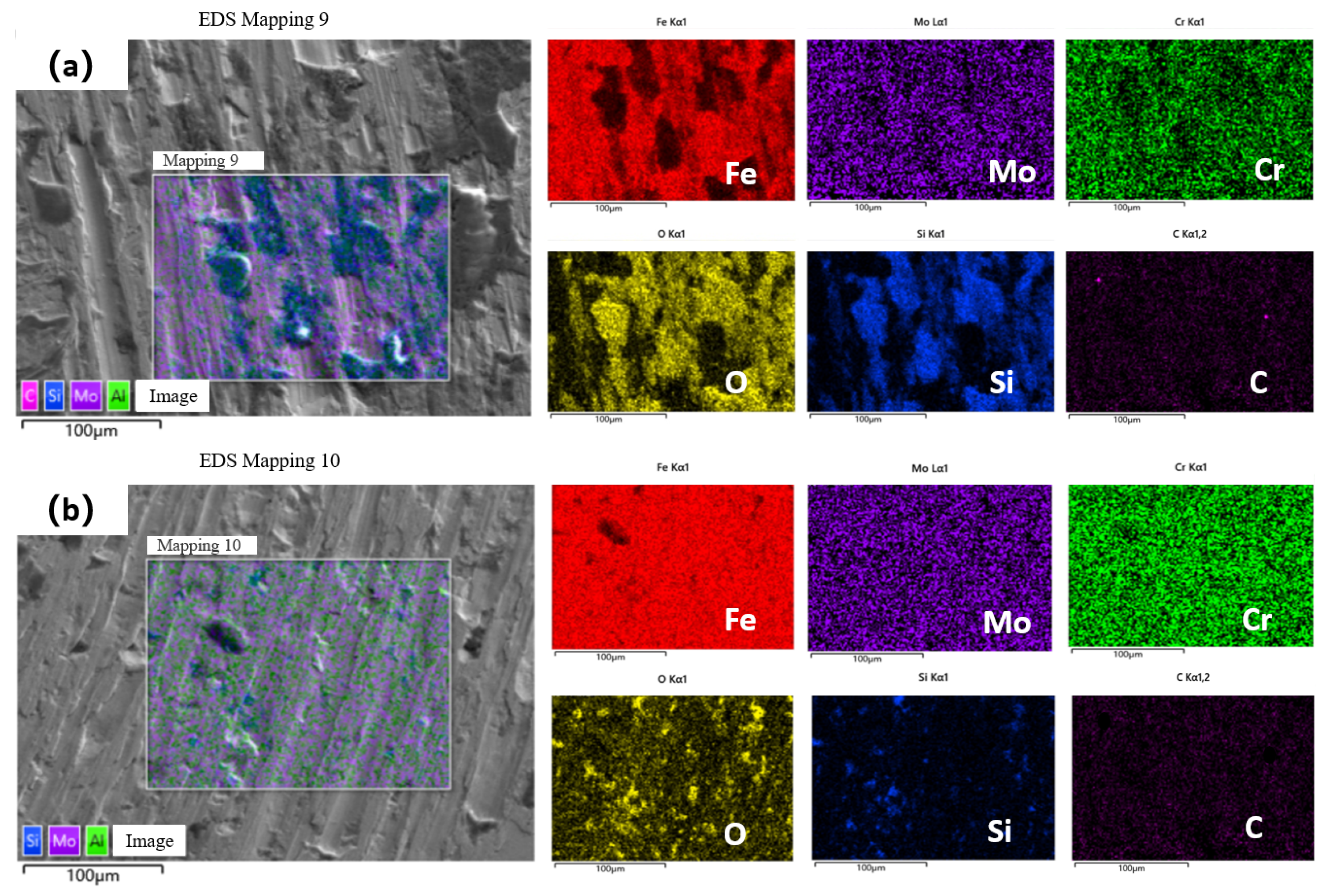

Additionally, elemental mapping analysis, particularly oxygen distribution as shown in Figure 12, revealed regions of oxide enrichment on the worn surfaces. The presence of oxygen is attributed to the thermal accumulation on the wearing surface generated by frictional heat during dry sliding. The elevated temperature of the wearing surface facilitates its reaction with oxygen, leading to mild oxidative wear manifested in the wear scar [31].

During the sliding wear tests, the hard SiC counterface established point contact with the 35CrMo surface, generating characteristic ploughing grooves through abrasive action. Simultaneously, the embedding and scratching of wear debris manifested as primary features of abrasive wear. When the tensile stress induced by the shearing friction pair exceeded the surface yield strength of the material, microcrack initiation occurred, subsequently leading to delamination wear. Furthermore, the frictional process caused softening and eventual detachment of wear debris, forming adhesive craters that indicate adhesive wear mechanisms. Notably, our observations revealed that partially retained wear debris underwent chemical reactions with atmospheric oxygen under repeated compression, resulting in oxidative wear. In summary, the predominant wear mechanisms observed in 35CrMo specimens comprise abrasive wear, delamination wear, adhesive wear, and oxidative wear. Comparative analysis of wear morphologies before and after USRP treatment reveals substantial mitigation of all wear modes, manifested by three key improvements: (i) reduced ploughing groove depth, (ii) diminished adhesive crater volume, and (iii) decreased delamination frequency. Elemental distribution analysis (Figure 12) further confirms effective suppression of oxidative wear following USRP treatment. Notably, the wear resistance enhancement exhibits significant process parameter dependence, with USRP-0.35 demonstrating optimal performance. This superiority primarily stems from optimized surface characteristics, particularly enhanced hardness and improved surface finish, which collectively inhibit multiple wear mechanisms.

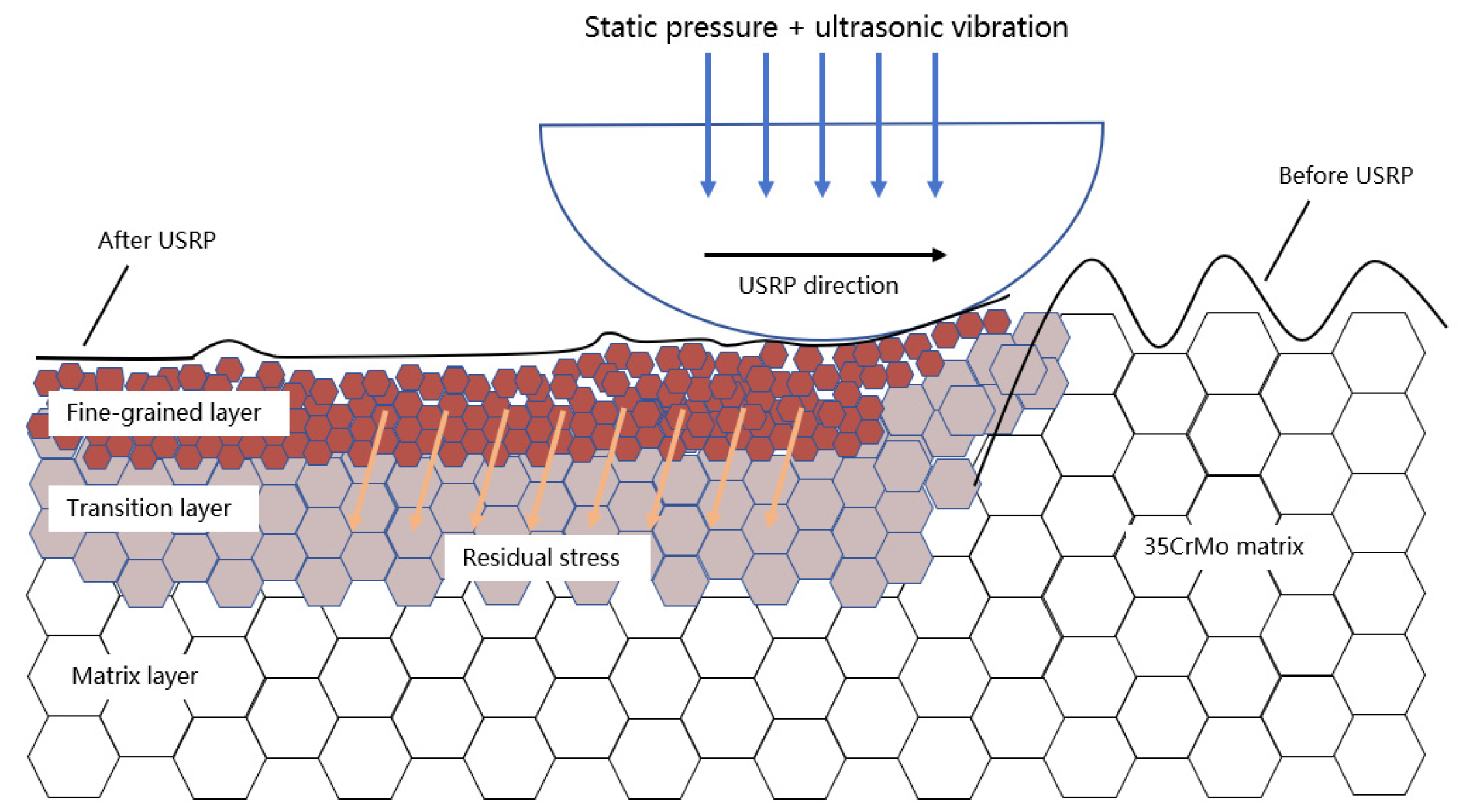

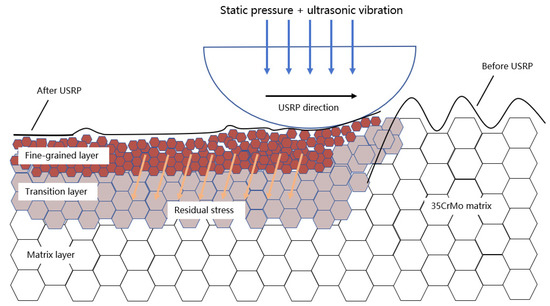

Figure 13 illustrates the underlying mechanisms by which USRP enhances the wear resistance of 35CrMo steel. As previously discussed, the severe plastic deformation induced by USRP promotes substantial grain refinement, leading to a marked increase in surface microhardness. This gradient-distributed hardened layer significantly improves the workpiece’s wear resistance. Moreover, grain refinement increases the density of grain boundaries, which effectively restricts intergranular slip and reduces frictional resistance, thereby enhancing the material’s anti-friction properties.

Beyond grain refinement, the introduction of residual compressive stress plays a pivotal role in wear performance enhancement. Under USRP, surface grains are subjected to compressive stress; when the workpiece experiences tangential friction, the grains undergo tensile deformation, partially releasing the residual compressive stress. This stress relaxation counteracts external frictional forces, reducing the actual load borne by the grains and improving anti-friction performance. Additionally, residual compressive stress reduces the volume and intergranular spacing of surface grains. This microstructural modification strengthens the material’s resistance to micro-cutting, representing a key factor in wear resistance improvement.

The present findings demonstrate that USRP significantly improves tribological performance through three principal mechanisms—(i) microstructural refinement of surface grains, (ii) development of gradient hardness distributions, and (iii) generation of beneficial residual compressive stress fields—which collectively enhance both wear resistance and anti-friction characteristics.

4. Conclusions

(1)

USRP effectively refined the machined surface of 35CrMo, transforming its initial rough morphology (Ra ≈ 0.326 μm) into a smoother and more uniform finish, with the lowest achieved roughness reduced to 0.029 μm.

(2)

The original tensile residual stress (+28.3 MPa) was converted into a beneficial compressive residual stress state, reaching up to −692.7 MPa, which is expected to enhance fatigue resistance.

(3)

The USRP treatment induced severe plastic deformation, resulting in grain refinement and microstructural densification. The original martensitic structure was significantly fragmented, evolving into equiaxed ultrafine grains with a high density of dislocations and subgrain boundaries near the surface.

(4)

A gradient-hardened layer was formed, exhibiting a maximum surface hardness of 408 HV (a 32.3% increase compared to the untreated sample’s 310 HV). However, the hardness gradually decreased toward the substrate due to diminishing plastic deformation effects.

(5)

The wear resistance of 35CrMo was remarkably enhanced, with mass loss reductions of 21.1%, 28.9%, and 22.2% for samples treated at 0.20 MPa, 0.35 MPa, and 0.50 MPa, respectively. Notably, the USRP-0.35 MPa sample demonstrated the optimal wear performance.
