Exploring the Relationship Between Electrical Characteristics and Changes in Chemical Composition and Structure of OSG Low-K Films Under Thermal Annealing

Abstract

The influence of annealing temperature on the chemical, structural, and electrophysical properties of porous OSG low-k films containing terminal methyl groups was investigated. The films were deposited via spin coating, followed by drying at 200 °C and annealing at temperatures ranging from 350 °C to 900 °C. In the temperature range of 350–450 °C, thermal degradation of surfactants occurs along with the formation of a silicon-oxygen framework, which is accompanied by an increase in pore radius from 1.2 nm to 1.5 nm. At 600–700 °C, complete destruction of methyl groups occurs, leading to the development of micropores. FTIR spectroscopy reveals that after annealing at 700 °C, the concentration of silanol groups and water reaches its maximum. By 900 °C, open porosity is no longer observed, and the film resembles dense SiO₂. JV measurements show that the film annealed at 450 °C exhibits minimal leakage currents, approximately 5 × 10⁻¹¹ A/cm² at 700 kV/cm. This can be attributed to the near-complete removal of surfactant residues and non-condensed silanols, along with non-critical thermal degradation of methyl groups. Leakage current models obtained at various annealing temperatures suggest that the predominant charge carrier transfer mechanism is Poole–Frenkel emission.

1. Introduction

One of the primary applications of thin films with low dielectric constants (low-k) is their integration into the interconnect structures of advanced ultra-large-scale integration (ULSI) devices. The low-k films integrated together with low-resistivity metals (Cu, Co, Ru, etc.) allow for compensation of the capacitance increase associated with the continuing device shrinkage [1,2,3,4,5,6]. Extensive exploratory studies on low-k dielectrics have been conducted during the last two decades, and the most important results are systematized, for instance, in the refs. [6,7,8,9,10,11,12]. Materials based on organosilica glasses (OSG), which are characterized by a silica-like matrix structure, have been identified as the most suitable for current microelectronics technologies. By incorporating various organic groups into the silica matrix and employing different deposition methods, it is possible to fine-tune the properties of these materials. In these materials, some of the bridging oxygen atoms in the silica-like matrix are substituted with terminal methyl (or other alkyl) groups, which contribute to a low dielectric constant due to the formation of free volume (micropores) and enhance hydrophobicity (Figure 1). Recently, OSG materials containing organic bridges between Si atoms and exhibiting ordered porosity, known as periodic mesoporous organosilica (PMO), have also been extensively studied. Their structural, chemical, and electrical properties are discussed in the review paper [13].

It is crucial to note that hydrophobicity is a significant property, as water molecules have a high dielectric constant (~80), and even a small amount of moisture can substantially elevate the dielectric constant of a material. This issue is further exacerbated in porous materials, where the high surface area can adsorb considerable amounts of moisture. Consequently, precursors used for the deposition of organosilicon films typically contain at least one methyl group directly bonded to silicon.

However, the reduction of dielectric constant by introducing low-polarizability groups and a slight increase in free volume is insufficient to achieve dielectric permittivity values of k < 3.0. It is essential to incorporate additional artificial porosity by using structure-forming agents, such as sacrificial porogens or surfactants (Figure 1b). Thermal decomposition of these organic compounds releases volatile hydrocarbons and results in the formation of a porous structure, which lowers the k value of the films (Figure 1c) [14].

At present, organosilica films for industrial applications are mainly deposited using plasma-enhanced chemical vapor deposition (PECVD) [9]. These films are highly compatible with current damascene technology, where the dielectric material is patterned through lithography and reactive ion etching. Subsequently, the resulting trenches and vias are filled with metal (typically copper) using superfilling techniques. These techniques achieve higher deposition rates at the bottom of the trenches and vias, especially those with high aspect ratios [15,16].

Dielectric films fabricated using chemical solution deposition (CSD) could play a key role in post-Cu interconnect technology, particularly after the introduction of subtractive technology, where conductive layers (Ru, Mo, etc.) are patterned first [17]. The deposited dielectric must fill trenches and vias in the metal layer, requiring the process to have gap-filling capability. CSD technology meets this requirement, whereas PECVD deposition becomes increasingly challenging. This makes the exploration of CSD-deposited films particularly important. CSD involves sol-gel chemistry with spin coating or dip-coating. CSD-based methods offer greater control over deposited material properties in comparison with PECVD because the selected precursors exhibit relative stability and do not undergo deep fragmentation during processing. The reactions primarily proceed through the hydrolysis of terminal alkoxy groups in organoalkoxysilane precursors (Equation (1)), followed by condensation (Equation (2)) reactions to form the matrix skeleton [18].

≡Si–OR + H₂O → ≡Si–OH + R–OH

(1)

≡Si–OH + HO–Si≡ → Si–O–Si + H₂O

(2)

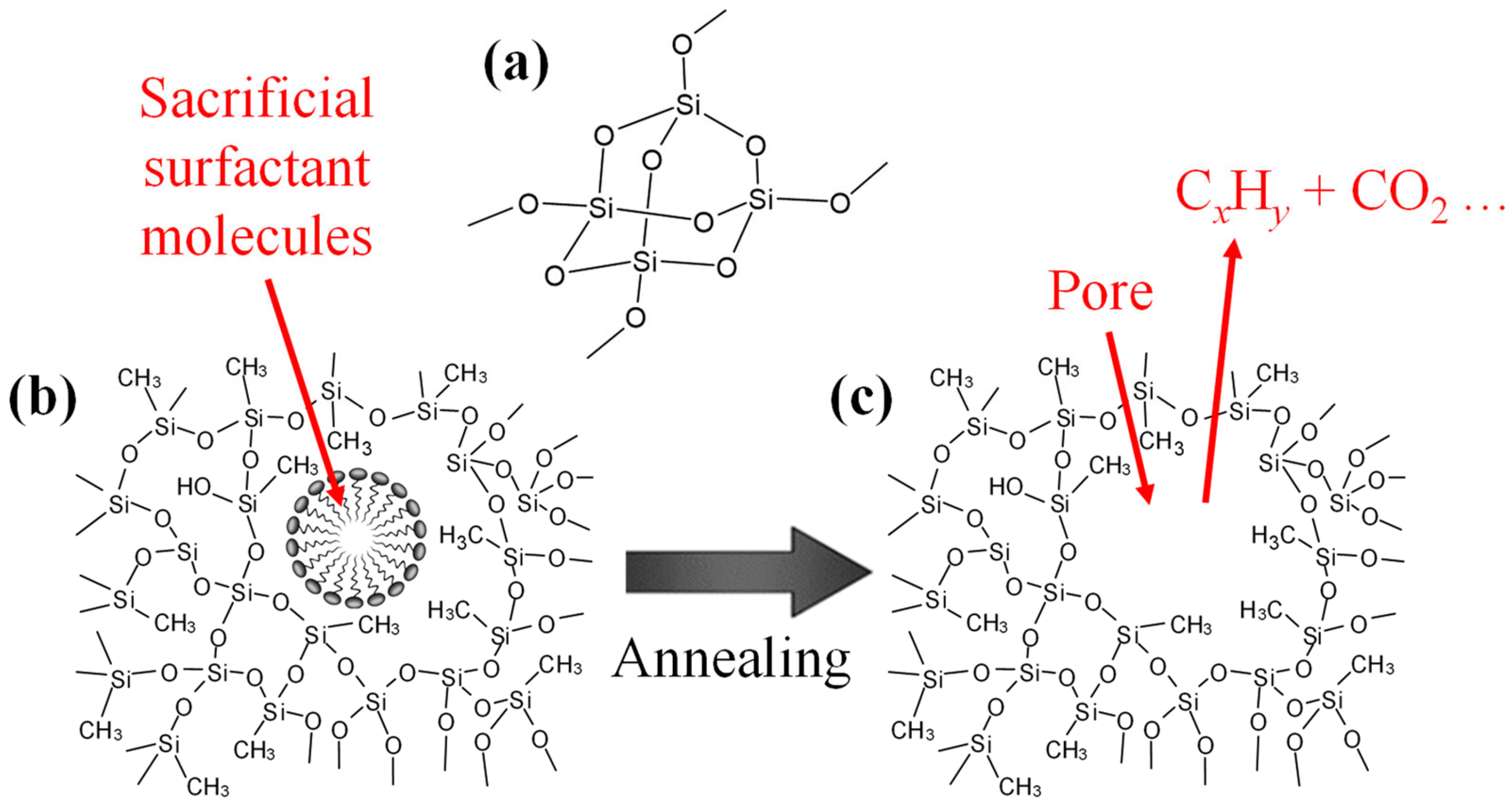

Generally, the fabrication of OSG low–k films involve two steps. First, after deposition, the film is heated at 150–200 °C (soft bake) to remove residual solvents and other chemicals used in the sol–gel process. During this stage, the porogens (surfactants) begin to degrade and are partially removed. The next crucial step is annealing at 400–430 °C (hard bake), which is necessary to eliminate any remaining porogen fragments and facilitate the condensation of silanols (Equation (2)). The formation of siloxane bridges enhances matrix densification and cross-linking, improving its mechanical properties. This process can be further optimized through UV-assisted thermal curing [19].

Thermal annealing (thermal curing, often assisted with UV light [19]) is a crucial step in the fabrication of low-k films [8,9] as it facilitates the removal of the structure-forming agents and the formation of a cross-linked matrix structure. However, if the heat and UV treatment process is too aggressive, it may lead to the undesirable degradation (depletion) of the –CH₃ terminal groups, which are responsible for the material’s hydrophobic properties. This is the reason why the microelectronics industry uses a curing temperature not exceeding 450 °C and UV light with λ > 200 nm. The methyl terminal groups are primarily localized on the pore wall surface, imparting hydrophobicity to the film, which is essential for preventing moisture adsorption. The modification of chemical composition during the thermal curing (particularly, the removal of porogen or surfactant as well as degradation of the CH₃ terminal groups) can be primarily analyzed using Fourier-transform infrared spectroscopy (FTIR), particularly by examining the valence asymmetric and symmetric C–H vibrations of the methylene (–CH₂–) group, which absorb at ~2925 and ~2895 cm⁻¹ respectively [20,21,22,23]. A more detailed study must include more comprehensive analytical techniques and evaluation of electrical characteristics [10,19].

Therefore, careful optimization of thermal curing and understanding the impact of chemical composition (such as carbon residue, methyl terminal groups, and adsorbed moisture) and structural changes (including porosity, density, and pore size) during thermal curing on electrical properties are crucial for further optimizing low-k films. This is the reason these challenges have been addressed in numerous studies.

Porogen and surfactant residues (sp², sp³ carbon) formed after non-optimized thermal curing have a strong impact on electrical characteristics and reliability [19,24]. The existence of sp² and sp³ hybridized carbon-like porogen residues is well studied using UV spectroscopic ellipsometry. The increased amount of porogen residues enhances the leakage current level since these graphitic-like structures are conductive. In the same study, the self-assembled low-k material prepared without porogen and UV curing shows lower leakage currents compared to low-k dielectrics prepared with porogen and curing [13,19,24]. The presence of porogen residues in low-k dielectrics is also reported by other authors. The results obtained using electron-spin resonance (ESR) spectroscopy [19,24,25] show the presence of signals associated with carbon dangling bonds in low-k dielectrics. King et al. [26] pointed out that the defect band between 2–6 eV in the bandgap of the low-k dielectric is attributed to these carbon dangling bonds from porogen residues. Lauer et al. [27] showed that the defect centers originating from porogen residues are able to capture and exchange electrons. These studies indicate that porogen residue can play a dominant role in electrical transport at low fields.

An increased thermal budget can effectively reduce the amount of porogen residues but may also degrade a certain amount of methyl terminal groups, making the films hydrophilic and leading to moisture adsorption in subsequent processing steps. The adsorbed moisture degrades the electrical properties and reliability performance of low-k films [28]. Attempts have been made to characterize the conduction mechanism of moisturized low-k dielectrics, but the exact mechanism remains unknown. Lloyd et al. [29] shows that capacitors could have Schottky and Poole–Frenkel emission types of conductions, but Michelon et al. suggested a non-linear ln(J)–E^0.5 [30,31]. An annealing step is supposed to remove moisture and improve the film characteristics. Li et al. [32] suggested that the removal of physisorbed water by baking at 190 °C could only slightly improve dielectric reliability, and the significant improvement can be achieved after annealing at 400 °C due to the removal of chemisorbed moisture. However, recent results from Cheng et al. [31] point out that annealing at 400 °C is still not sufficient. The most likely cause of uncertainties is the formation of various adsorbed groups (ranging from physically adsorbed molecular water to isolated hydroxyl groups) during water adsorption. Their removal and modification are highly dependent on experimental conditions, which can introduce uncertainties when studying their effects on electrical characteristics and reliability.

All these studies indicate that a comprehensive investigation into the impact of porogen residue and accumulated moisture remains crucial. One challenge when analyzing previously reported results is that they were obtained from films cured under various systems and conditions. Additionally, the transition from a porogen residue-containing state to a hydrophilic one is gradual, so it is essential to study this process using a single film while systematically altering curing conditions. Additional challenges may arise from simultaneous structural changes, which can also affect the properties of OSG materials. A recent example of such research is the paper by Krishtab et al. [33], which used photoelectron spectroscopy and electron spin-resonance spectroscopy to identify that the degradation of electrical characteristics is linked to defect states ~5 eV below the conduction band, caused by surfactant residues in the form of oxidized sp³ carbon chains. Through careful tuning of the curing conditions, the study was able to determine optimal curing regimes. Furthermore, it is also important to simultaneously examine the evolution of the film’s structure, as this type of information is still lacking.

In this work, the effects of thermal modification on porous methyl-terminated organosilicate films were investigated across a wide range of annealing temperatures, from 350 to 900 °C. The selected temperature range was chosen based on its relevance to the structural and electrical transformations of porous OSG films developed for microelectronics applications. The processes of solvent desorption and porogen degradation are ultimately completed within a temperature range of 350 to 400 °C. Furthermore, the final cross-linking of matrix fragments is completed at 400–450 °C. At higher annealing temperatures, the matrix begins to lose CH₃ groups bonded to Si, and the films become nearly dense at 900 °C due to pore collapse. The chemical composition transitions to nearly dense SiO₂. The temperature range between 350 °C and 900 °C was of particular interest for our purposes, as the loss of CH₃ groups generates Si dangling bonds, which act as potential precursors for oxygen-deficient centers. These centers play a crucial role in the Nasyrov–Gritsenko (NG) charge transfer mechanism.

Using a single initial OSG material as a reference, changes in chemical composition—including the removal of porogen residues, degradation of terminal methyl groups, and accumulation of adsorbed water—were carefully analyzed using FTIR spectroscopy. Simultaneously, structural modifications to the porous structure were examined using ellipsometric porosimetry (EP). The leakage current and dielectric constant of the organosilicate films were measured using current-voltage (JV) and capacitance-voltage (CV) measurements.

An extensive evaluation of both chemical composition and porous structure across the full range of annealing temperatures allowed us to correlate these findings with the films’ electrical characteristics. Leakage current data were analyzed using three theoretical models of charge transfer: Schottky emission (SE), Poole–Frenkel (PF) emission [34,35], and the NG model of phonon-assisted tunneling between the traps [36]. Both dielectric constant and leakage current measurements facilitated correlations with the chemical composition and structure of the modified films.

2. Materials and Methods

2.1. Materials

In the present study, porous low-k organosilicate glass (OSG) dielectric films were deposited on silicon wafers using the sol-gel method combined with centrifugation [8,37,38]. Methyltriethoxysilane (MTEOS, >99.9%, Sigma-Aldrich, St. Louis, MI, USA) and tetraethoxysilane (TEOS, >99.9%, ECOS, Moscow, Russia) were utilized as silicon precursors, while hydrochloric acid (37%, Sigma-Aldrich) was used as a catalyst. TEOS was mixed with MTEOS in a molar ratio of 40/60. The structure-forming agent employed to create the porous structure of the films was 20 wt.% Brij^® L4 (C₁₂H₂₅(OCH₂CH₂)₄OH) surfactant from Sigma-Aldrich, which has a molar mass of 362 g/mol. Standard p-type boron-doped silicon wafers with a resistivity of 9–14 Ohm∙cm, a diameter of 100 mm, and an orientation of (100) were used as the substrate. After deposition, the films were dried (soft baked) on a hot plate at a temperature of T_a = 200 °C for 10 min, followed by annealing at various temperatures ranging from 350 to 900 °C for 30 min. The annealing process was conducted in air within a controlled laboratory environment, which minimized fluctuations in humidity and atmospheric pressure. An isothermal oven with a temperature control system was used, ensuring a precision of ±5 °C throughout the process. The environmental humidity was 45 ± 5%.

2.2. Analysis

Fourier-transform infrared (FTIR) spectroscopy was employed to analyze the chemical composition and structure of the synthesized films. The infrared absorption spectra were recorded using a Nicolet 6700 (Thermo, Waltham, MA, USA) FTIR spectrometer in transmission mode with a resolution of 4 cm⁻¹ over the extended range of 7400–400 cm⁻¹.

After annealing, the thickness and refractive index of the samples were measured using spectral ellipsometry (SE) with a SE850 (Sentech, Berlin, Germany) ellipsometer. Measurements were conducted over a wavelength range of 300–800 nm at an incidence angle of 70°, employing the Cauchy model for a three-layer structure consisting of air, film, and silicon. Relative (full) porosity was calculated using the Lorentz–Lorenz equation [39]:

$$V_{LL}=1-{\displaystyle \frac{\left({n_p}^2-1\right)}{\left({n_p}^2+2\right)}}/\left({\displaystyle \frac{{n_s}^2-1}{{n_s}^2+2}}\right),$$

(3)

where n_p is refractive index of porous film and n_s is refractive index of dense film.

The open porosity, which refers to the accessible volume for adsorbate molecules, and the pore size distribution were measured using ellipsometric porometry (EP). For these measurements, a custom-built setup featuring atmospheric pressure EP (RTU MIREA, Moscow, Russia) was connected to an SE850 (Sentech) ellipsometer. The open porosity (V_open) was determined using a modified Lorentz–Lorenz equation [39]:

$$V_{open}=100\mathrm{\%}·\left({\displaystyle \frac{n_{eff}^2-1}{n_{eff}^2+2}}-{\displaystyle \frac{n_p^2-1}{n_p^2+2}}\right)∕\left({\displaystyle \frac{n_{ads}^2-1}{n_{ads}^2+2}}\right),$$

(4)

where $n_{eff}$ is the refractive index of the porous film partially or completely filled with adsorbate molecules, $n_p$ is the refractive index of the film before adsorption (empty pores), $n_p$ is the refractive index of the liquid adsorbate (1.377 for isopropyl alcohol).

The current-voltage (JV) and capacitance-voltage (CV) characteristics of thin dielectric films were measured in metal-dielectric-semiconductor (MDS) structures using an MDC CSM/Win Semiconductor Measurement System (Materials Development Corporation, Andover, MA, USA) equipped with a picoammeter, which includes a built-in programmable constant voltage source 4140B (Hewlett-Packard, Palo Alto, CA, USA) and an LCR meter 4284A (Agilent, Santa Clara, CA, USA). The voltage change during JV measurements exhibited a stepwise (staircase) pattern, meaning that the voltage periodically increased by a fixed value, ΔU, of the same polarity as the applied voltage, U, after a delay time, t_delay. JV characteristics are typically measured in silicon MDS structures in enrichment mode. In this study, films were deposited on p-type silicon substrates. To enable the enrichment mode, a negative voltage is applied to the top electrode. The k-values were estimated by measuring the CV dependencies at a frequency of 100 kHz. All measurements were conducted at several locations on the film surface of each sample. Prior to each measurement, the film was dried at 300 °C for 10 min to eliminate the influence of moisture.

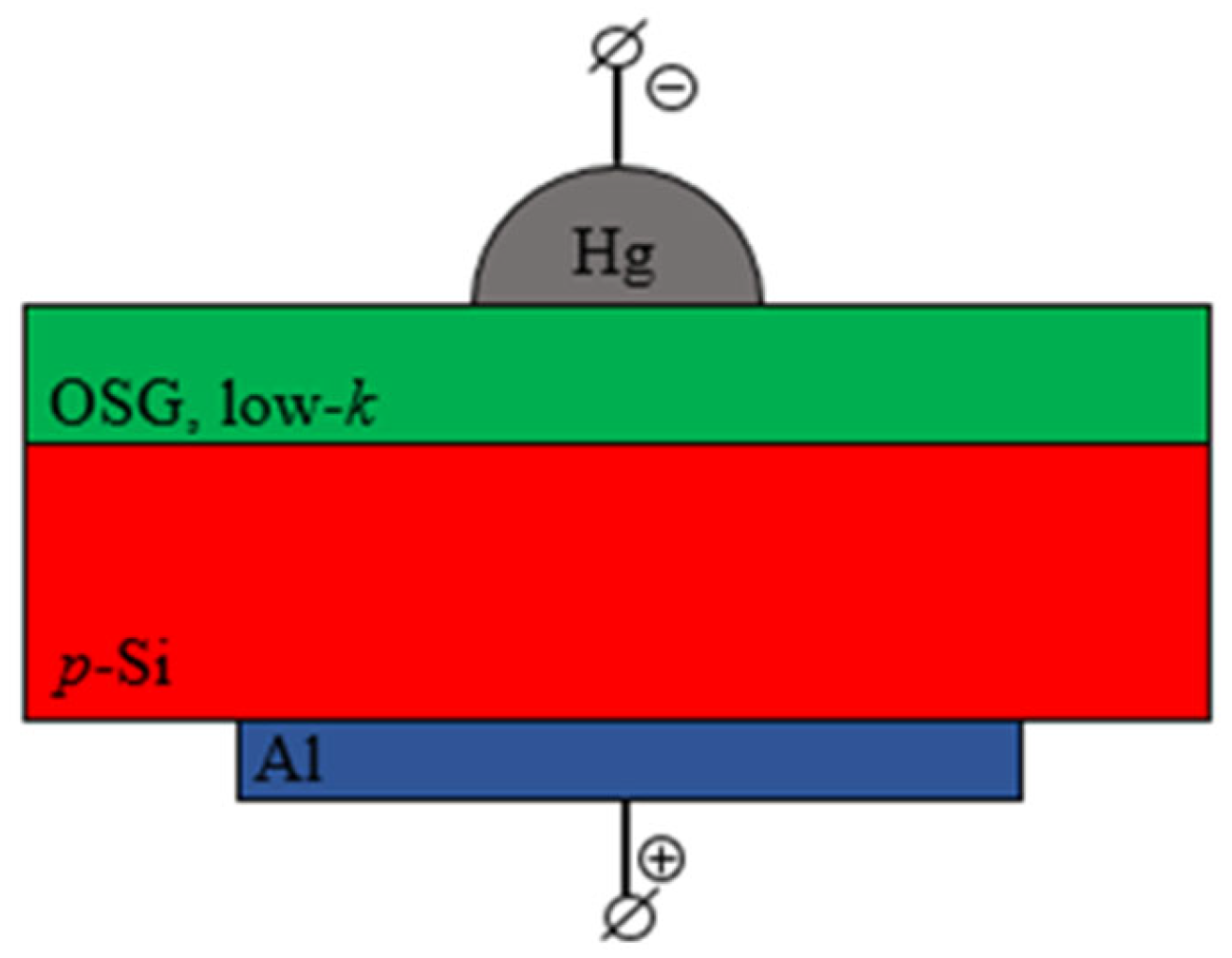

Instead of using metal-point electrodes, a mercury probe was employed to form the MDS structures. Compared to sputter-formed metal electrodes, this technique prevents the penetration of metal impurities into the pores. Consequently, the top electrode is created using a mercury (Hg) drop that comes into contact with a low-k film (Figure 2). The contact area of the Hg probe was 0.515 mm². Hg probes are frequently utilized to eliminate the need for time-consuming metallization and to protect the films under investigation from potential damage caused by sputtering or metal vaporization. As a result, the currents or current densities along the measured JVs may fluctuate depending on environmental conditions. This variability can lead to low measurement accuracy due to poor reproducibility of results. However, the use of measured structures facilitates rapid characterization and safeguards low-k films from process-induced modifications.

To ensure high performance and reliability of microcircuits that utilize copper (Cu) and low-frequency dielectrics, it is essential to thoroughly understand the nature of leakage current in these dielectric films. This understanding necessitates an examination of the charge transfer mechanisms and the identification of defects that induce leakage. Recognizing these defects is crucial for meeting the demands of modern electronic devices and for optimizing the synthesis of low-frequency dielectrics. Therefore, the charge transfer mechanisms and the characteristics of traps in low-frequency films warrant careful investigation.

3. Results and Discussions

3.1. Chemical Composition

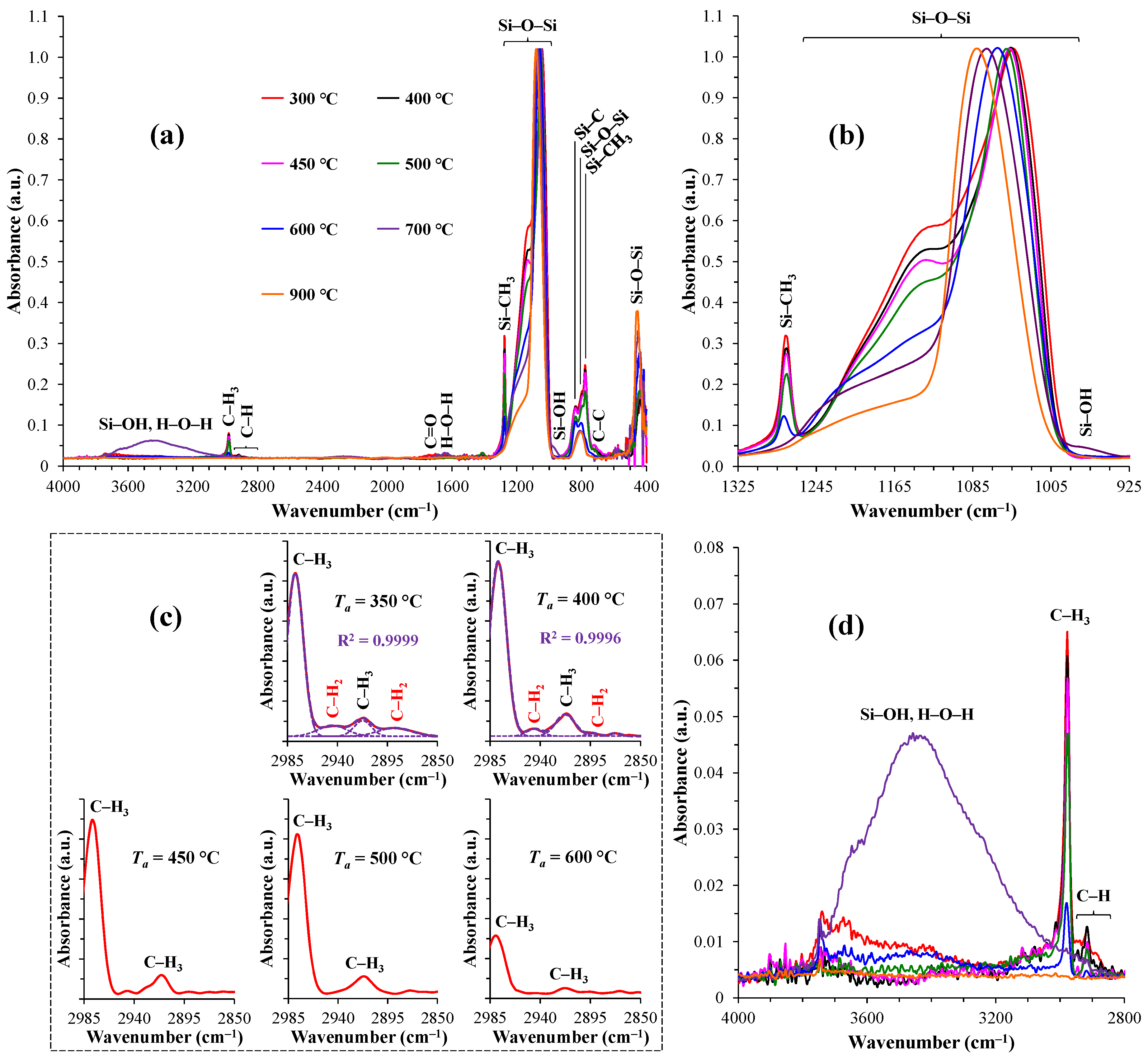

FTIR spectra of the samples annealed at temperatures ranging from 350–900 °C are presented in Figure 3. Most of the absorbance peaks have been assigned based on refs. [20,37]. In all IR spectra of the studied films, the strongest band is observed in the range of 1300–1000 cm⁻¹, corresponding to the asymmetric stretching vibration of the Si–O–Si bond. For annealing temperatures below 500 °C, this peak is located at wavenumbers below 1050 cm⁻¹, indicating the presence of Si suboxide with a Si–O–Si bond angle smaller than 144°. At the annealing temperature exceeds 450 °C, the peak shifts to higher wavenumbers, gradually approaching those corresponding to SiO₂ networks after anneal at 900 °C with a Si–O–Si angle close to 144° (Figure 3b). This red shift is clearly correlated with a reduction in the concentration of SiCH₃ groups, as indicated by the peak at 1275 cm⁻¹, corresponding to the bending vibration of C–H₃ bonds) [20].

Figure 3c shows the evolution of CH_x peaks located in the range 3000–2800 cm⁻¹. The samples annealed at 350 °C shows the presence of four peaks located at 2980, 2950, 2910, and 2880 cm⁻¹. Annealing at higher temperatures leads to the reduction of intensity of the peaks located at 2950 and 2880 cm⁻¹, and they are not observed anymore when T_a > 450 °C. The peaks located at 2980 and 2910 cm⁻¹ show obvious reduction at T_a > 500 °C simultaneously with the SiCH₃ peak located at 1275 cm⁻¹. Therefore, the last two peaks can be assigned to Si–CH₃ bonds, while the peaks located at 2950 and 2880 cm⁻¹ are related to the presence of carbon residues that are removed starting from T_a ≈ 450 °C [20,37].

Silanol groups and adsorbed water are indicated by a broad multicomponent absorption in the range of 3800–3200 cm⁻¹ (Figure 3d). The amount of adsorbed water remains significant in films annealed at 350 °C but decreases sharply after annealing at 400–500 °C. However, it starts to increase again at temperatures above 600 °C, which is clearly linked to the reduction in the concentration of SiCH₃ groups. The highest amount of adsorbed water is observed in the sample annealed at 700 °C when the concentration of SiCH₃ groups is becoming less than ~20% on the initial value. The results of more precise quantitative analysis are presented in

Table 1. I_network/I_cage ratios and relative areas of characteristic peaks/bands of samples at different annealing temperatures (350–900 °C).

Annealing Temperature Ta (°C)	Inetwork/Icage	Relative Areas of Characteristic Peaks/ Bands Si–O–Si (×1000)
		Si–OH, H–O–H	C–H	C–H3	Si–CH3	Si–OH
350	1.76	31.0	14.3	7.0	26.2	0.4
400	1.96	4.3	15.7	7.2	23.8	0.1
450	2.10	6.8	12.8	7.1	23.6	–
500	2.29	15.9	8.5	7.1	18.4	–
600	4.61	19.2	2.6	1.9	5.9	–
700	5.16	180.2	–	–	–	–
900	7.22	1.5	–	–	–	–

, and they clearly demonstrate a discernible increase in Si–OH, H–O–H concentration with rising annealing temperatures within the range of T_a = 450–700 °C. At 600 °C, the minimum detectable amount of Si–CH₃, observed at around ~1275 cm⁻¹, coincides with a more pronounced Si–OH and H–O–H bands.

The I_network/I_cage ratios and the relative areas of characteristic peaks/bands are presented in Table 1. Notably, there is an increase in the I_network/I_cage ratio with rising annealing temperatures, which is related to the removal of the CH₃ terminal group and the following increase in the degree of matrix cross-linkage, which enhances the mechanical properties of the films.

3.2. Spectroscopic Ellipsometry (SE) and Ellipsometric Porometry (EP) Data

Table 2. Results of measurement completed by ellipsometry and ellipsometric porosimetry measurements of porous organosilica glass films annealed at temperatures of 350–900 °C.

Annealing Temperature Ta (°C)	Thickness d (nm)	Shrinkage ∆d (%)	Refractive Index n	Average Radius Pores 〈R〉 (nm)	Open Porosity Vopen (%)	Relative (Full) Porosity VLL (%)	Young’s Modulus (GPa)
350	324	0	1.248	1.15	40.9	43.0	1.9
400	305	5.9	1.253	1.37	38.5	41.7	2.4
450	301	7.1	1.257	1.44	38.0	41.5	2.6
500	273	15.7	1.272	1.51	33.7	38.0	3.7
600	233	28.1	1.280	1.09	33.4	35.4	4.6
700	195	39.8	1.310	0.40	28.7	28.2	11.6
900	170	47.6	1.392	–	~0	10.5	–

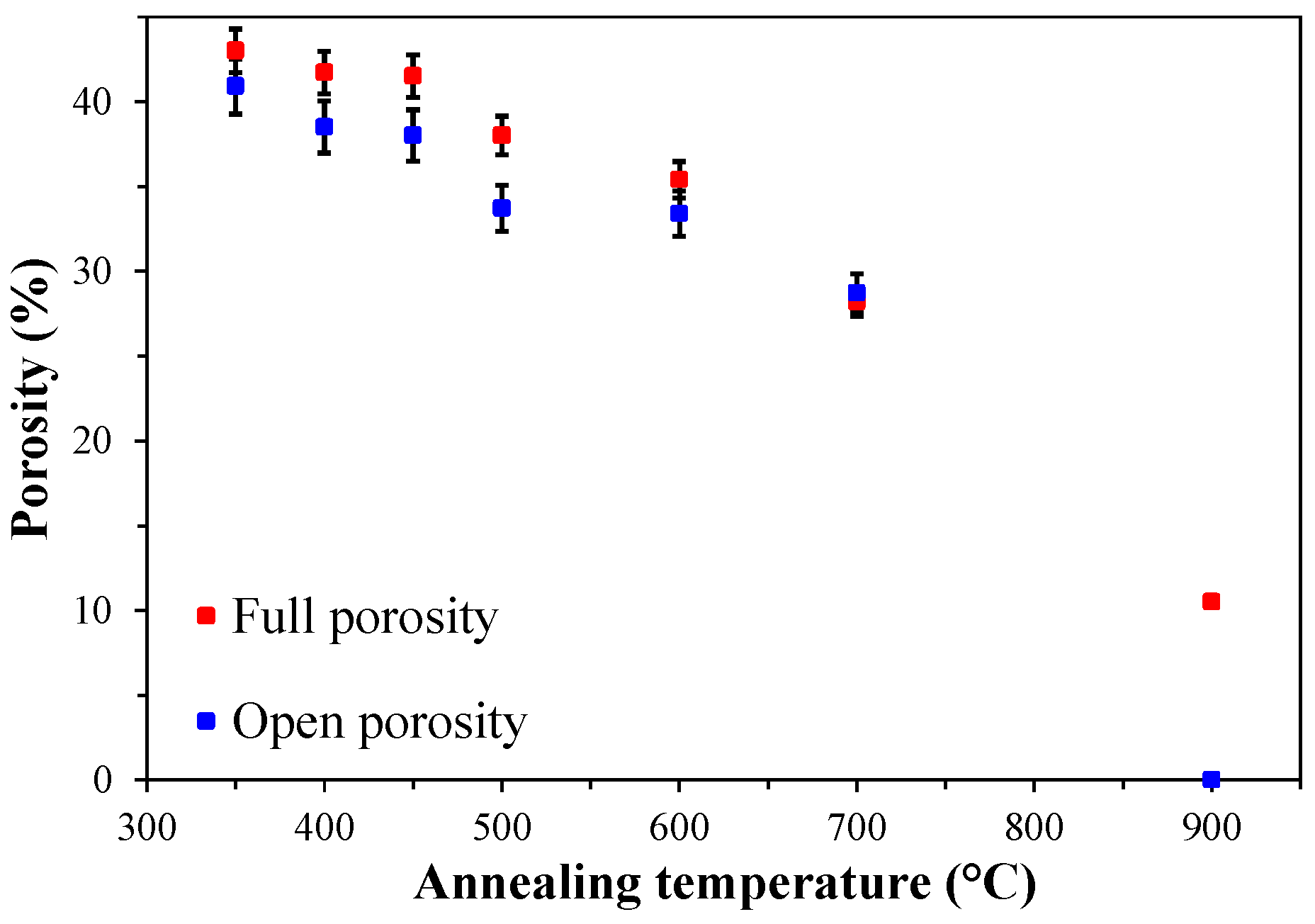

presents the properties of the studied OSG low-k films, as measured by SE and EP. The film thickness decreases from 324 nm to 170 nm after annealing, due to the shrinkage, while the refractive index increases simultaneously. The highest refractive index, n = 1.392, corresponds to the film annealed at 900 °C.

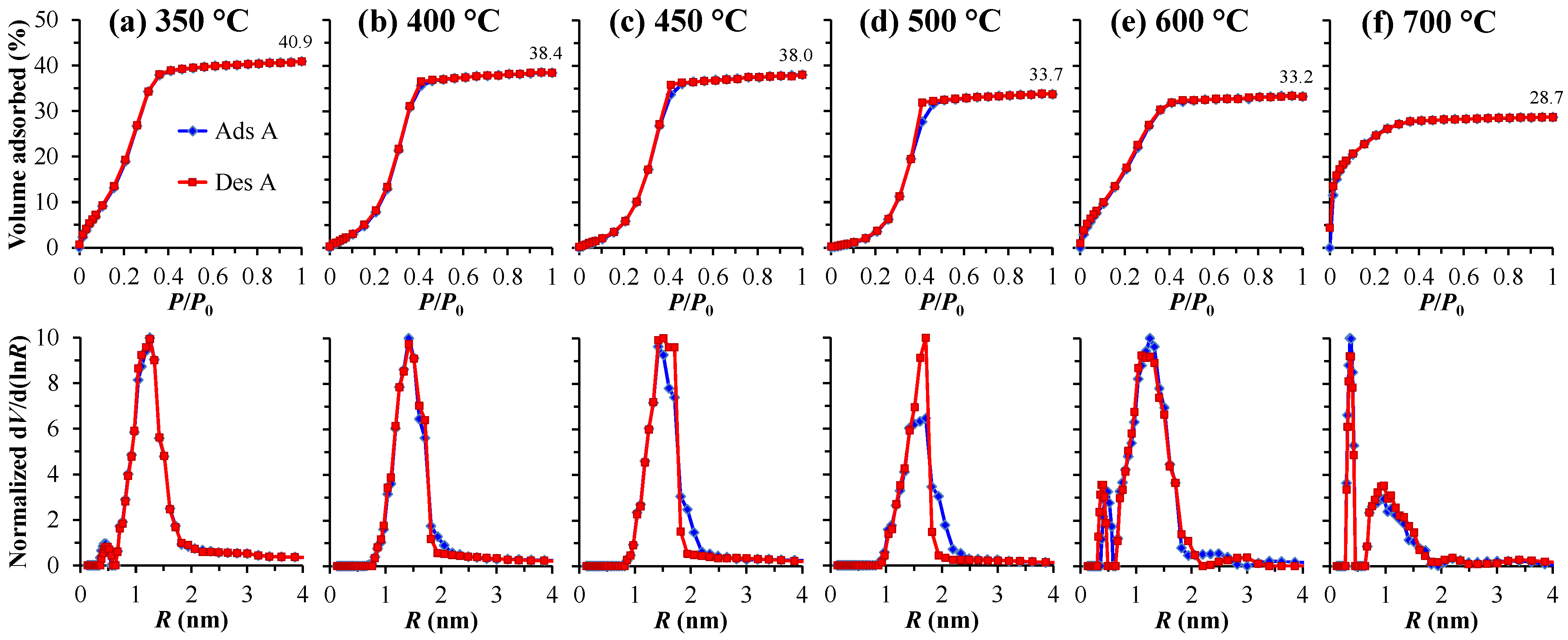

Figure 4 illustrates the adsorption/desorption isotherms and pore radius distribution in the films. Within the temperature range of 350–500 °C, the median pore size increases from 1.15 to 1.51 nm. The isotherm obtained in the films annealed at 350 °C shows the presence of micropores (slope at P/P₀ < 0.05) with a small relative volume of about 5–10%. Then, the micropore volume decreases after annealing at 400 °C and becomes undetectable after 500 °C. Therefore, the increase in median size of pores and the small reduction in measured porosity are related to the collapse of micropores and the short-ranged structural rearrangement of the OSG matrix [40,41]. Further annealing at T_a = 600 °C shows an opposite effect of reduction of the median pore size to 1.09 nm and appearance of the micropores. This effect can be correlated with a reduction of CH₃ groups’ concentration and the collapse of some parts of large pores. At 600 and 700 °C, the bimodal nature of the pore distribution is clearly evident, with the appearance of the left peak corresponding to the presence of micropores. The micropores are becoming dominant in the films annealed at 700 °C.

The films annealed at 900 °C no longer show the presence of open pores, suggesting a complete collapse of all pores because of the sintering silica matrix [42]. According to FTIR data, this film no longer contains CH₃ groups, and the position of the Si–O–Si peak corresponds to pure SiO₂. However, the refractive index of the film is 1.392, which is lower than the typical value measured in SiO₂ films (1.46). This indicates a difference between full and open porosity and suggests that some micropores (free volume) still remain in the films (Figure 5). They are less than 5% in the films annealed at 350–500 °C and 10% in the film annealed at 900 °C. The fact that they are not detectable by IPA adsorption that the necks connecting them with air have size is smaller than the probe used in our EP measurements (the kinetic diameter of IPA molecules is 0.47 nm [43]).

3.3. Electrical Properties

The leakage current in porous organosilicate glass (OSG) low-k dielectrics normally presents a greater level of complexity in comparison to dense dielectrics. This complexity primarily arises from their porous structure. The electrical conductivity of these materials is significantly influenced by their porosity, as various conductive impurities might accumulate on the surfaces of the pore walls, thereby impacting the observed electrical phenomena. Consequently, meticulous fabrication of these films, aimed at preventing or controlling the accumulation of impurities on the pore walls, is essential for conducting an accurate analysis of the leakage current mechanisms within the low-k matrix.

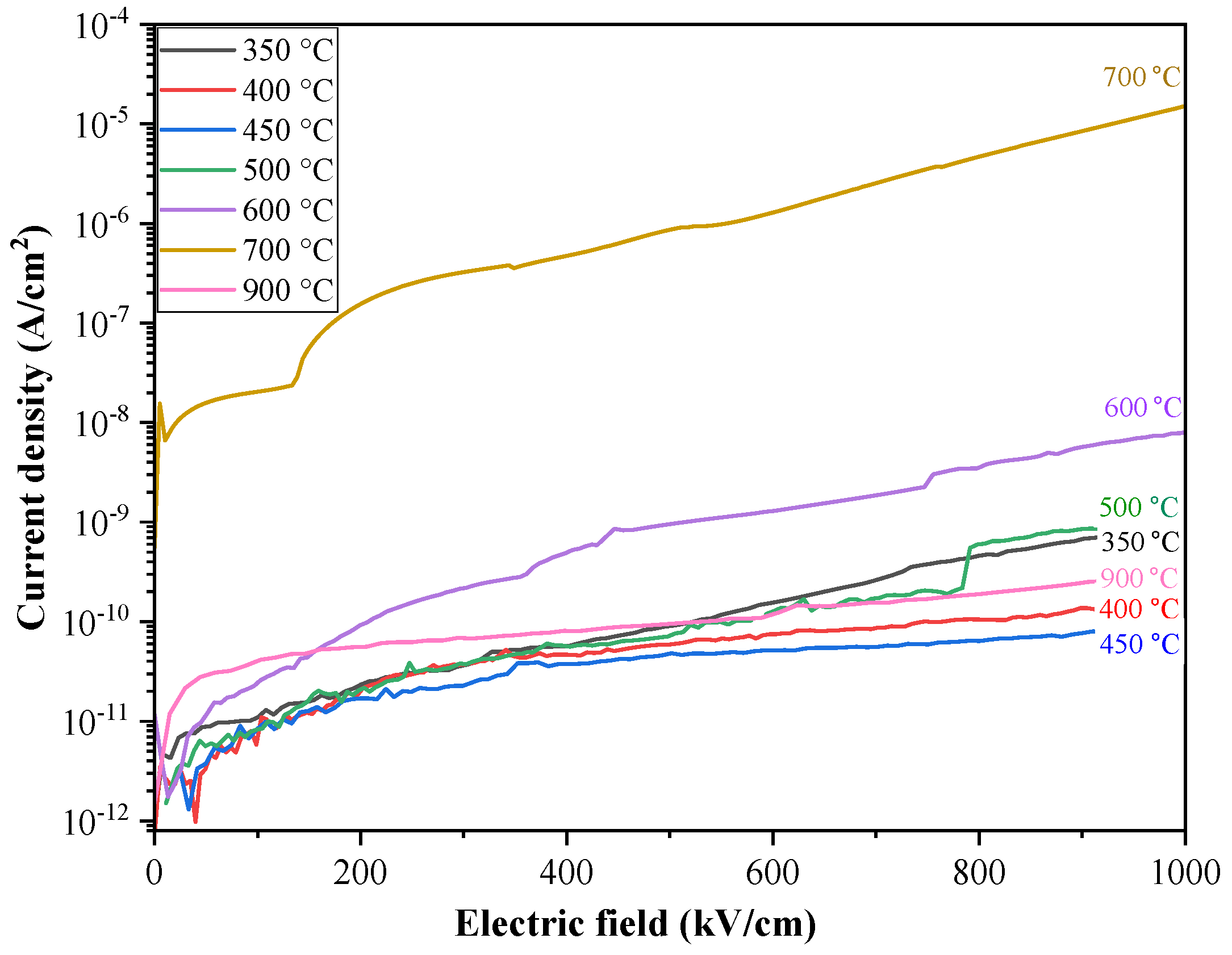

Figure 6 shows the typical dependences of current density on the electric field of the methyl-modified silicate films under investigation. The JV plots presented in Figure 6 do not account for the polarity of the applied electric field strength, which is represented along the abscissa.

The leakage current in these films exhibits a remarkable increase in the region of the lowest applied electric field (<100 kV/cm). As illustrated in Figure 6, the annealing temperatures ranging from 350 to 500 °C result in relatively minor variations in the leakage currents of organosilicate films within the electric field strength range of 0–400 kV/cm. However, when transitioning to higher electric field strengths (400–1000 kV/cm), after a noticeable increase in leakage current, a clear difference between the films annealed at different temperatures becomes evident. The leakage current decreases with temperature in the range between 350 and 450 °C. A very strong increase in leakage current is observed when the temperature increases up to 700 °C, then slightly decreases again at 900 °C. (Figure 6). Further annealing up to 700 °C increases the leakage current, which is reduced at 900 °C.

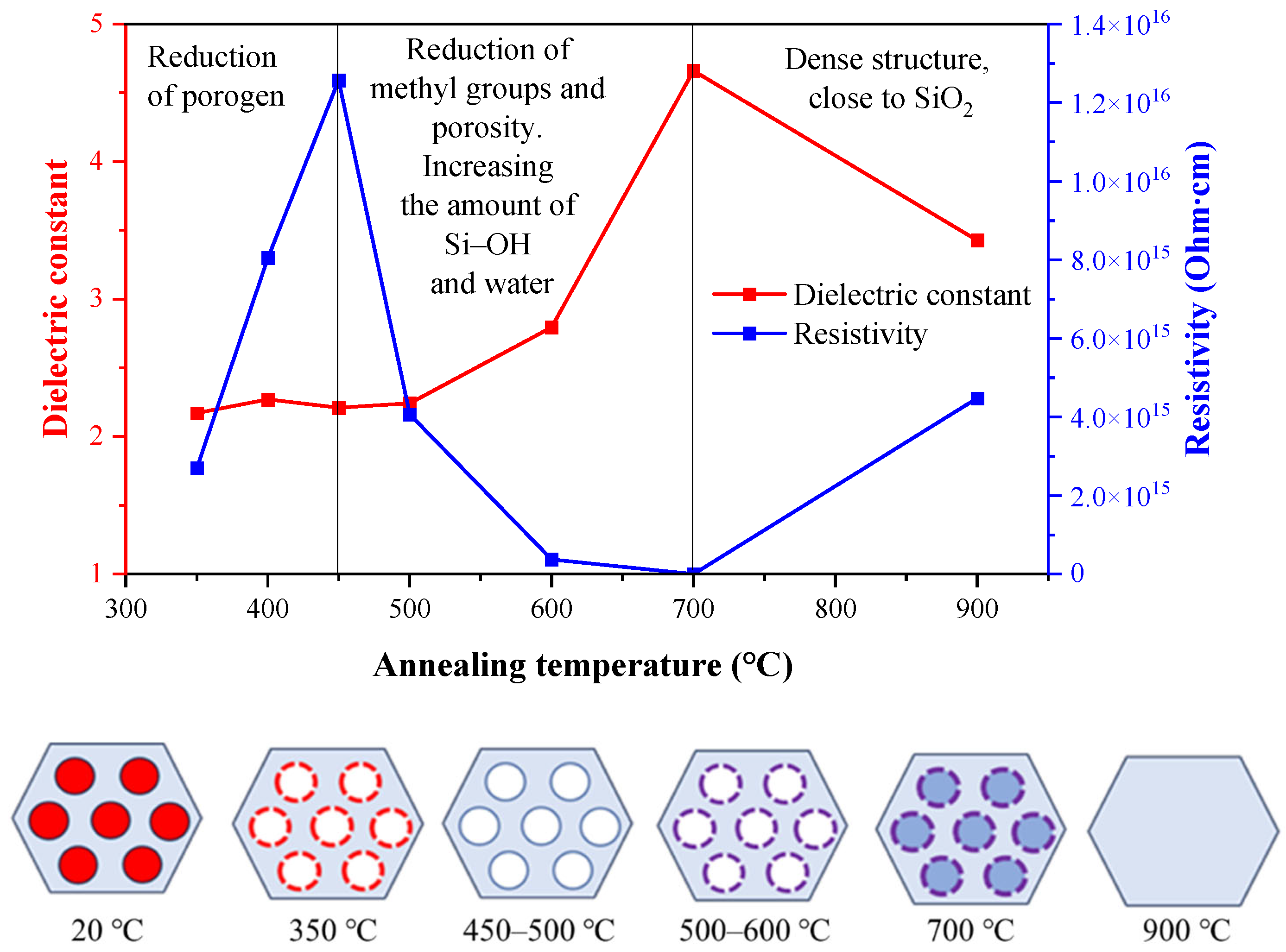

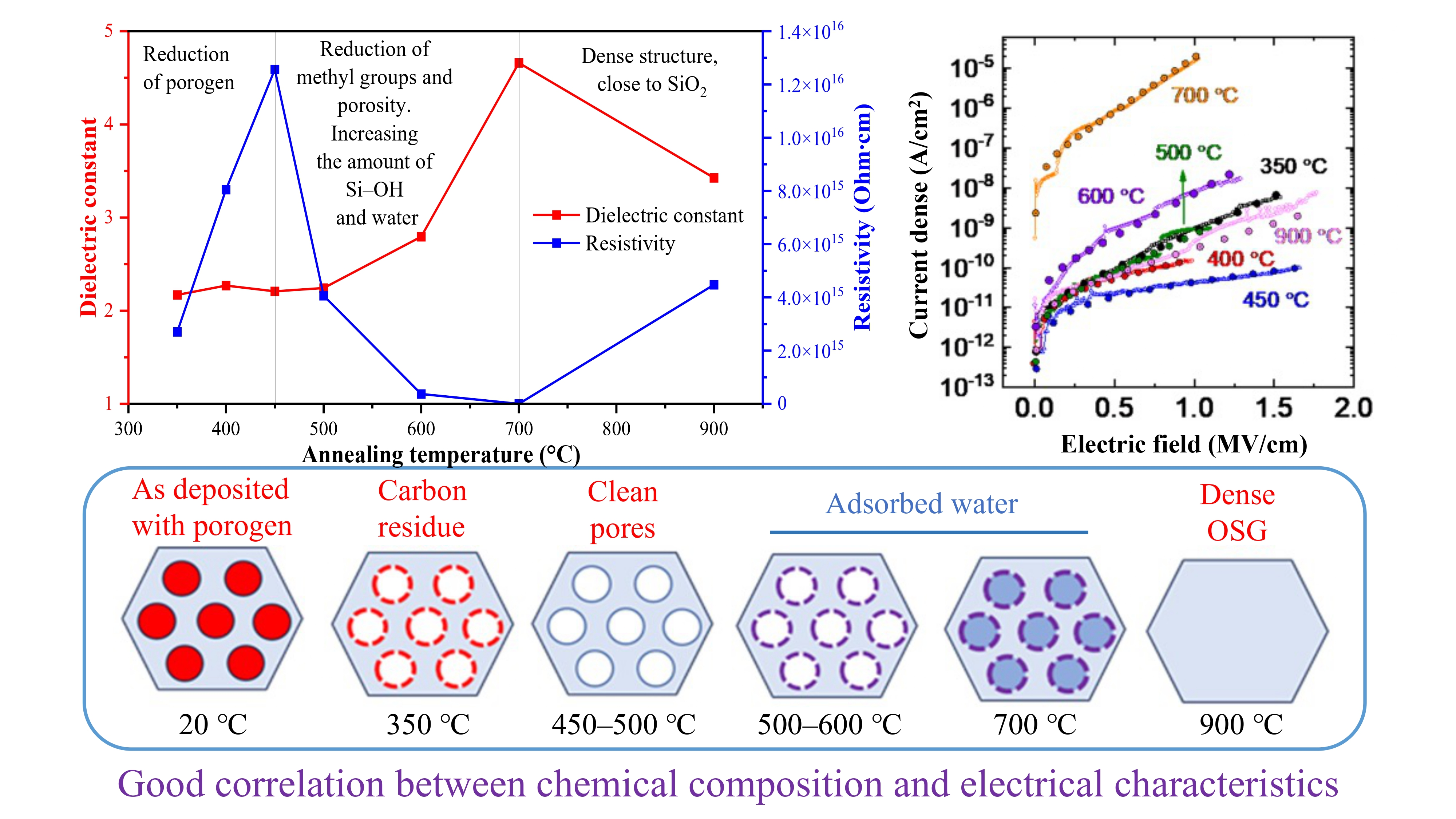

The difference in electrical characteristics is more clearly presented in Figure 7, which shows the measured change of dielectric constant (k value) and resistivity of the films at the electric field strength of 700 kV/cm. The resistivity of the low-k thin films was determined using the data obtained from CV characteristic measurements.

The bottom image shows that the film, containing both matrix and porogen precursors, is deposited at 20 °C. Porogen removal is nearly complete at 350 °C, with empty pores, although some carbon residues remain on the pore walls. After annealing at 450–500°C, the pore walls become free of porogen residues. Beyond this stage, matrix Si–CH₃ groups begin to degrade starting at 500 °C, accompanied by increased water adsorption from the ambient environment. Near 700 °C, complete degradation of Si–CH₃ occurs, forming Si–OH groups and adsorbed water on the now hydrophilic surface. By 900 °C, pore collapse transforms the film into a nearly dense SiO₂.

In the top figure, the behavior of the electrical characteristics is divided into three distinct regions. As we could see from the bottom image, the first region (350–450 °C) is marked by the removal of carbon-containing residues formed during the surfactant’s decomposition. The formation of such residue that formed as a result of porogen destruction has been extensively studied in the past. It was first detected using UV ellipsometry, and it was concluded that the residue is sp² carbon, formed during the thermal degradation of the (–CH₂–)ₙ chain in the porogen or surfactant. The amount of this residue depends on the amount of used sacrificial porogen, and its impact on low-k leakage current was first reported in ref. [44]. The connection between the carbon dangling bonds and trap-assisted leakage current was demonstrated through tunneling current measurements in both dense and porous PECVD low-k materials [26]. The increase in annealing temperature from 350 °C to 450 °C effectively removes this residue, resulting in a notable decrease in leakage current, which aligns with this trend. This conclusion was further supported by the findings of Pomorski et al. [25], who demonstrated the general link between C-dangling bond defects and low-field leakage current in various types of organosilica low-k dielectrics. A distinct characteristic of these residues is their relatively low dielectric constant, similar to other saturated hydrocarbons, though they may exhibit conductivity similar to amorphous carbon. This explains the observation in Figure 8, where the k value remains relatively unchanged in this region despite the significant reduction in leakage current. The collapse of micropores, visible in films annealed at 350 °C and disappearing after further annealing up to 500 °C, does not appear to have a significant impact on the electrical characteristics in this temperature range.

The second region, between 450 °C and 700 °C, is characterized by the near-complete removal of CH₃ groups from the low-k matrix, leading to increased hydrophilicity (Figure 3 and bottom image in Figure 7). The effect of adsorbed water is typically complex and contradictory. This complexity arises because water adsorbed on SiO₂-type materials can exist in several different forms, depending on the strength of chemical bonds and the degree of dissociation [45,46]. These various types of adsorbed water have a complex influence on the reliability of integrated organosilicate glass (OSG) materials [27]. If physically adsorbed water (α-water) is mainly removed at T_a ≤ 190 °C, removal of chemisorbed water (β-water) and especially water formed from isolated hydroxyl groups (γ₁ and γ₂) requires a higher temperature (>400 °C) [26,27,28]. However, in our specific case, the effect is more straightforward and clear. As shown in Figure 7, there is a significant increase in the dielectric constant and a reduction in electrical resistance, which is expected due to the high dielectric constant of water molecules and their contribution to increased conductivity.

The sample annealed at 900 °C is nearly dense, with no open pores, making it difficult for moisture to be adsorbed after complete outgassing at this temperature. This conclusion is supported by FTIR data, which shows significantly less adsorbed water compared to the sample annealed at 700 °C (Figure 4d). This is why the sample annealed at 900 °C exhibits lower leakage current than the one annealed at 700 °C. However, its dielectric constant is higher due to the denser structure. The fact that this sample still has a refractive index lower than that of dense SiO₂ (1.39 versus 1.46) suggests that while some pores did not fully collapse, some internal pores remain but are sealed after thermal treatment.

3.4. Discussion of the Leakage Mechanism

The physical mechanism of electrical conduction in OSG low-k dielectrics has been the focus of extensive research and discussion for many years. The most extensively studied models are based on field-enhanced thermal excitation of electrons entering the conduction band from the low-k interface and the trap states (SE and PF emission). Tunneling of electrons from the metal Fermi energy or trapping sites into the low-k dielectric conduction band is termed the Fowler–Nordheim (FN) mechanism. It has been concluded [35] that PF emission is more likely the dominant conduction mechanism in low-k dielectrics, especially at low fields [30,47,48,49]. FN tunneling conduction can occur at high field ranges [50,51,52,53,54,55]. The effectiveness of these conduction mechanisms often depends on the presence of porogen (surfactant) residues. These residues are primarily formed due to suboptimal UV-assisted thermal curing and moisture trapped in internal defects caused by the integration process, such as plasma damage, which tends to remove carbon-containing groups.

An alternative mechanism based on phonon-assisted tunneling was proposed by Gritsenko and his colleagues for several low-k dielectrics, primarily those based on carbon-bridged PMO (see ref. [24] and the references cited therein). From a materials science perspective, the Gritsenko models primarily rely on the concept of the formation and active role of oxygen-deficient centers (ODC). The ODC’s are diamagnetic and therefore invisible to electron paramagnetic resonance (EPR) techniques, making the reliable identification of these defects quite difficult. The role of oxygen-deficient centers (ODCs) in influencing the electrical properties of silica-based materials has been widely studied using UV-induced luminescence [56,57,58,59]. However, similar luminescence studies of OSG low-k dielectrics remain limited [60,61], and the conclusions are somewhat controversial [24]. Pustovarov et al. [60] reported the presence of oxygen-deficient centers (ODC) in ethylene-bridged PMO films. However, they used an excitation wavelength of 10.6 eV, which significantly exceeds the energy required to break Si–CH₃ bonds (6.5–7.0 eV) [19]. As a result, ODC precursors (Si dangling bonds, E’ centers) can be generated during the measurements. In contrast, Rasadujjaman et al. [61] investigated the luminescence of several OSG films with varying compositions, using an excitation wavelength near 6.0–6.2 eV. They concluded that ODC centers do not form in OSG low-k films within the temperature range used for interconnect technology (<500 °C).

Typically, phonon-assisted tunneling and Poole–Frenkel emission are two competing mechanisms that enhance carrier emission, with their relative contributions determined by the type and charge state of the defect. In the case of OSG low-k dielectrics, the presence and active role of carbon residue and adsorbed water have been more extensively studied, and their correlation with electrical properties is well documented. A more difficult situation is with oxygen-deficient centers, although conclusions about their formation in OSG films were reported by Pomorski et al. [25] and in the ref. [60]. Although luminescence is the most efficient technique, some signs can also be obtained by different techniques. In stoichiometrically clean and dense dielectrics, FTIR and XPS data can be used to show the formation of oxygen-deficient suboxide-like structures. However, OSG films initially exhibit similar shifts due to the replacement of some oxygen atoms with methyl terminal groups. Another reported doubt about the possibility of the formation of oxygen-deficient centers is that the low thermal budget of these films does not allow for the formation of oxygen-deficient centers. The annealing temperatures are much lower than those typically required for matrix relaxation (≥1000 °C), which is essential for ODC formation [19].

3.4.1. Verification of NG Model

The current density through the dielectric materials containing electronic traps is described by Equation (5):

$$j=e N^{{\displaystyle \raisebox{1ex}{$2$}\!\left/ \!\raisebox{-1ex}{$3$}\right.}}P,$$

(5)

where N = a⁻³ is the trap concentration and a is the mean distance between the traps. P is the probability of the trap ionization. In NG model of phonon-assisted tunneling

$$P={\displaystyle \frac{2\sqrt{\pi }\hslash W_T}{m^{*}{a}^2\sqrt{2kT(W_{opt}-W_T)}}}exp\left(-{\displaystyle \frac{W_{opt}-W_T}{kT}}\right)\mathit{exp}\left(-{\displaystyle \frac{2a\sqrt{2m^{*}{W}_T}}{\hslash }}\right)\mathit{sinh}\left({\displaystyle \frac{eFa}{2kT}}\right),$$

(6)

where ħ is Planck constant, W_T is thermal energy of ionization, m* is effective mass, k is Boltzmann constant, W_opt is optical energy of ionization, and F is electric field.

Figure 8 shows JV curves obtained with studied samples (experimental data are replotted from the data presented in Figure 6).

JV characteristics are satisfactorily described by the model of phonon-assisted tunneling between the traps (NG model). The simulation was based on the assumption of two different trap models: the trap based on the oxygen vacancy center with thermal energy W_T = 1.6 eV (≡Si–Si≡) and the trap based on oxygen divacancy with W_T = 1.2 eV (≡Si–Si–Si≡). The agreement between modeling and experimental data was achieved in the assumption that the traps are oxygen vacancies with optical energy of ionization 3.2 eV and oxygen di-vacancies with optical energy 2.4 eV (

Table 3. Results from theoretical calculations approximating the Nasyrov–Gritsenko (NG) model of experimental data for porous organosilica glass (OSG) films annealed at temperatures ranging from 350 to 900 °C.

Annealing Temperature Ta (°C)	Thermal Energy of Ionization, WT (eV)	Optical Energy of Ionization, Wopt (eV)	The Traps Concentration N (cm−3)
350	1.6	3.2	1.0 × 1020
400	1.6	3.2	8.0 × 1021
450	1.6	3.2	5.0 × 1022
500	1.6	3.2	9.0 × 1019
600	1.2	2.4	6.0 × 1019
700	1.2	2.4	3.0 × 1019
900	1.6	3.2	3.0 × 1020

).

The results presented in Table 3 indicate that, according to the ODC-based model, single oxygen vacancies can be considered traps at temperatures of 350, 400, 450, 500, and 900 °C, while divacancies are present at 600 and 700 °C. These conclusions seem unusual, as the formation of oxygen vacancies at these temperatures is generally considered improbable. If, for some unknown reason, oxygen vacancies and even divacancies are forming at 600 and 700 °C, their formation at 900 °C should be even more favorable. Additionally, the calculated trap concentrations are unusual. According to the traditional view, the presence of a suboxide-like band in FTIR spectra suggests the formation of ODCs, but the data presented in Figure 3 show an opposite trend: increasing temperature gradually shifts the Si–O–Si bond to its matrix position. Therefore, if ODCs were formed as defects originating from precursors, their concentration should decrease with increasing annealing temperature. Consequently, we can conclude that the model based on phonon-assisted tunneling between ODC centers does not apply in this case.

3.4.2. Verification of SE and PF Models

The experimental current-voltage characteristics obtained through two models (Schottky Emission (SE) and Poole–Frenkel (PF)) of charge transfer are illustrated in Figure 9 and Figure 10. Utilizing a regression method, we determined the coefficients of the equations corresponding to the linear sections of the data [62]. The slope of these approximating lines allows us to identify the predominant mechanism of charge carrier transport. To achieve this, we calculated the values of the high-frequency (optical) dielectric permittivity of the film based on the slope angle coefficients for the lines plotted in Schottky and Poole–Frenkel coordinates, employing the formulas derived from Equations (7) and (8).

$${\epsilon }_i={\displaystyle \frac{1}{{\left(k_B·T\right)}^2}}·{\displaystyle \frac{q^3}{4·\pi ·{\epsilon }_0}}·{\displaystyle \frac{1}{{\left(K_{Sh}\right)}^2}}$$

(7)

$${\epsilon }_i={\displaystyle \frac{1}{{\left(k_B·T\right)}^2}}·{\displaystyle \frac{q^3}{\pi ·{\epsilon }_0}}·{\displaystyle \frac{1}{{\left(K_{P-F}\right)}^2}}$$

(8)

where K_Sh and K_P-F—the slope angle coefficients of the approximating straight lines in Schottky and Poole–Frenkel coordinates, respectively.

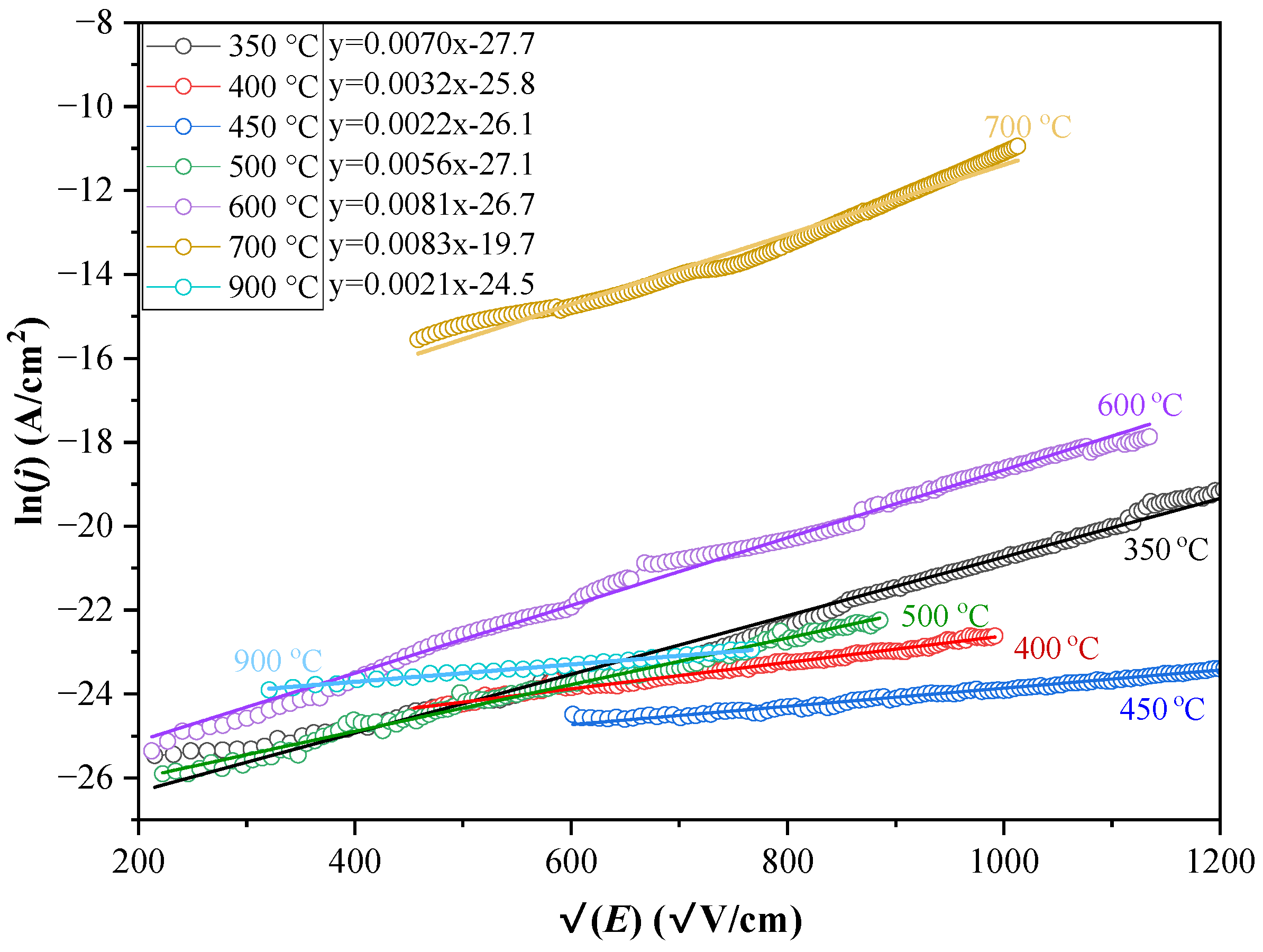

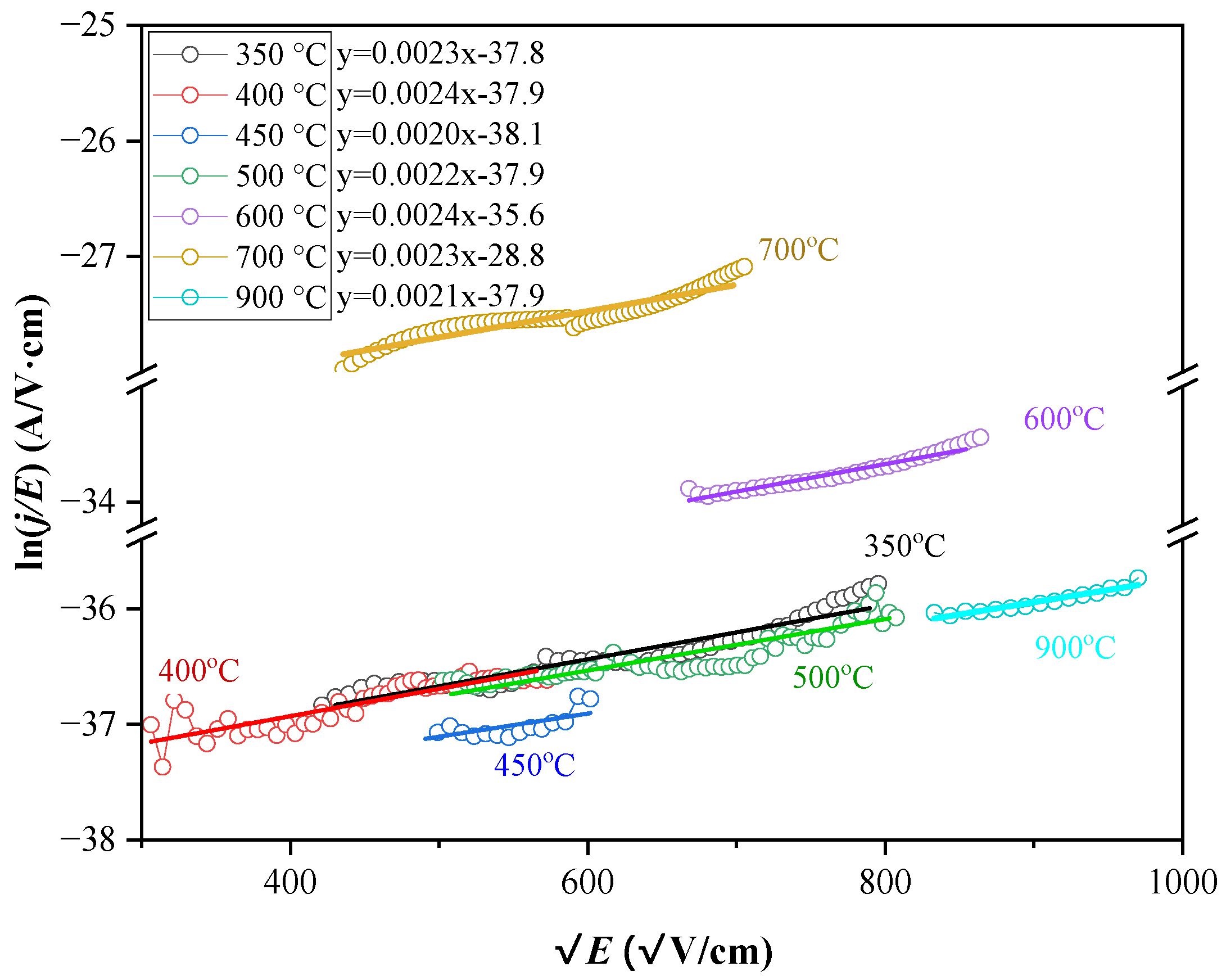

To elucidate the mechanisms underlying current flow attributed to Schottky (Figure 9) and Poole–Frenkel (Figure 10) emissions, graphical representations were constructed. These representations depict the relationship of ($\mathrm{l}\mathrm{n}\left(I\right)$ versus $\sqrt{E}$) for Schottky emissions and ($\mathrm{l}\mathrm{n}(I/E)$ versus $\sqrt{E}$) for Poole–Frenkel emissions, utilizing experimental data as the foundation for analysis.

The values of ε_i for organosilicate films at various annealing temperatures, as determined through linear approximation in Poole–Frenkel and Schottky coordinates, are presented in

Table 4. Values of the high-frequency (optical) component of dielectric permittivity (ε_i) at various annealing temperatures, determined through linear approximation in the coordinates of Poole–Frenkel and Schottky.

Annealing Temperature Ta (°C)	εi		n2
	Poole–Frenkel	Schottky
350	1.5841	0.2556	1.557
400	1.5441	0.2153	1.571
450	1.4096	1.6837	1.581
500	1.7293	0.0711	1.617
600	1.5311	0.0973	1.639
700	1.6689	0.1745	1.717
900	1.9316	0.5017	1.937

. The mechanism yields a calculated ε_i value closest to n². As indicated by the calculated ε_i values in Table 3, it is evident that the predominant mechanism of charge carrier transfer is Poole–Frenkel emission in all instances.

At annealing temperatures of 350, 400, and 900 °C, the calculated values of ε_i as determined by the Poole–Frenkel model align most closely with the experimental data. At an annealing temperature of T_a = 450 °C, it is evident that both Poole–Frenkel and Schottky mechanisms are active. Between T_a = 500–700 °C, the films demonstrate complex mechanisms, predominantly characterized by Poole–Frenkel emission, which warrants further investigation. Nonetheless, the findings from the study of leakage current models in OSG films subjected to various annealing temperatures lead to the conclusion that, in the presence of high electric field strengths (>120 kV/cm), the most likely mechanism for charge carrier transfer is Poole–Frenkel emission.

The charge transport mechanism in low-k dielectrics has been extensively studied, with significant results obtained from PECVD-deposited low-k films used in the microelectronics industry [20,24,25,26,27,28,29,30,31,32,33,34,44,47,48,49,50,51,52,53,54,55,60]. Most of these studies examine the application of SE, PF, and FN mechanisms. A common conclusion is that PF emission is likely the dominant conduction mechanism in low-k dielectrics, particularly at low electric fields, while FN tunneling may occur at higher field ranges. However, at low fields, the NG model, based on phonon-assisted tunneling between traps related to oxygen-deficient centers, can also be relevant. Despite its potential, the NG model has received limited attention, though some publications suggest it could describe charge transport in certain low-k films [24,25,26].

In this study, we gradually modified our films through annealing, which led to the progressive destruction of methyl groups, forming precursors of oxygen-deficient centers. However, we found that the NG model could not adequately describe the changes in film properties with annealing temperature, while the PF model provided more consistent results. Therefore, we concluded that the PF model is more suitable for describing the observed charge transport phenomena. Nevertheless, some overlap among the various mechanisms may occur, and further studies using more advanced techniques are planned.

4. Conclusions

The influence of annealing temperature (T_a = 350–900 °C) on the chemical, structural, and electrophysical properties of porous methyl-modified OSG films has been systematically investigated. The properties examined include film thickness d, open porosity V_open, relative porosity V_LL, refractive index n, pore size (R), chemical composition, and JV. Results obtained from ellipsometric porosimetry indicate that as the annealing temperature increases, both the thickness and porosity of the films decrease, while the refractive index exhibits an increase.

In the temperature range T_a = 350–450 °C, the thermal degradation of surfactants occurs alongside the formation of a silicon-oxygen framework. This process is accompanied by an increase in pore radius from 1.2 nm to 1.5 nm. Concurrently, condensation processes result in a reduction of open porosity from 41% to 34%. During the curing process, residual porogen, specifically sp²–hybridized carbon, is generated and deposited on the surfaces of the pore walls. The quantity of porogen residue is observed to increase with the porosity of the OSG low-k, attributable to the larger internal surface area and the corresponding increase in porogen accumulation. The removal of surfactants, the collapse of micropores, and the reduction in the number of Si–OH groups contribute to a decrease in leakage current values, which correlates with an increase in resistivity, as illustrated in Figure 9.

In the temperature range of T_a = 600–700 °C, the complete degradation of terminal methyl groups transpires, which is accompanied by the development of micropores that become accessible to adsorbate molecules. This process is characterized by the collapse of certain pores, as evidenced by a notable reduction in porosity and a significant decrease in pore size, approximately by a factor of one and a half. Furthermore, Fourier-transform infrared (FTIR) spectroscopy indicates that after annealing at T_a = 700 °C, the concentration of polar silanol groups and water reaches its peak, resulting in a marked increase in leakage currents.

At an annealing temperature of 900 °C, open porosity is virtually nonexistent; however, total porosity reaches 11%, and the refractive index is lower than the typical value for dense SiO₂, which is 1.46. This temperature is sufficient to completely remove all forms of chemisorbed water, along with the condensation of silanol groups on the pore walls. Together with the sealing of remaining free volume in the matrix, this contributes to a reduction in leakage current.

The results of JV measurements indicate that the methyl-modified film, which was annealed at 450 °C, demonstrates minimal leakage currents. This phenomenon can be attributed to the nearly complete elimination of surfactant residues and the thermal degradation of a limited number of methyl groups.

The results of the study on leakage current in methyl-terminated OSG films modified at various annealing temperatures show good agreement with changes in chemical composition and structure. This allows us to conclude that the predominant mechanism of charge carrier transfer is Poole–Frenkel emission. At T_a = 500–700 °C, the films display complex mechanisms, primarily dominated by Poole–Frenkel emission, which necessitates further investigation.

We believe that this research will contribute valuable insights into the optimization of OSG film processing and provide guidance for the development of advanced low-k dielectric materials for future microelectronic devices.
