Carbon Dot-Titanium Dioxide (CD/TiO2) Nanocomposites: Reusable Photocatalyst for Sustainable H2 Production via Photoreforming of Green Organic Compounds

by
Pinelopi P. Falara
1,2,
Maria Antoniadou
1,3,*,
Adamantia Zourou
2,
Elias Sakellis
1 and
Konstantinos V. Kordatos
2,*
1
Institute of Nanoscience and Nanotechnology, National Center for Scientific Research “Demokritos”, Agia Paraskevi, 15341 Athens, Greece
2
School of Chemical Engineering, National Technical University of Athens, 9 Iroon Polytechniou St., Zografou, 15780 Athens, Greece
3
Department of Chemical Engineering, University of Western Macedonia, 50100 Kozani, Greece
*
Authors to whom correspondence should be addressed.
Coatings 2024, 14(1), 131; https://doi.org/10.3390/coatings14010131
Submission received: 19 December 2023 / Revised: 13 January 2024 / Accepted: 17 January 2024 / Published: 19 January 2024
(This article belongs to the Special Issue Advanced Functional Nanostructured Films and Coatings for Energy Applications)
Browse Figures
Versions Notes

Abstract

:
The present work focuses on TiO2 modification with carbon dots (CDs) using a hydrothermal process, which results in the synthesis of CD/TiO2 nanocomposite photocatalysts characterized by exceptional optoelectronic properties. The structural and physicochemical properties of the obtained nanocomposites, which contained varying amounts of CDs, were precisely assessed. HR-TEM analysis showed that the prepared nanocomposites consisted of rod-shaped TiO2 nanoparticles and CDs well-dispersed on their surface. The optical properties of the nanocomposites were studied using UV–vis diffuse reflectance spectroscopy. All CD/TiO2 samples presented decreased energy gap values compared with bare TiO2 samples; the band gap was further decreased as the CD concentration rose. Electrochemical measurements revealed that the presence of CDs improved the photocurrent response of the TiO2, presumably due to enhanced charge separation and decreased recombination. The synthesized nanomaterials were used as photocatalysts to produce hydrogen via the photoreforming of ethanol and glycerol green organic compounds, under 1-sun illumination. The photocatalytic experiments confirmed that the optimum loading of CDs corresponded to a percentage of 3% (w/w). Ethanol photoreforming led to a H2 production rate of 1.7 μmol∙min−1, while in the case of the glycerol sacrificial agent, the corresponding rate was determined to be 1.1 μmol∙min−1. The recyclability study revealed that the photocatalyst exhibited consistent stability during its reuse for hydrogen production in the presence of both ethanol and glycerol.

1. Introduction

The modern world faces critical challenges concerning the energy crisis and environmental pollution. Due to heavy reliance on fossil fuels, serious damage has been done to air quality from greenhouse gas emissions. The solution resides in transitioning to renewable energy sources, with solar energy emerging as the most promising clean energy on the earth because of its abundance, effectiveness, and easy large-scale utilization [1].
In recent years, the utilization of hydrogen (H2) as a green fuel has emerged as a crucial change. This transition has stimulated the investigation of novel technologies such as aqueous phase reforming (APR). For example, the APR of crude glycerol contained in the wastewater streams of industrial facilities has been proposed as an alternative low-cost process, able to convert oxygenated molecules into H2 [2,3]. Significant advancements in H2 production have been achieved also via innovative methods that exploit solar light like photocatalysis and photoelectrocatalysis [1,4]. These advanced photoinduced processes appear to be effective in addressing the dual crisis of energy sustainability and environmental contamination.
Titanium dioxide (TiO2) is considered the most promising semiconductor material used in photocatalytic applications (e.g., water splitting, waste water treatment, etc.); however, it suffers from a low utilization of visible light and high recombination reaction rate between photogenerated electrons and holes [5]. As it has been demonstrated, the activity of the TiO2 photocatalyst for water splitting is significantly enhanced by incorporating noble metals. M. Saleh et al. [6] investigated the influence of the co-catalyst deposition and postulated that scarce elements and cost limitations for efficient large scale hydrogen production could be resolved via the optimization of loading Pt and Cu nanocrystals onto TiO2. Furthermore, by introducing a ZIF-67-derived Co3O4@C metal-free co-catalyst onto TiO2, the same group achieved the significantly enhancement of H2 evolution rates via photocatalytic water splitting [7]. Another successful approach to TiO2 modification in order to overcome these limitations was the fabrication of composite heterostructures with carbon-based nanomaterials such as carbon nanotubes (CNTs) [5,8,9], graphene oxide (GO) [10,11], reduced graphene oxide (r-GO) [12,13,14,15], graphitic carbon nitride (g-C3N4) [16,17], or more recently with carbon dots (CDs) [18,19]. CDs’ structure involves a carbon core consisting mostly of sp2 carbon domains connected by sp3 carbon atoms and a large number of functional groups (-OH, -COOH, -NH2, etc.) on the surface. Despite the limited number of studies that have been performed on the use of CDs in photocatalytic hydrogen production, they are a great sensitizer for TiO2 photocatalysts as they are characterized by broad visible light absorption, efficient electron transfer properties, and high photostability. Additionally, CDs are capable of accepting photo-excited electrons generated by the TiO2 semiconductor under illumination. Consequently, the separation of charge carriers is greatly enhanced as the recombination rate is reduced, which is crucial for efficient photocatalytic H2 generation [20,21].
The recombination reaction rate may be significantly suppressed with the use of electron donor substances as sacrificial agents, due to the fact that they react irreversibly with the photogenerated holes and/or oxygen. For water as the target substance, the process results in simultaneous oxygen and hydrogen production. Nonetheless, the process of water cleavage is commonly regarded as having low efficiency. Photocatalytic reforming is more efficient for hydrogen production when using biomass-derived substances like ethanol and glycerol. The reforming of organic substances in the presence of water leads to the production of hydrogen and CO2. Organic compounds such as organic acids [22], alcohols [23,24,25], amines [24,26,27], and sugars [28,29] are often employed as sacrificial agents. Photocatalytic hydrogen generation occurs simultaneously with the degradation of the organic compounds. In aqueous solutions under anaerobic conditions, the chemical reaction follows a reforming model, which involves the decomposition and mineralization of the organic compound, but also water decomposition and hydrogen production [30,31]. This is described by the following general scheme:
C x H y O z + ( 2 x − z )   H 2 O → x   CO 2 + ( 2 x − z + y 2 )   H 2
All the energy required for this endothermic reaction is provided by photons that are taken in by the photocatalyst. While photogenerated electrons reduce hydrogen ions and produce molecular hydrogen, photogenerated holes interact with the organic material and oxidize it [32].
In this work, CD/TiO2 nanocomposites were synthesized through a simple and low-temperature procedure. More specifically, CDs were prepared using citric acid and urea precursors in a molar ratio of 1:100, following a domestic microwave-assisted synthesis for 4 min. To the best of our knowledge, this was the first time that as-prepared CDs have been combined with TiO2 for photocatalytic H2 generation. The structural and physicochemical properties of the obtained nanocomposites, which contained varying amounts of CDs, were thoroughly characterized. The prepared materials were then used as photocatalysts for hydrogen production using organic compounds as sacrificial agents. For this purpose, ethanol and glycerol have been tested and the amount of generated hydrogen under 1-sun illumination was determined via gas chromatography. The obtained results confirmed that photocatalytic hydrogen production is strongly related to the nature and chemical structure of the organic substrate, the reaction conditions, and the CD content in the TiO2 nanocomposite material. The aim of this work was to evaluate the potential of novel and low-cost CD/TiO2 nanocomposites in the field of photocatalytic H2 generation. It is important to note that for this application, green liquid organic hydrogen carrier systems (ethanol and glycerol) were utilized. Consequently, this study laid the foundation for the achievement of sustainable H2 production using renewables (from/using biomass-derived compounds and solar light).

2. Materials and Methods

2.1. Materials

All chemicals of analytical grade were used as received. Urea was obtained from Sigma-Aldrich (St. Louis, MO, USA); citric acid was purchased from Fluka and glycerol (≥99%) from Carlo Erba (Cornaredo, Italy). The nanocrystalline TiO2 used in the present work was commercial Degussa P25. Absolute ethanol (C2H6O, ≥99%) was purchased from Acros-Organics (Geel, Belgium). Perfluorinated Nafion (C7HF13O5S·C2F4, ≥98%) was obtained from Chem-Lab (Zedelgem, Belgium) and sodium hydroxide (NaOH) from Merck (Darmstadt, Germany). Deionized (DI) water was used throughout.

2.2. Synthesis of the CD/TiO2 Nanocomposites

The CDs were prepared following a domestic microwave-assisted synthesis, constituting a bottom–up strategy. In this method, 0.1 g of citric acid and 3.12 g of urea were used as CD precursors. Specifically, a molar ratio of citric acid:urea of 1:100 was added to 10 mL of DI water [33]. The mixture was vigorously stirred for about 10 min and then was placed in a domestic microwave for 4 min. After natural cooling, the resulting product was dissolved in DI water and was centrifuged at 6000 rpm for 30 min and filtrated in order to separate the CD solution from by-products. Thus, the precipitate was removed, while the supernatant dispersion of the CDs was solidified with freeze-drying technology, and the resulting powder of the CDs was soft and light. The main steps of the synthesis route of the CDs are shown in Figure 1.
Regarding the CD/TiO2 nanocomposites, they were obtained with a hydrothermal method. More specifically, 20 mL of distilled water and 6 mL of ethanol were mixed together, and then 400 mg of Degussa P25 and 4 mL of CDs dispersed in ethanol were added. The concentration of the CDs’ dispersion varied in order to produce nanocomposites with different concentrations of CDs. To examine the influence of the content on photocatalytic H2 production, 1, 2, 3, and 4% w/w CD/TiO2 nanocomposites were synthesized. The reaction mixture was stirred for 30 min at room temperature in order to achieve homogeneity and then transferred into a Teflon-sealed autoclave and heated at 140 °C for 4 h [34]. The resulting photocatalysts were washed with DI water three times, collected with centrifugation, and dried at 80 °C overnight.

2.3. Photoelectrodes

The fabrication of the working electrode followed the subsequent steps: transparent FTO conductive glass electrodes (7 ohms cm−2, Pilkington, Lathom, UK) underwent a thorough cleaning with a solution composed of 2% Hellmanex in water, followed by washing with ethanol and acetone. To prepare the photoelectrode, 10 mg of each photocatalyst was dispersed in a solution comprising 50 μL of Nafion perfluorinated solution, 290 μL of 3D water, and 168 μL of absolute ethanol. The resulting suspensions were ground and doctor-bladed onto the FTO electrode, forming a uniform coating. Subsequently, the samples were heated at 200 °C for 1 h.

2.4. Characterization Methods

X-ray powder diffraction (XRD) analysis was performed using a D8 Advance diffractometer, operating with Bragg–Brentano geometry with Cu Kα1 (λ = 1.5406 Å) and Cu Kα2 (λ = 1.5444 Å) radiation (Bruker, Billerica, MA, USA). Data were collected over the angular range of 10 to 80°, counting for 2 s at each step of 0.02° in the detector position.
Fourier transform infrared (FT-IR) spectra were obtained using a Jasco FTIR 4200 spectrometer in the range of 400–4000 cm−1 using KBr pellets (Jasco, Tokyo, Japan).
The nanostructure was studied with a FEI Talos F200i field-emission (scanning) transmission electron microscope (S/TEM) operating at 200 keV, equipped with a windowless energy-dispersive spectroscopy microanalyzer (6T/100 Bruker). The TEM samples were prepared by suspending the nanoparticles in ethanol and the subsequent evaporation in air using a suspension droplet on a holey carbon film supported by a copper grid.
The optical properties of the samples were analyzed with UV–vis diffuse reflectance spectroscopy, using a Hitachi 3010 spectrophotometer equipped with a 60 mm diameter integrating sphere, and BaSO4 was used as a reference. The absorption data were expressed with Kubelka–Munk units using the respective equation (F(R)).
The electrochemical characterization of the samples was performed via an Autolab potentiostat (PGSTAT-302N). Photocurrent-time (I-t) characteristics were obtained at open-circuit potential, utilizing a two-electrode system and an illuminated (active) area of 3 cm2. Platinum foil (Pt) was employed as the counter electrode. The solution used for the electrochemical measurements contained 25% v/v ethanol, 0.5 M sodium hydroxide (NaOH), and the illumination source was simulated solar light (1 sun, 1000 Wm−2) from a Xenon 300 W source.

2.5. Photocatalytic Setup for Hydrogen Production and Detection

A cylindrical reactor was used, made of Pyrex glass, with carrying fittings allowing for gas inlet–outlet. The reactor was illuminated with a 300 W Xenon lamp (Oriel) and placed at a distance of 10 cm. The detection of hydrogen was realized via an SRI 8610C gas chromatograph with Ar as the carrier gas. Calibration of the gas chromatograph signal was carried out using a standard mixture of 0.25% v/v H2 in Ar. The intensity of radiation at the position of the reactor was measured with an Oriel Radiant Power Meter. Samples were periodically collected using an automatic gas sampling valve and the exact concentration of hydrogen in the reactor effluent was measured as a function of time of illumination. For each experiment, 200 mg of the photocatalysts were dispersed in 100 mL of an aqueous solution containing a certain amount of the organic compound used as a sacrificial agent. When ethanol was used as a sacrificial agent, the concentration was 25% v/v; when glycerol was tested, the concentration was 10% v/v. The ethanol and glycerol concentrations were identified as optimal based on their performance in promoting efficient hydrogen production across various photocatalytic processes [35,36,37,38,39,40,41,42,43]. The reproducibility of the experiments was studied, and the results are presented in Figure S4. During all the experiments, stirring was continuous. Firstly, the solution was degassed with an Ar flow, and then the lamp was switched on.

3. Results and Discussion

3.1. Photocatalyst Characterization

The CD/TiO2 nanocomposite photocatalysts were characterized using XRD, FT-IR, and TEM techniques. The results revealed the presence of graphitic carbon in the nanocomposite material and confirmed the uniform dispersal of the CDs on the surface of TiO2.
The structural properties of the synthesized materials were examined through XRD analysis. The characteristic peaks of TiO2 P25, which consists of a mixture of anatase (A) (JCPDS 21-1272) and rutile (R) (JCPDS 21-1276) nanocrystals [44], were clearly visible in both patterns, as shown in Figure 2a. More specifically, the observed diffraction peaks at 2θ: 25.24°, 27.39°, 35.90°, 36.84°, 37.72°, 38.60°, 41.10°, 48.00°, 53.91°, 55.03°, 56.66°, 62.56°, 68.87°, 70.35°, and 74.98° were assigned to the A(101), R(110), R(101), A(103), A(004), A(112), R(111), A(002), A(105), R(221), A(211), R(220), A(204), A(116), A(220), and A(215) planes, respectively [45,46]. Concerning the XRD pattern of the CD/TiO2, the absence of the characteristic signal at 13° for the CDs [47] indicated their quantum-sized dimensions, low content, and uniform, high dispersion on the TiO2 surface [48,49]. The results of the characterization of the synthesized materials using the FT-IR technique, used to clarify their chemical structure, are presented in Figure 2b. The broad characteristic band in the region above 3000 cm−1 was assigned to the water molecules absorbed on the surface and surface hydroxyl groups. FTIR spectra of the CDs and CD/TiO2 exhibited a band around 1700 cm−1 indicating the presence of C=O bonds. The broad absorption band of the CD/TiO2 nanocomposite below 1000 cm−1 became wider compared with that of the pure TiO2, which was attributed to the combination of the Ti–O–Ti and Ti–O–C vibrations. It is important to note that the XRD and FT-IR results of the CD/TiO2 presented here specifically pertain to the 3% w/w CD/TiO2 composition. The XRD and FT-IR spectra of 1, 2, as well as 4% w/w CD/TiO2 are presented in Figures S1 and S2, respectively.
To elucidate the morphology of the CD/TiO2 nanocomposite, HR-TEM measurement was conducted. The HR-TEM images (Figure 3) demonstrated the existence of nanoparticles with an average size less than 20 nm. Figure 3a,b demonstrate that the TiO2 nanoparticles were rod-shaped and the CDs were well-dispersed on their surface. Lattice fringes can be clearly seen in the high-resolution image (Figure 3c,d). The spacing between the adjacent lattice fringes was measured to be 0.189 and 0.333 nm, corresponding to the interplanar distance of the (200) planes in the typical anatase phase (TiO2) and to the (002) spacing of the graphitic carbon (CDs), respectively.
In order to study the optical properties of the nanocomposites, the DR/UV–vis spectra plotted as the Kubelka–Munk function of the reflectance F(R) versus the energy of exciting light for the samples are shown in Figure 4.
The band-gap energies of the samples were estimated from the tangent lines in the plots of the modified Kubelka–Munk function [50,51]. A remarkable change in the DR/UV-vis spectra for the containing CDs could be observed, which suggested that they reflected significantly less light than the bare TiO2-P25. This outcome showed great potential as it indicated an enhanced scattering of photons due the presence of CDs, leading to an improved light-harvesting efficiency. More specifically, the calculated band gaps of the samples with TiO2, 1% w/w CD/TiO2, 2% w/w CD/TiO2, 3% w/w CD/TiO2, and 4% w/w CD/TiO2 were 3.39, 3.26, 3.24, 3.18, and 3.13 eV, respectively.
The photo-electrochemical properties of the nanocomposites deposited on the FTO electrodes were examined in 0.5 M NaOH under 1-sun illumination conditions.
To evaluate the photoelectric response of the catalysts, the transient photocurrent responses, in order to study the photocatalytic effect, were used (I-t). Figure 5 shows the photocurrent response of the CD/TiO2 thin films of various concentrations under 1-sun illumination conditions. As expected, each of the CD/TiO2 nanocomposites produced photocurrents upon illumination, which decreased to zero when the illumination was off. Even though the presence of CDs could improve the photocurrent response of the TiO2, presumably due to enhancing charge separation and decreasing recombination, as shown in Figure 5, a stable but low photocurrent response, due to the quick recombination of photo-generated electrons and holes and the weak response of visible light, was presented for the samples with 1% w/w CD/TiO2 and 2% w/w CD/TiO2. The sample with 3% w/w CD/TiO2 demonstrated a heightened anodic photocurrent response. This could be attributed to the increased absorption of visible light and improved charge separation, both enhanced by the higher concentration of CDs. However, a further increase in CD concentration, beyond 3% w/w, did not improve the photocurrent values (4% w/w CD/TiO2); instead, the photocurrent density decreased. This observation suggested that an excessive CD content may block the active surface area. This was probably due to the opacity and light scattering of the CDs decreasing the absorption of the incident light. As a consequence, the photocurrent response was reduced [34].

3.2. Photocatalytic Hydrogen Production with Ethanol and Glycerol Reforming

Photocatalytic hydrogen generation consistently occurred in all the CD/TiO2 photocatalysts with varying CD contents. Conversely, in the case of bare TiO2, no hydrogen production was observed.
The temporal evolution of H2 in the presence of CD/TiO2 photocatalysts is shown in Figure 6. In each experiment, 200 mg of the corresponding photocatalyst was added in a 100 mL aqueous solution containing the organic substrate. In the presence of 25% v/v ethanol, the obtained data are shown in Figure 6a as a function of the CDs’ percentage and reaction time. The results revealed that there was no H2 production in the case of pure Degussa P25; however, all of the prepared nanocomposite photocatalysts exhibited satisfying hydrogen production rates. Four different loadings of CDs were tested in order to clarify which was optimal. The sample containing 3% w/w CDs demonstrated the highest H2 production rate, reaching the value of 1.7 μmol H2/min. In every curve, there was a section of the initial incline, representing the period required for hydrogen accumulation within the reaction mixture and its transport through the tubing to the detection area, and the peak rate, which served as an indicator of the maximum possible hydrogen production rate under the present conditions. The presence or absence of a plateau depended on the balance between the amount of photocatalysts and fuel, as well as the intensity of incident radiation.
The nanocomposite that exhibited superior behavior in photocatalytic hydrogen production via ethanol reforming (i.e., 3% w/w CD/TiO2) was studied using another organic substance as a sacrificial agent. The data of Figure 6b were obtained with a 10% v/v glycerol in a 100 mL aqueous solution. Following a similar experimental procedure, it was proven that the use of ethanol as a sacrificial agent exhibited better H2 production rates than the use of glycerol. To be more precise, the maximum hydrogen production rate observed with glycerol was approximately 1.1 μmol H2∙min−1, which was lower when compared to ethanol’s rate of 1.7 μmol H2∙min−1.
The stability and recyclability of the CD/TiO2 photocatalysts were also investigated through the cycling experiments that are exhibited in Figure 7. More specifically, a 3% w/w CD/TiO2 photocatalyst was used for three consecutive cycles in the presence of each sacrificial agent (ethanol and glycerol). Each cycle was carried out under the exact same conditions mentioned in Section 2.5. After each test, the photocatalyst was thoroughly washed with DI water. The recyclability study revealed that the photocatalyst exhibited consistent stability during its reuse for hydrogen production from both ethanol and glycerol. However, in both cases, there was an increment in the second cycle. This may have been due to the formation of intermediates during the process, which possibly enhanced the nanocomposite’s photocatalytic activity [52]. It is worth mentioning that the XRD spectra of the CD/TiO2 nanocomposites after the utilization of three consecutive cycles are presented in Figure S3. Based on the XRD results, there were no alterations in the crystal structure of the sample, proving the photocatalyst’s high stability.
Furthermore, in order to highlight the novelty and advancements of this study regarding photocatalytic hydrogen production, a survey of TiO2-based photocatalysts within the recent literature was conducted. The comparisons between them, which is presented in Table 1, intended to clarify the contribution made within this field and distinguish the results from the existing literature.

4. Conclusions

In summary, this work was focused on the synthesis and characterization of CD/TiO2 nanocomposite material, as well as the evaluation of its performance in photocatalytic hydrogen production. As it is known, TiO2 semiconductors suffer from the low utilization of visible light and a high recombination reaction rate between photogenerated electrons and holes. In order to overcome these drawbacks, its combination with CDs has been suggested. CDs, characterized by broad visible light absorption, efficient electron transfer properties, and high photostability, are among the most promising candidates for the sensitization of TiO2 photocatalysts. Herein, a facile and novel synthetic route is presented for the first time. More specifically, a three-step process was followed for the preparation of CD/TiO2, where CDs were first prepared with a rapid domestic microwave-assisted synthesis, followed by freeze drying. Then, a facile hydrothermal process using the as-prepared CDs and TiO2 as precursors was conducted. The obtained CD/TiO2 sample could be easily coated onto conductive substrates to form thin films, which could be applied in various applications. The aim of this study was the investigation of the CD concentration effect on the photocatalytic performance for hydrogen production. Therefore, four different concentrations of CDs (1% w/w, 2% w/w, 3% w/w, and 4% w/w) were evaluated. The physicochemical properties of the samples were studied via XRD, FT-IR, HR-TEM/FFT, UV–Vis, as well as photo-electrochemical measurements (I-t). More specifically, based on the XRD results, the absence of diffraction peaks in the CDs was attributed to their extremely small size and their uniform distribution onto the TiO2 surface. Additionally, the absorption peak of 1700 cm−1 in the FT-IR spectra, which was attributed to the C=O stretching vibrations due to the presence of CDs in the nanocomposite material, increased when the CD concentration also increased. Regarding the morphology study of the nanocomposite, the TiO2 nanoparticles were rod-shaped while the CDs were well-dispersed onto their surface. Moreover, it is important to note that all CD/TiO2 samples presented decreased energy gap values compared to TiO2; the band gap further decreased as the CD concentration rose. Similarly, the photocurrent response was enhanced as the CD concentration increased to a specific limit, where CDs could block the active surface area; this may have been due to opacity and light scattering, resulting in the decrease in incident light absorption. Finally, the performance of the as-prepared CD/TiO2 photocatalysts containing varying amounts of CDs was evaluated in their capability to produce H2, using green organic solvents (e.g., ethanol and glycerol) as sacrificial agents. All of the as-prepared nanocomposite photocatalysts exhibited satisfying hydrogen production rates, as opposed to the bare TiO2. Among all the samples, the one containing 3% w/w CDs demonstrated the highest H2 production rate reaching the value of 1.7 μmol H2/min and 1.1 μmol H2/min in the presence of ethanol and glycerol, respectively. The fact that the 3% w/w CD/TiO2 exhibited the best photocatalytic performance corresponded with the photo-electrochemical measurements, as mentioned above. The high recyclability and stability of the 3% w/w CD/TiO2 were confirmed after its utilization for three cycles reaching the value of 1.63 μmole H2/min and 1.11 μmole H2/min after the last cycle for ethanol and glycerol, respectively, while its crystal structure presented no alterations.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/coatings14010131/s1, Figure S1. XRD spectra of the 1% w/w CD/TiO2, 2% w/w CD/TiO2, and 4% w/w CD/TiO2; Figure S2. FT-IR spectra of the 1% w/w CD/TiO2, 2 % w/w CD/TiO2, and 4% w/w CD/TiO2; Figure S3. XRD spectra of the 3% w/w CD/TiO2 before and after utilization; Figure S4. Results of the 3% w/w CD/TiO2 reproducibility in the presence of 25% v/v ethanol.

Author Contributions

Conceptualization, M.A.; methodology P.P.F., M.A. and K.V.K.; validation, P.P.F. and M.A.; formal analysis, P.P.F. and M.A.; investigation, P.P.F., M.A., A.Z., E.S. and K.V.K.; resources, P.P.F., M.A. and K.V.K.; data curation, M.A.; writing—original draft preparation, P.P.F. and A.Z.; writing—review and editing, P.P.F., M.A. and K.V.K.; visualization, P.P.F., A.Z. and M.A.; supervision, M.A. and K.V.K.; project administration, M.A.; funding acquisition, P.P.F. and M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Hellenic Foundation for Research and Innovation (HFRI) and the General Secretariat for Research and Technology (GSRT), under grant agreement number 2490 and the European Union’s H2020 Programme iWAYS, under grant agreement number 958274.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and supplementary materials.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Li, Z.; Fang, S.; Sun, H.; Chung, R.J.; Fang, X.; He, J.H. Solar Hydrogen. Adv. Energy Mater. 2023, 13, 2203019. [Google Scholar] [CrossRef]
  2. Zoppi, G.; Pipitone, G.; Pirone, R.; Bensaid, S. Aqueous Phase Reforming Process for the Valorization of Wastewater Streams: Application to Different Industrial Scenarios. Catal. Today 2022, 387, 224–236. [Google Scholar] [CrossRef]
  3. Coronado, I.; Stekrova, M.; Reinikainen, M.; Simell, P.; Lefferts, L.; Lehtonen, J. A Review of Catalytic Aqueous-Phase Reforming of Oxygenated Hydrocarbons Derived from Biorefinery Water Fractions. Int. J. Hydrogen Energy 2016, 41, 11003–11032. [Google Scholar] [CrossRef]
  4. Pitchaimuthu, S.; Sridharan, K.; Nagarajan, S.; Ananthraj, S.; Robertson, P.; Kuehnel, M.F.; Irabien, Á.; Maroto-Valer, M. Solar Hydrogen Fuel Generation from Wastewater—Beyond Photoelectrochemical Water Splitting: A Perspective. Energies 2022, 15, 7399. [Google Scholar] [CrossRef]
  5. Nguyen, H.A.; Pham, T.N.; Le, N.T.T.; Huynh, L.T.N.; Nguyen, T.T.T.; Vo, Q.K.; Nguyen, T.H.; Le, V.H.; Nguyen, T.T.T.; Nguyen, T.T.; et al. Nanocomposite TiO2@CNTs for High-Voltage Symmetrical Supercapacitor in Neutral Aqueous Media. J. Solid State Electrochem. 2023, 27, 2811–2820. [Google Scholar] [CrossRef]
  6. Saleh, M.; Abdelhamid, H.N.; Fouad, D.M.; El-Bery, H.M. Enhancing Photocatalytic Water Splitting: Comparative Study of TiO2 Decorated Nanocrystals (Pt and Cu) Using Different Synthesis Methods. Fuel 2023, 354, 129248. [Google Scholar] [CrossRef]
  7. El-Bery, H.M.; Abdelhamid, H.N. Photocatalytic Hydrogen Generation via Water Splitting Using ZIF-67 Derived Co3O4@C/TiO2. J. Environ. Chem. Eng. 2021, 9, 105702. [Google Scholar] [CrossRef]
  8. Ren, Y.; Chen, Y.; Li, Q.; Li, H.; Bian, Z. Microwave-Assisted Photocatalytic Degradation of Organic Pollutants via CNTs/TiO2. Catalysts 2022, 12, 940. [Google Scholar] [CrossRef]
  9. Nguyen, H.P.; Cao, T.M.; Nguyen, T.T.; Van Pham, V. Improving Photocatalytic Oxidation of Semiconductor (TiO2, SnO2, ZnO)/CNTs for NOx Removal. J. Ind. Eng. Chem. 2023, 127, 321–330. [Google Scholar] [CrossRef]
  10. Kumaran, V.; Sudhagar, P.; Konga, A.K.; Ponniah, G. Photocatalytic Degradation of Synthetic Organic Reactive Dye Wastewater Using GO-TiO2 Nanocomposite. Polish J. Environ. Stud. 2020, 29, 1683–1690. [Google Scholar] [CrossRef]
  11. Rajoria, S.; Vashishtha, M.; Sangal, V.K. Electrochemical Treatment of Electroplating Wastewater Using Synthesized GO/TiO2 Nanotube Electrode. Environ. Sci. Pollut. Res. 2023, 30, 71226–71251. [Google Scholar] [CrossRef]
  12. Jagadeesh, B.S.; Muniyappa, M.; Navakoteswara Rao, V.; Mudike, R.; Shastri, M.; Tathagata, S.; Shivaramu, P.D.; Shankar, M.V.; Ananda Kumar, C.S.; Rangappa, D. Enhanced Photocatalytic Hydrogen Evolution from Reduced Graphene Oxide-Defect Rich TiO2−x Nanocomposites. Int. J. Hydrogen Energy 2022, 47, 40242–40253. [Google Scholar] [CrossRef]
  13. Liu, S.; Jiang, T.; Fan, M.; Tan, G.; Cui, S.; Shen, X. Nanostructure Rod-like TiO2-Reduced Graphene Oxide Composite Aerogels for Highly-Efficient Visible-Light Photocatalytic CO2 Reduction. J. Alloys Compd. 2021, 861, 158598. [Google Scholar] [CrossRef]
  14. Fei, Y.; Ye, X.; Al-Baldawy, A.S.; Wan, J.; Lan, J.; Zhao, J.; Wang, Z.; Qu, S.; Hong, R.; Guo, S.; et al. Enhanced Photocatalytic Performance of TiO2 Nanowires by Substituting Noble Metal Particles with Reduced Graphene Oxide. Curr. Appl. Phys. 2022, 44, 33–39. [Google Scholar] [CrossRef]
  15. John, D.; Jose, J.; Bhat, S.G.; Achari, V.S. Integration of Heterogeneous Photocatalysis and Persulfate Based Oxidation Using TiO2-Reduced Graphene Oxide for Water Decontamination and Disinfection. Heliyon 2021, 7, e07451. [Google Scholar] [CrossRef]
  16. Ibrahim, I.; Belessiotis, G.V.; Antoniadou, M.; Kaltzoglou, A.; Sakellis, E.; Katsaros, F.; Sygellou, L.; Arfanis, M.K.; Salama, T.M.; Falaras, P. Silver Decorated TiO2/g-C3N4 Bifunctional Nanocomposites for Photocatalytic Elimination of Water Pollutants under UV and Artificial Solar Light. Results Eng. 2022, 14, 100470. [Google Scholar] [CrossRef]
  17. Ratshiedana, R.; Kuvarega, A.T.; Mishra, A.K. Titanium Dioxide and Graphitic Carbon Nitride–Based Nanocomposites and Nanofibres for the Degradation of Organic Pollutants in Water: A Review. Environ. Sci. Pollut. Res. 2021, 28, 10357–10374. [Google Scholar] [CrossRef]
  18. Falara, P.P.; Ibrahim, I.; Zourou, A.; Sygellou, L.; Sanchez, D.E.; Romanos, G.E.; Givalou, L.; Antoniadou, M.; Arfanis, M.K.; Han, C.; et al. Bi-Functional Photocatalytic Heterostructures Combining Titania Thin Films with Carbon Quantum Dots (C-QDs/TiO2) for Effective Elimination of Water Pollutants. Environ. Sci. Pollut. Res. 2023, 30, 124976–124991. [Google Scholar] [CrossRef]
  19. Huang, X.; Sun, L.; Liu, X.; Ge, M.; Zhao, B.; Bai, Y.; Wang, Y.; Han, S.; Li, Y.; Han, Y.; et al. Increase and Enrichment of Active Electrons by Carbon Dots Induced to Improve TiO2 Photocatalytic Hydrogen Production Activity. Appl. Surf. Sci. 2023, 630, 157494. [Google Scholar] [CrossRef]
  20. Sendão, R.M.S.; Esteves da Silva, J.C.G.; Pinto da Silva, L. Photocatalytic Removal of Pharmaceutical Water Pollutants by TiO2—Carbon Dots Nanocomposites: A Review. Chemosphere 2022, 301, 134731. [Google Scholar] [CrossRef]
  21. Vyas, Y.; Chundawat, P.; Dharmendra, D.; Punjabi, P.B.; Ameta, C. Review on Hydrogen Production Photocatalytically Using Carbon Quantum Dots: Future Fuel. Int. J. Hydrogen Energy 2021, 46, 37208–37241. [Google Scholar] [CrossRef]
  22. Alsalka, Y.; Al-Madanat, O.; Curti, M.; Hakki, A.; Bahnemann, D.W. Photocatalytic H2 Evolution from Oxalic Acid: Effect of Cocatalysts and Carbon Dioxide Radical Anion on the Surface Charge Transfer Mechanisms. ACS Appl. Energy Mater. 2020, 3, 6678–6691. [Google Scholar] [CrossRef]
  23. Vitiello, G.; Clarizia, L.; Abdelraheem, W.; Esposito, S.; Bonelli, B.; Ditaranto, N.; Vergara, A.; Nadagouda, M.; Dionysiou, D.D.; Andreozzi, R.; et al. Near UV-Irradiation of CuOx-Impregnated TiO2 Providing Active Species for H2 Production Through Methanol Photoreforming. ChemCatChem 2019, 11, 4314–4326. [Google Scholar] [CrossRef]
  24. Tang, J.H.; Sun, Y. Visible-Light-Driven Organic Transformations Integrated with H2production on Semiconductors. Mater. Adv. 2020, 1, 2155–2162. [Google Scholar] [CrossRef]
  25. Wang, L.; Geng, X.; Zhang, L.; Liu, Z.; Wang, H.; Bian, Z. Effects of Various Alcohol Sacrificial Agents on Hydrogen Evolution Based on CoS2@SCN Nanomaterials and Its Mechanism. Chemosphere 2022, 286, 131558. [Google Scholar] [CrossRef]
  26. Pantoja-Espinoza, J.C.; Domínguez-Arvizu, J.L.; Jiménez-Miramontes, J.A.; Hernández-Majalca, B.C.; Meléndez-Zaragoza, M.J.; Salinas-Gutiérrez, J.M.; Herrera-Pérez, G.M.; Collins-Martínez, V.H.; López-Ortiz, A. Comparative Study of Zn2 Ti3 O8 and ZnTio3 Photocatalytic Properties for Hydrogen Production. Catalysts 2020, 10, 1372. [Google Scholar] [CrossRef]
  27. Muscetta, M.; Clarizia, L.; Garlisi, C.; Palmisano, G.; Marotta, R.; Andreozzi, R.; Di Somma, I. Hydrogen Production upon UV-Light Irradiation of Cu/TiO2 Photocatalyst in the Presence of Alkanol-Amines. Int. J. Hydrogen Energy 2020, 45, 26701–26715. [Google Scholar] [CrossRef]
  28. Toledo-Camacho, S.Y.; Rey, A.; Maldonado, M.I.; Llorca, J.; Contreras, S.; Medina, F. Photocatalytic Hydrogen Production from Water-Methanol and -Glycerol Mixtures Using Pd/TiO2(-WO3) Catalysts and Validation in a Solar Pilot Plant. Int. J. Hydrogen Energy 2021, 46, 36152–36166. [Google Scholar] [CrossRef]
  29. Alvarado-Ávila, M.I.; De Luca, S.; Edlund, U.; Ye, F.; Dutta, J. Cellulose as Sacrificial Agents for Enhanced Photoactivated Hydrogen Production. Sustain. Energy Fuels 2023, 7, 1981–1991. [Google Scholar] [CrossRef]
  30. Yao, Y.; Gao, X.; Li, Z.; Meng, X. Photocatalytic Reforming for Hydrogen Evolution: A Review. Catalysts 2020, 10, 335. [Google Scholar] [CrossRef]
  31. Yan, Z.; Yin, K.; Xu, M.; Fang, N.; Yu, W.; Chu, Y.; Shu, S. Photocatalysis for Synergistic Water Remediation and H2 Production: A Review. Chem. Eng. J. 2023, 472, 145066. [Google Scholar] [CrossRef]
  32. Lianos, P.; Strataki, N.; Antoniadou, M. Photocatalytic and Photoelectrochemical Hydrogen Production by Photodegradation Of organic Substances. Pure Appl. Chem. 2009, 81, 1441–1448. [Google Scholar] [CrossRef]
  33. Stachowska, J.D.; Murphy, A.; Mellor, C.; Fernandes, D.; Gibbons, E.N.; Krysmann, M.J.; Kelarakis, A.; Burgaz, E.; Moore, J.; Yeates, S.G. A Rich Gallery of Carbon Dots Based Photoluminescent Suspensions and Powders Derived by Citric Acid/Urea. Sci. Rep. 2021, 11, 10554. [Google Scholar] [CrossRef]
  34. Yu, H.; Zhao, Y.; Zhou, C.; Shang, L.; Peng, Y.; Cao, Y.; Wu, L.Z.; Tung, C.H.; Zhang, T. Carbon Quantum Dots/TiO2 Composites for Efficient Photocatalytic Hydrogen Evolution. J. Mater. Chem. A 2014, 2, 3344–3351. [Google Scholar] [CrossRef]
  35. Antoniadou, M.; Lianos, P. Near Ultraviolet and Visible Light Photoelectrochemical Degradation of Organic Substances Producing Electricity and Hydrogen. J. Photochem. Photobiol. A Chem. 2009, 204, 69–74. [Google Scholar] [CrossRef]
  36. Daskalaki, V.M.; Antoniadou, M.; Li Puma, G.; Kondarides, D.I.; Lianos, P. Solar Light-Responsive Pt/CdS/TiO2 Photocatalysts for Hydrogen Production and Simultaneous Degradation of Inorganic or Organic Sacrificial Agents in Wastewater. Environ. Sci. Technol. 2010, 44, 7200–7205. [Google Scholar] [CrossRef]
  37. Strataki, N.; Antoniadou, M.; Dracopoulos, V.; Lianos, P. Visible-Light Photocatalytic Hydrogen Production from Ethanol-Water Mixtures Using a Pt-CdS-TiO2 Photocatalyst. Catal. Today 2010, 151, 53–57. [Google Scholar] [CrossRef]
  38. Chen, W.T.; Chan, A.; Sun-Waterhouse, D.; Moriga, T.; Idriss, H.; Waterhouse, G.I.N. Ni/TiO2: A Promising Low-Cost Photocatalytic System for Solar H2 Production from Ethanol-Water Mixtures. J. Catal. 2015, 326, 43–53. [Google Scholar] [CrossRef]
  39. Strataki, N.; Bekiari, V.; Kondarides, D.I.; Lianos, P. Hydrogen Production by Photocatalytic Alcohol Reforming Employing Highly Efficient Nanocrystalline Titania Films. Appl. Catal. B Environ. 2007, 77, 184–189. [Google Scholar] [CrossRef]
  40. López-Tenllado, F.J.; Hidalgo-Carrillo, J.; Montes, V.; Marinas, A.; Urbano, F.J.; Marinas, J.M.; Ilieva, L.; Tabakova, T.; Reid, F. A Comparative Study of Hydrogen Photocatalytic Production from Glycerol and Propan-2-Ol on M/TiO2 Systems (M = Au, Pt, Pd). Catal. Today 2017, 280, 58–64. [Google Scholar] [CrossRef]
  41. Dosado, A.G.; Chen, W.T.; Chan, A.; Sun-Waterhouse, D.; Waterhouse, G.I.N. Novel Au/TiO2 Photocatalysts for Hydrogen Production in Alcohol-Water Mixtures Based on Hydrogen Titanate Nanotube Precursors. J. Catal. 2015, 330, 238–254. [Google Scholar] [CrossRef]
  42. Pajares, A.; Wang, Y.; Kronenberg, M.J.; Ramírez de la Piscina, P.; Homs, N. Photocatalytic H2 Production from Ethanol Aqueous Solution Using TiO2 with Tungsten Carbide Nanoparticles as Co-Catalyst. Int. J. Hydrogen Energy 2020, 45, 20558–20567. [Google Scholar] [CrossRef]
  43. Romero Ocaña, I.; Beltram, A.; Delgado Jaén, J.J.; Adami, G.; Montini, T.; Fornasiero, P. Photocatalytic H2 Production by Ethanol Photodehydrogenation: Effect of Anatase/Brookite Nanocomposites Composition. Inorganica Chim. Acta 2015, 431, 197–205. [Google Scholar] [CrossRef]
  44. Kontos, A.I.; Arabatzis, I.M.; Tsoukleris, D.S.; Kontos, A.G.; Bernard, M.C.; Petrakis, D.E.; Falaras, P. Efficient Photocatalysts by Hydrothermal Treatment of TiO2. Catal. Today 2005, 101, 275–281. [Google Scholar] [CrossRef]
  45. An, X.; Liu, H.; Qu, J.; Moniz, S.J.A.; Tang, J. Photocatalytic Mineralisation of Herbicide 2,4,5-Trichlorophenoxyacetic Acid: Enhanced Performance by Triple Junction Cu-TiO2-Cu2O and the Underlying Reaction Mechanism. New J. Chem. 2015, 39, 314–320. [Google Scholar] [CrossRef]
  46. Shaban, M.; Poostforooshan, J.; Weber, A.P. Surface-Initiated Polymerization on Unmodified Inorganic Semiconductor Nanoparticles: Via Surfactant-Free Aerosol-Based Synthesis toward Core-Shell Nanohybrids with a Tunable Shell Thickness. J. Mater. Chem. A 2017, 5, 18651–18663. [Google Scholar] [CrossRef]
  47. Cheng, J.; Wang, Y.; Xing, Y.; Shahid, M.; Pan, W. A Stable and Highly Efficient Visible-Light Photocatalyst of TiO2 and Heterogeneous Carbon Core-Shell Nanofibers. RSC Adv. 2017, 7, 15330–15336. [Google Scholar] [CrossRef]
  48. Guo, Y.; Zhang, L.; Liu, X.; Li, B.; Tang, D.; Liu, W.; Qin, W. Synthesis of Magnetic Core-Shell Carbon Dot@MFe2O4 (M = Mn, Zn and Cu) Hybrid Materials and Their Catalytic Properties. J. Mater. Chem. A 2016, 4, 4044–4055. [Google Scholar] [CrossRef]
  49. Zeng, X.; Wang, Z.; Meng, N.; McCarthy, D.T.; Deletic, A.; Pan, J.H.; Zhang, X. Highly Dispersed TiO2 Nanocrystals and Carbon Dots on Reduced Graphene Oxide: Ternary Nanocomposites for Accelerated Photocatalytic Water Disinfection. Appl. Catal. B Environ. 2017, 202, 33–41. [Google Scholar] [CrossRef]
  50. Rangel-Mendez, J.R.; Matos, J.; Cházaro-Ruiz, L.F.; González-Castillo, A.C.; Barrios-Yáñez, G. Microwave-Assisted Synthesis of C-Doped TiO2 and ZnO Hybrid Nanostructured Materials as Quantum-Dots Sensitized Solar Cells. Appl. Surf. Sci. 2018, 434, 744–755. [Google Scholar] [CrossRef]
  51. Shathy, R.A.; Fahim, S.A.; Sarker, M.; Quddus, M.S.; Moniruzzaman, M.; Masum, S.M.; Molla, M.A.I. Natural Sunlight Driven Photocatalytic Removal of Toxic Textile Dyes in Water Using B-Doped ZnO/TiO2 Nanocomposites. Catalysts 2022, 12, 308. [Google Scholar] [CrossRef]
  52. Divyasri, Y.V.; Lakshmana Reddy, N.; Lee, K.; Sakar, M.; Navakoteswara Rao, V.; Venkatramu, V.; Shankar, M.V.; Gangi Reddy, N.C. Optimization of N Doping in TiO2 Nanotubes for the Enhanced Solar Light Mediated Photocatalytic H2 Production and Dye Degradation. Environ. Pollut. 2021, 269, 116170. [Google Scholar] [CrossRef]
  53. Shi, R.; Li, Z.; Yu, H.; Shang, L.; Zhou, C.; Waterhouse, G.I.N.; Wu, L.Z.; Zhang, T. Effect of Nitrogen Doping Level on the Performance of N-Doped Carbon Quantum Dot/TiO2 Composites for Photocatalytic Hydrogen Evolution. ChemSusChem 2017, 10, 4650–4656. [Google Scholar] [CrossRef]
  54. Sargin, I.; Yanalak, G.; Arslan, G.; Patir, I.H. Green Synthesized Carbon Quantum Dots as TiO2 Sensitizers for Photocatalytic Hydrogen Evolution. Int. J. Hydrogen Energy 2019, 44, 21781–21789. [Google Scholar] [CrossRef]
  55. Hu, Z.; Shi, D.; Wang, G.; Gao, T.; Wang, J.; Lu, L.; Li, J. Carbon Dots Incorporated in Hierarchical Macro/Mesoporous g-C3N4/TiO2 as an All-Solid-State Z-Scheme Heterojunction for Enhancement of Photocatalytic H2 Evolution under Visible Light. Appl. Surf. Sci. 2022, 601, 154167. [Google Scholar] [CrossRef]
  56. Girish, Y.R.; Udayabhanu; Alnaggar, G.; Hezam, A.; Nayan, M.B.; Nagaraju, G.; Byrappa, K. Facile and Rapid Synthesis of Solar-Driven TiO2/g-C3N4 Heterostructure Photocatalysts for Enhanced Photocatalytic Activity. J. Sci. Adv. Mater. Devices 2022, 7, 100419. [Google Scholar] [CrossRef]
  57. Guan, R.; Wang, L.; Wang, D.; Li, K.; Tan, H.; Chen, Y.; Cheng, X.; Zhao, Z.; Shang, Q.; Sun, Z. Boosting Photocatalytic Hydrogen Production via Enhanced Exciton Dissociation in Black Phosphorus Quantum Dots/TiO2 Heterojunction. Chem. Eng. J. 2022, 435, 135138. [Google Scholar] [CrossRef]
  58. Shi, F.; Xing, C.; Wang, X. Preparation of TiO2/MoSe2 Heterostructure Composites by a Solvothermal Method and Their Photocatalytic Hydrogen Production Performance. Int. J. Hydrogen Energy 2021, 46, 38636–38644. [Google Scholar] [CrossRef]
  59. Huang, G.; Ye, W.; Lv, C.; Butenko, D.S.; Yang, C.; Zhang, G.; Lu, P.; Xu, Y.; Zhang, S.; Wang, H.; et al. Hierarchical Red Phosphorus Incorporated TiO2 Hollow Sphere Heterojunctions toward Superior Photocatalytic Hydrogen Production. J. Mater. Sci. Technol. 2022, 108, 18–25. [Google Scholar] [CrossRef]
Coatings 14 00131 g001

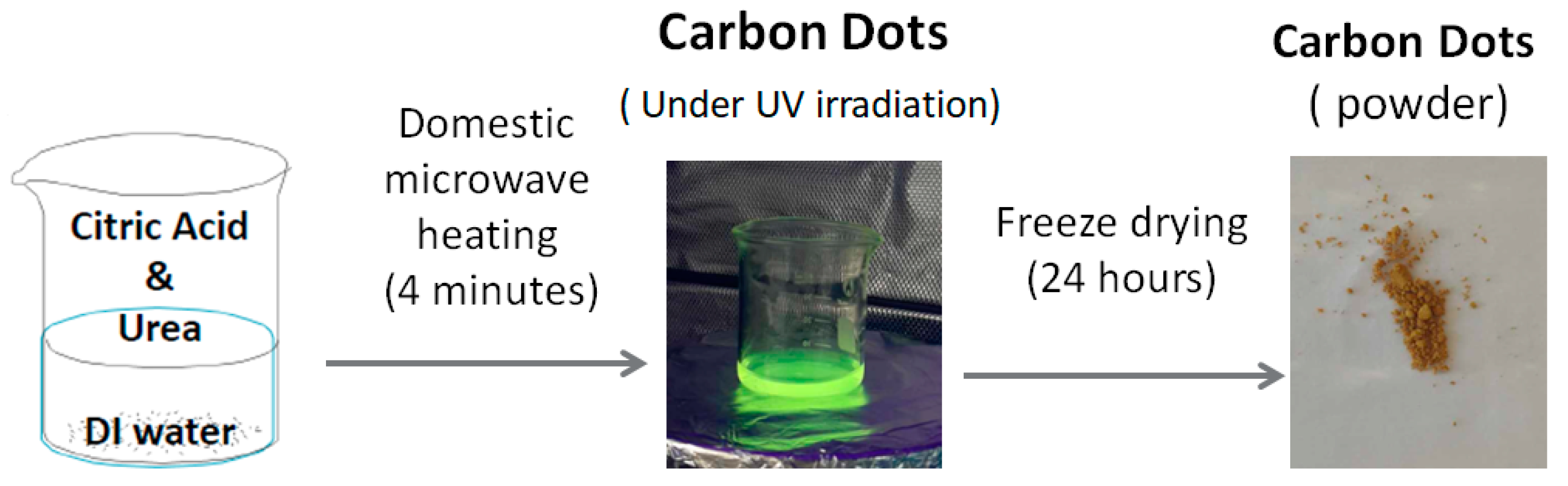

Figure 1. CD synthesis procedure diagram.
Figure 1. CD synthesis procedure diagram.
Coatings 14 00131 g001
Coatings 14 00131 g002

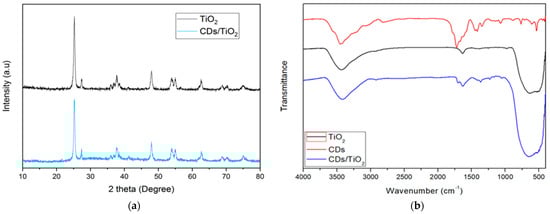

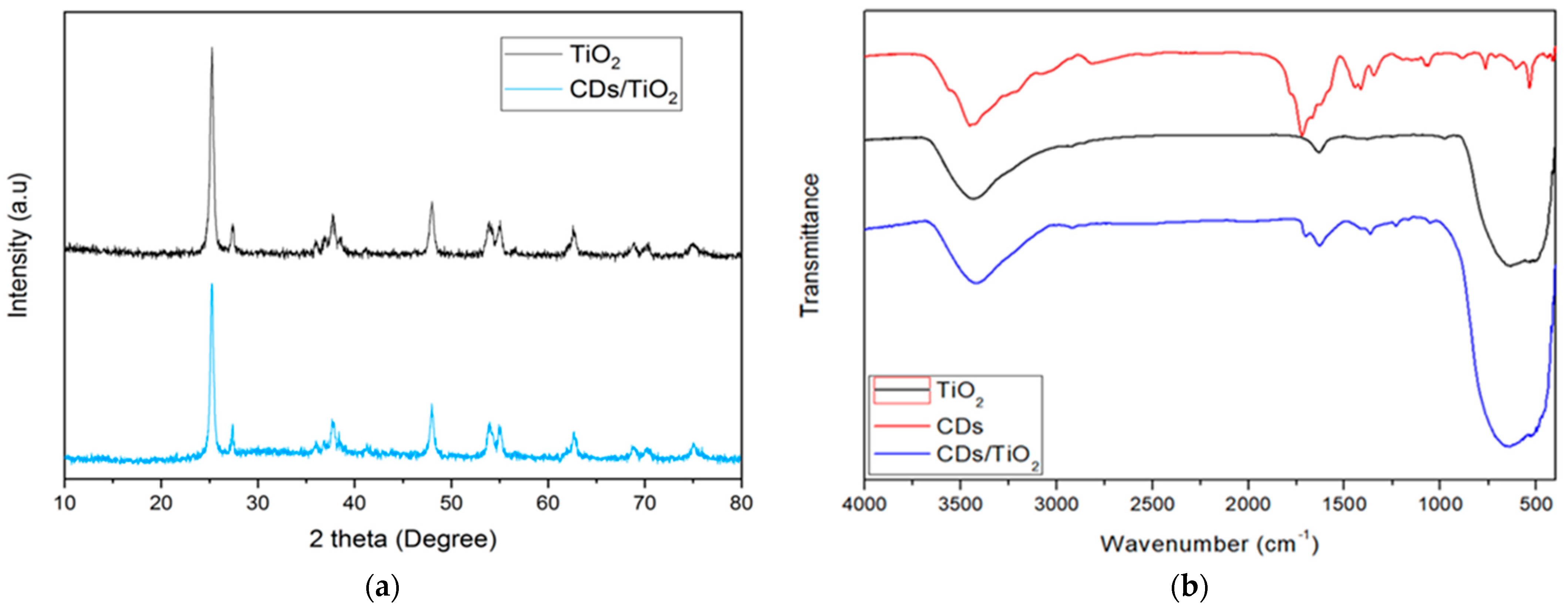

Figure 2. (a) XRD diffraction patterns of TiO2 and CD/TiO2 film; (b) FT-IR spectra of pristine TiO2 and the synthesized materials.
Figure 2. (a) XRD diffraction patterns of TiO2 and CD/TiO2 film; (b) FT-IR spectra of pristine TiO2 and the synthesized materials.
Coatings 14 00131 g002
Coatings 14 00131 g003
Figure 3. (a) TEM image of CD/TiO2 nanocomposite at a magnification scale of 100 nm; (b) HR-TEM image of the CD/TiO2 nanocomposite at a magnification scale of 10 nm, where lattice fringes of TiO2 and CDs are depicted, as are fast Fourier transform (FFT) patterns of (c) TiO2 and (d) CDs.
Figure 3. (a) TEM image of CD/TiO2 nanocomposite at a magnification scale of 100 nm; (b) HR-TEM image of the CD/TiO2 nanocomposite at a magnification scale of 10 nm, where lattice fringes of TiO2 and CDs are depicted, as are fast Fourier transform (FFT) patterns of (c) TiO2 and (d) CDs.
Coatings 14 00131 g003
Coatings 14 00131 g004

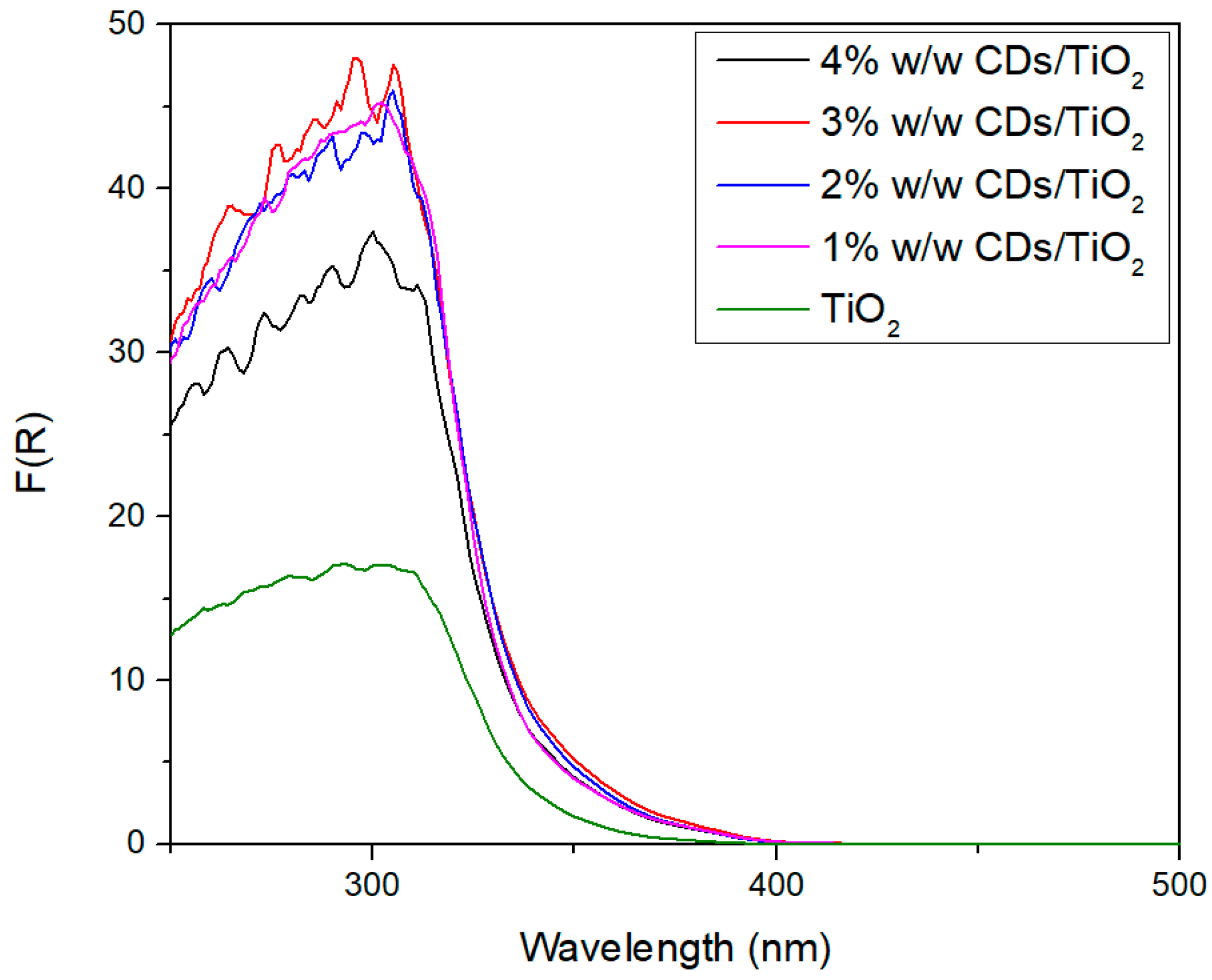

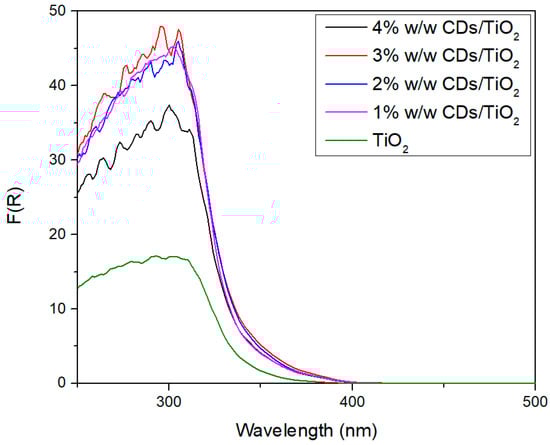

Figure 4. UV–vis/DR spectra plotted as the Kubelka–Munk function of the reflectance F(R).
Figure 4. UV–vis/DR spectra plotted as the Kubelka–Munk function of the reflectance F(R).
Coatings 14 00131 g004
Coatings 14 00131 g005

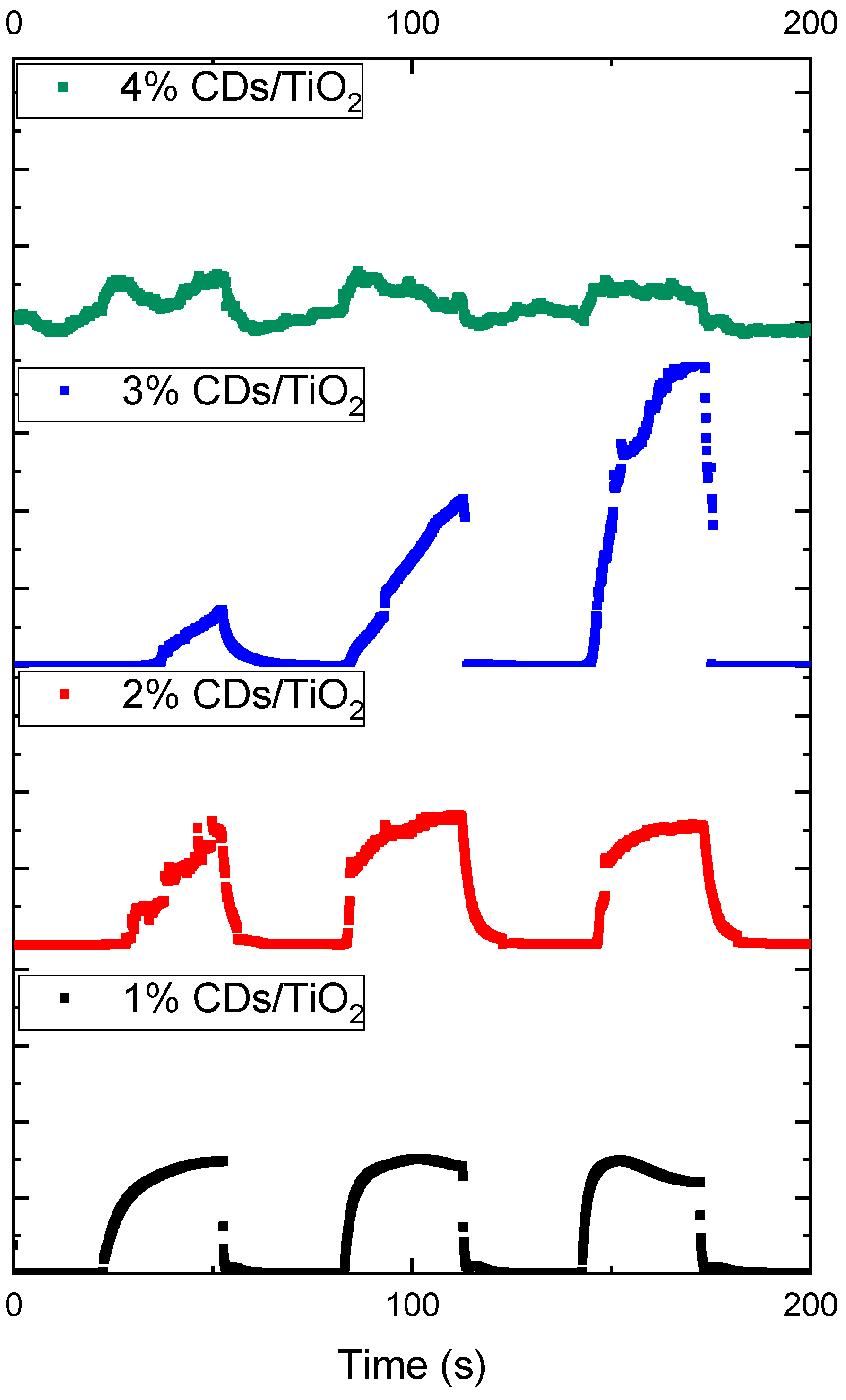

Figure 5. On–off photocurrent density–time curves of the CD/TiO2 nanocomposites obtained at Voc in 0.5 M NaOH and 25% v/v ethanol.
Figure 5. On–off photocurrent density–time curves of the CD/TiO2 nanocomposites obtained at Voc in 0.5 M NaOH and 25% v/v ethanol.
Coatings 14 00131 g005
Coatings 14 00131 g006

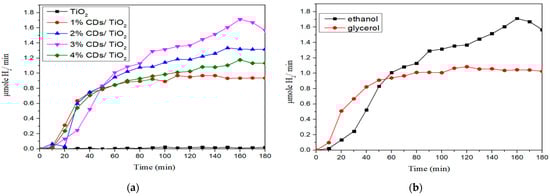

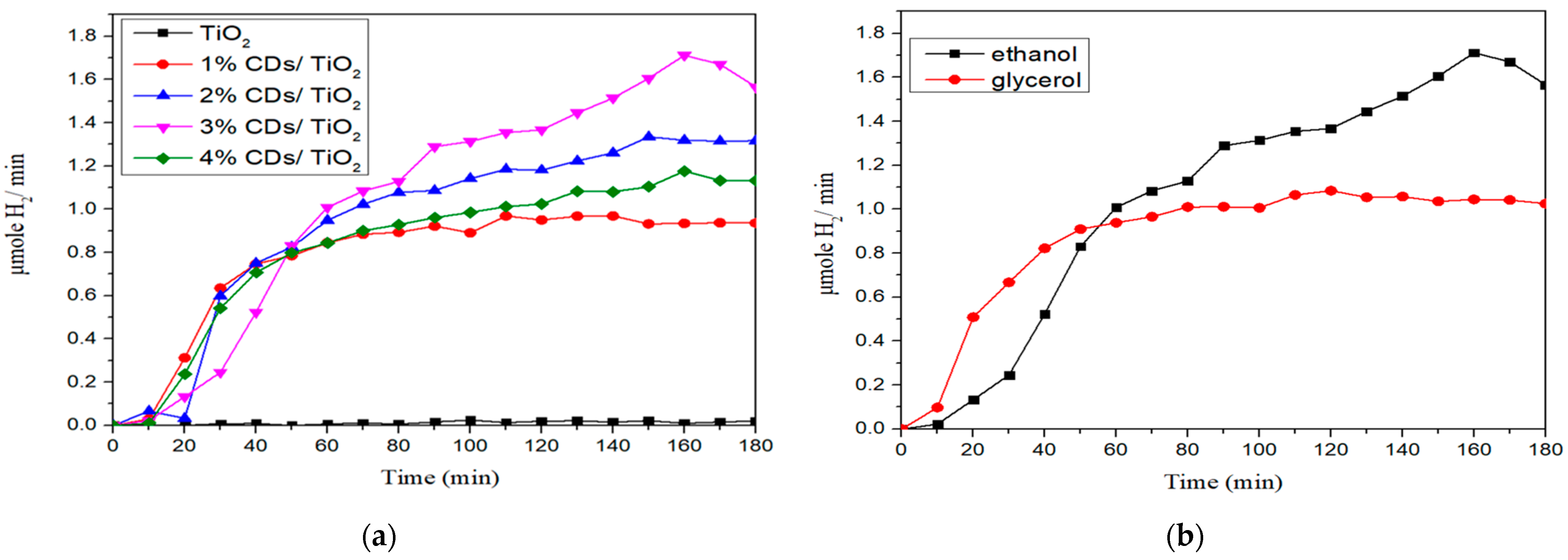

Figure 6. Photocatalytic evolution of hydrogen with (a) ethanol reforming in the presence of CD/TiO2 nanocomposites under 1-sun illumination and (b) ethanol and glycerol reforming in the presence of 3% w/w CD/TiO2 nanocomposites under 1-sun illumination.
Figure 6. Photocatalytic evolution of hydrogen with (a) ethanol reforming in the presence of CD/TiO2 nanocomposites under 1-sun illumination and (b) ethanol and glycerol reforming in the presence of 3% w/w CD/TiO2 nanocomposites under 1-sun illumination.
Coatings 14 00131 g006
Coatings 14 00131 g007

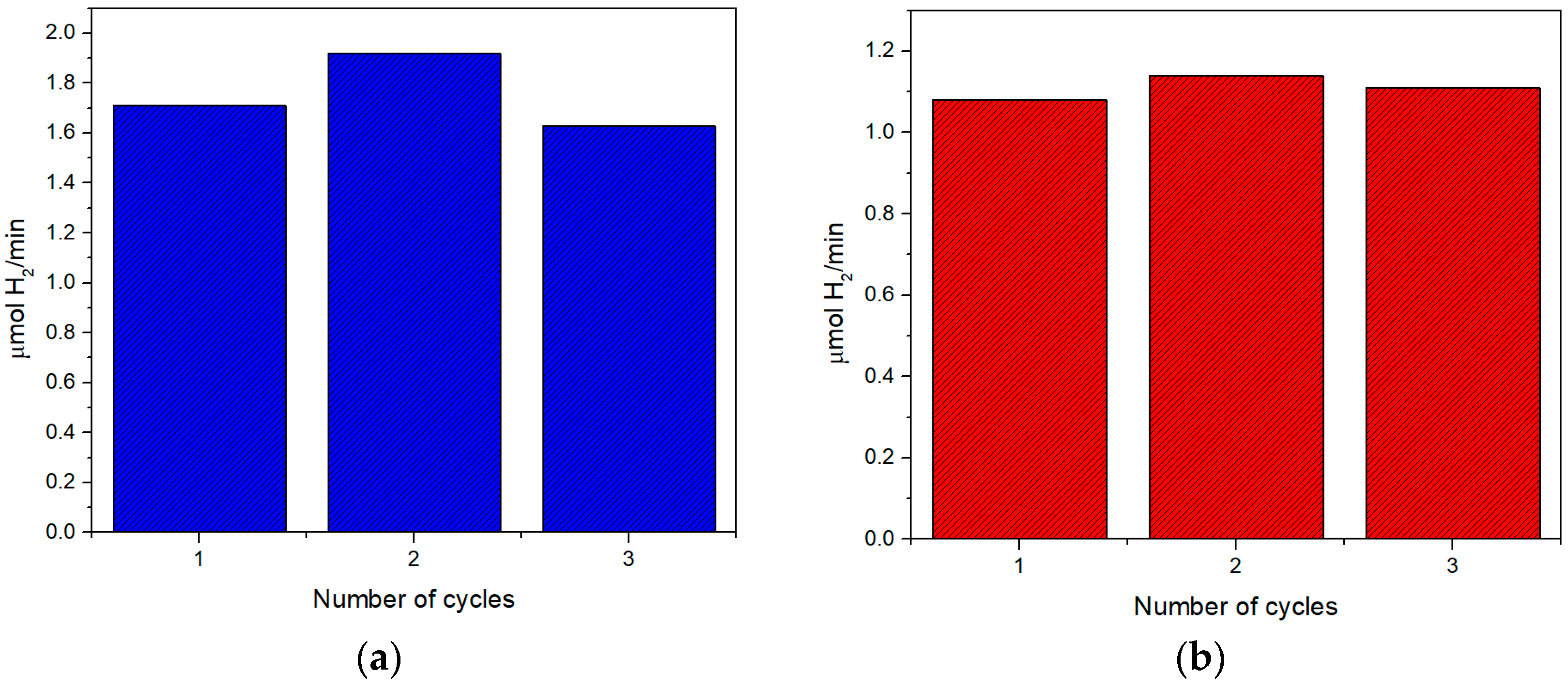

Figure 7. Recyclability tests of 3% w/w CD/TiO2 in the presence of (a) 25% v/v ethanol and (b) 10% v/v glycerol.
Figure 7. Recyclability tests of 3% w/w CD/TiO2 in the presence of (a) 25% v/v ethanol and (b) 10% v/v glycerol.
Coatings 14 00131 g007
Table 1. Comparison of TiO2-based photocatalysts for hydrogen production in the recent literature.
Table 1. Comparison of TiO2-based photocatalysts for hydrogen production in the recent literature.
CatalystCocatalystSacrificial AgentMaximum Hydrogen Production RateRef.
CD/TiO2-25% v/v ethanol1.7 μmol/min
102 μmol/h		This work
or
510 μmol/(h∙g)
-25% v/v methanol9.8 μmol/h[53]
-0.3 M triethanolamine472 μmol/(h∙g)[54]
Pt1458 μmol/(h∙g)
CD/g-C3N4/TiO2Pt10% v/v triethanolamine580 μmol/(h∙g)[55]
g-C3N4/TiO2-20% v/v methanol110 μmol/(h∙g)[56]
Black phosphorus quantum dot/TiO2-20% v/v methanol112 μmol/(h∙g)[57]
MoSe2/TiO2-30% v/v methanol401 μmol/(h∙g)[58]
Red phosphorus/TiO2Pt-215.5 μmol/(h∙g)[59]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Falara, P.P.; Antoniadou, M.; Zourou, A.; Sakellis, E.; Kordatos, K.V. Carbon Dot-Titanium Dioxide (CD/TiO2) Nanocomposites: Reusable Photocatalyst for Sustainable H2 Production via Photoreforming of Green Organic Compounds. Coatings 2024, 14, 131. https://doi.org/10.3390/coatings14010131

AMA Style

Falara PP, Antoniadou M, Zourou A, Sakellis E, Kordatos KV. Carbon Dot-Titanium Dioxide (CD/TiO2) Nanocomposites: Reusable Photocatalyst for Sustainable H2 Production via Photoreforming of Green Organic Compounds. Coatings. 2024; 14(1):131. https://doi.org/10.3390/coatings14010131

Chicago/Turabian Style

Falara, Pinelopi P., Maria Antoniadou, Adamantia Zourou, Elias Sakellis, and Konstantinos V. Kordatos. 2024. "Carbon Dot-Titanium Dioxide (CD/TiO2) Nanocomposites: Reusable Photocatalyst for Sustainable H2 Production via Photoreforming of Green Organic Compounds" Coatings 14, no. 1: 131. https://doi.org/10.3390/coatings14010131

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
