Disposable Pencil Lead as an Electrochemical Transducer for Monitoring Catechol in River and Tap Water

Abstract

A cheap and disposable pencil graphite electrode (PGE) was developed by the incorporation of amine groups (Am-PGE-1). A further improvement in the performance was observed when the aminated electrode (Am-PGE-1) was activated by applying a negative potential scan (Am-PGE-2). The electrochemical transport properties were evaluated through cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS). The Nyquist plot showed a reduced charge transfer resistance value of 24.3 Ω for Am-PGE-2, while it was 95.1 Ω for bare PGE. Thus, Am-PGE-2 was used as a sensing platform for the detection of catechol. It was found that the electrochemical response of catechol oxidation at Am-PGE-2 was twice than the current obtained for bare PGE. Additionally, the effect of pH of the supporting electrolyte and reaction kinetic were studied. The heterogeneous electron transfer rate constant was calculated to be 0.01 s⁻¹. Moreover, CV study revealed that the redox reaction of catechol was a quasi-reversible and diffusion-controlled process. The square wave voltammetry (SWV) technique was applied for the quantitative determination of catechol. The peak current showed a linear dependency on the concentration of catechol from 3 to 150 µM. Furthermore, the analyte could be detected as low as 3.86 µM. Likewise, the sensor demonstrates a good selectivity towards the target analyte than the other possible interfering molecules or ions. Aiming to examine practical applicability, real samples, such as river and household tap water, were tested by using the proposed transducer, and the satisfactory recoveries demonstrate the effectiveness of Am-PGE-2 in real life applications.

1. Introduction

Catechol is known as a dihydroxy benzene isomer, which is largely used as an antioxidant, flavoring agent, medicine, pesticide, etc. The non-bio-degradable isomer comes into the environment from various sources including industrial wastewater, cooking factory, paper mill, pharmaceutical industries, etc. [1]. When parts per million (ppm) levels of concentration accumulate in the human body, catechol causes various anomalous health conditions, such as dermatitis, catarrh, convulsion, and kidney disease [2]. Therefore, the International Agency for Research on Cancer (IARC) has classified catechol in terms of a carcinogenic risk to humans [3]. Furthermore, it has been listed as a priority pollutant by the EPA and the USA [4]. Due to the adverse effects on animal and human health, the detection of catechol has long been an important purpose of analytical chemistry research.

So far, various laboratory-based techniques have been routinely applied to quantify catechol, such as high-performance liquid chromatography (HPLC) [5], gas chromatography-mass spectrophotometry (GC-MS) [6], spectrophotometry [7], electrochemiluminescence [8], pH-based flow injection analysis [9], etc. However, the above-mentioned techniques are not suitable in terms of point-of-care (POC). Furthermore, these methods are expensive, need organic solvents, have multiple washing steps, require a highly skilled technician, have very narrow limits of detection and are time consuming, etc. [10]. Electro-analytical techniques have been of great interest due to simple instrumentation: showing a high accuracy, sensitivity, short analysis time and cost-effectiveness compared to other methods [11,12,13,14,15].

In the electrochemical analysis of catechol, a glassy carbon electrode (GCE) is widely used [16,17,18,19]. To achieve a high sensitivity and selectivity, numerous strategies such as mechanical polishing [20], anodization of GCE [19], applying nanoparticles [18,21], deposition of conducting polymers [17,22], or polymer nanoparticle composites are adopted [23,24]. Although quick response and low limit of detection (LOD) are reported, the success of the modified electrode in practical application is not beyond question, because in the case of modified electrodes, the modifiers might be easily pulled out from the surface and contaminate the solution [25]. This results in a loss of sensitivity, low reproducibility, and poor stability. On the other hand, introducing a functional group, for example, amine groups, directly onto the surface can lead to a possible solution to these problems. The introduction of amino groups was first reported by Uchiyama et al. who used chrono-amperometry to introduce amino groups onto the GCE surface in an ammonium carbamate solution [26,27]. The formation of the C-N bond at the glassy carbon surface was verified using X-ray photoelectron spectrophotometry [26]. The introduction of the amino group to the carbon surface was verified using cyclic voltammetry in catechol where an elevated electro-catalytic activity was observed for the modified electrode. It was hypothesized by Pan et al. that the 2p lone-pair electron in an amine group would interact with the graphite through p-π conjugation and provide an enhanced electro-catalytic activity [28]. Until now, many scientists have used amino group-incorporated GCE electrodes for detecting urea, nitrite, chlorine, etc. [26,28,29]. However, GCE is expensive and it cannot be discarded even if the electrode becomes fouled. In terms of reuse, tedious surface polishing procedures are needed. In fact, the polishing process requires an organic solvent and a copious amount of water to remove alumina powder from the electrode surface. Furthermore, many modification procedures increase the total cost and the electrodes are not disposable. That is why it is necessary to find an alternative to the conventional electrode.

Considering the low cost and conducting properties of PGE, pencil leads were used as an electrode in 1996 [30]. The environmental friendliness, large commercial availability, and disposal nature of PEGs have helped them to attain significant popularity in an electrochemical sensing platform [15,31]. A large working potential window is also available in comparison to a metallic (Au or Pt) electrode [32]. Furthermore, according to Bond et al. PEGs generate smaller background current compared to GCEs, and noble metal electrodes [33]. Recently various modified PGEs or unmodified PGE-based sensing devices have been reported [31,34,35,36,37]. For example, V. Kumar et al. incorporated copper nanoparticles onto the PGE surface and applied the modified electrode for the detection of Adenine. They reported a LOD of 200 nM by using the CV technique [38].

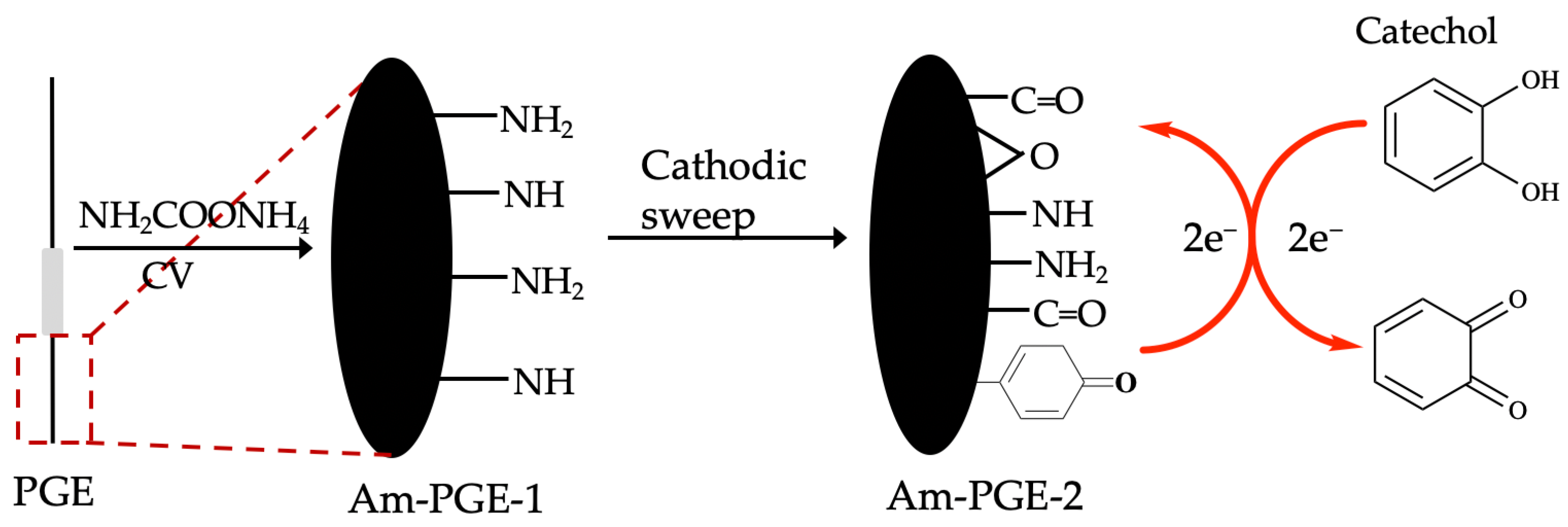

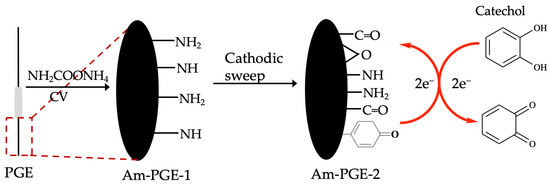

The aim of the present work was to improve electrocatalytic activity of bare PGE by using the amine-functionalization strategy. The aminated pencil graphite electrode (Am-PGE) further cathodised Am-PGE (Am-PGE-2). Thus, it was expected that the oxygen containing groups along with the amine groups may improve catalytic activity of PGE towards catechol. To the best of our knowledge, the electro-oxidation of catechol at Am-PGE-2 has not been reported yet. The square wave voltammetry (SWV) technique was used for the electrochemical quantitation of catechol. Finally, the practical feasibility of Am-PGE-2 was tested in real samples (river and tap water) analysis.

2. Materials and Methods

Catechol (1, 2–dihydroxy benzene, 99%) was purchased from HiMedia chemicals (HiMedia, Mumbai, India). Potassium chloride (KCl, 99.9%–100.5%), and calcium chloride (CaCl_2, 98%) were obtained from Merck (E. Merck India Private Limited, Bengaluru, India). Glycine (98.5%), sodium phosphate (NaH₂PO₄·2H₂O, 98%), and disodium phosphate (Na₂HPO₄, 99%) were bought from Breckland scientific supplies (Stafford, UK). Phenylalanine (99%) and alanine (99%) were collected from Fluka (Mumbai, India), and Thomas Baker (Mumbai, India), respectively. Glucose (99%), and zinc sulfate (ZnSO₄·7H₂0, 99%) were purchased from Fluka (Mumbai, India). Calcium carbonate (CaCO₃, 98%) and urea (99%) were collected from Loba (Mumbai, India). Barium nitrate [Ba(NO₃)₂, 99%] was purchased from Timstar laboratory supplies (Stafford, UK). Potassium ferrocyanide [K₄Fe(CN)₆, 98%], and lead chloride (PdCl₂, 98%) were brought from Fisher scientific company (Thermo Fisher Scientific Inc., Waltham, MA, USA), respectively. Cadmium chloride (CdCl₂, 99%), and potassium ferricyanide [K₃Fe(CN)₆, 98%] were collected from Matheson Colmer and Bell (New Jersey, OH, USA). The HB pencil lead of 0.5 mm diameter was purchased from Kokuyo Camlin Ltd., Mumbai, India.

Electrochemical experiments were performed using an electrochemical workstation of IVIUMSTAT-A 25,313 (Ivium Technologies B.V., Eindhoven, The Netherlands). The electrochemical experiments were carried out by using a conventional electrochemical cell comprised of three electrodes where a pencil graphite electrode (PGE, Am-PGE-1 and Am-PGE-2), a platinum plate, and silver/silver chloride (saturated KCl, CHI 111 Loveland, CO, USA) electrode were used as working, counter, and reference electrode, respectively. The electrochemical cell contained 10 mL of supporting electrolyte and the appropriate amount of catechol. No gas was purged aiming to deariation. All solutions used in this study were prepared just before the experiments. All aqueous solutions were prepared with ultra-pure (18 Ω) water which was obtained from a Milli-Q water purifying system. For pH adjustment, acidic (H₃PO₄) and basic (NaOH) solutions were used. All experiments were carried out in an air-conditioned room and the temperature was kept constant (25 °C ± 0.01).

3. Results and Discussion

3.1. Preparation and Characterization of Am-PGE

At first, PGE was polished with waterproof abrasive 120 series paper, followed by washing with a copious amount of ultra-pure water. After that, it was sonicated in ultra-pure water for five minutes and finally washed with ultra-pure water. Then, the electrode was electro-oxidized in 0.5 M ammonium carbamate in 0.1 M PBS solution at 1.2 V vs. Ag/AgCl (Sat’d KCl). The amine group that incorporated PGE was named as Am-PGE-1. Next, the Am-PGE-1 was further polarized in PBS at −1.0 V for 15 min at room temperature and termed as Am-PGE-2. The PGE modification strategy is illustrated in Scheme 1.

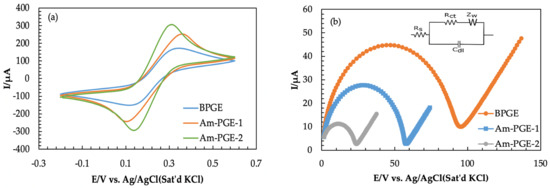

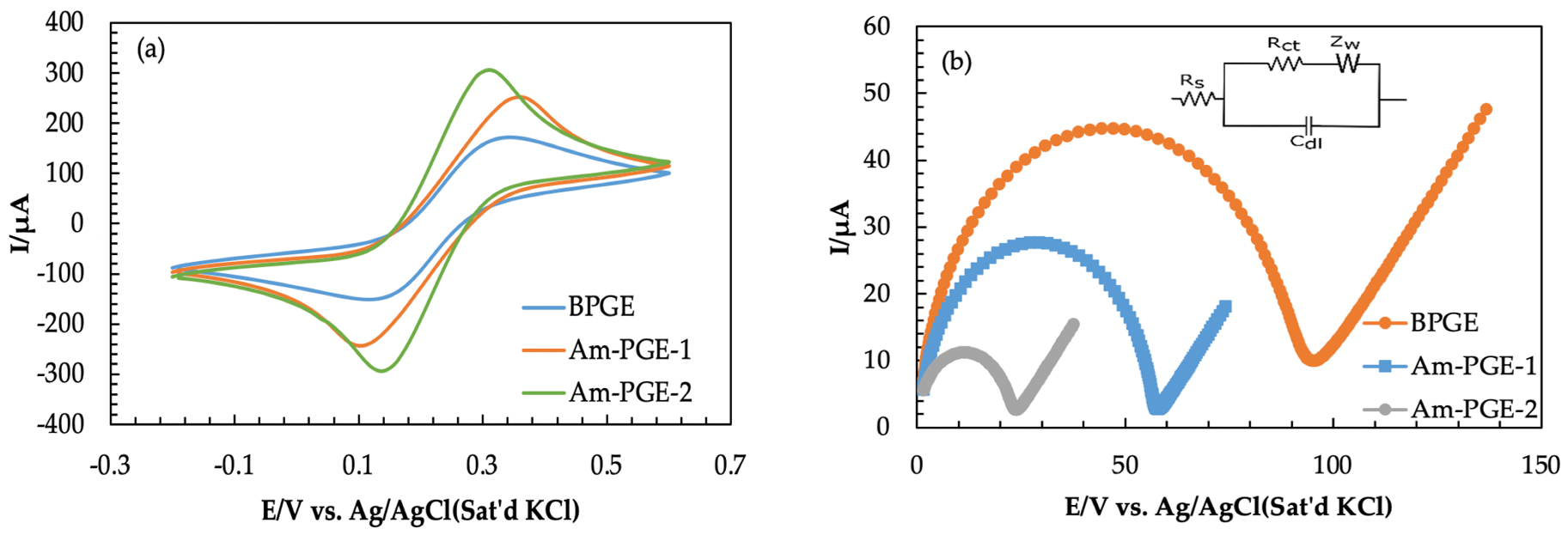

Electrochemical characterizations are useful techniques that are usually used to investigate some vital properties of electrodes, such as electrical conductivity and electrocatalytic features [34]. The BPGE, Am-PGE-1 and Am-PGE-2 electrodes are characterized by CV and EIS measurements. CVs were recorded in 5 mM [Fe(CN)₆]^3−/4− in 0.1 M KCl at a scan rate of 50 mVs⁻¹. As illustrated in Figure 1a, all CVs exhibit typical features of anodic and cathodic peaks; however, their intensities significantly differ. Therefore, it can be concluded that Am-PGE-2 shows far better electro-catalytic activity than Am-PGE-1 and BPGE.

The electrochemical impedance spectroscopy (EIS) experiment is an important tool that is used for the elucidation of electron transfer kinetics, and the corresponding Nyquist plot is presented as a plot of the real (Z′) and imaginary (-Z”) aspects [39,40]. The EIS experiment was done by using the same redox couple with a frequency range of 800 kHz to 500 Hz, and the amplitude was 180 mV (Figure 1b). In this study, the Randles circuit was used for simulation, which is provided in the inset of Figure 1b. Randle’s circuit consists of electrolyte resistance (R_s), electron-transfer resistance (R_ct), double-layer capacitance (C_dl), and Warburg impedance (Z_W). The Nyquist plot consists of a semi-circular portion and a linear portion; the semi-circular region of the Nyquist plot corresponds to the electron transfer-limited process at higher frequencies, while the linear portions belong to the diffusion-controlled process at lower frequencies. The semi-circular diameter represents the charge transfer resistance (R_ct) [41,42]. The fall in the value of R_ct indicates the augment in the electro-catalytic performance of the electrode and vice versa. As can be seen from the Nyquist plot, BPGE depicts an enlarged semi-circle with a diameter of 95.1 Ω, whereas the Am-PGE-1 and Am-PGE-2 show a semi-circle with a reduced diameter of 58.2 and 24.3 Ω. Therefore, the reduced active site shows improved electrocatalytic activity than the oxidized form (Am-PGE-1). This phenomenon can be interpreted as the presence of other functional groups namely > C-O- groups on the surface of Am-PGE-2 along with the amine groups. G. Ilangovan et al. demonstrated that a higher amount of >C-O- at the GCE surface was produced after polarization with negative potential. The existence of carbonyl groups in reduced electrodes was confirmed with the help of XPS analysis [43,44]. The presence of these groups together with amine groups provides a synergistic effect and allows greater adsorption of the analyte. Thus, escalated reaction sites enhance the electrocatalytic activity of the Am-PGE-2 electrode.

3.2. The Electrochemical Behavior of Catechol at Am-PGE

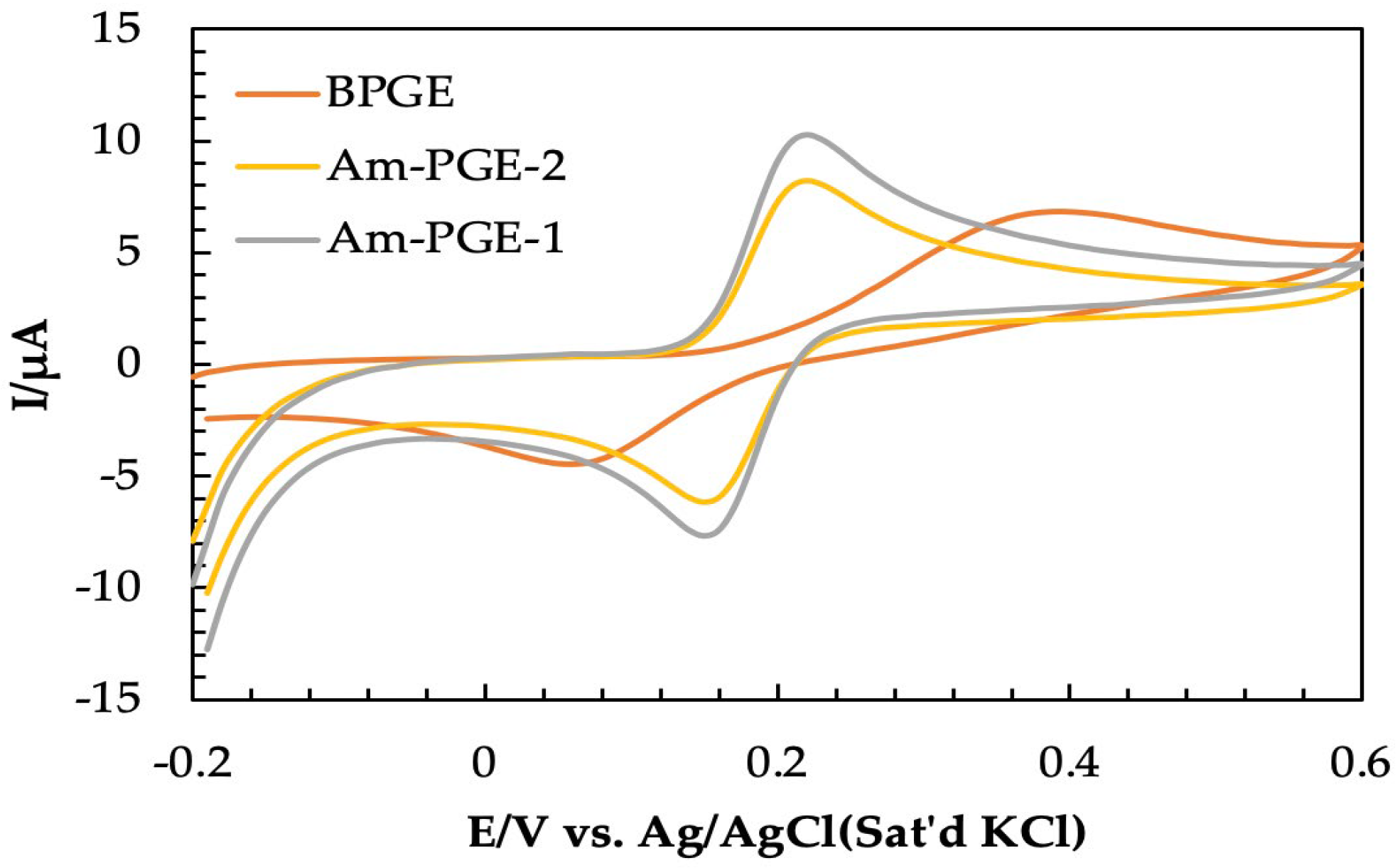

The electrochemical behavior of catechol was investigated at bare PGE (BPGE), Am-PGE-1, and Am-PGE-2 using cyclic voltammetry. The electrochemical signals obtained from 100 µM catechol in PBS (0.1 M) are given in Figure 2. The oxidation and reduction peak potentials are 0.39/0.06, 0.22/0.14, and 0.23/0.15 for BPGE, Am-PGE-1, and Am-PGE-2, respectively. The significantly lowered peak potential separation (∆Ep) of only 80 mV for Am-PGE-1 and Am-PGE-2 manifests faster electron transfer between the analyte and transducer. Furthermore, the peak current also improved about two-fold after the incorporation of amine groups. As expected, the highest signal was observed for Am-PGE-2 among the three tested transducers.

3.3. The Active Surface Area

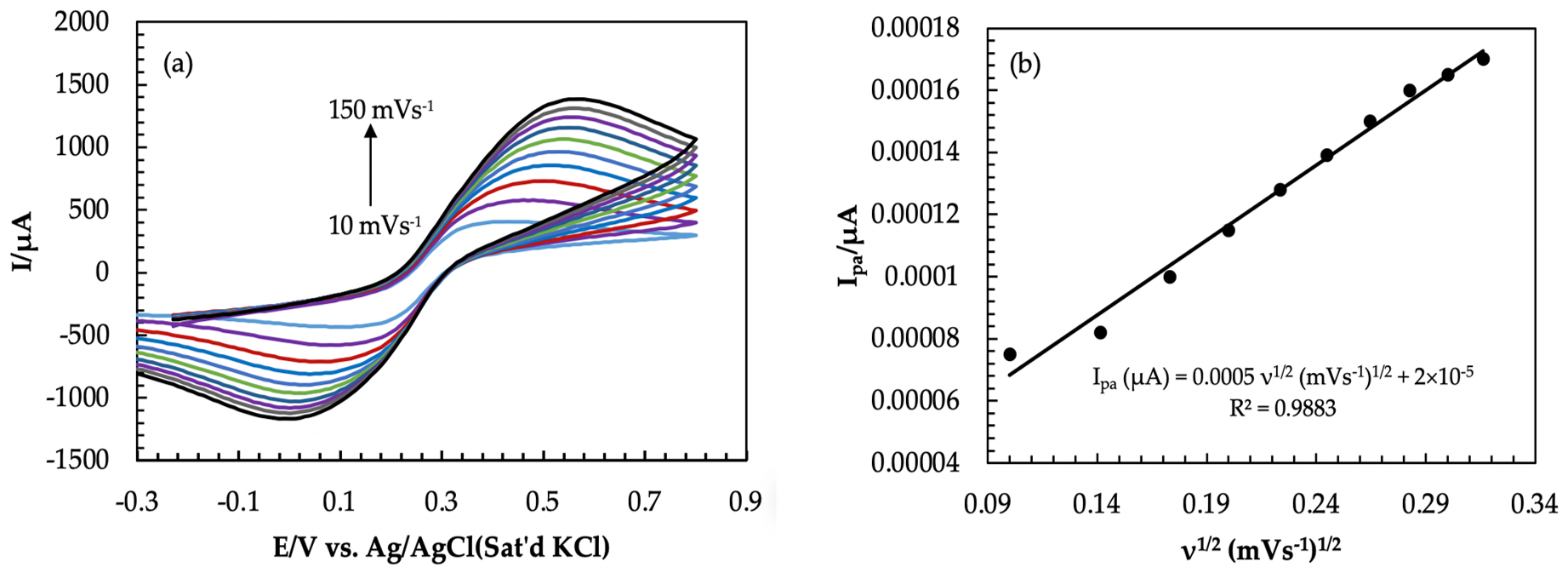

Before using any working electrode, it is necessary to measure the actual surface area. Redox behavior of 5.0 mM Fe^3−/4 was observed at different scan rates (10 to 100 mVs⁻¹) by using the CV technique, as shown in Figure 3. As can be seen from Figure 3a, the peak current increases with an increasing scan rate. Additionally, the difference in peak potentials (∆Ep) also increases. This occurred due to the decrease in diffusion layer thickness [37]. The anodic peak currents are also plotted against the square root of the scan rate and illustrated in Figure 3b. From the linear regression equation, the slope was found to be 0.0005. The value of the slope is usually used in the well-established Randles–Sevick equation [45,46] to calculate the actual surface area. The equation is as follows:

I_p = 2.69 × 10⁵ ACn^3/2D^1/2υ^1/2

(1)

The slope of the above equation can be written as:

Slope = 2.69 × 10⁵ ACn^3/2D^1/2

(2)

where A is the actual surface area (cm²), C is the concentration of analyte in this experiment concentration, Fe^−3/−4 was 5 × 10⁻⁶ mol/cm³ (analyte), n is the number of electrons which value is 1, υ is the scan rate (Vs⁻¹), and D is the diffusion coefficient and its value 7.6 × 10⁻⁶ cm² s⁻¹ [41]. By putting slope value as well as the value of C, n, and D in Equation (3), the actual surface area was calculated to be 0.135 cm², which is smaller than the geometric surface area.

3.4. Effect of pH

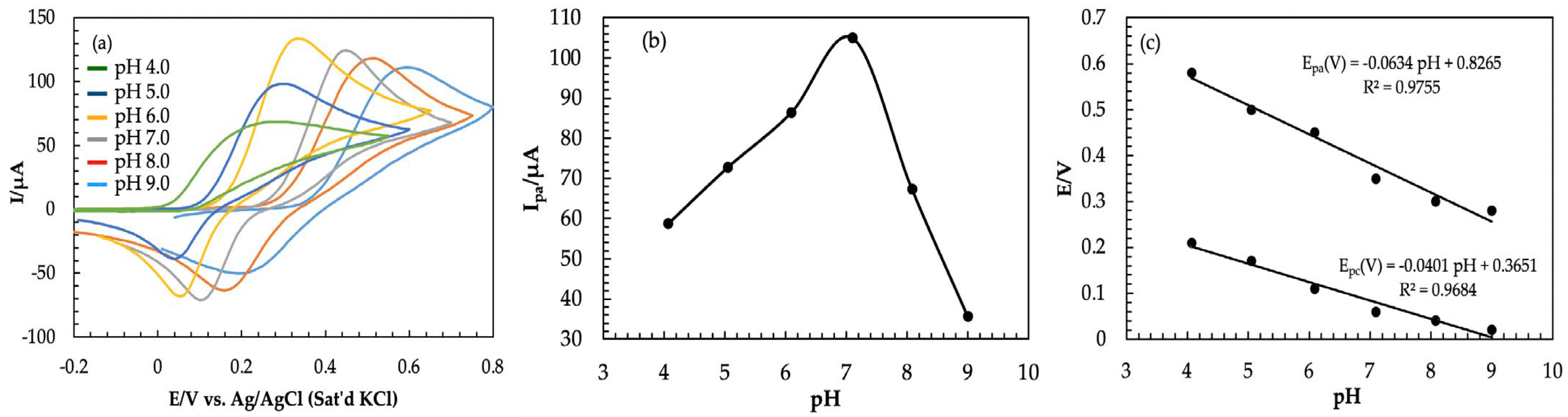

The effect of the supporting electrolyte pH on the electrochemical behavior was investigated. Six different solutions with a pH range of 4.0 to 9.0 were chosen and CVs were recorded on Am-PGE-2 at a 50 mVs⁻¹ scan rate. As revealed by Figure 4a, the anodic peak current increases with the increase of the supporting electrolyte‘s pH up to 7.0, then it follows a decreasing trend as the solution pH is further increased (Figure 4b). This can be explained as attenuation of the proton taking part in the electrochemical reaction, and as a result, catechol produces a high overpotential at low pH because it would not be ionized [47]. Due to a shortage of protons in the solution at a pH value greater than 7.0, the electrochemical reaction becomes more difficult. Catechol can be easily turned into anions in high pH solution, giving rise to the electrostatic repulsion between the two dihydroxy benzene isomers, which would make the peak current decrease [48]. Since the maximum peak current was obtained at pH 7.0, this was chosen as the optimum pH value for the electrochemical detection of catechol.

The relationship between peak potential and pH was also investigated, as shown in Figure 4c. Two linear relationships were obtained with the regression equations of E_pa (V) = −0.0634 pH + 0.8265 (R² = 0.9755) for the oxidation potential, and E_pc (V) = −0.0401 pH + 0.36551 (R² = 0.9684) for the reduction potential. Oxidation potential shifted to more negative values when pH increased, which indicated that the proton transfer process was involved in the oxidation of catechol. It is reported that the slope value close to 58.5 mV pH⁻¹ indicates a two-electrons and protons process of the electrochemical reaction [49]. Herein, the calibration curve of E vs. pH, in the pH range of 4.0 to 9.0 have the slope values of 63.4 mV pH⁻¹ and 40.1 mV pH⁻¹. Therefore, the slopes of the two regression equations are approximate to the theoretical value of 58.5 mV pH⁻¹, which implies that two electrons and protons are associated here.

3.5. Effect of Scan Rate on Am-PGE-2 Surface

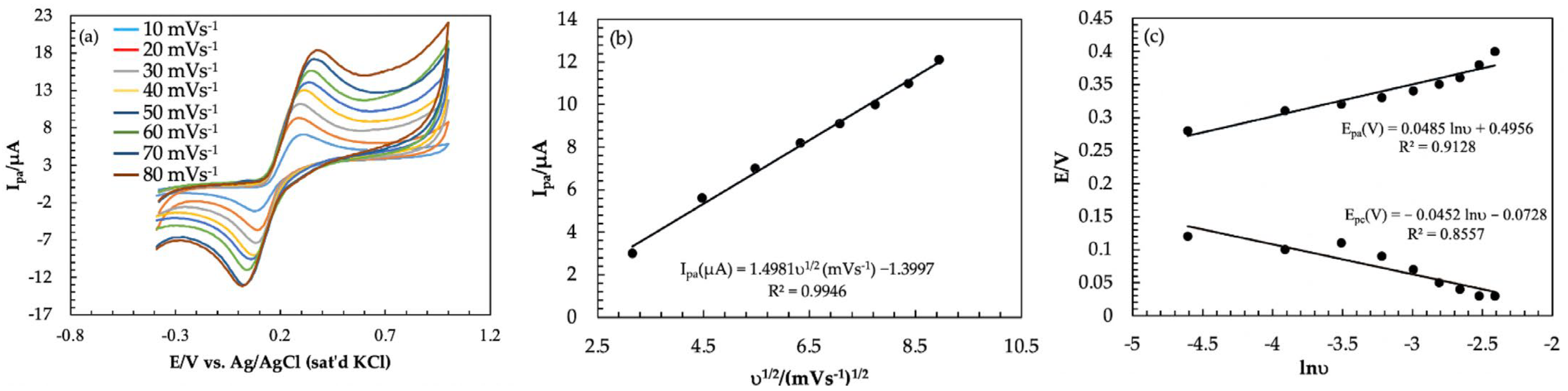

The effect of the scan rate on the peak current and peak potential at Am-PGE-2 in a 2.0 mM catechol in 0.1 M phosphate buffer solution (pH = 7.0) was investigated by using the CV technique which was demonstrated in Figure 5. With an increasing scan rate from 10 to 80 mVs⁻¹, all redox peak current increases. Additionally, the anodic (E_pa) and cathodic peak potentials (E_pc) are shifted to a positive direction and reduction peak potential shifted to a negative potential, i.e., Ep is dependent on υ. In addition, the peak current ratio is not unified. Therefore, it was concluded that the catechol reaction on the Am-PGE-2 surface is a quasi-reversible reaction.

The oxidation peak currents (Ip_a) are proportional to the square root of the scan rate (υ^1/2) (Figure 5b) indicating that the redox reaction of catechol is a diffusion-controlled process. The number of electrons associated with the redox reaction can be calculated from the slope value of E_p vs. lnυ, which was represented in Figure 5c, as proposed by Laviron’s theory [50]. The slopes are $\frac{2.3\mathrm{R}\mathrm{T}}{\left(1-\alpha \right)\mathrm{n}\mathrm{F}}$ and $-\frac{2.3\mathrm{R}\mathrm{T}}{\alpha \mathrm{n}\mathrm{F}}$ (where, R is the molar gas constant, T is the absolute temperature, n is the number of electron involved in an electrode reaction, and F is the Faraday constant) for anodic and cathodic reaction, respectively, where α, the electron transfer coefficient for catechol at Am-PGE-2, can be calculated using the following equation:

log K_a/K_c = log α/(1 − α)

(3)

The linear regression equations for anodic potential; E_pa = 0.0485 lnυ + 0.4956 (R² = 0.9128) and cathodic potential; E_pc = −0.0452 lnυ − 0.0728 (R² = 0.86) were obtained from the plot of E_p vs. lnυ. K_a, and K_c (value of Slope) were obtained from a plot of E_pa vs. lnυ and E_pc vs. lnυ, respectively. Putting values of K_a (0.0485) and K_c (0.0452) in Equation (3), α was calculated to be 0.51. Finally, the number of electrons associated in the chemical reaction was estimated by using α, R, T, and value of slope. The number of electrons was calculated to be two. This result also supports that the redox reaction of catechol is a two-electron and two-proton process.

In electrochemistry, the estimation of the heterogeneous electron transfer rate constant (k_s) is of paramount interest when the performance of electrode materials is examined. The value of the rate constant provides an indication of the speed of electron transfer between an electroactive species and an electrode surface. The heterogeneous electron-transfer rate constant (k_s) can also be obtained using the following equation [34]:

$$\mathrm{Log} {\mathrm{k}}_{\mathrm{s}}=\mathsf{\alpha } \mathrm{Log}\left(1 - \mathsf{\alpha }\right)+\left(1 - \mathsf{\alpha }\right) \mathrm{Log}\mathsf{\alpha } - \mathrm{Log}\left(\frac{\mathrm{RT}}{\mathrm{nF}\mathsf{\upsilon }}\right)-\frac{\mathsf{\alpha }\left(1 - \mathsf{\alpha }\right)\mathrm{nF}\mathsf{\Delta }{\mathrm{E}}_{\mathrm{P}}}{2.3\mathrm{RT}}$$

(4)

where α is the electron transfer coefficient, n is the number of the electron involved in an electrode reaction, F is the Faraday constant, υ is the scan rate, R is the molar gas constant, and T is the absolute temperature. The heterogeneous electron transfer rate constant for catechol on Am-PGE-2 was estimated to be 0.01 s⁻¹. J. Peng et al. reported that the rate constant for Catechol on the GCE surface was found to be 1.65 × 10⁻³ s⁻¹ [51].

3.6. Calibration Curve

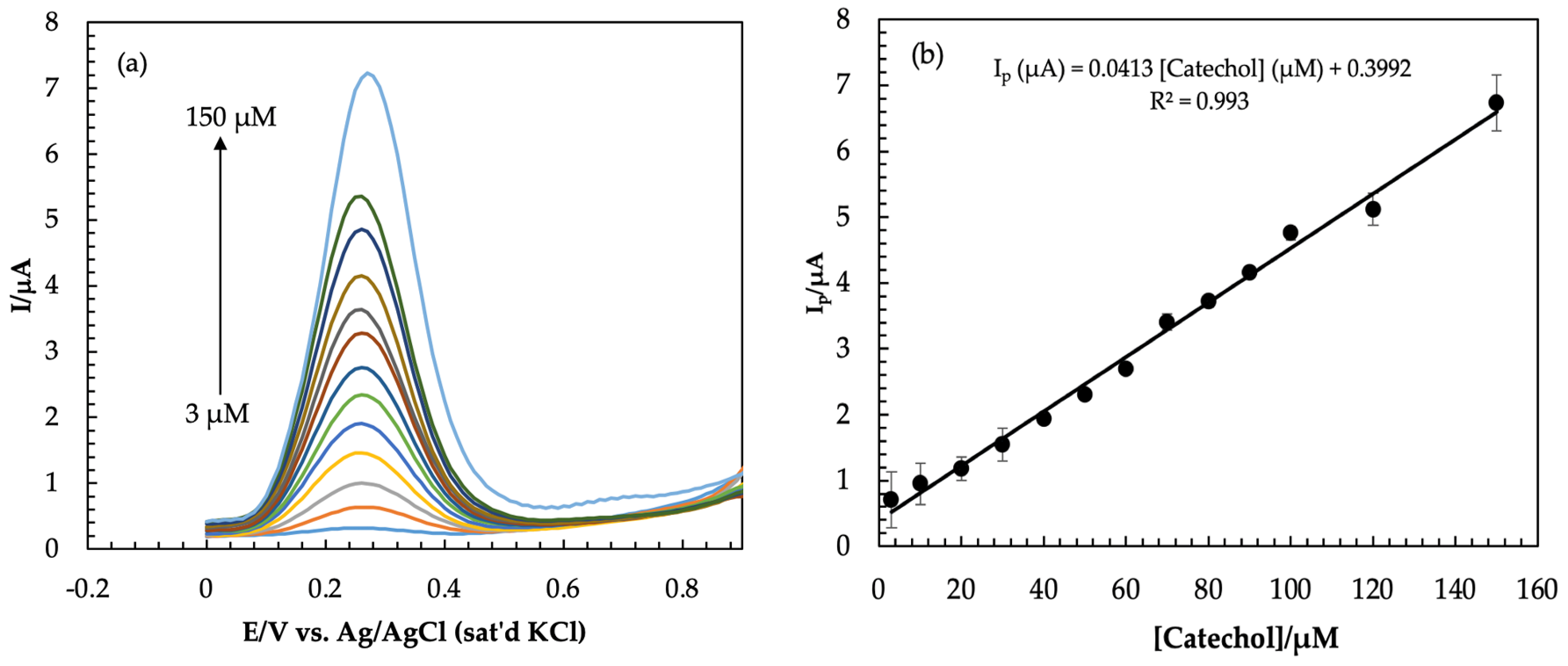

The variation of peak current with the concentration of catechol at the Am-PGE-2 surface was observed by the SWV technique. From Figure 6a, it can be seen that the peak current of catechol is proportionally increased from 3 to 150 µM. The plot of peak current vs. concentration of catechol appears in a linear relationship with regression equation Ipa (µA) = 0.0413 (µM) + 0.0774 with co-relation coefficient R² = 0.9932. The limit of detection (LOD) and limit of quantification (LOQ) were calculated by using Equations (5) and (6) [41]:

LOD = 3 S/M

(5)

LOQ = 10 S/M

(6)

where S is the standard deviation and M is the slope of the calibration plots. The values of LOD and LOQ were estimated to be 3.86 and 6.53 µM, respectively. To show the advantage of the proposed electrode on the quantification of catechol, these values are comparable with values reported by some previously published work and summarized in

Table 1. Comparison of the prepared sensor with others for the detection of catechol.

Modified Electrode	Technique	Linearity/μM	LOD/μM	LOQ/μM	Ref.
DL-methionine/CPE	CV	20.66–209.9	55.66	185.5	[45]
3-Thiophenemalonic acid/GCE	DPV	7.81–500	7.81		[52]
Silosesquioxane/CPE	DPV	10–300	10		[53]
Zn/Al layered double hydroxide film/GCE	DPV	3–1.5	9.0		[54]
malachite green/multi-wall carbon tube/GCE	DPV	30–1190	5.8		[55]
[Cu(Sal-β-Ala)(3,5-DMPz)]/SWCNTs/GCE	DPV	5–215	3.5		[56]
Am-PGE-2	SWV	3–150	3.86	6.53	This work

. As can be seen from Table 1, the analytical performance of the developed electrode is competitive with the previously reported catechol detection.

3.7. Interference Study

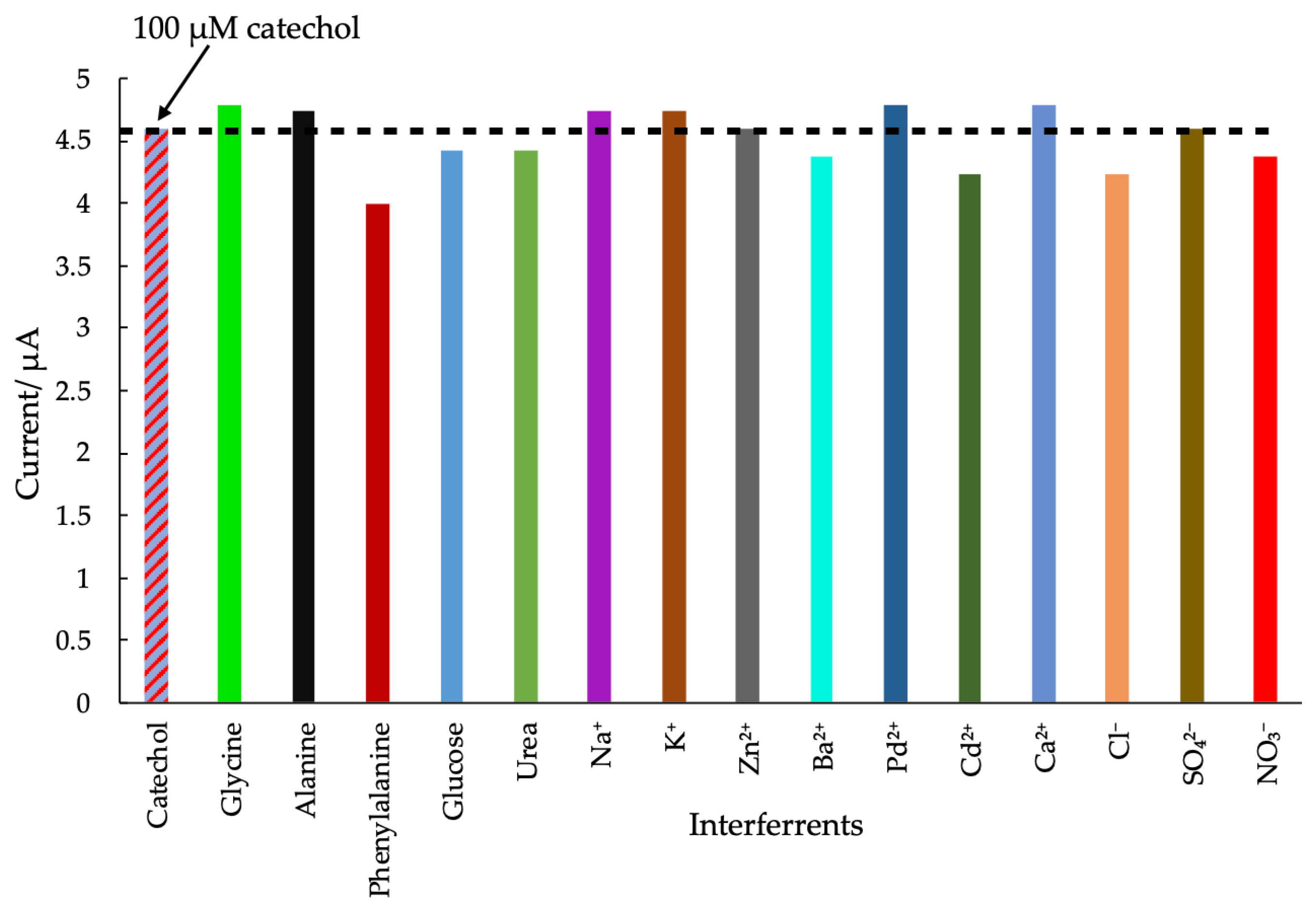

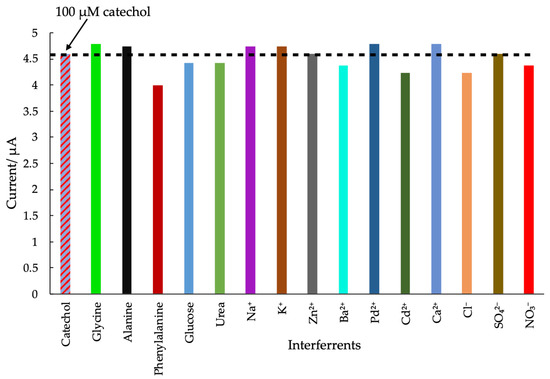

The selectivity of the Am-PGE-2 transducer was examined by the addition of some interfering species in a solution of 100 μM catechol in 0.1 M PBS (pH = 7.0). The overall summary of the interference studies is shown in Figure 7. The results indicated that 1 mM alanine, phenylalanine, glycine, glucose, urea, as well as a great number of cations and anions (10-fold), such as Na⁺, K⁺, Zn²⁺, Ba²⁺, Ca²⁺, Cl⁻, SO₄²⁻, NO₃⁻_, Pd²⁺, and Cd²⁺ were not interfered. The obtained results were compared with the result of 100 μM catechol in the absence of the interfering agent. The variation in current caused by the interference species is less than 8% (except phenylalanine). The results reveal that the sensor possesses appreciable anti-interference properties in the presence of these substances.

3.8. Real Sample Analysis

The applicability of Am-PGE-2 in real sample analysis was explored in environmental water samples, i.e., river water and household tap water. A different concentration of catechol was added in single-step filtered water. The square wave voltammograms were then recorded and catechol concentration was determined using the constructed calibration plot. The results are summarized in

Table 2. Recovery of catechol in the real sample (tap and river water).

Sample	Added CC/µM	Found CC/µM (n = 3)	Recovery/%
Tap water	60	49 (± 0.94)	82 (± 1.41)
	30	29 (± 0.64)	97 (± 1.50)
River water	50	49 (± 0.47)	98 (± 0.94)
	100	102 (± 5.12)	102 (± 5.09)

. All measurements were carried out three times under the same conditions. The recoveries of catechol in local tap and river water are 82%–97% and 98%–102%, respectively. Moreover, the average recovery was 94.7%. As can be seen from Table 2, the relative standard deviation (RSD) for each sample analysis is at a level not exceeding 5%, which indicates practical applicability and good accuracy of Am- PGE-2 for the detection of catechol in real samples.

4. Conclusions

In this study, a cost-effective PGE was developed by the incorporation of amine groups. The electrode was further activated (Am-PGE-2) by sweeping at negative potential. The EIS data revealed that the Am-PGE-2 shows excellent electrocatalytic activity compared to the bare one, due to the introduction of amine groups and oxygen containing functional groups. The Am-PGE-2 was employed as an electrochemical transducer for the detection of catechol and a two-fold higher signal was achieved compared to the bare one. From the CV study, it was found that the redox behavior of catechol on the Am-PGE-2 surface was a quasi-reversible and diffusion-controlled reaction. In the SWV technique, the current response for catechol varied in linearity with the concentration range of 3 to 150 μM with a detection limit of 3.86 μM. Apart from this, an anti-interface ability of the electrode surface for the detection of catechol was also observed. Furthermore, it was found that this electrode was able to detect catechol in household tap and river water samples and spiked with different concentrations of catechol with an average recovery rate of 95%, showing its promising application in real sample monitoring without any observation of the matrix effect.
