Microstructural and Mechanical Properties Characterization of Graphene Oxide-Reinforced Ti-Matrix Composites

Abstract

The 0.1–0.7 wt.% graphene oxide (GO)-reinforced Ti-matrix composites (TMCs) were prepared by the hot-pressed sintering method. The effects of GO content on the mechanical properties of TMCs were investigated. The microstructure of TMCs was analyzed. The results show that the microstructure of Ti and TMCs is equiaxed α. The average grain size of TMCs decreases with GO increasing. GO can react with Ti to form TiC at high temperatures. Meanwhile, GO is also presented in the matrix. The hardness of TMCs is higher than that of pure Ti. The maximum hardness is 320 HV, which is 43% higher than that of pure Ti. The yield strength of Ti-0.5 wt.% GO sintered at 1373 K is 1324 MPa, 77% more than pure Ti. The strengthening mechanism of TMCs is the fine-grained strengthening and the reinforcement that bear the stress from the matrix. The friction coefficient of Ti-0.3 wt.% GO sintered at 1373 K comes up to 0.50, which is reduced by 0.2 compared with pure Ti.

1. Introduction

Ti and Ti alloys, with their excellent mechanical properties, corrosion resistance and relatively low density, are essential materials for structural applications in aerospace, defense, automotive, etc. [1,2,3,4,5]. In the past, a large amount of research has been carried out to improve the properties of Ti alloys by adding reinforcing phases, such as graphite, carbon nanotubes, TiC and TiB, etc. [6,7,8,9,10].

Compared with the common materials, graphene has excellent mechanical properties, thermal and electrical conductivity [11,12,13,14]. As a reinforcing phase, graphene was widely used to improve the properties of metal-matrix composites [15,16,17,18,19]. Shin et al. [20] reported that few-layer graphene-reinforced Al-matrix composites by powder metallurgic method. The compressive strength of Al-matrix composites with 0.7 vol.% graphene was twice that of pure Al. Chen et al. [21] Added different graphene contents into the Cu matrix, the results showed that the yield strength of Cu-matrix composites with 0.6 vol.% graphene was about twice as pure Cu, and the friction coefficient of the composite was about 0.25, which was about 40% of that of pure Cu. There are hydroxyl, carboxyl and oxidizing functional groups on the surface of graphene oxide (GO), which can improve the dispersion of GO in the matrix [22]. Shuai et al. [23] prepared GO-reinforced magnesium alloy by laser melting method, and the research results showed that the compression yield strength of the magnesium alloy with 1wt.% graphene was increased by 30%. Mu et al. [24] prepared graphene nanosheets discontinuous reinforced Ti-matrix composites (TMCs) by powder metallurgy. The test results showed that the ultimate strength of TMCs containing 0.1 wt.% graphene nanoplates (GNPS) was 54.2% higher than that of the Ti matrix. Cao et al. [25] synthesized GNPs-reinforced TMCs with 1.2 vol.% GNPs. Compared with the monolithic titanium alloy, the composite with 1.2 vol.% GNPs exhibits significantly improved elastic modulus and strength. The sliding wear test shows that the wear volume loss of composite with 1.2 vol.% GNPs decreased by 18% than pure Ti. Dong et al. [26] fabricated oxide nanosheets (GONs)-reinforced TMCs composites. It was revealed that yield strength and ultimate tensile strength of TMCs with the 0.6 wt.% GONs were increased by 7.44% and 9.65% as compared to those of pure Ti. Cao et al. [27] reported the tensile strength at room temperature after R&A can reach 1206 MPa for 0.3 wt.% GNP-reinforced TMCs, which increased by 46% compared with pure Ti.

These reported TMCs demonstrated that the interface between graphene and Ti matrix owns effective load-transfer ability due to the strong Ti-C ionic bond and TiC reaction products effect to enhance mechanical properties. However, graphene is not easy to be uniformly dispersed in matrix attributed to graphemic nano-characters and strong Vander Waals forces between graphene, limiting the improvement of mechanical properties. In this paper, powder metallurgy (PM) is a favorable method in MMCs due to its low cost, flexibility, and ease of control. Irregular Ti powder has a much higher apparent volume than spherical powders, which is beneficial for the uniform distribution of GO. GO at a low content level usually exhibit excellent strengthening effect in TMCs, which can be attributed to its various oxygen functional groups (hydroxyl, carboxyl acid, and epoxy) on the surface and sheet edges, improving dispersibility in solvents. The interface wettability between in-situ TiC and titanium matrix is excellent, which can significantly improve the interface bonding and matching, and improve the interface strength. In this work, GO-reinforced TMCs were prepared and microstructures were observed. In addition, the mechanical properties and strengthening mechanisms of GO-reinforced TMCs are discussed.

2. Experimental Procedure

The particle size of pure Ti powder is about 150 um. The dispersion of GO was mixed with pure Ti by ultrasonic stirring method and then GO-reinforced TMCs were sintered in a vacuum hot-pressed sintering furnace. The mass percentages of GO are 0.1 wt.%, 0.3 wt.%, 0.5 wt.% and 0.7 wt.% respectively. The sample was sintered for 1 h (1273 K, 1373 K, pressure of 30 MPa, vacuum of 1 × 10⁻³ Pa) in a vacuum hot-pressed sintering furnace. The details of TMCs reinforced with 0–0.7 wt.% GO are shown in

Table 1. Materials of different GO content at different sintering temperatures.

Materials	GO Content (wt.%)	Sintering Temperature (K)
Ti1	0	1273
TMC1	0.1	1273
TMC2	0.3	1273
TMC3	0.5	1273
TMC4	0.7	1273
Ti2	0	1373
TMC5	0.1	1373
TMC6	0.3	1373
TMC7	0.5	1373
TMC8	0.7	1373

.

The microstructure was analyzed by optical microscope (OM, Olympus-BX53, Olympus, Tokyo, Japan) and scanning electron microscope (SEM, NOVA, NanoSEM 230, FEI, Hillsboro, OR, USA). The phase analysis of the sample was carried out by X-ray diffraction (XRD, D-max 2550 V, Japan Science Corporation, Tokyo, Japan) with a Cu-K$\mathsf{\alpha }$ radiation source (5–100°, 5°/min). The accelerating voltage and tube current are 30 KV and 25 mA. The average grain size was measured by the average interception method. The hardness of the sample was measured by hardness tester (MH-VK, Shanghai Taiming Optical Instrument Co., Ltd., Shanghai, China) at 200 N for 15 s. Nine different points were taken for each sample to be averaged. Room compression test was conducted on Zwick–Z020 (Zwick, Ulm, Germany). The compression rate is 0.6 mm/min. The size of compression samples is $\varnothing$4 mm × 6 mm. A tribological test was conducted on a friction and wear testing machine (HT-1000, Zhongke Kaihua Technology Development Co., Ltd., Lanzhou, China). The method of dry friction of the ball plate was adopted. GCr15 ball with a diameter of 6 mm was used as friction pair. The sliding time was 1200 s under a regular load of 3 N. Friction and wear experiments were repeated three times to take the average value. The wear width, depth and volume were measured by surface profiler (MT-500, producerZhongke Kaihua Technology Development Co., Ltd., Lanzhou, China).

3. Result Discussion

3.1. Phase Analysis

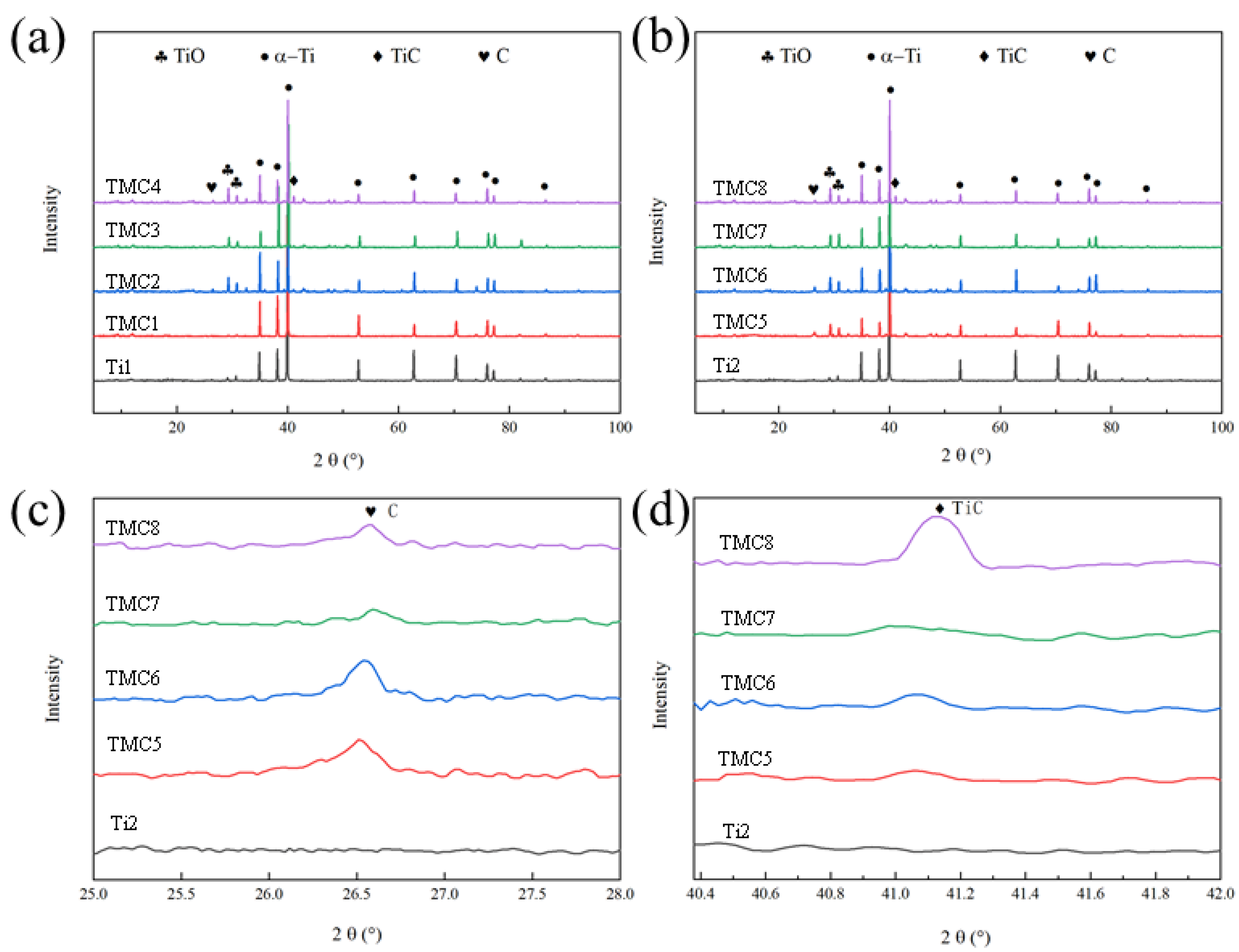

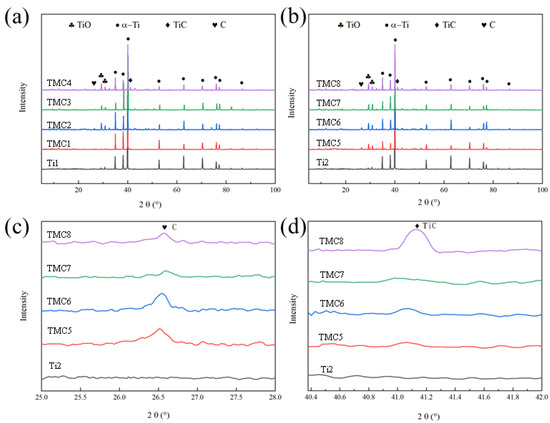

Figure 1 shows the XRD pattern of TMCs. Figure 1a,b show samples sintered at 1273 K and 1373 K. The peak of α-Ti is detected by XRD. The C peak is at 26.5° (002). Figure 1c is the locally enlarged view of 25–28° in Figure 1b. The peak of TiC appeared at 41.08 (200). Figure 1d is the locally enlarged view of 40.4–42° in Figure 1b. The peak of TiO is at 29.4° (101) and 30.8° (103). It is evident that the intensity of TiC increases with the increase of the GO content. The result indicates that GO reacts with Ti at high temperatures. The Gibbs free energy of TiC from the reaction of GO with Ti can be calculated by the following formula [28].

Ti + C = TiC

(1)

ΔG = −184571.8 + 41.382t − 5.042 Tlnt + 2.425 × 10 − 3T2 − 9.79 × 105/T
(T < 1939 K).

(2)

The calculated Gibbs free energy of TMCs sintered at 1273 K and 1373 K are about −157.75 kJ/mol and −174 kJ/mol. It shows that the hard second phase TiC can be formed spontaneously via a reaction between GO and Ti during hot-pressed sintering.

3.2. Microstructure

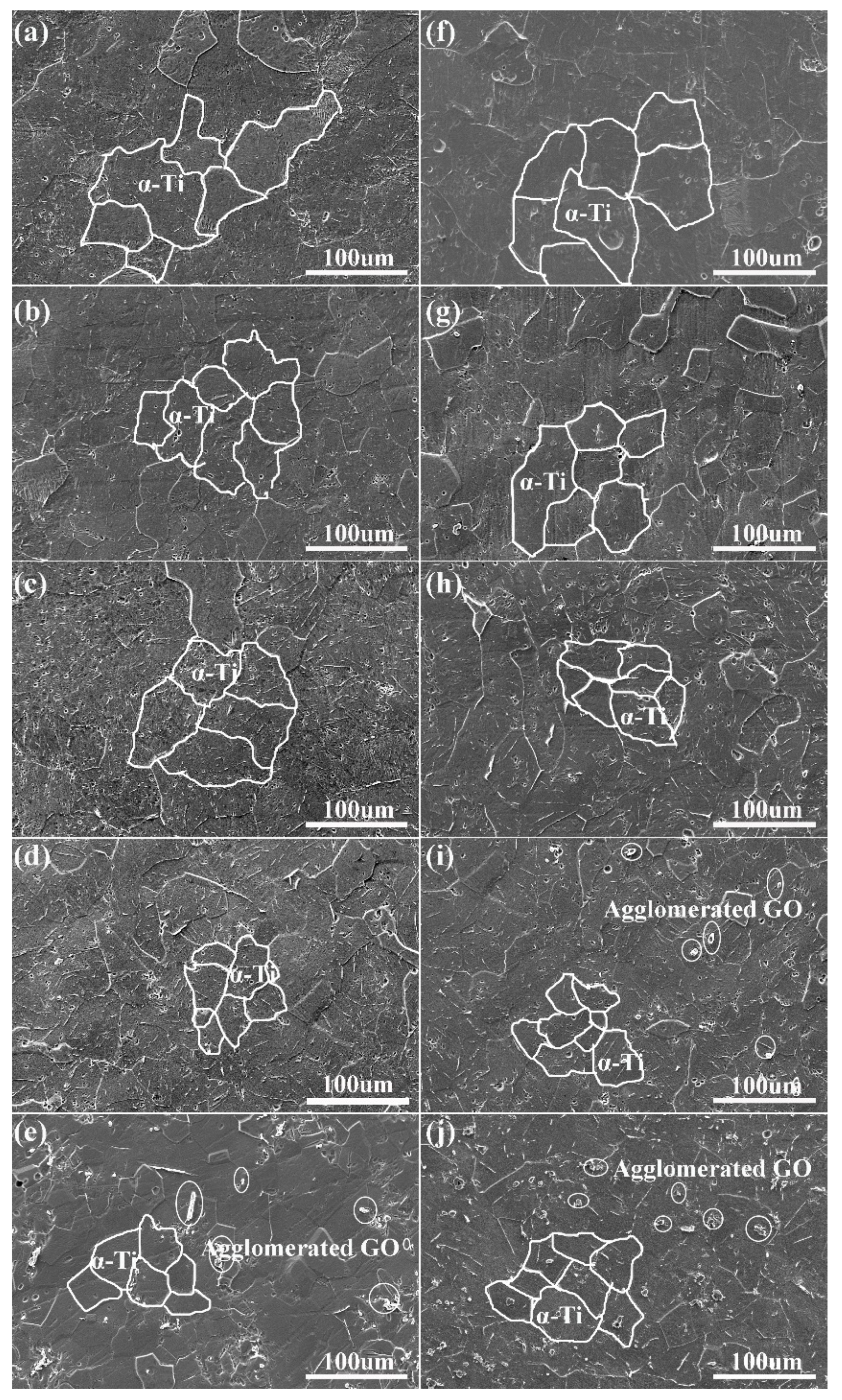

The SEM micrographs of TMCs are outlined in Figure 2. The grain boundary is relatively apparent. The microstructure of Ti and TMCs is equiaxed α. There are no well-defined pores in the material. With the increase of GO content, the GO aggregation can be displayed in Figure 2e,i,j. With the increase of sintering temperature, Ti atoms in the composites can migrate effectively, thus achieving better densification. The average grain size of TMCs decreases with GO increasing. The average grain sizes of Ti and TMCs are listed in

Table 2. Average grain Size of Ti and TMCs.

Materials	Average Grain Size ( $\mathsf{\mu }$ m)	Materials	Average Grain Size ( $\mathsf{\mu }$ m)
Ti1	$78.5 \pm 0.4$	Ti2	$80.3 \pm 0.6$
TMC1	$70.6 \pm 0.8$	TMC5	$76.5 \pm 0.8$
TMC2	$57.2 \pm 0.7$	TMC6	$63.4 \pm 0.7$
TMC3	$43.5 \pm 0.9$	TMC7	$50.6 \pm 0.8$
TMC4	$36.7 \pm 0.6$	TMC8	$38.3 \pm 0.5$

. The average grain size of TMC8 is about 38.3 $\mathsf{\mu }$m, which decreases by 52% compared with that of Ti2. In the process of grain growth, GO and TiC can hinder the movement of the grain boundary, and the grain growth is restricted. So, the grain size of TMCS is smaller than pure Ti.

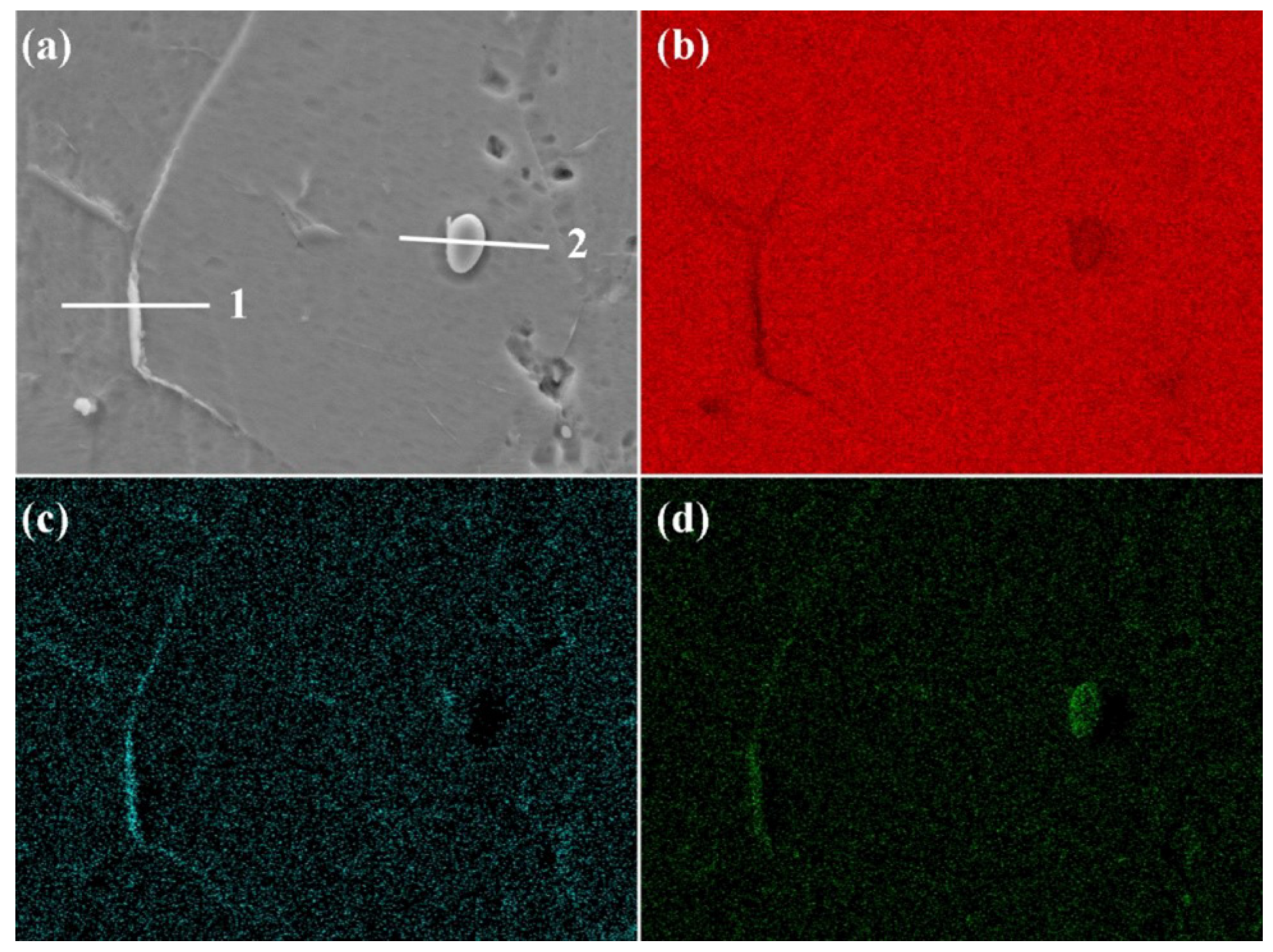

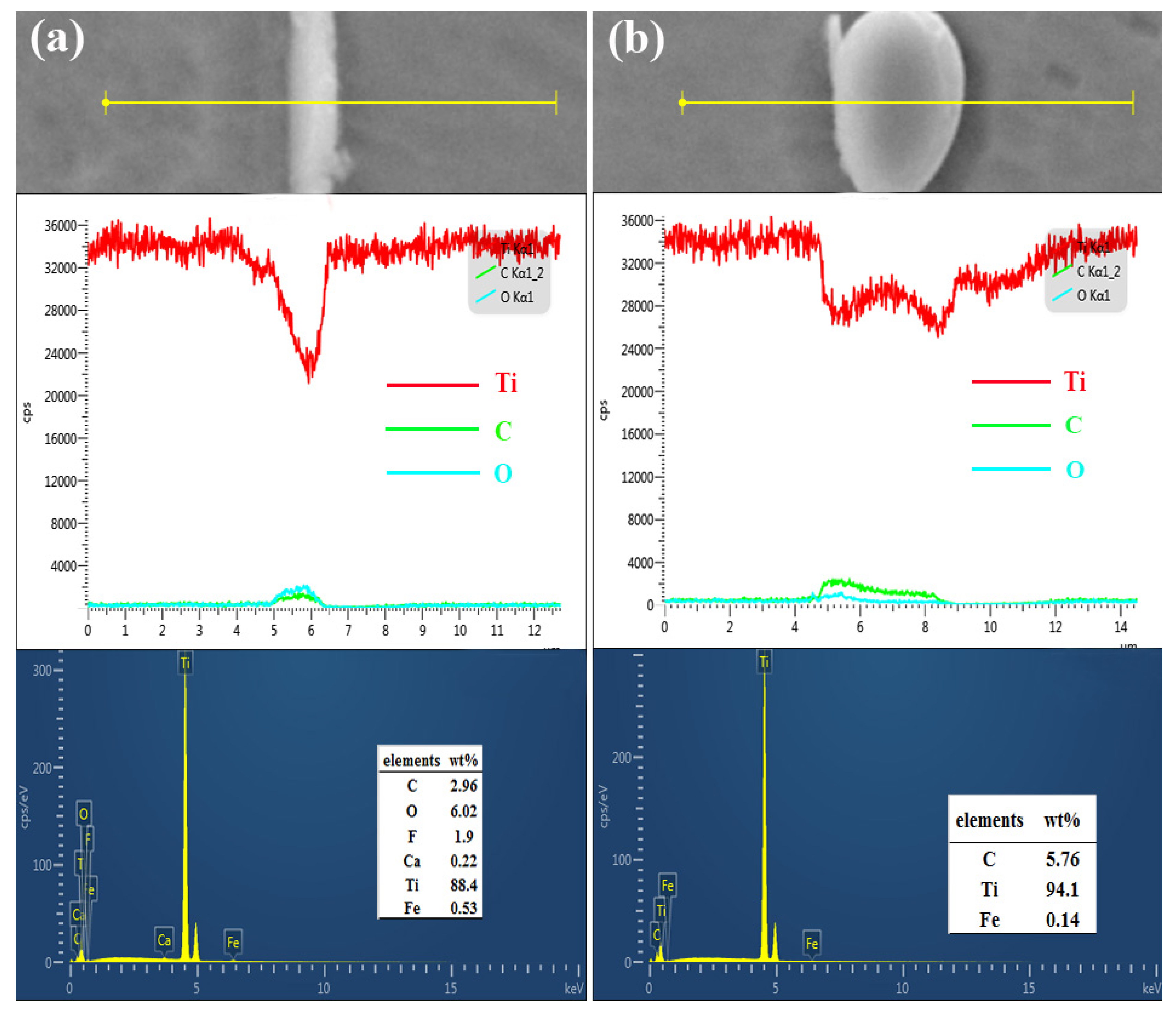

The EDS of TMC8 is shown in Figure 3. Location 1 is the enrichment area of O and C, and location 2 is the enrichment area of C. Ti is less at 1 and 2 locations. Figure 4 is the EDS of TMC8, which contains both strip-like second phase and granular matter. Figure 4a is the line scanning of striped second phase matter. The content of C and O is higher than that in other areas, and the content of Ti is lower than that in other areas. According to the XRD analysis results, it is inferred that it was undamaged flake-like GO. The result is consistent with Dong’s work [29]. Figure 4b is the analysis results of granular matter. The C appears, and the content of Ti is reduced compared with other areas. Combined with the analysis of XRD results, it is judged that this is TiC generated by the reaction of GO and Ti. Similar results have been reported [30,31].

3.3. Properties Analysis

3.3.1. Hardness

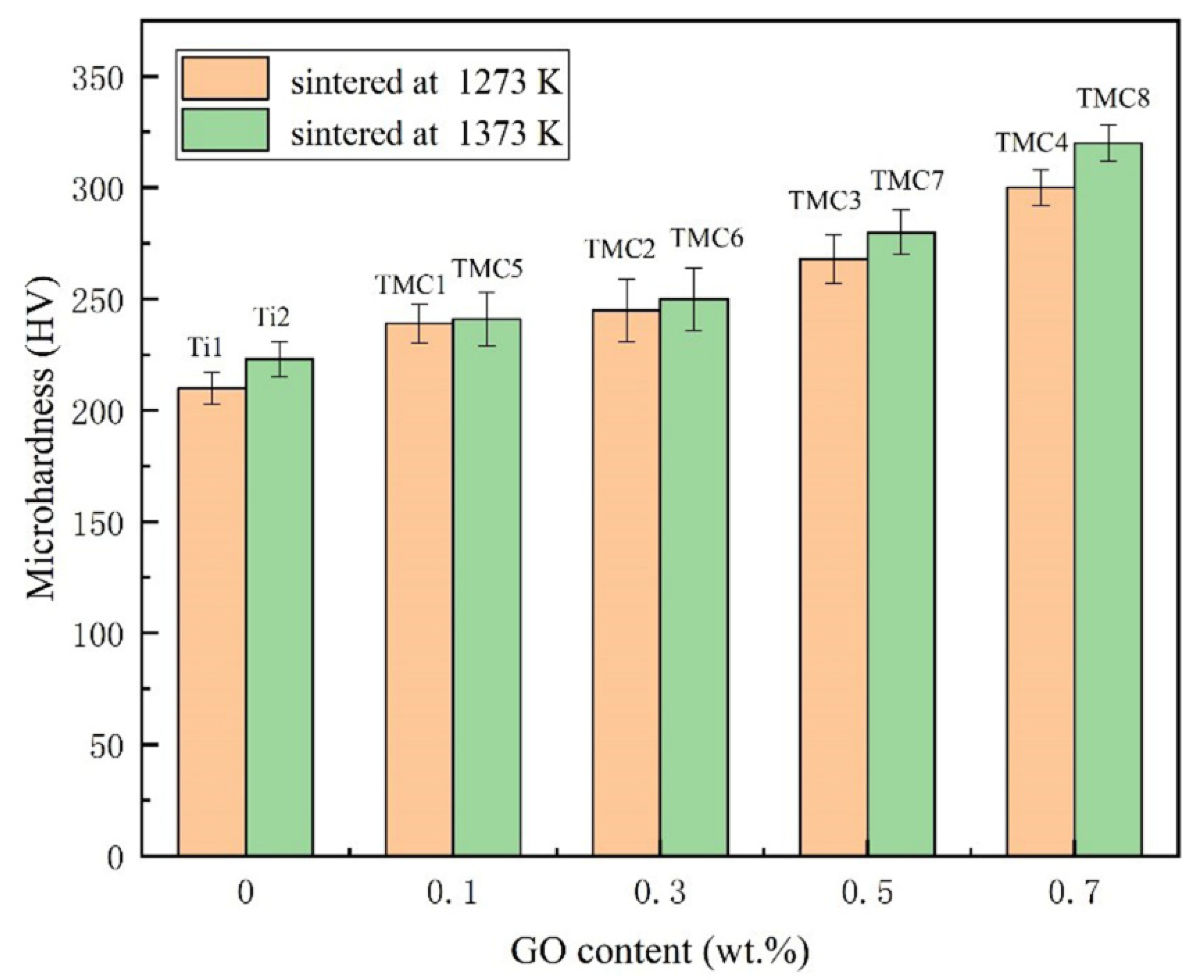

The hardness of Ti and TMCs is shown in Figure 5 and

Table 3. Hardness of Ti and TMCs.

Materials	Hardness/HV	Materials	Hardness/HV
Ti1	$210 \pm 3$	Ti2	$223 \pm 5$
TMC1	$239 \pm 6$	TMC5	$241 \pm 6$
TMC2	$245 \pm 4$	TMC6	$250 \pm 4$
TMC3	$268 \pm 2$	TMC7	$280 \pm 3$
TMC4	$300 \pm 5$	TMC8	$320 \pm 4$

. The hardness of the TMCs becomes higher and higher with the increase of GO content. The hardness of TMC4 and TMC8 are 300 HV and 320 HV, which is separately increased by 42% and 43% compared with that of pure Ti. As is mentioned above, GO reacts with pure Ti to form TiC at high temperature. The hard second phase TiC can resist local plastic deformation of TMCs and improve the hardness of TMCs. The higher the temperature, the greater the activation energy and the more TiC, which raises the hardness of TMCs sintered at 1373 K.

3.3.2. Compression Properties

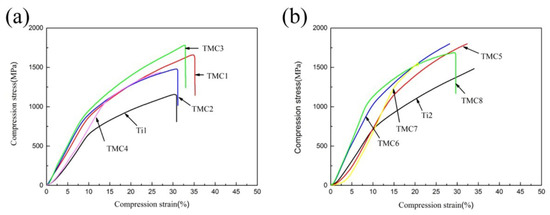

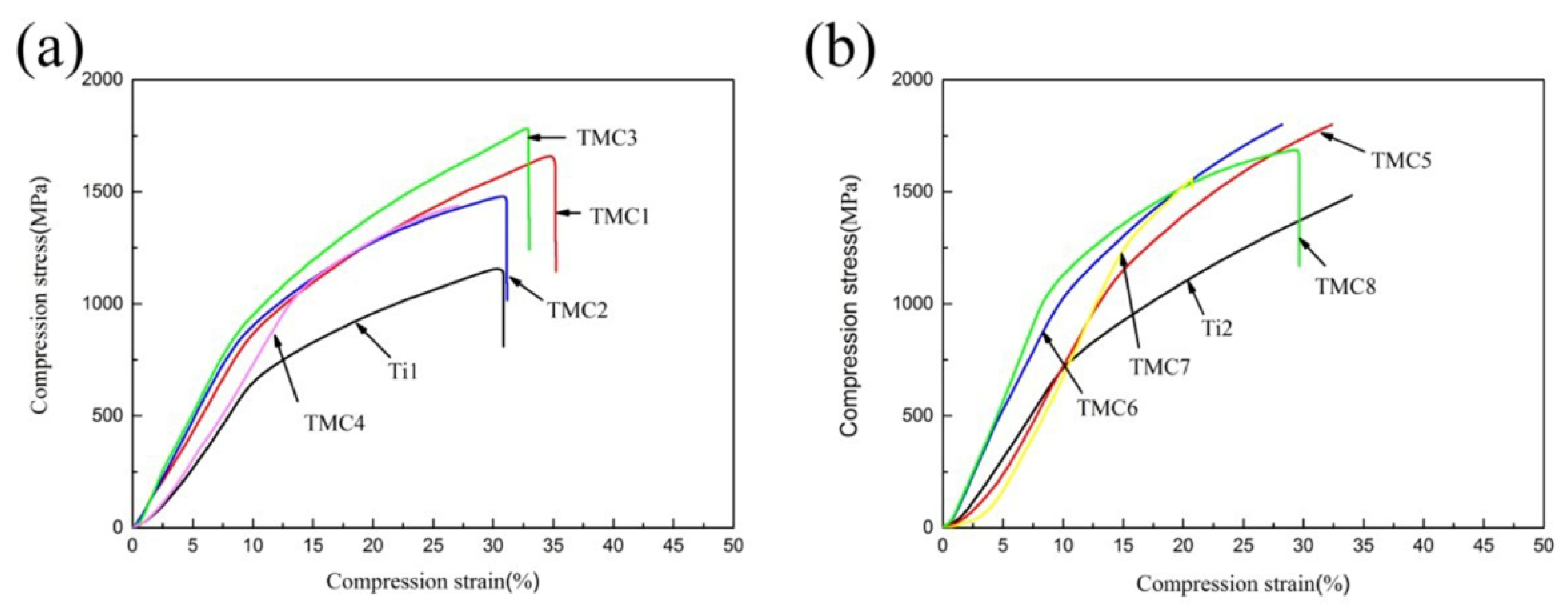

Figure 6a,b show the compressive stress–strain curves of Ti and TMCs sintered at 1273 K and 1373 K. The detail data are listed in

Table 4. Compressive properties of Ti and TMCs.

Materials	Yield Strength/MPa	Materials	Yield Strength/MPa
Ti1	$721 \pm$3	Ti2	$748 \pm$5
TMC1	$859 \pm$5	TMC5	$1025 \pm$7
TMC2	$906 \pm$6	TMC6	$1135 \pm$8
TMC3	$977 \pm$4	TMC7	$1324 \pm$6
TMC4	$1024 \pm$7	TMC8	$1146 \pm$9

. The yield strength of TMC4 is 1024 MPa, which is increased by 42% compared with that of Ti1. The yield strength of TMC7 is 1324 MPa, which is increased by 77% compared with that of Ti2. The yield strength detail of Ti and TMCs is listed in Table 3. The yield strength increases with the increase of GO content sintered at 1273 K. But, the yield strength of TMC8 is lower than TMC7. This is due to the agglomeration of GO. Similar results have been reported by Liu [32].

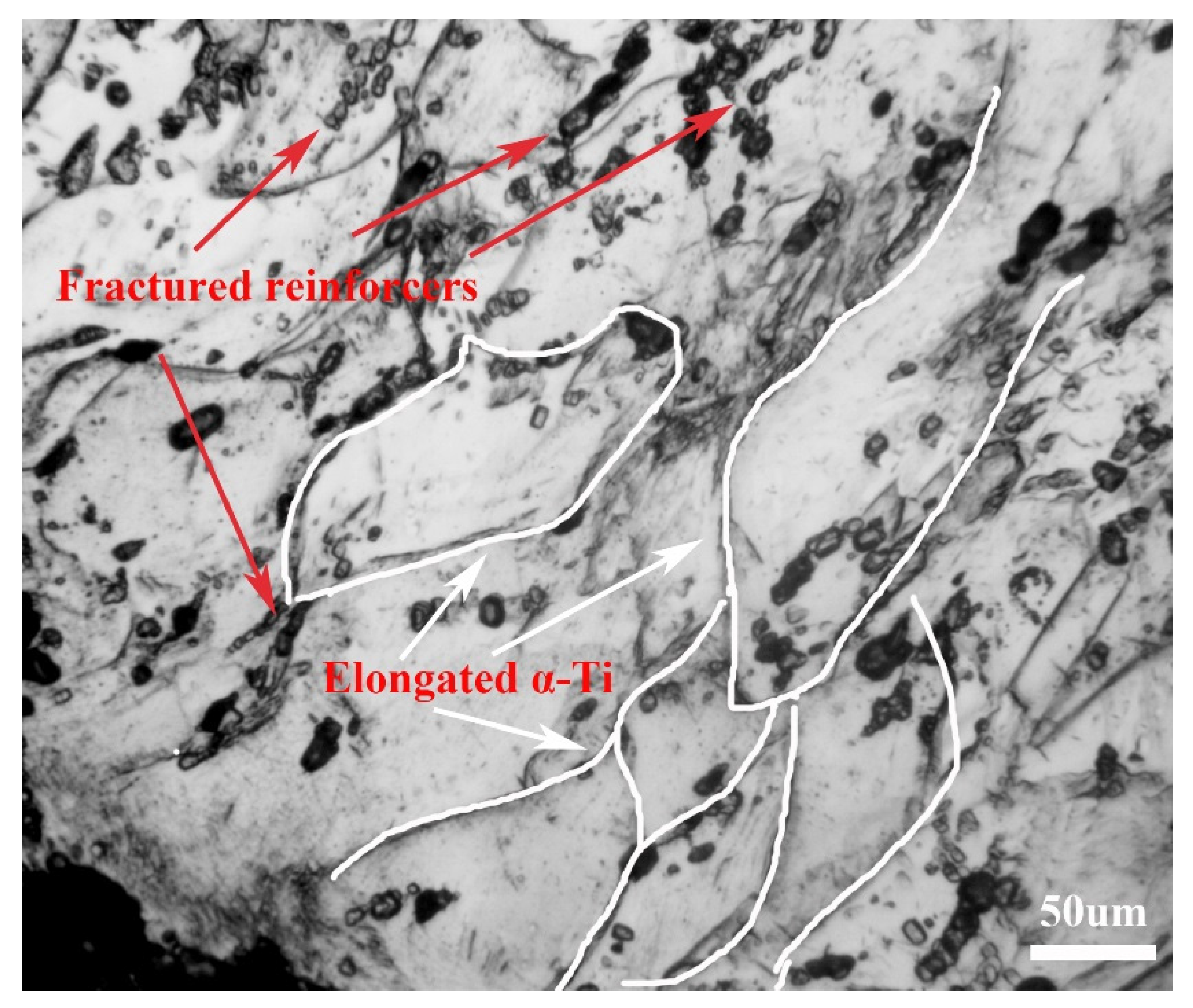

Figure 7 shows the OM diagram near the compression fracture of TMC7. Elongated α-Ti grains and fractured reinforcement are observed in Figure 7. It can be inferred that the reinforcement bears the load during the compression process, thereby improving the strength of the TMCs.

There are two reasons for strengthening TMCs.

• The reinforcement GO and TiC bear part of the load during the deformation process. The shear hysteresis model is usually used to evaluate the strength of TMCs. The yield strength (σ_c) can be expressed as [20,33]

  $${\mathsf{\sigma }}_{\mathrm{c}} ={\mathsf{\sigma }}_{\mathrm{r}}{\mathrm{V}}_{\mathrm{r}}(1-\frac{{\mathrm{l}}_{\mathrm{c}}}{2\mathrm{l}}) + {\mathsf{\sigma }}_{\mathrm{m}}(1-{\mathrm{V}}_{\mathrm{r}})$$

  (3)

  ${\mathsf{\sigma }}_{\mathrm{m}}$ is the yield strength of Ti matrix, ${\mathsf{\sigma }}_{\mathrm{r}}$ is the fracture strength of reinforcement, V_r is the volume fraction of reinforcement, l is the length of reinforcement, and l_c is the critical length of the reinforcement.

  $${\mathrm{l}}_{\mathrm{c}}={\mathsf{\sigma }}_{\mathrm{r}}\frac{\mathrm{Al}}{{\mathsf{\tau }}_{\mathrm{m}}\mathrm{S}}$$

  (4)

  ${\mathsf{\tau }}_{\mathrm{m}}$ is the shear strength of Ti matrix. A is the cross-sectional areas of reinforcement, S is Ti-reinforcement interfacial areas. A = wt, S = (w + t) l, w and t is the width and thickness of reinforcement.
• The change of yield stress can be calculated using the Hall–Petch formula [22]:

  $${\mathsf{\sigma }}_{\mathrm{y}}={\mathsf{\sigma }}_0 + \mathrm{kD}{}^{-0.5}$$

  (5)

  where σ_y is the yield stress; σ₀ is the friction force to be overcome by dislocation motion; k is the constant related to the material, k = 0.68 MPa·m^0.5; D is the grain size. The grains of TMCs are smaller than that of pure Ti. The yield stress increases with the average grain sizes decreasing. The yield stress of TMCs are bigger than that of Ti.

3.3.3. Tribological Properties

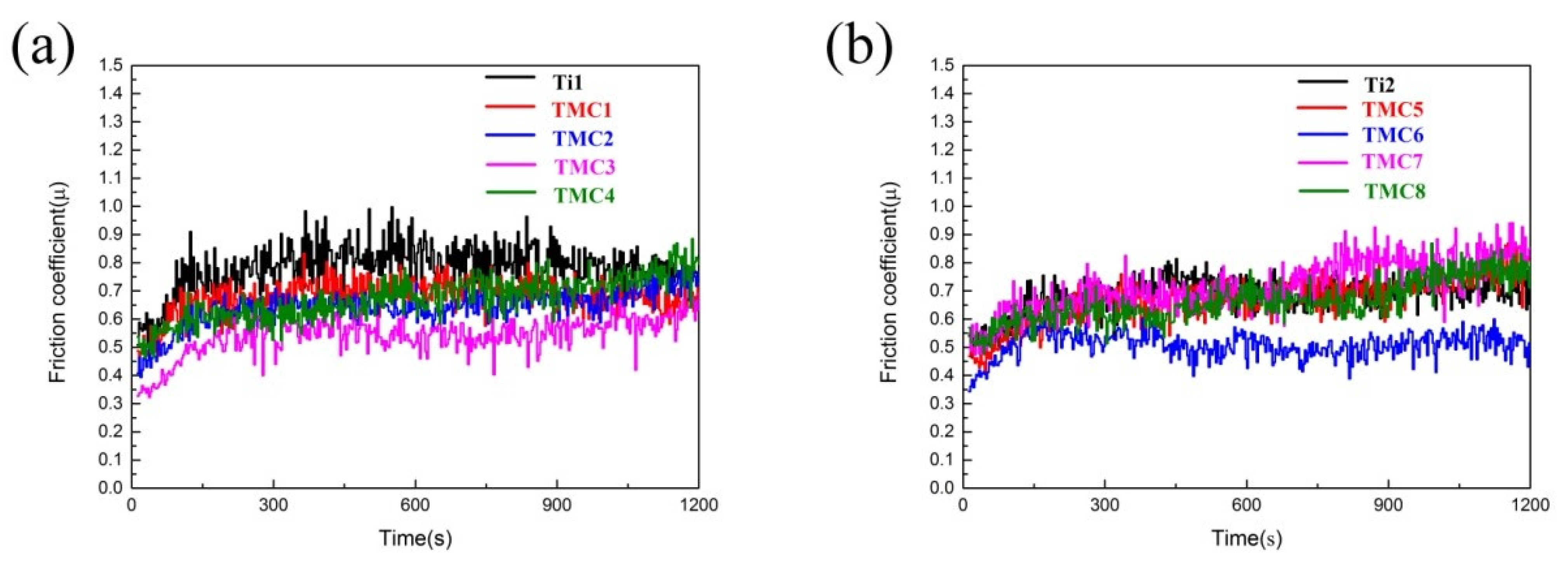

The Friction coefficient of Ti and TMCs under dry conditions is shown in Figure 8 and listed in Table 4. Figure 8a shows friction coefficients of Ti and TMCs sintered at 1273 K. There is a pre-grinding period at the beginning of friction, and the friction coefficient is rising sharply. The friction coefficient is stable in the period of 300–900 s. Such as Table 4, in

Table 5. Friction coefficient of Ti and TMCs.

Materials	Friction Coefficient	Materials	Friction Coefficient
Ti1	$0.82 \pm 0.003$	Ti2	$0.70 \pm 0.002$
TMC1	$0.70 \pm 0.005$	TMC5	$0.68 \pm 0.004$
TMC2	$0.64 \pm 0.004$	TMC6	$0.50 \pm 0.003$
TMC3	$0.55 \pm 0.006$	TMC7	$0.72 \pm 0.007$
TMC4	$0.67 \pm 0.003$	TMC8	$0.64 \pm 0.005$

, average friction coefficient of Ti1, TMC1, TMC2, TMC3 and TMC4 are 0.82, 0.70, 0.64, 0.55 and 0.67, respectively. Compared with Ti1, the friction coefficient of the TMCs is reduced. It indicates that GO may play a lubrication role. The friction coefficient of TMCs sintered at 1373 K is shown in Figure 8b. During 300–900 s, average friction coefficients of Ti2, TMC5, TMC6, TMC7 and TMC8 are 0.70, 0.68, 0.50, 0.72 and 0.64 respectively. With the increase of GO content, the friction coefficient decreases to some extent, but when the GO content is 0.5 wt.% and 0.7 wt.%, the friction coefficient increases. The reaction degree between GO and Ti is stronger with the increase of sintering temperature, and the retention of the GO structure is less, so the friction property decreases.

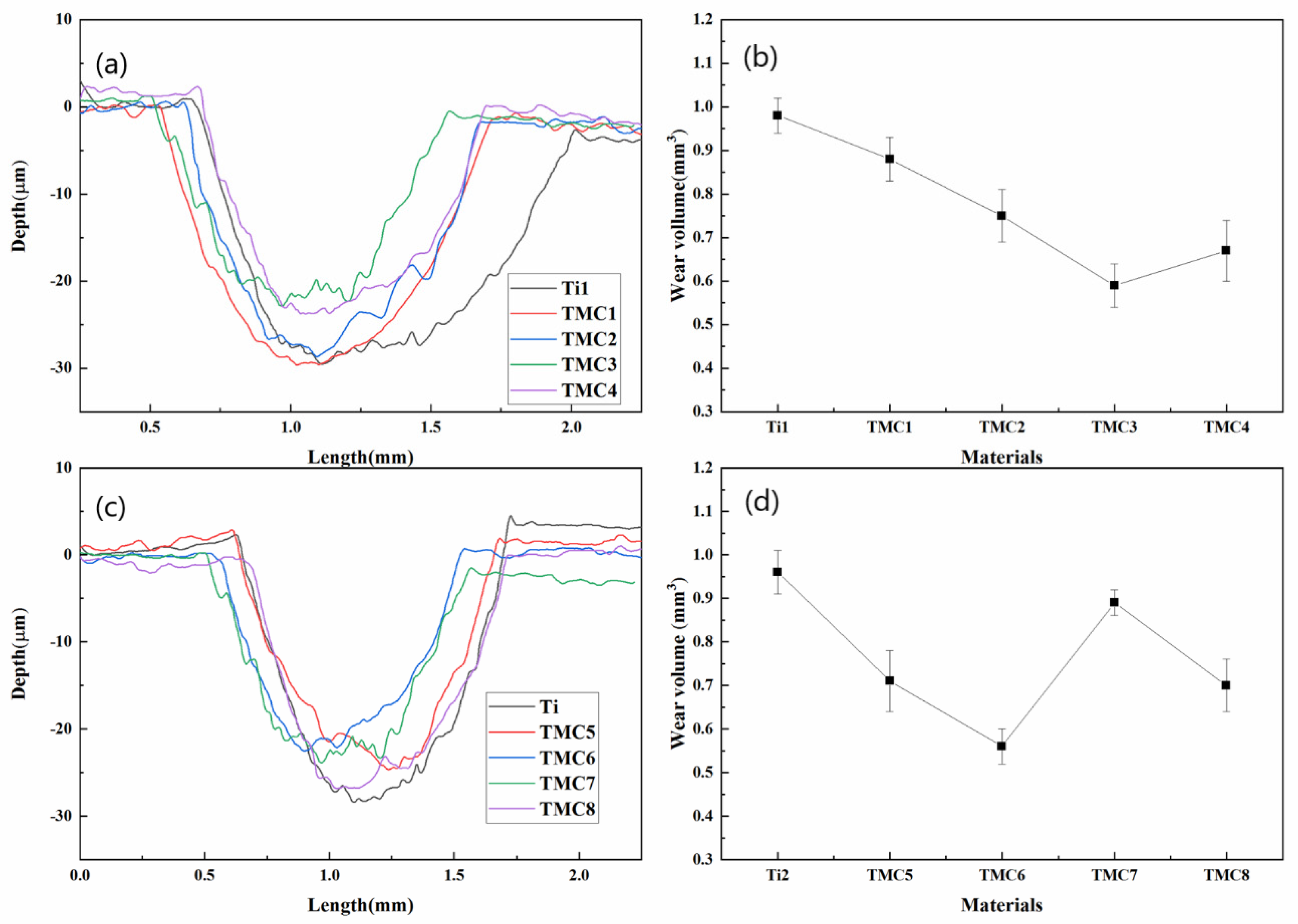

Figure 9 shows the three-dimensional wear trace morphology and wear volume of TMCs under sliding dry friction. Compared with pure Ti, the wear degree of the TMCs is slower, and the wear resistance is consistent with the friction coefficient.

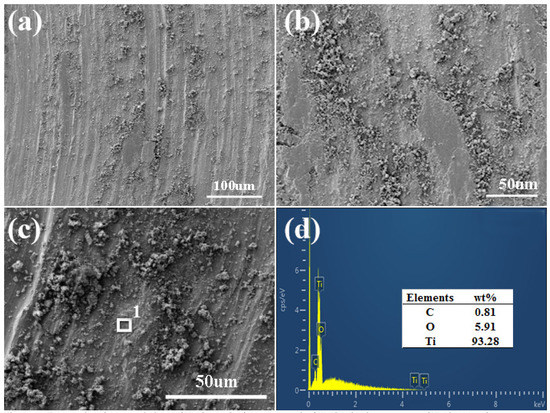

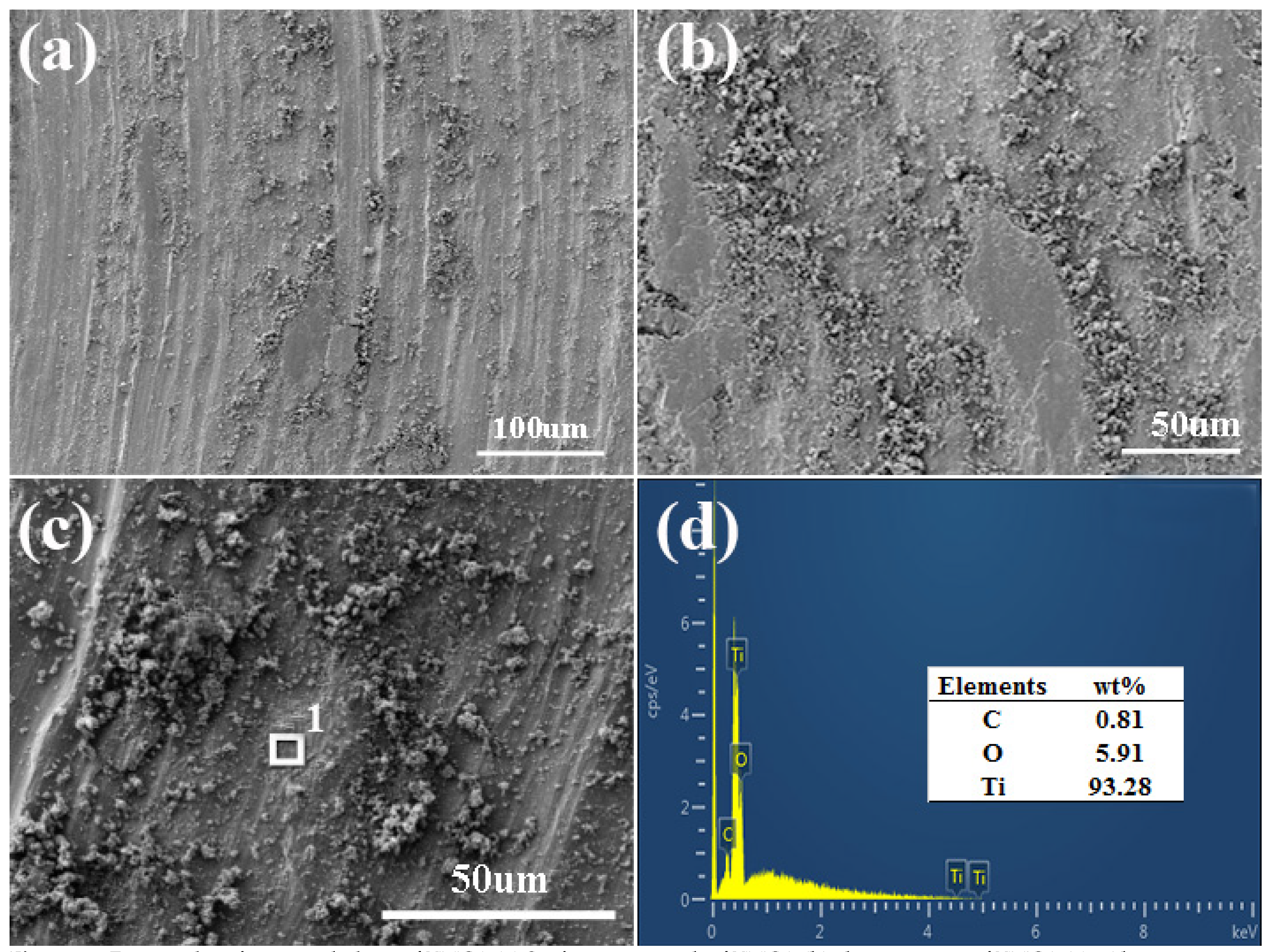

Figure 10 shows the friction surface morphology of TMC6. As is shown in Figure 10a, Obvious friction marks can be observed. Under the action of stress, granular debris is crushed and flattened, and then apparent abrasive wear marks are formed in Figure 10b. Figure 10d is an EDS analysis of the wear marks of the TMC6 in Figure 10c. It shows that there is C of GO is squeezed to the surface due to the friction force. Then, a film with lubrication is formed on the contact surface between the friction pair and the matrix, thus reducing the wear of the friction pair to the matrix. And, there are Fe elements only in friction pairs. Results show that material transfer of friction pair and surface element oxidation occurs in the friction and wear process. The wear mechanism is adhesive wear and oxidation wear.

4. Conclusions

0.1–0.7 wt.% of GO /Ti composites were prepared by hot-pressed sintering at 1273 K and 1373 K. The results demonstrated that this method is simple and highly efficient to fabricate GO/Ti composites with remarkably high mechanical properties, which will meet the industrial development of lightweight, high-strength materials. The results of the current investigation are as follows:

• The microstructure of Ti and TMCs is equiaxed α. The average grain size of TMCs decreases with GO increasing. GO and TiC exists in TMCs simultaneously.
• The hardness of TMCs is higher than that of pure Ti. The hardness of TMCs with 0.7 wt.% GO sintered at 1373 K is the biggest, 320 HV, which is 43% higher than that of pure Ti. The yield strength of 0.5 wt.% GO sintered at 1373 K is 1324 MPa, 77% more than pure Ti. The strengthening mechanism is that reinforcement bears the load from matrix and fine-grain strengthening.
• Compared with pure Ti under the same condition, the friction coefficient of TMCs decreases. The friction coefficient of TMCs containing 0.5 wt.% GO sintered at 1273 K and 0.3 wt.% GO sintered at 1373 K is 0.55 and 0.5, which are 0.27 and 0.2 lower than that of pure Ti. The wear mechanism is abrasive wear, adhesive wear and oxidation wear.
