Preparation of a Poly (Ether-b-Amide) Mixed-Matrix Membrane and Its Application in Blast Furnace Gas

by
Lili Jiang
*,
Yixing Chen
and
Xingang Hou
School of Materials Science and Engineering, Lanzhou University of Technology, Langongping Road, Lanzhou 730050, China
*
Author to whom correspondence should be addressed.
Coatings 2022, 12(12), 1851; https://doi.org/10.3390/coatings12121851
Submission received: 17 October 2022 / Revised: 17 November 2022 / Accepted: 24 November 2022 / Published: 29 November 2022
(This article belongs to the Section Functional Polymer Coatings and Films)
Browse Figures
Versions Notes

Abstract

:
In this paper, we propose the use of nanomaterials to build three-dimensional structured gas-separation membranes to accommodate more gas molecules. SWCNT provides a fast passage for gas molecules, while GO can make gas molecules have more adsorption sites due to its large specific surface and the fact that its special lamellar folds can hinder the transport of macromolecules. Graphene oxide (GO) was prepared by an improved Hummer’s method, and single-walled carbon nanotubes (SWCNTs) were purified by mixed acid treatment. Then, Pebax1657 particles were dissolved in a reflux setup at 80 °C, and GO/SWCNT/Pebax1657 mixed-matrix membrane (MMM) was prepared by solution blending. Finally, the permeability and selectivity of GO/SWCNT/Pebax1657 membrane to single gas and mixed gas at different temperature and inlet pressure were investigated.

1. Introduction

In the production processes of the metallurgical industry, the direct discharge of blast furnace gas produces a large amount of toxic gas that causes environmental pollution. The main incombustible components of blast furnace gas, such as CO2, N2, and CO, make direct cyclic utilization difficult. This increases the energy consumption of the metallurgical industry, which is not conducive to achieving the goals of energy consumption reduction and sustainable development. Therefore, there is an urgent need for a gas-separation technique to realize the separation, recovery, and utilization of CO2, N2, and CO [1]. In recent years, gas-separation membranes have gradually become the main methods of separating gases. Compared with traditional separation techniques, membrane separation has the advantages of low energy consumption, no phase change, and simple operation, so together they are regarded as one of the most promising gas-separation techniques. The membrane material is the core of the technique, as its characteristics directly determine the gas-separation efficiency and application prospects of the technique [2,3].
Membrane materials occupy an important position in membrane separation techniques, and various types of membrane materials have been fully developed such as polymer membranes that have the advantages of low manufacturing costs and easy processing but cannot surpass the Robeson upper bound [4]. Then there are inorganic membrane materials, which have relatively high permeability and selectivity, but they are relatively expensive and difficult to prepare, which limits their large-scale production. Mixed-matrix membranes (MMMs) with inorganic fillers as the dispersed phase and polymer matrix as the continuous phase have attracted the attention of researchers. The MMMs combine the advantages of polymer membranes and inorganic membranes and are thought to have great potential to surpass the Robeson upper bound, so selecting the appropriate dispersed phase and continuous phase has a crucial impact on improving the selectivity and permeability of the MMMs [5,6].
Poly(ether-b-amide) (Pebax) is prepared via the copolymerization of a polyether (PE) segment and a polyamide (PA) segment. PE provides good gas permeability and good affinity with CO2 and other gases. PA represents the rigid segment of a saturated aliphatic chain PA, which has almost no permeability, but PA provides good mechanical properties [7,8]. As a commercialized block copolymer, Pebax1657 has good membrane-forming properties, excellent acid and alkali resistance, and high thermal and mechanical stability, but pure poly(ether-b-amide) membranes still cannot surpass the Robeson upper bound and easily aggregate. Therefore, it is necessary to dope other substances into the poly(ether-b-amide) to surpass the Robeson upper bound [9,10]. Azizi et al. [11] prepared Pebax/SiO2, Pebax/TiO2, and Pebax/Al2O3 membranes. Their permeabilities to CO2 and CH4 increased with increasing dopant content, and the permeability to CO2 and the ideal selectivity for CO2/CH4 considerably increased with increasing pressure. Chen et al. [12] successfully synthesized the metal–organic framework material KAUST-7 with uniform particle size for the first time and mixed 6FDA-Durene polyimide into it to prepare a 6FDA/KAUST-7 membrane. It had good plasticization resistance and separation performance for CO2/CH4 and surpassed the Robeson upper bound. Dorosti et al. [13] used phase inversion to prepare Pebax/Fe-1,3,5-benzenetricarboxylate (BTC) membrane with Pebax1657 as the continuous phase and the metal–organic framework Fe-BTC as the dispersed phase. As the pressure increased to 7 Barrer, the permeability and selectivity for CO2 and CH4 gradually increased; under high pressure, the presence of doped particles restricted the migration and plasticization of the polymer chains. As a result, the permeability of CO2 decreased, and the selectivity of CO2/CH4 increased first and then decreased; at a doping percentage of 40%, the permeability to CO2 increased to 425.4 Barrer, and the selectivity for CO2/CH4 increased to 12.3. Isanejad et al. [14] used an amine functional group to modify SiO2 nanoparticles, which were used as modifiers and added to Pebax polymer to prepare nanocomposite membranes. As the SiO2 content increased, the permeability of the nanocomposite membrane first increased and then decreased. When the doping percentage was 15%, the permeability to CO2 and the selectivity for CO2/CH4 increased by 10% and 14%, respectively. As the feed pressure increased, the selectivity for CO2/CH4 fluctuated, with a slight increase overall, reaching a maximum of 40.16. Estahbanati et al. [15] used ionic liquid and Pebax1657 polymer to prepare a new type of ionic liquid composite membrane. Due to the unique attractive force of this ionic liquid to CO2, the permeability and selectivity of the composite membrane were greatly increased. The addition of ionic liquid led to a more amorphous structure of the polymer membrane and less crystallinity, resulting in increases in both CO2 permeability and selectivity. Lee et al. [16] blended a graft copolymer (poly(2-[3-(2H-benzotriazol-2-yl)-4-hydroxyphenyl] ethyl (PBE) methacrylate)-graft-poly (oxyethylene methacrylate)) with Pebax to prepare an MMM, which gave rise to interconnected CO2 network channels, thereby increasing the solubility of CO2. With increasing content of PBE filler, gas permeability and selectivity gradually increased, and the permeability to CO2 reached 224.4 Barrer; when the PBE content was 5%, the permeability to CO2 was 175.3 Barrer, and the selectivity for CO2/N2 reached 48.2.
Different dopants have different effects on MMMs, so the choice of dopant has a critical influence on the performance of an MMM. In recent years, nanofillers, including carbon nanotubes (CNTs), metal oxides, sheet-like zeolites, and graphene oxide (GO), have attracted wide attention. In this paper, GO and single-walled carbon nanotubes (SWCNTs) were selected as the dopants for a Pebax1657 membrane with the goal of surpassing the Robeson upper bound. The Robeson upper bound refers to the balance between permeability and selectivity in most membrane materials [17,18,19]. Because the internal surface of CNTs is smooth and has large pores, its gas permeability is several orders of magnitude larger than that of other inorganic fillers. At the same time, even at a low concentration in a polymer matrix, CNTs can considerably improve the mechanical strength of the polymer. The key shortcoming of CNTs is their lack of selectivity to different molecules; additionally, the internal channel of a CNT is nonreactive, so it is difficult to add groups to improve its selectivity [20,21,22]. This problem can be solved by adding GO as the dopant. GO has a profound effect on gas transport. GO is the oxidation state of graphene, has a large specific surface area, and has good compatibility with polymers, so it can be used as a nanofiller in MMMs [23,24,25,26].
In this paper, solution blending was used to form membranes. After the Pebax1657 dispersion, GO dispersion, and SWCNT dispersion were blended, the mixture was dried at 60 °C to obtain the GO/SWCNT/Pebax1657 MMM. Through transmission electron microscopy (TEM), field-emission scanning electron microscopy (SEM), atomic-force microscopy (AFM), X-ray diffraction (XRD) patterns, Fourier transform infrared (FTIR) spectroscopy, and thermogravimetric analysis (TGA), the prepared GO/SWCNT/Pebax1657 MMM was analyzed, and its selectivity and permeability to single gases (CO2 and N2) and mixed gas (CO2 (volume fraction 60%), N2 (volume fraction 20%), and CO (volume fraction 20%)) at different feed pressures and different temperatures were studied.

2. Experiment Method

2.1. Material and Chemical Reagent

Pebax MH1657 (composed of 60% poly (ethylene oxide) and 40% polyamide 6, with a density of 1.14 g/cm3) was purchased from Arkema Group. SWCNTs (outer diameter 10–20 nm, length 30–100 μm, purity > 98%) were purchased from Shenzhen Nanotech Port Co., Ltd. (Shenzhen, China) Natural flake graphite (12,000 mesh) was purchased from Qingdao Tianshengda Graphite Co., Ltd. (Tsingtao, China) Concentrated sulfuric acid and concentrated nitric acid were purchased from Tianjin Baishi Chemical Industry Co., Ltd. (Tianjin, China) The above reagents were of analytically pure grade and could be used directly.

2.2. GO Preparation

GO was prepared by the improved Hummer’s method. First, 2 g of natural flake graphite was weighed and added to 92 mL of concentrated H2SO4 with a mass fraction of 98%, and the mixture was stirred evenly in an ice-water bath at 0–5 °C. Then 2 g of NaNO3 and 12 g of KMnO4 were added, and the mixture was mechanically stirred for 150 min. After the reaction had ended, the above mixture was placed in a water bath at 35 °C, followed by adding 184 mL of ultrapure water, and the mixture was mechanically stirred for 30 min. The above mixture was placed in a water bath at 95 °C, mechanically stirred for 24 min, and diluted to 560 mL with warm ultrapure water. After the mixture was mechanically stirred for 20 min, 35 ml of 30% (mass fraction) H2O2 was added, and the temperature was held for 10 min. Finally, the obtained mixture was left standing for 24 h, and then the supernatant solution was removed. The precipitate was washed repeatedly with 1% HCl until there was no SO42− and then washed with distilled water until it was neutral. After freeze–drying, GO was obtained.

2.3. Puried SWCNTs

Two grams of original SWCNT was added into the mixed acid solution, with a volume ratio of concentrated H2SO4 to concentrated HNO3 of 3:1. The mixture was stirred slowly, sonicated for 20 min, and then placed in a water bath at 60 °C. After being stirred mechanically for 180 min, the mixture was diluted to 1200 mL with warm ultrapure water and then allowed to stand at room temperature for 20 h. The supernatant was removed, and the sample was collected by vacuum filtration and then rinsed with absolute ethanol three times. After vacuum drying at 60 °C, the resulting product was the purified CNTs.

2.4. Preparation of MMMs

The MMM was prepared by solution blending. First, 2 g of Pebax1657 was added into a three-neck flask, followed by adding 45 mL of absolute ethanol and 15 mL of distilled water. The sample was dissolved in a reflux setup at 80 °C for 1.5 h to obtain a stable dispersion of Pebax1657 (wt 2%), which was sonicated for 2 h for later use. Next, 0.1 g of GO was weighed and added to 20 mL of absolute ethanol, and the mixture was magnetically stirred for 1 h and sonicated for 30 min to yield a stable GO dispersion. Finally, 0.1 g of purified SWCNTs was weighed and added to 20 mL of absolute ethanol, and the mixture was magnetically stirred at 40 °C for 1 h and then sonicated for 30 min to obtain a stable SWCNT dispersion. The above GO dispersion was slowly added to the SWCNT dispersion to ensure that the GO dispersion and the SWCNT dispersion were evenly mixed. Then, the GO/SWCNT mixed dispersion was added dropwise to the Pebax1657 dispersion, and the mixture was magnetically stirred for 1 h and sonicated for 4 h to obtain a stable GO/SWCNT/Pebax1657 mixed dispersion, which was dried under vacuum at 60 °C for 24 h to yield GO/SWCNT/Pebax1657 MMMs. In the gas-separation experiment, we set the ratio of Pebax1657:GO:SWCNT is 20:1:1, as shown in Figure 1. After measurement, the film thickness was 0.1 mm.

2.5. Characterization Methods

SEM (JSM-6700F) was used to analyze the surface morphology of GO and SWCNTs at 5 kV. TEM (type JEM-2010) was used to observe the morphology of the material. An FTIR system (type NICOTCT 5700) was used to analyze the chemical groups on the surface of the material, and the scanning range was 450 to 4000 cm−1. An XRD system (type D8/AXS) was used to determine the crystal structure of the material, with a 2θ range of 5–80° and a step of 4°/min. Differential scanning calorimetry (DSC, type 204HP) and thermogravimetric analysis (TGA, type Q2000) were used to analyze the decomposition behavior of materials at different temperatures. The surface structure and roughness of the Pebax1657 membrane and GO/SWCNT/Pebax1657 MMM were characterized by AFM (type Nano ManVS).

2.6. Gas Permeation Experiment

Using a self-assembled gas-separation experimental device, the pressure difference method was adopted to determine the separation performance of GO/SWCNT/Pebax1657 for single gases (CO2 and N2) and mixed gas (CO2, N2, CO) at different experimental temperatures and feed pressures. The separation equipment is shown in Figure 1. Permeability and the separation coefficient are important indicators for testing the separation performance of MMMs. The permeability to a single gas was calculated by Equation (1) [27]:
P = Q L A Δ p = 273 × 10 10 A T [ P 0 × 76 14.7 ] dp dt
The permeability to each component of the mixed gas was calculated by Equations (2)–(4) [28]:
P C O 2 = y C O 2 χ C O 2 273 × 10 10 760 V L A T [ P 0 × 76 14.7 ] dp dt
P N 2 = y N 2 χ N 2 273 × 10 10 760 V L A T [ P 0 76 14.7 ] dp dt
P CO = ( 1 − y N 2 − y CO 2 ) 1 − χ N 2 − χ CO 2 273 × 10 10 760 V L A T [ P 0 × 76 14.7 ] dp dt
where Q is the volumetric flow rate of permeate gas, cm3/s; Δp represents the pressure difference between the two sides of the MMM, mm/Hg; P represents the permeability, Barrer (1 Barrer = 1 × 10−10 (STP) cm·cm−2·s−s cmHg−1); V represents the volume of the chamber at the permeate side, cm3; L is the thickness of the MMM, cm; A represents the effective area of the MMM, cm2; T represents the experimental temperature, K; P0 is the initial gas feed pressure, psia; dp/dt was the rate of pressure increase at permeate side in steady state, cmHg/s; χ N 2 and χ C O 2 are the mole fractions of N2 and CO2 on the permeate side of the MMM, respectively; y N 2 and y CO 2 are the mole fractions of N2 and CO2 on the feed side of the MMM, respectively; and dp/dt represents the increase in pressure on the permeate side over time.
The ideal gas selectivity is calculated by Equation (5) [29]:
∂ A / B = P A P B
where PA and PB are the permeability of gases A and B, respectively.
The real separation coefficient represents the separation coefficient for mixed gases passing through the membrane and can be calculated by Equation (6) [30]:
∂ R = y A / y B ω A / ω B
where ωA and ωB indicate the mole fractions of components A and B on the air inlet side of the membrane, respectively; yA and yB separately denote the mole fractions of components A and B on the permeation side of the membrane.

3. Results and Discussion

3.1. Membrane Shape

Figure 2 shows the images of the prepared Pebax1657 and GO/SWCNT/Pebax1657. The pure Pebax1657 membrane was colorless and transparent and had relatively high toughness, fair elasticity, a smooth surface, and good tensile resistance, but the pure Pebax1657 membrane had poor dispersion and easily aggregated, which could lower the gas permeability Figure 2a,b show the GO/SWCNT/Pebax1657 MMM, which was black and opaque, with poor toughness and brittleness. Both sheet-like GO and CNTs increased the strength of the MMM.

3.2. SEM

Figure 3 shows the SEM images of SWCNTs, purified CNTs, GO, and GO/SWCNTs. Figure 3a shows the image of unpurified SWCNTs. They were approximately 3 μm long and had a tube diameter of approximately 8 nm. There were small amounts of impurities and catalysts between the tube walls, the ends were closed, and the aggregation was serious. The image of the SWCNTs purified by mixed acid shows that the aggregation phenomenon was considerably reduced, the CNTs were shortened, the closed ends were opened, and impurities and catalysts disappeared. Figure 3b,c show an SEM image of GO. After repeated ultrasonic exfoliation, there was less accumulation of layer structures, the layer spacing was considerably increased, the overall appearance was an irregular polygonal shape, and the exfoliation effect was good. Figure 3d shows the SEM image of a GO/SWCNT composite. There were lamellar GO and tubular SWCNTs, some CNTs were inserted between the layers of GO, and some were attached to the surface of GO through π − π bonds. The above demonstrates the successful preparation of the GO/SWCNT composite material.

3.3. TEM

Figure 4 shows the TEM images of SWCNTs, purified CNTs, GO, and GO/SWCNTs. Figure 4a shows that the original CNTs were entangled with each other, they were highly aggregated, the CNTs were irregularly distributed overall, the ends were smooth and closed, and the surface was attached with impurities such as catalysts, so purification treatment was needed. Figure 4b shows the TEM image of SWCNTs purified with mixed acid. The CNTs were shorter, their ends were opened, they had aggregated less, and they were in the shape of a short strip. There was single-layer and multi-layer GO, with wrinkles between layers, which increased the distance among layers. Figure 4c,d show the TEM image of the GO/SWCNT composite. The tubular SWCNTs were attached or embedded in the lamellar GO. The above findings show that the GO/SWCNT was successfully prepared.

3.4. FTIR

Figure 5 shows the FTIR spectra of GO, SWCNTs, the Pebax1657 membrane, and the GO/SWCNT/Pebax1657 MMM. The IR spectrum of GO (Figure 5a) showed that the two sharp characteristic peaks at 3436 cm−1 and 1400 cm−1 were the stretching vibration peak and the deformation peak of -OH, respectively. The characteristic peaks at 1629 cm−1 and 1714 cm−1 were the C=C stretching vibration peak and C=O stretching vibration peak on the benzene-like ring, respectively. The vibration peak at 1074 cm−1 was the vibration adsorption peak of group C-O-C, which originated from the carboxyl, hydroxyl, and epoxy groups of GO. The above results also directly demonstrate the successful preparation of GO [31]. The IR spectrum of SWCNTs showed that the wide and obvious characteristic peak at 3440 cm−1 corresponded to the -OH vibration peak [32], which was because large amounts of -OH and -COOH were introduced when CNTs were purified by the mixed acid. The peaks at 2020 cm−1 and 1589 cm−1 were the C=O vibration peak and C=C vibration peak, respectively; the presence of-CH3 at 2991 cm−1 indicated that the number of sp3-hybridized carbons in SWCNTs and the defects increased after the acid mixing, which indirectly shows that the mixed acid successfully purified the CNTs (Figure 5b).
The IR spectrum of the pure Pebax1657 membrane showed that the characteristic peak at 1103 cm−1 belonged to the stretching vibration peak of the flexible segment ether group (C-O-C). The peak at 1639 cm−1 was the carbonyl stretching vibration peak of the rigid segment H-N-C=O. The vibration peak at 1735 cm−1 was the carbonyl peak of the free group O-C=O [33,34]. The vibration peak at 3293 cm−1 reflected the stretching vibration of the N-H group of the amide fragment. The peak at 1542 cm−1 originated from the bending vibration of the N-H group. The double peaks near 2867 cm−1 corresponded to the asymmetric and symmetric stretching vibrations of the aliphatic chain C-H (Figure 5c) [35]. Figure 5d shows that the IR spectrum of the MMM was almost identical to that of the pure membrane, but the characteristic peaks of GO and SWCNTs were not clearly observed, which may have been due to the relatively low dopant content. Compared with the IR spectrum of pure Pebax1657 membrane, the peak of the carbonyl group of O-C=O at 1735 cm−1, the C-H peak at 2867 cm−1, and the C-O-C peak at 1103 cm−1 were all slightly shifted to the right, and the N-H peak at 3293 cm−1 was shifted slightly to the left, which was because the addition of GO and SWCNTs destroyed the bonds between the poly(ether-b-amide) molecules and reduced the crystallinity of the membrane. The above results all confirm the successful doping of GO and SWCNTs into Pebax1657. No new peak indicated that Pebax1657 was simply physically blended with the GO and SWCNTs without a chemical reaction occurring. SWCNTs and GO had weak interactions with Pebax molecular chains in the MMM, resulting in the shifts in the characteristic peaks.

3.5. XRD

Figure 6 shows the XRD patterns of GO, SWCNTs, the Pebax1657 membrane, and the GO/SWCNT/Pebax165 MMM. The XRD pattern of GO showed that there was a characteristic diffraction peak of GO at 2θ = 11.9° that corresponded to the (001) crystal plane of GO. The calculated GO spacing was 0.743 nm, indicating that the interlayer spacing of GO was considerably increased compared with the interlayer spacing of natural flake graphite (0.332 nm). This was because large amounts of -COOH and -OH were interspersed in the layers of GO during the preparation of GO, allowing the interlamellar spacing of GO to greatly increase. Figure 6a,b show that two sharp diffraction peaks at 2θ = 26° and 43° corresponded to the (002) and (100) crystal planes of SWCNTs, respectively [36,37]. The XRD pattern of the pure Pebax1657 membrane showed that the original Pebax1657 was a semicrystalline polymer with three characteristic diffraction peaks at 12°, 21°, and 24°. The diffraction peaks at 12° and 21° were the weak peaks formed by the flexible segment of PE, and the characteristic peak at 2θ = 24° was the strong peak due to the semicrystalline structure caused by the hydrogen bond formed between the PA amide groups of the rigid segment (Figure 6c) [38,39]. Figure 6d shows the XRD pattern of GO/SWCNT/Pebax1657. The characteristic peak of GO could be clearly seen near 2θ = 7.9°, but compared with the XRD pattern of GO, the characteristic peak of GO in the MMM showed a shift to a low angle (blue shift), indicating that the addition of GO destroyed the molecular force between the polymers, which enhanced the interaction between the polymer and GO and made the molecular chain more dispersed. In addition, a special broad peak near 2θ = 21° was due to the enhancement of Pebax1657, which was because the addition of GO and SWCNTs increased the molecular chain of the MMM, broke the hydrogen bond among the amide groups, reduced the crystallinity, and increased the free volume fraction [40,41]. In addition, there was a sharp characteristic peak near 2θ = 25°, suggesting that the SWCNTs were successfully doped into the polymer and that the crystallinity of the nanoparticles was not changed during the membrane preparation process.

3.6. TGA and DSC

Figure 7 shows the TGA and differential scanning calorimetry (DSC) curves of the Pebax1657 and GO/SWCNT/Pebax1657 membranes. Figure 7a shows that the weight loss interval of the Pebax1657 membrane was mostly between 188 °C and 559 °C, mainly due to the thermal decomposition of the poly(ether-b-amide) main chain and the evaporation of water in the membrane [42]. There were two main weight-loss intervals. The first was from 188.5 °C to 445.7 °C, where the weight loss was 79.22 wt%, which was mainly because the poly (ethylene oxide) polyether flexible segment slowly underwent thermal decomposition, and the thermal decomposition rate reached the maximum at 455.7 °C. The second interval was from 445 °C to 559 °C, where the weight loss was 20.78 wt%. The main reason for that weight loss was the thermal decomposition of the rigid segments of PA. The presence of PA segments in the molecular structure was indeed the reason for the good thermal stability of the polymer. The TGA curve of the GO/SWCNT/Pebax1657 MMM showed that there were three main weight-loss intervals. The first stage was from 120 °C to 440 °C, where the weight loss was 77.98 wt%, which had three main causes. The first was the loss of water among the GO sheets and the evaporation of the remaining absolute ethanol in the membrane; the second was the high-temperature thermal decomposition of hydrogen peroxide, sulfate, and nitrate ions that had not been washed away during the preparation of GO and the purification of CNTs; the third was the weight loss caused by the thermal decomposition of the flexible segment in the poly(ether-b-amide) main chain. The second stage was from 440 °C to 490 °C, where the weight loss was 4.57 wt%, mainly due to the decomposition and carbonization of a small amount of MMM and the removal of O and H in the form of small-molecule compounds. The third stage was from 495 °C to 594 °C, where the weight loss was 17.45 wt%, which was mainly due to the thermal decomposition of the rigid segment in the poly(ether-b-amide) molecular chain, the thermal decomposition of a small amount of amorphous carbon in the CNTs, and the thermal decomposition of oxygen-containing groups in GO and CNTs.
Figure 7c shows the DSC thermal performance curves of the pure Pebax1657 and GO/SWCNT/Pebax1657 membranes. The pure Pebax1657 membrane had two wide-ranging endothermic peaks at the temperature ranges of 186 °C–206 °C and 486 °C–563 °C, and the amount of absorbed heat at 186 °C–206 °C was 185 J, which was due to the evaporation of water and absolute ethanol. The amount of absorbed heat at 486 °C–563 °C was 3688 J, which was mainly caused by the thermal decomposition of the rigid segment in the Pebax1657 molecular chain. The DSC curve of the GO/SWCNT/Pebax1657 MMM showed that the adsorption peak broadened at 195 °C, which is the glass transition temperature and is usually related to the degree of rigidity of the polymer chain at the filler–polymer interface. In addition, the endothermic peak at a temperature near 426 °C was broadened, and the amount of absorbed heat was 628 J, which was mainly caused by the thermal decomposition of the flexible segment in the poly(ether-b-amide) and the amorphous carbon in the CNTs. The endothermic peak near 560 °C became obviously sharp, the amount of absorbed heat was 2907 J, and the width of the peak narrowed, which was because the membrane may be carbonized at high temperature.

3.7. AFM

AFM is a method of studying the surface roughness of mixed-matrix films. Figure 8a,b show the surface structure of the Pebax1657 membrane and the Pebax1657/SWCNT/GO mixed-matrix membrane. Its scanning range was 3 × 3 μm. In Figure 8, bright spots represent humps on the membrane surface, and dark areas represent pits on the membrane surface. There were more ups and downs on the surface of the Pebax film but fewer on the surface of Pebax1657/SWCNT/GO film. After three tests, we calculated that the standard deviations of Ra and Rq of Pebax1657 membrane were 7.09 and 9.39, and the standard deviations of Ra and Rq of GO/SWCNT/Pebax1657 membrane were 0.53 and 0.93, respectively.As can be seen from Table 1,the Ra and Rq of Pebax film are much larger than those of Pebax1657/SWCNT/GO mixed-matrix film.Therefore, the addition of SWCNT and GO reduces the surface roughness of the Pebax film; that is, the surface of the Pebax1657/SWCNT/GO hybrid matrix film is smoother.

3.8. Gas-Separation Performance

3.8.1. Single Gas Separation

Figure 9 shows the permeabilities of GO/SWCNT/Pebax1657 for CO2 and N2 at different temperatures and pressures. With the increase in temperature, the CO2 and N2 permeabilities of GO/SWCNT/Pebax1657 membrane decreased within a certain range. This phenomenon is due to the porosity of SWCNT itself and the gap generated by the interaction between SWCNT and GO, which makes the mixed-matrix membrane have the characteristics of a porous membrane to a certain extent. With increasing feed pressure, the permeabilities to CO2 and N2 gradually increased. We conducted a permeability experiment on pristine Pebax1657 membrane and found that under 0.1 Mpa, the permeability of pristine Pebax1657 membrane to CO2 and N2 was only 130 Barrer and 40 Barrer, respectively. The pristine Pebax1657 membrane had a permeability of 170 Barrer for CO2 and 95 Barrer for N2 at 0.2 Mpa. This is basically consistent with the pristine Pebax1657 membrane permeability reported in the literature [8], so we determined that the effect of the addition of GO and SWCNT was obvious. Since the two are completely not comparable, we only discuss the influence of temperature and air intake pressure on the mixed Pebax1657/SWCNT/GO matrix membrane here.
At the same temperature and the same feed pressure, the permeability to CO2 was greater than that to N2. According to molecular dynamics simulations, the diameters of CO2, N2, and CO are 0.33 nm, 0.64 nm, and 0.376 nm, respectively, so the diffusion of N2 and CO was subjected to greater resistance. The high permeability to CO2 was also derived from the quadrupole–dipole interaction between the CO2 and ethylene oxide (EO) units in Pebax, which is supported by the fact that the permeability to CO2 was higher than that for N2. With increasing temperature, the permeabilities to CO2 and N2 begin to fluctuate, which is because the permeability to CO2 is caused by its high condensability and the quadrupole–dipole interaction between CO2 and EO units. When the temperature increases, the CO2 adsorption of the polymer matrix decreases, so the permeability to CO2 fluctuates faster than the permeability to N2. With the increase in temperature, the permeability of the mixed-matrix membrane will fluctuate to a certain extent. At this point, GO begins to play a dominant role in molecular obstruction, and the mixed-matrix membrane doped with GO does not strictly obey the diffusion law of molecular dynamics diameter, so fluctuations occur. Moreover, the collision probability between gas molecules and GO is greater than that between gas molecules, so the permeabilities of CO2 and N2 fluctuate.
As the feed pressure increased, the permeabilities to CO2 and N2 increased considerably for the following two reasons. Firstly, with the increase in the feed pressure, the driving force of the gas molecules is enhanced, and the permeability is increased. Secondly, due to the increase of the concentration of gas molecules in the polymer, the plasticizing effect is caused. The plasticizing effect increases the mobility of the segment chains and the fractional free volume in the polymer, increasing the permeability of the membrane. Compared with pristine Pebax1657 membrane, the Pebax1657/SWCNT/GO mixed-matrix membrane has significantly improved permeability to single gas, which we believe is mainly due to the following reasons. First of all, the carbon nanotubes in absolute ethanol cannot completely disperse, so the carbon nanotubes have certain agglomeration, and the agglomeration phenomenon creates a narrow void that facilitates the transportation of gas molecules; furthermore, carbon nanotubes can absorb or contain more gas molecules due to their own defects (heteroatoms, holes, etc.). Secondly, the gas molecules can be rapidly diffused through the carbon nanotubes. Finally, GO and SWCNTs form a wide range of voids to promote the transport of gas molecules, and GO has a large specific surface, which can provide more adsorption sites. For the above reasons, the mixed-matrix membrane of Pebax1657/SWCNT/GO has better osmotic performance than the pristine Pebax1657 membrane.

3.8.2. Mixed-Gases Separation

Figure 10 shows the permeability of GO/SWCNT/Pebax1657 to mixed gas with changes in temperature and pressure. With the increase in temperature, the permeability of CO2, N2, and CO fluctuated within a certain range, the permeabilities to CO2, N2, and CO gradually increased. This was found to be the same as the permeability relationship of a single gas. However, at the same feed pressure and temperature, the permeabilities of CO2 and N2 in the mixture were slightly lower than that of the single gas. This is due to the possibility of the competitive adsorption of gas molecules when mixed gases are separated. We tested the Pebax1657 membrane under the same conditions. At 0.1 Mpa, the permeabilities of CO2 and N2 were only 130 Barrer and 40 Barrer, respectively, which were much different from the permeability of the Pebax1657/SWCNT/GO mixed-matrix membrane. Therefore, we believe that SWCNT and GO have obvious effects as dopants for polymer films. SWCNT provides a fast channel for gas molecules. The defect of SWCNT itself enables the mixed-matrix membrane to store more gas molecules. SWCNT and GO are intertwined, and nodules provide more spaces to promote the transport of molecular gases.
Under the same experimental temperature and the same feed pressure, the permeabilities of all components in the mixed gas were in the order of CO2 > N2 > CO. The permeability to CO was only in the tens to hundreds of molecules range. The separation of CO2 was due to the quadrupole–dipole interaction between CO2 and Pebax and the small molecular diameter. The separation of N2 and CO was the result of the combined effect of the small molecular diameters and the strong adsorption capacity [43]. When a mixed gas is separated, the separation coefficient is determined by the gas diffusion capacity, competitive adsorption, or both.

3.8.3. Selective Ability for Mixed Gases

The permeability and the separation coefficient of the GO/SWCNT/Pebax1657 MMM during the separation of the mixed gas were next obtained (Figure 11). When the temperature was 298 K and the feed pressure was 0.1 MPa, the permeabilities to all components in the mixed gas were as follows: CO2 (1806.2 Barrer), N2 (582.9 Barrer), and CO (136.8 Barrer), and the selectivity was as follows: α (CO2/CO) = 21.86, α(N2/CO) = 12.29, and α(CO2/N2) = 15.71. When the temperature was 298 K and the feed pressure was 0.15 MPa, the permeabilities to all components in the mixed gas were as follows: CO2 (1954.7 Barrer), N2 (630.9 Barrer), and CO (148 Barrer), and the selectivity was as follows: α (CO2/CO) = 20.44, α(N2/CO) = 11.27, and α(CO2/N2) = 16.03. When the temperature was 298 K and the feed pressure was 0.20 MPa, the permeabilities to all components in the mixed gas were as follows: CO2 (2439 Barrer), N2 (787 Barrer), and CO (184 Barrer), and the selectivity was as follows: α (CO2/CO) = 20.41, α(N2/CO) = 11.61, and α(CO2/N2) = 17.03. The results showed that at the same temperature, with increasing feed pressure, the selectivity for CO2/N2 slightly increased, but the selectivity for CO2/CO and N2/CO decreased slightly.By comparison with Robeson upper bound, the gas selectivity of Pebax1657/SWCNT/GO mixed matrix membrane (CO2/N2, CO2/CO, N2/CO) is higher than that of PEBAx membrane (CO2/N2, CO2/CO, N2/CO). In other words, the addition of SWCNT and GO dopants simultaneously improves the permeability and selection performance of the membrane and breaks through the Robeson upper bound to a certain extent.
GO/SWCNT/Pebax1657 exhibited high selectivity for gas separation in the mixed gas; as the feed pressure increased, the selectivity for each component in the mixed gas remained basically unchanged, so the increase in feed pressure was only reflected in the increase in permeability and had a minor effect on the separation performance. The differences in selectivity between CO2, N2, and CO were due to the different molecular diameters of the three gases, so the differences in selectivity for gas separation may be caused by configurational diffusion. This slight difference could have underlain the significant changes in the diffusion coefficient of the pore channel in the MMMs, resulting in the separation differences and thus relatively high separation selectivity. The GO/SWCNT/Pebax1657 MMM possessed regular nanochannels. The results showed that the GO/SWCNT/Pebax1657 MMM can separate N2 and CO2 from the mixed gas, and the separation performance for CO2/CO was the best, followed by N2/CO. The GO/SWCNT/Pebax1657 MMM could separate the inert gases N2 and CO2 from the blast furnace gas, thereby increasing the calorific value of CO, giving this membrane theoretical significance for the study of the secondary utilization of blast furnace gas.

4. Conclusions

In this paper, GO was prepared by the improved Hummer’s method, and a GO/SWCNT/Pebax1657 MMM was prepared by solution casting. SEM and TEM images showed that the lamellar GO and the tubular CNTs were intertwined, and the GO and SWCNTs to the Pebax matrix were added by simple physical mixing. AFM images showed that the addition of GO and SWCNTs could disrupt the accumulation of polymer matrix molecular chains, increase the surface roughness of the membrane, and reduce the crystallinity of the membrane. Gas-separation experiments showed that when the temperature was 298 K and the feed pressure was 0.2 MPa, the permeability of GO/SWCNT/Pebax1657 for CO2 reached 3233 Barrer, and the permeability to N2 reached 1153 Barrer. When the feed pressure was 0.2 MPa and the temperature was 298 K, the permeabilities of GO/SWCNT/Pebax1657 for CO2, N2, and CO in the mixed gas reached 2439 Barrer, 787 Barrer, and 184 Barrer, respectively. The selectivity of GO/SWCNT/Pebax1657 was in the order of α(CO2/CO) > α(CO2/N2) > α(N2/CO), which fully demonstrates that the GO/SWCNT/Pebax1657 MMM can effectively separate CO2 and N2 from blast furnace gas. This MMM has excellent gas permeability and selectivity and provides a new way to separate CO2 and N2 from blast furnace gas.

Author Contributions

L.L.J.: Methodology, Investigation, Funding acquisition. Y.X.C.: Writing review & editing, Writing original draft. X.G.H.: Software, Validation. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful for the financial support from the National Natural Science Foundation of China (52064036, 51764039), Talents innovation and entrepreneurship project of Lanzhou (2021-RC-36), Outstanding Youth Fund of Gansu Province (22JR5RA220), Basic Public Welfare Research Project of Zhejiang Province (LQ19E040006) and State key laboratory of advanced processing and recycling of non-ferrous metals, Lanzhou University of Technology (SKLAB02019013).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this article.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Gomes, C.D.N.; Jacquet, O.; Villiers, C.; Thuery, P.; Ephritikhine, M.; Cantat, T. A diagonal approach to chemical recycling of carbon dioxide: Organocatalytic transformation for the reductive functionalization of CO2. Angew. Chem. Int. Ed. 2012, 51, 187–190. [Google Scholar] [CrossRef] [PubMed]
  2. Sluijs, J.P.V.D.; Hendriks, C.A.; Blok, K. Feasibily of polymer membranes for carbon dioxide recovery from flue gases. Energy Convers. Manag. 1992, 33, 429–436. [Google Scholar] [CrossRef]
  3. Freeman, B.D.; Pinnau, I. Polymer Membranes for Gas and Vapor Separation. Chem. Mater. Sci. 1999, 733, 135–150. [Google Scholar]
  4. Chung, T.S.; Jiang, L.Y.; Li, Y.; Kulprathipanja, S. Mixed matrix membranes (MMMs) comprising organic polymers with dispersed inorganic fillers for gas separation. Prog. Polym. Sci. 2007, 32, 483–507. [Google Scholar] [CrossRef]
  5. Samarasinghe, S.A.S.C.; Chuah, C.Y.; Yang, Y.Q.; Bae, T.H. Tailoring CO2/CH4 separation properties of mixed-matrix membranes via combined use of two-and three-dimensional metal-organic frameworks. J. Membr. Sci. 2018, 557, 30–37. [Google Scholar] [CrossRef]
  6. Bondar, V.; Freeman, B.; Pinnau, I. Gas sorption and charaterization of poly (ether-b-amide) segmented block copolymers. J. Polym. Sci. Part B Polym. Phys. 2015, 37, 2463–2475. [Google Scholar] [CrossRef]
  7. Tocci, E.; Gugliuzza, A.; De Lorenzo, L.; Macchione, M.; Luca, G.D.; Drioli, E. Transoprt properties of a co-poly(amide-12-b-ethylene oxide) membrane: A comparative study between expermental and molecular modelling result. J. Membr. Sci. 2008, 323, 316–327. [Google Scholar] [CrossRef]
  8. Reijerkerk, S.R.; Knoef, M.H.; Nijmeijer, K.; Wessling, M. Poly(ethylene glycol) and poly(dimethyl siloxane): Combining their advantages into efficient CO2 gas separation membranes. J. Membr. Sci. 2010, 352, 126–135. [Google Scholar] [CrossRef]
  9. Lin, H.; Freeman, B.D. Gas solubility, diffusivity and permeability in poly (ethlene oxide). J. Membr. Sci. 2015, 239, 105–117. [Google Scholar] [CrossRef]
  10. Blume, I.; Pinnau, I. Composite Membrane, Method of Preparation and Use. U.S. Patent 4963165, 16 October 1990. [Google Scholar]
  11. Azizi, N.; Mohammadi, T.; Behbahani, R.M. Comparison of permeability performance of PEBAX-1074/TiO2, PEBAX-1074/SiO2 and PEBAX-1074/Al2O3 nanocomposite membranes for CO2/CH4 separation. Chem. Eng. Res. Des. 2017, 117, 177–189. [Google Scholar] [CrossRef]
  12. Chen, K.; Xu, K.; Xiang, L.; Dong, X.; Han, Y.; Wang, C.Q.; Sun, L.B.; Pan, Y.C. Enhance CO2/CH4 separation performance of mixed-matrix membranes through dispersion of sorption-selective MOF nanocrystals. J. Membr. Sci. 2018, 536, 360–370. [Google Scholar] [CrossRef]
  13. Dorosti, F.; Alizadehdakhel, A. Fabrication and investigation of PEBAX/FE-BTC, a high permeable and CO2 selective mixed matrix membrane. Chem. Eng. Res. Des. 2018, 136, 119–128. [Google Scholar] [CrossRef]
  14. Isanejad, M.; Mohammadi, T. Effect of a mine modification on morphology and performance of poly (ether-block-amide)/fumed silica nanocomposite membranes for CO2/CH4 separation. Mater. Chem. Phys. 2018, 205, 303–314. [Google Scholar] [CrossRef]
  15. Estahbanati, E.G.; Omidkhah, M.; Amooghin, A.E. Preparation and characterization of novel Ionic liquide/Pebax membranes for efficient CO2/light gases separation. J. Ind. Eng. Chem. 2017, 51, 77–89. [Google Scholar] [CrossRef]
  16. Lee, J.H.; Park, C.H.; Jung, J.P.; Kim, J.H.; Kim, J.H. Dual-phases all-polymeric membrane with graft copolymer filler for CO2 capture. Chem. Eng. J. 2017, 334, 939–947. [Google Scholar] [CrossRef]
  17. Robeson, L.M. The upper bound revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
  18. Robeson, L.M. Correlation of separation factor versus permeability for polymeric membranes. J. Membr. Sci. 1991, 62, 165–185. [Google Scholar] [CrossRef]
  19. Weng, T.H.; Tseng, H.H.; Wey, M.Y. Preparation and characterization of multiwalled carbon nanotube/PBNPI nanocomposite membrane for H2/CH4 separation. Int. J. Hydrog. Energy 2009, 34, 8707–8715. [Google Scholar] [CrossRef]
  20. Chen, H.; Sholl, D.S. Prediction of selectivity and flux for CH4/H2 separations using single walled carbon nanotubes as membranes. J. Membr. Sci. 2006, 269, 152–160. [Google Scholar] [CrossRef]
  21. Sholl, D.S.; Johnson, J.K. Making high-flux membranes with carbon nanotubes. Science 2006, 312, 1003–1004. [Google Scholar] [CrossRef]
  22. Kim, S.; Jinschek, J.R.; Chen, H.; Sholl, D.S.; Marand, E. Scalable fabrication of carbon nanotube/polymer nanocomposite membranes for high flflux gas transport. Nano Lett. 2007, 7, 2806–2811. [Google Scholar] [CrossRef] [PubMed]
  23. Dreyer, D.R.; Park, S.; Bielawsk, C.W.; Ruoff, R.S. The chemistry of graphene oxide. Chem. Soc. Rev. 2009, 39, 228–240. [Google Scholar] [CrossRef] [PubMed]
  24. Yang, Y.H.; Bolling, L.; Priolo, M.A.; Grunlan, J.C. Super gas barrier and selectivity of graphene oxide-polymer multilayer thin fifilms. Adv. Mater. 2013, 25, 503–508. [Google Scholar] [CrossRef] [PubMed]
  25. Kim, H.; Miura, Y.; Macosko, C.W. Graphene/polyurethane nanocomposites for improved gas barrier and electrical conductivity. Chem. Mater. 2010, 22, 3441–3450. [Google Scholar] [CrossRef]
  26. Zulhairun, A.K.; Ismail, A.F. The role of layered silicate loadings and their dispersion states on the gas separation performance of matrix membrane. J. Membr. Sci. 2014, 468, 20–30. [Google Scholar] [CrossRef]
  27. Chua, M.L.; Xiao, Y.C.; Chung, T.S. Modlfying the molecular structure and gas separation performance of themally labile polyimide-based membranes for enhanced natural gas purifification. Chem. Eng. Sci. 2013, 104, 1056–1064. [Google Scholar] [CrossRef]
  28. Jiang, L.L.; Li, C.T.; Yu, H.T.; Zou, Z.S.; Hou, X.G.; Shen, F.M.; Li, C.T.; Yao, X.Y. Amino and thiol modified magnetic multi-walled carbon nanotubes for the simultaneous removal of lead, zinc, and phenol from aqeous solutions. Appl. Surf. Sci. 2016, 369, 398–416. [Google Scholar] [CrossRef]
  29. Chua, M.L.; Xiao, Y.C.; Chung, T.S. Effects of thermally labile saccharide units on the gas separation performance of highly permeable polyimide membranes. J. Membr. Sci. 2012, 415, 375–382. [Google Scholar] [CrossRef]
  30. Zhu, J.C.; Meng, X.X.; Zhao, J.P.; Jin, Y.Y.; Zhang, N.T.; Sunarso, S.G.; Liu, J.K.; Liu, S. Facile hydrogen/nitrogen separation through graphene oxide membranes supported on YSZ ceramic hollw fibers. J. Membr. Sci. 2017, 535, 143–150. [Google Scholar] [CrossRef]
  31. Chua, M.L.; Shao, L.; Low, B.T.; Xiao, Y.; Chung, T.S. Polytheramine-polyhedral oligomeroc silsequioxane organin-inorganic hybrid membranes foe CO2/H2 and CO2/N2 separation. J. Membr. Sci. 2011, 385, 40–48. [Google Scholar] [CrossRef]
  32. Zhang, C.; Fu, L.; Liu, N.; Liu, M.; Wang, Y.; Liu, Z. Synthesis of nitrogen-doped graphene using embedded carbon and nitrogen sources. Adv. Mater. 2011, 23, 1020–1024. [Google Scholar] [CrossRef]
  33. Dong, G.; Hou, J.; Wang, J.; Zhang, Y.T.; Liu, J.D. Enhanced CO2/N2 separation by porous reduced graphene oxide/Pebax mixed matrix membranes. J. Membr. Sci. 2016, 520, 860–868. [Google Scholar] [CrossRef]
  34. Jomekian, A.; Bazooyar, B.; Behbahani, R.M.; Mohammadi, T.; Kargari, A. Ionic liquid-modified Pebax 1657 membrane filled by ZIF-8 particles for separation of CO2 from CH4, N2 and H2. J. Membr. Sci. 2017, 524, 652–662. [Google Scholar] [CrossRef]
  35. Estahbanati, E.G.; Omidkhah, M.; Amooghin, A.E. Interfacial Design of Ternary Mixed Matrix Membranes Containing Pebax 1657/Silver-Nanopowder/[BMIM][BF4] for Improved CO2 Separation Performance. ACS Appl. Mater. Interfaces 2017, 9, 10094–10105. [Google Scholar] [CrossRef]
  36. Rostamian, R.; Behnejad, H. A comparative adsorption study of sulfamethoxale onto graphene and graphene oxide nanosheets through equilibrium, kinetic and thermodynamic modeling. Process Saf. Environ. Prot. 2016, 102, 20–29. [Google Scholar] [CrossRef]
  37. Li, W.; Wang, X.; Chen, Z.; Waje, M.; Yan, Y.S. Carbon nanotube film by filtration as cathode catalyst support for proton-exchange membrane fuel cell. Langmuir 2005, 21, 9386–9389. [Google Scholar] [CrossRef]
  38. Li, F.Y.; Li, Y.; Chung, T.S.; Kawi, S. Facilitated transport by hybrid POSS–Matrimid–ZN2+ nanocomposite membranes for the separation of natural gas—ScienceDirect. J. Membr. Sci. 2010, 356, 14–21. [Google Scholar] [CrossRef]
  39. Zornoza, B.; Téllez, C.; Coronas, J. Mixed matrix membranes comprising glassy polymers and dispersed mesoporous silica spheres for gas separation. Fuel Energy Abstr. 2011, 368, 100–109. [Google Scholar] [CrossRef]
  40. Dan, Z.; Jiazhong, R. High CO2 separation performance of Pebax/CNTs/GTA mix matrix membranes. J. Membr. Sci. 2016, 61, 114–711. [Google Scholar]
  41. Bondar, V.I.; Freeman, B.D.; Pinnau, I. Gas transport properties of poly(ether-b-amide) segmented block copolymers. J. Polym. Sci. Part B Polym. Phys. 2015, 38, 2051–2062. [Google Scholar] [CrossRef]
  42. Shahid, S.; Nijmeijer, K. High pressure gas separation performance of mixed-matrix polymer membranes containing mesoporous Fe(BTC). J. Membr. Sci. 2014, 459, 33–44. [Google Scholar] [CrossRef]
  43. Lin, H.; Freeman, B.D. Materials selection guidelines for membranes that remove CO2 from gas mixtures. J. Mol. Struct. 2005, 739, 57–74. [Google Scholar] [CrossRef]
Coatings 12 01851 g001 550

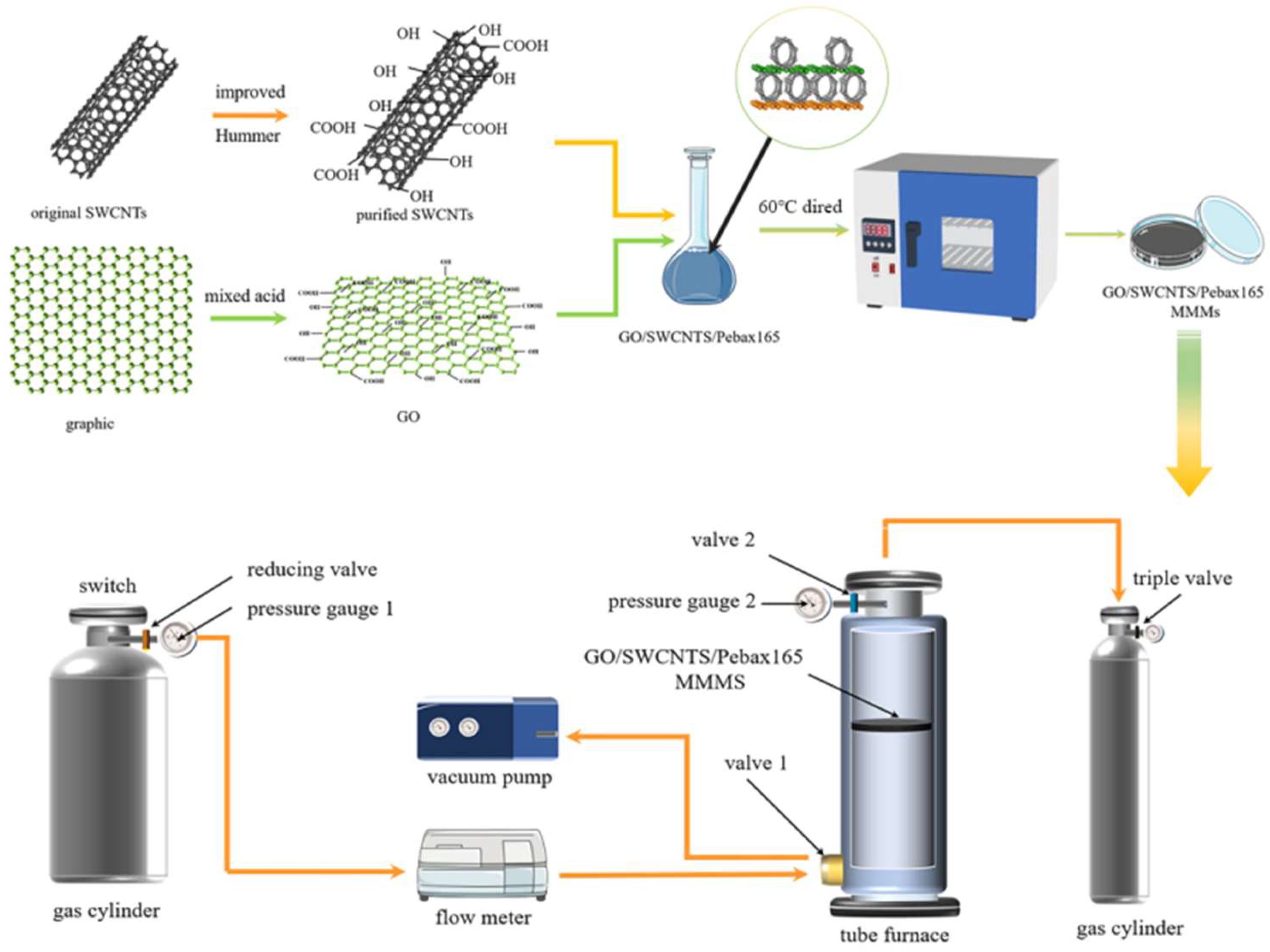

Figure 1. The preparation of MMMs and the performance of gas separation.
Figure 1. The preparation of MMMs and the performance of gas separation.
Coatings 12 01851 g001
Coatings 12 01851 g002 550

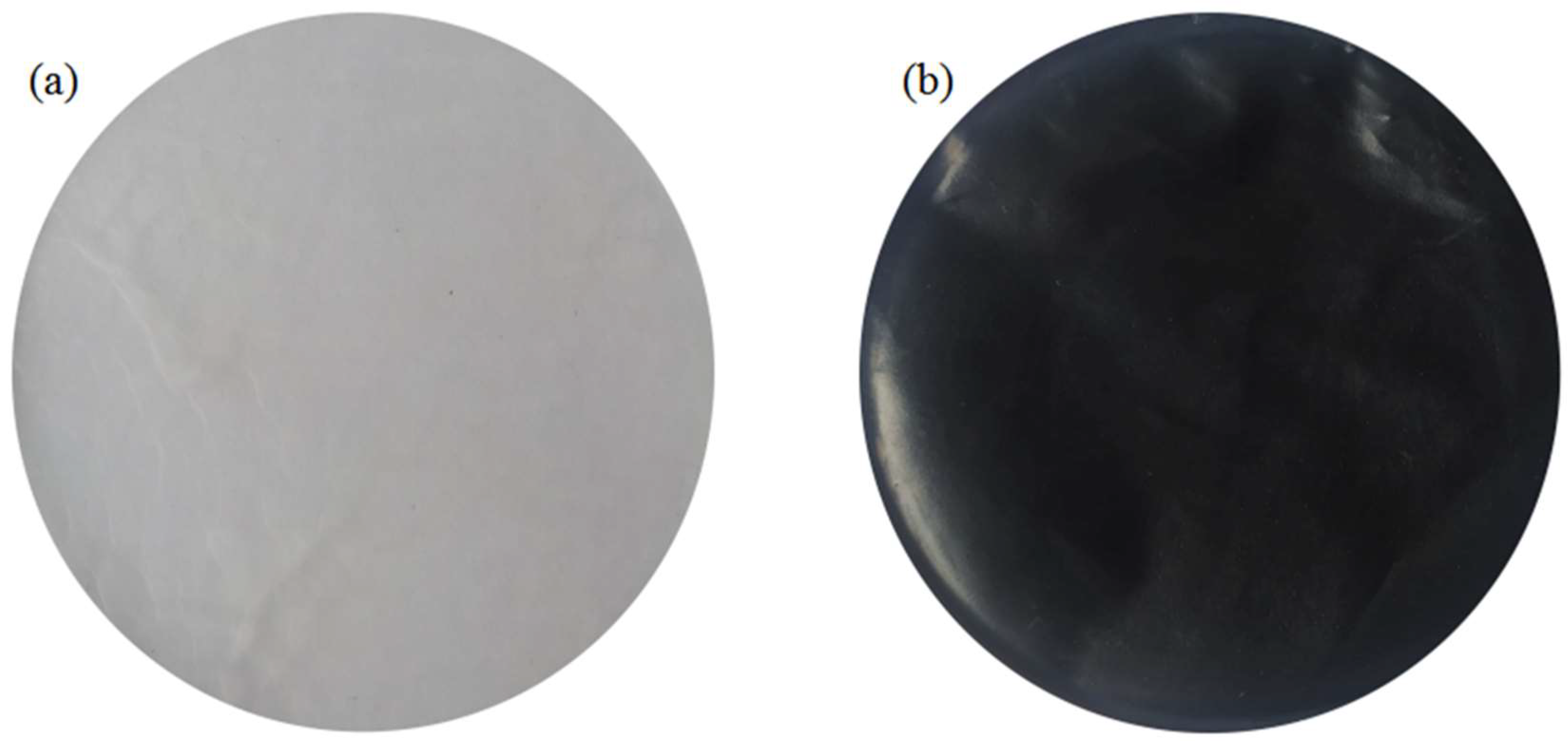

Figure 2. Digital photos of (a) pure Pebax membrane, (b) GO/SWCNTs/Pebax1657 membrane.
Figure 2. Digital photos of (a) pure Pebax membrane, (b) GO/SWCNTs/Pebax1657 membrane.
Coatings 12 01851 g002
Coatings 12 01851 g003 550
Figure 3. The SEM images of (a) original SWCNTs, (b) purify SWCNTs, (c) GO, (d) GO/SWCNTs.
Figure 3. The SEM images of (a) original SWCNTs, (b) purify SWCNTs, (c) GO, (d) GO/SWCNTs.
Coatings 12 01851 g003
Coatings 12 01851 g004 550
Figure 4. The TEM images of (a) original SWCNTs, (b) purify SWCNTs, (c) GO, (d) GO/SWCNTs.
Figure 4. The TEM images of (a) original SWCNTs, (b) purify SWCNTs, (c) GO, (d) GO/SWCNTs.
Coatings 12 01851 g004
Coatings 12 01851 g005 550

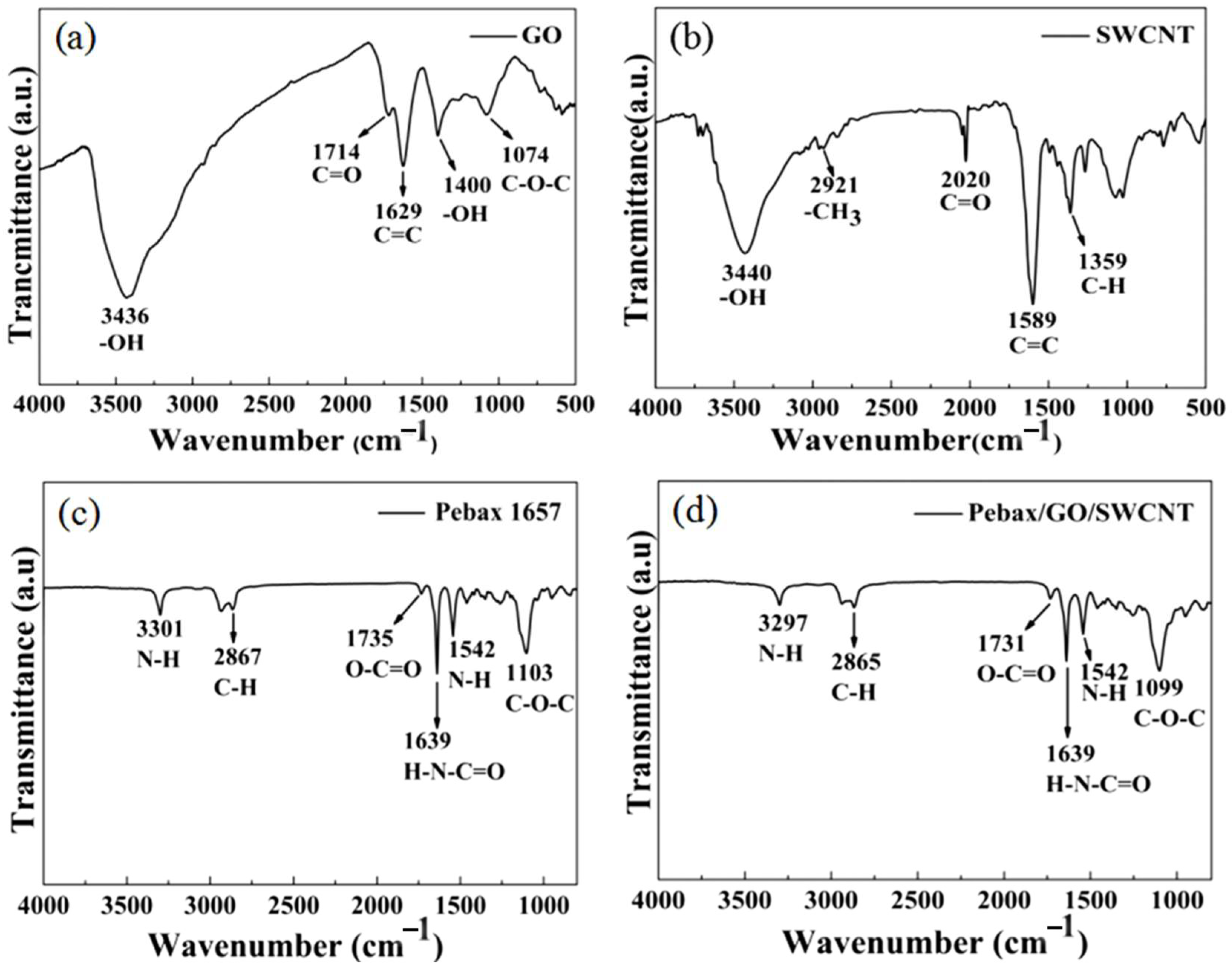

Figure 5. FTIR of (a) GO, (b) SWCNTs, (c) pure Pebax 1657, (d) GO/SWCNTs/Pebax1657.
Figure 5. FTIR of (a) GO, (b) SWCNTs, (c) pure Pebax 1657, (d) GO/SWCNTs/Pebax1657.
Coatings 12 01851 g005
Coatings 12 01851 g006 550

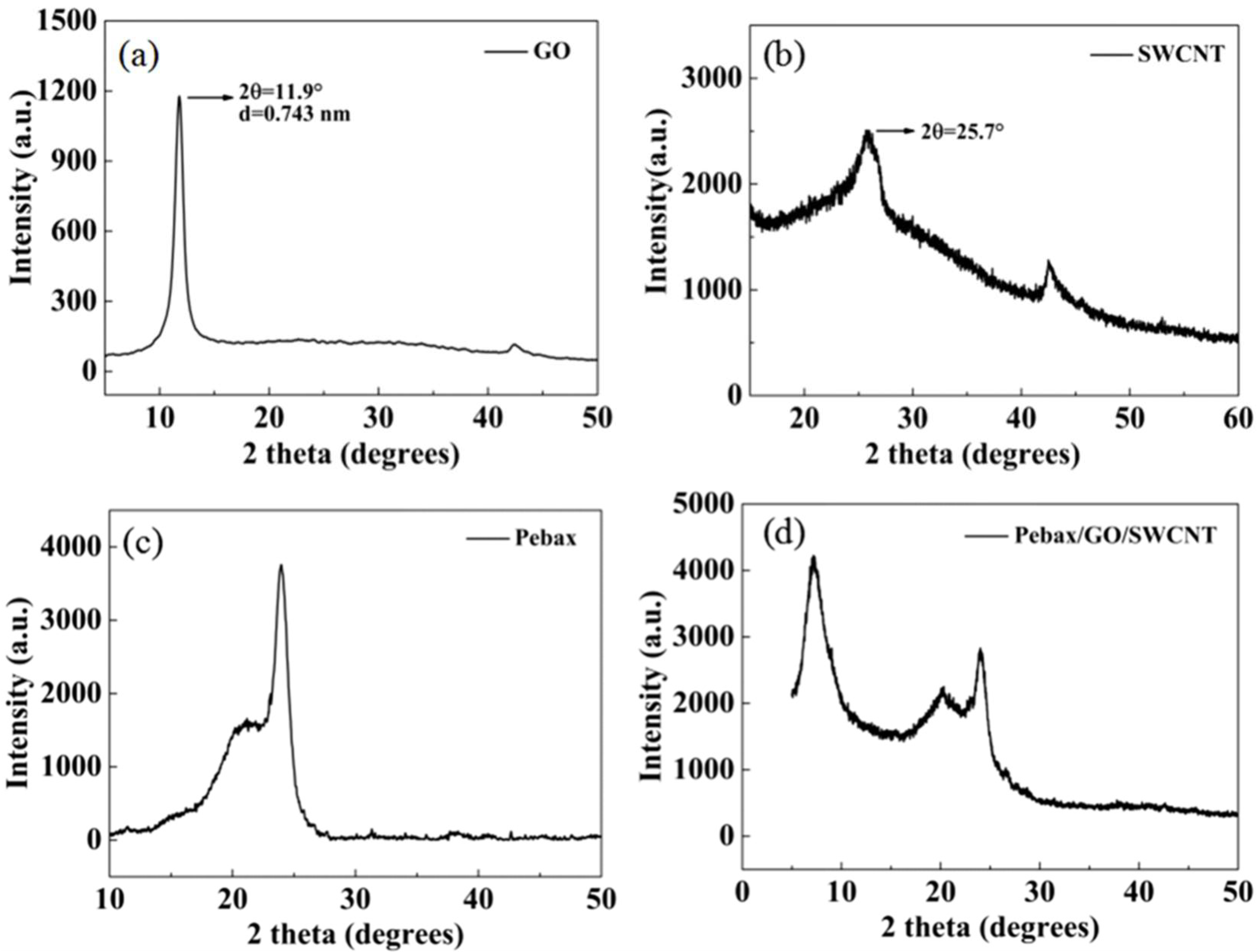

Figure 6. XRD of (a) GO, (b) SWCNTs, (c) pebax1657, (d) GO/SWCNTs/Pebax1657.
Figure 6. XRD of (a) GO, (b) SWCNTs, (c) pebax1657, (d) GO/SWCNTs/Pebax1657.
Coatings 12 01851 g006
Coatings 12 01851 g007 550

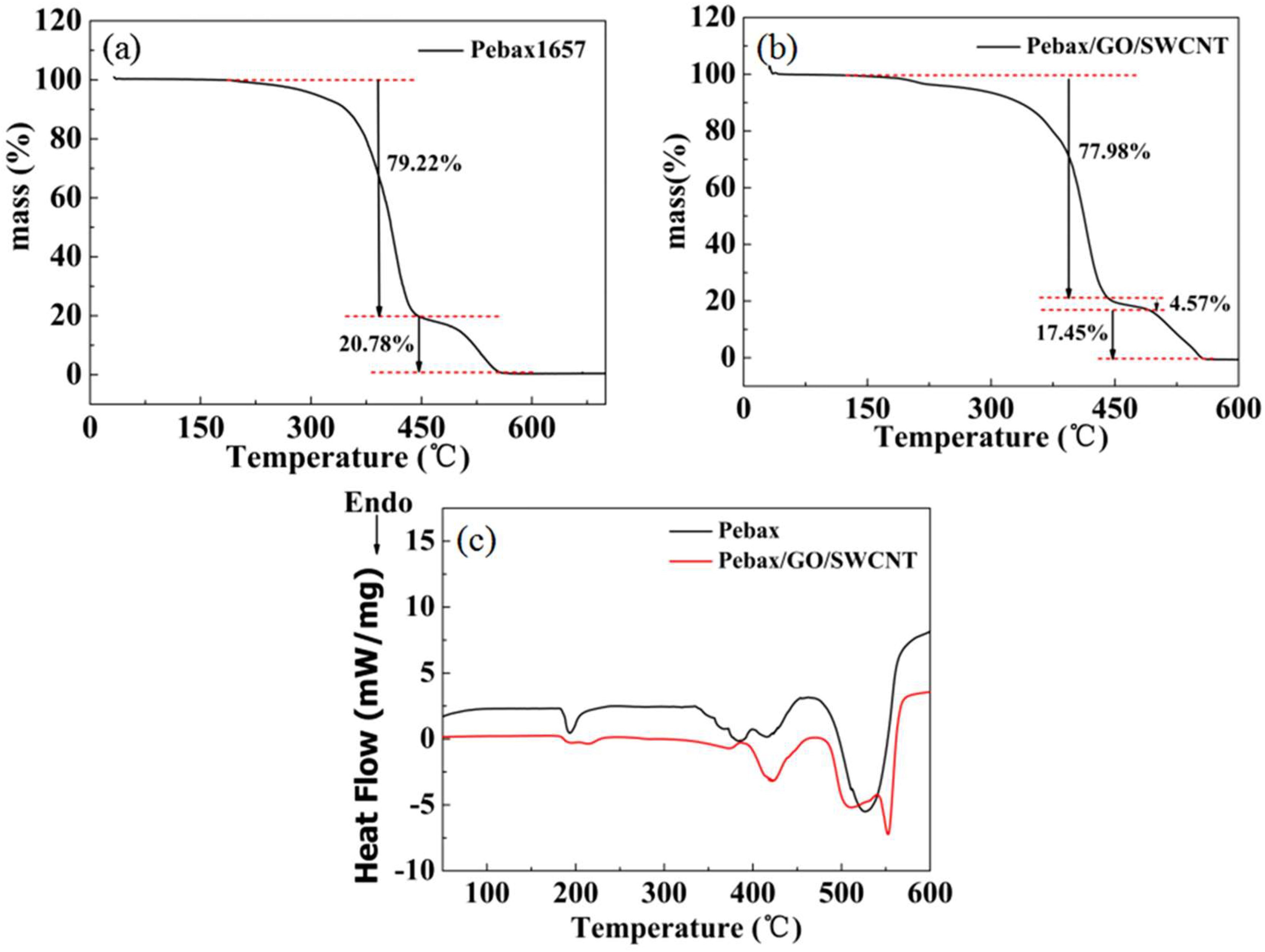

Figure 7. TGA of (a) pure Pebax1657, (b) GO/SWCNTs/Pebax1657 membranes, DSCof (c) pristine Pebax and Pebax/GO/SWCNT.
Figure 7. TGA of (a) pure Pebax1657, (b) GO/SWCNTs/Pebax1657 membranes, DSCof (c) pristine Pebax and Pebax/GO/SWCNT.
Coatings 12 01851 g007
Coatings 12 01851 g008 550
Figure 8. AFM images of the surface (a) pristine Pebax membrane; (b) Pebax/GO/SWCNTs membrane (range of scanning 3 × 3 μm).
Figure 8. AFM images of the surface (a) pristine Pebax membrane; (b) Pebax/GO/SWCNTs membrane (range of scanning 3 × 3 μm).
Coatings 12 01851 g008
Coatings 12 01851 g009 550

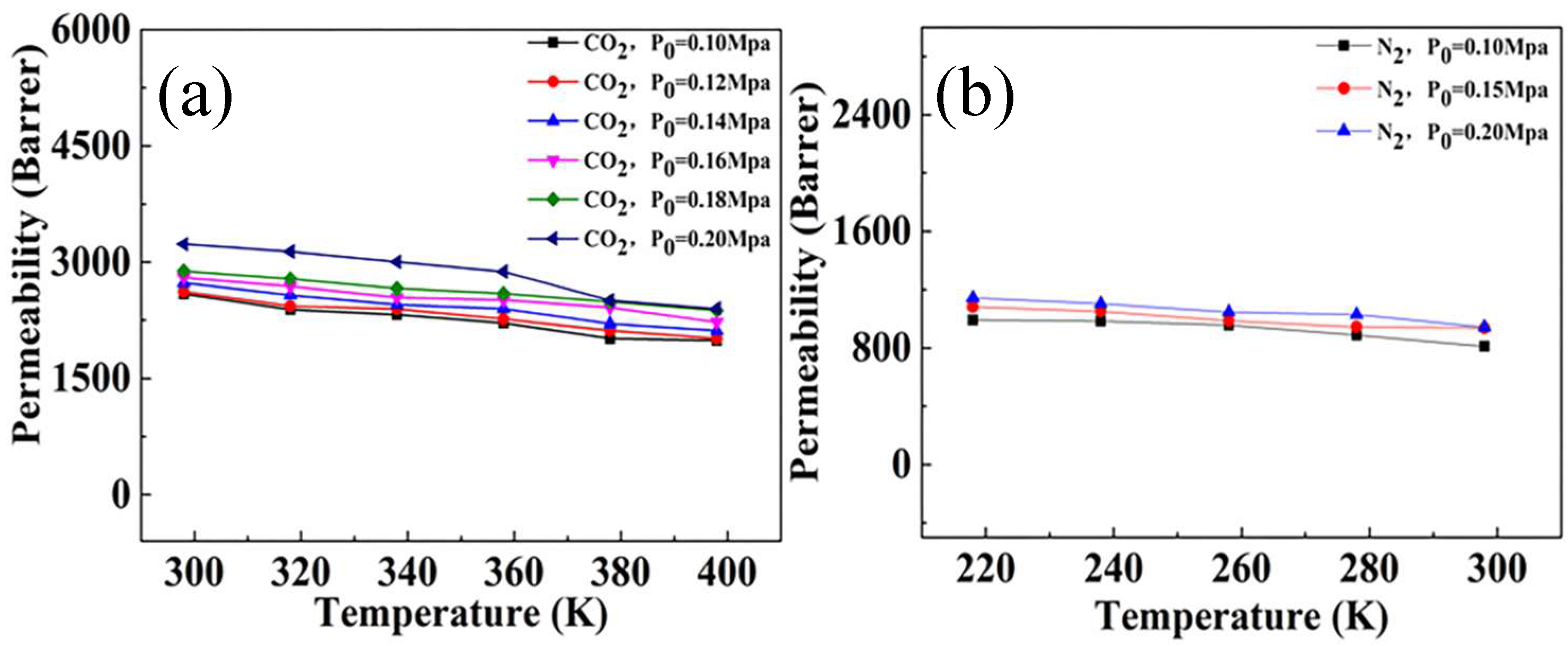

Figure 9. Gas separation performance of GO/SWCNTs/Pebax1657 for (a) CO2 and (b) N2 with the increase of temperature and pressure.
Figure 9. Gas separation performance of GO/SWCNTs/Pebax1657 for (a) CO2 and (b) N2 with the increase of temperature and pressure.
Coatings 12 01851 g009
Coatings 12 01851 g010 550
Figure 10. Gas separation performance of Pebax/GO/SWCNTs for mix gas (N2 60%, CO2 20%, N2 20%), (a) CO2, (b) N2, (c) CO.
Figure 10. Gas separation performance of Pebax/GO/SWCNTs for mix gas (N2 60%, CO2 20%, N2 20%), (a) CO2, (b) N2, (c) CO.
Coatings 12 01851 g010
Coatings 12 01851 g011 550

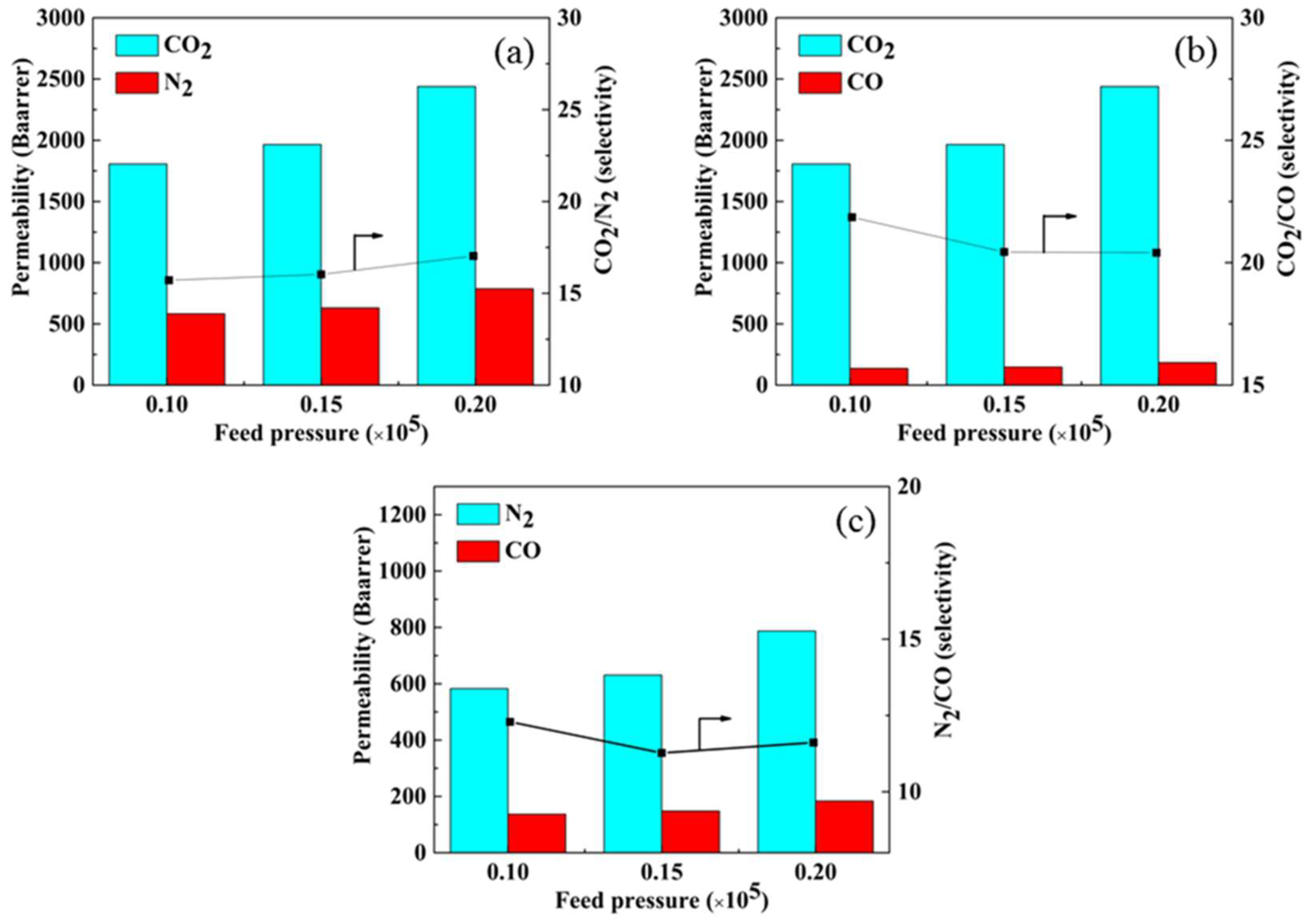

Figure 11. Gas selectivity of Pebax/GO/SWCNTs MMMs for mixed gas (N2 60%, CO2 20%, N2 20%), (a) CO2/N2, (b) CO2/CO, (c) N2/CO.
Figure 11. Gas selectivity of Pebax/GO/SWCNTs MMMs for mixed gas (N2 60%, CO2 20%, N2 20%), (a) CO2/N2, (b) CO2/CO, (c) N2/CO.
Coatings 12 01851 g011
Table
Table 1. Surface roughness parameters of Pebax1657 membranes and MMMs.
Table 1. Surface roughness parameters of Pebax1657 membranes and MMMs.
MembranesRoughness
Ra (nm)Rq (nm)
Pebax165724.3330.83
Pebax1657/SWCNT/GO7.7710.22
