Next Article in Journal
Effect of Chitosan/Nano-TiO2 Composite Coating on the Postharvest Quality of Blueberry Fruit
Next Article in Special Issue
A Multi-Technique Approach to Evaluate the Surface Properties of Heat-Treated Chestnut Wood Finished with a Water-Based Coating
Previous Article in Journal
Optical Constant and Conformality Analysis of SiO2 Thin Films Deposited on Linear Array Microstructure Substrate by PECVD
Previous Article in Special Issue
Increasing the Strength of the Glue Line in the Production of Thermally Modified Wood Paneling


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Potential Use of the Pigments from Scytalidium cuboideum and Chlorociboria aeruginosa to Prevent ‘Greying’ Decking and Other Outdoor Wood Products

by
Sarath M. Vega Gutierrez
1,*,
Derek W. Stone
2,
Rui He
1,
Patricia T. Vega Gutierrez
1,
Zielle M. Walsh
3 and
Seri C. Robinson
1
1
Wood Science and Engineering, Oregon State University, Corvallis, OR 97331, USA
2
Chemical, Biological and Environmental Engineering, Oregon State University, Corvallis, OR 97330, USA
3
College of Science, Oregon State University, Corvallis, OR 97330, USA
*
Author to whom correspondence should be addressed.
Coatings 2021, 11(5), 511; https://doi.org/10.3390/coatings11050511
Submission received: 5 March 2021 / Revised: 5 April 2021 / Accepted: 20 April 2021 / Published: 26 April 2021
(This article belongs to the Special Issue Physicochemical Surface Treatment of Wood Raw Materials)

Abstract

:
UV-light degradation of wood is one of the top reasons for consumer replacement of outdoor wooden structures. This type of degradation is seldom mechanical, and is instead often motivated by loss of aesthetics (graying). There are numerous commercial products available on the market that deal with this loss of color, many of which contain added pigments to ‘rejuvenate’ or ‘revitalize’ greyed wood. These pigments are almost uniformly synthetic. In contrast, pigments from wood decay fungi (spalting), which have been used in woodworking since the 1400s (intarsia), have remarkable optical (UV-light resistance) properties due to their naphthoquinonic configuration. In recent years the pigments made from these fungi have been extracted and tested across numerous substrates, from solar cells to textile dyes. In this work, researchers extracted pigments from Scytalidium cuboideum (red pigmentation) and Chlorociboria aeruginosa (blue-green pigmentation), solubilized the pigments in raw linseed oil, and tested the resulting solution on samples of Douglas-fir (Pseudotsuga menziesii) and western white pine (Pinus monticola). These mixtures were compared against a ‘stain and coat’ treatment (utilizing an aniline stain and coated with raw linseed oil), raw linseed oil, and untreated wood. The wood samples were then placed in an accelerated weathering machine (Q-UV) following the ASTM G154 standard, for 500 and 1000 h. The results showed that while no visible color change occurred to the wood when the pigmented oil was applied, the red pigment oil significantly lowered the coating degradation for both wood types at an exposure of 500 h. The results show the potential applications for fungal pigments in the wood coating industry, as it offers an increased coating service life. As there is a shift to renewable products, the pigments from wood decay fungi show potential as additives for wood coatings.

1. Introduction

Wood weathering begins with UV-light degradation of the lignin and water erosion. These two factors create spaces that allow entrance of fungi, bacteria, and insects [1] into the wood and accelerate its degradation. More importantly for consumers, UV-degradation causes ‘greying’ of wood, which decreases its aesthetic value [2].
Many products are available on the market to extend the ‘natural’ color of wood components. The most common are coatings [3], which are especially popular for outdoor decking and furniture. Most of the coatings currently available in the market offer UV-light protection and water resistance and often a pigment additive that helps to cover the greying. These coatings are usually non-renewable chemical formulations (with moderate content of volatile organic compounds) that use titanium dioxide as an active ingredient [4]. Most of the coatings containing titanium dioxide (or other inorganic UV-light blockers) require two layers of coating as well as yearly reapplications [5]. There is also evidence of leaching of components like titanium dioxide and silica from paints and coatings [6]. With raising awareness about chemicals like titanium dioxide impact in water life (coral reefs bleaching, etc.) [7], researchers are looking for possible replacements, with a special focus on renewable compounds. One of these potential alternatives corresponds to the pigments produced by Scytalidium cuboideum (Sacc. and Ellis) Singler and Kang, and Chlorociboria aeruginosa (Oeder) Seaver ex C.S. Ramamurthi, Korf, and L.R. Batra. Both of these fungi fall under the classification of ‘spalting fungi’.
Spalting fungi are wood decay organisms that cause an internal color change. These color changes can occur due to the degradation of lignin (caused by white rot fungi), which results in wood having a lighter color or ‘bleached’ appearance [8]. A second type, zone-lines, are produced by somatic incompatibility [9] or dehydration (these lines are mostly produced by white rot fungi and mostly composed of melanin) [10,11]. The third and last type corresponds to pigmenting fungi, which are mostly soft rot Ascomycetes. This group is of special interest, as the pigments are produced by the secondary metabolism that can create a wide array of pigmentation in wood [8,12,13]. One of these fungi is Chlorociboria spp., which generates a blue-green color (produced by the metabolite xylindein) in infected wood [14,15]. Other wood pigmenting fungi are Scytalidium ganodermophthorum Kang, Sigler, Lee and Yun [16], and Scytalidium cuboideum [17]. The first one produces an unidentified yellow pigment, whereas the second one produces red pigmentation.
For this particular study, the pigments from C. aeruginosa and S. cuboideum were of special interest as they are known to have long-lasting color stability. This can be seen well in wood art pieces from the 1400s to 1700s that still show their vibrant blue-green color (corresponding to C. aeruginosa) [14,18,19]. Research on the pigments produced by these fungi has shown that they have potential use as a replacements for anilines, and have been previously tested for UV-light resistance with positive results (in wood, textiles, and opto-electronic devices) [20,21,22]. The pigment from S. cuboideum was recently fully identified as an organic crystal named ‘dramada’ [23]. Previous to the final description of this compound, the pigment was used under the name draconin red, and its potential applications involved its use as a wood [24], and textile colorant [25]. UV-light resistance tests performed by Hinsch [26] on textiles dyed with this pigment, showed that it maintained its red coloration, even after machine washing and crocking. These pigments have also showed low to no toxicity in their purified forms [27] which compared to other pigments can allow for their utilization in a wide array of applications.
For centuries, the use of oils from flax (Linum usitatissimum L.), tung (Vernicia fordii (Hemsl.) Airy Shaw), and others, have been part of the formulations of varnishes and other types of coatings [28,29]. Flax oil (linseed oil) was used by the ancient Egyptians as an embalming element due to its hardening properties, and there are historical records that point its use as a coating by the ancient Romans and Greeks [30]. For many centuries coating formulations have contained various pigments and linseed oil, but advances within the polymer field and the broaden use of latex eventually replaced linseed oil in the coatings industry [31]. Linseed oil is making a comeback, however, with the growing in renewable and/or natural coatings [32].
Recent studies have been performed into the potential use of linseed oil as a fungal pigment carrier, focusing on testing renewable and non-toxic carriers for spalting pigments, which are traditionally caried in solvents such as dichloromethane (DCM), chloroform, and acetone. These solvents can be hazardous and deeply limit the use of spalting pigments outside a laboratory [33]. Previous research determined that linseed oil could be used as a carrier for spalting pigments, and was tested with S. cuboideum as a potential waterproofing coatings for textiles [34]. The results for these studies determined that the pigments remained stable in raw linseed oil [33].
Accelerated weathering is widely used in the material coating sciences, as it allows a rapid and representative evaluation of a material against UV-light, moisture, temperature change, and water exposure. This method is used specially in the formulation stage of coatings, as it allows modifications in the coatings ingredients (by showing potential defects) in a relatively short span of time [35,36]. Although this method is reliable, it does not replace long-term evaluations under natural conditions, as it does not includer biological factors (fungi, insects, etc.) [1].
The purpose of this research was to determine the suitability of two spalting pigments—xylindein from Chlorociboria species and dramada from Scytalidium cuboideum—as UV degradation protectors when carried in raw linseed oil, specifically targeting the outdoor decking market. Results from this study will determine if these two common spalting pigments offer long-lasting UV protection to wood in-service, not just wood indoors and in protected museum works. If successful, these pigments would offer a natural, renewable coating additive option for decking preservative companies who wish to move away from synthetic compounds.

2. Materials and Methods

As a general overview, the pigment xylindein from Chlorociboria aeruginosa and dramada from Scytalidium cuboideum were solubilized in raw linseed oil and then applied to western white pine (Pinus monticola) and Douglas-fir (Pseudotsuga menziesii). The treated wood was placed in a Q-UV accelerated weathering machine for two set times—500 and 1000 h. A second set of samples were treated with raw linseed oil and aniline dyes, and also exposed to weathering. Untreated controls were also included. The specifics of the testing can be found below.

2.1. Wood

Western white pine (Pinus monticola (Douglas ex D. Don) Rydberg) and Douglas-fir (Pseudotsuga menziesii (Mirb.) Franco) wood were cut to 4.5 cm × 4.5 cm × 15 cm. The samples were conditioned at 12% moisture content before the start of the test. Four repetitions were done per treatment.

2.2. Fungal Pigments

Fungal strains of Scytalidium cuboideum UAMH 11,517 and Chlorociboria aeruginosa UAMH 11,656 were grown in wood mended malt agar plates (2% MEA combined with white rotted wood chips from sugar maple (Acer saccharum Marshall), following the procedure set by Robinson et al. (2009) [37].
After 8 weeks of growth for S cuboideum and 16 weeks for C. aeruginosa, the plates were placed in a fume hood at room temperature (21 °C) to dehydrate. Once the plates were dry, they were manually ground to obtain small clusters of wood chips. Then, the wood chips were placed in an Erlenmeyer flask with a ratio of 30 mL of dichloromethane (DCM) per ground plate. The flasks were placed on a stir plate for 30 min, and then the content was filtered using a VWR 415 filter paper. The wood chips were then placed again in the flask, to repeat this process two more times. Once that the all the pigments were collected in DCM, each pigment was standardized to the CIELab values set by Robinson et at. (2014). These values were L* = 82.28, a* = −11.06, b* = −5.40 for C. aeruginosa, and L* = 82.32, a* = 26.84, b* = 13.19 for S. cuboideum. Further studies on the crystal (dramada) produced by S. cuboideum [38] determined that the L*a*b* values correspond to a concentration of 0.73 mM.

2.3. Coating Preparation

2.3.1. Linseed oil with Fungal Pigments

The mixture of Sunnyside raw linseed oil with the fungal pigments made considering a 1:1 ratio previously set by Robinson et al. (2017) [33]. For this, one liter of each pigment was mixed with one liter of raw linseed oils separately. The beakers containing the mixtures were then placed on a stir plate and covered with a glass square in a fume hood. The mixtures were left to stir until all the DCM was evaporated. The evaporation process took between five to eight days.

2.3.2. Aniline

J. E. Moser’s peacock blue and cherry red anilines were prepared as instructed by the manufacturer, by diluting 56 g of aniline powder in 950 mL of distilled water. The mixture was made in a beaker, and then placed on a stir plate for 48 h to reach a complete dilution of the pigment.

2.4. Coating Application

2.4.1. Linseed oil with Fungal Pigments

The pigment mixture was placed on a stir plate for 30 min before applying it to the wood. This step was done to reach coating homogeneity. After this step, the coating was applied using a foam brush of 2.54 cm of width. Each wood piece had three coats, with a 24 h wait between each layer. After the final layer as applied, the samples were let dry for 48 h.

2.4.2. Aniline Application

Two layers of aniline solution were applied on each piece of wood, with an interval of 24 h between them. After the last layer of aniline was applied, the wood was left to dry for 48 h. After that, three layers of raw linseed oil were applied, with a 24 h interval between layers. After the final oil coating, the wood was left to dry for 48 h.

2.4.3. Linseed Oil

Each oil control set was coated three times with Sunnyside raw linseed oil with a 24 h interval between each layer. After the final coating as applied the wood was left to dry for 48 h.

2.5. Weathering

Each set of samples were placed in a QUV Accelerated Weathering Tester (Q-Lab Corp, Westlake, OH, USA). The program chosen was the ASTM G154 CYCLE 7 standard for non-metallic surfaces, as it tested for UV-light and moisture. This standard consist of a cycle consisting in four steps. The first step is UV exposure with a radiance of 1.55 W/m2 at 60 °C for eight hours, the second step is the spraying of the samples with water at room temperature for 15 min, the third step consists on water condensation at 50 °C for three hours and 45 min. The final step is the repetition of the cycle from the first step. The samples were divided into two exposure treatments: 500 and 1000 h cycles.
Each treatment set consisted on four control samples, four with linseed oil, four with red aniline, four with raw linseed oil with red fungal pigment, four with green aniline, and four with raw linseed oil with green pigment.

2.6. Color and Area Evaluation

Two different evaluations were performed on the samples. The first one consisted on color reading the samples with a Konica Minolta Chroma Meter CR-5, before and after the weathering treatment. With both values, the color difference (∆E) was calculated with the CIE2000 equation:
Δ E * = Δ L k L S L 2 + Δ C k C S C 2 + Δ H k H S H 2 + R T Δ C k C S C Δ H k H S H
where ΔE is the overall color change, ΔL is the change in the L value, ΔC is a combination of the change in Δa and Δb (without L), and ΔH is the change in hue. RT is a hue rotation term, and the various K terms are dependent upon the application. SL accounts for lightness, SC accounts for chroma, and SH accounts for hue.
The second evaluation consisted on scanning each sample with the use of an Epson V370 Photo scanner with a resolution of 1200 dpi. After scanning the samples, each of them were analyzed with Image J (Ver. 1.47), following the protocol set by Robinson et al. [39] to quantify the percentage area of coating remaining after the weathering treatment.

2.7. Statistical Evaluation

A four-way ANOVA was performed on the color difference data, being color difference (∆E) the dependent variable, and wood type, coating (no coating, linseed oil, linseed oil with fungal pigments, or linseed oil with anilines), color (no colorant, red, or blue), and exposure time (500 and 1000 h) the independent variables, followed by a Tukey HSD.
A three-way ANOVA was performed on the coated samples only, to evaluate the remaining coating left on the samples. For this test, the remaining area percentage (a%) was the dependent variable, while coating, color, and exposure times were the independent variables. The ANOVA was followed by a Tukey HSD.

3. Results and Discussion

Generally, the untreated wood (control) greyed after both the 500 and 1000 h exposure, as expected. Cracks and checking also occurred. The samples treated with oil and aniline also degraded quickly and most of the 500 h exposure pieces lost most of their color. The aniline stain also leaked from the samples (see discussion below). Defects such as cracks and checking occurred regularly. Samples treated with the spalting pigments showed fewer defects on the surface.
The statistical analysis of the color change of the samples from the colorimeter proved problematic. This number does not adequately convey the color remaining on wood, nor what that color is. The follow-up testing which used percent coverage of color, was more effective and found that the dramada (red) pigment significantly extended the life of the wood finish up to 500 h of exposure (an approximate equivalent to four to five years in service). Further details of the testing and results, along with the discussion, are broken out below.

3.1. Color Change

The ANOVA showed that there was a significant interaction (p < 0.0001) between treatment and color change (∆E). The type of wood, colorants, and weathering exposure time showed no significant effect on the color difference. For Table 1, the Tukey HSD groups were generated based solely on the treatment interaction. All the aniline treatments were statistically different to the controls and all other treatments, meaning the aniline samples lost more color than all the other tests. This is likely because the anilines were water soluble and as the samples were placed in a vertical setting for the weathering test, the water sprayers removed most of the color. Although they were coated with linseed oil, is possible that the oil layer was not effective enough to provide water resistance to the stain (aniline) coat. Xylindein and dramada, however, which are not water soluble, were able to persist longer on the wood. It is interesting that the aniline samples showed more color loss than the raw wood; however, this is likely an artifact of how delta E is calculated, and that the aniline samples started very bright, so had, overall, more color to lose.
Due to the issues note above, the delta E test did not produce data that was entirely accurate in terms of meaningful UV-protection. Previous experiments focused on xylindein have shown that it can protect color of the wood, but not the chemical composition [20]. It is possible that a similar behavior happened with the oil-pigment mixture, but it requires further testing
Although the controls and oils (with and without fungal pigments) showed similar Tukey groups for color difference, the mean color difference was similar but the color hues were not. This is a common drawback of using the delta E equation, which can be easily rectified with visual examples. Figure 1 shows control samples tended to a gray hue, while all the oil samples tended to brown and dark brown hues. It is important to not discount the visual differences here, as it is visual differences that cause consumers to replace their decking due to greying.

3.2. Color Coverage

A more reliable analysis turned out to be the color coverage analysis. For this test, wood type and non-coated samples were not considered for the statistical evaluation as the test relies entirely on using a computer to determine how much surface area is covered by a given color. The rest showed a statistical significance (p < 0.0001) related to the remaining percentage area covered (Table 2).
The coating on the dramada oil samples remained at 82% (average) coverage, which was significantly more than any other treatment at 500 h (Figure 2). The oil-pigment with C. aeruginosa had similar results but it was not significantly different than the colorless linseed oil. As most decks have an in-service life of two to three years due to greying or coating deterioration (most coating cans recommend one to two years before being reapplied) the use of a fungal pigment coating that can effectively extend the finish and wood service life for up to five years is attractive. It is also possible that a higher percentage of the red pigment in solution might yield better color and coating protection. Figure 2 compares just the controls and red treatments (aniline and dramada), where the suppression of greying is clearly visible.
The persistence of dramada pigment may be due to its crystalline nature, which is often extended when carried in oils [34,38]. Previous research on textiles utilizing S. cuboideum and raw linseed oil showed that the pigment crystals developed under the surface of the oil coating. Formation under the oil coating would protect the crystals from the direct elements and allow their protective effects to remain longer. It may have also increased the bonding of the pigments, which was seen in a previous textile crocking test [26,34]. Having stable colorant compounds that attach to surfaces is critical in paints and finishes of all kinds, [40], and thus the dramada pigment may be ideal for this type of use.
An important factor relies in previous studies on potential solvent carriers for the pigment from spalting fungi such as [41] as it is possible to use other solvents such as acetonitrile that can replace DCM. In the specific case of the pigment from S. cuboideum it is possible to obtain the dramada crystals in high purity with the use of acetone [38]. Theses crystals are the ones that have a higher potential for industrial applications as it can allow a better control in the resulting color as well as having a lesser impact compared to DCM as the crystal can be dissolved in the oils while excluding a solvent carrier. Further research should look at the effect of pigment concentrations on UV resistance and grey weathering, as well as microscopic surface evaluations to visualize the interactions of the oil-pigments with the wood.
Although further research is needed, the feasibility of using fungal pigments in the coatings industry is highly likely, as its use can range from aesthetics protection to coating stabilization, as well as to provide the industry with a renewable pigment source.

4. Conclusions

The dramada pigment from the spalting fungus S. cuboideum persisted beyond all other coating treatments and had the statistically highest cover coverage after 500 h of weathering, indicating its potential use as an additive in decking finishes to help delay ‘greying’. As dramada is produced readily in nature and in the lab by the fungus Scytalidium cuboideum and has shown low to no toxicity in toxicological testing, it makes for an attractive alternative additive to current decking products that is also highly renewable.

5. Patents

Robinson, S.C., Vega Gutierrez, S.M. Use of Fungal Pigments from Wood-Staining Fungi as Colorants in Wood Finishes and Paints. U.S. Patent Application No. 15/266,865 Filed on 18th of September, 2015. Approved in 2016.

Author Contributions

Conceptualization, S.C.R. and S.M.V.G.; methodology, S.C.R. and S.M.V.G.; investigation, S.M.V.G., D.W.S., R.H., P.T.V.G., and Z.M.W.; resources, S.C.R.; data curation, S.M.V.G.; writing—original draft preparation, S.M.V.G.; writing—review and editing, S.C.R.; funding acquisition, S.C.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by VentureLab (ex OregonBEST).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zabel, R.A.; Morrell, J.J. Wood Microbiology. Decay and Its Prevention; Harcourt Brace Jovanovich, Academic Press, Inc.: New York, NY, USA, 1992. [Google Scholar]
  2. Hon, D.N.S.; Chang, S.T. Surface degradation of wood by ultraviolet light. J. Polym. Sci. Polym. Chem. Ed. 1984, 22, 2227–2241. [Google Scholar] [CrossRef]
  3. Zayat, M.; Garcia-Parejo, P.; Levy, D. Preventing UV-light damage of light sensitive materials using a highly protective UV-absorbing coating. Chem. Soc. Rev. 2007, 36, 1270–1281. [Google Scholar] [CrossRef]
  4. George, B.; Suttie, E.; Merlin, A.; Deglise, X. Photodegradation and photostabilisation of wood–the state of the art. Polym. Degrad. Stab. 2005, 88, 268–274. [Google Scholar] [CrossRef]
  5. Aloui, F.; Ahajji, A.; Irmouli, Y.; George, B.; Charrier, B.; Merlin, A. Inorganic UV absorbers for the photostabilisation of wood-clearcoating systems: Comparison with organic UV absorbers. Appl. Surf. Sci. 2007, 253, 3737–3745. [Google Scholar] [CrossRef]
  6. Zuin, S.; Gaiani, M.; Ferrari, A.; Golanski, L. Leaching of nanoparticles from experimental water-borne paints under laboratory test conditions. J. Nanoparticle Res. 2014, 16, 1–17. [Google Scholar] [CrossRef]
  7. Jovanović, B.; Guzmán, H.M. Effects of titanium dioxide (TiO2) nanoparticles on caribbean reef-building coral (Montastraea faveolata). Environ. Toxicol. Chem. 2014, 33, 1346–1353. [Google Scholar] [CrossRef]
  8. Robinson, S.C.; Richter, D.L.; Laks, P.E. Colonization of sugar maple by spalting fungi. For. Prod. J. 2007, 57, 24–32. [Google Scholar]
  9. Coates, D. The Biological Consequences of Somatic Incompatibility in Wood Decaying Basidiomycetes and Other Fungi; University of Bath: Bath, UK, 1984. [Google Scholar]
  10. Lopez-Real, J.M.; Swift, M.J. The formation of pseudosclerotia (‘zone lines’) in wood decayed by armillaria mellea and stereum hirsutum. II. Formation in relation to the moisture content of the wood. Trans. Br. Mycol. Soc. 1975, 64, 473–481. [Google Scholar] [CrossRef]
  11. Wheeler, M.H. Comparisons of fungal melanin biosynthesis in ascomycetous, imperfect and basidiomycetous fungi. Trans. Br. Mycol. Soc. 1983, 81, 29–36. [Google Scholar] [CrossRef]
  12. Hedgcock, G.G. Studies upon some chromogenic fungi which discolor wood. Mo. Bot. Gard. Annu. Rep. 1906, 1906, 59–114. [Google Scholar] [CrossRef] [Green Version]
  13. Robinson, S.C.; Richter, D.L.; Laks, P.E. Inducing and Stimulating Spalting in Sugar Maple; International Research Group on Wood Protection: Stockholm, Sweden, 2008; IRG 08-10652. [Google Scholar]
  14. Blanchette, R.A.; Wilmering, A.M.; Baumeister, M. The use of green-stained wood caused by the fungus Chlorociboria in Intarsia masterpieces from the 15th century. Holzforschung 1992, 46, 225–232. [Google Scholar] [CrossRef]
  15. Maeda, M.; Yamauchi, T.; Oshima, K.; Shimomura, M.; Miyauchi, S.; Mukae, K.; Sakaki, T.; Shibata, M.; Wakamatsu, K. Extraction of xylindein from Chlorociboria aeruginosa complex and its biological characteristics. Bull. Nagaoka Univ. Technol. 2003, 25, 105–111. [Google Scholar]
  16. Kang, H.; Sigler, L.; Lee, J.; Gibas, C.; Yun, S.; Lee, Y. Xylogone ganodermophthora sp. nov., an ascomycetous pathogen causing yellow rot on cultivated mushroom Ganoderma lucidum in Korea. Mycologia 2010, 102, 1167–1184. [Google Scholar] [CrossRef] [Green Version]
  17. Golinski, P.; Krick, T.P.; Blanchette, R.A.; Mirocha, C.J. Chemical characterization of a red pigment (5, 8-dihydroxy-2, 7-dimethoxy-1, 4-naphthalenedione) produced by Arthrographis cuboidea in pink stained wood. Holzforsch. Int. J. Biol. Chem. Phys. Technol. Wood 1995, 49, 407–410. [Google Scholar]
  18. Michaelsen, H.; Unger, A.; Fischer, C.-H. Blaugrüne Färbung an Intarsienhölzern des 16. bis 18. Jahrhunderts. Restauro 1992, 98, 17–25. [Google Scholar]
  19. Otterstedt, A. Investigating green Marquetry on bowed-string instruments. The leaves be greene. Galpin Soc. J. 2001, 54, 330. [Google Scholar] [CrossRef]
  20. Beck, H.G.; Freitas, S.; Weber, G.; Robinson, S.C.; Morrell, J.J. Resistance of fungal derived pigments to ultraviolet light exposure. In Proceedings of the International Research Group Conference in Wood Protection, St George, UT, USA, 11–15 May 2014. [Google Scholar]
  21. Hinsch, E.M.; Weber, G.; Chen, H.-L.; Robinson, S.C. Colorfastness of Extracted Wood-staining Fungal Pigments on Fabrics: A new potential for textile dyes. J. Text. Appar. Technol. Manag. 2015, 9, 1–11. [Google Scholar]
  22. Giesbers, G.; Van Schenck, J.; Vega Gutierrez, S.; Robinson, S.; Ostroverkhova, O. Fungi-Derived Pigments for Sustainable Organic (Opto) Electronics. MRS Adv. 2018, 1–6, 2059–8521. [Google Scholar] [CrossRef] [Green Version]
  23. Vega Gutierrez, S.M.; Hazell, K.K.; Simonsen, J.; Robinson, S.C. Description of a Naphthoquinonic Crystal Produced by the Fungus Scytalidium cuboideum. Molecules 2018, 23, 1905. [Google Scholar] [CrossRef] [Green Version]
  24. Robinson, S.C.; Weber, G.; Hinsch, E.; Vega Gutierrez, S.M.; Pittis, L.; Freitas, S. Utilizing Extracted Fungal Pigments for Wood Spalting: A Comparison of Induced Fungal Pigmentation to Fungal Dyeing. J. Coat. 2014, 2014, 1–8. [Google Scholar] [CrossRef] [Green Version]
  25. Weber, G.; Chen, H.-L.; Hinsch, E.; Freitas, S.; Robinson, S. Pigments extracted from the wood-staining fungi Chlorociboria aeruginosa, Scytalidium cuboideum, and S. ganodermophthorum show potential for use as textile dyes. Coloration Technol. 2014, 130, 445–452. [Google Scholar] [CrossRef]
  26. Hinsch, E.M.; Robinson, S.C. Mechanical Color Reading of Wood-Staining Fungal Pigment Textile Dyes: An Alternative Method for Determining Colorfastness. Coatings 2016, 6, 25. [Google Scholar] [CrossRef] [Green Version]
  27. Almurshidi, B.H.; Van Court, R.C.; Vega Gutierrez, S.M.; Harper, S.; Harper, B.; Robinson, S.C. Preliminary Examination of the Toxicity of Spalting Fungal Pigments: A Comparison between Extraction Methods. J. Fungi 2021, 7, 155. [Google Scholar] [CrossRef]
  28. Knörr, W.; Daute, P.; Grützmacher, R.; Höfer, R. Development of new fields of application for linseed oil. Lipid Fett 1995, 97, 165–169. [Google Scholar] [CrossRef]
  29. Derrick, M. Fourier transform infrared spectral analysis of natural resins used in furniture finishes. J. Am. Inst. Conserv. 1989, 28, 43–56. [Google Scholar] [CrossRef]
  30. Chiavari, G.; Galletti, G.C.; Lanterna, G.; Mazzeo, R. The potential of pyrolysis—gas chromatography/mass spectrometry in the recognition of ancient painting media. J. Anal. Appl. Pyrolysis 1993, 24, 227–242. [Google Scholar] [CrossRef]
  31. Schuerman, G.; Bruzan, R. Chemistry of paint. J. Chem. Educ. 1989, 66, 327. [Google Scholar] [CrossRef]
  32. Derksen, J.T.P.; Cuperus, F.P.; Kolster, P. Paints and coatings from renewable resources. Ind. Crop. Prod. 1995, 3, 225–236. [Google Scholar] [CrossRef]
  33. Robinson, S.C.; Gutierrez, S.M.V.; Garcia, R.A.C.; Iroume, N.; Vorland, N.R.; McClelland, A.; Huber, M.; Stanton, S. Potential for carrying dyes derived from spalting fungi in natural oils. J. Coat. Technol. Res. 2017, 14, 1107–1113. [Google Scholar] [CrossRef]
  34. Agurto, M.E.P.; Gutierrez, S.M.V.; Chen, H.-L.; Robinson, S.C. Wood-Rotting Fungal Pigments as Colorant Coatings on Oil-Based Textile Dyes. Coatings 2017, 7, 152. [Google Scholar] [CrossRef] [Green Version]
  35. Ozgenc, O.; Hiziroglu, S.; Yildiz, U.C. Weathering properties of wood species treated with different coating applications. BioResources 2012, 7, 4875–4888. [Google Scholar] [CrossRef]
  36. Yang, X.F.; Tallman, D.E.; Bierwagen, G.P.; Croll, S.G.; Rohlik, S. Blistering and degradation of polyurethane coatings under different accelerated weathering tests. Polym. Degrad. Stab. 2002, 77, 103–109. [Google Scholar] [CrossRef]
  37. Robinson, S.C.; Richter, D.L.; Laks, P.E. Effects of substrate on laboratory spalting of sugar maple. Holzforschung 2009, 63, 491–495. [Google Scholar] [CrossRef]
  38. Vega Gutierrez, S.; Van Court, R.C.; Stone, D.; Konkler, M.; Groth, E.; Robinson, S. Relationship between Molarity and Color in the Crystal (‘Dramada’) Produced by Scytalidium cuboideum, in Two Solvents. Molecules 2018, 23, 2581. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Robinson, S.C.; Laks, P.E.; Turnquist, E.J. A Method for Digital Color Analysis of Spalted Wood Using Scion Image Software. Materials 2009, 2, 62–75. [Google Scholar] [CrossRef]
  40. Schaller, C.; Rogez, D. New approaches in wood coating stabilization. J. Coat. Technol. Res. 2007, 4, 401–409. [Google Scholar] [CrossRef]
  41. Pittis, L.; de Oliveira, D.R.; Gutierrez, S.M.V.; Robinson, S.C. Alternative Carrier Solvents for Pigments Extracted from Spalting Fungi. Materials 2018, 11, 897. [Google Scholar] [CrossRef] [PubMed] [Green Version]

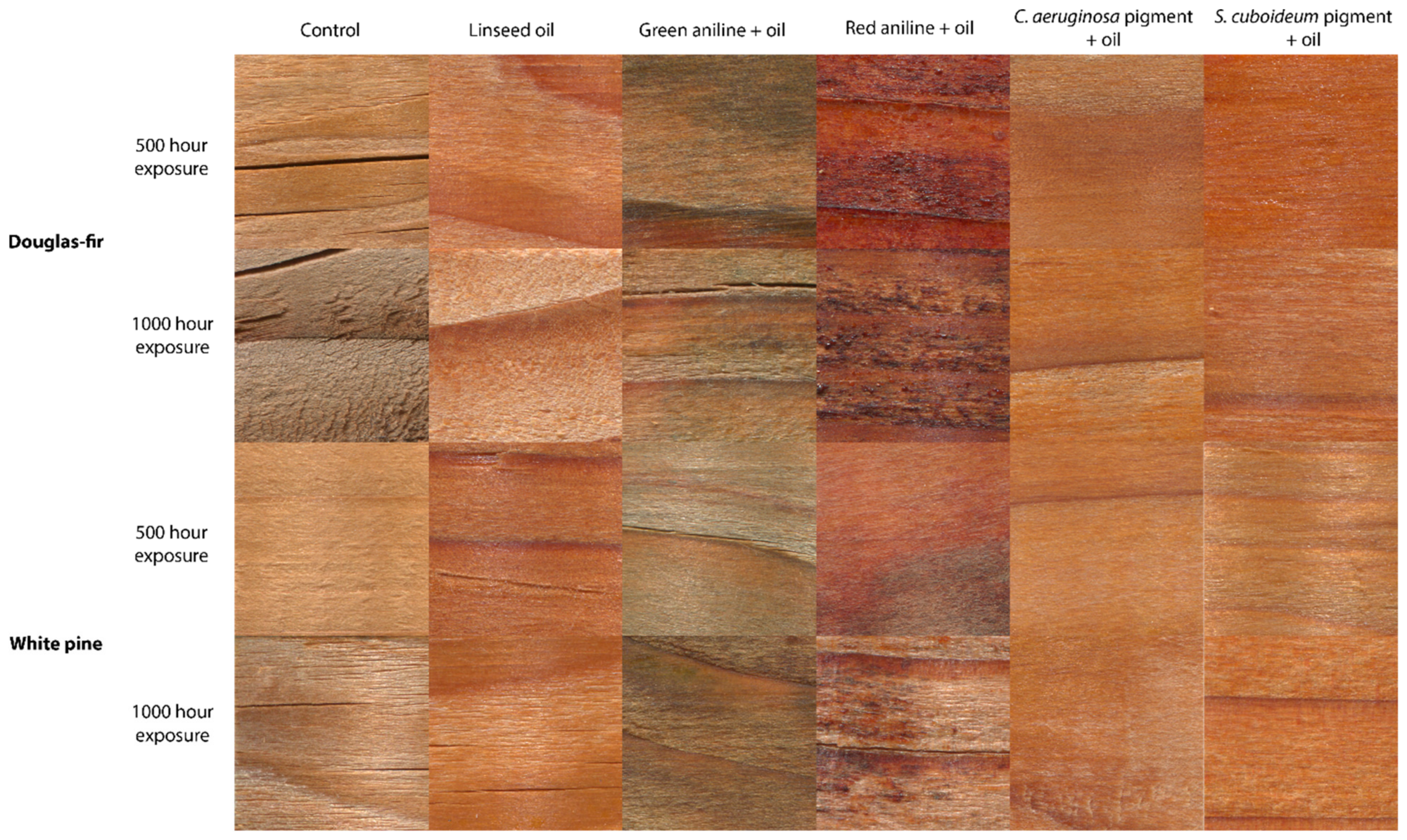

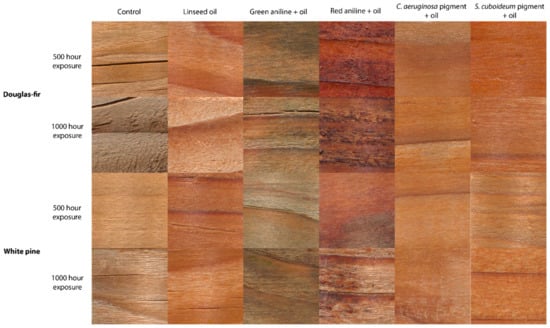

Figure 1. Samples of white pine and Douglas-fir with four different treatments after a weathering exposure of 500 and 1000 h.
Figure 1. Samples of white pine and Douglas-fir with four different treatments after a weathering exposure of 500 and 1000 h.
Coatings 11 00511 g001

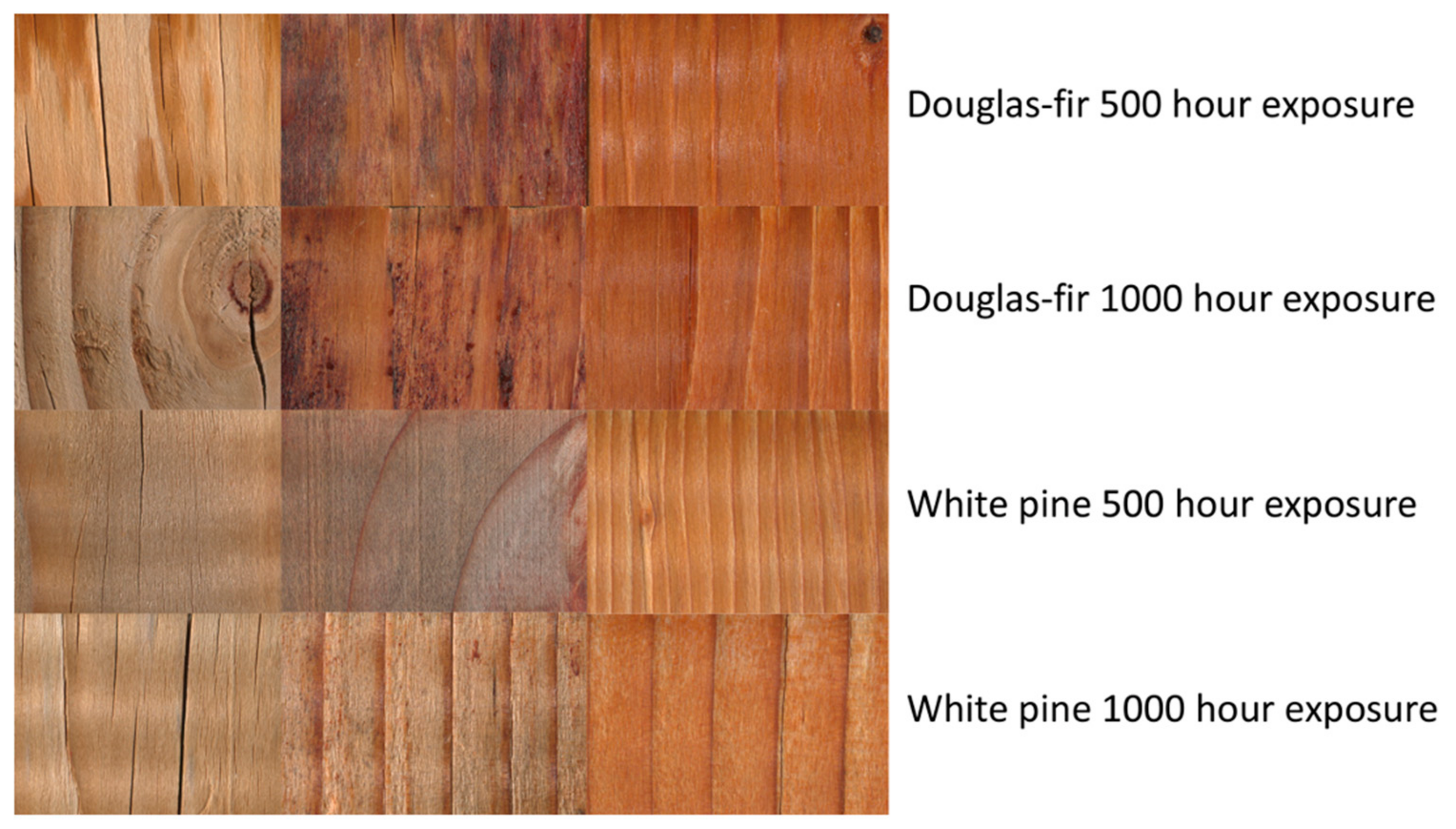

Figure 2. Weathered samples. (Left) column: controls; (Center) column: red aniline stain and finish treatment; (Right) column: red fugal pigmented oil.
Figure 2. Weathered samples. (Left) column: controls; (Center) column: red aniline stain and finish treatment; (Right) column: red fugal pigmented oil.
Coatings 11 00511 g002
Table 1. Results for color difference after weathering (p < 0.0001). The table Tukey groups were generated based on treatment only, as it was the only variable that showed statistical significance.
Table 1. Results for color difference after weathering (p < 0.0001). The table Tukey groups were generated based on treatment only, as it was the only variable that showed statistical significance.
WoodTreatment (Coating Type)ColorWeathering (h)Mean (∆E)
White pineControlNo color5008.878 (EF)
100012.123 (DEF)
Linseed oilNo color5005.260 (F)
10008.685 (EF)
Linseed oil + anilineRed50036.608 (A)
100019.340 (BCDE)
Green50028.705 (ABC)
100028.910 (AB)
Linseed oil + fungal pigmentRed 5009.783 (EF)
10004.293 (F)
Green5008.603 (EF)
10008.598 (EF)
Douglas-firControlNo color50011.584 (EF)
100011.294 (EF)
Linseed oilNo color5009.408 (EF)
10007.330 (EF)
Linseed oil + anilineRed50024.598 (ABCD)
100024.610 (ABCD)
Green50032.188 (A)
100029.418 (AB)
Linseed oil + fungal pigmentRed 50016.085 (CDEF)
100012.890 (CDEF)
Green5008.363 (EF)
10007.313 (EF)
Table 2. Results for color coverage after weathering 500 h and 1000 h (p < 0.0001). The table Tukey groups were generated based on treatment only, as it was the only variable that showed statistical significance.
Table 2. Results for color coverage after weathering 500 h and 1000 h (p < 0.0001). The table Tukey groups were generated based on treatment only, as it was the only variable that showed statistical significance.
Treatment (Coating Type)ColorWeathering (h)Mean (a%)
Linseed oilNo color50051.916 (BC)
100043.557 (C)
Linseed oil + anilineRed50015.145 (D)
100022.578 (D)
Green5006.208 (D)
10007.710 (D)
Linseed oil + fungal pigmentRed50082.130 (A)
100059.804 (BC)
Green50063.421 (AB)
100048.221(BC)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vega Gutierrez, S.M.; Stone, D.W.; He, R.; Vega Gutierrez, P.T.; Walsh, Z.M.; Robinson, S.C. Potential Use of the Pigments from Scytalidium cuboideum and Chlorociboria aeruginosa to Prevent ‘Greying’ Decking and Other Outdoor Wood Products. Coatings 2021, 11, 511. https://doi.org/10.3390/coatings11050511

AMA Style

Vega Gutierrez SM, Stone DW, He R, Vega Gutierrez PT, Walsh ZM, Robinson SC. Potential Use of the Pigments from Scytalidium cuboideum and Chlorociboria aeruginosa to Prevent ‘Greying’ Decking and Other Outdoor Wood Products. Coatings. 2021; 11(5):511. https://doi.org/10.3390/coatings11050511

Chicago/Turabian Style

Vega Gutierrez, Sarath M., Derek W. Stone, Rui He, Patricia T. Vega Gutierrez, Zielle M. Walsh, and Seri C. Robinson. 2021. "Potential Use of the Pigments from Scytalidium cuboideum and Chlorociboria aeruginosa to Prevent ‘Greying’ Decking and Other Outdoor Wood Products" Coatings 11, no. 5: 511. https://doi.org/10.3390/coatings11050511

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
