Study of the Effect of Physicochemical Degradation and Contamination of Motor Oils on Their Lubricity
Abstract
:1. Introduction
2. Materials and Methods
2.1. Tested Samples of Motor Oils

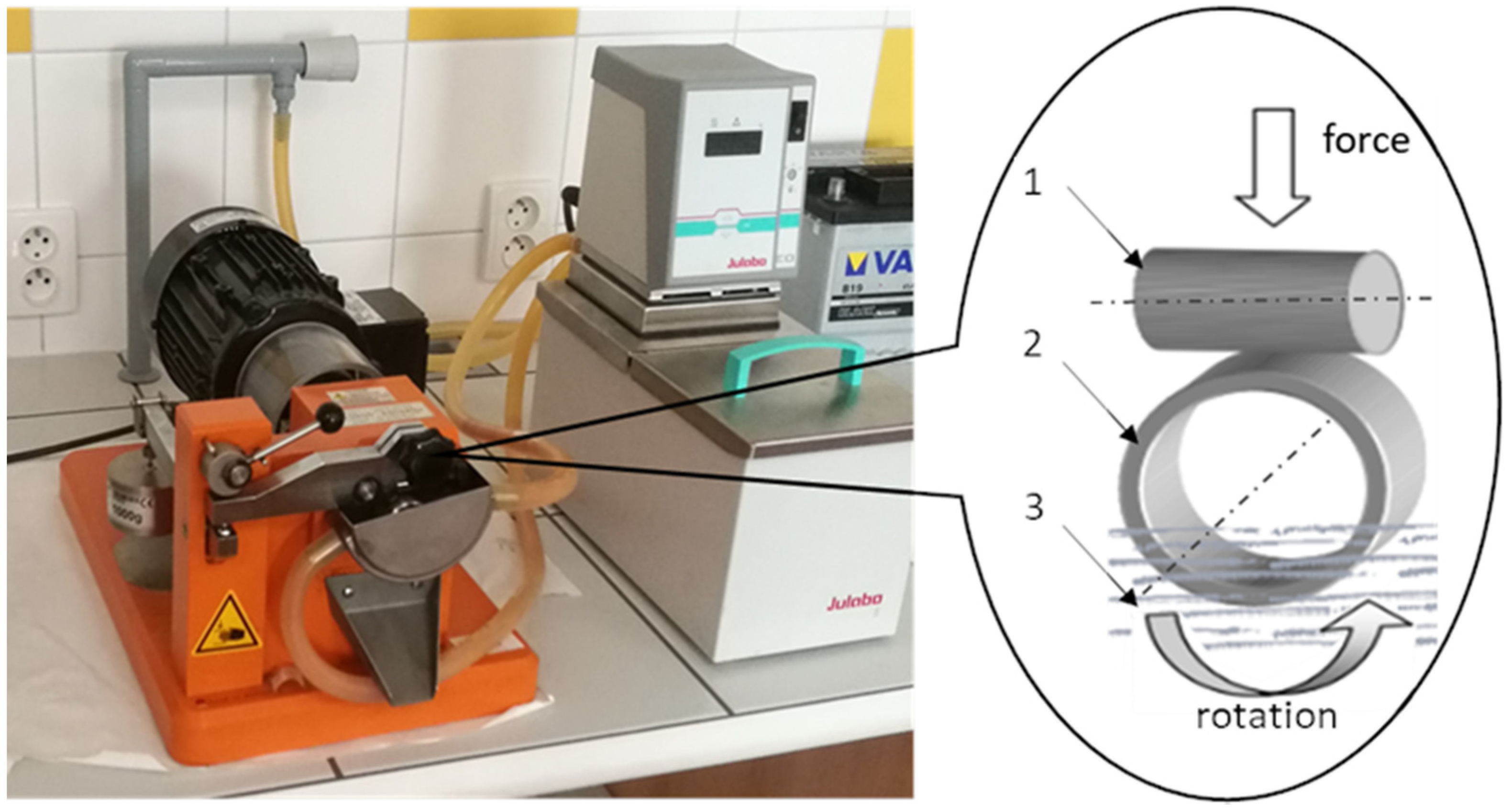

2.2. Reichert Test
2.3. Viscosity Measurement
2.4. FTIR Spectroscopy
2.5. Data Processing
3. Results and Discussion

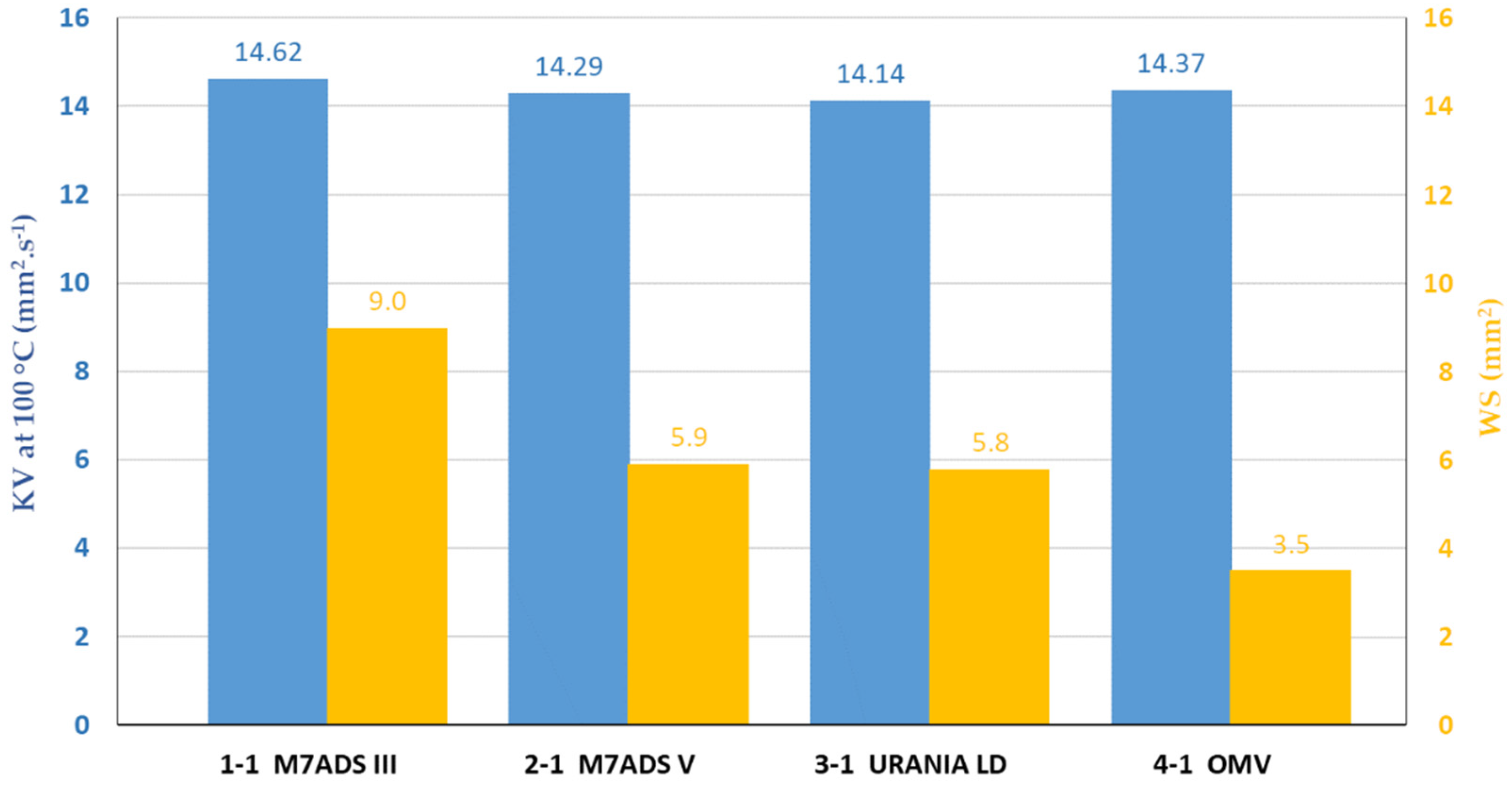

3.1. Evaluation of Fresh Motor Oils Lubricity

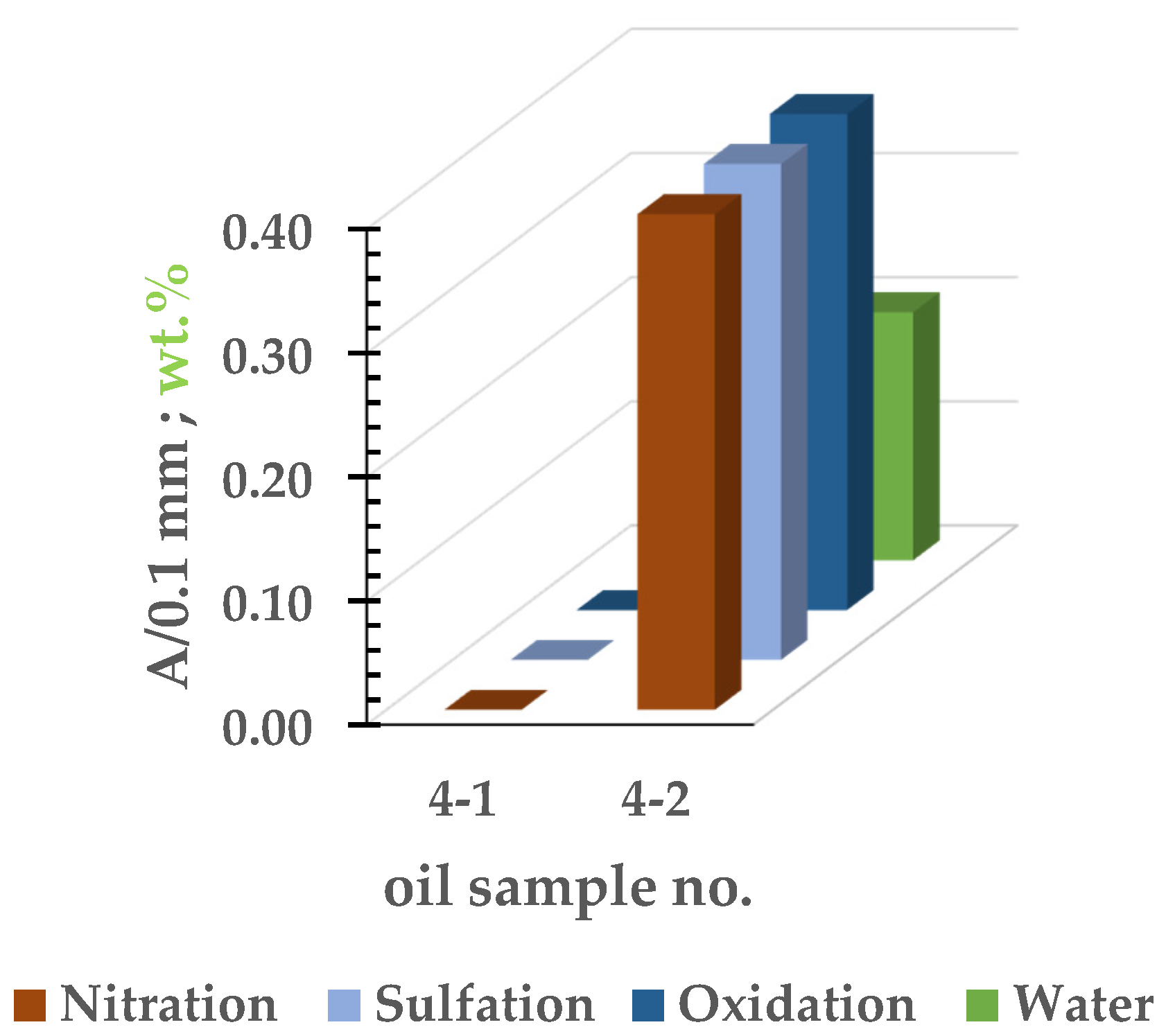

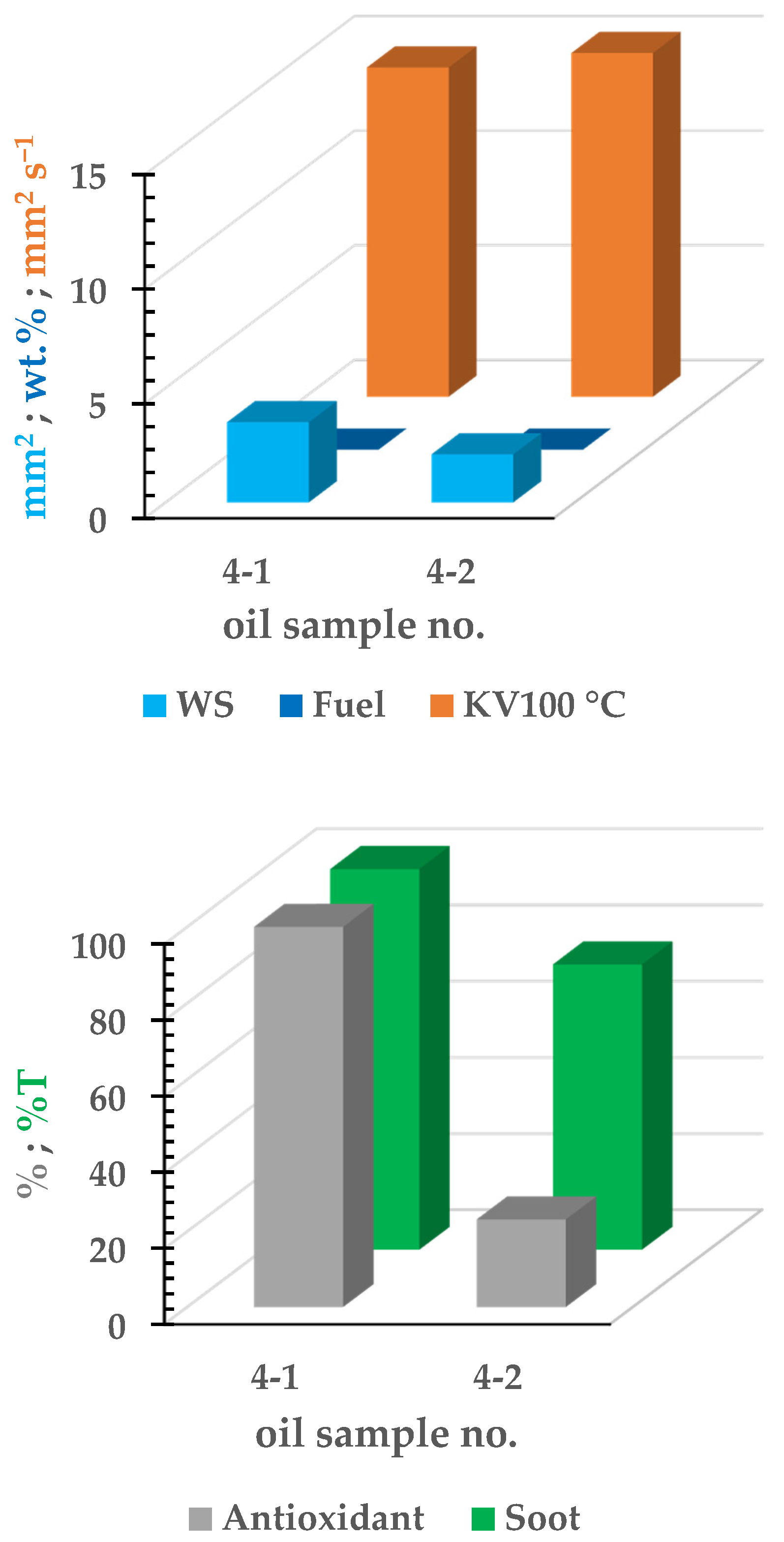

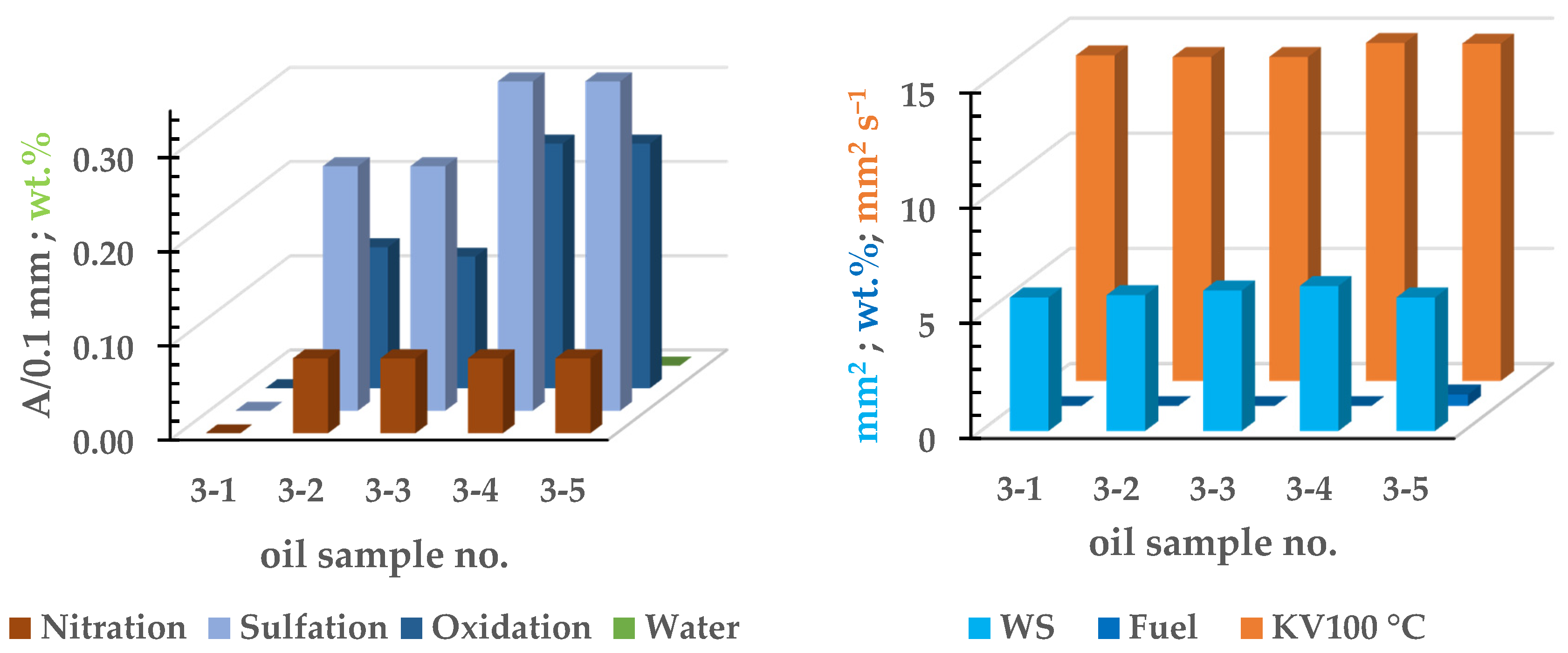

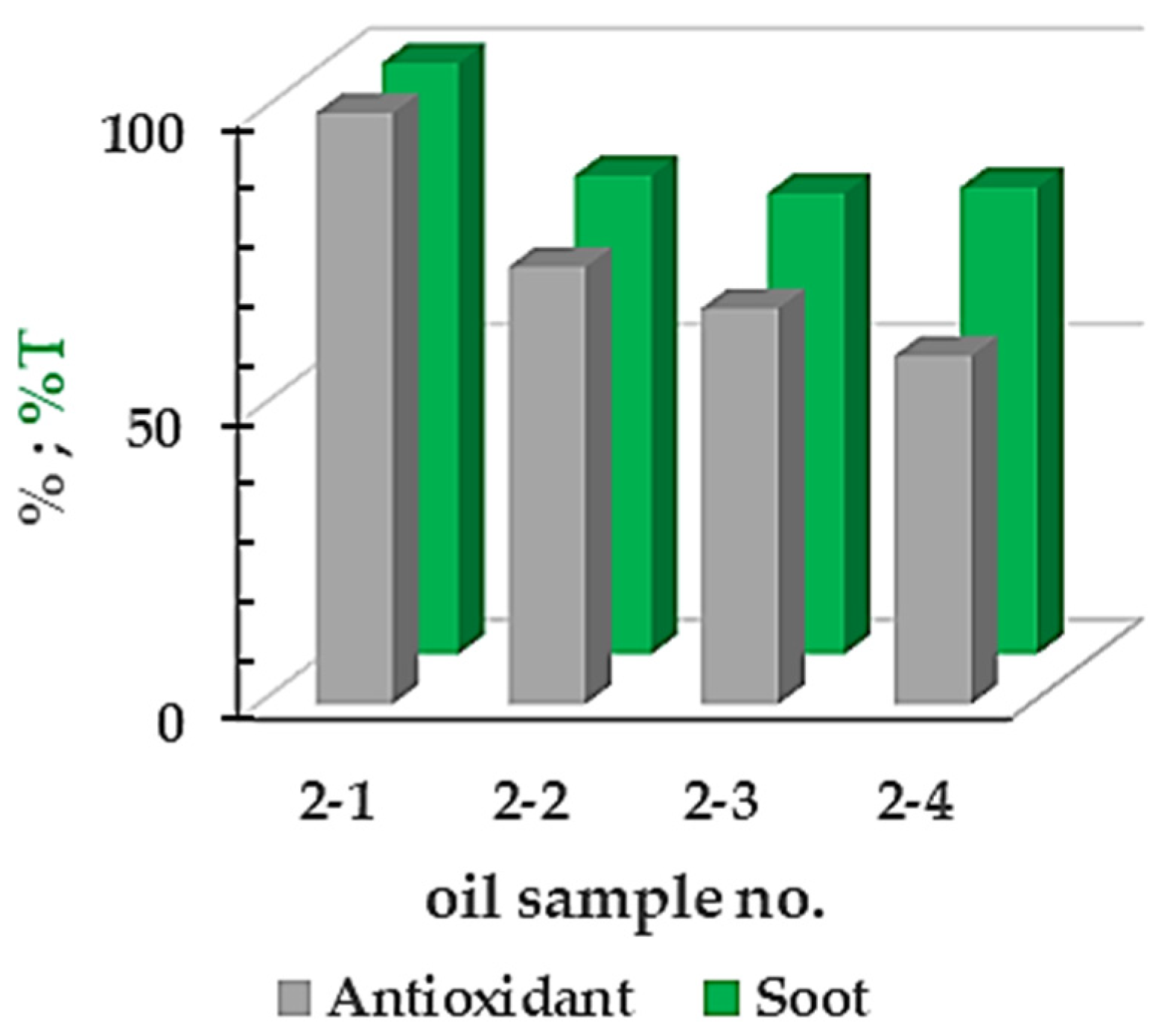

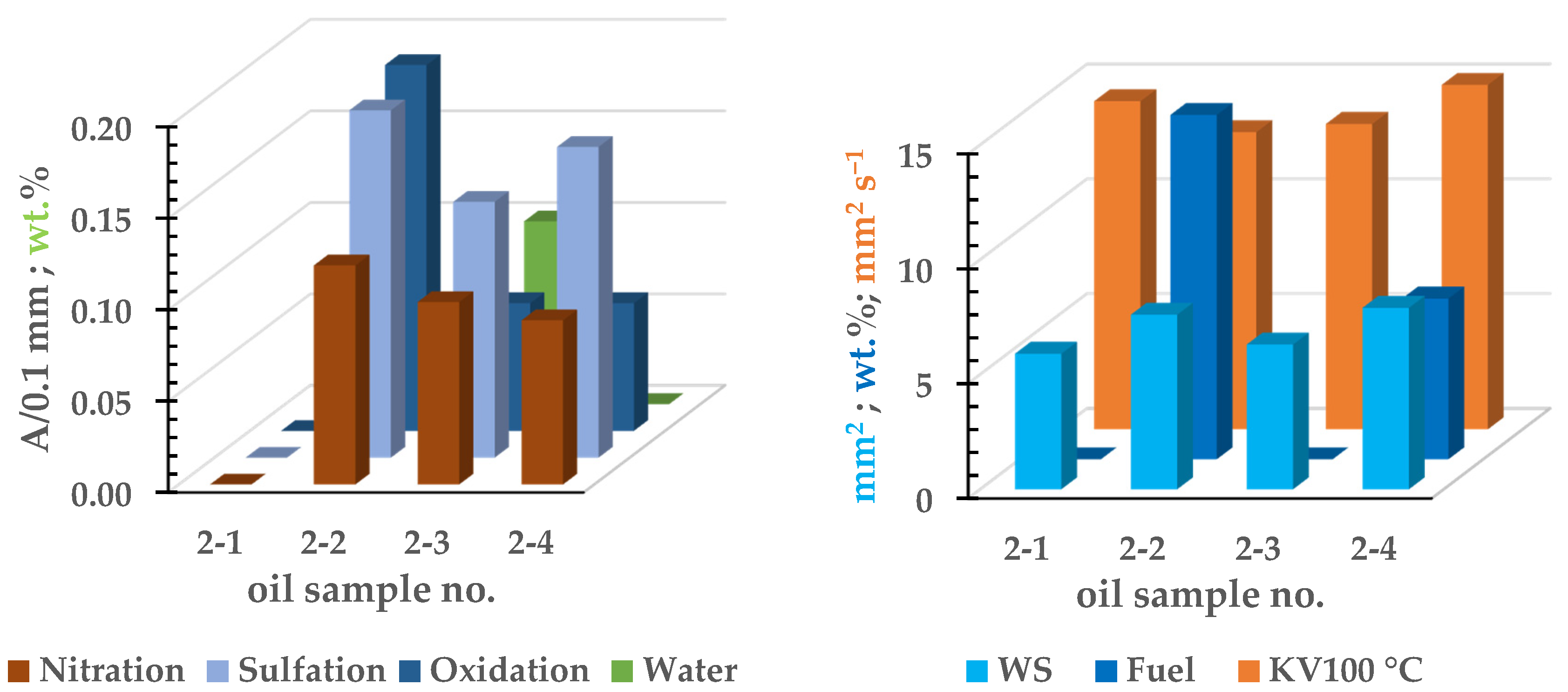

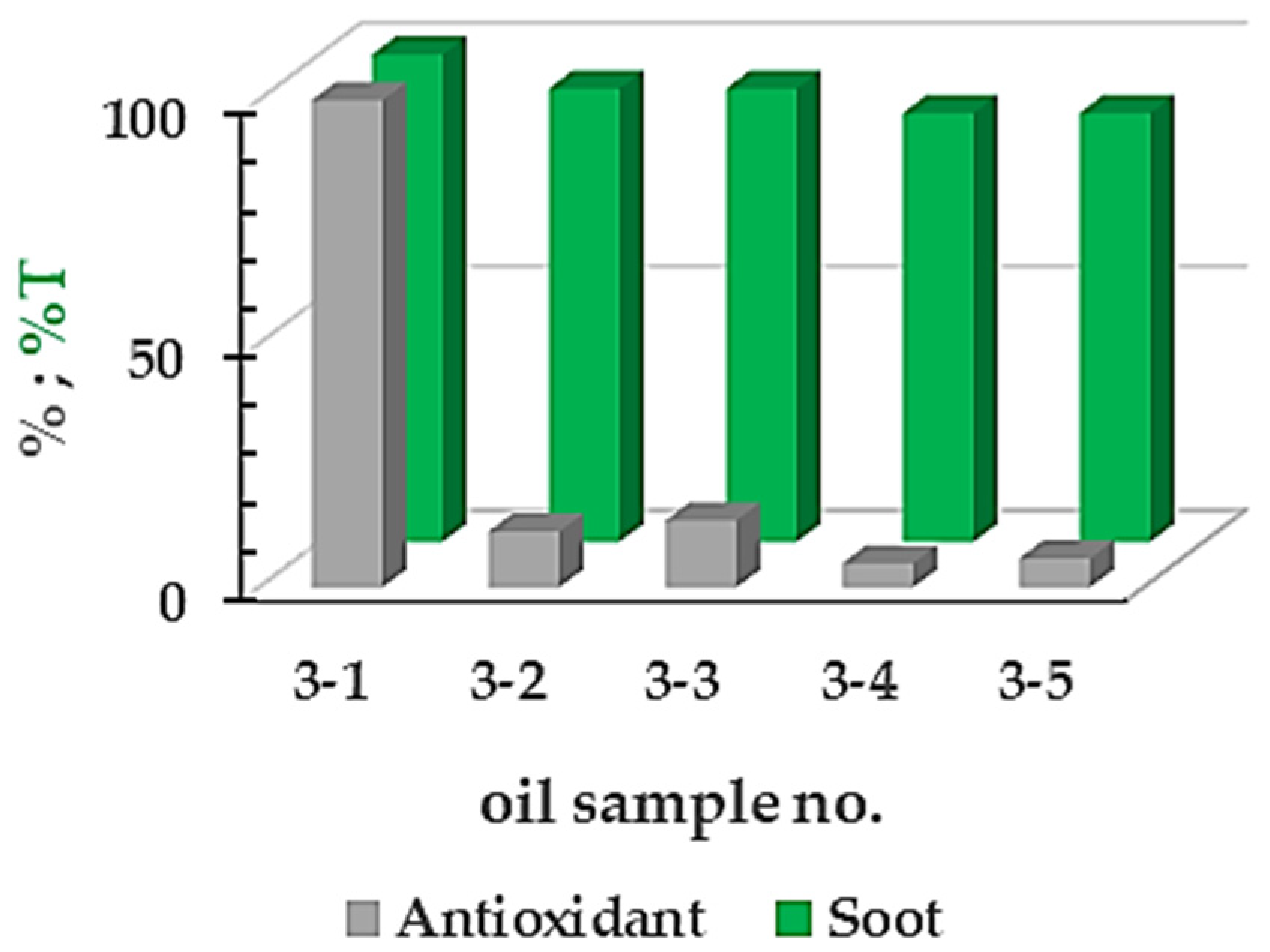

3.2. Influence of Degradation and Contamination of Motor Oils on Lubricity
3.3. Correlation Analysis
4. Conclusions
- Current motor oils used in Czech Railways motor trains have excellent lubricity, which they retain throughout their service life.
- The lubricating properties of motor oils are not limited by the depletion of the antioxidant and anti-wear additive ZDDP and a high degree of chemical degradation. Chemical degradation products (oxidation, nitration, and especially sulfation products), which, unlike hydrocarbons, are of a polar nature, ensure better adhesion of the lubricant to lubricated components. The sulfur contained in the sulfation products also increases the lubricity. For these reasons, some oils had better lubricity at the end of the change interval than fresh oils.
- Correlation analysis confirmed a relatively strong significant correlation between oxidation, nitration, and sulfation products (R ≥ 0.90). At the same time, these chemical degradation products are significantly negatively correlated with the concentration of ZDDP, i.e., with the loss of this additive.
- Due to the low concentration of sulfur in fuels on the European market, the formation of sulfation products can be explained mainly by the reaction of sulfuric acid as a decomposition product of ZDDP with the base motor oil, to a lesser extent as the reaction of SOx from exhaust gases with the base motor oil.
- No significant effect of chemical degradation products on the kinematic viscosity value of motor oils has been demonstrated. However, in none of the analyzed samples did the concentration of these products exceed the limit value.
- Contamination of oil with diesel has the most significant effect on reducing the viscosity of motor oil; this result was supported by a high correlation between the variables. Even with a high concentration of diesel in the oil, the lubricating film of the tested samples retained its load-bearing capacity. Contamination of motor oils with soot did not confirm a significant increase in viscosity, but the concentration of soot did not reach the limit values given in the literature.
- It has been demonstrated that the low water contamination in motor oil does not cause a significant negative effect on lubricity, which led to the observation that the water droplets do not come into tribological contact but bypass it.
- The lubricity and anti-wear properties of motor oils are not factors that would limit the life of motor oils.
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Krupka, I.; Svoboda, P.; Hartl, M. Effect of surface topography on mixed lubrication film formation during start up under rolling/sliding conditions. Tribol. Int. 2010, 43, 1035–1042. [Google Scholar] [CrossRef]
- Krupka, I.; Hartl, M.; Svoboda, P. Effects of surface topography on lubrication film formation within elastohydrodynamic and mixed lubricated non-conformal contacts. Proc. Inst. Mech. Eng. Part J J. Eng. Tribol. 2010, 224, 713–722. [Google Scholar] [CrossRef]
- Sejkorová, M.; Hurtová, I.; Glos, J.; Pokorný, J. Definition of a motor oil change interval for high-volume diesel engines based on its current characteristics assessment. Acta Univ. Agric. Silvic. Mendel. Brun. 2017, 65, 481–490. [Google Scholar] [CrossRef] [Green Version]
- Wei, L.; Duan, H.; Chen, S.; Jia, D.; Jin, Y.; Qian, X.; Liu, J.; Li, J. Discussion on the influence of driving parameters of civilian cars on motor oil degradation. Proc. IMechE Part J 2019, 233, 281–288. [Google Scholar] [CrossRef]
- Sejkorová, M.; Šarkan, B.; Caban, J.; Marczuk, A. On relationship between infrared spectra of worn out engine oils and their kinematic viscosity. Przem. Chem. 2018, 97, 49–54. [Google Scholar] [CrossRef]
- Wolak, A.; Zając, G. The kinetics of changes in kinematic viscosity of engine oils under similar operating conditions. Maint. Reliab. 2017, 19, 260–267. [Google Scholar] [CrossRef]
- Macián, V.; Tormos, B.; Bastidas, S.; Pérez, T. Improved fleet operation and maintenance through the use of low viscosity engine oils: Fuel economy and oil performance. Maint. Reliab. 2020, 22, 201–211. [Google Scholar] [CrossRef]
- Agocs, A.; Budnyk, S.; Besser, C.; Ristic, A.; Frauscher, M.; Ronai, B.; Dörr, N. Production of Used Engine Oils with Defined Degree of Degradation in a Large-scale Device. Acta Tech. Jaurinensis 2020, 13, 131–150. [Google Scholar] [CrossRef]
- Skrzek, T.; Rucki, M.; Górski, K.; Matijošius, J.; Barta, D.; Caban, J.; Zarajczyk, J. Repeatability of High-Pressure Measurement in a Diesel Engine Test Bed. Sensors 2020, 20, 3478. [Google Scholar] [CrossRef]
- Spikes, H. Friction Modifier Additives. Tribol. Lett. 2015, 60, 5. [Google Scholar] [CrossRef] [Green Version]
- Zhang, J.; Ewen, J.P.; Ueda, M.; Wong, J.S.S.; Spikes, H.A. Mechanochemistry of Zinc Dialkyldithiophosphate on Steel Surfaces under Elastohydrodynamic Lubrication Conditions. ACS Appl. Mater. Interfaces 2020, 12, 6662–6676. [Google Scholar] [CrossRef] [PubMed]
- Dörr, N.; Brenner, J.; Ristić, A.; Ronai, B.; Besser, C.; Pejaković, V.; Frauscher, M. Correlation between engine oil degradation, tribochemistry, and tribological behavior with focus on ZDDP deterioration. Tribol. Lett. 2019, 67, 62. [Google Scholar] [CrossRef]
- Nicholls, M.A.; Do, T.; Norton, P.R.; Kasrai, M.; Bancroft, G.M. Review of the lubrication of metallic surfaces by zinc dialkyl-dithiophosphates. Tribol. Int. 2005, 38, 15–39. [Google Scholar] [CrossRef]
- Zhang, J.; Spikes, H. On the mechanism of ZDDP antiwear film formation. Tribol. Lett. 2016, 63, 24. [Google Scholar] [CrossRef] [Green Version]
- Thersleff, T.; Jenei, I.Z.; Budnyk, S.; Dörr, N.; Slabon, A. Structure and Formation of Soot Particles from Tribofilm Decomposition under Real Engine Conditions. ChemRxiv 2020. [Google Scholar] [CrossRef]
- Gołębiowski, W.; Wolak, A.; Zając, G. The influence of the presence of a diesel particulate filter (DPF) on the physical and chemical properties as well as the degree of concentration of trace elements in used engine oils. Pet. Sci. Technol. 2019, 37, 746–755. [Google Scholar] [CrossRef]
- Hurtová, I.; Sejkorová, M. Analysis of engine oils using modern methods of tribotechnical diagnostics. Perner´s Contacts 2016, 11, 47–53. [Google Scholar]
- Jablonický, J.; Simikić, M.; Tulík, J.; Tomić, M.; Hujo, Ľ.; Kosiba, J. Monitoring of Selected Physical and Chemical Parameters of Test Oil in the Wet Disc Brake System. Acta Technol. Agric. 2020, 23, 46–52. [Google Scholar] [CrossRef] [Green Version]
- Jakóbiec, J.; Budzik, G. Czynniki mające wpływ na stopień degradacji oleju silnikowego w okresie eksploatacji. Arch. Motor. 2007, 3, 209–216. [Google Scholar]
- Ziółkowska, M. Wpływ sadzy na proces żelowania oleju silnikowego. Nafta-Gaz 2019, 3, 178–184. [Google Scholar] [CrossRef]
- Bagi, S.; Kamp, C.J.; Sharma, V.; Aswath, P.B. Multiscale characterization of exhaust and crankcase soot extracted from heavy-duty diesel engine and implications for DPF ash. Fuel 2020, 282, 118878. [Google Scholar] [CrossRef]
- Salehi, F.M.; Morina, A.; Neville, A. Zinc dialkyldithiophosphate additive adsorption on carbon black particles. Tribol. Lett. 2018, 66, 118. [Google Scholar] [CrossRef] [Green Version]
- Salehi, F.M.; Morina, A.; Neville, A. The effect of soot and diesel contamination on wear and friction of engine oil pump. Tribol. Int. 2017, 115, 285–296. [Google Scholar] [CrossRef] [Green Version]
- Vyavhare, K.; Bagi, S.; Patel, M.; Aswath, P.B. Impact of Diesel Engine Oil Additives–Soot Interactions on Physiochemical, Oxidation, and Wear Characteristics of Soot. Energy Fuels 2019, 33, 4515–4530. [Google Scholar] [CrossRef]
- Penchaliah, R. Tribological Effects of Diesel Engine Oil Contamination on Steel and Hybrid Sliding Contacts. In Tribology in Materials and Applications. Materials Forming, Machining and Tribology; Katiyar, J., Ramkumar, P., Rao, T., Davim, J., Eds.; Springer: Cham, Switzerland, 2020. [Google Scholar] [CrossRef]
- Šarkan, B.; Caban, J.; Marczuk, A.; Vrabel, J.; Gnap, J. Composition of exhaust gases of spark ignition engines under conditions of periodic inspection of vehicles in Slovakia. Przem. Chem. 2017, 96, 675–680. [Google Scholar] [CrossRef]
- Macián, V.; Tormos, B.; Gómez, Y.A.; Salavert, J.M. Proposal of an FTIR methodology to monitor oxidation level in used engine oils: Effects of thermal degradation and fuel dilution. Tribol. Ttrans. 2012, 55, 872–882. [Google Scholar] [CrossRef]
- Hurtová, I.; Sejkorová, M.; Verner, J. A study of diesel particulate filter impact on engine oil quality. In Transport Means: Proceedings of the International Scientific Conference; Kaunas University of Technology: Palanga, Lithuenia, 2019. [Google Scholar]
- Wei, L.; Duan, H.; Jin, Y.; Jia, D.; Chen, S.; Liu, J.; Li, J. Oil change interval evaluation of civilian cars in urban traffic condition. Proc. Inst. Mech. Eng. Part J 2019, 233, 956–964. [Google Scholar] [CrossRef]
- Wei, L.; Duan, H.; Jin, Y.; Jia, D.; Cheng, B.; Liu, J.; Li, J. Motor oil degradation during urban cycle road tests. Friction 2020. [Google Scholar] [CrossRef]
- Wolak, A.; Krasodomski, W.; Zając, G. FTIR analysis and monitoring of used synthetic oils operated under similar driving conditions. Friction 2020, 8, 995–1006. [Google Scholar] [CrossRef]
- Vališ, D.; Žák, L.; Pokora, O. Perspective approach in using anti-oxidation and anti-wear particles from oil to estimate residual technical life of a system. Tribol. Int. 2018, 118, 46–859. [Google Scholar] [CrossRef]
- Vališ, D.; Gajewski, J.; Žák, L. Potential for using the ANN-FIS meta-model approach to assess levels of particulate contamination in oil used in mechanical systems. Tribol. Int. 2019, 135, 324–334. [Google Scholar] [CrossRef]
- Raposo, H.; Farinha, J.T.; Fonseca, I.; Ferreira, L.A. Condition Monitoring with Prediction Based on Diesel Engine Oil Analysis: A Case Study for Urban Buses. Actuators 2019, 8, 14. [Google Scholar] [CrossRef] [Green Version]
- Kučera, M.; Kopčanová, S.; Sejkorová, M. Lubricant Analysis as the Most Useful Tool in the Proactive Maintenance Philosophies of Machinery and its Components. Manag. Syst. Prod. Eng. 2020, 28, 196–201. [Google Scholar] [CrossRef]
- Fernandes, W.; Tomanik, E.; Moreira, H.; Cousseau, T.; Pintaude, G. Effect of Aged Oils on Ring-Liner Wear. SAE Int. J. Fuels Lubr. 2020, 13, 167–176. [Google Scholar] [CrossRef]
- Ma, Y.; Zhao, W.; Li, S.; Jin, Y.; Wang, Y.; Simon, T.C. Lubricating Durability of Two GF Category Engine Oils. Ind. Lubr. Tribol. 2005, 57, 161–167. [Google Scholar] [CrossRef]
- Dörr, N.; Agocs, A.; Besser, C.; Ristić, A.; Frauscher, M. Engine oils in the field: A comprehensive chemical assessment of engine oil degradation in a passenger car. Tribol. Lett. 2019, 67, 68. [Google Scholar] [CrossRef]
- Berglund, K. Lubricant ageing effects on wet clutch friction characteristics. Proc. Inst. Mech. Eng. Part J J. Eng. Tribol. 2010, 224, 639–647. [Google Scholar] [CrossRef]
- Wang, L.; Wang, L.; Li, G.; Xu, X. Effect of Ash-Less Antioxidants on Fuel Efficiency Retention of PCMO Containing MoDTC. In Proceedings of the FISITA 2012 World Automotive Congress; Springer: Berlin/Heidelberg, Germany, 2013; pp. 483–491. [Google Scholar]
- Sikora, G. The studies on lubricity and contamination analysis of the personal car’s lubricating oil with taking oil ageing into account. J. KONES 2013, 20, 375–379. [Google Scholar]
- Černý, J.; Bučko, L.; Václavíčková, I. Mazivostní a Protioděrové Vlastnosti Motorových Olejů. Available online: http://www.petroleum.cz/upload/aprochem2007_169.pdf (accessed on 10 October 2020).
- Höhn, B.R.; Michaelis, K.; Weiss, R. Influence of Lubricant Ageing on Gear Performance. Materiały 2001, 2, 363. [Google Scholar]
- Kew Engineering. Oil Aging and Degradation: Why do I Need to Change the Oil? Available online: kewengineering.co.uk (accessed on 30 October 2020).
- Sikora, G.; Miszczak, A. The influence of oil ageing on the change of viscosity and lubricity of engine oil. Solid State Phenom. 2013, 199, 182–187. [Google Scholar] [CrossRef]
- Maguire, E. Monitoring of Lubricant Degradation with RULER and MPC. Master’s Thesis, Linköping University, Linköping, Sweden, 2010. Available online: http://www.diva-portal.org/smash/get/diva2:32-8033/FULLTEXT01.pdf (accessed on 10 October 2020).
- ASTM D-7042. Standard Test Method for Dynamic Viscosity and Density of Liquids by Stabinger Viscometer (and the Calculation of Kinematic Viscosity); ASTM International: West Conshohocken, PA, USA, 2004. [Google Scholar]
- Sejkorová, M. Application of FTIR spectrometry using multivariate analysis for prediction fuel in engine oil. Acta Univ. Agric. Silvic. Mendel. Brun. 2017, 65, 933–938. [Google Scholar] [CrossRef] [Green Version]
- Man, J.; Zhao, J.; Song, L.; Yang, H. Study the Influence of Surface Morphology and Lubrication Pressure on Tribological Behavior of 316L–PTFE Friction Interface in High-Water-Based Fluid. Coatings 2020, 10, 405. [Google Scholar] [CrossRef] [Green Version]
- Tripathi, A.K.; Vinu, R. Characterization of thermal stability of synthetic and semi-synthetic engine oils. Lubricants 2015, 3, 54–79. [Google Scholar] [CrossRef] [Green Version]
- Sejkorová, M. Tribotechnical diagnostics as a tool for effective management of maintenance. Perner’s Contacts 2015, 10, 126–136. [Google Scholar]
- Koutný, D. Experimentální Studium Chování Mazacích Filmů Kontaminovaných Vodou. Brno University of Technology, Faculty of Mechanical Engineering. 2008. Available online: ustavkonstruovani.cz (accessed on 30 October 2020).
- Booser, E.R. CRC Handbook of Lubrication and Tribology, Volume III: Monitoring, Materials, Synthetic Lubricants, and Applications; Scotia: Toronto, ON, Canada; CRC Press: Boca Raton, FL, USA, 1993; p. 71. [Google Scholar]
- Kral Jr, J.; Konecny, B.; Kral, J.; Madac, K.; Fedorko, G.; Molnar, V. Degradation and chemical change of longlife oils following intensive use in automobile engines. Measurement 2014, 50, 34–42. [Google Scholar] [CrossRef]
- Černý, J.; Strnad, Z.; Šebor, G. Composition and Oxidation Stability of SAE 15W–40 Engine Oils. Tribol. Int. 2001, 34, 127–134. [Google Scholar] [CrossRef]
- Bringlerová, N.; Zbuzek, M.; Vráblík, A.; Hamerníková, J.; Černý, R. Application of Alternative Methods of Fuel Desulphurization. Chem. Listy 2018, 112, 827–832. [Google Scholar]
- Wolak, A.; Zając, G.; Fijorek, K.; Janocha, P.; Matwijczuk, A. Experimental Investigation of the Viscosity Parameters Ranges—Case Study of Engine Oils in the Selected Viscosity Grade. Energies 2020, 13, 3152. [Google Scholar] [CrossRef]
- Sejkorová, M. Determination of Total Alkalinity of Motor Oil by FTIR Spectroscopy. Chem. Listy 2013, 107, 643–647. [Google Scholar]
Oil Sample No. | Motor Oil | Specifications | New/Worn Motor Oil | Oil Drain Mileage (km) | Motor Train No. |
---|---|---|---|---|---|
1-1 | M7ADS III | SAE 15W-40 API CF-4/SG | new | 0 | - |
1-2 | M7ADS III | SAE 15W-40 API CF-4/SG | worn | 20,800 | 742,144 |
1-3 model sample | M7ADS III sample (1-2) + 15.6 wt.% diesel | SAE 15W-40 API CF-4/SG | worn | 20,800 | 742,144 |
1-4 model sample | M7ADS III sample (1-2) + 25.6 wt.% diesel | SAE 15W-40 API CF-4/SG | worn | 20,800 | 742,144 |
1-5 | M7ADS III | SAE 15W-40 API CF-4/SG | worn | 24,750 | 742,144 |
2-1 | M7ADS V | SAE 15W-40 API CI-4 CH-4/SL | new | 0 | - |
2-2 | M7ADS V | SAE 15W-40 API CI-4 CH-4/SL | worn | 12,335 | 810,578 |
2-3 | M7ADS V | SAE 15W-40 API CI-4 CH-4/SL | worn | 25,888 | 814,031 |
2-4 | M7ADS V | SAE 15W-40 API CI-4 CH-4/SL | worn | 25,900 | 814,085 |
3-1 | URANIA LD | SAE 15W-40 API CI-4 | new | 0 | - |
3-2 | URANIA LD | SAE 15W-40 API CI-4 | worn | 33,256 | 841,007 I |
3-3 | URANIA LD | SAE 15W-40 API CI-4 | worn | 33,260 | 841,007 II |
3-4 | URANIA LD | SAE 15W-40 API CI-4 | worn | 37,805 | 841,015 I |
3-5 | URANIA LD | SAE 15W-40 API CI-4 | worn | 37,805 | 841,015 II |
4-1 | OMV | SAE 10W-40 API SL/CF | new | 0 | - |
4-2 | OMV | SAE 10W-40 API SL/CF | worn | 39,800 | 841,097 |
Oil Sample No. | WS (mm2) | KV100 °C (mm2·s−1) | ZDDP (%) | Soot (%T) | Fuel (wt.%) | Water (wt.%) | Oxidation (A/0.1 mm) | Nitration (A/0.1 mm) | Sulfation (A/0.1 mm) |
---|---|---|---|---|---|---|---|---|---|

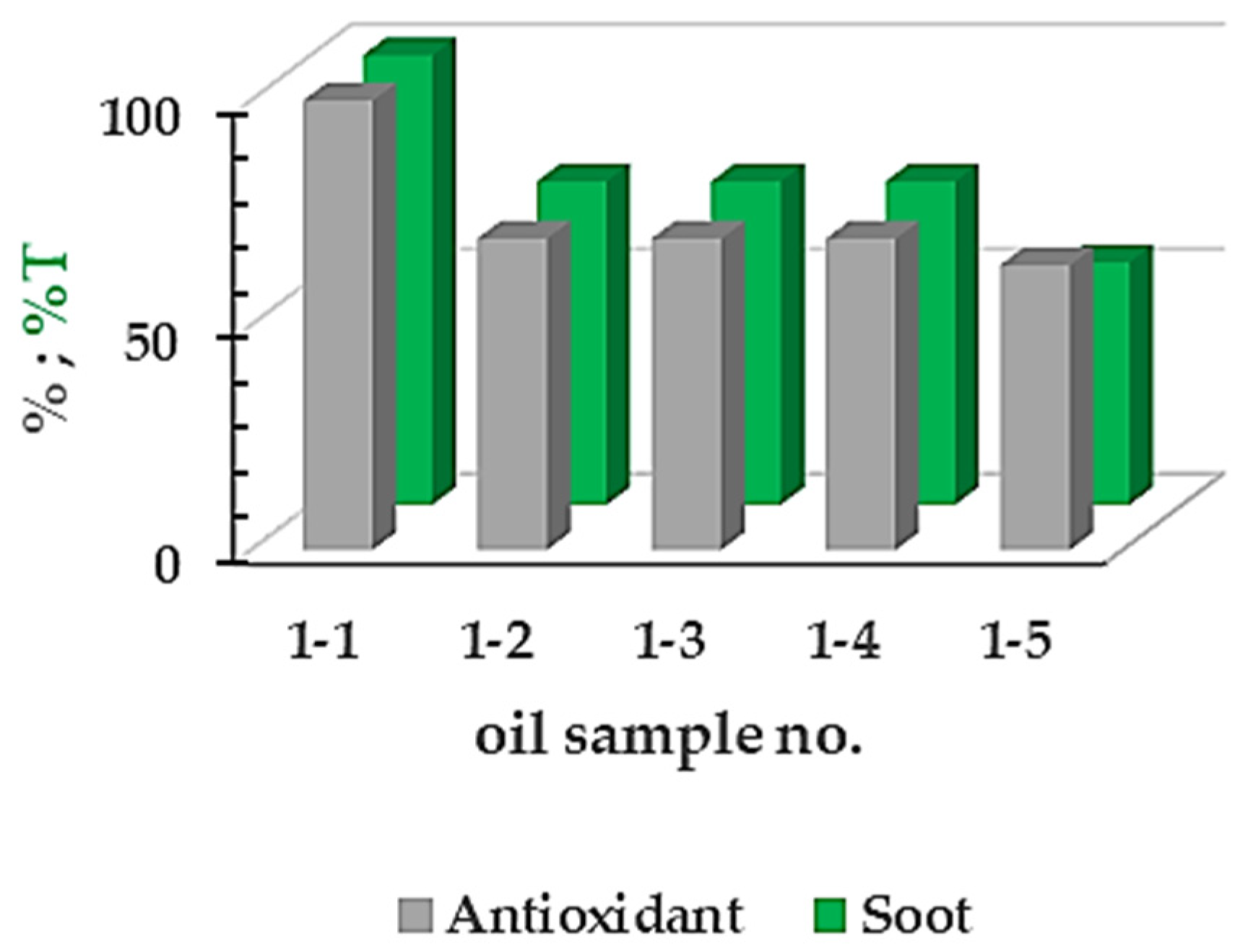

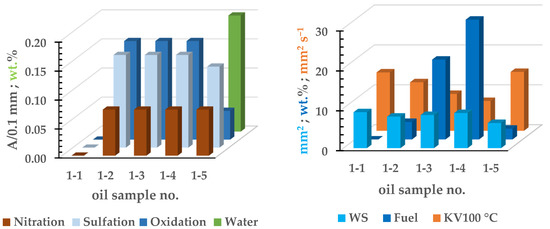

1-1 | 9.0 | 14.62 | 100.0 | 100 | 0.0 | 0.0 | 0.00 | 0.00 | 0.00 |
1-2 | 7.9 | 12.15 | 69.3 | 72 | 4.4 | 0.0 | 0.17 | 0.08 | 0.16 |
1-3 | 8.3 | 9.23 | 69.3 | 72 | 20.0 | 0.0 | 0.17 | 0.08 | 0.16 |
1-4 | 8.8 | 7.47 | 69.3 | 72 | 30.0 | 0.0 | 0.17 | 0.08 | 0.16 |
1-5 | 6.3 | 14.75 | 63.4 | 54 | 2.7 | 0.2 | 0.05 | 0.08 | 0.14 |

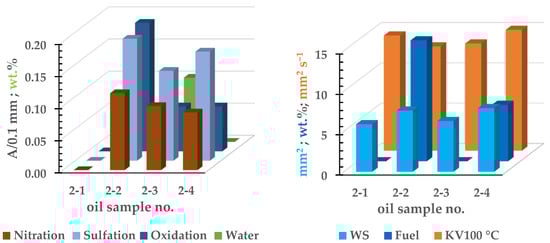

2-1 | 5.9 | 14.29 | 100.0 | 100 | 0.0 | 0.0 | 0.00 | 0.00 | 0.00 |
2-2 | 7.6 | 12.94 | 74.0 | 81 | 17.0 | 0.0 | 0.21 | 0.12 | 0.19 |
2-3 | 6.3 | 13.30 | 67.0 | 78 | 0.0 | 0.1 | 0.07 | 0.10 | 0.14 |
2-4 | 7.9 | 15.48 | 59.0 | 79 | 7.0 | 0.0 | 0.07 | 0.09 | 0.17 |
3-1 | 5.8 | 14.14 | 100.0 | 100 | 0.0 | 0.0 | 0.00 | 0.00 | 0.00 |
3-2 | 5.9 | 14.07 | 11.5 | 93 | 0.0 | 0.0 | 0.15 | 0.23 | 0.26 |
3-3 | 6.1 | 14.07 | 13.8 | 93 | 0.0 | 0.0 | 0.14 | 0.22 | 0.26 |
3-4 | 6.3 | 14.68 | 5.0 | 88 | 0.0 | 0.0 | 0.26 | 0.40 | 0.38 |
3-5 | 5.8 | 14.65 | 6.0 | 88 | 0.5 | 0.0 | 0.26 | 0.40 | 0.38 |
4-1 | 3.5 | 14.37 | 100.0 | 100 | 0.0 | 0.0 | 0.00 | 0.00 | 0.00 |
4-2 | 2.1 | 15.58 | 23.2 | 75 | 0.0 | 0.2 | 0.42 | 0.62 | 0.57 |
Parameter | KV | ZDDP | Soot | Fuel | Oxidation | Nitration | Sulfation |
---|---|---|---|---|---|---|---|
KV | 1 | - | - | - | - | - | - |
ZDDP | −0.20 | 1 | - | - | - | - | - |
soot | 0.34 | 0.15 | 1 | - | - | - | |
fuel | −0.87 | 0.18 | −0.45 | 1 | - | - | - |
oxidation | −0.06 | −0.72 | −0.35 | 0.16 | 1 | - | - |
nitration | 0.30 | −0.83 | −0.14 | −0.22 | 0.90 | 1 | - |
sulfation | 0.17 | −0.87 | −0.31 | −0.07 | 0.94 | 0.97 | 1 |
