Next Article in Journal
Corrosion and Wear Behavior of PEO Coatings on D16T Aluminum Alloy with Different Concentrations of Graphene
Previous Article in Journal
Heterostructures “Ferroelectric Film/Silicon Carbide” for High Power Microwave Applications
Previous Article in Special Issue
Montmorillonite-Synergized Water-Based Intumescent Flame Retardant Coating for Plywood
Open AccessArticle

Plasma Treatment Reduced the Discoloration of an Acrylic Coating on Hot-Oil Modified Wood Exposed to Natural Weathering

by Arash Jamali 1,2 and Philip D. Evans 1,3,*
1
Centre for Advanced Wood Processing, Faculty of Forestry, University of British Columbia, Vancouver, BC V6T 1Z4, Canada
2
Plateforme de Microscopie Electronique, Université de Picardie Jules Verne, 80039 Amiens, France
3
Department of Applied Mathematics, Research School of Physics, The Australian National University, Canberra, ACT 0200, Australia
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(3), 248; https://doi.org/10.3390/coatings10030248
Received: 28 January 2020 / Revised: 27 February 2020 / Accepted: 3 March 2020 / Published: 8 March 2020
(This article belongs to the Special Issue Surface Treatment of Wood)

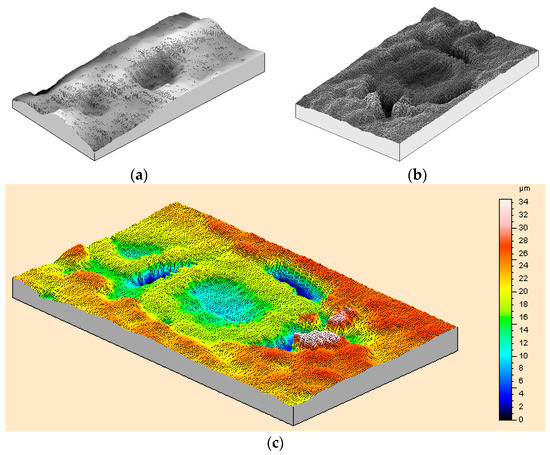

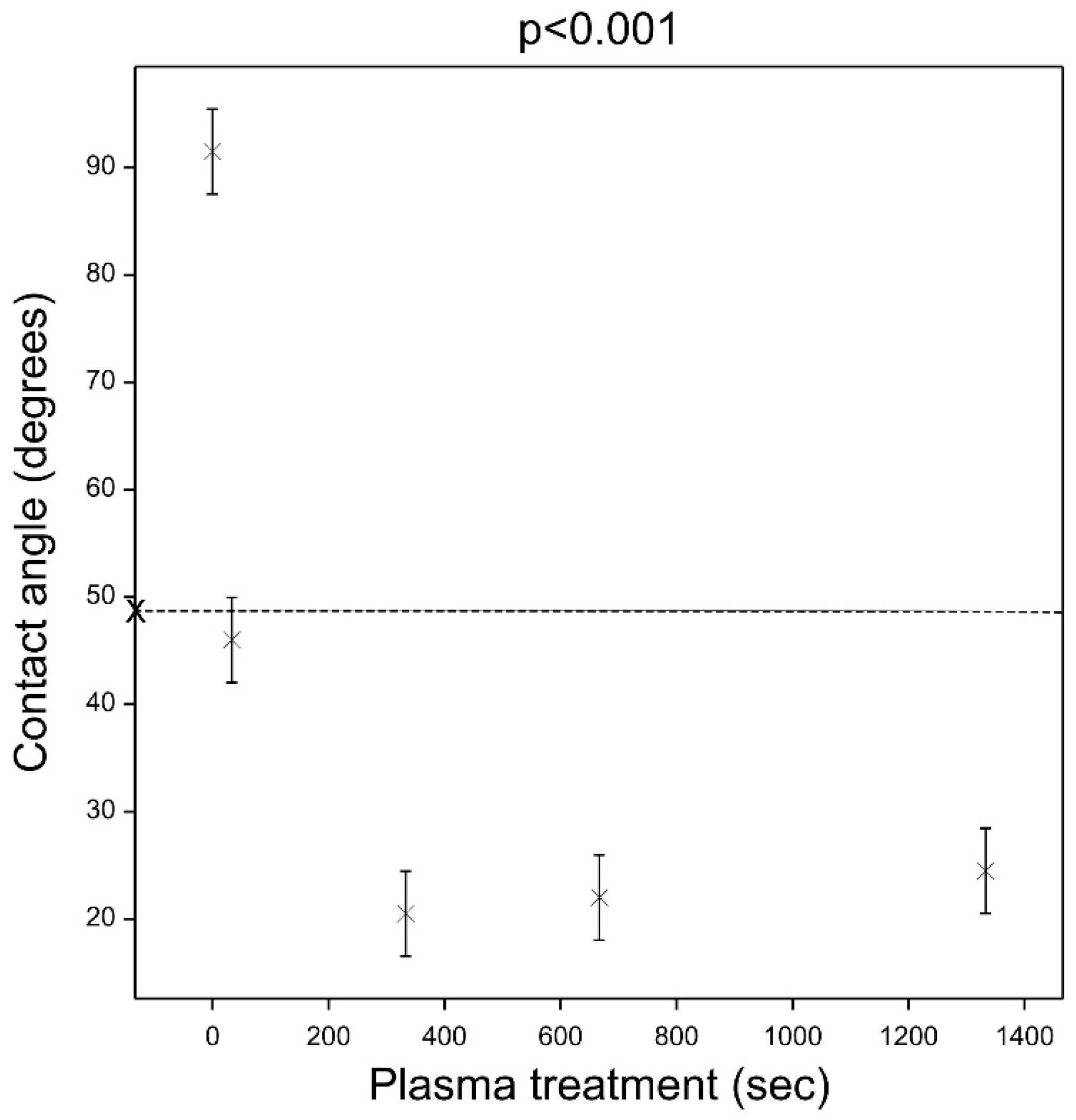

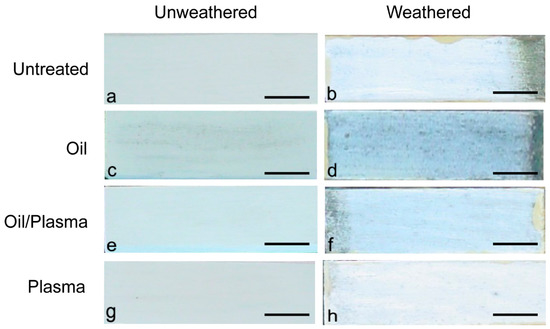

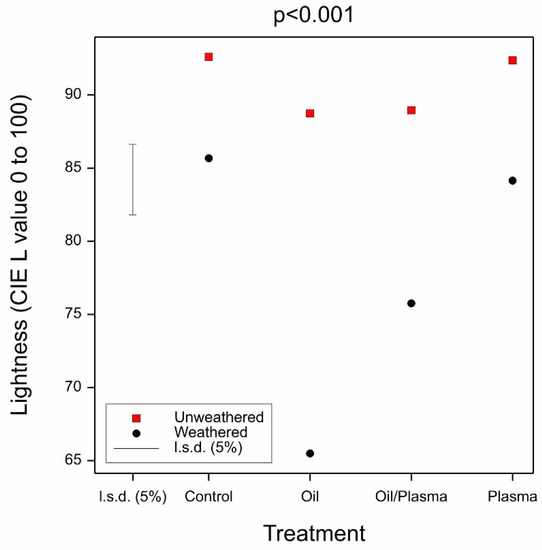

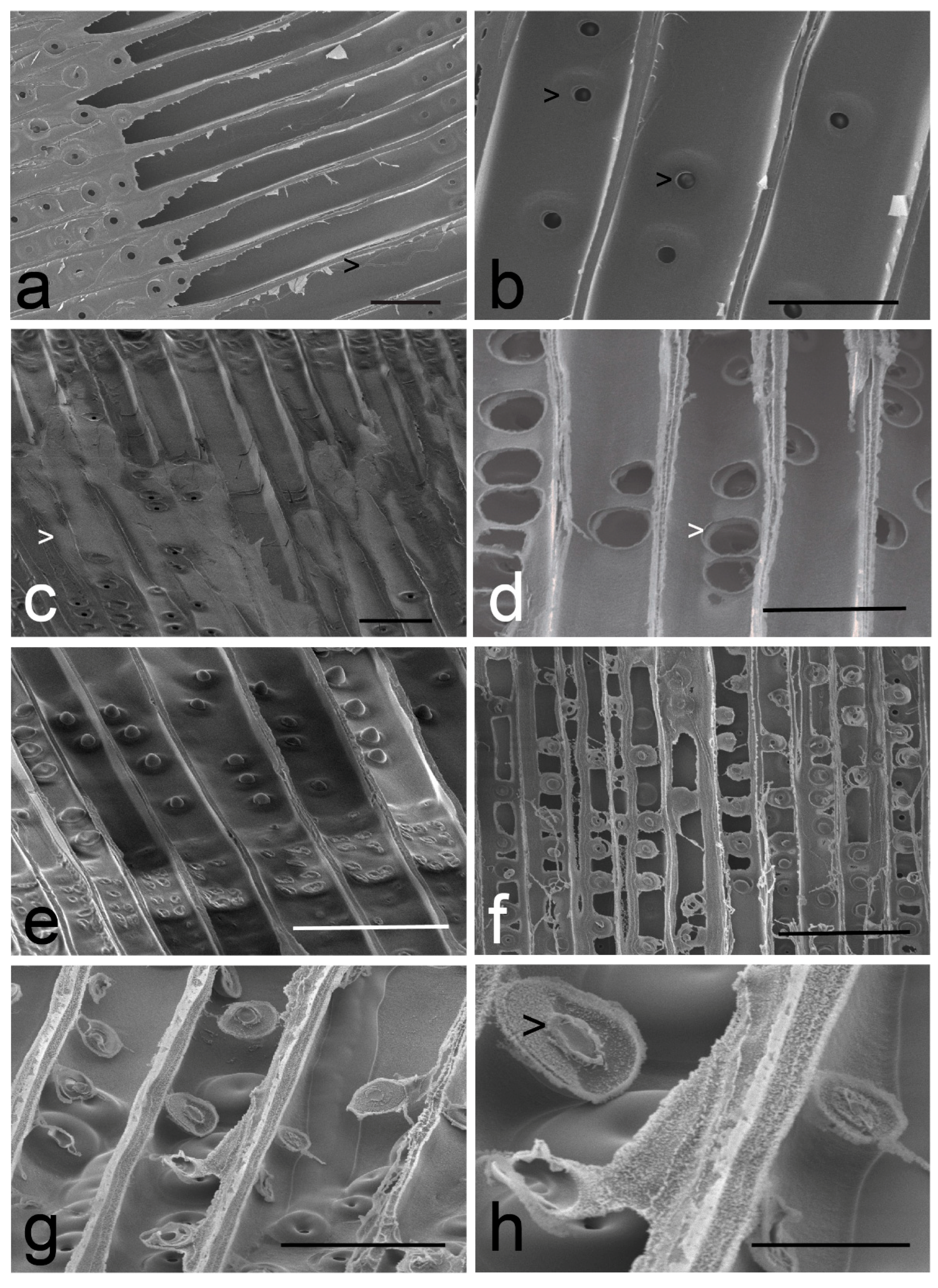

We test the hypothesis that plasma-treatment will remove oil from the surface of hot-oil modified blue-stained pine wood, and improve the adhesion and outdoor performance of a white acrylic coating on the modified wood. Modified wood was treated with water-vapour plasma, and microstructural changes at wood surfaces were examined. Plasma treatment removed oil from the surface of modified wood and etched bordered pits. The contact angle of water droplets on modified wood was 91.8°, but plasma-treatment for only 33 s reduced contact angle to less than that of the unmodified control (48.6°). The adhesion of the acrylic paint to modified wood was unaffected by plasma-treatment, but the adhesion rating of coated samples tested wet was slightly lower (3.1) than that of the coating on samples tested dry (3.5). The lightness value (CIE-L) of the acrylic coating on hot-oil modified wood samples exposed outdoors for 18 months was significantly lower (darker, 65.5) than that of the coating on similarly modified and exposed samples pre-treated with plasma (75.8). We conclude that plasma-treatment shows promise as a way of removing oil from the surface of hot-oil modified wood and reducing the discolouration of an acrylic coating on modified wood exposed to natural weathering. View Full-Text
Keywords: wood; plasma; pine; thermal modification; oil; blue stain; weathering; discolouration; adhesion; bordered pits wood; plasma; pine; thermal modification; oil; blue stain; weathering; discolouration; adhesion; bordered pits
Show Figures

Figure 1

MDPI and ACS Style

Jamali, A.; Evans, P.D. Plasma Treatment Reduced the Discoloration of an Acrylic Coating on Hot-Oil Modified Wood Exposed to Natural Weathering. Coatings 2020, 10, 248.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
