Impact of Degree of Hydrophilicity of Pyridinium Bromide Derivatives on HCl Pickling of X-60 Mild Steel: Experimental and Theoretical Evaluations

Abstract

Dodecyl pyridinium bromide (DDPB), tetradecyl pyridinium bromide (TDPB) and dodecyl 1,1′-bispyridinium dibromide (DDBPB) were successfully synthesized, characterized and evaluated for HCl pickling of X-60 low carbon steel. Order of corrosion inhibitions efficiencies, as revealed by both electrochemical and gravimetric studies, is TDPB > DDPB > DDBPB. The degree of hydrophilicity of inhibitors as predicted by a partition coefficient (Log P) and supported by a contact angle measurement was found to be responsible for their order of corrosion inhibition efficiencies. Adsorption of DDPB, TDPB, and DDBPB through the pyridinium nitrogen on mild steel surface was confirmed by ATR-FTIR and SEM-EDX analyses. The pyridinium nitrogen was found not to be the only factor responsible for their efficiency, but hydrophobes and the orientation of the hydrophilic ring were responsible, which incline to the deviation of experimental results and the order of Monte Carlo simulation adsorption energies. DDPB, TDPB, and DDBPB obey the Langmuir isotherm model despite major contributions of the film formed on the surface of X-60 mild steel on their overall inhibition corrosion resistance.

1. Introduction

Effective elongation, high yield and tensile strength properties of X-60 low carbon steel (X-60 mild steel) as one of the API 5L grade X mild steel have made it a suitable metallic material in various offshore and onshore applications. These attractive mechanical properties, as well as its low cost compared to other alternative materials, have been a major consideration for its enormous applications despite poor resistance to corrosion in different environments [1,2,3,4,5]. Acid pickling is one of the important industrial processes where various acids are utilized for surface cleaning of metals. However, hydrochloric acid (HCl) pickling is preferred to other inorganic acids (hydrofluoric, sulfuric, phosphoric and nitric acids) pickling in steel mills and other steel applications industries due to its high regeneration, less pickling time, minimal loss of substrates, lower temperature and high-quality finished products [6,7]. To improve the economic importance of mild steel in pickling applications, corrosion inhibitors have been used to drastically reduce the effect of acid attack on mild steel [8,9,10].

Corrosion inhibitions of metals occur by either or both physical and chemical adsorptions of inhibitors on metal surfaces owing to the presence of heteroatom (sulphur, nitrogen, phosphorus and oxygen), multiple bonds and aromatic rings along with hydrophilic tails forming a protective film. Considerations of these features of corrosion inhibitors have led to the evaluations of numerous biological materials for effective corrosion inhibitors [11,12,13,14,15,16,17,18] due to their non-toxicity and biodegradable properties. Furthermore, novel ionic liquids [19,20,21] and some eco-friendly organic compounds containing different forms of functional groups, heteroaryl, aromatics cycles, saturated and unsaturated bonds in their molecular structures [22,23,24,25,26,27] have been reported as effective corrosion inhibitors.

Pyridinium salts are quaternary ammonium compounds that often made up of the hydrophilic part of a class of cationic surfactants that are mostly used as antibacterial, antimicrobial and biocidal agents [28,29,30,31]. However, it has been reported to be an important reagent for the development of novel organic compounds in catalysis [32,33,34], dialysis [35], thermoelectrical [36], drug delivery [37] and coatings applications [38]. Due to the presence of a hydrophilic center containing a nitrogen atom incorporated in a benzene ring, the ease of chemical integration of a suitable hydrophobic tail and halides (Cl⁻ or Br⁻) to form suitable pyridinium salts, evaluation of its ability to perform as an effective corrosion inhibitor as halide salts, ionic compounds and synergistically with other compounds have been demonstrated [39,40,41,42,43,44].

The objective of this article is to synthesize three pyridinium bromide salts with modified hydrophobic tails and evaluate the effects of hydrophobic modifications on the corrosion inhibition efficiency on X-60 mild steel in 1 M HCl using gravimetric and electrochemical measurements. For this purpose, pyridinium bromide with 12-carbon chain hydrophobes: dodecyl pyridinium bromide (DDPB), 14-carbon chain hydrophobes: tetradecylpyridinium bromide (TDPB) and 12-carbon chain hydrophobes with two terminal hydrophilic centers: dodecyl 1,1′-bispyridinium dibromide (DDBPB) have been synthesized and evaluated as effective mild steel corrosion inhibitors in acidic media. This investigation would be complemented with surface analysis and Monte Carlo simulation to obtain strength of interaction of inhibitors with X-60 mild steel.

2. Experimental

2.1. Materials

Unless and otherwise stated, all chemicals and solvents were purchased from Sigma Aldrich.

2.2. Synthesis

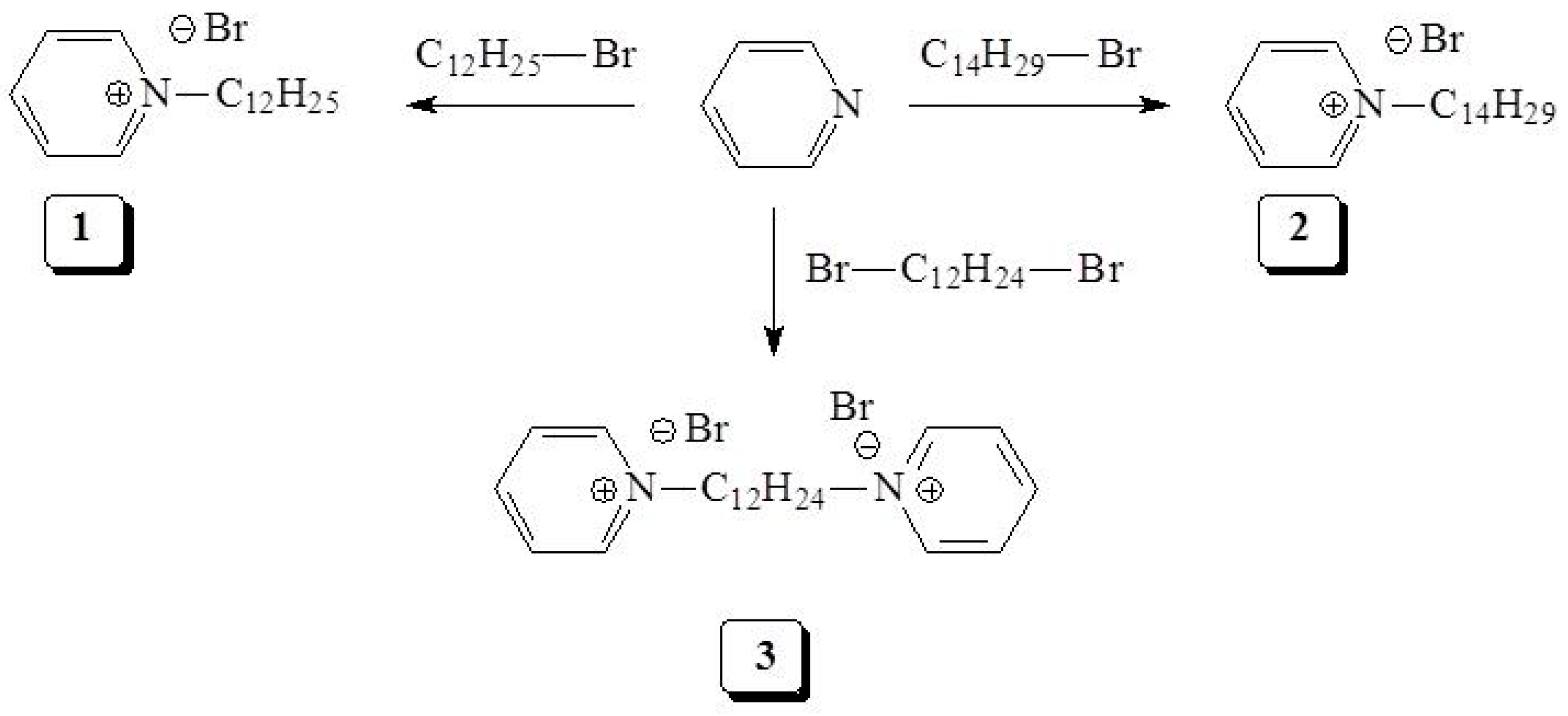

2.2.1. Synthesis of DDPB (1)

DDPB (1) was synthesized following the modified published procedure described elsewhere in the literature [45]; 1-bromododecane (20.1 g, 80.0 mmol) was added to a solution of pyridine (5.4 g, 68.0 mmol) in toluene at room temperature. The reaction mixture was then stirred under N₂ at 110 °C for 24 h. After the time elapsed, 50 mL of diethyl ether was added to the dense reaction mixture. The precipitate was decanted and redissolved in acetonitrile (20 mL). The crude product was then dropwise added to diethyl ether (100 mL). The precipitate was filtered to obtain the final product 1-N-dodecyl pyridinium bromide (1) as a white solid (Scheme 1) and dried in a vacuum at 50 °C for 6 h. Then, the product was removed from the vacuum oven and weighed to give a mass of 20.0 g, equivalent to a 92% yield.

2.2.2. Synthesis of TDPB (2)

TDPB (2) was synthesized following the modified procedure described above. Briefly, 1-bromotetradecane (14.7 g, 53.3 mmol) was added to a solution of pyridine (3.6 g, 44.4 mmol) in toluene. The reaction mixture was then stirred under N₂ at 110 °C for 24 h. After the time elapsed, diethyl ether was added to the dense reaction mixture. The precipitate was decanted and redissolved in acetonitrile (15 mL). The crude product was then dropwise added to diethyl ether (80 mL). The precipitate was filtered to obtain the final product 1-N-tetradecylpyridinium bromide (2) as a white solid (Scheme 1) and dried in a vacuum at 50 °C for 6 h. Then, the product was removed from the vacuum oven and weighed to be 14.8 g corresponding to a 94% yield.

2.2.3. Synthesis of DDBPB (3)

DDBPB (3) was synthesized following the procedure described above. Briefly, 1,12-dibromododecane (8.01 g, 24.4 mmol) was added to a solution of pyridine (4.63 g, 58.5 mmol) in toluene at room temperature. The reaction mixture was then stirred under N₂ at 110 °C for 24 h. After the time elapsed, the reaction mixture was cooled to room temperature during which phase separation occurred. The precipitate was redissolved in acetonitrile (15 mL) and reprecipitated in diethyl ether (80 mL). The precipitate was filtered to obtain the final product as a white solid, dodecyl 1,1′-bispyridinium dibromide (3) (Scheme 1) and dried in a vacuum at 50 °C for 6 h. Then, the product was removed from the vacuum oven and weighed to be 8.97 g corresponding to a 76% yield.

2.3. Characterization of DDPB, TDPB and DDBPB

DDPB (1), TDPB (2) and DDBPB (3) were characterized by a melting point apparatus, elemental analyzer, FTIR, NMR and surface tensiometer. ¹H NMR and ¹³C NMR were performed with a Bruker 400 MHz instrument (Bruker, Coventry, UK) while the FTIR spectra were obtained with PerkinElmer (16F PC FTIR) spectrometer (PerkinElmer, Waltham, MA, USA). Elemental analyses were carried out in a Carlo-Erba elemental analyzer (Carlo-Erba, model 1102, Waltham, MA, USA). Melting points were recorded in a calibrated Electrothermal-IA9100—Digital Melting Point Apparatus (Mettler Toledo, Columbus, OH, USA) using heating rates of 1 °C/min in the vicinity of the melting points. The surface tension and critical micelle concentration (CMC) values for the pyridinium bromide derivatives DDPB, TDPB and DDBPB were measured in 1 M HCl using a surface tensiometer (PHYWE, Gottingen, Germany) by the du Nouy ring method [46].

2.4. Corrosion Studies

2.4.1. Material Preparation

The chemical composition of the low carbon steel (X-60) used for this investigation has been reported to contain above 96% Fe content [2]. It was cut into coupons of dimension 3 × 3 × 1 cm³ in preparation for gravimetric and electrochemical measurements. Before corrosion studies, silicon carbide paper of different abrasive grades numbers (#120–#1000) were used successively to grind the surface of the coupons. After grinding, residues were removed by rinsing with distilled water, degreased by sonication in ethanol bath for 10 min, rinsed with acetone, dried with warm air and stored in the desiccator before use. A 1 M HCl corrosive acidic medium was prepared by dilution with distilled water from 37% purity analytical grade concentrated HCl. Stock solutions of synthesized DDPB (1), TDPB (2) and DDBPB (3) corrosion inhibitors were prepared in 1 M HCl from which corresponding volumes of aliquot were used to prepare the desired concentration range that was the selected base of experimental optimization of 5–50 mg/L by dilution.

2.4.2. Gravimetric Study

Gravimetric measurements were performed using the guidelines obtained from ASTM G 1–03 standard procedures for evaluating, cleaning and preparing mild steel coupons [47]. Coupons were weighed and completely immersed by suspension with the aid of a thread into a Wheaton glass bottle containing 1 M HCl solutions in the absence and presence of different concentrations of DDPB, TDPB and DDBPB. The temperature of the testing solution was maintained at 25 °C, 45 °C and 60 °C with the aid of a thermostated water bath for 24 h. After the time elapsed, the coupon was removed and placed in Clarke’s solution for about 120 s to loosen the corrosion products. They were washed thoroughly with distilled water, rinsed with acetone, dried with a stream of warm air, allowed to cool and reweighed to determine the weight loss.

2.4.3. Electrochemical Study

Electrochemical studies were undertaken with a three-electrode system in an electrochemical cell designed for varieties of flat samples at 25 °C with an exposed area of 1 cm². Graphite rod was used as a counter electrode, saturated calomel electrode (SCE) as a reference electrode and X-60 mild steel coupon as a working electrode. The electrochemical cell was connected to Gamry Potentiostat/Galvanostat/ZRA (reference PC14750-37058) incorporated with the Gamry ESA410 framework system. The framework system comprises of EIS300 software used for electrochemical impedance measurement, and D105corrosion software used for both linear polarization resistance and potentiodynamic polarization measurements. Gamry Echem Analyst software was utilized for data fittings of the electrochemical impedance measurements. The frequency range of 100 KHz and 10 mHz with an amplitude of 10 mV was used in the impedance measurements. Linear polarization resistance experiments were conducted by polarizing the working electrode with +10 and −10 mV potential against the corrosion potential (E_corr) with a scan rate of 0.125 mV/s. Curves of potentiodynamic polarization experiments were obtained by setting the instrument to apply −250 mV as the cathodic potential and +250 mV as the anodic potential relative to the corrosion potential (E_corr) with a scan rate of 0.5 mV/s. This condition will enable the cathodic and anodic curves to run consecutively. Corrosion current densities (I_corr) along with other interesting electrochemical parameters were extrapolated from the linear Tafel region of the anodic and cathodic segments of the curve against the corrosion potential.

2.5. Monte Carlo Simulation and Partition Coefficient (Log P)

Monte Carlo simulation was carried out using the Adsorption Locator module in Material Studio 7.0 software licensed from Accelrys Inc. USA. Low configuration adsorption energy for the interactions of DDPB, TDPB and DDBPB on Fe (110) surface in the aqueous phase was computed. Universal force field (UFF) was used to optimize structures of DDPB, TDPB and DDBPB and other components of the system. The MC calculation of the simulation of the interaction between the inhibitor molecules and Fe(110) surface was carried out with a slab thickness of a 5 Å simulation box, which was enlarged to (10 × 10) a supercell with a vacuum slab of 50 Å to accommodate 30 molecules of water added to mimic a corrosion environment in reality. Partition coefficient (Log P) properties of DDPB, TDPB and DDBPB in solution were predicted with ACD/LABS Percepta licensed software.

2.6. Surface Analysis

A contact angle instrument integrated with an Attension Theta Optical Tensiometer (Biolin Scientific, Espoo, Finland) was utilized to evaluate the hydrophilicity of the protective film formed on X-60 mild steel by inhibitors. Measurements were carried out at an average of 6 locations with a water droplet of ~25 µL on the coupon after complete immersion for 24 h in the presence of an optimum concentration of inhibitors at 25 °C. The sessile drop technique was used to calculate the right and left angle of the droplet.

Adsorption of inhibitors on the substrates was confirmed with Thermo Nicolet 6700 FTIR spectrometer (Thermo Scientific, Fishers, IN, USA) with Smart Orbit diamond micro-ATR. After background correction, a total of 16 scans was performed between 500 and 4000 cm⁻¹ for identifications of functional groups of inhibitors on the mild steel coupons.

Surface morphologies of coupons in the absence and presence of 30 mg/L inhibitors were evaluated with a scanning electron microscope (SEM Emcrafts Genesis-2120 series, Gyeonggi-do, Korea), integrated with an energy dispersive x-ray spectrometer (EDX, Oxford Inc., Abingdon, UK). Before the exposure of coupons to different testing solutions, they were further polished with a cloth containing 1 µm of diamond paste to obtain a near mirror surface after the regular silicon carbide paper of different abrasive grade numbers (#120–#1000) grinding. Coupons were retrieved after 24 h, rinsed with distilled water, dried and SEM analysis was immediately performed.

3. Results and Discussions

3.1. Characterization of Synthesized DDPB, TDPB and DDBPB

¹H NMR, ¹³C NMR and FTIR spectra obtained for DDPB, TDPB and DDBPB are presented as Figures S1–S3, respectively.

DDPB (1): The onset of thermal decomposition (closed capillary): the color change to brown at 152.4 °C, indicating the melting point of DDPB. Elemental analysis for the molecular formula C₁₇H₃₀NBr calculated: C, 58.6; H, 9.3; N, 4.0; found: C, 58.9; H, 9.4; N, 3.9. FTIR: ν_max (neat): 3402, 3060 (pyridine, CH stretching), 2918, 2852 (aliphatic, C_sp3-H stretching), 1635 (C=N stretching), 1482 (C-H stretching), 1323, 1172 (aromatic C-H bending), 1037, 777, and 679 cm⁻¹. ¹H NMR: δ_H (CDCl₃) 0.86 (3H, t), 1.22-1.34 (18H, m), 2.03 (2H, q), 4.98 (2H, q), 8.18 (2H, d), 8.54 (1H, t), 9.49 (2H, t) (TMS: 0.00 ppm). ¹³C NMR (CDCl₃): 14.0 (1C), 22.5 (1C), 25.9 (1C), 29.2 (7C), 31.8 (1C), 61.9 (1C), 128.4 (2C), 144.9 (1C), 145.2 (2C) (middle C in CDCl₃: 77.00).

TDPB (2): The melting point of TDPB (closed capillary) is indicated by the color change to brown at 159.2 °C. C₁₉H₃₄NBr elemental analysis calculated: C, 60.5; H, 9.6; N, 3.9; found: C, 60.6; H, 9.7; N, 3.7. FTIR: ν_max (neat): 3390,3060 (pyridine, C-H stretching), 2916, 2851 (aliphatic, C_sp3-H stretching), 1634 (C=N stretching), 1482 (C-H stretching), 1368, 1323, 1172 (aromatic C-H bending), 1052, 778, and 679 cm⁻¹. ¹H NMR: δ_H (CDCl₃) 0.88 (3H, t), 1.23-1.35 (22H, m), 2.04 (2H, q), 4.99 (2H, q), 8.18 (2H, d), 8.54 (1H, t), 9.49 (2H, t) (TMS: 0.00 ppm). ¹³C NMR (CDCl₃): 14.0 (1C), 22.6 (1C), 25.9 (1C), 29.5 (9C), 31.8 (1C), 62.1 (1C), 128.4 (2C), 144.9 (1C), 145.2 (2C) (middle C in CDCl₃: 77.00).

DDBPB (3): The onset of thermal decomposition (closed capillary): the color changed to brown at 167.3 °C, indicating the melting point of DDBPB. Elemental analysis of DDBPB (3) with a molecular formula C₂₂H₃₄N₂Br₂ calculated: C, 54.33; H, 7.05; N, 5.76; found: C, 54.41; H, 7.15; N, 5.87. FTIR: ν_max (neat): 3361, 3016 (pyridine, CH stretching), 2924, 2847 (aliphatic, C_sp3-H stretching), 2359, 1622 (C=N stretching), 1479 (C-H stretching), 1320, 1203, 1159 (aromatic C-H bending), 1055, 787, 773, and 687 cm⁻¹. ¹H NMR: δ_H (CDCl₃) 1.06-1.25 (16H, m), 1.96 (4H, m), 4.94 (4H, t), 8.15 (4H, t), 8.64 (2H, t), 9.56 (4H, t) (TMS: 0.00 ppm). ¹³C NMR (CDCl₃): 25.8 (2C), 29.1(6C), 32.0 (2C), 61.6 (2C), 128.6 (4C), 145.0 (4C), 145.7 (2C) (middle C in CDCl₃: 77.00).

3.2. Gravimetric Study

An average value of triplicate measurements of the weight losses was used to compute inhibition efficiency ($E_w$) and corrosion rate ($C_R$) using Equations (1) and (2), respectively.

$$E_w=\frac{\Delta W}{W_{blank}}\times 100$$

(1)

$$C_R \left(mm/yr\right)=\frac{87600\times \Delta W}{\rho AT}$$

(2)

where $\Delta W$ is the average weight loss (g) between weight loss in the absence of inhibitor $\left(W_{blank}\right)$ and in the presence of inhibitors, $\rho$ is the density of steel (mainly Fe) taken as 7.86 g/cm³, A is the surface area of the coupon immersed, which computes as A = 2(lw +lh + wh) for the length (l), width (w) and height (h) of the coupon, and T is the immersion time (h).

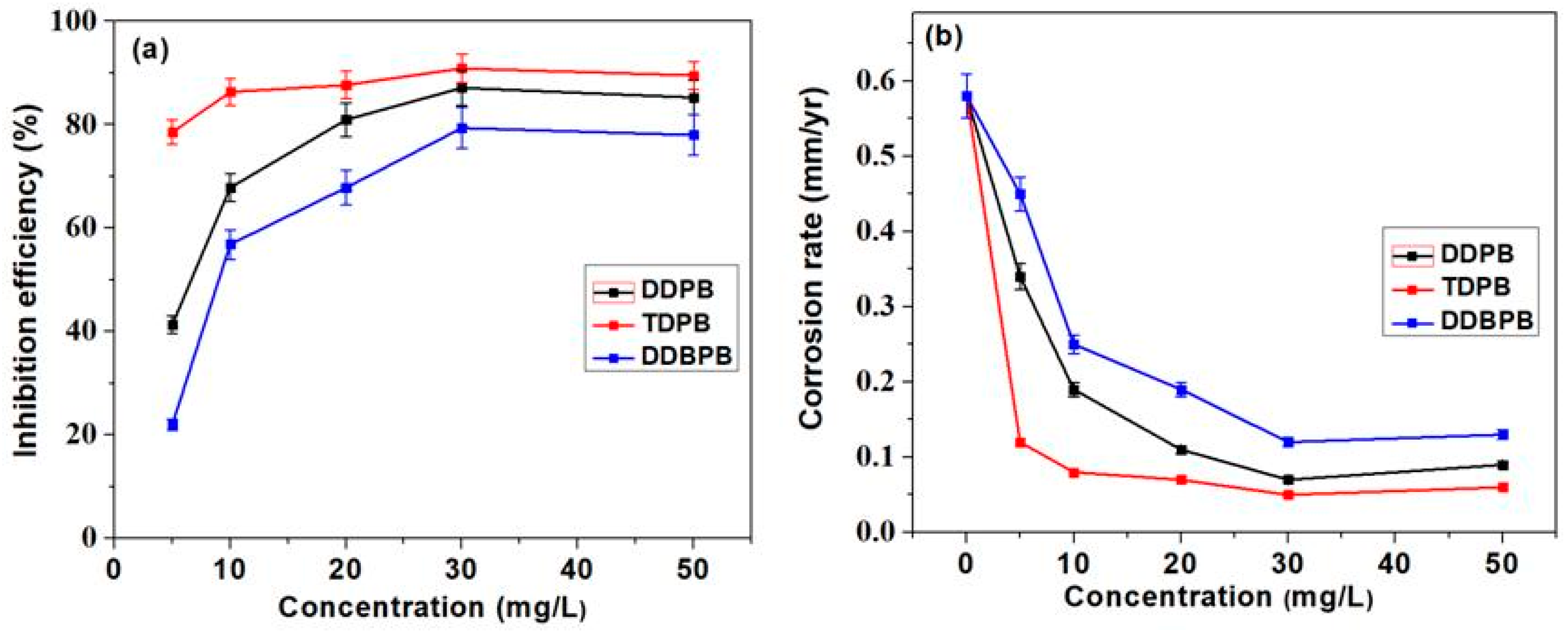

Figure 1a,b show corrosion inhibition efficiency and corrosion rate of different concentrations of DDPB, TDPB and DDBPB, respectively. The inhibition efficiency was found to increase while corrosion rates were found to decrease at 25 °C as the concentration of inhibitors (DDPB, TDPB and DDBPB) increases from 5–30 mg/L in a similar pattern but at different rates. This is an indication that DDPB, TDPB and DDBPB effectively retard dissolution of X-60 mild steel in 1 M HCl solution when compared with the blank (absence of inhibitor). However, a further increase in concentration to 50 mg/L resulted in lower efficiency. This behavior can be attributed to the attainment of optimum coverage of all inhibitors at 30 mg/L and the possibility of additional concentration of inhibitors unadsorbed on the metal surface tends to interact with the adsorbed inhibitor and thereby causing desorption of the absorbed molecule with the consequence of reduced inhibition efficiency. A similar kind of behavior for a particular corrosion inhibitor in different concentrations has been reported in the literature [48]. Surprisingly, TDPB $E_w$ was observed to be about 90.9%, while DDPB and DDBPB achieved 87.1% and 79.4%, respectively, making order of corrosion mitigation effectiveness to be TDPB > DDPB > DDBPB for the gravimetric study at 25 °C.

The surface tension versus inhibitor concentration profile was constructed to find the pyridinium bromide salt’s CMC, which can be used to compare the adsorption pattern on either side of the CMC. Considering the molar concentration of corrosion inhibitors (converted to mg/L), the CMC, as well as surface tension of the pyridinium bromide salts, are found to follow the orders: DDBPB > DDPB > TDPB (Table S1). In 1 M HCl solution, the bispyridinium derivatives DDBPB, having pyridinium hydrophilic polar heads, are expected to have greater CMC values for being more soluble in water than its 12C and 14C hydrophobic pyridinium counterparts. The increase in the hydrophobic alkyl chain length decreases the solubility of the pyridinium bromide derivatives and, as expected, decreases the CMC [46]. The CMC values (Figure S4, Table S1) and the surface coverage (θ) data (Figure 1a) suggested that pyridinium bromide derivatives cover most of the mild steel surface before the concentrations reach their CMC values. The standard free energy of micelle formation (ΔG°_mic) of DDPB, TDPB and DDBPB can be calculated from Equation (3),

ΔG°_mic = RT ln(C_cmc)

(3)

where R, T and C_cmc represent the gas constant, temperature and concentration in molL⁻¹ of the pyridinium bromide salt at the CMC.

It was found that the adsorption on the metal surface is favored over the micellization since the ΔG°_ads values (vide infra) are more negative (Table S2) compared with the corresponding ΔG°_mic (Table S1). The monolayer formation at the interface between the metal and solution is complete before the CMC, after which multilayer coverage due to the adsorption of the micelles may impart further protection, albeit to a lesser degree [49].

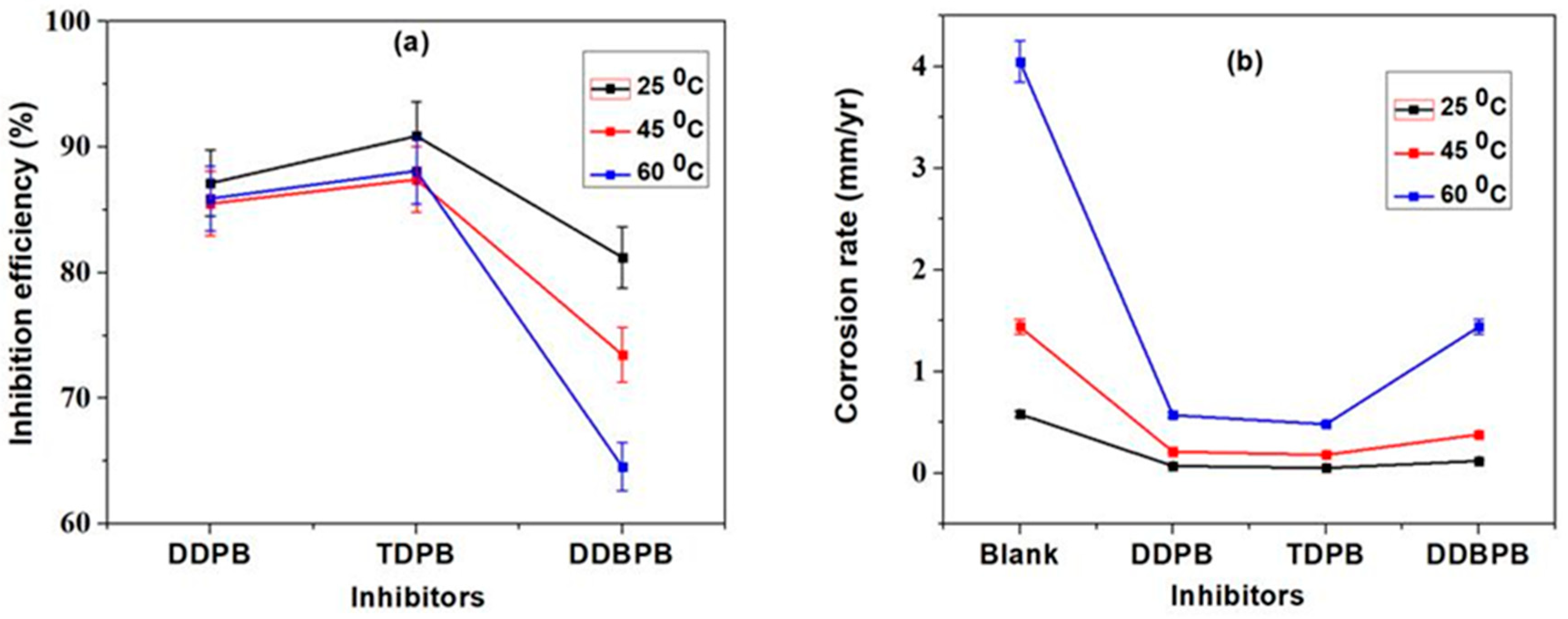

The effects of temperature on the optimum concentration (30 mg/L) of inhibitors were investigated and presented as Figure 2. Figure 2a,b depicts the effect of temperature on inhibition efficiency and corrosion rate inhibitors from 25 to 60 °C, respectively. The efficiency of all inhibitors was observed to reduce at elevated temperature, indicating that thermal agitation increases the dissolution rate of X-60 mild steel in the corrosive medium. The effect of temperature was found to be relatively severe on DDBPB due to a large decrease in inhibition efficiency (Figure 2a) and a large increase in corrosion rate (Figure 2b) as a result of the greater effect of thermal agitation of DDBPB molecule on the mild steel surface. However, TDPB and DDPB were not affected much by increasing temperature. The superiority of TDPB was obvious in Figure 2a,b for the inhibition efficiency and corrosion rate variation comparisons between inhibitors at 25 °C, 45 °C and 60 °C, respectively. TDPB was found to achieve the highest $E_w$ (Figure 2a) and the lowest corrosion rate (Figure 2b) in all investigated temperatures, indicating that the order of inhibitors effectiveness (TDPB > DDPB > DDBPB) on X-60 mild steel in 1 M HCl is the same for 25 °C, 45 °C and 60 °C.

3.3. Electrochemical Evaluation

3.3.1. Impedance Measurements

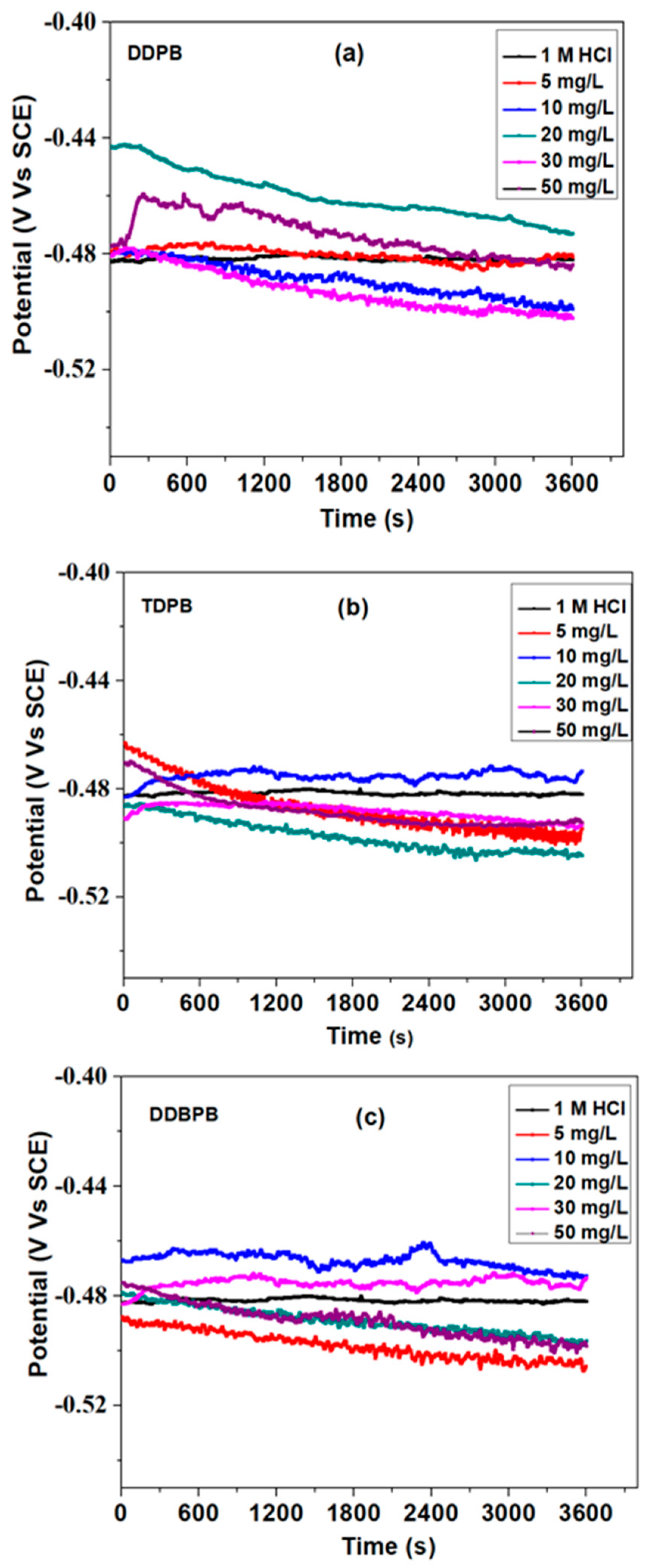

All electrochemical measurements were recorded after 1 h immersion time of X-60 mild steel in the testing solution in the absence and presence of inhibitors to ensure a stable open circuit potential (OCP), as shown in Figure 3. The direction of potential change about the blank solution is a function of how the electrical double layer adjusts to accommodate the electrolyte system. It can be observed that potential in the different concentrations of DDPB, TDPB and DDBPB was either stable or increasing but later decreasing compared with the blank, suggesting the breaking down of a film before stabilization. This can be attributed to the bulky nature of DDPB, TDPB and DDBPB forming a porous film on X-60 mild steel surface that will contribute to slowing down the rate of corrosion. The slight shift in the potential in the presence of an inhibitor suggests both an anodic and cathodic mechanism of protection.

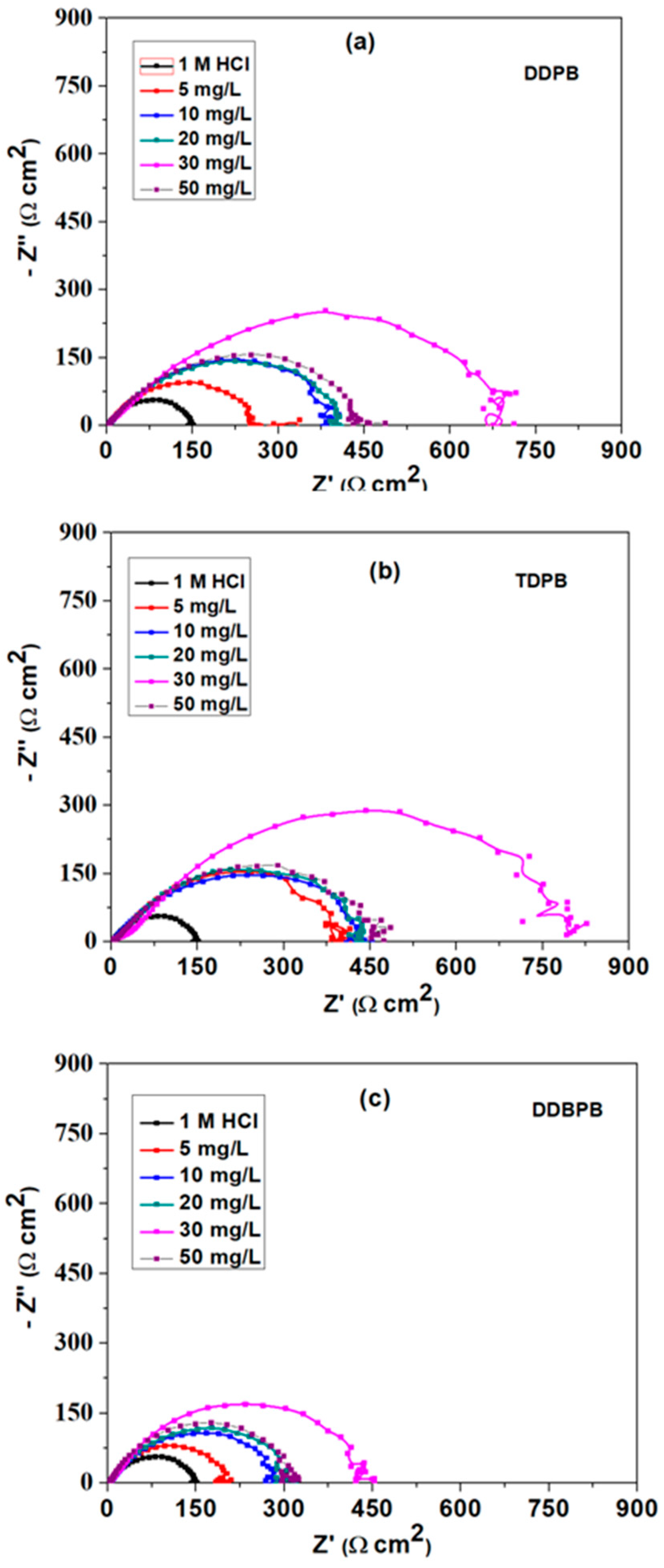

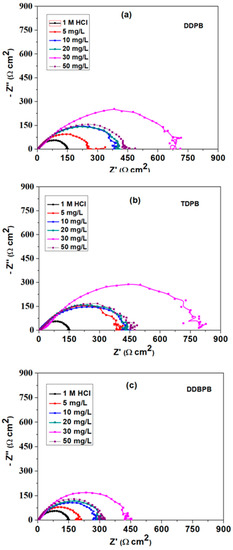

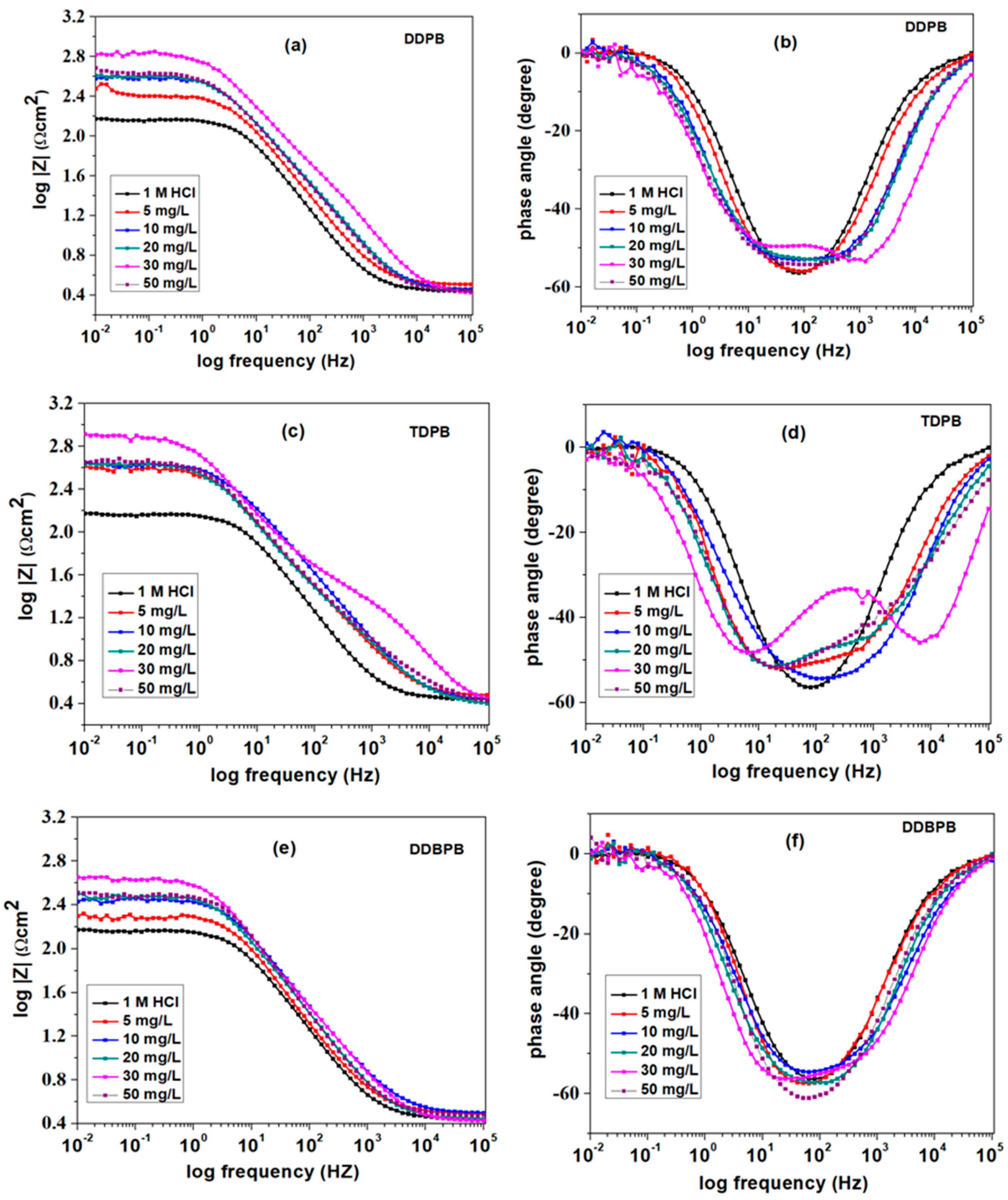

To characterize the capacitive behaviors and kinetics of the electrochemical process of DDPB, TDPB and DDBPB on X-60 mild steel surface, an impedance measurement was carried out after 1 h of OCP. Nyquist and Bode’s (modulus and phase angle) plots of DDPB, TDPB and DDBPB are presented in Figure 4 and Figure 5, respectively, for better comparison. It can be observed in the Nyquist plots (Figure 4) that the real impedance values increase as the concentration of DDPB, TDPB and DDBPB increases, as indicated by the corresponding diameters. TDPB (Figure 4b) was found to have the maximum real impedance value followed by DDPB (Figure 4a) and DDBPB (Figure 4c) at 30 mg/L concentrations with lower values for all inhibitors at 50 mg/L concentrations. This behavior is in agreement with what was observed in the gravimetric measurement for DDPB, TDPB and DDBPB. Exhibition of a single semi-circle with no shoulder, indicating a relaxation process [50,51], can be observed in the absence of DDPB, TDPB and DDBPB, but the presence of different concentrations of DDPB, TDPB and DDBPB introduced a shoulder on the semi-circle, indicating an additional relaxation process, suggesting a double relaxation process as a result of film formation on the X-60 mild steel surface. The extent of the interaction of DDPB, TDPB and DDBPB with X-60 mild steel in the testing medium can be easily predicted by the shape exhibited by the individual inhibitor on the Bode’s plots (Figure 5). Curves close to a straight line between the solution resistance and the total resistance can be observed in the modulus plots (Figure 5e), and non-distinguishable minimal deflections similar to the blank in the phase angle plots (Figure 5f) for DDBPB are a relative indication of the least interaction of DDBPB with X-60 mild steel. Moderate interaction can be suggested for DDPB comparing the non-linearity of the curve of the modulus plot (Figure 5a) and a broader distinguishable minimal deflections phase angle (Figure 5b) clearly showing the existence of two times constant. However, it is obvious from the curve exhibited in the modulus plots (Figure 5c) and the glaring two minimal deflections in the phase angle plots (Figure 5d) for TDPB showing a superiority interaction of TDPB in agreement with the claimed order of effectiveness (TDPB > DDPB > DDBPB), conforming with their extent of interaction with X-60 mild steel.

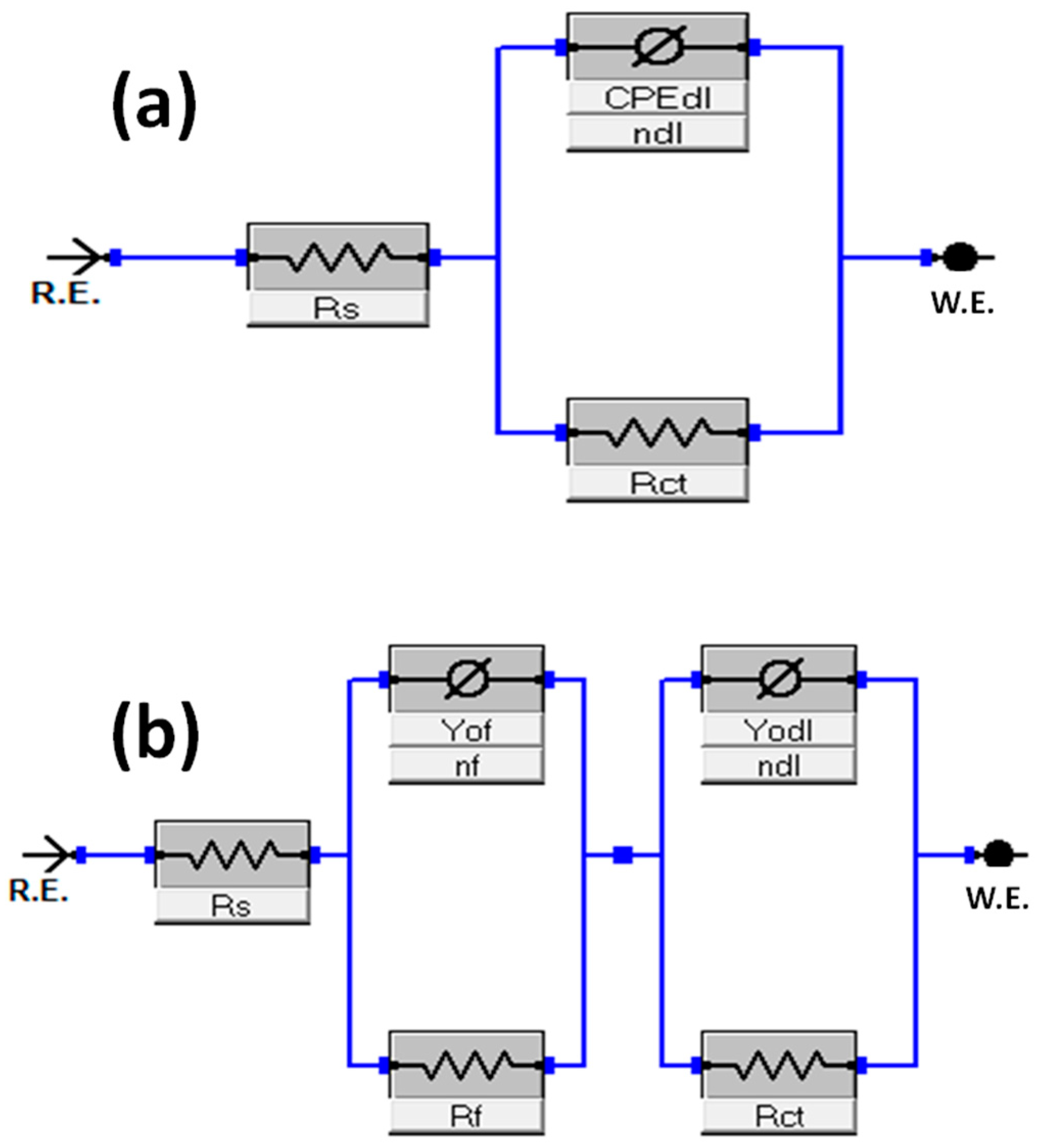

Modeling a suitable electrical equivalent circuit to generate data for the impedance plots requires considering shapes of the Nyquist semicircle, curves of modulus plots and nature of deflections in the phase angle plots. The imperfect semicircle of the Nyquist plot and minimal deflection point of angle lower than 90° suggest the relaxation porosity effect due to surface roughness, mass transfer, non-homogeneity of local dielectric material and time constant frequency dispersion [52], which can be accounted for by the introduction of a constant phase element [53] in place of capacitance in the equivalent circuit. Also, numbers of distinguishable maxima or minimal deflections related to shoulders indicated by the modulus phase angle plot are equivalent to numbers of the time constant of the electrochemical system processes [51].

Reliable chi-square (χ²) fitting values were obtained using Figure 6a,b to fit impedance plots in the absence and presence of DDPB, TDPB and DDBPB, respectively. Electrochemical impedance parameters are listed in

Table 1. Impedance parameters of X-60 mild steel in the absence and presence of different concentrations of DDPB, TDPB and DDBPB at 25 °C.

Inhibitor	Conc. (mg/L)	Rs (Ωcm2)	CPEf			CPEdl			RT (Ωcm2)	χ2 × 10−3	${\mathit{E}}_{\mathit{i}\mathit{m}\mathit{p}} (\%)$
			Yof (µΩSn/cm2)	nf	Rf (Ωcm2)	Yodl (µΩSn/cm2)	ndl	Rct (Ωcm2)
	Blank	2.75	-	-	-	342.9	0.79	148.0	148.0	0.69	-
DDPB	5	3.13	330.1	0.75	240.4	979.1	1.10	26.5	266.9	2.28	44.5
	10	2.79	235.1	0.84	362.5	370.6	0.74	28.2	390.7	0.71	62.1
	20	2.69	260.9	0.80	387.3	295.8	0.78	19.7	407.0	0.52	63.6
	30	2.53	199.2	0.78	666.1	131.0	0.78	30.4	696.5	0.99	78.8
	50	2.70	279.4	0.79	429.5	364.9	0.79	16.7	446.2	0.48	66.8
TDPB	5	2.86	250.3	0.86	366.6	414.4	0.70	29.9	396.5	0.96	62.7
	10	2.63	211.7	0.82	385.7	419.9	0.70	43.5	429.2	1.12	65.5
	20	2.36	291.6	0.82	414.5	536.6	0.65	24.4	438.9	0.46	66.3
	30	2.25	309.2	0.75	798.0	50.7	0.75	28.6	826.6	1.52	82.1
	50	2.23	1098.0	0.54	188.1	328.6	0.93	284.1	472.2	0.46	68.7
DDBPB	5	3.05	747.5	0.71	35.3	215.4	0.96	156.5	191.8	0.91	22.8
	10	3.06	203.4	0.87	254.7	563.6	0.71	24.3	279.0	0.73	47.0
	20	2.73	461.5	0.74	52.4	241.4	0.93	245.4	297.8	0.70	50.3
	30	2.47	412.0	0.69	284.4	335.1	1.11	156.0	440.4	1.47	66.4
	50	2.96	175.5	0.93	272.1	762.4	0.71	36.2	308.3	0.62	52.0

along with other estimated data for X-60 mild steel in the absence and presence of DDPB, TDPB and DDBPB. Impedance efficiency ($E_{imp}$) is estimated by computing the percentage difference between the total charge transfer resistance in the presence ($R_T$) and absence ($R_{ct°}$) of DDPB, TDPB and DDBPB, as shown in Equations (4) and (5).

$$R_T=R_f+R_{ct}$$

(4)

$$E_{imp}(\%)=\frac{R_T-R_{ct°}}{R_T}\times 100$$

(5)

where $R_T$ is the total resistance comprised of the charge transfer resistance of the film $(R_f)$ and the charge transfer resistance of the double layer in the presence $(R_{ct})$ and absence ($R_{ct°}$) of DDPB, TDPB and DDBPB.

It can also be observed that the percentage efficiency of all inhibitors increases with an increase in concentration from 5 mg/L up to the optimum values of 30 mg/L, with a further increase in concentration decrease efficiency of all inhibitors. The efficiency of 78.8%, 82.1% and 66.4% were achieved for DDPB, TDPB and DDBPB, respectively, in the same order of superiority from the gravimetric experiment. Furthermore, it was found that resistance of the film ($R_f$) as a result of a protective film formation by DDPB, TDPB and DDBPB plays a major role in the total resistance ($R_T$). Effective corrosion inhibition of DDPB, TDPB and DDBPB could be attributed to the adsorption of the pie bond of the aromatic and the ionized quaternary pyridimic nitrogen on the X-60 mild steel forming a protective film with the hydrophobes, thereby creating a barrier for charge and mass transfer to isolate corroding ion from attacking X-60 mild steel.

3.3.2. Polarization Measurements

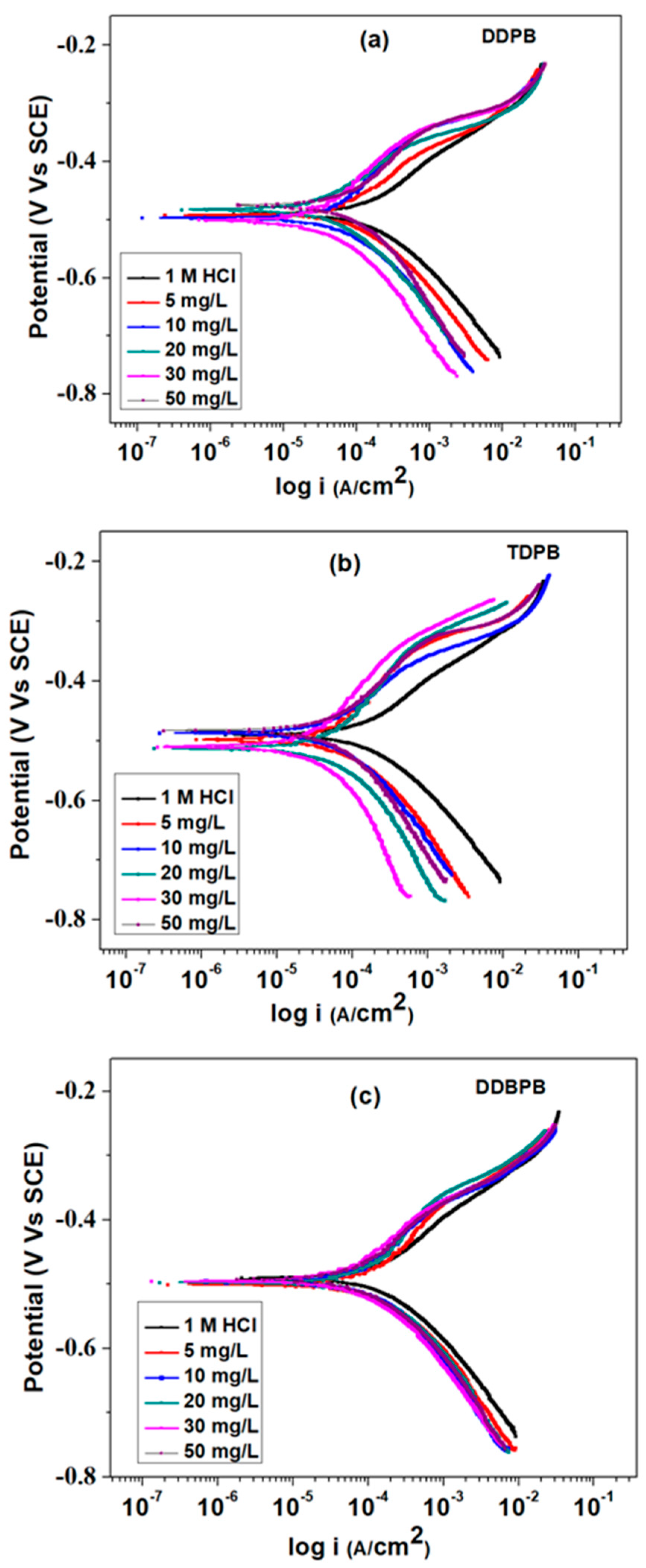

A direct current approach by potentiodynamic polarization (PDP) technique was used to gain insight into the change in the kinetics of cathodic and anodic reactions of X-60 mild steel in 1 M HCl in the presence of DDPB, TDPB and DDBPB. Tafel curves generated from the PDP measurements were presented in Figure 7. It can be observed that all curves exhibit similar nature of polarization in both directions but characterized with lower current density cathodic and anodic regions in the presence of different concentrations of DDPB, TDPB and DDBPB when compared with the anodic and cathodic curves of the X-60 mild steel in the absence of an inhibitor. This behavior characterized by a reduction in current density in the anodic and cathodic direction of the Tafel curve is an indication of a mixed-type corrosion inhibition mechanism. However, the extent of reduction of the current density was found to depend on the type of inhibitor (DDPB, TDPB or DDBPB) present in the testing medium. Tafel anodic slopes (β_a), cathodic slopes (β_c), corrosion current densities (I_corr), corrosion potentials (E_corr) and corrosion rates (C_rate) extrapolated from the linear portion of the Tafel curves are enumerated in

Table 2. Potentiodynamic polarization (PDP) and linear polarization resistance (LPR) parameters of X-60 mild steel in absence and presence of different concentrations of DDPB, TDPB and DDBPB at 25 °C.

Inhibitors	Conc. (mg/L)	PDP						LPR
		Ecorr (mV/SCE)	Icorr (µA/cm2)	Crate (mm/yr)	βa (mV/dec)	βc (mV/dec)	${\mathit{E}}_{\mathit{p}\mathit{d}\mathit{p}} (\%)$	Rp (Ωcm2)	Crate (mm/yr)	${\mathit{E}}_{\mathit{l}\mathit{p}\mathit{r}} (\%)$
	Blank	−490.0	167.0	76.50	124.1	118.1	-	161.6	73.6	-
DDPB	5	−492.0	94.8	43.32	196.1	79.80	43.2	315.4	34.9	48.8
	10	−497.0	65.1	29.74	151.8	141.8	61.0	344.7	33.4	53.1
	20	−483.0	47.8	21.84	109.2	132.3	71.4	494.1	23.8	67.3
	30	−501.1	27.9	12.76	109.5	87.7	83.3	623.9	18.3	74.1
	50	−475.0	70.1	32.04	99.7	100.9	58.0	509.0	19.0	68.3
TDPB	5	−497.0	63.4	28.9	159.5	114.4	62.2	410.9	28.8	60.7
	10	−487.0	57.7	26.4	120.4	124.6	65.5	445.3	26.2	63.7
	20	−513.0	58.0	26.5	172.4	123.9	65.5	545.0	21.3	70.4
	30	−510.0	20.1	9.2	106.9	90.6	88.0	853.6	13.7	81.1
	50	−482.0	74.6	34.1	144.4	179.8	55.3	431.9	23.4	62.6
DDBPB	5	−500.0	118.0	54.1	124.4	130.6	29.3	206.5	55.9	21.7
	10	−496.0	69.6	31.8	110.5	73.3	58.3	316.6	36.2	48.9
	20	−497.0	59.0	27.0	105.3	67.3	64.7	326.4	35.4	50.5
	30	−495.0	45.5	20.8	102.4	73.9	72.8	420.1	27.5	61.5
	50	−492.0	82.0	37.5	128.4	89.4	37.5	288.2	39.9	43.9

. A mixed type inhibitor (DDPB, TDPB and DDBPB) property can be further confirmed by the slight negative shift of E_corr in both directions and were observed in Table 2 when compared with the blank. Furthermore, corrosion rates of X-60 mild steel were found to decrease as the concentrations of DDPB, TDPB and DDBPB increase from 5 to 30 mg/L. Optimum concentrations of corrosion efficiency of DDPB, TDPB and DDBPB was found to be in good agreement with what was observed in the impedance and the gravimetric measurements. The percentage inhibition efficiencies ($E_{pdp}$) of inhibitors were computed using Equation (6) and listed in Table 2. Efficiencies of 83.3%, 88.0% and 72.8% were achieved with 30 mg/L concentrations of DDPB, TDPB and DDBPB, respectively, following the order of superiority earlier observed from other techniques

$$E_{pdp}=\frac{I_{corr°}-I_{corr}}{I_{corr°}}\times 100$$

(6)

where $I_{corr°}$ and I_corr is the current density in absence and presence and of different concentrations of DDPB, TDPB and DDBPB, respectively.

Corrosion rates and other electrochemical parameters obtained by linear polarization resistance (LPR) measurements in the absence and presence of different concentrations of DDPB, TDPB and DDBPB were also presented in Table 2. Polarization resistance $(R_p$) was obtained using the slopes of potential (E) versus current density (i) curves measured ±10 mV at corrosion potential (E_corr). Inhibition efficiencies ($E_{lpr}$) of the LPR measurements were estimated by the percentage difference between the polarization resistance in the presence $(R_p$) and absence $(R_{p°}$) of different concentrations of DDPB, TDPB and DDBPB using Equation (7).

$$E_{lpr}(\%)=\frac{R_p-R_{p°}}{R_p}\times 100$$

(7)

The corrosion rate was observed to decrease with an increase in concentration from 5–30 mg/L of DDPB, TDPB and DDBPB. Further increase in the concentration of inhibitors above 30 mg/L leads to an increase in corrosion rate and lower efficiency as evidenced by the presence of 50 mg/L concentrations for all inhibitors. This trend has been observed from other experimental techniques pointing towards 30 mg/L as the optimum concentration of DDPB, TDPB and DDBPB in the testing medium. Reduction in the corrosion rate of about 60.0, 55.3, and 46.1 mm/yr along with $E_{lpr}$ of 81.1%, 74.1%, and 61.5% were achieved for 30 mg/L TDPB, DDPB and DDBPB, respectively, when compared with X-60 mild steel in the absence of inhibitors. The corrosion inhibition efficiencies results obtained for the polarization and impedance measurements are in close agreement with the gravimetric measurement.

3.4. Adsorption Isotherm

Adsorption isotherm was constructed to obtained information on the nature of adsorption of DDPB, TDPB and DDBPB on X-60 mild steel in HCl solution with an assumption of direct relationship between the degree of surface coverage ($\mathsf{\theta }$) and the inhibition efficiency of the impedance measurements ($\mathsf{\theta }=E_{imp}/100$). This assumption is based on the fact that the extent of corrosion inhibition is a function of the surface condition of the substrate and nature of the adsorption of inhibitors. Different adsorption isotherm models were fitted with values obtained, but the Langmuir isotherm model was found to be the best-fitted isotherm model base on correlation coefficient (R²) values. It is a monolayer adsorption isotherm characterized by the expression presented as Equation (8):

$$\frac{C_{inh}}{\mathsf{\theta }}=\frac{1}{K_{ads}}+C_{inh}$$

(8)

where $\mathsf{\theta }$ is the surface coverage, $C_{inh}$ is the concentration of DDPB, TDPB and DDBPB, and $K_{ads}$ is the equilibrium constant of the adsorption process.

Plots of the ratio of concentrations (C) of DDPB, TDPB and DDBPB and surface coverage ($\mathsf{\theta }$) against concentrations (C) are presented as Figure S5, and parameters extrapolated from the model are enumerated in Table S2. It can be observed that slopes of 1.05, 1.10 and 0.99 obtained for DDPB, TDPB and DDBPB, respectively, are close to unity (1). This is an indication that all inhibitors obey the Langmuir isotherm model despite major contributions of the film formed on the surface of X-60 mild steel on their overall inhibition corrosion resistance. However, correlation efficiencies (R²) values 0.990, 0.999 and 0.922 obtained for DDPB, TDPB and DDBPB, respectively, can be correlated to the extent of interaction of inhibitors revealed by impedance measurement.

Nature of adsorption of DDPB, TDPB and DDBPB on X-60 mild steel can be predicted from the $K_{ads}$ that were obtained from the intercept of Langmuir plots by relating it with standard Gibbs free energy ($\Delta G_{ads}$) using Equation (9).

$$\Delta G°{}_{ads}=-RT in \left(1\times {10}^6 K_{ads}\right)$$

(9)

where R is the universal gas constant, T is the absolute temperature in Kelvin and $1\times {10}^6$ is the concentration of water expressed in ppm (mg/L).

The physisorption process that is characterized by electrostatic interaction between the charged adsorbed molecule and the metal surface has been attributed to $\Delta G°{}_{ads}$ values of −20 kJ/mol or less, while the chemisorption process that is characterized by the formation of coordinate bond involving charge transfer or sharing between molecules of inhibitor and metal surface have been attributed to $\Delta G°{}_{ads}$ values of −40 kJ/mol or more [54]. Estimated values of $\Delta G°{}_{ads}$ enumerated in Table S2 are −38.1, −33.3 and −40.3 kJ/mol for DDPB, TDPB and DDBPB, respectively. It can be deduced base on the $\Delta G°{}_{ads}$ values obtained that the adsorption process of DDPB, TDPB and DDBPB X-60 mild steel may involve both physisorption and chemisorption but more of the chemisorption process. These double adsorption processes can be explained by an assumption made by Lozano et al. [55] that there is likely an existence of strong adsorption of water molecule on X-60 mild steel surface, which will have more affinity for the ionized nitrogen center of the hydrophilic section of pyridinium bromide salt (physisorption process) and later accompanied by charge sharing or transfer between electron-rich centers of the inhibitor and the mild steel surface (chemisorption process) as a result of longer interaction time.

3.5. Monte Carlo Simulation and Log-P

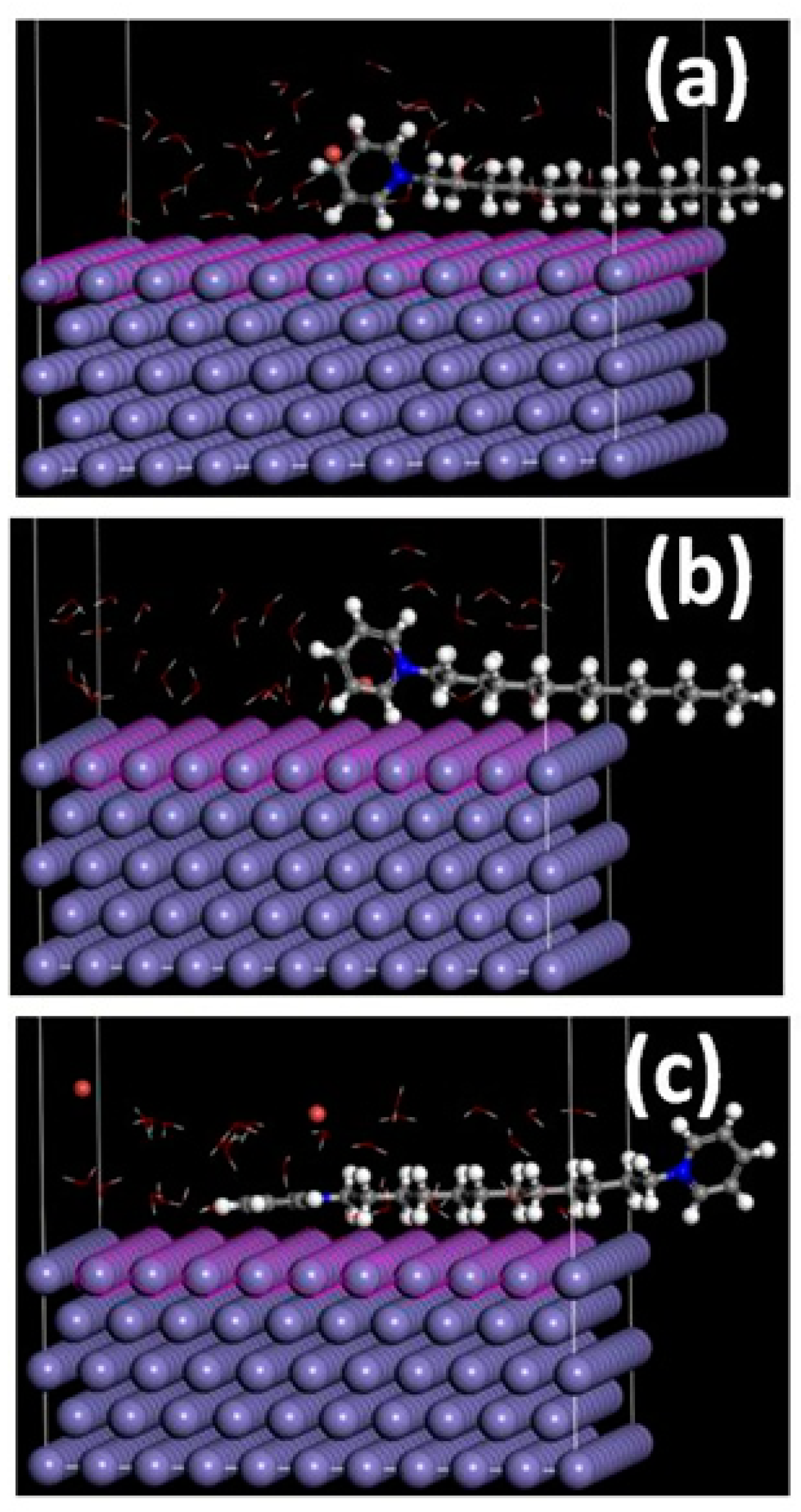

The most stable energy configurations for the adsorption energy of DDPB, TDPB and DDBPB that were carried out in aqueous phase with 30 molecules of water to mimic corrosion environment snapshots are shown in Figure 8. It can be observed that the pyridinium ring is the center of adsorption for all Fe(110)/inhibitors systems. However, orientation of the aromatic ring of DDPB (Figure 8a) and TDPB (Figure 8b) are tilted in the same manner on the Fe(110) surface, while that of DDBPB (Figure 8c) is parallel with maximum contact on the Fe(110) surface and the other ring is tilted but does not have contact with the Fe(110) surface. It has been reported that the more negative adsorption energies of inhibitors are responsible for their degree of interactions with the metal surface and, thereby, proportional to their corrosion efficiencies [56]. Adsorption energies of −34.1, −38.5 and −42.6 Kcal/mol computed for DDPB, TDPB and DDBPB, respectively, from the Monte Carlo simulation are shown in

Table 3. Monte Carlo simulation’s parameters for the adsorption of DDPB, TDPB and DDBPB on Fe (110)/30 H₂O interface.

Interface	Adsorption Energy of Inhibitors (Kcal/mol)	Adsorption Energy of H2O (Kcal/mol)
Fe(110)/DDPB/30 H2O	−34.1	−1.10
Fe(110)/TDPB/30 H2O	−38.5	−1.24
Fe(110)/DDBPB/30 H2O	−42.6	−1.22

. The higher adsorption energy of TDPB than DDPB is in agreement with the experimental results. However, the highest adsorption energy of DDBPB when compared with both TDPB and DDPB from the simulation study will distort the order of inhibition efficiencies (TDPB > DDPB > DDBPB) from the experimental results. Therefore, the rate of adsorptions of DDPB, TDPB and DDBPB on mild steel surface is likely not the only factor responsible for the order of their corrosion inhibition efficiencies.

Furthermore, degrees of solubility of DDPB, TDPB and DDBPB in solution were predicted with ACD/LLABS Percepta v.2018.1 software. Partition coefficient Log P ([organic]/[aqueous]) indicates the concentration of solute in an organic and aqueous partition. A negative value of Log P indicates a high affinity of the compound for the aqueous phase (more hydrophilic); Log P = 0 indicates equal partition of the compound between hydrophilic and hydrophobic phases; while a positive value indicates a highly hydrophobic phase. Values obtained were −0.03, 0.84 and −3.88 for DDPB, TDPB and DDBPB, respectively. It can be observed that TDPB has a positive value indicating a highly hydrophobic property of the protective film formed on X-60 mild steel, while DDPB is very close to zero, indicating a moderate hydrophobic property of the film. A very relatively high negative value of -3.88 was predicted for DDBPB. This indicates a high hydrophilic property of the film formed by DDBPB (most soluble). The degree of solubility of protective films formed on the surface of mild steel as predicted by Log P values (TDPB ˃ DDPB ˃ DDBPB) agrees with the order of inhibition efficiencies in the experimental results. Based on structural features of DDPB, TDPB and DDBPB, they can be classified as surfactant corrosion inhibitors [57]. Corrosion inhibition efficiencies of surfactant corrosion inhibitors have been reported to depend not only on the adsorption energy parameter but include water and oil partition interaction along with several other factors [58].

3.6. Surface Analysis

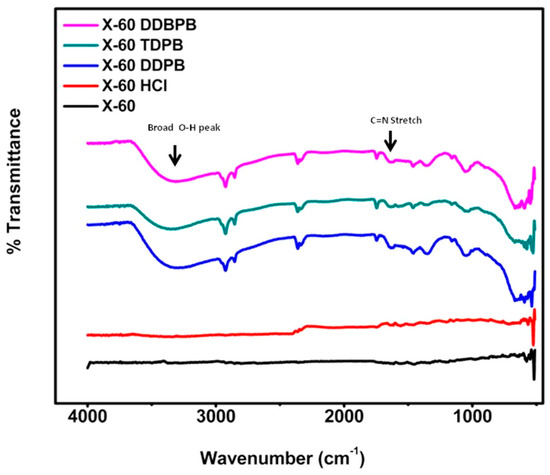

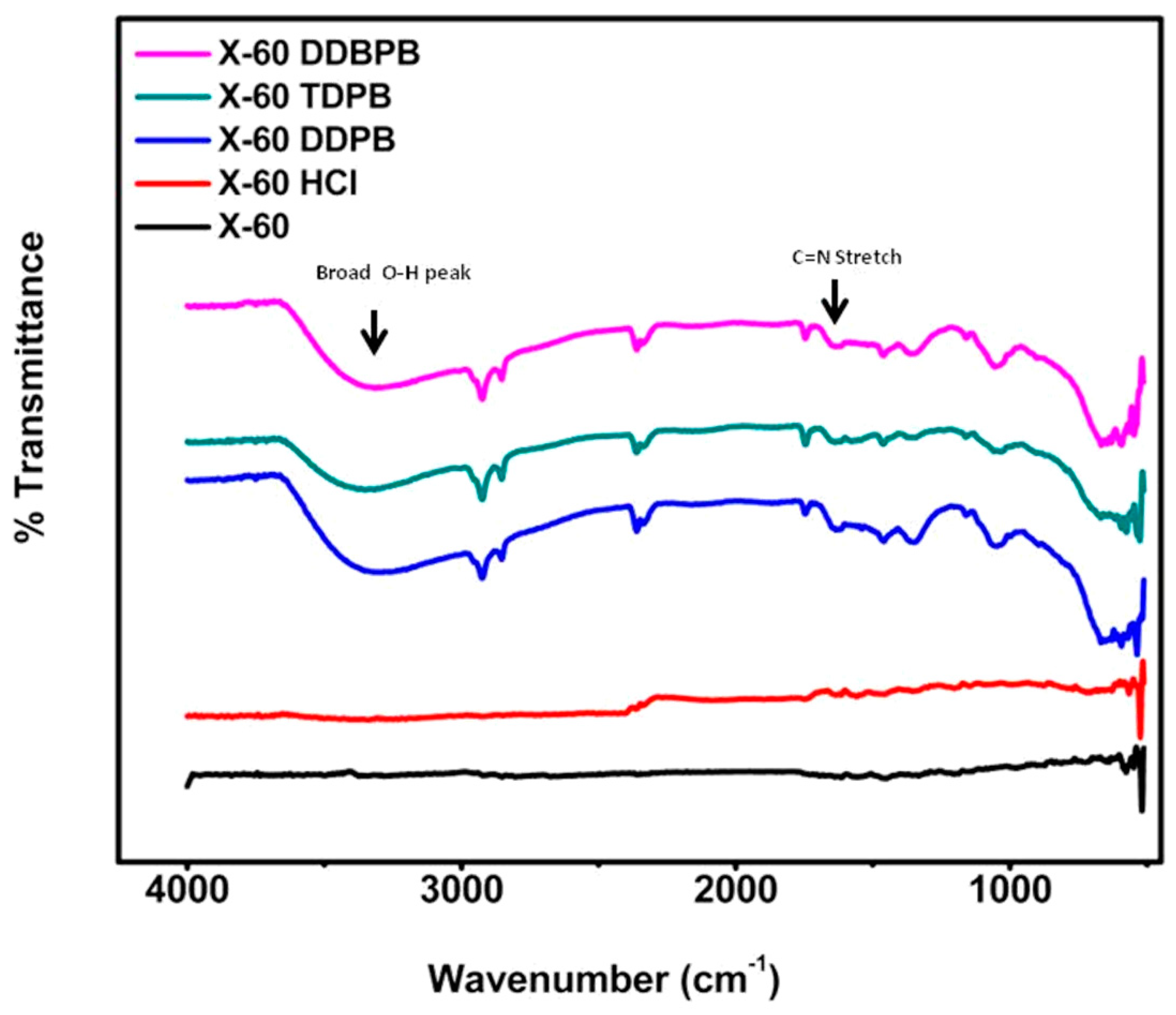

FTIR-ATR was carried out to confirm the adsorptions of DDPB, TDPB and DDBPB on the surface of X-60 mild steel. FTIR-ATR spectra measurement was taken after 24 h immersion of X-60 in 1 M HCl in the presence of 30 mg/L DDPB, TDPB and DDBPB, and presented as Figure 9. Spectra of polished X-60 and X-60 in 1 M HCl are observed to be without any functional groups of inhibitors. However, all the functional groups of inhibitors presented in Figure S3 for DDPB, TDPB and DDBPB in pure forms are detected on the surface of mild steel in the presence of inhibitors. A broadening peak in the O-H band that is probably due to the moisture adsorbed by the pyridinium salts on mild steel surface in the corrosive environment can be observed between 3200 cm⁻¹ and 3600 cm⁻¹. Doublet peaks of C-H stretch between 2800 cm⁻¹ and 3000 cm⁻¹ can also be observed on the surface of metals. Interactions of inhibitors with X-60 can be attributed to a slight shift in a position towards the left for C=N, C=C and aromatic in-plane bending observed at about 1600 cm⁻¹, 1300 cm⁻¹ and 1000 cm⁻¹ respectively. The presence of all these functional groups on the surface of mild steel confirmed that adsorption of DDPB, TDPB and DDBPB are responsible for the protection of X-60 mild steel in 1 M HCl.

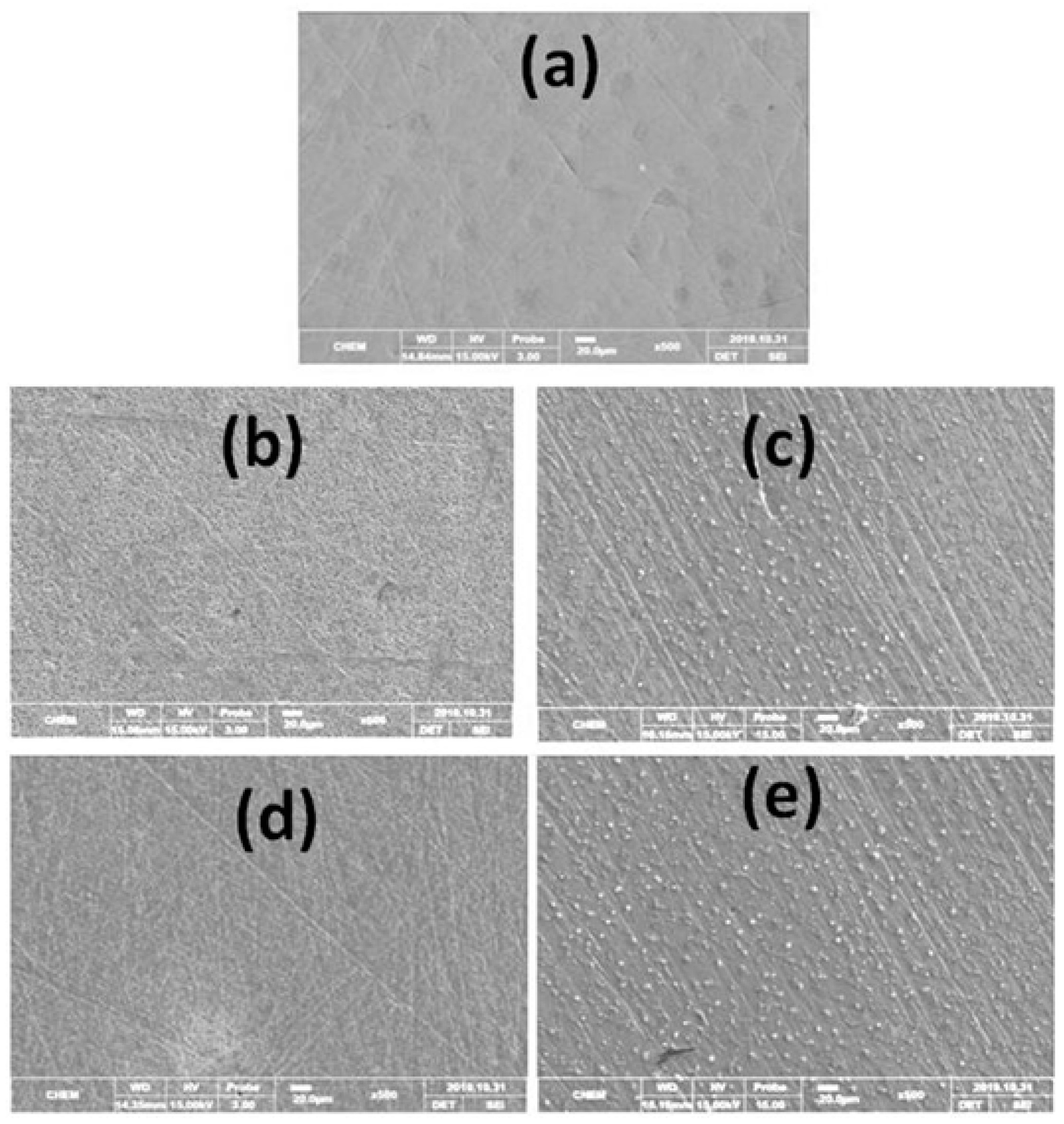

Surface morphology studies (Figure 10) of X-60 mild steel coupons after 24 h exposure in 1 M HCl solution in the absence and presence of 30 mg/L of DDPB, TDPB and DDBPB at 25 °C were conducted by SEM to further confirm the adsorption of inhibitor on the mild steel surface. Comparing the image of polished X-60 mild steel without exposure to the testing solution shown in Figure 10a and the image after 24 h exposure in 1 M HCl solution (Figure 10b), a severe surface degradation was observed with very high surface roughness due to acid attack. The surface was observed to have undergone uniform corrosion with no evidence of localized corrosion. However, the surface roughness observed on the mild steel in Figure 10b was drastically reduced due to inhibiting effects of 30 mg/L inhibitors (DDPB, TDPB or DDBPB) in 1 M HCl solution on the metal surface, as shown in Figure 10c–e, respectively. Adsorption of inhibitors on the metal surface forming a protective layer against acid attack is responsible for the inhibition efficiency, as evidenced by the presence of adsorbate on the metal surface. EDX analysis spectra presented in Figure S6 revealed elemental compositions of X-60 mild steel surface in the absence and presence of different inhibitors. The presence of trace amounts of a nitrogen atom in Figure S6c–e confirmed adsorptions of DDPB, TDPB and DDBPB on the X-60 surface.

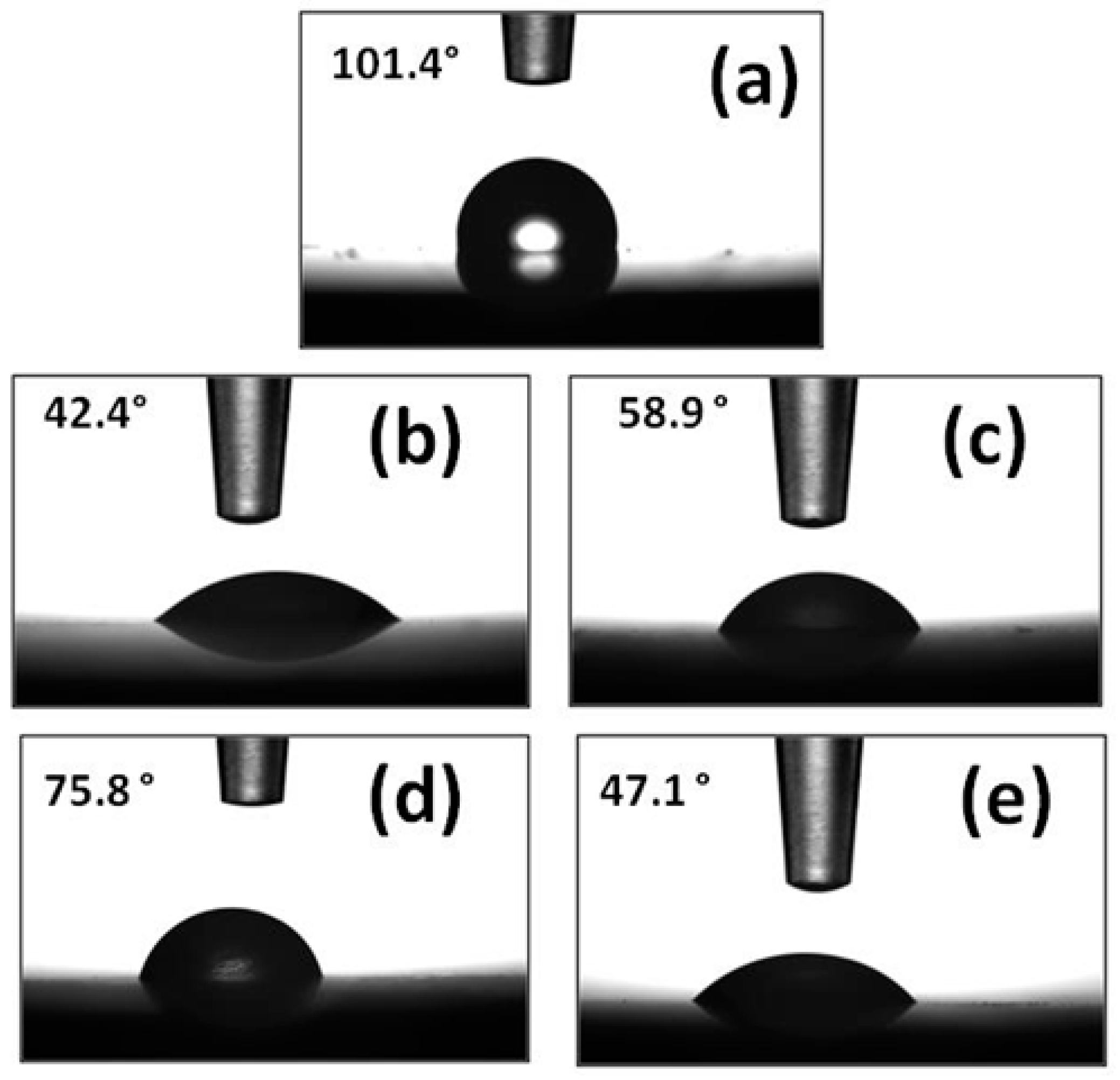

The degree of hydrophilicity of the film formed on mild steel surface by DDPB, TDPB and DDBPB was investigated by contact angle measurements after immersion in the testing medium in the absence and presence of 30 mg/L inhibitors. A very obvious hydrophobic property of the polished X-60 mild steel coupon (Figure 11a) was established with a contact angle of an average of 101.4°. Immersion of X-60 sample in 1 M HCl solution for 24 h distorted the hydrophobic surface of the metal evidenced by the reduced contact angle with water droplet to 42.4° (Figure 11b) due to drastic acid attack. However, the effect of the acid attack was mitigated by the presence of DDPB, TDPB and DDBPB due to the formation of a protective film on the X-60 surface with improved contact angle values of different magnitudes. Average contact angles measured, as shown in Figure 11c–e, are 58.9°, 75.8° and 47.1° for DDPB, TDPB and DDBPB, respectively. The order of magnitude of the contact angle shows that TDPB > DDPB > DDBPB, which indicates a decrease in hydrophilicity of the protecting film formed by inhibitors. DDBPB, being more hydrophilic, is not effective enough to entrain the water layer from the steel’s surface and cover it with the C₁₂ alkyl chain. Moreover, it may not be advantageous to sacrifice the entropy loss for complete adsorption on the metal surface. Instead, one of the cationic centers is expected to be adsorbed on the surface while the other cationic terminal of DDBPB would protrude into the corroding medium, thereby providing minimum coverage to the metal surface. This is in agreement with the magnitude of Log P values predicted for solubility of inhibitors and the order of corrosion inhibition efficiency obtained from all experimental results.

4. Conclusions

Three innovative pyridinium bromide salt derivatives; dodecyl pyridinium bromide (DDPB), tetradecyl pyridinium bromide (TDPB) and dodecyl 1,1′-bispyridinium dibromide (DDBPB) were successfully synthesized, and characterized by the elemental analyzer, FTIR, ¹H-NMR, ¹³C-NMR and surface tensiometer. Evaluations of the corrosion inhibition efficiencies of synthesized compounds were carried out by gravimetric, electrochemical impedance spectroscopy, potentiodynamic polarization and linear polarization measurements. Monte Carlo simulation and partition coefficients (Log P) were used theoretically to predict the electronics and chemical properties of inhibitors on the surface of X-60 mild steel. Surface analysis of the mild steel in the absence and presence of inhibitors was performed with ATR-FTIR, SEM-EDX and contact angle measurements. The following conclusions could be drawn from the results obtained;

• All synthesized pyridinium bromide salts structures contain a similar π − bond aromatic ring with an electron-rich nitrogen center and a different engineered hydrophobic alkyl chain.
• Synthesized compounds are promising corrosion inhibitors of mild steel for HCl pickling application at a very low concentration of 30 mg/L. They are potential candidates for the formulation of corrosion inhibitors for industrial applications.
• The performance of inhibitors is concentration and temperature dependent with the superiority order of TDPB > DDPB > DDBPB.
• The order of corrosion inhibition efficiencies of synthesized compounds was found not to depend only on the adsorption energy due to similar adsorption centers revealed by Monte Carlo simulation but depend on the hydrophilicity of the inhibitors that formed a protective film on the surface of mild steel.
• Mixed type corrosion inhibition mechanism of all synthesized compounds was revealed by potentiodynamic polarization resistance.
• Adsorption of corrosion inhibitors on mild steel was found to obey Langmuir adsorption isotherm despite the major contribution of the film for their efficiencies.
• Experimental and theoretical results were found to be complementary in understanding the chemical properties of synthesized compounds.
