Evaluation of the Antibacterial Activity of a Geopolymer Mortar Based on Metakaolin Supplemented with TiO2 and CuO Particles Using Glass Waste as Fine Aggregate

Ruby Mejía-de Gutiérrez
Mónica Villaquirán-Caicedo
Sandra Ramírez-Benavides
Myriam Astudillo
2 and
Daniel Mejía
Composites Materials Research Group (CENM), Universidad de Valle, calle 13 #100-00 Cali, Colombia
Biotechnology and Bacterial Infections Research Group, Universidad de Valle, calle 4b #36b-37, Cali, Colombia
Author to whom correspondence should be addressed.
Coatings 2020, 10(2), 157;
Submission received: 29 December 2019 / Revised: 5 February 2020 / Accepted: 6 February 2020 / Published: 9 February 2020
(This article belongs to the Special Issue Advanced Coatings for Buildings)


Metakaolin-based geopolymer cements were produced by alkaline activation with a potassium hydroxide and potassium silicate solution. To produce the geopolymer composites, 10 wt.% titanium oxide (TiO2) and 5 wt.% copper oxide (CuO) nanoparticles were used. The geopolymer mortar was prepared using glass waste as fine aggregate. The raw materials and materials produced were characterized by X-ray diffraction, electron microscopy, and Fourier-transform infrared spectroscopy techniques. Likewise, the geopolymer samples were characterized to determine their physical properties, including their density, porosity, and absorption. The photocatalytic activity of the materials was evaluated by activating the nanoparticles in a chamber with UV–Vis light during 24 h; then, different tests were performed to determine the growth inhibition of Staphylococcus aureus, Escherichia coli, and Pseudomonas aeruginosa bacteria in nutrient agar for times of up to 24 h. The study results showed that a geopolymer mortar containing glass waste as fine aggregate (GP-G) exhibited a water absorption 56.73% lower than that of the reference geopolymer paste without glass (GP). Likewise, glass particles allowed the material to have a smoother and more homogeneous surface. The pore volume and density of the GP-G were 37.97% lower and 40.36% higher, respectively, than those of the GP. The study with bacteria showed that, after 24 h in the culture media, the GP-G mortars exhibited a high inhibition capacity for the growth of P. aeruginosa from solutions of 10−4 mL and in solutions of 10−6 mL for E. coli and S. aureus. These results indicate the possibility of generating antibacterial surfaces by applying geopolymer composite.

1. Introduction

The problematic relationships between environmental pollution and health preservation and prolongation are a subject of current interest and are, therefore, widely studied. Most health problems are associated with the presence of microorganisms such as bacteria, fungi, protozoa, and viruses that commonly infect humans in the living environment, leading to chronic infections and even leading to mortality [1,2,3]. The inanimate surfaces of different materials are often described as the source of hospital outbreaks because their contact with different microorganisms allows microbial permanence for a period of time favoring bacterial proliferation, and they are, therefore, reservoirs of bacteria that cause diseases transmitted through surfaces or fomites. This continues to be a cause of great concern for the medical domain, with a significant economic burden. One of the main causes of morbidity is infection with methicillin-resistant Staphylococcus aureus (MRSA) [4,5]. These microorganisms also contribute to severely deteriorating surfaces, greatly reducing the durability and increasing the repair costs of the material [6]. Considering this dynamic, a material with antibacterial surfaces would be ideal to prevent microbial proliferation and, likewise, contamination.
Therefore, surface materials and antibacterial systems are of the utmost importance not only in hospitals and sanitary environments but also for domestic, industrial, and marine applications, among others [7]. Various studies were carried out with the goal of improving the antibacterial capacity of construction materials as glazes on ceramic tiles and pastes based on alkali-activated slag [2,8,9]. Among these construction materials, the use of geopolymers is a great option due to their high alkalinity and ease of functionalization by incorporating semiconductor materials (ZnO, TiO2, CuO, and Fe2O3), which, when exposed to UV and UV–Vis radiation, exhibit a functional activity, i.e., photocatalytic properties [10,11]. One of the most studied semiconductors is titanium dioxide (TiO2), a harmless material that is highly resistant to photocorrosion, stable in aqueous solutions, inexpensive, and abundant in nature, which also exhibits a desired high photocatalytic activity under ultraviolet irradiation [9,12,13,14]. Semiconductor particles as TiO2, Fe3O4, ZnO, and CuO can cause inactivation of bacteria (i.e., elimination of bacteria) and viruses in different types of environments [2,15,16,17]. These metal oxides were incorporated into the surface of different materials using advanced deposition techniques, such as chemical vapor deposition, ion implantation, sputtering, and electrochemical deposition of a solution. However, these technologies are expensive and difficult to apply to large-volume particles or complex shapes [18].
In general, the antimicrobial activity of CuO and TiO2 metallic nanoparticles was studied with Gram-positive and Gram-negative bacteria [19,20,21]. Although the nanoparticles tended to inhibit the bacteria in all cases, it was observed that the effectiveness depends on the morphology and particle size. Hasmaliza et al. [9] evaluated the antibacterial properties of ceramic tiles coated with enamel mixed with anatase TiO2 by exposing the tiles for different times (0, 2, 4, and 8 h) to the bacterium Escherichia coli; the TiO2 content (5, 10, and 15 wt.%) and particle size of the oxide were also varied, and, at a longer exposure time, the number of colony-forming units (CFUs) decreased. At the same time, the nanometric particle sizes favored the antibacterial properties due to the greater surface area available to contact the bacteria; in contrast, in the presence of a greater amount of TiO2, the antibacterial yield was lower [9]. Kumar et al. [20] evaluated the antibacterial activity of a polymer nanocomposite containing TiO2 and CuO nanoparticles with satisfactory results. Haider et al. [19] evaluated the photocatalytic and antibacterial activity of TiO2 nanoparticles synthesized via the sol–gel method and calcined at different temperatures (400, 600, 800, and 1000 °C). TiO2 was exposed to two types of bacteria, Pseudomonas aeruginosa and S. aureus, and it was 100% effective in eliminating these bacteria under solar irradiation.
Geopolymers based on metakaolin, halloysite clay, and fly ash with TiO2 nanoparticles reported photocatalytic properties. These materials allow functional ceramics to be produced for self-cleaning ability, removing dyes as B-rhodamine and methylene blue, and leading to nitric oxide degradation [11,22,23,24,25,26,27,28]. Nanoparticles are also used in dental applications [10,29]. However, the information on the antibacterial effect of nanoparticles incorporated in geopolymeric pastes or mortars is limited [30]. TiO2 microparticles (20 and 50 wt.%) and ZnO nanoparticles were incorporated in geopolymer pastes based on metakaolin (MK) [31,32], where the authors reported a bacteriostatic effect in the presence of contaminated water. Similar results were obtained using MK-based geopolymer mortar doped with copper [6]. Geopolymers based on fly ash and calcined baluko shells incorporating Ag nanoparticles were also used to evaluate their antibacterial capacity [33,34]. These studies showed that the nanoparticles can be used to prepare geopolymers with satisfactory inhibition capacity for the growth of bacteria. Additionally, it was reported that Portland cement mortars with added glass containing 2 wt.% TiO2 and the incorporation of nanosilica exhibited the ability to inhibit E. coli growth in just 30 min [35].
The objective of this preliminary study was to determine the effects of incorporating nanoparticles of metallic oxides, such as TiO2 and CuO, on the antimicrobial potential of a geopolymeric binder based on metakaolin (MK), and its corresponding geopolymer mortar using glass waste as a fine aggregate. Geopolymer mortars were fabricated for their use as coatings of construction elements for environments susceptible to bacterial growth. Among the microorganisms potentially pathogenic to humans were selected Gram-negative bacteria such as E. coli and Pseudomonas aeruginosa and Gram-positive bacteria such as S. aureus. Infections with these bacteria are recurrent and transmissible to people close to each other [4,5,36,37]. In addition, this preliminary study proposes the direct incorporation of such nanoparticles by mechanically mixing the components of the material in order to directly apply the geopolymer mortar on the substrate surfaces instead of using conventional deposition processes to produce oxide coatings.

2. Materials and Methods

2.1. Materials

To obtain the geopolymer cement paste, the precursor used was metakaolin (MK MetaMax, BASF, Florham Park, NJ, USA). A mixture of a commercial potassium silicate (SiO2 = 26.38%, K2O = 13.06%, H2O = 60.56%), analytical grade potassium hydroxide (KOH), and water was used as an alkaline activator. The cementitious material was formulated using the following molar ratios of oxides, as determined by previous studies: SiO2/Al2O3 = 2.5 and K2O/SiO2 = 0.28 [38,39]. To produce the geopolymer composite with photocatalytic and antibacterial properties, titanium oxide (TiO2) and copper oxide (CuO) particles were added. The TiO2 used was high-purity and analytical grade (Merck, reference 1008081000). The CuO nanoparticles were synthesized from copper acetate ((CH3COO)2Cu·H2O) using the modified Pechini method [40] (Figure 1). To evaluate the cementitious properties, the pastes and mortars were prepared. The mortar was prepared using glass waste (G) as a fine aggregate.
To synthesize the CuO nanoparticles, citric acid and ethylene glycol were initially mixed in 100 mL of distilled water, and the mixture was heated to 70 °C. Then, copper acetate was added. These precursors were mixed with a molar ratio of 1:1:2, and the solution was constantly stirred using a magnetic stirrer. Simultaneously, an NH4OH solution was added until a neutral pH (pH = 7) was obtained. The resulting polymeric resin was subjected to an initial thermal treatment at 350 °C; the thermally treated powder was pulverized using a ceramic mortar. The resulting fine powder was thermally treated at 450 °C. The heating rate used in the two heat treatments was adjusted to 10 °C/min.

2.2. Preparation of the Geopolymers

To prepare the geopolymers, the components were firstly mixed in a solid state; then, the activating solution was added. The components were mixed for 15 min using a Hobart mixer. Next, the mixture was poured into silicone molds, and discs with 2.5 cm diameters were prepared. The liquid/solid ratio was 0.35 for the pastes and 0.40 for the mortar. The samples were wrapped with a plastic film to prevent moisture from evaporating and kept for 24 h in a chamber with a relative humidity (RH) >90% and a temperature of 25 °C. Subsequently, the samples were demolded and stored for 28 days. Figure 2 shows the experimental methodology followed in the study in order to prepare the geopolymer composites. Table 1 shows the compositions and codes of the mixtures evaluated. Two geopolymer pastes (GP, mGP) were prepared using 10 wt.% titanium oxide (TiO2) and 5 wt.% copper oxide (CuO) particles. The percentage of TiO2 incorporated was selected based on previous studies [11], where a high photocatalytic capacity for degrading B-rhodamine was achieved using 10 wt.% TiO2. Geopolymer mortars (GP-G) were manufactured with a binder/fine aggregate ratio of 1:2 by weight using glass waste (G) as fine aggregate. The photocatalytic capacity of MK-based geopolymer mortars (GP-G) increased up to 72% compared to that obtained with mortars using natural sand [41]. Geopolymer mortars with CuO particles were not prepared because the results obtained with the proportion of the oxide used in mGP were negative, as discussed later.

2.3. Physicochemical and Microstructural Characterization Techniques

The following instrumental techniques were used to characterize the materials:
  • The chemical composition of the starting materials was determined by X-ray fluorescence (XRF) using a Magix Pro PW-2440 X-ray fluorescence spectrometer (PANalytical, Tollerton, Nottingham, UK) equipped with a rhodium tube with a maximum output of 4.0 kW and 0.02% sensitivity.
  • The X-ray diffraction (XRD) patterns were obtained with a RINT2000 wide-angle goniometer using Cu Kα radiation at 45 kV and 40 mA, and data were collected with a step size of 0.02° over the range of 5°–60° 2θ using a scan speed of 5°/min.
  • Fourier-transform infrared spectroscopy (FTIR) was performed with a PerkinElmer Spectrum 100 spectrometer operated in transmittance mode, and data were collected for a wavelength range of 450 cm−1 to 4000 cm−1. The samples were prepared using the compressed KBr method.
  • The morphological observations and particle sizes of TiO2 and CuO were evaluated by scanning electron microscopy (SEM) using a JEOL JSM-6490 LV SEM system operated with an accelerating voltage of 20 kV. The specimens were coated with gold, and the observations were made in vacuum mode.
  • The density, pore volume, and water absorption of the geopolymers were determined following the procedures detailed in the ASTM C642-13 standard, except that the temperature used to dry the sample in the oven was 60 °C for 48 h.

2.4. Evaluation of the Antibacterial Activity of the Geopolymeric Materials

The geopolymer samples were exposed to the bacteria under study by activating the materials with UV-A light for 48 h. The UV-A radiation was provided by two mercury lamps (Electrolux T8 20 W BLB) located inside a black acrylic dome. The lamps emitted light at an intensity of 10.3 W∙m−2, which was measured with a Delta Ohm HD 2102.2 Photoradiometer using the filter for UV-A light range (k = 360 nm) at 5 mm [14]. The growth inhibition capacity of the bacteria in the materials was studied using E. coli, S. aureus, and P. aeruginosa bacteria. The tests were performed in two stages. The first stage followed the standard to evaluate the bactericidal capacity with the bacteria to be tested in the GP (with 10 wt.% TiO2) and mGP (with 5 wt.% CuO) samples. This initial stage was performed by following the bacterial growth inhibition zone method (disc diffusion agar test). This method consisted of placing the sample, i.e., the GP and mGP disc, in a Petri dish and spreading nutrient agar on the sample. The Petri dishes were then covered for 24 h at 25 °C, and the bacterial growth was verified by the formation of an “inhibition halo” around the disc and under the disc. If the material is favorable to bacterial proliferation, more bacteria would be found at the site where the material rests (Figure 3).
By considering the results of the initial stage, the ability of the geopolymer paste (GP) and the mortar with glass (GP-G) to inhibit bacterial growth was evaluated in the second stage. During this stage, the methodology used was based on the Hasmaliza study [9], with a few modifications. The bacteria were cultured in tryptic soya broth (Merck, Darmstadt, Germany) for 24 h. At the beginning of the test, a count was performed in each of the broths by performing six serial dilutions in plate count agar (PCA, Scharlau 01-161). Subsequently, 100 μL of each of the selected bacteria were placed on discs, which were exposed for 2 to 24 h at room temperature (25 °C) under conditions isolated from contamination. After each of the exposure times, the discs were washed with 5 mL of a 1% peptone-buffered saline solution (Difco, Waltham, MA, USA), which was performed with vigorous stirring for 5 min; finally, the six dilutions were performed in a type-2 laminar flow cabinet (C4, Colombia) to count the number of colony-forming bacteria using the pour plate procedure with PCA. Finally, each agar with its respective inoculum was left in the incubator (WTC Binder, Germany) for 24 h at 37 °C to subsequently count the bacteria grown for each material in the different dilutions.

3. Results and Analysis

3.1. Physicochemical and Microstructural Characterization of the Starting Materials and the Produced Geopolymers

The chemical composition of MK and G is shown in Table 2. MK was basically composed of silica and alumina oxides (approximately 97 wt.%) and contains TiO2 impurities (1.73 wt.%). This oxide was in the form of anatase, as seen in the XRD results (Figure 4). The results shown in Table 2 indicate that the glass waste used in G was from the SiO2–Na2O–CaO system (calcium sodium glass) and was highly amorphous, as corroborated by the XRD results based on the elevation of the baseline for 2θ angles between 20° and 30° (Figure 4).
Titanium oxide existed in the anatase phase (TiO2, Inorganic Crystal Structure Database ICSD # 154604), as identified by the peaks observed in the diffractogram (Figure 4) at approximately 2θ = 25.3°, 37.8°, 48.1°, 53.9°, and 55.1°, which also indicated the high photocatalytic potential of TiO2. The XRD pattern of the copper oxide nanoparticles synthesized from copper acetate by the Pechini method showed peaks at 2θ = 34°, 36°, 38°, 49°, 53°, and 58°, which corresponded to pure monoclinic CuO (ICSD code 67850), a phase considered to have bactericidal properties [42]. Similar results were found by Román et al. [15]. The XRD pattern obtained for the GP indicated that the material was amorphous (see the lifted baseline for 2θ between 25° and 35°), with the only crystalline phase being the anatase phase, which was contributed to a high degree by the TiO2 particles and to a lesser extent by MK.
SEM was used to determine the particle size of the TiO2 and CuO particles (Figure 5); the average TiO2 and CuO particle sizes were 0.615 μm and 0.198 μm, respectively. Figure 5a shows the elongated and irregular shape of the TiO2 particles, while Figure 5b shows that the CuO particles has a rounded and more homogeneous shape.
The FTIR results obtained for MK, GP, and GP-G are shown in Figure 6. In the MK spectrum, a large band corresponding to asymmetric vibrations, specifically, vibrations of the Si–O–Si and O–Si–O groups, was centered at 1089 cm−1 [43]. The band located at 814 cm−1 was associated with the vibrational mode of the Al–O bond of the AlIV present in MK [43,44].
When MK was activated under alkaline conditions to form a geopolymer, the main bands at wavenumbers of 1007 and 1015 cm−1 shifted in both the GP and GP-G mortar spectra; this band corresponded to the asymmetric vibration of the Si–OT bonds in the GP gel potassium aluminum silicate hydrates (KASH) (where T corresponds to Si or Al tetrahedrons) [45]. According to Tchakouté et al. [46], the infrared absorption bands at wavenumbers close to 1100 cm−1 and 950 cm−1 could indicate that the geopolymers contained more SiQ3 and SiQ2 species, respectively. Additionally, the band observed in the GP-G mortar spectrum was more intense than that observed in the GP spectrum, indicating the presence of more undissolved silica in the alkaline system [43]. This result was expected, since the mortar was designed with particles of G. The band located at approximately 703 cm−1 came from symmetric vibrations of the presence of Ti–O–Ti photoactive species [10].
The peaks at approximately 3434 cm−1 and 1645 cm−1 in the MK, GP, and GP-G spectra corresponded to stress vibrations of the H–OH group, indicating that water molecules were associated with free water [38,47,48,49]. Finally, the peaks corresponding to the bending vibration of the Si–O–Si group [47,49] were identifiable at 473, 463, and 470 cm−1 for the MK, GP, and GP-G samples, respectively.
The SEM images of GP and GP-G are shown in Figure 7. Figure 7a shows that the GP had a smooth and homogeneous surface, indicating the presence of large amounts of the KASH gel. Unreacted MK that was not dissolved by the alkaline activation conditions was also identified [11,44,47]. GP showed a homogeneous distribution of the TiO2 nanoparticles inside the matrix. In a previous study [11], the effect of the incorporation of TiO2 in the geopolymeric matrix was investigated, and it was noteworthy that there was no significant difference between the morphologies of the systems with and without TiO2, and that the formation of the KASH gel was not impeded by the addition of TiO2, as these coexisted in the structure of the material. Comparing the physical properties (Table 3) of the geopolymer matrix [11], with and without TiO2 addition, we found that the water absorption decreased by just 3.9%, and the density and volume of the permeable pores increased by 5.73% and 1.52%, respectively.
The glass particles of the GP-G mortar (Figure 7b) were identifiable by their large sizes and angular smooth surfaces [41,47], which were due to the milling processes that these particles underwent. The presence of micro-cracks in the sample was also observed with the incorporation of glass (Figure 7b); similar results were reported by Lin et al. [47] and Mejía de Gutiérrez et al. [41]. The GP-G had a more homogeneous and denser surface similar to that reported by Lin et al. [47] and a higher density (see Table 3); the material was more compact, which was reflected in its lower water absorption capacity and lower volume of permeable pores.

3.2. Assays with Bacteria

Figure 8 shows the results of the first experimentation stage, corresponding to the standardization method using Petri dishes and exposure in nutrient agar with the GP and mGP. As shown in Figure 8a, for the mGP, no inhibition halo was observed for E. coli. Although authors such as Román et al. [15] showed the capacity of CuO nanoparticles to eliminate Ochrobactrum anthropi, in the present study and under the composition used (5 wt.% CuO), CuO geopolymeric compounds with antibacterial capacity for E. coli, S. aureus, and P. aeruginosa were not obtained.
Previous studies demonstrated that the quantity of nanoparticles is an important parameter. The entrapment and inhibition of bacteria on surfaces was evaluated using CuO and Ag nanoparticles [2,22,33,34,42], and a good compatibility was reported in orthodontic adhesives using CuO in high quantities [17]. The amount of CuO nanoparticles used in this preliminary study was probably low and, for this reason, it did not allow for bacterial elimination. This is according to Guo et al. [14], who evaluated different percentages of TiO2 in coatings fabricated by immersion and reported that an incorporation of 5 wt.% TiO2 particles failed to eliminate E. coli, which was attributed to the processes of initial photocatalytic inactivation step being slow with this proportion of titanium oxide.
These nanoparticles were incorporated into materials because of their high surface/volume ratio, which allowed interactions with bacterial cell membranes, preventing these microorganisms from attaching to the material surface (bacteriostatic effect); when this occurred, the material was able to eliminate these microorganisms (bactericidal effect) [13,22,23,24,34]. Table 4 shows the results of the initial standardization assay for GP and mGP with the three bacteria tested.
In the case of the geopolymer with TiO2 nanoparticles (GP), the standardization results were satisfactory for E. coli, in which a bactericidal effect was in fact observed for the sample GP. The inhibition was satisfactory, and a halo did form around the sample (Figure 8a); additionally, when sample GP was removed from the agar nutrient, no bacteria were found under the sample, as shown in Figure 8b. On the contrary, for the mGP, the halo formation was not evidenced; when the mGP sample was removed from the agar nutrient, an appreciable number of colonies grew below it for the three bacteria tested.
Based on the preliminary results of the first phase of standardization, the study was continued exclusively with GP samples; additionally, a GP-G mortar was fabricated and tested. The decision to use a geopolymer mortar with glass to measure the bactericide capacity of the geopolymers was based on the results reported by Mejía de Gutiérrez et al. [41], who observed a higher photocatalytic efficiency for B-rhodamine degradation in compounds functionalized with TiO2 when glass waste was used to prepare the geopolymer mortars. Likewise, studies by Sikora et al. [35] showed that the use of glass enhanced the photocatalytic activity for E. coli colony degradation, and elimination occurred in 30 min.
In the second phase, the number of CFUs was analyzed in different solutions for short times (4–5 h) and after one day in the agar with the E. coli, P. aeruginosa, and S. aureus bacteria.
Analyzing the GP-G mortar exposed to the different solutions for short times (Table 5) showed that, after 5 h, CFUs were not present the in the 10−7 mL solutions for the three bacteria evaluated. Evaluating S. aureus exposed to GP (Figure 9) for 4 h in all solutions showed CFU growth, while, for the GP-G in the 10−7 solutions, zero CFUs were evident. However, the GP exhibited significant antimicrobial activity for only the 10−7 solutions containing P. aeruginosa (Figure 9). The results reported in this study corresponding to GP and GP-G are satisfactory. The toxicity of nanoparticles for inhibiting bacterial growth was previously demonstrated for S. aureus using ZnO nanoparticles by Sikora [35], and for E. coli using CuO by Kumar [20] and TiO2 by Sunada et al. [50]. Sunada et al. [50] explained that the photokilling reaction of E. coli cells using TiO2 is initiated by a partial decomposition of the outer membrane, followed by an attack of the cytoplasmic membrane, resulting in cell death. In general, the adhesion of nanoparticles onto the cell wall and the membrane of the microorganisms produces morphological changes characterized by shrinkage of the cytoplasm and membrane detachment, finally leading to rupture of cell wall [51]. Additionally, the photocatalysis generates reactive oxygen species (ROS) and free radical species, contributing to an increase in the antibacterial potential of the nanoparticles [34,51,52].
For the agar solutions exposed to GP for longer times (Table 6), the greatest inhibition occurred in the 10−6 solutions for Pseudomonas aeruginosa (Figure 10) and E. coli (Figure 11). The highest efficacy for the inhibition of CFU bacterial growth was evidenced by the GP-G mortar in the 10−6 solutions for the three bacteria evaluated. This result confirms that the incorporation of glass wastes in geopolymeric compounds increased the photocatalytic capacity and the bactericidal effect of the MK-based geopolymer supplemented with TiO2 and, therefore, improved the bacterial growth inhibition capacity on surfaces.
Finally, according to Table 5 and Table 6, samples GP and GP-G showed a bacteriostatic effect depending on the bacteria and time.
Although TiO2 and other nanoparticles previously attracted a lot of interest due to their antibacterial properties in different applications, according to the results, in general, samples containing glass wastes showed a higher bacteriostatic effect. The use of ground glass particles maximized the capacity for inhibiting CFU growth after 5 h for the GP-G mortars in solutions of 10−7 mL containing the three bacteria evaluated (S. aureus, P. aeruginosa, and E. coli). Furthermore, GP-G seems to be particularly effective against P. aeruginosa.

4. Conclusions

Geopolymer composites based on the alkaline activation of MK and nanoparticles of TiO2 (10 wt.%) and CuO (5 wt.%) were produced. This study evaluated the physical and microstructural properties of the geopolymers and the functionality of these geopolymers for inhibiting the growth of the bacteria S. aureus, P. aeruginosa, and E. coli. Based on the results obtained, the following conclusions can be drawn:
  • Here, 10 wt.% TiO2 used for the manufacture of geopolymeric pastes and mortars showed satisfactory elimination of bacterial growth. In contrast, 5 wt.% CuO did not inhibit bacterial growth.
  • The incorporation of glass wastes as fine aggregate endowed the GP-G with a 56.73% lower water absorption compared to the GP sample. Likewise, the glass particles endowed the material with a smoother and more homogeneous surface, 40.36% higher density, and 37.97% lower pore volume.
  • The use of ground glass particles maximized the capacity for inhibiting CFU growth after 5 h for the GP-G mortars in solutions of 10−7 mL containing the three bacteria evaluated (S. aureus, P. aeruginosa, and E. coli).
  • After 24 h in the bacterial culture, the GP-G mortars exhibited a high capacity for inhibiting the growth of P. aeruginosa in the 10−4 mL solutions and E. coli and S. aureus in the 10−6 mL solutions.
  • These results indicate the potential for using the MK-based geopolymer composite with 10 wt.% TiO2 for applications on surfaces with antibacterial properties.

Author Contributions

Conceptualization, R.M.-d.G.; methodology, R.M.-d.G., M.V.-C. and M.A.; formal analysis, S.R.-B., M.A. and D.M.; investigation, R.M.-d.G., M.V.-C. and M.A.; resources, project administration and funding acquisition, R.M.-d.G.; writing—original draft preparation, M.V.-C. and S.R.-B.; writing—review and editing, R.M.-d.G. and M.V.-C. All authors have read and agreed to the published version of the manuscript.


This research was funded by Universidad del Valle (Cali, Colombia), grant number 139-2017.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ang, T.; He, Y.; Xiangxin, X.; Yong, L. Antibacterial Ceramic Fabricated by the Ti-Bearing Blast Furnace Slag. In Proceedings of the 8th Pacific Rim International Congress on Advanced Materials and Processing, Hilton Waikoloa Village in Waikoloa, HI, USA, 4–9 August 2013; Marquis, F., Ed.; Springer: Cham, Switzerland, 2016; pp. 1627–1634. [Google Scholar]
  2. Baheiraei, N.; Moztarzadeh, F.; Hedayati, M. Preparation and antibacterial activity of Ag/SiO2 thin film on glazed ceramic tiles by sol-gel method. Ceram. Int. 2012, 38, 2921–2925. [Google Scholar] [CrossRef]
  3. Wang, L.; Hu, C.; Shao, L. The antimicrobial activity of nanoparticles: Present situation and prospects for the future. Int. J. Nanomed. 2017, 12, 1227–1249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Salgado, C.D.; Farr, B.M.; Calfee, D.P. Community-Acquired Methicillin-Resistant Staphylococcus aureus: A Meta-Analysis of Prevalence and Risk Factors. Clin. Infect. Dis. 2003, 36, 131–139. [Google Scholar] [CrossRef] [Green Version]
  5. Gelatti, L.C.; Bonamigo, R.R.; Matsiko-Inoue, F.M.; Do-Carmo, S.; Becker, A.P.; Da Silva-Castrucci, F.M.; Campos Pignatari, A.C.; Dazevedo, P.A. Community-acquired methicillin-resistant staphylococcus aureus carrying sccmec type IV in southern Brazil. Rev. Soc. Bras. Med. Trop. 2013, 46, 34–38. [Google Scholar] [CrossRef] [Green Version]
  6. Drugă, B.; Ukrainczyk, N.; Weise, K.; Koenders, E.; Lackner, S. Interaction between wastewater microorganisms and geopolymer or cementitious materials: Biofilm characterization and deterioration characteristics of mortars. Int. Biodeterior. Biodegrad. 2018, 134, 58–67. [Google Scholar] [CrossRef]
  7. Crocker, J. Antibacterial Materials. Mater. Sci. Technol. 2007, 22, 238–241. [Google Scholar] [CrossRef]
  8. Abdel-Gawwad, H.A.; Mohamed, S.A.; Mohammed, M.S. Recycling of slag and lead-bearing sludge in the cleaner production of alkali activated cement with high performance and microbial resistivity. J. Clean. Prod. 2019, 220, 568–580. [Google Scholar] [CrossRef]
  9. Hasmaliza, M.; Foo, H.S.; Mohd, K. Anatase as Antibacterial Material in Ceramic Tiles. Procedia Chem. 2016, 19, 828–834. [Google Scholar] [CrossRef] [Green Version]
  10. Dahiya, M.S.; Tomer, V.K.; Duhan, S. Bioactive glass/glass ceramics for dental applications. In Applications of Nanocomposite Materials in Dentistry; Abdullah, M., Mohammad, I., Mohammad, A., Eds.; Woodhead Publishing Series in Biomaterials: Cambridge, UK, 2018; pp. 1–25. [Google Scholar]
  11. Guzmán-Aponte, L.; Mejía de Gutiérrez, R.; Maury-Ramírez, A. Metakaolin-Based Geopolymer with Added TiO2 particles: Physicomechanical Characteristics. Coatings 2017, 7, 233. [Google Scholar] [CrossRef] [Green Version]
  12. Mohd Adnan, M.A.; Muhd Julkapli, N.; Amir, M.N.I.; Maamor, A. Effect on different TiO2 photocatalyst supports on photodecolorization of synthetic dyes: A review. Int. J. Environ. Sci. Technol. 2019, 16, 547–566. [Google Scholar] [CrossRef]
  13. Rai, M.; Yadav, A.; Gade, A. Silver nanoparticles as a new generation of antimicrobial. Biotechnol. Adv. 2009, 27, 76–83. [Google Scholar] [CrossRef] [PubMed]
  14. Ming-Zhi, G.; Tung-Chai, L.; Chi-Sun, P. Nano-TiO2-based architectural mortar for NO removal and bacteria inactivation: Influence of coating and weathering conditions. Cem. Concr. Compos. 2013, 36, 101–108. [Google Scholar]
  15. Román, L.E.; Castro, F.; Maúrtua, D.; Condori, C.; Vivas, D.; Bianclii, A.E.; Paraguay-Delgado, F.; Solis, J.L.; Gómez, M.M. CuO nanoparticles and their antimicrobial activity against nosocomial strains. Rev. Colomb. Quim. 2017, 46, 28–36. [Google Scholar]
  16. Sikora, P.; Augustyniak, A.; Cendrowski, K.; Nawrotek, P.; Mijowska, E. Antimicrobial activity of Al2O3, CuO, Fe3O4, and ZnO nanoparticles in scope of their further application in cement-based building materials. Nanomaterials 2018, 8, 212. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Toodehzaeim, M.H.; Zandi, H.; Meshkani, H.; Hosseinzadeh Firouzabadi, A. The Effect of CuO Nanoparticles on Antimicrobial Effects and Shear Bond Strength of Orthodontic Adhesives. J. Dent. 2018, 19, 1–5. [Google Scholar]
  18. Yang, S.; Zhang, Y.; Yu, J.; Zhen, Z.; Huang, T.; Tang, Q.; Chu, P.K.; Qi, L.; Lv, H. Antibacterial and mechanical properties of honeycomb ceramic materials incorporated with silver and zinc. Mater. Des. 2014, 59, 461–465. [Google Scholar] [CrossRef]
  19. Haider, A.J.; Anbari, R.; Kadhim, G.R.; Salame, C.T. Exploring potential environmental applications of TiO2 nanoparticles. Energy Procedia 2017, 119, 332–345. [Google Scholar] [CrossRef]
  20. Kumar, A.M.; Khan, A.; Suleiman, R.; Qamar, M.; Saravanan, S.; Dafalla, H. Bifunctional CuO/TiO2 nanocomposite as nanofiller for improved corrosion resistance and antibacterial protection. Prog. Org. Coat. 2018, 114, 9–18. [Google Scholar] [CrossRef]
  21. Mersian, H.; Alizadeh, M.; Hadi, N. Synthesis of zirconium doped copper oxide (CuO) nanoparticles by the Pechini route and investigation of their structural and antibacterial properties. Ceram. Int. 2018, 44, 20399–20408. [Google Scholar] [CrossRef]
  22. Armayani, M.; Pratama, M.A. The Properties of Nano Silver (Ag)-Geopolymer as Antibacterial Composite for Functional Surface Materials. Matec. Web Conf. 2017, 97, 01010. [Google Scholar] [CrossRef] [Green Version]
  23. Elbourne, A.; Crawford, R.J.; Ivanova, E.P. Nano-structured antimicrobial surfaces: From nature to synthetic analogues. J. Colloid Interface Sci. 2017, 508, 603–616. [Google Scholar] [CrossRef] [PubMed]
  24. Dizaj, S.M.; Lotfipour, F.; Barzegar-Jalali, M.; Zarrintan, M.H.; Adibkia, K. Antimicrobial activity of the metals and metal oxide nanoparticles. Mater. Sci. Eng. C 2014, 44, 278–284. [Google Scholar] [CrossRef] [PubMed]
  25. Åsbrink, S.; Norrby, L.J. A refinement of the crystal structure of copper (II) oxide with a discussion of some exceptional. Acta. Crystallogr. Sect. B 1970, 26, 8–15. [Google Scholar] [CrossRef]
  26. Mejía, J.M.; Mendoza, J.D.; Yucuma, J.; Mejía de Gutiérrez, R.; Mejía, D.E.; Astudillo, M. Mechanical, in-vitro biological and antimicrobial characterization as an evaluation protocol of a ceramic material based on alkaline activated metakaolin. Appl. Clay Sci. 2019, 178, 105141. [Google Scholar] [CrossRef]
  27. Falah, M.; MacKenzie, K.J.D. Synthesis and properties of novel photoactive composites of P25 titanium dioxide and copper (I) oxide with inorganic polymers. Ceram. Int. 2015, 41, 13702–13708. [Google Scholar] [CrossRef]
  28. Syamsidar, D.; Nurfadilla, S. The Properties of Nano TiO2-Geopolymer Composite as a Material for Functional Surface Application. MATEC Web Conf. 2017, 97, 01013. [Google Scholar] [CrossRef] [Green Version]
  29. Rodrigues Magalhaes, A.P.; Laura, B.S.; Gonzaga Lopes, L.; Rodrigues de Araujo, E.; Estrela, C.; Torres, E.M.; Figueiroa Bakuzis, A.; Carvalho Cardoso, P.; Santos Carriao, M. Nanosilver Application in Dental Cements. ISRN Nanotechnol. 2012, 2012, 6. [Google Scholar] [CrossRef]
  30. Wu, Y.; Lu, B.; Bai, T.; Wang, H.; Du, F.; Zhang, Y.; Cai, L.; Jiang, C.; Wang, W. Review. Geopolymer, green alkali activated cementitious material: Synthesis, applications and challenges. Constr. Build. Mater. 2019, 224, 930–949. [Google Scholar] [CrossRef]
  31. Mondragón-Figueroa, M.; Guzmán-Carrillo, H.; Rico, M.A.; Reyez-Araiza, J.L.; Pineda-Piñón, J.; López-Naranjo, E.J.; Columba-Palomares, M.C.; López-Romero, J.M.; Gasca-Tirado, J.R.; Manzano-Ramírez, A. Development of a Construction Material for Indoor and Outdoor, Metakaolinite-Based Geopolymer, with Environmental Properties. J. Mater. Sci. Eng. A 2019, 9, 131–142. [Google Scholar]
  32. Nur, Q.A.; Sari, N.U.; Harianti, S. Development of Geopolymers Composite Based on Metakaolin-Nano ZnO for Antibacterial Application. IOP Conf. Ser. Mater. Sci. Eng. 2017, 180, 012289. [Google Scholar] [CrossRef] [Green Version]
  33. Dela Cerna, K.; Janairo, J.I.; Promentilla, M.A. Development of nanosilver-coated geopolymer beads (AgGP) from fly ash and baluko shells for antimicrobial applications. MATEC Web Conf. 2019, 268, 05003. [Google Scholar] [CrossRef]
  34. Dibyendu, A.; Manas, S.; Moumita, M.; Abiral, T.; Saroj, M.; Brajadulal, C.H. Anti-microbial efficiency of nano silver–silica modified geopolymer mortar for eco-friendly green construction technology. RSC Adv. 2015, 5, 64037. [Google Scholar]
  35. Sikora, P.; Augustyniak, A.; Cendrowski, K.; Horszczaruk, E.; Rucinska, T.; Nawrotek, P.; Mijowska, E. Characterization of mechanical and bactericidal properties of cement mortars containing waste glass aggregate and nanomaterials. Materials (Basel) 2016, 9, 701. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Centers for Disease Control & Prevention. Four Pediatric Deaths from Community-Acquired Methicillin-Resistant Staphylococcus aureus—Minnesota and North Dakota 1997–1999. Morb. Mortal. Wkly. Rep. 1999, 48, 707–710. [Google Scholar]
  37. Van Elsas, J.D.; Semenov, A.V.; Costa, R.; Trevors, J.T. Survival of Escherichia coli in the environment: Fundamental and public health aspects. ISME J. 2011, 5, 173–183. [Google Scholar] [CrossRef] [Green Version]
  38. Villaquirán-Caicedo, M.A. Studying different silica sources for preparation of alternative waterglass used in preparation of binary geopolymer binders from metakaolin/boiler slag. Constr. Build. Mater. 2019, 227, 116621. [Google Scholar] [CrossRef]
  39. Villaquirán-Caicedo, M.A.; Mejía-de Gutiérrez, R. Mechanical and microstructural analysis of geopolymer composites based on metakaolin and recycled silica. J. Am. Ceram. Soc. 2019, 102, 3653–3662. [Google Scholar] [CrossRef]
  40. Sunde, T.O.L.; Grande, T.; Einarsrud, M.A. Modified Pechini Synthesis of Oxide Powders and Thin Films. In Handbook of Sol-Gel: Science and Technology; Klein, L., Aparicio, M., Jitianu, A., Eds.; Springer: Cham, Switzerland, 2016; pp. 1–30. [Google Scholar]
  41. Mejía de Gutiérrez, R.; Villaquirán-Caicedo, M.A.; Guzmán-Aponte, L. Alkali-activated metakaolin mortars using glass waste as fine aggregate: Mechanical and photocatalytic properties. Constr. Build. Mater. 2020, 235, 117510. [Google Scholar] [CrossRef]
  42. Akl, A.; Nida, M. Antibacterial Activity of synthesized Copper Oxide Nanoparticles using Malva sylvestris Leaf Extract. SMU Med. J. 2015, 2, 91–101. [Google Scholar]
  43. Bernal, S.A.; Rodríguez, E.D.; Mejía de Gutierrez, R.; Provis, J.L.; Delvasto, S. Activation of Metakaolin/Slag Blends Using Alkaline Solutions Based on Chemically Modified Silica Fume and Rice Husk Ash. Waste Biomass Valoriz. 2011, 3, 99–108. [Google Scholar] [CrossRef]
  44. Villaquiran-Caicedo, M.A.; Mejía de Gutiérrez, R. Synthesis of ternary geopolymers based on metakaolin, boiler slag and rice husk ash. Dyna 2015, 82, 104–110. [Google Scholar] [CrossRef]
  45. Arellano-Aguilar, R.; Burciaga-Díaz, O.; Gorokhovsky, A.; Escalante-García, J.I. Geopolymer mortars based on a low grade metakaolin: Effects of the chemical composition, temperature and aggregate:binder ratio. Constr. Build. Mater. 2014, 50, 642–648. [Google Scholar] [CrossRef]
  46. Tchakouté, H.K.; Rüscher, C.H.; Kong, S.; Kamseu, E.; Leonelli, C. Geopolymer binders from metakaolin using sodium waterglass from waste glass and rice husk ash as alternative activators: A comparative study. Constr. Build. Mater. 2016, 114, 276–289. [Google Scholar] [CrossRef]
  47. Lin, K.L.; Shiu, H.S.; Shie, J.L.; Cheng, T.W.; Hwang, C.L. Effect of composition on characteristics of thin film transistor liquid crystal display (TFT-LCD) waste glass-metakaolin-based geopolymers. Constr. Build. Mater. 2012, 36, 501–507. [Google Scholar] [CrossRef]
  48. Elimbi, A.; Tchakouté, H.K.; Njopwouo, D. Effects of calcination temperature of kaolinite clays on the properties of geopolymer cements. Build. Mater. 2011, 25, 2805–2812. [Google Scholar] [CrossRef]
  49. Covarrubias, C.; García, R.; Arriagada, R.; Yánez, J.; Garland, M.T. Cr (III) exchange on zeolites obtained from kaolin and natural mordenite. Microporous Mesoporous Mater. 2006, 88, 220–231. [Google Scholar] [CrossRef]
  50. Sunada, K.; Watanabe, T.; Hashimoto, K. Studies on photokilling of bacteria on TiO2 thin film. J. Photochem. Photobiol. A: Chem. 2003, 156, 227–233. [Google Scholar] [CrossRef]
  51. Dakal, T.C.; Kumar, A.; Majumdar, R.S.; Yadav, V. Mechanistic basis of antimicrobial actions of silver nanoparticles. Front. Microbiol. 2016, 7, 1–17. [Google Scholar] [CrossRef] [Green Version]
  52. Marugan, J.; Grieken, R.V.; Pablos, C.; Sordo, C. Analogies and differences between photocatalytic oxidation of chemicals and photocatalytic inactivation of microorganisms. Water Res. 2010, 44, 789–796. [Google Scholar] [CrossRef]

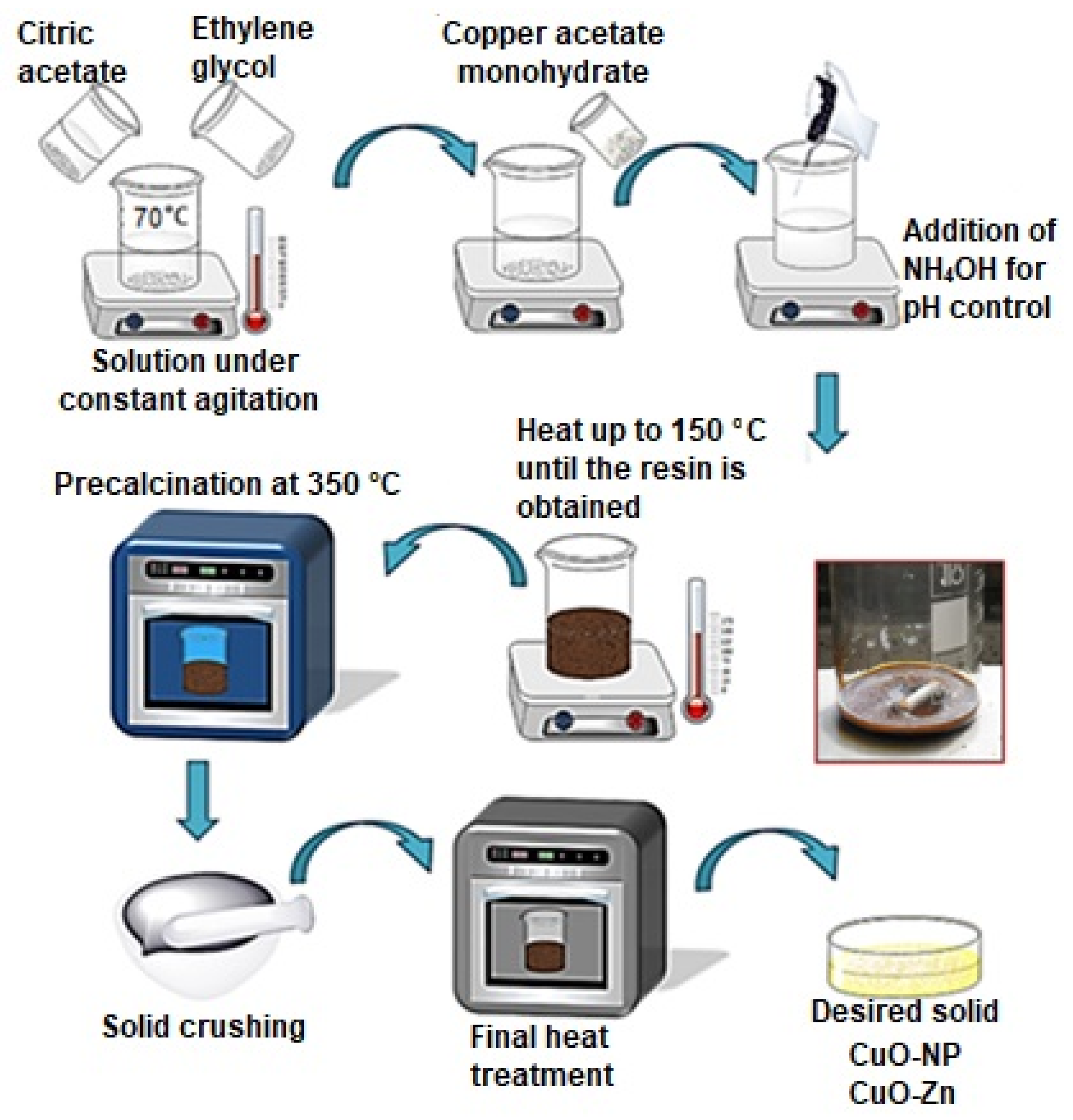

Figure 1. Diagram of the methodology used to synthesize the CuO nanoparticles via the Pechini method.
Figure 1. Diagram of the methodology used to synthesize the CuO nanoparticles via the Pechini method.
Coatings 10 00157 g001

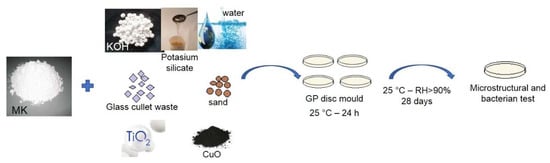

Figure 2. Diagram of the methodology used to prepare the geopolymer composites.
Figure 2. Diagram of the methodology used to prepare the geopolymer composites.
Coatings 10 00157 g002

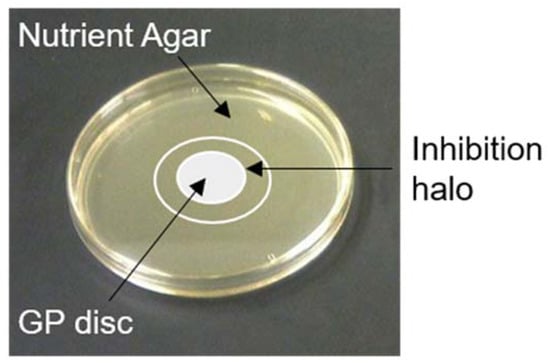

Figure 3. Assembly of the nutrient agar method.
Figure 3. Assembly of the nutrient agar method.
Coatings 10 00157 g003

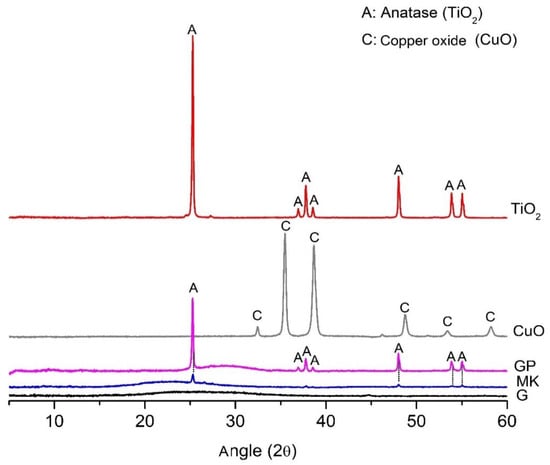

Figure 4. X-ray diffraction (XRD) patterns of the raw materials and GP.
Figure 4. X-ray diffraction (XRD) patterns of the raw materials and GP.
Coatings 10 00157 g004
Figure 5. SEM images of the (a) TiO2 and (b) CuO particles.
Figure 5. SEM images of the (a) TiO2 and (b) CuO particles.
Coatings 10 00157 g005
Figure 6. Fourier-transform infrared (FTIR) spectra obtained for MK, GP, and GP-G.
Figure 6. Fourier-transform infrared (FTIR) spectra obtained for MK, GP, and GP-G.
Coatings 10 00157 g006

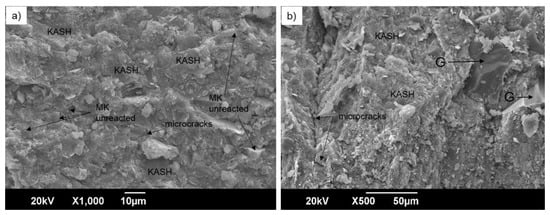

Figure 7. SEM images of the samples with 10 wt.% TiO2: (a) GP and (b) GP-G mortar.
Figure 7. SEM images of the samples with 10 wt.% TiO2: (a) GP and (b) GP-G mortar.
Coatings 10 00157 g007
Figure 8. Standardization test for Escherichia coli: (a) GP (10 wt.% TiO2) and mGP (5 wt.% CuO); (b) inhibition of growth of bacteria under GP sample.
Figure 8. Standardization test for Escherichia coli: (a) GP (10 wt.% TiO2) and mGP (5 wt.% CuO); (b) inhibition of growth of bacteria under GP sample.
Coatings 10 00157 g008
Figure 9. Reduction in the number of viable bacteria over time in the S. aureus agar for (a) GP and (b) GP-G.
Figure 9. Reduction in the number of viable bacteria over time in the S. aureus agar for (a) GP and (b) GP-G.
Coatings 10 00157 g009
Figure 10. Reduction in the number of viable bacteria over time in the P. aeruginosa agar for (a) GP and (b) GP-G.
Figure 10. Reduction in the number of viable bacteria over time in the P. aeruginosa agar for (a) GP and (b) GP-G.
Coatings 10 00157 g010
Figure 11. Reduction in the number of viable bacteria over time in the E. coli agar for (a) GP and (b) GP-G.
Figure 11. Reduction in the number of viable bacteria over time in the E. coli agar for (a) GP and (b) GP-G.
Coatings 10 00157 g011
Table 1. Compositions of the fabricated materials. ID—identifier.
Table 1. Compositions of the fabricated materials. ID—identifier.
IDGeopolymer (GP) TypeGP
GPPaste9010 0
GP-GMortar with glass waste (G) as fine aggregate90100
Table 2. Chemical composition of metakaolin (MK) and glass waste (wt.%).
Table 2. Chemical composition of metakaolin (MK) and glass waste (wt.%).
Table 3. Physical properties of the GP and GP-G samples.
Table 3. Physical properties of the GP and GP-G samples.
without TiO2 [11]
GP (Paste)
(10 wt.% TiO2)
GP-G (Mortar)
(10 wt.%TiO2 + G)
Absorption after immersion (%) 27.25 ± 0.1526.18 ± 0.4211.54 ± 0.26
Dry density (kg/m3) 1291 ± 0.251365 ± 0.021916 ± 140
Volume of permeable pores (%) 36.18 ± 0.3436.73 ± 0.9022.78 ± 1.97
Table 4. Results of the first bactericidal test phase: standardization method.
Table 4. Results of the first bactericidal test phase: standardization method.
SampleBacteria/Formation of Halo/Halo Size
Staphylococcus aureusEscherichia coliPseudomonas aeruginosa
GPNo—0Yes—0.5 mmNo—0
Table 5. Bacterial growth inhibition capacity of GP geopolymers (4 h) and GP-G (5 h) in bacteria-rich agar solutions.
Table 5. Bacterial growth inhibition capacity of GP geopolymers (4 h) and GP-G (5 h) in bacteria-rich agar solutions.
Sample, Time in AgarDissolutions (mL)CFU *
S. aureusP. aeruginosaE. coli
GP, 4 h10−3++++++
GP-G, 5 h10−3+++
* (+), bacterial growth determined by CFUs; (++), bacterial growth determined by the formation of large colonies in all areas; (−), inhibition of bacterial growth.
Table 6. Bacterial growth inhibition capacity of GP (24 h) and GP-G (25 h) in bacteria-rich agar solutions.
Table 6. Bacterial growth inhibition capacity of GP (24 h) and GP-G (25 h) in bacteria-rich agar solutions.
Sample, Time in AgarDissolutions (mL)Bacteria
S. aureusP. aeruginosaE. coli
GP, 24 h10−3++++++
GP-G, 25 h10−3+++

Share and Cite

MDPI and ACS Style

Gutiérrez, R.M.-d.; Villaquirán-Caicedo, M.; Ramírez-Benavides, S.; Astudillo, M.; Mejía, D. Evaluation of the Antibacterial Activity of a Geopolymer Mortar Based on Metakaolin Supplemented with TiO2 and CuO Particles Using Glass Waste as Fine Aggregate. Coatings 2020, 10, 157.

AMA Style

Gutiérrez RM-d, Villaquirán-Caicedo M, Ramírez-Benavides S, Astudillo M, Mejía D. Evaluation of the Antibacterial Activity of a Geopolymer Mortar Based on Metakaolin Supplemented with TiO2 and CuO Particles Using Glass Waste as Fine Aggregate. Coatings. 2020; 10(2):157.

Chicago/Turabian Style

Gutiérrez, Ruby Mejía-de, Mónica Villaquirán-Caicedo, Sandra Ramírez-Benavides, Myriam Astudillo, and Daniel Mejía. 2020. "Evaluation of the Antibacterial Activity of a Geopolymer Mortar Based on Metakaolin Supplemented with TiO2 and CuO Particles Using Glass Waste as Fine Aggregate" Coatings 10, no. 2: 157.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
