Structural Elucidation of Antibiotic TKR2999, an Antifungal Lipodepsipeptide Isolated from the Fungus Foliophoma fallens

Gloria Crespo
Ignacio Pérez-Victoria
Francisco Javier Ortiz-López
Víctor González-Menéndez
Mercedes de la Cruz
Bastien Cautain
Pilar Sánchez
Francisca Vicente
Olga Genilloud
Fernando Reyes
Fundación MEDINA, Centro de Excelencia en Investigación de Medicamentos Innovadores en Andalucía, Avenida del Conocimiento 34, Parque Tecnológico de Ciencias de la Salud, E-18016 Granada, Spain
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Antibiotics 2020, 9(6), 278;
Submission received: 29 April 2020 / Revised: 22 May 2020 / Accepted: 23 May 2020 / Published: 26 May 2020


An antifungal lipodepsipeptide was obtained from cultures of the fungus Foliophoma fallens CF-236885. Its structure, elucidated by HRMS and NMR spectroscopy, contained Gly, Thr, Asn, β-Ala, Orn, Ala, two Ser residues, and 3-hydroxy-4-methylhexadecanoic acid. The absolute configuration of its amino acid residues was determined using Marfey’s analysis and J-based configuration analysis helped to establish the relative configuration of the 3-hydroxy-4-methylhexadecanoic acid moiety. A literature search retrieved a patent describing antibiotic TKR2999 (1), whose non-disclosed structure was confirmed to be identical to that found for our compound, according to its physicochemical properties and NMR spectra. Compound 1 displayed potent antifungal activity against Aspergillus fumigatus and a panel of Candida strains.

Graphical Abstract

1. Introduction

Invasive fungal infections are still a major health problem, especially when affecting immunocompromised patients [1]. Candida species and Aspergillus fumigatus remain the main pathogens responsible for such infections. Current treatments include the use of amphotericin B, triazoles such as ketoconazole or fluconazole, and echinocandin-like lipopeptides, represented by three molecules in clinical use, namely caspofungin, micafungin, and anidulafungin [2,3,4]. Resistant strains are emerging, and the existence of new alternatives to enhance the efficacy or even replace these treatments are urgently required.
Natural products offer an interesting source of new molecules and fungal metabolites have proven to be a rich source of novel agents with potential against fungal infections. A survey of a subset of 8320 microbial acetone extracts from our proprietary collection against five Candida opportunistic strains (Candida glabrata, C. krusei, C. parapsilosis, C. tropicalis, C. albicans) and Aspergillus fumigatus identified, after liquid chromatography-mass spectrometry (LC/MS) dereplication, ten bioactive extracts with promising chemical profiles [5]. One of these extracts, obtained after cultivation of the fungus Foliophoma fallens in CMK medium, displayed a liquid chromatography-ultraviolet (LC-UV) profile containing almost a unique peak (Figure 1) whose HRMS data suggested a peptidic nature for the molecule. Based on the coincident physicochemical properties and NMR spectra, the compound was identified as antibiotic TKR2999 (1), an antifungal peptide previously described in a patent whose structure was not disclosed in the document [6]. A number of natural peptide-like compounds have been identified in the past as potent antifungal agents, and examples include the above-mentioned echinocandins, phaeofungin, a lipodepsipeptide isolated from a Phaeosphaeria sp. using the C. albicans fitness test [7], or phomafungin, isolated from a Phoma sp. using the same approach [8]. The latter two compounds share a strong structural resemblance with compound 1 and phomafungin even shares the same 3-hydroxy-4-methylhexadecanoic acid structural unit.
Foliophoma was recently introduced as a new camarosporium-like fungal genus, named after its association with leaf spots, and its morphological similarity to Phoma [9]. It includes only two species, F. fallens (type species) [9] and the recently introduced F. camporesii [10]. No reports on the chemical composition of these two species or their synonymic species Phoma fallens, Phoma glaucispora, Pleospora fallens, Phyllosticta glaucispora, and Phyllosticta oleandri have been published so far.

2. Results and Discussion

To accomplish the full structural elucidation of compound 1, a 1 L culture of F. fallens in CMK medium was extracted with acetone and, after centrifugation, decantation, and removal of the acetone under a nitrogen stream, a precipitate was formed. Antifungal activity was detected in this solid precipitate, which was filtered, dissolved in DMSO and purified by preparative HPLC to yield pure compound 1. Its molecular formula was established as C44H78N10O14 based on the existence of a protonated ion at m/z 971.5797 in its ESI-TOF analysis and the presence of 44 signals in its 13C NMR spectrum. Inspection of the NMR spectra acquired in DMSO-d6 (Table 1) immediately evidenced the peptidic nature of the molecule, with signals in the region between 7.0 and 8.5 ppm of its 1H NMR spectrum accounting for the presence of amide NH protons; signals between 3.5 and 5.0 ppm accounting for α-amino acid protons; and 10 signals in the low field region of its 13C NMR spectrum (169–173 ppm) accounting for the presence of amide or ester carbonyl groups. Extensive analysis of 2D NMR spectra (COSY, HSQC, HMBC, and HSQC-TOCSY) allowed the identification in the molecule of the following amino acid residues: Gly, Thr, Asn, 2 × Ser, β-Ala, Orn, and Ala, together with a lipidic moiety whose identity was established as 3-hydroxy-4-methylhexadecanoic acid (HMHDA) (Figure 2). Signals for a methylene group at δH 2.31 and 2.39 (H-2) that correlated in the COSY spectrum with an oxygenated methine at δH 5.04 ppm (H-3), which in turn correlated with a methine at δH 1.68 ppm (H-4) coupled to the doublet methyl group at δH 0.82 ppm (4-Me) and a methylene at δH 1.31 and 1.04 ppm (H-5), and the existence of three intense HMBC correlations from the latter methyl group to carbons at δC 75.2 (C-3), 35.8 (C-4), and 31.6 (C-5) unequivocally confirmed the presence of this HMHDA unit in the molecule. The sequencing of all the residues was performed using a combination of HMBC and NOESY data.
Key long-range correlations from α-protons to carbonyl carbons of adjacent amino acids plus NOESY correlations between α-protons and NH protons of adjacent amino acids allowed this sequence to be established as Gly-Thr-Asn-Ser1-Ser2-β-Ala-Orn-Ala-HMHDA (Figure 3). Additionally, a ring closure via an ester bond between the carbonyl group of Gly and the 3-hydroxy group of HMHDA was confirmed by the existence of an HMBC correlation between the H-3 proton of HMHDA at δH 5.04 ppm and the carbonyl carbon of Gly at δC 169.0 ppm.
Once the planar structure of the molecule had been established, Marfey’s analysis [11] including UV and LC/MS detection was applied to determine the absolute configuration of all the chiral amino acid residues. Hydrolysis of the peptide overnight at 110 °C and derivatization of the hydrolyzate with L-FDVA led to the identification of D-allo-Thr, D-Asn, L-Ser (× 2), L-Orn, and L-Ala as the chiral amino acid components of antibiotic TKR2999.
To determine the absolute configuration of the two chiral centers present in the 3-hydroxy-4-methylhexadecanoic acid moiety, a strategy including J-based configuration analysis (JBCA) [12] in combination with derivatization with Mosher reagents [13] of the 3-OH group of the molecule obtained after hydrolysis of the ester functionality was attempted. However, reaction of the hydrolyzed lipopeptide with the Mosher reagent was unsuccessful and attempts to obtain the 3-hydroxy-4-methylhexadecanoic acid moiety forcing the hydrolysis in acidic conditions yielded the dehydration product. Nevertheless, it was possible to determine the relative configuration of the contiguous chiral centers, C-3 and C-4, in the fatty acid moiety by means of JBCA and NOESY/ROESY analyses. The key 3JHH for the geminal protons H-2a and H-2b, and proton H-3 at the esterification position of the HMHDA moiety were determined from both the 1H NMR and J-resolved spectra acquired at 50 °C (see Supplementary Materials), since at this higher temperature not only were the signals sharpened, but were also better resolved, facilitating the direct measurement of the key couplings. On the other hand, the key 3JHC between H-3 and the carbon of the methyl substituent at C-4 was derived from the J-HMBC experiment (see Figure S12) [14]. These key coupling constants were interpreted based on their Karplus-type dependence on dihedral angles [15,16] and were also qualitatively classified as small, medium, or large as proposed for the JBCA method to distinguish between a possible dominant conformer or rather an equilibrium of rotamers. In this manner, H-3 was found to be approximately antiperiplanar to H-2a (ϕ ca. 145° derived from 3JHH = 9.3 Hz) displaying a dihedral angle ϕ ca. −68° (derived from 3JHH = 3.0 Hz) with H-2b. A NOESY/ROESY correlation was also observed between H-3 and H-2b. On the other hand, the 5.3 Hz coupling constant between H-3 and H-4 can be considered to be of medium magnitude compared to the expected ranges for anti (8-11 Hz, large) or gauche (1–4 Hz, small) arrangements in monooxygenated 1,2-methine systems [12], indicating the contribution of more than one rotamer along the C-3 to C-4 bond. The long-range coupling 3JCH = 4.3 Hz between H-3 and the methyl was also of medium magnitude compared to the expected ranges for anti (6–8 Hz, large) or gauche (1–3 Hz, small) displays, further confirming an equilibrium of rotamers [12]. According to the JBCA approach these medium magnitude coupling constants mentioned are compatible with the A-1/A-3 pair of rotamers (Figure 4) for a threo relative stereochemistry, or with the B-1/B-3 for the erythro diastereomer (Figure S18) The equilibrium between the indicated two pairs of rotamers was further confirmed by the key NOESY/ROESY correlations observed between H-4/H-2, H-4/H-3, 4-Me/H-2a, and 4-Me/H-3 (Figure 4). Interestingly, the A-1 rotamer of the threo configuration was found in the crystal structure of the lipodepsipeptide oryzamide A, which contains the homologous fatty acid 3-hydroxy-4-methyldecanoic acid (HMDA) [17], while the A-3 rotamer was found in the crystal structure of lipodepsipeptide scopularide A, which contains the homologous 3-hydroxy-4-methylhexanoic acid (HMHA) [18]. The occurrence of both rotamers in the solid state also supports their equilibrium in solution. To finally discriminate which rotamer pair corresponds to 1, and evaluation of the long-range coupling 3JCH between H-4 and C-2 provided the answer. A quantitative measurement was not possible due to the absence of the corresponding cross-peak in the J-HMBC experiment. However, such cross-peak absence also occurred in the standard HMBC spectrum acquired at an optimized value of 8 Hz, clearly indicating that the long-range coupling involved must be small, a result only compatible with the A-1/A-3 rotamer pair for the threo relative configuration. Figure 4 summarizes the application of the JBCA approach and NOESY/ROESY analyses to determine the relative 3S*, 4S* configuration for the two chiral centers of the fatty acid.
Unfortunately, it was not possible to correlate the relative configuration of the fatty acid moiety of TKR2999 with the absolute configuration of its constituent amino acids. Nevertheless, based on its fungal origin, we tentatively propose that the HMDA moiety in oryzamides from Nigrospora oryzae [17] and scopularides from Scopulariopsis sp. CMB-F458 [18], the homologous 3-hydroxy-4-methylhexanoic acid (HMHA) moiety in chrysogenamide D from Penicillium chrysogenum [19], and the homologous HMHDA unit of TKR2999 share all the same 3S, 4S absolute configuration for the two chiral centers of the fatty acid chain.
The antifungal activity of compound 1 was tested against a panel of five yeasts and one fungal strain including five Candida species, namely C. glabrata, C. krusei, C. parapsilosis, C. tropicalis, and C. albicans, and one strain of A. fumigatus. Potent bioactivity with minimum inhibition concentration (MIC) values ranging from 0.5 to 2 μg/mL against all the pathogenic strains were obtained, while 1 displayed moderate toxicity against the THLE-2 epithelial human cell line (Table 2).
In conclusion, the structure including the full absolute configuration of most of the structural units of the fungal depsipeptide antibiotic TKR2999 was determined and the antifungal activity previously reported [6] was confirmed in an extended panel of five Candida and one Aspergillus species. This report constitutes the first chemical study of fungi in the genus Foliophoma and once again confirms the importance of fungal natural products as a valuable source of antifungal compounds [20].

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations were measured on a Jasco P-2000 polarimeter (JASCO Corporation, Tokyo, Japan). IR spectra were recorded with a JASCO FT/IR-4100 spectrometer (JASCO Corporation) equipped with a PIKE MIRacleTM single attenuated total reflection (ATR) accessory. 1D and 2D NMR spectra were recorded on a Bruker Avance III spectrometer at 500/125 MHz (1H/13C NMR, respectively) equipped with a 1.7 mm TCI MicroCryoProbeTM (Bruker Biospin, Fällanden, Switzerland). Chemical shifts were reported in ppm using residual DMSO-d6 signals (δ 2.51 for 1H and 39.0 for 13C) as the internal reference. HMBC experiments were optimized for a 3JCH of 8 Hz. ESI-TOF spectra were acquired using a Bruker maXis QTOF (Bruker Daltonik GmbH, Bremen, Germany) mass spectrometer coupled to an Agilent 1260 RR HPLC (Agilent Technologies, Waldbronn, Germany). Preparative HPLC separations were performed on a Gilson GX-281 322H2 instrument (Gilson Technologies, USA).

3.2. Producing Fungus and Its Characterization

The producer microorganism (CF-236885) was isolated from Pinus sp. collected in Lisbon (Portugal) using a dilution to extinction method in 48-well plates containing YMC medium [21]. Frozen stock cultures in 10% glycerol (−80 °C) are maintained in the fungal collection of Fundación MEDINA. Furthermore, to estimate the approximate phylogenetic position of strain CF-236885, genomic DNA was extracted from mycelia grown on malt-yeast extract agar. DNA extraction, PCR amplification, and DNA sequencing were performed as previously described [22]. Sequences of the complete ITS1-5.8S-ITS2 and initial 28S region or independent ITS and partial 28S rDNA sequences were compared with those deposited at GenBank or the National Institute of Technology and Evaluation (NITE) Biological Resource Center [23] by using the BLAST application. Database matching with the ITS rDNA sequence [24] yielded a complete sequence similarity (100%) to the type strain of Foliophoma fallens CBS 284.70, thus indicating that strain CF-236885 was genetically similar to F. fallens, and conspecific. High similar scores to other validated fungal strains of this species (e.g., F. fallens CBS 161.78 (99.426%)), indicated that CF-236885 can be classified as Foliophoma fallens (Coniothyriaceae, Pleosporales).

3.3. Fermentation

Strain CF-236885 (F. fallens) was fermented by inoculating ten mycelial agar plugs into SMYA medium (Bacto neopeptone 10 g; maltose 40 g; yeast extract 10 g; agar 3 g; H2O 1 L) in a flask (50 mL medium in a 250 mL Erlenmeyer). The flask was incubated on a rotary shaker at 220 rpm at 22 °C with 80% relative humidity. After growing the seed stage for seven days, a 1.5 mL aliquot was used to inoculate each flask of the production medium CMK (D-cellobiose 40 g; yeast extract 1 g; glycerol 2 g; Murashige and Skoog salts (SIGMA M-5524) 4.3 g, and distilled water 1 L). The 20 flasks (50 mL medium per 250 mL unbaffled flask) were incubated at 22 °C on a rotary shaker (220 rpm, 5 cm throw) for 23 days, 80% relative humidity.

3.4. Extraction and Isolation

A 1-L culture of CF-236885 was extracted by the addition of acetone (1 L), agitation at 220 rpm for 1 h, centrifugation at 8500 rpm, filtration, and evaporation of the organic solvent under a nitrogen stream. The solid precipitate formed was dried to obtain 196 mg of a material that was dissolved in DMSO and subjected to repeated preparative HPLC injections (X-Bridge C18, 19 × 250 mm, 5 μM, gradient H2O + 0.1% TFA-CH3CN + 0.1% TFA from 35% to 60% organic in 25 min, 14 mL/min, UV detection at 210 and 280 nm) to yield 18.9 mg of compound 1.
Antibiotic TKR2999 (1): white, amorphous solid; [α]20D −15.1 (c 0.08, MeOH); IR (ATR) νmax: 3304, 2922, 2852, 2831, 1744, 1678, 1630, 1536, 1435, 1406, 1313, 1202, 1012, 951 cm−1; (+)-ESI-TOFMS m/z 971.5797 [M+H]+ (calcd for C44H79N10O14+, 971.5772); 1H and 13C NMR data see Table 1.

3.5. Marfey’s Analysis of Compound 1

A sample (0.5 mg) of compound 1 was dissolved in 1 mL of 6N HCl and heated at 110 °C for 16 h. After evaporation to dryness under a nitrogen stream, the hydrolyzate was dissolved in 100 µL of water. A 1% (w/v) solution (100 μL) of L-FDVA (Marfey’s reagent, N-(2,4-dinitro-5-fluorophenyl)-L-valinamide) in acetone was added to the aqueous solution of the peptide hydrolyzate or to an aliquot (50 μL) of a 50 mM solution of each amino acid standard (D or L). After the addition of 20 μL of 1 M NaHCO3 solution, each mixture was incubated at 40 °C for 60 min. The reactions were quenched by the addition of 10 μL of 1N HCl and the mixtures were diluted with 700 μL of acetonitrile and analyzed by LC/MS on an Agilent 1100 single Quadrupole LC/MS instrument using a Waters X-Bridge C18 column (4.6 × 150 mm, 5 μm) maintained at 40 °C. A mixture of two solvents, A (10% acetronitrile, 90% water) and B (90% acetronitrile, 10% water), both containing 1.3 mM trifluoroacetic acid and 1.3 mM ammonium formate, was used as the mobile phase under a linear gradient elution mode (10 to 30% B in 35 min, 30 to 100% B in 1 min, isocratic 100% B for 4 min) at a flow rate of 1 mL/min. Retention times (min) for the derivatized (L-FDVA) amino acid standards under the reported conditions were as follows: Gly: 16.43; L-Thr: 12.71; D-Thr: 18.47; L-allo-Thr: 13.20; D-allo-Thr: 15.80; L-Asp: 13.20; D-Asp: 14.84; L-Ser: 12.42; D-Ser: 13.88; β-Ala: 19.46; L-Orn (monoderivatized): 10.10; D-Orn (monoderivatized): 9.31; L-Orn (diderivatized): 30.35; D-Orn (diderivatized): 28.95; L-Ala 16.37; D-Ala: 21.52. Retention times (min) for the observed peaks in the HPLC trace of the L-FDVA derivatized hydrolysis product of compound 1 were: Gly: 16.38; D-allo-Thr: 15.82; D-Asp: 14.93; L-Ser: 12.45; β-Ala: 19.49; L-Orn (monoderivatized): 10.17; L-Orn (diderivatized): 30.39; L-Ala 16.38.

3.6. Biological Activity

Antifungal activity against C. albicans ATCC64124, C. glabrata ATCC2001, C. krusei ATCC6258, C. parapsilosis ATCC22019, C. tropicalis ATCC750, and A. fumigatus ATCC 46645, and cytotoxicity against the THLE-2 (ATCC CRL-10149) epithelial human cell line were performed as previously described [5,25].

Supplementary Materials

The following are available online at, Figure S1: 1H NMR spectrum (DMSO-d6, 24 °C, 500 MHz) of compound 1, Figure S2: 13C NMR spectrum (DMSO-d6, 24 °C, 125 MHz) of compound 1, Figure S3: COSY spectrum of compound 1, Figure S4: HSQC spectrum of compound 1, Figure S5: HMBC spectrum of compound 1, Figure S6: HSQC-TOCSY spectrum of compound 1, Figure S7: NOESY spectrum of compound 1, Figure S8: 1H NMR spectrum (DMSO-d6, 50 °C, 500 MHz) of compound 1, Figure S9: Expansions of 1H NMR spectrum (DMSO-d6, 50 °C, 500 MHz) of compound 1, Figure S10: JRES spectrum (50 °C) of compound 1, Figure S11: Expansion of JRES spectrum (50 °C) of compound 1 and traces of multiplets corresponding to H-2a and H-2b overlaid with the 1H NMR spectrum, Figure S12: Expansion of the J-HMBC spectrum of compound 1 (50 °C) employed for measuring 3JCH between H-3 (fatty acid chain) and the carbon of the methyl substituent at C-4, Figure S13: ROESY spectrum (50 °C) of compound 1, Figure S14: ESI-TOF spectrum of compound 1, Figure S15: UV/Vis (DAD) spectrum of compound 1, Figure S16: UV chromatogram of derivatized (L-FDVA) amino acid standards, Figure S17: UV chromatogram of derivatized (L-FDVA) compound 1 hydrolyzate, Figure S18: Key NOESY/ROESY correlations (dashed red arrows) and JBCA analysis employed to discard the erythro relative stereochemistry represented by the B-1/B-3 pair of rotamers.

Author Contributions

Conceptualization, F.V., O.G., and F.R.; Methodology, G.C., I.P.-V., F.J.O.-L., V.G.-M., M.d.l.C., B.C., and P.S.; Investigation, G.C., I.P.-V., F.J.O.-L., V.G.-M., M.d.l.C., B.C., and P.S.; Resources, F.V., O.G. and F.R.; Writing—original draft preparation, G.C., I.P.-V., and F.R.; Writing—review and editing, all authors; Supervision, F.V., O.G., and F.R.; Funding acquisition, F.V., O.G., and F.R. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Junta de Andalucía, grant number RNM-7987. The polarimeter, HPLC, IR, NMR equipment, and plate reader used in this work were purchased via grants for scientific and technological infrastructures from the Ministerio de Ciencia e Innovación [Grants No. PCT-010000-2010-4 (NMR), INP-2011-0016-PCT-010000 ACT6 (polarimeter, HPLC, and IR), and PCT-01000-ACT7, 2011-13 (plate reader)].

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Lackner, M.; Lass-Florl, C. Up-date on diagnostic strategies of invasive aspergillosis. Curr. Pharm. Des. 2013, 19, 3595–3614. [Google Scholar] [CrossRef] [PubMed]
  2. Cowen, L.E.; Steinbach, W.J. Stress, drugs, and evolution: The role of cellular signaling in fungal drug resistance. Eukaryot. Cell 2008, 7, 747–764. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Balkovec, J.M.; Hughes, D.L.; Masurekar, P.S.; Sable, C.A.; Schwartz, R.E.; Singh, S.B. Discovery and development of first in class antifungal caspofungin (CANCIDAS®)-A case study. Nat. Prod. Rep. 2014, 31, 15–34. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, S.A.; Slavin, M.; Sorrell, T. Echinocandin Antifungal Drugs in Fungal Infections. Drugs 2011, 71, 11–41. [Google Scholar] [CrossRef]
  5. Crespo, G.; González-Menéndez, V.; de la Cruz, M.; Martín, J.; Cautain, B.; Sánchez, P.; Pérez-Victoria, I.; Vicente, F.; Genilloud, O.; Reyes, F. Antifungal long-chain alkenyl sulphates isolated from culture broths of the fungus Chaetopsina sp. Planta Med. 2017, 234, 545–550. [Google Scholar] [CrossRef]
  6. Takesako, K.; Awazu, N.; Ueno, M.; Onishi, Y.; Kato, I. Antibiotic TKR2999, process for the preparation thereof and microbe. Japanese Patent WO99/32498 A1, 1 July 1999. [Google Scholar]
  7. Singh, S.B.; Ondeyka, J.; Harris, G.; Herath, K.; Zink, D.; Vicente, F.; Bills, G.; Collado, J.; Platas, G.; González del Val, A.; et al. Isolation, structure, and biological activity of phaeofungin, a cyclic lipodepsipeptide from a Phaeosphaeria sp. Using the genome-wide Candida albicans fitness test. J. Nat. Prod. 2013, 76, 334–345. [Google Scholar] [CrossRef]
  8. Herath, K.; Harris, G.; Jayasuriya, H.; Zink, D.; Smith, S.; Vicente, F.; Bills, G.; Collado, J.; González, A.; Jiang, B.; et al. Isolation, structure and biological activity of phomafungin, a cyclic lipodepsipeptide from a widespread tropical Phoma sp. Bioorg. Med. Chem. 2009, 17, 1361–1369. [Google Scholar] [CrossRef]
  9. Crous, P.W.; Groenewald, J.Z. The Genera of Fungi–G 4: Camarosporium and Dothiora. IMA Fungus 2017, 8, 131–152. [Google Scholar] [CrossRef] [Green Version]
  10. Hyde, K.D.; Dong, Y.; Phookamsak, R.; Jeewon, R.; Bhat, D.J.; Jones, E.B.G.; Liu, N.-G.; Abeywickrama, P.D.; Mapook, A.; Wei, D.; et al. Fungal diversity notes 1151–1276: Taxonomic and phylogenetic contributions on genera and species of fungal taxa. Fungal Divers. 2020, 100, 5–277. [Google Scholar] [CrossRef] [Green Version]
  11. Marfey, P. Determination of D-amino acids. II. Use of a bifunctional reagent, 1,5-difluoro-2,4-dinitrobenzene. Carlsberg Res. Commun. 1984, 49, 591–596. [Google Scholar] [CrossRef] [Green Version]
  12. Matsumori, N.; Kaneno, D.; Murata, M.; Nakamura, H.; Tachibana, K. Stereochemical determination of acyclic structures based on carbon-proton spin-coupling constants. A method of configuration analysis for natural products. J. Org. Chem. 1999, 64, 866–876. [Google Scholar] [CrossRef] [PubMed]
  13. Sullivan, G.R.; Dale, J.A.; Mosher, H.S. Correlation of configuration and fluorine-19 chemical shifts of -methoxy- -trifluoromethylphenyl acetate derivatives. J. Org. Chem. 1973, 38, 2143–2147. [Google Scholar] [CrossRef]
  14. Meissner, A.; Sørensen, O.W. Measurement of J(H,H) and long-range J(X,H) coupling constants in small molecules. Broadband XLOC and J-HMBC. Magn. Reson. Chem. 2001, 39, 49–52. [Google Scholar] [CrossRef]
  15. Haasnoot, C.A.G.; de Leeuw, F.A.A.M.; Altona, C. The relationship between proton-proton NMR coupling constants and substituent electronegativities—I: An empirical generalization of the karplus equation. Tetrahedron 1980, 36, 2783–2792. [Google Scholar] [CrossRef]
  16. Aydin, R.; Günther, H. 13C, 1H spin–spin coupling. X—Norbornane: A reinvestigation of the karplus curve for 3J(13C, 1H). Magn. Reson. Chem. 1990, 28, 448–457. [Google Scholar] [CrossRef]
  17. Ding, L.-J.; Yuan, W.; Liao, X.-J.; Han, B.-N.; Wang, S.-P.; Li, Z.-Y.; Xu, S.-H.; Zhang, W.; Lin, H.-W. Oryzamides A–E, cyclodepsipeptides from the sponge-derived fungus Nigrospora oryzae PF18. J. Nat. Prod. 2016, 79, 2045–2052. [Google Scholar] [CrossRef]
  18. Elbanna, A.H.; Khalil, Z.G.; Bernhardt, P.V.; Capon, R.J. Scopularides revisited: Molecular networking guided exploration of lipodepsipeptides in australian marine fish gastrointestinal tract-derived fungi. Mar. Drugs 2019, 17, 475. [Google Scholar] [CrossRef] [Green Version]
  19. Hou, X.-M.; Li, Y.-Y.; Shi, Y.-W.; Fang, Y.-W.; Chao, R.; Gu, Y.-C.; Wang, C.-Y.; Shao, C.-L. Integrating molecular networking and 1H NMR to target the isolation of chrysogeamides from a library of marine-derived Penicillium fungi. J. Org. Chem. 2019, 84, 1228–1237. [Google Scholar] [CrossRef]
  20. Vicente, F.; Reyes, F.; Genilloud, O. Fungal secondary metabolites as source of antifungal compounds. In Fungi Applications and Management Strategies; Chapter 5; Deshmukh, S.K., Misra, J.K., Tewari, J.P., Papp, T., Eds.; CRC Press, Taylor & Francis Group: Boca Ratón, FL, USA, 2016; pp. 80–116. [Google Scholar]
  21. Collado, J.; Platas, G.; Paulus, B.; Bills, G.F. High-throughput culturing of fungi from plant litter by a dilution-to-extinction technique. FEMS Microbiol. Ecol. 2007, 60, 521–533. [Google Scholar] [CrossRef] [Green Version]
  22. Gonzalez-Menendez, V.; Martin, J.; Siles, J.A.; Gonzalez-Tejero, M.R.; Reyes, F.; Platas, G.; Tormo, J.R.; Genilloud, O. Biodiversity and chemotaxonomy of Preussia isolates from the Iberian Peninsula. Mycol. Prog. 2017, 16, 713–728. [Google Scholar] [CrossRef]
  23. Biological Resource Center, National Institute of Technology and Evaluation. Available online: (accessed on 25 May 2020).
  24. Pairwise Sequence Alignment, CBS-KNAW Collections. Available online: (accessed on 25 May 2020).
  25. Monteiro, M.C.; de la Cruz, M.; Cantizani, J.; Moreno, C.; Tormo, J.R.; Mellado, E.; De Lucas, J.R.; Asensio, F.; Valiante, V.; Brakhage, A.A.; et al. A new approach to drug discovery: High-throughput screening of microbial natural extracts against Aspergillus fumigatus using resazurin. J. Biomol. Screen. 2012, 17, 542–549. [Google Scholar] [CrossRef] [PubMed]

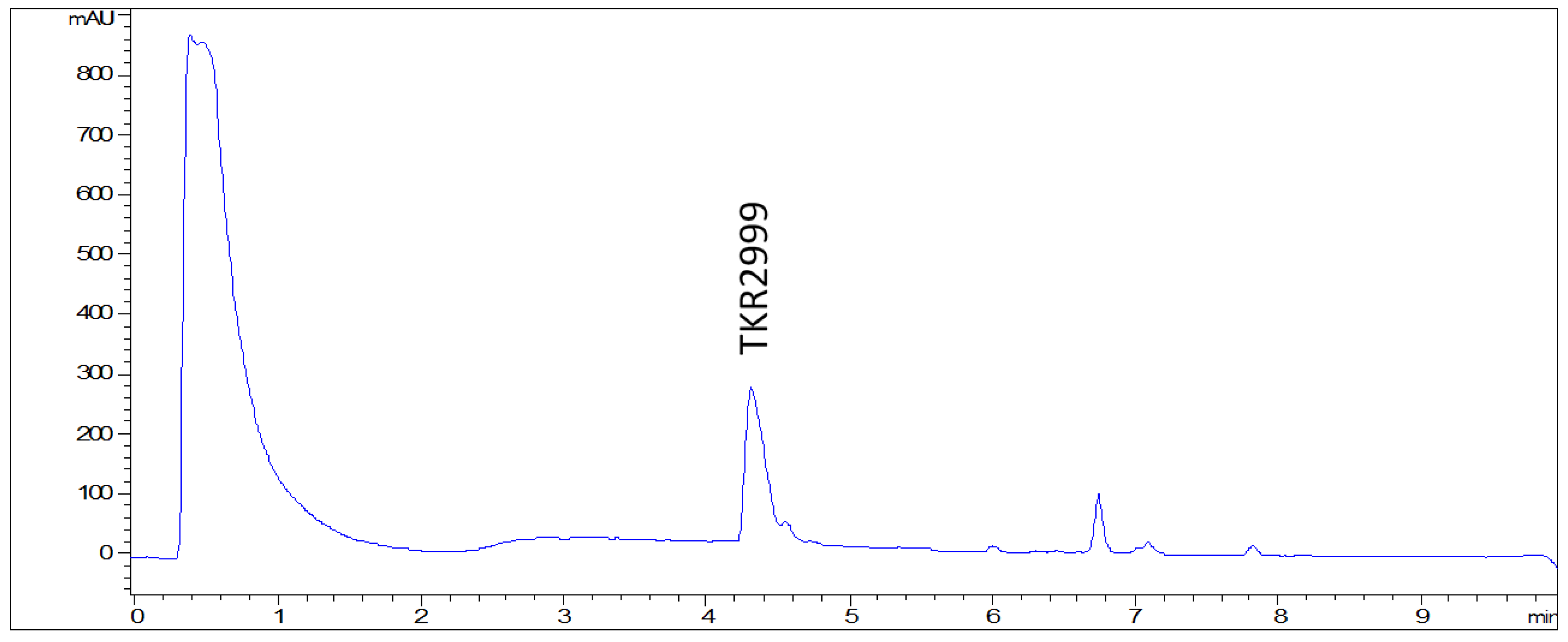

Figure 1. LC-UV (210 nm) chromatogram of the extract containing compound 1.
Figure 1. LC-UV (210 nm) chromatogram of the extract containing compound 1.
Antibiotics 09 00278 g001

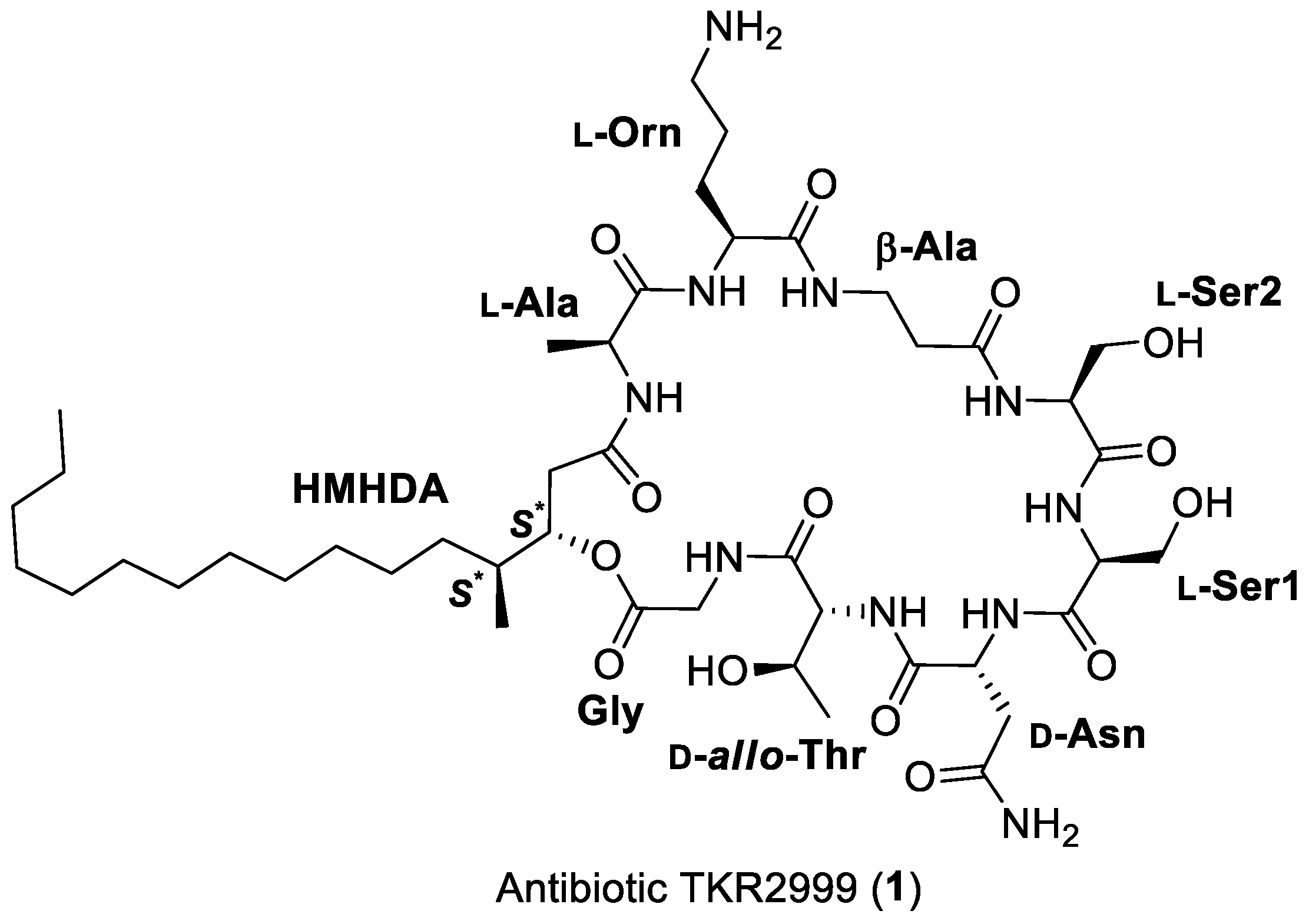

Figure 2. Structure of antibiotic TKR 2999 (1).
Figure 2. Structure of antibiotic TKR 2999 (1).
Antibiotics 09 00278 g002

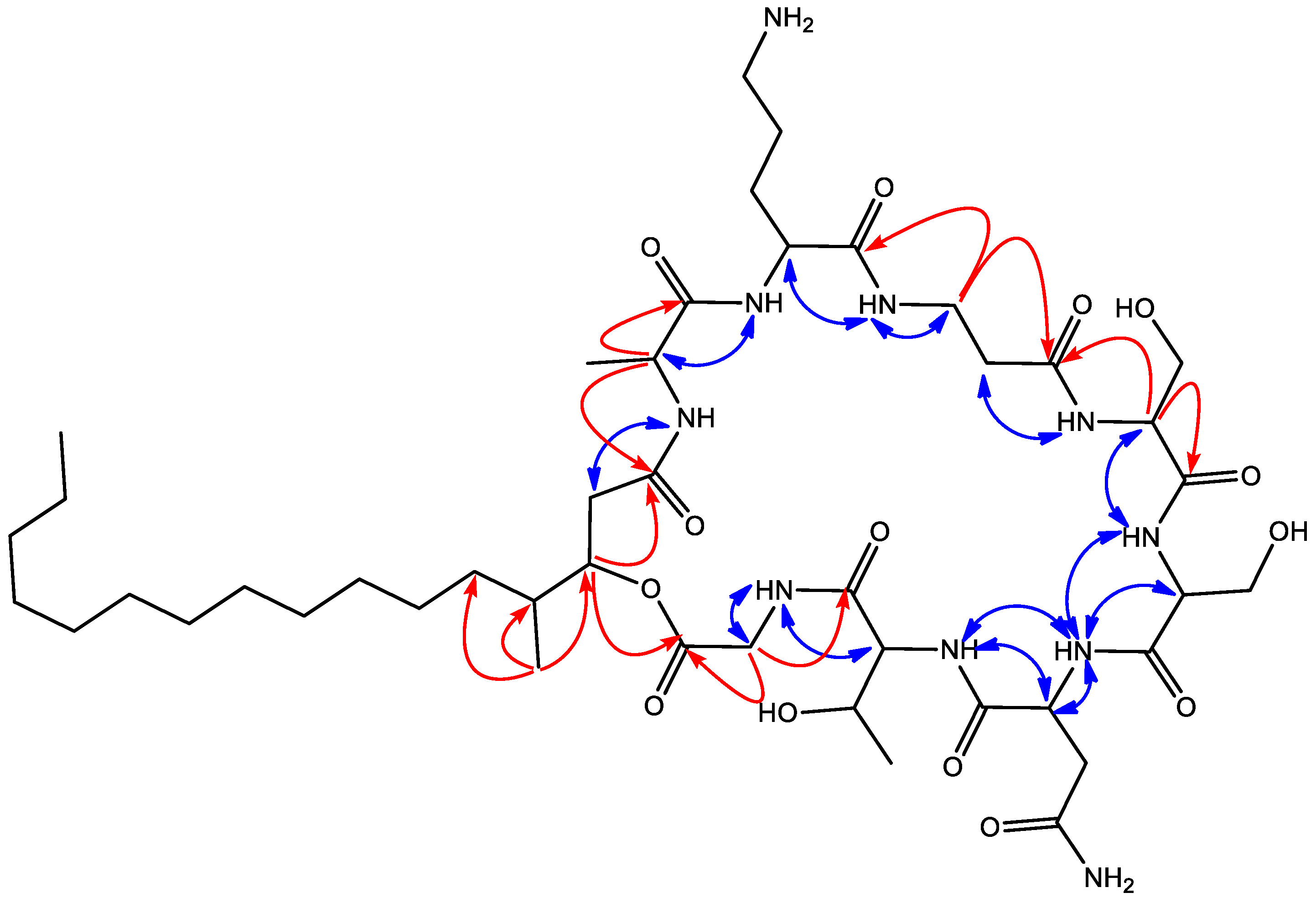

Figure 3. Key NOESY (blue) and HMBC (H to C, red) correlations observed in the spectra of compound 1.
Figure 3. Key NOESY (blue) and HMBC (H to C, red) correlations observed in the spectra of compound 1.
Antibiotics 09 00278 g003
Figure 4. JBCA approach and key NOESY/ROESY correlations (dashed red arrows) employed to determine the threo (3S*, 4S*) relative stereochemistry for the two chiral centers of the HMHDA moiety in compound 1.
Figure 4. JBCA approach and key NOESY/ROESY correlations (dashed red arrows) employed to determine the threo (3S*, 4S*) relative stereochemistry for the two chiral centers of the HMHDA moiety in compound 1.
Antibiotics 09 00278 g004
Table 1. NMR data of antibiotic TKR2999 (1) in DMSO-d6.
Table 1. NMR data of antibiotic TKR2999 (1) in DMSO-d6.
PositionδCδH, Mult (J in Hz)PositionδCδH, Mult (J in Hz)
Gly Orn
1169.0 1170.9
240.93.98 dd (17.4, 4.6)
3.72 dd (17.4, 6.3)
252.04.20 m
NH 8.16 t (5.3)328.51.77 m
1.52 m
Thr 423.61.52 m
1170.2 538.62.75 m
258.34.24 mNH 7.99 m
366.83.95 mNH2 7.63 m
419.91.07 d (6.2)Ala
NH 7.67 d (8.7)1172.5
3-OH 4.87 d (4.3)249.04.17 m
Asn 317.91.23 m
1170.6 NH 7.99 m
250.04.57 mHMHDA
336.92.65 dd (15.5, 5.7)
2.50 m
4172.1 236.72.39 dd (14.4, 9.3) a
2.31 dd (14.4, 2.7) a
NH 8.32 d (8.0)375.25.04 ddd (8.6, 5.3, 3.2) a
NH2 7.43 s
7.01 s
435.81.68 m
Ser1 5431.61.31 m
1.04 m
1170.1 626.51.31 m
1.17 m
256.04.23 m729.21.24 m
361.23.63 m
3.59 m
829.11.24 m
NH 7.99 m929.11.24 m
3-OH 4.94 t (4.9)1029.11.24 m
Ser2 1129.11.24 m
1170.7 1229.11.24 m
255.34.30 m1328.71.24 m
361.53.63 m
3.54 m
1431.31.23 m
NH 8.03 d (7.6)1522.11.26 m
3-OH 5.04 m1614.00.85 t (6.8)
β-Ala 4-Me14.70.82 d (6.6)
235.12.36 m
335.53.34 m
3.29 m
NH 7.76 t (5.3)
a Coupling constants determined from the 1H and J-resolved spectra acquired at 50 °C.
Table 2. Antifungal (MIC, Candida, and Aspergillus strains) and cytotoxic (IC50, THLE-2 cell line) activity of compound 1.
Table 2. Antifungal (MIC, Candida, and Aspergillus strains) and cytotoxic (IC50, THLE-2 cell line) activity of compound 1.
Fungal Strain/Cell Line
CompoundC. glabrataC. kruseiC. parapsilosisC. tropicalisC. albicansA. fumigatusTHLE-2
MIC (µg/mL)IC50 (µg/mL)
11–0.52–12–11–0.511–0.55.38 ± 0.91
Amphotericin B244444
