Observation of Cytotoxicity of Phosphonium Derivatives Is Explained: Metabolism Inhibition and Adhesion Alteration

by
Pavel A. Nazarov
1,2,*,
Svetlana A. Khrulnova
1,3,
Andrew G. Kessenikh
1,4,
Uliana S. Novoyatlova
1,4,
Svetlana B. Kuznetsova
1,
Sergey V. Bazhenov
1,4,
Alexandra I. Sorochkina
2,
Marina V. Karakozova
5 and
Ilya V. Manukhov
1,4
1
Moscow Institute of Physics and Technology,141700 Dolgoprudny, Russia
2
Belozersky Institute of Physico-Chemical Biology, Lomonosov Moscow State University, 119992 Moscow, Russia
3
National Research Center for Hematology, 117198 Moscow, Russia
4
Laboratory for Microbiology, BIOTECH University, 125080 Moscow, Russia
5
Center of Life Sciences, Skolkovo Institute of Science and Technology, 121205 Moscow, Russia
*
Author to whom correspondence should be addressed.
Antibiotics 2023, 12(4), 720; https://doi.org/10.3390/antibiotics12040720
Submission received: 21 February 2023 / Revised: 30 March 2023 / Accepted: 2 April 2023 / Published: 6 April 2023
(This article belongs to the Section Antibiofilm Strategies)
Browse Figures
Versions Notes

Abstract

:
The search for new antibiotics, substances that kill prokaryotic cells and do not kill eukaryotic cells, is an urgent need for modern medicine. Among the most promising are derivatives of triphenylphosphonium, which can protect the infected organs of mammals and heal damaged cells as mitochondria-targeted antioxidants. In addition to the antioxidant action, triphenylphosphonium derivatives exhibit antibacterial activity. It has recently been reported that triphenylphosphonium derivatives cause either cytotoxic effects or inhibition of cellular metabolism at submicromolar concentrations. In this work, we analyzed the MTT data using microscopy and compared them with data on changes in the luminescence of bacteria. We have shown that, at submicromolar concentrations, only metabolism is inhibited, while an increase in alkyltriphenylphosphonium (CnTPP) concentration leads to adhesion alteration. Thus, our data on eukaryotic and prokaryotic cells confirm a decrease in the metabolic activity of cells by CnTPPs but do not confirm a cytocidal effect of TPPs at submicromolar concentrations. This allows us to consider CnTPP as a non-toxic antibacterial drug at low concentrations and a relatively safe vector for delivering other antibacterial substances into bacterial cells.

1. Introduction

The search for antimicrobial drugs is a pressing need for modern science. It is not difficult to find an abiotic, a substance that kills all living things, while the search for antibiotics, substances that kill bacteria and do not kill eukaryotic cells, is a difficult task. Among the most promising antibacterial agents are mitochondria-targeted antioxidants, which can effectively kill bacterial cells, cure damaged host cells, and reduce hypercytokinemia [1,2,3].
Mitochondria are the cellular powerhouses that generate cellular energy in the form of adenosine triphosphate, and the mitochondrial matrix is negatively charged. Healthy mitochondria have a membrane potential of approximately −180 mV and, due to the negative membrane potential of the inner membrane of mitochondria, positively charged compounds must accumulate in the mitochondrial matrix against their concentration gradient, which is the basis for the use of positively charged mitochondria-targeted antioxidants (MTA). Various lipophilic, positively charged cations accumulate inside mitochondria according to the Nernst equation. Skulachev’s group [4,5,6] proposed to use triphenylphosphonium derivatives as mitochondria-targeted substances, with TPP-conjugated molecules serving as a “locomotive” for mitochondria targeting. Two decades later, Murphy and co-workers [7,8,9] reinvented this approach to the delivery of antioxidant moiety to mitochondria, and many molecules based on triphenylphosphonium derivatives have been created [10]. Despite the relative similarity of mitochondria and bacteria, it has long been thought that mitochondria-targeted antioxidants such as SkQ1 lack antibacterial properties [11,12]. However, we have shown that alkyltriphenylphosphonium cations (CnTPP) and SkQ1 have a strong antibacterial effect on Gram-positive and Gram-negative bacteria [1,13]. Moreover, SkQ1 has a bactericidal effect, which makes it promising for use in clinical practice. Even an intensive study of triphenylphosphonium derivatives did not allow us to fully understand the mechanism of their action. Although it is known that they reduce the membrane potential of mitochondria and bacteria, the mechanism of this decrease remains unknown. The most known probable mechanism is their protonophore-like action due to free fatty acids [14], which, apparently, should be universal for mitochondria, prokaryotes, and eukaryotes.
The mechanisms of resistance to triphenylphosphonium derivatives are different for prokaryotes and eukaryotes. At the moment, the mechanism of resistance of Gram-positive bacteria, if any, is not apparent. The mechanism of resistance of some Gram-negative bacteria depends on the presence of the MDR pump AcrAB-TolC [1,2], or similar functional paralogs [15]. Although, according to the theory, a greater accumulation of triphenylphosphonium derivatives should be observed in the mitochondria of eukaryotic cells [16], the cytotoxic effect for eukaryotic cells was observed only in the micromolar range. For example, C10TPP began to affect Jurkat human T lymphocyte cell viability at a concentration of 1–2 µM [17]; mitoFluo (C10TPP derivative with fluorescein) at a concentration of 1 μM and 2 μM on Rko cells and on L929 fibrosarcoma cells, respectively [18,19]; and for SkQ1 (C10TPP derivative with plastoquinone) on HeLa cells, toxicity began to appear at 2 μM, and 20 μM caused only 50% toxicity [1]. This is also confirmed by cells of Saccharomyces cerevisiae yeast having a MIC of approximately 30 μM [20]. Recently, a work was published in which the authors reported on cytotoxicity of triphenylphosphonium derivatives (CnTPP, where n = 8–18) in relation to human embryonic 293T cells at submicromolar concentrations [21].
Since triphenylphosphonium derivatives are becoming more and more popular vectors for delivering antibacterial substances to cells [22,23], finding out whether the cytocidal effect in submicromolar concentrations can seriously affect the development of newer antibacterial drugs is important. Cytotoxicity plays an important role in the validation of substances as promising antibacterial agents; therefore, not understanding the reasons leading to apparent cytotoxicity can seriously hinder the development of new antibacterial agents that modern healthcare needs so much. In this work, we show that the observed cytotoxicity is the result of metabolic inhibition and adhesion alteration; thus, at submicromolar concentrations, it is only imaginary.

2. Results

2.1. C12TPP Inhibits Bacterial Metabolism

In our former works, we analyzed the antibacterial action of CnTPP (where n = 4–14) against bacteria Escherichia coli and Bacillus subtilis [13,23]. It was shown that with increasing length of the alkyl fragment, antibacterial activity increases, reaching its maximum at n = 12, and then decreases with increasing length of the alkyl fragment. Thus, for our experiments, we chose C12TPP, which had the maximum antibacterial activity.
Although it has previously been shown that triphenylphosphonium derivatives decrease ROS (reactive oxygen species) production due to the accumulation in mitochondria [24], a direct decrease in metabolic activity has not been shown, although conclusions about a possible effect on the inhibition of metabolic processes could be expected [14]. To test this, we decided to compare the reduction in luminescence caused by the action of C12TPP and the survival of bacteria, expressed in CFU. The difference in the results will allow us to confirm the decrease in metabolism, while the absence of a difference will show that the level of luminescence falls due to cytotoxicity.

2.1.1. C12TPP Causes a Drop of Luminescence at Submicromolar Concentrations

To confirm that C12TPP inhibits metabolism, we have chosen luminous bacteria. The following strains were used: naturally luminescent Gram-negative bacteria Vibrio aquamarinus VNB 15 and genetically modified strains of E. coli and B. subtilis carrying bacterial lux operon of Photorhabdus luminescens [25,26,27]. For Gram-positive B. subtilis, luminescence began to decrease at submicromolar concentrations of C12TPP, while Gram-negative bacteria E. coli and V. aquamarinus appeared to be more resistant, with a decrease in their luminescence observed at concentrations of 1–2 μM and above (Table 1). These values were at least an order of magnitude lower than the minimum inhibitory concentrations (MIC) for both B. subtilis and E. coli. Thus, for a correct assessment of the contribution of a decrease in the membrane potential, it is necessary to measure the reduction in the survival rate under equivalent conditions.

2.1.2. C12TPP Causes Reduction of Survival Rate

For each concentration that we used, we measured the threshold at which a bactericidal effect was observed. As expected, for Gram-positive B. subtilis, it turned out to be the minimum bactericidal concentration (MBC) in the range of 1–2 μM, which we have demonstrated earlier for other Gram-positive bacteria [1,13,28]. Thus, the concentration triggering the reduction of luminescence is an order of magnitude lower than the concentration at which the bactericidal action begins.
For Gram-negative E. coli and V. aquamarinus, we see a similar situation. MBC is in the range of tens of micromoles, which is also an order of magnitude higher than the luminescence reduction concentration.
To obtain a more complete picture, we titrated C12TPP by measuring luminescence and CFU for E. coli (Figure 1). Surprisingly, at a concentration of 40 µM, we observed an almost 90% decrease in the level of luminescence, but there was no reduction in survival (Figure 1B). Thus, the decrease in luminescence is not the result of cell death, as the cells remain viable.

2.2. C12TPP Inhibits Metabolism of Mammalian Cells

Unlike that of bacteria, the viability of a mammalian cell culture is often determined by a colorimetric test to assess the metabolic activity of cells (MTT, MTS, XTT, and WST). Since such a test does not directly evaluate viability, unlike CFU, it has a number of limitations hindering its usage; the results can be erroneous due to: (1) the depletion of essential nutrients, (2) the uneven cell density, (3) the uncoupling of oxidative phosphorylation, (4) the adhesion alteration, etc. The simplest method for assessing cytotoxicity is direct microscopy.

2.2.1. CnTPP Does Not Show a Decrease in Viability at Submicromolar Concentrations

We decided to test the cytotoxicity of these derivatives against human embryonic 293T cells by means of microscopy control. When adding concentrations exceeding the GI50, GI80, and GI90 used in work [21] for these substances, cytotoxicity was not observed (Table 2). Cells retain ~100% confluence at the concentrations studied in [21], which indicates the absence of cell death and, consequently, cytocidal activity. This allows us to assert that the effect observed by the authors [21] is not cytotoxic but cytostatic with possible metabolism inhibition. Clearly, even with GI90, as defined by the term itself, a 10% increase in cell population is observed compared to the control, meaning that the conditions could not be considered cytotoxic even formally. At the same time, the cells have a visually unchanged shape and do not differ in any way from those not treated with CnTPP. Thus, we can conclude that the addition of CnTPP does not lead to apparent cytotoxicity and its effect is probably the result of a decrease in the activity of NADPH-dependent cellular oxidoreductases, which does not necessarily lead to cell death.
For further research, as in the case of bacteria [13], we chose the most “toxic” CnTPP molecule, C12TPP.

2.2.2. A Decrease in Viability at Submicromolar Concentrations of C12TPP Is Shown by MTT, but Not by Microscopy

We continued to study the cytotoxic effect of C12TPP in the concentration range from 0.05 μM to 10 μM. We performed a standard cytotoxic test and microscoped each well before MTT assay. For this, we added the appropriate concentration of commercially available C12TPP to 293T cells in DMEM (with 2 mM L-glutamine and 10% fetal bovine serum) and cultivated them at 37 °C in 5% CO2/95% air for 24 h. The results of our experiment are shown in Figure 2.
No significant difference in monolayer confluence, and therefore absence of cytotoxicity, was observed up to the concentration of 5 μM (Figure 2A). However, at concentrations above 1 μM, a slight change in cell morphology was observed. It is known that the cytotoxic effect can be detected by changes in cell morphology [24]; therefore, the observed change in morphology at micromolar concentrations correlates with previously obtained data on the cytotoxicity of CnTPPs [1,17,18,19,20].
It is noteworthy that the cytotoxicity measured by the MTT test did not correlate with confluence estimation obtained via microscopy. At a concentration above 0.1 μM, an increased variability of the results was observed, which did not correlate with our previously obtained microscopic data on the same samples. We hypothesize that this could be due to metabolism inhibition or a change in cell adhesion caused by the incorporation of charged triphenylphosphonium molecules into the cell membrane.

2.2.3. C12TPP Is Indicative of Impaired Cell Adhesion

To find out if triphenylphosphonium derivatives affect cell adhesion, we preincubated the cells with C12TPP and placed them in a 96-well plate to form a cell monolayer. Cells attached to the surface and formed a monolayer at submicromolar and micromolar concentrations of C12TPP (see Figure 3). At the same time, with increasing concentration, the usual phenotype changes to clumpy and reaches a maximum already at 5 μM C12TPP. Concurrently, the concentrations used by us do not cause serious effects when added to the cell monolayer, which excludes the presence of a toxic effect as a reason for the formation of a clumpy phenotype. Thus, the clumpy phenotype is not a consequence of a high concentration of C12TPP. The clumpy phenotype is due to the accessibility of the cell membrane to C12TPP and the impossibility of attaching to the surface when C12TPP is inserted into the membrane.. At the same time, cells in the clumpy phenotype can bind to the surface, but these bonds are very weak and are destroyed at the slightest impact. Concurrently, the cells on the first day demonstrated the ability to slightly grow. Slow growth continued until the mass death of cells that could not adhere to the surface (up to 80%, according to rough estimates).
Thus, the changes detected by the MTT test for CnTPP at submicromolar concentrations, as in the case of bacterial luminescence, are only a reflection of a decrease in cell metabolism. At concentrations above 1 μM, apparently, some toxic effect begins to appear; however, cell death is not observed even at 5 μM. At a concentration of 10 μM, a large decrease in confluence is observed; however, in this case it is difficult to say whether cell death occurs or only adhesion decreases.

3. Discussion

3.1. Metabolism Inhibition Is a Factor Affecting the MTT Test Results and Bioluminescence

The MTT assay is a colorimetric assay that measures the reduction of yellow MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) to blue formazan. It was the first rapid assay developed for cell viability high screening in a 96-well format [29]. Formazan is produced by mitochondrial dehydrogenases, predominantly mitochondrial succinate dehydrogenase [30], and when cells die, they lose their ability to convert MTT into formazan. Thus, the reduction of tetrazolium dye depends on NADPH-dependent oxidoreductase enzymes and hence on cellular levels of NADPH/NADH.
Bioluminescence is the phenomenon of light emission that results from an enzyme-catalyzed oxidation reaction in living organisms. The core genes, luxCDABEG, code for all enzymes involved in the complex machinery enabling bioluminescence. The heterodimeric luciferase LuxAB catalyzes the monooxygenation of long-chain aliphatic aldehydes to the corresponding acids utilizing reduced FMN and molecular oxygen, and the energy released as a photon with a wavelength of about 490 nm [31]. The lux operon of P. luminescens does not contain the luxG gene encoding a NAD(P)H-dependent flavin reductase, which is necessary for the reduction of FMN in luciferase, but E. coli cells have their own NAD(P)H-flavin reductase encoded by the fre gene. Also NADPH is a source of energy for the acyl protein reductase LuxC, which being complexed with LuxDE is responsible for aliphatic aldehyde synthesis. Therefore, bioluminescence also depends on the level of intracellular NADPH/NADH.
It is known that inhibition of complex I of the respiratory chain decreased the rate of formazan formation, while inhibition of complex IV increased it. At the same time, inhibition of complex III and ATP-synthase only marginally affected the rate of formazan formation [32]. Thus, inhibition of mitochondrial complex I would lead to a drop in the level of NADPH/NADH and tetrazoline reduction. Inhibition of complex I was observed earlier in [33], therefore a decrease in the level of NADPH/NADH would be expected in this case as well. Thus, when measuring cell viability by the MTT method, a false positive decrease is observed, which only corresponds to an inhibition of the work of the mitochondrial complex I. An alternative explanation for the reduced NAD(P)H effect is that CnTPPs may act as mild uncouplers [34,35]. As a result, the membrane potential decreases, which, in turn, can accelerate the work of complex IV and, as a result, reduce the NADH pool. Mild uncoupling can be caused by mechanisms inherent in the mitochondria themselves, for example, by uncoupling by endogenous fatty acids or by the functioning of proteins of the UCP family [36]. In addition, although mild dissociation has its pros and cons, the use of such substances finds its application in medical practice [37,38].

3.2. Adhesion Alteration Is a Factor Affecting the MTT Test Results

Adhesion alteration may be an additional factor affecting the MTT test results, because CnTPP is a cationic substance and will be distributed mainly into the cytoplasmic membrane due to (a) its hydrophobic alkyl chain and (b) the positive charge of the TPP head. Embedding in the membrane, CnTPP not only reduces the potential on it, but also leads to a change in the charge of the membrane as a result of its localization in it. In this case, both partial denaturation of protein molecules and disassembly of multisubunit complexes integrated due to electrical and hydrophobic forces can occur. This causes changes in the adhesive properties of the cell membrane, which can lead to the rupture of cell-surface bonds (Figure 4B). Thus, slight perturbations during the MTT test can cause cell dissociation from the surface and lead to measurement errors.
We recently predicted that due to the change in cell adhesion upon the addition of triphenylphosphonium derivatives, an antibiofilm action is expected along with an antibacterial action [39]. Our hypothesis was independently confirmed [28,40], so we can argue that this effect may be responsible for adhesion alteration for 293T cells.
We observe a similar result in the case of the experiment with the formation of a monolayer. The cells in the monolayer were insensitive to the action of 5 µM C12TPP, while the same cells in suspension were sensitive (see Figure 5). Thus, if there are not enough cells to form an extended monolayer or they do not form monolayers, such as blood cells, then they are sensitive to the action of C12TPP. Cells that form monolayers or are capable of forming or incorporating into tissues are not sensitive to micromolar concentrations and only high concentrations of C12TPP can affect them. At the same time, it should be noted that cells in the clumpy phenotype are very sensitive to even a small mechanical impact. Apparently, even in the case of a monolayer, cells will be sensitive to various mechanical influences, for example, pouring and adding solutions and media. Since 293T cells are adhesive, and when performing the MTT test, part of the living cells could be removed during measurements and not taken into account when measuring cytotoxicity.

3.3. Detergent/Surfactant Effect Does Not Contribute to Bactericidal Action and Toxicity

Although it is clear that the structure of CnTPP molecules is very similar to that of classical surfactants, the main issue is the mechanism of action by which an antibacterial or cytotoxic effect is initiated. It is obvious that at high concentrations (tens of micromoles), a detergent effect can take place. Bacterial E. coli cells, yeast S. cerevisiae, and human HeLa cells survive at concentrations greater than 20 μM. Thus, at concentrations above 50 μM, it appears that the detergent effect may seriously affect cell survival. At concentrations below 20 µM, the net detergent effect does not seem to play a significant role.
If we look at the critical micelle concentrations (CMC) of CnTPP [21], it is noteworthy that they are 3–4 orders of magnitude higher than GI90 for 293T cells [21] and MIC for B. subtilis bacteria [13,23] (Figure 6). As the length of the alkyl chain decreases, the toxicity increases up to C12TPP, and then it drops sharply, despite the fact that CMC decreases by 2–3 orders of magnitude. This suggests that CMC is not the cause of the toxicity, which must be caused by another reason.
The protonophoric action itself causes a decrease in cell metabolism due to the formation of a futile cycle (protonophoric cycle) that comes with energy expenditure. However, the incorporation of CnTPP into the mitochondrial or bacterial membrane can apparently lead to disruption of the respiratory chain enzymes. For example, the structure of the c-ring F1FO ATP synthase contains additional electron density, which can be occupied by isoprenoid quinones (e.g., coenzyme Q in mitochondria and plastoquinone in chloroplasts) [41]. Thus, TPP derivatives can compete with isoprenoid quinones and interfere with ATP synthase. On the other hand, it is known that the longer-chain CnTPP increased proton leak, decreased maximal respiration and induced an increase in the extracellular acidification rate (ECAR), which is usually interpreted as the production of lactate in glycolysis [33].
The protonophoric action itself causes a decrease in cell metabolism due to the formation of a futile cycle (protonophoric cycle) that comes with energy expenditure. However, the incorporation of CnTPP into the mitochondrial or bacterial membrane can apparently lead to disruption of the respiratory chain enzymes. For example, the structure of the c-ring F1FO ATP synthase contains additional electron density, which can be occupied by isoprenoid quinones (e.g., coenzyme Q in mitochondria and plastoquinone in chloroplasts) [41]. Thus, TPP derivatives can compete with isoprenoid quinones and interfere with ATP synthase. On the other hand, it is known that the longer-chain CnTPP increased proton leak, decreased maximal respiration, and induced an increase in the extracellular acidification rate (ECAR), which is usually interpreted as the production of lactate in glycolysis [33].
Since the method measures the activity of mitochondrial enzymes, the signal depends on the level of cellular metabolism [42], cell confluency [43], and also on the depletion of essential nutrients such as glucose or pH alteration [44]. Moreover, as mitochondria-targeted uncouplers of respiratory chain, alkyltriphenylphosphonium cations may alter the redox equilibrium of a cell by changing the levels of reactive oxygen species (ROS) produced during incubation. Although the exact mechanism of respiratory chain inhibition can only be speculated, it can be assumed that CnTPP, penetrating into the mitochondrial and bacterial membranes of living cells, non-specifically affects respiratory chain enzymes and causes a decrease in metabolic activity.
It should be noted that when SkQ1 (a C10TPP derivative) is added to mice at concentrations comparable to those bactericidal for Gram-positive bacteria (0.7–1 µmol/ (day·kg body weight)), improvements of health-span and lifespan are observed [45]. This may indicate that the use of CnTPP as a delivery vector or as an antibiotic does not lead to lethal consequences for mammals.

4. Materials and Methods

4.1. General Comments

Microscopy studies were performed with FLoid Cell Imaging Station (Thermo Fisher Scientific, Waltham, MA, USA). Optical density was measured using a Synergy H4 Hybrid Microplate Reader (BioTek Instruments, Winooski, VT, USA).

4.2. Materials

C12TPP was purchased from Alfa Aesar (Karlsruhe, Germany). C8TPP and C10TPP were synthesized previously in accordance with [17]. CnTPP was dissolved in ethanol, while the final concentration of ethanol in any reaction media did not exceed 1%. The addition of ethanol up to 5% does not affect the antibacterial activity and growth of mammalian cells in the presence of CnTPP [1,13]. Components of bacterial media were purchased from Becton Dickinson (Franklin Lakes, NJ, USA) with the following exceptions: Mueller-Hinton medium was purchased from HiMedia Laboratories (Mumbai, India) and agar was purchased from Helicon (Moscow, Russia). Components of mammalian cell culture media were purchased from PanEco LLC (Moscow, Russia). Other reagents were from Sigma-Aldrich (St. Louis, MO, USA).

4.3. Bacterial Strains

B. subtilis strain 168 trpC2, E. coli strain K-12 MG1655 (F-ilvG rfb-50 rph-1), and V. aquamarinus strain VNB 15T (B-11245T = DSM 26054T) were obtained from the National Bioresource Center for All-Russian collection of industrial microorganisms (VKPM).
The E. coli strain MG1655 transformed by the plasmid pXen7 (plasmid with the inserted lux operon of P. luminescens under control of its own promoter [25]), B. subtilis 168 transformed by the plasmid pNKalkA [46], and V. aquamarinus VNB 15T [47] were used as non-specific whole-cell biosensors [48].
Luminescence of the described strains decreases after the addition of a toxic agent due to cell death, metabolic imbalance of the reduced equivalents in the cell, or direct luciferase inhibition.

4.4. Culturing of Bacteria

For experiments with bioluminescence measurement, bacterial strains of E. coli and B. subtilis were grown at 37 °C were grown for 18–24 h on LB agar (Sigma, USA) and then transferred to LB broth and grown until the early exponential growth phase (OD600 = 0.3–0.4 units). If necessary, the medium was supplemented with antibiotics: 100 μg/mL ampicillin or 10 μg/mL chloramphenicol.
V. aquamarinus VNB-15 cells were grown at 28 °C on SWT medium (%, wt/vol): tryptone, 0.5; yeast extract, 0.25; sea salt, 1.5; and glycerol, 0.3. Solid medium was prepared using 1.5% agar.

4.5. Luminescence Assay

The intensities of bioluminescence (in RLU, relative light units) were measured at room temperature using Biotox-7BM (BioPhysTech, Russia). The bacterial culture (190 μL) was added to the tube and background luminescence was measured. We then added 10 μL of C12TPP solution to a final concentration from 0.1 to 200 μM. Stock C12TPP solutions were diluted by water to make a concentration of ethanol less 20%; thus, a final concentration of ethanol in cell cultures did not exceed 1%. At this concentration, it does not affect cell luminescence. The intensity of bioluminescence was measured every second for 15 min and expressed in arbitrary units of luminescence. After the measurements, approximately 30 min after C12TPP addition, aliquots were used to count CFU.

4.6. Mammalian 293T Cell Culture

Then, 293T cells from a human cell line were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 2 mM L-glutamine and 10% fetal calf serum, streptomycin (100 U/mL), and penicillin (100 U/mL). Cells were prepared at 100 µL/well in a 96-well plate and cultivated at 37 °C in 5% CO2/95% air for 24 h.

4.7. 293T Cell Confluency Percentage Estimation

293T cells were grown in flasks for a few days, treated with trypsin (0.25%), harvested, and resuspended in fresh medium to obtain 75–90% confluence on a 96-well plate. The cells were seeded in 96-well plates at 200 µL/well and cultured overnight at 37 °C for attachment. The cells were treated with CnTPPs for 17 h, then the confluency percentage was estimated by microscopy. All estimations were carried out in triplicate in three randomly selected fields of view of the microscope.

4.8. MTT Assay

Cell viability was evaluated by a widely used MTT, as modified in [19]. An appropriate concentration of C12TPP in DMEM (with 2 mM L-glutamine and 10% fetal bovine serum) was used. After being cultivated at 37 °C in 5% CO2/95% air for 24 h, cells were inspected by microscopy and were then washed twice with the medium, and the MTT solution was added (1 mg/mL in DMEM) for 3 h at 37 °C. The dye solution was then removed, 100 µL DMSO per well was added, and absorbance at 570/660 nm was measured. The experiments were performed twice, in which 4 wells per each concentration were analyzed.

4.9. Adhesion Alteration Estimation

For a few days, 293T cells were grown in flasks, treated with trypsin (0.25%), harvested, and resuspended in fresh medium (DMEM with 2 mM L-glutamine and 10% fetal bovine serum with streptomycin (100 U/mL), and penicillin (100 U/mL)). The cells were treated with C12TPPs (0.5 μM, 1 μM, and 5 μM) for 30 min, seeded in 96-well plates at 200 µL/well (25 μL treated cells in 175 μL fresh media), and cultured overnight at 37 °C for attachment. Cells without addition of C12TPP were taken as controls. Experiments were carried out in quadruplicate and qualitative estimations were carried out in selected fields of view of the microscope. The adhesion area was analyzed and measured using ImageJ software [49].

5. Conclusions

Although the absence of cytotoxicity is one of the most important criteria for promising antibiotics, the difficulty often lies in the fact that it is not always possible to reliably assess this. Even with high concentrations, we cannot reliably state that we are observing a cytotoxic effect, and not adhesion alteration, especially in the case of 293T cells, which can reversibly detach and reattach to the surface. Therefore, we can only state that at submicromolar concentrations of CnTPP, a decrease in metabolism begins, and the weakening of cell adhesion begins to be noticeable at concentrations above 5 μM. Only at concentrations of tens of micromoles, with an increase in the detergent effect, does the cytocidal effect also begin. This provides the necessary therapeutic window for the use of antibacterial bactericidal substances based on triphenylphosphonium derivatives; however, this should be performed with caution, keeping in mind that the border of cytocidality due to alteration of cell adhesion is very difficult to establish.

Author Contributions

Conceptualization, P.A.N., I.V.M., and M.V.K.; methodology, I.V.M. and M.V.K.; validation, A.G.K., M.V.K., and U.S.N.; investigation, P.A.N., S.A.K., U.S.N., and S.B.K.; resources, A.I.S.; writing—original draft preparation, P.A.N., M.V.K., I.V.M., and A.I.S.; writing—review and editing, P.A.N., M.V.K., and I.V.M.; visualization, P.A.N. and S.V.B.; supervision, I.V.M. and M.V.K.; project administration, I.V.M., P.A.N., and M.V.K.; funding acquisition, P.A.N. and I.V.M. All authors have read and agreed to the published version of the manuscript.

Funding

The reported study was funded by the Russian Foundation for Basic Research (RFBR), grant 20-015-00537 to P.A.N. (MTT and eukaryotic experiments), and by the Russian Science Foundation (RSF), grant 22-14-00124 to I.V.M. (bioluminescence inhibition) and grant 22-15-00099 to P.A.N. (adhesion alteration experiments) and by the Ministry of Science and Higher Education of the RF, project FSMF-2022-0007: “Development of technology for rational and highly productive use of agro- and bioresources, their efficient processing and obtaining safe and high-quality sources of food and non-food products” (survival rate of bacterial cells).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

P.A.N. would like to acknowledge the fellowship from the Moscow Institute of Physics and Technology (MIPT) as a partial support for this research. The authors are deeply grateful to Yu. N. Antonenko for support and fruitful discussion.

Conflicts of Interest

The authors declare that this research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

TPP, triphenylphosphonium; CnTPP, alkyltriphenylphosphonium cation; SkQ1, 10- (plastoquinonyl)decyl triphenylphosphonium; MIC, minimal inhibitory concentration; MBC, minimum bactericidal concentration; CMC, critical micelle concentration;, ECAR, extracellular acidification rate; GI, growth inhibition; MTT, 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide; MTS, 3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H- tetrazolium; XTT, 2,3-bis-(2-methoxy-4-nitro-5-sulfophenyl)-2H-tetrazolium-5-carboxanilide; WST, water-soluble tetrazolium salts; ROS, reactive oxygen species; CFU, colony-forming unit.

References

  1. Nazarov, P.A.; Osterman, I.A.; Tokarchuk, A.V.; Karakozova, M.V.; Korshunova, G.A.; Lyamzaev, K.G.; Skulachev, M.V.; Kotova, E.A.; Skulachev, V.P.; Antonenko, Y.N. Mitochondria-targeted antioxidants as highly effective antibiotics. Sci. Rep. 2017, 7, 1394. [Google Scholar] [CrossRef] [PubMed]
  2. Nazarov, P.A.; Kotova, E.A.; Skulachev, V.P.; Antonenko, Y.N. Genetic Variability of the AcrAB-TolC Multidrug Efflux Pump Underlies SkQ1 Resistance in Gram-Negative Bacteria. Acta Nat. 2019, 11, 93–98. [Google Scholar] [CrossRef] [PubMed]
  3. Chernyak, B.V.; Popova, E.N.; Zinovkina, L.A.; Lyamzaev, K.G.; Zinovkin, R.A. Mitochondria as Targets for Endothelial Protection in COVID-19. Front. Physiol. 2020, 11, 606170. [Google Scholar] [CrossRef] [PubMed]
  4. Liberman, E.A.; Topaly, V.P.; Tsofina, L.M.; Jasaitis, A.A.; Skulachev, V.P. Mechanism of coupling of oxidative phosphorylation and the membrane potential of mitochondria. Nature 1969, 222, 1076–1078. [Google Scholar] [CrossRef]
  5. Grinius, L.L.; Jasaitis, A.A.; Kadziauskas, Y.P.; Liberman, E.A.; Skulachev, V.P.; Topali, V.P.; Tsofina, L.M.; Vladimirova, M.A. Conversion of biomembrane-produced energy into electric form. I. Submitochondrial particles. Biochim. Biophys. Acta 1970, 216, 1–12. [Google Scholar] [CrossRef]
  6. Liberman, E.A.; Skulachev, V.P. Conversion of biomembrane-produced energy into electric form. IV. General discussion. Biochim. Biophys. Acta 1970, 216, 30–42. [Google Scholar] [CrossRef]
  7. Burns, R.J.; Smith, R.A.; Murphy, M.P. Synthesis and characterization of thiobutyltriphenylphosphonium bromide, a novel thiol reagent targeted to the mitochondrial matrix. Arch Biochem Biophys. 1995, 322, 60–68. [Google Scholar] [CrossRef]
  8. Murphy, M.P. Selective targeting of bioactive compounds to mitochondria. Trends Biotechnol. 1997, 15, 326–330. [Google Scholar] [CrossRef]
  9. Smith, R.A.; Porteous, C.M.; Coulter, C.V.; Murphy, M.P. Selective targeting of an antioxidant to mitochondria. Eur. J. Biochem. 1999, 263, 709–716. [Google Scholar] [CrossRef]
  10. Zielonka, J.; Joseph, J.; Sikora, A.; Hardy, M.; Ouari, O.; Vasquez-Vivar, J.; Cheng, G.; Lopez, M.; Kalyanaraman, B. Mitochondria-Targeted Triphenylphosphonium-Based Compounds: Syntheses, Mechanisms of Action, and Therapeutic and Diagnostic Applications. Chem. Rev. 2017, 117, 10043–10120. [Google Scholar] [CrossRef]
  11. Anisimov, V.N.; Egorov, M.V.; Krasilshchikova, M.S.; Lyamzaev, K.G.; Manskikh, V.N.; Moshkin, M.P.; Novikov, E.A.; Popovich, I.G.; Rogovin, K.A.; Shabalina, I.G.; et al. Effects of the mitochondria-targeted antioxidant SkQ1 on lifespan of rodents. Aging 2011, 3, 1110–1119. [Google Scholar] [CrossRef] [Green Version]
  12. Plotnikov, E.Y.; Morosanova, M.A.; Pevzner, I.B.; Zorova, L.D.; Manskikh, V.N.; Pulkova, N.V.; Galkina, S.I.; Skulachev, V.P.; Zorov, D.B. Protective effect of mitochondria-targeted antioxidants in an acute bacterial infection. Proc. Natl. Acad. Sci. USA 2013, 110, E3100–E3108. [Google Scholar] [CrossRef] [Green Version]
  13. Khailova, L.S.; Nazarov, P.A.; Sumbatyan, N.V.; Korshunova, G.A.; Rokitskaya, T.I.; Dedukhova, V.I.; Antonenko, Y.N.; Skulachev, V.P. Uncoupling and Toxic Action of Alkyltriphenylphosphonium Cations on Mitochondria and the Bacterium Bacillus subtilis as a Function of Alkyl Chain Length. Biochemistry 2015, 80, 1589–1597. [Google Scholar] [CrossRef]
  14. Severin, F.F.; Severina, I.I.; Antonenko, Y.N.; Rokitskaya, T.I.; Cherepanov, D.A.; Mokhova, E.N.; Vyssokikh, M.Y.; Pustovidko, A.V.; Markova, O.V.; Yaguzhinsky, L.S.; et al. Penetrating cation/fatty acid anion pair as a mitochondria-targeted protonophore. Proc. Natl. Acad. Sci. USA 2010, 107, 663–668. [Google Scholar] [CrossRef] [Green Version]
  15. Nazarov, P.A.; Sorochkina, A.I.; Karakozova, M.V. New Functional Criterion for Evaluation of Homologous MDR Pumps. Front. Microbiol. 2020, 11, 592283. [Google Scholar] [CrossRef]
  16. Antonenko, Y.N.; Avetisyan, A.V.; Bakeeva, L.E.; Chernyak, B.V.; Chertkov, V.A.; Domnina, L.V.; Ivanova, O.Y.; Izyumov, D.S.; Khailova, L.S.; Klishin, S.S.; et al. Mitochondria-targeted plastoquinone derivatives as tools to interrupt execution of the aging program. 1. Cationic plastoquinone derivatives: Synthesis and in vitro studies. Biochemistry 2008, 73, 1273–1287. [Google Scholar] [CrossRef]
  17. Ross, M.F.; Prime, T.A.; Abakumova, I.; James, A.M.; Porteous, C.M.; Smith, R.A.; Murphy, M.P. Rapid and extensive uptake and activation of hydrophobic triphenylphosphonium cations within cells. Biochem. J. 2008, 411, 633–645. [Google Scholar] [CrossRef] [Green Version]
  18. Nazarov, P.A.; Kirsanov, R.S.; Denisov, S.S.; Khailova, L.S.; Karakozova, M.V.; Lyamzaev, K.G.; Korshunova, G.A.; Lukyanov, K.A.; Kotova, E.A.; Antonenko, Y.N. Fluorescein Derivatives as Antibacterial Agents Acting via Membrane Depolarization. Biomolecules 2020, 10, 309. [Google Scholar] [CrossRef] [Green Version]
  19. Denisov, S.S.; Kotova, E.A.; Plotnikov, E.Y.; Tikhonov, A.A.; Zorov, D.B.; Korshunova, G.A.; Antonenko, Y.N. A mitochondria-targeted protonophoric uncoupler derived from fluorescein. Chem. Commun. 2014, 50, 15366–15369. [Google Scholar] [CrossRef] [Green Version]
  20. Knorre, D.A.; Markova, O.V.; Smirnova, E.A.; Karavaeva, I.E.; Sokolov, S.S.; Severin, F.F. Dodecyltriphenylphosphonium inhibits multiple drug resistance in the yeast Saccharomyces cerevisiae. Biochem. Biophys. Res. Commun. 2014, 450, 1481–1484. [Google Scholar] [CrossRef]
  21. Zakharova, L.Y.; Kaupova, G.I.; Gabdrakhmanov, D.R.; Gaynanova, G.A.; Ermakova, E.A.; Mukhitov, A.R.; Galkina, I.V.; Cheresiz, S.V.; Pokrovsky, A.G.; Skvortsova, P.V.; et al. Alkyl triphenylphosphonium surfactants as nucleic acid carriers: Complexation efficacy toward DNA decamers, interaction with lipid bilayers and cytotoxicity studies. Phys. Chem. Chem. Phys. 2019, 21, 16706–16717. [Google Scholar] [CrossRef] [PubMed]
  22. Singh, K.S.; Sharma, R.; Reddy, P.A.N.; Vonteddu, P.; Good, M.; Sundarrajan, A.; Choi, H.; Muthumani, K.; Kossenkov, A.; Goldman, A.R.; et al. IspH inhibitors kill Gram-negative bacteria and mobilize immune clearance. Nature 2021, 589, 597–602. [Google Scholar] [CrossRef] [PubMed]
  23. Pavlova, J.A.; Khairullina, Z.Z.; Tereshchenkov, A.G.; Nazarov, P.A.; Lukianov, D.A.; Volynkina, I.A.; Skvortsov, D.A.; Makarov, G.I.; Abad, E.; Murayama, S.Y.; et al. Triphenilphosphonium Analogs of Chloramphenicol as Dual-Acting Antimicrobial and Antiproliferating Agents. Antibiotics 2021, 10, 489. [Google Scholar] [CrossRef] [PubMed]
  24. Kloepping, K.C.; Kraus, A.S.; Hedlund, D.K.; Gnade, C.M.; Wagner, B.A.; McCormick, M.L.; Fath, M.A.; Seol, D.; Lim, T.H.; Buettner, G.R.; et al. Triphenylphosphonium derivatives disrupt metabolism and inhibit melanoma growth in vivo when delivered via a thermosensitive hydrogel. PLoS ONE 2020, 15, e0244540. [Google Scholar] [CrossRef] [PubMed]
  25. Zavilgelsky, G.B.; Zarubina, A.P.; Manukhov, I.V. Sequencing and comparative analysis of the lux operon of Photorhabdus luminescens strain ZM1: ERIC elements as putative recombination hot spots. Mol. Biol. 2002, 36, 637–647. (In Russian) [Google Scholar] [CrossRef]
  26. Gnuchikh, E.Y.; Manukhov, I.V.; Zavilgelsky, G.B. Biosensors for the Determination of Promoters and Chaperones Activity in Bacillus subtilis Cells. Biotekhnologiya 2020, 36, 68–77. [Google Scholar] [CrossRef]
  27. Gnuchikh, E.; Baranova, A.; Schukina, V.; Khaliullin, I.; Zavilgelsky, G.; Manukhov, I. Kinetics of the thermal inactivation and the refolding of bacterial luciferases in Bacillus subtilis and in Escherichia coli differ. PLoS ONE 2019, 14, e0226576. [Google Scholar] [CrossRef] [Green Version]
  28. Churilov, M.N.; Denisenko, Y.V.; Batyushin, M.M.; Bren, A.B.; Chistyakov, V.A. Prospects of SkQ1 (10-(6’-plastoquinoyl) decyltriphenylphosphonium) application for prevention of oral cavity diseases. Rasayan J. Chem. 2018, 11, 1594–1603. [Google Scholar] [CrossRef]
  29. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  30. Berridge, M.V.; Tan, A.S. Characterization of the cellular reduction of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT): Subcellular localization, substrate dependence, and involvement of mitochondrial electron transport in MTT reduction. Arch. Biochem. Biophys. 1993, 303, 474–482. [Google Scholar] [CrossRef]
  31. Brodl, E.; Winkler, A.; Macheroux, P. Molecular Mechanisms of Bacterial Bioluminescence. Comput. Struct. Biotechnol. J. 2018, 16, 551–564. [Google Scholar] [CrossRef]
  32. Surin, A.M.; Sharipov, R.R.; Krasil’nikova, I.A.; Boyarkin, D.P.; Lisina, O.Y.; Gorbacheva, L.R.; Avetisyan, A.V.; Pinelis, V.G. Disruption of Functional Activity of Mitochondria during MTT Assay of Viability of Cultured Neurons. Biochemistry 2017, 82, 737–749. [Google Scholar] [CrossRef]
  33. Trnka, J.; Elkalaf, M.; Anděl, M. Lipophilic triphenylphosphonium cations inhibit mitochondrial electron transport chain and induce mitochondrial proton leak. PLoS ONE 2015, 10, e0121837. [Google Scholar] [CrossRef] [Green Version]
  34. Skulachev, V.P. Uncoupling: New approaches to an old problem of bioenergetics. Biochim. Biophys. Acta 1998, 1363, 100–124. [Google Scholar] [CrossRef] [Green Version]
  35. Starkov, A.A.; Bloch, D.A.; Chernyak, B.V.; Dedukhova, V.I.; Mansurova, S.E.; Severina, I.I.; Simonyan, R.A.; Vygodina, T.V.; Skulachev, V.P. 6-Ketocholestanol is a recoupler for mitochondria, chromatophores and cytochrome oxidase proteoliposomes. Biochim. Biophys. Acta 1997, 1318, 159–172. [Google Scholar] [CrossRef] [Green Version]
  36. Kotova, E.A.; Antonenko, Y.N. Fifty Years of Research on Protonophores: Mitochondrial Uncoupling as a Basis for Therapeutic Action. Acta Nat. 2022, 14, 4–13. [Google Scholar] [CrossRef]
  37. Zorov, D.B.; Andrianova, N.V.; Babenko, V.A.; Pevzner, I.B.; Popkov, V.A.; Zorov, S.D.; Zorova, L.D.; Plotnikov, E.Y.; Sukhikh, G.T.; Silachev, D.N. Neuroprotective Potential of Mild Uncoupling in Mitochondria. Pros and Cons. Brain Sci. 2021, 11, 1050. [Google Scholar] [CrossRef]
  38. Cunha, F.M.; Caldeira da Silva, C.C.; Cerqueira, F.M.; Kowaltowski, A.J. Mild mitochondrial uncoupling as a therapeutic strategy. Curr. Drug Targets 2011, 12, 783–789. [Google Scholar] [CrossRef]
  39. Pinto, T.C.A.; Banerjee, A.; Nazarov, P.A. Triphenyl phosphonium-based substances are alternatives to common antibiotics. Bull. RSMU 2018, 1, 16–21. [Google Scholar] [CrossRef] [Green Version]
  40. Kang, S.; Sunwoo, K.; Jung, Y.; Hur, J.K.; Park, K.H.; Kim, J.S.; Kim, D. Membrane-Targeting Triphenylphosphonium Functionalized Ciprofloxacin for Methicillin-Resistant Staphylococcus aureus (MRSA). Antibiotics 2020, 9, 758. [Google Scholar] [CrossRef]
  41. Vlasov, A.V.; Kovalev, K.V.; Marx, S.H.; Round, E.S.; Gushchin, I.Y.; Polovinkin, V.A.; Tsoy, N.M.; Okhrimenko, I.S.; Borshchevskiy, V.I.; Büldt, G.D.; et al. Unusual features of the c-ring of F1FO ATP synthases. Sci. Rep. 2019, 9, 18547. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Rai, Y.; Pathak, R.; Kumari, N.; Sah, D.K.; Pandey, S.; Kalra, N.; Soni, R.; Dwarakanath, B.S.; Bhatt, A.N. Mitochondrial biogenesis and metabolic hyperactivation limits the application of MTT assay in the estimation of radiation induced growth inhibition. Sci. Rep. 2018, 8, 1531. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ghasemi, M.; Turnbull, T.; Sebastian, S.; Kempson, I. The MTT Assay: Utility, Limitations, Pitfalls, and Interpretation in Bulk and Single-Cell Analysis. Int. J. Mol. Sci. 2021, 22, 12827. [Google Scholar] [CrossRef] [PubMed]
  44. Plumb, J.A.; Milroy, R.; Kaye, S.B. Effects of the pH dependence of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-tetrazolium bromide-formazan absorption on chemosensitivity determined by a novel tetrazolium-based assay. Cancer Res. 1989, 49, 4435–4440. [Google Scholar]
  45. Shabalina, I.G.; Vyssokikh, M.Y.; Gibanova, N.; Csikasz, R.I.; Edgar, D.; Hallden-Waldemarson, A.; Rozhdestvenskaya, Z.; Bakeeva, L.E.; Vays, V.B.; Pustovidko, A.V.; et al. Improved health-span and lifespan in mtDNA mutator mice treated with the mitochondrially targeted antioxidant SkQ1. Aging 2017, 9, 315–339. [Google Scholar] [CrossRef] [Green Version]
  46. Kessenikh, A.G.; Novoyatlova, U.S.; Bazhenov, S.V.; Stepanova, E.A.; Khrulnova, S.A.; Gnuchikh, E.Y.; Kotova, V.Y.; Kudryavtseva, A.A.; Bermeshev, M.V.; Manukhov, I.V. Constructing of Bacillus subtilis-Based Lux-Biosensors with the Use of Stress-Inducible Promoters. Int. J. Mol. Sci. 2021, 22, 9571. [Google Scholar] [CrossRef]
  47. Smolobochkin, A.V.; Muravyeva, E.A.; Vagapova, L.I.; Knyazeva, I.R.; Voronina, J.K.; Burilov, A.R.; Pudovik, M.A.; Gildebrant, A.V.; Sazykin, I.S.; Sazykina, M.A.; et al. Synthesis and Evaluation of Water-Soluble 2-Aryl-1-Sulfonylpyrrolidine Derivatives as Bacterial Biofilm Formation Inhibitors. Chem. Biodivers. 2019, 16, e1800490. [Google Scholar] [CrossRef] [Green Version]
  48. Bazhenov, S.V.; Novoyatlova, U.S.; Scheglova, E.S.; Prazdnova, E.V.; Mazanko, M.S.; Kessenikh, A.G.; Kononchuk, O.V.; Gnuchikh, E.Y.; Liu, Y.; Al Ebrahim, R.; et al. Bacterial lux-biosensors: Constructing, applications, and prospects. Biosens. Bioelectron. X 2023, 13, 100323. [Google Scholar] [CrossRef]
  49. Rasband, W.S. ImageJ, U.S.; National Institutes of Health: Bethesda, MD, USA, 1997–2018. Available online: https://imagej.nih.gov/ij/ (accessed on 3 February 2023).
Antibiotics 12 00720 g001 550

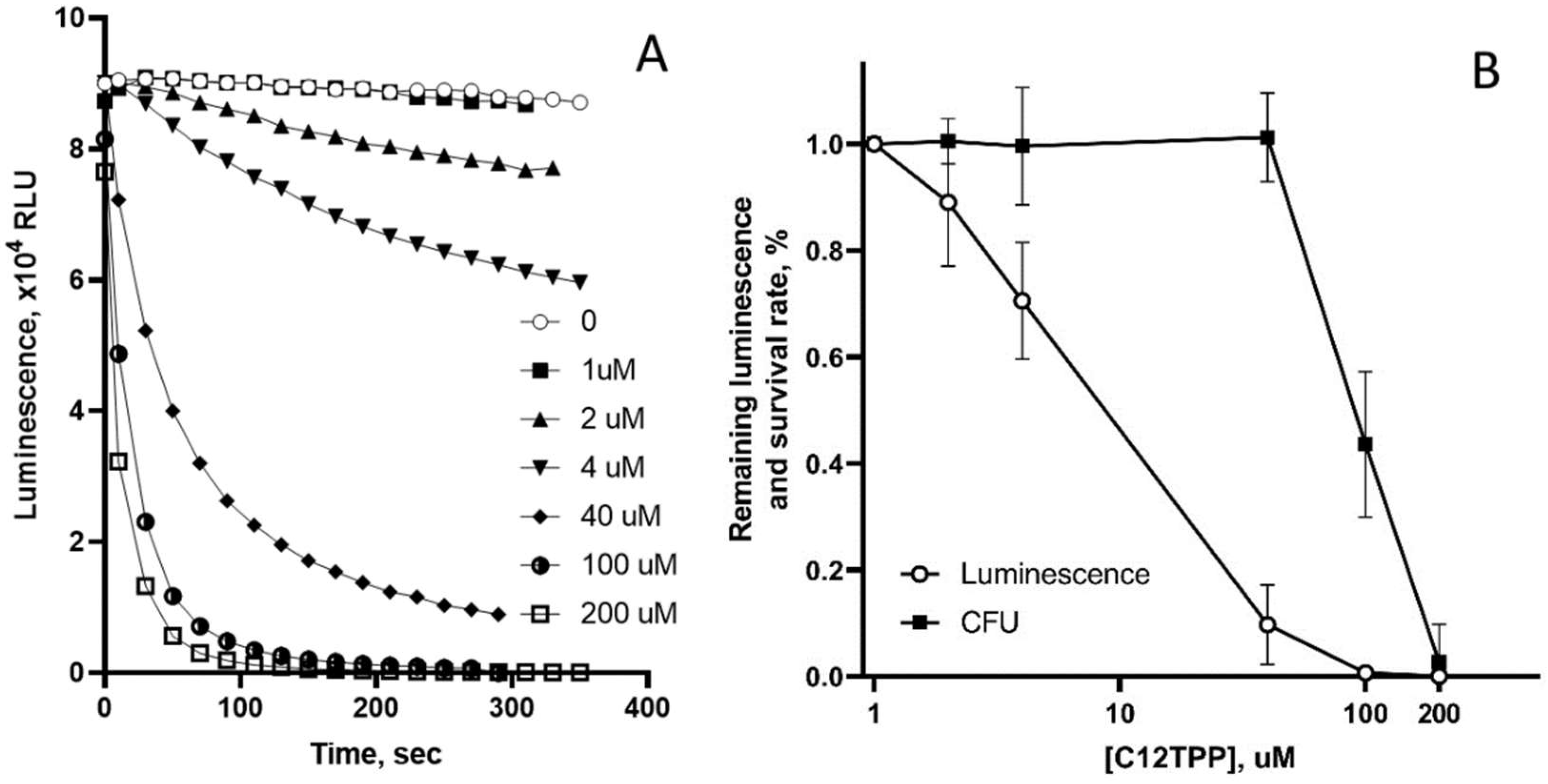

Figure 1. (A) Time dependence of the bioluminescence intensity of lux-biosensors E. coli MG1655 (pXen7) carrying a lux operon of P. luminescens in the presence of C12TPP at different concentrations. (B) Comparison of luminescence and survival rate of E. coli MG1655 (pXen7) cells after 15 min incubation with C12TPP at different concentrations.
Figure 1. (A) Time dependence of the bioluminescence intensity of lux-biosensors E. coli MG1655 (pXen7) carrying a lux operon of P. luminescens in the presence of C12TPP at different concentrations. (B) Comparison of luminescence and survival rate of E. coli MG1655 (pXen7) cells after 15 min incubation with C12TPP at different concentrations.
Antibiotics 12 00720 g001
Antibiotics 12 00720 g002 550

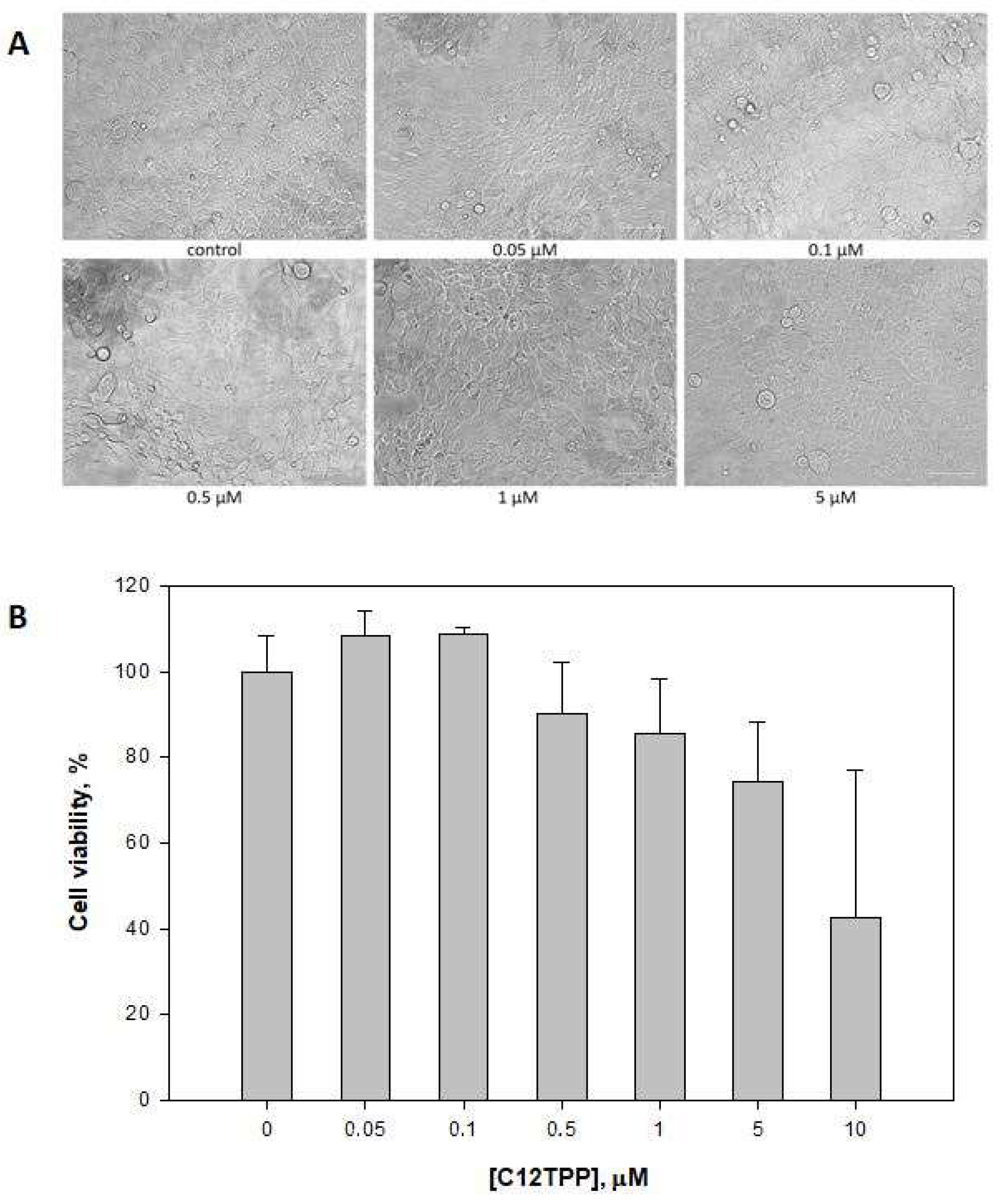

Figure 2. Microscopy of 293T cells in a 96-well plate prior to MTT test (A). In each well of 96-well plate, monolayers remain confluent over the entire concentration range from 0.05 µM to 5 µM; viability of 293T cells in accordance with MTT test (B).
Figure 2. Microscopy of 293T cells in a 96-well plate prior to MTT test (A). In each well of 96-well plate, monolayers remain confluent over the entire concentration range from 0.05 µM to 5 µM; viability of 293T cells in accordance with MTT test (B).
Antibiotics 12 00720 g002
Antibiotics 12 00720 g003 550

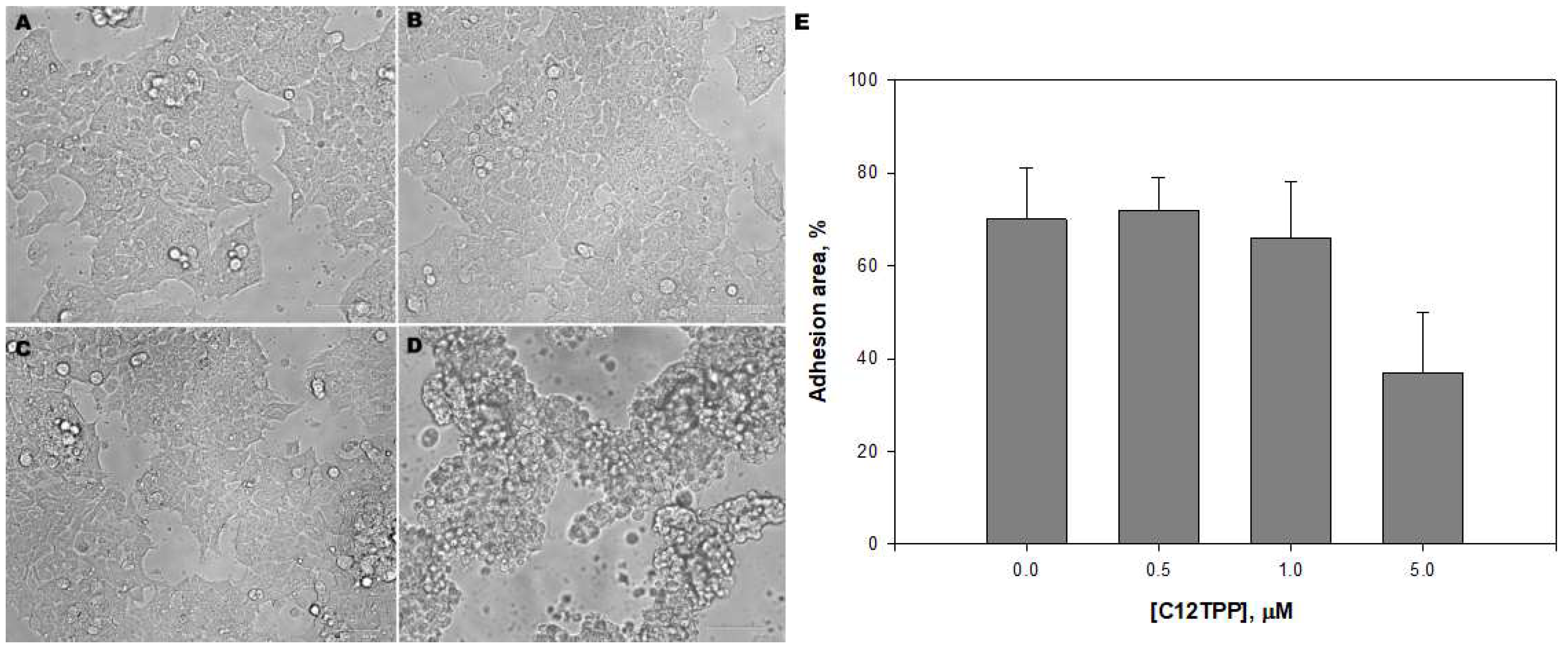

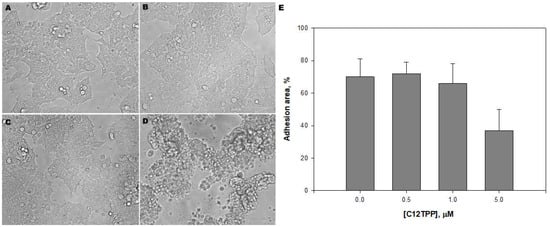

Figure 3. Microscopy of 293T cells in a 96-well plate after C12TPP preincubation: (A) control without C12TPP, (B) 0.1 μM, (C) 1 μM, (D) 5 μM, and (E) determination of the adhesion area. The adhesion area was analyzed and measured using ImageJ software. The clumpy cell phenotype increased with increasing TPP concentration and reached a maximum at 5 µM.
Figure 3. Microscopy of 293T cells in a 96-well plate after C12TPP preincubation: (A) control without C12TPP, (B) 0.1 μM, (C) 1 μM, (D) 5 μM, and (E) determination of the adhesion area. The adhesion area was analyzed and measured using ImageJ software. The clumpy cell phenotype increased with increasing TPP concentration and reached a maximum at 5 µM.
Antibiotics 12 00720 g003
Antibiotics 12 00720 g004 550

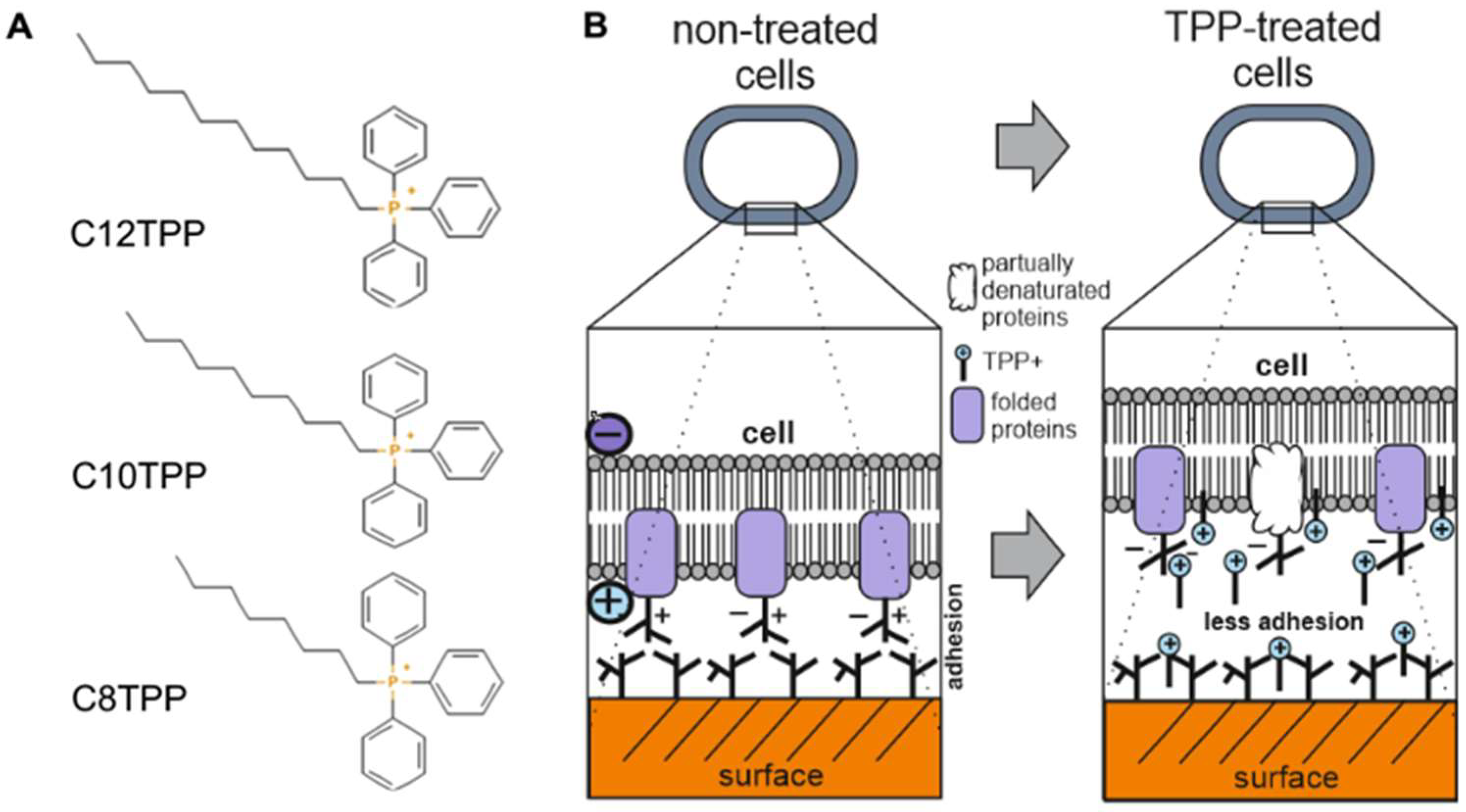

Figure 4. Chemical structures of CnTPP (A); hypothesis of cell adhesion alteration (B). We assume a decrease in adhesion due to the drop in potential on the membrane and the incorporation of positively charged CnTPP molecules into the membrane of 293T cells.
Figure 4. Chemical structures of CnTPP (A); hypothesis of cell adhesion alteration (B). We assume a decrease in adhesion due to the drop in potential on the membrane and the incorporation of positively charged CnTPP molecules into the membrane of 293T cells.
Antibiotics 12 00720 g004
Antibiotics 12 00720 g005 550

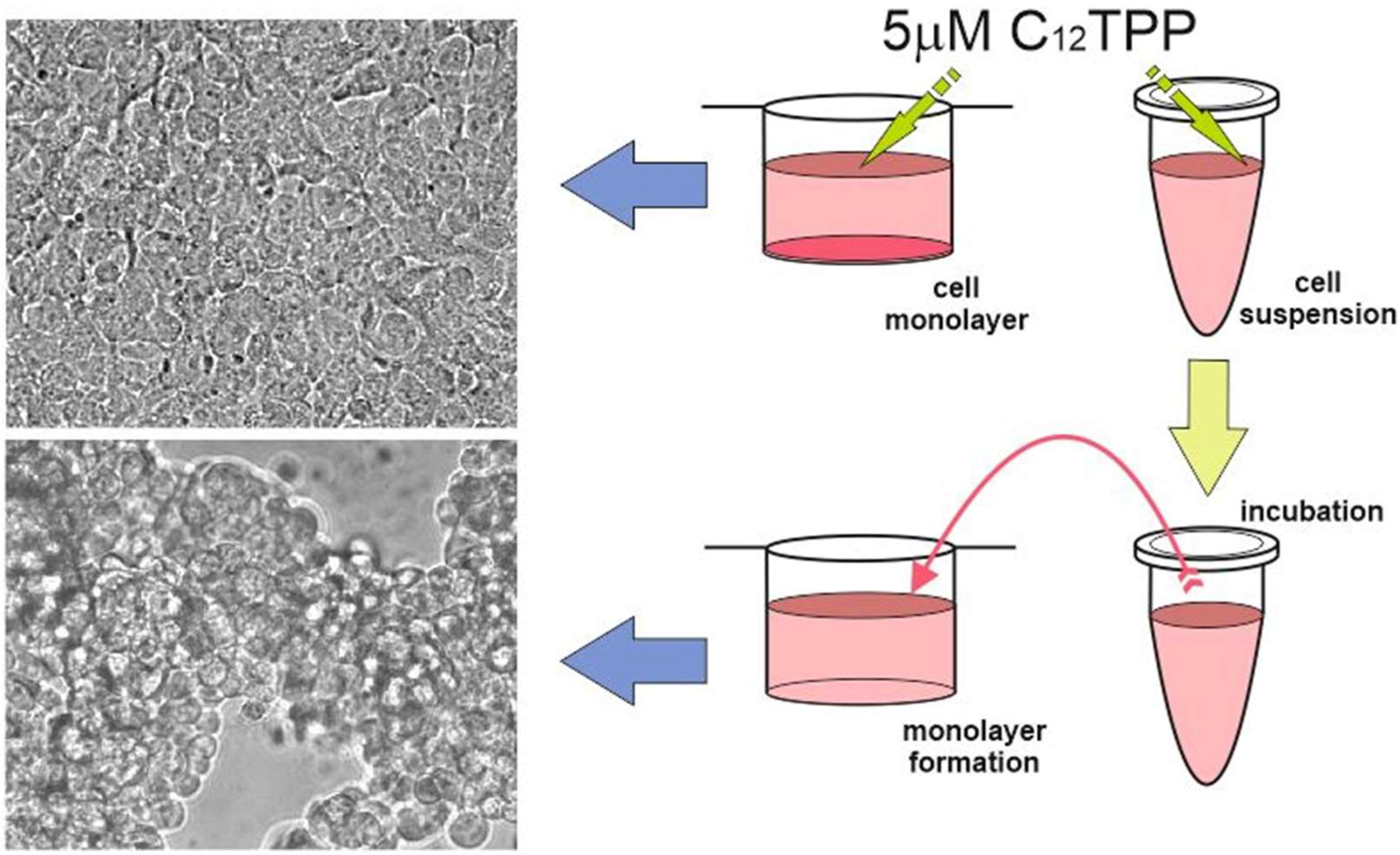

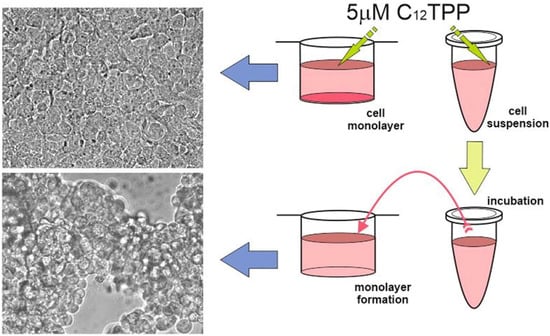

Figure 5. Qualitative experiment confirming adhesion alteration. The same concentration of C12TPP was added to the same number of cells in the monolayer and suspension, and after 24 h of incubation, microscopy was performed in a 96-well plate.
Figure 5. Qualitative experiment confirming adhesion alteration. The same concentration of C12TPP was added to the same number of cells in the monolayer and suspension, and after 24 h of incubation, microscopy was performed in a 96-well plate.
Antibiotics 12 00720 g005
Antibiotics 12 00720 g006 550

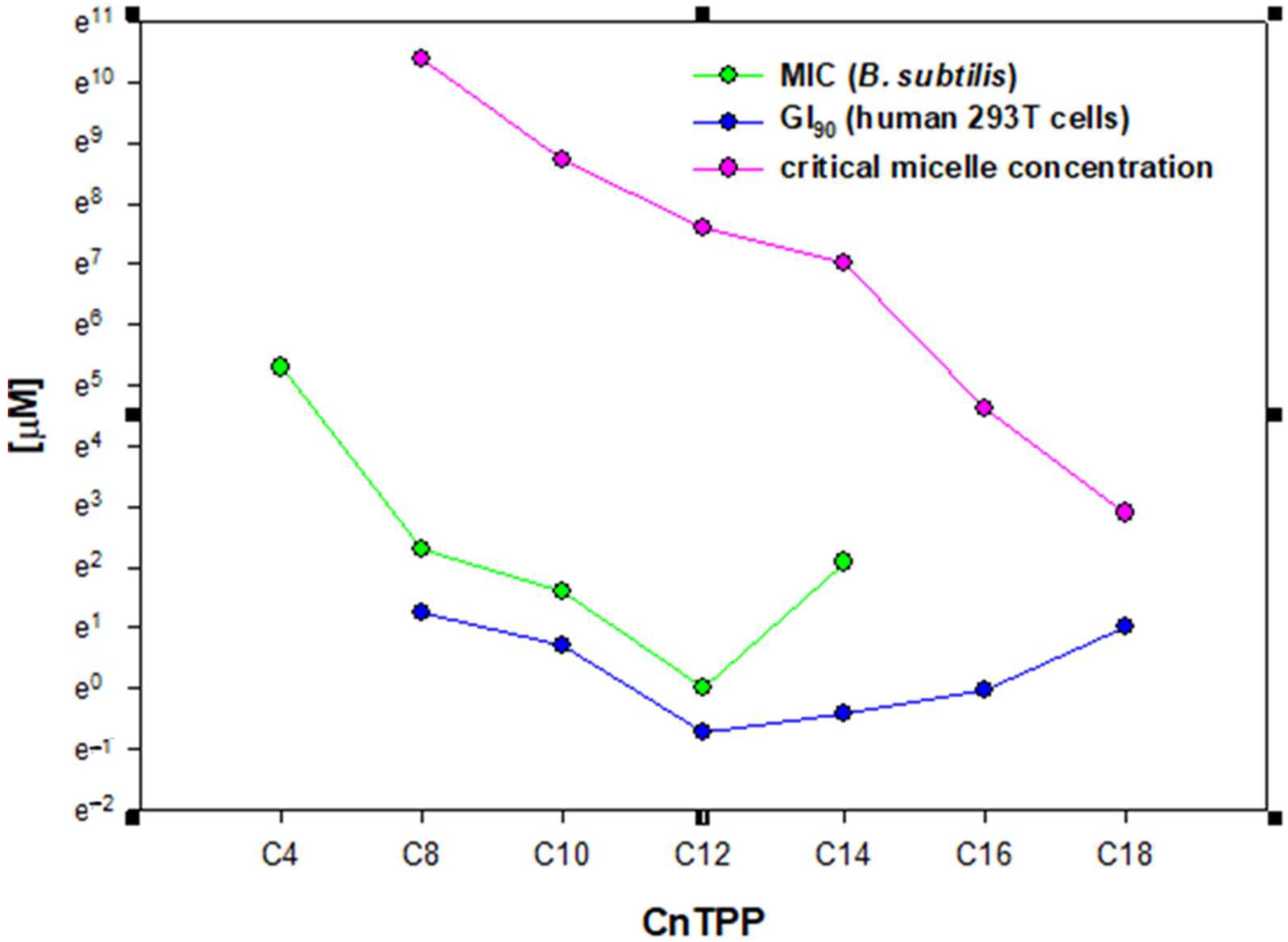

Figure 6. Illustration of the independence of toxic and bactericidal action from the critical micelle concentration (CMC). CMC and toxicity (GI90) are given according to [21], while bactericidal activity is given according to [13,23].
Figure 6. Illustration of the independence of toxic and bactericidal action from the critical micelle concentration (CMC). CMC and toxicity (GI90) are given according to [21], while bactericidal activity is given according to [13,23].
Antibiotics 12 00720 g006
Table
Table 1. Threshold concentrations of C12TPP (μM) causing a reduction in luminescence and a bactericidal effect.
Table 1. Threshold concentrations of C12TPP (μM) causing a reduction in luminescence and a bactericidal effect.
EffectE. coliB. subtilisV. aquamarinus
Luminescence reduction2.0 ± 0.60.25 ± 0.091.0 ± 0.3
Survival rate reduction70 ± 151.0 ± 0.535 ± 17
Table
Table 2. The percentage of the surface of a well that is covered by adherent.
Table 2. The percentage of the surface of a well that is covered by adherent.
CnTPPGI (n)<[C], μMConfluence, %
C8TPP500.2~100
802~100
904~100
C10TPP500.2~100
801~100
902.5~100
C12TPP500.05~100
800.1~100
900.5~100
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Nazarov, P.A.; Khrulnova, S.A.; Kessenikh, A.G.; Novoyatlova, U.S.; Kuznetsova, S.B.; Bazhenov, S.V.; Sorochkina, A.I.; Karakozova, M.V.; Manukhov, I.V. Observation of Cytotoxicity of Phosphonium Derivatives Is Explained: Metabolism Inhibition and Adhesion Alteration. Antibiotics 2023, 12, 720. https://doi.org/10.3390/antibiotics12040720

AMA Style

Nazarov PA, Khrulnova SA, Kessenikh AG, Novoyatlova US, Kuznetsova SB, Bazhenov SV, Sorochkina AI, Karakozova MV, Manukhov IV. Observation of Cytotoxicity of Phosphonium Derivatives Is Explained: Metabolism Inhibition and Adhesion Alteration. Antibiotics. 2023; 12(4):720. https://doi.org/10.3390/antibiotics12040720

Chicago/Turabian Style

Nazarov, Pavel A., Svetlana A. Khrulnova, Andrew G. Kessenikh, Uliana S. Novoyatlova, Svetlana B. Kuznetsova, Sergey V. Bazhenov, Alexandra I. Sorochkina, Marina V. Karakozova, and Ilya V. Manukhov. 2023. "Observation of Cytotoxicity of Phosphonium Derivatives Is Explained: Metabolism Inhibition and Adhesion Alteration" Antibiotics 12, no. 4: 720. https://doi.org/10.3390/antibiotics12040720

APA Style

Nazarov, P. A., Khrulnova, S. A., Kessenikh, A. G., Novoyatlova, U. S., Kuznetsova, S. B., Bazhenov, S. V., Sorochkina, A. I., Karakozova, M. V., & Manukhov, I. V. (2023). Observation of Cytotoxicity of Phosphonium Derivatives Is Explained: Metabolism Inhibition and Adhesion Alteration. Antibiotics, 12(4), 720. https://doi.org/10.3390/antibiotics12040720

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
