Article

Tuning the Anthranilamide Peptidomimetic Design to Selectively Target Planktonic Bacteria and Biofilm

1
School of Chemistry, The University of New South Wales (UNSW), Sydney, NSW 2052, Australia
2
School of Optometry and Vision Science, The University of New South Wales (UNSW), Sydney, NSW 2052, Australia
3
Children’s Cancer Institute, Lowy Cancer Research Centre, University of New South Wales, Sydney, NSW 2052, Australia
4
School of Clinical Medicine, University of New South Wales, Sydney, NSW 2052, Australia
5
ARC Centre of Excellence in Convergent Bio-Nano Science and Technology, University of New South Wales, Sydney, NSW 2052, Australia
6
School of Environmental and Life Sciences, College of Engineering, Science and Environment, The University of Newcastle, Newcastle, NSW 2308, Australia
7
Hunter Biological Solutions Pty Ltd., Newcastle, NSW 2310, Australia
*
Authors to whom correspondence should be addressed.
Antibiotics 2023, 12(3), 585; https://doi.org/10.3390/antibiotics12030585
Submission received: 20 February 2023 / Revised: 8 March 2023 / Accepted: 13 March 2023 / Published: 15 March 2023
(This article belongs to the Special Issue Bioactive Peptides and Their Antibiotic Activity)

Abstract

:
There is a pressing need to develop new antimicrobials to help combat the increase in antibiotic resistance that is occurring worldwide. In the current research, short amphiphilic antibacterial and antibiofilm agents were produced by tuning the hydrophobic and cationic groups of anthranilamide peptidomimetics. The attachment of a lysine cationic group at the tail position increased activity against E. coli by >16-fold (from >125 μM to 15.6 μM) and greatly reduced cytotoxicity against mammalian cells (from ≤20 μM to ≥150 μM). These compounds showed significant disruption of preformed biofilms of S. aureus at micromolar concentrations.

1. Introduction

There is an urgent need to combat the emergence of multi-drug-resistant (MDR) bacteria [1,2]. One of the most widespread drug-resistant bacterial strains is methicillin-resistant Staphylococcus aureus (MRSA), which poses a major threat to human health, particularly in hospitals but also in the wider community [3]. In the last several decades, newly approved antibiotics have mostly been structural derivatives of existing drugs, which appear to offer a small window of efficacy before there is a significant increase in the frequency of bacterial resistance to them [4].
Resistance can be mediated by mutations in the genes of microbial systems, the antibiotic targets, or the acquisition of new genes from other microbes. Another mechanism that microbes use to resist the action of antimicrobials is the development of sessile communities called biofilms [5,6,7]. The host immune system is unable to combat biofilm-associated infections due to the presence of a thick layer of exopolysaccharides (EPS) [8]. Horizontal gene transfer is higher in biofilms than in planktonic cells [9], which can increase the speed of the spread of resistance. Out of five major anti-biofilm mechanisms reported in the literature, the most prevalent mechanism is the disruption or degradation of the membrane potential of biofilm-embedded cells [10]. Biofilms of Gram-positive S. aureus and Gram-negative Escherichia coli cause several infections in humans [11].
In recent years, antimicrobial peptides (AMPs) have attracted significant attention as a new generation of antibiotics due to their low propensity to induce resistance [12,13]. AMPs are rich in both hydrophobic and cationic residues, and their positive charge allows them to attack bacterial membranes which are more negatively-charged relative to eukaryotic membranes [14,15]. However, AMPs are susceptible to proteolytic breakdown causing unexpected pharmacokinetics and toxicity, which has prevented their entry into the clinic [16]. This has stimulated the development of AMP-mimicking molecules, or “peptidomimetics”, which retain the balance and spatial arrangement of the hydrophobic and hydrophilic groups of the natural peptides. Examples of peptidomimetics that have been studied in the literature include α-peptides [17], β-peptides [18,19], peptoids [20], biphenyl-based peptidomimetics [21], and biaryl 1,2,3-triazolyl peptidomimetics [22]. Some of these peptidomimetics showed significant anti-biofilm activity against Gram-positive and Gram-negative bacteria [23,24,25,26,27,28,29,30].
There is still an urgent need to design and develop peptidomimetics that can combat biofilm-related infections but show minimal eukaryotic cytotoxicity. Our previous work has shown that anthranilamide peptidomimetic derivatives can function as effective antibacterial and biofilm disruptors [23]. The peptidomimetic compounds bearing primary amine cationic groups showed better antibacterial activity compared to those with tertiary ammonium or quaternary ammonium groups. However, the amine compounds were cytotoxic against mammalian cells.

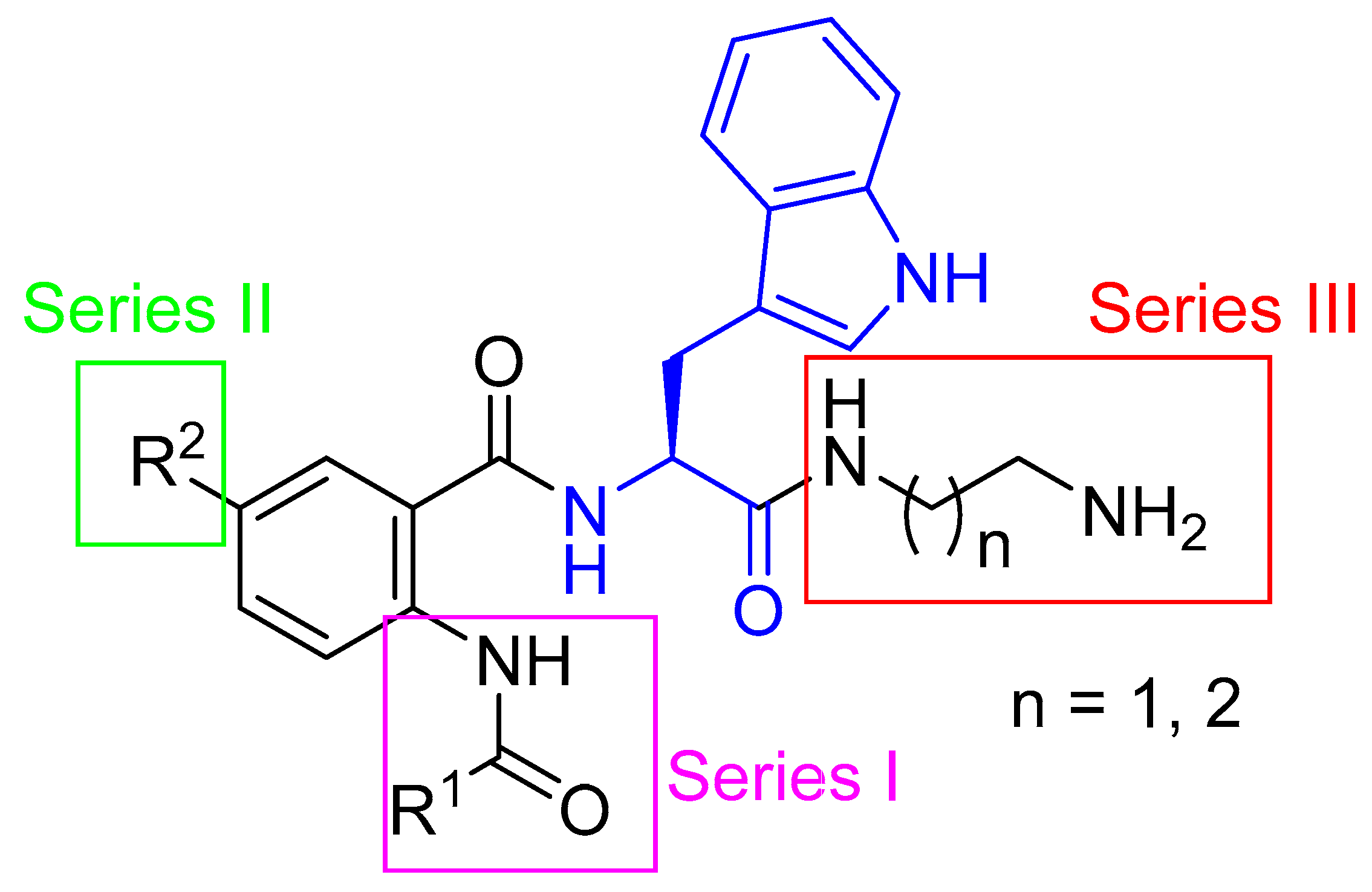

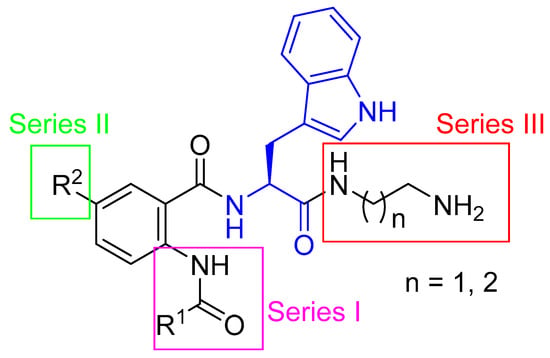

The current research describes the development of biofilm-disrupting and non-toxic anthranilamide peptidomimetics by exploring the structure–activity relationship of the scaffold shown in Figure 1. In series I, the hydrophobic group attached to the anthranilamide core was varied between naphthoyl and various related cyclic and heterocyclic compounds. The naphthoyl group is frequently found as a hydrophobic group in peptidomimetic compounds showing good activity against Gram-positive and Gram-negative bacteria [31,32,33,34]. In series II, the bromo substituent was replaced with different phenyl-substituted groups to generate biaryl derivatives, which are common bioactive motifs [22,32,35,36]. The amino acid lysine is a frequently used cationic group in peptidomimetics with antimicrobial [37,38,39,40,41] and antibiofilm activity [2]. Hence, the series III compounds contained lysine cationic groups attached to the tail of the anthranilamide peptidomimetic compounds. The hydrophobic and hydrophilic properties of tryptophan make it ideal for insertion into bacterial cell membranes [21,42]. In all the series of compounds, the tryptophan was kept constant.

2. Results and Discussion

2.1. Synthesis of Peptidomimetic Compounds (Series I–III)

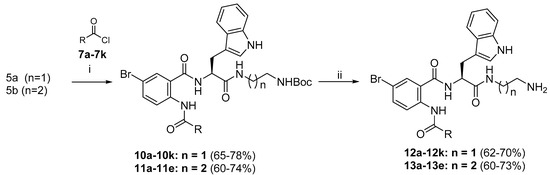

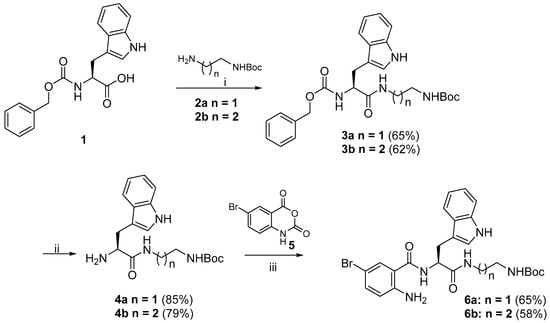

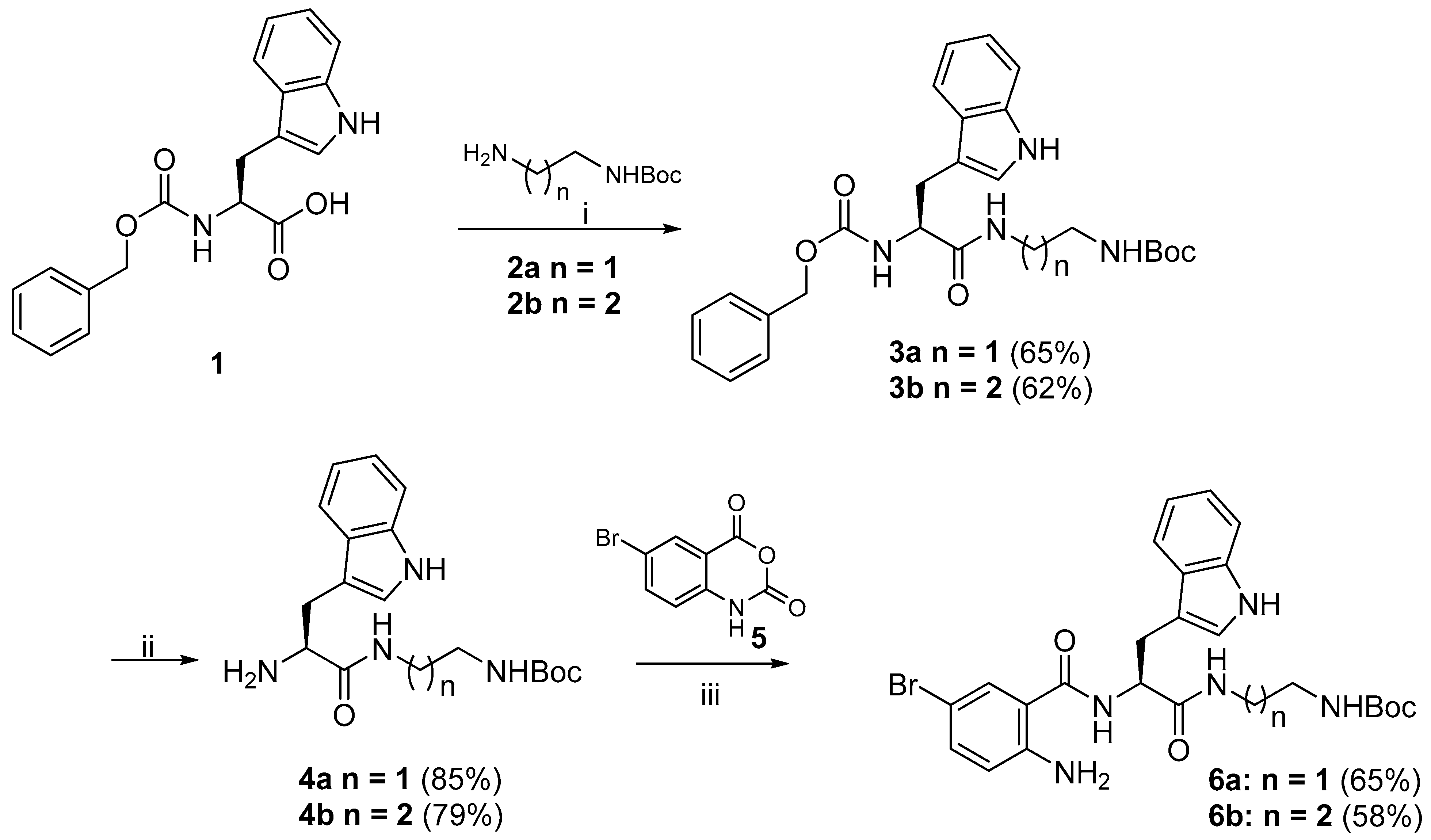

Series I compounds: The key intermediates 6a and 6b for new peptidomimetic derivatives were synthesized based on our previous publication as described in (Scheme 1). Carboxybenzyl (Cbz)-protected tryptophan 1 was reacted with monoprotected diamines 2a,2b under 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDCI) coupling conditions to give amides 3a3b. These were subjected to hydrogenation using 10% Pd/C to remove the Cbz-protecting group, giving peptides 4a4b with a free N-terminal amine group. The 4a4b were utilized for the ring-opening reaction with 5-bromoisatoic anhydride (5) to yield the intermediate amine 6a6b.

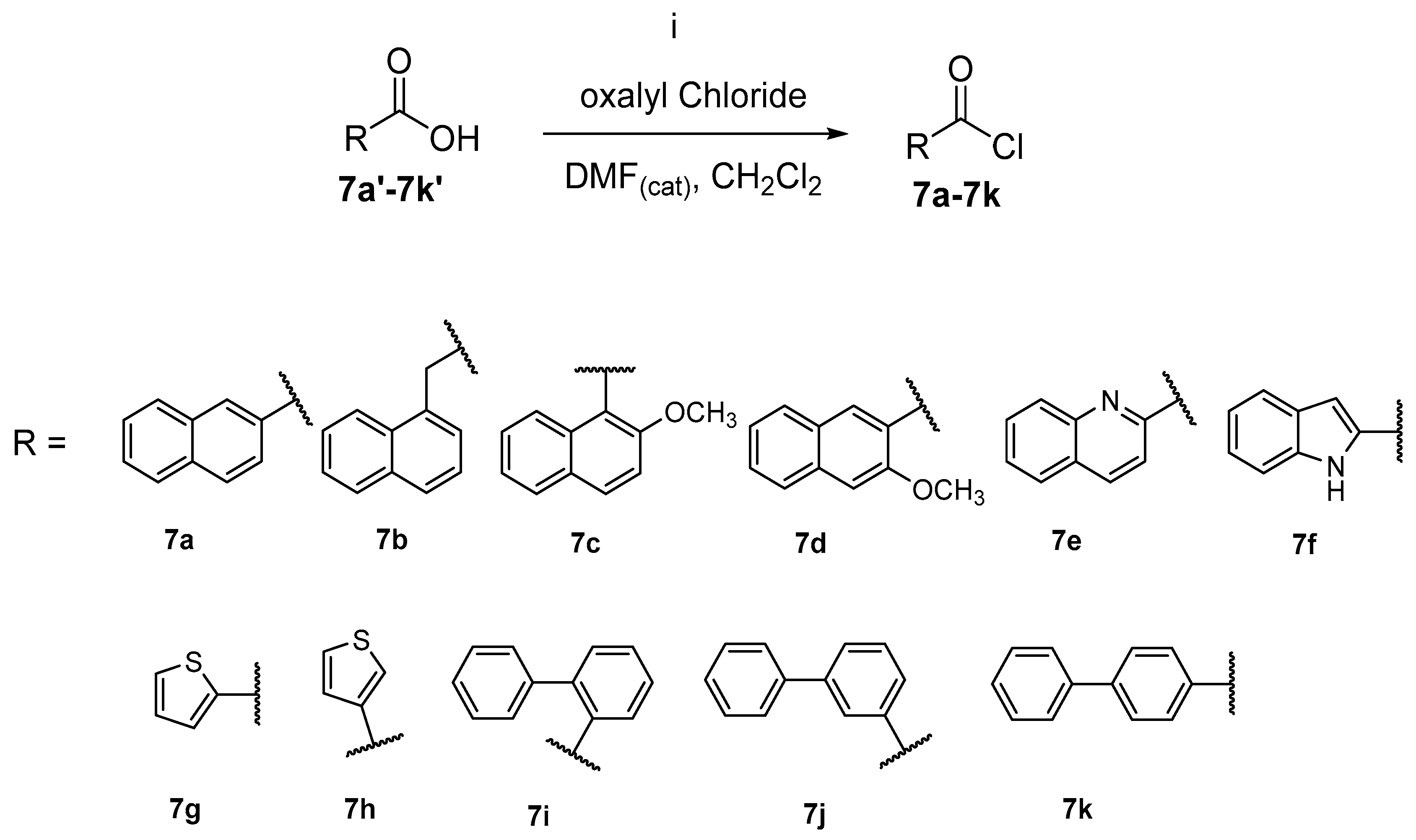

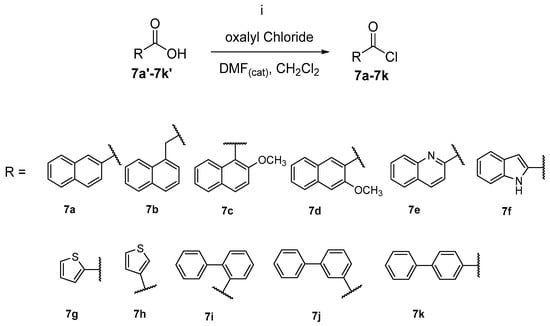

The acid chlorides 7a7k were generated from the corresponding commercially available carboxylic acids (7e′ and 7f′ prepared using hydroxy derivative; detailed procedure in Supplementary Information) as shown in Scheme 2 and were directly used in situ in the subsequent step. The acid chlorides 7a7k were used to install the hydrophobic group on the benzene ring of 6a and 6b (10a10k from 6a, 11a11e from 6b). Finally, the deprotection of the terminal boc-protected amino group followed by trituration with diethyl ether and few drops of methanol gave the desired series I compounds 12a12k, 13a13e as shown in Scheme 3.

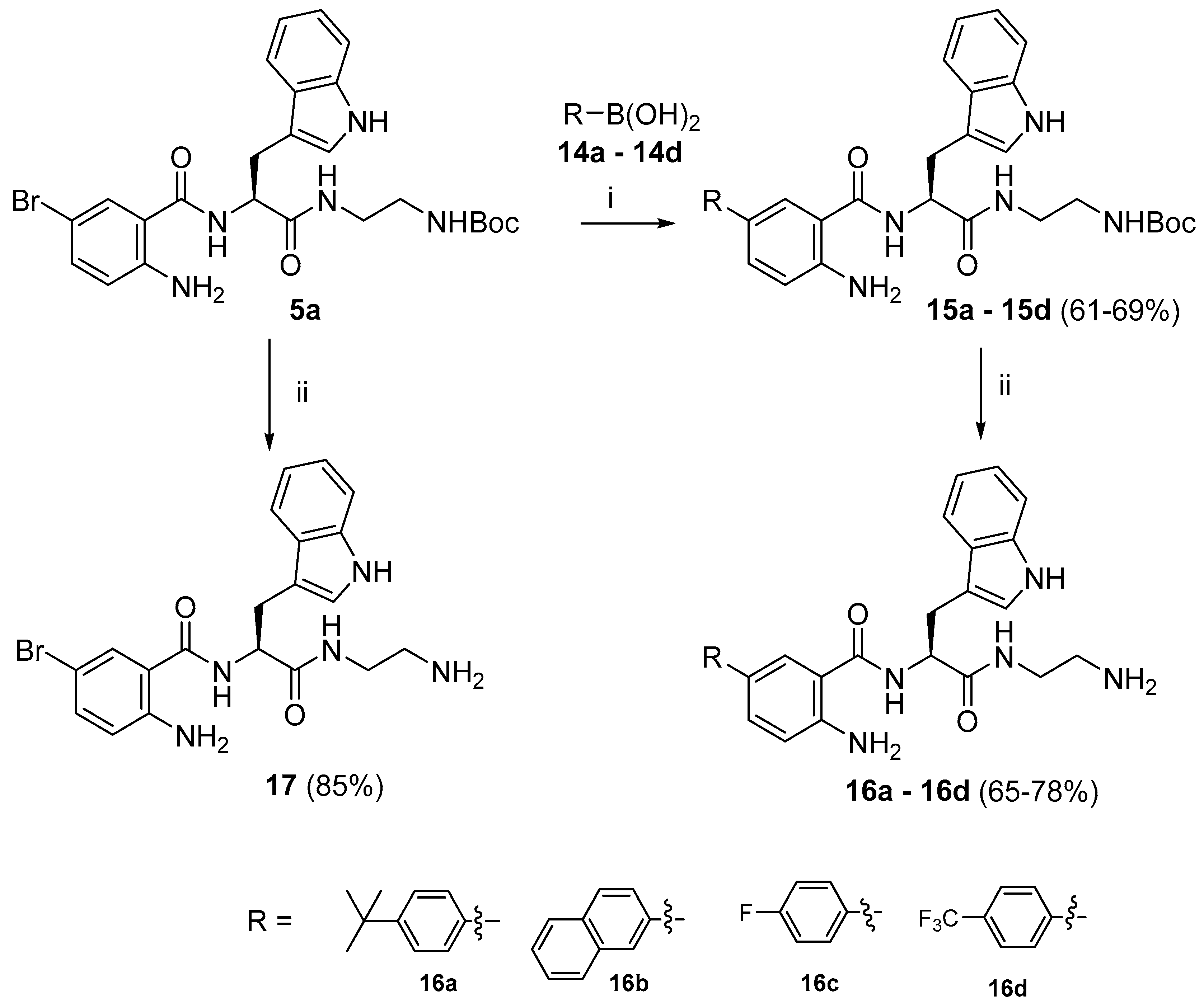

Series II compounds: The intermediate 6a was reacted with different boronic acids 14a14d using Pd(PPh3)4 catalyst to give the biaryl products 15a15d (Scheme 4). These were deprotected using trifluoroacetic acid (TFA) to yield the corresponding amines 16a16d. The parent analogue 17 was synthesized by deprotecting 6a directly without performing the Suzuki–Miyaura cross-coupling reaction.

Series III Compounds

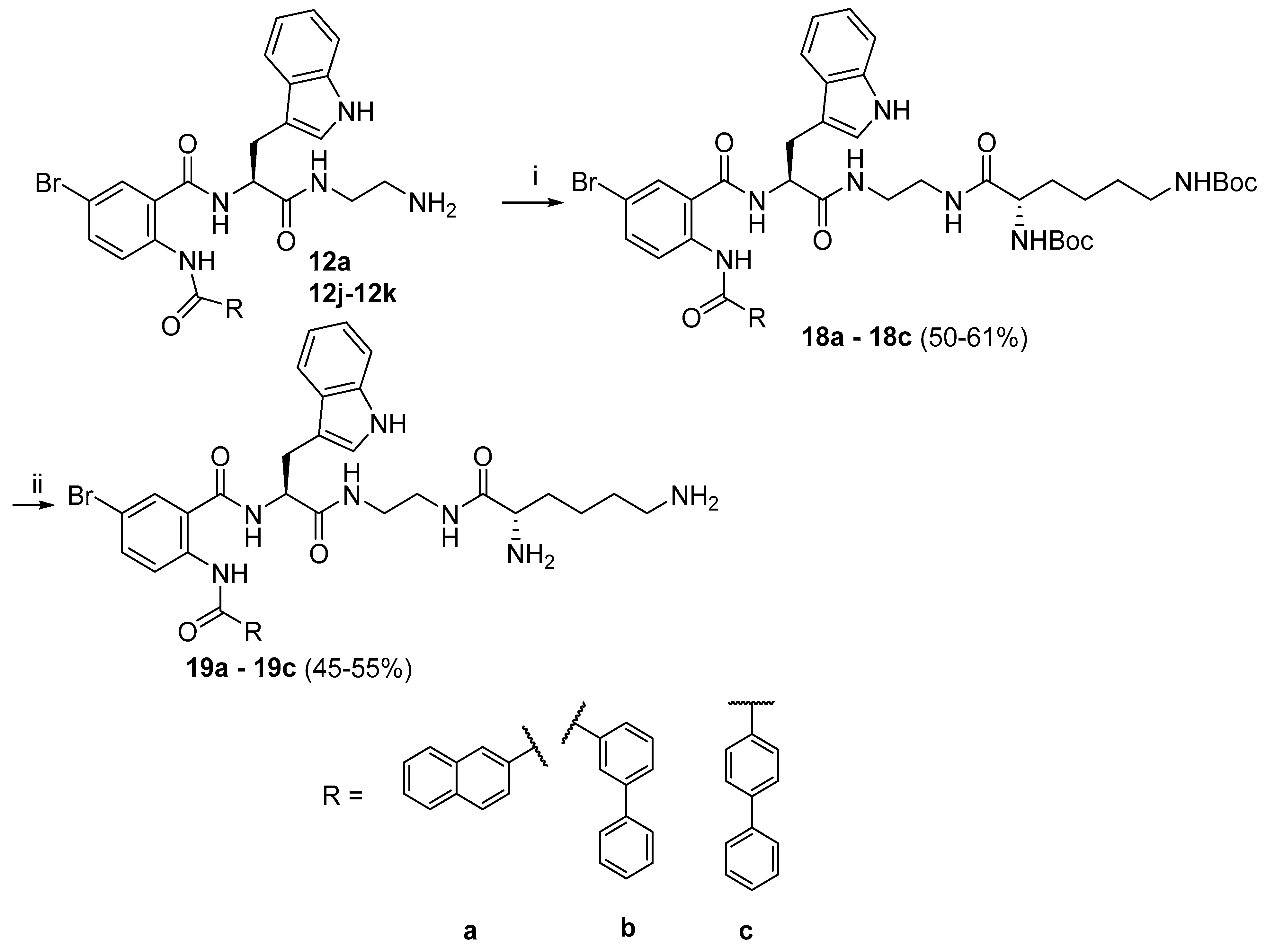

The series I compounds 12a, 12j12k were treated with Boc-protected hydroxy succinimide ester (Boc-Lys(Boc)-OSu) in the presence of triethylamine to give 18a18c (Scheme 5 which then deprotected using TFA to give the series III compounds 19a19c.

2.2. Antibacterial Activity of Peptidomimetic Compounds (Series I–III)

The antibacterial activity screening was performed for the series I–III compounds (Table 1). In series I, most of the compounds showed moderate to good antibacterial activity against S. aureus (MIC = 3.9–15.6 µM), except 12f12h (125 μM) bearing indole or thiophene as hydrophobic groups. This suggested that heterocyclic hydrophobic groups may not be ideal for antibacterial activity. For the naphthoyl-based hydrophobic groups, those that were attached at the 2-position, such as 12a (3.9 μM [23]) and 12d (7.8 μM), usually showed better antibacterial activity compared to their corresponding 1-substituted counterparts 12b (15.6 μM) and 12c (15.6 µM). Compounds 12i12k bearing the biphenyl hydrophobic group, which is a bio isostere of the naphthoyl group, showed good antibacterial activity. Among these, the 3-substituted biphenyl compound 12j (3.9 µM) showed better antibacterial activity than the 2- and 4-biphenyl substituted 12i (15.6 µM) and 12k (7.8 µM) compounds.
However, compounds 12a12k did not show antibacterial activity against E. coli even at concentrations >125 µM. Interestingly, compounds 13c and 13d bearing methoxy substituents on their naphthoyl groups showed moderate antibacterial activity against E. coli (both 62.5 µM).
The series II compounds 16a16d showed good to moderate antibacterial activity against S. aureus. Compounds 16c and 16d bearing electron-withdrawing substituents showed significant antibacterial activity. Moreover, replacing with tert-butyl substituted phenyl ring 16a (7.8 µM) and a bulky naphthyl group substituted compound 16b (3.9 µM) improved the antibacterial activity by four-fold against S. aureus and also showed moderate activity against E. coli. Taken together, these results indicated the importance of having a bulky hydrophobic group for improving staphylococcal activity. Comparing the series I and series II compounds, the potency of the compounds against both Gram-positive and Gram-negative increased with increasing bulkiness and net positive charge. The series I compound 12a showed MIC90 of 3.9 µM but only against S. aureus, however the series II compound 16b by replacing the same hydrophobic group to increase the net positive charge showed antibacterial activity against S. aureus (3.9 µM) and E. coli (31.2 µM), respectively. Overall, the series II compounds had greater antibacterial activity than the series I compounds.
The series III compounds 19a19c were tested for antibacterial activity against S. aureus and E. coli (Table 2). All the compounds showed moderate antibacterial activity against both bacterial strains compared to 12a, 12j, and 12k.
Interestingly, the lysine derivatives 19a and 19c with a naphthyl hydrophobic group and meta-substituted biphenyl group showed >16-fold improvement in antibacterial activity against E. coli (15.6 µM) compared to the parent compound 12a, 12j (>125 µM), although its activity against S. aureus (15.6 µM) was four-fold worse. Taken together, these results suggest that the number of cationic charges as well as the positioning of the hydrophobic group can affect antibacterial activity against both S. aureus and E. coli. All the antibacterial activity of compounds was compared with colistin. These peptidomimetic compounds showed good antibacterial activity against Gram-positive (S. aureus) compared to colistin. However, colistin is good against Gram-negative (E. coli) bacteria.

2.3. Cytoplasmic Membrane Permeability Studies

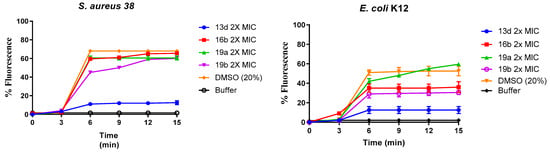

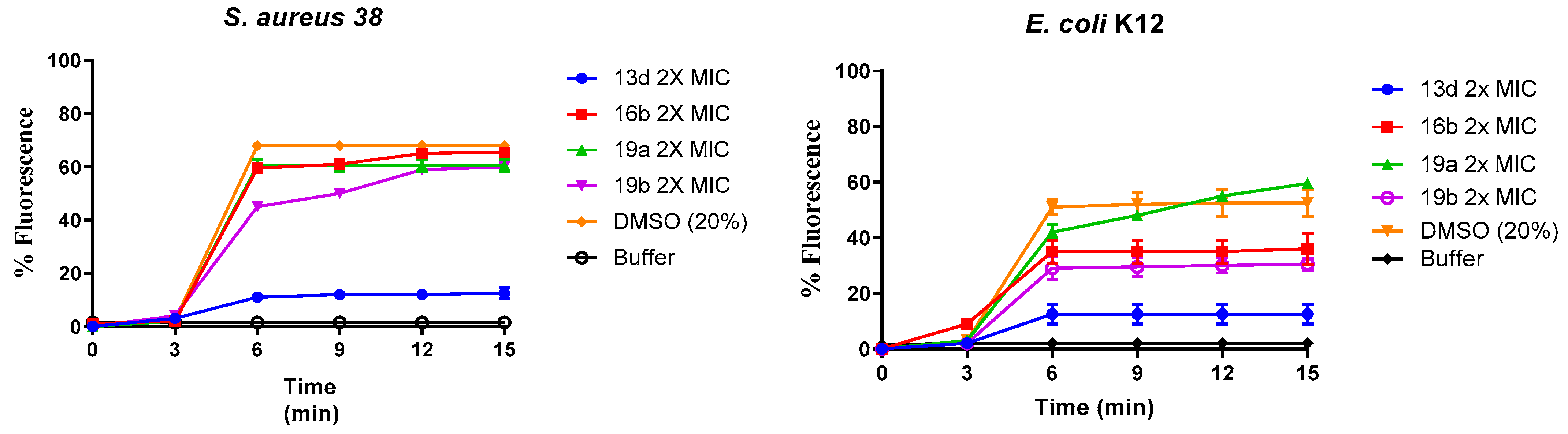

Compounds 13d (series I), 16b (series II), 19a (series III) and 19b (series III) were selected as representative examples of each series with strong antibacterial activities (particularly against S. aureus). As AMPs are known to be membrane-targeting, membrane permeability assays are frequently used to confirm the mode of action of peptidomimetics [43]. In this assay, S. aureus and E. coli were treated with the active compounds in the presence of the membrane potential-sensitive cyanine dye 3,3-dipropylthiadicarbocyanine iodide (DiSC3(5)). Perturbation of the membrane by the compounds leads to loss of the membrane potential gradient (depolarization), causing the dye to be released into the medium and resulting in an increase in fluorescence intensity.
The membrane disruption of active compounds (13d, 16b, 19a, 19b) at 2× MIC against S. aureus and E. coli is shown in Figure 2. 13d was relatively inactive in this test compared to other compounds. Compound 19a showed greater membrane disruption in E. coli than in S. aureus. In contrast, compound 19b showed a reversed trend. Though the cationic group is similar the hydrophobic group is different (Naphthyl vs. Biphenyl) and it may play a role in less membrane permeability. All compounds depolarized the membrane after 3 min incubation, with most showing maximum activity after 6 min, after which there was a plateau in activity.

2.4. Membrane Integrity Studies

The mechanism of action of compounds 16b, 19a, and 19c was further studied using Bacillus subtilis strain BS23, which contains a fusion of green fluorescence protein (GFP) to the α-subunit of the membrane-localized ATP synthase [44,45]. In the assay, if the compounds damage the membrane, the green fluorescence will change from a uniform distribution to a clustered distribution. Epifluorescence microscopy was used to image the changes in the cells. As shown in Figure 3, compounds 16b, 19a, and 19b (50 μM) all caused membrane damage as seen by clustering of the dye, similar to the known membrane-targeting antibiotic colistin.

2.5. Biofilm Disruption Studies

Bacteria in biofilms are 10–1000 times more resistant to conventional antibiotics than planktonic bacteria. Moreover, biofilms are insensitive to antiseptics and many host immune responses. Since up to 80% of all microbial infections are biofilm-related [46], an effective antibacterial agent should also be able to disrupt established biofilms to tackle bacterial infections. Hence, the active compounds (13d, 16b, 19a, and 19b) were tested for their ability to disrupt established S. aureus and E. coli biofilms using the crystal violet staining assay.

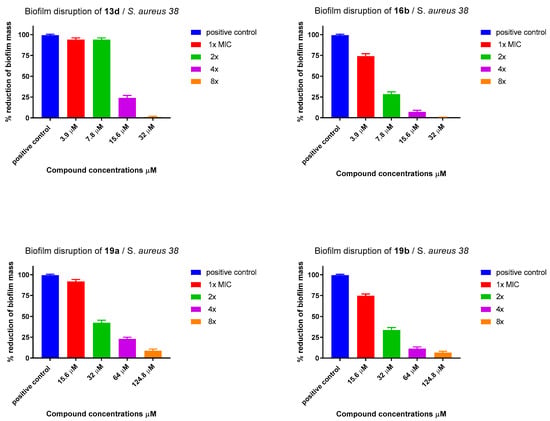

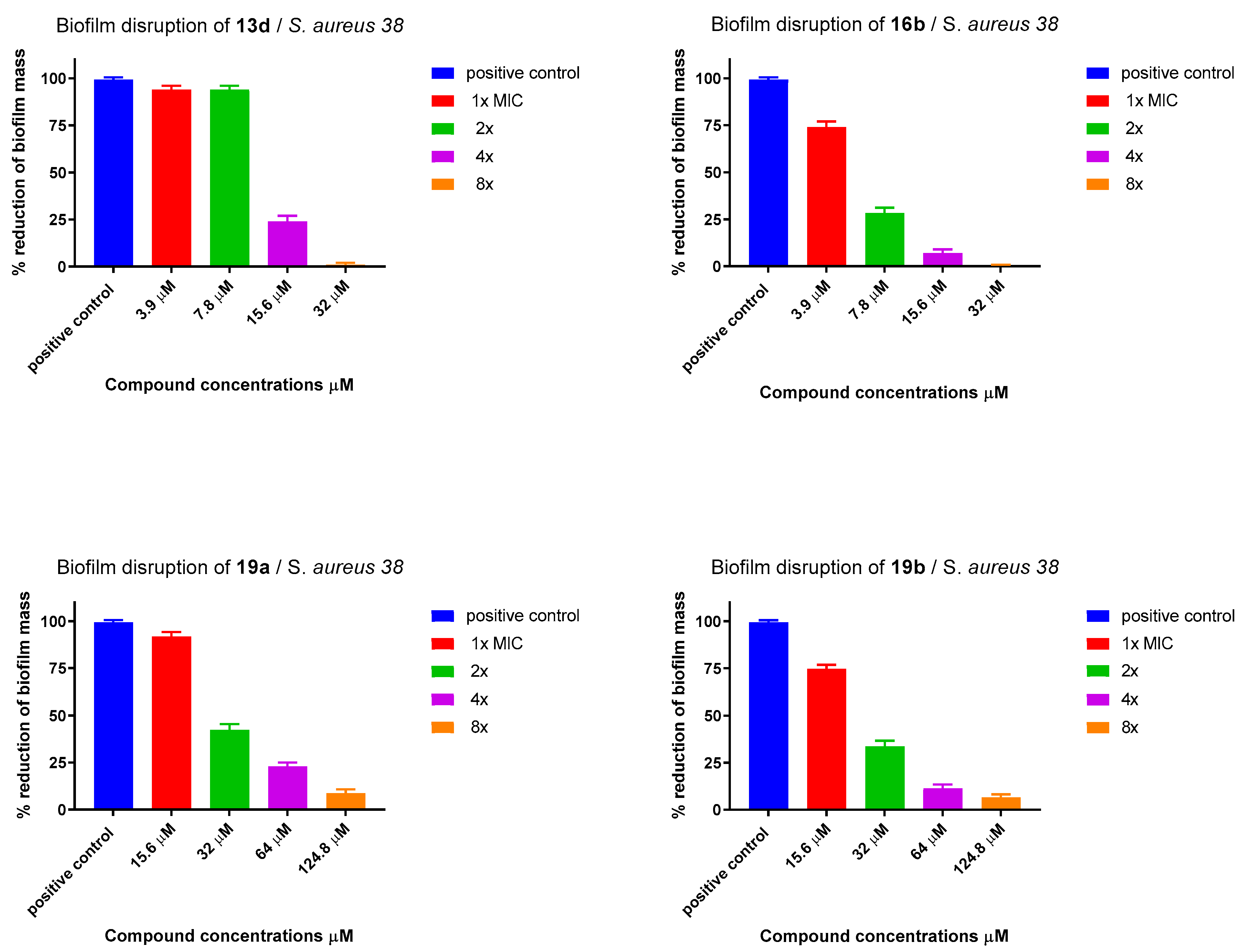

The most active compound against S. aureus was the biaryl derivative 16b, which disrupted 93% of biofilm at 4× MIC (15.6 µM) concentration (Figure 4). The series I compound 13d disrupted biofilms by 75% at 4× MIC (15.6 µM) and 99% at 8× MIC (31.2 µM). The series III compounds 19a and 19b disrupted biofilms by over 60% at 2× MIC (31.2 µM), while at 8× MIC (125 µM) they eradicated almost 99% of the biofilm. Overall, compounds 16c, 19a, and 19b showed the greatest ability to disrupt biofilms, which could be due to their 2+ net charge compared to the 1+ charge of 13f.

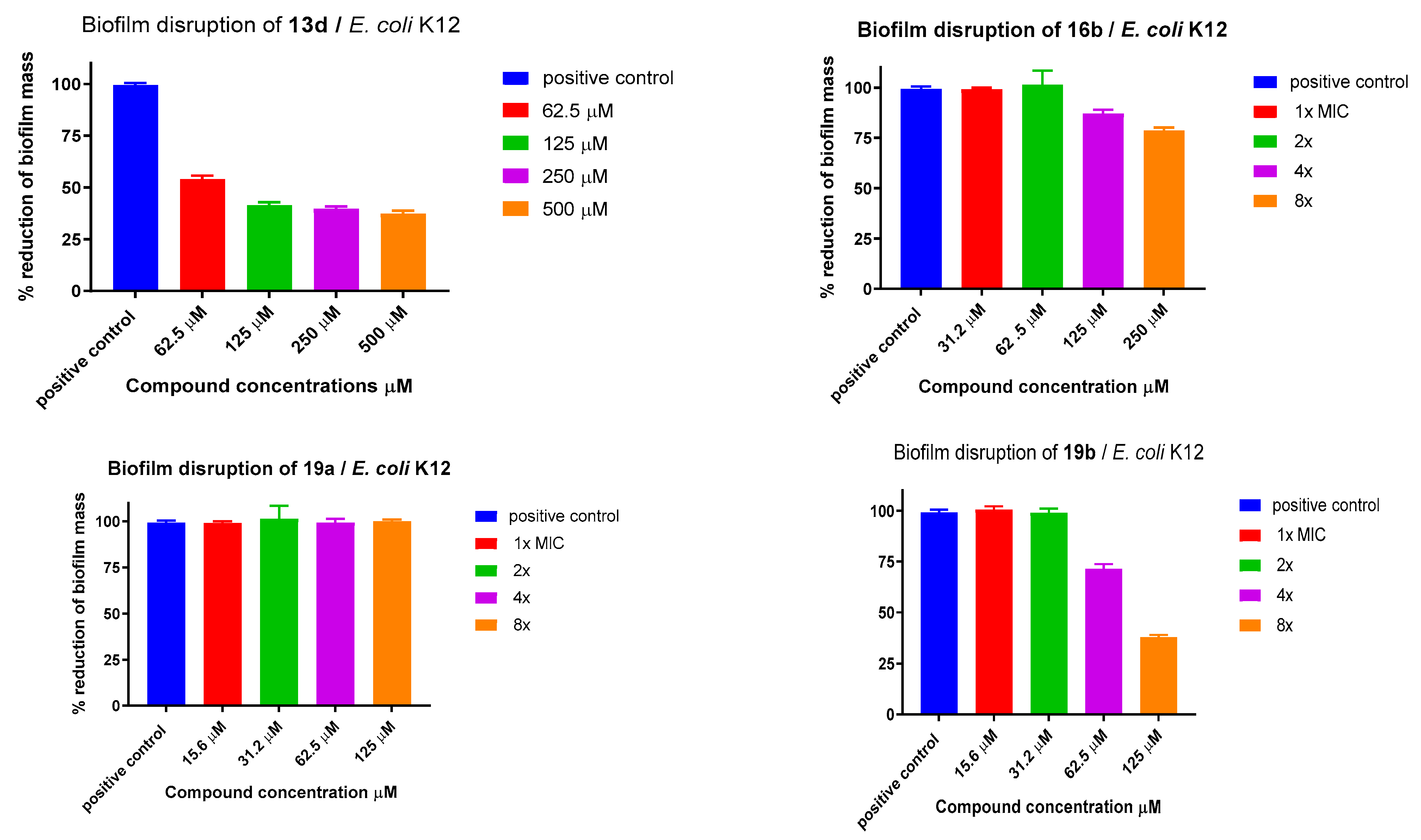

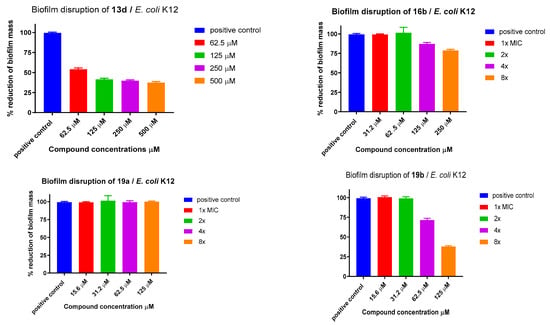

The compounds showed a reduced ability to disrupt E. coli biofilms compared to S. aureus biofilms. Only compounds 13d and 19b showed significant disruption of the E. coli biofilms (Figure 5). Interestingly, compound 13d disrupted 59% of E. coli biofilm mass at 2× MIC (62.4 µM) concentration whereas compound 19b showed little effect, which was the reverse order of potency compared to S. aureus biofilms. Compounds 16b and 19a were not effective against E. coli biofilm. In planktonic bacteria, most AMPs act through the disruption of cytoplasmic membranes [47]. However, against biofilms, there is little evidence that membrane disruption is the mechanism of action [48]. Though compounds 19a and 19b contained two positive net charges, they did not disrupt E. coli biofilm as effectively as compound 13d having simple amine with methoxy substituent. Hence, a net charge might not be the only consideration for biofilm disruption ability.

2.6. Cytotoxicity Assay

In cytotoxicity studies, all the compounds in series III showed less cytotoxicity against MRC5 human fibroblasts compared to the series I and series II compounds. Compound 19b showed a very wide therapeutic window as its IC50 to human cells (164 μM) was over 10 times the MIC90 (15.6 μM) for either S. aureus or E. coli. Compound 19c showed similarly excellent selectivity for S. aureus, but only moderate activity against E. coli.

3. Structure–Activity Relationship Studies

Based on the biological results, structure-activity relationships (SARs) can be deduced for these three series of anthranilamide peptidomimetic compounds. For the series I compounds, a change in the nature of the hydrophobic group as well as its position of attachment had a profound effect on their antibacterial activities. Specifically, compounds with the naphthoyl substituent attached at the 2-position showed better antibacterial activity than those attached at the 1-position. Moreover, heterocyclic hydrophobic groups were generally not preferred. The compounds with one-carbon linker compounds showed similar or two- to three-fold increase in antibacterial activity compared to the two-carbon linker compounds. The series I compounds were much more effective against S. aureus (Gram-positive bacteria) than E. coli (Gram-negative bacteria).
In the series II compounds, the hydrophobic group was moved away from the aniline functionality and inserted in the place of the bromine on the anthranilamide core. These compounds, which were also dicationic, showed very good antibacterial activity against S. aureus along with low cytotoxicity against mammalian cells. Specifically, the bulkiness of the hydrophobic group played an important role towards the antibacterial activity of these compounds compared to their electronic effects. The compound with naphthoyl hydrophobic group showed very good antibacterial activity against S. aureus and E. coli.
Finally, the series III compounds investigated the effect of retaining the hydrophobic group at the aniline site but increasing the cationic charge by attaching a lysine moiety to the peptide tail. Interestingly, this resulted in compounds with the greatest antibacterial activity against E. coli and with low cytotoxicity.

4. Materials and Methods

4.1. Biological Assays

4.1.1. Minimum Inhibitory Concentration (MIC)

The antimicrobial activity of the compounds was evaluated by a broth microdilution assay using the procedure described by CLSI. Briefly, bacteria were grown to mid-log phase in Muller Hinton broth (MHB) with shaking at 120 rpm and incubated at 37 °C for 12–16 h. Following incubation, bacteria were washed three times in PBS pH 7.4 at 3500 g for 10 min. After washing, bacteria were diluted with fresh MHB. The turbidity of the bacterial suspensions was adjusted so that OD660nm was 0.1, which gave 1 × 108 CFU/mL, and then further diluted to achieve 5 × 105 CFU/mL as a final bacterial concentration. Each compound was diluted (250–3.9 µM) through two-fold dilution. Wells in microtiter plates were loaded with 100 µL of inoculum containing 5 × 105 CFU/mL bacteria. Wells without any compound and containing only bacteria were used as negative controls (i.e., no inhibition of growth). Wells with media only were set as blank. The microtiter plate was wrapped with paraffin to prevent evaporation and incubated with shaking at 120 rpm and 37 °C for 18–24 h. After incubation, spectrophotometric readings were taken. The well without any bacterial growth and showing zero spectrophotometric reading was regarded as the MIC of the compounds.

4.1.2. Cytoplasmic Membrane Permeability Assay

The method was adopted from Wu et al. [49] with slight modifications. Bacterial cytoplasmic membrane permeability was determined using membrane potential sensitive dye diSC3-5 (3,3′-dipropylthiadicarbocyanine iodide) which penetrates inside bacterial cells depending on the membrane potential gradient of the cytoplasmic membrane. Bacteria were grown in MHB to mid-log phase by incubating with shaking at 37 °C for 18–24 h. Following incubation, bacteria were washed with 5 mM HEPES containing 20 mM glucose pH 7.2 and resuspended in the same buffer to an OD600 0.05–0.06 which gave 1 × 107 CFU/mL. The dye diSC3-5 was added at 4 µM to the bacterial suspension. The suspensions were incubated at room temperature for 1 h in the dark for maximum dye take-up by the bacterial cells. Then, 100 mM KCl was added to balance the K+ outside and inside the bacterial cell to prevent further uptake or outflow of the dye. For Gram-negative bacteria, 0.5 mM EDTA was used to destabilize the lipopolysaccharides-Mg2+-Ca2+ complex to help in dye penetration without affecting bacterial growth. A total of 100 µL of bacterial suspension was added to 96-well microtiter plate and with equal volume of antimicrobial compounds. DMSO (20%) was set as a positive control while dye and only bacterial cells were set as a negative control. Fluorescence was measured with a luminescence spectrophotometer at 3 min intervals at an excitation wavelength of 622 nm and an emission wavelength of 670 nm.

4.1.3. Membrane Integrity Studies

Bacillus subtilis BS23 (atpA-GFP) was grown in LB (10 g/L Tryptone, 5 g/L Yeast Extract, 5 g/L NaCl) supplemented with 0.5% (w/v) xylose at 37 °C, to an OD600 of 0.3 and then treated with 50 μM of the AMP mimics, 10 μg/mL of colistin or 0.25% (v/v) DMSO (vehicle control). The cells were grown for a further 45 min before being examined by epifluorescence microscopy. Micrographs were background subtracted, merged, and aligned in images.

4.1.4. Biofilm Disruption Assay

Bacterial cultures (S. aureus and E. coli) were grown in MHB media overnight at 37 °C with shaking at 120 rpm. Cultures were diluted (1:20) in an MHB medium and 200 μL aliquots were dispensed to flat bottom 96-well plate wells (Sarstedt, Mawson Lakes, Australia). Cultures were supplemented with varying concentrations of synthetic compounds dissolved in DMSO. Biofilm was grown in a 96-well plate for 24 h followed by the addition of synthetic compounds and incubated further for 24 h. Plates were sealed with self-adhesive microplate sealers (TopSeal-A, PerkinElmer) to allow air diffusion and to prevent condensation. Biofilms adhered on polystyrene substratum were quantified by crystal violet staining as described previously. The experiment was performed in triplicate.

4.1.5. Toxicity Assay

Normal human lung fibroblasts MRC-5 were cultured in minimal essential medium (MEM, Invitrogen) supplemented with 10% foetal calf serum (FCS), 1% L-glutamine–penicillin–streptomycin, 2% sodium bicarbonate, 1% non-essential amino acids (NEAA), and 1% sodium pyruvate. The cell line was maintained at 37 °C in 5% CO2 as an adherent monolayer and was passaged upon reaching confluence by standard cell culture techniques. MRC-5 cells were seeded at 2 × 104 cells per well in 96-well plates to ensure full confluence (quiescence). Cells were treated for 24 h after seeding with 0.1 to 1000 μM of compounds. After 72 h of drug incubation, the treated media was replaced with fresh media containing 10% Alamar Blue and the cells were incubated for another 6 h. The metabolic activity was detected by spectrophotometric analysis by assessing the absorbance of Alamar blue as previously described by Pasquier et al. Cell proliferation was determined and expressed as a percentage of untreated control cells. The determination of IC50 values was performed using GraphPad Prism 6 (San Diego, CA, USA). Each experiment was performed in triplicate and was repeated in three independent experiments.

4.2. General Notes—Synthesis

All chemical reagents were purchased from commercial sources (Combi-Blocks (San Diego, CA, USA), Chem-Impex (Wood Dale, IL, USA), and Sigma Aldrich (St. Louis, MO, USA)) and used without further purification. The solvents were commercial and used as obtained. The reactions were performed using oven-dried glassware under an atmosphere of nitrogen and in anhydrous conditions (as required). Room temperature refers to the ambient temperature. Yields refer to chromatographically and spectroscopically pure compounds unless otherwise stated. The reactions were monitored by thin-layer chromatography (TLC) plates that were pre-coated with Merck silica gel 60 F254. Visualization was accomplished with UV light, and a ninhydrin staining solution in n-butanol. Flash chromatography and silica pipette plugs were performed under positive air pressure using Silica Gel 60 of 230–400 mesh (40–63 μm) and also using Grace Davison LC60A 6-μm for reverse phase chromatography. Infrared spectra were recorded using a Cary 630 ATR spectrophotometer. High-resolution mass spectrometry was performed by the Bioanalytical Mass Spectrometry facility, UNSW. Proton and Carbon NMR spectra were recorded in the solvents that were specified using a Bruker DPX 300 or a Bruker Avance 400 or 600 MHz spectrometer as designated. Chemical shifts (δ) are quoted in parts per million (ppm), to the nearest 0.01 ppm and internally referenced relative to the solvent nuclei. 1HNMR spectroscopic data are reported as follows (chemical shift in ppm; multiplicity in br, broad; s, singlet; d, doublet; t, triplet; q, quartet; quint, quintet; sext, sextet; sept, septet; m, multiplet; or as a combination of these (e.g., dd, dt, etc.)); coupling constant (J) in hertz, integration, proton count, and assignment.

4.2.1. Procedure A for Synthesis of 3a and 3b

To the stirred solution of an acid 1 (1.0 mmol), amine 2a or 2b (1.0 mmol), HOBt (1.0 mmol), DIEA (2.5 mmol) in DMF (5–10 mL) and EDCI (1.2 mmol) was added portion-wise. The reaction was stirred for 16 h and then water was added. The solid settled was filtered out and dried under vacuo to yield the desired products 3a or 3b as an off-white solid in good yields.

4.2.2. Procedure B for Synthesis of 4a and 4b

To the stirred solution of 3a or 3b in THF, 10% Pd/C was added while purging nitrogen. The hydrogen balloon was fitted and degassed with hydrogen. The reaction mixture was stirred under a hydrogen atmosphere for 12 h and then filtered through celite bed and dried the solvent under reduced pressure to yield 4a and 4b. To the residue, dichloromethane was added and the solid settled as off-white solid and was filtered out and dried under vacuo.

4.2.3. Procedure C for Synthesis of 6a and 6b

The suspension of isatoic anhydride (1 mmol) and compound 4a or 4b (1 mmol) in anhydrous acetonitrile (20 mL) was refluxed under an argon atmosphere for 16 h. After completion of the reaction, the mixture was concentrated in vacuo to yield the crude compound, which was subjected to trituration using acetonitrile and diethyl ether. The solid was filtered out and dried under vacuum to afford 11a and 11b as off-white solids.

4.2.4. General Procedure F for Synthesis of 7a7o

Acid chlorides were generated using acid 7a’-7o’ (1.0 mmol) and oxalyl chloride (1.0 mmol) in dichloromethane (3.0 mL) with a catalytic amount of DMF (drop) for 1 h and concentrated under reduced pressure and taken immediately for next step.

4.2.5. General Procedure G for Synthesis of 10a10k and 11a11e

To the stirred solution of amine 6a or 6b (0.36 mmol) and Et3N (1.08 mmol) in CH2Cl2 the in situ generated acid chlorides 7a7k in CH2Cl2 were added and stirred at rt for 12 h. The reaction mixture was diluted with ethyl acetate and washed with saturated NaHCO3, brine solution and dried under anhydrous Na2SO4 and concentrated under reduced pressure. The residue was triturated with acetonitrile and diethyl ether to yield the compounds 10a10k. The compounds 11a11e were prepared using the above procedure with amine 6b and acid chlorides 7a7e.

4.2.6. General Boc Deprotection Procedure H for Synthesis of 12a12k and 13a13e

To a solution of 10a10k or 11a11e (0.1 mmol) in dichloromethane (1.0 mL) was added TFA (1.0 mL) at 0 °C. The reaction mixture was warmed to room temperature and stirred for 6 h. After completion of the reaction, the solvent was removed under a reduced pressure and treated with diethyl ether and the solid filtered out and dried under high vacuum to yield the desired products.

4.2.7. General Suzuki–Miyaura Cross-Coupling Procedure I for Synthesis of 15a15d

To the degassed solution of the bromo compound 6a (0.5 mmol) and appropriate boronic acid (14a14f) (0.6 mmol) in toluene and ethanol (5.0:5.0 mL), 2N Na2CO3 (1.5 mmol) and Pd (PPh3)4 (2.5 mol%) were added. The reaction mixture was heated at 80 °C for 12 h. The reaction mixture was filtered through celite and washed with ethyl acetate. The organic layer was diluted with water. The organic layer was separated and washed with brine solution and dried under anhydrous Na2SO4 and concentrated under reduced pressure. The residue was purified using silica gel column chromatography using hexane:ethyl acetate (50:50) as eluent.

4.2.8. General Procedure for Synthesis of 16a16d

Following the general procedure H, the compounds 16a16d were synthesized from 15a15d.

4.2.9. General Procedure J for Synthesis of 18a18c

To the solution of Boc-Lys(Boc)-Osu (1.0 mmol) and Et3N (4.0 mmol) in THF (5.0 mL) appropriate compound (1.0 mmol) (12i12k) was added and the reaction mixture was stirred at room temperature for 12 h. The reaction mixture was diluted with ethyl acetate and water. The organic layer was separated and washed with brine solution and dried under anhydrous Na2SO4 and concentrated under reduced pressure. The residue was purified using silica gel column chromatography using hexane: ethyl acetate (50:50) as eluent to yield the products 18a18c.

4.2.10. General Procedure for Synthesis of 20a20d

Following the general procedure H, the compounds 20a20d were synthesized from 19a–19d.
Analytical data:
The analytical data for intermediate up to 6a, 6b, and final compounds 10a, 12a were already mentioned in our previous publication [20].
methyl 2-methoxy-1-naphthoate (6).
The title compound 6 was prepared from compound 5 (3.0 g, 14.8 mmol) according to the general procedure C. The product 6 was obtained as an off-white solid (2.56 g, 80%); 1H NMR (400 MHz, Chloroform-d) δ 7.94–7.87 (m, 1H), 7.76 (ddt, J = 0.9, 8.6, 25.1 Hz, 2H), 7.50 (ddd, J = 1.4, 6.8, 8.4 Hz, 1H), 7.37 (ddd, J = 1.2, 6.8, 8.1 Hz, 1H), 7.29 (d, J = 9.1 Hz, 1H), 4.04 (s, 3H), 3.97 (s, 3H);13C NMR (100 MHz, Chloroform-d) 168.7, 154.6, 131.8, 131.1, 128.7, 128.6, 128.2, 127.8, 124.3, 123.9, 113.2, 56.9, 52.6; HRMS (ESI): m/z calcd for C13H12O3 [M + Na]+: 239.0679; found: 239.0679.
2-methoxy-1-naphthoic acid (7c’).
The title compound 7c’ was prepared from compound 6 (2.0 g, 9.25 mmol) according to the general procedure C. The product 7c’ was obtained as an off-white solid (1.6 g, 90%); 1H NMR (400 MHz, DMSO-d6) δ 13.19 (s, 1H), 8.02 (d, J = 9.0 Hz, 1H), 7.95–7.88 (m, 1H), 7.69 (dd, J = 1.0, 8.5 Hz, 1H), 7.58–7.47 (m, 2H), 7.40 (ddd, J = 1.2, 6.7, 8.1 Hz, 1H), 3.93 (s, 3H); 13C NMR (100 MHz, DMSO-d6) 168.5, 153.1, 130.8, 129.9, 128.1, 128.0, 127.5, 124.0, 123.4, 118.7, 113.8, 56.5; HRMS (ESI): m/z calcd for C12H10O3 [M + Na]+: 225.0522; found: 225.0521.
methyl 3-methoxy-2-naphthoate (9).
The title compound 9 was prepared from compound 8 (3.0 g, 14.8 mmol) according to the general procedure C. The product 9 was obtained as an off-white solid (2.7 g, 85%); 1H NMR (400 MHz, Chloroform-d) δ 8.36 (s, 1H), 7.87 (ddd, J = 0.6, 1.3, 8.2 Hz, 1H), 7.82–7.71 (m, 1H), 7.57 (ddd, J = 1.3, 6.9, 8.3 Hz, 1H), 7.43 (ddd, J = 1.2, 6.9, 8.2 Hz, 1H), 7.26 (s, 1H), 4.06 (s, 3H), 4.01 (s, 3H).;13C NMR δ C (101 MHz, Chloroform-d) 166.8, 155.9, 136.2, 132.9, 128.8, 128.6, 127.7, 126.6, 124.5, 121.8, 106.9, 56.1, 52.4; HRMS (ESI): m/z calcd for C13H12O3 [M + Na]+: 1008.4593; found: 239.0679.
3-methoxy-2-naphthoic acid (7d’).
The title compound 7d’ was prepared from compound 9 (2.0 g, 9.25 mmol) according to the general procedure C. The product 7d’ was obtained as an off-white solid (1.56 g, 89%); 1H NMR (400 MHz, DMSO-d6) δ 12.81 (s, 1H), 8.16 (s, 1H), 7.91–7.84 (m, 1H), 7.79 (dd, J = 0.9, 8.3 Hz, 1H), 7.49 (ddd, J = 1.4, 6.9, 8.2 Hz, 1H), 7.40–7.29 (m, 2H), 3.86 (s, 3H);13C NMR (100 MHz, DMSO-d6) 167.4, 154.8, 135.3, 130.9, 128.4, 128.0, 127.1, 126.5, 124.3, 123.6, 106.8, 55.7; HRMS (ESI): m/z calcd for C12H10O3 [M + Na]+: 225.0522; found: 225.0522.
tert-butyl (S)-(2-(2-(2-amino-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (6a).
The title compound 6a was prepared from compound 5 (4.0 g, 8.65 mmol) and 4a (2.8 g, 8.65 mmol) according to the general procedure E. The product 6a was obtained as a grey solid (3.0 g, 65%); 1H NMR (400 MHz, DMSO-d6) δ 10.78 (s, 1H), 8.35 (d, J = 8.0 Hz, 1H), 8.10 (t, J = 5.8 Hz, 1H), 7.69 (dd, J = 5.1, 15.9 Hz, 2H), 7.31 (d, J = 8.1 Hz, 1H), 7.23 (dd, J = 2.4, 8.8 Hz, 1H), 7.17 (d, J = 2.5 Hz, 1H), 7.05 (t, J = 7.5 Hz, 1H), 6.98 (t, J = 7.4 Hz, 1H), 6.76 (t, J = 5.6 Hz, 1H), 6.62 (d, J = 8.9 Hz, 1H), 6.48 (s, 2H), 4.64–4.55 (m, 1H), 3.21–2.94 (m, 6H), 1.37 (s, 9H); 13C NMR(75 MHz, DMSO-d6) 172.4, 167.9, 156.1, 149.3, 136.5, 134.6, 131.1, 127.7, 123.9, 121.3, 118.9, 118.7, 118.6, 116.1, 111.7, 111.1, 105.2, 78.1, 54.5, 28.7, 27.8; HRMS (ESI): m/z calcd for C25H30BrN5O4 [M + Na]+: 566.1373; found: 566.1369.
tert-butyl (S)-(3-(2-(2-amino-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)propyl)carbamate (6b).
The title compound 6b was prepared from compound 5 (4.0 g, 8.65 mmol) and 4b (3.1 g, 8.65 mmol) according to the general procedure E. The product 6b was obtained as a grey solid (2.8 g, 58%); 1H NMR (400 MHz, DMSO-d6) δ 10.78 (s, 1H), 8.36 (s, 1H), 8.02 (s, 1H), 7.73–7.64 (m, 2H), 7.30 (d, J = 7.7 Hz, 1H), 7.23 (d, J = 9.1 Hz, 1H), 7.17 (s, 1H), 7.05 (s, 1H), 6.98 (s, 1H), 6.75 (s, 1H), 6.62 (d, J = 10.2 Hz, 1H), 6.47 (s, 2H), 4.63–4.54 (m, 1H), 3.23–3.14 (m, 2H), 3.10–3.06 (m, 2H), 2.93–2.88 (m, 2H), 1.51–1.46 (m, 2H), 1.37 (s, 9H).;13C (100 MHz, DMSO-d6) 172.1, 167.9, 155.0, 149.3, 136.5, 131.0, 127.7, 123.9, 121.3, 118.9, 118.7, 118.6, 116.1, 111.7, 111.1, 105.3, 77.9, 54.6, 37.8, 36.7, 30.0, 28.7, 27.9; HRMS (ESI): m/z calcd for C26H32BrN5O4 [M + H]+: 558.1710; found: 558.1711.
The synthesis and analytical data for tert-butyl (S)-(2-(2-(2-(2-naphthamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10a) were published already [20].
tert-butyl (S)-(2-(2-(5-bromo-2-(2-(naphthalen-1-yl)acetamido)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10b).
The title compound 10b was prepared from compound 6a (0.3 g, 0.55 mmol) and 7b (0.66 mmol; 7b in situ preparation from 7b’ using procedure F) according to the general procedure G. The product 10b was obtained as an off-white solid (270 mg, 70%); 1H NMR (400 MHz, DMSO-d6) δ 10.95 (s, 1H), 10.82 (s, 1H), 8.88 (d, J = 8.0 Hz, 1H), 8.24–8.15 (m, 2H), 8.04–7.96 (m, 1H), 7.94–7.86 (m, 1H), 7.86–7.78 (m, 2H), 7.69 (d, J = 7.6 Hz, 1H), 7.60 (dd, J = 2.4, 8.9 Hz, 1H), 7.54–7.30 (m, 5H), 7.15 (d, J = 2.3 Hz, 1H), 7.07 (ddd, J = 1.4, 7.0, 8.1 Hz, 1H), 7.00 (ddd, J = 1.2, 7.0, 8.0 Hz, 1H), 6.79 (t, J = 5.6 Hz, 1H), 4.70–4.55 (m, 1H), 4.16–4.05 (m, 2H), 3.25 (dd, J = 4.5, 14.7 Hz, 1H), 3.16–2.96 (m, 5H), 1.35 (s, 9H).;13C NMR (100 MHz, DMSO-d6) 171.7, 169.7, 167.0, 156.1, 138.0, 136.5, 134.6, 133.8 132.3, 131.7, 131.2, 128. 9, 128.7, 127.7, 126.7, 126.2, 126.0, 124.4, 124.1, 124.0, 122.7, 121.4, 118.9, 118.7, 114.8, 111.38, 110.9, 78.1, 60.2, 54.9, 42.2, 28.6, 27.8, 21.2; HRMS (ESI): m/z calcd for C37H38BrN5O5 [M + Na]+: 734.1949; found: 734.1950.
tert-butyl (S)-(2-(2-(5-bromo-2-(2-methoxy-1-naphthamido)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10c).
The title compound 10c was prepared from compound 6a (0.3 g, 0.55 mmol) and 7c (0.66 mmol; 7c in situ preparation from 7c’ using procedure F) according to the general procedure G. The product 10c was obtained as an off-white solid (288 mg, 72%); 1H NMR (400 MHz, DMSO-d6) δ 11.54 (s, 1H), 10.79 (s, 1H), 9.01 (d, J = 7.9 Hz, 1H), 8.61 (d, J = 9.0 Hz, 1H), 8.11 (t, J = 5.6 Hz, 1H), 8.05 (d, J = 8.9 Hz, 1H), 8.00 (d, J = 2.4 Hz, 1H), 7.95–7.88 (m, 1H), 7.79 (ddd, J = 1.8, 8.7, 12.5 Hz, 2H), 7.64 (d, J = 7.8 Hz, 1H), 7.54–7.43 (m, 2H), 7.39 (ddd, J = 1.3, 6.8, 8.1 Hz, 1H), 7.29 (dt, J = 0.9, 8.1 Hz, 1H), 7.16 (s, 1H), 7.03 (ddd, J = 1.3, 7.0, 8.2 Hz, 1H), 6.95 (ddd, J = 1.1, 7.0, 7.9 Hz, 1H), 6.71 (t, J = 5.7 Hz, 1H), 4.59–4.50 (m, 1H), 3.78 (s, 3H), 3.26–3.17 (m, 1H), 3.15–2.85 (m, 5H), 1.33 (s, 9H), 1.23 (s, 2H);13C NMR (101 MHz, DMSO-d6) 171.3, 167.2, 165.4, 156.0, 153.8, 138.6, 136.5, 134.7, 131.9, 131.5, 131.0, 128.66, 128.6, 128.0, 127.6, 124.5, 124.0, 123.0, 122.8, 121.3, 120.5, 120.0, 118.8, 118.7, 115.0, 114.2, 111.7, 110.8, 77.9, 56.8, 54.9, 39.4, 38.9, 29.8, 27.7; HRMS (ESI): m/z calcd for C37H38BrN5O6 [M + Na]+: 750.1898; found: 750.1904.
tert-butyl (S)-(2-(2-(5-bromo-2-(3-methoxy-2-naphthamido)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10d).
The title compound 10f was prepared from compound 6a (0.3 g, 0.55 mmol) and 7f (0.66 mmol; 7f in situ preparation from 7f’ using procedure F) according to the general procedure G. The product 10f was obtained as an off-white solid (260 mg, 65%); 1H NMR (400 MHz, DMSO-d6) δ 11.86 (s, 1H), 10.78 (s, 1H), 8.97 (d, J = 8.1 Hz, 1H), 8.65 (d, J = 9.0 Hz, 1H), 8.57 (s, 1H), 8.22 (t, J = 5.6 Hz, 1H), 8.03–7.97 (m, 1H), 7.88 (dd, J = 1.0, 8.4 Hz, 1H), 7.83 (d, J = 2.4 Hz, 1H), 7.75–7.63 (m, 2H), 7.58 (ddd, J = 1.3, 6.8, 8.3 Hz, 1H), 7.47 (s, 1H), 7.45–7.38 (m, 1H), 7.27–7.13 (m, 2H), 7.06–6.91 (m, 2H), 6.77 (t, J = 6.0 Hz, 1H), 4.75–4.62 (m, 1H), 3.88 (s, 3H), 3.27 (dd, J = 4.2, 14.9 Hz, 1H), 3.03–2.96 (m, 2H), 3.22–3.03 (m, 3H), 1.34 (s, 9H);13C NMR (100 MHz, DMSO-d6) 171.8, 167.0, 163.5, 156.1, 154.5, 137.9, 136.5, 136.1, 134.5, 133.3, 131.5, 129.3, 128.9, 127.9, 127.7, 127.7, 126.8, 125.2, 124.9, 124.0, 123.7, 123.5, 121.3, 118.8, 118.6, 114.8, 111.7, 110.9, 107.3, 78.1, 55.9, 55.0, 28.6, 27.9; HRMS (ESI): m/z calcd for C37H38BrN5O6 [M + Na]+: 750.1896; found: 750.1901.
tert-butyl (S)-(2-(2-(5-bromo-2-(quinoline-2-carboxamido)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10e).
The title compound 10e was prepared from compound 6a (0.3 g, 0.55 mmol) and 7e (0.66 mmol; 7e in situ preparation from 7e’ using procedure F) according to the general procedure G. The product 10e was obtained as an off-white solid (294 mg, 77%); 1H NMR (400 MHz, DMSO-d6) δ 12.96 (s, 1H), 10.76 (s, 1H), 9.01 (d, J = 8.0 Hz, 1H), 8.70 (d, J = 8.9 Hz, 1H), 8.63 (d, J = 8.5 Hz, 1H), 8.25 (t, J = 7.9 Hz, 2H), 8.15–8.05 (m, 2H), 8.00 (d, J = 2.5 Hz, 1H), 7.89 (ddd, J = 1.5, 6.8, 8.5 Hz, 1H), 7.82–7.69 (m, 3H), 7.27–7.20 (m, 2H), 7.03–6.89 (m, 2H), 6.74 (t, J = 5.9 Hz, 1H), 4.79 (dt, J = 7.1, 13.0 Hz, 1H), 3.30–3.25 (m, 1H), 3.24–3.09 (m, 3H), 3.04–2.94 (m, 2H), 1.32 (s, 9H);13C NMR δ C (101 MHz, DMSO-d6) 171.2, 166.6, 162.7, 155.6, 149.4, 145.8, 138.3, 137.5, 136.0, 134.5, 131.3, 130.7, 129.4, 129.0, 128.5, 128.1, 127.3, 123.6, 123.5, 121.9, 120.9, 118.6, 118.4, 118.2, 114.6, 111.3, 110.5, 77.6, 54.6, 28.2, 27.4; HRMS (ESI): m/z calcd for C35H35BrN6O5 [M + Na]+: 721.1745; found: 721.1747.
tert-butyl (S)-(2-(2-(5-bromo-2-(1H-indole-2-carboxamido)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10f).
The title compound 10i was prepared from compound 6a (0.3 g, 0.55 mmol) and 7f (0.66 mmol; 7f in situ preparation from 7f’ using procedure F) according to the general procedure G. The product 10f was obtained as an off-white solid (294 mg, 77%); 1H NMR (400 MHz, DMSO-d6) δ 12.26 (s, 1H), 11.88 (s, 1H), 10.80 (s, 1H), 9.14 (d, J = 8.0 Hz, 1H), 8.56 (s, 1H), 8.30 (t, J = 5.5 Hz, 1H), 8.08 (d, J = 2.4 Hz, 1H), 7.73 (dd, J = 2.0, 6.5 Hz, 2H), 7.67 (d, J = 8.0 Hz, 1H), 7.49–7.42 (m, 1H), 7.30–7.16 (m, 3H), 7.12–6.95 (m, 3H), 6.89 (s, 1H), 6.80 (t, J = 5.9 Hz, 1H), 4.81–4.71 (m, 1H), 3.28 (d, J = 4.5 Hz, 1H), 3.22–3.11 (m, 3H), 3.08–3.00 (m, 2H), 1.34 (s, 9H);13C NMR (100 MHz, DMSO-d6) 171.3, 167.8, 165.0, 156.1, 138.9, 136.5, 135.3, 134.9, 132.6, 132.0, 129.5, 129.1, 128.6, 128.4, 128.1, 127.6, 127.5, 124.0, 123.6, 122.9, 122.8, 121.3, 118.9, 118.7, 115.0, 111.8, 110.9, 77.9, 55.2, 37.8, 36.8, 29.9, 28.6, 27.7; HRMS (ESI): m/z calcd for C35H35BrN6O5 [M + Na]+: 709.1745; found: 709.1749.
tert-butyl (S)-(2-(2-(5-bromo-2-(thiophene-2-carboxamido)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10g).
The title compound 10g was prepared from compound 6a (0.3 g, 0.55 mmol) and 7g (0.66 mmol; 7g in situ preparation from 7g’ using procedure F) according to the general procedure G. The product 10g was obtained as an off-white solid (248 mg, 69%); 1H NMR (400 MHz, DMSO-d6) δ 12.10 (s, 1H), 10.78 (s, 1H), 9.11 (d, J = 8.3 Hz, 1H), 8.40 (d, J = 8.9 Hz, 1H), 8.24 (t, J = 5.6 Hz, 1H), 8.03 (d, J = 2.4 Hz, 1H), 7.89 (dd, J = 1.1, 5.0 Hz, 1H), 7.76–7.66 (m, 2H), 7.51 (dd, J = 1.2, 3.8 Hz, 1H), 7.31–7.23 (m, 1H), 7.23–7.15 (m, 2H), 7.07–6.93 (m, 2H), 6.78 (t, J = 5.6 Hz, 1H), 4.76–4.68 (m, 1H), 3.32–3.26 (m, 2H), 3.13 (td, J = 6.0, 10.2 Hz, 3H), 3.06–2.97 (m, 2H), 1.34 (s, 9H);13C NMR (100 MHz, DMSO-d6) 171.5, 167.7, 159.7, 156.1, 138.6, 136.5, 135.3, 133.0, 131.5, 129.1, 128.8, 127.6, 124.0, 122.4, 121.3, 118.9, 118.6, 114.9, 111.8, 110.9, 78.1, 55.0, 28.6, 27.8; HRMS (ESI): m/z calcd for C30H32BrN5O5S [M + Na]+: 676.1200; found: 676.1198.
tert-butyl (S)-(2-(2-(5-bromo-2-(thiophene-3-carboxamido)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10h).
The title compound 10h was prepared from compound 11a (0.3 g, 0.55 mmol) and 7h (0.66 mmol; 7h in situ preparation from 7h’ using procedure F) according to the general procedure G. The product 10l was obtained as an off-white solid (252 mg, 70%); 1H NMR (400 MHz, DMSO-d6) δ 11.89 (s, 1H), 10.78 (s, 1H), 9.09 (d, J = 8.3 Hz, 1H), 8.44 (d, J = 8.9 Hz, 1H), 8.23 (t, J = 5.6 Hz, 1H), 8.06 (dd, J = 1.5, 3.0 Hz, 1H), 8.00 (s, 1H), 7.75–7.65 (m, 3H), 7.39 (dd, J = 1.4, 5.1 Hz, 1H), 7.27 (d, J = 8.0 Hz, 1H), 7.18 (d, J = 2.3 Hz, 1H), 7.08–6.93 (m, 2H), 6.79 (t, J = 5.7 Hz, 1H), 4.76–4.67 (m, 1H), 3.30–3.25 (m, 1H), 3.18–3.07 (m, 3H), 3.05–2.98 (m, 2H), 1.35 (s, 9H);13C NMR (100 MHz, DMSO-d6) 171.5, 167.7, 160.6, 156.1, 138.8, 138.0, 136.5, 135.2, 131.5, 130.5, 128.5, 127.6, 126.3, 124.0, 122.6, 122.5, 121.3, 118.9, 118.6, 114.8, 111.8, 110.9, 78.1, 55.0, 28.6, 27.7; HRMS (ESI): m/z calcd for C30H32BrN5O5S [M + Na]+: 676.1200; found: 676.1205.
tert-butyl (S)-(2-(2-(2-([1,1′-biphenyl]-2-carboxamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10i).
The title compound 10i was prepared from compound 11a (0.3 g, 0.55 mmol) and 7i (0.66 mmol; 7i in situ preparation from 7i’ using procedure F) according to the general procedure G. The product 10i was obtained as an off-white solid (271 mg, 68%); 1H NMR (400 MHz, DMSO-d6) δ 11.28 (s, 1H), 10.81 (s, 1H), 8.89 (d, J = 7.9 Hz, 1H), 8.21 (d, J = 8.8 Hz, 1H), 8.14 (t, J = 5.7 Hz, 1H), 7.91 (s, 1H), 7.73–7.34 (m, 7H), 7.35–7.29 (m, 3H), 7.29–7.13 (m, 4H), 7.06 (t, J = 7.6 Hz, 1H), 7.02–6.94 (m, 1H), 6.75 (t, J = 5.8 Hz, 1H), 4.60–4.50 (m, 1H), 3.27–3.18 (m, 1H), 3.18–2.99 (m, 3H), 2.95 (t, J = 6.4 Hz, 2H), 1.35 (s, 9H);13C NMR (101 MHz, DMSO-d6) 171.5, 167.7, 167.0, 156.0, 140.1, 140.0, 138.3, 136.7, 136.5, 134.9, 131.3, 130.88, 130.8, 128.7, 128.6, 127.9, 127.7, 127.6, 124.0, 123.2, 122.6, 121.3, 118.8, 118.7, 115.1, 111.8, 110.8, 78.1, 55.0, 28.6, 27.7; HRMS (ESI): m/z calcd for C38H38BrN5O5 [M + Na]+: 746.1949; found: 746.1953.
tert-butyl (S)-(2-(2-(2-([1,1′-biphenyl]-3-carboxamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10j).
The title compound 10j was prepared from compound 11a (0.3 g, 0.55 mmol) and 7j (0.66 mmol; 7j in situ preparation from 7j’ using procedure F) according to the general procedure G. The product 10j was obtained as an off-white solid (258 mg, 65%); 1H NMR (400 MHz, DMSO-d6) δ 12.15 (s, 1H), 10.79 (s, 1H), 9.11 (d, J = 8.1 Hz, 1H), 8.52 (d, J = 9.0 Hz, 1H), 8.22 (t, J = 5.9 Hz, 1H), 8.11 (s, 1H), 8.01 (d, J = 2.3 Hz, 1H), 7.91 (dt, J = 1.4, 7.6 Hz, 1H), 7.82–7.65 (m, 5H), 7.62 (t, J = 7.8 Hz, 1H), 7.55–7.46 (m, 2H), 7.46–7.38 (m, 1H), 7.26 (d, J = 8.0 Hz, 1H), 7.19 (s, 1H), 7.06–6.98 (m, 1H), 6.98–6.90 (m, 1H), 6.80–6.72 (m, 1H), 4.75–4.65 (m, 1H), 3.31–3.25 (m, 1H), 3.19–3.02 (m, 3H), 3.02–2.93 (m, 2H), 1.33 (s, 9H);13C δ C (101 MHz, DMSO-d6) 171.5, 167.7, 164.9, 156.1, 141.2, 139.7, 138.8, 136.5, 135.5, 135.2, 131.6, 130.8, 130.0, 129.6, 129.3, 128.4, 127.6, 127.2, 126.2, 125.8, 124.0, 123.0, 122.7, 121.3, 118.8, 118.6, 115.11, 111.8, 110.9, 78.1, 55.1, 28.6, 27.7; HRMS (ESI): m/z calcd for C38H38BrN5O5 [M + Na]+: 746.1949; found: 746.1953.
tert-butyl (S)-(2-(2-(2-([1,1′-biphenyl]-4-carboxamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (10k).
The title compound 10k was prepared from compound 6a (0.3 g, 0.55 mmol) and 7k (0.66 mmol; 7k in situ preparation from 7k’ using procedure F) according to the general procedure G. The product 10k was obtained as an off-white solid (282 mg, 71%); 1H NMR (400 MHz, DMSO-d6) δ 12.13 (s, 1H), 10.80 (s, 1H), 9.14 (d, J = 8.1 Hz, 1H), 8.56 (d, J = 9.0 Hz, 1H), 8.27 (t, J = 5.8 Hz, 1H), 8.03 (s, 1H), 7.92–7.84 (m, 2H), 7.82 (d, J = 8.6 Hz, 2H), 7.78–7.67 (m, 4H), 7.51 (dd, J = 6.7, 8.3 Hz, 2H), 7.47–7.39 (m, 1H), 7.31–7.24 (m, 1H), 7.20 (d, J = 2.4 Hz, 1H), 7.06–6.93 (m, 2H), 6.80 (t, J = 5.8 Hz, 1H), 4.77–4.66 (m, 1H), 3.31–3.26 (m, 1H), 3.20–3.09 (m, 3H), 3.02 (q, J = 6.5 Hz, 2H), 1.32 (s, 9H);13C NMR (100 MHz, DMSO-d6) 171.15, 167.8, 164.6, 156.1, 144.1, 139.3, 138.9, 136.5, 135.3, 132.9, 131.1, 129.1, 128.3, 127.6, 127.2, 127.1, 127.0, 123.6, 122.2, 122.1, 120.9, 118.5, 118.2, 114.5, 111.3, 110.5, 77.7, 54.7, 28.2, 27.3; HRMS (ESI): m/z calcd for C38H38BrN5O5 [M + Na]+: 746.1949; found: 746.1954.
tert-butyl (S)-(3-(2-(2-(2-naphthamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)propyl)carbamate (11a).
The title compound 11a was prepared from compound 6b (0.3 g, 0.54 mmol) and 7a (0.66 mmol; 7a in situ preparation from 7a’ using procedure F) according to the general procedure G. The product 11a was obtained as an off-white solid (230 mg, 60%); 1H NMR (400 MHz, DMSO-d6) δ 12.23 (s, 1H), 10.80 (s, 1H), 9.17 (d, J = 8.0 Hz, 1H), 8.56 (d, J = 8.9 Hz, 1H), 8.43 (d, J = 2.0 Hz, 1H), 8.18 (t, J = 5.8 Hz, 1H), 8.09–7.98 (m, 4H), 7.84 (dd, J = 2.0, 8.7 Hz, 1H), 7.76 (dd, J = 2.3, 9.0 Hz, 1H), 7.73–7.58 (m, 3H), 7.30–7.23 (m, 1H), 7.21 (s, 1H), 7.05–6.93 (m, 2H), 6.72 (t, J = 5.8 Hz, 1H), 4.77–4.68 (m, 1H), 3.30–3.25 (m, 1H), 3.21–3.04 (m, 3H), 2.90 (q, J = 6.2, 6.7 Hz, 2H), 1.50 (p, J = 6.8 Hz, 2H), 1.32 (s, 9H); 13C NMR (100 MHz, DMSO-d6) 171.3, 167.8, 165.0, 156.0, 138.9, 136.5, 135.2, 134.9, 132.6, 132.0, 131.5, 129.5, 129.1, 128.6, 128.4, 128.1, 127.6, 127.5, 124.0, 123.6, 122.9, 122.8, 121.3, 118.9, 118.7, 115.0, 111.8, 110.9, 77.9, 55.2, 37.8, 36.8, 29.9, 28.6, 27.7; HRMS (ESI): m/z calcd for C37H38BrN5O5 [M + Na]+: 734.1949; found: 734.1952.
tert-butyl (S)-(3-(2-(5-bromo-2-(2-(naphthalen-1-yl)acetamido)benzamido)-3-(1H-indol-3-yl)propanamido)propyl)carbamate (11b).
The title compound 11b was prepared from compound 6b (0.3 g, 0.54 mmol) and 7b (0.66 mmol; 7b in situ preparation from 7b’ using procedure F) according to the general procedure G. The product 11b was obtained as an off-white solid (263 mg, 67%); 1H NMR (400 MHz, DMSO-d6) δ 10.97 (s, 1H), 10.82 (s, 1H), 8.90 (d, J = 8.0 Hz, 1H), 8.19 (d, J = 8.9 Hz, 1H), 8.10 (t, J = 5.8 Hz, 1H), 8.05–7.97 (m, 1H), 7.95–7.87 (m, 1H), 7.87–7.77 (m, 2H), 7.69 (d, J = 7.5 Hz, 1H), 7.60 (dd, J = 2.4, 8.9 Hz, 1H), 7.54–7.30 (m, 5H), 7.16 (s, 1H), 7.11–7.04 (m, 1H), 7.04–6.96 (m, 1H), 6.76 (t, J = 5.8 Hz, 1H), 4.81–4.48 (m, 1H), 4.10 (d, J = 8.5 Hz, 2H), 3.29–3.20 (m, 1H), 3.14–3.00 (m, 3H), 2.97–2.87 (m, 2H), 1.50 (p, J = 6.3 Hz, 2H), 1.35 (s, 9H);13C NMR δ (101 MHz, DMSO-d6) 171.5, 169.7, 167.0, 156.1, 137.9, 136.5, 134.6, 133.8, 132.3, 131.8, 131.2, 128.9, 128.7, 128.0, 127.7, 126.7, 126.2, 126.0, 124.4, 124.0, 1202.8, 121.4, 118.9, 118.7, 114.8, 111.8, 110.9, 77.9, 60.2, 54.9, 42.2, 37.8, 36.8, 29.5, 28.7; HRMS (ESI): m/z calcd for C38H40BrN5O5 [M + Na]+: 748.2105; found: 748.2105.
tert-butyl (S)-(3-(2-(5-bromo-2-(2-methoxy-1-naphthamido)benzamido)-3-(1H-indol-3-yl)propanamido)propyl)carbamate (11c).
The title compound 11c was prepared from compound 6b (0.3 g, 0.54 mmol) and 7c (0.66 mmol; 7c in situ preparation from 7c’ using procedure F) according to the general procedure G. The product 11c was obtained as an off-white solid (280 mg, 70%); 1H NMR (400 MHz, DMSO-d6) δ 11.53 (s, 1H), 10.79 (s, 1H), 9.02 (d, J = 8.0 Hz, 1H), 8.60 (d, J = 9.0 Hz, 1H), 8.10–7.97 (m, 3H), 7.92 (dd, J = 1.5, 8.1 Hz, 1H), 7.83–7.73 (m, 2H), 7.63 (d, J = 7.7 Hz, 1H), 7.54–7.43 (m, 2H), 7.43–7.35 (m, 1H), 7.29 (d, J = 8.1 Hz, 1H), 7.16 (s, 1H), 7.08–6.99 (m, 1H), 6.99–6.91 (m, 1H), 4.63–4.45 (m, 1H), 3.78 (s, 3H), 3.20 (dd, J = 4.4, 14.3 Hz, 1H), 3.09 (dd, J = 10.1, 14.6 Hz, 1H), 3.05–2.89 (m, 2H), 2.87–2.66 (m, 2H), 1.38 (s, 1H), 1.43–1.37 (m, 2H), 1.35 (s, 9H);13C NMR (101 MHz, DMSO-d6) 171.6, 170.8, 167.2, 165.4, 156.0, 153.8, 138.6, 136.5, 135.2, 131.9, 131.5, 131.0, 128.66, 128.6, 128.0, 127.6, 124.5, 124.0, 122.9, 122.7, 121.3, 120.4, 118.8, 118.6, 115.0, 114.2, 111.7, 110.8, 78.1, 60.2, 56.8, 54.9, 37.3, 36.2, 28.6, 27.7, 21.2; HRMS (ESI): m/z calcd for C38H40BrN5O6 [M + Na]+: 764.2057; found: 764.2054.
tert-butyl (S)-(3-(2-(5-bromo-2-(3-methoxy-2-naphthamido)benzamido)-3-(1H-indol-3-yl)propanamido)propyl)carbamate (11d).
The title compound 11d was prepared from compound 6b (0.3 g, 0.54 mmol) and 7d (0.66 mmol; 7d in situ preparation from 7d’ using procedure F) according to the general procedure G. The product 11d was obtained as an off-white solid (270 mg, 65%); 1H NMR (400 MHz, DMSO-d6) δ 11.86 (s, 1H), 10.79 (s, 1H), 8.99 (d, J = 8.2 Hz, 1H), 8.65 (d, J = 9.1 Hz, 1H), 8.57 (s, 1H), 8.13 (t, J = 5.8 Hz, 1H), 8.00 (d, J = 8.1 Hz, 1H), 7.88 (d, J = 8.3 Hz, 1H), 7.82 (d, J = 2.5 Hz, 1H), 7.75–7.67 (m, 2H), 7.58 (t, J = 7.6 Hz, 1H), 7.46 (s, 1H), 7.42 (t, J = 7.6 Hz, 1H), 7.26–7.16 (m, 2H), 7.05–6.92 (m, 2H), 6.78–6.70 (m, 1H), 4.69 (td, J = 4.4, 8.6, 9.2 Hz, 1H), 3.88 (s, 3H), 3.30–3.21 (m, 1H), 3.18–3.01 (m, 3H), 2.93–2.84 (m, 2H), 1.48 (p, J = 7.4 Hz, 2H), 1.35 (s, 9H);13C NMR (100 MHz, DMSO-d6) 171.6, 167.0, 163.5, 156.0, 154.5, 137.9, 136.5, 136.1,134.5, 133.3, 131.5, 129.3, 128.9, 127.9, 127.6, 125.2, 124.9, 124.0, 123.7, 123.5, 121.3, 118.8, 118.6, 114.8, 111.1, 110.9, 107.3, 77.9, 65.3, 55.9, 55.1, 37.4, 36.3, 29.9, 28.7, 27.9; HRMS (ESI): m/z calcd for C38H40BrN5O6 [M + Na]+: 764.2054; found: 764.2059.
tert-butyl (S)-(3-(2-(5-bromo-2-(quinoline-2-carboxamido)benzamido)-3-(1H-indol-3-yl)propanamido)propyl)carbamate (11e).
The title compound 11e was prepared from compound 11e (0.3 g, 0.54 mmol) and 7e (0.66 mmol; 7e in situ preparation from 7e’ using procedure F) according to the general procedure G. The product 11e was obtained as an off-white solid (265 mg, 69%); 1H NMR (400 MHz, DMSO-d6) δ 12.95 (s, 1H), 10.76 (s, 1H), 9.03 (d, J = 7.9 Hz, 1H), 8.70 (d, J = 9.0 Hz, 1H), 8.63 (d, J = 8.5 Hz, 1H), 8.24 (d, J = 8.5 Hz, 1H), 8.17 (t, J = 5.8 Hz, 1H), 8.10 (dd, J = 8.2, 14.7 Hz, 2H), 7.99 (s, 1H), 7.90 (t, J = 7.2 Hz, 1H), 7.80–7.70 (m, 3H), 7.28–7.20 (m, 2H), 6.97 (dt, J = 6.8, 20.7 Hz, 2H), 6.68 (t, J = 5.5 Hz, 1H), 4.78 (td, J = 5.2, 9.7 Hz, 1H), 3.30–3.24 (m, 1H), 3.24–3.14 (m, 1H), 3.13–3.02 (m, 2H), 2.89–2.80 (m, 2H), 1.46 (q, J = 7.0 Hz, 2H), 1.33 (s, 9H);13C NMR (100 MHz, DMSO-d6) 171.5, 167.1, 163.1, 156.0, 149.8, 146.2, 138.7, 137.9, 136.5, 135.0, 131.7, 131.1, 129.8, 128.9, 128.5, 127.7, 124.0, 123.9, 122.3, 121.3, 119.0, 118.9, 118.9, 118.6, 115.1, 111.7, 110.9, 77.9, 55.1, 37.2, 36.7, 29.9, 28.6, 27.8; HRMS (ESI): m/z calcd for C36H37BrN6O5 [M + Na]+: 735.1901; found: 735.1905.
The analytical data for 12a were already published [20].
(S)-N-(1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-5-bromo-2-(2-(naphthalen-1-yl)acetamido)benzamide (12b).
The title compound 12b was prepared from compound 10c (0.1 g, 0.14 mmol) according to the general procedure H. The product 12b was obtained as gummy solid (0.053 g, 64%); 1H NMR (400 MHz, DMSO-d6) δ 10.86 (s, 2H), 8.91 (d, J = 8.0 Hz, 1H), 8.29 (t, J = 5.8 Hz, 1H), 8.18 (d, J = 9.0 Hz, 1H), 8.03–7.96 (m, 1H), 7.91 (dt, J = 3.0, 8.6 Hz, 1H), 7.88–7.77 (m, 5H), 7.66 (d, J = 7.8 Hz, 1H), 7.61 (dd, J = 2.4, 8.9 Hz, 1H), 7.55–7.46 (m, 2H), 7.43 (t, J = 7.6 Hz, 1H), 7.39–7.32 (m, 2H), 7.14 (d, J = 2.4 Hz, 1H), 7.08 (t, J = 7.0 Hz, 1H), 7.00 (t, J = 7.4 Hz, 1H), 4.70–4.60 (m, 1H), 4.18–3.99 (m, 2H), 3.32–3.27 (m, 2H), 3.19–3.03 (m, 2H), 2.87–2.78 (m, 2H);13C NMR δ C (101 MHz, DMSO-d6) 172.3, 169.8, 167.1, 137.8, 136.5, 134.7, 133.8, 132.3, 132.3, 131.7, 131.2, 128.9, 128.7, 128.0, 127.7, 126.7, 126.2, 124.4, 124.3, 124.1, 122.9, 121.4, 118.9, 118.7, 114.9, 111.8, 110.7, 54.8, 46.1, 42.2, 38.4, 36.6, 27.6; HRMS (ESI): m/z calcd for C32H30BrN5O3 [M + H]+: 612.1605; found: 612.1606.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-2-methoxy-1-naphthamide (12c).
The title compound 12c was prepared from compound 10c (0.1 g, 0.137 mmol) according to the general procedure H. The product 12c was obtained as off-white solid (0.051 g, 60%); 1H NMR (600 MHz, DMSO-d6) δ 10.82 (s, 1H), 9.13 (d, J = 8.1 Hz, 1H), 8.58 (d, J = 8.9 Hz, 1H), 8.28 (t, J = 5.6 Hz, 1H), 8.06 (d, J = 9.2 Hz, 1H), 7.99 (s, 1H), 7.92 (dd, J = 1.3, 8.2 Hz, 1H), 7.80 (d, J = 8.5 Hz, 1H), 7.77 (dd, J = 2.4, 8.9 Hz, 1H), 7.63 (d, J = 7.8 Hz, 1H), 7.54–7.45 (m, 2H), 7.43–7.36 (m, 1H), 7.29 (d, J = 8.0 Hz, 1H), 7.17 (s, 1H), 7.06–7.00 (m, 1H), 6.98–6.91 (m, 1H), 4.60–4.54 (m, 1H), 3.79 (s, 3H), 3.24–3.19 (m, 1H), 3.12–3.06 (m, 3H), 2.57 (t, J = 6.8 Hz, 2H);13C NMR (150 MHz, DMSO-d6) 171.7, 167.2, 166.4, 165.4, 153.8, 138.5, 136.4, 135.1, 131.9, 131.5, 131.0, 128.6, 128.60, 128.0, 127.6, 124.5, 124.0, 123.2, 122.8, 121.3, 120.4, 118.8, 118.7, 115.1, 114.3, 111.8, 110.8, 56.8, 55.0, 27.2; HRMS (ESI): m/z calcd for C32H30BrN5O4 [M + H]+: 628.1554; found: 628.1557.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-3-methoxy-2-naphthamide (12d).
The title compound 12d was prepared from compound 10d (0.1 g, 0.137 mmol) according to the general procedure H. The product 12d was obtained as off-white solid (0.054 g, 63%); 1H NMR (600 MHz, DMSO-d6) δ 10.80 (s, 1H), 9.09 (s, 1H), 8.63 (d, J = 8.9 Hz, 1H), 8.57 (s, 1H), 8.43 (s, 2H), 8.00 (d, J = 8.0 Hz, 1H), 7.88 (d, J = 8.0 Hz, 1H), 7.84 (d, J = 2.5 Hz, 1H), 7.73–7.67 (m, 2H), 7.58 (ddd, J = 1.4, 6.8, 8.2 Hz, 1H), 7.48 (s, 1H), 7.43 (ddd, J = 1.4, 6.8, 8.1 Hz, 1H), 7.22 (d, J = 8.0 Hz, 1H), 7.18 (d, J = 2.5 Hz, 1H), 7.03–6.92 (m, 2H), 4.75–4.68 (m, 1H), 3.89 (s, 3H), 3.30–3.07 (m, 6H), 2.67 (td, J = 2.6, 6.4 Hz, 2H); HRMS (ESI): m/z calcd for C32H30BrN5O4 [M + H]+: 628.1554; found: 628.1555.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)quinoline-2-carboxamide (12e).
The title compound 12e was prepared from compound 10h (0.1 g, 0.14 mmol) according to the general procedure H. The product 12e was obtained as gummy liquid (0.055 g, 64%); 1H NMR (600 MHz, DMSO-d6) δ 12.93 (s, 1H), 10.76 (s, 1H), 9.05 (d, J = 7.8 Hz, 1H), 8.70 (d, J = 8.9 Hz, 1H), 8.65 (d, J = 8.5 Hz, 1H), 8.37 (t, J = 5.8 Hz, 1H), 8.26 (d, J = 8.5 Hz, 1H), 8.13 (dd, J = 1.6, 8.2 Hz, 1H), 8.12–8.05 (m, 1H), 8.00 (d, J = 2.5 Hz, 1H), 7.94–7.87 (m, 1H), 7.82–7.75 (m, 3H), 7.75 (s, 2H), 7.70 (d, J = 7.8 Hz, 1H), 7.28–7.18 (m, 2H), 6.98 (ddd, J = 1.3, 6.9, 8.2 Hz, 1H), 6.92 (td, J = 1.1, 7.0, 7.5 Hz, 1H), 4.87–4.79 (m, 1H), 3.31–3.17 (m, 3H), 2.83 (t, J = 6.8 Hz, 2H);13C NMR (150 MHz, DMSO-d6) 1172.2, 167.1, 163.1, 158.1, 149.8, 146.2, 138.8, 137.9, 136.5, 135.1, 131.8, 131.2, 129.8, 128.6, 127.7, 124.0, 123.9, 122.4, 121.3, 119.0, 118.8, 118.6, 115.1, 111.7, 110.7, 54.9, 38.4, 36.6, 27.5; HRMS (ESI): m/z calcd for C30H27BrN6O3 [M + H]+: 599.1401; found: 599.1403.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-1H-indole-2-carboxamide (12f).
The title compound 12f was prepared from compound 10f (0.1 g, 0.15 mmol) according to the general procedure H. The product 12f was obtained as gummy liquid (0.057 g, 67%); 1H NMR (400 MHz, DMSO-d6) δ 12.21 (s, 1H), 11.90 (s, 1H), 10.82 (s, 1H), 9.17 (d, J = 8.1 Hz, 1H), 8.56 (d, J = 8.9 Hz, 1H), 8.41 (t, J = 5.8 Hz, 1H), 8.08 (s, 1H), 7.82 (s, 2H), 7.80–7.60 (m, 4H), 7.47 (d, J = 8.3 Hz, 1H), 7.33–7.16 (m, 3H), 7.15–6.95 (m, 3H), 6.89 (s, 1H), 4.86–4.76 (m, 1H), 3.37 (dd, J = 4.3, 8.5 Hz, 3H), 3.23–3.12 (m, 1H), 2.86 (t, J = 6.8 Hz, 2H);13C NMR (100 MHz, DMSO-d6) 172.1, 167.8, 159.6, 158.3, 139.0, 137.6, 136.5, 135.5, 131.8, 131.6, 127.6, 127.3, 124.6, 124.0, 122.3, 122.2, 121.7, 121.4, 120.7, 118.7, 114.6, 113.0, 111.8, 110.7, 103.3, 54.9, 39.9, 37.1, 27.6; HRMS (ESI): m/z calcd for C29H27BrN6O3 [M + H]+: 587.1401; found: 587.1407.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)thiophene-2-carboxamide (12g).
The title compound 12g was prepared from compound 10g (0.1 g, 0.15 mmol) according to the general procedure H. The product 12g was obtained as off-white solid (0.058 g, 69%); 1H NMR (400 MHz, DMSO-d6) δ 12.01 (s, 1H), 10.81 (s, 1H), 9.14 (d, J = 8.0 Hz, 1H), 8.45–8.31 (m, 2H), 8.01 (s, 1H), 7.91 (dd, J = 1.2, 5.0 Hz, 1H), 7.83 (s, 2H), 7.73 (dd, J = 2.3, 8.9 Hz, 1H), 7.67 (d, J = 7.5 Hz, 1H), 7.52 (dd, J = 1.2, 3.8 Hz, 1H), 7.27 (d, J = 7.9 Hz, 1H), 7.24–7.15 (m, 2H), 7.07–6.93 (m, 2H), 4.80–4.70 (m, 1H), 3.39–3.33 (m, 5H), 3.20–3.09 (m, 1H), 2.85 (t, J = 6.9 Hz, 2H);13C NMR (100 MHz, DMSO-d6) 1172.1, 167.7, 159.7, 139.8, 138.5, 136.5, 135.3, 133.0, 131.5, 129.1, 128.9, 127.6, 124.0, 122.7, 121.4, 118.8, 118.7, 115.0, 111.8, 110.7, 54.9, 339.9, 38.8, 27.5; HRMS (ESI): m/z calcd for C25H24BrN5O3S [M + H]+: 554.0856; found: 554.0860.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)thiophene-3-carboxamide (12h).
The title compound 12h was prepared from compound 10h (0.1 g, 0.15 mmol) according to the general procedure H. The product 12h was obtained as off-white solid (0.055 g, 67%); 1H NMR (400 MHz, DMSO-d6) δ 11.83 (s, 1H), 10.81 (s, 1H), 9.12 (d, J = 8.1 Hz, 1H), 8.42 (d, J = 8.9 Hz, 1H), 8.35 (t, J = 5.7 Hz, 1H), 8.06 (dd, J = 1.4, 3.0 Hz, 1H), 7.99 (d, J = 2.3 Hz, 1H), 7.82 (s, 2H), 7.76–7.57 (m, 4H), 7.38 (s, 1H), 7.28 (d, J = 8.0 Hz, 1H), 7.18 (s, 1H), 7.06–6.93 (m, 2H), 4.80–4.70 (m, 1H), 3.51–3.35 (m, 2H), 3.25–3.04 (m, 2H), 2.84 (t, J = 6.8 Hz, 2H);13C NMR (100 MHz, DMSO-d6) 172.1, 167.7, 160.7, 138.7, 138.0, 136.5, 135.3, 131.5, 130.5, 128.5, 127.6, 126.3, 124.0, 122.7, 121.4, 118.8, 114.9, 111.8, 110.7, 54.9, 39.9, 38.8, 27.5;.; HRMS (ESI): m/z calcd for C25H24BrN5O3S [M + H]+: 554.0856; found: 554.0859.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-[1,1′-biphenyl]-2-carboxamide (12i).
The title compound 12i was prepared from compound 10m (0.1 g, 0.14 mmol) according to the general procedure H. The product 12i was obtained as gummy solid (0.058 g, 67%); 1H NMR (600 MHz, DMSO-d6) δ 11.22 (s, 1H), 10.85 (d, J = 2.5 Hz, 1H), 8.93 (d, J = 7.8 Hz, 1H), 8.25 (t, J = 5.7 Hz, 1H), 8.16 (d, J = 8.9 Hz, 1H), 7.89 (d, J = 2.3 Hz, 1H), 7.85–7.71 (m, 3H), 7.70–7.42 (m, 7H), 7.37–7.19 (m, 7H), 7.16 (d, J = 2.5 Hz, 1H), 7.06 (ddd, J = 1.4, 6.9, 8.2 Hz, 1H), 6.98 (td, J = 1.2, 7.0, 7.5 Hz, 1H), 4.62–4.54 (m, 1H), 3.31–3.20 (m, 3H), 3.10 (dd, J = 9.8, 14.8 Hz, 1H), 2.77 (t, J = 6.9 Hz, 2H).; 13C NMR (150 MHz, DMSO-d6) 172.1, 167.8, 167.1, 158.5, 158.3, 140.1, 140.0, 138.2, 136.7, 136.5, 131.3, 130.9, 130.8, 128.7, 128.0, 127.8, 127.6, 124.0, 123.5, 122.8, 121.4, 118.8, 118.7, 115.2, 111.8, 110.7, 65.3, 54.9, 39.5, 37.0, 27.5; HRMS (ESI): m/z calcd for C33H30BrN5O3 [M + H]+: 624.1605; found: 624.1607.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-[1,1′-biphenyl]-3-carboxamide (12j).
The title compound 12j was prepared from compound 10j (0.1 g, 0.14 mmol) according to the general procedure H. The product 12j was obtained as off-white solid (0.061 g, 70%); 1H NMR (400 MHz, DMSO-d6) δ 12.09 (s, 1H), 10.82 (s, 1H), 9.14 (d, J = 8.0 Hz, 1H), 8.50 (d, J = 9.0 Hz, 1H), 8.34 (q, J = 6.6, 7.4 Hz, 1H), 8.12 (s, 1H), 8.01 (s, 1H), 7.92 (dt, J = 1.4, 7.7 Hz, 1H), 7.82–7.68 (m, 6H), 7.68–7.59 (m, 2H), 7.51 (dd, J = 6.7, 8.4 Hz, 2H), 7.47–7.38 (m, 1H), 7.26 (d, J = 8.0 Hz, 1H), 7.18 (s, 1H), 7.06–6.98 (m, 1H), 6.98–6.90 (m, 1H), 4.79–4.69 (m, 1H), 3.36–3.11 (m, 4H), 2.82 (q, J = 5.7, 6.1 Hz, 2H);13C NMR (100 MHz, DMSO-d6) 1172.1, 167.7, 164.9, 141.2, 139.6, 138.7, 136.5, 135.5, 135.3, 131.6, 130.8, 130.1, 129.6, 128.4, 127.6, 127.3, 126.2, 125.8, 124.0, 118.8, 118.7, 115.2, 111.8, 110.8, 54.9, 42.2, 37.0, 27.5; HRMS (ESI): m/z calcd for C33H30BrN5O3 [M + H]+: 624.1605; found: 624.1606.
(S)-N-(2-((1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-[1,1′-biphenyl]-4-carboxamide (12k).
The title compound 12k was prepared from compound 10k (0.1 g, 0.14 mmol) according to the general procedure H. The product 12k was obtained as off-white solid (0.060 g, 70%); 1H NMR (600 MHz, DMSO-d6) δ 12.06 (s, 1H), 10.82 (s, 1H), 9.16 (d, J = 8.1 Hz, 1H), 8.54 (d, J = 8.9 Hz, 1H), 8.38 (t, J = 5.7 Hz, 1H), 8.02 (s, 1H), 7.90–7.73 (m, 11H), 7.92–7.72 (m, 11H), 7.67 (d, J = 7.8 Hz, 1H), 7.52 (t, J = 7.7 Hz, 2H), 7.44 (t, J = 7.4 Hz, 1H), 7.26 (d, J = 8.0 Hz, 1H), 7.19 (s, 1H), 7.00 (dt, J = 7.1, 29.3 Hz, 2H), 4.80–4.74 (m, 1H), 3.41–3.35 (m, 3H), 3.19–3.12 (m, 1H), 2.85 (t, J = 7.2 Hz, 2H);13C NMR (75 MHz, CDCl3): δ δ C (151 MHz, DMSO-d6) 1172.1, 167.8, 164.6, 158.5, 158.3, 144.1, 139.3, 138.8, 136.5, 135.3, 133.4, 131.5, 129.5, 128.8, 128.1, 127.6, 127.67, 127.6, 127.4, 124.0, 122.8, 122.7, 121.3, 118.8, 118.7, 115.0, 111.8, 110.8, 54.9, 38.8, 37.1, 27.6; HRMS (ESI): m/z calcd for C25H24BrN5O3S [M + H]+: 624.1605; found: 624.1605.
(S)-N-(2-((1-((3-aminopropyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-2-naphthamide (13a).
The title compound 13a was prepared from compound 11a (0.1 g, 0.14 mmol) according to the general procedure H. The product 13a was obtained as gummy solid (0.052 g, 62%); 1H NMR (600 MHz, DMSO-d6) δ 12.18 (s, 1H), 10.82 (s, 1H), 9.20 (d, J = 8.1 Hz, 1H), 8.53 (d, J = 8.9 Hz, 1H), 8.44 (s, 1H), 8.39 (d, J = 6.0 Hz, 1H), 8.08–7.97 (m, 4H), 7.87–7.55 (m, 9H), 7.26 (d, J = 8.1 Hz, 1H), 7.21 (s, 1H), 7.01 (t, J = 7.6 Hz, 1H), 6.97 (t, J = 7.6 Hz, 1H), 4.78–4.68 (m, 1H), 3.29–3.26 (m, 1H), 3.20–3.13 (m, 3H), 2.76–2.70 (m, 2H), 1.68 (p, J = 7.3 Hz, 2H); HRMS (ESI): m/z calcd for C32H30BrN5O3 [M + H]+: 612.1605; found: 612.1606.
(S)-N-(1-((3-aminopropyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-5-bromo-2-(2-(naphthalen-1-yl)acetamido)benzamide (13b).
The title compound 13b was prepared from compound 11b (0.1 g, 0.14 mmol) according to the general procedure H. The product 13b was obtained as pale brown solid (0.060 g, 69%); 1H NMR (600 MHz, DMSO-d6) δ 10.85 (s, 1H), 8.93 (s, 1H), 8.41 (s, 1H), 8.27 (t, J = 5.9 Hz, 1H), 8.17 (d, J = 8.9 Hz, 1H), 8.03–7.98 (m, 1H), 7.94–7.86 (m, 1H), 7.85–7.78 (m, 2H), 7.69 (d, J = 7.8 Hz, 1H), 7.60 (dd, J = 2.3, 8.9 Hz, 1H), 7.53–7.46 (m, 2H), 7.46–7.37 (m, 2H), 7.34 (d, J = 8.1 Hz, 1H), 7.16 (s, 1H), 7.10–7.04 (m, 1H), 7.04–6.98 (m, 1H), 4.64–4.59 (m, 1H), 4.10 (d, J = 15.6 Hz, 2H), 3.20–3.13 (m, 2H), 3.13–3.07 (m, 2H), 2.65 (t, J = 7.1 Hz, 2H), 1.63–1.55 (m, 2H);13C NMR (δ C (151 MHz, DMSO-d6) 171.9, 169.8, 167.06, 166.0, 137.9, 136.5, 134.5, 133.8, 132.3, 131.8, 131.2, 128.9, 128.7, 128.0, 127.7, 126.7, 126.2, 126.0, 124.4, 124.4, 124.1, 122.9, 121.3, 118.9, 118.7, 114.8, 111.8, 110.8, 54.9, 42.1, 39.5, 27.7; HRMS (ESI): m/z calcd for C33H32BrN5O3 [M + H]+: 626.1761; found: 626.1763.
(S)-N-(2-((1-((3-aminopropyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-2-methoxy-1-naphthamide (13c).
The title compound 13c was prepared from compound 11c (0.1 g, 0.14 mmol) according to the general procedure H. The product 13c was obtained as off-white solid (0.060 g, 67%); 1H NMR (600 MHz, DMSO-d6) δ 10.86 (s, 1H), 9.18 (s, 1H), 8.58 (d, J = 8.9 Hz, 1H), 8.47 (s, 1H), 8.28 (t, J = 5.8 Hz, 1H), 8.06 (d, J = 9.1 Hz, 1H), 8.01 (d, J = 2.5 Hz, 1H), 7.94–7.90 (m, 1H), 7.80 (d, J = 8.5 Hz, 1H), 7.77 (dd, J = 2.5, 8.8 Hz, 1H), 7.63 (d, J = 8.0 Hz, 1H), 7.51 (d, J = 9.1 Hz, 1H), 7.47 (ddd, J = 1.4, 6.7, 8.4 Hz, 1H), 7.40 (ddd, J = 1.2, 6.7, 8.1 Hz, 1H), 7.29 (s, 1H), 7.17 (s, 1H), 7.06–7.01 (m, 1H), 6.95 (t, J = 7.4 Hz, 1H), 4.54 (dd, J = 4.9, 10.0 Hz, 1H), 3.77 (s, 3H), 3.23–3.18 (m, 1H), 3.14–2.96 (m, 4H), 2.54 (tt, J = 3.6, 7.3 Hz, 2H), 1.50 (p, J = 7.0 Hz, 2H);13C NMR (150 MHz, DMSO-d6) 171.9, 167.0, 166.2, 163.5,154.5, 137.9, 136.5, 136.1, 134.5, 133.3, 131.5, 129.3, 128.9, 127.9, 127.7, 126.8, 125.3, 124.9, 124.0, 123.7, 123.5, 121.3, 118.8, 118.6, 114.9, 111.7, 110.8, 107.3, 56.0, 55.1, 40.5, 27.9; HRMS (ESI): m/z calcd for C33H32BrN5O4 [M + H]+: 642.1710; found: 642.1713.
(S)-N-(2-((1-((3-aminopropyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)-3-methoxy-2-naphthamide (13d).
The title compound 13d was prepared from compound 12d (0.1 g, 0.14 mmol) according to the general procedure H. The product 13d was obtained as off-white solid (0.054 g, 60%); 1H NMR (600 MHz, DMSO-d6) δ 11.85 (s, 1H), 10.85 (s, 1H), 9.15 (d, J = 8.1 Hz, 1H), 8.64 (s, 1H), 8.57 (s, 1H), 8.47–8.41 (m, 2H), 8.00 (d, J = 7.8 Hz, 1H), 7.90–7.81 (m, 2H), 7.73–7.67 (m, 2H), 7.58 (ddd, J = 1.4, 6.8, 8.2 Hz, 1H), 7.47 (s, 1H), 7.42 (ddd, J = 1.2, 6.7, 8.1 Hz, 1H), 7.23 (d, J = 8.0 Hz, 1H), 7.19 (d, J = 2.3 Hz, 1H), 7.04–6.93 (m, 2H), 4.73–4.66 (m, 1H), 3.88 (s, 3H), 3.28–3.24 (m, 1H), 3.19–3.11 (m, 3H), 2.67 (t, J = 7.2 Hz, 2H), 1.66–1.61 (m, 2H).;13C NMR δ C (151 MHz, DMSO-d6) 172.0-, 167.0, 166.3, 163.5, 154.5, 137.9, 136.5, 136.1, 134.5, 133.3, 131.5, 129.3, 128.9, 127.9, 127.6, 126.8, 125.2, 124.9, 124.1, 123.7, 123.5, 121.3, 118.8, 118.7, 114.9, 111.8, 110.8, 107.3, 56.0, 55.2, 40.4, 37.3, 28.8, 28.0.; HRMS (ESI): m/z calcd for C33H32BrN5O4 [M + H]+: 642.1710; found: 642.1713.
(S)-N-(2-((1-((3-aminopropyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)-4-bromophenyl)quinoline-2-carboxamide (13e).
The title compound 13e was prepared from compound 11e (0.1 g, 0.14 mmol) according to the general procedure H. The product 13e was obtained as gummy solid (0.054 g, 63%); 1H NMR (600 MHz, DMSO-d6) δ 12.93 (s, 1H), 10.77 (s, 1H), 9.07 (d, J = 7.8 Hz, 1H), 8.70 (d, J = 8.9 Hz, 1H), 8.64 (d, J = 8.4 Hz, 1H), 8.39 (t, J = 5.9 Hz, 1H), 8.25 (d, J = 8.4 Hz, 1H), 8.13 (dd, J = 1.5, 8.2 Hz, 1H), 8.10–8.04 (m, 1H), 8.01 (s, 1H), 7.91 (ddd, J = 1.5, 6.9, 8.4 Hz, 1H), 7.82–7.74 (m, 2H), 7.71 (d, J = 7.8 Hz, 1H), 7.66 (s, 2H), 7.28–7.21 (m, 2H), 7.04–6.92 (m, 2H), 4.79 (ddd, J = 5.2, 7.8, 9.8 Hz, 1H), 3.30–3.21 (m, 2H), 3.17 (q, J = 6.6 Hz, 2H), 2.78–2.63 (m, 2H), 1.67 (p, J = 7.0 Hz, 2H);13C NMR δ C (151 MHz, DMSO-d6) 172.2, 167.2, 163.1, 149.8, 146.2, 138.8, 137.9, 136.5, 135.0, 131.8, 131.1, 129.8, 129.5, 129.0, 128.6, 127.6, 124.0, 123.9, 122.4, 121.3, 119.0, 118.8, 118.6, 115.1, 111.8, 110.8, 55.0, 40.5, 37.1, 36.1, 27.8; HRMS (ESI): m/z calcd for C31H29BrN6O3 [M + H]+: 613.1557; found: 613.1560.
tert-butyl (S)-(2-(2-(4-amino-[1,1′-biphenyl]-3-carboxamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (15a).
The title compound 15a was prepared from compound 5a (0.25 g, 0.46 mmol) and 16a (0.084 g, 0.69 mmol) according to the general procedure I. The product 15a was obtained as an off-white solid (0.151 g, 61%); 1H NMR (300 MHz, DMSO-d6) δ 10.80 (s, 1H), 8.42 (d, J = 8.0 Hz, 1H), 8.12 (t, J = 5.9 Hz, 1H), 7.86–7.56 (m, 4H), 7.53–7.17 (m, 6H), 7.15–6.89 (m, 3H), 6.85–6.64 (m, 2H), 6.46 (s, 2H), 4.64 (dd, J = 4.9, 8.1 Hz, 1H), 3.30–3.09 (m, 4H), 3.09–2.98 (m, 2H), 1.37 (d, J = 1.5 Hz, 9H);13C NMR (75 MHz, DMSO-d6) 172.5, 169.0, 156.1, 148.9, 137.6, 136.5, 132.7, 132.5, 132.0, 131.9, 130.3, 129.2, 129.1, 127.8, 126.9, 125.9, 124.0, 121.2, 118.9, 118.6, 117.5, 111.7, 111.2, 78.1, 54.6, 39.3, 34.6, 27.9; HRMS (ESI): m/z calcd for C31H35N5O4 [M + H]+: 542.2762; found: 542.2765.
tert-butyl (S)-(2-(2-(4-amino-4′-(tert-butyl)-[1,1′-biphenyl]-3-carboxamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (15a).
The title compound 15a was prepared from compound 6a (0.25 g, 0.46 mmol) and 14a (0.122 g, 0.69 mmol) according to the general procedure I. The product 15a was obtained as an off-white solid (0.178 g, 65%); 1H NMR (400 MHz, DMSO-d6) δ 10.81 (s, 1H), 8.41 (d, J = 7.7 Hz, 1H), 8.12 (t, J = 5.9 Hz, 1H), 7.78 (s, 1H), 7.71 (d, J = 7.7 Hz, 1H), 7.69–7.51 (m, 5H), 7.49–7.41 (m, 3H), 7.30 (d, J = 8.1 Hz, 1H), 7.22 (s, 1H), 7.09–7.01 (m, 1H), 7.01–6.93 (m, 1H), 6.76 (d, J = 8.5 Hz, 2H), 4.64 (td, J = 5.0, 9.2 Hz, 1H), 3.18–2.97 (m, 6H), 1.36 (s, 9H), 1.32 (s, 9H);13C NMR (100 MHz, DMSO-d6) 172.5, 169.0, 156.1, 148.9, 137.6, 136.5, 132.7, 132.5, 132.0, 131.9, 130.3, 129.2, 129.1, 127.8, 126.9, 125.9, 124.0, 121.2, 118.9, 118.6, 117.5, 111.7, 111.2, 78.1, 54.6, 39.3, 34.6, 27.9.
tert-butyl (S)-(2-(2-(2-amino-5-(naphthalen-2-yl)benzamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (15b).
The title compound 15b was prepared from compound 6a (0.25 g, 0.46 mmol) and 14b (0.118 g, 0.69 mmol) according to the general procedure I. The product 15b was obtained as pale yellow solid (0.171 g, 63%); 1H NMR (400 MHz, DMSO-d6) δ 10.81 (s, 1H), 8.53–8.46 (m, 1H), 8.15 (s, 2H), 8.02–7.85 (m, 5H), 7.76 (d, J = 7.8 Hz, 1H), 7.65 (dd, J = 2.2, 8.6 Hz, 1H), 7.57–7.43 (m, 2H), 7.34–7.23 (m, 2H), 7.09–6.92 (m, 2H), 6.79 (dd, J = 7.1, 9.5 Hz, 2H), 6.53 (s, 2H), 4.67 (td, J = 5.1, 9.3 Hz, 1H), 3.25–2.99 (m, 6H), 1.37 (s, 9H);13C NMR (101 MHz, DMSO-d6) 172.6, 169.1, 156.1, 149.8, 137.9, 136.5, 133.9, 132.0, 130.7, 128.6, 128.3, 127.9, 127.8, 127.3, 126.7, 126.4, 125.8, 125.2, 124.0, 123.6, 121.2, 119.0, 118.6, 117.4, 114.9, 111.7, 111.3, 78.1, 65.3, 54.7, 39.3, 28.7, 27.9; HRMS (ESI): m/z calcd for C35H37N5O4 [M + Na]+: 614.2738; found: 614.2732.
tert-butyl (S)-(2-(2-(4-amino-4′-fluoro-[1,1′-biphenyl]-3-carboxamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (15c).
The title compound 15c was prepared from compound 6a (0.25 g, 0.46 mmol) and 14c (0.096 g, 0.69 mmol) according to the general procedure I. The product 15c was obtained as an off-white solid (0.167 g, 65%); 1H NMR (400 MHz, DMSO-d6) δ 10.79 (s, 1H), 8.41 (d, J = 8.3 Hz, 1H), 8.12 (t, J = 5.8 Hz, 1H), 7.93–7.55 (m, 5H), 7.73–7.61 (m, 4H), 7.44 (dd, J = 2.2, 8.5 Hz, 1H), 7.30–7.20 (m, 4H), 7.00 (dt, J = 7.4, 31.7 Hz, 3H), 6.78–6.70 (m, 2H), 6.44 (s, 2H), 4.67–4.61 (m, 1H), 3.20–3.10 (m, 4H), 3.03–2.96 (m, 2H), 1.36 (s, 9H); 13C NMR (100 MHz, DMSO-d6) 172.5, 169.1, 162.7, 160.3, 156.1, 149.5, 137.0, 136.4, 130.4, 127.9, 127.8, 127.0, 125.7, 124.0, 121.3, 118.9, 118.6, 117.2, 115.9, 115.7, 114.8, 111.7, 111.2, 79.6, 78.1, 54.6, 39.3, 28.6, 27.9; HRMS (ESI): m/z calcd for C31H34FN5O4 [M + Na]+: 582.2487; found: 582.2482.
tert-butyl (S)-(2-(2-(4-amino-4′-(trifluoromethyl)-[1,1′-biphenyl]-3-carboxamido)-3-(1H-indol-3-yl)propanamido)ethyl)carbamate (15d).
The title compound 15d was prepared from compound 5a (0.25 g, 0.46 mmol) and 15f (0.131 g, 0.69 mmol) according to the general procedure I. The product 15f was obtained as an off-white solid (0.168 g, 60%); 1H NMR (400 MHz, DMSO-d6) δ 10.80 (s, 1H), 8.47 (d, J = 8.3 Hz, 1H), 8.14 (t, J = 5.7 Hz, 1H), 7.89–7.82 (m, 3H), 7.75 (dd, J = 8.1, 19.7 Hz, 3H), 7.56 (dd, J = 2.2, 8.6 Hz, 1H), 7.30 (d, J = 8.0 Hz, 1H), 7.23 (s, 1H), 7.08–7.00 (m, 1H), 7.00–6.92 (m, 1H), 6.82–6.72 (m, 2H), 6.60 (s, 2H), 4.65 (td, J = 4.8, 9.8 Hz, 1H), 3.24–2.97 (m, 6H), 1.36 (s, 9H);13C NMR (100 MHz, DMSO-d6) 172.5, 168.9, 156.1, 150.4, 144.4, 136.5, 135.1, 130.6, 127.8, 127.7, 126.8, 126.5, 126.4, 126.0, 124.7, 124.1, 123.7, 121.3, 118.9, 118.6, 117.3, 114.9, 118.6, 117.3, 114.9, 111.7, 111.2, 78.1, 54.5, 39.3, 31.4, 28.6, 27.9; HRMS (ESI): m/z calcd for C32H34F3N5O4 [M + Na]+: 632.2455; found: 632.2451.
(S)-4-amino-N-(1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-[1,1’-biphenyl]-3-carboxamide (16a).
The title compound 16a was prepared from compound 15a (0.1 g, 0.18 mmol) according to the general procedure H. The product 16a was obtained as off-white solid (0.054 g, 67%); 1H NMR (600 MHz, DMSO-d6) δ 10.86 (s, 1H), 8.84 (d, J = 8.1 Hz, 1H), 8.45 (q, J = 4.7, 5.2 Hz, 1H), 8.15–8.06 (m, 3H), 7.88 (s, 1H), 7.78–7.67 (m, 3H), 7.62 (dd, J = 2.2, 8.4 Hz, 1H), 7.47 (t, J = 7.7 Hz, 3H), 7.36–7.20 (m, 3H), 7.08–7.00 (m, 2H), 6.94 (t, J = 7.4 Hz, 1H), 4.73–4.69 (m, 1H), 3.42–3.31 (m, 3H), 3.25–3.17 (m, 1H), 2.91–2.83 (m, 2H);13C NMR (150 MHz, DMSO-d6) 172.2, 167.8, 139.4, 136.0, 132.0, 131.5, 130.1, 128.8, 128.7, 127.4, 126.9, 126.8, 126.1, 123.7, 123.6, 120.9, 120.8, 118.5, 118.2, 111.3, 110.7, 110.5, 54.4, 38.4, 36.6, 27.2; HRMS (ESI): m/z calcd for C26H27N5O2 [M + H]+: 442.2237; found: 442.2238.
(S)-4-amino-N-(1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-4′-(tert-butyl)-[1,1′-biphenyl]-3-carboxamide (16a).
The title compound 16a was prepared from compound 15a (0.1 g, 0.17 mmol) according to the general procedure H. The product 16a was obtained as off-white solid (0.057 g, 69%); 1H NMR (400 MHz, DMSO-d6) δ 10.85 (s, 1H), 8.80 (d, J = 8.1 Hz, 1H), 8.42 (t, J = 5.4 Hz, 1H), 8.06 (s, 4H), 7.87 (s, 1H), 7.73 (d, J = 7.6 Hz, 1H), 7.63–7.57 (m, 5H), 7.51–7.44 (m, 3H), 7.30 (d, J = 8.1 Hz, 1H), 7.24 (s, 1H), 7.06–6.93 (m, 4H), 4.71–4.66 (m, 1H), 3.34–3.29 (m, 2H), 3.24–3.15 (m, 2H), 2.88–2.83 (m, 2H), 1.33 (s, 9H);13C NMR (100 MHz, DMSO-d6) 172.7, 168.7, 149.5, 137.0, 136.5, 130.3, 129.3, 127.8, 127.1, 126.3, 126.0, 124.1, 121.2, 118.9, 118.7, 111.8, 111.1, 54.8, 39.3, 37.0, 27.7, 27.6; HRMS (ESI): m/z calcd for C30H35N5O2 [M + H]+: 498.2864; found: 498.2857.
(S)-2-amino-N-(1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-5-(naphthalen-2-yl)benzamide (16b).
The title compound 16b was prepared from compound 15b (0.1 g, 0.17 mmol) according to the general procedure H. The product 16b was obtained as off-white solid (0.058 g, 70%); 1H NMR (400 MHz, DMSO-d6) δ 10.86 (s, 1H), 8.97 (d, J = 8.1 Hz, 1H), 8.50 (t, J = 5.5 Hz, 1H), 8.31–8.26 (m, 1H), 8.15 (s, 2H), 8.09 (s, 1H), 8.04–7.91 (m, 4H), 7.84–7.75 (m, 2H), 7.60–7.47 (m, 2H), 7.34–7.20 (m, 2H), 7.12 (d, J = 8.4 Hz, 1H), 7.07–6.97 (m, 1H), 6.97–6.88 (m, 1H), 4.78–4.70 (m, 1H), 3.43–3.26 (m, 4H), 2.89 (q, J = 6.1 Hz, 2H);13C NMR δ C (101 MHz, DMSO-d6) 172.6, 168.1, 137.1, 136.5, 133.8, 132.4, 130.7, 128.8, 128.5, 127.9, 127.8, 127.6, 126.8, 126.3, 125.3, 124.7, 124.1, 121.2, 120.6, 119.0, 118.6, 111.8, 111.2, 66.8, 55.0, 37.0, 27.7; HRMS (ESI): m/z calcd for C30H35N5O2 [M + H]+: 498.2394; found: 498.2390.
(S)-4-amino-N-(1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-4′-fluoro-[1,1′-biphenyl]-3-carboxamide (16c).
The title compound 16c was prepared from compound 15c (0.1 g, 0.18 mmol) according to the general procedure H. The product 16c was obtained as off-white solid (0.053 g, 65%); 1H NMR (400 MHz, DMSO-d6) δ 10.86 (s, 1H), 8.91 (d, J = 8.4 Hz, 1H), 8.47 (t, J = 5.7 Hz, 1H), 8.14 (s, 2H), 7.85 (s, 1H), 7.81–7.65 (m, 3H), 7.62 (dd, J = 2.2, 8.4 Hz, 1H), 7.36–7.20 (m, 4H), 7.11–6.89 (m, 3H), 4.73–4.70 (m, 1H), 3.47–3.29 (m, 3H), 3.27–3.16 (m, 1H), 2.94–2.82 (m, 2H); 13C NMR (100 MHz, DMSO-d6) 172.6, 168.0, 163.2, 160.8, 136.5, 136.2, 130.4, 128.6, 128.5, 127.8, 127.3, 124.1, 121.2, 120.7, 118.9, 118.7, 116.1, 115.9, 111.8, 111.1, 66.8, 54.8, 40.6, 37.0, 27.7; HRMS (ESI): m/z calcd for C26H26FN5O2 [M + H]+: 460.2143; found: 460.2144.
(S)-4-amino-N-(1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-4′-(trifluoromethyl)-[1,1′-biphenyl]-3-carboxamide (16d).
The title compound 16d was prepared from compound 15d (0.1 g, 0.16 mmol) according to the general procedure H. The product 16d was obtained as off-white solid (0.052 g, 62%); 1H NMR (400 MHz, DMSO-d6) δ 10.85 (s, 1H), 8.76 (d, J = 8.2 Hz, 1H), 8.44 (t, J = 5.7 Hz, 1H), 8.11 (s, 3H), 8.02–7.88 (m, 3H), 7.86–7.57 (m, 5H), 7.46–7.20 (m, 3H), 7.12–6.88 (m, 4H), 4.72–4.68 (m, 1H), 3.42–3.29 (m, 3H), 3.21 (dd, J = 10.0, 14.6 Hz, 1H), 2.87 (h, J = 6.0 Hz, 2H);13C NMR δ C (101 MHz, DMSO-d6) 172.8, 168.5, 144.1, 136.5, 130.7, 127.89, 127.8, 127.1, 126.7, 126.3, 126.0, 126.05, 124.1, 123.6, 121.2, 118.9, 118.6, 118.68, 111.8, 111.1, 54.7, 40.6, 37.02, 27.8; HRMS (ESI): m/z calcd for C27H26F3N5O2 [M + H]+: 510.2108; found: 510.2111.
(S)-2-amino-N-(1-((2-aminoethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)-5-bromobenzamide (17).
The title compound 17 was prepared from compound 5a (0.1 g, 0.17 mmol) according to the general procedure H. The product 17 was obtained as gummy solid (0.064 g, 85%); 1H NMR (400 MHz, DMSO-d6) δ 10.85 (s, 1H), 8.57 (d, J = 7.9 Hz, 1H), 8.39 (t, J = 5.7 Hz, 1H), 8.12 (s, 2H), 7.77 (d, J = 2.4 Hz, 1H), 7.70 (d, J = 7.6 Hz, 1H), 7.37–7.27 (m, 2H), 7.19 (d, J = 2.4 Hz, 1H), 7.05 (ddd, J = 1.4, 7.0, 8.2 Hz, 1H), 6.98 (ddd, J = 1.2, 6.9, 8.0 Hz, 1H), 6.75 (d, J = 8.8 Hz, 1H), 4.68–4.58 (m, 2H), 3.47–3.03 (m, 4H), 2.90–2.78 (m, 2H);13C NMR (100 MHz, DMSO-d6) 172.2, 167.1, 146.4, 136.0, 134.4, 130.8, 127.3, 123.6, 120.9, 119.6, 118.5, 118.2, 117.5, 111.4, 110.6, 107.1, 54.3, 38.4, 36.5, 27.2; HRMS (ESI): m/z calcd for C20H22BrN5O2 [M + H]+: 444.1030; found: 444.1037.
di-tert-butyl ((RS)-6-((2-((S)-2-(2-(2-naphthamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)amino)-6-oxohexane-1,5-diyl)dicarbamate (18a).
The title compound 18a was prepared from Boc-Lys(Boc)-Osu (0.142 g, 0.32 mmol) and 12a (0.2 g, 0.32 mmol) according to the general procedure J. The product 18a was obtained as an off-white solid (0.16 g, 55%); 1H NMR1H NMR (400 MHz, DMSO-d6): δ 12.19 (s, 1H), 10.80 (d, J = 1.5 Hz, 1H), 9.14 (d, J = 7.7 Hz, 1H), 8.56 (d, J = 8.9 Hz, 1H), 8.43 (s, 1H), 8.27 (bs, 1H), 8.08–7.99 (m, 4H), 7.91–7.82 (m, 2H), 7.77 (dd, J = 8.9, 2.3 Hz, 1H), 7.73–7.60 (m, 3H), 7.25 (d, J = 7.4 Hz, 1H), 7.20 (d, J = 2.3 Hz, 1H), 7.04–6.93 (m, 2H), 6.79–6.65 (m, 2H), 4.79–4.66 (m, 1H), 3.87–3.71 (m, 1H), 3.32– 3.26 (m, 1H), 3.23–3.02 (m, 5H), 2.91–2.78 (m, 2H), 1.49–1.11 (m, 24H); 13C NMR (100 MHz, DMSO-d6): δ 172.8, 171.6, 167.8, 165.1, 155.9, 138.9, 136.5, 135.3, 134.9, 132.6, 132.1, 131.6, 129.6, 129.1, 128.6, 128.4, 128.2, 127.7, 127.5, 124.0, 123.7, 123.1, 122.8, 121.4, 118.9, 118.7, 115.1, 111.8, 111.0, 78.4, 77.8, 55.1, 54.9, 39.0, 38.7, 33.5, 32.1, 29.7, 28.7, 28.6, 27.8, 23.3.; HRMS (ESI): m/z calcd for C49H58BrN7O8 [M + Na]+: 974.3422; found: 974.3420.
di-tert-butyl ((S)-6-((2-((S)-2-(2-([1,1′-biphenyl]-3-carboxamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)amino)-6-oxohexane-1,5-diyl)dicarbamate (18b).
The title compound 18b was prepared from Boc-Lys(Boc)-Osu (0.142 g, 0.32 mmol) and 12j (0.2 g, 0.32 mmol) according to the general procedure J. The product 18b was obtained as an off-white solid (0.15 g, 56%); 1H NMR (400 MHz, DMSO-d6) δ 12.13 (s, 1H), 10.79 (s, 1H), 9.12 (d, J = 8.1 Hz, 1H), 8.52 (d, J = 8.9 Hz, 1H), 8.24 (s, 1H), 8.11 (s, 1H), 8.02 (s, 1H), 7.88 (q, J = 5.8, 7.5 Hz, 2H), 7.79–7.65 (m, 5H), 7.61 (t, J = 7.7 Hz, 1H), 7.50 (t, J = 7.6 Hz, 2H), 7.42 (dd, J = 6.2, 8.5 Hz, 1H), 7.26 (d, J = 7.9 Hz, 1H), 7.19 (s, 1H), 7.01 (t, J = 7.5 Hz, 1H), 6.94 (t, J = 7.5 Hz, 1H), 6.75–6.68 (m, 2H), 4.74–4.64 (m, 1H), 3.85–3.71 (m, 1H), 3.30–2.97 (m, 6H), 2.85 (d, J = 6.5 Hz, 2H), 1.66–1.42 (m, 2H), 1.35 (s, 18H), 1.31–1.16 (m, 4H);13C NMR (100 MHz, DMSO-d6) 172.8, 171.5, 167.7,164.9, 156.0, 155.7, 141.2, 139.7, 138.7, 136.5, 135.5, 135.2, 131.6, 130.8, 130.0, 129.6, 128.4, 127.6, 126.2, 125.8, 124.0, 123.1, 122.7, 121.3, 118.9, 118.7, 115.1, 111.7, 110.9, 78.4, 77.7, 55.1, 54.8, 39.9, 38.6, 29.6, 28.7, 28.6, 27.7, 23.2; HRMS (ESI): m/z calcd for C49H58BrN7O8 [M + Na]+: 974.3422; found: 974.3420.
Di-tert-butyl ((S)-6-((2-((S)-2-(2-([1,1′-biphenyl]-4-carboxamido)-5-bromobenzamido)-3-(1H-indol-3-yl)propanamido)ethyl)amino)-6-oxohexane-1,5-diyl)dicarbamate (18c).
The title compound 18c was prepared from Boc-Lys(Boc)-Osu (0.142 g, 0.32 mmol) and 12k (0.2 g, 0.32 mmol) according to the general procedure J. The product 18c was obtained as an off-white solid (0.15 g, 50%);
1H NMR (400 MHz, DMSO-d6): δ 12.12 (s, 1H), 10.80 (d, J = 1.8 Hz, 1H), 9.14 (d, J = 8.0 Hz, 1H), 8.57 (d, J = 9.0 Hz, 1H), 8.28 (bs, 1H), 8.04 (d, J = 2.4 Hz, 1H), 7.93–7.80 (m, 5H), 7.79–7.73 (m, 3H), 7.70 (d, J = 7.7 Hz, 1H), 7.55–7.49 (m, 2H), 7.47–7.41 (m, 1H), 7.26 (d, J = 7.6 Hz, 1H), 7.20 (d, J = 2.2 Hz, 1H), 7.06–6.94 (m, 2H), 6.79–6.65 (m, 2H), 4.79–4.67 (m, 1H), 3.88–3.75 (m, 1H), 3.36– 3.27 (m, 1H), 3.21–3.08 (m, 5H), 2.90–2.79 (m, 2H), 1.49–1.13 (m, 24H); 13C NMR (100 MHz, DMSO-d6): δ 172.8, 171.5, 167.8, 164.6, 155.9, 144.1, 139.4, 138.9, 136.5, 135.3, 133.4, 131.6, 129.5, 128.7, 128.1, 127.7, 127.6, 127.4, 124.0, 122.8, 122.6, 121.3, 118.9, 118.7, 115.0, 111.8, 111.0, 78.4, 77.8, 55.1, 54.8, 39.1, 38.7, 32.1, 29.6, 28.7, 28.6, 27.8.; HRMS (ESI): m/z calcd for C49H58BrN7O8 [M + Na]+: 974.3422; found: 974.3418.
N-(4-bromo-2-(((S)-1-((2-((S)-2,6-diaminohexanamido)ethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)phenyl)-2-naphthamide (19a).
The title compound 19a was prepared from compound 18a (0.1 g, 0.10 mmol) according to the general procedure H. The product 19a was obtained as an off-white solid (0.038 g, 49%);
1H NMR (600 MHz, DMSO-d6): δ 12.17 (d, J = 6.1 Hz, 1H), 10.84 (d, J = 2.0 Hz, 1H), 9.17 (dd, J = 8.0, 1.7 Hz, 1H), 8.58 (t, J = 4.5 Hz, 1H), 8.54 (dd, J = 8.9, 1.6 Hz, 1H), 8.44 (d, J = 1.0 Hz, 1H), 8.41–8.34 (m, 1H), 8.18 (bs, 3H), 8.08–8.00 (m, 4H), 7.85 (dd, J = 8.6, 1.8 Hz, 1H), 7.84–7.76 (m, 4H), 7.73–7.61 (m, 3H), 7.26 (d, J = 7.9 Hz, 1H), 7.22 (d, J = 1.7 Hz, 1H), 7.04–6.95 (m, 2H), 4.78–4.72 (m, 1H), 3.72–3.64 (m, 1H), 3.31 (td, J = 14.1, 3.2 Hz, 1H), 3.28–3.08 (m, 5H), 2.79–2.69 (m, 2H), 1.75–1.63 (m, 2H), 1.56–1.47 (m, 2H), 1.36–1.25 (m, 2H); 13C NMR (150 MHz, DMSO-d6): δ 171.7, 169.0, 167.8, 165.1, 158.7, 138.8, 136.5, 135.3, 134.9, 132.6, 132.0, 131.6, 129.6, 129.1, 128.7, 128.4, 128.2, 127.6, 127.6, 124.1, 123.7, 123.2, 123.1, 122.9, 121.4, 118.9, 118.7, 118.4, 116.4, 115.2, 111.8, 110.9, 55.1, 52.6, 38.9, 38.8, 38.6, 30.8, 27.8, 27.0, 21.7, 21.7.; HRMS (ESI): m/z calcd for C37H40BrN7O4 [M + H]+: 726.2396; found: 726.2395.
N-(4-bromo-2-(((S)-1-((2-((S)-2,6-diaminohexanamido)ethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)phenyl)-[1,1′-biphenyl]-3-carboxamide (19b)
The title compound 19ab was prepared from compound 18b (0.1 g, 0.10 mmol) according to the general procedure H. The product 19b was obtained as an off-white solid (0.041 g, 55%);
1H NMR (600 MHz, DMSO-d6): δ 12.11 (s, 1H), 10.83 (d, J = 1.7 Hz, 1H), 9.14 (d, J = 7.9 Hz, 1H), 8.56 (bs, 1H), 8.49 (d, J = 8.9 Hz, 1H), 8.35–8.31 (m, 1H), 8.20–7.80 (bs, 5H), 8.12 (t, J = 8.9 Hz, 1H), 8.01 (d, J = 2.3 Hz, 1H), 7.94–7.90 (m, 1H), 7.79–7.70 (m, 5H), 7.68 (d, J = 7.9 Hz, 1H), 7.54–7.50 (m, 2H), 7.46–7.41 (m, 1H), 7.28 (d, J = 8.1 Hz, 1H), 7.21 (d, J = 2.2 Hz, 1H), 7.05–7.00 (m, 1H), 6.98–6.93 (m, 1H), 4.76–4.67 (m, 1H), 3.67 (t, J = 6.4 Hz, 1H), 3.39– 3.28 (m, 1H), 3.21–3.10 (m, 5H), 2.75 (t, J = 7.8 Hz, 2H), 1.75–1.63 (m, 2H), 1.57–1.48 (m, 2H), 1.35–1.27 (m, 2H); 13C NMR (150 MHz, DMSO-d6): δ 171.7, 169.1, 167.8, 165.0, 158.5, 141.3, 139.7, 138.7, 136.5, 135.5, 135.3, 131.6, 130.8, 130.1, 129.6, 128.5, 127.6, 127.3, 126.3, 125.9, 124.0, 123.3, 122.9, 121.4, 118.8, 118.7, 116.7, 115.2, 111.8, 110.9, 55.1, 52.6, 38.9, 38.7, 38.6, 30.9, 27.8, 27.0, 21.7.; HRMS (ESI): m/z calcd for C39H42BrN7O4 [M + H]+: 752.2554; found: 752.2553.
N-(4-bromo-2-(((S)-1-((2-((S)-2,6-diaminohexanamido)ethyl)amino)-3-(1H-indol-3-yl)-1-oxopropan-2-yl)carbamoyl)phenyl)-[1,1′-biphenyl]-4-carboxamide (19c).
The title compound 19c was prepared from compound 18c (0.1 g, 0.10 mmol) according to the general procedure H. The product 19c was obtained as an off-white solid (0.031 g, 49%); 1H NMR (600 MHz, DMSO-d6): δ 12.08 (s, 1H), 10.83 (d, J = 2.1 Hz, 1H), 9.16 (d, J = 8.1 Hz, 1H), 8.58 (t, J = 5.2 Hz, 1H), 8.55 (d, J = 9.0 Hz, 1H), 8.37 (t, J = 5.2 Hz, 1H), 8.16 (s, 3H), 8.04 (d, J = 2.4 Hz, 1H), 7.89–7.86 (m, 2H), 7.85–7.82 (m, 2H), 7.81–7.72 (m, 6H), 7.69 (d, J = 7.7 Hz, 1H), 7.55–7.51 (m, 2H), 7.47–7.43 (m, 1H), 7.27 (d, J = 8.0 Hz, 1H), 7.21 (d, J = 2.3 Hz, 1H), 7.05–7.01 (m, 1H), 7.00–6.96 (m, 1H), 6.58 (bs, 1H), 4.79–4.72 (m, 1H), 3.72–3.64 (m, 1H), 3.35–3.29 (m, 1H), 3.25–3.12 (m, 5H), 2.79–2.70 (m, 2H), 1.75–1.64 (m, 2H), 1.56–1.47 (m, 2H), 1.36–1.26 (m, 2H); 13C NMR (150 MHz, DMSO-d6): δ 171.7, 169.0, 167.8, 164.6, 158.6, 144.1, 139.3, 138.9, 136.5, 135.4, 133.4, 131.6, 129.6, 128.8, 128.1, 127.7, 127.6, 127.4, 124.1, 122.8, 122.7, 121.4, 118.9, 118.7, 115.0, 111.9, 110.9, 55.1, 52.6, 38.9, 38.8, 38.6, 30.8, 27.8, 27.0, 21.7.; HRMS (ESI): m/z calcd for C39H42BrN7O4 [M + H]+: 752.2554; found: 752.2551.

5. Conclusions

In summary, three series of anthranilamide peptidomimetic compounds were developed by varying the nature and position of the hydrophobic group and the cationic charge of the molecules. These led to the synthesis of novel compounds showing potent antibacterial activity against S. aureus and moderate activity against E. coli. These compounds also varied in their toxicity to mammalian cells, with the series III compounds showing the best overall selectivity for both bacterial strains over human cells. The compound 19c showed more than 50% of S. aureus biofilm disruption at 31.2 µM and non-toxic to mammalian cells at this concentration. Results from the membrane permeability assay and membrane integrity experiment with B. subtilis demonstrated that the active compounds could act via cell membrane disruption. Importantly, these compounds are also found to eradicate established bacterial biofilms of S. aureus and E. coli. Hence, this class of peptidomimetic compounds represents an innovative avenue for the development of effective antibacterial and antibiofilm agents.

Supplementary Materials

The supplementary information (SI) is attached. The SI can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics12030585/s1.

Author Contributions

Conceptualization, R.K. and N.K.; methodology and writing original draft preparation, R.K.; Cytoplasmic membrane permeability and biofilm studies, R.K. and M.Y.; Resynthesis of some compounds, T.T.Y.; Cytotoxicity assay, F.V. and O.V.; Membrane Integrity assay, M.J.M. and P.L.; review and editing, M.W., D.S.B. and N.K.; Supervision and Funding acquisition, N.K. and M.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a DP from the Australian Research Council Discovery project DP180100845 and a National Health and Medical Research Ideas grant (APP1183597).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

We thank the NMR and Bioanalytical Mass Spectrometry Facility (BMSF) facilities at UNSW.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Teng, P.; Shao, H.; Huang, B.; Xie, J.; Cui, S.; Wang, K.; Cai, J. Small Molecular Mimetics of Antimicrobial Peptides as a Promising Therapy to Combat Bacterial Resistance. J. Med. Chem. 2023, 66, 2211–2234. [Google Scholar] [CrossRef]
  2. Konai, M.M.; Haldar, J. Lysine-Based Small Molecules That Disrupt Biofilms and Kill both Actively Growing Planktonic and Nondividing Stationary Phase Bacteria. ACS Infect. Dis. 2015, 1, 469–478. [Google Scholar] [CrossRef] [PubMed]
  3. Turner, N.A.; Sharma-Kuinkel, B.K.; Maskarinec, S.A.; Eichenberger, E.M.; Shah, P.P.; Carugati, M.; Holland, T.L.; Fowler, V.G. Methicillin-resistant Staphylococcus aureus: An overview of basic and clinical research. Nat. Rev. Microbiol. 2019, 17, 203–218. [Google Scholar] [CrossRef]
  4. Dhanda, G.; Sarkar, P.; Samaddar, S.; Haldar, J. Battle against vancomycin-resistant bacteria: Recent developments in chemical strategies. J. Med. Chem. 2018, 62, 3184–3205. [Google Scholar] [CrossRef] [PubMed]
  5. Anwar, H.; Strap, J.L.; Costerton, J.W. Establishment of aging biofilms: Possible mechanism of bacterial resistance to antimicrobial therapy. Antimicrob. Agents Chemother. 1992, 36, 1347–1351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Stewart, P.S.; Costerton, J.W. Antibiotic resistance of bacteria in biofilms. Lancet 2001, 358, 135–138. [Google Scholar] [CrossRef]
  7. Jefferson, K.K.; Goldmann, D.A.; Pier, G.B. Use of confocal microscopy to analyze the rate of vancomycin penetration through Staphylococcus aureus biofilms. Antimicrob. Agents Chemother. 2005, 49, 2467–2473. [Google Scholar] [CrossRef] [Green Version]
  8. Thurlow, L.R.; Hanke, M.L.; Fritz, T.; Angle, A.; Aldrich, A.; Williams, S.H.; Engebretsen, I.L.; Bayles, K.W.; Horswill, A.R.; Kielian, T. Staphylococcus aureus biofilms prevent macrophage phagocytosis and attenuate inflammation in vivo. J. Immunol. 2011, 186, 6585–6596. [Google Scholar] [CrossRef] [Green Version]
  9. Rabin, N.; Zheng, Y.; Opoku-Temeng, C.; Du, Y.; Bonsu, E.; Sintim, H.O. Biofilm formation mechanisms and targets for developing antibiofilm agents. Future Med. Chem. 2015, 7, 493–512. [Google Scholar] [CrossRef]
  10. Yasir, M.; Willcox, M.D.P.; Dutta, D. Action of antimicrobial peptides against bacterial biofilms. Materials 2018, 11, 2468. [Google Scholar] [CrossRef] [Green Version]
  11. Wolfmeier, H.; Pletzer, D.; Mansour, S.C.; Hancock, R.E.W. New Perspectives in Biofilm Eradication. ACS Infect. Dis. 2018, 4, 93–106. [Google Scholar] [CrossRef] [PubMed]
  12. Ghosh, C.; Sarkar, P.; Issa, R.; Haldar, J. Alternatives to conventional antibiotics in the era of antimicrobial resistance. Trends Microbiol. 2019, 27, 323–338. [Google Scholar] [CrossRef] [PubMed]
  13. Haidari, H.; Melguizo-Rodríguez, L.; Cowin, A.J.; Kopecki, Z. Therapeutic potential of antimicrobial peptides for treatment of wound infection. Am. J. Physiol.-Cell Physiol. 2023, 324, C29–C38. [Google Scholar] [CrossRef]
  14. Tossi, A.; Sandri, L.; Giangaspero, A. Amphipathic, alpha-helical antimicrobial peptides. Biopolymers 2000, 55, 4–30. [Google Scholar] [CrossRef] [PubMed]
  15. Ciulla, M.G.; Gelain, F. Structure–activity relationships of antibacterial peptides. Microb. Biotechnol. 2023. [Google Scholar] [CrossRef]
  16. Hancock, R.E.W.; Sahl, H.-G. Antimicrobial and host-defense peptides as new anti-infective therapeutic strategies. Nat. Biotechnol. 2006, 24, 1551–1557. [Google Scholar] [CrossRef]
  17. Dathe, M.; Schümann, M.; Wieprecht, T.; Winkler, A.; Beyermann, M.; Krause, E.; Matsuzaki, K.; Murase, O.; Bienert, M. Peptide helicity and membrane surface charge modulate the balance of electrostatic and hydrophobic interactions with lipid bilayers and biological membranes. Biochemistry 1996, 35, 12612–12622. [Google Scholar] [CrossRef]
  18. Hamuro, Y.; Schneider, J.P.; DeGrado, W.F. De Novo Design of Antibacterial β-Peptides. J. Am. Chem. Soc. 1999, 121, 12200–12201. [Google Scholar] [CrossRef]
  19. Schmitt, M.A.; Weisblum, B.; Gellman, S.H. Interplay among Folding, Sequence, and Lipophilicity in the Antibacterial and Hemolytic Activities of α/β-Peptides. J. Am. Chem. Soc. 2007, 129, 417–428. [Google Scholar] [CrossRef]
  20. Patch, J.A.; Barron, A.E. Helical Peptoid Mimics of Magainin-2 Amide. J. Am. Chem. Soc. 2003, 125, 12092–12093. [Google Scholar] [CrossRef]
  21. Kuppusamy, R.; Yasir, M.; Berry, T.; Cranfield, C.G.; Nizalapur, S.; Yee, E.; Kimyon, O.; Taunk, A.; Ho, K.K.K.; Cornell, B.; et al. Design and synthesis of short amphiphilic cationic peptidomimetics based on biphenyl backbone as antibacterial agents. Eur. J. Med. Chem. 2018, 143, 1702–1722. [Google Scholar] [CrossRef] [PubMed]
  22. Tague, A.J.; Putsathit, P.; Hammer, K.A.; Wales, S.M.; Knight, D.R.; Riley, T.V.; Keller, P.A.; Pyne, S.G. Cationic biaryl 1,2,3-triazolyl peptidomimetic amphiphiles: Synthesis, antibacterial evaluation and preliminary mechanism of action studies. Eur. J. Med. Chem. 2019, 168, 386–404. [Google Scholar] [CrossRef]
  23. Kuppusamy, R.; Yasir, M.; Yee, E.; Willcox, M.; Black, D.S.; Kumar, N. Guanidine functionalized anthranilamides as effective antibacterials with biofilm disruption activity. Org. Biomol. Chem. 2018, 16, 5871–5888. [Google Scholar] [CrossRef] [PubMed]
  24. Ahn, M.; Gunasekaran, P.; Rajasekaran, G.; Kim, E.Y.; Lee, S.J.; Bang, G.; Cho, K.; Hyun, J.K.; Lee, H.J.; Jeon, Y.H.; et al. Pyrazole derived ultra-short antimicrobial peptidomimetics with potent anti-biofilm activity. Eur. J. Med. Chem. 2017, 125, 551–564. [Google Scholar] [CrossRef]
  25. Meir, O.; Zaknoon, F.; Cogan, U.; Mor, A. A broad-spectrum bactericidal lipopeptide with anti-biofilm properties. Sci. Rep. 2017, 7, 2198. [Google Scholar] [CrossRef] [Green Version]
  26. Dewangan, R.P.; Bisht, G.S.; Singh, V.P.; Yar, M.S.; Pasha, S. Design and synthesis of cell selective α/β-diastereomeric peptidomimetic with potent in vivo antibacterial activity against methicillin resistant S. aureus. Bioorg. Chem. 2018, 76, 538–547. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, E.; Bai, P.-Y.; Cui, D.-Y.; Chu, W.-C.; Hua, Y.-G.; Liu, Q.; Yin, H.-Y.; Zhang, Y.-J.; Qin, S.; Liu, H.-M. Synthesis and bioactivities study of new antibacterial peptide mimics: The dialkyl cationic amphiphiles. Eur. J. Med. Chem. 2018, 143, 1489–1509. [Google Scholar] [CrossRef]
  28. Nizalapur, S.; Kimyon, O.; Yee, E.; Ho, K.; Berry, T.; Manefield, M.; Cranfield, C.G.; Willcox, M.; Black, D.S.; Kumar, N. Amphipathic guanidine-embedded glyoxamide-based peptidomimetics as novel antibacterial agents and biofilm disruptors. Org. Biomol. Chem. 2017, 15, 2033–2051. [Google Scholar] [CrossRef]
  29. Hoque, J.; Konai, M.M.; Sequeira, S.S.; Samaddar, S.; Haldar, J. Antibacterial and Antibiofilm Activity of Cationic Small Molecules with Spatial Positioning of Hydrophobicity: An in Vitro and in Vivo Evaluation. J. Med. Chem. 2016, 59, 10750–10762. [Google Scholar] [CrossRef]
  30. Konai, M.M.; Samaddar, S.; Bocchinfuso, G.; Santucci, V.; Stella, L.; Haldar, J. Selectively targeting bacteria by tuning the molecular design of membrane-active peptidomimetic amphiphiles. Chem. Commun. 2018, 54, 4943–4946. [Google Scholar] [CrossRef] [Green Version]
  31. Leite, A.; Bessa, L.J.; Silva, A.M.G.; Gameiro, P.; de Castro, B.; Rangel, M. Antibacterial activity of naphthyl derived bis-(3-hydroxy-4-pyridinonate) copper(II) complexes against multidrug-resistant bacteria. J. Inorg. Biochem. 2019, 197, 110704. [Google Scholar] [CrossRef]
  32. Kuppusamy, R.; Willcox, M.; Black, D.S.; Kumar, N. Short Cationic Peptidomimetic Antimicrobials. Antibiotics 2019, 8, 44. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Gunasekaran, P.; Rajasekaran, G.; Han, E.H.; Chung, Y.H.; Choi, Y.J.; Yang, Y.J.; Lee, J.E.; Kim, H.N.; Lee, K.; Kim, J.S.; et al. Cationic amphipathic triazines with potent anti-bacterial, anti-inflammatory and anti-atopic dermatitis properties. Sci. Rep. 2019, 9, 1292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Chu, W.C.; Yang, Y.; Qin, S.S.; Cai, J.F.; Bai, M.M.; Kong, H.T.; Zhang, E. Low-toxicity amphiphilic molecules linked by an aromatic nucleus show broad-spectrum antibacterial activity and low drug resistance. Chem. Commun. 2019, 55, 4307–4310. [Google Scholar] [CrossRef]
  35. Isnansetyo, A.; Kamei, Y. MC21-A, a bactericidal antibiotic produced by a new marine bacterium, Pseudoalteromonas phenolica sp. nov. O-BC30T, against methicillin-resistant Staphylococcus aureus. Antimicrob. Agents Chemother. 2003, 47, 480–488. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Reddy, K.K.S.; Rao, B.V.; Raju, S.S. A common approach to pyrrolizidine and indolizidine alkaloids; formal synthesis of (−)-isoretronecanol, (−)-trachelanthamidine and an approach to the synthesis of (−)-5-epitashiromine and (−)-tashiromine. Tetrahedron Asymmetry 2011, 22, 662–668. [Google Scholar] [CrossRef]
  37. Molchanova, N.; Hansen, P.R.; Damborg, P.; Franzyk, H. Fluorinated antimicrobial lysine-based peptidomimetics with activity against methicillin-resistant Staphylococcus pseudintermedius. J. Pept. Sci. 2018, 24, e3098. [Google Scholar] [CrossRef]
  38. Molchanova, N.; Hansen, P.R.; Damborg, P.; Nielsen, H.M.; Franzyk, H. Lysine-Based alpha-Peptide/beta-Peptoid Peptidomimetics: Influence of Hydrophobicity, Fluorination, and Distribution of Cationic Charge on Antimicrobial Activity and Cytotoxicity. ChemMedChem 2017, 12, 312–318. [Google Scholar] [CrossRef] [Green Version]
  39. Jin, L.; Bai, X.; Luan, N.; Yao, H.; Zhang, Z.; Liu, W.; Chen, Y.; Yan, X.; Rong, M.; Lai, R.; et al. A Designed Tryptophan- and Lysine/Arginine-Rich Antimicrobial Peptide with Therapeutic Potential for Clinical Antibiotic-Resistant Candida albicans Vaginitis. J. Med. Chem. 2016, 59, 1791–1799. [Google Scholar] [CrossRef]
  40. Sato, H.; Feix, J.B. Lysine-Enriched Cecropin-Mellitin Antimicrobial Peptides with Enhanced Selectivity. Antimicrob. Agents Chemother. 2008, 52, 4463–4465. [Google Scholar] [CrossRef] [Green Version]
  41. Lyu, Y.; Domalaon, R.; Yang, X.; Schweizer, F. Amphiphilic lysine conjugated to tobramycin synergizes legacy antibiotics against wild-type and multidrug-resistant Pseudomonas aeruginosa. Pept. Sci. 2019, 111, e23091. [Google Scholar] [CrossRef]
  42. Strom, M.B.; Svendsen, J.S.; Rekdal, O. Antibacterial activity of 15-residue lactoferricin derivatives. J. Pept. Res. 2000, 56, 265–274. [Google Scholar] [CrossRef]
  43. Te Winkel, J.D.; Gray, D.A.; Seistrup, K.H.; Hamoen, L.W.; Strahl, H. Analysis of Antimicrobial-Triggered Membrane Depolarization Using Voltage Sensitive Dyes. Front. Cell Dev. Biol. 2016, 4, 29. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Ma, C.; Yang, X.; Lewis, P.J. Bacterial Transcription as a Target for Antibacterial Drug Development. Microbiol. Mol. Biol. Rev. 2016, 80, 139–160. [Google Scholar] [CrossRef] [Green Version]
  45. Johnson, A.S.; van Horck, S.; Lewis, P.J. Dynamic localization of membrane proteins in Bacillus subtilis. Microbiology 2004, 150, 2815–2824. [Google Scholar] [CrossRef] [PubMed]
  46. Stowe, S.D.; Richards, J.J.; Tucker, A.T.; Thompson, R.; Melander, C.; Cavanagh, J. Anti-biofilm compounds derived from marine sponges. Mar. Drugs 2011, 9, 2010–2035. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Tennessen, J.A. Molecular evolution of animal antimicrobial peptides: Widespread moderate positive selection. J. Evol. Biol. 2005, 18, 1387–1394. [Google Scholar] [CrossRef] [PubMed]
  48. Dostert, M.; Belanger, C.R.; Hancock, R.E.W. Design and Assessment of Anti-Biofilm Peptides: Steps toward Clinical Application. J. Innate Immun. 2019, 11, 193–204. [Google Scholar] [CrossRef]
  49. Wu, M.; Maier, E.; Benz, R.; Hancock, R.E. Mechanism of interaction of different classes of cationic antimicrobial peptides with planar bilayers and with the cytoplasmic membrane of Escherichia coli. Biochemistry 1999, 38, 7235–7242. [Google Scholar] [CrossRef]
Figure 1. Structure of anthranilamide peptidomimetic compounds. The sites for structural modification under series I, series II, and series III are highlighted. Tryptophan is in blue color.
Figure 1. Structure of anthranilamide peptidomimetic compounds. The sites for structural modification under series I, series II, and series III are highlighted. Tryptophan is in blue color.
Antibiotics 12 00585 g001
Scheme 1. Reagents and conditions: (i) 2a or 2b, EDCI (1.2 equiv.), HOBt (1.0 equiv.), DIEA (2.5 equiv.), DMF, rt, 12 h; (ii) 10% Pd/C, H2 gas, THF, rt, 12 h; (iii) 5, CH3CN, reflux, 16 h.
Scheme 1. Reagents and conditions: (i) 2a or 2b, EDCI (1.2 equiv.), HOBt (1.0 equiv.), DIEA (2.5 equiv.), DMF, rt, 12 h; (ii) 10% Pd/C, H2 gas, THF, rt, 12 h; (iii) 5, CH3CN, reflux, 16 h.
Antibiotics 12 00585 sch001
Scheme 2. Synthesis of acid chlorides 7a–7k; Reagents and conditions: (i) Oxalyl chloride (1.2 equiv), CH2Cl2, DMF, rt, 2 h.
Scheme 2. Synthesis of acid chlorides 7a–7k; Reagents and conditions: (i) Oxalyl chloride (1.2 equiv), CH2Cl2, DMF, rt, 2 h.
Antibiotics 12 00585 sch002
Scheme 3. Reagents and conditions: (i) 7a7k, Et3N (3.0 equiv.), CH2Cl2, rt, 4 h, (ii) 10a10k/11a11e, TFA, CH2Cl2, rt, 2 h.
Scheme 3. Reagents and conditions: (i) 7a7k, Et3N (3.0 equiv.), CH2Cl2, rt, 4 h, (ii) 10a10k/11a11e, TFA, CH2Cl2, rt, 2 h.
Antibiotics 12 00585 sch003
Scheme 4. Reagents and conditions: (i) 14a–14d (1.5 equiv.), Pd(PPh3)4 (0.1 equiv.), 2N Na2CO3(aq) (3.0 equiv.), toluene, EtOH, reflux, 16 h; (ii) 15a–15d, TFA, CH2Cl2, rt, 2 h.
Scheme 4. Reagents and conditions: (i) 14a–14d (1.5 equiv.), Pd(PPh3)4 (0.1 equiv.), 2N Na2CO3(aq) (3.0 equiv.), toluene, EtOH, reflux, 16 h; (ii) 15a–15d, TFA, CH2Cl2, rt, 2 h.
Antibiotics 12 00585 sch004
Scheme 5. Reaction conditions: (i) 12a or 12j–12k (1.0 equiv.), Boc-Lys(Boc)-OSu (1.2 equiv.) Et3N (4.0 equiv.), THF, rt, 12 h; (ii) 18a18c, TFA, CH2Cl2, rt, 6 h.
Scheme 5. Reaction conditions: (i) 12a or 12j–12k (1.0 equiv.), Boc-Lys(Boc)-OSu (1.2 equiv.) Et3N (4.0 equiv.), THF, rt, 12 h; (ii) 18a18c, TFA, CH2Cl2, rt, 6 h.
Antibiotics 12 00585 sch005
Figure 2. Cytoplasmic membrane depolarization of S. aureus 38 and E. coli K12 by 13d, 16b, 19a, 19b, as assessed by release of the membrane potential-sensitive dye DiSC3(5) measured spectroscopically at λex = 622 nm and λem = 670 nm at 2× MIC concentration. Data are presented as means (±SD) of three independent repeats. 20% DMSO was used as a positive control.
Figure 2. Cytoplasmic membrane depolarization of S. aureus 38 and E. coli K12 by 13d, 16b, 19a, 19b, as assessed by release of the membrane potential-sensitive dye DiSC3(5) measured spectroscopically at λex = 622 nm and λem = 670 nm at 2× MIC concentration. Data are presented as means (±SD) of three independent repeats. 20% DMSO was used as a positive control.
Antibiotics 12 00585 g002
Figure 3. Epifluorescence microscopy images showing membrane integrity of B. subtilis strain BS23 treated with colistin (10 µg/mL) and compounds 16b, 19a, and 19b (50 µM).
Figure 3. Epifluorescence microscopy images showing membrane integrity of B. subtilis strain BS23 treated with colistin (10 µg/mL) and compounds 16b, 19a, and 19b (50 µM).
Antibiotics 12 00585 g003
Figure 4. Disruption of established biofilms of S. aureus after 24 h treatment with 1× to 8× MIC concentrations of compounds 13d, 16b, 19a, 19b. The positive control represents the pre-established biofilms without any compounds. Error bars indicate the standard error of the mean (SEM) of three independent experiments.
Figure 4. Disruption of established biofilms of S. aureus after 24 h treatment with 1× to 8× MIC concentrations of compounds 13d, 16b, 19a, 19b. The positive control represents the pre-established biofilms without any compounds. Error bars indicate the standard error of the mean (SEM) of three independent experiments.
Antibiotics 12 00585 g004
Figure 5. Disruption of established biofilm of E. coli after 24 h treatment with 1× to 8× MIC concentrations of compounds 13d, 16b, 19a, and 19b. The negative control represents pre-established biofilms without any compounds. Error bars indicate the standard error of the mean (SEM) of three independent experiments.
Figure 5. Disruption of established biofilm of E. coli after 24 h treatment with 1× to 8× MIC concentrations of compounds 13d, 16b, 19a, and 19b. The negative control represents pre-established biofilms without any compounds. Error bars indicate the standard error of the mean (SEM) of three independent experiments.
Antibiotics 12 00585 g005
Table 1. MIC90 values of series I–III compounds against S. aureus and E. coli and cytotoxicity (HC50) against MRC-5 human fibroblasts.
Table 1. MIC90 values of series I–III compounds against S. aureus and E. coli and cytotoxicity (HC50) against MRC-5 human fibroblasts.
MIC90 (µM)IC50 MRC–5 (μM)
CpdS. aureusE. coli
Series 1
12a [23]3.9>125<20
12b62.5>125NT
12c15.6>125NT
12d7.8>12518.7
12e15.6>125NT
12f125>125NT
12g125>125NT
12h125>125NT
12i15.6>12522.9
12j3.9>12513.5
12k7.8>12512.7
13a15.6>125NT
13b62.5>125NT
13c15.662.520.5
13d3.962.5-
13e>125>125NT
Series II
16a7.8>12534.1
16b3.931.224.6
16c31.2>12534.0
16d15.6>125NT
17>125>125NT
Series III
19a15.615.683.9
19b15.615.6164
19c15.662.5150
Colistin1251NA
Table 2. MIC values of series II compounds (19a–19c and 12a, 12j, 12k) against S. aureus and E. coli.
Table 2. MIC values of series II compounds (19a–19c and 12a, 12j, 12k) against S. aureus and E. coli.
MIC (µM)
CpdS. aureusE. coli
19a/12a [23]15.6/3.915.6/>125
19b/12j15.6/3.915.6/>125
19c/12k15.6/7.862.5/>125
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kuppusamy, R.; Yasir, M.; Yu, T.T.; Voli, F.; Vittorio, O.; Miller, M.J.; Lewis, P.; Black, D.S.; Willcox, M.; Kumar, N. Tuning the Anthranilamide Peptidomimetic Design to Selectively Target Planktonic Bacteria and Biofilm. Antibiotics 2023, 12, 585. https://doi.org/10.3390/antibiotics12030585

AMA Style

Kuppusamy R, Yasir M, Yu TT, Voli F, Vittorio O, Miller MJ, Lewis P, Black DS, Willcox M, Kumar N. Tuning the Anthranilamide Peptidomimetic Design to Selectively Target Planktonic Bacteria and Biofilm. Antibiotics. 2023; 12(3):585. https://doi.org/10.3390/antibiotics12030585

Chicago/Turabian Style

Kuppusamy, Rajesh, Muhammad Yasir, Tsz Tin Yu, Florida Voli, Orazio Vittorio, Michael J. Miller, Peter Lewis, David StC Black, Mark Willcox, and Naresh Kumar. 2023. "Tuning the Anthranilamide Peptidomimetic Design to Selectively Target Planktonic Bacteria and Biofilm" Antibiotics 12, no. 3: 585. https://doi.org/10.3390/antibiotics12030585

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
