Green Synthesis and Antimicrobial Study on Functionalized Chestnut-Shell-Extract Ag Nanoparticles

by
Kai Shao
1,2,3,4,†,
Jixiang Sun
1,2,3,4,†,
Yamei Lin
1,2,3,4,
Hongxin Zhi
1,2,3,4,
Xitong Wang
1,2,3,4,
Yujie Fu
1,2,3,4,
Jiating Xu
1,2,* and
Zhiguo Liu
1,2,3,4,*
1
Key Laboratory of Forest Plant Ecology, Ministry of Education, Northeast Forestry University, Harbin 150040, China
2
College of Chemistry, Chemical Engineering and Resource Utilization, Northeast Forestry University, Harbin 150040, China
3
Engineering Research Center of Forest Bio-Preparation, Ministry of Education, Northeast Forestry University, Harbin 150040, China
4
Heilongjiang Provincial Key Laboratory of Ecological Utilization of Forestry-Based Active Substances, Harbin 150040, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work (co-first Author).
Antibiotics 2023, 12(2), 201; https://doi.org/10.3390/antibiotics12020201
Submission received: 6 December 2022 / Revised: 22 December 2022 / Accepted: 14 January 2023 / Published: 18 January 2023
(This article belongs to the Special Issue Nanotechnology for Antimicrobials in Medicine and Agriculture)
Browse Figures
Review Reports Versions Notes

Abstract

:
The chestnut shell is usually discarded as agricultural waste and the random deposition of it can cause environmental problems. In this study, monodisperse crystalline Ag nanoparticles (AgNPs) were synthesized by a hydrothermal approach, in which the chestnut shell extract served as both reducing agent and stabilizer. The synthesized Ag nanoparticles were characterized by ultraviolet-visible (UV) spectrophotometry, transmission electron microscopy (TEM), Fourier transform infrared spectroscopy (FTIR), X-ray photoelectron spectroscopy (XPS) and X-ray diffraction (XRD) measurements. The TEM, XRD and XPS results revealed that the synthesized product was spherical Ag nanoparticles with a face-centered cubic crystal structure. The antimicrobial activity test indicated that the Ag nanoparticles modified by the chestnut shell extract had an obvious inhibitory effect on Escherichia coli, Staphylococcus aureus and Candida albicans. The measured MIC and MBC of functionalized chestnut-shell-extract AgNPs against E. coli, S. aureus and C. albicans is relatively low, which indicated that the present functionalized chestnut-shell-extract AgNPs are an efficient antimicrobial agent.

Graphical Abstract

1. Introduction

Noble metal nanomaterials have attracted great attention in recent years and have been widely used in chemistry, energy, material science, food science, biomedicine and other fields [1,2]. Among the various noble metal nanomaterials, Ag nanomaterials have great potential to be developed as a safe and non-toxic inorganic antibacterial agent with some other superior properties [3]. It has been revealed that the Ag nanoparticles have a better antibacterial effect than that of traditional fungicides [4,5,6]. Therefore, the synthesis of Ag nanoparticles through different strategies has been explored in order to develop new kinds of antibacterial materials. The green synthesis of Ag nanomaterials with plant extracts is a promising approach to preparing eco-friendly and highly efficient antibacterial agents [1,3,7].
The green synthesis of AgNPs using plant extract as a reducing and stabilizing agent has proved to be promising strategy in the recent studies. The tuber extract of Amorphophallus paeoniifolius was utilized to green synthesize gold and silver nanoparticles (AuNPs and AgNPs) with antibacterial activity [8]. The callus extract of Lithospermum erythrorhizon can be served as a reducing and capping agent to prepare silver, gold, and bimetallic Ag/Au nanoparticles [9]. Green tea extract under visible light irradiation at room temperature was used to synthesize silver nanoparticles with photocatalytic degradation activity on methylene blue (MB) dye [10].
From the point view of resources, plants are widespread and renewable in nature, and contain many bioactive components, including polysaccharides, flavonoids and polyphenols [6]. Tens of thousands of tons of chestnuts are processed in the world and this activity produces large amounts of chestnut shells. The disposal of these chestnut shells as waste may cause some environmental problem. It has been revealed that chestnut shells contain many bioactive molecules including phenols, flavonoids, triterpenes, sugars, tannins and brown pigments with good water solubility [11,12]. Thus, chestnut shell is still a valuable source of bioactive molecules.
The brown pigment in chestnut shell especially has been demonstrated to have antioxidant, antibacterial and anti-inflammatory properties [13], which has attracted extensive attention in biomedical and industrial applications [6]. Therefore, the combination of chestnut brown pigment and Ag nanomaterials may have a synergistic effect for antibacterial activity.
In this study, we attempt to use chestnut shell extract to synthesize Ag nanoparticles with superior antimicrobial activity. The chestnut shell extract was obtained by a microwave-assisted method and was then used for preparing the silver nanoparticles by hydrothermal synthesis [14]. The high pressure and temperature generated in the hydrothermal process can promote a redox reaction, which leads to the successful preparation of various novel nanomaterials [15,16,17,18]. The chestnut shell extract is believed to have a large quantity of flavonoids and polyphenols, which can be utilized as a source of reducing and stabilizing agents in the hydrothermal synthesis of AgNPs. One advantage of this study is that it utilizes waste plant material and avoids using harmful chemical agents in the green synthesis process.

2. Materials and Methods

2.1. Materials

The chestnut materials in this study were collected in Qianxi, Hebei Province, China. The chemical reagents used included anhydrous ethanol (AR), AgNO3(GR), ammonia water (AR), hydrochloric acid (AR), nutritional agar (AR) and nutritious broth (AR). Escherichia coli (ATCC 8739), Staphylococcus aureus (ATCC 6538) and Candida albicans (ATCC 10231) were obtained from Heilongjiang Provincial Academy of Sciences Institute of Applied Microbiology (Harbin, China). Ultra-pure water (its resistivity was >18 MΩ cm) was used throughout this study.

2.2. Preparation of Chestnut Shell Extract

Chestnut shells were crushed with a pulverizer and the obtained powder was collected after passing through a 45 mesh sieve. A total of 5 g chestnut shell powder was placed into a round-bottom flask, and 100 mL 40% ethanol was added. The flask was then transferred into an ultrasonic microwave reactor. The extraction was maintained for 10 min under the condition of 360 W power, and then the extract was collected. The supernatant (~65 mL) of the extract was collected after centrifugation at 5000 r/min for 10 min. Following this, 20 mL of the supernatant was diluted to 40 mL with ultra-pure water and used for the following synthesis.
In a typical synthesis experiment, 40 mL of the diluted chestnut-shell-extract solution was mixed with 0.4 mL 5% AgNO3 solution. The solution’s pH was adjusted to 9.0 with the concentrated ammonia. After further stirring, 40 mL of solution was put into a Teflon-lined autoclave (50 mL), then the reactor placed into the oven and maintained at 140 °C for 4 h [14,17]. The produced solution was collected after the reaction for the following characterization. In this study, different synthesis conditions (pH ranging from 5.0 to 11.0 and ratio of the reactants ranging from 1:4 to 4:1 of the typical experimental conditions) have been investigated.
In order to compare with the results of functionalized chestnut-shell-extract Ag nanoparticles, Ag nanoparticles (AgNPs) were also synthesized by a sodium borohydride (NaBH4) reduction method [19], and can be regarded as nonfunctionalized AgNPs. The excess sodium borohydride can efficiently reduce silver nitrate to produce AgNPs. In a typical reaction, 10 mL of silver nitrate (1.0 mM) was gradually dropped into 30 mL of sodium borohydride solution (2.0 mM, chilled in an ice bath) over 3 min under rigorous stirring.

2.3. Characterization

2.3.1. Ultraviolet-Visible Absorption Spectra

The absorption spectra of the functionalized chestnut-shell-extract Ag colloid were determined by a UV2600 ultraviolet-visible spectrophotometer. The prepared functionalized chestnut-shell-extract Ag colloid was diluted 2 times, and the ultra-pure water was used as the blank control. At the same time, the ultraviolet spectrum of the chestnut shell pigment solution diluted 2 times was measured for comparison.

2.3.2. Transmission Electron Microscope

A JEM-2100 transmission electron microscope at 200 kV was used for high resolution TEM observation. A total of 5 μL of functionalized chestnut-shell-extract Ag colloid was dropped on a carbon-coated copper mesh. The droplet was dried at room temperature prior to TEM imaging.

2.3.3. Dynamic Light Scattering (DLS) and Zeta Potential Analysis

Functionalized chestnut-shell-extract AgNPs were analyzed by particle size and zeta potential analyzer (MS2000/ZS90, Malvern, UK).

2.3.4. Fourier Transform Infrared Spectroscopy

The infrared spectrum of the sample was measured by an IR Affinity-1 Fourier transform infrared spectrometer with a potassium bromide pressing method. The functionalized chestnut-shell-extract Ag nanoparticles were collected by centrifugation and dried at low temperature in the oven to obtain a solid powder. A total of 2 mg of functionalized chestnut-shell-extract Ag nanoparticles and 200 mg potassium bromide powder were fully ground and mixed to prepare the tablet for measurement. Chestnut shell extract in the absence of Ag material was also measured as a control.

2.3.5. X-ray Diffractometer

The crystal structure of Ag nanoparticles was analyzed by an X-ray diffractometer (D/max-2200 V). It was equipped with CuK radiation (40 kV, 300 mA) of wavelength 0.154 nm operating at a scanning range 5–85°. The functionalized chestnut-shell-extract Ag nanoparticles for XRD measurement were collected by centrifugation.

2.3.6. X-ray Photoelectron Spectroscopy

XPS data were collected by K-Alpha from Thermo scientific (East Grinstead, UK). A solid sample of Ag nanoparticles for XPS measurement were collected by centrifugation.

2.3.7. LC-MS/MS Analysis

The chemical composition of the chestnut shell extract was analyzed by a Thermo Q Exactive™ focus (Thermo Scientific, Waltham, MA, USA) coupled with a Vanquish UHPLC system. The mass spectrometer was operated at a spray voltage of 3.0 kV in the positive-ion and negative-ion modes, respectively. The chestnut-shell-extract sample was detected using FullMS/dd-MS2 mode. The raw data were processed with Compound Discoverer 3.2 software (Thermo Scientific, Waltham, MA, USA).

2.3.8. Antimicrobial Test

The Gram-negative bacteria Escherichia coli, Gram-positive bacteria Staphylococcus aureus and fungus Candida albicans were used for the antibacterial activity test using a standard disc-diffusion method [20]. Escherichia coli (E. coli), Staphylococcus aureus (S. aureus) and Candida albicans (C. albicans) were stored on nutrient medium at 4 °C. Strain activation was carried out before the experiment. Under aseptic conditions, 200 μL of three kinds of bacterial solutions (diluted to the logarithmic phase of 108 CFU/mL) were smeared onto the agar medium plate. A total of 15 μL functionalized chestnut-shell-extract AgNPs (500 μg/mL) and control sample solution were added onto the filter paper with a diameter of 6 mm, and then the dried filter paper was placed onto the agar medium plate and incubated at 37 °C for 24 h. The growth-inhibition degree of the colonies was captured by a digital camera, and the size of the inhibition zone was measured. The experimental samples included functionalized chestnut-shell-extract Ag nanoparticles, chestnut-shell-extract solution, AgNO3 solution and (0.01%) penicillin solution as a control sample.
The minimum inhibitory concentration (MIC) and minimum bactericidal concentration (MBC) of functionalized chestnut-shell-extract AgNPs against E. coli, S. aureus and C. albicans were measured with the double dilution method [20]. The original silver colloid solution (5 μg/mL) was gradually diluted to 0.13 μg/mL by the nutrient solution. A total of 100 μL of dilute solution was transferred into the 96 well microtiter plate. A total of 100 μL of fresh bacteria suspension (1 × 106 CFU/mL) was added into the wells. The prepared plate was cultured at 37 °C (E. coli and S. aureus) and 28 °C (C. albicans) for 24 h. After incubation, 10 μL of the incubated solution was re-inoculated on the agar plate for 24 h to check the bacterial growth.

3. Results and Discussion

3.1. Characterization of Functionalized Chestnut-Shell-Extract Ag Nanomaterials

Figure 1a shows the UV-Vis absorption spectrum of the functionalized chestnut-shell-extract Ag colloid and the chestnut shell extract in absence of any Ag component. An obvious absorption peak at 276 nm present for the chestnut-shell-extract solution (line a). It can be ascribed to the proanthocyanidins in the extract [21]. The broad absorption band from 300 to 800 nm was attributed to the ellagitannins in the extract. After the hydrothermal process, a sharp band peaking at 413 nm appeared (line b). It belongs to the surface plasmon resonance band (PRB) of the Ag nanoparticles, which has been verified by the recent studies [22,23,24]. The single absorption band in Figure 1a also shown that the synthesized products were mainly spherical nanoparticles and they were well separated according to the Mie’s theory [25].
The FTIR spectra of the functionalized chestnut-shell-extract Ag nanoparticles and chestnut shell extract were shown in Figure 1b. As for the FTIR spectrum of chestnut shell extract (line a), the broad absorption band peaked at 3265 cm−1 was ascribed to the stretching vibration of O-H (phenol) and the effects of the formation of a hydrogen bond. The absorption band peaked at 1608 cm−1 was attributed to the stretching of C=C group of the aromatic ring. The absorption band at 1446 cm−1 was due to the O-H in-plane deformation and the absorption band at 819 cm−1 resulted from the out-of-plane bending of the aromatic C-H bond [26]. In the FTIR spectrum of functionalized chestnut-shell-extract Ag nanoparticles (line b), all characteristic absorption bands are very similar to that of the chestnut shell extract. These results indicated that the chestnut shell extract was associated with the Ag nanoparticle. In comparison with FTIR spectrum of chestnut shell extract, the absorption band corresponding to the stretching vibration of O-H shift to 3167 cm−1 and the absorption band according to the O-H in-plane deformation shift to 1429 cm−1 as shown in Figure 1b (line b). The shift of O-H vibration both in stretching and deformation indicated that there are strong interactions between phenol components in the chestnut shell extract with the Ag atom on the nanoparticle surface.
Figure 2a shows the low-magnification TEM image of the as-synthesized functionalized chestnut-shell-extract Ag nanoparticles. It can be seen that the obtained products are small spherical nanoparticles. The enlarged TEM image shown in Figure 2b indicated the size of these Ag nanoparticles is relatively uniform. The size distribution of Ag nanoparticles is shown in the inset in Figure 2b. The average diameter of these Ag nanoparticles is 8.82 ± 1.1 nm (n = 100). Figure 2c shows the HR-TEM image of one typical spherical Ag nanoparticle. The lattice fringe spacing in Figure 2c is 0.238 nm, which can be attributed to the Ag (111) plane according to the recent literature [27]. This result indicated that the obtained nanoparticles had a clear crystalline Ag structure.
The size control of nanocrystals has attracted considerable attention due to its potential applications in nanotechnology [28]. In this study, different synthesis conditions (pH and ratio of the reactants) have been investigated. All primary TEM results indicated that the size of the synthesized Ag nanoparticles is approximately 10 nm at pHs from 7.0 to 11.0 as well as with different ratios of the reactants. This result is quite different to that of the classic citrate reduction method [28]. Nevertheless, the size of the functionalized chestnut-shell-extract Ag nanoparticles can be enlarged by the seed-growth method. A total of 20 mL of the as-synthesized Ag nanoparticles produced at 140 °C served as a seed for the synthetic solution and then maintained at 140 °C for 4 h.
Figure 2d shows the representative TEM image of the Ag nanoparticles by the seed-growth method. The observed Ag nanoparticles are still uniform. The average size is 14.4 ± 1.4 nm (n = 100). Figure 2e shows the representative TEM image of the functionalized chestnut-shell-extract Ag nanoparticles obtained at a pH of 7.0; the average diameter of these Ag nanoparticles is 11.2 ± 1.8 nm (n = 100). Figure 2f shows the typical TEM image of the functionalized chestnut-shell-extract Ag nanoparticles using twofold the amount of AgNO3 to that in the typical experiment; the average diameter of the Ag nanoparticles is 14.2 ± 2.7 nm (n = 100).
The size and zeta potential of functionalized chestnut-shell-extract AgNPs were further analyzed by particle size and zeta potential analyzer. Figure 3 shows the size distribution of the functionalized chestnut-shell-extract AgNPs. The average diameter is 17.2 ± 5.0 nm, which is larger than TEM size. This can be ascribed to the DLS size measurement containing the hydrodynamic diameter of the chestnut-shell-extract layer attached on the surface of the Ag nanoparticle while TEM measurement cannot detect the chestnut-shell-extract layer. The average zeta potential of functionalized chestnut-shell-extract AgNPs is −22.0 ± 5.3 mV. The relatively high negative charge is advantageous for maintaining their stability.
The crystalline structures of the Ag nanoparticles were further confirmed by XRD measurement. Figure 4a shows the XRD of the as-synthesized functionalized chestnut-shell-extract Ag nanoparticles. The diffraction peaks at 38°, 45°, 65°, 78°and 82°correspond to (111), (200), (220), (311) and (222) of the face-centered cubic (fcc) Ag crystal [27,29]. The calculated crystal size is 7.80 nm according to the Scherrer equation based on the width of the (111) peak. This result is close to that of TEM measurement.
The element composition and surface chemical state of functionalized chestnut-shell-extract AgNPs were determined by XPS measurement as shown in Figure 4b. C, O and Ag element have been identified in Figure 4b. The C and O element can be attributed to the flavonoids and polyphenols in the chestnut shell extract. The two peaks at the binding energy of 367.9 eV and 373.9 eV in the XPS spectrum in Figure 4c are attributed to the Ag 3d5/2 and Ag 3d3/2 signals, respectively, and the potential difference is 6 eV, which is consistent with the standard position of zero valence Ag in the XPS spectrum [30]. This result is also in accordance with the XRD measurement, and confirmed that the surface of the nanoparticle is made up of metallic Ag at zero valent states.

3.2. Antibacterial Activity of Functionalized Chestnut-Shell-Extract Ag Nanoparticles

The antibacterial activity of the functionalized chestnut-shell-extract Ag nanoparticles was tested using a standard disc-diffusion method. The chestnut extract, AgNO3 solution and penicillin were also investigated for comparison. Figure 5 shows the photograph of the zone of inhibition of the functionalized chestnut-shell-extract Ag nanoparticles, the chestnut shell extract, AgNO3 solution and penicillin against (a) Escherichia coli (b) Candida albicans (c) Staphylococcus aureus. It can be seen that the functionalized chestnut-shell-extract Ag nanoparticles have bactericidal effects on all tested bacteria and fungi. Especially for Candida albicans, the synthesized Ag nanoparticles showed better antifungal activity than the control samples (the chestnut shell extract and AgNO3 solution). It should be noted that the chestnut shell extract and AgNO3 solution also have antibacterial activity. Their antibacterial activity differs among these tested bacteria and fungi. The antibacterial activity of the AgNO3 solution is derived from the Ag ions, which can disrupt the cell membranes, enzyme and nucleic acids of the bacterial. The antibacterial activity of the chestnut shell extract can be ascribed to the abundant flavonoid and polyphenol components, which can interrupt the membranes and proteins of bacteria by hydrogen bonding and non-covalent interaction.
The measured MIC and MBC of functionalized chestnut-shell-extract AgNPs and control samples against E. coli, S. aureus and C. albicans are given in Table 1. The MIC and MBC of functionalized chestnut-shell-extract AgNPs are lower than those of AgNPs produced by the NaBH4 reduction method. It is indicated that the antimicrobial efficiency of the functionalized chestnut-shell-extract AgNPs is also lower than that of penicillin, according to the MIC and MBC values in Table 1. It has been noted that the MIC and MBC of functionalized chestnut-shell-extract AgNPs against E. coli, S. aureus and C. albicans are lower those of the biogenic AgNPs in a recent study [31,32].
Many factors, including size distribution, morphology, surface chemical composition, surface charge and capping agents, can significantly influence the antimicrobial activity of inorganic nanoparticles [33,34,35,36]. For instance, the comparison of plant-mediated fabricated AgNPs with commercial AgNPs indicated that there is significantly different antibacterial activity with minimum inhibitory concentration (MIC) of 4 and 8 µg/mL against S. aureus, respectively [33]. Therefore, the surface capping of chestnut shell extract on Ag nanoparticles may contribute to their antimicrobial activity.
The broad-spectrum and relative strong bactericidal effect of the functionalized chestnut-shell-extract Ag nanoparticles can be explained as follows. It has been verified that the Ag nanoparticles gradually release Ag ions from the particle surface after oxidation by the dissolved O2 in the natural environment [37]. The produced Ag ions can denature the membrane proteins on the cell wall and enzymes in a cell, and disrupt the cell-wall structure of microbes, inducing the leakage of cytoplasm components. Another possible way for this to occur is that Ag atoms on the surface of the nanoparticle directly interact with the sulfur- and phosphorus-containing membrane protein and enzymes in the bacterial cell, inducing enzyme inactivation when the Ag nanoparticle attaches to the bacterial surface or endocytoses into the bacteria. The possible antimicrobial mechanism of the chestnut-shell-extract AgNPs is schematically illustrated in Figure 6.

3.3. Formation Mechanism of Ag Nanoparticles

The formation process of Ag nanoparticles in this study can be regarded as a typical redox reaction wherein the phenolic, phenolic acid molecules in the chestnut shell extract serve as the reducing agent and protect agent and Ag ions as the oxidant. The chemical composition of the chestnut shell extract has been investigated recently [38]. It is revealed that the chestnut shell extract contained the highest number of phenolic molecules and phenolic acids, such as gallic acid, catechin and epicatechin. Therefore, these phenolic molecules and phenolic acid play an important role in reducing Ag ions and stabilizing the produced Ag nanoparticles.
The main chemical compositions of the chestnut shell extract have been further determined by LC-MS/MS in this study. Thirteen compounds, including catechin, procyanidin, cannabinol, palmitic acid, maslinic acid, oleanolic acid, asiatic acid, L-arginine, scopolamine, sucrose, gentisic acid and 4,5-dicaffeoylquinic acid, have been identified. The crude plant extracts are rich in secondary metabolites such as phenolic acid, polyphenols, alkaloids, tannin, saponin and flavonoids. These bioactive compounds can reduce the Ag+ to Ag0 in the redox reaction to form the Ag nanoparticles as revealed by recent studies [39,40,41,42]. They further serve as the capping agent on the surface of synthesized nanoparticles to stabilize the nanoparticles. In this study, the polyphenolic compounds, such as catechin, procyanidin and cannabinol, and organic acids such as palmitic acid, maslinic acid, oleanolic acid, asiatic acid, can reduce Ag+ to Ag0 in the redox reaction to form Ag nanoparticles
In addition, it is interesting that the size of the functionalized chestnut-shell-extract Ag nanoparticles in this study are monodisperse. It has been revealed that the nanomaterials synthesized from a plant extract are usually multi-disperse in most cases because of the complicated components and reactions [43,44]. One possible reason for the formation of monodisperse nanoparticles in the present study is that some components of the chestnut shell extract have a high affinity with Ag ions, resulting in the homogeneous nucleation and growth of Ag nanoparticles. The main components of the chestnut shell extract such as catechin and organic acid may dominate the formation of crystal nuclei and their growth since they have high affinity for Ag+. For example, catechin can be used to synthesize uniform Ag nanoparticles [45]. The detailed investigation of the formation mechanism of Ag nanoparticles and their further applications is underway.
In addition to their use in the synthesis of Ag nanoparticles, plant extracts were demonstrated to biosynthesize nano-scale oxides with antibacterial response against E. coli and S. aurus [46,47,48]. Furthermore, plant extracts can be utilized for the green synthesis of nano-sized oxides with superior physical and electrochemical properties [49,50,51,52]. Based on our results with Ag nanoparticles with the outstanding quasi-monodispersity, it is expected that chestnut shell extract can be further explored to biosynthesize nano-scaled oxides (such as CuO, ZnO, Fe2O3 and NiO) with a superior sized quasi-monodispersity.

4. Conclusions

Chestnut shell extract has been utilized to synthesize monodisperse crystalline Ag nanoparticles. The obtained functionalized chestnut-shell-extract Ag nanoparticles have been characterized by UV-Vis, FTIR, TEM, XRD and XPS. These measurement results indicate that the obtained nanomaterial is spherical Ag nanoparticles capped by chestnut shell extract, with an average size of 8.82 nm and a face-centered cubic crystal structure. The antibacterial activity test revealed that the Ag nanoparticles modified by the chestnut shell extract had an obvious inhibitory effect on Escherichia coli, Staphylococcus aureus and Candida albicans. Further applications of these novel Ag nanoparticles are underway. In addition, the method developed in this study has facile and eco-friendly characteristics and the potential to be used for the synthesis of some other metal nanoparticles.

Author Contributions

Conceptualization, K.S. and J.S.; methodology, K.S., J.S. and Y.L.; software, H.Z.; validation, K.S., J.S. and Y.L.; formal analysis, K.S. and J.S.; investigation, K.S., J.S. and Y.L.; resources, H.Z.; data curation, H.Z. and X.W.; writing—original draft preparation, K.S. and J.S.; writing—review and editing, Y.F., J.X. and Z.L.; project administration, Z.L.; funding acquisition, Y.F. and Z.L.; visualization, J.X. and Z.L.; supervision, Z.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Key R&D Program of China (2022YFD2200604); the Fundamental Research Funds for the Central Universities (2572020DR07); the 111 Project (B20088); Heilongjiang Touyan Innovation Team Program (Tree Genetics and Breeding Innovation Team).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. AlMasoud, N.; Alhaik, H.; Almutairi, M.; Houjak, A.; Hazazi, K.; Alhayek, F.; Aljanoubi, S.; Alkhaibari, A.; Alghamdi, A.; Soliman, D.A.; et al. Green nanotechnology synthesized silver nanoparticles: Characterization and testing its antibacterial activity. Green Process. Synth. 2021, 10, 518–528. [Google Scholar] [CrossRef]
  2. Saqr, A.A.; Khafagy, E.S.; Alalaiwe, A.; Aldawsari, M.F.; Hegazy, W. Synthesis of Gold Nanoparticles by Using Green Machinery: Characterization and In Vitro Toxicity. Nanomaterials 2021, 11, 808. [Google Scholar] [CrossRef] [PubMed]
  3. Prema, P.; Veeramanikandan, V.; Rameshkumar, K.; Gatasheh, M.K.; Hatamleh, A.A.; Balasubramani, R.; Balaji, P. Statistical optimization of silver nanoparticle synthesis by green tea extract and its efficacy on colorimetric detection of mercury from industrial waste water. Environ. Res. 2021, 204, 111915. [Google Scholar] [CrossRef]
  4. Srikhao, N.; Kasemsiri, P.; Lorwanishpaisarn, N.; Okhawilai, M. Green synthesis of silver nanoparticles using sugarcane leaves extract for colorimetric detection of ammonia and hydrogen peroxide. Res. Chem. Intermed. 2021, 47, 1269–1283. [Google Scholar] [CrossRef]
  5. Yun, H.; Kim, J.; Choi, W.; Han, M.H.; Yun, J. Understanding morphological degradation of Ag nanoparticle during electrochemical CO2 reduction reaction by identical location observation. Electrochim. Acta 2021, 371, 137795. [Google Scholar] [CrossRef]
  6. Pirtarighat, S.; Ghannadnia, M.; Baghshahi, S. Green synthesis of silver nanoparticles using the plant extract of Salvia spinosa grown in vitro and their antibacterial activity assessment. J. Nanostructure Chem. 2019, 9, 1–9. [Google Scholar] [CrossRef] [Green Version]
  7. Tashi, T.; Gupta, N.V.; Mbuya, V.B. Silver nanoparticles: Synthesis, mechanism of antimicrobial action, characterization, medical applications, and toxicity effects. J. Chem. Pharm. Res. 2016, 8, 526–537. [Google Scholar]
  8. Nayem, S.M.A.; Sultana, N.; Haque, M.A.; Miah, B.; Hasan, M.M.; Islam, T.; Hasan, M.M.; Awal, A.; Uddin, J.; Aziz, M.A.; et al. Green Synthesis of Gold and Silver Nanoparticles by Using Amorphophallus paeoniifolius Tuber Extract and Evaluation of Their Antibacterial Activity. Molecules 2020, 25, 4773. [Google Scholar] [CrossRef]
  9. Shkryl, Y.; Rusapetova, T.; Yugay, Y.; Egorova, A.; Bulgakov, V. Biosynthesis and Cytotoxic Properties of Ag, Au and Bimetallic Nanoparticles Synthesized Using Lithospermum erythrorhizon Callus Culture Extract. Int. J. Mol. Sci. 2021, 22, 9305. [Google Scholar] [CrossRef]
  10. Ma, Y.; Tao, L.; Bai, S.; Hu, A. Green Synthesis of Ag Nanoparticles for Plasmon-Assisted Photocatalytic Degradation of Methylene Blue. Catalysts 2021, 11, 21499. [Google Scholar] [CrossRef]
  11. Vella, F.M.; De Masi, L.; Calandrelli, R.; Morana, A.; Laratta, B. Valorization of the agro-forestry wastes from Italian chestnut cultivars for the recovery of bioactive compounds. Eur. Food Res. Technol. 2019, 245, 2679–2686. [Google Scholar] [CrossRef]
  12. Sun, Q.; Cai, X.; Li, J.; Zheng, M.; Chen, Z.; Yu, C.P. Green synthesis of silver nanoparticles using tea leaf extract and evaluation of their stability and antibacterial activity. Colloids Surf. A Physicochem. Eng. Asp. 2014, 444, 226–231. [Google Scholar] [CrossRef]
  13. Vázquez, G.; González-Alvarez, J.; Santos, J.; Freire, M.S.; Antorrena, G. Evaluation of potential applications for chestnut (Castanea sativa) shell and eucalyptus (Eucalyptus globulus) bark extracts. Ind. Crops Prod. 2009, 29, 364–370. [Google Scholar] [CrossRef]
  14. Biao, L.; Tan, S.; Zhang, X.; Gao, J.; Liu, Z.; Fu, Y. Synthesis and characterization of proanthocyanidins-functionalized Ag nanoparticles. Colloids Surf. B Biointerfaces 2018, 169, 438–443. [Google Scholar] [CrossRef] [PubMed]
  15. Feng, S.; Xu, R. New materials in hydrothermal synthesis. Acc. Chem. Res. 2001, 34, 239–247. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, H.; Wang, L.; Xiong, H.; Hu, L.; Yang, B.; Li, W. Hydrothermal Synthesis for High-Quality CDTe Nanocrystals. Adv. Mater. 2010, 15, 1712–1715. [Google Scholar] [CrossRef]
  17. Zhang, X.; Sun, H.; Tan, S.; Gao, J.; Fu, Y.; Liu, Z. Hydrothermal synthesis of Ag nanoparticles on the nanocellulose and their antibacterial study. Inorg. Chem. Commun. 2019, 100, 44–50. [Google Scholar] [CrossRef]
  18. Shi, Y.; Xing, Y.; Deng, S.; Zhao, B.; Fu, Y.; Liu, Z. Synthesis of proanthocyanidins-functionalized Fe3O4 magnetic nanoparticles with high solubility for removal of heavy-metal ions. Chem. Phys. Lett. 2020, 753, 137600. [Google Scholar] [CrossRef]
  19. Mulfinger, L. Synthesis and Study of Silver Nanoparticles. J. Chem. Educ. 2007, 84, 322–325. [Google Scholar] [CrossRef]
  20. Li, S.; Jiang, Z.; Thamm, L.; Zhou, G. 10-Hydroxy-2-decenoic Acid as an Antimicrobial Agent in Draft Keg-conditioned Wheat Beer. J. Am. Soc. Brew. Chem. 2010, 68, 114–118. [Google Scholar] [CrossRef]
  21. Vázquez, G.; Fontenla, E.; Santos, J.; Freire, M.S.; González-Álvarez, J.; Antorrena, G. Antioxidant activity and phenolic content of chestnut (Castanea sativa) shell and eucalyptus (Eucalyptus globulus) bark extracts. Ind. Crops Prod. 2008, 28, 279–285. [Google Scholar] [CrossRef]
  22. Liu, Z.; Xing, Z.; Zu, Y.; Tan, S.; Zhao, L.; Zhou, Z.; Sun, T. Synthesis and characterization of L-histidine capped silver nanoparticles. Mater. Sci. Eng. C 2012, 32, 811–816. [Google Scholar] [CrossRef]
  23. Liu, Z.G.; Wang, Y.L.; Zu, Y.G.; Fu, Y.J.; Li, N.; Guo, N.; Liu, R.S.; Zhang, Y.M. Synthesis of polyethylenimine (PEI) functionalized silver nanoparticles by a hydrothermal method and their antibacterial activity study. Mater. Sci. Eng. C Mater. Biol. Appl. 2014, 42, 31–37. [Google Scholar] [CrossRef] [PubMed]
  24. Biao, L.; Tan, S.; Wang, Y.; Guo, X.; Fu, Y.; Xu, F.; Zu, Y.; Liu, Z. Synthesis, characterization and antibacterial study on the chitosan-functionalized Ag nanoparticles. Mater. Sci. Eng. C 2017, 76, 73–80. [Google Scholar] [CrossRef]
  25. Aygün, A.; Özdemir, S.; Gülcan, M.; Cellat, K.; Şen, F. Synthesis and characterization of Reishi mushroom-mediated green synthesis of silver nanoparticles for the biochemical applications. J. Pharm. Biomed. Anal. 2019, 178, 112970. [Google Scholar] [CrossRef] [PubMed]
  26. Yao, Z.; Qi, J.; Wang, L. Isolation, fractionation and characterization of melanin-like pigments from chestnut (Castanea mollissima) shells. J. Food Sci. 2012, 77, 671–676. [Google Scholar] [CrossRef]
  27. Khan, M.J.; Kumari, S.; Shameli, K.; Selamat, J.; Sazili, A.Q. Green Synthesis and Characterization of Pullulan Mediated Silver Nanoparticles through Ultraviolet Irradiation. Materials 2019, 12, 2382. [Google Scholar] [CrossRef] [Green Version]
  28. Ji, X.; Song, X.; Li, J.; Bai, Y.; Yang, W.; Peng, X. Size Control of Gold Nanocrystals in Citrate Reduction: The Third Role of Citrate. J. Am. Chem. Soc. 2007, 129, 13939–13948. [Google Scholar] [CrossRef]
  29. Philip, D. Biosynthesis of Au, Ag and Au-Ag nanoparticles using edible mushroom extract. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2009, 73, 374–381. [Google Scholar] [CrossRef]
  30. Liu, S.; Ma, J.; Wang, S.; Chen, S.; Wang, B.; Li, J. Silver nanoparticles incorporated chitosan/calcium pyrophosphate hybrid microflowers for antibacterial applications. Mater. Lett. 2019, 255, 126570. [Google Scholar] [CrossRef]
  31. Wypij, M.; Czarnecka, J.; Swiecimska, M.; Dahm, H.; Rai, M.; Golinska, P. Synthesis, characterization and evaluation of antimicrobial and cytotoxic activities of biogenic silver nanoparticles synthesized from Streptomyces xinghaiensis OF1 strain. World J. Microbiol. Biotechnol. 2018, 34, 23. [Google Scholar] [CrossRef] [PubMed]
  32. Boonpavanitchakul, K.; Pimpha, N.; Kangwansupamonkon, W.; Magaraphan, R. Processing and antibacterial application of biodegradable sponge nano-composite materials of silver nanoparticles and silk sericin. Eur. Polym. J. 2020, 130, 109649. [Google Scholar] [CrossRef]
  33. Barabadi, H.; Mojab, F.; Vahidi, H.; Marashi, B.; Talank, N.; Hosseini, O.; Saravanan, M. Green synthesis, characterization, antibacterial and biofilm inhibitory activity of silver nanoparticles compared to commercial silver nanoparticles. Inorg. Chem. Commun. 2021, 129, 108647. [Google Scholar] [CrossRef]
  34. Barabadi, H.; Mohammadzadeh, A.; Vahidi, H.; Rashedi, M.; Saravanan, M.; Talank, N.; Alizadeh, A. Penicillium chrysogenum-derived silver nanoparticles: Exploration of their antibacterial and biofilm inhibitory activity against the standard and pathogenic Acinetobacter baumannii compared to tetracycline. J. Clust. Sci. 2022, 33, 1929–1942. [Google Scholar] [CrossRef]
  35. Talank, N.; Morad, H.; Barabadi, H.; Mojab, F.; Amidi, S.; Kobarfard, F.; Mahjoub, M.A.; Jounaki, K.; Mohammadi, N.; Salehi, G. Bioengineering of green-synthesized silver nanoparticles: In vitro physicochemical, antibacterial, biofilm inhibitory, anticoagulant, and antioxidant performance. Talanta 2022, 243, 123374. [Google Scholar] [CrossRef]
  36. Truong, L.B.; Medina-Cruz, D.; Martínez-Sanmiguel, J.J.; Soto-Mendoza, A.; Esquivel-López, I.G.; Pérez, Y.; Saravanan, M.; Barabadi, H.; Cholula-Díaz, J.L.; Mostafavi, E. Biogenic metal nanomaterials to combat antimicrobial resistance. In Emerging Nanomaterials and Nano-Based Drug Delivery Approaches to Combat Antimicrobial Resistance; Elsevier: Amsterdam, The Netherlands, 2022; pp. 261–304. [Google Scholar]
  37. Liu, J.; Sonshine, D.A.; Shervani, S.; Hurt, R.H. Controlled Release of Biologically Active Silver from Nanosilver Surfaces. ACS Nano 2010, 4, 6903–6913. [Google Scholar] [CrossRef] [Green Version]
  38. Squillaci, G.; Apone, F.; Sena, L.M.; Carola, A.; Tito, A.; Bimonte, M.; De Lucia, A.; Colucci, G.; La Cara, F.; Morana, A. Annalisa, Chestnut (Castanea sativa Mill.) industrial wastes as a valued bioresource for the production of active ingredients. Process Biochem. 2018, 64, 228–236. [Google Scholar] [CrossRef]
  39. Aisida, S.O.; Ugwu, K.; Akpa, P.A.; Nwanya, A.C.; Ezema, F.I. Biogenic synthesis and antibacterial activity of controlled silver nanoparticles using an extract of Gongronema Latifolium. Mater. Chem. Phys. 2019, 237, 121859. [Google Scholar] [CrossRef]
  40. Vijaya, J.J.; Jayaprakash, N.; Kombaiah, K.; Kaviyarasu, K.; Maaza, M. Bioreduction potentials of dried root of Zingiber officinale for a simple green synthesis of silver nanoparticles: Antibacterial studies. J. Photochem. Photobiol. B Biol. 2017, 177, 62–68. [Google Scholar] [CrossRef]
  41. Mayedwa, N.; Mongwaketsi, N.; Khamlich, S.; Kaviyarasu, K.; Matinise, N. Green synthesis of nickel oxide, palladium and palladium oxide synthesized via Aspalathus linearis natural extracts: Physical properties & mechanism of formation. Appl. Surf. Sci. 2018, 446, 266–272. [Google Scholar]
  42. Aisida, S.O.; Ugwu, K.; Akpa, P.A.; Nwanya, A.C.; Nwankwo, U.; Botha, S.S.; Ejikeme, P.M.; Ahmad, I.; Maaza, M.; Ezema, F.I. Biosynthesis of silver nanoparticles using bitter leave (Veronica amygdalina) for antibacterial activities—ScienceDirect. Surf. Interfaces 2019, 17, 100359. [Google Scholar] [CrossRef]
  43. Ali, H.; Abd, K.; Kajani, A.A.; Bordbar, A.-K. Green synthesis of silver nanoparticles using Mentha pulegium and investigation of their antibacterial, antifungal and anticancer activity. IET Nanobiotechnol. 2017, 11, 370–376. [Google Scholar]
  44. Ajitha, B.; Ashok, K.R.Y.; Reddy, P.S. Green synthesis and characterization of silver nanoparticles using Lantana camara leaf extract. Mater. Sci. Eng. C 2015, 49, 373–381. [Google Scholar] [CrossRef]
  45. Xing, Y.; Shi, Y.; Deng, S.; Zhao, B.; Liu, Z. Preparation and Application of Catechin—Silver Nanocomposites. Chin. J. Appl. Chem. 2020, 37, 1062–1068. [Google Scholar]
  46. Ditlopo, N.; Sintwa, N.; Khamlich, S.; Manikandan, E.; Gnanasekaran, K.; Henini, M.; Gibaud, A.; Krief, A.; Maaza, M. From Khoi—San indigenous knowledge to bioengineered CeO2 nanocrystals to exceptional UV—Blocking green nanocosmetics. Sci. Rep. 2022, 12, 3468. [Google Scholar] [CrossRef]
  47. Havenga, D.; Akoba, R.; Menzi, L.; Azizi, S.; Sackey, J.; Swanepoel, N.; Gibaud, A.; Maaza, M. From Himba indigenous knowledge to engineered Fe2O3 UV—Blocking green nanocosmetics. Sci. Rep. 2022, 12, 2259. [Google Scholar] [CrossRef] [PubMed]
  48. Kedi, P.B.E.; Meva, F.E.A.; Kotsedi, L.; Nguemfo, E.L.; Zangueu, C.B.; Ntoumba, A.A.; Mohamed, H.E.A.; Dongmo, A.B.; Maaza, M. Eco-friendly synthesis, characterization, in vitro and in vivo anti-inflammatory activity of silver nanoparticle-mediated Selaginella myosurus aqueous extract. Int. J. Nanomed. 2018, 13, 8537. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Rathnakumar, S.S.; Noluthando, K.; Kulandaiswamy, A.J.; Rayappan, J.B.B.; Kasinathan, K.; Kennedy, J.; Maaza, M. Stalling behaviour of chloride ions: A non-enzymatic electrochemical detection of α-Endosulfan using CuO interface. Sens. Actuators B Chem. 2019, 293, 100–106. [Google Scholar] [CrossRef]
  50. Nwanya, A.C.; Razanamahandry, L.C.; Bashir, A.; Ikpo, C.O.; Nwanya, S.C.; Botha, S.; Ntwampe, S.K.O.; Ezema, F.I.; Iwuoha, E.I.; Maaza, M. Industrial textile effluent treatment and antibacterial effectiveness of Zea mays L. Dry husk mediated bio-synthesized copper oxide nanoparticles. J. Hazard. Mater. 2019, 375, 281–289. [Google Scholar] [CrossRef]
  51. Maaza, M.; Hamidi, D.; Simo, A.; Kerdja, T.; Chaudhary, A.; Kana, J.K. Optical limiting in pulsed laser deposited VO2 nanostructures. Opt. Commun. 2012, 285, 1190–1193. [Google Scholar] [CrossRef]
  52. Sone, B.; Fuku, X.; Maaza, M. Physical & electrochemical properties of green synthesized bunsenite NiO nanoparticles via Callistemon viminalis’ extracts. Int. J. Electrochem. Sci. 2016, 11, 8204–8220. [Google Scholar]
Antibiotics 12 00201 g001 550

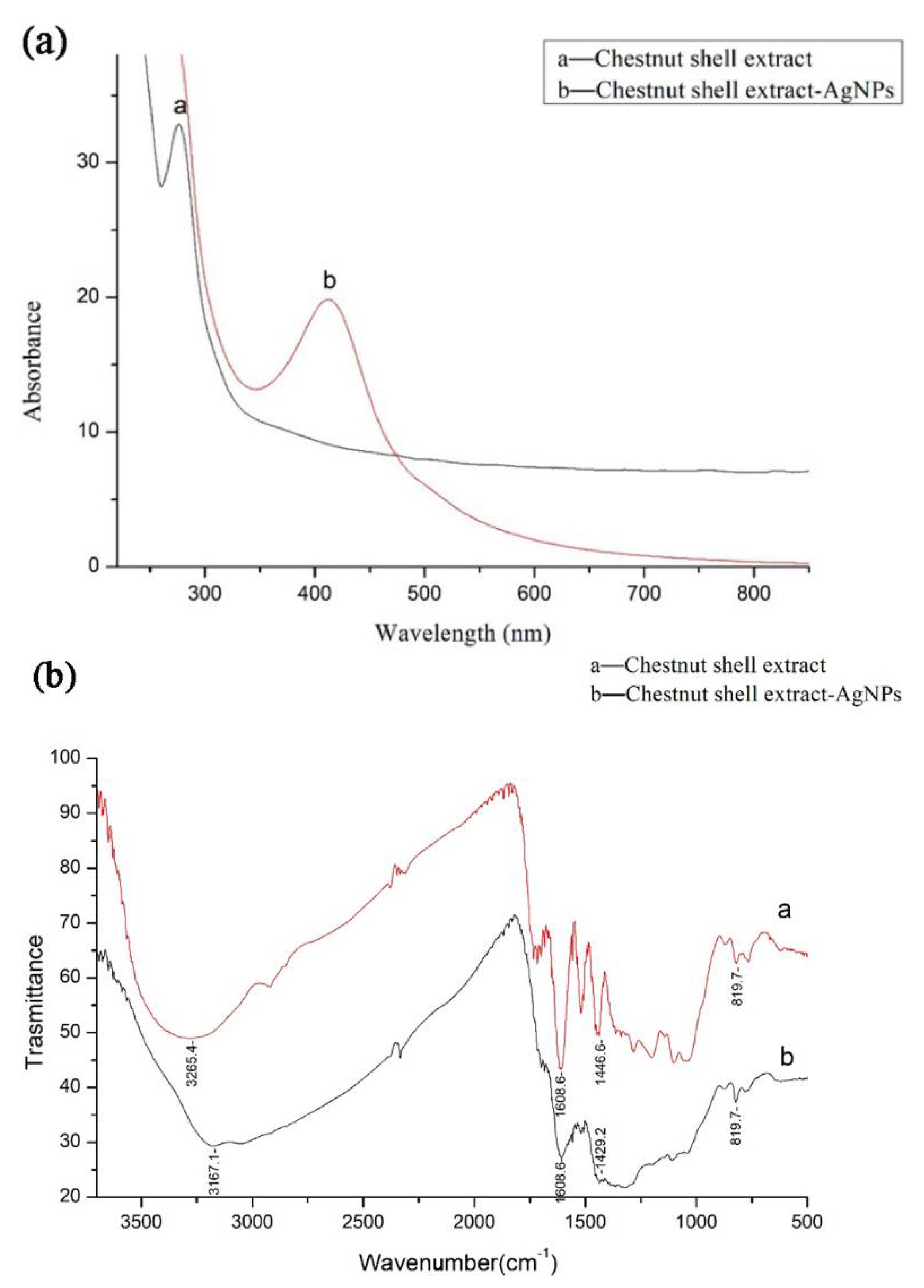

Figure 1. (a) The typical UV absorption spectrum of the functionalized chestnut-shell-extract AgNPs (chestnut shell extract solution was also measured for comparison) (b) FTIR spectra of the functionalized chestnut-shell-extract AgNPs (chestnut shell extract was also measured for comparison).
Figure 1. (a) The typical UV absorption spectrum of the functionalized chestnut-shell-extract AgNPs (chestnut shell extract solution was also measured for comparison) (b) FTIR spectra of the functionalized chestnut-shell-extract AgNPs (chestnut shell extract was also measured for comparison).
Antibiotics 12 00201 g001
Antibiotics 12 00201 g002 550
Figure 2. (a) Low-magnification TEM image of the functionalized chestnut-shell-extract AgNPs. (b) An enlarged TEM image of the Ag nanoparticles. (c) High-resolution TEM image of one Ag nanoparticle. (d) The representative TEM image of the Ag nanoparticles produced by seed-growth method. (e) The TEM image of the synthesized AgNPs at pH 7.0. (f) The TEM image of the synthesized AgNPs using 0.8 mL 5% AgNO3 solution.
Figure 2. (a) Low-magnification TEM image of the functionalized chestnut-shell-extract AgNPs. (b) An enlarged TEM image of the Ag nanoparticles. (c) High-resolution TEM image of one Ag nanoparticle. (d) The representative TEM image of the Ag nanoparticles produced by seed-growth method. (e) The TEM image of the synthesized AgNPs at pH 7.0. (f) The TEM image of the synthesized AgNPs using 0.8 mL 5% AgNO3 solution.
Antibiotics 12 00201 g002
Antibiotics 12 00201 g003 550

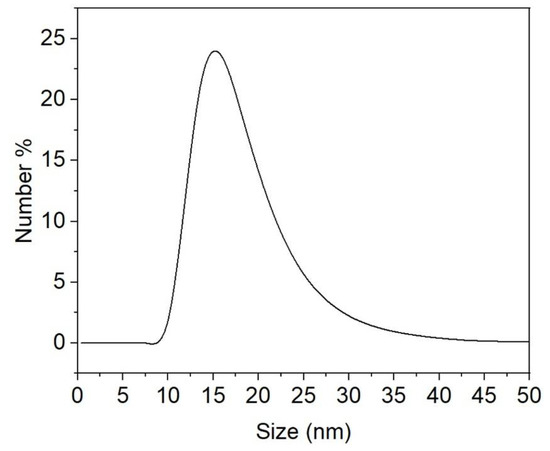

Figure 3. The size distribution of the functionalized chestnut-shell-extract AgNPs measured by DLS.
Figure 3. The size distribution of the functionalized chestnut-shell-extract AgNPs measured by DLS.
Antibiotics 12 00201 g003
Antibiotics 12 00201 g004 550

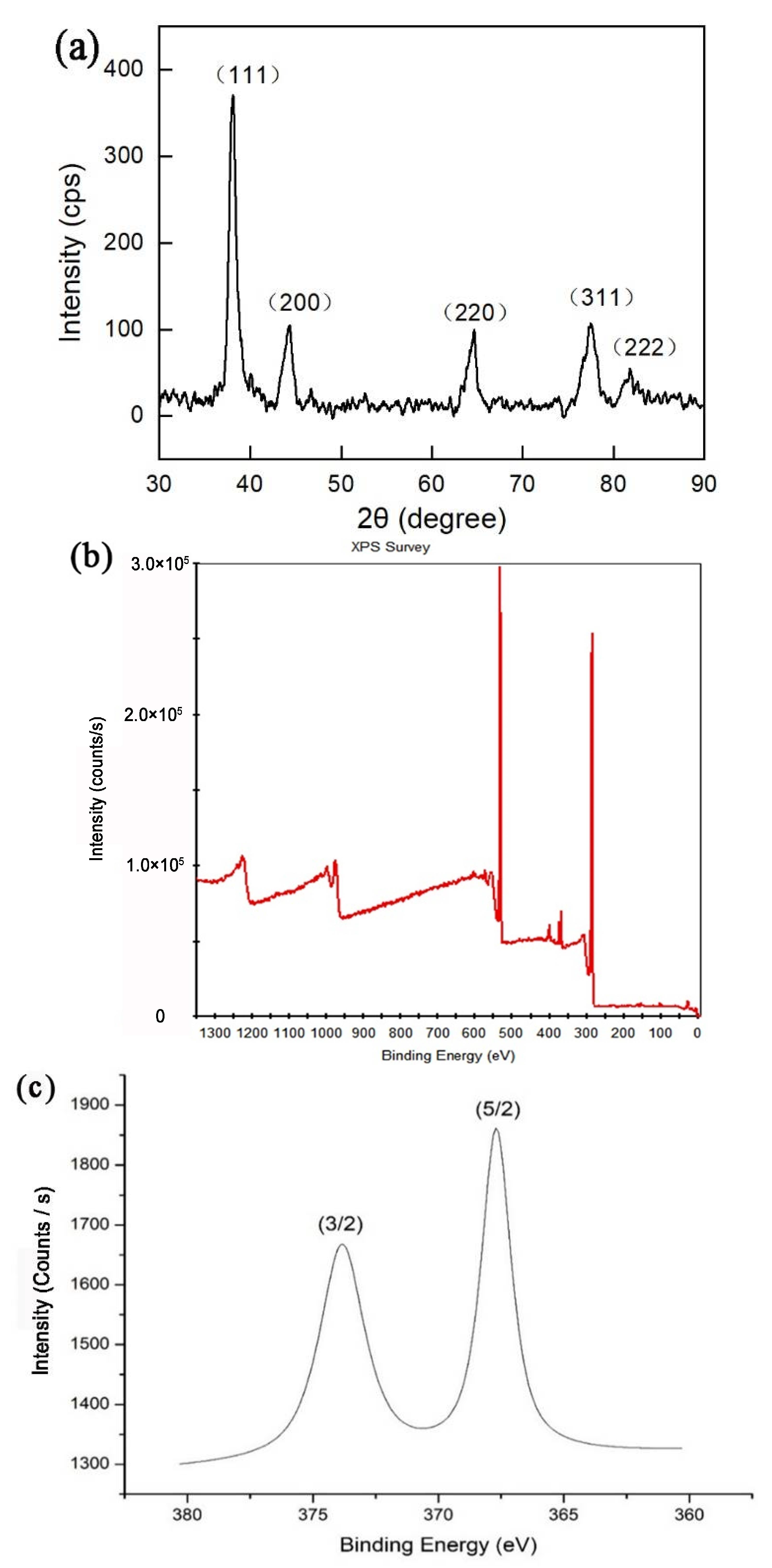

Figure 4. (a) XRD spectrum of the functionalized chestnut-shell-extract Ag nanoparticles. (b) XPS pattern of the functionalized chestnut-shell-extract AgNPs. (c) XPS pattern of Ag element in the functionalized chestnut-shell-extract AgNPs.
Figure 4. (a) XRD spectrum of the functionalized chestnut-shell-extract Ag nanoparticles. (b) XPS pattern of the functionalized chestnut-shell-extract AgNPs. (c) XPS pattern of Ag element in the functionalized chestnut-shell-extract AgNPs.
Antibiotics 12 00201 g004
Antibiotics 12 00201 g005 550
Figure 5. The photograph of the zone of inhibition of the functionalized chestnut-shell-extract Ag nanoparticles, the chestnut shell extract, AgNO3 solution and penicillin against (a) Escherichia coli (b) Candida albicans (c) Staphylococcus aureus.
Figure 5. The photograph of the zone of inhibition of the functionalized chestnut-shell-extract Ag nanoparticles, the chestnut shell extract, AgNO3 solution and penicillin against (a) Escherichia coli (b) Candida albicans (c) Staphylococcus aureus.
Antibiotics 12 00201 g005
Antibiotics 12 00201 g006 550

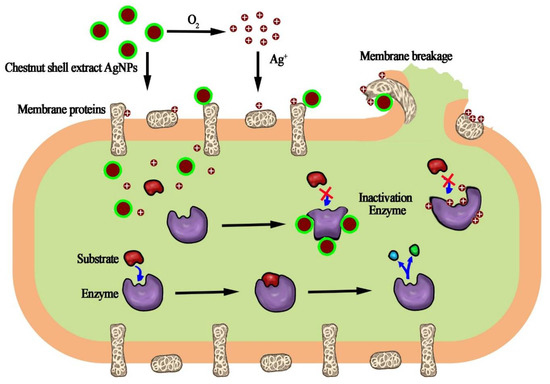

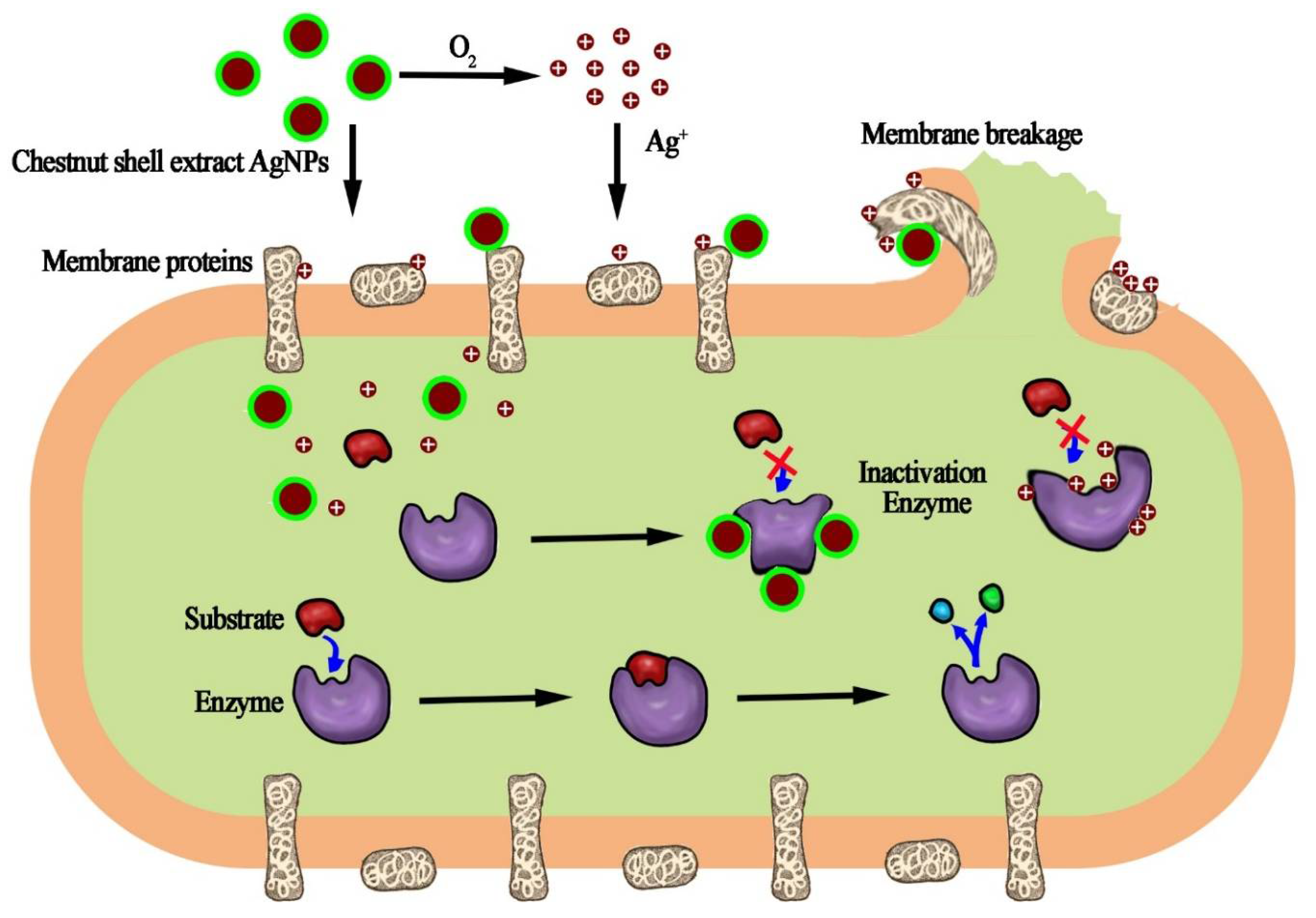

Figure 6. Schematic illustration of the possible antimicrobial mechanism of the functionalized chestnut-shell-extract AgNPs.
Figure 6. Schematic illustration of the possible antimicrobial mechanism of the functionalized chestnut-shell-extract AgNPs.
Antibiotics 12 00201 g006
Table
Table 1. The MIC and MBC of functionalized chestnut-shell-extract AgNPs and control samples.
Table 1. The MIC and MBC of functionalized chestnut-shell-extract AgNPs and control samples.
μg/mLE. coliS. aureusC. albicans
MICMBCMICMBCMICMBC
Chestnut-shell-extract AgNPs0.130.250.250.500.130.25
AgNPs from NaBH4 reduction21.2542.5021.2542.5021.2542.50
Penicillin1.603.306.0012.006.0012.00
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shao, K.; Sun, J.; Lin, Y.; Zhi, H.; Wang, X.; Fu, Y.; Xu, J.; Liu, Z. Green Synthesis and Antimicrobial Study on Functionalized Chestnut-Shell-Extract Ag Nanoparticles. Antibiotics 2023, 12, 201. https://doi.org/10.3390/antibiotics12020201

AMA Style

Shao K, Sun J, Lin Y, Zhi H, Wang X, Fu Y, Xu J, Liu Z. Green Synthesis and Antimicrobial Study on Functionalized Chestnut-Shell-Extract Ag Nanoparticles. Antibiotics. 2023; 12(2):201. https://doi.org/10.3390/antibiotics12020201

Chicago/Turabian Style

Shao, Kai, Jixiang Sun, Yamei Lin, Hongxin Zhi, Xitong Wang, Yujie Fu, Jiating Xu, and Zhiguo Liu. 2023. "Green Synthesis and Antimicrobial Study on Functionalized Chestnut-Shell-Extract Ag Nanoparticles" Antibiotics 12, no. 2: 201. https://doi.org/10.3390/antibiotics12020201

APA Style

Shao, K., Sun, J., Lin, Y., Zhi, H., Wang, X., Fu, Y., Xu, J., & Liu, Z. (2023). Green Synthesis and Antimicrobial Study on Functionalized Chestnut-Shell-Extract Ag Nanoparticles. Antibiotics, 12(2), 201. https://doi.org/10.3390/antibiotics12020201

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
