Magnetite-Based Nanostructured Coatings Functionalized with Nigella sativa and Dicloxacillin for Improved Wound Dressings

Lasers Department, National Institute for Lasers, Plasma and Radiation Physics, 409 Atomistilor Street, 077125 Magurele, Romania
Department of Biochemistry and Molecular Biology, University of Bucharest, 050095 Bucharest, Romania
National Institute of Materials Physics, 405A Atomistilor Street, 077125 Magurele, Romania
Department of Inorganic Chemistry, Physical Chemistry and Electrochemistry, Faculty of Applied Chemistry and Materials Science, Politehnica University of Bucharest, 1-7 Gheorghe Polizu Street, 011061 Bucharest, Romania
Academy of Romanian Scientists, Ilfov No. 3, 050044 Bucharest, Romania
Department of Science and Engineering of Oxide Materials and Nanomaterials, Politehnica University of Bucharest, 011061 Bucharest, Romania
Research Institute of the University of Bucharest—ICUB, University of Bucharest, 050657 Bucharest, Romania
Department of Microbiology and Immunology, Faculty of Biology, University of Bucharest, 91-95 Splaiul Independentei Street, 077206 Bucharest, Romania
Author to whom correspondence should be addressed.
Antibiotics 2023, 12(1), 59;
Received: 22 November 2022 / Revised: 14 December 2022 / Accepted: 20 December 2022 / Published: 29 December 2022


In this study, we report the performance improvement of wound dressings by covering them with magnetite-based nanostructured coatings. The magnetite nanoparticles (Fe3O4 NPs) were functionalized with Nigella sativa (N. sativa) powder/essential oil and dicloxacillin and were synthesized as coatings by matrix assisted pulsed laser evaporation (MAPLE). The expected effects of this combination of materials are: (i) to reduce microbial contamination, and (ii) to promote rapid wound healing. The crystalline nature of core/shell Fe3O4 NPs and coatings was determined by X-ray diffraction (XRD). Differential Scanning Calorimetry (DSC) and Thermo Gravimetric Analysis (TGA) have been coupled to investigate the stability and thermal degradation of core/shell nanoparticle components. The coatings’ morphology was examined by scanning electron microscopy (SEM). The distribution of chemical elements and functional groups in the resulting coatings was evidenced by Fourier transform infrared (FTIR) spectrometry. In order to simulate the interaction between wound dressings and epithelial tissues and to evaluate the drug release in time, the samples were immersed in simulated body fluid (SBF) and investigated after different durations of time. The antimicrobial effect was evaluated in planktonic (free-floating) and attached (biofilms) bacteria models. The biocompatibility and regenerative properties of the nanostructured coatings were evaluated in vitro, at cellular, biochemical, and the molecular level. The obtained results show that magnetite-based nanostructured coatings functionalized with N. sativa and dicloxacillin are biocompatible and show an enhanced antimicrobial effect against Gram positive and Gram negative opportunistic bacteria.

1. Introduction

Wound management is an important clinical issue worldwide [1,2,3,4,5]. According to the report published by Fortune Business Insights Pvt. Ltd., the global wound care market is projected to grow from 18.51 billion USD in 2022 to 28.23 billion by 2029 [6]. In the whole wound healing process, wound dressings have a crucial role. The main characteristics of an efficient dressing are to reduce the risk of infection, minimize the pain, apply compression, protect the wound from secondary injury, facilitate the removal of excess exudate, and promote better and rapid healing [7,8].
The wound site is a suitable environment for the colonization and proliferation of viruses, bacteria, or fungi. Normally, these pathogens are overtaken and eliminated by white blood cells and other components of the immune system, but there are many cases when the body’s defence mechanism is overcome and chronic infections associated with the formation of (mono-or polymicrobial) biofilms appear [9]. By focusing on microbial cell walls or membranes, cellular respiration processes, or quorum sensing systems, natural substances have demonstrated their effectiveness in relation to the present antibiotic resistance issue [10]. The enhanced hydrophobicity, volatility, lipophilicity, oxidation sensitivity, and lower solubility and stability of natural substances, however, pose a number of challenges despite their enormous promise [11]. Therefore, their cooperation with nanotechnology-based strategies is required to prevent the advancement of microbial diseases.
Recent developments in the wound care management domain are focused on dressings containing drugs, including antibiotics/antimicrobials, as an excellent solution in speeding up wound healing, protecting against infections, and in tissue regeneration. Progress has been made in obtaining wound dressings with demonstrated antimicrobial efficiency with the help of nanotechnological tools—nanoparticles (NPs) possessing antimicrobial properties and being used as drug carriers.
The use of metal and metal oxide NPs (including magnetite—Fe3O4) in combination with antibiotics and/or natural active substances as antimicrobial agents has specifically concentrated on the wound management area [12]. Fe3O4 NPs were previously functionalised with different antibiotics such as cefepim, streptomycin, and neomycin [13], which have been applied and tested on different infection microorganisms.
In the case of natural substances, there are several works regarding Fe3O4 NPs functionalised with natural substances for the use in wound dressing applications. For example, Anghel et al. investigated the efficiency of a novel wound dressing coating containing Fe3O4 and Satureja hortensis essential oil. The wound dressings exhibited improved antimicrobial properties, preventing Candida albicans colonization and biofilm development [14]. The aim of a study by Radulescu et al. was to develop a biocompatible and antiinfection coating for wound dressings, containing Fe3O4 NPs functionalized with patchouli essential oil in order to impart antimicrobial properties to the dressings [15]. In another study by Chircov et al., the research group developed nanostructured systems based on Fe3O4@SiO2 core–shell NPs and three different types of essential oils, i.e., thyme, rosemary, and basil, to be potentially used in wound antimicrobial therapies. The antimicrobial properties of the synthesized nanocomposites were assessed by in vitro tests on Staphylococcus aureus, Pseudomonas aeruginosa, Escherichia coli, and Candida albicans [16].
These NPs have significant potential for the administration of pharmacological substances, as they can enhance biocompatibility, ensure targeted, controlled, and prolonged release of therapeutic compounds, and reduce the amount of bioactive compounds needed for the therapeutic effect desired in many biomedical applications [17,18,19,20,21]. Fe3O4 NPs properties (such as high surface area, size and size distribution) are closely related to the synthesis method applied to produce them (ex: co-precipitation [22,23,24], sol-gel [25,26], microemulsion [27,28], sonochemical [29], hydrothermal [30,31], electrochemical [32], thermal decomposition [33], polyol [34,35], and biological synthesis [36,37], etc.).
The antimicrobial nature of the Fe3O4 NPs can be obtained by anchoring the therapeutic agent of interest [38,39]. In wound care management, Fe3O4 NPs, which act as vectors for the active substances, must ensure a slow, continuous drug delivery and release and avoid the evaporation and absorbance of active components in the dressings’ texture [40].
Dicloxacillin sodium monohydrate (DCX), a semisynthetic isoxazolyl penicillin, exhibits antimicrobial activity against a wide variety of Gram-positive bacteria, as well as stability against penicillinases and a low level of toxicity [41]. DCX has shown activity against Stafiloccocus aureus, Streptococcus pyogenes, Streptococcus pneumoniae, Streptococcus epidermidis, Streptococcus viridans, Streptococcus agalactiae, and Neisseria meningitides [42,43,44]. It is currently applied with success in the treatment of bacterial infections such as bone, ear, skin, urinary tract infections, and pneumonia [45,46].
Nigella sativa seeds have been used in many ancient cultures due to their high content of biologically active essential oils to treat skin diseases, gastric and heart conditions, pulmonary illnesses, various infections, diabetic wounds, etc. [47,48,49,50,51]. Nevertheless, seeds/powder (PNS) and oils (NS) of N. sativa are well known for their anticancer [52,53], antimicrobial [54,55], anti-inflammatory [56], antioxidant [57], glucose lowering [58,59], antihistaminic [60], immune booster [61,62], antiparasitic [63], and hepatoprotective properties [64,65,66]. The biofilm inhibition effectiveness of NS compounds was proved against various human pathogenic microorganisms. It has been revealed that NS active substances displayed a considerable bactericidal activity against S. aureus [51,67,68], S. epidermidis, and Enterococcus faecalis biofilm growth and development [69]. N. sativa essential oil and its active compounds, thymoquinone and carvacrol, modulate antibiotic resistance in Listeria monocytogenes against various antimicrobials [70]. Furthermore, we noted the isolation of multi-drug resistant S. aureus from diabetic wounds and that more than half of isolates were susceptible to different concentrations of N. sativa oil [51].
Ultimately, by merging the above-mentioned ideas, we report on the deposition of nanostructured coatings from Fe3O4 functionalized with dicloxacillin (DCX) antibiotic and Nigella Sativa essential oil (NS) or powder (PNS) by matrix assisted pulsed laser evaporation (MAPLE). The novelty of our work consists in obtaining wound dressing coatings which benefit from the combined effects of both natural substances and antibiotics which are delivered by nanostructured vectors. The scope of our work is to obtain improved wound dressings and to have a double outcome: (i) a reduction in microbial contamination and (ii) the promotion of wound healing.

2. Results and Discussions

2.1. Physico-Chemical Characterization of Fe3O4 Core/Shell Nanoparticles

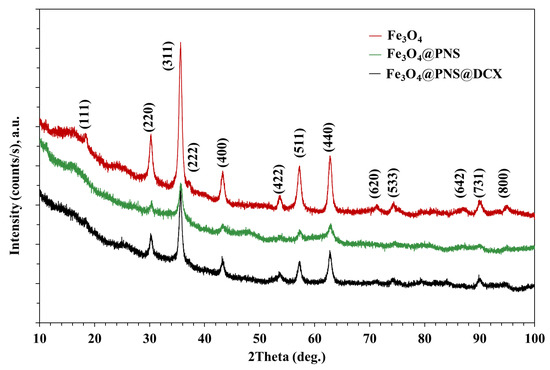

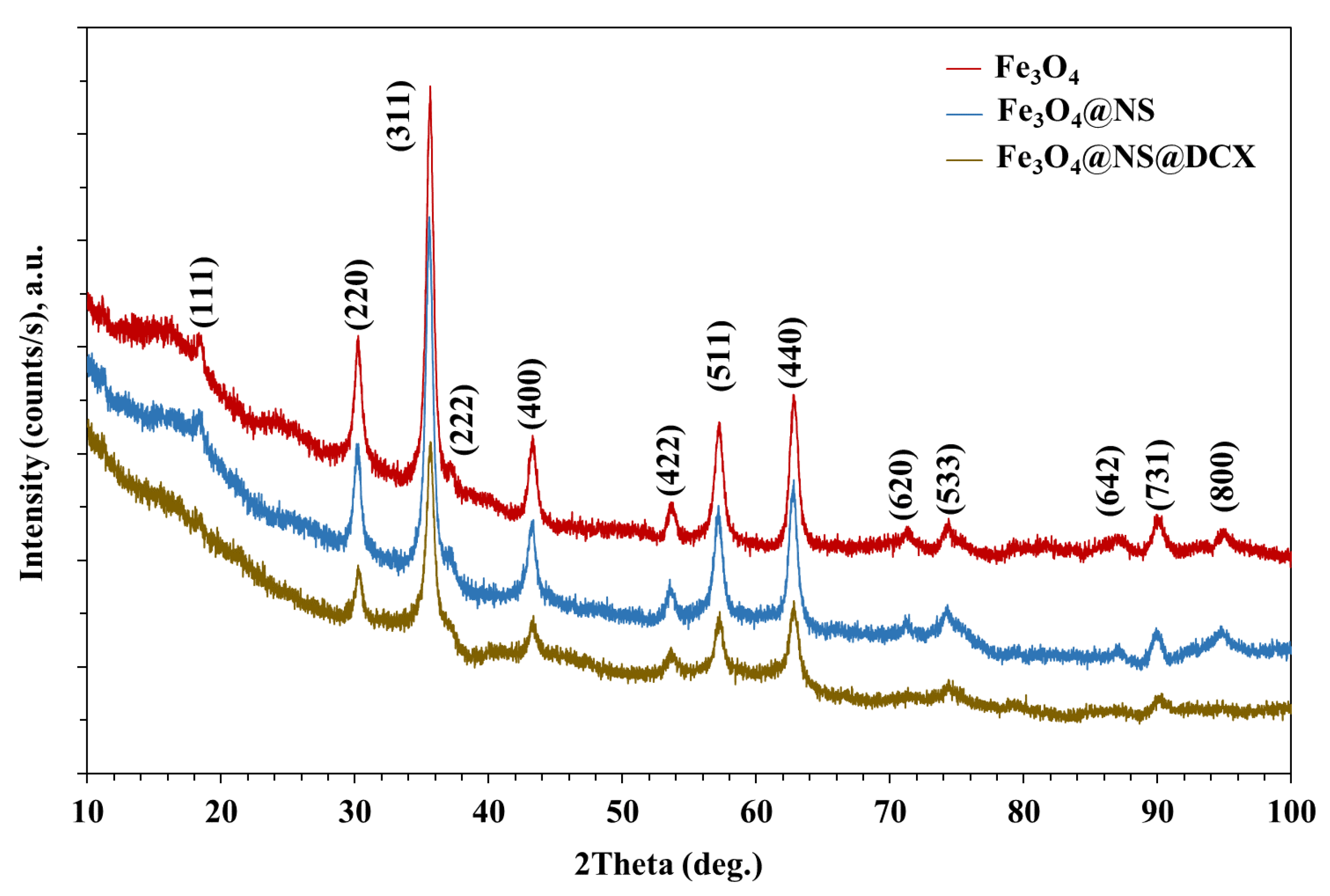

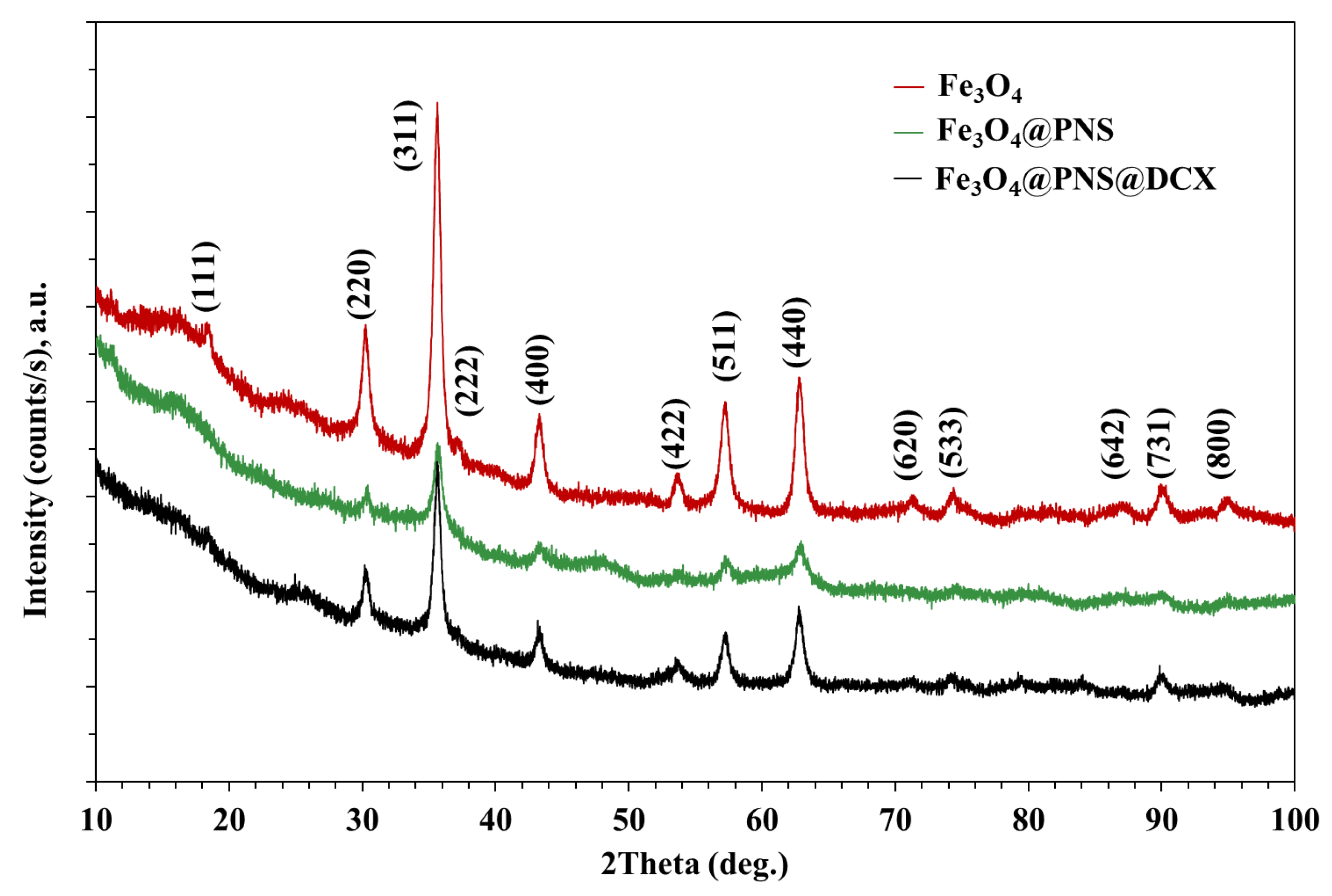

The X-ray difraction (XRD) analysis highlights the presence of strong diffraction interferences that are characteristic of the mineralogical phase, Fe3O4, according to the ICDD database. The diffraction peaks of synthesized Fe3O4 NPs (Figure 1 and Figure 2) were detected at 2θ = 18.28°, 30.08°, 35.43°, 37.06°, 43.06°, 53.42°, 56.94°, 62.53°, 70.93°, 73.97°, 86.72°, and 89.61°, which are assigned to the crystal phases of the planes (111), (220), (311), (222), (400), (422), (511), (440), (620), (533), (642), and (731) [71]. The analysed diffraction peaks were matched well with the typical magnetite XRD patterns (JCPDS file no: 00-003-0863), which confirm the crystallographic system of the cubic structure, having the lattice parameter a = 8.3958 Å.
The transmission electron microscopy (TEM) investigation confirmed the nanometric size of our core shells, as it is visible from Figure 3. From TEM images the tendency of agglomeration of Fe3O4 NPs core/shell is obvious, together with the presence of individual nanoparticles that possess no preferential morphology and a non-homogenous aspect.

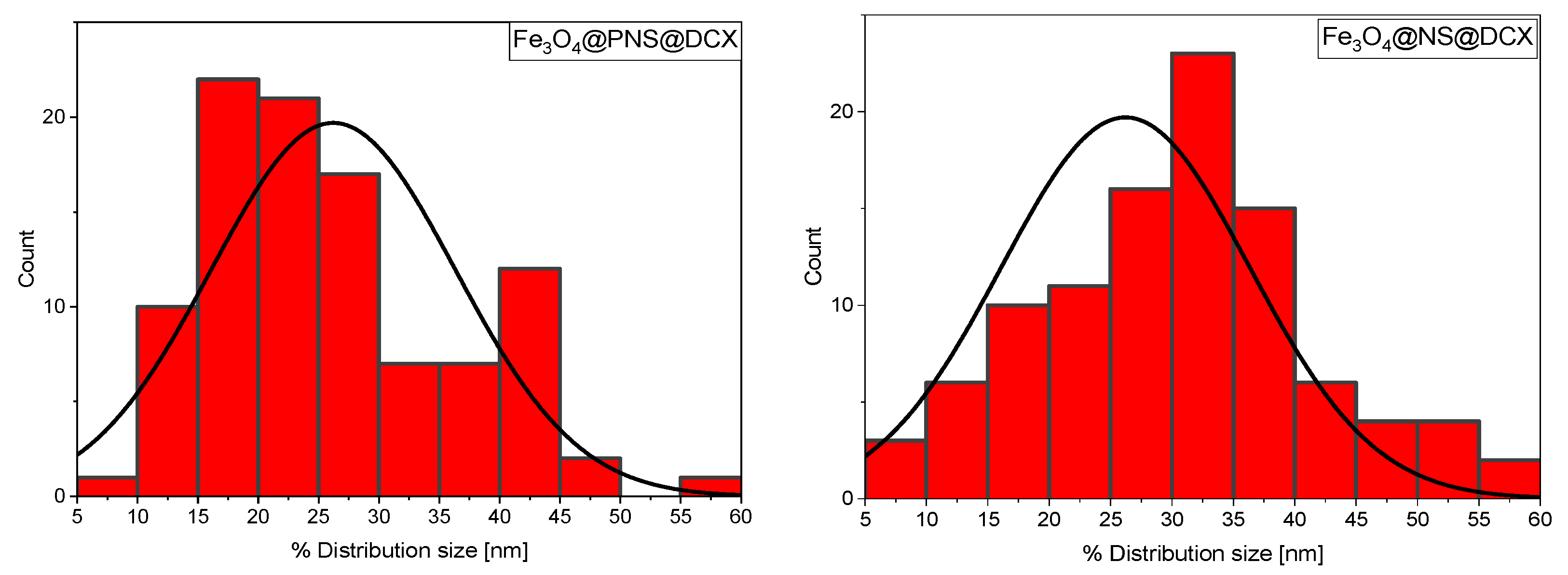

In Figure 4 histograms of NPs size distribution for Fe3O4@[email protected] and Fe3O4@[email protected] core/shells are presented.
For the Fe3O4@[email protected] core/shell, the average size of particulates was determined to be ~26.21 nm, while for Fe3O4@[email protected] it was about 30.59 nm.
From a thermo-gravimetric analysis (TGA) the stability and thermal degradation of core/shell nanoparticles’ components were evaluated.
The pristine Fe3O4 is losing 1.60% of initial mass up to 180 °C (Figure 5). The process is accompanied by an endothermic effect on the differential scanning calorimetry (DSC) curve, with a minimum at 71.6 °C. This can be attributed to the removing of the water molecules absorbed on the nanoparticles’ surface. In the temperature interval 180–500 °C, the sample is losing 1.48% of initial mass, the corresponding effects being exothermic and very weak at 299.7 and 405 °C. Due to the synthesis method (low temperature, water solvent), the obtained nanoparticles can have a significant amount of -OH moieties on their surface [72]. Therefore, the endothermic effects from -OH groups’ condensation and the H2O elimination process can overlap with exothermic effects from the oxidation of magnetite to maghemite or oxidation of the precursor traces [73].
The strong exothermic effect from 597.4 °C represents the transformation of maghemite (γ-Fe2O3) to hematite (α-Fe2O3) [74]. The sample is losing 2.08% of initial mass in an oxidative-degradative process between 500–900 °C, the accompanying exothermic effect presenting a broad maximum at 750.4 °C. The residual mass is 94.84%.

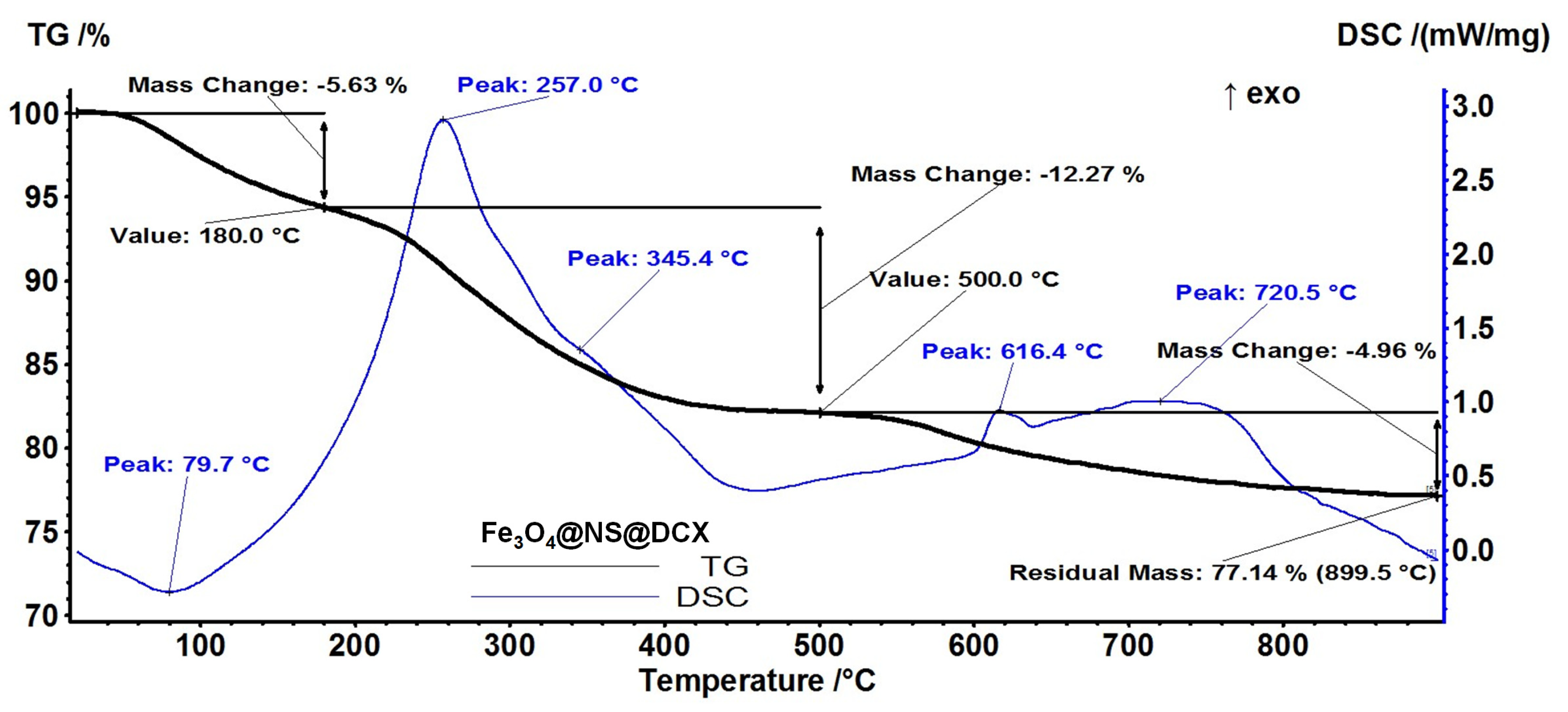

Regarding Fe3O4@[email protected] (Figure 6), the sample is losing 5.63% of the initial mass up to 180 °C. The process is accompanied by an endothermic effect on the DSC curve, with a minimum at 79.7 °C. This can be attributed to the removal of the water molecules absorbed on the nanoparticles’ surface. In the temperature interval 180–500 °C, the sample is losing 12.27% of initial mass in an oxidative-degradative process, which is accompanied by a large, asymmetric exothermic effect on the DSC curve, with a peak at 257 °C and a shoulder at 345.4 °C. This indicates the presence of at least two overlapped oxidative processes. In this step the –OH surface groups are also eliminated.
The exothermic effect from 616.4 °C represents the transformation of γ-Fe2O3 to α-Fe2O3. The sample is losing 4.96% of initial mass in an exothermic process between 500–900 °C, the peak on the DSC curve being at 720.5 °C. The residual mass is 77.14%.

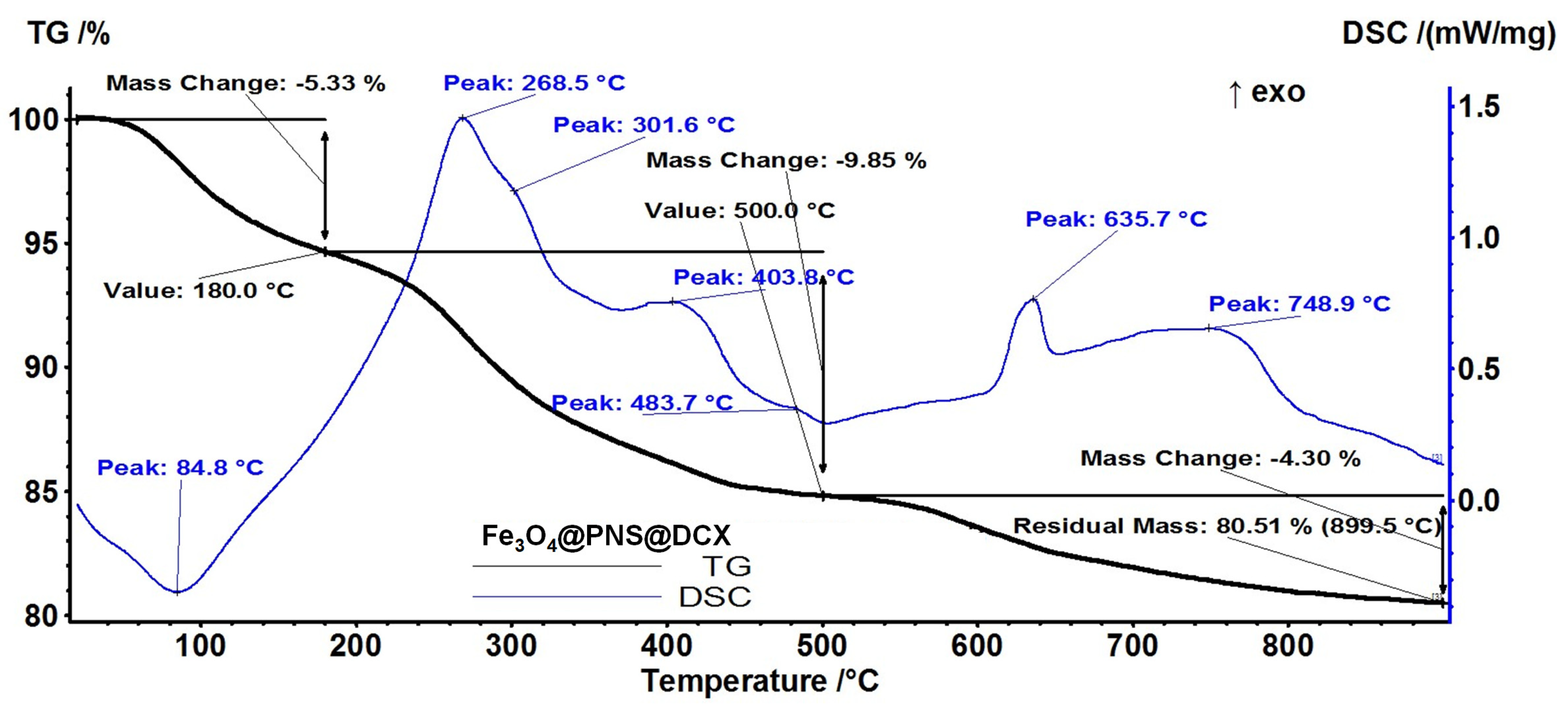

In the case of Fe3O4@[email protected] (Figure 7), the sample is losing 5.33% of the initial mass in the temperature interval RT-180 °C. The process is accompanied by an endothermic effect on the DSC curve, with a minimum at 84.8 °C, attributed to the removal of the water molecules absorbed on the nanoparticles surface. In the temperature interval 180–500 °C the sample is losing 9.85% of initial mass, in multiple overlapped exothermic processes with peaks at 268.5 and 403.8 °C and shoulders at 301.6 and 483.7 °C. Each of these processes represents an oxidation process, with evolved CO2 and H2O quantities being larger in the first process. In this step the -OH surface groups are also eliminated.
The exothermic effect from 635.7 °C represents the transformation of γ-Fe2O3 to α-Fe2O3. The sample is losing 4.30% of its initial mass in an oxidative-degradative process between 500–900 °C, the accompanying exothermic effect presenting a broad maximum at 748.9 °C. The residual mass is 80.51%.

2.2. Physico-Chemical Characterization of Magnetite-Based Nanostructured Coatings

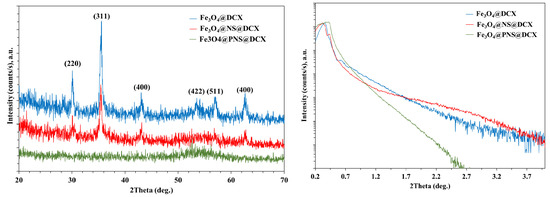

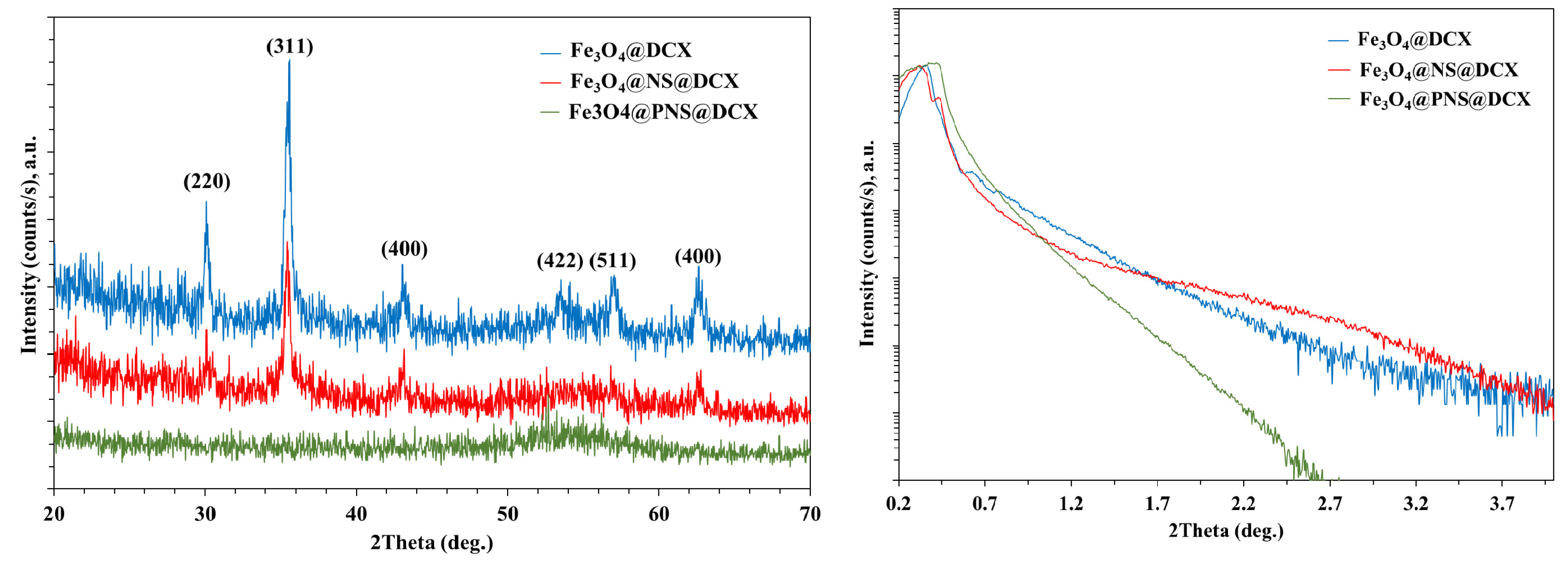

From the data acquired by XRD at grazing incidence, on the coatings based on Fe3O4 functionalized with DCX, a nano-crystalline structure can be distinguished for Fe3O4@[email protected] and Fe3O4@DCX coatings with Fe oxide peaks identified in Figure 6 (blue and red) and an amorphous Fe3O4@[email protected] coatings (green) (Figure 8).
X-ray reflectivity (XRR) analyses revealed that the amorphous coating, Fe3O4@[email protected], has a higher density than the better crystallized Fe3O4@[email protected] and Fe3O4@DCX coatings.
Scanning electron microscopy (SEM) micrographs (Figure 9) show the formation of a continuous coating on the substrate, with a surface consisting of isolated, clustered, and randomly scattered nanoparticles. At the same time, it can be observed that the composite coatings present an irregular surface morphology, as further confirmed by the cross-sectional micrographs. The thickness of the coatings containing DCX is in the range of (100–400) nm. In addition, rare local surface anomalies were observed (Figure 9A,B), consisting of clusters of agglomerated nanogranules. The presence of these structures is characteristic of the deposition by pulsed laser technologies [75,76].
In the case of the drop-cast (DC) samples, the existence of predominant blue areas in the complementary IR maps confirms the non-uniformity of the distribution of functional groups on the surface of the Si substrate compared to the coatings with predominant yellow-red areas (Figure 10). However, from the point of view of uniform and efficient transfer of the composite material and the preservation of chemical integrity, optimal results were shown at a laser fluence of 400 mJ/cm2.
Compared to drop-cast, laser fluence (400 mJ/cm2) did not alter the chemical integrity of the material for all coatings containing DCX. In addition, compared to this for the Fe3O4@[email protected] combination, a slight change and reduction of the peaks in the range of 3600–2800 cm−1 can be observed. The FT-IR spectra of the composite coatings showed a characteristic band of Fe, attributed to the stretching vibration of Fe bonds with a single O-bond [77], characteristic bands of CH3, CH2 and carboxyl groups at around ~2900, ~2800 and ~1400 cm−1. The FTIR spectra reflected peaks of NS through absorption bands at ~3000 and ~2800 cm−1 representing O-H and C-H polyphenol stretching. These results are in agreement with previous reports [78].

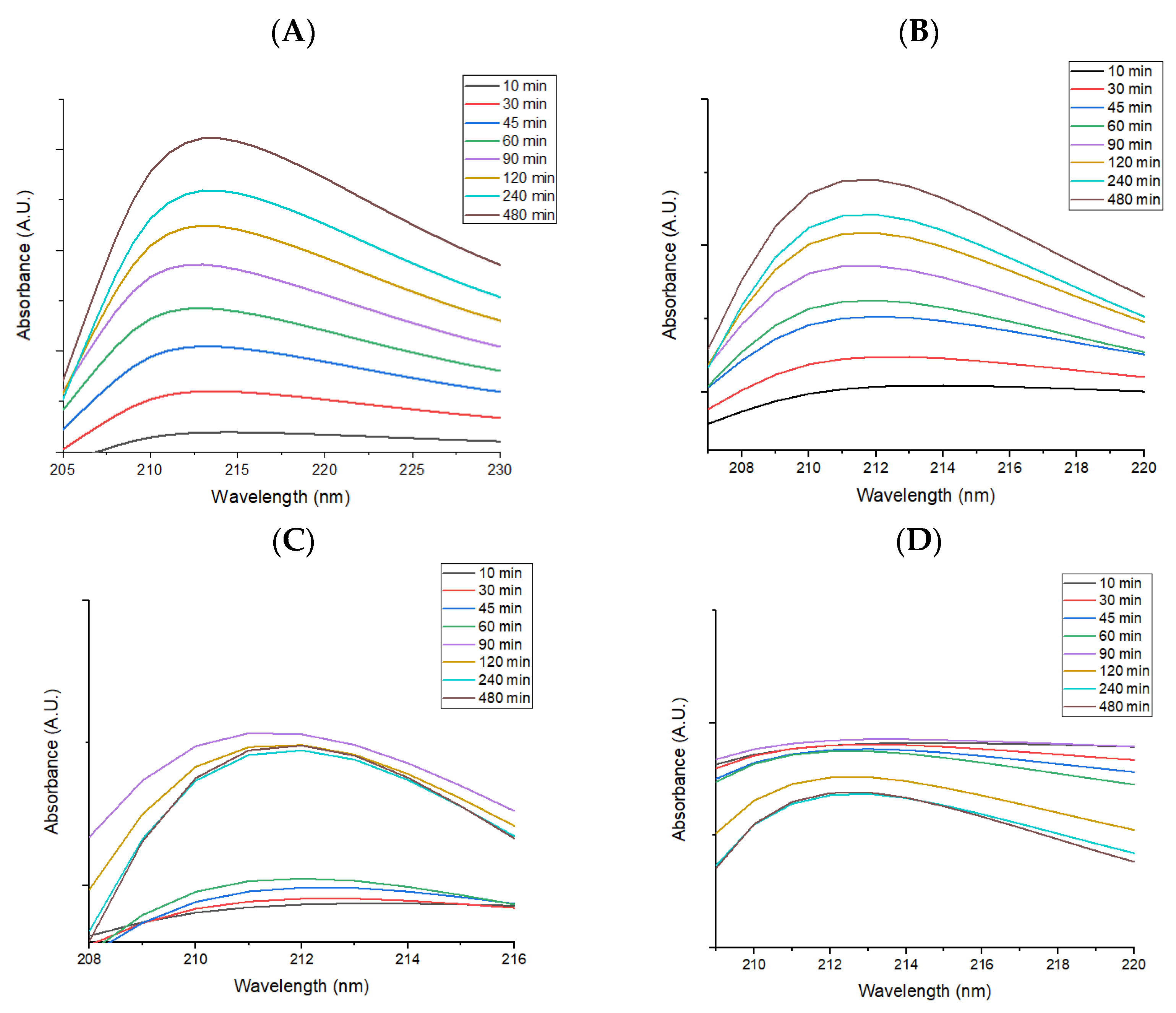

From the graphical representation of the drug release as a function of the time, it can be seen that the drug is released in the first 10 min after immersion, and continues throughout the tested interval in the case of all studied recipes (Figure 11A–D).
It can be concluded that a significant amount of drug released during the 8 h of testing destroys the adherent microbial strains, while a smaller amount of drug released in the following days prevents the formation of bacterial biofilm that can cause infections.

2.3. Biological Evaluation of Magnetite-Based Nanostructured Coatings

2.3.1. Antimicrobial Effect

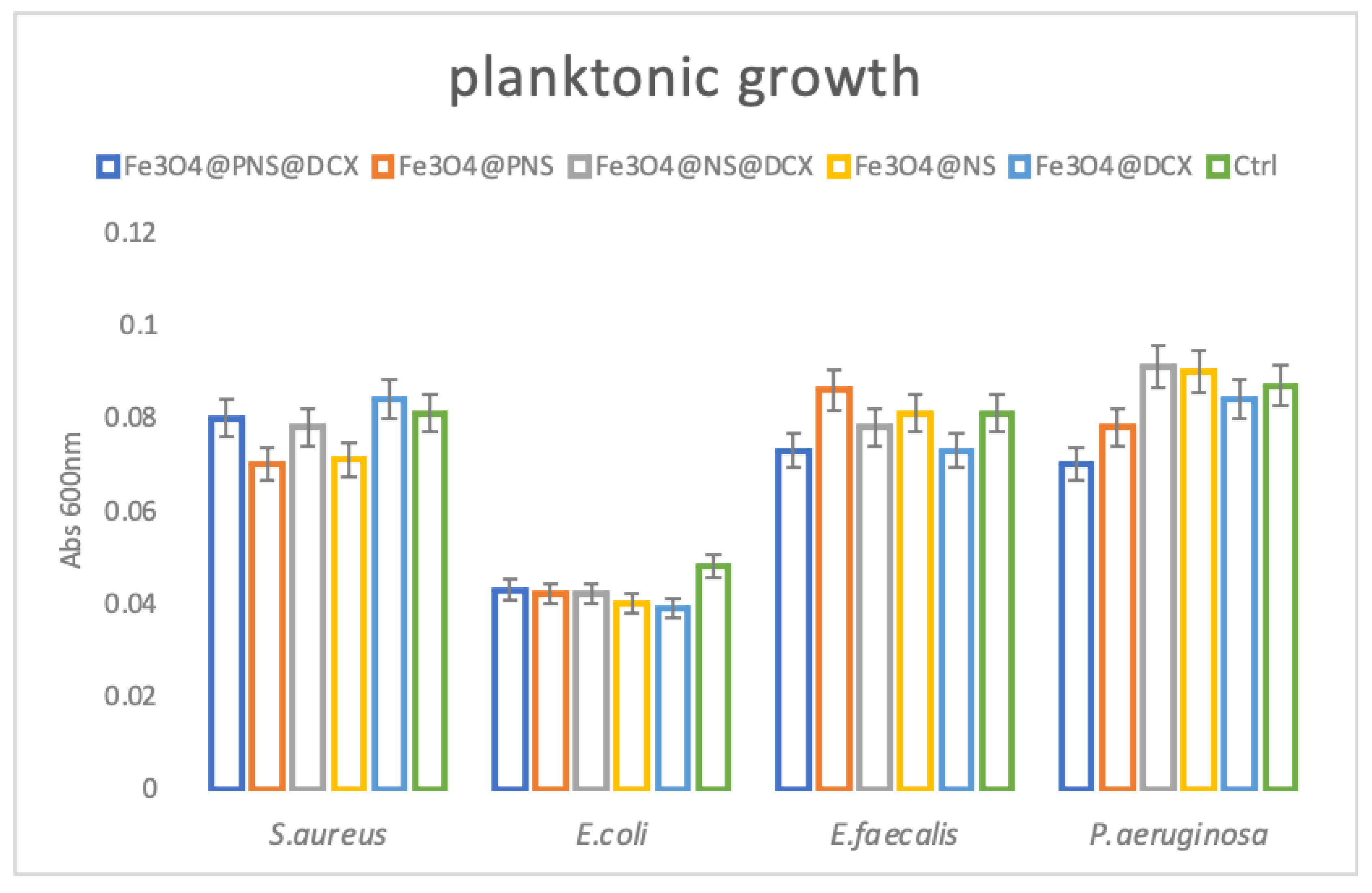

Regarding the antibacterial effect of the coatings, our study revealed that they have a limited effect in planktonic cultures, but are highly efficient in reducing microbial attachment and biofilm formation. These results were expected, as they prove that the bioactive compound (i.e., antibiotic, NS extracts) is embedded into the coating and that low amounts are released over time. Therefore, their maximum efficiency is reached during coating-microbial cell contact, and this modulates contact-dependent bacterial behaviours, such as attachment and biofilm development. Their planktonic growth impact can be observed in Figure 12 below. Here we can observe that planktonic cultured compounds are developing similarly in liquid media containing control and MAPLE processed coatings, suggesting that a low amount of the bioactive compounds which is released in the culturing media is not sufficient to significantly reduce microbial growth and development.
Biofilm growth represents one of the most common microbial strategies to develop difficult-to-treat infections. These multicellular bacterial communities could develop on various surfaces and materials, such as medical devices and coatings, and they represent one of the main causes of device failure and chronic wound infection. Bacteria existing in biofilms are resistant to almost any known antibiotic and to traditional biocide, which can be applied locally for wound management [79]. In this study we aimed to cover both planktonic and biofilm bacteria growth in order to evaluate the antimicrobial activity of the obtained MAPLE processed coatings. We have found that after 24 h, biofilms are considerably inhibited in the presence of the nanomodified coatings. Biofilm inhibition is related to the presence of bioactive agents within the coating. Therefore, samples containing Fe3O4@[email protected] and Fe3O4@[email protected] showed the greatest antimicrobial effect (Figure 13A).
The inhibition of the biofilm is still active even after 48 h for all tested microbial species in the presence of coatings containing Fe3O4@[email protected] and Fe3O4@[email protected] (Figure 13B).

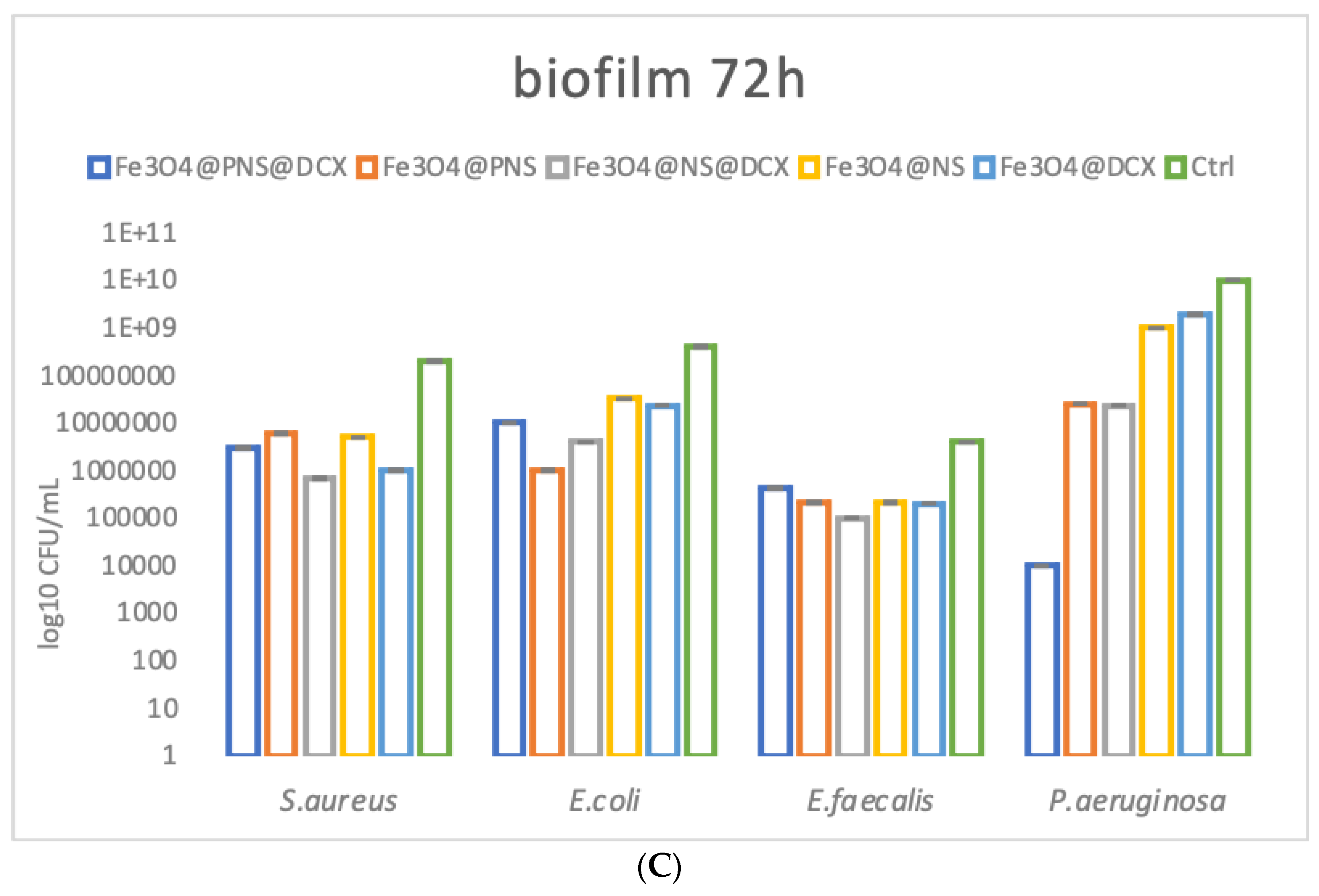

Biofilm inhibition is diminished, after 72 h of contact, for S. aureus, E. coli and E. faecalis tested strains, but remains significant for P. aeruginosa, when coatings encoded Fe3O4@[email protected] and Fe3O4@[email protected] are used. The highest biofilm development inhibition was observed for P. aeruginosa, the biofilms developed by this naturally resistant opportunistic pathogen being up to five-fold inhibited when an Fe3O4@[email protected] coating was used (Figure 13C).
These results suggest that the developed coatings may be very efficient in acting as a repelling dressing against the attachment of microbial pathogens, which could avoid wound colonization and subsequent biofilm development. This effect is most probably caused by the combined antimicrobial efficiency of the antibiotic (DCX) and NS extract, since both were previously reported as efficient antibacterial agents against wound pathogens [80,81,82].

2.3.2. In Vitro Biocompatibility Assessment

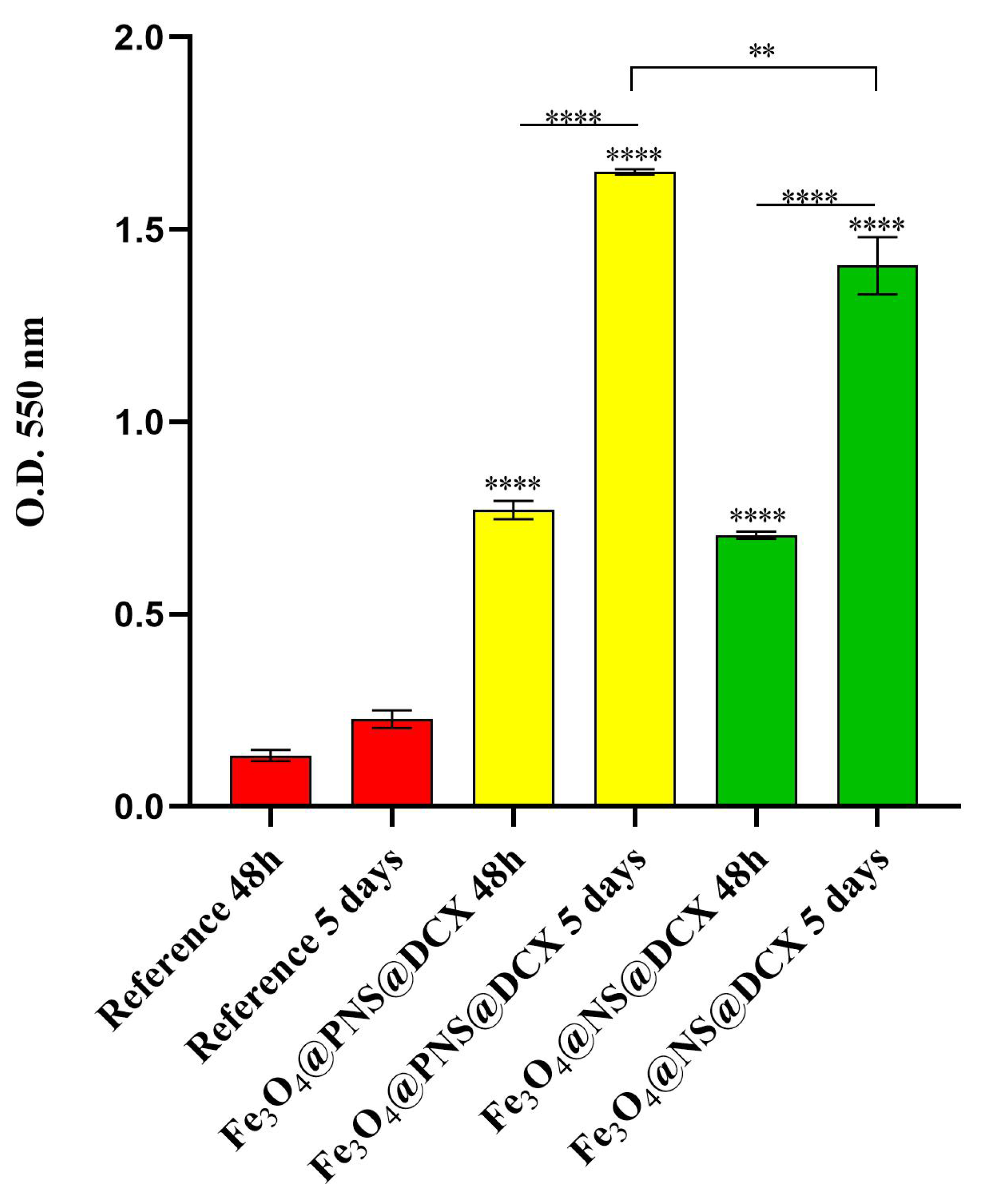

To evaluate the safety of the coatings, cell growth and proliferation were investigated using the MTT assay (Figure 14). In comparison with the reference sample, both coatings determined a statistically significant (**** p < 0.0001) increase in cell viability after 48h of culture, with no notable difference being observed between Fe3O4@[email protected] and Fe3O4@[email protected] After 5 days of culture, the cell viability maintained its upward trend on the coated samples as compared with the cell viability of dermal fibroblasts cultured on pristine wound dressings. However, at this time point, significant differences (** p < 0.01) between samples were observed, results that suggested that the form in which the natural compound was loaded into the coatings has a slight impact on cell viability, with Fe3O4@[email protected] revealing a higher ratio of viable cells than Fe3O4@[email protected] Moreover, the lack of dressing coating severely impacts the proliferative status of dermal fibroblasts, as highlighted by the modest increase of cell viability between 5 days and 48 h of culture on the reference samples. In the presence of the coated samples, CCD-1070Sk cells showed a statistically significant (**** p < 0.0001) increase in cell viability between 5 days and 48 h of culture, showing that the coating strategy stimulates and sustains human dermal fibroblast proliferation, regardless of the form (powder or oil) by which the natural compound is loaded into the coating structure.
The cytotoxicity screening results were in full agreement with the MTT assay (Figure 15). After 48 h of culture, the highest LDH levels were identified in culture medium samples harvested from the reference sample, with a statistically significant (**** p < 0.0001) decrease of the LDH levels in Fe3O4@[email protected] and Fe3O4@[email protected] samples as compared with LDH levels registered in the reference samples. After 5 days of culture, the LDH release slightly increased for all tested samples, with no notable differences in the LDH enzyme level in the Fe3O4@[email protected] and Fe3O4@[email protected] samples. In contrast, in the presence of the non-coated dressings, the LDH levels were significantly increased (* p < 0.5) after 5 days of culture as compared with levels registered after 48 h, showing that the pristine wound dressing exhibits significant higher cytotoxicity than the coated samples.
Finally, to investigate the live and dead cell ratio on the wound dressing surfaces, as well as cell distribution on top of the samples, a Live/Dead assay was performed. A fluorescence microscopy (Figure 16) investigation of samples revealed the presence of dead cells only in the reference sample. In contact with the pristine wound dressing, a significantly lower ratio of live cells was observed on the sample compared to the ratio of live cells present on coated wound dressings. Regarding the Fe3O4@[email protected] and Fe3O4@[email protected] samples, no obvious changes were observed between samples concerning the ratio of live cells identified. However, based on the coverage level of the sample surface, the Fe3O4@[email protected] coating was fully covered with cells that formed 3D complex intercellular networks in comparison with the Fe3O4@[email protected] coating, where cells failed to cover the material surface completely, and more modest cellular networks were observed. In both samples, the human dermal fibroblast exhibited an overall elongated cell morphology characteristic of this particular cell line, showing that the coating structure does not impact cell morphology.
The obtained results showed that in the absence of a coating, the pristine wound dressing fails to sustain cell growth and proliferation, as revealed by the low survival rate of human dermal fibroblasts on the reference sample, as well as by the high cytotoxicity of this sample. Improving the wound dressing with Fe3O4@[email protected] and Fe3O4@[email protected] triggered a positive shift of the investigated parameters related to human dermal fibroblasts. Therefore, tuning the wound dressing with either Fe3O4@[email protected] or Fe3O4@[email protected] leads to obtaining a superior material that provides the appropriate conditions for human dermal fibroblast cell growth and development. Despite the excellent biocompatibility of both Fe3O4@[email protected] and Fe3O4@[email protected], a slight difference was noticed between samples that suggested that the human dermal fibroblasts presented a higher affinity for the Fe3O4@[email protected] coating.

3. Materials and Methods

3.1. Materials

The chemical substances used for the fabrication and functionalization of Fe3O4 NPs, i.e., ferrous sulfate (FeSO4), ferric chloride (FeCl3), acetic acid (CH₃COOH), ammonium hydroxide (NH4OH), doxycycline, and Dimethyl sulfoxide (DMSO) were purchased from Sigma-Aldrich Chemie GmbH (Merck KGaA, Darmstadt, Germany). N. sativa, in the form of powder (PNS) or as cold pressed and unrefined oil (NS), is commercially available. IR transparent silicon (Si) substrates (1 cm2 area) were provided by a local supplier. The cellulose discs (Φ = 12.7 mm) were purchased from ROTH (Karlsruhe, Germany).

3.2. Synthesis Methods

3.2.1. Synthesis of Magnetic NPs Functionalized with DCX

Fe3O4 NPs were obtained by the co-precipitation method from Fe2+ and Fe3+ (1:2 molar ration) according to the literature [83,84]. The concentration of N. sativa (powder/oil) in aqueous NH4OH solution was 0.25%. The product was repeatedly washed with methanol and subsequently dried in an oven at 40 °C until reaching a constant weight [85]. The Fe3O4/N. sativa nano-support and the DCX antibiotic to be adsorbed were mixed at room temperature in the presence of 1 mL of chloroform until the latter has been completely evaporated. The amount of the DCX adsorbed on the nano-support was selected to be 3 mg.

3.2.2. MAPLE Target Preparation

A DMSO of 2.5% (w/v) Fe3O4@NS or Fe3O4@PNS and Fe3O4@NS/[email protected] nanoparticles was prepared. All MAPLE target solutions were poured into a pre-cooled target holder at 77 K and subsequently immersed in liquid nitrogen for 30 min.

3.2.3. Magnetite-Based Coatings Synthesis by MAPLE

Targets used in MAPLE experiments were Fe3O4@NS, Fe3O4@PNS, Fe3O4@[email protected] and Fe3O4@[email protected] MAPLE depositions were performed using a KrF* (λ = 248 nm and τFWHM = 25 ns) laser source COMPexPro 205 model (Lambda Physics-Coherent) operating at the repetition rate of 15 Hz. The energy of a laser pulse was ~420 mJ concentrated in a spot with an area of ~29 mm2. The target and the substrate holder were in a plan-parallel configuration at a separation distance of 4 cm. The number of subsequent laser pulses for the deposition of one single coating was situated in the (80,000–110,000) interval. The experiments were performed in a stainless steel vacuum chamber under an ambient pressure of approximately 10−4 mbar.

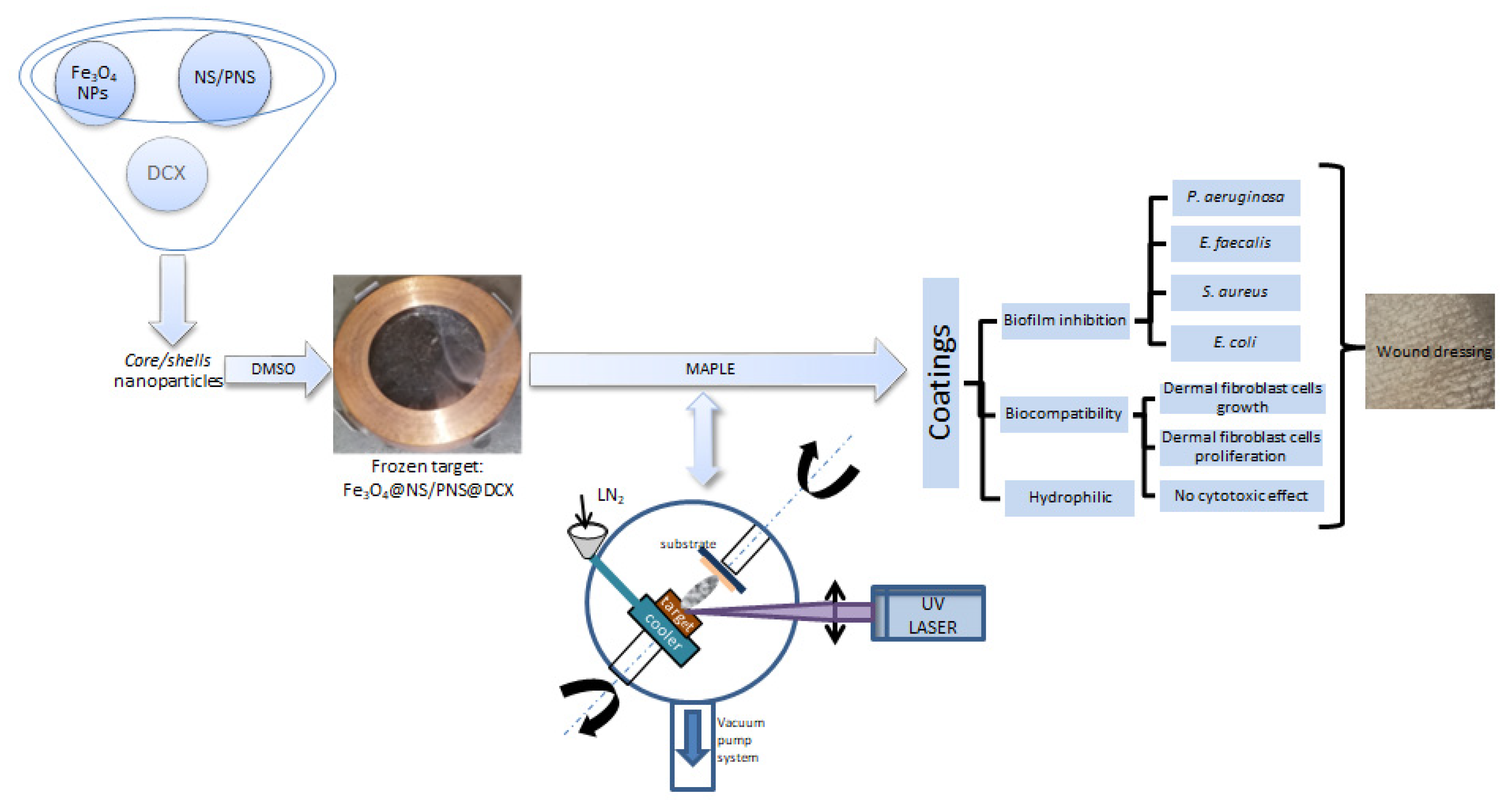

For easier understanding, the whole process of obtaining coatings based on Fe3O4 NPs functionalised with N. sativa and DCX is schematically presented in Figure 17.

3.3. Physicochemical Characterization

3.3.1. X-ray Diffraction (XRD)

The crystalline nature of both nanopowder and coatings was investigated by XRD using an Empyrean X-ray diffractometer from PANalytical (Almelo, The Netherlands,), with CuKα radiation (λ = 1.54 Å). The diffractometer was operated at a generator power of 45 kV and 40 mA in a parallel beam geometry using a parabolic mirror for X-radiation Cu Kα with a 1/8° slit in front of the incident beam and a parallel beam collimator of 0.27° in front of the X-ray detector for the diffracted beam. Diffraction figures were analysed using the Panalytical HighScore Plus™ software package and the International Center of Diffraction Data (ICDD) 2020 database.

3.3.2. Transmission Electron Microscopy (TEM)

For TEM investigations, a JEOL JEM ARM 200 F electron microscope operated at 200 keV was used. Samples for TEM were prepared by suspending them in ethanol and transferring them to a copper grid coated with an amorphous carbon support. The particles sizes were established from the measurement of ~100 particles for each sample.

3.3.3. Thermogravimetric Analysis with Differential Scanning Calorimetry (TGA-DSC)

For TGA-DSC analysis, a small quantity of powder was placed in an open alumina crucible and heated from room temperature to 900 °C at a heating rate of 10 °C/min under a dynamic air atmosphere. An empty alumina crucible was used as a reference. TGA-DSC analyses were performed using a Netzsch STA 449C Jupiter (NETZSCH-Gerätebau GmbH, Selb, Germany).

3.3.4. Scanning Electron Microscopy (SEM)

The morphology and dimensions of nanostructures were investigated by scanning electron microscopy (SEM) using a FEI InspectS microscope which operates under high and low vacuum conditions, with accelerating voltages between 200 V and 30 kV, and a maximum 50 nm resolution.

3.3.5. Fourier-Transform Infrared Spectroscopy (FT-IR)

For FT-IR investigations we used a Nicolet 6700 FT-IR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). As a result, 32 scans of each sample were realized at room temperature, in a frequency range of 4000–1000 cm−1, and a 4 cm−1 spectral resolution. The acquired information was recorded by connecting the spectrometer to a unity of data processing using the Omnic Picta 8.2 software (Thermo Fischer Scientific).

3.3.6. Drug Release

In order to simulate the interaction of wound dressings with human body tissues and to study the phenomena occurring at the dressing-tissue interface as a result of the interaction with physiological fluids, the coated cellulose discs were immersed in 2 mL of simulated body fluid (SBF) and investigated after 8 h. The SBF, having an ionic composition identical to that of blood plasma, was prepared according to the Kokubo formula [86]. Samples immersed in SBF were maintained at 37 °C (human body temperature). The SBF containing the products released by the samples for 8h was analysed by UV-Vis absorption spectroscopy with a ThermoFisher Scientific Evolution 220 spectrophotometer. The analysis range used was 190–1200 nm in absorbance mode. All measurements were performed in triplicate according to ISO/FDIS 23317:2007(E).

3.4. Biological Characterization

3.4.1. Planktonic Growth in Nutritive Broth

The effect of the MAPLE coatings on the growth of microorganisms in planktonic cultures was evaluated. The MAPLE coatings were sterilized by UV exposure for 20 min before analysis. A piece of the sterile coatings was individually deposited in a well of a sterile 24-well plate. Next, 1 mL of nutritive broth and subsequently 10 μL of 0.5 McFarland density microbial suspensions prepared in PBS (phosphate buffered saline) were added over the coatings. The prepared plates were incubated at 37 °C for 24 h. A total of 150 μL of the obtained microbial culture (planktonic cells) was transferred to 96 well plates and the turbidity of the microbial cultures (absorbance, Abs 600 nm) was measured spectrophotometrically [87].

3.4.2. Bacterial Strains

The antibacterial evaluation of the nanomodified wound dressings was assessed in vitro against four microbial strains, known for their ability to produce biofilms and wound infections, namely two Gram positive (S. aureus ATCC 23235 and E. feacalis ATCC 29212) and two Gram negative (E. coli ATCC 25922 and P. aeruginosa ATCC 27853) bacteria.

3.4.3. Monospecific Biofilm Development

In this assay, we have evaluated the short-term and long-term antimicrobial efficiency against monospecific biofilms, following a protocol described by [87]. The antibiofilm efficiency was established by evaluating the bacterial biofilm development in the presence of control and MAPLE modified coatings. The obtained thin coatings were placed in sterile 24-well plates in 1 mL of liquid media (nutritive broth), followed by the inoculation of 10 μL of microbial suspension of 0.5 McFarland standard density from each bacterial strain. The samples were then incubated for 24 h at 37 °C. Afterwards, the culture media was removed and the samples were washed with 1 mL sterile PBS. This washing step aims to remove the unattached bacteria. The samples were then transferred to sterile 24-well plates containing fresh media and incubated for 24, 48, and 72 h, respectively, at 37 °C to allow the growth and biofilm formation of the attached bacteria. The wound dressing samples were then gently washed with sterile phosphate-buffered saline and further placed in 1.5 mL centrifuge tubes containing 1000 μL of PBS. The obtained specimens were vortexed for 30 s and subsequently subjected to ultrasounds for 10 s to detach the biofilm cells and obtain microbial suspensions of cells which were previously embedded into biofilms. Serial ten-fold dilutions were performed from the obtained suspensions and inoculated on nutrient agar for viable cell count assays.

3.4.4. In Vitro Biocompatibility Assessment

The CCD-1070Sk human dermal fibroblasts cell line (ATCC® CRL-2091™, ATCC, American Type Collection, Manassas, VA, USA) was employed as an in vitro cellular model for assessing the biocompatibility of the improved wound dressings. Cells were maintained in Dulbecco’s Modified Eagle’s Medium (DMEM, Sigma/Merck, Steinheim, Germany), supplemented with 10% fetal bovine serum (FBS, Gibco, Thermo Fischer Scientific, Waltham, MA, USA) and a 1% penicillin-streptomycin mix (Sigma/Merck), under a humid atmosphere with 5% CO2 at 37 °C. Before the biocompatibility assessment, all the experimental samples were sterilized for 20 min by UV light exposure and transferred aseptically in 24-well culture plates. A pristine wound dressing was used as a reference for all cell culture-based assays and was processed identically to the coated samples. Cells were seeded on simple and coated-wound dressings in a droplet at an initial density of 104 cells/cm2. After 2 h, the complete culture medium was added in all wells containing samples and further incubated for 5 days in standard cell culture conditions.
The MTT assay (3-[4,5-dimethylthiazol-2-yl]-2,5 diphenyl tetrazolium bromide, Sigma/Merck) was performed to investigate cell viability and proliferation potential after 48 h and 5 days of fibroblasts’ contact with the simple and coated-wound dressings based on the metabolic activity of healthy cells. The culture medium was discarded and replaced with a fresh MTT solution (1 mg/mL) prepared in serum-free DMEM. After 4 h of incubation with the MTT solution (5% CO2, 37 °C), the resulting formazan crystals were solubilized using DMSO and the optical densities (OD) of the resulting solutions were measured at 550 nm using the multimodal FlexStationIII reader (Molecular Devices, San Jose, CA, USA).
The cytotoxic potential of the simple and coated wound dressings was investigated by measuring the levels of lactate dehydrogenase (LDH) released in the culture medium by damaged fibroblasts. For this, medium samples were harvested 48 h and 5 days after experiment initiation and mixed with the components of the “In vitro toxicology assay kit lactate dehydrogenase based TOX—7” kit (Sigma/Merck) according to the manufacturer’s recommendations. After 30 min of incubation at RT in the dark, the absorbance of the resulting solutions was read at 490 nm using the multimodal reader FlexStation III to determine cell membrane damage and cell death induced by sample contact.
All of the experiments were performed in triplicate and all the statistical data are presented as mean values ± standard deviation of three independent experiments. For statistical analyses, GraphPad Prism software (San Diego, CA, USA) was employed, using one-way analyses of variance (ANOVA), with Bonferroni’s multiple comparisons post-test used to identify which groups were different. Results with p < 0.05 were considered statistically significant.
To simultaneously highlight live and dead cells on the samples’ surface and reveal the overall cellular distribution after 5 days of culture, a Live/Dead kit (Invitrogen, Life Technologies, Foster City, CA, USA) was used. Briefly, as recommended by the manufacturer’s instructions, a mix of calceinAM and ethidium bromide was prepared in PBS (Sigma/Merck). After discarding the culture medium, samples were immersed in the prepared solution for 20 min in the dark at RT and consequently analyzed using the Olympus IX73 fluorescence microscope and CellSense F software version 1.11.

4. Conclusions

The Fe3O4@[email protected] coating was amorphous in comparison to Fe3O4@[email protected] and Fe3O4@DCX, respectively. In contrast, an XRR analysis showed that the amorphous coating is much denser than the crystalline ones. An FTIR analysis revealed that the laser transfer did not affect the chemical integrity of the material for all coatings containing DCX.
Following the evaluation of the release process of the active substance, it was observed that a significant amount of the drug released during the 8 h of testing destroys the adhered microbial strains, while a smaller amount of the drug released in the following days prevents the formation of the bacterial biofilm that can cause infections.
The most effective antimicrobial effect was observed in the case of dressings coated with Fe3O4@[email protected], this being highlighted both in terms of the growth and multiplication of microorganisms, as well as in their ability to develop monospecific biofilms.
The Fe3O4@[email protected] and Fe3O4@[email protected] coatings are biocompatible, being able to support the viability and proliferation of dermal fibroblasts, in addition to being free of cytotoxic effects on the chosen in vitro cell model.

Author Contributions

Conceptualization, G.D., V.G. and A.M.H.; Methodology, G.D., V.G. and A.M.H.; Validation, A.H., B.G., L.M.D. and A.M.H.; Investigation, I.N., D.C., I.M., A.H., B.G., A.M.G., O.C.O., L.M.D. and A.M.H.; Writing—Original Draft Preparation, G.D., V.G., I.N., A.M.H. and A.H.; Writing—Review & Editing, G.D., V.G. and I.N.; Visualization, G.D. and A.M.H.; Supervision, G.D. and A.M.H.; Project Administration, G.D. All authors have read and agreed to the published version of the manuscript.


This work was supported by a grant of the Romanian Ministry of Education and Research, CCCDI—UEFISCDI, project number PN-III-P2-2.1-PED-2019-4926, within PNCDI III.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Pacella, R.E.; Tulleners, R.; McCosker, L.; Cheng, Q.; Harding, K.; Edwards, H.; Yelland, S.; Dyer, A.; McGuiness, W.; Graves, N. Reimbursement for the cost of compression therapy for the management of venous leg ulcers in Australia. Int. Wound J. 2019, 16, 1069–1072. [Google Scholar] [CrossRef] [PubMed]
  2. Kapp, S.; Santamaria, N. Chronic wounds should be one of Australia’s National Health Priority Areas. Aust. Health Rev. 2015, 39, 600–602. [Google Scholar] [CrossRef] [PubMed]
  3. Norman, R.E.; Gibb, M.; Dyer, A.; Prentice, J.; Yelland, S.; Cheng, Q.; Lazzarini, P.A.; Carville, K.; Innes-Walker, K.; Finlayson, K.; et al. Improved woundmanagement at lower cost: A sensible goal for Australia. Int. Wound J. 2016, 13, 303–316. [Google Scholar] [CrossRef]
  4. Sen, C.K. Human Wounds and Its Burden: An Updated Compendium of Estimates. Adv. Wound Care 2019, 8, 39–48. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Gray, T.A.; Rhodes, S.; Atkinson, R.A.; Rothwell, K.; Wilson, P.; Dumville, J.C.; Cullum, N.A. Opportunities for better value wound care: A multiservice, cross-sectional survey of complex wounds and their care in a UK community population. BMJ Open 2018, 8, e019440. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Fortune Business Insights. Available online: (accessed on 22 November 2022).
  7. Zhong, Y.J.; Xiao, H.N.; Seidi, F.Y.; Jin, C. Natural polymer-based antimicrobial hydrogels without synthetic antibiotics as wound dressings. Biomacromolecules 2020, 21, 2983–3006. [Google Scholar] [CrossRef]
  8. Naseri-Nosar, M.; Ziora, Z.M. Wound dressings from naturally-occurring polymers: A review on homopolysaccharide-based composites. Carbohydr. Polym. 2018, 189, 379–398. [Google Scholar] [CrossRef]
  9. Pastar, I.; Stojadinovic, O.; Yin, N.C.; Ramirez, H.; Nusbaum, A.G.; Sawaya, A.; Patel, S.B.; Khalid, L.; Isseroff, R.R.; Tomic-Canic, M. Epithelialization in Wound Healing: A Comprehensive Review. Adv. Wound Care 2014, 3, 445–464. [Google Scholar] [CrossRef][Green Version]
  10. Irshad, M.; Subhani, M.A.; Ali, S.; Hussain, A. Biological Importance of Essential Oils. In Essential Oils—Oils of Nature; El-Shemy, H.A., Ed.; IntechOpen: London, UK, 2019. [Google Scholar] [CrossRef][Green Version]
  11. Kumar, A.; Singh, P.; Gupta, V.; Prakash, B. Application of nanotechnology to boost the functional and preservative properties of essential oils. In Functional and Preservative Properties of Phytochemicals; Elsevier Inc.: Amsterdam, The Netherlands, 2020; pp. 241–267. ISBN 9780128185933. [Google Scholar]
  12. Negut, I.; Grumezescu, V.; Grumezescu, A.M. Treatment Strategies for Infected Wounds. Molecules 2018, 23, 2392. [Google Scholar] [CrossRef]
  13. Caciandone, M.; Niculescu, A.-G.; Grumezescu, V.; Bîrcă, A.C.; Ghica, I.C.; Vasile, B.Ș.; Oprea, O.; Nica, I.C.; Stan, M.S.; Holban, A.M.; et al. Magnetite Nanoparticles Functionalized with Therapeutic Agents for Enhanced ENT Antimicrobial Properties. Antibiotics 2022, 11, 623. [Google Scholar] [CrossRef]
  14. Anghel, I.; Grumezescu, A.M.; Andronescu, E.; Anghel, A.G.; Ficai, A.; Saviuc, C.; Grumezescu, V.; Vasile, B.S.; Chifiriuc, M.C. Magnetite nanoparticles for functionalized textile dressing to prevent fungal biofilms development. Nanoscale Res. Lett. 2012, 7, 501. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Rădulescu, M.; Andronescu, E.; Holban, A.M.; Vasile, B.S.; Iordache, F.; Mogoantă, L.; Mogoșanu, G.D.; Grumezescu, A.M.; Georgescu, M.; Chifiriuc, M.C. Antimicrobial Nanostructured Bioactive Coating Based on Fe3O4 and Patchouli Oil for Wound Dressing. Metals 2016, 6, 103. [Google Scholar] [CrossRef][Green Version]
  16. Chircov, C.; Matei, M.-F.; Neacșu, I.A.; Vasile, B.S.; Oprea, O.-C.; Croitoru, A.-M.; Trușcă, R.-D.; Andronescu, E.; Sorescu, I.; Bărbuceanu, F. Iron Oxide–Silica Core–Shell Nanoparticles Functionalized with Essential Oils for Antimicrobial Therapies. Antibiotics 2021, 10, 1138. [Google Scholar] [CrossRef] [PubMed]
  17. Majewski, P.; Thierry, B. Functionalized Magnetite Nanoparticles—Synthesis, Properties, and Bio-Applications. Crit. Rev. Solid State Mater. Sci. 2007, 32, 203–215. [Google Scholar] [CrossRef]
  18. Kianfar, E. Magnetic Nanoparticles in Targeted Drug Delivery: A Review. J. Supercond. Nov. Magn. 2021, 34, 1709–1735. [Google Scholar] [CrossRef]
  19. Price, P.M.; Mahmoud, W.E.; Al-Ghamdi, A.A.; Bronstein, L.M. Magnetic Drug Delivery: Where the Field Is Going. Front. Chem. 2018, 6, 619. [Google Scholar] [CrossRef][Green Version]
  20. Liu, Y.-L.; Chen, D.; Shang, P.; Yin, D.-C. A review of magnet systems for targeted drug delivery. J. Control. Release 2019, 302, 90–104. [Google Scholar] [CrossRef]
  21. Neuberger, T.; Schopf, B.; Hofmann, H.; Hofmann, M.; von Rechenberg, B. Superparamagnetic nanoparticles for biomedical applications: Possibilities and limitations of a new drug delivery system. J. Magn. Magn. Mater. 2005, 293, 483. [Google Scholar] [CrossRef]
  22. Bezdorozhev, O.; Kolodiazhnyi, T.; Vasylkiv, O. Precipitation synthesis and magnetic properties of self-assembled magnetitechitosan nanostructures. J. Magn. Magn. Mater. 2017, 428, 406–411. [Google Scholar] [CrossRef]
  23. Venkatesan, M.; Nawka, S.; Pillai, S.C.; Coey, J.M.D. Enhanced magnetoresistance in nanocrystalline magnetite. Appl. Phys. 2003, 93, 8023–8025. [Google Scholar] [CrossRef][Green Version]
  24. LaGrow, A.P.; Besenhard, M.O.; Hodzic, A.; Sergides, A.; Bogart, L.K.; Gavriilidis, A.; Thanh, N.T.K. Unravelling the growth mechanism of the co-precipitation of iron oxide nanoparticles with the aid of synchrotron X-Ray diffraction in solution. Nanoscale 2019, 11, 6620–6628. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Xu, J.; Yang, H.; Fu, W.; Du, K.; Sui, Y.; Chen, J.; Zeng, Y.; Li, M.; Zou, G. Preparation and magnetic properties of magnetite nanoparticles by sol–gel method. J. Magn. Magn. Mater. 2007, 309, 307–311. [Google Scholar] [CrossRef]
  26. Istrati, D.; Morosan, A.; Stan, R.; Vasile, B.S.; Vasilievici, G.; Oprea, O.; Dolete, G.; Purcareanu, B.; Mihaiescu, D.E. Microwave-Assisted Sol–Gel Preparation of the Nanostructured Magnetic System for Solid-Phase Synthesis. Nanomaterials 2021, 11, 3176. [Google Scholar] [CrossRef]
  27. Solla-Gullon, J.; Gomez, E.; Valles, E.; Aldaz, A.; Feliu, J.M. Synthesis and structural, magnetic and electrochemical characterization of PtCo nanoparticles prepared by water-in-oil microemulsion. J. Nanopart. Res. 2010, 12, 1149–1154. [Google Scholar] [CrossRef]
  28. Salvador, M.; Gutiérrez, G.; Noriega, S.; Moyano, A.; Blanco-López, M.C.; Matos, M. Microemulsion Synthesis of Superparamagnetic Nanoparticles for Bioapplications. Int. J. Mol. Sci. 2021, 22, 427. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, Y.; Nkurikiyimfura, I.; Pan, Z. Sonochemical synthesis of magnetic nanoparticles. Chem. Eng. Commun. 2015, 202, 616–621. [Google Scholar] [CrossRef]
  30. Ali, A.; Zafar, H.; Zia, M.; ul Haq, I.; Phull, A.R.; Ali, J.S.; Hussain, A. Synthesis, characterization, applications, and challenges of iron oxide nanoparticles. Nanotechnol. Sci. Appl. 2016, 9, 49–67. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Gomez, N.T.; Nava, O.; Argueta-Figueroa, L.; García-Contreras, R.; Baeza-Barrera, A.; Vilchis-Nestor, A.R. Shape Tuning of Magnetite Nanoparticles Obtained by Hydrothermal Synthesis: Effect of Temperature. J. Nanomater. 2019, 2019, 7921273. [Google Scholar] [CrossRef][Green Version]
  32. Reséndiz-Ramírez, R.; Rodríguez-López, A.; Díaz-Real, J.A.; Delgado-Arenas, H.F.; Osornio-Villa, A.; Hernández-Leos, R.; Vivier, V.; Antaño-López, R. Reaction Mechanisms of the Electrosynthesis of Magnetite Nanoparticles Studied by Electrochemical Impedance Spectroscopy. ACS Omega 2022, 7, 761–772. [Google Scholar] [CrossRef]
  33. Unni, M.; Uhl, A.M.; Savliwala, S.; Savitzky, B.H.; Dhavalikar, R.; Garraud, N.; Rinaldi, C. Thermal Decomposition Synthesis of Iron Oxide Nanoparticles with Diminished Magnetic Dead Layer by Controlled Addition of Oxygen. ACS Nano 2017, 11, 2284–2303. [Google Scholar] [CrossRef]
  34. Rizk, H.E.; El-Hefny, N.E. Synthesis and characterization of magnetite nanoparticles from polyol medium for sorption and selective separation of Pd(II) from aqueous solution. J. Alloys Compd. 2020, 812, 152041. [Google Scholar] [CrossRef]
  35. Oh, A.H.; Park, H.-Y.; Jung, Y.-G.; Choi, S.-C.; An, G.S. Synthesis of Fe3O4 nanoparticles of various size via the polyol method. Ceram. Int. 2020, 46, 10723–10728. [Google Scholar] [CrossRef]
  36. Habtemariam, A.B. Biosynthesis of Magnetite (Fe3O4) Nanostructures using Vernonia amygdalina Leaves Extract. Lett. Appl. Nanobiosci. 2021, 10, 2777–2783. [Google Scholar] [CrossRef]
  37. Din, M.I.; Raza, M.; Hussain, Z.; Mehmood, H.A. Fabrication of magnetite nanoparticles (Fe3O4-NPs) for catalytic pyrolysis of nutshells biomass. Soft Mater. 2019, 17, 24–31. [Google Scholar] [CrossRef]
  38. Grumezescu, V.; Negut, I.; Grumezescu, A.M.; Ficai, A.; Dorcioman, G.; Socol, G.; Iordache, F.; Truşcă, R.; Vasile, B.S.; Holban, A.M. MAPLE fabricated coatings based on magnetite nanoparticles embedded into biopolymeric spheres resistant to microbial colonization. Appl. Surf. Sci. 2018, 448, 230–236. [Google Scholar] [CrossRef]
  39. Grumezescu, V.; Negut, I.; Gherasim, O.; Birca, A.C.; Grumezescu, A.M.; Hudita, A.; Galateanu, B.; Costache, M.; Andronescu, E.; Holban, A.M. Antimicrobial applications of maple processed coatings based on plga and lincomycin functionalized magnetite nanoparticles. Appl. Surf. Sci. 2019, 484, 587–599. [Google Scholar] [CrossRef]
  40. Grumezescu, V.; Andronescu, E.; Holban, A.M.; Mogoantă, L.; Mogoşanu, G.D.; Grumezescu, A.M.; Stănculescu, A.; Socol, G.; Iordache, F.; Maniu, H.; et al. MAPLE fabrication of thin films based on kanamycin functionalized magnetite nanoparticles with anti-pathogenic properties. Appl. Surf. Sci. 2015, 336, 188–195. [Google Scholar] [CrossRef]
  41. Frimodt-Moller, N.; Rosdahl, V.T.; Sorensen, G.; Hartzen, S.H.; Bentzon, M.W. Relationship between penicillinase production and the in-vitro activity of methicillin, oxacillin, cloxacillin, dicloxacillin, flucloxacillin, and cephalothin against strains of Staphylococcus aureus of different phage patterns and penicillinase activity. J. Antimicrob. Chemother. 1986, 18, 27–33. [Google Scholar] [CrossRef]
  42. Jensen, A.G.; Wachmann, C.H.; Espersen, F.; Scheibel, J.; Skinhøj, P.; Frimodt-Møller, N. Treatment and Outcome of Staphylococcus aureus Bacteremia: A Prospective Study of 278 Cases. Arch. Intern. Med. 2002, 162, 25–32. [Google Scholar] [CrossRef]
  43. Dimitrova, D.J.; Pashov, D.A.; Dimitrov, D.S. Dicloxacillin pharmacokinetics in dogs after intravenous, intramuscular and oral administration. J. Vet. Pharmacol. Ther. 1998, 21, 414–417. [Google Scholar] [CrossRef]
  44. Røder, B.L.; Frimodt-Møller, N.; Espersen, F.; Rasmussen, S.N. Dicloxacillin and flucloxacillin: Pharmacokinetics, protein binding and serum bactericidal titers in healthy subjects after oral administration. Infection 1995, 23, 107–112. [Google Scholar] [CrossRef]
  45. Dillon, H.C. Treatment of staphylococcal skin infections: A comparison of cephalexin and dicloxacillin. J. Am. Acad. Dermatol. 1983, 8, 177–181. [Google Scholar] [CrossRef] [PubMed]
  46. Alshamsan, A.; Aleanizy, F.S.; Badran, M.; Alqahtani, F.Y.; Alfassam, H.; Almalik, A.; Alosaimy, S. Exploring anti-MRSA activity of chitosan-coated liposomal dicloxacillin. J. Microbiol. Methods 2019, 156, 23–28. [Google Scholar] [CrossRef] [PubMed]
  47. El Rabey, H.A.; Al-Seeni, M.N.; Bakhashwain, A.S. The antidiabetic activity of Nigella sativa and propolis on streptozotocininduced diabetes and diabetic nephropathy in male rats. Evid. -Based Complement. Altern. Med. 2017, 2017, 5439645. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Mathur, M.L.; Gaur, J.; Sharma, R.; Haldiya, K.R. Antidiabetic Properties of a Spice Plant Nigella sativa. J. Endocrinol. Metab. 2011, 1, 1–8. [Google Scholar] [CrossRef][Green Version]
  49. Boskabady, M.H.; Mohsenpoor, N.; Takaloo, L. Antiasthmatic effect of Nigella sativa in airways of asthmatic patients. Phytomedicine 2010, 17, 707–713. [Google Scholar] [CrossRef] [PubMed]
  50. Shafiq, H.; Ahmad, A.; Masud, T.; Kaleem, M. Cardio-protective and anti-cancer therapeutic potential of Nigella sativa. Iran. J. Basic Med. Sci. 2014, 17, 967–979. [Google Scholar]
  51. Emeka, L.B.; Emeka, P.M.; Khan, T.M. Antimicrobial activity of Nigella sativa L. seed oil against multi-drug resistant Staphylococcus aureus isolated from diabetic wounds. Pak. J. Pharm. Sci. 2015, 28, 1985–1990. [Google Scholar]
  52. Majdalawieh, A.F.; Fayyad, M.W. Recent advances on the anti-cancer properties of Nigella sativa, a widely used food additive. J. Ayurveda Integr. Med. 2016, 7, 173–180. [Google Scholar] [CrossRef][Green Version]
  53. Majdalawieh, A.F.; Fayyad, M.W.; Nasrallah, G.K. Anti-cancer properties and mechanisms of action of thymoquinone, the major active ingredient of Nigella sativa. Crit. Rev. Food Sci. Nutr. 2017, 57, 3911–3928. [Google Scholar] [CrossRef]
  54. Mechraoui, O.; Ladjel, S.; Nedjimi, M.S.; Belfar, M.L.; Moussaoui, Y. Determination of polyphenols content, antioxidant and antibacterial activity of Nigella sativa L. Seed phenolic extracts. Sci. Study Res. Chem. Chem. Eng. Biotechnol. Food Ind. 2018, 19, 411–421. [Google Scholar]
  55. Islam, M.T.; Khan, M.R.; Mishra, S.K. An updated literature-based review: Phytochemistry, pharmacology and therapeutic promises of Nigella sativa L. Orient. Pharm. Exp. Med. 2019, 19, 115–129. [Google Scholar] [CrossRef]
  56. Houghton, P.; Zarka, R.; de las Heras, B.; Hoult, J. Fixed oil of Nigella sativa and derived thymoquinone inhibit eicosanoid generation in leukocytes and membrane lipid peroxidation. Planta Med. 1995, 61, 33–36. [Google Scholar] [CrossRef]
  57. Tiji, S.; Benayad, O.; Berrabah, M.; El Mounsi, I.; Mimouni, M. Phytochemical profile and antioxidant activity of Nigella sativa L. growing in Morocco. Sci. World J. 2021, 2021, 6623609. [Google Scholar] [CrossRef] [PubMed]
  58. Allah, H.A.K.; Modawe, G.A.; Abdrabo, A.E.A. Biochemical Effect of Nigella sativa (Black Cumin) on Glucose and Lipid Profile among Sudanese Diabetic Patients. Open Access Libr. J. 2021, 8, 1–8. [Google Scholar] [CrossRef]
  59. Daryabeygi-Khotbehsara, R.; Golzarand, M.; Ghaffari, M.P.; Djafarian, K. Nigella sativa improves glucose homeostasis and serum lipids in type 2 diabetes: A systematic review and meta-analysis. Complement. Ther. Med. 2017, 35, 6–13. [Google Scholar] [CrossRef]
  60. Ikhsan, M.; Hiedayati, N.; Maeyama, K.; Nurwidya, F. Nigella sativa as an anti-inflammatory agent in asthma. BMC Res. Notes 2018, 11, 744. [Google Scholar] [CrossRef]
  61. Kulyar, M.F.; Li, R.; Mehmood, K.; Waqas, M.; Li, K.; Li, J. Potential influence of Nigella sativa (Black cumin) in reinforcing immune system: A hope to decelerate the COVID-19 pandemic. Phytomedicine 2021, 85, 153277. [Google Scholar] [CrossRef]
  62. Mahmoud, H.S.; Almallah, A.A.; EL-Hak, G.H.N.; Aldayel, T.S.; Abdelrazek, H.M.A.; Khaled, H.E. The effect of dietary supplementation with Nigella sativa (black seeds) mediates immunological function in male Wistar rats. Sci. Rep. 2021, 11, 7542. [Google Scholar] [CrossRef]
  63. Udu, R.; Oyweri, J.; Gathirwa, J. Antimalarial Activity of Nigella sativa L. Seed Extracts and Selection of Resistance in Plasmodium berghei ANKA in a Mouse Model. J. Pathog. 2021, 2021, 6165950. [Google Scholar] [CrossRef]
  64. El-Far, L.H.; Korshom, M.A.; Mandour, A.A.; El-Bessoumy, A.A.; El-Sayed, Y.S. Hepatoprotective efficacy of Nigella sativa seeds dietary supplementation against lead acetate-induced oxidative damage in rabbit—Purification and characterization of glutathione peroxidase. Biomed. Pharmacother. 2017, 89, 711–718. [Google Scholar] [CrossRef] [PubMed]
  65. Paarakh, P.M. Nigella sativa Linn.—A comprehensive review. Indian J. Nat. Prod. Resour. 2010, 1, 409–429. [Google Scholar]
  66. Shabana, A.; El-Menyar, A.; Asim, M.; Al-Azzeh, H.; Al Thani, H. Cardiovascular benefits of black cumin (Nigella sativa). Cardiovasc. Toxicol. 2013, 13, 9–21. [Google Scholar] [CrossRef] [PubMed]
  67. Mouwakeh, A.; Kincses, A.; Nové, M.; Mosolygó, T.; Mohácsi-Farkas, C.; Kiskó, G.; Spengler, G. Nigella sativa essential oil and its bioactive compounds as resistance modifiers against Staphylococcus aureus. Phytother. Res. 2019, 33, 1010–1018. [Google Scholar] [CrossRef] [PubMed]
  68. Gawron, G.; Krzyczkowski, W.; Lemke, K.; Ołdak, A.; Kadziński, L.; Banecki, B. Nigella sativa seed extract applicability in preparations against methicillin-resistant Staphylococcus aureus and effects on human dermal fibroblasts viability. J. Ethnopharmacol. 2019, 244, 112135. [Google Scholar] [CrossRef] [PubMed]
  69. Chaieb, K.; Kouidhi, B.; Jrah, H.; Mahdouani, K.; Bakhrouf, A. Antibacterial activity of Thymoquinone, an active principle of Nigella sativa and its potency to prevent bacterial biofilm formation. BMC Complement. Altern. Med. 2011, 11, 29. [Google Scholar] [CrossRef][Green Version]
  70. Mouwakeh, A.; Telbisz, Á.; Spengler, G.; Mohácsi-Farkas, C.; Kiskó, G. Antibacterial and resistance modifying activities of Nigella sativa essential oil and its active compounds against listeria monocytogenes. In Vivo 2018, 32, 737–743. [Google Scholar] [CrossRef] [PubMed][Green Version]
  71. Mascolo, M.C.; Pei, Y.; Ring, T.A. Room Temperature Co-Precipitation Synthesis of Magnetite Nanoparticles in a Large pH Window with Different Bases. Materials 2013, 6, 5549–5567. [Google Scholar] [CrossRef][Green Version]
  72. Stoia, M.; Istratie, R.; Păcurariu, C. Investigation of magnetite nanoparticles stability in air by thermal analysis and FTIR spectroscopy. J. Therm. Anal. Calorim. 2016, 125, 1185–1198. [Google Scholar] [CrossRef]
  73. Ye, X.; Lin, D.; Jiao, Z.; Zhang, L. The thermal stability of nanocrystalline maghemite Fe2O3. J. Phys. D Appl. Phys. 1998, 31, 2739–2744. [Google Scholar] [CrossRef]
  74. Gherasim, O.; Popescu, R.C.; Grumezescu, V.; Mogoșanu, G.D.; Mogoantă, L.; Iordache, F.; Holban, A.M.; Vasile, B.Ș.; Bîrcă, A.C.; Oprea, O.-C.; et al. MAPLE Coatings Embedded with Essential Oil-Conjugated Magnetite for Anti-Biofilm Applications. Materials 2021, 14, 1612. [Google Scholar] [CrossRef]
  75. Miller, J.C.; Geohegan, D.B. (Eds.) Laser Ablation: Mechanisms and Applications—II; American Institute of Physics: College Park, MD, USA, 1994; Volume 288, p. 626. [Google Scholar]
  76. Szorenyi, T.; Ballesteros, J.M. Dependence of the thickness profile of pulsed laser deposited bismuth films on process parameters. Appl. Surf. Sci. 1997, 109–110, 327–330. [Google Scholar] [CrossRef]
  77. Maity, D.; Agrawal, D.C. Synthesis of iron oxide nanoparticles under oxidizing environment and their stabilization in aqueous and non-aqueous media. J. Magn. Magn. Mater. 2007, 308, 46–55. [Google Scholar] [CrossRef]
  78. Manju, S.; Malaikozhundan, B.; Vijayakumar, S.; Shanthi, S.; Jaishabanu, A.; Ekambaram, P.; Vaseeharan, B. Antibacterial, antibiofilm and cytotoxic effects of Nigella sativa essential oil coated gold nanoparticles. Microb. Pathog. 2016, 91, 129–135. [Google Scholar] [CrossRef] [PubMed]
  79. Wei, D.; Zhu, X.M.; Chen, Y.Y.; Li, X.Y.; Chen, Y.P.; Liu, H.Y.; Zhang, M. Chronic wound biofilms. Chin. Med. J. 2019, 132, 2737–2744. [Google Scholar] [CrossRef]
  80. Castle, S.S. Dicloxacillin. In xPharm: The Comprehensive Pharmacology Reference; Enna, S.J., Bylund, D.B., Eds.; Elsevier: Amsterdam, The Netherlands, 2007; pp. 1–5. [Google Scholar] [CrossRef]
  81. Shahid, M.A.; Rahim, A.; Chowdhury, M.A.; Kashem, M.A. Development of antibacterial nanofibrous wound dressing and conceptual reaction mechanism to deactivate the viral protein by Nigella sativa extract. Adv. Tradit. Med. 2022, 22, 283–291. [Google Scholar] [CrossRef]
  82. Aras, C.; Özer, E.T.; Göktalay, G.; Saat, G.; Karaca, E. Evaluation of Nigella sativa oil loaded electrospun polyurethane nanofibrous mat as wound dressing. J. Biomater. Sci. Polym. Ed. 2021, 32, 1718–1735. [Google Scholar] [CrossRef]
  83. Grumezescu, A.M.; Cotar, A.I.; Andronescu, E.; Ficai, A.; Ghitulica, C.D.; Grumezescu, V.; Vasile, B.S.; Chifiriuc, M.C. In vitro activity of the new water dispersible Fe3O4@usnic acid nanostructure against planktonic and sessile bacterial cells. J. Nanopart. Res. 2013, 15, 1766. [Google Scholar] [CrossRef]
  84. Daoush, W.M. Co-Precipitation and Magnetic Properties of Magnetite Nanoparticles for Potential Biomedical Applications. J. Nanomed. Res. 2017, 5, 00118. [Google Scholar] [CrossRef]
  85. Chifiriuc, C.M.; Grumezescu, A.M.; Saviuc, C.; Croitoru, C.; Mihaiescu, D.E.; Lazar, V. Improved antibacterial activity of cephalosporins loaded in magnetic chitosan microspheres. Int. J. Pharm. 2012, 436, 201. [Google Scholar] [CrossRef]
  86. Kokubo, T.; Kushitani, H.; Sakka, S.; Kitsugi, T.; Yamamuro, T. Solutions able to reproduce in vivo surface-structure changes in bioactive glass-ceramic A-W3. J. Biomed. Mater. Res. 1990, 24, 721–734. [Google Scholar] [CrossRef] [PubMed]
  87. Rayyif, S.M.I.; Mohammed, H.B.; Curuțiu, C.; Bîrcă, A.C.; Grumezescu, A.M.; Vasile, B.Ș.; Dițu, L.M.; Lazăr, V.; Chifiriuc, M.C.; Mihăescu, G.; et al. ZnO Nanoparticles-Modified Dressings to Inhibit Wound Pathogens. Materials 2021, 14, 3084. [Google Scholar] [CrossRef] [PubMed]
Figure 1. XRD patterns of the Fe3O4 NPs (red), functionalised with NS oil (blue) and core/shell of NS and DCX (brown).
Figure 1. XRD patterns of the Fe3O4 NPs (red), functionalised with NS oil (blue) and core/shell of NS and DCX (brown).
Antibiotics 12 00059 g001
Figure 2. XRD patterns of the Fe3O4 NPs (red), functionalised with PNS (green) and core/shell with NS and DCX (black).
Figure 2. XRD patterns of the Fe3O4 NPs (red), functionalised with PNS (green) and core/shell with NS and DCX (black).
Antibiotics 12 00059 g002
Figure 3. TEM images of the Fe3O4@[email protected] core/shell (left) and Fe3O4 @[email protected] core/shell (right).
Figure 3. TEM images of the Fe3O4@[email protected] core/shell (left) and Fe3O4 @[email protected] core/shell (right).
Antibiotics 12 00059 g003
Figure 4. NPs size distribution for Fe3O4@[email protected] (left) and Fe3O4@[email protected] (right) core-shell.
Figure 4. NPs size distribution for Fe3O4@[email protected] (left) and Fe3O4@[email protected] (right) core-shell.
Antibiotics 12 00059 g004
Figure 5. Thermogravimetric analysis of pristine Fe3O4 NPs.
Figure 5. Thermogravimetric analysis of pristine Fe3O4 NPs.
Antibiotics 12 00059 g005
Figure 6. Thermogravimetric analysis of Fe3O4@[email protected]
Figure 6. Thermogravimetric analysis of Fe3O4@[email protected]
Antibiotics 12 00059 g006
Figure 7. Thermal analysis of Fe3O4@[email protected]
Figure 7. Thermal analysis of Fe3O4@[email protected]
Antibiotics 12 00059 g007
Figure 8. Grazing incidence diffraction pattern in asymmetric geometry with omega = 1.8 (deg) (left) and XRR curves (right) on DCX functionalized coatings.
Figure 8. Grazing incidence diffraction pattern in asymmetric geometry with omega = 1.8 (deg) (left) and XRR curves (right) on DCX functionalized coatings.
Antibiotics 12 00059 g008
Figure 9. SEM micrographs of coatings deposited by MAPLE technique for (A) Fe3O4@[email protected] and (B) Fe3O4@[email protected]
Figure 9. SEM micrographs of coatings deposited by MAPLE technique for (A) Fe3O4@[email protected] and (B) Fe3O4@[email protected]
Antibiotics 12 00059 g009

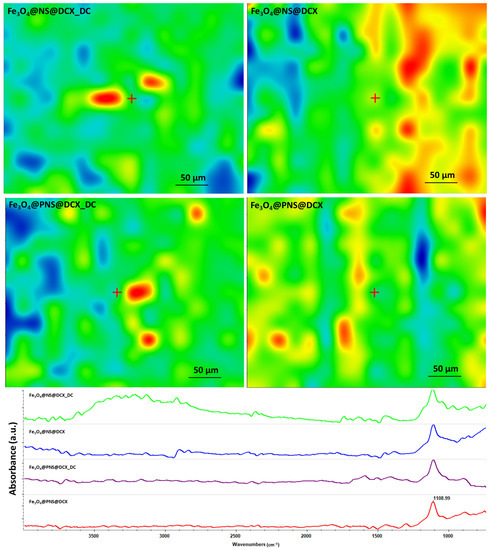

Figure 10. Maps (above) and IR spectra (below) corresponding drop-cast and coatings obtained at 400 mJ/cm2.
Figure 10. Maps (above) and IR spectra (below) corresponding drop-cast and coatings obtained at 400 mJ/cm2.
Antibiotics 12 00059 g010
Figure 11. Graphical representation of drug release as a function of time for (A) DCX, (B) Figure 3. O4@DCX, (C) Fe3O4@[email protected], and (D) Fe3O4@[email protected] coatings.
Figure 11. Graphical representation of drug release as a function of time for (A) DCX, (B) Figure 3. O4@DCX, (C) Fe3O4@[email protected], and (D) Fe3O4@[email protected] coatings.
Antibiotics 12 00059 g011
Figure 12. Evaluation of planktonic microbial cultures growth in the presence of control and nanocoatings for 24 h at 37 °C by graphical representation of average absorbance at 600 nm.
Figure 12. Evaluation of planktonic microbial cultures growth in the presence of control and nanocoatings for 24 h at 37 °C by graphical representation of average absorbance at 600 nm.
Antibiotics 12 00059 g012
Figure 13. Graphical representation of log10 CFU/mL values obtained for the tested microbial strains, expressing biofilm embedded cells developed on control and coatings for different periods of time, after: 24 h (A), 48 h (B), and 72 h (C).
Figure 13. Graphical representation of log10 CFU/mL values obtained for the tested microbial strains, expressing biofilm embedded cells developed on control and coatings for different periods of time, after: 24 h (A), 48 h (B), and 72 h (C).
Antibiotics 12 00059 g013aAntibiotics 12 00059 g013b
Figure 14. Graphical representation of human dermal fibroblast viability after 48 h and 5 days of contact with the wound dressings coated with Fe3O4@[email protected] and Fe3O4@[email protected] A pristine wound dressing was employed as the experimental control. Statistical significance: ** p < 0.01, **** p < 0.0001.
Figure 14. Graphical representation of human dermal fibroblast viability after 48 h and 5 days of contact with the wound dressings coated with Fe3O4@[email protected] and Fe3O4@[email protected]CX. A pristine wound dressing was employed as the experimental control. Statistical significance: ** p < 0.01, **** p < 0.0001.
Antibiotics 12 00059 g014
Figure 15. Cytotoxicity screening of Fe3O4@[email protected] and Fe3O4@[email protected] wound dressings after 48 h and 5 days of contact with the human dermal fibroblasts as revealed by the LDH assay. A pristine wound dressing was employed as the experimental control. Statistical significance: * p < 0.05, **** p < 0.0001.
Figure 15. Cytotoxicity screening of Fe3O4@[email protected] and Fe3O4@[email protected] wound dressings after 48 h and 5 days of contact with the human dermal fibroblasts as revealed by the LDH assay. A pristine wound dressing was employed as the experimental control. Statistical significance: * p < 0.05, **** p < 0.0001.
Antibiotics 12 00059 g015
Figure 16. Fluorescence microscopy images showing live (green) and dead (red) human dermal fibroblasts after 5 days of contact with the reference sample.
Figure 16. Fluorescence microscopy images showing live (green) and dead (red) human dermal fibroblasts after 5 days of contact with the reference sample.
Antibiotics 12 00059 g016
Figure 17. Schematic representation of the whole process of obtaining coatings based on Fe3O4 NPs functionalised with N. sativa and DCX.
Figure 17. Schematic representation of the whole process of obtaining coatings based on Fe3O4 NPs functionalised with N. sativa and DCX.
Antibiotics 12 00059 g017
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Dorcioman, G.; Hudiță, A.; Gălățeanu, B.; Craciun, D.; Mercioniu, I.; Oprea, O.C.; Neguț, I.; Grumezescu, V.; Grumezescu, A.M.; Dițu, L.M.; Holban, A.M. Magnetite-Based Nanostructured Coatings Functionalized with Nigella sativa and Dicloxacillin for Improved Wound Dressings. Antibiotics 2023, 12, 59.

AMA Style

Dorcioman G, Hudiță A, Gălățeanu B, Craciun D, Mercioniu I, Oprea OC, Neguț I, Grumezescu V, Grumezescu AM, Dițu LM, Holban AM. Magnetite-Based Nanostructured Coatings Functionalized with Nigella sativa and Dicloxacillin for Improved Wound Dressings. Antibiotics. 2023; 12(1):59.

Chicago/Turabian Style

Dorcioman, Gabriela, Ariana Hudiță, Bianca Gălățeanu, Doina Craciun, Ionel Mercioniu, Ovidiu Cristian Oprea, Irina Neguț, Valentina Grumezescu, Alexandru Mihai Grumezescu, Lia Mara Dițu, and Alina Maria Holban. 2023. "Magnetite-Based Nanostructured Coatings Functionalized with Nigella sativa and Dicloxacillin for Improved Wound Dressings" Antibiotics 12, no. 1: 59.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
