Article

Antimicrobial Activity of Quasi-Enantiomeric Cinchona Alkaloid Derivatives and Prediction Model Developed by Machine Learning

1
Faculty of Science, University of Zagreb, 10000 Zagreb, Croatia
2
Faculty of Science, University of Split, 21000 Split, Croatia
3
Ruđer Bošković Institute, 10000 Zagreb, Croatia
*
Authors to whom correspondence should be addressed.
Antibiotics 2021, 10(6), 659; https://doi.org/10.3390/antibiotics10060659
Received: 7 May 2021 / Revised: 24 May 2021 / Accepted: 27 May 2021 / Published: 31 May 2021
(This article belongs to the Special Issue Antimicrobial Resistance in Gram-Negative Bacteria, 2nd Edition)

Abstract

:
Bacterial infections that do not respond to current treatments are increasing, thus there is a need for the development of new antibiotics. Series of 20 N-substituted quaternary salts of cinchonidine (CD) and their quasi-enantiomer cinchonine (CN) were prepared and their antimicrobial activity was assessed against a diverse panel of Gram-positive and Gram-negative bacteria. All tested compounds showed good antimicrobial potential (minimum inhibitory concentration (MIC) values 1.56 to 125.00 μg/mL), proved to be nontoxic to different human cell lines, and did not influence the production of reactive oxygen species (ROS). Seven compounds showed very strong bioactivity against some of the tested Gram-negative bacteria (MIC for E. coli and K. pneumoniae 6.25 μg/mL; MIC for P. aeruginosa 1.56 μg/mL). To establish a connection between antimicrobial data and potential energy surfaces (PES) of the compounds, activity/PES models using principal components of the disc diffusion assay and MIC and data towards PES data were built. An extensive machine learning procedure for the generation and cross-validation of multivariate linear regression models with a linear combination of original variables as well as their higher-order polynomial terms was performed. The best possible models with predicted R2(CD derivatives) = 0.9979 and R2(CN derivatives) = 0.9873 were established and presented. This activity/PES model can be used for accurate prediction of activities for new compounds based solely on their potential energy surfaces, which will enable wider screening and guided search for new potential leads. Based on the obtained results, N-quaternary derivatives of Cinchona alkaloids proved to be an excellent scaffold for further optimization of novel antibiotic species.

Graphical Abstract

1. Introduction

Bacterial drug resistance is one of the major problems in public health worldwide. Reports from different health organizations make claims that antibacterial resistance is responsible for more than 35,000 deaths in the United States and about 33,000 deaths in European Union, annually [1,2]. A lot of effort has been put into the research and development of antibacterial agents against emerging new bacterial strains. In the search for new classes of antibacterial agents, various groups of alkaloids were extensively researched and employed as scaffolds, such as metronidazole, quinolones, indoles, and others [3]. Cinchona alkaloids are natural products isolated from the bark of the Cinchona tree and the most known are quinine (Q), quinidine (QD), cinchonine (CN), and cinchonidine (CD). The structure of these alkaloids consists of a bulky quinuclidine ring with a vinyl side chain, an aromatic quinoline ring, and a hydroxyl group at C9. They have five chiral centers (N1, C3, C4, C8, and C9) and two of them, C8 and C9, can have different absolute configuration in Q/QD and CN/CD pairs, so these diastereomers are often called quasi-enantiomers. Structures of CN and CD are presented in Figure 1.
Because of their availability and interesting properties, derivatives of Cinchona alkaloids have various applications in all fields of chemistry, for example as chiral resolving agents or chiral stationary phases for chromatographic separation, as a chiral catalyst or chiral ligands in asymmetric synthesis [4,5,6]. They also possess a wide range of biological activity, which is not surprising since for decades, Q was used for the treatment of malaria [7]. Besides anti-malarial activity, they have anti-inflammatory, anti-arrhythmic, anti-proliferative, and insecticidal activity, among others [8,9,10]. Qi et al. performed experiments in vitro which showed that CN could induce apoptosis and reduce the proliferation of cancer cells, and experiments in animals showed that it could suppress tumor growth in mice [11]. These findings were confirmed by Jo et al., who showed that CN inhibits osteoclast differentiation and promotes osteoblast differentiation [12]. Another group designed and synthesized indocinchona alkaloids, an alkaloid with merged QN and indole rings. They identified one of them, azaquindol, as a novel class of autophagy inhibitors, which play a crucial role in cancer and degenerative diseases [13]. QN scaffold was used for creating active nanostructured coatings with the ability to release antibacterial compounds against Escherichia Coli [14]. Optochin is a Cinchona alkaloid derivative that poses highly selective antibacterial activity towards Streptococcus pneumoniae and it is used as a laboratory standard for differentiation of Streptococcus pneumoniae from other streptococci [15]. Aldrich et al. recently prepared a series of new optochin derivatives, and one of them showed increasing activity toward multidrug-resistant strains of Streptococcus pneumoniae compared to the parent compound [16].
In this paper, we evaluate the antimicrobial activity of quaternary derivatives of cinchonidine and cinchonine by using disc diffusion and broth microdilution assay against a representative panel of Gram-positive and Gram-negative bacteria. For the most potent compounds, cytotoxicity was assessed on four different human cell lines as well as their influence on creating reactive oxygen species (ROS).

2. Materials and Methods

2.1. Synthesis of Quaternary Derivatives

The detailed synthetic protocols and spectral data of products have been previously reported [17]. Chemical structures of compounds are presented in Figure 1.

2.2. Antimicrobial Activity

Test microorganisms were obtained from the American Type Culture Collection (ATCC, Rockville, MD, USA) and Faculty of Science, University of Split, Croatia (FSST). Three Gram-negative bacteria were used: Escherichia coli (FSST 982), Klebsiella pneumoniae (FSST 011) and Pseudomonas aeruginosa (FSST 982); as well as four Gram-positive bacteria: Bacillus cereus (ATTC 11778), Enterococcus faecalis (ATCC 29212), Staphylococcus aureus (ATCC 25923), and Clostridium perfringens (FSST 4999). To reach optical density equivalent of 106 colony-forming units (cfu/mL), bacterial strains were cultured overnight at 37 °C in tryptic soy broth (TSB). Compounds were dissolved in DMSO to obtain a stock solution of 10 mg/mL.
For disc diffusion assay, sterile Mueller–Hinton agar was dispensed in sterile petri dishes (90 mm diameter) and left at room temperature to solidify for 2 h. The paper discs (6 mm diameter) were placed on the agar surface and 50 µL of each compound was placed on an empty disc. Gentamicin was used as positive control and DMSO as solvent control. Petri dishes were left to stand for 20 min at room temperature before incubation at 37 °C for 24 h. The diameter of the inhibition zone was measured in mm and the experiment was repeated trice.
Broth microdilution assay was used to assess minimum inhibitory concentration (MIC) by standard two-fold serial microdilution assay according to Clinical and Laboratory Standards Institute. Gentamicin and cefotaxime were used as positive controls. A detailed description of experiments was previously reported [18,19].

2.3. MTT

To assess the influence of the compounds with antibacterial activity on human cell lines, EZ4U MTT assay (Biomedica, Vienna, Austria) was performed according to the manufacturer’s instructions. Briefly, after thawing, cell lines FB-35 (primary culture of foreskin fibroblasts), NDFH (normal human dermal fibroblasts) HaCaT (spontaneously transformed aneuploid immortal keratinocyte cell line from adult human skin), and HMEC-1 (human microvascular endothelial cell line) cell lines were cultivated in Dulbecco’s Modified Eagles Media (DMEM; Sigma-Aldrich, St. Louis, MO, USA) supplemented with 10% fetal calf serum (FCS). After growing to 80% of confluence, cells were trypsinized and plated at a density of 10,000 cells/well for 24 h. The next day, cells were treated with the compounds for additional 24 h. Compound with high antimicrobial activity, CD-(pBr), was diluted to final concentrations of 1 µM, 5 µM, 10 µM, 50 µM, 100 µM, and 200 µM, while CD-(pNO2), CD-(pCl), CN-Met, CN-Bzl, CN-(pCl), and CN-(mBr) were diluted to 1 µM, 10 µM, and 100 µM, respectively. Control cells were not treated with anything, while vehicle control was DMSO in the concentration of the corresponding compound dilution. At the end of treatment, the colorless dye was added to each well and the color development was monitored by measuring absorbance at 450 nm, with 620 nm as a reference wavelength. All experiments were performed in technical and biological triplicates. The obtained data were analyzed by one-way ANOVA with Dunnett’s multiple comparisons test comparing each compound with the control.

2.4. Measurement of ROS, GSH and Catalase Activity

To determine the effect of the selected compounds on redox level in the cells, we measured levels of ROS as oxidative part, and GSH levels and catalase activity as antioxidative parts of the cell redox system. For these assays, the two compounds with the highest antibacterial activities were selected: CD-(pBr) and CD-(pNO2).
To assess the influence of the compounds on ROS production, FB-35, HaCaT, and HMEC-1 cells were plated in black 96-microwell plates at a density of 10,000 cells/well in colorless DMEM with 10% FCS and left overnight to adhere. The next day, 2′,7′-dichlorofluorescin diacetate (DCF-DA) at a final concentration of 20 µM was added for 30 minutes in each well. After the end of incubation, media with DCF-DA was removed and fresh media alone, or with 1 µM, 10 µM, 100 µM of CD-(pBr), and CD-(pNO2) was added to the cells. The ROS production was measured on fluorimeter/spectrometer plate reader Infinite 200 PRO (Tecan Group Ltd., Männedorf, Switzerland) at an excitation wavelength of 500 nm and emission detection at 530 nm.
GSH levels and catalase activity were assessed on FB-35, HaCaT, and HMEC-1 cell lines. Cells were plated at a density of 0.5 × 106 cells/well overnight. The next day, cells were treated with 100 µM and 200 µM of CD-(pBr), CD-(pNO2), and equivalent concentrations of DMSO and were left overnight. After 24 h, cells were trypsinized and the dry pellet was stored at −80 °C until the GSH and catalase activity analysis. GSH analysis was performed after diluting samples to 0.03 mg/ml, and the addition of reaction mix (8 mM 5,5-dithio-bis-2-nitrobenzoic acid, 0.4 Units of GSH reductase, and 0.6 mM of NADPH in phosphate buffer 100 mM NaH2PO4, 5 mM EDTA, pH 7.4). The formation of yellow product, 2-nitro-5-thiobenzoic acid, was measured on a plate reader at 405 nm (Easy-Reader 400 FW; SLT Lab Instruments, GmbH, Salzburg, Austria). The catalase activity assay is based on the degradation of H2O2 by the catalase in the cell lysate. Catalase is the enzyme with one of the highest turnover numbers, making it the first to degrade H2O2. The reaction started with mixing 40 μL of cell lysate with 100 μL of 65 mM H2O2 for 5 minutes. The addition of 100 μL of 32.4 mM ammonium molybdate stopped the reaction. The intensity of the resulting yellow complex between ammonium molybdate and hydrogen peroxide was measured with a plate reader Multiskan EX (Thermo Electron Corporation, Shanghai, China) at 405 nm. Concentrations of hydrogen peroxide in a range from 0 to 75 mM were used as standards. One unit of catalase activity is defined as the amount of enzyme needed for degradation of 1 μmol of H2O2/min at 25 °C. Catalase activity was expressed as units per milligram of proteins in cell lysate (U mg−1).

2.5. Statistics

All experiments were performed in technical and biological triplicates. The obtained data were analyzed by one-way ANOVA with Dunnett’s multiple comparisons test comparing each compound with the control.

2.6. Principal Component Analysis

Multivariate analyses were conducted by a second-order tensor analysis tool known as principal component analysis (PCA) [20,21]. In PCA, the data matrix X of rank r is decomposed in the sum of r matrices t i p i τ with rank 1 (Equation (1)):
X = i = 1 r t i p i τ
t i is a vector of scores and p i τ is a vector of loadings. PCA provides the best linear projection of multidimensional data by minimizing the least squares objective function. Scores are used for classification, while loadings can be used for the variability identification among the data. PCA development goes back to Beltrami [22] and Pearson [23], and the name was introduced by Harold Hotelling [24].
Disc diffusion assay and MIC data were arranged in the data matrix X, and PCA on the covariance matrix was performed by our parallelized code for multi- and univariate analysis [25,26,27]. Extraction of eigenvectors was based on the NIPALS algorithm [28] and the obtained principal components were subsequently used as regressed variables.

2.7. Sampling of the Potential Energy Surfaces

Ab initio molecular dynamics simulations with on-the-fly calculations of forces were used as a sampling procedure for potential energy surfaces (PES). Equations were integrated using the velocity Verlet algorithm [29]. The PM7 method [30] implemented in MOPAC2016 [31] was used for calculation of forces in each point of the simulation. Molecular dynamics were conducted by using our in-house developed program qcc [32,33]. Phase space coverage was ensured by setting the initial temperature for Maxwell distribution of velocities to 773.15 K. During the simulation, temperature was controlled using the velocity scaling algorithm. Step size was 0.5 fs and a total of 5 million steps were computed for each compound. PES of compounds spanned in multidimensional space of Cartesius coordinates were evaluated by PCA, providing principal components for further regression.

2.8. Machine Learning Multivariate Linear Regression

Reduced spaces of multi-target antimicrobial activities were used as dependent variables for estimation of Cinchona alkaloids derivatives [17] activities. A panel of various Gram-positive and Gram-negative bacteria provided activity data whose principal components were extracted by the second-order tensor decomposition. These principal components were regressed on the theoretically computed energy fingerprints of all compounds by performing extensive machine learning (ML).
The ML procedure was applied for the generation of all possible multivariate linear regression models with a linear combination of original variables as well as their higher-order polynomial terms. Multivariate linear regression was performed using the following expression for matrices of coefficients B calculated by singular value decomposition:
B = ( X τ X ) 1 X τ Y
where X and Y are the matrices of independent and dependent variables, respectively. Every possible regression model of antimicrobial activity dependent on molecular dynamics data was built and thoroughly validated by the leave-one-out cross-validation technique (LOO-CV). The models were inspected up to the sixth order for 2D models and up to the fourth order for 3D models, and the total numbers of investigated models were 134,217,728 and 17,179,869,184, respectively. The most optimal representations were selected based on the adjusted and predicted R2 values, LOO-CV mean squared error, as well as the number of variables in the models.

3. Results and Discussion

3.1. Synthesis

A series of differently substituted quaternary ammonium salts of CDs and their corresponding quasi-enantiomeric CNs were synthesized by reaction of commercially available cinchonidine or cinchonine and alkyl or arylalkyl halides in refluxing toluene by published procedures [17]. Compounds CD-Met and CN-Met were prepared in reaction of the appropriate alkaloid with methyl iodide, CD-Bzl and CN-Bzl with benzyl bromide, and other compounds with appropriate meta- and para-substituted benzyl bromides, different in size and electronic properties. Compounds were characterized by standard analytical methods (IR, 1D and 2D NMR, MS, CHN analysis).

3.2. Antimicrobial Activity

Unmodified parent alkaloids CD and CN as well as prepared quaternary derivatives of quasi-enantiomers were screened for antimicrobial activity on different Gram-positive and Gram-negative bacteria by disc diffusion method. Activities of the target compounds were expressed as the mean diameter of the measured inhibition zone (mm) against selected microorganisms along with the activity of the reference compound gentamicin, Table 1.
Most of the quaternary Cinchona alkaloid derivatives showed potent and broad-spectrum activity against selected clinically important pathogens with mean diameters of inhibition zone of compounds in the range from 6.4 ± 0.9 to 28.5 ± 2.8 mm. Tested compounds demonstrated antibacterial effects against both Gram-positive and Gram-negative bacteria. Generally, quaternary derivatives of cinchonidine showed more antibacterial activity than corresponding quaternary derivatives of quasi-enantiomer cinchonine. Interestingly, most of the tested compounds were very effective on E. coli and P. aeruginosa, showing potential use for P. aeruginosa which is on the critical list for resistance [1]. In detail, considerable zones of growth inhibition were observed for two tested strains of Gram-negative bacteria, E. coli (from 10.5 ± 1.1 to 25.7 ± 2.7 mm) and P. aeruginosa (from 7.4 ± 1.9 to 28.5 ± 2.8 mm). Compounds CD-(pBr) and CD-(pNO2), which have bromine atom or nitro group in para position on the benzene ring, showed the most potent activity toward E. coli with the mean inhibition diameters of 25.7 ± 2.7 mm for CD-(pBr) and 23.1 ± 1.4 mm for CD-(pNO2).
Quaternary derivatives of CD and CN were then tested against the same panel of Gram-positive and Gram-negative bacteria to determine MIC values by a broth microdilution method. The results of antimicrobial assays are summarized in Table 2.
All prepared quaternary derivatives demonstrated potent and broad-spectrum activities against selected microorganisms with MIC values in the range of 1.56 to 125.00 μg/mL. Compounds CD-(pBr) and CD-(pNO2) were found to possesses not only strong and very strong activity against all tested Gram-positive bacteria (MIC values in the range of 6.25–12.00 μg/mL) but also very strong activity against all tested Gram-negative bacteria (MIC values 6.25 μg/mL), which are fivefold more potent than gentamicin toward E. coli and tenfold more potent than gentamicin toward P. aeruginosa, thereby supporting the disc diffusion assay. Compound CD-(pCl) showed very strong activity against E. coli (MIC value 6.25 μg/mL) which is fivefold more active than gentamicin. Other quaternary derivatives of CD were also quite active toward E. coli, with MIC values in the range of 25.00 to 50.00 μg/mL, while quaternary derivatives of quasi-enantiomers in CN series did not show similar activity against E. coli. Compounds CD-(pBr) and CN-Bzl showed very strong activity against P. aeruginosa with a MIC value of 1.56 μg/mL which is fortyfold more active than gentamicin and tenfold more active than cefotaxime.
All prepared quaternary derivatives of CD exhibited strong activity toward P. aeruginosa (MIC values in the range of 1.56 to 50.00 μg/mL) except unmodified parent alkaloid CD (MIC value 125.00 μg/mL). Most of the prepared quaternary derivatives of CN displayed moderate activity toward P. aeruginosa with MIC values up to 125.00 μg/mL, but some of them have very strong activity with MIC values from 3.12 μg/mL to 12.50 μg /mL, which is twentyfold more active than gentamicin and fivefold more active than cefotaxime. Based on the acquired results, the stereochemistry of the antibacterial compound is important to some extent for the bioactivity toward P. aeruginosa. Compounds CD-(pBr) and CN-Bzl are 32 times more active than their quasi-enantiomers CN-(pBr) and CD-Bzl.
Taking these two assays together, CD-(pBr) and CD-(pNO2) were effective for both Gram-positive and Gram-negative bacteria, indicating that the tested compounds do not inhibit cell wall synthesis. A possible target of these cinchonine derivatives might be the bacterial ATP synthase, which also appears to be the target for another cinchone derivate [16]. Certainly, the mechanism should be further investigated, especially due to reactivity toward P. aeruginosa.

3.3. Cytotoxicity

Compounds with strong activity toward tested bacterial strains were further evaluated for cytotoxicity on four different human cell lines (Figure 2). There was no change in cell viability in any of the tested compounds compared to both control and vehicle control. For compound CD-(pBr), testing a wider concentration range showed no changes in cell viability (Figure 2).

3.4. Effects of the Compounds on Cellular Reactive Oxygen Species and Antioxidative Defense

After MTT showed no difference in cell viability, we assessed the influence of the compounds with strong antimicrobial activity on ROS production. Although there are differences in ROS levels after treatments (Figure 3), these are not statistically significant.
Effects of the CD-(pBr) and CD-(pNO2) compounds on cellular ROS levels are cell line-specific. While the two compounds did not significantly affect ROS levels in FB-35 fibroblast, CD-(pBr) decreased levels of ROS in HaCaT (control vs. 100 µM p = 0.044; and 1 µM vs. 100 µM p = 0.011) and in HMEC-1 cells (control vs. 10 µM or 100 µM, p = 0.017 and p = 0.029, respectively). The CD-(pNO2) compound decreased ROS levels only in the HaCaT cell line (control vs. 100 µM, p = 0.013).
Despite obvious differences between cell lines, both tested compounds did not show statistical differences at the tested concentrations.
The influence of the compound CD-(pBr), which had the most potent antibacterial activity, on GSH levels was assessed on FB-35, HaCaT, and HMEC-1 cell lines. GSH levels in all tested cell lines were not affected (Figure 4). Likewise, catalase activity was not affected by the compound CD-(pBr).

3.5. PCA Analysis and Activity/PES Model

To classify investigated compounds according to their activities set side-by-side with the tested standard antibiotics (Table 1 and Table 2), we performed PCA on the disc diffusion assay data and MIC values [23]. In both cases, the first three principal components explained more than 82% of the total variance among the data, ensuring the proper description of the activities in this reduced three-dimensional space. Effectively, the seven-dimensional space of multi-target antimicrobial activities was reduced to only three dimensions and retained the majority of the information present in the original data. An additional advantage of using data space reduced to three dimensions is the possibility of visualization and presenting graphical layouts. Therefore, we used 3D models, presented in Figure 5 and Figure 6 (together with all 2D projections), to perform classification and identification of principal component directions that are the most important for evaluating activities. From the classification model for disc diffusion assay data presented in Figure 5, it is evident that the second principal component describes the antimicrobial activity. Using the position of compounds in this new reduced space, several promising candidates were found, e.g., CD-(pNO2) was having a score of 11.28 which is even higher than for GEN (10.36, Figure 5). In the group of promising candidates, there was also CD-(pCl) with the score of 9.09.
According to the MIC values, the first principal component in the negative direction was the most important in describing the antimicrobial activity of the compounds (Figure 6). Interpretation of principal components is invariant to the sign of the component (the component with the negative sing is still an eigenvector of covariance matrix), so the fact that some compounds are shifted along this axis in the negative direction (or in the positive) is not important for further analysis. Likely candidates were identified as CD-(pNO2), CD-(pBr), and CD-(pCl).
To establish a connection between antimicrobial data and calculated potential energy surfaces of the compounds, an activity/PES model was created by using the first two and first three principal components of the reduced PES data and the selected principal components from the disc diffusion assay and MIC data. As identified in the classification models obtained by PCA, for disc diffusion data the factor scores along the second principal component were regressed on the first two and the first three principal components of the reduced PES data. For MIC data, the factor scores along the first principal component were regressed on the first two and the first three principal components of the reduced PES data.
An extensive machine learning procedure for multivariate linear regression was performed. The objective of the machine learning was the determination of the best possible regression model that can explain compounds’ multi-target antimicrobial activities regressed on the theoretically computed potential energy surfaces. All possible regression models were generated, and the B -matrices of coefficients (Equation 2) were determined. Each model was validated using the leave-one-out cross-validation. The best regression models were selected based on the adjusted R2 and predicted R2 values, LOO-CV mean squared error, as well as the number of variables in the models [34].
Disc diffusion assay data for CD derivatives were regressed and the best calculated 2D and 3D regression models are presented in Figure 8. Despite the very high valued of R2 and adjusted R2 in 2D model (Figure 7a), the value of predicted R2 had a lower value of only 0.7318, indicating the overfitting. Due to this reason, we also calculated the 3D regression model. The 3D model had an excellent value of predicted R2 = 0.9979 (Figure 7b), confirming the validity of this model.
For derivatives of CN, the best 2D and 3D regression models are presented in Figure 8. Although the R2 in the 2D model had value of 0.9979 (Figure 8a), the value of predicted R2 was 0.5985, again indicating the overfitting. As in the previous case, we extended the model to three dimensions, producing the 3D model, which had very good value of predicted R2 = 0.9873 (Figure 8b).
Regression of MIC data provided models for derivatives of CD (Figure 9a) and derivatives of CN (Figure 9b). In both cases, the best established models have very high values of predicted R2, confirming the quality of the models.
An established activity/PES model can be used for the prediction of antimicrobial activities for new compounds based solely on the reduced space of compounds potential energy surfaces. The models will work good for similar compounds, i.e., CD or CN derivatives, while for the different type of compounds with significantly different chemical structure, one cannot expect the models to work.

4. Conclusions

The biological activity of unmodified alkaloids CD and CN and their N-alkyl and N-aryl quaternary derivatives was determined. Compounds CD-(pBr), CD-(pNO2), CD-(pCl), CN-CH3, CN-Bzl, CN-(pNO2), and CN-(pCl) showed strong antimicrobial activity toward the tested representative panel of bacteria, especially the emerging pathogen Pseudomonas aeruginosa (the lowest MIC value was 1.56 μg/mL). Compounds do not show a toxic effect or an effect on the production of reactive oxygen species in different human cell lines. An extensive machine learning procedure for the generation of multivariate linear regression models with a linear combination of original variables as well as their higher-order polynomial terms was performed. Among all statistically possible regression models, the best possible models with predicted R2 > 0.98 were determined. This activity/PES model can be used for accurate prediction of activities for new CD and CN derivatives based solely on their potential energy surfaces, which will enable wider screening and faster search for new potential leads. Based on obtained results, N-quaternary derivatives of Cinchona alkaloids proved to be an excellent scaffold for further optimization of novel antibiotic species.

Author Contributions

Preparing of compounds, I.P. and A.R.; Antimicrobial assays, A.R., M.S. and R.O.; Writing—original draft preparation, A.R., A.Č.G., I.P. and T.H.; Methodology, A.R., A.Č.G. and L.M.; Writing and analyses regarding cell line assays, A.Č.G. and L.M.; Writing—review & editing, I.P., R.O., A.Č.G. and T.H.; Principal component analysis and machine learning multivariate linear regression, A.M. and K.S.; Machine learning software and model establishment, T.H.; Conceptualization, I.P. and T.H; Supervision, A.Č.G., I.P. and T.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Croatian Science Foundation, grant numbers IP-2016-06-3775”. ADESIRE“ and ESF-DOK-2018-09-3416.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data for this manuscript is available from correspondence author.

Acknowledgments

I.P. and A.Č.G. would like to acknowledge networking contributions by the COST Action CM1407 “Challenging organic syntheses inspired by nature—from natural products chemistry to drug discovery”.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. CDC. Antibiotic Resistance Threats in the United States, 2019; Department of Health and Human Services, CDC: Atlanta, GA, USA, 2019.
  2. European Centre for Disease Prevention and Control. Available online: https://www.ecdc.europa.eu/en/home (accessed on 4 November 2020).
  3. Thawabteh, A.; Juma, S.; Bader, M.; Karaman, D.; Scrano, L.; Bufo, S.A.; Karaman, R. The biological activity of natural alka-loids against herbivores, cancerous cells and pathogens. Toxins 2019, 11, 656. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Wang, H. Chiral phase-transfer catalysts with hydrogen bond: A powerful tool in the asymmetric synthesis. Catalysts 2019, 9, 244. [Google Scholar] [CrossRef][Green Version]
  5. Song, C.E. Cinchona Alkaloids in Synthesis and Catalysis: Ligands, Immobilization and Organocatalysis; Wiley-VCH: Weinheim, Germany, 2009. [Google Scholar]
  6. Ilisz, I.; Bajtai, A.; Lindner, W.; Péter, A. Liquid chromatographic enantiomer separations applying chiral ion-exchangers based on Cinchona alkaloids. J. Pharm. Biomed. Anal. 2018, 159, 127–152. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Achan, J.; Talisuna, A.O.; Erhart, A.; Yeka, A.; Tibenderana, J.K.; Baliraine, F.N.; Rosenthal, P.J.; D’Alessandro, U. Quinine, an old anti-malarial drug in a modern world: Role in the treatment of malaria. Malar. J. 2011, 10, 12. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Skiera, I.; Antoszczak, M.; Trynda, J.; Wietrzyk, J.; Boratyński, P.; Kacprzak, K.; Huczyński, A. Antiproliferative activity of polyether antibiotic—Cinchona alkaloid conjugates obtained via click chemistry. Chem. Biol. Drug Des. 2015, 86, 911–917. [Google Scholar] [CrossRef]
  9. Kacprzak, K.; Ruszkowski, P.; Valentini, L.; Huczynski, A. Cytotoxic and trypanocidal activities of cinchona alkaloid derivatives. Chem. Biol. Drug Des. 2018, 92, 1778–1787. [Google Scholar] [CrossRef][Green Version]
  10. Che, Z.P.; Yang, J.M.; Zhang, S.; Sun, D.; Tian, Y.E.; Liu, S.M.; Lin, X.M.; Jiang, J.; Chen, G.Q. Synthesis of novel 9R/S-acyloxy derivatives of cinchonidine and cinchonine as insecticidal agents. J. Asian Nat. Prod. Res. 2020, 23, 1–13. [Google Scholar] [CrossRef]
  11. Qi, Y.; Pradipta, A.R.; Li, M.; Zhao, X.; Lu, L.; Fu, X.; Wei, J.; Hsung, R.P.; Tanaka, K.; Zhou, L. Cinchonine induces apoptosis of HeLa and A549 cells through targeting TRAF6. J. Exp. Clin. Cancer Res. 2017, 36, 35. [Google Scholar] [CrossRef][Green Version]
  12. Jo, Y.J.; Lee, H.I.; Kim, N.; Hwang, D.; Lee, J.; Lee, G.R.; Hong, S.E.; Lee, H.; Kwon, M.; Kim, N.Y.; et al. Cinchonine inhibits osteoclast differentiation by regulating TAK1 and AKT, and promotes osteogenesis. J. Cell. Physiol. 2021, 236, 1854–1856. [Google Scholar] [CrossRef]
  13. Foley, D.J.; Zinken, S.; Corkery, D.; Laraia, L.; Pahl, A.; Wu, Y.W.; Waldmann, H. Phenotyping reveals targets of a pseudo-natural-product autophagy inhibitor. Angew. Chem. Int. Ed. 2020, 132, 12570–12576. [Google Scholar] [CrossRef][Green Version]
  14. Latorre-Sánchez, A.; Johansson, M.; Zhang, Y.; Malkoch, M.; Pomposo, J.A. Active quinine-based films able to release antimicrobial compounds via melt quaternization at low temperature. J. Mater. Chem. B. 2018, 6, 98–104. [Google Scholar] [CrossRef][Green Version]
  15. Burckhardt, I.; Panitz, J.; Burckhardt, F.; Zimmermann, S. Identification of Streptococcus pneumoniae: Development of a standardized protocol for optochin susceptibility testing using total lab automation. BioMed Res. Int. 2017, 2017, 4174168. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Wang, X.; Zeng, Y.; Sheng, L.; Larson, P.; Liu, X.; Zou, X.; Wang, S.; Guo, K.; Ma, C.; Zhang, G.; et al. A Cinchona alkaloid antibiotic that appears to target ATP synthase in Streptococcus pneumoniae. J. Med. Chem. 2019, 62, 2305–2332. [Google Scholar] [CrossRef] [PubMed]
  17. Bosak, A.; Ramić, A.; Šmidlehner, T.; Hrenar, T.; Primožič, I.; Kovarik, Z. Design and evaluation of selective butyrylcholinesterase inhibitors based on Cinchona alkaloid scaffold. PLoS ONE 2018, 13, e0205193. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Skočibušić, M.; Odžak, R.; Smolić, T.; Hrenar, T.; Primožič, I. Novel Imidazole Aldoximes with Broad-Spectrum Antimicrobial Potency against Multidrug Resistant Gram-Negative Bacteria. Molecules 2018, 23, 1212. [Google Scholar] [CrossRef][Green Version]
  19. Radman Kastelic, A.; Odžak, R.; Pezdirc, I.; Sović, K.; Hrenar, T.; Čipak Gašparović, A.; Skočibušić, M.; Primožič, I. New and Potent Quinuclidine-Based Antimicrobial Agents. Molecules 2019, 24, 2675. [Google Scholar] [CrossRef][Green Version]
  20. Jolliffe, I.T. Principal Component Analysis; Springer: Berlin/Heidelberg, Germany, 1986. [Google Scholar]
  21. Smilde, A.; Bro, R.; Geladi, P. Multi-Way Analysis with Applications in the Chemical Sciences; John Wiley & Sons Ltd.: Hoboken, NJ, USA, 2004. [Google Scholar]
  22. Beltrami, E. Sulle funzioni bilineari. In Giornale di Matematiche; Benedetto Pellerano Editore: Napoli, Italy, 1873; Volume 11, pp. 98–106. [Google Scholar]
  23. Pearson, K. On lines and planes of closest fit to systems of points in space. Phil. Mag. 1901, 2, 559–572. [Google Scholar] [CrossRef][Green Version]
  24. Hotelling, H. Analysis of a complex of statistical variables into principal components. J. Educ. Psychol. 1933, 24, 417–441. [Google Scholar] [CrossRef]
  25. Hrenar, T. Moonee, Program for Manipulation and Analysis of Multi- and Univariate Data; Revision 0.6827; University of Zagreb Faculty of Science: Zagreb, Croatia, 2021. [Google Scholar]
  26. Novak, P.; Kišić, A.; Hrenar, T.; Jednačak, T.; Miljanić, S.; Verbanec, G. In-line reaction monitoring of entacapone synthesis by Raman spectroscopy and multivariate analysis. J. Pharm. Biomed. Anal. 2011, 54, 660–666. [Google Scholar] [CrossRef]
  27. Jović, O.; Smolić, T.; Primožič, I.; Hrenar, T. Spectroscopic and chemometric analysis of binary and ternary edible oil mixtures: Qualitative and quantitative study. Anal. Chem. 2016, 88, 4516–4524. [Google Scholar] [CrossRef]
  28. Geladi, P.; Kowalski, B. Partial least-squares regression: A tutorial. Anal. Chim. Acta 1986, 185, 1–17. [Google Scholar] [CrossRef]
  29. Leach, A.R. Molecular Modelling: Principles and Applications, 2nd ed.; Pearson Education Limited: Dorchester, UK, 2001. [Google Scholar]
  30. Stewart, J.J.P. Optimization of parameters for semiempirical methods VI: More modifications to the NDDO approximations and re-optimization of parameters. J. Mol. Model. 2013, 19, 1–32. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Stewart, J.J.P. Stewart Computational Chemistry; MOPAC2016: Colorado Springs, CO, USA, 2016. [Google Scholar]
  32. Primožič, I.; Hrenar, T.; Baumann, K.; Krišto, L.; Križić, I.; Tomić, S. Mechanochemical and conformational study of N-heterocyclic carbonyl-oxime transformations. Croat. Chem. Acta 2014, 87, 153–160. [Google Scholar] [CrossRef]
  33. Kovačević, G.; Hrenar, T.; Došlić, N. Hydrogen bonding in malonaldehyde: A density functional and reparametrized semiempirical approach. Chem. Phys. 2003, 293, 41–52. [Google Scholar] [CrossRef]
  34. Matošević, A.; Radman Kastelic, A.; Mikelić, A.; Zandona, A.; Katalinić, M.; Primožič, I.; Bosak, A.; Hrenar, T. Quinuclidine-Based Carbamates as Potential CNS Active Compounds. Pharmaceutics 2021, 13, 420. [Google Scholar] [CrossRef]

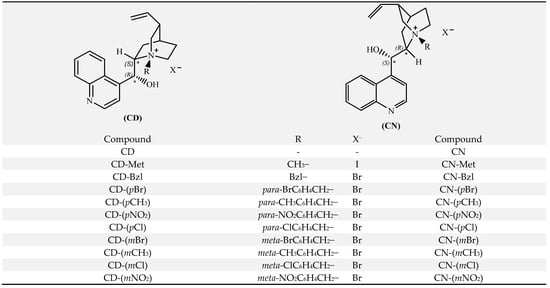

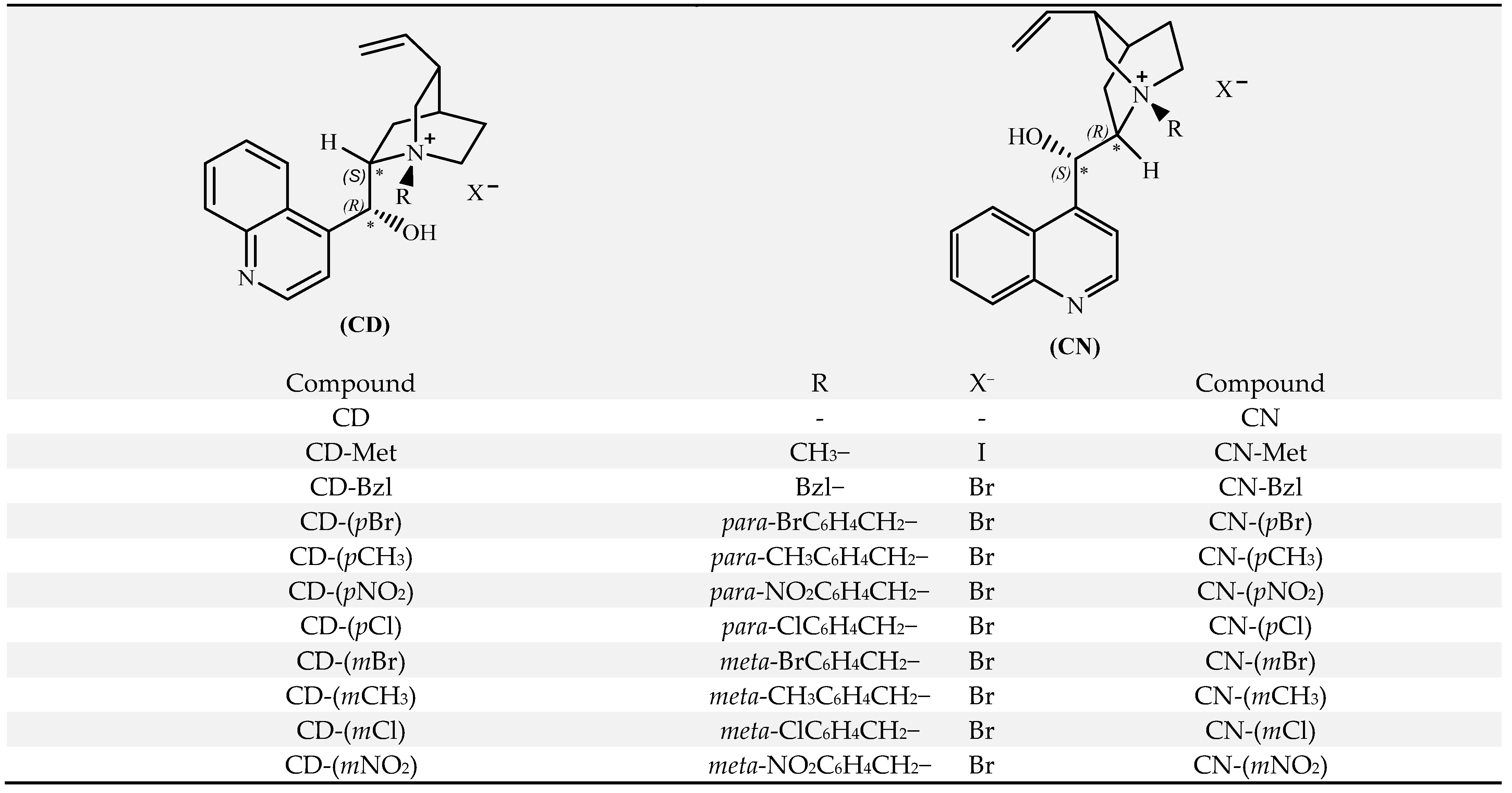

Figure 1. Structures of cinchonidine (CD) and cinchonine (CN) compounds. Absolute configurations, opposite in quasi-enantiomers at positions 8 and 9, are noted; (8S,9R) in CD and (8R,9S) in CN.
Figure 1. Structures of cinchonidine (CD) and cinchonine (CN) compounds. Absolute configurations, opposite in quasi-enantiomers at positions 8 and 9, are noted; (8S,9R) in CD and (8R,9S) in CN.
Antibiotics 10 00659 g001

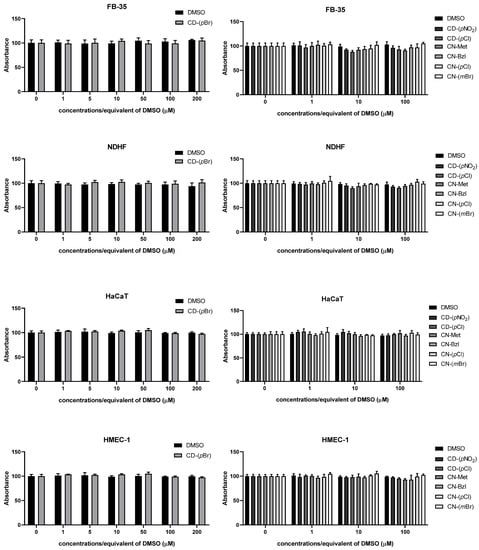

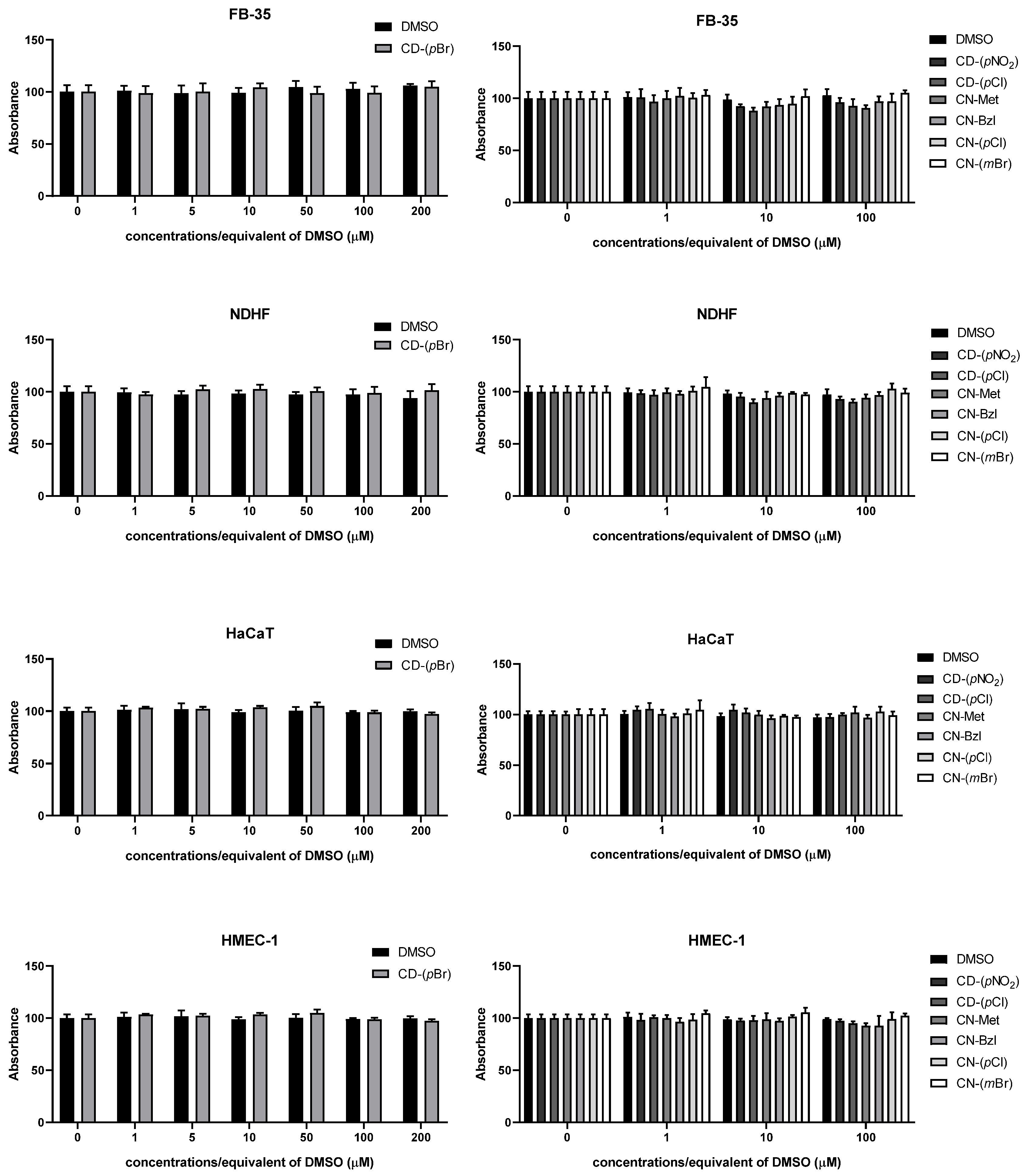

Figure 2. Effects of compounds on FB-35 (normal foreskin fibroblasts), NDFH (normal human dermal fibroblasts), HaCat (keratinocytes), and HMEC-1 (microvascular endothelial cell line) viability. p > 0.05.
Figure 2. Effects of compounds on FB-35 (normal foreskin fibroblasts), NDFH (normal human dermal fibroblasts), HaCat (keratinocytes), and HMEC-1 (microvascular endothelial cell line) viability. p > 0.05.
Antibiotics 10 00659 g002

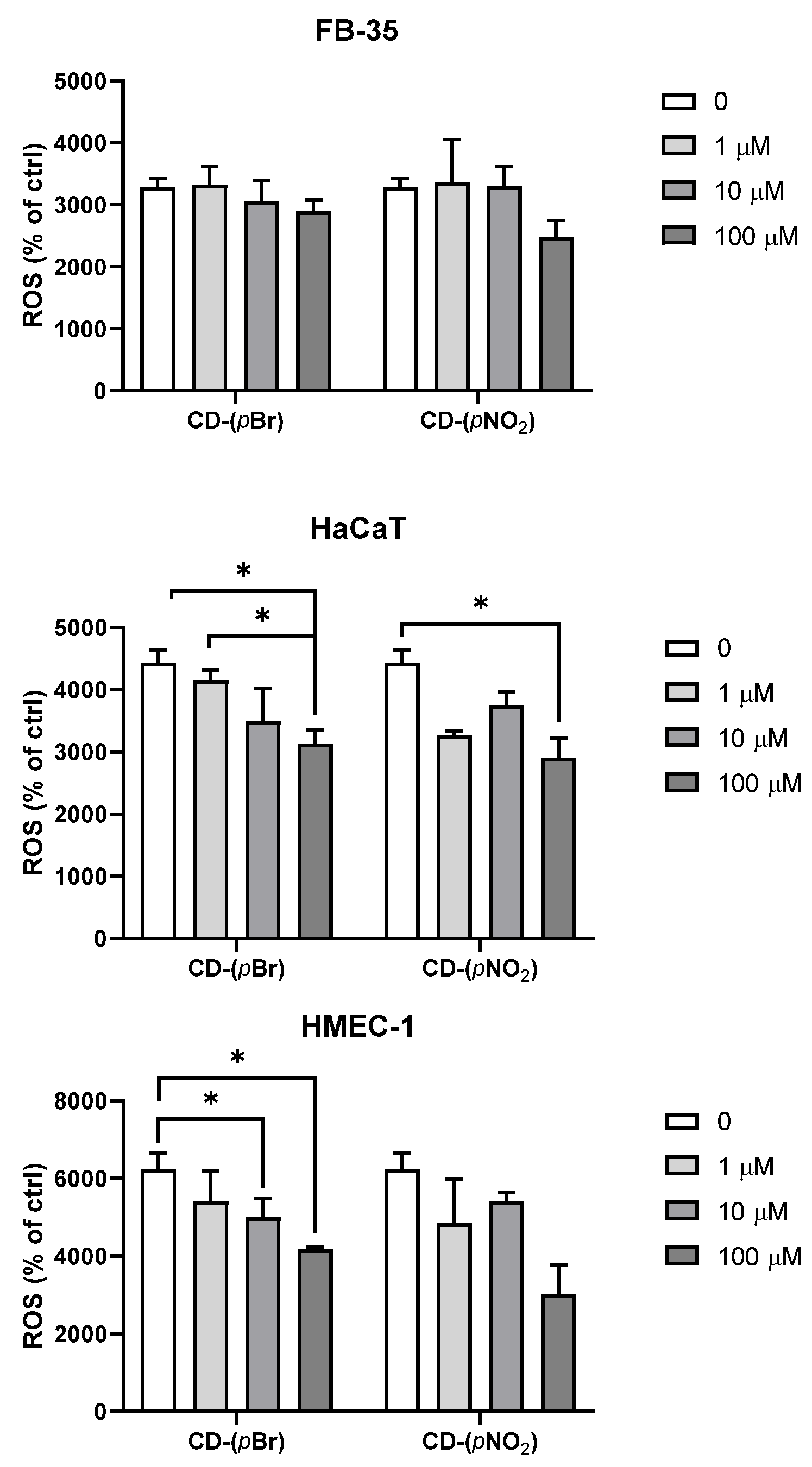

Figure 3. Effects of compounds CD-(pBr) and CD-(pNO2) on ROS levels in FB-35, HaCaT, and HMEC-1 cell lines after 2 h treatment.* p > 0.05.
Figure 3. Effects of compounds CD-(pBr) and CD-(pNO2) on ROS levels in FB-35, HaCaT, and HMEC-1 cell lines after 2 h treatment.* p > 0.05.
Antibiotics 10 00659 g003

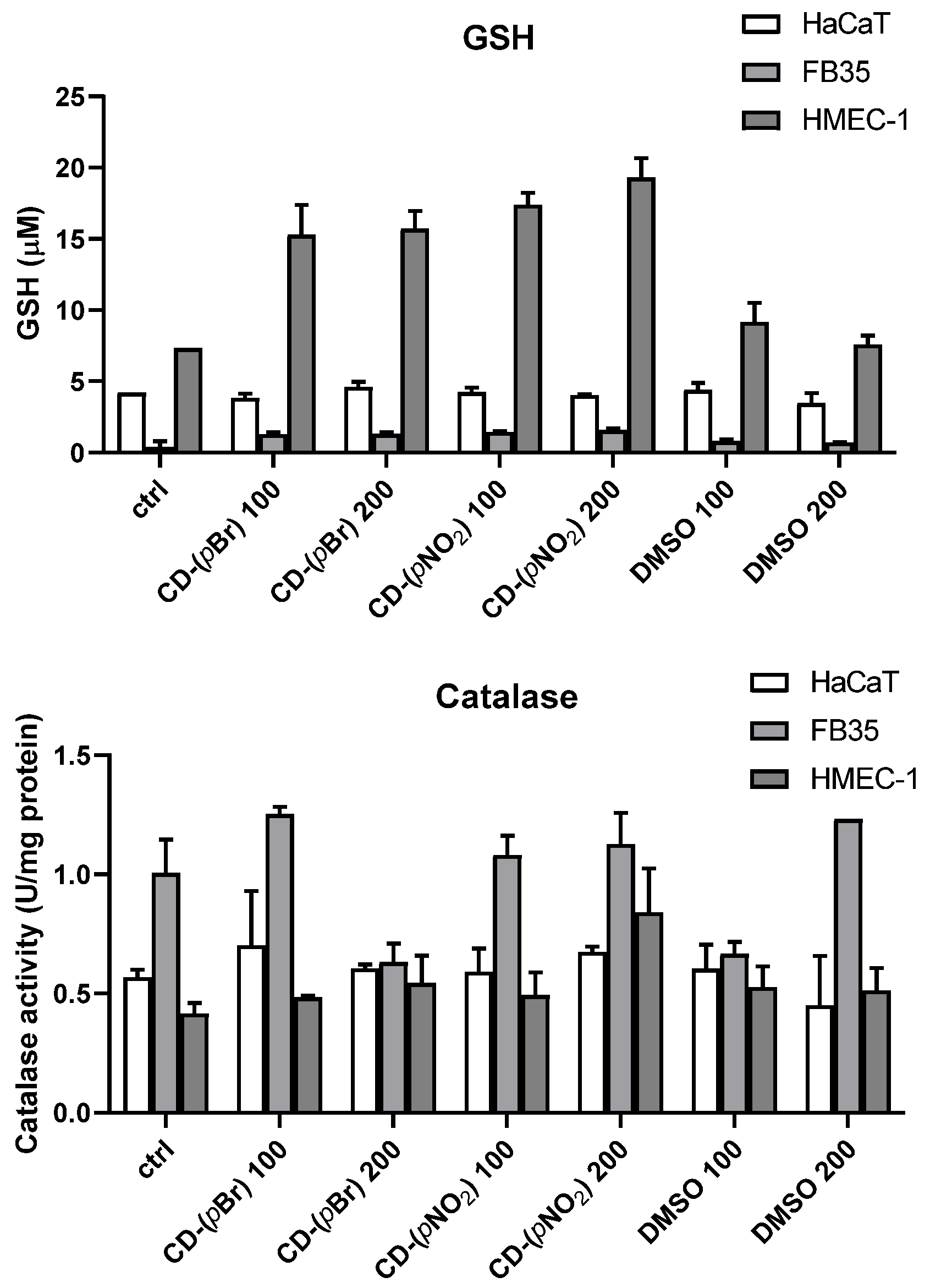

Figure 4. Effects of CD-(pBr) and CD-(pNO2) on GSH levels in FB-35, HaCaT, and HMEC-1.
Figure 4. Effects of CD-(pBr) and CD-(pNO2) on GSH levels in FB-35, HaCaT, and HMEC-1.
Antibiotics 10 00659 g004

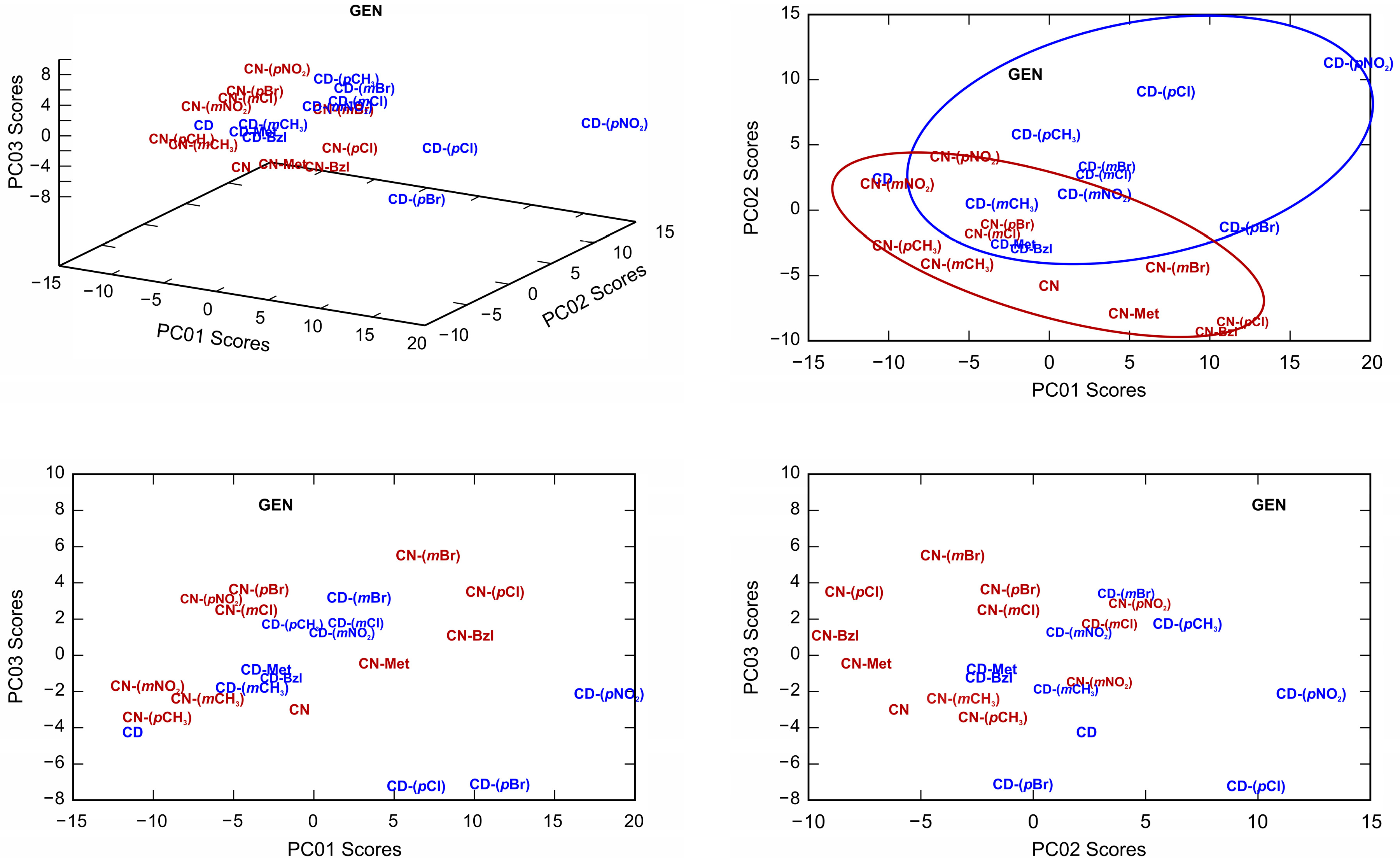

Figure 5. Classification of compounds based on values calculated by PCA performed on the mean-centered covariance matrix of their disc diffusion assay values.
Figure 5. Classification of compounds based on values calculated by PCA performed on the mean-centered covariance matrix of their disc diffusion assay values.
Antibiotics 10 00659 g005

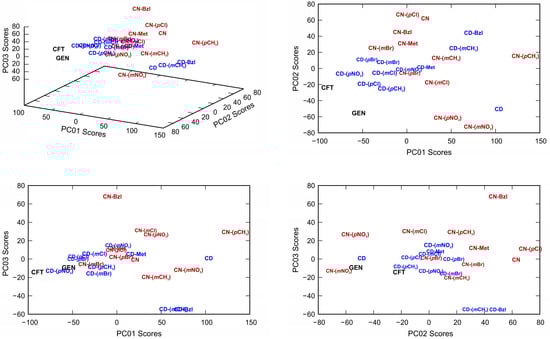

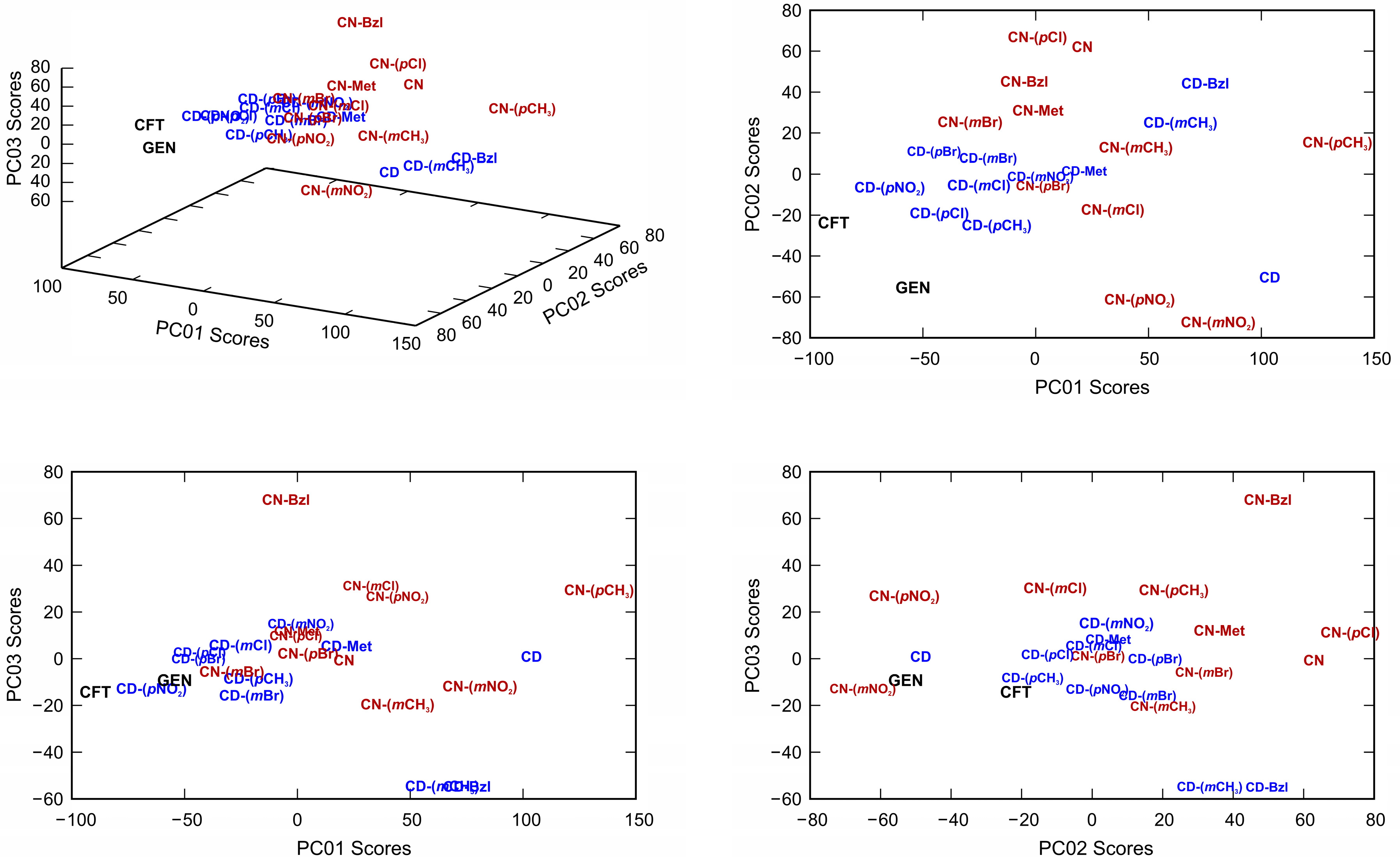

Figure 6. Classification of compounds based on values calculated by PCA performed on the mean-centered covariance matrix of their MIC values.
Figure 6. Classification of compounds based on values calculated by PCA performed on the mean-centered covariance matrix of their MIC values.
Antibiotics 10 00659 g006

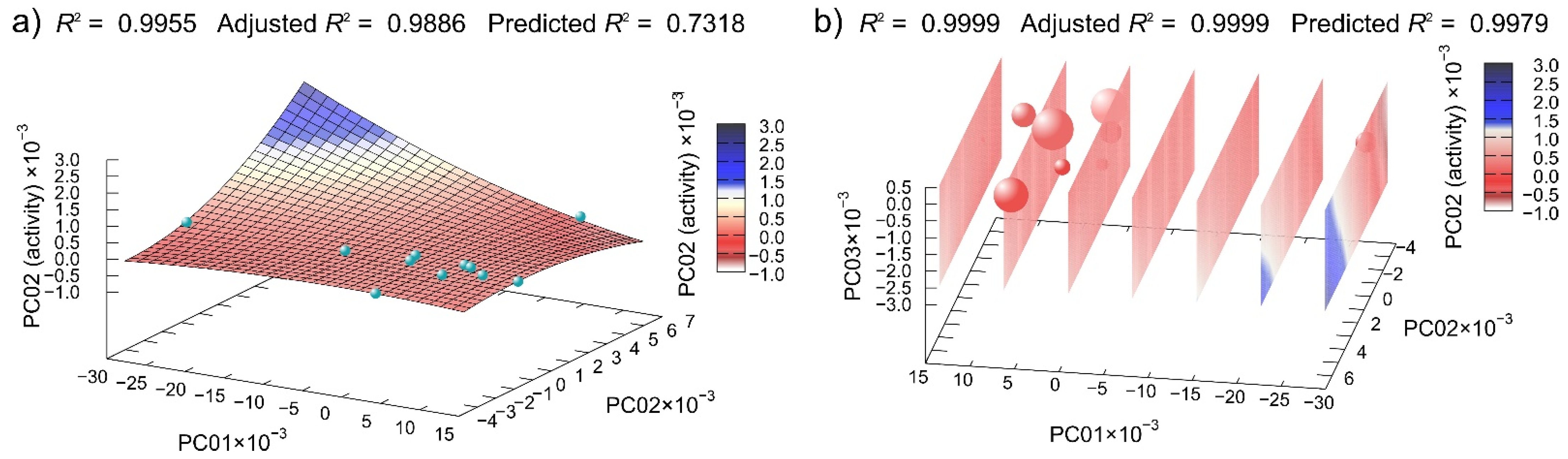

Figure 7. Machine learning determined best multivariate regression models of CD derivatives disc diffusion assay data dependent on the (a) first two and (b) first three principal component of compounds potential energy surfaces. (In (b), spheres represent points in 3D-reduced space, and the planes are cuts of polynomial regression model; for easier interpretation, the fourth dimension is represented redundantly with the color and size of the spheres.)
Figure 7. Machine learning determined best multivariate regression models of CD derivatives disc diffusion assay data dependent on the (a) first two and (b) first three principal component of compounds potential energy surfaces. (In (b), spheres represent points in 3D-reduced space, and the planes are cuts of polynomial regression model; for easier interpretation, the fourth dimension is represented redundantly with the color and size of the spheres.)
Antibiotics 10 00659 g007

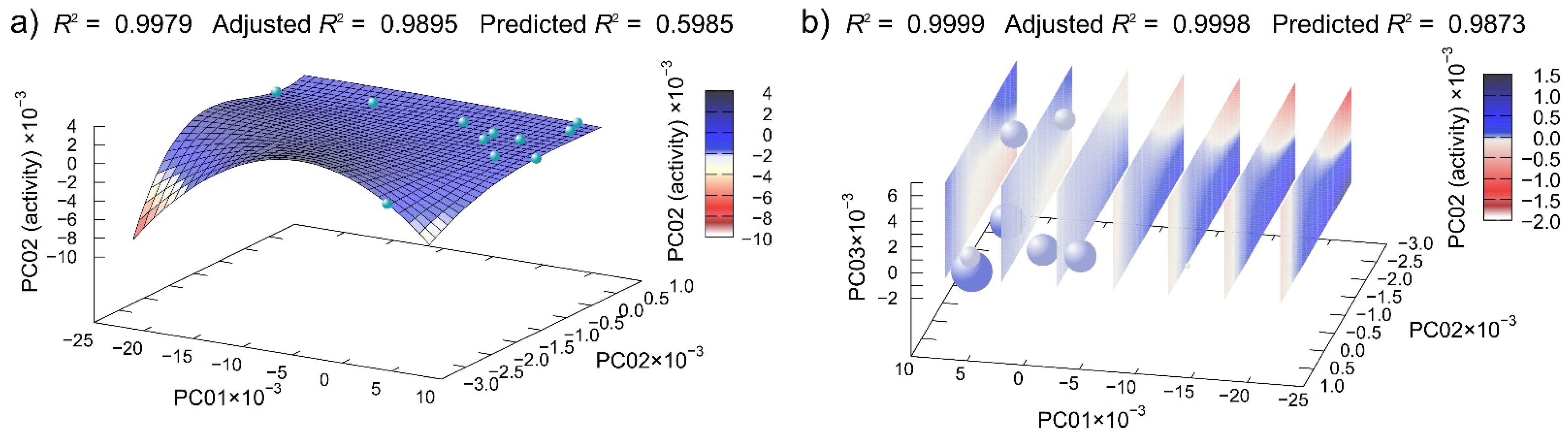

Figure 8. Machine learning determined best multivariate regression model of CN derivatives disc diffusion assay data dependent on the (a) first two and (b) first three principal component of compounds potential energy surfaces. (In (b), spheres represent points in 3D-reduced space, and the planes are cuts of polynomial regression model; for easier interpretation, the fourth dimension is represented redundantly with the color and size of the spheres.)
Figure 8. Machine learning determined best multivariate regression model of CN derivatives disc diffusion assay data dependent on the (a) first two and (b) first three principal component of compounds potential energy surfaces. (In (b), spheres represent points in 3D-reduced space, and the planes are cuts of polynomial regression model; for easier interpretation, the fourth dimension is represented redundantly with the color and size of the spheres.)
Antibiotics 10 00659 g008

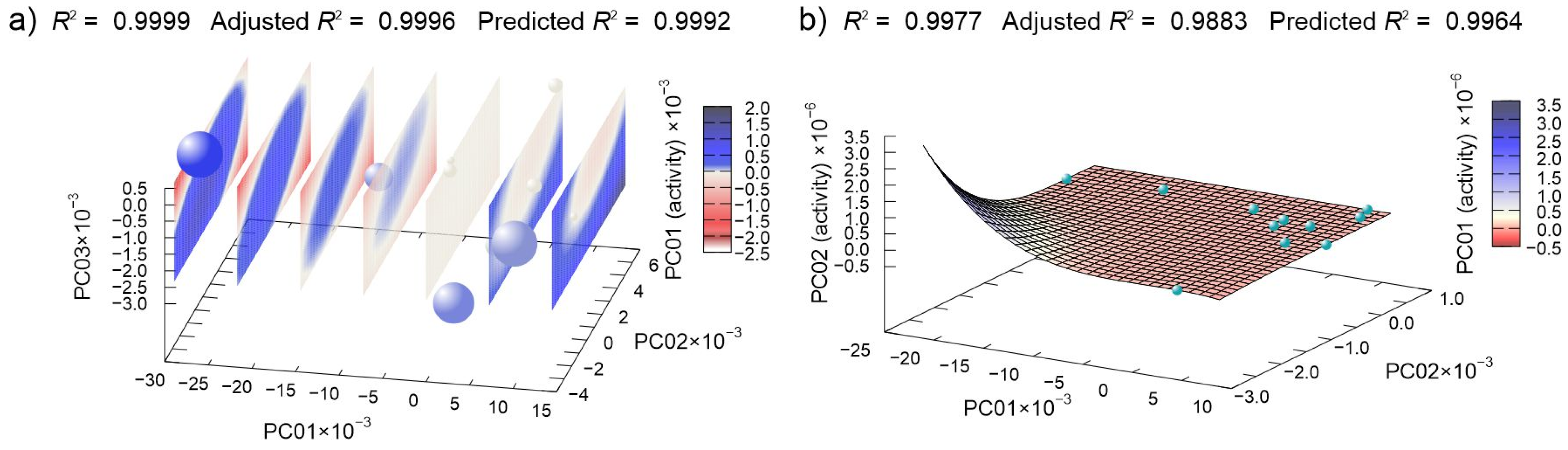

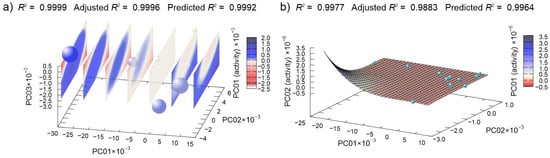

Figure 9. Machine learning determined best multivariate regression models of (a) CD derivatives and (b) CN derivatives MIC data dependent on the principal component of compounds potential energy surfaces. (In (a), spheres represent points in 3D-reduced space, and the planes are cuts of polynomial regression model; for easier interpretation, the fourth dimension is represented redundantly with the color and size of the spheres.)
Figure 9. Machine learning determined best multivariate regression models of (a) CD derivatives and (b) CN derivatives MIC data dependent on the principal component of compounds potential energy surfaces. (In (a), spheres represent points in 3D-reduced space, and the planes are cuts of polynomial regression model; for easier interpretation, the fourth dimension is represented redundantly with the color and size of the spheres.)
Antibiotics 10 00659 g009
Table 1. Antimicrobial activity of CD and CN derivatives against a panel of Gram-positive and Gram-negative bacterial strains determined by disc diffusion assay. According to the sizes of the inhibitory zone (including the diameter of a disc), the antimicrobial activity is graded as inactive (0–9 mm); mildly active (10–15 mm); moderately active (16–20 mm); and highly active (≥21 mm). All values are expressed as mean ± SD of three parallel measurements (n = 3).
Table 1. Antimicrobial activity of CD and CN derivatives against a panel of Gram-positive and Gram-negative bacterial strains determined by disc diffusion assay. According to the sizes of the inhibitory zone (including the diameter of a disc), the antimicrobial activity is graded as inactive (0–9 mm); mildly active (10–15 mm); moderately active (16–20 mm); and highly active (≥21 mm). All values are expressed as mean ± SD of three parallel measurements (n = 3).
CompoundsDiameters of the Inhibition Zone (mm) a
Gram-Positive BacteriaGram-Negative Bacteria
B. cereusE. faecalisS. aureusC. perfringensE. coliK. pneumoniaeP. aeruginosa
CD10.9 ± 1.714.2 ± 0.913.3 ± 0.614.6 ± 0.717.2 ± 1.410.2 ± 1.16.4 ± 0.9
CD-Met12.7 ± 1.111.2 ± 1.415.7 ± 1.714.2 ± 1.314.8 ± 1.212.4 ± 0.915.8 ± 2.1
CD-Bzl9.4 ± 0.515.7 ± 1.918.5 ± 1.28.4 ± 2.215.6 ± 1.616.7 ± 1.616.3 ± 1.7
CD-(pBr)16.6 ± 1.415.6 ± 2.317.4 ± 1.815.6 ± 0.925.7 ± 2.714.7 ± 0.625.7 ± 2.4
CD-(pCH3)15.8 ± 2.216.8 ± 0.917.8 ± 2.318.1 ± 0.914.8 ± 0.915.8 ± 0.911.8 ± 0.9
CD-(pNO2)22.8 ± 0.827.4 ± 1.717.4 ± 0.321.8 ± 0.923.1 ± 1.426.1 ± 2.125.1 ± 1.6
CD-(pCl)15.3 ± 1.016.3 ± 1.315.5 ± 1.723.3 ± 1.724.5 ± 1.819.5 ± 1.317.2 ± 1.2
CD-(mBr)14.8 ± 1.319.6 ± 1.221.4 ± 0.713.8 ± 0.614.6 ± 1.217.6 ± 1.316.3 ± 1.9
CD-(mCH3)9.8 ± 1.017.3 ± 2.320.3 ± 1.810.3 ± 1.117.7 ± 0.712.7 ± 0.612.1 ± 2.7
CD-(mCl)15.0 ± 1.616.0 ± 1.819.0 ± 1.416.0 ± 0.815.2 ± 2.418.2 ± 0.717.2 ± 1.3
CD-(mNO2)15.3 ± 0.616.2 ± 2.519.2 ± 1.517.2 ± 1.315.4 ± 1.812.4 ± 3.117.4 ± 1.4
CN13.2 ± 0.914.2 ± 1.913.2 ± 1.810.2 ± 1.516.3 ± 1.212.6 ± 1.419.2 ± 2.7
CN-Met12.4 ± 1.013.4 ± 1.516.4 ± 1.211.4 ± 1.114.4 ± 2.113.4 ± 1.025.4 ± 3.2
CN-Bzl22.7 ± 1.99.6 ± 1.613.4 ± 1.612.1 ± 1.515.6 ± 2.513.9 ± 0.627.6 ± 3.2
CN-(pBr)15.7 ± 1.817.7 ± 0.916.2 ± 1.710.7 ± 1.311.2 ± 0.712.1 ± 2.313.2 ± 0.5
CN-(pCH3)8.8 ± 1.39.2 ± 1.710.8 ± 1.411.8 ± 2.613.4 ± 1.514.2 ± 1.510.1 ± 1.3
CN-(pNO2)13.3 ± 1.612.9 ± 1.715.7 ± 2.519.4 ± 2.110.5 ± 1.214.7 ± 1.210.2 ± 2.1
CN-(pCl)21.5 ± 1.514.5 ± 1.717.5 ± 1.310.5 ± 1.114.5 ± 1.313.5 ± 1.628.5 ± 2.8
CN-(mBr)16.6 ± 1.317.2 ± 1.320.6 ± 2.212.6 ± 1.411.6 ± 2.314.6 ± 1.124.6 ± 3.0
CN-(mCH3)7.7 ± 1.616.7 ± 0.611.5 ± 1.212.1 ± 1.311.9 ± 1.510.2 ± 0.914.4 ± 1.7
CN-(mCl)15.2 ± 0.613.2 ± 2.316.2 ± 1.615.2 ± 3.212.2 ± 0.99.2 ± 1.413.9 ± 2.1
CN-(mNO2)9.4 ± 1.512.1 ± 1.315.4 ± 2.415.7 ± 2.214.4 ± 2.311.2 ± 2.07.4 ± 1.9
GENb18.2 ± 0.714.6 ± 1.423.9 ± 0.921.7 ± 0.411.5 ± 0.918.8 ± 0.69.7 ± 1.4
a Diameter of inhibition zone (values in mm) around the disc: 200 μg/disc. b Gentamicin standard antibiotic disc (15 μg/disc).
Table 2. Determined MIC values for CD and CN quaternary derivatives, gentamicin (GEN) and cefotaxime (CFT) against a panel of Gram-positive and Gram-negative bacterial strains. No bioactivity was defined as a MIC > 1000 μg/mL, mild bioactivity as a MIC in the range 512–1000 μg/ mL, moderate bioactivity as a MIC in the range 128–512 μg/mL, good bioactivity as a MIC in the range 32–128 μg/mL, strong bioactivity as a MIC in the range 10–32 μg/mL, and very strong bioactivity as a MIC < 10 μg/mL.
Table 2. Determined MIC values for CD and CN quaternary derivatives, gentamicin (GEN) and cefotaxime (CFT) against a panel of Gram-positive and Gram-negative bacterial strains. No bioactivity was defined as a MIC > 1000 μg/mL, mild bioactivity as a MIC in the range 512–1000 μg/ mL, moderate bioactivity as a MIC in the range 128–512 μg/mL, good bioactivity as a MIC in the range 32–128 μg/mL, strong bioactivity as a MIC in the range 10–32 μg/mL, and very strong bioactivity as a MIC < 10 μg/mL.
CompoundsMIC (µg/mL)
Gram-Positive BacteriaGram-Negative Bacteria
B. cereusE. faecalisS. aureusC. perfringensE. coliK. pneumoniaeP. aeruginosa
CD100.0050.0050.0050.0025.00100.00125.00
CD-Met50.0050.0025.0050.0025.0050.0050.00
CD-Bzl100.0025.0025.00125.0050.0050.0050.00
CD-(pBr)25.0025.0025.0025.006.2525.001.56
CD-(pCH3)25.0012.5025.0025.0025.0025.0050.00
CD-(pNO2)12.506.2512.5012.506.256.256.25
CD-(pCl)25.0025.0025.006.256.2512.5025.00
CD-(mBr)25.0012.5012.5050.0050.0025.0025.00
CD-(mCH3)100.0025.0012.50100.0025.0050.0050.00
CD-(mCl)25.0025.0025.0025.0050.0025.0025.00
CD-(mNO2)50.0050.0025.0025.0025.0050.0025.00
CN50.0050.0050.00100.0025.0050.0012.50
CN-Met50.0050.0025.0050.0050.0050.003.12
CN-Bzl12.50100.0050.0050.0025.0050.001.56
CN-(pBr)25.0025.0025.0050.0050.0050.0050.00
CN-(pCH3)100.00100.00100.00100.0050.0050.00100.00
CN-(pNO2)50.0050.0025.0012.50100.0050.00100.00
CN-(pCl)12.5050.0025.00100.0050.0050.003.12
CN-(mBr)25.0025.0012.5050.0050.0025.003.12
CN-(mCH3)100.0025.0050.0050.0050.0050.0025.00
CN-(mCl)50.0050.0025.0025.0050.00100.0050.00
CN-(mNO2)100.0050.0025.0025.0025.0050.00125.00
GEN4.004.001.000.5032.008.0064.00
CFT0.250.500.500.100.500.5016.00
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ramić, A.; Skočibušić, M.; Odžak, R.; Čipak Gašparović, A.; Milković, L.; Mikelić, A.; Sović, K.; Primožič, I.; Hrenar, T. Antimicrobial Activity of Quasi-Enantiomeric Cinchona Alkaloid Derivatives and Prediction Model Developed by Machine Learning. Antibiotics 2021, 10, 659. https://doi.org/10.3390/antibiotics10060659

AMA Style

Ramić A, Skočibušić M, Odžak R, Čipak Gašparović A, Milković L, Mikelić A, Sović K, Primožič I, Hrenar T. Antimicrobial Activity of Quasi-Enantiomeric Cinchona Alkaloid Derivatives and Prediction Model Developed by Machine Learning. Antibiotics. 2021; 10(6):659. https://doi.org/10.3390/antibiotics10060659

Chicago/Turabian Style

Ramić, Alma, Mirjana Skočibušić, Renata Odžak, Ana Čipak Gašparović, Lidija Milković, Ana Mikelić, Karlo Sović, Ines Primožič, and Tomica Hrenar. 2021. "Antimicrobial Activity of Quasi-Enantiomeric Cinchona Alkaloid Derivatives and Prediction Model Developed by Machine Learning" Antibiotics 10, no. 6: 659. https://doi.org/10.3390/antibiotics10060659

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
