Emerging Dual-Gate FET Sensor Paradigm for Ultra-Low Concentration Cortisol Detection in Complex Bioenvironments

by
Seung-Jin Lee
and
Won-Ju Cho
*
Department of Electronic Materials Engineering, Kwangwoon University, Gwangun-ro 20, Nowon-gu, Seoul 01897, Republic of Korea
*
Author to whom correspondence should be addressed.
Biosensors 2025, 15(3), 134; https://doi.org/10.3390/bios15030134
Submission received: 16 January 2025 / Revised: 20 February 2025 / Accepted: 20 February 2025 / Published: 22 February 2025
(This article belongs to the Special Issue Advances in Portable and Wearable Sensing Systems for Biochemical Monitoring)
Browse Figures
Versions Notes

Abstract

:
Cortisol is a pivotal hormone regulating stress responses and is linked to various health conditions, making precise and continuous monitoring essential. Despite their non-invasive nature, conventional cortisol detection methods often suffer from inadequate sensitivity and reliability at low concentrations, limiting their diagnostic utility. To address these limitations, this study introduces a novel paradigm for high sensitivity cortisol detection using field-effect transistor (FET) sensors with dual-gate (DG) structures. The proposed sensor platform enhances sensitivity through capacitive coupling without requiring external circuits. Cortisol detection performance was evaluated by immobilizing monoclonal antibodies activated via 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide and N-hydroxysuccinimide onto a SnO2 thin film-based extended-gate. The results revealed a sensitivity of 14.3 mV/dec in single-gate mode, which significantly increased to 243.8 mV/dec in DG mode, achieving a detection limit of 276 pM. Additionally, the reliability and stability of the sensor were validated by evaluating drift effects, confirming its ability to provide accurate detection even in artificial saliva environments containing interfering substances. In conclusion, the DG-FET-based cortisol detection approach developed in this study significantly outperforms conventional FET-based methods, enabling precise monitoring at ultra-low concentrations. This approach holds significant potential for diverse bioassays requiring high sensitivity and reliability in complex environments.

1. Introduction

Stress is a significant risk factor for various health conditions, including cardiovascular diseases, depression, and obesity [1]. It disrupts homeostasis by inducing prolonged immune suppression and inflammatory responses, leading to various illnesses that are difficult to treat and manage [2,3,4]. This highlights the importance of stress prevention and early diagnosis. Accurate methods for assessing stress levels are essential, with the detection of cortisol—a key biomarker of stress responses—receiving significant attention [5,6,7,8]. Cortisol, a critical hormone in stress regulation, is essential in the neuroendocrine system [9,10]. Secreted by the adrenal cortex, cortisol regulates energy metabolism and homeostasis. Current analytical methods for cortisol detection include enzyme-linked immunosorbent assays, Raman spectroscopy, chemiluminescent immunoassays, and chromatographic techniques [11,12,13,14]. While effective, these conventional methods often fail to achieve rapid detection, sensitivity, and accuracy, particularly in non-invasive applications [15,16,17,18]. Given that cortisol levels in human body fluids exhibit circadian fluctuations and are susceptible to behavioral and environmental factors, monitoring cortisol levels in readily accessible biofluids, such as sweat and saliva, is crucial for timely diagnosis and treatment [19,20,21]. In healthy adults, cortisol concentrations typically range from 8.16 to 141.7 ng/mL (22.5 nM–391.0 nM), while salivary cortisol levels are approximately two orders of magnitude lower, ranging from 0.1 to 10 ng/mL (276 pM–27.6 nM) [22,23,24,25]. These factors highlight the need for non-invasive, highly sensitive monitoring methods capable of detecting cortisol at low concentrations, driving the development of advanced cortisol sensors.
Ion-sensitive field-effect transistors (ISFETs), introduced by P. Bergveld in the early 1970s, have been widely adopted in physiological measurements and biosensing applications [26]. ISFETs offer distinct advantages, such as rapid response times and compatibility with complementary metal-oxide-semiconductor processes, making them suitable for mass production and miniaturization [27,28,29,30]. Despite these advantages, traditional ISFETs are limited by the Nernst limit (59.14 mV/pH at room temperature), which constrains their sensitivity, particularly for detecting low analyte concentrations such as biomolecules [31,32]. To overcome this limitation, dual-gate ISFETs (DG-ISFETs) have emerged as an effective alternative, offering enhanced sensitivity and stability [33,34,35]. The operating principles of ISFETs are governed by the site-binding and the Stern–Gouy–Chapman models, which describe the electrical double-layer theory of surface potential at the sensing membrane [36,37]. Interactions between ions in the electrolyte and surface binding sites of the sensing membrane result in changes in surface charge density, thereby modulating the surface potential in response to solution concentration. Recent advancements in ISFET technologies have expanded their application to detect diverse biomolecules, including DNA, cells, antigens, antibodies, and enzymes [38,39,40,41]. Many of these advancements rely on functionalized thin films to enhance detection sensitivity by altering surface charge density upon antigen–antibody binding [42]. Thin films that are highly sensitive to surface charge density changes, such as SnO2, are particularly advantageous for biosensing applications. SnO2 thin films are recognized for their high sensitivity, stability, rapid response, and cost efficiency, making them ideal materials for ISFET-based biosensors [43,44].
This study introduces a novel cortisol sensor that utilizes a dual-gate field-effect transistor (DG-FET) design. This sensor integrates a SnO2-based extended-gate (EG) functionalized with monoclonal antibodies specific to cortisol. The surface activation method ensures robust antibody immobilization, enhancing resistance to interference [45]. Additionally, the EG, positioned away from the active region, ensured consistent performance through its modular design, enabling attachment and detachment [46,47]. In the DG-FET, the transducer utilizes a top and bottom gate, forming two metal-oxide-semiconductor capacitor structures, enabling capacitive coupling amplification without external circuitry [48,49,50]. The fabricated DG-FET was systematically evaluated for its electrical properties, and the sensing performance of the SnO2 thin film was validated via pH-sensing. Atomic force microscopy (AFM) confirmed the effective immobilization of cortisol antibodies on the SnO2 surface. The detection performance was evaluated using cortisol solutions in phosphate-buffered saline (PBS) and artificial saliva. The DG-FET sensor demonstrated outstanding sensitivity, stability, and reliability at ultra-low concentrations, even amidst interfering substances. These results underscore its superior potential for stress monitoring compared to conventional FET-based cortisol sensors.

2. Materials and Methods

2.1. Materials

The materials used in this study included glass substrate (7059 glass; Corning Inc., Corning, NY, USA), deionized (DI) water with a conductivity of ≤4.3 μS/cm (Sigma-Aldrich, St. Louis, MO, USA), and Sylgard 184 polydimethylsiloxane (PDMS) elastomer (Dow Corning, Midland, MI, USA). Chemical reagents such as 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC) (purity ≥ 97%, molecular weight = 155.24 g/mol; Sigma-Aldrich, USA) and N-hydroxysuccinimide (NHS) (purity ≥ 98%, molecular weight = 115.09 g/mol; Sigma-Aldrich, USA) were employed for surface functionalization. Other key materials included PBS at pH 7.4 (Sigma-Aldrich, USA), cortisol antibody (Clone BGN/C53, mouse monoclonal IgG3, concentration 1 mg/mL in PBS with 0.09% sodium azide; Thermo Fisher Scientific, (Waltham, MA, USA), cortisol solution (1.0 mg/mL in methanol, ampule of 1 mL; Sigma-Aldrich, USA), and artificial saliva (TB0929, 400 mL, pH 6.8, TMABio, Goyang, Republic of Korea).

2.2. Fabrication of DG-FET Transducer Unit and SnO2-Based EG-Sensing Membrane

The DG-FET for cortisol detection was fabricated using a sequential process. The bottom gate electrode was constructed using a p-type silicon (p-Si) substrate, which was cleaned using standard Radio Corporation of America cleaning protocols to remove surface impurities. A 200 nm thick SiO2 layer was deposited on the substrate as the bottom gate oxide using a radio frequency (RF) magnetron sputtering system. The active channel material was indium gallium zinc oxide (IGZO) with a stoichiometric ratio of In:Ga:Zn = 4:2:4.1, chosen for its high electron mobility [51,52]. The IGZO layer was initially deposited to a thickness of 50 nm using an RF magnetron sputtering system, then patterned into an active channel region measuring 20 μm in width and 10 μm in length through photolithography and wet etching techniques. A 150 nm thick indium-tin-oxide (ITO) layer was subsequently deposited to form the source and drain electrodes. The top gate oxide comprised a dual-layer structure to enhance the channel’s electrical properties. A 20 nm thick SiO2 layer acted as a buffer oxide, followed by an 80 nm thick tantalum oxide (Ta2O5) layer, which is a high-k dielectric material selected for its superior capacitance. The top gate electrode, consisting of a 150 nm thick ITO layer, was then deposited. To improve electrical properties and operational stability, forming gas annealing was conducted at 450 °C in a 5% H2/N2 atmosphere for 30 min. After annealing, the top gate electrode was connected to an EG-based electrode via a cable to enable full device functionality. The EG electrode incorporated a 300 nm thick ITO layer coated with a SnO2-sensing membrane. SnO2 was employed for its exceptional sensitivity and stability in detecting biomolecular interactions. Figure 1a,b presents the overall schematic and microscopy image of the fabricated DG-FET, respectively. Figure 1c shows the actual EG electrode with the immobilized cortisol antibody deposited onto the SnO2 surface.

2.3. Fabrication of Cortisol Antibody-Immobilized SnO2-Sensing Membrane in EG-Sensing Unit

An EG-sensing unit was fabricated using a 1.5 cm × 2.5 cm glass substrate. A 300 nm thick ITO conductive layer and a 50 nm thick SnO2-sensing layer were deposited sequentially using RF magnetron sputtering. Subsequently, a PDMS reservoir was installed to complete EG fabrication. To prepare the SnO2 surface for antibody immobilization, the fabricated EG underwent O2 plasma treatment for 30 s to generate hydroxyl (OH) groups [53,54]. The SnO2 surface was activated using a mixture of EDC and NHS, prepared by dissolving 0.479 g of EDC (molecular weight: 191.7 g/mol) and 0.288 g of NHS (molecular weight: 115.09 g/mol) in 50 mL of PBS to achieve a 50 mM solution. The EDC-activated carboxyl groups on the SnO2 surface, forming reactive O-acylisourea intermediates capable of binding to amine groups, while NHS stabilized these intermediates by converting them into more stable NHS esters, enhancing coupling efficiency [55,56]. A 1:1 mixture of EDC and NHS was applied to the SnO2 surface, with activation performed at room temperature for 30 min. The surface was then thoroughly rinsed with DI water. Following activation, the NHS esters reacted with the amine groups of the cortisol antibody, facilitating stable covalent immobilization [57,58]. A 10 μL droplet of a cortisol antibody solution (100 μg/mL in PBS buffer) was deposited onto the activated SnO2 surface and incubated overnight at 4 °C. After incubation, the EG surface was rinsed again with DI water to remove unbound antibodies. The process of fabricating the cortisol antibody-functionalized EG-sensing unit is shown in Figure 2.

2.4. DG-FET Operation Modes and Capacitive Coupling Effect

The fabricated DG-FET sensor operates in two distinct modes: single-gate (SG) and dual-gate (DG).
  • SG Mode:
In SG mode, only the top gate electrode is utilized, maintaining sensitivity and adhering to the Nernst limit characteristic of conventional ISFETs. A schematic of the SG mode operation is shown in Figure 3a. The equivalent circuit for SG mode is shown in Figure 3c. The threshold voltage of the top gate in SG mode is expressed as follows:
Δ V T H T G = − Δ ψ
  • Dual-Gate (DG) Mode:
In the DG mode, both the top and bottom gate electrodes are utilized, resulting in self-amplified sensitivity due to the capacitive coupling effect between the two gates. A schematic of the DG mode operation is shown in Figure 3b, with the corresponding equivalent circuit depicted in Figure 3d. In the inversion region, the self-amplification effect is primarily determined by the capacitance ratio between the top gate insulator capacitance (CTox) and the bottom gate insulator capacitance (CBox). For simplicity, the channel depletion capacitance (CIGZO) is neglected [48]. Therefore, the threshold voltage of the bottom gate, influenced by both the top and bottom capacitances, can be expressed as follows:
Δ V T H B G = C T o x C B o x · Δ V T H T G
Equation (2) illustrates that the threshold voltage of the bottom gate ( Δ V T H B G ) is governed by the ratio CTox/CBox, which defines the amplification ratio of DG-FET. To enhance the amplification ratio, the thickness of CBox can be increased, or materials with a lower dielectric constant can be used. For CTox, a thinner layer or a high-dielectric constant film can be employed to improve amplification. In this study, a high-dielectric gate insulator structure, consisting of SiO2/Ta2O5 stacked oxide layers, was utilized to increase CTox, resulting in a larger amplification ratio compared to a single SiO2 system. This dual-gate design significantly enhances the transducer’s performance, enabling a more precise detection of analyte concentrations through capacitive coupling.

2.5. Device Characteristics

The electrical characteristics of the DG-FET transducer, including its transfer and output properties, were measured using an Agilent 4156B precision semiconductor parameter analyzer (Agilent Technologies, Santa Clara, CA, USA). All measurements were conducted in an electromagnetically shielded dark box to minimize external interferences such as noise, light, and contamination. The sensing unit was connected to the transducer using RG58A 9222 electrical cables (BELDEN, St. Louis, MO, USA). Based on pH and cortisol concentrations, signal detection was performed by immersing the solutions in a PDMS reservoir, with a commercial Ag/AgCl electrode (2086A-06T, Horiba, Kyoto, Japan) employed as the reference electrode.

3. Results and Discussion

3.1. Electrical Characteristics of DG-FET

The electrical performance of the DG-FET transducer, particularly its sensitivity and reliability, was evaluated under two configurations involving the independent operation of the top and bottom gates. During these measurements, one gate electrode was actively biased while the other was grounded to isolate the behavior of each gate and investigate its contributions to the overall device performance.
Figure 4a,b shows the transfer characteristics (IDS-VG) for the top and bottom gate operations, respectively. These curves were obtained by sweeping the gate voltage (VG) from −1 V to 5 V while maintaining the drain voltage (VD) at 1 V to ensure consistency in the measurement conditions. The transfer characteristics provide insights into the switching behavior and the linear and saturation regions of the operation transistor. The insets in each figure show the corresponding output characteristics, measured by varying the gate voltages from 0 V to 5 V. This setup enabled observation of the drain current (IDS) behavior under various operating conditions. During the output characteristic measurements, the overdrive voltage (VG−VTH) was systematically adjusted from 0 V to 7 V in 11 incremental steps. This systematic variation enabled a precise assessment of the transistor’s dynamic response and ability to modulate current flow.
Key electrical parameters of the DG-FET transducer, including threshold voltage (VTH), ON/OFF current ratio (ION/IOFF), field-effect mobility (μFE), and subthreshold swing (SS), were extracted from the IDS-VG curves and are summarized in Table 1. For top gate operation, the device exhibited a VTH of 0.25 V, an ION/IOFF of 1.18 × 107, a μFE of 336.3 cm2/V·s, and a SS of 124.21 mV/dec, highlighting high performance and efficient current modulation. In comparison, the bottom gate operation exhibited a VTH of −0.68 V, an ION/IOFF of 1.24 × 106, a μFE of 107.7 cm2/V·s, and a SS of 184.39 mV/dec. The differences in electrical parameters between the top and bottom gates reflect their distinct contributions to the overall functionality of the DG-FET transducer. The higher ON/OFF current ratio and mobility observed for the top gate operation can be attributed to the optimized dielectric stack of SiO2/Ta2O5, which enhances the capacitance and overall control of the channel. This comparative analysis highlights the potential of the DG-FET transducer as a versatile, high-performance platform for sensing applications.

3.2. pH-Sensing Characteristics of the SnO2-Sensing Membrane-Based DG-FET

The pH-sensing capabilities of the DG-FET sensor, incorporating a SnO2 thin film as the sensing membrane, were investigated to assess its sensitivity, stability, and operational reliability. The sensing mechanism relies on the SnO2 film’s ability to modulate surface charge density in response to variations in hydrogen ion concentration, which alters the device’s electrical properties. The reference voltage (ΔVREF) measurements were conducted at a reference drain current (IR) of 100 pA, a condition optimized for maintaining consistent and reliable sensitivity.
  • Sensitivity Analysis:
Figure 5a illustrates the ΔVREF response to pH variations across a range of 3 to 10. In SG mode, the SnO2-based DG-FET exhibited a pH sensitivity of 58.54 mV/pH, which is close to the theoretical Nernst limit. In contrast, the DG mode demonstrated an amplified sensitivity of 1017.8 mV/pH, approximately 17.4 times higher than the SG mode. This significant enhancement in sensitivity highlights the role of capacitive coupling between the top and bottom gates in amplifying the transducer’s response.
  • Hysteresis Analysis:
Figure 5b illustrates the voltage hysteresis (VH) behavior when pH was cycled through the following loop: pH 7 → pH 4 → pH 7 → pH 10 → pH 7. VH was determined by calculating the difference between the initial and final VREF values. The hysteresis width was found to be 17.8 mV in SG mode and 72.5 mV in DG mode. The hysteresis is attributed to the interaction dynamics of hydrogen ions with the SnO2 surface. Hydroxy groups on the sensing membrane surface exhibit rapid hydrogen ion capture or release, while ions diffusing into the bulk layer exhibit slower kinetics. This kinetic disparity leads to a lagged response during pH cycling, inducing hysteresis. To evaluate the reliability, the measurements were conducted over 50 min, with each pH solution equilibrated for 2–10 min.
  • Drift Behavior:
Figure 5c depicts the ΔVREF drift over time, monitored using pH solutions stored in the PDMS reservoir. The drift is primarily caused by the formation of a hydration layer on the SnO2-sensing film, which facilitates ion diffusion into the sensing membrane, thereby altering its electrical properties. This gradual shift in ΔVREF is represented as a time-dependent curve, with a drift rate (RD) of 6.86 mV/h in SG mode and 24.22 mV/h in DG mode. Despite the amplification of sensitivity in the DG mode, both VH and RD exhibited only modest increases, demonstrating the robustness of the SnO2 film.
In conclusion, these findings confirm the excellent sensitivity and reliable performance of the SnO2-sensing membrane for pH detection. While the DG mode significantly amplifies sensitivity, the slight increases in hysteresis and drift rates indicate that the SnO2 thin film maintains high stability and reliability under dynamic conditions. This validates the effectiveness of the DG-FET amplification mechanism of the transducer and highlights its suitability for pH-sensing applications, where precision and stability are critical. Additionally, it highlights the potential for adaptation to a wide range of analyte concentrations and varying environmental conditions.

3.3. AFM Analysis

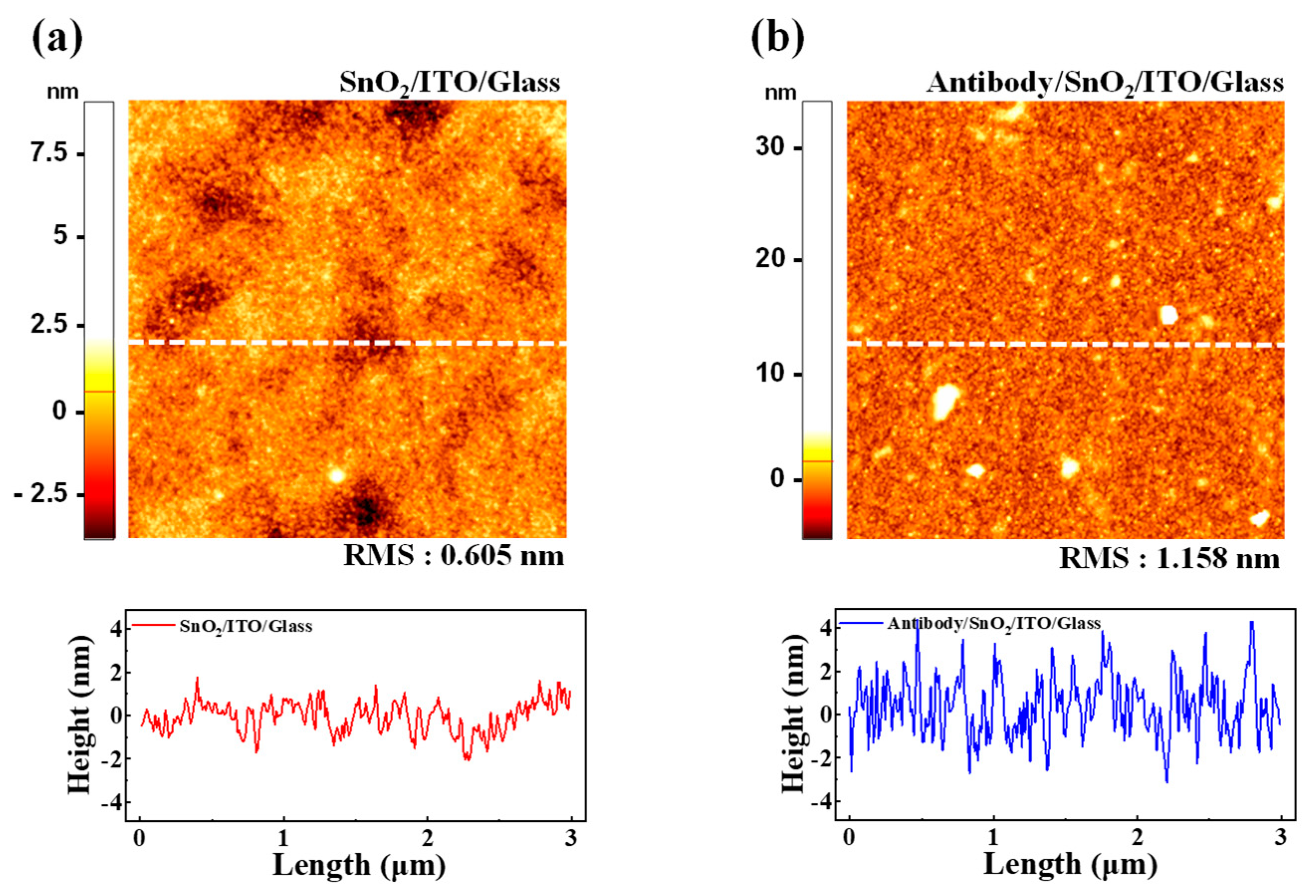

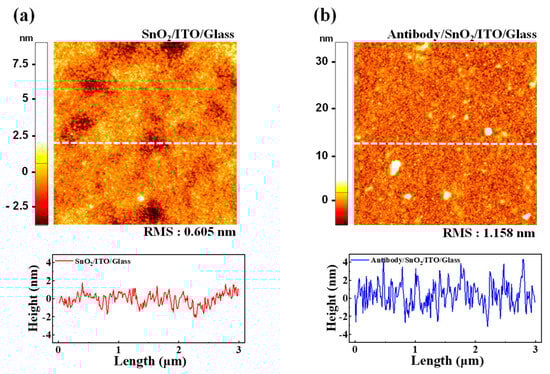

AFM was employed to investigate surface morphological changes in the SnO2 thin film upon the immobilization of the cortisol antibody. Imaging was conducted using the SPM Solver-Pro system (NT-MDT, Zelenograd, Russia) in tapping mode, which enabled high-resolution, non-invasive surface topography analysis. The scanning area was set to 3 μm × 3 μm to ensure detailed visualization of the surface changes before and after antibody attachment. The AFM image of the pristine SnO2/ITO/glass surface is shown in Figure 6a. The topographical map revealed a smooth, uniform surface with a root mean square (RMS) roughness of 0.605 nm. A height profile of the marked section further corroborates the observation of a flat and homogeneous surface, confirming the suitability of the SnO2 thin film for subsequent biofunctionalization. Figure 6b illustrates the AFM image of the same surface following the immobilization of the cortisol antibody. The entire surface appeared densely covered, indicating successful antibody attachment. The RMS roughness increased to 1.158 nm, reflecting an additional layer formed by the immobilized biomolecules. The height difference of approximately 0.553 nm between the pristine and functionalized surfaces aligns with previously reported molecular dimensions of the cortisol antibody [59,60,61]. These findings confirm the effective biofunctionalization of the SnO2 thin film, which creates a robust interface for specific cortisol antigen interactions. Such surface modifications are critical for ensuring high sensitivity and selectivity in biosensing applications, as the uniform immobilization of biomolecules directly affects the transduction efficiency of the sensing platform.

3.4. Sensing Performance of DG-FET for Cortisol Detection

After validating the operational characteristics of the fabricated DG-FET, the SnO2-based EG-sensing membrane, and the surface biofunctionalization, the performance of the sensor for cortisol detection was evaluated. The sensing characteristics were tested in both PBS and artificial saliva environments, with sensitivity measured by shifts in the ΔVREF at a constant IR of 10 pA, corresponding to variations in cortisol concentration.

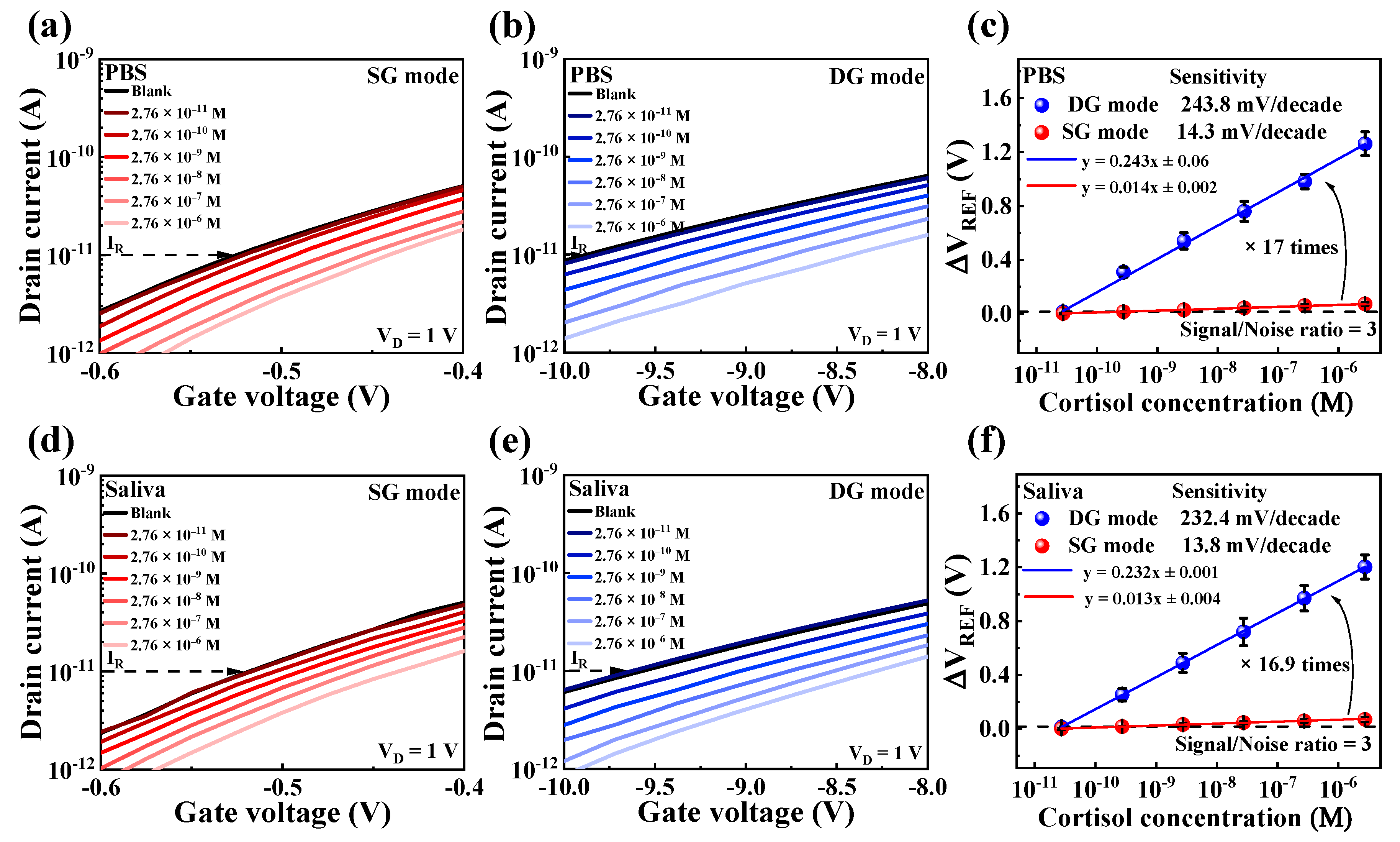

Figure 7a,b shows the IDS-VG curves of DG-FET in the SG and DG modes, respectively, under varying cortisol concentrations in PBS. As cortisol concentration increased, the transfer characteristic curves shifted progressively in the positive VG direction, demonstrating effective detection.
A comparative analysis summarized in Figure 7c reveals that the sensitivity in DG mode was approximately 17 times higher than in SG mode. This significant amplification is attributed to the capacitive coupling effect inherent in the dual-gate configuration.
Figure 7d,e shows the transfer characteristic curves in SG and DG modes, respectively, when tested in artificial saliva. A similar trend of positive shifts in transfer curves with increasing cortisol concentrations was observed. Figure 7f shows that the sensitivity in the DG mode was amplified by approximately 16.9 times compared to the SG mode, corroborating the findings in PBS.
As summarized in Table 2, these results confirm that while the DG-FET sensor exhibits a comparable limit of detection (LOD) to other recent FET-based cortisol sensors, it demonstrates superior sensitivity at low concentrations.
The limit of detection of the sensor was calculated using the formula LOD = 3⋅RMSnoise/m, where RMSnoise represents the root mean square noise, and m represents the slope from the linear fitting of the sensor’s response (y = mx + c) [62,63]. The RMS noise was calculated based on repeated blank measurements (10 replicates) conducted under identical conditions in both SG and DG modes, for both PBS and artificial saliva, without cortisol. The standard deviations were 4.8 mV and 92 mV for the SG and DG modes in PBS, and 5.4 mV and 83 mV for the SG and DG modes in artificial saliva, respectively. Based on these measurements, the LOD values were determined to be 246 pM, 262 pM, 273 pM, and 268 pM. The LOD for the proposed cortisol sensor was defined as 276 pM, based on the measured concentrations. As is consistent with previous studies, the DG configuration did not significantly improve the LOD [64].
Nevertheless, the DG-FET sensor demonstrated the potential for highly sensitive cortisol detection at nanomolar concentrations, making it suitable for biosensing applications in complex biofluids such as artificial saliva.
Table 2. Performance comparison with recent FET-based cortisol sensors.
Table 2. Performance comparison with recent FET-based cortisol sensors.
PlatformSampleSensitivityLODRef.
Aptamer/Graphene/PtSweat11.9~14.7 mV/decade0.2 nM[65]
Aptamer/GraphenePBS3.34 mV/dec1 nM[66]
Anticortisol/PSMA/ITOPBS10 fg/mL10 ng/mL[67]
Aptamer/SiNW/AgSaliva74.7 mV/dec0.005 μg/dL[68]
Antibody/SnO2/ITOSaliva232.4 mV/decade0.27 nMThis work

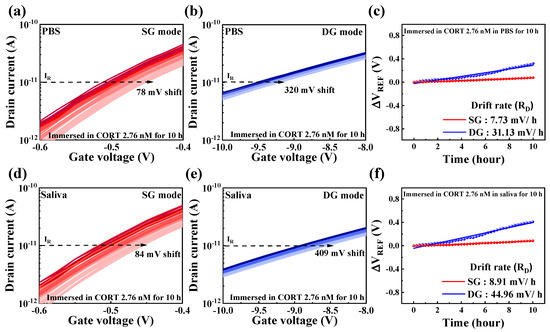

To evaluate the reliability and stability of the cortisol sensor, drift effects were systematically analyzed over prolonged periods under conditions simulating human saliva concentrations (2.76 nM cortisol). The drift was quantified by measuring the difference between the initial and final ΔVREF values. As is consistent with the methodology employed for sensitivity measurements, the voltage sweep was reduced to 1/10 to minimize noise, and changes in ΔVREF at 10 pA were monitored. Figure 8a,b shows the repeatedly measured IDS-VG transfer curves of DG-FET in PBS buffer solution for the SG and DG modes, respectively. In SG mode, the transfer curves exhibited a positive drift of 78 mV over the testing period, whereas in DG mode, the shift was more significant at 320 mV. Figure 8c summarizes the drift rates calculated from these repeated measurements, with values of 7.73 mV/h in SG mode and 31.13 mV/h in DG mode. Similarly, Figure 8d,e shows the repeatedly measured IDS-VG transfer curves for the DG-FET sensor in artificial saliva. A positive shift of 84 mV was observed in SG mode, whereas DG mode exhibited a larger shift of 409 mV. The corresponding drift rates, summarized in Figure 8f, were calculated as 8.91 mV/h for SG mode and 44.96 mV/h for DG mode. These results demonstrate that the drift rates in the DG mode were approximately four to five times higher than those in the SG mode for both PBS and artificial saliva environments. This behavior underscores the trade-off between the enhanced sensitivity of the DG mode and its reduced drift stability. Nevertheless, the SnO2-based extended-gate (EG) structure and the DG-FET transducer exhibited reliable and stable performance across extended testing periods, validating their suitability for sensitive cortisol detection even under dynamic and physiological conditions.

3.5. Quantitative Comparison of Amplification and Drift in Cortisol Sensing Using DG-FET

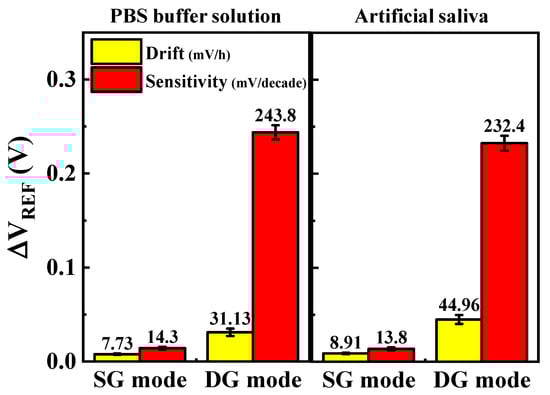

Figure 9 presents a quantitative analysis comparing the change in VREF with the overall cortisol concentration (0–2.76 μM), derived from the sensitivity measurements in Figure 7, and the change in VREF over 10 h at a single concentration (2.76 nM), obtained from the drift measurements in Figure 8. VREF changes were more significant in the DG mode than in the SG mode, as evidenced by the increased drift rates. However, the significant enhancement in sensitivity achieved through the amplification effect in the DG mode outweighed this limitation, rendering the drift difference negligible in practical applications, as confirmed by the VREF changes.
The comparison of VREF magnitudes based on sensitivity and drift in PBS and artificial saliva environments revealed consistent results, demonstrating the sensor’s robustness against interference. The use of monoclonal cortisol antibodies on the SnO2-based sensing membrane proved to be highly effective in ensuring reliable and specific cortisol detection. Furthermore, integrating the dual-gate amplification mechanism enhanced sensitivity and mitigated the adverse impact of drift effects.
Therefore, in real-time detection environments, drift mitigation resulting from high sensitivity ensures the stable and precise detection of concentration changes even during prolonged repeated measurements, further enhancing the applicability of DG mode. In the future, introducing a nanostructured SnO2 film, which increases the surface area-to-volume ratio, is expected to further enhance sensitivity while effectively reducing drift.
These findings highlight the exceptional potential of the proposed DG-FET-based cortisol sensor. By combining high sensitivity with stability across diverse operational environments, the sensor presents significant advantages for various biosensing applications. Its ability to detect low cortisol concentrations with minimal interference or instability highlights its suitability for integration into advanced diagnostic tools and broader biosensing platforms.

4. Conclusions

This study presents a novel DG-FET-based sensor paradigm designed for the ultra-low concentration detection of cortisol in complex bioenvironments. Cortisol, a key biomarker for stress and health-related conditions, requires highly sensitive and reliable detection methods, particularly in physiologically relevant environments such as PBS buffer and artificial saliva. The proposed DG-FET sensor platform demonstrated significant advances in both sensitivity and stability by leveraging the amplification effect inherent in the dual-gate structure. Electrical characterization revealed an approximately 17-fold increase in sensitivity in DG mode compared to operations mode, highlighting the amplification potential for detecting subtle variations in surface charge density. Functionalization of the SnO2-sensing membrane was confirmed via AFM analysis, verifying its capability for selective cortisol binding and precise detection even in complex biofluids. Detection limits of 246 pM in PBS buffer and 273 pM in artificial saliva were achieved, highlighting the sensor’s exceptional performance in both environments. Although drift effects were observed, particularly in DG mode, the amplification provided by the dual-gate configuration more than compensated for this limitation, ensuring high reliability and minimal interference during repeated measurements at the same concentration over time. Furthermore, the demonstrated stable performance over extended periods confirmed its practical applicability for real-world biosensing scenarios. The originality of this work lies in integrating dual-gate FET technology with SnO2-based sensing membranes, which significantly enhances sensitivity and stability for cortisol detection. This innovative approach addresses the limitations of conventional biosensors and offers a scalable and adaptable platform for future sensing applications. The findings underscore the necessity of advanced sensor technologies like DG-FET to meet the growing demand for ultra-sensitive, stable, and reliable biosensors in complex environments. In conclusion, this study proposes a transformative DG-FET-based cortisol sensor paradigm for ultra-low concentration detection. The sensor holds considerable promise for various applications, including clinical diagnostics, stress monitoring, and environmental health assessments, providing a robust foundation for next-generation biosensing technologies.

Author Contributions

S.-J.L.: conceptualization, formal analysis, methodology, investigation, data curation, visualization, resources, and writing—original draft. W.-J.C.: conceptualization, methodology, investigation, resources, formal analysis, funding acquisition, supervision, validation, and writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Institute for Advancement of Technology (KIAT) grant funded by the Korean government (MOTIE) (P0020967, The Competency Development Program for Industry Specialist).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The research was supported by the Research Grant of Kwangwoon University in 2024 and the Excellent Research Support Project of Kwangwoon University in 2024.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. De Kloet, E.R.; Joëls, M.; Holsboer, F. Stress and the brain: From adaptation to disease. Nat. Rev. Neurosci. 2005, 6, 463–475. [Google Scholar] [CrossRef] [PubMed]
  2. Black, P.H.; Garbutt, L.D. Stress, inflammation and cardiovascular disease. J. Psychosom. Res. 2002, 52, 1–23. [Google Scholar] [CrossRef] [PubMed]
  3. Kivimäki, M.; Steptoe, A. Effects of stress on the development and progression of cardiovascular disease. Nat. Rev. Cardiol. 2018, 15, 215–229. [Google Scholar] [CrossRef]
  4. Gatti, R.; Antonelli, G.; Prearo, M.; Spinella, P.; Cappellin, E.; De Palo, E.F. Cortisol assays and diagnostic laboratory procedures in human biological fluids. Clin. Biochem. 2009, 42, 1205–1217. [Google Scholar] [CrossRef]
  5. Kim, Y.-H.; Lee, K.; Jung, H.; Kang, H.K.; Jo, J.; Park, I.-K.; Lee, H.H. Direct immune-detection of cortisol by chemiresistor graphene oxide sensor. Biosens. Bioelectron. 2017, 98, 473–477. [Google Scholar] [CrossRef] [PubMed]
  6. Levine, A.; Zagoory-Sharon, O.; Feldman, R.; Lewis, J.G.; Weller, A. Measuring cortisol in human psychobiological studies. Physiol. Behav. 2007, 90, 43–53. [Google Scholar] [CrossRef]
  7. Kallen, V.L.; Stubbe, J.H.; Zwolle, H.J.; Valk, P. Capturing effort and recovery: Reactive and recuperative cortisol responses to competition in well-trained rowers. BMJ Open Sport Exerc. Med. 2017, 3, e000235. [Google Scholar] [CrossRef] [PubMed]
  8. Sladek, M.R.; Doane, L.D.; Luecken, L.J.; Eisenberg, N. Perceived stress, coping, and cortisol reactivity in daily life: A study of adolescents during the first year of college. Biol. Psychol. 2016, 117, 8–15. [Google Scholar] [CrossRef] [PubMed]
  9. Lupien, S.J.; Fiocco, A.; Wan, N.; Maheu, F.; Lord, C.; Schramek, T.; Tu, M.T. Stress hormones and human memory function across the lifespan. Psychoneuroendocrinology 2005, 30, 225–242. [Google Scholar] [CrossRef]
  10. Yaneva, M.; Mosnier-Pudar, H.; Dugué, M.-A.; Grabar, S.; Fulla, Y.; Bertagna, X. Midnight salivary cortisol for the initial diagnosis of Cushing’s syndrome of various causes. J. Clin. Endocrinol. Metab. 2004, 89, 3345–3351. [Google Scholar] [CrossRef]
  11. Yamaguchi, M.; Matsuda, Y.; Sasaki, S.; Sasaki, M.; Kadoma, Y.; Imai, Y.; Niwa, D.; Shetty, V. Immunosensor with fluid control mechanism for salivary cortisol analysis. Biosens. Bioelectron. 2013, 41, 186–191. [Google Scholar] [CrossRef]
  12. Abraham, G.E.; Buster, J.E.; Teller, R.C. Radioimmunoassay of plasma cortisol. Anal. Lett. 1972, 5, 757–765. [Google Scholar] [CrossRef]
  13. Murase, N.; Taniguchi, S.I.; Takano, E.; Kitayama, Y.; Takeuchi, T. A molecularly imprinted nanocavity-based fluorescence polarization assay platform for cortisol sensing. J. Mater. Chem. B 2016, 4, 1770–1777. [Google Scholar] [CrossRef] [PubMed]
  14. Vieira, J.G.H.; Nakamura, O.H.; Carvalho, V.M. Determination of cortisol and cortisone in human saliva by a liquid chromatography-tandem mass spectrometry method. Arq. Bras. Endocrinol. Metab. 2014, 58, 844–850. [Google Scholar] [CrossRef]
  15. Ok, J.; Park, S.; Jung, Y.H.; Kim, T.I. Wearable and implantable cortisol-sensing electronics for stress monitoring. Adv. Mater. 2024, 36, e2211595. [Google Scholar] [CrossRef]
  16. Tang, W.; Yin, L.; Sempionatto, J.R.; Moon, J.M.; Teymourian, H.; Wang, J. Touch-based stressless cortisol sensing. Adv. Mater. 2021, 33, e2008465. [Google Scholar] [CrossRef]
  17. Wang, B.; Zhao, C.; Wang, Z.; Yang, K.-A.; Cheng, X.; Liu, W.; Yu, W.; Lin, S.; Zhao, Y.; Cheung, K.M.; et al. Wearable aptamer-field-effect transistor sensing system for noninvasive cortisol monitoring. Sci. Adv. 2022, 8, eabk0967. [Google Scholar] [CrossRef]
  18. Liu, J.; Xu, N.; Men, H.; Li, S.; Lu, Y.; Low, S.S.; Li, X.; Zhu, L.; Cheng, C.; Xu, G.; et al. Salivary cortisol determination on smartphone-based differential pulse voltammetry system. Sensors 2020, 20, 1422. [Google Scholar] [CrossRef] [PubMed]
  19. Tu, E.; Pearlmutter, P.; Tiangco, M.; Derose, G.; Begdache, L.; Koh, A. Comparison of colorimetric analyses to determine cortisol in human sweat. ACS Omega 2020, 5, 8211–8218. [Google Scholar] [CrossRef] [PubMed]
  20. Sekar, M.; Sriramprabha, R.; Sekhar, P.K.; Bhansali, S.; Ponpandian, N.; Pandiaraj, M.; Viswanathan, C. Review—Towards wearable sensor platforms for the electrochemical detection of cortisol. J. Electrochem. Soc. 2020, 167, 067508. [Google Scholar] [CrossRef]
  21. Nan, M.; Darmawan, B.A.; Go, G.; Zheng, S.; Lee, J.; Kim, S.; Lee, T.; Choi, E.; Park, J.-O.; Bang, D. Wearable localized surface plasmon resonance-based biosensor with highly sensitive and direct detection of cortisol in human sweat. Biosensors 2023, 13, 184. [Google Scholar] [CrossRef] [PubMed]
  22. Lee, S.-E.; Choi, Y.; Oh, Y.; Lee, D.; Kim, J.; Hong, S. Black phosphorus-based reusable biosensor platforms for the ultrasensitive detection of cortisol in saliva. ACS Appl. Mater. Interfaces 2024, 16, 11305–11314. [Google Scholar] [CrossRef] [PubMed]
  23. Dhull, N.; Kaur, G.; Gupta, V.; Tomar, M. Highly sensitive and non-invasive electrochemical immunosensor for salivary cortisol detection. Sens. Actuators B 2019, 293, 281–288. [Google Scholar] [CrossRef]
  24. Ljubijankić, N.; Popović-Javorić, R.; Šćeta, S.; Šapčanin, A.; Tahirović, I.; Sofić, E. Daily fluctuation of cortisol in the saliva and serum of healthy persons. Bosn. J. Basic Med. Sci. 2008, 8, 110–115. [Google Scholar] [CrossRef]
  25. Zea, M.; Bellagambi, F.G.; Ben Halima, H.; Zine, N.; Jaffrezic-Renault, N.; Villa, R.; Gabriel, G.; Errachid, A. Electrochemical sensors for cortisol detections: Almost there. TrAC Trends Anal. Chem. 2020, 132, 116058. [Google Scholar] [CrossRef]
  26. Bergveld, P. Development of an ion-sensitive solid-state device for neurophysiological measurements. IEEE Trans. Bio Med. Eng. 1970, BME-17, 70–71. [Google Scholar] [CrossRef]
  27. Lee, C.-S.; Kim, S.K.; Kim, M. Ion-sensitive field-effect transistor for biological sensing. Sensors 2009, 9, 7111–7131. [Google Scholar] [CrossRef] [PubMed]
  28. Bergveld, P. Thirty Years of ISFETOLOGY: What Happened in the Past 30 Years and What May Happen in the Next 30 Years. Sens. Actuators B Chem. 2003, 88, 1–20. [Google Scholar] [CrossRef]
  29. Cao, S.; Sun, P.; Xiao, G.; Tang, Q.; Sun, X.; Zhao, H.; Zhao, S.; Lu, H.; Yue, Z. ISFET-based sensors for (bio)chemical applications: A review. Electrochem. Sci. Adv. 2023, 3, e2100207. [Google Scholar] [CrossRef]
  30. Rovira, M.; Lafaye, C.; Wang, S.; Fernandez-Sanchez, C.; Saubade, M.; Liu, S.-C.; Jimenez-Jorquera, C. Analytical assessment of sodium ISFET-based sensors for sweat analysis. Sens. Actuators B 2023, 393, 134135. [Google Scholar] [CrossRef]
  31. Dwivedi, P.; Singh, R.; Chauhan, Y.S. Crossing the Nernst limit (59 mV/pH) of sensitivity through tunneling transistor-based biosensor. IEEE Sens. J. 2021, 21, 3233–3240. [Google Scholar] [CrossRef]
  32. Parizi, K.B.; Yeh, A.J.; Poon, A.S.Y.; Wong, H.S.P. Exceeding Nernst limit (59mV/pH): CMOS-based pH sensor for autonomous applications. In Proceedings of the International Electron Devices Meeting, San Francisco, CA, USA, 10–13 December 2012. [Google Scholar] [CrossRef]
  33. Knopfmacher, O.; Tarasov, A.; Fu, W.; Wipf, M.; Niesen, B.; Calame, M.; Schönenberger, C. Nernst limit in dual-gated si-nanowire FET sensors. Nano Lett. 2010, 10, 2268–2274. [Google Scholar] [CrossRef] [PubMed]
  34. Jang, H.-J.; Cho, W.-J. Fabrication of high-performance fully depleted silicon-on-insulator based dual-gate ion-sensitive field-effect transistor beyond the Nernstian limit. Appl. Phys. Lett. 2012, 100, 073701. [Google Scholar] [CrossRef]
  35. Kim, Y.-U.; Cho, W.-J. Self-sensitivity amplifiable dual-gate ion-sensitive field-effect transistor based on a high-k engineered dielectric layer. Jpn. J. Appl. Phys. 2023, 62, SC1056. [Google Scholar] [CrossRef]
  36. Hazarika, C.; Sharma, S. Survey on Ion Sensitive Field Effect Transistor from the View Point of pH Sensitivity and Drift. Indian J. Sci. Technol. 2017, 10, 1–18. [Google Scholar] [CrossRef]
  37. Bolt, G.H. Analysis of the validity of the Gouy-Chapman theory of the electric double layer. J. Colloid Sci. 1955, 10, 206–218. [Google Scholar] [CrossRef]
  38. Gonçalves, D.; Prazeres, D.M.F.; Chu, V.; Conde, J.P. Detection of DNA and proteins using amorphous silicon ion-sensitive thin-film field effect transistors. Biosens. Bioelectron. 2008, 24, 545–551. [Google Scholar] [CrossRef]
  39. Castellarnau, M.; Zine, N.; Bausells, J.; Madrid, C.; Juárez, A.; Samitier, J.; Errachid, A. Integrated cell positioning and cell-based ISFET biosensors. Sens. Actuators B 2007, 120, 615–620. [Google Scholar] [CrossRef]
  40. Lee, I.; Lee, S.-W.; Lee, K.-Y.; Park, C.; Kim, D.; Lee, J.-S.; Yi, H.; Kim, B. A reconfigurable and portable highly sensitive biosensor platform for ISFET and enzyme-based sensors. IEEE Sens. J. 2016, 16, 4443–4451. [Google Scholar] [CrossRef]
  41. Soldatkin, A.P.; Montoriol, J.; Sant, W.; Martelet, C.; Jaffrezic-Renault, N. A novel urea-sensitive biosensor with extended dynamic range based on recombinant urease and ISFETs. Biosens. Bioelectron. 2003, 19, 131–135. [Google Scholar] [CrossRef] [PubMed]
  42. Noyan, U.; Ray, G.; Cobb, A.S.; Abshire, P.; Shah, S. COMSOL modeling of ISFET for pH sensing and antigen-antibody detection. In Proceedings of the 66th International Midwest Symposium on Circuits and Systems (MWSCAS), Tempe, AZ, USA, 6–9 August 2023; pp. 773–777. [Google Scholar] [CrossRef]
  43. Dhull, N.; Kaur, G.; Gupta, V.; Tomar, M. Development of nanostructured nickel oxide thin film matrix by Rf sputtering technique for the realization of efficient bioelectrode. Vacuum 2018, 158, 68–74. [Google Scholar] [CrossRef]
  44. Yang, X.; Ao, J.; Li, X.; Hu, L.; Liu, W.; Han, C.; Wang, X. Improved Sensitivity and Stability for SnO Ion-Sensitive Field-Effect Transistor-Based pH Sensor by Electrical Double Layer Gate and AlO Sensitive Film. IEEE Trans. Electron Devices 2022, 69, 6284–6289. [Google Scholar] [CrossRef]
  45. Pandey, R. Perspective—Electrochemical bio-wearables for cortisol monitoring. Plus 2024. ECS Sens. Plus 2024, 3, 027002. [Google Scholar] [CrossRef]
  46. Hsieh, C.-H.; Huang, C.-H.; Lin, J.-H.; Yu, L.-S.; Huang, I.-Y. Development of an EGFET microsensor with 3D structure for high-specificity cardiac troponin I detection. J. Micromech. Microeng. 2023, 33, 045001. [Google Scholar] [CrossRef]
  47. Mishra, A.K.; Jarwal, D.K.; Mukherjee, B.; Jit, S. CuO nanoparticles decorated ZnO nanorods based extended-gate field-effect-transistor (EGFET) for enzyme-free glucose sensing application. IEEE Trans. Nanobiosci. 2022, 21, 3–9. [Google Scholar] [CrossRef]
  48. Go, J.; Nair, P.R.; Alam, M.A. Theory of signal and noise in double-gated nanoscale electronic p H sensors. J. Appl. Phys. 2012, 112, 34516. [Google Scholar] [CrossRef] [PubMed]
  49. Spijkman, M.J.; Myny, K.; Smits, E.C.P.; Heremans, P.; Blom, P.W.M.; De Leeuw, D.M. Dual-gate thin-film transistors, integrated circuits and sensors. Adv. Mater. 2011, 23, 3231–3242. [Google Scholar] [CrossRef] [PubMed]
  50. Ahn, J.-H.; Choi, B.; Choi, S.-J. Understanding the signal amplification in dual-gate FET-based biosensors. J. Appl. Phys. 2020, 128, 184502. [Google Scholar] [CrossRef]
  51. Nomura, K.; Ohta, H.; Takagi, A.; Kamiya, T.; Hirano, M.; Hosono, H. Room-temperature fabrication of transparent flexible thin-film transistors using amorphous oxide semiconductors. Nature 2004, 432, 488–492. [Google Scholar] [CrossRef] [PubMed]
  52. Kim, M.J.; Park, H.J.; Yoo, S.; Cho, M.H.; Jeong, J.K. Effect of channel thickness on performance of ultra-thin body IGZO field-effect transistors. IEEE Trans. Electron Devices 2022, 69, 2409–2416. [Google Scholar] [CrossRef]
  53. Bogart, K.H.A.; Cushing, J.P.; Fisher, E.R. Effects of plasma processing parameters on the surface reactivity of OH(X2Π) in Tetraethoxysilane/O2 plasmas during deposition of SiO2. J. Phys. Chem. B 1997, 101, 10016–10023. [Google Scholar] [CrossRef]
  54. Roy, N.C.; Hafez, M.G.; Talukder, M.R. Characterization of atmospheric pressure H2O/O2 gliding arc plasma for the production of OH and O radicals. Phys. Plasmas 2016, 23, 083502. [Google Scholar] [CrossRef]
  55. Zhou, Y.; Fang, Y.; Ramasamy, R.P. Non-covalent functionalization of carbon nanotubes for electrochemical biosensor development. Sensors 2019, 19, 392. [Google Scholar] [CrossRef]
  56. Algar, W.R. A brief introduction to traditional bioconjugate chemistry. In Chemoselective and Bioorthogonal Ligation Reactions; Algar, W.R., Dawson, P.E., Medintz, I.L., Eds.; John Wiley & Sons: Hoboken, NJ, USA, 2017; pp. 1–36. [Google Scholar] [CrossRef]
  57. Welch, N.G.; Scoble, J.A.; Muir, B.W.; Pigram, P.J. Orientation and characterization of immobilized antibodies for improved immunoassays (Review). Biointerphases 2017, 12, 02D301. [Google Scholar] [CrossRef] [PubMed]
  58. Nara, S.; Tripathi, V.; Chaube, S.K.; Rangari, K.; Singh, H.; Kariya, K.P.; Shrivastav, T.G. Influence of hydrophobic and hydrophilic spacer-containing enzyme conjugates on functional parameters of steroid immunoassay. Anal. Biochem. 2008, 373, 18–25. [Google Scholar] [CrossRef] [PubMed]
  59. Ito, T.; Aoki, N.; Tsuchiya, A.; Kaneko, S.; Akiyama, K.; Uetake, K.; Suzuki, K. Detection of stress hormone in the milk for animal welfare using QCM method. J. Sens. 2017, 2017, 1–7. [Google Scholar] [CrossRef]
  60. Kim, K.S.; Lim, S.R.; Kim, S.-E.; Lee, J.Y.; Chung, C.-H.; Choe, W.-S.; Yoo, P.J. Highly sensitive and selective electrochemical cortisol sensor using bifunctional protein interlayer-modified graphene electrodes. Sens. Actuators B 2017, 242, 1121–1128. [Google Scholar] [CrossRef]
  61. Cheng, S.; Hotani, K.; Hideshima, S.; Kuroiwa, S.; Nakanishi, T.; Hashimoto, M.; Mori, Y.; Osaka, T. Field effect transistor biosensor using antigen binding fragment for detecting tumor marker in human serum. Materials 2014, 7, 2490–2500. [Google Scholar] [CrossRef]
  62. Jha, R.K.; D’Costa, J.V.; Sakhuja, N.; Bhat, N. MoSe2 nanoflakes based chemiresistive sensors for Ppb-level hydrogen sulfide gas detection. Sens. Actuators B 2019, 297, 126687. [Google Scholar] [CrossRef]
  63. Feng, X.; Li, P.; Li, T.; Cao, X.; Liu, D.; Xiao, M.; Wang, L. Ultra-sensitive and rapid detection of Salmonella enterica and Staphylococcus aureus to single-cell level by aptamer-functionalized carbon nanotube field-effect transistor biosensors. Biosens. Bioelectron. 2024, 257, 116333. [Google Scholar] [CrossRef] [PubMed]
  64. Wu, T.; Alharbi, A.; You, K.-D.; Kisslinger, K.; Stach, E.A.; Shahrjerdi, D. Experimental study of the detection limit in dual-gate biosensors using ultrathin silicon transistors. ACS Nano 2017, 11, 7142–7147. [Google Scholar] [CrossRef] [PubMed]
  65. Gilani, A.; Saeidi, A.; Longo, J.; Sprunger, Y.; Kamaei, S.; Ameti, A.; Niederländer, N.; Pitteloud, N.; Ionescu, A.M. AC-Driven Aptamer-Decorated Graphene FET for Cortisol Detection. In Proceedings of the 2024 IEEE SENSORS, Kobe, Japan, 20–23 October 2024; pp. 1–4. [Google Scholar] [CrossRef]
  66. Sheibani, S.; Capua, L.; Kamaei, S.; Akbari, S.S.A.; Zhang, J.; Guerin, H.; Ionescu, A.M. Extended Gate Field-Effect-Transistor for Sensing Cortisol Stress Hormone. Commun. Mater. 2021, 2, 10. [Google Scholar] [CrossRef] [PubMed]
  67. Jang, H.-J.; Lee, T.; Song, J.; Russell, L.; Li, H.; Dailey, J.; Searson, P.C.; Katz, H.E. Electronic Cortisol Detection Using an Antibody-Embedded Polymer Coupled to a Field-Effect Transistor. ACS Appl. Mater. Interfaces 2018, 10, 16233–16237. [Google Scholar] [CrossRef]
  68. Klinghammer, S.; Voitsekhivska, T.; Licciardello, N.; Kim, K.; Baek, C.-K.; Cho, H.; Wolter, K.-J.; Kirschbaum, C.; Baraban, L.; Cuniberti, G. Nanosensor-Based Real-Time Monitoring of Stress Biomarkers in Human Saliva Using a Portable Measurement System. ACS Sens. 2020, 5, 4081–4091. [Google Scholar] [CrossRef] [PubMed]
Biosensors 15 00134 g001

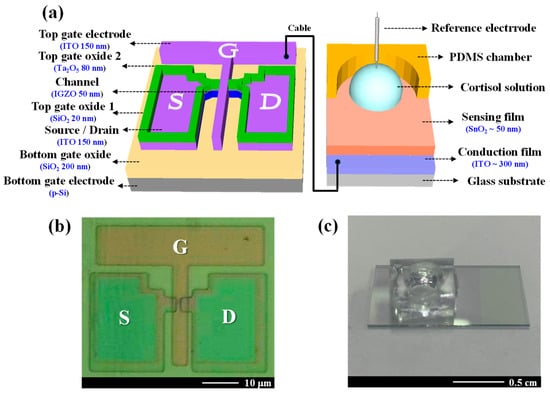

Figure 1. (a) A schematic diagram of the dual-gate field-effect transistor (DG-FET) architecture, highlighting the SnO2-based extended-gate (EG) sensing membrane. (b) The optical microscopy image of the fabricated DG-FET transducer unit shows the channel and electrode layout. (c) A photograph of the functionalized EG electrode functionalized with an immobilized cortisol antibody on the SnO2 surface.
Figure 1. (a) A schematic diagram of the dual-gate field-effect transistor (DG-FET) architecture, highlighting the SnO2-based extended-gate (EG) sensing membrane. (b) The optical microscopy image of the fabricated DG-FET transducer unit shows the channel and electrode layout. (c) A photograph of the functionalized EG electrode functionalized with an immobilized cortisol antibody on the SnO2 surface.
Biosensors 15 00134 g001
Biosensors 15 00134 g002

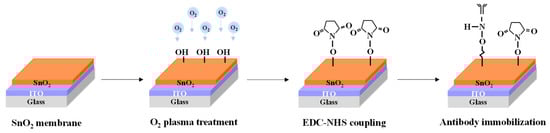

Figure 2. Schematic representation of fabrication process for immobilizing cortisol antibodies onto SnO2-sensing membranes in EG-sensing units.
Figure 2. Schematic representation of fabrication process for immobilizing cortisol antibodies onto SnO2-sensing membranes in EG-sensing units.
Biosensors 15 00134 g002
Biosensors 15 00134 g003

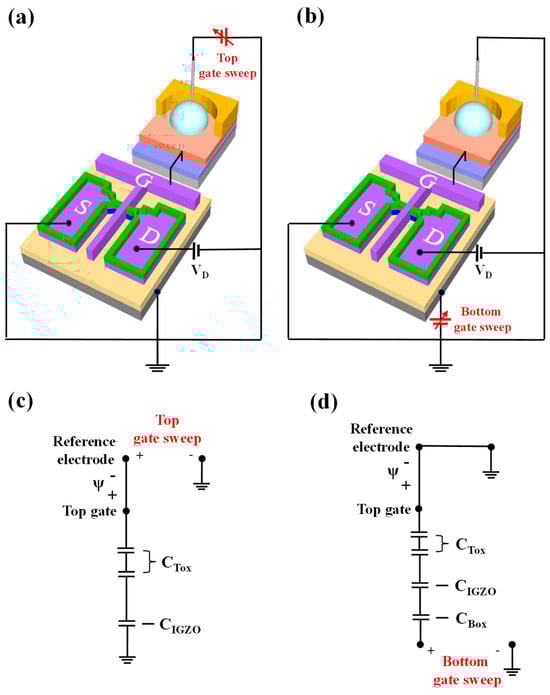

Figure 3. Schematic representation of DG-FET transducer unit in (a) single-gate (SG) and (b) dual-gate (DG) operation modes. Electrical equivalent circuits for (c) SG mode, showing threshold voltage relationship of top gate, and (d) DG mode, illustrating capacitive coupling effect between top and bottom gates and resulting self-amplification mechanism.
Figure 3. Schematic representation of DG-FET transducer unit in (a) single-gate (SG) and (b) dual-gate (DG) operation modes. Electrical equivalent circuits for (c) SG mode, showing threshold voltage relationship of top gate, and (d) DG mode, illustrating capacitive coupling effect between top and bottom gates and resulting self-amplification mechanism.
Biosensors 15 00134 g003
Biosensors 15 00134 g004

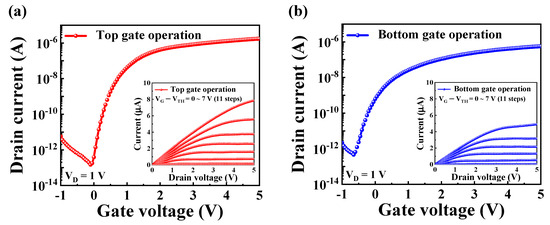

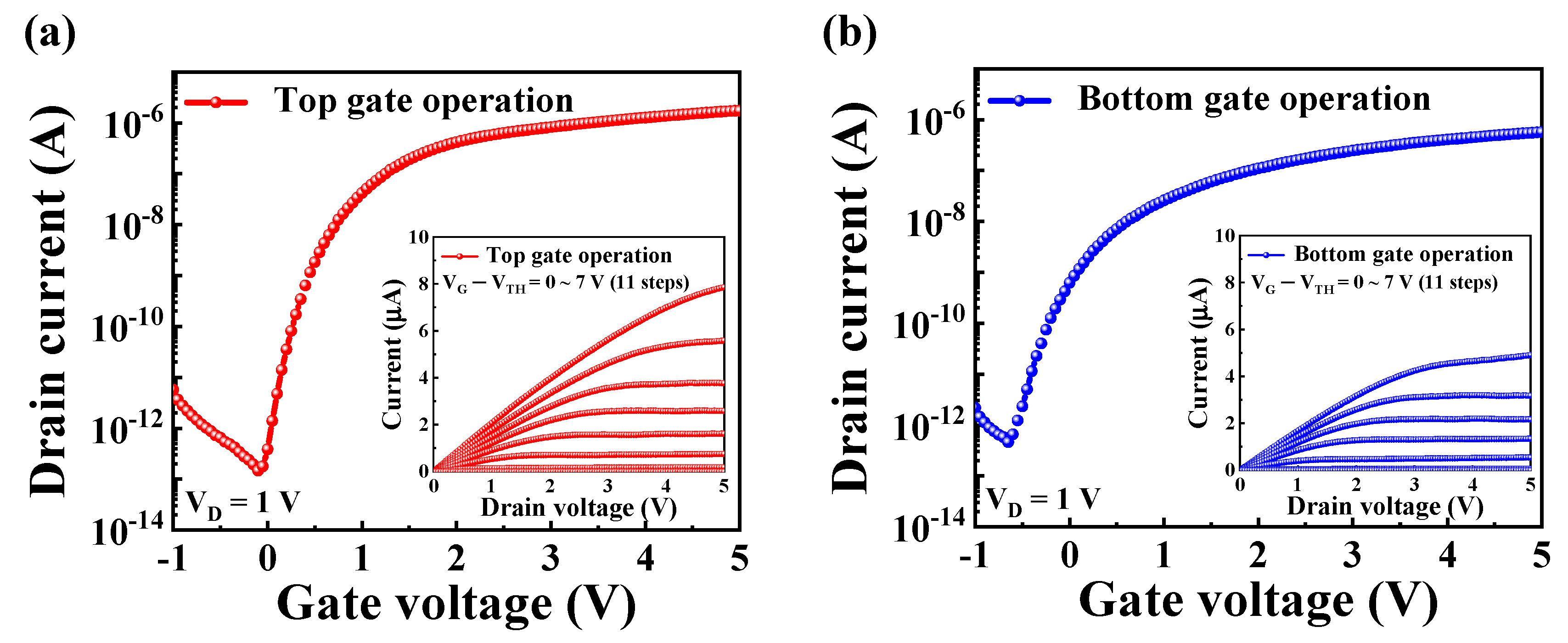

Figure 4. Transfer characteristic curves (IDS-VG) of DG-FET transducer during (a) top gate and (b) bottom gate operations. Inset images in each panel illustrate corresponding output characteristic curves (IDS-VD) obtained under varying gate voltages.
Figure 4. Transfer characteristic curves (IDS-VG) of DG-FET transducer during (a) top gate and (b) bottom gate operations. Inset images in each panel illustrate corresponding output characteristic curves (IDS-VD) obtained under varying gate voltages.
Biosensors 15 00134 g004
Biosensors 15 00134 g005

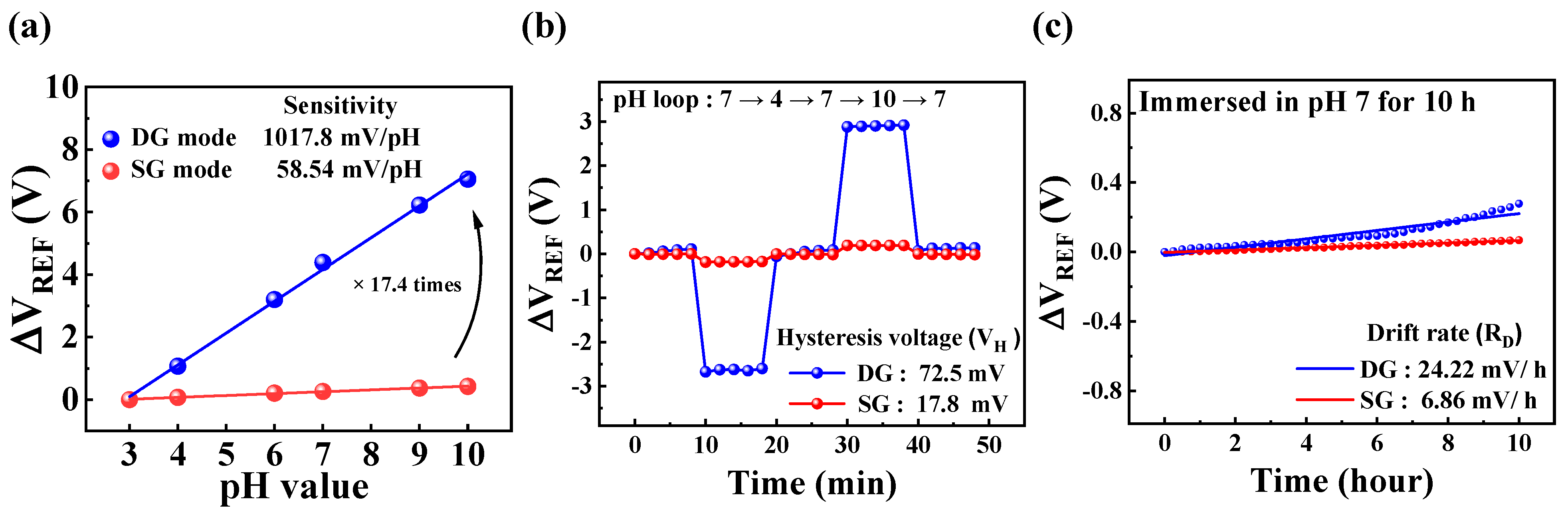

Figure 5. pH-sensing characteristics of DG-FET in SG and DG modes extracted from IDS-VG curves: (a) ΔVREF shift in response to pH values ranging from 3 to 10; (b) hysteresis effect observed during pH cycling through values 4, 7, and 10; and (c) drift behavior of sensing membrane immersed in pH 7 solution over 10 h.
Figure 5. pH-sensing characteristics of DG-FET in SG and DG modes extracted from IDS-VG curves: (a) ΔVREF shift in response to pH values ranging from 3 to 10; (b) hysteresis effect observed during pH cycling through values 4, 7, and 10; and (c) drift behavior of sensing membrane immersed in pH 7 solution over 10 h.
Biosensors 15 00134 g005
Biosensors 15 00134 g006
Figure 6. AFM images and corresponding line height profiles of SnO2-sensing membrane surface: (a) pristine SnO2/ITO/glass surface with RMS roughness of 0.605 nm, indicating smooth and flat surface. (b) Surface after immobilization of cortisol antibody, showing uniform biomolecular layer with increased RMS roughness of 1.158 nm. Measured height difference of approximately 0.553 nm confirms successful biofunctionalization for antigen binding.
Figure 6. AFM images and corresponding line height profiles of SnO2-sensing membrane surface: (a) pristine SnO2/ITO/glass surface with RMS roughness of 0.605 nm, indicating smooth and flat surface. (b) Surface after immobilization of cortisol antibody, showing uniform biomolecular layer with increased RMS roughness of 1.158 nm. Measured height difference of approximately 0.553 nm confirms successful biofunctionalization for antigen binding.
Biosensors 15 00134 g006
Biosensors 15 00134 g007
Figure 7. IDS-VG transfer curves of DG-FET sensor under varying cortisol concentrations in (a) SG mode and (b) DG mode in PBS buffer solution, and in (d) SG mode and (e) DG mode in artificial saliva. Sensitivity comparisons and signal-to-noise ratio (S/N = 3) in (c) PBS buffer solution and (f) artificial saliva illustrate amplification achieved in DG mode compared to SG mode. Error bars show standard deviation for three different DG-FET sensors.
Figure 7. IDS-VG transfer curves of DG-FET sensor under varying cortisol concentrations in (a) SG mode and (b) DG mode in PBS buffer solution, and in (d) SG mode and (e) DG mode in artificial saliva. Sensitivity comparisons and signal-to-noise ratio (S/N = 3) in (c) PBS buffer solution and (f) artificial saliva illustrate amplification achieved in DG mode compared to SG mode. Error bars show standard deviation for three different DG-FET sensors.
Biosensors 15 00134 g007
Biosensors 15 00134 g008
Figure 8. Drift effects were observed at cortisol concentration of 2.76 nM in (a) SG mode and (b) DG mode within PBS buffer solution and in (d) SG mode and (e) DG mode within artificial saliva. Drift rate, calculated based on shift in ΔVREF over time, is shown in (c) for PBS buffer solution and (f) for artificial saliva. These results highlight stability and reliability of DG-FET transducer under extended operation, with DG mode demonstrating higher drift rates due to amplified sensitivity.
Figure 8. Drift effects were observed at cortisol concentration of 2.76 nM in (a) SG mode and (b) DG mode within PBS buffer solution and in (d) SG mode and (e) DG mode within artificial saliva. Drift rate, calculated based on shift in ΔVREF over time, is shown in (c) for PBS buffer solution and (f) for artificial saliva. These results highlight stability and reliability of DG-FET transducer under extended operation, with DG mode demonstrating higher drift rates due to amplified sensitivity.
Biosensors 15 00134 g008
Biosensors 15 00134 g009
Figure 9. Quantitative comparison of sensitivity to cortisol concentrations (0–2.76 μM) and drift effects over 10 h in 2.76 nM cortisol solution. Sensitivity and drift rates are shown for SG and DG modes in PBS buffer and artificial saliva. Error bars show standard deviation for three different DG-FET sensors. Results highlight significant amplification in sensitivity achieved with DG mode despite increased drift effects, demonstrating sensor’s high sensitivity and reliability in both environments.
Figure 9. Quantitative comparison of sensitivity to cortisol concentrations (0–2.76 μM) and drift effects over 10 h in 2.76 nM cortisol solution. Sensitivity and drift rates are shown for SG and DG modes in PBS buffer and artificial saliva. Error bars show standard deviation for three different DG-FET sensors. Results highlight significant amplification in sensitivity achieved with DG mode despite increased drift effects, demonstrating sensor’s high sensitivity and reliability in both environments.
Biosensors 15 00134 g009
Table 1. A summary of the electrical parameters of the DG-FET transducer unit for different gate operation modes.
Table 1. A summary of the electrical parameters of the DG-FET transducer unit for different gate operation modes.
Operation ModeVTH (V)ION/IOFF (A/A)μFE (cm2/V·s)SS (mV/dec)
Top Gate0.251.18 × 107336.3124.21
Bottom Gate−0.681.24 × 106107.7184.39
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lee, S.-J.; Cho, W.-J. Emerging Dual-Gate FET Sensor Paradigm for Ultra-Low Concentration Cortisol Detection in Complex Bioenvironments. Biosensors 2025, 15, 134. https://doi.org/10.3390/bios15030134

AMA Style

Lee S-J, Cho W-J. Emerging Dual-Gate FET Sensor Paradigm for Ultra-Low Concentration Cortisol Detection in Complex Bioenvironments. Biosensors. 2025; 15(3):134. https://doi.org/10.3390/bios15030134

Chicago/Turabian Style

Lee, Seung-Jin, and Won-Ju Cho. 2025. "Emerging Dual-Gate FET Sensor Paradigm for Ultra-Low Concentration Cortisol Detection in Complex Bioenvironments" Biosensors 15, no. 3: 134. https://doi.org/10.3390/bios15030134

APA Style

Lee, S.-J., & Cho, W.-J. (2025). Emerging Dual-Gate FET Sensor Paradigm for Ultra-Low Concentration Cortisol Detection in Complex Bioenvironments. Biosensors, 15(3), 134. https://doi.org/10.3390/bios15030134

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
