Review

Novel Lead Halide Perovskite and Copper Iodide Materials for Fluorescence Sensing of Oxygen

1
Institute of Analytical Technology and Smart Instruments, College of Environment and Public Health, Xiamen Huaxia University, Xiamen 361024, China
2
Information Center, Xiamen Huaxia University, Xiamen 361024, China
3
Department of Chemistry, College of Chemistry and Chemical Engineering, Xiamen University, Xiamen 361005, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Biosensors 2025, 15(3), 132; https://doi.org/10.3390/bios15030132
Submission received: 20 December 2024 / Revised: 9 February 2025 / Accepted: 18 February 2025 / Published: 21 February 2025
(This article belongs to the Special Issue State-of-the-Art Biosensors in China (2nd Edition))

Abstract

:
The most commonly used optical oxygen sensing materials are phosphorescent molecules and functionalized nanocrystals. Many exploration studies on oxygen sensing have been carried out using the fluorescence or phosphorescence of semiconductor nanomaterials. Lead halide perovskite nanocrystals, a new type of ionic semiconductor, have excellent optical properties, making them suitable for use in optoelectronic devices. They also show promising applications in analytical sensing and biological imaging, especially manganese-doped perovskite nanocrystals for optical oxygen sensing. As a class of materials with diverse sources, copper iodide cluster semiconductors have rich structural and excellent luminescent properties, and have attracted attention in recent years. These materials have adjustable optical properties and sensitive stimulus response properties, showing great potential for optical sensing applications. This review paper provides a brief introduction to traditional oxygen sensing using organic molecules and introduces research on oxygen sensing using novel luminescent semiconductor materials, perovskite metal halides and copper iodide hybrid materials in recent years. It focuses on the mechanism and application of these materials for oxygen sensing and evaluates the future development direction of these materials for oxygen sensing.

1. Introduction

Oxygen is one of the molecules most closely related to human life. The oxygen content in the atmosphere and water reflects the environmental quality and the ecosystem. The oxygen content in blood and cells is an important parameter for physiological health and clinical medicine. Moreover, oxygen not only widely participates in industrial catalysis, crop cultivation, and biological fermentation processes but also affects mining safety and food storage. For example, in food preservation and packaging, the global food processing industry is worth more than USD 4 trillion annually. In addition, the global wastewater treatment market was USD 55 billion in 2020. The hydrogen fuel cell market is expected to reach USD 42 billion by 2030. Therefore, since the Lavoisier era, the development of efficient oxygen sensing methods has been of great significance in fields such as environmental science, biomedicine, chemical production, and the food industry. The early adopted Winkler redox titration method yields accurate results, but it has problems of cumbersome operation and inability to continuously monitor changes in oxygen content. Subsequently, the Clark oxygen electrode method has been vigorously developed due to its fast and real-time sensing characteristics. However, electrochemical sensing methods based on this method require continuous consumption of oxygen and regular replacement of electrolytes, affecting the accuracy of the sensing results. In recent years, optical sensing methods have attracted widespread attention due to their advantages such as rapid response, high sensitivity, recyclable detection, and anti-electromagnetic field interference, and have developed into important oxygen sensing methods [1].
Molecular oxygen is a typical quencher of fluorescence (FL) and phosphorescence. The vast majority of optical oxygen sensing methods are realized based on the principle of FL dynamic quenching including gaseous oxygen and dissolved oxygen [2,3,4]. Therefore, when selecting oxygen sensing probes, in addition to meeting the requirements of having good photobleaching resistance and an appropriate emission wavelength, the sensing material should also possess a longer FL lifetime and a larger specific surface area to enhance the collision probability between the luminescent material and molecular oxygen and maximize the optical quenching ability of oxygen molecules. Most optical oxygen sensors are based on the dynamic quenching between triplet oxygen molecules and the excited state of the sensing material. Since this process is a photophysical rather than a photochemical process, it is completely reversible. In dynamic quenching, the absorption behavior of the material is not affected, while the FL behavior shows a decrease in FL intensity and decay time. The relationship between FL intensity or decay time and oxygen concentration ([O2]) can be reflected by the Stern–Volmer equation, and its simplest form is shown as Equation (1):
I 0 I = τ 0 τ = 1 + K s v O 2
where I and τ refer to the luminous intensity and decay time, respectively, I0 and I are the luminous intensity of the sensor under aerobic and anaerobic conditions, respectively, τ0 and τ are the luminous lifetime of the sensor under aerobic and anaerobic conditions, respectively, Ksv is the Stern–Volmer constant and [O2] is the concentration of oxygen in the sample.
The core of the optical sensing method is the selection and design of oxygen sensing materials. Polycyclic aromatic hydrocarbons (PAHs) represented by pyrene and its derivatives are the earliest used optical oxygen sensing materials. Metal complex oxygen-sensitive probes can satisfy the above requirements. As metal complexes usually have a strong FL intensity and a long FL lifetime, they can exhibit high oxygen sensing sensitivity, and include complexes such as transition metal–organic complexes [5,6,7,8,9,10] and metal porphyrin complexes [11,12,13]. Through theoretical calculations, it was found that the highest occupied molecular orbital (HOMO) of metal–organic complexes is typically composed of the metal component, and the lowest unoccupied molecular orbital (LUMO) is mainly composed of the organic ligand part. Therefore, their electronic transitions have the property of metal–ligand charge transfer. In other words, the luminescent properties of the corresponding metal–organic complexes can be modulated by the ligand, thereby achieving the regulation of oxygen sensing sensitivity. Huang et al. [14] designed a series of iridium complexes. By adjusting the internal conversion efficiency between the two excited states of the complexes, the dual phosphorescence emission characteristics and the response to oxygen were rationally adjusted, constructing an oxygen-sensitive molecular probe based on the ratio sensing method and expanding the sensing range from hypoxia to hyperoxia. The core part of the optical sensing method is the screening and design of oxygen sensing materials. Polycyclic aromatic hydrocarbon compounds represented by pyrene and its derivatives are the earliest types of optical oxygen sensing materials used.
At present, the most extensively investigated oxygen sensing materials are represented by long-lived noble metal complexes such as ruthenium polypyridyl complexes and platinum porphyrin complexes [15]. Some of these materials have reached the level of device application in terms of oxygen sensing sensitivity. O2 molecules quench the FL of the above-mentioned materials through non-radiative transfer of the excited state energy, which is currently the most representative oxygen sensing mechanism. Although the FL intensity or lifetime of these materials is highly sensitive to the variation in oxygen content, the Stokes shift in PAHs is limited and they are prone to photobleaching. Moreover, noble metal complexes also have issues such as complex synthesis and high cost. To optimize the performance of oxygen sensing materials and deepen the research on oxygen sensing mechanisms, researchers have successively developed various novel luminescent materials in recent years, achieving effective sensing of O2 molecules, among which oxygen-sensitive semiconductor luminescent materials are included. It is known from the electron spin state of the O2 molecules in the highest occupied molecular orbital that the ground state O2g) has unpaired electrons on each of the two anti-bonding π orbitals (πx* and πy*) with the same energy, thus exhibiting strong electron-withdrawing properties and high reactivity. Previous studies have discovered that O2 can influence the photoexcitation and deexcitation behaviors of semiconductor luminescent materials through multiple electron-involving pathways, thereby causing reversible quenching or enhancement of the PL of some II-VI semiconductor nanocrystals (NCs) [16,17]. This provides an alternative idea for the research of optical oxygen sensing from a focused perspective and promotes the development of oxygen-sensitive semiconductor luminescent materials.

2. Oxygen Sensing of Luminous Organic Molecules

2.1. Oxygen Sensing System for Polycyclic Aromatic Hydrocarbons (PAHs)

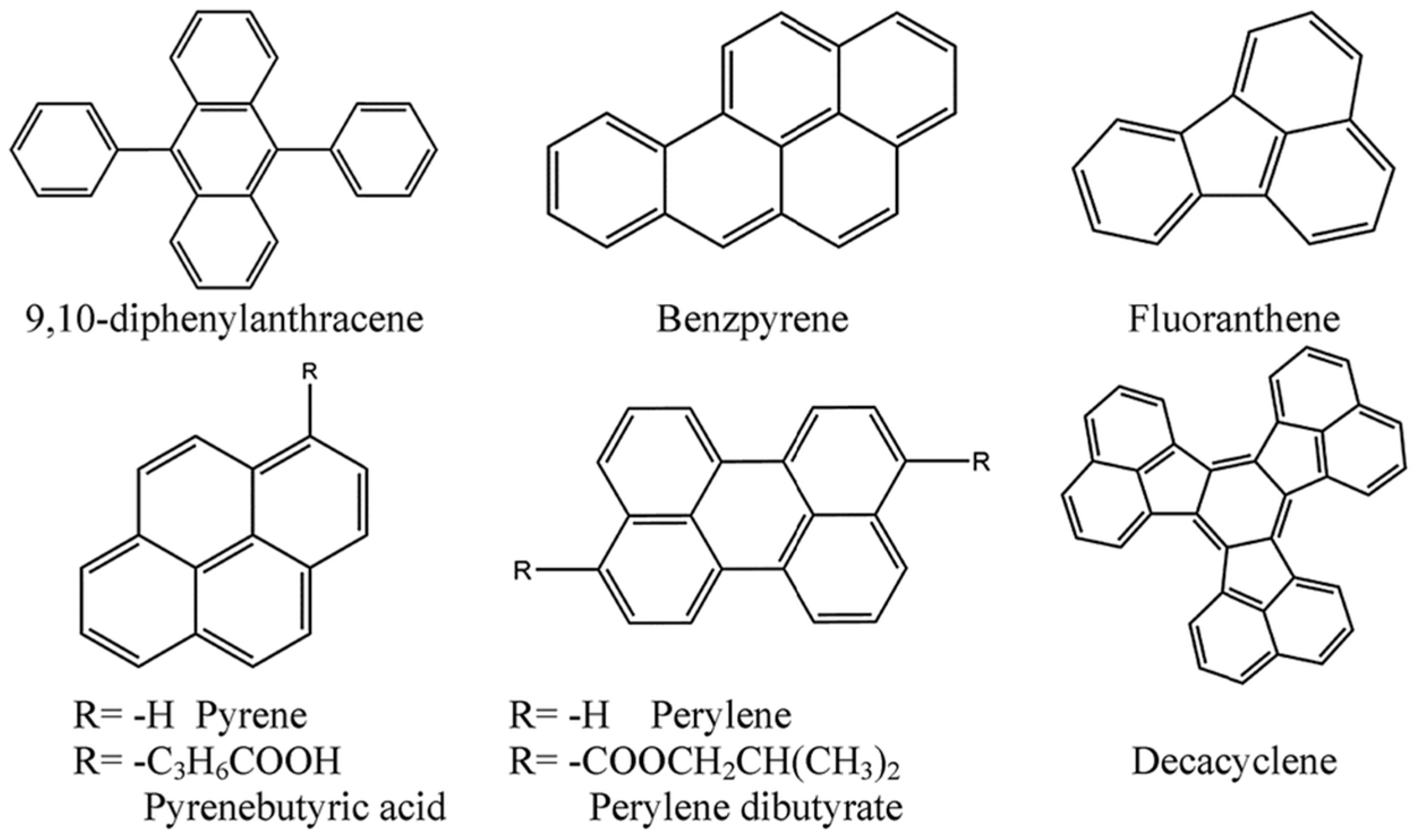

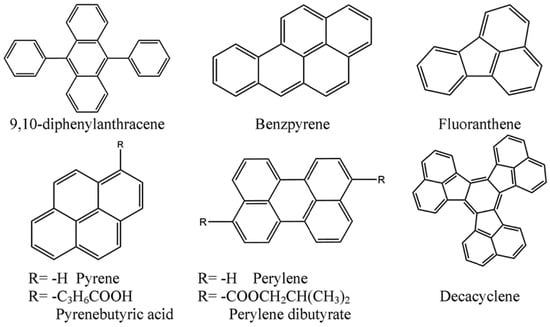

In PAHs, except for some containing nitro or carbonyl structures, almost all PAHs have strong and stable PL characteristics. These molecules have a PL lifetime of up to 200 ns, which is easily quenched by oxygen. In particular, pyrene and its derivatives have become the first generation of oxygen photochemical sensing compounds. At ambient temperature, they also show good oxygen sensitivity and low temperature absorption coefficients. However, due to the lack of good solubility in polymers, oxygen sensors based on pyrene are prone to the problem of luminescent molecule aggregation [18]. To overcome these shortcomings, functional side chains can be chemically modified for pyrene derivatives [19]. Pyranobutyric acid is a pyrene derivative with good water solubility, with its maximum absorption peak at 355 nm and maximum monomer emission peak at 396 nm, and a PL lifetime of 200 ns. This material can be fixed on glass by DMF solution treatment and used for oxygen sensing. Using similar strategies, researchers have developed quenching-type oxygen sensors made from a combination of various PAHs and polymers, with the 1-pyridinebutanoic acid sensor showing the best performance parameters such as sensitivity, response time, and reproducibility. The chemical structures of some common oxygen-sensitive PAHs are shown in Figure 1. Due to the significant influence of humidity on the oxygen sensing results of PAHs, these materials are suitable for sensing oxygen in non-water samples.

2.2. Oxygen Sensing Using Room-Temperature Phosphor Organic Molecules

Materials with room-temperature phosphorescence (RTP) properties have attracted widespread attention due to their potential applications in chemical and biological sensors, security protection, and photo-dynamic therapy based on biological imaging [20,21]. Among the materials with RTP properties, organic RTP emitters without metal have the advantages of simple synthesis and high cost-effectiveness. To achieve efficient RTP in organic compounds without metal, two strategies are usually employed. One method is to introduce halogen atoms (Br or I) or heteroatoms (N, S, O) to create a heavy atom effect or (n → π*) transition structure, which can enhance spin–orbit coupling (SOC) to achieve efficient intersystem crossing (ISC) [22,23]. Another method is to use rigid environments to suppress the non-radiative deactivation process of molecules, such as crystallizing the material, adding hydrogen bonds and halogen bonds, or using host matrices [24,25]. Skhirtladze et al. [26] constructed a series of optical oxygen sensors using different electron donor groups (phenothiazine, phenoxazine, and acridine) and the electron acceptor group of 1,4-difluorobenzene (Figure 2). The research results show that when one of the molecules of 2PS-2FPh is doped into a rigid medium Zeonex, a material can be obtained that generates strong RTP in air. Molecular dynamics simulations indicate that the medium’s disordered conformation and rigidity can significantly broaden the single-excited-state-triplet splitting of 2PS-2FPh molecules, making the charge-transfer triplet (3HLCT) more localized, thereby promoting 2PS-2FPh’s RTP and high oxygen sensitivity.

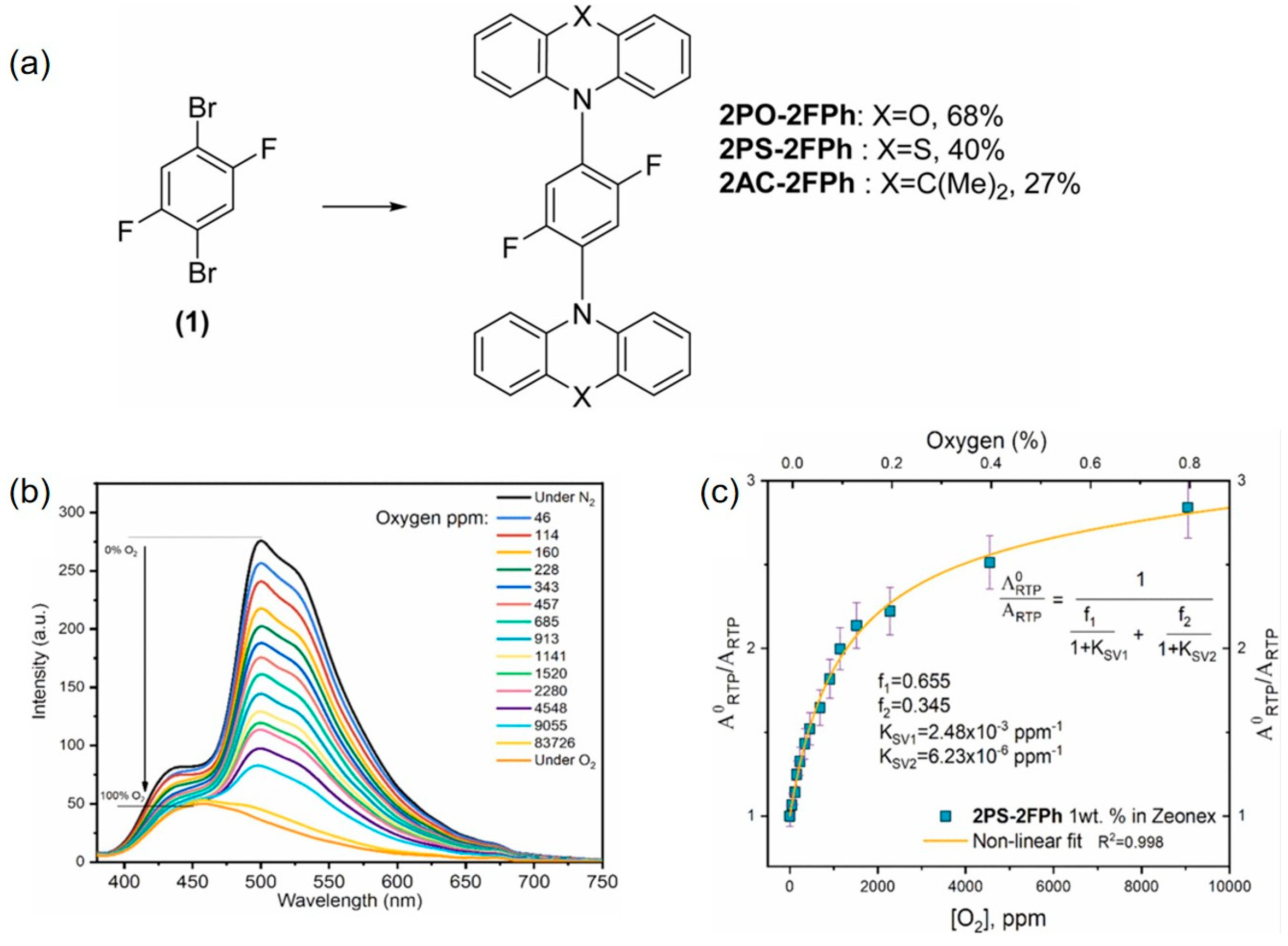

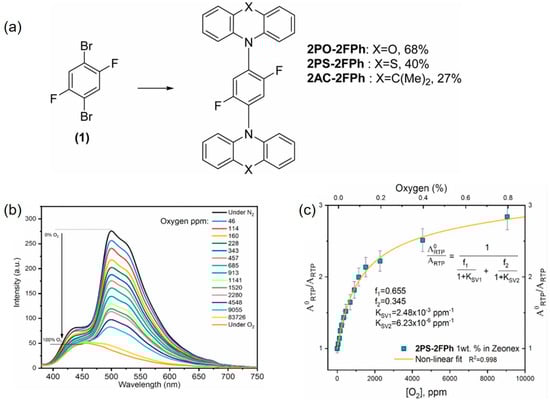

Metal-free RTP organic molecules with oxygen responsiveness are beginning to attract researchers’ interest. However, these materials typically exhibit intense phosphorescence only in the crystalline phase [27] and do not have the same properties in solid films. So far, there are few reports of the use of these materials in the determination of dissolved oxygen content. Therefore, to enable these materials to play a role in a wider range of application scenarios, oxygen sensing research based on such materials still has a long way to go.

3. Oxygen Sensing of Luminous Metal Complexes

3.1. Oxygen Sensing of Transition Metal Complexes

The luminescent transition metal complexes (TMCs) not only can exhibit relatively long lifetimes and strong visible light absorption, but also have stronger light stability than the organic molecules. The spectral and chemical properties of these complexes can be adjusted to some extent by modifying the coordination complex structure. Under light excitation, TMCs usually undergo a metal–ligand charge transfer process to form excited triplet or even higher multiplicity states. The long-lived excited states provide sufficient energy exchange time for the material to interact with oxygen molecules, resulting in high sensitivity to oxygen. In addition, the energy of the triplet state is lower than that of the singlet state, so the phosphorescence wavelength is longer than the FL wavelength. The large Stokes shift can effectively reduce the spectral background. Early oxygen sensing research based on Ru(II) complexes was mainly conducted using commercially available reagents prepared by following a simple protocol, such as [Ru(bpy)3]2+ (where bpy = 2,2′-bipyridine) [28] and [Ru(phen)3]2+ (where phen = 1,10-phenanthroline) [29]. Owing to good light stability and oxygen response performance, Ru(II) complexes have been widely used in the field of oxygen sensing. In addition to Ru(II) complexes, some transition metal complexes based on different central metal ions, such as Ir(III), Os(II), and Re(II), have also shown long PL lifetimes and high PL efficiencies, thus also possessing potential for oxygen sensing applications [6,30]. However, the quantum yield and sensing performance of these luminescent oxygen probes are usually affected to some extent by the diffusion barrier or aggregation-induced quenching (ACQ) effect of the matrix [25]. To address this issue, as shown in Figure 3, Peng’s research team proposed a strategy for a luminescent nanoprobe based on a Ru(II) metal polymer [31], where the oxygen probe [Ru(bpy)3]2+ is appropriately grafted onto the surface of the polymer to allow the probe molecules to be dispersed well with each other. The results show that the nanoprobe exhibits strong red FL without ACQ effects and is highly responsive to oxygen.
More effective methods of weakening and even overcoming ACQ come from the ground-breaking research on thiolato derivatives by Tang et al. in 2001, namely the aggregation-induced emission effect (AIE) [32]. The sensitivity of Pt(II) complexes to external molecular oxygen means they are widely used in the manufacture of functional materials and sensors [33,34]. Among them, cyclic metal-free Pt(II) complexes as PLmaterials have shown significant superiority in excitation state lifetime and resistance to photobleaching [35]. As shown in Figure 4, Yang et al. synthesized three AIE Pt(II) complexes, PtCzA, PtCzB, and PtTPA, with similar substituent structures, and compared their PL behaviors through a series of characterizations [36]. Oxygen sensing tests showed that the controllable AIE property of Pt(II) complexes can effectively improve the uniformity of the PL oxygen sensor, thereby achieving better sensing performance. However, there have been only a few reports on Pt(II) complexes with AIE activity to date. Moreover, most oxygen sensing materials based on TMCs only exhibit PL AIE properties [37], while the number of reports on PL AIE properties of such materials is still very small [38,39]. Therefore, more research is needed to fully exploit the optical sensing potential of these materials.

3.2. Oxygen Sensing of Metalloporphyrin Compounds

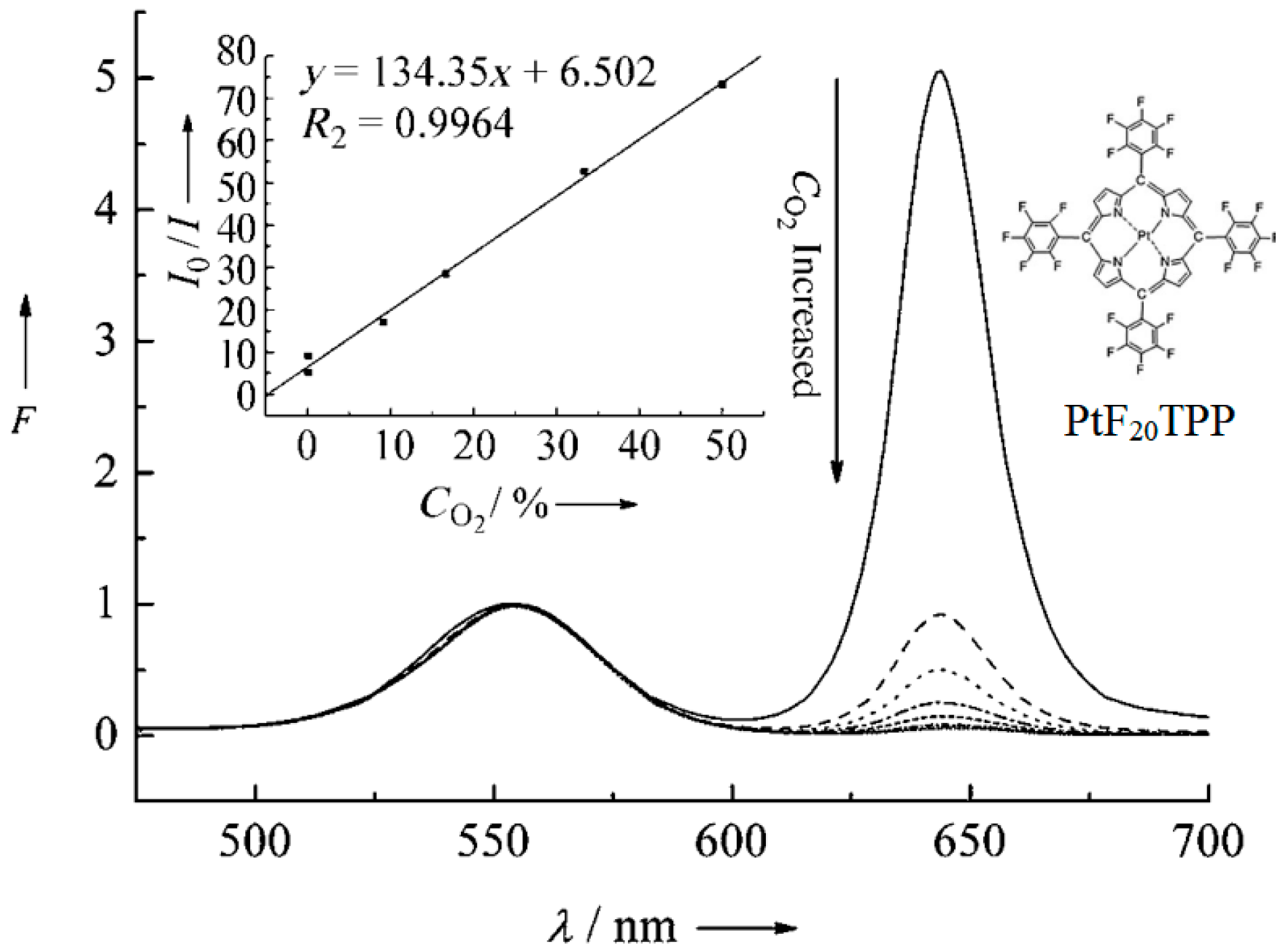

Although the TMCs mentioned above have been used to construct oxygen sensing systems, the number and type of ligands that the central metal can accommodate are limited. Metalloporphyrin (MPP)-type complexes are another type of oxygen sensing material that has been developed in the past few decades. Because they have a variety of peripheral groups, MPPs can be easily functionalized through modification. The most common MPPs are Pd(II) and Pt(II) porphyrins, which usually have strong absorption in the range of 390 to 420 nm and weak absorption above 500 nm, with a sharp and intense red emission, with a Stokes shift of up to 250 nm. Compared to TMC sensing materials such as Ru(II), MPP-type complexes have higher room temperature PL quantum yields and longer lifetimes, and have superior optical properties for oxygen sensing. Based on these advantages, MPP-type complexes have become the most common oxygen sensing materials [40]. Recent research on using MPPs for oxygen sensing has utilized their thermally activated delayed fluorescence (TADF) properties. Chen et al. [41] developed a novel colorimetric oxygen sensor using [meso-tetrakis(pentafluorophenyl)- porphyrinato] platinum(II) (PtF20TPP) and cadmium telluride (CdTe) quantum dots (QDs), by which oxygen concentration could be defected with precise, distinct, and unparalleled color observation. In this sensing approach, as shown in Figure 5, the Pt complex, PtF20TPP, gave a red FL emission at the wavelength of 650 nm, which could be quenched by different concentrations of oxygen.

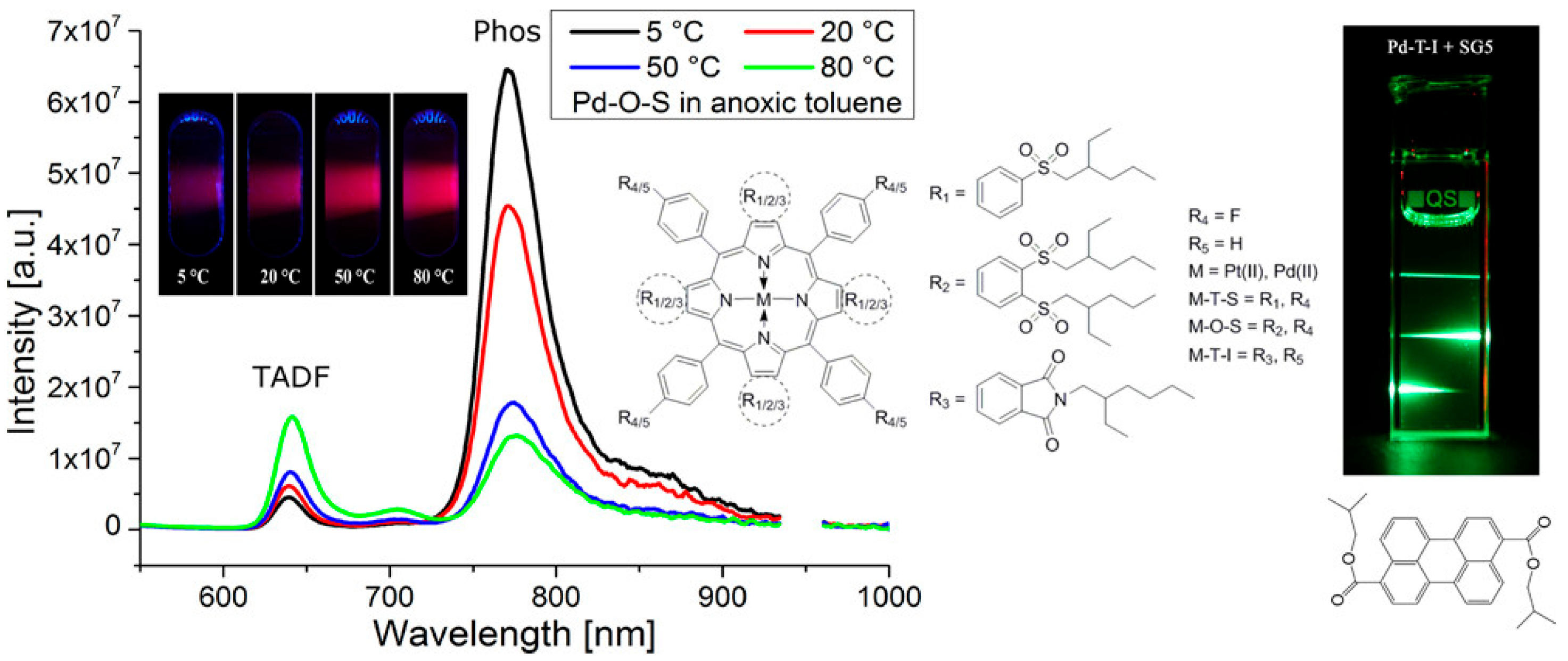

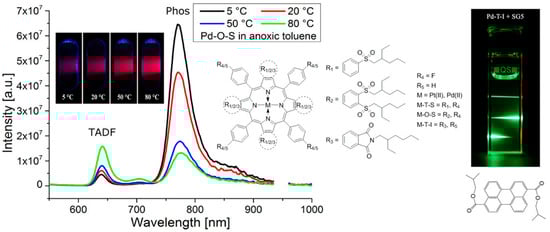

Zach et al. [42] achieved the first dual sensing of oxygen and temperature using a single emitter. As shown in Figure 6, the team used a four-step synthetic method using a template to prepare highly electron-deficient Pt(II) and Pd(II) benzoporphyrin complexes containing alkylsulfone groups. In solution and polymer matrices, these complexes can produce highly efficient TADF at high temperatures due to their small singlet-triplet energy gap, which meets the requirements for optical oxygen sensing. In addition, their emission intensity is proportional to the temperature, so that dual sensing of oxygen and temperature can be based on a single emitter. In dual sensing, temperature information is obtained from the TADF-to-phosphorescence ratio, and oxygen concentration is determined by phosphorescence or TADF decay time.
In the research and application of oxygen sensing using molecular luminescent compounds, apart from the early-used PAHs and RTP compounds, TMCs with Ru or Pt as the central atom [43,44] have been widely applied. Indeed, some bioluminescent compounds, including D-luciferine, celenterosine, flavin mononucleotide, etc., have also been the focus of studies on the mechanism of oxygen sensing and biological imaging [45,46], and related research and application reviews have been published [47].

4. Oxygen Sensing of Luminescent Semiconductor Materials

Oxygen Sensing of Perovskite-Doped Materials

A variety of luminescent materials have already demonstrated their potential in oxygen sensing applications. However, to meet the increasingly widespread demand for oxygen sensing, some key issues still need to be addressed. Although organic FL molecules have the longest history in oxygen sensing, their poor light stability and small Stokes shift limit their wider application. In addition, moisture stability is also an issue that these materials need to address. Metal–organic complexes, especially MPPs, have fully overcome these disadvantages and have longer FL lifetimes, thus becoming the most mainstream sensing materials. However, the universal disadvantage of MPPs and other metal complexes is their toxicity, which is very unsuitable for their applications in biology and medicine. On the other hand, these materials need complicated synthesis steps, which leads to the high cost of the sensors. In addition, not all MPPs have good light stability, which is an important factor to consider in long-term measurements. In the past three decades, researchers have developed various types of luminescent semiconductor materials, including quantum dots, luminescent noble metal nanoparticles, and upconversion emitters. Luminescent semiconductors have good light stability, adjustable optical bandgaps, high PL quantum yield, etc. The length of the FL lifetime is one of the major factors affecting the sensitivity of oxygen sensing materials. Quantum dots of II-VI and III-V semiconductors, such as those represented by quantum dots, have wide excitation spectra, narrow emission spectra that can be adjusted, high quantum yields, and good resistance to photobleaching, etc. They have received extensive and continuous attention in the past two decades due to their superior PL characteristics [48]. In 1998, Jr et al. [49] and Nie et al. [50] opened up the research field of fluorescent labeling with semiconductor NCs. Since then, the optical properties of semiconductor NCs have been fully utilized in the fields of analytical sensing and cell imaging [51,52,53].
Porous and uniform channels can ensure sufficient contact between oxygen and the sensing material, making it effective for oxygen content determination. Dispersing the sensing material in a polymer matrix [1,54] or a porous material [55] is a common method, which can make the sensing material evenly distributed while providing space for oxygen to freely move. Additionally, for block-shaped materials, the stacking pattern of the crystal lattice can result in different void fractions, leading to different oxygen quenching effects. McGee et al. [56] designed a luminescent ruthenium complex crystal [Ru(phen)3(tfpb)2] with a pore structure; as oxygen can freely pass through the crystal’s pores, it can serve as an effective oxygen sensing crystal material. Subsequently, the research group found that ruthenium complexes with the same molecular formula but different crystal packing patterns [Ru(phen)3(PF6)2] exhibited different oxygen sensitivities [57], with the oxygen quenching value ((InitrogenIair)/Initrogen) reaching 0.36 and 0.33 for the chiral structure crystal, while only 0.05 for the achiral structure crystal, due to the larger voids in the chiral structure crystal with a non-close-packed structure, and the open pores allowing oxygen molecules to diffuse freely within the crystal. Due to the high cost of ruthenium complexes, the research group’s subsequent work also designed one-valent copper complex oxygen-sensitive probes with different void fractions, which also had excellent oxygen sensing performance [58].
Lead halide perovskites (LHPs) are an emerging semiconductor luminescent material that not only has diverse synthetic methods and low material costs, but also has a unique electronic and band structure that endows it with superior optical properties, including high light emission quantum yield, high defect tolerance, easily adjustable emission spectrum, etc. It has been widely studied in the field of optoelectronic devices. In addition, compared to traditional inorganic semiconductor luminescent materials, the soft ionic lattice of LHPs makes its PL more sensitive to specific factors in the environment. Therefore, by tuning the composition and structure of LHPs, not only can a variety of optical properties be generated, but also the optical sensing ability can be explored and new sensing mechanisms can be proposed, which is of great significance for expanding the application of this material in analytical sensing. There have been reports in the literature of diverse oxygen-sensitive luminescent behaviors in LHPs. Based on the electron spin state of the O2 molecule in the highest occupied molecular orbital, it can be known that the ground state O2(3Σg) has two unpaired electrons in the anti-bonding π orbitals (πx* and πy*) with equal energy, so it has strong electron-withdrawing ability and high reactivity. Previous studies have found that O2 can affect the photoexcitation and deexcitation behavior of semiconductor light-emitting materials through various electron-involving pathways, resulting in reversible quenching or enhancement of the PL of some II-VI semiconductor NCs [16,17]. This provides another line of thought from a theoretical perspective for optical oxygen sensing research and drives the development of oxygen-sensitive semiconductor light-emitting materials. By analyzing different morphologies of CsPbBr3 [59,60], researchers have discovered that O2 molecules can interact with CsPbBr3 nanocubes through collisions to extract the photogenerated electrons, leading to the dynamic quenching of the LHPs PL. On the other hand, O2 can also passivate the surface hole traps of CsPbBr3 nanowires, nanoflakes, and single crystals, enhancing the LHPs PL without altering the exciton recombination dynamics. The oxidation of the MAPbI3 interstitial iodine by O2 eliminates deep-level defects, resulting in an enhancement of the HLP PL [61,62]. Oxygen quenching of the MAPbI3 emission by O2-assisted photoinduced etching also causes a blue shift in the emission wavelength, ultimately leading to complete quenching of the emission [63]. Zhu et al. [64] utilized cadmium telluride quantum dots encapsulated with cysteine for oxygen sensing applications, but the degree of oxygen quenching of the FL in this work was relatively weak, and the problems of surface oxidation and light flashing that lasted several seconds were not effectively addressed. These issues indicate that the application of luminescent semiconductor materials for oxygen sensing still has a long way to go. With the progress of wet chemical synthesis in recent years, more and more new semiconductor materials have been paid attention to and one of the most notable examples is the doping material of lead halide perovskite.
Appropriate doping of metal ions in semiconductor NCs can endow NCs with novel optical, electrical and magnetic properties without changing the crystal structure. Among them, the FL of semiconductor NCs doped with Mn2+ has a long FL lifetime, large Stokes shift and paramagnetic properties, attracting people’s interest. One situation where semiconductor NCs generate doped FL is when impurity ions form impurity levels within the bandgap of the host NCs, resulting in doped FL via exciton energy transfer, which mainly reflects the properties of the impurity ion itself, such as Mn doping. As shown in Figure 7a, the 3d5 configuration of Mn2+ is forbidden, but when it is doped into suitable semiconductor NCs, the d electron level accepts part of the exciton energy, activating the 4T16A1 spin relaxation, thus producing a specific Mn emission peak at around 585 nm, with a large Stokes shift and a millisecond-level long PL lifetime [65,66]. In addition, there is also a theory that Mn2+ captures the photogenerated hole and then combines with the electron to form the excited state of (Mn2+)*, and then releases the energy in the form of light [67]. Although the Mn-doped FL is determined by 4T16A1, the degree of splitting of the d electron level of Mn2+ is greatly affected by the change in its crystal field environment, and there may be multiple FL levels at the same time, so there will be a spectral broadening (peak width at half height of 50–70 nm).
The degree of overlap between the wave function of the exciton and the wave function of the d electron determines the strength of the exchange coupling, which in turn depends on the chemical and structural details of the d-dots. The chemical environment of Mn2+ in the d-dots directly affects the wavelength and FL lifetime of the doped FL. Dohner et al. [68] controlled the size of CdS NCs to change the wavelength of the Mn emission peak by 40 nm in the red-yellow light region, and proposed that when the impurity is distributed in the surface region of the NCs, the impurity is in a distorted tetrahedral coordination environment, which will result in energy reduction, so the wavelength of the Mn emission peak redshifts. Hazarika et al. [69] designed and synthesized multi-layer core/shell structured Mn:ZnSe/CdSe/ZnSe QDs. By adjusting the thickness of the CdSe layer and the doping position of Mn2+, the strain of the NCs was controlled. When Mn2+ was farther away from the CdSe/ZnSe interface, the wavelength of the Mn emission peak gradually red-shifted from 480 nm to 580 nm, successfully covering the visible light region (Figure 8b). The FL decay kinetics of Mn impurities in d-dots are different due to their different chemical environments. The FL lifetime is related to the spatial distribution and concentration of impurities. Pu et al. [70] prepared Mn:ZnSe NCs by the co-nucleation method and found that when the particle size remained unchanged, by reducing the number of Mn2+ in each NCs from 431 to 32, the FL lifetime of the doped FL increased from 100 μs to 850 μs. Meanwhile, the chemical environment of Mn impurities was basically uniform, which also made the doped FL show single exponential decay (Figure 8c,d). After further coating with a ZnS shell, the PLQYs of Mn:ZnSe/ZnS NCs reached 70 ± 5%.

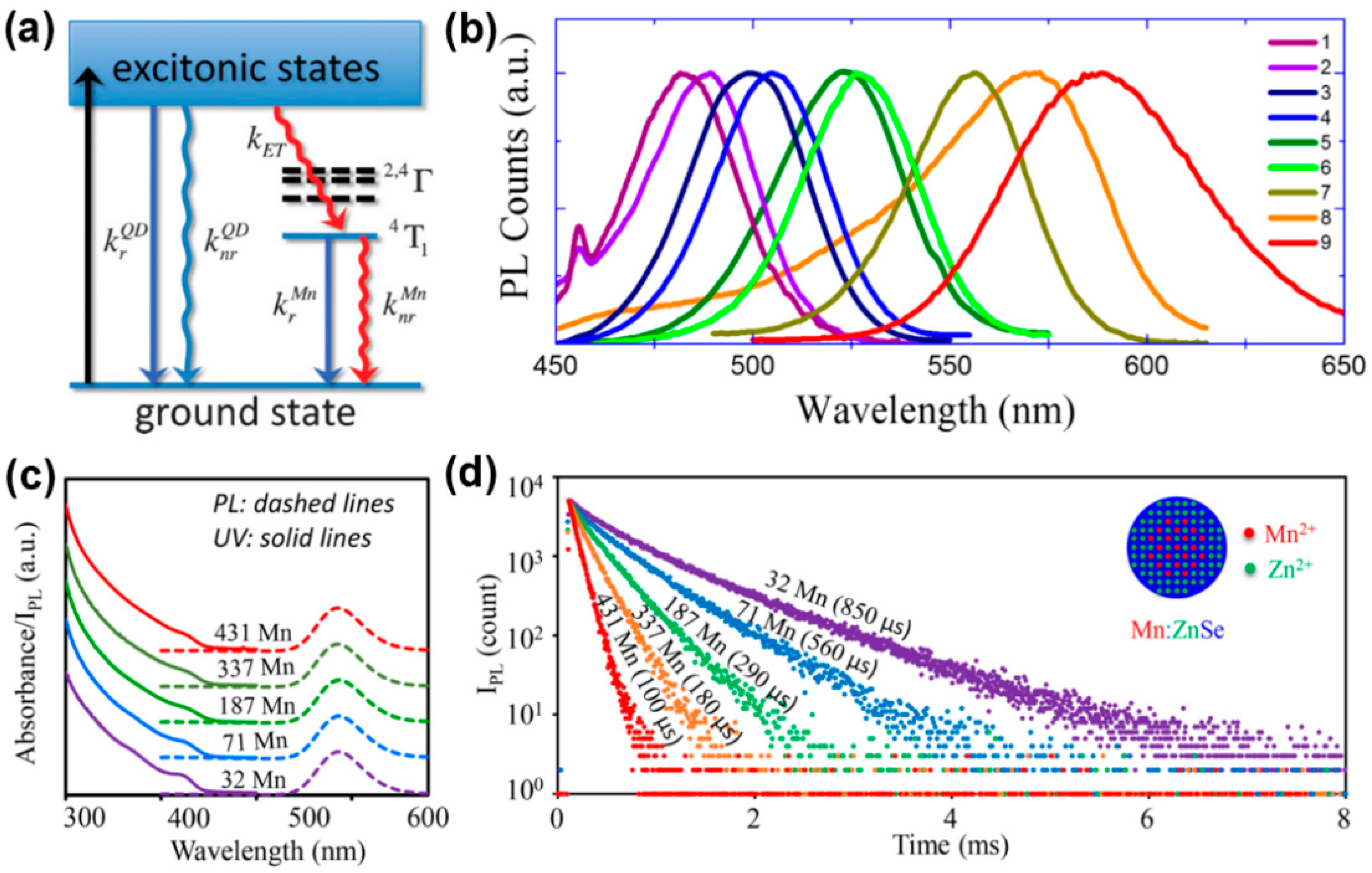

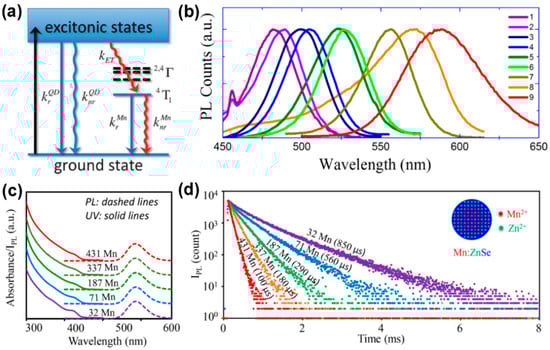

Figure 7. (a) The exciton recombination process of Mn2+-doped QDs [65]; (b) Mn emission band from different Mn:ZnSe/CdSe/ZnSe QDs [69]; (c) absorption and PL spectra of Mn:ZnSe NCs with different amounts of Mn2+ ions; (d) PL decay curves of Mn emission [70].
Figure 7. (a) The exciton recombination process of Mn2+-doped QDs [65]; (b) Mn emission band from different Mn:ZnSe/CdSe/ZnSe QDs [69]; (c) absorption and PL spectra of Mn:ZnSe NCs with different amounts of Mn2+ ions; (d) PL decay curves of Mn emission [70].
Biosensors 15 00132 g007
Manganese-doped LHP NCs are one of the most studied and deeply investigated metal-doped LHP materials at present. Similar to traditional semiconductor NCs, the Mn impurity in LHP NCs can also produce the 4T16A1 characteristic PL. Liu et al. [71] believe that when the bandgap width (from 1.8 to 3.1 eV, from I to Cl) and the energy difference Δ between the 4T16A1 transition (2.15 eV) of CsPbX3 NCs and the Mn impurity are greater than zero, effective forward energy transfer can occur between CsPbX3 NCs and the Mn impurity (Figure 8a). However, the host-dopant energy transfer (HDET) rate in LHP NCs is slower than that of II-VI semiconductor NCs [72], and both doped FL and band edge radiation can usually be observed simultaneously. The ratio of the FL intensities of the two is given by Equation (2) [73]:
PL Mn PL eh = k Mn , rad k ehn , rad k ET k Mn + k Et e α / k T
One of the key factors affecting the performance of LHP NCs is the presence of impurity atoms, such as Mn2+, which can act as electron donors or acceptors. The PLMn and PLeh represent the FL intensities of doped FL and band-edge radiation, respectively, while kMn,rad and keh,rad represent the decay rate constants of doped FL and band-edge radiation, and kET is the rate of energy transfer from the band edge to the Mn impurity. Increasing the temperature will exacerbate non-radiative thermal relaxation and promote reverse energy transfer from the band edge to the Mn impurity, leading to an increase in the PLMn/PLeh ratio [74]. Recently, Wei et al. [75] have further proposed that the Mn impurity does not transfer energy directly from the band edge, but rather recovers non-radiative energy from defect levels and uses it for FL (Figure 8d). The photoluminescence quantum yield (PLQY) of doped FL can be tuned by changing the doping concentration, composition, and dimension, and the FL properties can also be controlled. Parobek et al. [76] synthesized CsPbCl3 NCs with a Mn2+ doping concentration of about 0.2%, with a PLQY range of 22–58% and a FL lifetime of 1–2 ms. By increasing the synthesis temperature or increasing the amount of Mn precursor, the doping concentration can be increased, thereby changing the intensity of doped FL and the FL lifetime. Liu et al. [77] prepared a series of CsPbxMn1−xCl3 QDs with different doping concentrations up to 46%, and found that as the synthesis temperature increased, the relative FL intensity of doped FL to band-edge radiation first increased and then decreased, while the Mn emission peak wavelength shifted to longer wavelengths, attributed to the Mn–Mn interaction at high concentrations.
Compared with cadmium-based NCs, Mn2+-doped ZnS NCs (Mn:ZnS NCs) have lower toxicity and do not cause obvious damage to cells [78], so they are suitable for use as optical sensing probes after being rationally developed or structurally designed [79]. In the past five years, researchers have designed FL quenching-type probes based on principles such as electron transfer, inner filter effect, energy transfer, and surface ligand interactions, enabling effective detection of Tl+ [80], dopamine [81], clenbuterol (resorcinol) [82], and xanthine oxidase [83] using Mn:ZnS NCs. At the same time, FL enhancement-type probes have been designed using principles such as defect passivation and induced aggregation, enriching the detection of organophosphate pesticides [84], herbicide fomesafen [85], biochemical phosphate [86], and fish protein [87] using Mn:ZnS NCs. Today, FL sensing research based on Mn:ZnS NCs still has its unique vitality.

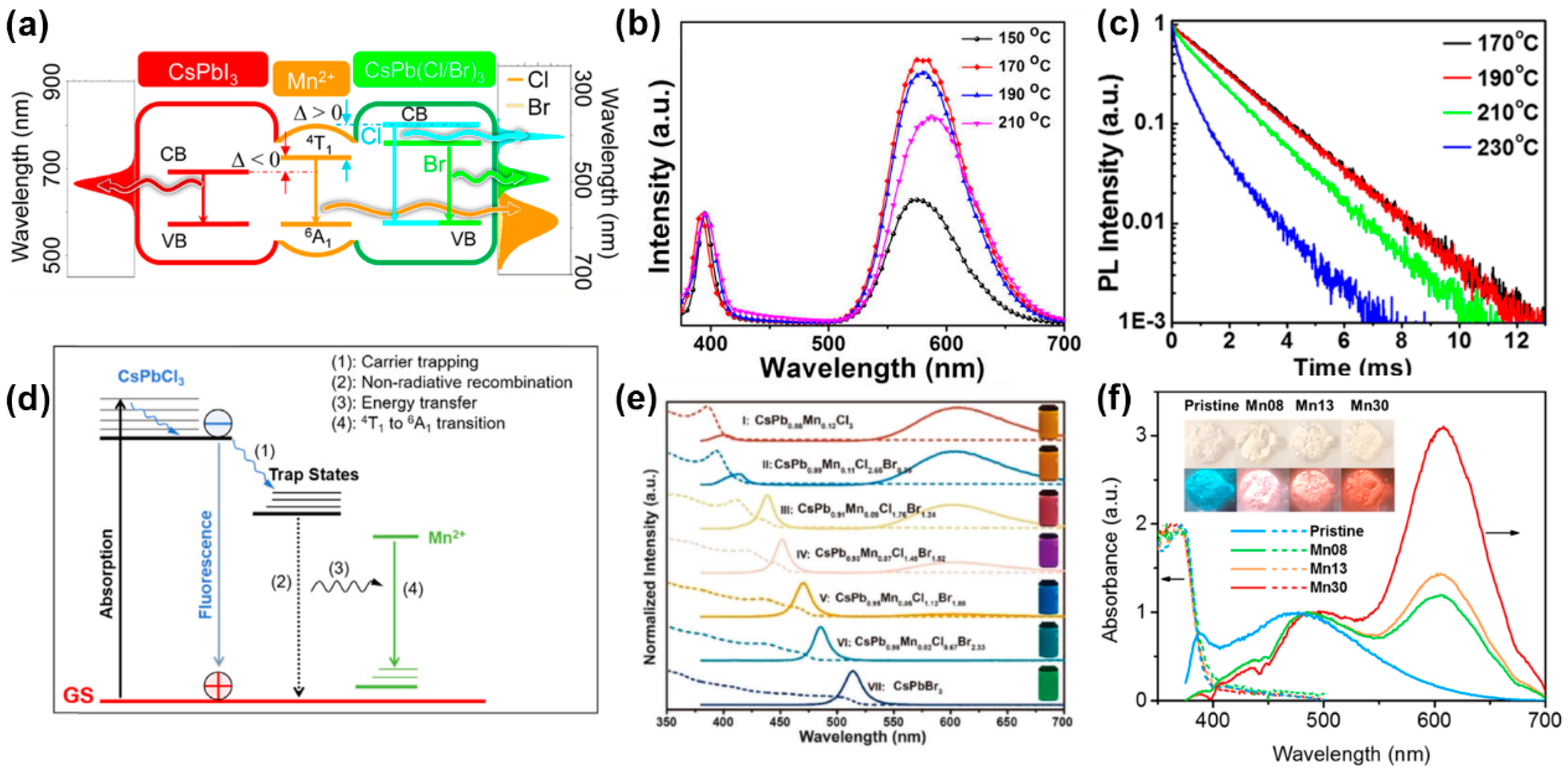

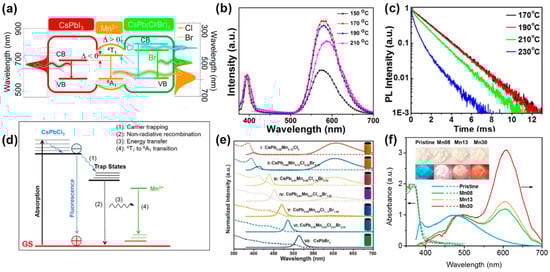

Figure 8. (a) Energy level diagram of Mn:CsPbX3 NCs; (b) FL emission spectra of CsPbxMn1−xCl3 NCs prepared at different temperatures; (c) Mn emission decay curves of the Mn:CsPbCl3 NCs synthesized at different temperatures [74]; (d) schematic energy levels and electronic transitions in Mn-doped CsPbCl3 NCs [75]; (e) absorption and FL emission spectra of Cs(PbxMn1−x)(ClyBr1−y)3 NCs; (f) absorption and FL emission spectra of Mn-doped 1D lead bromide perovskites.
Figure 8. (a) Energy level diagram of Mn:CsPbX3 NCs; (b) FL emission spectra of CsPbxMn1−xCl3 NCs prepared at different temperatures; (c) Mn emission decay curves of the Mn:CsPbCl3 NCs synthesized at different temperatures [74]; (d) schematic energy levels and electronic transitions in Mn-doped CsPbCl3 NCs [75]; (e) absorption and FL emission spectra of Cs(PbxMn1−x)(ClyBr1−y)3 NCs; (f) absorption and FL emission spectra of Mn-doped 1D lead bromide perovskites.
Biosensors 15 00132 g008
LHP NCs used as a novel optical oxygen sensor material is feasible. Recently, Chen et al. focused on a class of doped LHP NCs, namely, Mn2:CsPbX3 NCs formed by partially replacing the [PbX6]4− octahedron in the perovskite structure with Mn2+, replacing Pb2+ [77,88,89,90]. When the conduction band bottom or electron defect state energy level of CsPbX3 (X = Cl or Br) matches the lowest excited state energy level of Mn impurity 4T1, a process of exciton–Mn2+ exchange coupling occurs, leading to host–dopant energy transfer [73,75,76] and activating the forbidden 4T16A1 transition. Therefore, in addition to the exciton band edge FL of the perovskite host, the Mn2+ ions located in the octahedral coordination field will also emit FL at around 580 nm with a millisecond-level lifetime [91], laying the foundation for the FL oxygen sensing research of Mn2+:CsPbCl3 NCs. Lin et al. studied the oxygen sensing ability based on the energy transfer of luminescent dopants and host dopants, and observed that Mn2+-doped FL in Mn2+:CsPbCl3 can be used as a sensing signal for oxygen content [92]. There have also been studies showing that quantum cutting occurs in Mn2+:CsPbCl3, causing the Mn2+-related FL and surface defect state FL to occur simultaneously and be quenched by oxygen [93]. These studies demonstrate the good potential of LHPs as a new type of optical oxygen sensor material.
The research group [94] studied the effect of O2 on the FL of Mn(II)-doped CsPbCl3 (Mn:CsPbCl3 NCs) for the first time. By changing the quantity and distribution of Mn(II) to adjust the degree of energy transfer from perovskite to Mn(II) dopant, the authors concluded that O2 can temporarily interfere with the Mn(II) ligand field near the surface of Mn:CsPbCl3 NCs, thus affecting the emission process of Mn(II) 4T16A1. The results as shown in Figure 9 reveal that the FL intensity of the Mn:CsPbCl3 NC oxygen sensing film presents good linear correlations with the percentage of O2 gas in the range of 0–12% (Figure 9a), and the concentration of 0.54–11.42 mg/L for dissolved oxygen (Figure 9b). The responses are quickly reversible. These results suggest that oxygen sensing applications for light-emitting semiconductors are promising.
Doping is a process of purposefully introducing different elements into the main material and is an effective strategy for implanting novel optical properties in semiconductors. Since the 6s and 6p orbitals of Pb are involved in the formation of valence bands and conduction bands of LHP, substitutive doping of Pb2+ with isovalent or heterovalent metal ions will change the exciton recombination process of the main body of perovskite [71]. The types of metal ions that can be doped [95] include main group metal ions, transition metal ions, lanthanide metal ions and so on. At present, the most representative and widely studied doped FL in two-dimensional (2D) LHPs is Mn2+ FL, that is, 4T16A1 transition radiation. According to the crystal field theory, Mn2+ in the octahedral field has a low energy 4T excited state, which produces orange-red light emission. Mn2+ in the tetrahedral field has a 4T excited state with high energy, which produces green light emission [96]. In Mn2+-doped 2D LHP, the 4T16A1 transition produces emission wavelengths in the orange-red light region, and has a large Stokes shift and long lifetime (microsecond to millisecond). Because the splitting degree of the d electron level of Mn2+ is affected by the crystal field environment, there may be multiple emission levels at the same time, so the spectral broadening of Mn2+ emission usually occurs.

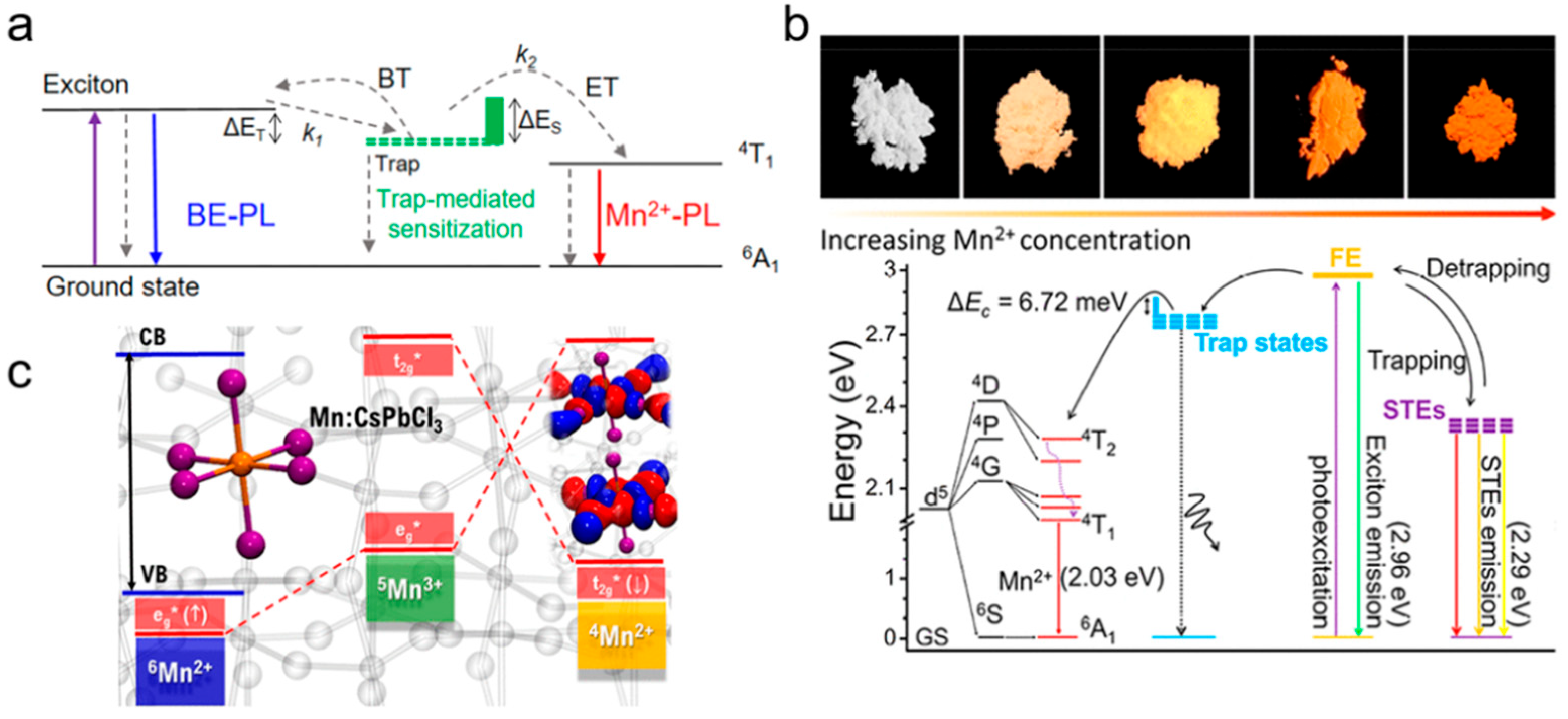

The Mn2+ FL principle of 2D LHPs is basically the same as that of 3D counterparts (Figure 10). When Mn2+ replaces part of the Pb2+ in the octahedral field to form [MnCl6]4−, the d orbitals of Mn2+ interact with halogen orbitals with the same symmetry to produce bonding molecular orbitals and antibonding molecular orbitals. Since 4T16A1 is parity barred, the Mn2+ impurity produces a 4T1 excited state by transferring exciton energy from the perovskite body [73,77,88,97]. For 2D LHPs, the energy transfer rate is determined by the dynamics of photogenerated heat excitons [98]. Doping Mn2+ not only introduces new luminous energy levels, but also introduces a shallow trapping state to assist exciton energy transfer [75,99]. In addition to the widely reported energy transfer excitation pathway, existing mechanism studies also support an excitation pathway based on charge transfer [100,101]. The photogenerated holes of the main body of the LHP are captured by the 6Mn2+ ground state (6A1, t2g3eg2), removing electrons from the eg* (↑) state of the antibonding molecular orbital to form the oxidation intermediate state 5Mn3+, (t2g3eg1) and then accepting electrons in the t2g* (↓) state of the antibonding molecular orbital. The 4Mn2+ excited states (4T1, t2g4eg1) are produced by non-radiative decay. The charge transfer mechanism uses Mn itself as the trapping state, mediating 4T1 sensitization (5Mn3+), which needs to overcome a small energy barrier related to structural deformation, but avoids spin and orbital constraints, so it may be a more favorable excitation pathway.
Generally, the sensing mechanism of perovskite metal halides for oxygen is usually based on the quenching effect of oxygen molecules on the material’s FL. When oxygen molecules come into contact with the surface of perovskite, they capture the excited-state electrons, resulting in a decrease in FL intensity. By detecting the changes in FL intensity, the concentration of oxygen can be quantitatively analyzed. The following steps occur in the quenching-based oxygen sensing process: 1. FL quenching mechanism, where oxygen acts as a quencher and can interact with the excited state of perovskite metal halides, leading to a reduction in FL intensity; 2. dynamic quenching, where oxygen molecules diffuse to the surface of perovskite and undergo non-radiative energy transfer with the excited-state electron–hole pairs, reducing radiative recombination and thereby reducing FL intensity. In both of these forms, the concentration of oxygen and the degree of FL quenching show a linear relationship within a certain range.
For perovskite metal halides in FL-enhanced oxygen sensing, the sensitivity and response speed of oxygen sensing can be significantly improved by optimizing the structure of perovskite metal halides or performing surface modification. For example, introducing defect engineering, surface ligand modification, or doping with other elements can enhance the material’s adsorption capacity for oxygen, thereby improving the sensing performance for oxygen. Table 1 reveals the FL sensing situation for oxygen using perovskite metal halides.
Table 1. Oxygen sensing of perovskite metal halides.
Table 1. Oxygen sensing of perovskite metal halides.
Sensing MaterialSensing
Mechanism
CommentsReference
Nanocubes (NCs) of CsPbBr3 perovskiteFL quenchingHighlights the limits of the defect tolerance argument in 1D, 2D and bulk perovskite
systems, while confirming the good optical performances exhibited by the better passivated NCs; reveals the pivotal role of the surface structure in the optical properties of inorganic perovskite systems.
[60]
Nanowires (NWs) of CsPbBr3 perovskiteFL enhancement
Nanosheets (NSs) of CsPbBr3 perovskiteFL enhancement
Bulk single crystals (SCs) of CsPbBr3 perovskiteFL enhancement
MAPbI3FL enhancementReversible; the oxidation of interstitial iodine is favored over that of lattice iodine, effectively inactivating a source of deep traps with
levels located in the MAPbI3 band gap.
[62]
MAPbX3 NCsFL quenchingThe role of oxygen during the photodegradation process as an oxygen-assisted lightinduced etching, which results in a blue shift in the FL peak position due to NC size reduction and eventually complete FL vanishing.[63]
Mn:CsPbCl3 NCsFL quenchingSensing range from 0 to 100%; good linear response in the 0−12% O2 concentration range; high sensing reversibility and rapid signal response.[92]
Mn2+-doped CsPbCl3 PQDsFL quenchingAn undocumented, oxygen-sensitive, and broad emission band (915−1150 nm) emerges peaking at around 950 nm; the emission band at 950 nm possibly originates from Mn2+-associated defect states.[93]

5. FL Properties of Copper-Doped NCs

Another case of semiconductor nanocrystalline doping FL is the electron–hole recombination process involving both the impurity and the host nanocrystalline after the photoexciton is transferred to the impurity level, such as Cu doping. Brovelli et al. [102] found through experimental study and calculation that there are two possible valence states of Cu impurity in d-dots, +1 and +2, and the impurity level related to Cu+ (3d10) can radiatively recombine with conduction band electrons after trapping holes from the valence band. The impurity levels associated with Cu2+ (3d9) have properties similar to permanent holes, so the conduction band electrons are captured first for radiative recombination, and then the electrons return to the valence band. Both cases produce Cu-doped FL (Figure 11a). Similar to Mn-doped FL, the spectral broadening of the Cu emission peak is also large. Srivastava et al. [103] believe that valence band hole transfer causes the existence of two d electron levels T2 and E at the same time after Cu+ is transformed into Cu2+, and multi-level FL causes the spectral broadening. In addition, the fluorescence lifetime of Cu-doped FL usually ranges from a few hundred nanoseconds to a few microseconds, depending on the variation in the host NCs (Figure 11b).
Changing the composition and size of d-dots can achieve a continuous shift in the Cu-doped FL wavelength from the visible to the near-infrared region (Figure 11c) [104]. With the increase in host NCs size, the doped FL wavelength of Cu:ZnSe NCs is in the range of 470–550 nm [105], and the emission spectrum wavelength of Cu:InP NCs can be significantly redshifted from 630 nm to 1100 nm [106]. Srivastava et al. [103] prepared alloyed Cu:ZnS/Zn1−xCdxS NCs with a sphalerite structure, and the wavelength of Cu-doped FL can be redshifted from 500 nm to 680 nm. Sarkar et al. [107] prepared alloyed Cu:Zn-In-Se NCs with an ultra-small size (less than 2.5 nm) and good photostability, and changed the composition ratio of In3+ and Zn2+ through surface cation exchange, which not only maintained the original particle size of the host NCs but also changed the band gap width. Thus, the wavelength of Cu-doped FL is blue shifted in the range of 660–540 nm. Zhang et al. [108] synthesized Cu:ZnS/Zn1−xCdxS NCs using the one-pot method. By adjusting the ratio of Cd and Zn precursors, doped FL covering 440–710 nm was obtained without changing the nanocrystalline size (Figure 11d), and it also has good thermal stability at 250 °C.

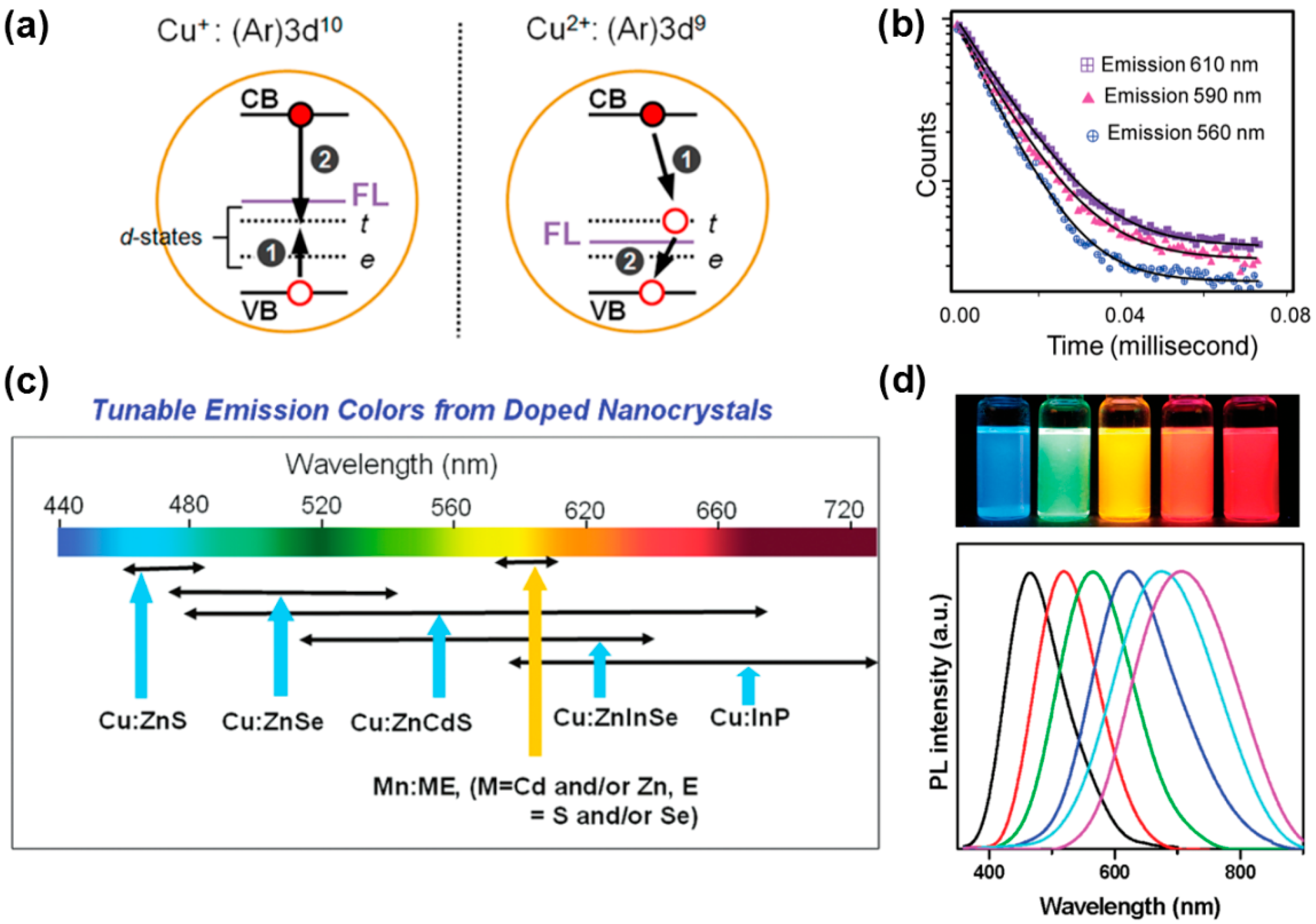

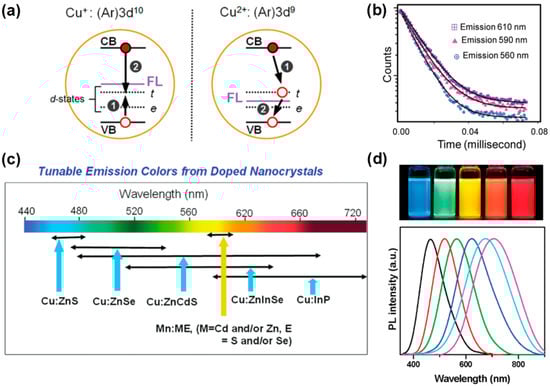

Figure 11. (a) Schematic illustration of exciton recombination process of Cu-doped NCs [102]; (b) dopant emission decay curves at different emission centers [103]; (c) the range of FL emission of some Cu-doped semiconductor NCs [104]; (d) FL emission spectra of Cu:ZnS/Zn1−xCdxS NCs under different Cd/Zn precursor ratios, and the digital picture of samples under UV light illumination [108].
Figure 11. (a) Schematic illustration of exciton recombination process of Cu-doped NCs [102]; (b) dopant emission decay curves at different emission centers [103]; (c) the range of FL emission of some Cu-doped semiconductor NCs [104]; (d) FL emission spectra of Cu:ZnS/Zn1−xCdxS NCs under different Cd/Zn precursor ratios, and the digital picture of samples under UV light illumination [108].
Biosensors 15 00132 g011
Currently, Cu-doped perovskite NCs with Cu as the B-site ion are more common in non-lead 2D perovskite materials and double perovskites, possibly because Cu2+ has a smaller ionic radius than Pb2+, which is not conducive to the formation of structurally stable ABX3 LHP NCs. In addition, Cu2+ can introduce defects into LHP NCs [109] or transfer its photogenerated electrons [110], so it is not conducive to FL.
In semiconductor luminescent materials, copper–iodine clusters have a relatively long luminescent lifetime, which makes their three-wire excited states very easy to exchange energy with external materials. Similar to the excited states of copper–iodine clusters, oxygen molecules also exhibit trilinear states under normal conditions, so the sensing of copper–iodine clusters on oxygen can be studied based on this property. In recent years, researchers have found that some copper-based organic complexes with molecular formula [Cu(N-N)(P-P)] or [Cu(N-N)(L)2] (N-N, P-P and L represent nitrogen-containing bidentate ligands, phosphine-containing bidentate ligands and phosphine-containing monodentate ligands, respectively) have oxygen sensing capabilities [111,112,113]. Zhang et al. [113] prepared a sensing film by mixing Cu4I4(PPh3)4 with polystyrene using the intrinsic FL properties of Cu4I4 copper–iodine clusters. They studied the sensing mechanism and the FL pathway is shown in Figure 12. The test results show that the sensor film has a good response to the change in oxygen concentration, and its maximum FL quenching ratio is 5.4. This study opens the application of Cu4I4 copper–iodine clusters in the field of oxygen sensing. The effects of different substituents on the oxygen sensing behavior of Cu(I) complexes were further studied, and it was found that the electron-withdrawing substituents were conducive to increasing the FL lifetime of the complexes, thereby improving the oxygen sensitivity [114]. The machinability of the organic part makes it possible to adjust the sensing performance of the metal–organic complex oxygen-sensitive probe, demonstrating the advantages of the metal–organic complex probe.
The four-core copper iodide hybrid materials are a kind of classic organic and inorganic hybrid materials that are favored in crystal engineering. On the one hand, the diversity of its structure comes from the diversity of inorganic units formed by cuprous iodide, and on the other hand, it comes from different organic ligands that have a guiding effect on the formation of inorganic units. The low energy emission bands of these materials at room temperature are closely related to the Cu–Cu interaction, indicating that they are independent of organic ligands. Recently, Huitorel Brendan et al. [115] evaluated the influence of different phosphine-containing ligands on the photophysical properties of tetralane-type copper iodide hybrid materials, and synthesized different tetralene copper iodide hybrid materials by modifying substituent groups (-OCH3, -CH3, -CF3) with the para-position of the benzene ring in the triphenylphosphine ligand. The results show that the hybrid materials with electron-donating substituents still exhibit classical cluster core centered FL, emitting yellow and yellow-green light at room temperature, while the hybrid materials with strong electron-absorbing substituents exhibit ligand-related FL properties, showing blue and white light at room temperature. By theoretical calculation, the existence of electron-withdrawing substituents leads to the reduction in the lowest molecular unoccupied orbital (LUMO) energy, which affects the luminous properties of hybrid materials. In addition, the researchers say that the importance of the form of the material’s crystal accumulation on the influence of photophysical properties cannot be ignored. Similarly, Xu et al. [116] designed a ligand-activated copper iodide hybrid cluster Cu4I4L4 to produce the first blue organic light-emitting diode device based on the cluster material. The introduction of electron-donating groups can effectively enhance the emission of ligand-related excited states, and eliminate the excited states centered on cluster nuclei by delocalizing electrons from cluster nuclei to organic ligands. All the above studies demonstrate the feasibility of regulating the photophysical properties of the four-core copper iodide hybrid materials by changing the ligands.

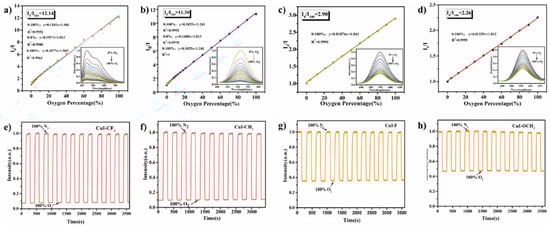

The sensitivity of type I copper–iodine clusters to oxygen was improved by ligand modification [117]. A CuI-CF3 copper–iodine cluster CuI-CF3 was prepared using the one-pot method at room temperature by mixing triphenylphosphine ligands modified by -CF3 with Cu porous iodide. The Cui-CF3/PS sensor film was prepared by mixing CuI-CF3 with polystyrene (PS), and its oxygen response performance was investigated. The FL intensity of the materials with -CF3 ligands can be fully quenched by gaseous oxygen, and the sensitivity expressed by the maximum FL quench ratio I0/I is 10.6. The hydrophobicity of PS endows the sensor film with excellent water resistance, which means that it can be used for the detection of dissolved oxygen content in water. The results show that the sensor film shows excellent performance in both gaseous and dissolved oxygen detection, that is, full range linearity (0–100%), fast response, and multiple cycles. The good performance of CuI-CF3 in gaseous oxygen and dissolved oxygen sensing tests confirms that the ligand modification strategy can effectively improve the sensing sensitivity of Cu4I4 copper–iodine clusters, which has great potential to become a highly sensitive oxygen sensor (Figure 13). The FL properties of type II copper–iodine clusters were enhanced by introducing a Mn(II) FL center and the oxygen sensing behavior of the clusters was adjusted by changing the crystal field environment of Mn(II). All the prepared sensing films showed a linear response in the range of 0–90% gaseous oxygen content, and maintained good FL reversibility after 1 h of nitrogen and oxygen cycle purging. Mn(II) coordinated by dppeO2 has a significantly higher oxygen response than dppeO2. The electron paramagnetic resonance (EPR) and time-resolved spectroscopy (TMS) tests show that the proportion of electrons in the 4T1 excited state is different due to the different crystal field intensity, which results in the different degree of oxygen quenching of the clusters. In addition, the nature of the ionic bond provides good stability to the material, making it also successful for the detection of dissolved oxygen content.
In addition, the self-assembly of organic ligands and zero-dimensional copper iodide inorganic cluster nuclei to form extended networks is a very good strategy for constructing functional materials [118], which can combine the photophysical properties of copper iodide materials with the advantages of the assembly structure at the molecular level. Metal–organic frameworks (MOFs) have the advantages of high porosity, low density, adjustable pore size and diversity of topological structures. The use of Cu2I2 and Cu4I4 cluster nuclei as secondary building units to design crystalline porous materials with ideal topological structures has potential applications in optical sensing and even colorimetric sensing. There are still relatively few reports on CuI-MOF synthesis. Although copper iodide hybrid materials have excellent properties, research in this field has been limited to the molecular structure level and its corresponding luminous properties, ignoring the impact of size effect on material properties. In the past two years, researchers began to devote themselves to the synthesis of nanoscale copper iodide hybrid materials and discovered new luminous properties, opening up another research direction. The rich structural chemistry, excellent optical properties and machinability of CuI-based hybrid materials provide a platform for the development of new photoelectric materials and composites. Although research in this area is far from sufficient, given the high abundance, low cost and low toxicity of copper salts, the development of new photoelectric materials from these substances is a very attractive option from an industrial and technical point of view.
Copper iodide hybrid materials give FL emission when excited by light of specific wavelengths, and their FL intensity is closely related to the structure of the materials, ligands and the environment. Due to the quenching effect of oxygen, oxygen can transfer energy or electrons with the excited copper iodide clusters, resulting in non-radiative energy transfer and thus weakening or completely quenching the FL intensity. This dynamic quenching effect is directly related to the oxygen concentration. When oxygen comes into contact with copper iodide clusters, the FL intensity decreases with the increase in oxygen concentration. By detecting the change in FL intensity, the oxygen concentration can be calculated. Table 2 reveals the FL sensing situation for oxygen using copper iodide hybrid materials.

6. Conclusions and Perspectives

A large number of optical oxygen sensors based on organic fluorophores or transition metal complexes have been developed in recent years. Due to the lack of light stability of the former, although oxygen sensors are mainly based on metal complexes or metal porphyrins as sensing materials, the expensive price and potential heavy metal toxicity of such materials still need to be further improved and improved.
The development of semiconductor luminescent materials and their application in oxygen sensing have provided new methods and approaches to solve the above problems. Among these semiconductor luminescent sensing materials, perovskite metal halides and copper iodide cluster luminescent materials have shown good sensitivity and response rate to oxygen sensing, with potential application value. This paper provides a systematic review of the recent developments of these two types of semiconductor materials for oxygen sensing. At present, the research on optical sensing of perovskite metal halides mainly follows three main directions: new material development, exploration of sensing mechanisms, and high-performance response applications. By designing the composition and structure of these materials from the source, simplifying their synthesis methods, optimizing their sensing performance, and analyzing sensing mechanisms, a new class of easy-to-synthesize and cost-effective optical oxygen sensing materials has been developed, with the goal of achieving high sensitivity, wide detection range, rapid and reversible response to oxygen. From the perspectives of material design, synthesis, and optical properties, further research on transition metal-doped two-dimensional lead halide perovskites in oxygen sensing can be conducted, developing an oxygen sensing method based on the 4T16A1 FL. In addition, the research can be conducted from the following aspects: (1) metal halide perovskites are inherently unstable in polar solvents, including water, even with surface organic ligands, which is especially prominent in 3D perovskite nanomaterials, limiting the determination of dissolved oxygen content. This problem is currently being solved through various encapsulation strategies, such as surface modification with block copolymers or phospholipids, encapsulation with micelles using hydrophobic polymers or silica-based materials, and encapsulation of individual particles or the entire particle using hydrophobic polymers or silica-based materials. However, the new problem is that encapsulation reduces the degree of contact between the perovskite and the target material, which may partially reduce the sensing speed and sensitivity. Therefore, the balance between the stability of the perovskite and the sensing performance needs to be continuously adjusted by adjusting the materials and methods of encapsulation. In the future, low-dimensional metal halide perovskites with more hydrophobic components can be developed to improve the stability of the material from the source, while not affecting the direct contact between the target material and the perovskite. Screening more hydrophobic organic components or conducting surface coating treatment that is both breathable and waterproof can expand the water-phase oxygen sensing application. (2) The interaction mechanism between oxygen molecules and perovskite sensing materials can be analyzed from the perspective of optical properties, which can explain the oxygen sensitivity of doped FL from more crystal structures and theoretical calculations, and uncover more potential oxygen sensing materials. (3) The sensing performance of metal halide perovskites is limited by both their composition structure and the fabrication process. By combining more advanced materials with superior performance, such as metal–organic frameworks or molecularly imprinted polymers, and developing composite sensing materials based on metal halide perovskites, the sensing performance can be enriched from a chemical perspective. From the perspective of process stages, the current perovskite sensing research is mostly at the laboratory stage. In order to improve the efficiency of sensing material preparation and reduce the influence of operation factors on sensing performance, more convenient and batch synthesis methods for high-quality perovskites need to be proposed in the future. At the same time, efforts should be made to promote the deviceization of sensing systems, thus establishing more practical sensing platforms based on perovskite luminescent materials. To enhance the practicality of perovskite oxygen sensing materials, the sensing system can be deviceized, including printing optical oxygen sensing arrays or oxygen sensing fibers, and combined with the above first measure to build miniaturized sensors that can be applied in more environmental conditions.
Copper iodide hybrid materials are a class of low-cost, easy-to-synthesize, and superior light-emitting materials. The unique structure of copper iodide hybrid materials endows them with a variety of stimulus-responsive behaviors, while the presence of different nuclear numbers of inorganic cores and organic ligands allows for the fine-tuning of the material’s luminescent properties, enabling the design of various dimensional copper-based hybrid materials. Therefore, these materials are a class of functional luminescent materials with great development prospects and practical value. Researchers have focused on the crystal structure of copper iodide hybrid materials, but there has been little progress in their practical applications, mainly due to the rigid framework formed by the inorganic cores of cuprous iodide and the poor dispersibility and solubility of the material. The predominant form of the material in the form of a block structure limits its further application. Most of the literature reports are situated within the field of luminescent phosphor and organic light-emitting diodes, while there are few reports in the field of analytical sensing and biological imaging. Therefore, expanding the application of this material in the field of analytical sensing deserves attention. Zero-dimensional tetranuclear copper iodide hybrid materials, as the most widely studied branch of copper iodide hybrid materials, have higher structural stability and optical stability than other structures, and have better potential for application in the field of analytical sensing than other structures. Their triplet FL property also makes tetranuclear copper iodide hybrid materials potentially applicable in the field of analytical sensing.
Copper iodide clusters are also gaining attention in the field of optical semiconductors due to their low toxicity and abundant sources. In this family of materials, type I copper iodide clusters, which are composed of coordination bonds, generally have strong FL properties. Among them, the inorganic module with the structure of Cu4I4 demonstrates stimulus-responsive behavior, making it suitable for research in the field of analytical sensing. Type II copper iodide clusters, which are composed of ionic bonds, have excellent structural stability and solvent processability, but their application in photochemical oxygen sensing is limited by their insufficient FL performance, and further strategies need to be developed to improve their FL, opening up the application of these materials in photochemical oxygen sensing.
In addition to the aforementioned perovskite metal halides, transition metal-doped two-dimensional lead halide perovskites, copper iodide clusters and copper iodide hybrid materials, some novel luminescent materials have emerged recently, such as carbon quantum dots (CQDs). The FL quenching of CQDs by oxygen [4] or reactive oxygen species produced by biological reactions [119,120] is utilized for oxygen FL sensing. The research and application of these materials in oxygen sensing detection may also lead to new directions and approaches.

Author Contributions

Writing—original draft preparation, J.J. and X.C.; writing—review and editing, Y.H.; visualization, C.Z.; supervision, L.Z.; project administration, S.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Fujian Province co-financed project, grant number 2024J011410, and the Fujian Province Young and Middle-aged Teacher Education Research Project, grant number JAT231165.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, X.D.; Wolfbeis, O.S. Optical Methods for Sensing and Imaging Oxygen: Materials, Spectroscopies and Applications. Chem. Soc. Rev. 2014, 43, 3666–3761. [Google Scholar] [CrossRef]
  2. Xu, Y.H.; Qi, G.P.; Hu, D.S. Development of Dissolved Oxygen Sensor Based on Time-Domain Lifetime Measurement with a Sensing Film Fabricated by Embedding PtOEP in Highly Stable and Highly Hydrophobic Fluorinated Matrix. Chem. Asian J. 2022, 17, e202200365. [Google Scholar] [CrossRef]
  3. Bian, Z.; Chao, C.; Feng, S. Dissolved Oxygen Sensing Characteristics of Plastic Optical Fiber Coated with Hydrogel Film. Opt. Fiber Technol. 2021, 66, 102659. [Google Scholar] [CrossRef]
  4. Zhang, Y.; Yang, H.; Gao, W. Research Progress of Optical Dissolved Oxygen Sensors: A Review. IEEE Sens. J. 2024, 24, 29564–29574. [Google Scholar] [CrossRef]
  5. Xiong, X.; Xiao, D.; Choi, M.M.F. Dissolved Oxygen Sensor Based on Fluorescence Quenching of Oxygen-Sensitive Ruthenium Complex Immobilized on Silica–Ni–P Composite Coating. Sens. Actuators B-Chem. 2006, 117, 172–176. [Google Scholar] [CrossRef]
  6. Kneas, K.A.; Xu, W.; Demas, J.N. Luminescence-Based Oxygen Sensors: ReL(CO)3Cl and ReL(CO)3CN Complexes on Copolymer Supports. J. Fluoresc. 1998, 8, 295–300. [Google Scholar] [CrossRef]
  7. Mak, C.S.K.; Pentlehner, D.; Stich, M. Exceptional Oxygen Sensing Capabilities and Triplet State Properties of Ir(ppy-NPh2)3. Chem. Mater. 2009, 21, 2173–2175. [Google Scholar] [CrossRef]
  8. Qi, X.L.; Liu, S.Y.; Lin, R.B. Phosphorescence Doping in a Flexible Ultramicroporous Framework for High and Tunable Oxygen Sensing Efficiency. Chem. Commun. 2013, 49, 6864–6866. [Google Scholar] [CrossRef]
  9. Xu, W.; Kneas, K.A.; Demas, J.N. Oxygen Sensors Based on Luminescence Quenching of Metal Complexes: Osmium Complexes Suitable for Laser Diode Excitation. Anal. Chem. 1996, 68, 2605–2609. [Google Scholar] [CrossRef]
  10. Lan, G.; Ni, K.; You, E. Multifunctional Nanoscale Metal–Organic Layers for Ratiometric pH and Oxygen Sensing. J. Am. Chem. Soc. 2019, 141, 18964–18969. [Google Scholar] [CrossRef]
  11. Xu, R.; Wang, Y.; Duan, X. Nanoscale Metal–Organic Frameworks for Ratiometric Oxygen Sensing in Live Cells. J. Am. Chem. Soc. 2016, 138, 2158–2161. [Google Scholar] [CrossRef]
  12. Chu, C.S.; Lo, Y.L. High-Performance Fiber-Optic Oxygen Sensors Based on Fluorinated Xerogels Doped with Pt(II) Complexes. Sens. Actuators B-Chem. 2007, 124, 376–382. [Google Scholar] [CrossRef]
  13. Huo, C.; Zhang, H.; Zhang, H. Synthesis and Assembly with Mesoporous Silica MCM-48 of Platinum(II) Porphyrin Complexes Bearing Carbazyl Groups:  Spectroscopic and Oxygen Sensing Properties. Inorg. Chem. 2006, 45, 4735–4742. [Google Scholar] [CrossRef]
  14. Zhang, K.Y.; Gao, P.; Sun, G.; Zhang, T.; Li, X.; Liu, S.; Zhao, Q.; Lo, K.K.-W.; Huang, W. Dual-Phosphorescent Iridium(III) Complexes Extending Oxygen Sensing from Hypoxia to Hyperoxia. J. Am. Chem. Soc. 2018, 140, 7827–7834. [Google Scholar] [CrossRef]
  15. Wolfbeis, O.S. Luminescent Sensing and Imaging of Oxygen: Fierce Competition to the Clark Electrode. Bioessays 2015, 37, 921–928. [Google Scholar] [CrossRef]
  16. Lorenzon, M.; Pinchetti, V.; Bruni, F. Single-Particle Ratiometric Pressure Sensing Based on “Double-Sensor” Colloidal Nanocrystals. Nano Lett. 2017, 17, 1071–1081. [Google Scholar] [CrossRef]
  17. Hu, Z.; Liu, S.; Qin, H. Oxygen Stabilizes Photoluminescence of CdSe/CdS Core/Shell Quantum Dots Via Deionization. J. Am. Chem. Soc. 2020, 142, 4254–4264. [Google Scholar] [CrossRef]
  18. Basu, B.J.; Anandan, C.; Rajam, K.S. Study of the Mechanism of Degradation of Pyrene-Based Pressure Sensitive Paints. Sens. Actuators B-Chem. 2003, 94, 257–266. [Google Scholar] [CrossRef]
  19. Basu, B.J.; Thirumurugan, A.; Dinesh, A.R.; Anandan, C.; Rajam, K.S. Optical Oxygen Sensor Coating Based on the Fluorescence Quenching of a New Pyrene Derivative. Sens. Actuators B-Chem. 2005, 104, 15–22. [Google Scholar] [CrossRef]
  20. Yan, X.; Peng, H.; Xiang, Y.; Wang, J.; Yu, L.; Tao, Y.; Li, H.H.; Huang, W.; Chen, R.F. Recent Advances on Host-Guest Material Systems toward Organic Room Temperature Phosphorescence. Small 2022, 18, 2104073. [Google Scholar] [CrossRef]
  21. Feng, G.X.; Zhang, G.Q.; Ding, D. Design of Superior Phototheranostic Agents Guided by Jablonski Diagrams. Chem. Soc. Rev. 2020, 49, 8179–8234. [Google Scholar] [CrossRef]
  22. Keruckiene, R.; Kusas, N.; Dvylys, L.; Skuodis, E.; Matulis, V.E.; Ragoyja, E.G.; Lyakhov, D.A.; Klymenko, I.; Grazulevicius, J.V. Derivatives of Bis(Trifluoromethyl)Biphenyl and Various Donor Noieties Exhibiting Dual State Emission. J. Lumin. 2022, 241, 118502. [Google Scholar] [CrossRef]
  23. Keruckiene, R.; Volyniuk, D.; Leitonas, K.; Grazulevicius, J.V. Dual Emission Fluorescence/Room-Temperature Phosphorescence of Phenothiazine and Benzotrifluoride Derivatives and Its Application for Optical Sensing of Oxygen. Sens. Actuators B-Chem. 2020, 321, 128533. [Google Scholar] [CrossRef]
  24. Liao, Q.Y.; Gao, Q.H.; Wang, J.Q.; Gong, Y.B.; Peng, Q.; Tian, Y.; Fan, Y.Y.; Guo, H.J.; Ding, D.; Li, Q.Q.; et al. 9,9-Dimethylxanthene Derivatives with Room-Temperature Phosphorescence: Substituent Effects and Emissive Properties. Angew. Chem. Int. Ed. 2020, 59, 9946–9951. [Google Scholar] [CrossRef]
  25. Cai, S.Z.; Shi, H.; Tian, D.; Ma, H.L.; Cheng, Z.; Wu, Q.; Gu, M.X.; Huang, L.; An, Z.F.; Peng, Q.; et al. Enhancing Ultralong Organic Phosphorescence by Effective π-Type Halogen Bonding. Adv. Funct. Mater. 2018, 28, 1705045. [Google Scholar] [CrossRef]
  26. Skhirtladze, L.; Leitonas, K.; Bucinskas, A.; Woon, K.L.; Volyniuk, D.; Keruckiene, R.; Mahmoudi, M.; Lapkowski, M.; Ariffin, A.; Grazulevicius, J. Turn on of Room Temperature Phosphorescence of Donor-Acceptor-Donor Type Compounds via Transformation of Excited States by Rigid Hosts for Oxygen Sensing. Sens. Actuators B-Chem. 2023, 380, 133295. [Google Scholar] [CrossRef]
  27. Bolton, O.; Lee, K.; Kim, H.J.; Lin, K.Y.; Kim, J. Activating Efficient Phosphorescence from Purely Organic Materials by Crystal Design. Nat. Chem. 2011, 3, 205–210. [Google Scholar] [CrossRef]
  28. Zhong, W.; Urayama, P.; Mycek, M.A. Imaging Fluorescence Lifetime Modulation of a Ruthenium-Based Dye in Living Cells: The Potential for Oxygen Sensing. J. Phys. D Appl. Phys. 2003, 36, 1689–1695. [Google Scholar] [CrossRef]
  29. Dobrucki, J.W. Interaction of Oxygen-Sensitive Luminescent Probes Ru(Phen)3 and Ru(Bipy)3 with Animal and Plant Cells in Vitro: Mechanism of Phototoxicity and Conditions for Non-Invasive Oxygen Measurements. J. Photochem. Photobiol. B 2001, 65, 136–144. [Google Scholar] [CrossRef]
  30. DiMarco, G.; Lanza, M.; Pieruccini, M.; Campagna, S. A Luminescent Iridium(III) Cyclometallated Complex Immobilized in a Polymeric Matrix as a Solid-State Oxygen Sensor. Adv. Mater. 1996, 8, 576–580. [Google Scholar] [CrossRef]
  31. Zhou, C.; Zhao, W.X.; You, F.T.; Geng, Z.X.; Peng, H.S. Highly Stable and Luminescent Oxygen Nanosensor Based on Ruthenium-Containing Metallopolymer for Real-Time Imaging of Intracellular Oxygenation. ACS Sens. 2019, 4, 984–991. [Google Scholar] [CrossRef]
  32. Luo, J.D.; Xie, Z.L.; Lam, J.W.Y.; Cheng, L.; Chen, H.Y.; Qiu, C.F.; Kwok, H.S.; Zhan, X.W.; Liu, Y.Q.; Zhu, D.B.; et al. Aggregation-Induced Emission of 1-Methyl-1,2,3,4,5-Pentaphenylsilole. Chem. Commun. 2001, 18, 1740–1741. [Google Scholar] [CrossRef]
  33. Xing, Y.; Wang, L.; Liu, C.; Jin, X. Effects of Fluorine and Phenyl Substituents on Oxygen Sensitivity and Photostability of Cyclometalated Platinum(II) Complexes. Sens. Actuators B-Chem. 2020, 304, 123378. [Google Scholar] [CrossRef]
  34. Ma, H.L.; Shen, K.; Wu, Y.P.; Xia, F.; Yu, F.L.; Sun, Z.Y.; Qian, C.Y.; Peng, Q.M.; Zhang, H.H.; You, C.; et al. High-Color-Purity and Efficient Solution-Processable Blue Phosphorescent Light-Emitting Diodes with Pt(II) Complexes Featuring 3ππ* Transitions. Mater. Chem. Front. 2019, 3, 2448–2454. [Google Scholar] [CrossRef]
  35. Liu, C.; Song, X.L.; Rao, X.F.; Xing, Y.; Wang, Z.G.; Zhao, J.Z.; Qiu, J.S. Novel Triphenylamine-Based Cyclometalated Platinum(II) Complexes for Efficient Luminescent Oxygen Sensing. Dye. Pigment. 2014, 101, 85–92. [Google Scholar] [CrossRef]
  36. Di, L.; Xia, Z.Q.; Wang, H.H.; Xing, Y.; Yang, Z.X. Switchable and Adjustable Aie Activity of Pt(II) Complexes Achieving Swift-Responding and Highly Sensitive Oxygen Sensing. Sens. Actuators B-Chem. 2021, 326, 128987. [Google Scholar] [CrossRef]
  37. Qi, J.; Li, J.; Liu, R.H.; Li, Q.; Zhang, H.K.; Lam, J.W.Y.; Kwok, R.T.K.; Liu, D.B.; Ding, D.; Tang, B.Z. Boosting Fluorescence-Photoacoustic-Raman Properties in One Fluorophore for Precise Cancer Surgery. Chem 2019, 5, 2657–2677. [Google Scholar] [CrossRef]
  38. Zhao, K.Y.; Mao, H.T.; Wen, L.L.; Shan, G.G.; Fu, Q.; Sun, H.Z.; Su, Z.M. A Simple Strategy to Achieve Remarkable Mechanochromism of Cationic Ir(III) Phosphors through Subtle Ligand Modification. J. Mater. Chem. C 2018, 6, 11686–11693. [Google Scholar] [CrossRef]
  39. Che, W.L.; Li, G.F.; Liu, X.M.; Shao, K.Z.; Zhu, D.X.; Su, Z.M.; Bryce, M.R. Selective Sensing of 2,4,6-Trinitrophenol (TNP) in Aqueous Media with “Aggregation-Induced Emission Enhancement” (AIEE)-Active Iridium(III) Complexes. Chem. Commun. 2018, 54, 1730–1733. [Google Scholar] [CrossRef]
  40. Amao, Y.; Okura, I. Optical Oxygen Sensor Devices Using Metalloporphyrins. J. Porphyr. Phthalocyanines 2009, 13, 1111–1122. [Google Scholar] [CrossRef]
  41. Wang, X.D.; Chen, X.; Xie, Z.X. Reversible Optical Sensor Strip for Oxygen. Angew. Chem. Int. Ed. 2008, 47, 7450–7453. [Google Scholar] [CrossRef]
  42. Zach, P.W.; Freunberger, S.A.; Klimant, I.; Borisov, S.M. Electron-Deficient near-Infrared Pt(II) and Pd(II) Benzoporphyrins with Dual Phosphorescence and Unusually Efficient Thermally Activated Delayed Fluorescence: First Demonstration of Simultaneous Oxygen and Temperature Sensing with a Single Emitter. ACS Appl. Mater. Interfaces 2017, 9, 38008–38023. [Google Scholar] [CrossRef] [PubMed]
  43. Penso, C.; Rocha, J.L.; Martins, M. PtOEP–PDMS-Based Optical Oxygen Sensor. Sensors 2021, 21, 5645. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, H.; Zhang, Z. Ratiometric Sensor Based on PtOEP-C6/Poly (St-TFEMA) Film for Automatic Dissolved Oxygen Content Detection. Sensors 2020, 20, 6175. [Google Scholar] [CrossRef] [PubMed]
  45. Wu, W.X.; Su, J.; Tang, C.C. CybLuc: An Effective Aminoluciferin Derivative for Deep Bioluminescence Imaging. Anal. Chem. 2017, 89, 4808–4816. [Google Scholar] [CrossRef]
  46. Xia, T.T.; Cheng, X.T.; Zhan, W.J. Activity-Based Luciferase-Luciferin Bioluminescence System for Bioimaging Applications. Anal. Sens. 2021, 1, 138–147. [Google Scholar] [CrossRef]
  47. Yuan, Z.H.; Jiang, Q.C.; Liang, G.L. Inspired by Nature: Bioluminescent Systems for Bioimaging Applications. Talanta 2025, 281, 126821. [Google Scholar] [CrossRef]
  48. Jang, Y.; Shapiro, A.; Isarov, M. Interface Control of Electronic and Optical Properties in IV-VI and II-VI Core/Shell Colloidal Quantum Dots: A Review. Chem. Commun. 2017, 53, 1002–1024. [Google Scholar] [CrossRef]
  49. Bruchez, M., Jr.; Moronne, M.; Gin, P.; Weiss, S.; Alivisatos, A.P. Semiconductor Nanocrystals as Fluorescent Biological Labels. Science 1998, 281, 2013–2016. [Google Scholar] [CrossRef]
  50. Chan, W.C.W.; Nie, S. Quantum Dot Bioconjugates for Ultrasensitive Nonisotopic Detection. Science 1998, 281, 2016–2018. [Google Scholar] [CrossRef]
  51. Freeman, R.; Willner, I. Optical Molecular Sensing with Semiconductor Quantum Dots (QDs). Chem. Soc. Rev. 2012, 41, 4067–4085. [Google Scholar] [CrossRef] [PubMed]
  52. Wu, P.; Zhao, T.; Wang, S. Semicondutor Quantum Dots-Based Metal Ion Probes. Nanoscale 2014, 6, 43–64. [Google Scholar] [CrossRef] [PubMed]
  53. Zhou, J.; Yang, Y.; Zhang, C. Toward Biocompatible Semiconductor Quantum Dots: From Biosynthesis and Bioconjugation to Biomedical Application. Chem. Rev. 2015, 115, 11669–11717. [Google Scholar] [CrossRef] [PubMed]
  54. Koren, K.; Hutter, L.; Enko, B. Tuning the Dynamic Range and Sensitivity of Optical Oxygen-Sensors by Employing Differently Substituted Polystyrene-Derivatives. Sens. Actuators B-Chem. 2013, 176, 344–350. [Google Scholar] [CrossRef]
  55. Li, H.Y.; Zhao, S.N.; Zang, S.Q. Functional Metal–Organic Frameworks as Effective Sensors of Gases and Volatile Compounds. Chem. Soc. Rev. 2020, 49, 6364–6401. [Google Scholar] [CrossRef]
  56. McGee, K.A.; Veltkamp, D.J.; Marquardt, B.J. Porous Crystalline Ruthenium Complexes Are Oxygen Sensors. J. Am. Chem. Soc. 2007, 129, 15092–15093. [Google Scholar] [CrossRef]
  57. McGee, K.A.; Mann, K.R. Inefficient Crystal Packing in Chiral [Ru(phen)3](PF6)2 Enables Oxygen Molecule Quenching of the Solid-State MLCT Emission. J. Am. Chem. Soc. 2009, 131, 1896–1902. [Google Scholar] [CrossRef]
  58. Wang, X.; Veerappan, V.; Cheng, C. Free Solution Hydrodynamic Separation of DNA Fragments from 75 to 106,000 Base Pairs in A Single Run. J. Am. Chem. Soc. 2010, 132, 40–41. [Google Scholar] [CrossRef]
  59. Lorenzon, M.; Sortino, L.; Akkerman, Q. Role of Nonradiative Defects and Environmental Oxygen on Exciton Recombination Processes in CsPbBr3 Perovskite Nanocrystals. Nano Lett. 2017, 17, 3844–3853. [Google Scholar] [CrossRef]
  60. Roda, C.; Abdelhady, A.L.; Shamsi, J. O2 as a Molecular Probe for Nonradiative Surface Defects in CsPbBr3 Perovskite Nanostructures and Single Crystals. Nanoscale 2019, 11, 7613–7623. [Google Scholar] [CrossRef]
  61. Stoeckel, M.A.; Gobbi, M.; Bonacchi, S. Reversible, Fast, and Wide-Range Oxygen Sensor Based on Nanostructured Organometal Halide Perovskite. Adv. Mater. 2017, 29, 1702469–1702475. [Google Scholar] [CrossRef] [PubMed]
  62. Meggiolaro, D.; Mosconi, E.; De Angelis, F. Mechanism of Reversible Trap Passivation by Molecular Oxygen in Lead-Halide Perovskites. ACS Energy Lett. 2017, 2, 2794–2798. [Google Scholar] [CrossRef]
  63. Liu, L.; Deng, L.; Huang, S. Photodegradation of Organometal Hybrid Perovskite Nanocrystals: Clarifying the Role of Oxygen by Single-Dot Photoluminescence. J. Phys. Chem. Lett. 2019, 10, 864–869. [Google Scholar] [CrossRef] [PubMed]
  64. Xia, Y.S.; Zhang, T.L.; Diao, X.L.; Zhu, C.Q. Measurable Emission Color Change: Size-Dependent Reversible Fluorescence Quenching of Cdte Quantum Dots by Molecular Oxygen. Chem. Lett. 2007, 36, 242–243. [Google Scholar] [CrossRef]
  65. Li, J.; Wang, H.; Li, D. Self-Trapped Excitons in Two-Dimensional Perovskites. Front. Optoelectron. 2020, 13, 225–234. [Google Scholar] [CrossRef]
  66. Hu, T.; Smith, M.D.; Dohner, E.R. Mechanism for Broadband White-Light Emission from Two-Dimensional (110) Hybrid Perovskites. J. Phys. Chem. Lett. 2016, 7, 2258–2263. [Google Scholar] [CrossRef]
  67. Dohner, E.R.; Hoke, E.T.; Karunadasa, H.I. Self-Assembly of Broadband White-Light Emitters. J. Am. Chem. Soc. 2014, 136, 1718–1721. [Google Scholar] [CrossRef]
  68. Dohner, E.R.; Jaffe, A.; Bradshaw, L.R. Intrinsic White-Light Emission from Layered Hybrid Perovskites. J. Am. Chem. Soc. 2014, 136, 13154–13157. [Google Scholar] [CrossRef]
  69. Hazarika, A.; Pandey, A.; Sarma, D.D. Rainbow Emission from an Atomic Transition in Doped Quantum Dots. J. Phys. Chem. Lett. 2014, 5, 2208–2213. [Google Scholar] [CrossRef]
  70. Pu, C.; Ma, J.; Qin, H. Doped Semiconductor-Nanocrystal Emitters with Optimal Photoluminescence Decay Dynamics in Microsecond to Millisecond Range: Synthesis and Applications. ACS Cent. Sci. 2016, 2, 32–39. [Google Scholar] [CrossRef]
  71. Liu, G.; Qiu, C.; Tian, B. Influence of the Organic Chain on the Optical Properties of Two-Dimensional Organic-Inorganic Hybrid Lead Iodide Perovskites. ACS Appl. Electron. Mater. 2019, 1, 2253–2259. [Google Scholar] [CrossRef]
  72. Rossi, D.; Parobek, D.; Dong, Y. Dynamics of Exciton-to-Mn Energy Transfer in Mn-Doped CsPbCl3 Perovskite Nanocrystals. J. Phys. Chem. C 2017, 121, 17143–17149. [Google Scholar] [CrossRef]
  73. Chen, Y.; Liu, Y.; Hong, M. Cation-Doping Matters in Caesium Lead Halide Perovskite Nanocrystals: From Physicochemical Fundamentals to Optoelectronic Applications. Nanoscale 2020, 12, 12228–12248. [Google Scholar] [CrossRef]
  74. Yuan, X.; Ji, S.; De Siena, M.C. Photoluminescence Temperature Dependence, Dynamics, and Quantum Efficiencies in Mn2+-Doped CsPbCl3 Perovskite Nanocrystals with Varied Dopant Concentration. Chem. Mater. 2017, 29, 8003–8011. [Google Scholar] [CrossRef]
  75. Wei, Q.; Li, M.; Zhang, Z. Efficient Recycling of Trapped Energies for Dual-Emission in Mn-Doped Perovskite Nanocrystals. Nano Energy 2018, 51, 704–710. [Google Scholar] [CrossRef]
  76. Parobek, D.; Roman, B.J.; Dong, Y. Exciton-to-Dopant Energy Transfer in Mn-Doped Cesium Lead Halide Perovskite Nanocrystals. Nano Lett. 2016, 16, 7376–7380. [Google Scholar] [CrossRef]
  77. Liu, H.; Wu, Z.; Shao, J.; Yao, D.; Gao, H.; Liu, Y.; Yu, W.; Zhang, H.; Yang, B. CsPbxMn1−xCl3 Perovskite Quantum Dots with High Mn Substitution Ratio. ACS Nano 2017, 11, 2239–2247. [Google Scholar] [CrossRef]
  78. Labiadh, H.; Sellami, B.; Khazri, A. Optical Properties and Toxicity of Undoped and Mn-Doped ZnS Semiconductor Nanoparticles Synthesized Through the Aqueous Route. Opt. Mater. 2017, 64, 179–186. [Google Scholar] [CrossRef]
  79. Wu, P.; Yan, X.P. Doped Quantum Dots for Chemo/Biosensing and Bioimaging. Chem. Soc. Rev. 2013, 42, 5489–5521. [Google Scholar] [CrossRef]
  80. Lu, X.; Zhang, J.; Xie, Y.N. Ratiometric Phosphorescent Probe for Thallium in Serum, Water, and Oil Samples Cased on Long-Lived, Spectrally Resolved, Mn-Doped ZnSe Quantum Dots and Carbon Dots. Anal. Chem. 2018, 90, 2939–2945. [Google Scholar] [CrossRef]
  81. Diaz-Diestra, D.; Thapa, B.; Beltran-Huarac, J. L-Cysteine Capped ZnS:Mn Quantum Dots for Room-Temperature Detection of Dopamine with High Sensitivity and Selectivity. Biosens. Bioelectron. 2017, 87, 693–700. [Google Scholar] [CrossRef] [PubMed]
  82. Gong, Y.; Fan, Z. Melamine-Modulated Mercaptopropionic Acid-Capped Manganese Doped Zinc Sulfide Quantum Dots as a Room-Temperature Phosphorescence Sensor for Detecting Clenbuterol in Biological Fluids. Sens. Actuators B-Chem. 2014, 202, 638–644. [Google Scholar] [CrossRef]
  83. Tang, D.; Zhang, J.; Zhou, R. Phosphorescent Inner Filter Effect-Based Sensing of Xanthine Oxidase and its Inhibitors with Mn-Doped ZnS Quantum Dots. Nanoscale 2018, 10, 8477–8482. [Google Scholar] [CrossRef] [PubMed]
  84. Zhang, K.; Yu, T.; Liu, F. Selective Fluorescence Turn-On and Ratiometric Detection of Organophosphate Using Dual-Emitting Mn-Doped ZnS Nanocrystal Probe. Anal. Chem. 2014, 86, 11727–11733. [Google Scholar] [CrossRef]
  85. Zhang, C.; Zhang, K.; Zhao, T. Selective Phosphorescence Sensing of Pesticide Based on the Inhibition of Silver(I) Quenched ZnS:Mn2+ Quantum Dots. Sens. Actuators B-Chem. 2017, 252, 1083–1088. [Google Scholar] [CrossRef]
  86. He, H.; Li, C.; Tian, Y. Phosphorescent Differential Sensing of Physiological Phosphates with Lanthanide Ions-Modified Mn-Doped ZnCdS Quantum Dots. Anal. Chem. 2016, 88, 5892–5897. [Google Scholar] [CrossRef]
  87. Zhang, J.; Tang, D.; Yao, Y. Aggregation-Induced Phosphorescence Enhancement of Mn-Doped ZnS Quantum Dots: The Role of Dot-to-Dot Distance. Nanoscale 2018, 10, 9236–9244. [Google Scholar] [CrossRef]
  88. Liu, W.; Lin, Q.; Li, H.; Wu, K.; Robel, I.; Pietryga, J.M.; Klimov, V.I. Mn2+-Doped Lead Halide Perovskite Nanocrystals with Dual-Color Emission Controlled by Halide Content. J. Am. Chem. Soc. 2016, 138, 14954–14961. [Google Scholar] [CrossRef]
  89. De, A.; Mondal, N.; Samanta, A. Luminescence Tuning and Exciton Dynamics of Mn-Doped CsPbCl3 Nanocrystals. Nanoscale 2017, 9, 16722–16727. [Google Scholar] [CrossRef]
  90. Li, Z.-J.; Hofman, E.; Davis, A.H.; Khammang, A.; Wright, J.T.; Dzikovski, B.; Meulenberg, R.W.; Zheng, W. Complete Dopant Substitution by Spinodal Decomposition in Mn-Doped Two-Dimensional CsPbCl3 Nanoplatelets. Chem. Mater. 2018, 30, 6400–6409. [Google Scholar] [CrossRef]
  91. Pradhan, N. Red-Tuned Mn d-d Emission in Doped Semiconductor Nanocrystals. ChemPhysChem 2016, 17, 1087–1094. [Google Scholar] [CrossRef] [PubMed]
  92. Lin, F.; Li, F.; Lai, Z. MnII-Doped Cesium Lead Chloride Perovskite Nanocrystals: Demonstration of Oxygen Sensing Capability Based on Luminescent Dopants and Host-Dopant Energy Transfer. ACS Appl. Mater. Interfaces 2018, 10, 23335–23343. [Google Scholar] [CrossRef] [PubMed]
  93. Li, D.; Li, X.; Zhao, T. Ultraefficient Singlet Oxygen Generation from Manganese-Doped Cesium Lead Chloride Perovskite Quantum Dots. ACS Nano 2020, 14, 12596–12604. [Google Scholar] [CrossRef] [PubMed]
  94. Lin, F.Y.; Lai, Z.W.; Zhang, L.C.; Huang, Y.P.; Li, F.M.; Chen, P.Y.; Wang, Y.R.; Chen, X. Fluorometric Sensing of Oxygen Using Manganese(II)-Doped Zinc Sulfide Nanocrystals. Microchim. Acta 2020, 187, 66–74. [Google Scholar] [CrossRef]
  95. Zhou, Y.; Chen, J.; Bakr, O.M. Metal-Doped Lead Halide Perovskites: Synthesis, Properties, and Optoelectronic Applications. Chem. Mater. 2018, 30, 6589–6613. [Google Scholar] [CrossRef]
  96. Jiang, T.; Ma, W.; Zhang, H. Highly Efficient and Tunable Emission of Lead-Free Manganese Halides Toward White Light-Emitting Diode and X-Ray Scintillation Applications. Adv. Funct. Mater. 2021, 31, 2009973–2009981. [Google Scholar] [CrossRef]
  97. Xu, K.; Meijerink, A. Tuning Exciton-Mn2+ Energy Transfer in Mixed Halide Perovskite Nanocrystals. Chem. Mater. 2018, 30, 5346–5352. [Google Scholar] [CrossRef]
  98. Bakthavatsalam, R.; Biswas, A.; Chakali, M. Temperature-Dependent Photoluminescence and Energy-Transfer Dynamics in Mn2+-Doped (C4H9NH3)2PbBr4 Two-Dimensional 2D Layered Perovskite. J. Phys. Chem. C 2019, 123, 4739–4748. [Google Scholar] [CrossRef]
  99. Sun, Q.; Wang, S.; Zhao, C. Excitation-Dependent Emission Color Tuning from an Individual Mn-Doped Perovskite Microcrystal. J. Am. Chem. Soc. 2019, 141, 20089–20096. [Google Scholar] [CrossRef]
  100. Pinchetti, V.; Anand, A.; Akkerman, Q.A. Trap-Mediated Two-Step Sensitization of Manganese Dopants in Perovskite Nanocrystals. ACS Energy Lett. 2019, 4, 85–93. [Google Scholar] [CrossRef]
  101. Ricciarelli, D.; Meggiolaro, D.; Belanzoni, P. Energy vs Charge Transfer in Manganese-Doped Lead Halide Perovskites. ACS Energy Lett. 2021, 6, 1869–1878. [Google Scholar] [CrossRef] [PubMed]
  102. Brovelli, S.; Galland, C.; Viswanatha, R. Tuning Radiative Recombination in Cu-Doped Nanocrystals Via Electrochemical Control of Surface Trapping. Nano Lett. 2012, 12, 4372–4379. [Google Scholar] [CrossRef] [PubMed]
  103. Srivastava, B.B.; Jana, S.; Pradhan, N. Doping Cu in Semiconductor Nanocrystals: Some Old and Some New Physical Insights. J. Am. Chem. Soc. 2011, 133, 1007–1015. [Google Scholar] [CrossRef] [PubMed]
  104. Pradhan, N.; Sarma, D.D. Advances in Light-Emitting Doped Semiconductor Nanocrystals. J. Phys. Chem. Lett. 2011, 2, 2818–2826. [Google Scholar] [CrossRef]
  105. Pradhan, N.; Goorskey, D.; Thessing, J. An Alternative of CdSe Nanocrystal Emitters: Pure and Tunable Impurity Emissions in ZnSe Nanocrystals. J. Am. Chem. Soc. 2005, 127, 17586–17587. [Google Scholar] [CrossRef]
  106. Xie, R.; Peng, X. Synthesis of Cu-Doped InP Nanocrystals (d-dots) with ZnSe Diffusion Barrier as Efficient and Color-Tunable NIR Emitters. J. Am. Chem. Soc. 2009, 131, 10645–10651. [Google Scholar] [CrossRef]
  107. Sarkar, S.; Karan, N.S.; Pradhan, N. Ultrasmall Color-Tunable Copper-Doped Ternary Semiconductor Nanocrystal Emitters. Angew. Chem. Int. Ed. 2011, 50, 6065–6069. [Google Scholar] [CrossRef]
  108. Zhang, W.; Zhou, X.; Zhong, X. One-Pot Noninjection Synthesis of Cu-Doped ZnxCd1−xS Nanocrystals with Emission Color Tunable Over Entire Visible Spectrum. Inorg. Chem. 2012, 51, 3579–3587. [Google Scholar] [CrossRef]
  109. Sheng, X.; Liu, Y.; Wang, Y. Cesium Lead Halide Perovskite Quantum Dots as a Photoluminescence Probe for Metal Ions. Adv. Mater. 2017, 29, 1700150. [Google Scholar] [CrossRef]
  110. Liu, Y.; Tang, X.; Zhu, T. All-Inorganic CsPbBr3 Perovskite Quantum Dots as a Photoluminescent Probe for Ultrasensitive Cu2+ Detection. J. Mater. Chem. C 2018, 6, 4793–4799. [Google Scholar] [CrossRef]
  111. Zhang, L.; Yue, S.; Li, B. A Series of [Cu(N–N)(P–P)]BF4 Complexes: Luminescence Quenching Caused by Electron-Configuration Transformation in Excited State. Inorg. Chim. Acta 2012, 384, 225–232. [Google Scholar] [CrossRef]
  112. Shi, L.; Li, B.; Yue, S. Synthesis, Photophysical and Oxygen-Sensing Properties of a Novel Bluish-Green Emission Cu(I) Complex. Sens. Actuators B-Chem. 2009, 137, 386–392. [Google Scholar] [CrossRef]
  113. Zhang, L.C.; Lin, F.Y.; Ye, M.; Tian, D.J.; Jin, J.W.; Huang, Y.P.; Jiang, Y.Q.; Wang, Y.R.; Chen, X. Luminescence Sensing of Oxygen Using Copper Iodide Hybrid Material. Sens. Actuators B-Chem. 2021, 346, 130566. [Google Scholar] [CrossRef]
  114. Lan, T.; Wang, W. Electrospinning Fibrous Films Doped with a Series of Luminescent Copper Complexes: Synthesis, Characterization and Oxygen Sensing Performance Comparison. Sens. Actuators B-Chem. 2018, 254, 81–92. [Google Scholar] [CrossRef]
  115. Huitorel, B.; El Moll, H.; Utrera-Melero, R. Evaluation of Ligands Effect on the Photophysical Properties of Copper Iodide Clusters. Inorg. Chem. 2018, 57, 4328–4339. [Google Scholar] [CrossRef]
  116. Xie, M.; Han, C.; Liang, Q.; Zhang, J.; Xie, G.; Xu, H. Highly Efficient Sky Blue Electroluminescence from Ligand-Activated Copper Iodide Clusters: Overcoming the Limitations of Cluster Light-Emitting Diodes. Sci. Adv. 2019, 5, eaav9857. [Google Scholar] [CrossRef]
  117. Yang, L.O.; Zhang, L.C.; Tian, D.J.; Ye, M.; Xi, C. Oxygen Sensing Behavior Modulation of Tetranuclear Copper Iodide Hybrid Materials Using Ligand Engineering. Sens. Actuators B-Chem. 2023, 393, 134310. [Google Scholar] [CrossRef]
  118. Yang, L.O.; Tian, D.J.; Liu, X.L.; Lin, F.Y.; Xi, C. Oxygen Sensing Performance Modulation Using Luminescent Ionic Copper Iodide Clusters Based on Mn(II) Crystal Field Intensity. Sens. Actuators B-Chem. 2024, 418, 136252. [Google Scholar] [CrossRef]
  119. Zhao, Y.M.; Geng, X.; Shi, X.X.; Guo, Y.; Sun, Y.; Qu, L.; Li, Z. A Fluorescence-Switchable Carbon Dot for the Reversible Turn-On Sensing of Molecular Oxygen. J. Mater. Chem. C 2021, 9, 4300–4306. [Google Scholar] [CrossRef]
  120. He, Z.; Wang, Y.N.; An, J.H. Splitting and Aggregation of Carbon Dots: Wavelength-Shifted and Ratiometric Fluorescence Sensing of Peroxynitrite. Anal. Chem. 2024, 96, 19047–19055. [Google Scholar] [CrossRef]
Figure 1. Chemical structures of common PAH-based oxygen-sensitive probes (OSPs) [1].
Figure 1. Chemical structures of common PAH-based oxygen-sensitive probes (OSPs) [1].
Biosensors 15 00132 g001
Figure 2. (a) Synthesis of 2,5-disubstituted-1,4-phenylene derivatives; (b) RTP spectra of 2PS-2FPh; (c) Stern-Volmer plots for 1% solid solution of 2PS-2FPh in Zeonex recorded at the different concentrations of oxygen in the atmosphere of the sample [26].
Figure 2. (a) Synthesis of 2,5-disubstituted-1,4-phenylene derivatives; (b) RTP spectra of 2PS-2FPh; (c) Stern-Volmer plots for 1% solid solution of 2PS-2FPh in Zeonex recorded at the different concentrations of oxygen in the atmosphere of the sample [26].
Biosensors 15 00132 g002

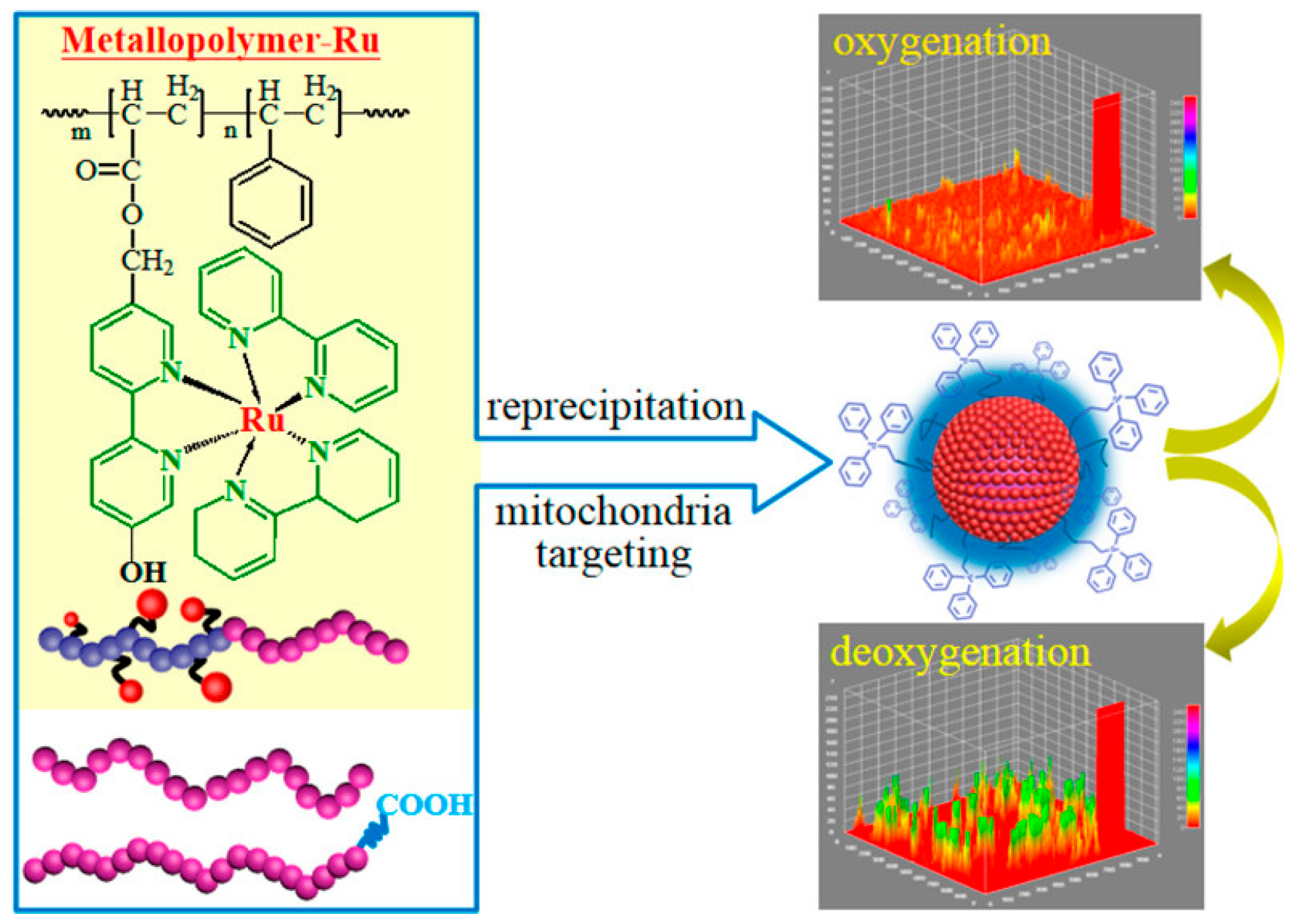

Figure 3. Schematic diagram of nano-oxygen sensor based on Ru-containing metallopolymer [31].
Figure 3. Schematic diagram of nano-oxygen sensor based on Ru-containing metallopolymer [31].
Biosensors 15 00132 g003

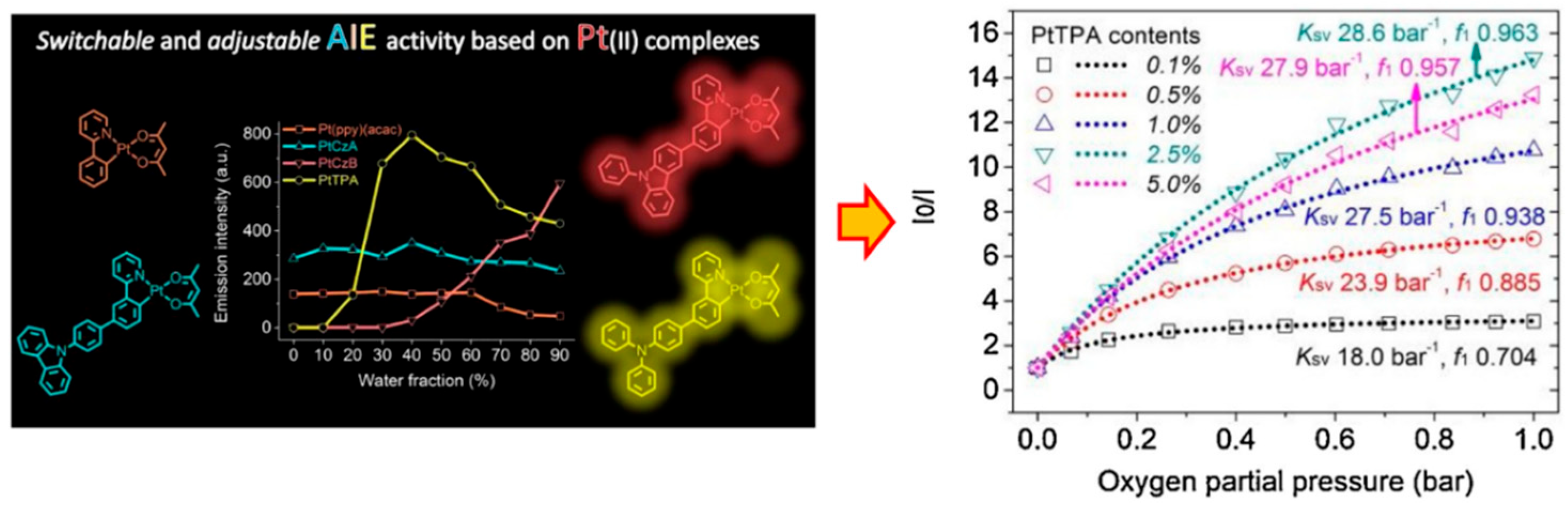

Figure 4. Oxygen sensing study based on Pt(II) complexes with adjustable AIE activity [36].
Figure 4. Oxygen sensing study based on Pt(II) complexes with adjustable AIE activity [36].
Biosensors 15 00132 g004
Figure 5. FL spectrum of [meso-tetrakis(pentafluorophenyl)-porphyrinato]platinum(II) (PtF20TPP) and its sensing responses towards various concentrations of oxygen [41].
Figure 5. FL spectrum of [meso-tetrakis(pentafluorophenyl)-porphyrinato]platinum(II) (PtF20TPP) and its sensing responses towards various concentrations of oxygen [41].
Biosensors 15 00132 g005
Figure 6. Oxygen and temperature dual sensing based on platinum (II) and palladium (II) benzoporphyrins containing alkylsulfone groups [42].
Figure 6. Oxygen and temperature dual sensing based on platinum (II) and palladium (II) benzoporphyrins containing alkylsulfone groups [42].
Biosensors 15 00132 g006

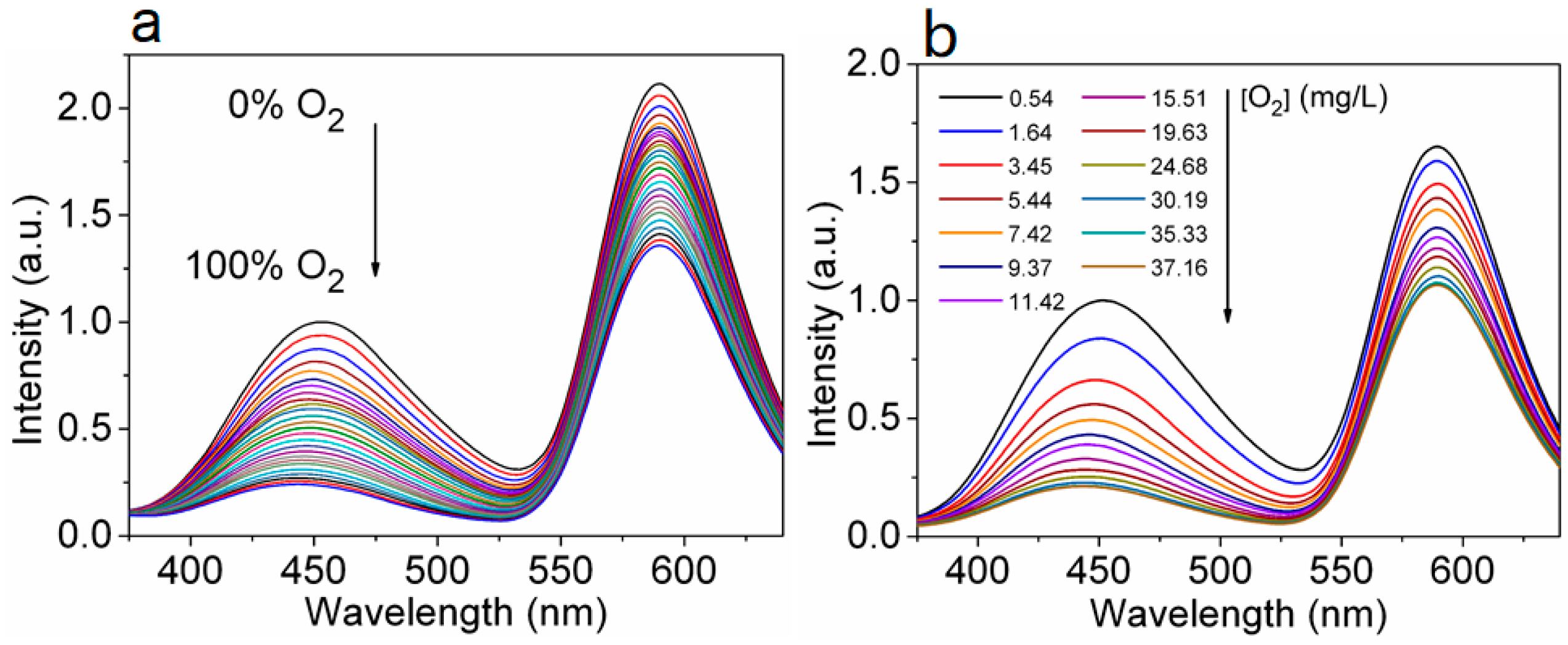

Figure 9. FL emission spectra of Mn:ZnS sensing film in (a) different O2 percentages and (b) different concentrations of dissolved oxygen. Excitation wavelength is 330 nm [94].
Figure 9. FL emission spectra of Mn:ZnS sensing film in (a) different O2 percentages and (b) different concentrations of dissolved oxygen. Excitation wavelength is 330 nm [94].
Biosensors 15 00132 g009

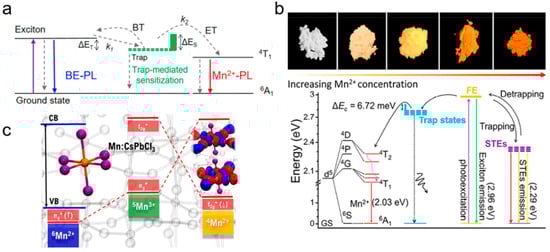

Figure 10. Mechanism diagrams of Mn2+ dopant emission based on (a,b) energy-transfer and (c) charge-transfer [101] pathways, where the asterisk represents the excited state.
Figure 10. Mechanism diagrams of Mn2+ dopant emission based on (a,b) energy-transfer and (c) charge-transfer [101] pathways, where the asterisk represents the excited state.
Biosensors 15 00132 g010

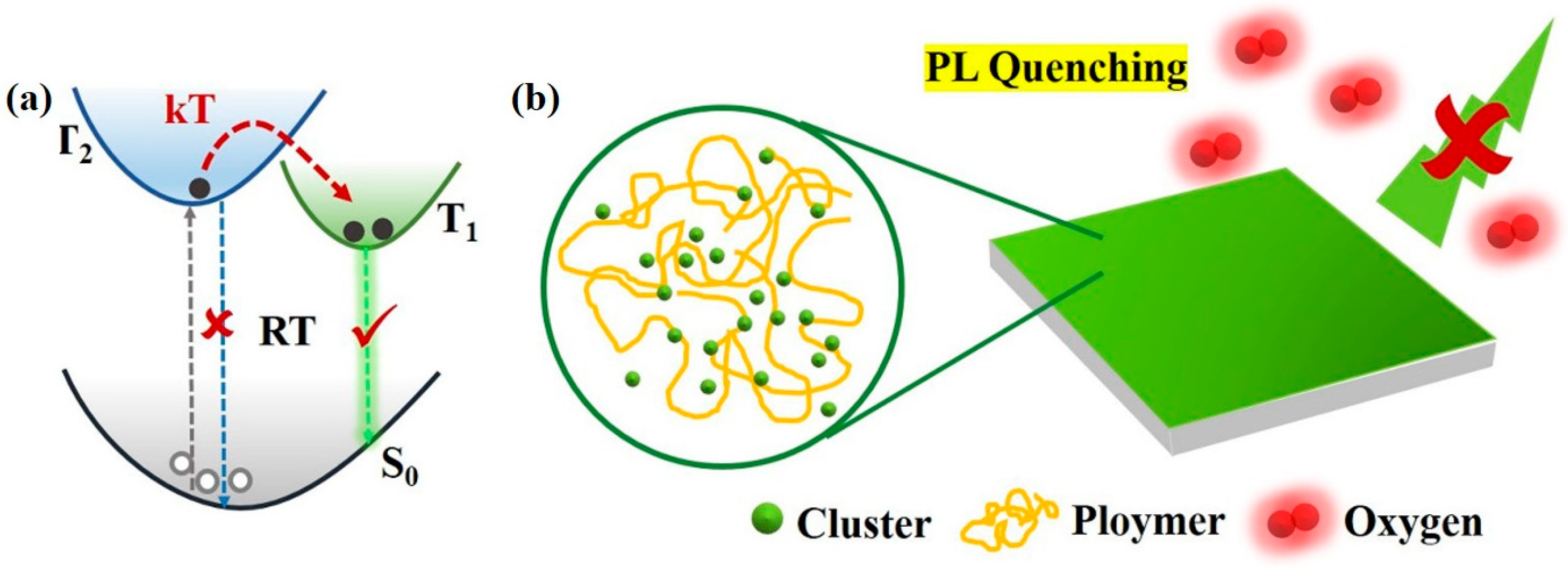

Figure 12. (a) FL pathway diagram of Cu4I4(PPh3)4; (b) sensing mechanism [113].
Figure 12. (a) FL pathway diagram of Cu4I4(PPh3)4; (b) sensing mechanism [113].
Biosensors 15 00132 g012

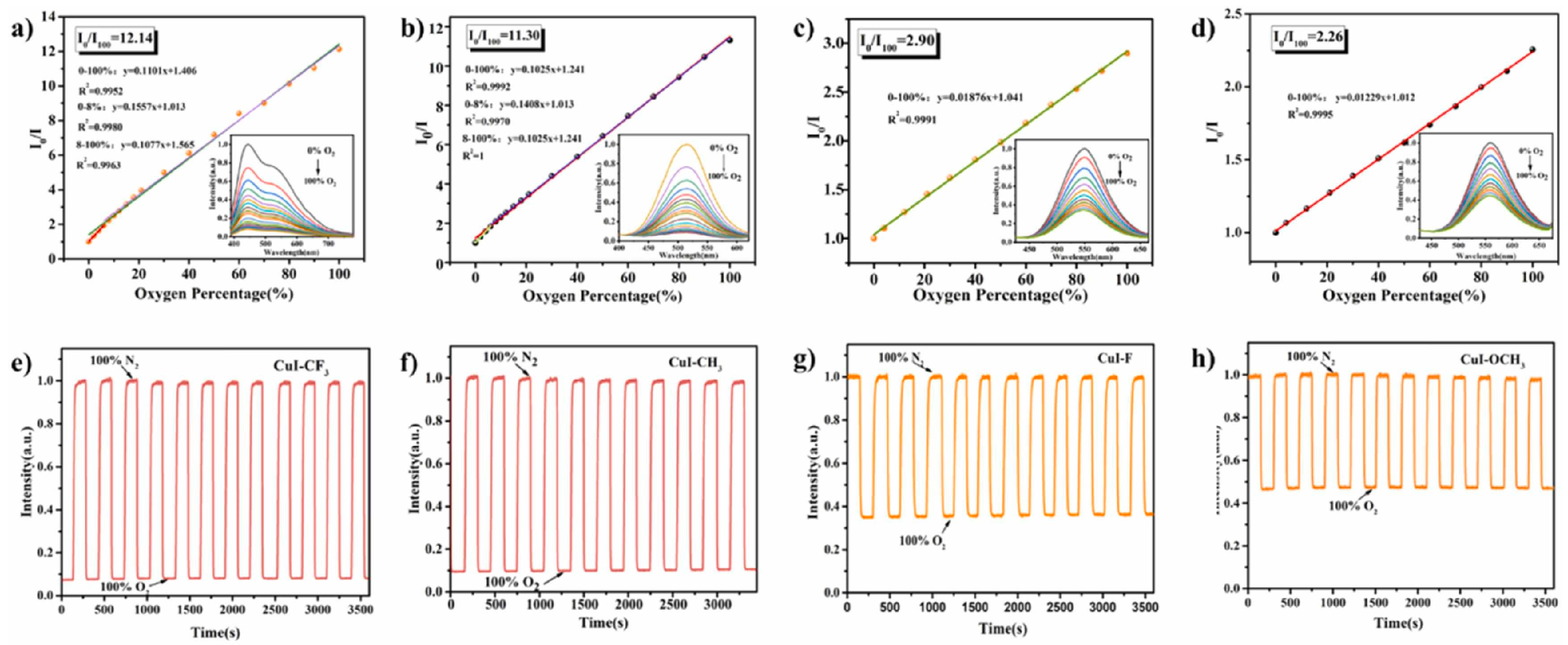

Figure 13. Stern–Volmer plots of different tetranuclear copper iodide hybrid materials towards oxygen sensing (inserted graph: the corresponding emission spectra): (a) CuI-CF3; (b) CuI-CH3; (c) CuI-F; (d) CuI-OCH3, the Stern–Volmer plot of CuI-CF3 was obtained by calculating the emission intensity at 443 nm. Cyclic curve of different tetranuclear copper iodide hybrid materials under alternating N2 and O2 atmosphere within one hour: (e) CuI-CF3; (f) CuI-CH3; (g) CuI-F; (h) CuI-OCH3 [117].
Figure 13. Stern–Volmer plots of different tetranuclear copper iodide hybrid materials towards oxygen sensing (inserted graph: the corresponding emission spectra): (a) CuI-CF3; (b) CuI-CH3; (c) CuI-F; (d) CuI-OCH3, the Stern–Volmer plot of CuI-CF3 was obtained by calculating the emission intensity at 443 nm. Cyclic curve of different tetranuclear copper iodide hybrid materials under alternating N2 and O2 atmosphere within one hour: (e) CuI-CF3; (f) CuI-CH3; (g) CuI-F; (h) CuI-OCH3 [117].
Biosensors 15 00132 g013
Table 2. Oxygen sensing of copper iodide hybrid materials.
Table 2. Oxygen sensing of copper iodide hybrid materials.
Sensing MaterialSensing
Mechanism
Sensing RangeSensitivity I0/I100Response TimeReference
[Cu(POP)(PTZ)]BF4FL quenching0–100%11.165 s[112]
Cu4I4(PPh3)4/PS filmFL quenching0–100% (gas)5.48 s[113]
0.9–34.06 mg/L (dissolved oxygen)4.8145 s
[Cu(L)(PPh3)2]BF4/PS fibrous filmsFL quenching0–100%15.816 s[114]
CuI-CF3FL quenching0–100%12.14-[117]
[Mn(dppmO2)3]Cu2I4·3MeCN FL quenching0–90%6.69 s[118]
[Mn(dppeO2)3]Cu2I4FL quenching0–90%2.113 s
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jin, J.; Huang, Y.; Zhang, C.; Zhang, L.; Jiang, S.; Chen, X. Novel Lead Halide Perovskite and Copper Iodide Materials for Fluorescence Sensing of Oxygen. Biosensors 2025, 15, 132. https://doi.org/10.3390/bios15030132

AMA Style

Jin J, Huang Y, Zhang C, Zhang L, Jiang S, Chen X. Novel Lead Halide Perovskite and Copper Iodide Materials for Fluorescence Sensing of Oxygen. Biosensors. 2025; 15(3):132. https://doi.org/10.3390/bios15030132

Chicago/Turabian Style

Jin, Jingwen, Yaning Huang, Chen Zhang, Li Zhang, Shaoxing Jiang, and Xi Chen. 2025. "Novel Lead Halide Perovskite and Copper Iodide Materials for Fluorescence Sensing of Oxygen" Biosensors 15, no. 3: 132. https://doi.org/10.3390/bios15030132

APA Style

Jin, J., Huang, Y., Zhang, C., Zhang, L., Jiang, S., & Chen, X. (2025). Novel Lead Halide Perovskite and Copper Iodide Materials for Fluorescence Sensing of Oxygen. Biosensors, 15(3), 132. https://doi.org/10.3390/bios15030132

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
