Surface Plasmon Resonance Biosensors with Magnetic Sandwich Hybrids for Signal Amplification

by
Ting Sun
1,2,
Mengyao Li
2,
Feng Zhao
1,* and
Lin Liu
2,*
1
Key Laboratory of Functional Organic Molecule, School of Chemistry and Materials Science, Guizhou Integrated Research Center of Polymer Electromagnetic Materials, Guizhou Education University, Guiyang 550018, China
2
College of Chemistry and Chemical Engineering, Anyang Normal University, Anyang 455000, China
*
Authors to whom correspondence should be addressed.
Biosensors 2022, 12(8), 554; https://doi.org/10.3390/bios12080554
Submission received: 20 June 2022 / Revised: 14 July 2022 / Accepted: 20 July 2022 / Published: 22 July 2022
(This article belongs to the Special Issue SPR Biosensors for Medical Diagnostics, Environmental Monitoring, and Food Safety Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
The conventional signal amplification strategies for surface plasmon resonance (SPR) biosensors involve the immobilization of receptors, the capture of target analytes and their recognition by signal reporters. Such strategies work at the expense of simplicity, rapidity and real-time measurement of SPR biosensors. Herein, we proposed a one-step, real-time method for the design of SPR biosensors by integrating magnetic preconcentration and separation. The target analytes were captured by the receptor-modified magnetic nanoparticles (MNPs), and then the biotinylated recognition elements were attached to the analyte-bound MNPs to form a sandwich structure. The sandwich hybrids were directly delivered to the neutravidin-modified SPR fluidic channel. The MNPs hybrids were captured by the chip through the neutravidin–biotin interaction, resulting in an enhanced SPR signal. Two SPR biosensors have been constructed for the detection of target DNA and beta-amyloid peptides with high sensitivity and selectivity. This work, integrating the advantages of one-step, real-time detection, multiple signal amplification and magnetic preconcentration, should be valuable for the detection of small molecules and ultra-low concentrations of analytes.

1. Introduction

Surface plasmon resonance (SPR) biosensors have been used for the real-time detection of different classes of biomarkers with the advantages of simple operation, rapid response and high selectivity. However, traditional SPR sensors are less sensitive for the direct detection of small molecules (<8 kDa) or ultra-low concentrations (1 pM) of analytes based on the change in refractive index or thickness near metal surfaces [1,2]. In view of this, many efforts have been made to improve the sensitivity of SPR biosensors using secondary signal amplification with gold nanomaterials, magnetic nanoparticles and biomacromolecules [3,4,5,6,7,8,9,10,11,12]. The targets can be determined with a competitive (signal-off) or sandwich-like (signal-on) format. In contrast to the signal-off assay, the signal-on sandwich assay exhibits higher sensitivity because of the low background signal [13]. In this method, antibodies or other receptors are usually anchored on the surface of an SPR chip for the capture of target analytes [14,15]. Then, the recognition element-modified biomacromolecules or nanomaterials with large molecular weight, large size or high refractive index are delivered onto the chip’s surface to amplify the SPR signal. The secondary signal amplification can improve the sensitivity and avoid the influence of other components in biological fluids. However, these advantages come at the expense of simplicity, rapidity and real-time measurement due to a greater number of steps in the SPR analysis process [13]. Moreover, the storage of receptor-modified chips requires harsh conditions because of the limited stability of receptors such as antibodies under non-physiological conditions and high temperature [16]. Thus, it is of great significance to develop a general SPR biosensor for the detection of small molecules and ultra-low concentrations of analytes by integrating the advantages of one-step, real-time detection and multiple signal amplification.
Magnetic nanoparticles (MNPs) provide a feasible solution to the persistent challenges arising from the sensitivity and nonspecific adsorption of the preconcentration and separation of target analytes. Recently, some innovative sensing concepts involving MNP technologies have been reported for the ultra-sensitive detection of cells, nucleic acids, proteins and small biomolecules [17]. Usually, the target analytes are captured by the MNPs modified with specific receptors and then collected with a magnetic field. The analyte-bound MNPs can be brought to the sensor surface or can be removed from the sample and re-dispersed in solution. A good example of the concept is the electrochemical magnetobiosensor [18,19,20], in which the analyte-bound MNPs are collected by a magnetic electrode to produce a strong electrochemical signal. Alternately, the MNPs can also be captured by nucleic acid- or antibody-modified solid surfaces to produce optical signals [6,7,21,22,23,24,25]. For instance, MNPs have been successfully used to enhance the SPR signal due to their advantages of high molecular mass, high refractive index, low production cost and easy synthesis through hydrothermal and co-precipitative methods [4,26,27,28,29,30,31,32]. However, there are still some challenges related to the real-time SPR assays using MNP technologies [33]. For instance, the chips need to be covered with specific receptors through appropriate modification methods and the storage of the sensor chips requires harsh conditions. The capture of analyte-bound MNPs through the hybridization reaction or antibody–antigen interaction requires a long hybridization time and a low flow rate. Moreover, the immobilization of receptors on the chip surface may produce a steric hindrance for the capture of analyte-bound MNPs at the solid–liquid interface [34]. Therefore, new MNP-based SPR biosensors are still desired to simplify the detection procedure, shorten the analysis time and improve the detection efficiency.
Apart from the hybridization reaction and antibody–antigen interaction, the avidin-biotin system has been extensively used in biomedical analysis. Avidin and its analogues, including streptavidin (SA) or neutravidin (NA), modified on a solid surface show high stability, easy controllability and excellent flexibility [35,36,37]. Many SA or NA-labeled signal tags or solid supports and biotinylated reagents are commercially available. Herein, we proposed an MNP-based strategy for the design of one-step, real-time SPR biosensors based on the avidin–biotin interaction. As shown in Scheme 1, the MNPs were modified with the receptors such as DNA or antibodies for the preconcentration and separation of target analytes through the hybridization reaction or antibody–antigen interaction. Then, the biotinylated recognition elements (DNA or second antibody) were attached onto the MNPs’ surface by binding to the targets via the same interactions. The NA-covered chips were utilized to capture the sandwich hybrids formed between biotinylated recognition elements, analytes and receptor-modified MNPs. The attachment of such sandwich hybrids is dependent upon the NA–biotin interaction, and the number of hybrids is proportional to the concentration of targets. Thus, the analysis of targets was converted to the direct detection of sandwich hybrids, significantly amplifying the signal due to the large size of MNPs and antibodies. Moreover, the magnetic preconcentration and separation can eliminate the nonspecific adsorption of other components in biological samples onto the chip surface, thus remarkably improving the sensitivity and selectivity. The dissociation constant between NA and biotin is in the order of 1014 M−1. Such a powerful and specific interaction will facilitate the capture of the hybrids at a faster flow rate, thereby shortening the analysis time and decreasing the nonspecific interactions.

2. Materials and Methods

2.1. Chemicals and Materials

Carboxylated MNPs with a diameter of ~100 nm were ordered from Ruixi Biotech. Co., Ltd. (Xi’an, China). Free and FITC-labeled NA proteins were provided by Thermo Fisher Scientific (Shanghai, China). DNA, avidin and glutathione (GSH) were obtained from Sangon Biotech. Co., Ltd. (Shanghai, China). Beta-amyloid peptides, human serum protein (HSA), beta-secretase, bovine serum protein (BSA), 1-ethyl-3-[3-dimethylaminopropyl]carbodiimide hydrochloride (EDC), N-hydroxysulfosuccinimide (NHS) and 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP) were acquired from Sigma-Aldrich (Shanghai, China). The sequences of DNA are 5′-NH2-TTT TTG TAA AAC GAC GGC CAG-3′ (capture probe DNA), 5′-TAG GAA TAG TTA TAA CTG GCC GTC GTT TTA C-3′ (target DNA, TDNA) and 5′-TTA TAA CTA TTC CTA-biotin-3′ (bio-DNA). Monoclonal antibody (Ab1) and biotinylated second antibody (bio-Ab2) specific to Aβ40 were obtained from Covance Inc. (Dedham, MA, USA). Aβ16 was provided by China Peptide Co., Ltd. (Shanghai, China). Other reagents were ordered from Aladdin Reagent Co., Ltd. (Shanghai, China). The peptide of Aβ40 was dissolved in HFIP solution and then reconstituted in NaOH to a concentration of 1 mM. Before its use, the peptide was diluted with 10 mM phosphate buffer (pH 7.2) to a desired concentration.

2.2. Functionalization of MNPs

Carboxylated MNPs were modified with capture probe DNA or antibody (Ab1) by the EDC/NHS-activated covalent coupling reaction. Briefly, 5 mg of MNPs was dispersed in 2 mL of phosphate buffer solution containing 50 mM EDC and 10 mM NHS for 15 min. After the carboxylic groups on the nanoparticle surface were activated, the MNPs were washed with water and re-dispersed in 2 mL of phosphate buffer solution containing 0.2 μM NH2-DNA or 50 μg/mL of Ab1. After incubation for 2 h, the unreacted activated carboxylic groups on MNPs were blocked by incubation with 10 mM ethanolamine for 30 min. After being rinsed with water to remove the unreacted substances, the resulting DNA-MNPs or Ab1-MNPs were dispersed in 2 mL of phosphate buffer containing 10 μM BSA and stored at 4 °C for use. The change in the zeta potential of MNPs induced by surface modification was monitored on a zeta potential analyzer (Nano ZS, Malvern Company, Worcestershire, UK).

2.3. Preparation of SPR Chips

The gold chips were cleaned by a hydrogen flame and then incubated with 1 μM NA in carbonate buffer (pH 10) for 2 h. NA proteins were capped on the gold surface through the hydrophobic and Au–S interactions [38]. After washing the chip with buffer to remove the unbound NA proteins, the unreacted gold surface was sealed by incubation of the chip with 10 μM BSA and 100 μM GSH for 30 min. The resulting NA/BSA/GSH-covered chips were thoroughly washed and stored at 4 °C for use.

2.4. SPR Analysis

Before the SPR assay, 900 μL of target DNA (TDNA) or Aβ40 sample at a given concentration was spiked with 50 μL of 5 nM biotinylated DNA (bio-DNA) or bio-Ab2 at 37 °C. Then, 50 μL of DNA-MNPs or Ab1-MNPs suspension was added to the sample. After incubation for 1 h, the MNPs were rinsed three times with a magnetic field and then dispersed in 0.5 mL of phosphate buffer. For the real-time measurement, the NA/BSA/GSH-covered chip was fixed on a BI-SPR 3000 instrument (Biosensing Instrument Inc., Tempe, AZ, USA). When a stable baseline was attained, the resulting bio-DNA/TDNA/DNA-MNPs or bio-Ab2/Aβ40/Ab1-MNPs hybrids were delivered to the fluidic channel by a syringe pump, and the signal was recorded according to the change in the SPR refractive index.

3. Results and Discussion

3.1. Principle and Feasibility

To demonstrate the practicability of the strategy, a DNA biosensor was constructed by the formation of sandwich bio-DNA/TDNA/DNA-MNPs hybrids. The principle of the method was depicted in Scheme 1A. The capture probe DNA was immobilized on the surface of MNPs to generate DNA-MNPs. When the TDNA was hybridized with bio-DNA and the capture probe DNA on MNPs, the sandwich bio-DNA/TDNA/DNA-MNPs hybrids were formed. The excessive bio-DNA and other substances in the samples were then removed, and the TDNA targets were concentrated with a magnetic field. The re-dispersed sandwich hybrids were then delivered to the fluidic channel and captured by NA proteins modified on the chip, thus producing an enhanced SPR signal due to the large molecular mass and high refractive index of MNPs. In this work, NA-covered gold chips were used to capture the biotinylated probe. To prove that NA can be anchored on the gold surface, the chip incubated with FITC–NA instead of NA was characterized by fluorescence microscope. As shown in Figure 1A, a green, fluorescent image was observed on the chip coated with FITC–NA/BSA/GSH, while the BSA/GSH-covered chip was black. This is indicative of the successful attachment of NA proteins on the chip surface. Moreover, the successful modification of DNA onto the surface of MNPs was confirmed by monitoring the change in the zeta potential. The zeta potential of MNPs changed from −11.2 to −13.7 mV after the modification of the capture probe DNA. After the hybridization reaction, the zeta potential became −18.2 mV. The increase in the negative charge is indicative of the formation of bio-DNA/TDNA/DNA-MNPs hybrids.
As expected, injection of the bio-DNA/TDNA/DNA-MNPs hybrids into the sensor channel caused a significant change in the SPR dip shift (curve a in Figure 1B). However, a negligible change was observed when injecting DNA-MNPs (curve b) or TDNA/DNA-MNPs (curve c) to the channel. In the absence of TDNA, the signal was close to the background level, indicating that there is no nonspecific adsorption between DNA-MNPs and the sensor chip. A control experiment was conducted by injecting the bio-DNA/TDNA/DNA-MNPs hybrids into BSA/GSH instead of the NA/BSA/GSH-modified chip (curve d). Consequently, no significant change in the SPR dip shift was observed. Therefore, the change in curve a can be attributed to the TDNA-triggered hybridization reaction and the NA–biotin interaction. In addition, a smaller SPR dip shift was attained when injecting bio-DNA/TDNA/DNA hybrids into the NA/BSA/GSH-covered chip (curve e), indicating that the SPR signal can be greatly intensified by MNPs (curve a).

3.2. Sensitivity for DNA Detection

After the successful preparation of the SPR biosensor, TDNA at different concentrations was analyzed. Figure 2A shows the SPR curves obtained when the DNA-MNPs and bio-DNA were incubated with different concentrations of TDNA. The SPR dip shift increased with the increase in TDNA concentration, further demonstrating that the signal change resulted from the binding of sandwich hybrids. A good linear relationship between the TDNA concentration and the SPR dip shift was attained (Figure 2B). The linear equation can be expressed as θ = 0.10[TDNA] (fM) + 6.54 in the concentration range of 1–2000 fM (the inset). The high sensitivity with a detection limit of 1 fM can be attributed to the signal amplification of MNPs and the magnetic preconcentration of TDNA. Moreover, since the hybridization reaction was performed in the solution and the NA–biotin system shows a strong interaction, the real-time SPR assays have been achieved at a fast flow rate, shortening the analysis time and decreasing the nonspecific interactions.

3.3. Immunoassays of Aβ40

Immunoassays with the signal amplification of nanomaterials, including MNPs, have been widely applied in clinical analysis, food safety control, environmental monitoring and so on [39,40]. To demonstrate the applications of the sensing strategy in different fields, an SPR immunosensor was constructed and used for the detection of amyloid peptide Aβ40. As shown in Scheme 1B, the Ab1-MNPs were used to capture Aβ40 and bio-Ab2 through the specific antigen–antibody recognition. After the formation of sandwich bio-Ab2/Aβ40/Ab1-MNPs, the hybrids were separated and then delivered to the NA/BSA/GSH-covered chip. As shown in Figure 3, a negligible change in the SPR dip shift was observed when injecting Ab1-MNPs (curve a) or Aβ40/Ab1-MNPs (curve b) into the sensor chip. However, a significant change was attained after injection of bio-Ab2/Aβ40/Ab1-MNPs to the chip surface (curve c). The value is much higher than that by injecting bio-Ab2/Aβ40/Ab1 into the chip (curve d), indicating that MNPs indeed enhanced the SPR signal due to the high molecular mass and high refractive index.
The analytical performance for the detection of Aβ40 was investigated by determining different concentrations of Aβ40. As shown in Figure 4A, the SPR dip shift increased gradually when the Ab1-MNPs were incubated with increasing concentrations of Aβ40 in the presence of bio-Ab2, indicating that the formation of sandwich hybrids was dependent upon the concentration of Aβ40. The method allowed for the detection of Aβ40 with a linear range of 10–2500 fM (Figure 4B). The linear equation between the Aβ40 concentration and the SPR dip shift was found to be θ = 0.11[Aβ40] (fM) + 3.34. The detection limit was estimated to be 5 fM, which is lower than that achieved by other methods (Table 1). The high sensitivity can be attributed to the multiple signal amplification by antibodies and MNPs and the magnetic preconcentration. Thus, the one-step, real-time assay was particularly suitable for the detection of small molecules and ultra-low concentrations of analytes. Plasmonic nanoparticles (e.g., Au and Ag) exhibit strong optical resonance for visible and near-infrared wavelengths. We believe that the analytical performance, including detection limit and linear range, could be further improved by using magneto-plasmonic nanostructures as the signal labels [23,26,27,28,41].

3.4. Selectivity for Aβ40 Detection

In addition to the high sensitivity, the specific antigen–antibody recognition promised excellent selectivity of the biosensor. Figure 5 shows the results for analysis of different samples, including other Aβ fragments (Aβ16 and Aβ42), serum protein HSA, beta-secretase and biotin-binding protein avidin. When the Ab1-MNPs and bio-Ab2 were incubated with Aβ16, Aβ42, HSA, beta-secretase and avidin, even at a higher concentration, no significant change in the SPR dip shift was observed (bars 1–5). The result indicated that the biosensor exhibited high selectivity. We also found that the coexistence of avidin in the Aβ40 sample decreased the SPR signal for the detection of Aβ40 (cf. bars 6 and 7). The result is understandable since avidin can bind to bio-Ab2/Aβ40/Ab1-MNPs through the avidin–biotin interaction, thus preventing the attachment of the hybrids to the chip’s surface. However, the interference can be readily eliminated by two-step magnetic separation. As expected, a high SPR signal was attained when the Ab1-MNPs were incubated with the mixture of Aβ40 and avidin and then separated by a magnetic field, followed by incubation of the Aβ40/Ab1-MNPs with bio-Ab2 and separated by a magnetic field again (bar 8). The result not only demonstrated that the signal was enhanced by MNPs, but it also indicated that the capture of the Ab1-MNPs was dependent upon the antigen–antibody and NA–biotin interactions. Moreover, the high sensitivity and magnetic preconcentration are conducive to improving the selectivity because the interference from other components in complex, real samples can be decreased by sample dilution and magnetic separation. Thus, the SPR immunosensor should be an excellent candidate for the detection of MNPs-based extracted products.

4. Conclusions

In summary, we proposed a general strategy for the design of SPR biosensors by integration of magnetic preconcentration. The signal was amplified by the integrated sandwich hybrids composed of recognition elements, target analytes, receptors and MNPs. The performance of the method was evaluated by detecting DNA and Aβ40 in which the sandwich hybrids were directly delivered to the sensor surface. The target concentration, down to 1 fM for DNA or 10 fM for Aβ40, can be readily measured. The method exhibits the merits of rapid response, real-time measurement, high sensitivity and excellent specificity. Since SA and NA proteins have high thermal stability and excellent biocompatibility and many biotinylated recognition elements are commercially available, the method would explore new applications of SPR biosensors, especially for the detection of small molecules and ultra-low concentrations of analytes. Moreover, novel electrochemical and optical technologies can be developed based on the magnetic preconcentration and avidin–biotin interaction.

Author Contributions

Conceptualization, L.L. and F.Z.; methodology, T.S.; investigation, T.S. and M.L.; writing—original draft preparation, T.S.; writing—review and editing, L.L.; project administration, F.Z.; funding acquisition, L.L. and F.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Science and Technology Foundation of Guizhou Province (No. QKHJC-ZK[2022]332), the Reward and Subsidy Fund Project of Guizhou Education University, the Ministry of Science and Technology of the People’s Republic of China and the National Natural Science Foundation of China (No. 2021GZJ003), the Guizhou Education University Doctor Program (No. 2021BS028) and the Guizhou University Integrated Research Platform (No. QJHKY(2020)008).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tabasi, O.; Falamaki, C. Recent advancements in the methodologies applied for the sensitivity enhancement of surface plasmon resonance sensors. Anal. Methods 2018, 10, 3906. [Google Scholar] [CrossRef]
  2. Chang, C.C. Recent advancements in aptamer-based surface plasmon resonance biosensing strategies. Biosensors 2021, 11, 233. [Google Scholar] [CrossRef]
  3. Zeng, S.; Baillargeat, D.; Ho, H.-P.; Yong, K.-T. Nanomaterials enhanced surface plasmon resonance for biological and chemical sensing applications. Chem. Soc. Rev. 2014, 43, 3426. [Google Scholar] [CrossRef]
  4. Teramura, Y.; Arima, Y.; Iwata, H. Surface plasmon resonance-based highly sensitive immunosensing for brain natriuretic peptide using nanobeads for signal amplification. Anal. Biochem. 2006, 357, 208. [Google Scholar] [CrossRef]
  5. Huang, Y.; Sun, T.; Liu, L.; Xia, N.; Zhao, Y.; Yi, X. Surface plasmon resonance biosensor for the detection of miRNAs by combining the advantages of homogeneous reaction and heterogeneous detection. Talanta 2021, 234, 122622. [Google Scholar] [CrossRef]
  6. Wang, J.; Munir, A.; Zhu, Z.; Zhou, H.S. Magnetic nanoparticle enhanced surface plasmon resonance sensing and its application for the ultrasensitive detection of magnetic nanoparticle-enriched small molecules. Anal. Chem. 2010, 82, 6782. [Google Scholar] [CrossRef]
  7. Wang, Y.; Dostalek, J.; Knoll, W. Magnetic nanoparticle-enhanced biosensor based on grating-coupled surface plasmon resonance. Anal. Chem. 2011, 83, 6202. [Google Scholar] [CrossRef]
  8. Mitchell, J.S.; Wu, Y.; Cook, C.J.; Main, L. Sensitivity enhancement of surface plasmon resonance biosensing of small molecules. Anal. Biochem. 2005, 343, 125. [Google Scholar] [CrossRef]
  9. Sun, T.; Zhang, Y.; Zhao, F.; Xia, N.; Liu, L. Self-assembled biotin-phenylalanine nanoparticles for the signal amplification of surface plasmon resonance biosensors. Microchim. Acta 2020, 187, 473. [Google Scholar] [CrossRef]
  10. Prabowo, B.A.; Purwidyantri, A.; Liu, B.; Lai, H.C.; Liu, K.C. Gold nanoparticle-assisted plasmonic enhancement for DNA detection on a graphene-based portable surface plasmon resonance sensor. Nanotechnology 2021, 32, 095503. [Google Scholar] [CrossRef]
  11. Mandala, S.H.S.; Liu, T.-J.; Chen, C.-M.; Liu, K.K.; Januar, M.; Chang, Y.-F.; Lai, C.-S.; Chang, K.-H.; Liu, K.-C. Enhanced plasmonic biosensor utilizing paired antibody and label-Free Fe3O4 nanoparticles for highly sensitive and selective detection of Parkinson’s α-synuclein in serum. Biosensors 2021, 11, 402. [Google Scholar] [CrossRef]
  12. Lou, Z.; Han, H.; Zhou, M.; Wan, J.; Sun, Q.; Zhou, X.; Gu, N. Fabrication of magnetic conjugation clusters via intermolecular assembling for ultrasensitive surface plasmon resonance (SPR) detection in a wide range of concentrations. Anal. Chem. 2017, 89, 13472–13479. [Google Scholar] [CrossRef]
  13. Masson, J.-F. Surface plasmon resonance clinical biosensors for medical diagnostics. ACS Sens. 2017, 2, 16. [Google Scholar] [CrossRef]
  14. Sarcina, L.; Mangiatordi, G.F.; Torricelli, F.; Bollella, P.; Gounani, Z.; Österbacka, R.; Macchia, E.; Torsi, L. Surface Plasmon Resonance Assay for Label-Free and Selective Detection of HIV-1 p24 Protein. Biosensors 2021, 11, 180. [Google Scholar] [CrossRef]
  15. Park, J.-H.; Cho, Y.-W.; Kim, T.-H. Recent advances in surface plasmon resonance sensors for sensitive optical detection of pathogens. Biosensors 2022, 180, 12. [Google Scholar] [CrossRef]
  16. Mauriz, E. Low-fouling substrates for plasmonic sensing of circulating biomarkers in biological fluids. Biosensors 2020, 10, 63. [Google Scholar] [CrossRef]
  17. Gloag, L.; Mehdipour, M.; Chen, D.; Tilley, R.D.; Gooding, J.J. Advances in the application of magnetic nanoparticles for sensing. Adv. Mater. 2019, 31, 1904385. [Google Scholar] [CrossRef]
  18. Campuzano, S.; Torrente-Rodríguez, R.M.; López-Hernández, E.; Conzuelo, F.; Granados, R.; And, S.P.; Pingarrón, J.M. Rapid electrochemical assessment of tumor suppressor gene methylations in raw human serum and tumor cells and tissues using immunomagnetic beads and selective DNA hybridization. Angew. Chem. Int. Ed. 2014, 53, 6168. [Google Scholar] [CrossRef]
  19. Tavallaie, R.; McCarroll, J.; Grand, M.L.; Ariotti, N.; Schuhmann, W.; Bakker, E.; Tilley, R.D.; Hibbert, D.B.; Kavallaris, M.; Gooding, J.J. Nucleic acid hybridization on an electrically reconfigurable network of gold-coated magnetic nanoparticles enables microRNA detection in blood. Nat. Nanotechnol. 2018, 13, 1066. [Google Scholar] [CrossRef]
  20. Nemr, C.R.; Smith, S.J.; Liu, W.; Mepham, A.H.; Mohamadi, R.M.; Labib, M.; Kelley, S.O. Nanoparticle-mediated capture and electrochemical detection of methicillin-resistant Staphylococcus aureus. Anal. Chem. 2019, 91, 2847–2853. [Google Scholar] [CrossRef]
  21. Soelberg, S.D.; Stevens, R.C.; Limaye, A.P.; Furlong, C.E. Surface plasmon resonance detection using antibody-linked magnetic nanoparticles for analyte capture, purification, concentration, and signal amplification. Anal. Chem. 2009, 81, 2357. [Google Scholar] [CrossRef] [Green Version]
  22. Hill, H.D.; Mirkin, C.A. The bio-barcode assay for the detection of protein and nucleic acid targets using DTT-induced ligand exchange. Nat. Protoc. 2006, 1, 324. [Google Scholar] [CrossRef]
  23. Philip, A.; Kumar, A.R. The performance enhancement of surface plasmon resonance optical sensors using nanomaterials: A review. Coordin. Chem. Rev. 2022, 458, 214424. [Google Scholar] [CrossRef]
  24. Wang, L.; Lin, J. Recent advances on magnetic nanobead based biosensors: From separation to detection. TrAC-Trend. Anal. Chem. 2020, 128, 115915. [Google Scholar] [CrossRef]
  25. Materón, E.M.; Miyazaki, C.M.; Carr, O.; Joshi, N.; Picciani, P.H.S.; Dalmaschio, C.J.; Davis, F.; Shimizu, F.M. Magnetic nanoparticles in biomedical applications: A review. Appl. Surf. Sci. Adv. 2021, 6, 100163. [Google Scholar] [CrossRef]
  26. Wang, J.; Zhu, Z.; Munir, A.; Zhou, H.S. Fe3O4 nanoparticles-enhanced SPR sensing for ultrasensitive sandwich bio-assay. Talanta 2011, 84, 783. [Google Scholar] [CrossRef]
  27. Liang, R.-P.; Yao, G.-H.; Fan, L.-X.; Qiu, J.-D. Magnetic Fe3O4@Au composite-enhanced surface plasmon resonance for ultrasensitive detection of magnetic nanoparticle-enriched α-fetoprotein. Anal. Chim. Acta 2012, 737, 22. [Google Scholar] [CrossRef]
  28. Chen, H.; Qi, F.; Zhou, H.; Jia, S.; Gao, Y.; Koh, K.; Yin, Y. Fe3O4@Au nanoparticles as a means of signal enhancement in surface plasmon resonance spectroscopy for thrombin detection. Sens. Actuat. B Chem. 2015, 212, 505. [Google Scholar] [CrossRef]
  29. Zou, F.; Wang, X.; Qi, F.; Koh, K.; Lee, J.; Zhou, H.; Chen, H. Magneto-plamonic nanoparticles enhanced surface plasmon resonance TB sensor based on recombinant gold binding antibody. Sens. Actuat. B Chem. 2017, 250, 356. [Google Scholar] [CrossRef]
  30. Jia, Y.; Peng, Y.; Bai, J.; Zhang, X.; Cui, Y.; Ning, B.; Cui, J.; Gao, Z. Magnetic nanoparticle enhanced surface plasmon resonance sensor for estradiol analysis. Sens. Actuat. B Chem. 2018, 254, 629. [Google Scholar] [CrossRef]
  31. Reiner, A.T.; Ferrer, N.-G.; Venugopalan, P.; Lai, R.C.; Lim, S.K.; Dostálek, J. Magnetic nanoparticle-enhanced surface plasmon resonance biosensor for extracellular vesicle analysis. Analyst 2017, 142, 3913. [Google Scholar] [CrossRef] [PubMed]
  32. Krishnan, S.; Mani, V.; Wasalathanthri, D.; Kumar, C.V.; Rusling, J.F. Attomolar detection of a cancer biomarker protein in aerum by surface plasmon resonance using superparamagnetic particle labels. Angew. Chem. Int. Ed. 2011, 50, 1175. [Google Scholar] [CrossRef] [PubMed]
  33. Chang, Y.-F.; Chou, Y.-T.; Cheng, C.-Y.; Hsu, J.-F.; Su, L.-C.; Ho, J.A.A. Amplification-free detection of cytomegalovirus miRNA using a modification-free surface plasmon resonance biosensor. Anal. Chem. 2021, 93, 8002–8009. [Google Scholar] [CrossRef]
  34. Wang, Y.; Partridge, A.; Wu, Y. Improving nanoparticle-enhanced surface plasmon resonance detection of small molecules by reducing steric hindrance via molecular linkers. Talanta 2019, 198, 350. [Google Scholar] [CrossRef]
  35. Chen, Y.-H.; Gupta, N.K.; Huang, H.-J.; Lam, C.H.; Huang, C.-L.; Tan, K.-T. Affinity-switchable lateral flow assay. Anal. Chem. 2021, 93, 5556. [Google Scholar] [CrossRef] [PubMed]
  36. Xia, N.; Sun, Z.; Ding, F.; Wang, Y.; Sun, W.; Liu, L. Protease biosensor by conversion of a homogeneous assay into a surface-tethered electrochemical analysis based on streptavidin−biotin interactions. ACS Sens. 2021, 6, 1166–1173. [Google Scholar] [CrossRef]
  37. Xia, N.; Sun, T.; Liu, L.; Tian, L.; Sun, Z. Heterogeneous sensing of post-translational modification enzymes by integrating the advantage of homogeneous analysis. Talanta 2022, 237, 122949. [Google Scholar] [CrossRef]
  38. Liu, X.; Wang, Y.; Chen, P.; Wang, Y.; Zhang, J.; Aili, D.; Liedberg, B. Biofunctionalized gold nanoparticles for colorimetric sensing of botulinum neurotoxin a light chain. Anal. Chem. 2014, 86, 2345. [Google Scholar] [CrossRef]
  39. Farka, Z.K.; Juřík, T.S.; Kovář, D.; Trnková, L.E.; Sklaádal, P. Nanoparticle-based immunochemical biosensors and assays: Recent advances and challenges advances and challenges. Chem. Rev. 2017, 117, 9973–10042. [Google Scholar] [CrossRef]
  40. Chiu, N.F.; Huang, T.Y.; Lai, H.C.; Liu, K.C. Graphene oxide-based SPR biosensor chip for immunoassay applications. Nanoscale Res. Lett. 2014, 9, 445. [Google Scholar] [CrossRef] [Green Version]
  41. Bhatia, P.; Verma, S.S.; Sinha, M.M. Optical properties simulation of magneto-plasmonic alloys nanostructures. Plasmonics 2019, 14, 611. [Google Scholar] [CrossRef]
  42. Yu, Y.; Sun, X.; Tang, D.; Li, C.; Zhang, L.; Nie, D.; Yin, X.; Shi, G. Gelsolin bound β -amyloid peptides (1–40/1–42): Electrochemical evaluation of levels of soluble peptide associated with Alzheimer’s disease. Biosens. Bioelectron. 2015, 68, 115. [Google Scholar] [CrossRef] [PubMed]
  43. Yu, Y.; Zhang, L.; Li, C.; Sun, X.; Tang, D.; Shi, G. A method for evaluating the level of soluble β-amyloid (1–40/1–42) in Alzheimer’s disease based on the binding of gelsolin to β-amyloid peptides. Angew. Chem. Int. Ed. 2014, 53, 12832. [Google Scholar] [CrossRef] [PubMed]
  44. Zhao, G.; Wang, Y.; Li, X.; Yue, Q.; Dong, X.; Du, B.; Cao, W.; Wei, Q. Dual-quenching electrochemiluminescence strategy based on three-dimensional metal−organic frameworks for ultrasensitive detection of amyloid-β. Anal. Chem. 2019, 91, 1989–1996. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, Y.; Zhang, Y.; Sha, H.; Xiong, X.; Jia, N. Design and biosensing of a ratiometric electrochemiluminescence resonance energy transfer aptasensor between a g-C3N4 nanosheet and Ru@MOF for amyloid-β protein. ACS Appl. Mater. Interfaces 2019, 11, 36299–36306. [Google Scholar] [CrossRef]
  46. Kim, H.; Lee, J.U.; Song, S.; Kim, S.; Sim, S.J. A shape-code nanoplasmonic biosensor for multiplex detection of Alzheimer’s disease biomarkers. Biosens. Bioelectron. 2018, 101, 96. [Google Scholar] [CrossRef]
  47. Xia, N.; Liu, L.; Harrington, M.G.; Wang, J.; Zhou, F. Regenerable and simultaneous surface plasmon resonance detection of abeta(1–40) and abeta(1–42) peptides in cerebrospinal fluids with signal amplification by streptavidin conjugated to an N-terminus-specific antibody. Anal. Chem. 2010, 82, 10151. [Google Scholar] [CrossRef] [Green Version]
Biosensors 12 00554 sch001 550

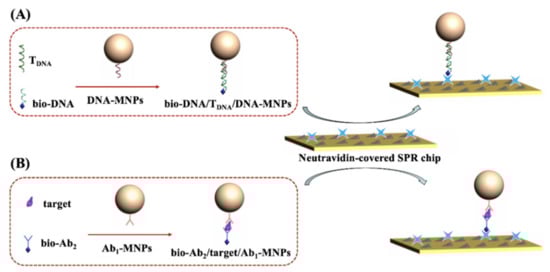

Scheme 1. Schematic representation of DNA biosensor (A) and immunosensor (B) by directly injecting the sandwich hybrids onto the NA-covered SPR chip.
Scheme 1. Schematic representation of DNA biosensor (A) and immunosensor (B) by directly injecting the sandwich hybrids onto the NA-covered SPR chip.
Biosensors 12 00554 sch001
Biosensors 12 00554 g001 550

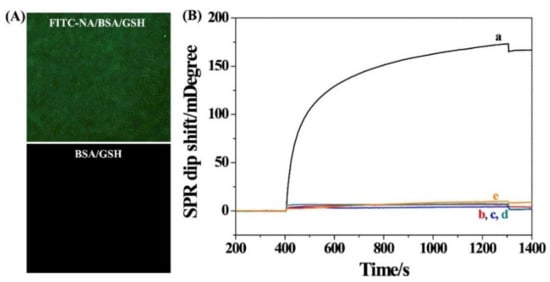

Figure 1. (A) Fluorescence microscopy images of the FITC–NA/BSA/GSH and BSA/GSH-modified chips. (B) SPR sensorgrams for injection of different hybrids onto the NA/BSA/GSH-modified chip: curve a, bio-DNA/TDNA/DNA-MNPs; curve b, DNA-MNPs; curve c, TDNA/DNA-MNPs; curve e, bio-DNA/TDNA/DNA. Curve d corresponds to that for injection of bio-DNA/TDNA/DNA-MNPs onto the BSA/GSH-modified chip. The concentration of TDNA was 1.5 pM.
Figure 1. (A) Fluorescence microscopy images of the FITC–NA/BSA/GSH and BSA/GSH-modified chips. (B) SPR sensorgrams for injection of different hybrids onto the NA/BSA/GSH-modified chip: curve a, bio-DNA/TDNA/DNA-MNPs; curve b, DNA-MNPs; curve c, TDNA/DNA-MNPs; curve e, bio-DNA/TDNA/DNA. Curve d corresponds to that for injection of bio-DNA/TDNA/DNA-MNPs onto the BSA/GSH-modified chip. The concentration of TDNA was 1.5 pM.
Biosensors 12 00554 g001
Biosensors 12 00554 g002a 550Biosensors 12 00554 g002b 550

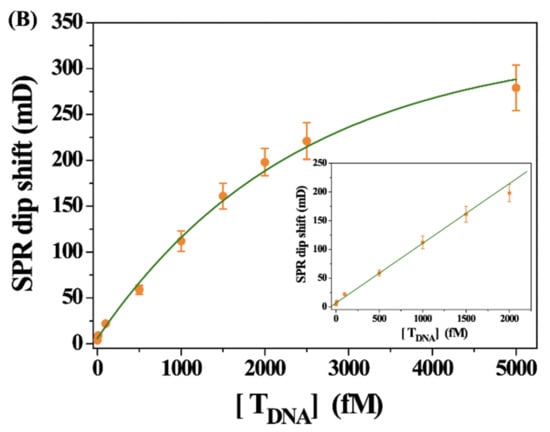

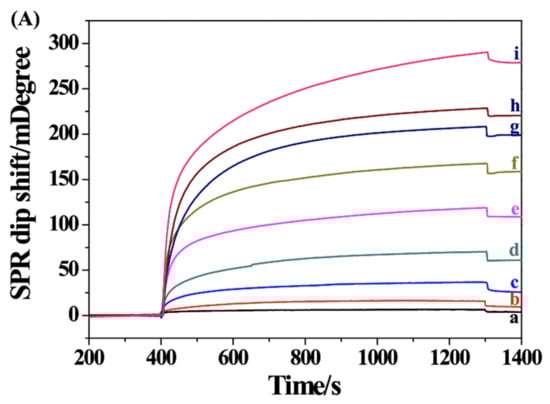

Figure 2. (A) SPR sensorgrams for the detection of different concentrations of TDNA (a~i: 1, 10, 100, 500, 1000, 1500, 2000, 2500 and 5000 fM). (B) Dependence of SPR signal on TDNA concentration. The inset shows the linear portion of the fitting curve.
Figure 2. (A) SPR sensorgrams for the detection of different concentrations of TDNA (a~i: 1, 10, 100, 500, 1000, 1500, 2000, 2500 and 5000 fM). (B) Dependence of SPR signal on TDNA concentration. The inset shows the linear portion of the fitting curve.
Biosensors 12 00554 g002aBiosensors 12 00554 g002b
Biosensors 12 00554 g003 550

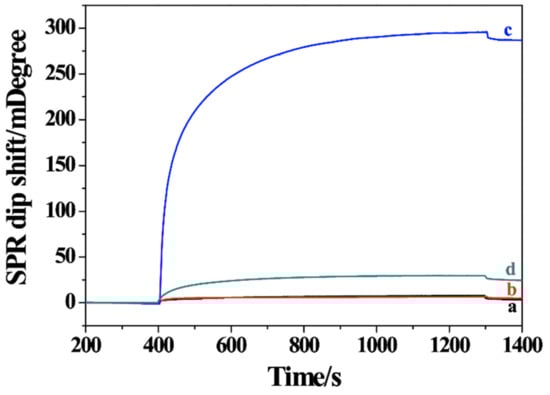

Figure 3. SPR sensorgrams for injection of Ab1-MNPs (curve a), Aβ40/Ab1-MNPs (curve b), bio-Ab2/Aβ40/Ab1-MNPs (curve c) and bio-Ab2/Aβ40/Ab1 (curve d) into the NA/BSA/GSH-modified chip. The concentration of Aβ40 was 2.5 pM.
Figure 3. SPR sensorgrams for injection of Ab1-MNPs (curve a), Aβ40/Ab1-MNPs (curve b), bio-Ab2/Aβ40/Ab1-MNPs (curve c) and bio-Ab2/Aβ40/Ab1 (curve d) into the NA/BSA/GSH-modified chip. The concentration of Aβ40 was 2.5 pM.
Biosensors 12 00554 g003
Biosensors 12 00554 g004 550

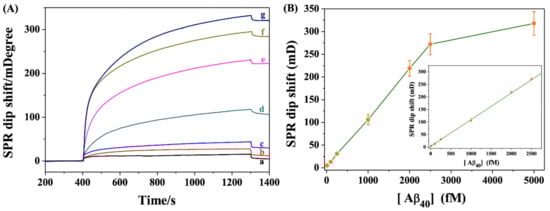

Figure 4. (A) SPR sensorgrams for the detection of different concentrations of Aβ40 (a–g: 10, 100, 250, 1000, 2000, 2500 and 5000 fM). (B) Dependence of SPR signal on Aβ40 concentration. The inset shows the linear portion of the fitting curve.
Figure 4. (A) SPR sensorgrams for the detection of different concentrations of Aβ40 (a–g: 10, 100, 250, 1000, 2000, 2500 and 5000 fM). (B) Dependence of SPR signal on Aβ40 concentration. The inset shows the linear portion of the fitting curve.
Biosensors 12 00554 g004
Biosensors 12 00554 g005 550

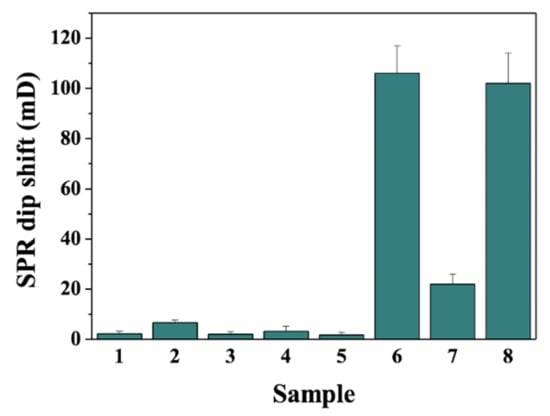

Figure 5. Selectivity of the method toward 1 nM Aβ16 (bar 1), 1 nM Aβ42 (bar 2), 10 ng/mL HSA (bar 3), 1 nM beta-secretase (bar 4), 5 nM avidin (bar 5), 1 pM Aβ40 (bar 6) and the mixture of 1 nM avidin and 1 pM Aβ40 by one-step (bar 7) or two-step (bar 8) magnetic separation.
Figure 5. Selectivity of the method toward 1 nM Aβ16 (bar 1), 1 nM Aβ42 (bar 2), 10 ng/mL HSA (bar 3), 1 nM beta-secretase (bar 4), 5 nM avidin (bar 5), 1 pM Aβ40 (bar 6) and the mixture of 1 nM avidin and 1 pM Aβ40 by one-step (bar 7) or two-step (bar 8) magnetic separation.
Biosensors 12 00554 g005
Table
Table 1. An overview of different sandwich biosensors for Aβ40 detection.
Table 1. An overview of different sandwich biosensors for Aβ40 detection.
MethodSignal LabelLinear RangeDetection Limit Ref.
DPVAuNPs/HRP0.1–50 nM28 pM[42]
DPVAuNPs0.2–40 nM50 pM[43]
ECLAu@NiFe MOFs22 fM–11 nM3 fM[44]
ECLRu@MOFs2.2 fM–110 nM0.85 fM[45]
LSPRAuNPs10 fM–100 nM34.9 fM[46]
SPRSA-Ab210 pM–150 nM20 pM[47]
SPRbio-Ab2/Ab1-MNPs10–2500 fM5 fMThis work
Abbreviations: DPV, differential pulse voltammetry; ECL, electrochemiluminescence; LSPR, localized surface plasmon resonance; SPR, surface plasmon resonance; AuNPs, gold nanoparticles; HRP, horseradish peroxidase; MOFs, metal−organic frameworks.
