Article
Effective Oxygen Reduction Reaction Performance of FeCo Alloys In Situ Anchored on Nitrogen-Doped Carbon by the Microwave-Assistant Carbon Bath Method and Subsequent Plasma Etching
1
Key Laboratory for Green Processing of Chemical Engineering of Xinjiang Bingtuan, School of Chemistry and Chemical Engineering, Shihezi University, Shihezi 832003, China
2
State Key Laboratory of Chemical Engineering, East China University of Science and Technology, Shanghai 200237, China
3
Institute of Chemical and Engineering Sciences, Agency for Science, Technology and Research, Jurong Island 627833, Singapore
*
Authors to whom correspondence should be addressed.
Received: 17 August 2019 / Accepted: 5 September 2019 / Published: 8 September 2019

Abstract

:
Electrocatalysts with strong stability and high electrocatalytic activity have received increasing interest for oxygen reduction reactions (ORRs) in the cathodes of energy storage and conversion devices, such as fuel cells and metal-air batteries. However, there are still several bottleneck problems concerning stability, efficiency, and cost, which prevent the development of ORR catalysts. Herein, we prepared bimetal FeCo alloy nanoparticles wrapped in Nitrogen (N)-doped graphitic carbon, using Co-Fe Prussian blue analogs (Co3[Fe(CN)6]2, Co-Fe PBA) by the microwave-assisted carbon bath method (MW-CBM) as a precursor, followed by dielectric barrier discharge (DBD) plasma treatment. This novel preparation strategy not only possessed a fast synthesis rate by MW-CBM, but also caused an increase in defect sites by DBD plasma treatment. It is believed that the co-existence of Fe/Co-N sites, rich active sites, core-shell structure, and FeCo alloys could jointly enhance the catalytic activity of ORRs. The obtained catalyst exhibited a positive half-wave potential of 0.88 V vs. reversible hydrogen electrode (RHE) and an onset potential of 0.95 V vs. RHE for ORRs. The catalyst showed a higher selectivity and long-term stability than Pt/C towards ORR in alkaline media.
Keywords:
FeCo alloy; oxygen reduction reaction; microwave-assisted carbon bath method; plasma; defect sites

1. Introduction

Fuel cells and rechargeable zinc-air batteries are the most promising clean auto power for the next generation due to their low cost and high energy density [1,2,3,4]. It is already widely known that the oxygen reduction reaction (ORR) is a slow kinetic process in cathodic reactions [5,6]. Precious metal Pt-based electrocatalysts usually possess high catalytic activity for ORRs, while their application for ORRs is not satisfactory, because of the problems, such as high cost and poor long-term durability [7,8]. Therefore, it is essential to develop electrocatalysts with high activity, long life, and low cost to substitute for the conventional catalysts of ORRs [9,10,11].
In order to reduce the loading of Pt and Pt-M (M = Fe, Co, Ni, Cu etc.), alloy catalysts have been extensively discussed [12,13,14]. The second element alloyed with Pt can adjust the catalytic ability of the surface of the Pt-based catalyst and improve the catalytic performance [15]. For example, Zhang et al. [16] synthesized bimetallic PtNi/C with hollow structures through a facile solution-based approach and observed distance lattice contraction of Pt due to the presence of Ni-improved ORR performance. It was found that PtNi/C showed excellent half-wave potential (E1/2) of 0.88 V vs. reversible hydrogen electrode (RHE) and a stable 4-electron pathway. At the meantime, the morphology and size of Pt-M alloys also have an important influence on the electrocatalytic performance. Ma et al. [17] used a simple method to synthesize a hexagonal nanosheet PtFe alloy, a hexagonal nanosheet PtFe alloy with uniform distribution and ultra-small (ca. 2.6 nm) particle size, as a high efficiency electrocatalyst. The PtFe alloy showed the highest initial potential of 0.95 V vs. RHE. Up till now, non-Pt of the M1-M2 (M1, M2 = Fe, Co, Ni etc.) system has been reported, which is beneficial to improve the conductivity of catalysts and activate each other’s active sites by the doping of M1/M2 [18,19]. Wen et al. [20] reported FeCo alloy nanoparticles embedded in Nitrogen (N)-doped carbon with excellent ORR performance, which was attributed to the core-shell nanostructure, the large specific surface area, and the synergetic effect of the mutual element for [email protected] Wang et al. [21] prepared FeNi nanoparticles wrapped in N-doped carbon nanotubes (NCNTS,) in which NCNTS effectively prevented the oxidation and aggregation of FeNi nanoparticles, showing an initial potential of 0.95 V vs. RHE. All the previous research showed that the catalysts with bimetallic active sites exhibited optimal performance with large surface areas, porous nanostructures, and rich active centers.
Herein, we prepared FeCo alloy nanoparticles wrapped with N-doped carbon ([email protected]) using Co-Fe PBA as a precursor via the microwave-assisted carbon bath method (MW-CBM). Dielectric barrier discharge (DBD) plasma is then used to produce the catalyst with more defect sites ([email protected]). PBA have different bimetallic compositions, uniform sizes, morphology, and structure, which are considered to be ideal precursors for the synthesis of hollow and porous electrocatalysts [22]. In addition, MW-CBM has been successfully used in our previous work of LiFePO4/C [23], LFePO4/MEGO [24], Fe/C [25], and Ni/VMT [26]. The MW-CBD has rapid heating efficiency due to the high efficiency of microwave absorption of columnar carbon. due to its advantages of rapid heating efficiency and low side reactions [27]. The MW-CBD prevents the reaction between air and catalyst precursor due to the air reacting with the columnar carbon during the heating process. Moreover, the plasma-assisted preparation method is used in the synthesis and modification of electrocatalyst materials, such as making active sites or exfoliating catalysts [28,29]. The as-prepared [email protected] exhibited good electrochemical ORR performance, e.g., a positive half-wave potential of 0.88 V vs. RHE and an onset potential of 0.95 V vs. RHE. We believe that this strategy provides potential for the preparation of similar superstructures of other effective catalysts with much active sites.

2. Materials and Methods

2.1. Synthesis of Samples

Synthesis of Co3[Fe(CN)6]2 (Co-Fe PBA): 2 mmol of K3[Fe(CN)6] was dissolved in 100 mL deionized (DI) water and is labelled as solution A. A total of 3 mmol of Co(NO)2 was dissolved in 100 mL DI water and is labeled as solution B. Solution B was slowly added to solution A under continuous magnetic stirring and the mixture was left for stirring for 3.5 h at room temperature. After aging for 24 h without stirring at room temperature, the precipitate was centrifuged for several times with DI water and absolute ethanol. The final product of Co-Fe PBA was obtained after drying at 80 °C for 8 h under vacuum.
Synthesis of [email protected] catalysts: 1.0 g of Co-Fe PBA was put into a small graphite crucible (d = 1 cm, h = 1.5 cm). The small graphite crucible containing Co-Fe PBA was then put inside a 150 mL crucible and the graphite crucible was embedded in commercial columnar carbon material. The 150 mL crucible with a small graphite crucible inside was then placed in a commercial microwave oven under microwave irradiation with 900 W for 10 min. The obtained product was further treated by 0.5 M H2SO4 with ultrasound for 1 h to remove impurities. The product was washed by centrifugation using DI water. The final product was obtained after drying at 80 °C in a vacuum and is denoted as [email protected]
Synthesis of [email protected] catalysts: 50 mg of [email protected] was treated in Ar atmosphere under a DBD plasma reactor at an input power of 50 V × 1.5 A AC (alternating current) for 30 min to prepare [email protected]

2.2. Characterizations

The field emission Tecnai G2 F20 electron (Hillsboro, OR, USA) microscope was used to analyze transmission electron microscopy (TEM). X-ray diffraction (XRD, D8 Advance, Bruker, Karlsruhe, Germany) with Cu-K radiation was used to characterize the structures of crystallographic phases for the products. The Raman spectra was analyzed by a Laser Confocal Micro-Raman Spectroscope (LabRAM HR800, Horiba Jobin Yvon, French) with a laser wavelength of 532 nm. The surface chemical compositions were tested by using an X-ray photoelectron spectroscope (XPS, ESCALAB 250Xi, Thermo Fisher Scientific, MA, USA).

2.3. Electrochemical Measurements

2.3.1. ORR Text

The electrochemical performance was tested by using a CHI760D electrochemical station with a three-electrode cell system at room temperature in 0.1 M KOH (Potassium hydroxide) as an electrode solution. The reference electrode and the counter electrode was the Ag/AgCl electrode and a Pt wire, respectively. To prepare the catalyst ink for electrochemical analysis, 5 mg of the catalyst was dispersed into 0.5 mL of ethanol containing a Nafion solution (5 wt%, DuPont) with the aid of ultrasonication. A total of 10 μL of the catalyst ink was then coated on the glassy carbon disc electrode (3 mm in diameter) and dried at 60 °C. The catalyst loading was controlled at 0.0142 mg/cm2. The catalyst on the glassy carbon rotating disk electrode was used as a working electrode, with a rotating rate varying from 625 to 2500 rpm at a scan rate of 10 mV/s. Ag/AgCl and platinum plate were used as the reference and counter electrodes, respectively. The cyclic voltammetry (CV) curves were obtained at a sweep speed of 50 mV/s in the potential range between −0.8 and 0.2 V after purging O2 or N2 for 20 min.
In a typical ORR program, the following equation can be used to estimate the number of electron transfers based on the slope of the Koutecky–Levich (K–L) graph:
1 J = 1 J k + 1 B ω 1 / 2
where J represents the current density measured on a rotating disk electrode (RDE), Jk is the kinetic current density, and ω acts as the electrode rotation speed. B is derived from the following equation:
B = 0.2 n F C 0 D 0 2 / 3 ν 1 / 6
among which n represents the electron transfer number of each O2 molecule in the ORR process, F is 96,485 C/mol (Faraday constant), C0 is 1.2 × 10−3 mol/L (the dissolved O2 concentration), D0 is 1.9 × 10−5 cm2/s (the O2 diffusion coefficient), and ν is 0.01 cm2/s (the electrolyte kinematic viscosity).

2.3.2. OER (Oxygen Evolution Reaction) Text

The electrochemical performances of the prepared products were measured in an O2-saturated 1 M KOH at a 10 mV/s scanning rate with a three-electrode system using a CHI760D electrochemical station. The catalyst ink coated on Ni-foam was used as the working electrode. Pt foil and Ag/AgCl were used as the counter electrode and reference electrode, respectively. To prepare the catalyst ink, 2 mg of samples were dispersed in 500 μL water and 500 μL ethanol mixture, which contained 30 mL 60 wt% polytetrafluoroethylene (PTFE) solution with the aid of ultrasonication. Subsequently, 100 μL of as-prepared catalyst ink was loaded on surface of the Nickel foam surface (1 × 1 cm2) and then dried at room temperature.
All potentials by measuring were called reversible hydrogen electrode (RHE) by RHE calibration, as follows:
ERHE = EAg/AgCl + 0.197 + 0.059 pH
For the whole polarization curve, linear sweep voltammetry (LSV) was performed at a 1.0 mV/s scanning rate, which were IR (deviation caused by I-current and R-resistance) corrected. Calculating the overpotential (η) is expressed as follows: η = ERHE − 1.23 V.

3. Results

As shown in Figure 1a, it was observed from the XRD pattern of Co-Fe PBA that the peaks of XRD are related to the Co3[Fe(CN)6]2(H2O)10 (JCPDS No. 46-907) [20]. At the same time, Figure 1b showed the FTIR spectrum of CoFe-PBA. It can be seen that FeIII-CN-CoII and FeII-CN-CoIII appeared at positions of 2111 cm−1 and 2158 cm−1, respectively. Additionally, two peaks at 1609 cm−1 and 3416 cm−1 corresponding to the bending vibration and stretching vibration absorption peak of O-H in water molecules were obviously detected, indicating that some water molecules entered the PBA lattice. Combined with the XRD spectrum and FTIR spectrum, it was shown that CoFe-PBA was successfully synthesized.
In order to determine the structural feature of the as-prepared products, the XRD pattern (Figure 1c) of [email protected] and [email protected] were presented in Figure 1c. The XRD patterns of the two showed a sharp peaks at 44.8°and 65.3°, which can be indexed to the diffraction from (110) and (200) planes of FeCo alloy (JCPDS No. 49-1567) [30]. Additionally, the two catalysts had broad peaks at 2θ = 26°, which formed on the (002) plane of graphite. [email protected] prepared by MW-CBM exhibited a high degree of graphitization. However, the peak intensity of graphite carbon was reduced for [email protected] after plasma treatment, indicating that the crystallinity of graphite carbon was decreased. The molecular structures of [email protected] and [email protected] were investigated using the Raman spectra. As can be seen from Figure 1d thatthe G band and the D band were around 1580 cm−1 and 1350 cm−1, respectively. The value of ID/IG can be used to estimate the defect levels in the Raman spectra of carbon-based materials. It was found that the ID/IG values were 1.01 for [email protected], and 1.27 for [email protected], respectively, indicating that the plasma treatment promoted the defective sites for [email protected] [31,32]. This conclusion was consistent with our XRD results and high-resolution TEM (HRTEM) images. The catalysts exposed more active sites due to increased defect sites, which was beneficial for ORR performance.
XPS was further employed to survey the surface composition of the [email protected] and [email protected] Figure 2a showed the survey XPS spectrum of [email protected] and [email protected] Figure 2b showed that C 1s spectra can be divided into three peaks, corresponding to sp2 hybridized C (284.2 eV), C-O/C-N (285.5 eV), and O-C=O (288.0 eV) [33]. Figure 2c displayed the N 1s spectra of [email protected] and [email protected], which could be deconvoluted into four peaks relevant to pyridinic N (398.2 eV), pyrrolic N (400.0 eV), graphitic N (401.1 eV), and oxidized N (406.6 eV). All of these N species were reported to show advantages for ORR, apart from the uncertain contribution of the oxidized N. As shown in Table 1, the different nitrogen type contents of [email protected] and [email protected] were 0.26 vs 0.58 at.% (pyridinic N), 0.30 vs 0.33 at.% (pyrrolic N), 0.26 vs 0.26 at.% (graphitic N), and 0.98 vs 0.50 at.% (oxidized N), respectively. It was found that [email protected] expressed an increased in the content of pyridinic N after plasma treatment, which was good for ORR activity [34,35]. The O 1s XPS spectra of all samples were given in Figure 2c. The peak at 531.2 eV and 532.0 eV belonged to oxygen defects and O-H sites from surface-absorbed water, respectively. Moreover, the amount of oxygen defects for [email protected] and [email protected] was 72.98% and 85.57%, respectively. The increase of oxygen vacancies after plasma treatment was beneficial to the adsorption and reduction of oxygen [36,37]. Figure 2e showed the Fe 2p spectra of [email protected] and [email protected] The peak at the binding energy of 711.2 eV corresponded to Fe 2p3/2, the peak at 725.2 eV was relevant to Fe 2p1/2, and the peak at 718.4 eV was a satellite peak, confirming the existence of Fe-N-C structure [38]. The high-resolution XPS spectra of Co 2p (Figure 2f) revealed that there was a weak pair of doublets for the Co 2p3/2 and Co 2p1/2 signals at 780.6 eV and 796.2 eV, and the peak at 719.0 eV was a satellite peak, indicating the presence of Co-N-C species [39].
The morphology of [email protected] and [email protected] was investigated by transmission electron microscopy (TEM). A closer view of the TEM image displayed that [email protected] existed in a core-shell structure with a diameter of 30–50 nm (Figure 3a). The high-resolution TEM (HRTEM) in Figure 3b of [email protected] further revealed that the FoCo alloy nanoparticles were wrapped by graphitic carbon layers. The well-defined crystalline lattice gaps were 0.201 nm (core) and 0.35 nm (shell), which associated with the (110) plane of the FeCo phase and (002) the plane of the graphitic carbon, respectively. The HRTEM image in Figure 3c disclosed that [email protected] maintained a core-shell structure well after plasma treatment, and the lattice fringe spacing (0.201 nm) of the FeCo phase can also be observed. It was worth noting that the thickness of the graphite carbon layer of [email protected] was stripped from 2.68 nm to 1.06 nm after plasma treatment, compared to [email protected] The thin layer structure of [email protected] reduced the surface reaction resistance of the catalyst, which was beneficial to ion transport/transfer [40]. More importantly, there were a few defects in [email protected], which indicated that the interface active site was enhanced by plasma treatment and was beneficial for ORR [41,42]. HAADF-STEM (High-Angle Annular Dark Field- Scanning transmission electron microscopy) images (Figure 3e) and relevant elemental mapping of Fe, Co, C, and N revealed the core-shell morphology with C, N, Fe, and Co and the uniform distribution of Fe and Co elements in the core-shell structure, proving that the active centers were doped and distributed uniformly on the catalyst.
The catalytic performance of ORR was tested using RDE with the electrolyte of 0.1 M KOH. LSV curves (Figure 4a) for the [email protected], [email protected], and 20 wt% Pt/C were examined at a 10 mV/s scanning rate 1600 rpm rotation speed in O2-saturated electrolytes. Not surprisingly, [email protected] disclosed the limited current density of 5.66 mA/cm2 and an onset potential of 0.96 V vs. RHE, which was greater than [email protected] (4.42 mA/cm2, 0.88 V vs. RHE) and 20 wt.% Pt/C (5.01 mA/cm2, 0.93 V vs. RHE). It was observed that [email protected] showed the half-wave potential at 0.88 V vs. RHE, which was 100 mV higher than that of [email protected] without plasma treatment. The ORR performance was comparable to other alloy catalysts (Table 2). Figure 4b displayed that CV showed a noticeable reduction peak at a 50 mV s−1 scanning rate in O2-saturated electrolytes, but no peak in N2-saturated electrolytes. These results indicated the obvious ORR activity toward [email protected] The reaction kinetics of [email protected] was measured by an ORR polarization technique at 625–2500 rpm (Figure 4c). The Koutecky–Levich (K–L) graphs of the [email protected] exhibited an approximately linear relationship between ω−1/2 and j−1 in Figure 4d. In the range of 0.3–0.6 V, the average electron transfer number n value for [email protected] was calculated to be about 3.8 from K–L graphs, indexing a near four-electron transfer mechanism. Durability tests were performed for 20 wt% Pt/C and [email protected] by i-t measurement (Figure 4e). After 32,000 s of continuous operation, the current density of [email protected] can still be maintained at 75.6% (vs 35.6%, 20 wt% Pt/C), manifesting that [email protected] exhibited good durability. The methanol tolerance of [email protected] NC and 20 wt% Pt/C was examined by adding 3 M methanol to 0.1 M KOH solution after 200 s. The chronoamperometric response (Figure 4f) showed that [email protected] only decreased slightly, and its current remained at 89.2% after 1200 s, while the 20 wt% Pt/C was only 43.1% of its maximum current. The results displayed that the stability and selectivity of the [email protected] NC catalyst for ORR was higher than 20 wt% Pt/C.
The electrocatalytic properties of [email protected] and [email protected] for the OER activity were also studied. As displayed in Figure 5a, the initial potential of [email protected] was 1.49 V vs. RHE, which was more negative than that of [email protected] (1.55 V vs. RHE), and the initial potential of nickel foam displayed 1.58 V vs. RHE, suggesting an enhanced OER activity in [email protected] It is well known that the potential demanded to provide the current density of 10 mA/cm2 is the key benchmark for OER [43,44,45]. Under the current density of 10.0 mA/cm2, overpotential of 386 mV and 335 mV were estimated for [email protected] and [email protected], respectively. As illustrated in Figure 5b, the [email protected] displayed a Tafel slope (111 mV/dec), which was much less than that of [email protected] (209 mV/dec), demonstrating the most favorable OER kinetics and highly active [email protected] The current i-t curve (Figure 5c) showed excellent stability of [email protected] under a current density of 10 mA/cm2, which retained 91.3% of the initial catalytic current after 14 h of continuous testing.
Based on the structure and morphology of the catalysts, the excellent electrocatalytic activities for both ORR and OER can be attributed to several factors: (1) The active sites of Fe/Co-Nx-C can adjust the electronic polarities and surface properties, which can improve the activity of the catalyst; (2) the unique core-shell structure offered more active sites and effectively prevented the coagulation and dissolution/redeposition of FeCo alloy nanoparticles, thus maintaining high electrocatalytic stability; (3) the plasma treatment made the catalyst possess more defect sites, which played an important role in improving catalytic performance; (4) the Co-Fe system enhanced the conductivity of the catalysts.

4. Conclusions

In summary, we synthesized N-doped graphite carbon-coated FeCo alloy core-shell nanoparticles via the microwave-assisted carbon bath method and further treatment with DBD plasma as bi-functional ORR/OER catalysts. The materials exhibited unique core-shell structure, Fe/Co-N-C sites, the existence of FeCo alloys, and enriched defect active sites. Because of these characteristics, [email protected] displayed excellent ORR performance, as well as good OER activity. This synthetic route is facile and scalable to prepare catalytic materials with different metal-doped and abundant defect active sites, giving a wide possibility for large-scale application in practice.

Author Contributions

F.Y., X.G., and L.Z. designed the experiments. C.M., S.Y., G.W., and X.X. administered the experiments. M.L., H.Y., and H.F. performed experiments. M.L. and F.Y. collected data. X.G. and L.Z. gave conceptual advice. All authors analyzed, discussed the data, and wrote the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (21663022, 21865025).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Su, C.-Y.; Cheng, H.; Li, W.; Liu, Z.-Q.; Li, N.; Hou, Z.; Bai, F.-Q.; Zhang, H.-X.; Ma, T.-Y. Atomic Modulation of FeCo-Nitrogen-Carbon Bifunctional Oxygen Electrodes for Rechargeable and Flexible All-Solid-State Zinc-Air Battery. Adv. Energy Mater. 2017, 7, 1602420. [Google Scholar] [CrossRef]
  2. Zhang, X.; Lyu, D.; Mollamahale, Y.B.; Yu, F.; Qing, M.; Yin, S.; Zhang, X.; Tian, Z.Q.; Shen, P.K. Critical role of iron carbide nanodots on 3D graphene based nonprecious metal catalysts for enhancing oxygen reduction reaction. Electrochim. Acta 2018, 281, 502–509. [Google Scholar] [CrossRef]
  3. Xu, N.; Zhang, Y.; Zhang, T.; Liu, Y.; Qiao, J. Efficient quantum dots anchored nanocomposite for highly active ORR/OER electrocatalyst of advanced metal-air batteries. Nano Energy 2019, 57, 176–185. [Google Scholar] [CrossRef]
  4. Zhao, Q.; Katyal, N.; Seymour, I.D.; Henkelman, G.; Ma, T. Vanadium(III) Acetylacetonate as an Efficient Soluble Catalyst for Lithium-Oxygen Batteries. Angew. Chem. Int. Ed. 2019, 58, 12553–12557. [Google Scholar] [CrossRef]
  5. Liu, S.; Wang, M.; Sun, X.; Xu, N.; Liu, J.; Wang, Y.; Qian, T.; Yan, C. Zinc-Air Batteries: Facilitated Oxygen Chemisorption in Heteroatom-Doped Carbon for Improved Oxygen Reaction Activity in All-Solid-State Zinc–Air Batteries (Adv. Mater. 4/2018). Adv. Mater. 2018, 30, 1870028. [Google Scholar] [CrossRef]
  6. Liu, M.; Guo, X.; Hu, L.; Yuan, H.; Wang, G.; Dai, B.; Zhang, L.; Yu, F. Fe3O4/[email protected] carbon for enhancing oxygen reduction reaction. Chem. Nano Mat. 2019, 5, 187–193. [Google Scholar] [CrossRef]
  7. Li, Y.; Zhong, C.; Liu, J.; Zeng, X.; Qu, S.; Han, X.; Deng, Y.; Hu, W.; Lu, J. Atomically Thin Mesoporous Co3 O4 Layers Strongly Coupled with N-rGO Nanosheets as High-Performance Bifunctional Catalysts for 1D Knittable Zinc-Air Batteries. Adv. Mat. 2017, 30, 1703657. [Google Scholar] [CrossRef]
  8. Hu, L.; Yu, F.; Yuan, H.; Wang, G.; Liu, M.; Wang, L.; Xue, X.; Peng, B.; Tian, Z.; Dai, B. Improved oxygen reduction reaction via a partially oxidized Co-CoO catalyst on N-doped carbon synthesized by a facile sand-bath method. Chin. Chem. Lett. 2019, 30, 624–629. [Google Scholar] [CrossRef]
  9. Han, J.; Meng, X.; Lu, L.; Bian, J.; Li, Z.; Sun, C. Single-Atom Fe-Nx-C as an Efficient Electrocatalyst for Zinc-Air Batteries. Adv. Funct. Mat. 2019. [Google Scholar] [CrossRef]
  10. Wang, Y.; Zhu, M.; Wang, G.; Dai, B.; Yu, F.; Tian, Z.; Guo, X. Enhanced Oxygen Reduction Reaction by In Situ Anchoring Fe2N Nanoparticles on Nitrogen-Doped Pomelo Peel-Derived Carbon. Nanomaterials 2017, 7, 404. [Google Scholar] [CrossRef]
  11. Shi, L.; Wu, T.; Wang, Y.; Zhang, J.; Wang, G.; Zhang, J.; Dai, B.; Yu, F. Nitrogen-Doped Carbon Nanoparticles for Oxygen Reduction Prepared via a Crushing Method Involving a High Shear Mixer. Materials 2017, 10, 1030. [Google Scholar] [CrossRef] [PubMed]
  12. Du, X.X.; He, Y.; Wang, X.X.; Wang, J.N. Fine-grained and fully ordered intermetallic PtFe catalysts with largely enhanced catalytic activity and durability. Energy Environ. Sci. 2016, 9, 2623–2632. [Google Scholar] [CrossRef]
  13. Chong, L.; Wen, J.; Kubal, J.; Sen, F.G.; Zou, J.; Greeley, J.; Chan, M.; Barkholtz, H.; Ding, W.; Liu, D.-J. Ultralow-loading platinum-cobalt fuel cell catalysts derived from imidazolate frameworks. Science 2018, 362, 1276–1281. [Google Scholar] [CrossRef] [PubMed]
  14. Jia, Q.; Zhao, Z.; Cao, L.; Li, J.; Ghoshal, S.; Davies, V.; Stavitski, E.; Attenkofer, K.; Liu, Z.; Li, M.; et al. Roles of Mo Surface Dopants in Enhancing the ORR Performance of Octahedral PtNi Nanoparticles. Nano Lett. 2018, 18, 798–804. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, Q.; Yang, Y.; Cao, Z.; Kuang, Q.; Du, G.; Jiang, Y.; Xie, Z.; Zheng, L. Excavated Cubic Platinum-Tin Alloy Nanocrystals Constructed from Ultrathin Nanosheets with Enhanced Electrocatalytic Activity. Angew. Chem. Int. Ed. 2016, 55, 9021–9025. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, G.-R.; Wöllner, S. Hollowed structured PtNi bifunctional electrocatalyst with record low total overpotential for oxygen reduction and oxygen evolution reactions. Appl. Catal. B Environ. 2018, 222, 26–34. [Google Scholar] [CrossRef]
  17. Wang, N.; Li, Y.; Guo, Z.; Li, H.; Hayase, S.; Ma, T. Minute quantities of hexagonal nanoplates PtFe alloy with facile operating conditions enhanced electrocatalytic activity and durability for oxygen reduction reaction. J. Alloy. Compd. 2018, 752, 23–31. [Google Scholar] [CrossRef]
  18. Zeng, M.; Liu, Y.; Zhao, F.; Nie, K.; Han, N.; Wang, X.; Huang, W.; Song, X.; Zhong, J.; Li, Y. Metallic Cobalt Nanoparticles Encapsulated in Nitrogen-Enriched Graphene Shells: Its Bifunctional Electrocatalysis and Application in Zinc-Air Batteries. Adv. Funct. Mater. 2016, 26, 4397–4404. [Google Scholar] [CrossRef]
  19. Bates, M.K.; Jia, Q.; Doan, H.; Liang, W.; Mukerjee, S. Charge-Transfer Effects in Ni–Fe and Ni–Fe–Co Mixed-Metal Oxides for the Alkaline Oxygen Evolution Reaction. ACS Catal. 2015, 6, 155–161. [Google Scholar] [CrossRef]
  20. Cai, P.; Ci, S.; Zhang, E.; Shao, P.; Cao, C.; Wen, Z. FeCo Alloy Nanoparticles Confined in Carbon Layers as High-activity and Robust Cathode Catalyst for Zn-Air Battery. Electrochim. Acta 2016, 220, 354–362. [Google Scholar] [CrossRef]
  21. Zhao, X.; Abbas, S.C.; Huang, Y.; Lv, J.; Wu, M.; Wang, Y. Robust and Highly Active [email protected] Nanowire Arrays as Integrated Air Electrode for Flexible Solid-State Rechargeable Zn-Air Batteries. Adv. Mater. Interfaces 2018, 5, 1701448. [Google Scholar] [CrossRef]
  22. Wei, L.; Karahan, H.E.; Zhai, S.; Liu, H.; Chen, X.; Zhou, Z.; Lei, Y.; Liu, Z.; Chen, Y. Amorphous Bimetallic Oxide-Graphene Hybrids as Bifunctional Oxygen Electrocatalysts for Rechargeable Zn-Air Batteries. Adv. Mater. 2017, 29, 1701410. [Google Scholar] [CrossRef] [PubMed]
  23. Yu, F.; Lim, S.H.; Zhen, Y.; An, Y.; Lin, J. Optimized electrochemical performance of three-dimensional porous LiFePO 4 /C microspheres via microwave irradiation assisted synthesis. J. Power Sources 2014, 271, 223–230. [Google Scholar] [CrossRef]
  24. Yu, F.; Zhang, L.; Lai, L.; Zhu, M.; Guo, Y.; Xia, L.; Qi, P.; Wang, G.; Dai, B. High Electrochemical Performance of LiFePO4 Cathode Material via In-Situ Microwave Exfoliated Graphene Oxide. Electrochim. Acta 2015, 151, 240–248. [Google Scholar] [CrossRef]
  25. Liu, M.; Yin, X.; Guo, X.; Hu, L.; Yuan, H.; Wang, G.; Wang, F.; Chen, L.; Zhang, L.; Yu, F. High efficient oxygen reduction performance of Fe/Fe3C nanoparticles in situ encapsulated in nitrogen-doped carbon via a novel microwave-assisted carbon bath method. Nano Mater. Sci. 2019, 1, 131–136. [Google Scholar] [CrossRef]
  26. Li, P.; Wen, B.; Yu, F.; Zhu, M.; Guo, X.; Han, Y.; Kang, L.; Huang, X.; Dan, J.; Ouyang, F.; et al. High efficient nickel/vermiculite catalyst prepared via microwave irradiation-assisted synthesis for carbon monoxide methanation. Fuel 2016, 171, 263–269. [Google Scholar] [CrossRef]
  27. Yu, F.; Zhang, L.; Zhu, M.; An, Y.; Xia, L.; Wang, X.; Dai, B. Overwhelming microwave irradiation assisted synthesis of olivine-structured LiMPO4 (M=Fe, Mn, Co and Ni) for Li-ion batteries. Nano Energy 2014, 3, 64–79. [Google Scholar] [CrossRef]
  28. Ding, D.; Song, Z.-L.; Cheng, Z.-Q.; Liu, W.-N.; Nie, X.-K.; Bian, X.; Chen, Z.; Tan, W. Plasma-assisted nitrogen doping of graphene-encapsulated Pt nanocrystals as efficient fuel cell catalysts. J. Mater. Chem. A 2014, 2, 472–477. [Google Scholar] [CrossRef]
  29. Wang, Y.; Yu, F.; Zhu, M.; Ma, C.; Zhao, D.; Wang, C.; Zhou, A.; Dai, B.; Ji, J.; Guo, X. N-Doping of plasma exfoliated graphene oxide via dielectric barrier discharge plasma treatment for the oxygen reduction reaction. J. Mater. Chem. A 2018, 6, 2011–2017. [Google Scholar] [CrossRef]
  30. Lin, H.; Ruirui, Z.; Lingzhi, W.; Fapei, Z.; Qianwang, C. Synthesis of FeCo nanocrystals encapsulated in nitrogen-doped graphene layers for use as highly efficient catalysts for reduction reactions. Nanoscale 2014, 7, 450–454. [Google Scholar]
  31. Wang, X.; Wang, J.; Wang, D.; Dou, S.; Ma, Z.; Wu, J.; Tao, L.; Shen, A.; Ouyang, C.; Liu, Q.; et al. One-pot synthesis of nitrogen and sulfur co-doped graphene as efficient metal-free electrocatalysts for the oxygen reduction reaction. Chem. Commun. 2014, 50, 4839–4842. [Google Scholar] [CrossRef] [PubMed]
  32. Dou, S.; Shen, A.; Tao, L.; Wang, S. Molecular doping of graphene as metal-free electrocatalyst for oxygen reduction reaction. Chem. Commun. 2014, 50, 10672–10675. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, H.; Wang, G.; Chen, L.; Dai, B.; Yu, F. Three-Dimensional Honeycomb-Like Porous Carbon with Both Interconnected Hierarchical Porosity and Nitrogen Self-Doping from Cotton Seed Husk for Supercapacitor Electrode. Nanomaterials 2018, 8, 412. [Google Scholar] [CrossRef] [PubMed]
  34. Wu, Z.Y.; Xu, X.X.; Hu, B.C.; Liang, H.W.; Lin, Y.; Chen, L.F.; Yu, S.H. Iron Carbide Nanoparticles Encapsulated in Mesoporous Fe-N-Doped Carbon Nanofibers for Efficient Electrocatalysis. Angew. Chem. Int. Ed. Engl. 2015, 54, 8179–8183. [Google Scholar] [CrossRef] [PubMed]
  35. Li, J.S.; Li, S.L.; Tang, Y.J.; Han, M.; Dai, Z.H.; Bao, J.C.; Lan, Y.Q. Nitrogen-doped Fe/[email protected] layer/carbon nanotube hybrids derived from MOFs: efficient bifunctional electrocatalysts for ORR and OER. Chem. Commun. 2015, 51, 2710–2713. [Google Scholar] [CrossRef] [PubMed]
  36. Lima, F.H.B.; Calegaro, M.L.; Ticianelli, E.A. Electrocatalytic activity of dispersed platinum and silver alloys and manganese oxides for the oxygen reduction in alkaline electrolyte. Russ. J. Electrochem. 2006, 42, 1283–1290. [Google Scholar] [CrossRef]
  37. Zeng, Y.; Lai, Z.; Han, Y.; Zhang, H.; Xie, S.; Lu, X. Oxygen-Vacancy and Surface Modulation of Ultrathin Nickel Cobaltite Nanosheets as a High-Energy Cathode for Advanced Zn-Ion Batteries. Adv. Mater. 2018, 1802396. [Google Scholar] [CrossRef]
  38. Lin, Q.; Bu, X.; Kong, A.; Mao, C.; Zhao, X.; Bu, F.; Feng, P. New Heterometallic Zirconium Metalloporphyrin Frameworks and Their Heteroatom-Activated High-Surface-Area Carbon Derivatives. J. Am. Chem. Soc. 2015, 137, 2235–2238. [Google Scholar] [CrossRef]
  39. Palaniselvam, T.; Kashyap, V.; Bhange, S.N.; Baek, J.-B.; Kurungot, S. Nanoporous Graphene Enriched with Fe/Co-N Active Sites as a Promising Oxygen Reduction Electrocatalyst for Anion Exchange Membrane Fuel Cells. Adv. Funct. Mater. 2016, 26, 2150–2162. [Google Scholar] [CrossRef]
  40. Liao, C.; Xu, Q.; Wu, C.; Fang, D.; Chen, S.; Chen, S.; Luo, J.; Li, L. Core–shell nano-structured carbon composites based on tannic acid for lithium-ion batteries. J. Mater. Chem. A 2016, 4, 17215–17224. [Google Scholar] [CrossRef]
  41. Shen, A.; Zou, Y.; Wang, Q.; Dryfe, R.A.W.; Huang, X.; Dou, S.; Dai, L.; Wang, S. Oxygen Reduction Reaction in a Droplet on Graphite: Direct Evidence that the Edge Is More Active than the Basal Plane. Angew. Chem. Int. Ed. 2014, 53, 10804–10808. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, M.; Li, P.; Tian, Z.; Zhu, M.; Wang, F.; Li, J.; Dai, B.; Yu, F.; Qiu, H.; Gao, H. Clarification of Active Sites at Interfaces between Silica Support and Nickel Active Components for Carbon Monoxide Methanation. Catalysts 2018, 8, 293. [Google Scholar] [CrossRef]
  43. Fu, H.; Liu, Y.; Chen, L.; Shi, Y.; Kong, W.; Hou, J.; Yu, F.; Wei, T.; Wang, H.; Guo, X. Designed formation of NiCo2O4 with different morphologies self-assembled from nanoparticles for asymmetric supercapacitors and electrocatalysts for oxygen evolution reaction. Electrochim. Acta 2019, 296, 719–729. [Google Scholar] [CrossRef]
  44. Xue, X.; Yu, F.; Peng, B.; Wang, G.; Lv, Y.; Chen, L.; Yao, Y.; Dai, B.; Shi, Y.; Guo, X. One-step synthesis of nickel–iron layered double hydroxides with tungstate acid anions via flash nano-precipitation for the oxygen evolution reaction. Sustain. Energy Fuels 2019, 3, 237–244. [Google Scholar] [CrossRef]
  45. Yan, J.; Kong, L.; Ji, Y.; White, J.; Li, Y.; Zhang, J.; An, P.; Liu, S.; Lee, S.-T.; Ma, T. Single atom tungsten doped ultrathin α-Ni(OH)2 for enhanced electrocatalytic water oxidation. Nat. Commun. 2019, 10. [Google Scholar] [CrossRef] [PubMed]
Figure 1. (a) XRD pattern, (b) FTIR spectra of CoFe-PBA, (c) XRD pattern, and (d) Raman spectra of [email protected] and [email protected]
Figure 1. (a) XRD pattern, (b) FTIR spectra of CoFe-PBA, (c) XRD pattern, and (d) Raman spectra of [email protected] and [email protected]
Nanomaterials 09 01284 g001

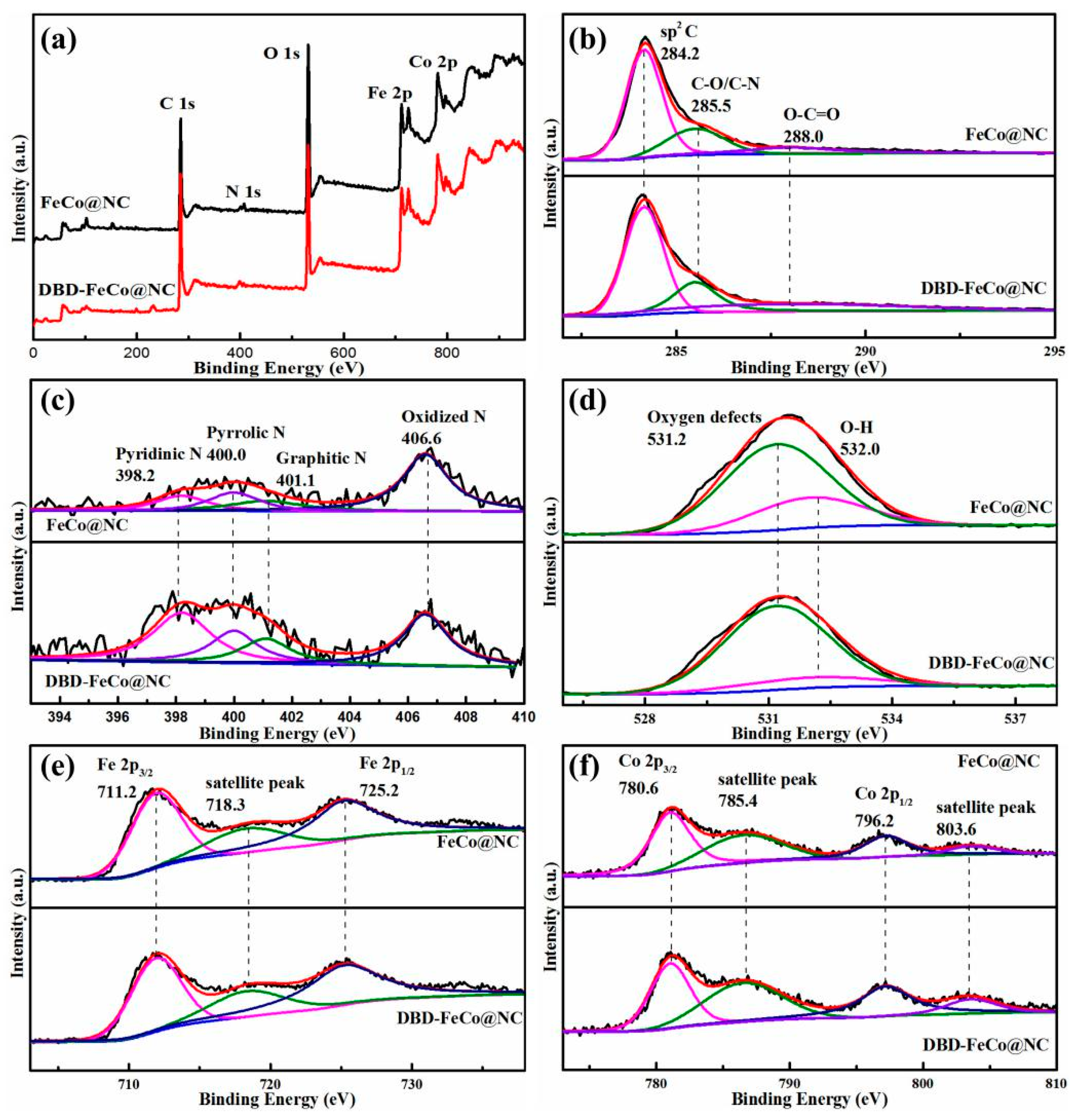

Figure 2. (a) XPS spectrum, (b) C 1s spectra, (c) N 1s spectra, (d) O 1s spectra, (e) Fe 2p spectra, (f) Co 2p spectra of [email protected], and [email protected]
Figure 2. (a) XPS spectrum, (b) C 1s spectra, (c) N 1s spectra, (d) O 1s spectra, (e) Fe 2p spectra, (f) Co 2p spectra of [email protected], and [email protected]
Nanomaterials 09 01284 g002

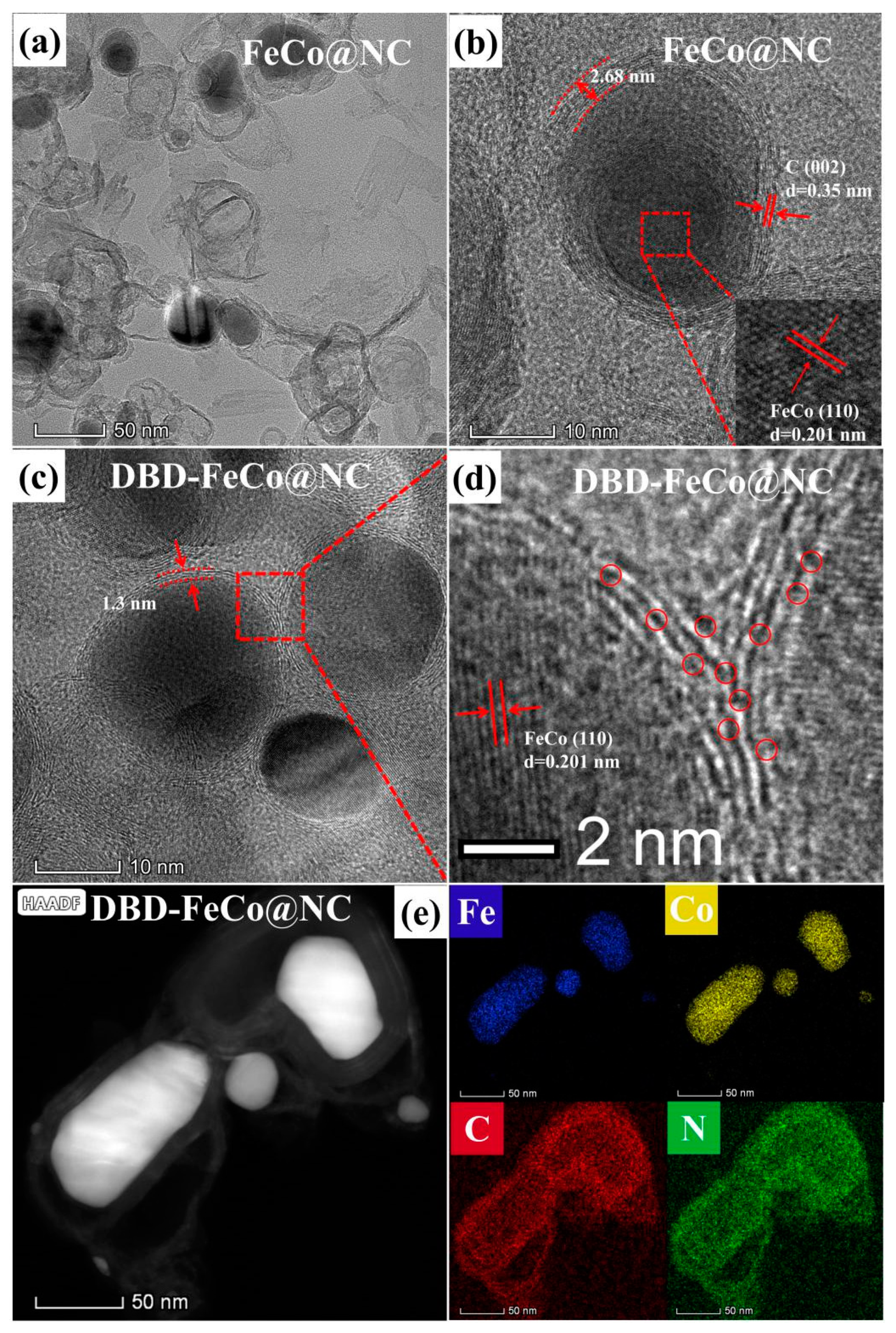

Figure 3. (a) Transmission electron microscopy (TEM) image for [email protected], (b) high-resolution TEM (HRTEM) image for [email protected], (c,d) HRTEM images for dielectric barrier discharge (DBD)[email protected], (e) HAADF-STEM image and the corresponding elemental mapping of [email protected]
Figure 3. (a) Transmission electron microscopy (TEM) image for [email protected], (b) high-resolution TEM (HRTEM) image for [email protected], (c,d) HRTEM images for dielectric barrier discharge (DBD)[email protected], (e) HAADF-STEM image and the corresponding elemental mapping of [email protected]
Nanomaterials 09 01284 g003

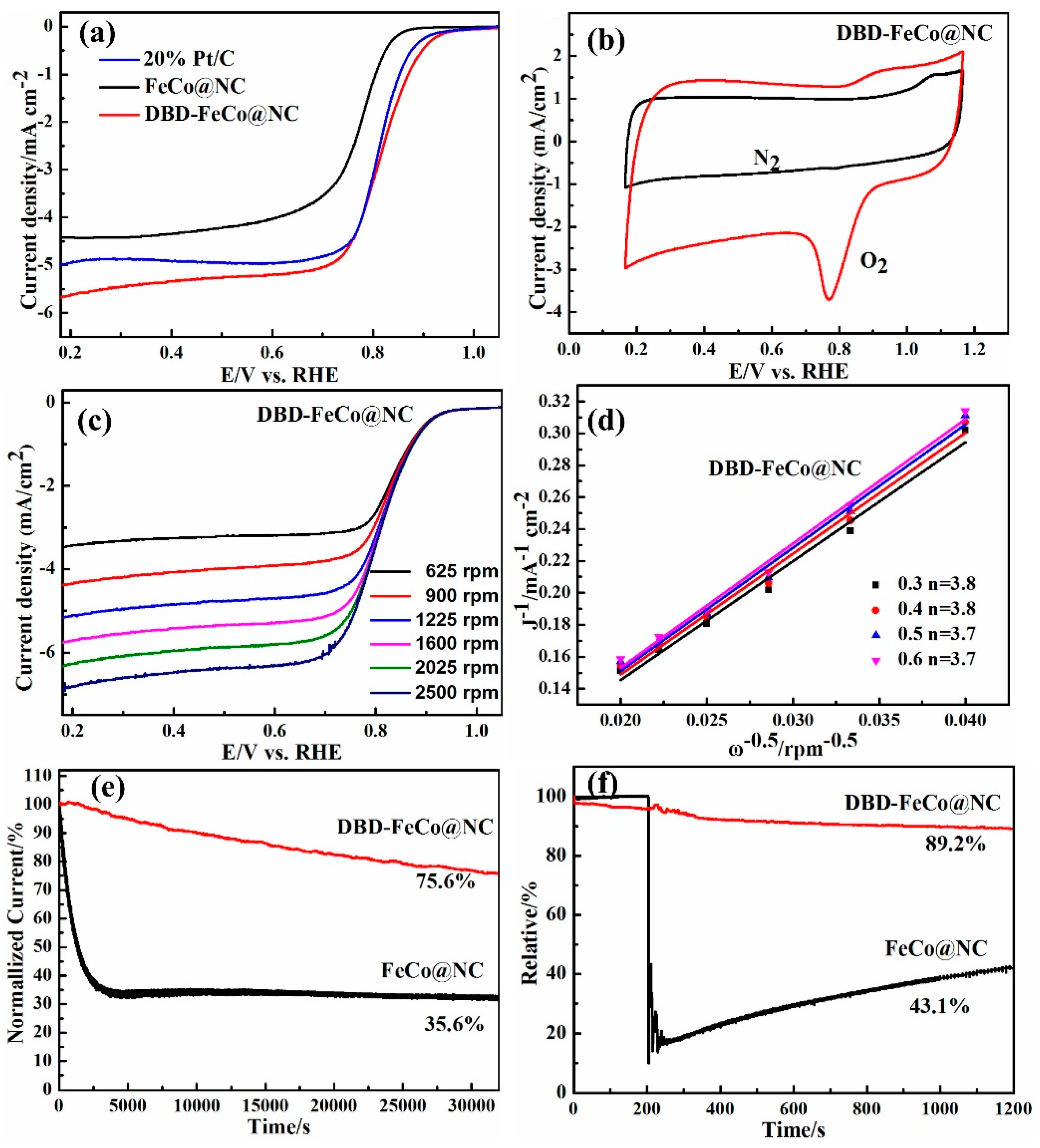

Figure 4. (a) Linear sweep voltammetry (LSV) curves of [email protected], [email protected], and 20 wt.% Pt/C in O2-saturated 0.1 M KOH, with a speed of 1600 rpm at a sweep rate of 10 mV/s; (b) cyclic voltammetry (CV) curves of [email protected] at a scan rate of 50 mV/s in N2-saturated or O2-saturated 0.1 M KOH electrolyte; (c) LSVs of [email protected] at various rotation speeds and corresponding K–L plots (d); (e) long-term stability tests; and (f) tolerance to alcohol poisoning tests of [email protected] and 20 wt.% Pt/C via the oxygen reduction reaction (ORR) cathodic current-time (i-t) method.
