Next Article in Journal
A Tunable Graphene 0–90° Polarization Rotator Achieved by Sine Equation Voltage Adjustment
Previous Article in Journal
Facile Synthesis of MnO2 Nanoflowers/N-Doped Reduced Graphene Oxide Composite and Its Application for Simultaneous Determination of Dopamine and Uric Acid
Open AccessArticle

Effect of Sputtering Temperature on Fluorocarbon Films: Surface Nanostructure and Fluorine/Carbon Ratio

1
State Key Laboratory of Power Transmission Equipment & System Security and New Technology, Chongqing University, Chongqing 400044, China
2
National Key Laboratory of Science and Technology on Space Microwave, China Academy of Space Technology (Xi’an), Xi’an 710100, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(6), 848; https://doi.org/10.3390/nano9060848
Received: 4 May 2019 / Revised: 23 May 2019 / Accepted: 24 May 2019 / Published: 3 June 2019

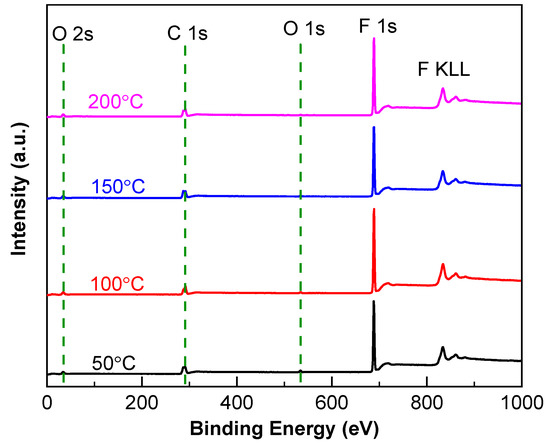

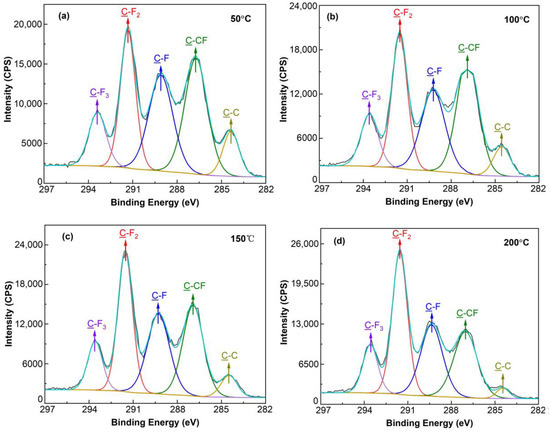

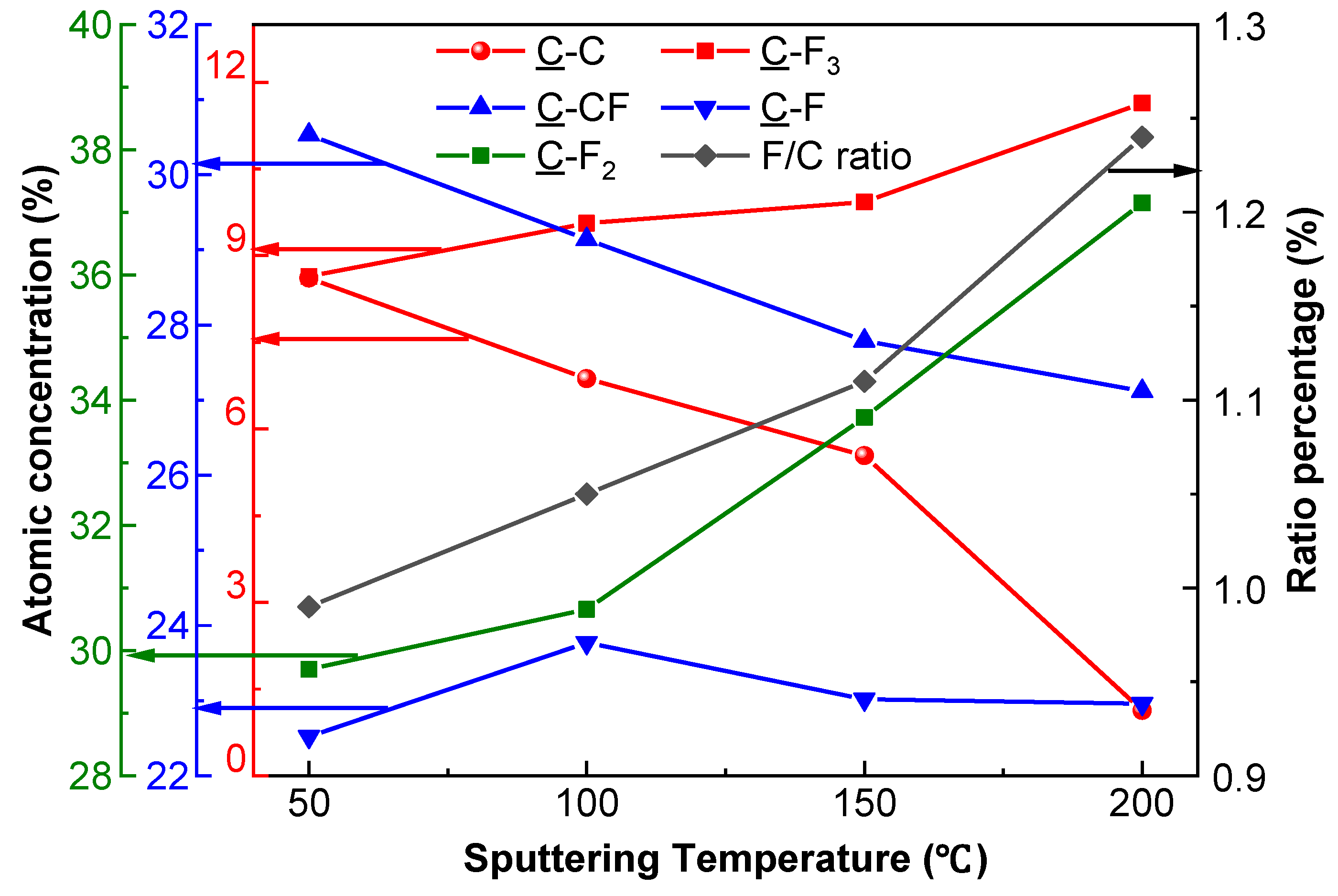

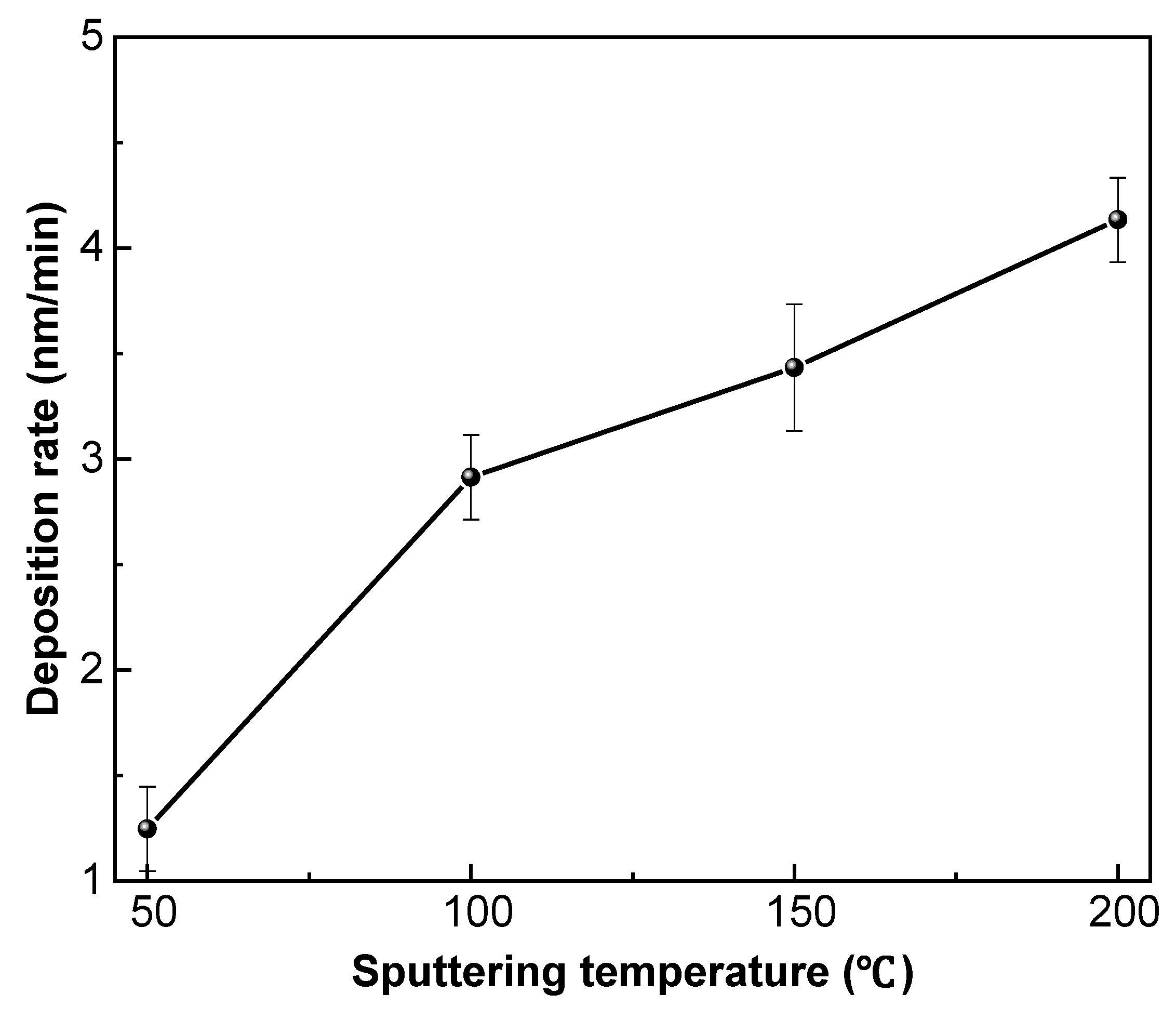

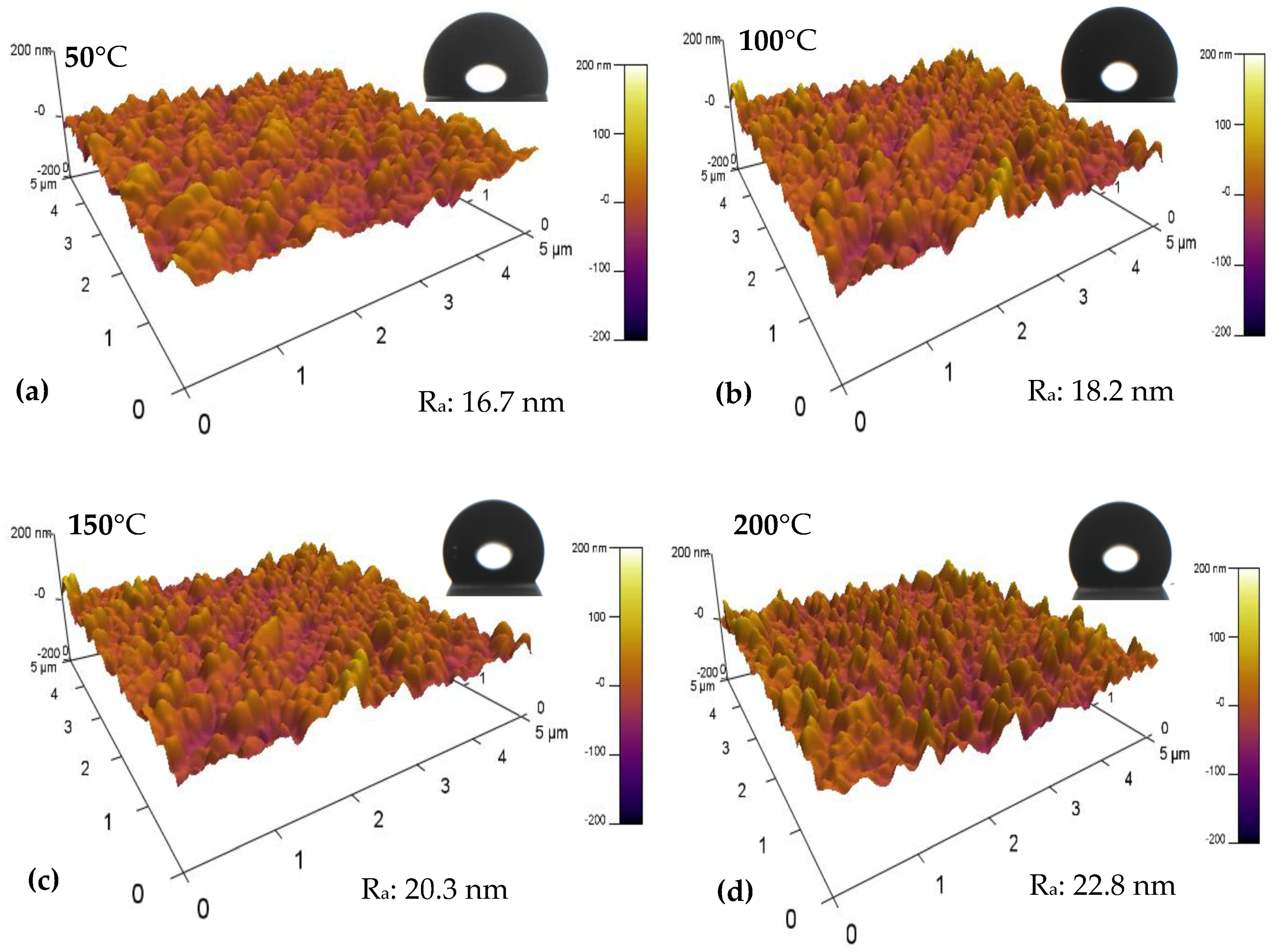

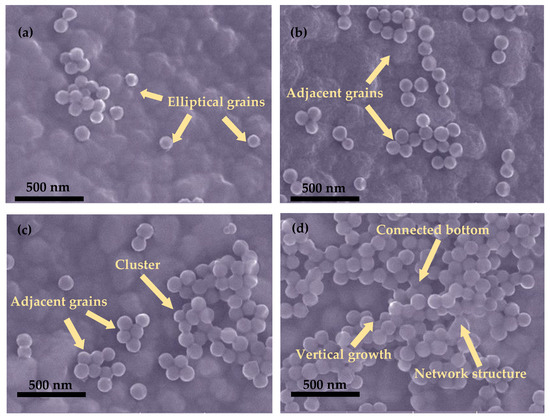

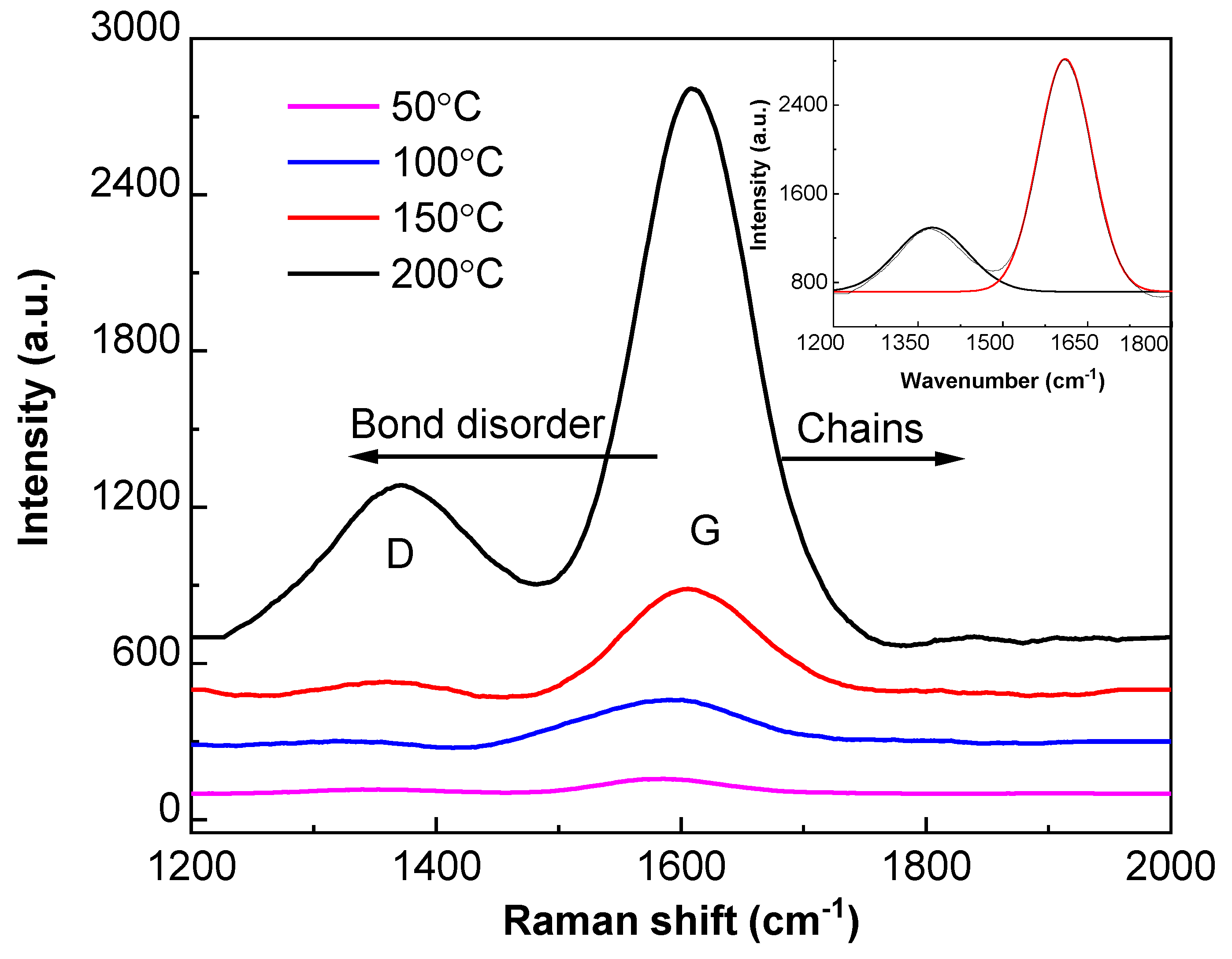

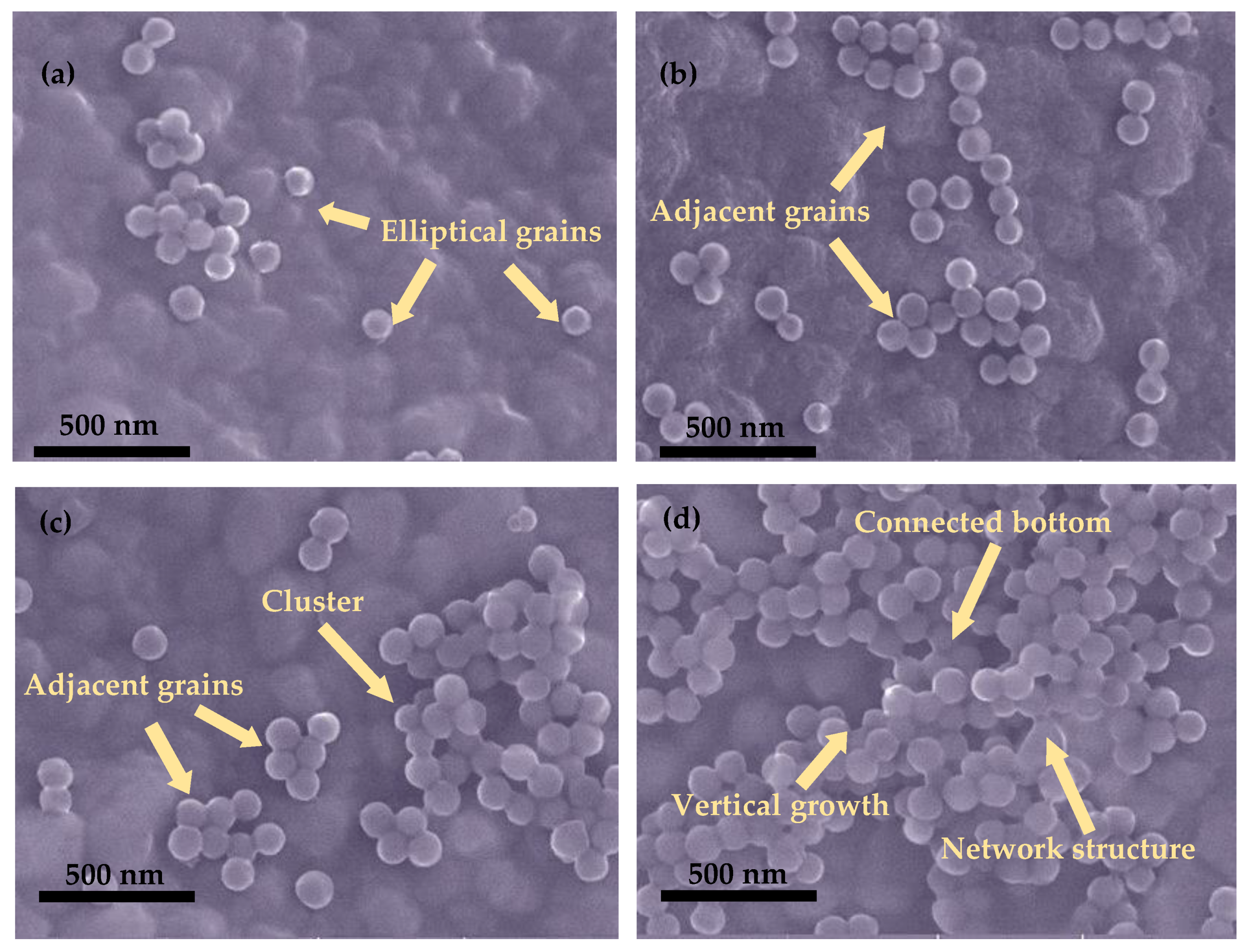

In this work, fluorocarbon film was deposited on silicon (P/100) substrate using polytetrafluoroethylene (PTFE) as target material at elevated sputtering temperature. Field emission scanning electron microscopy (FESEM), atomic force microscopy (AFM), Raman spectroscopy and X-ray photoelectron spectroscopy (XPS) were employed to investigate the surface morphology as well as structural and chemical compositions of the deposited film. The surface energy, as well as the polar and dispersion components, were determined by water contact angle (WCA) measurement. The experimental results indicated that increasing sputtering temperature effectively led to higher deposition rate, surface roughness and WCA of the film. It was found that the elevated temperature contributed to increasing saturated components (e.g., C–F2 and C–F3) and decreasing unsaturated components (e.g., C–C and C–CF), thus enhancing the fluorine-to-carbon (F/C) ratio. The results are expected aid in tailoring the design of fluorocarbon films for physicochemical properties. View Full-Text
Keywords: fluorocarbon; surface nanostructure; sputtering temperature; surface properties fluorocarbon; surface nanostructure; sputtering temperature; surface properties
Show Figures

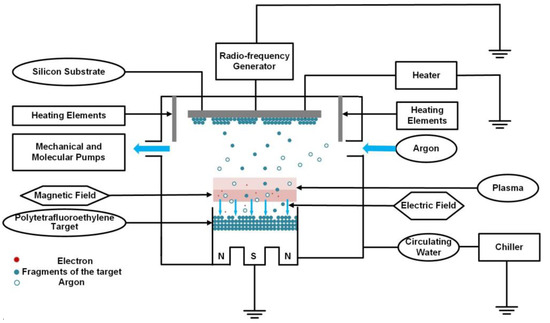

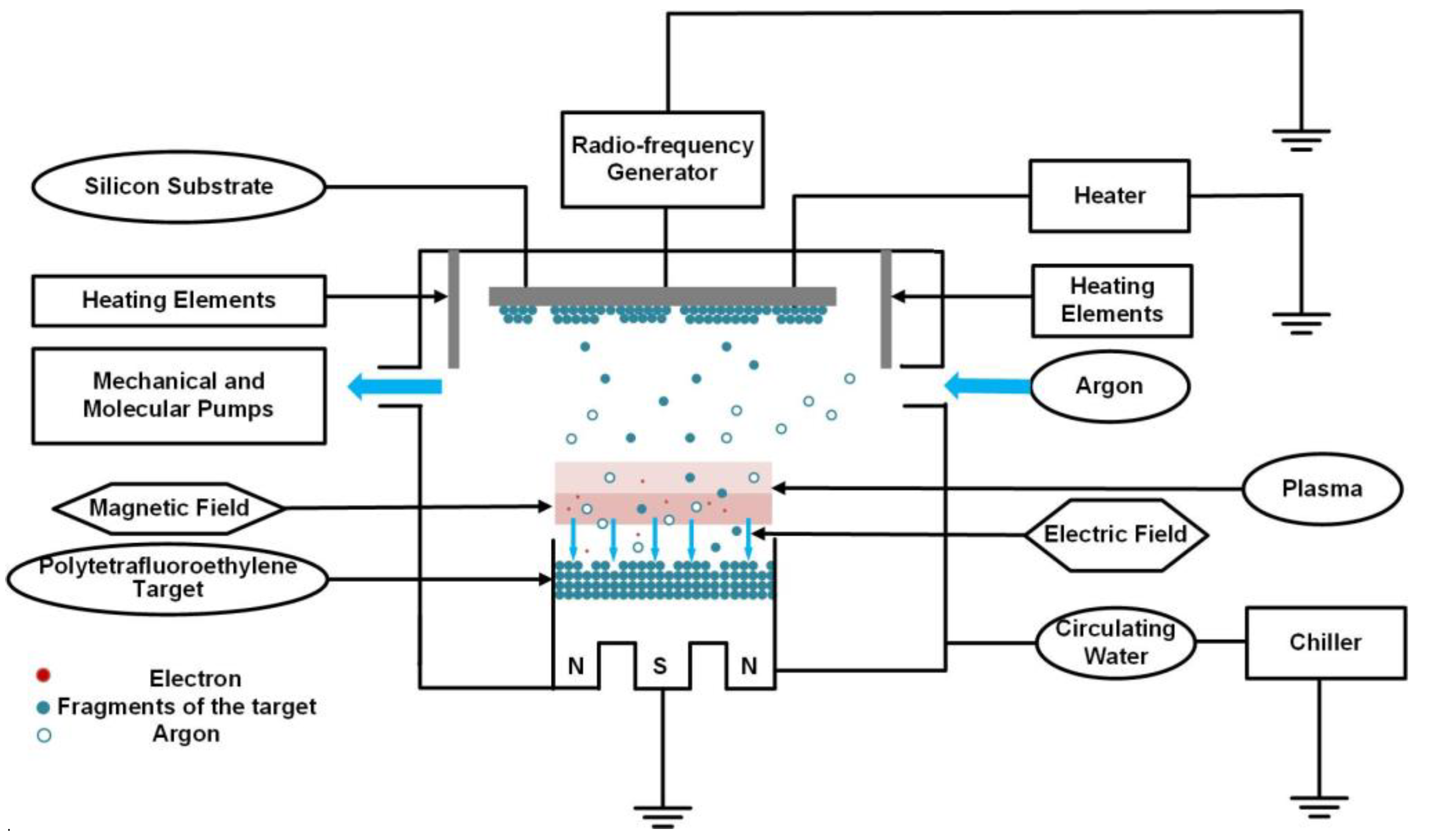

Figure 1

MDPI and ACS Style

Zhao, Q.; Wang, F.; Wang, K.; Xie, G.; Cui, W.; Li, J. Effect of Sputtering Temperature on Fluorocarbon Films: Surface Nanostructure and Fluorine/Carbon Ratio. Nanomaterials 2019, 9, 848.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
