A Tunable Graphene 0–90° Polarization Rotator Achieved by Sine Equation Voltage Adjustment

Guangdong Provincial Key Laboratory of Nanophotonic Functional Materials and Devices, School of Information and Optoelectronic Science and Engineering, South China Normal University, Guangzhou 510006, China
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(6), 849;
Received: 24 April 2019 / Revised: 24 May 2019 / Accepted: 25 May 2019 / Published: 3 June 2019

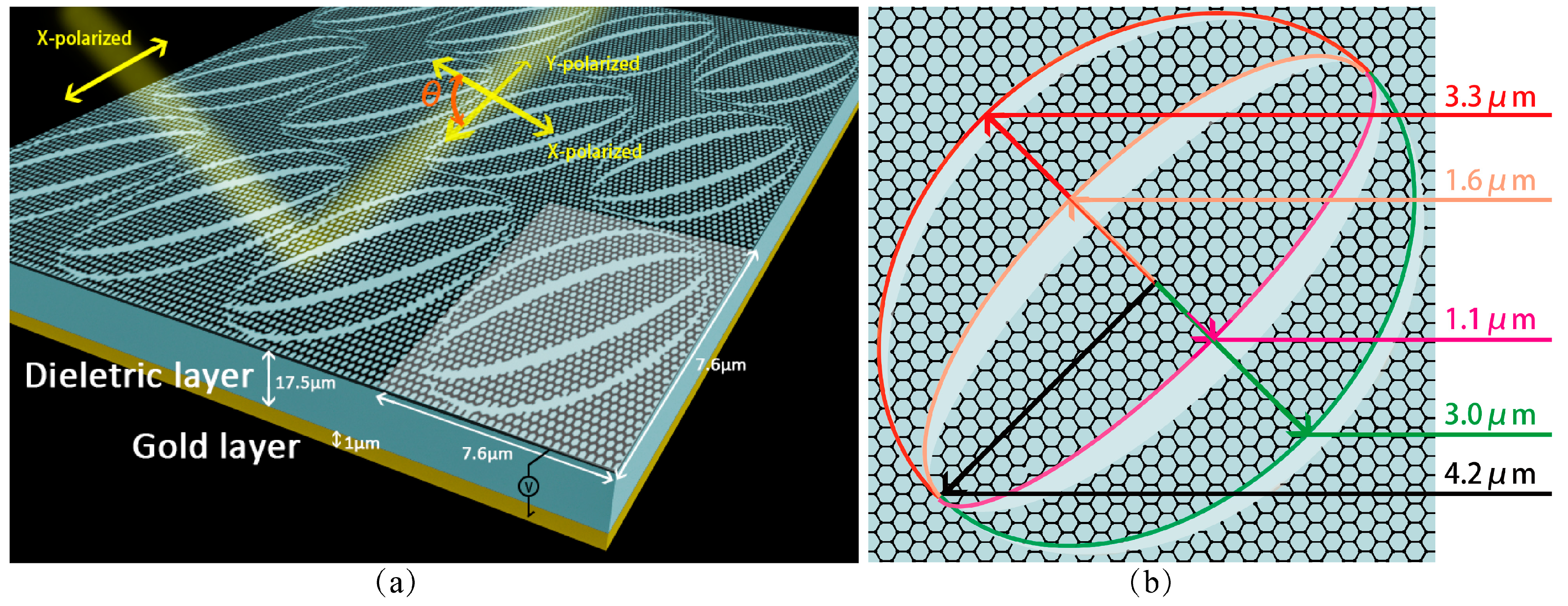

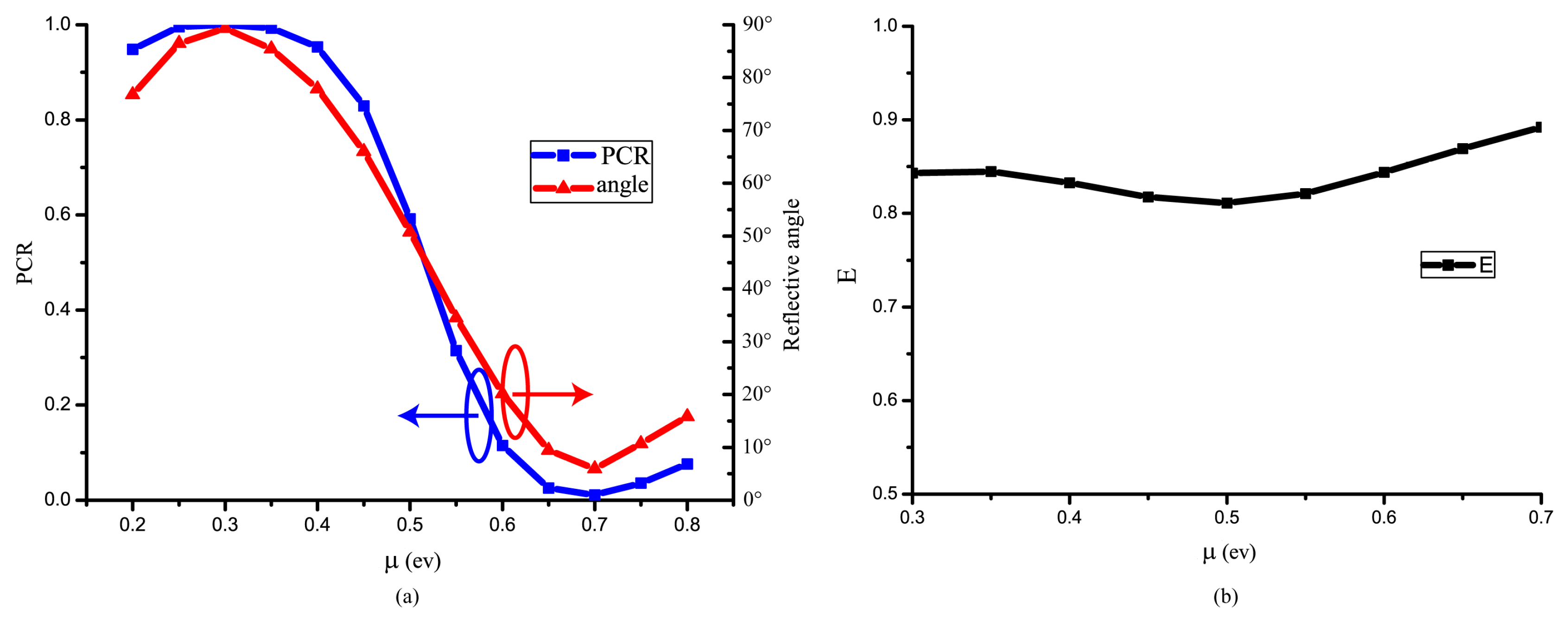

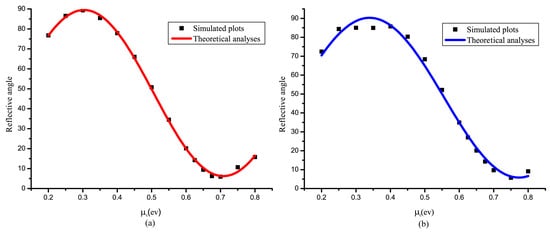

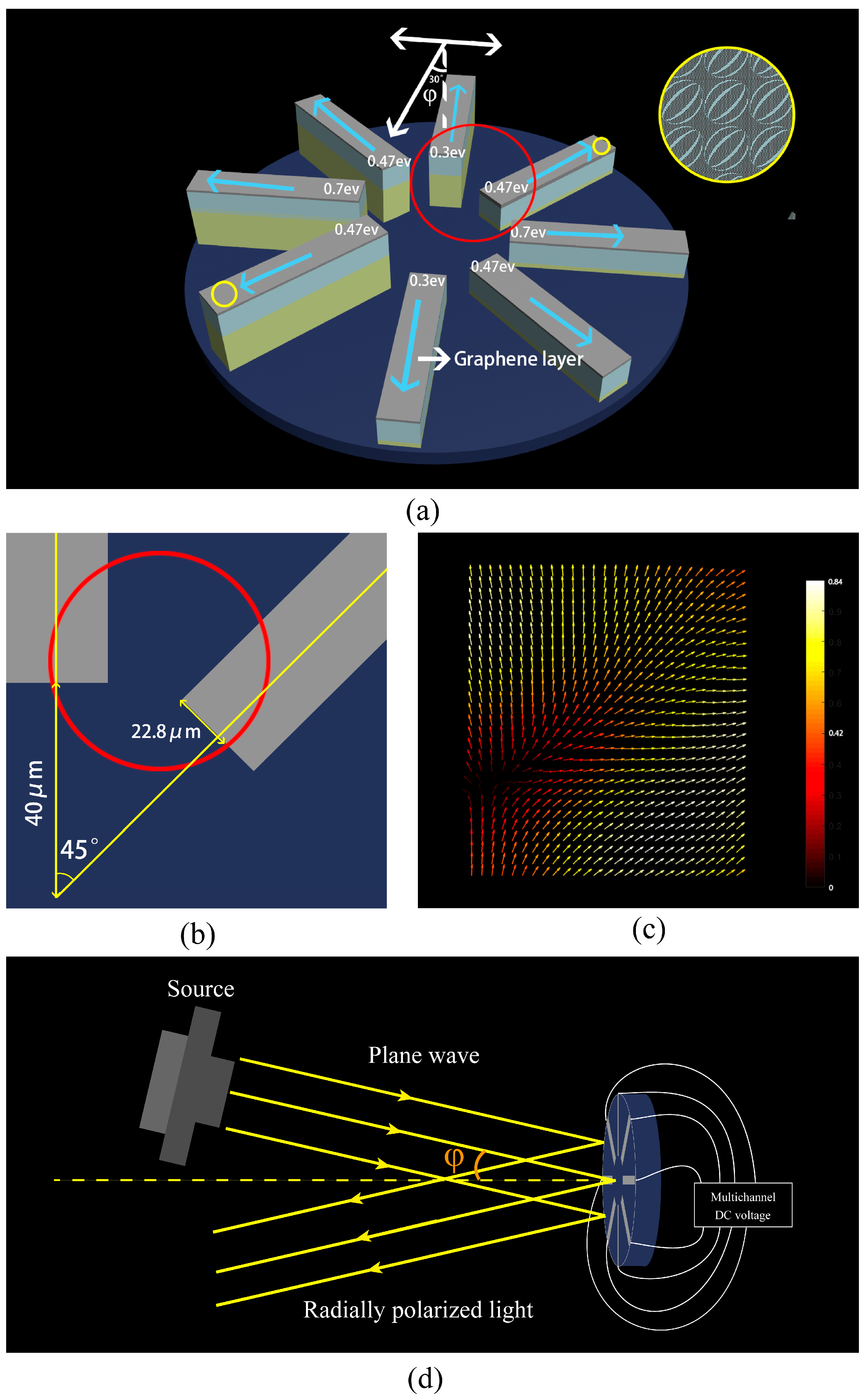

Polarization Manipulation has been widely used and plays a key role in wave propagation and information processing. Here, we introduce a polarization rotator in the terahertz range with a polarization conversion ratio up to 99.98% at 4.51 terahertz. It has a single graphene layer on top of the structure patterned by 45° tilted space elliptical rings. By changing the Fermi level from 0.3 ev to 0.7 ev of the graphene, we can turn the reflective light polarization direction between 0° to 90° with nearly unique magnitude. Surface currents theories and graphene characteristics clarify the relationship between polarization angle and Fermi level to be a sine equation adjusted voltage. We firstly put forward an equation to thetunable graphene changing the reflective light polarization angle. It can be widely used in measurement, optic communication, and biology. Besides, with nearly the unique reflective light in different directions, the rotator is designed into a novel radially polarization converter. The latter can be switched from radially polarized light to linearly polarized light, and vice versa, in the terahertz region. View Full-Text
Keywords: tunable graphene; polarization rotator; radially polarization converter tunable graphene; polarization rotator; radially polarization converter
Show Figures

Figure 1

MDPI and ACS Style

Dai, J.; Wei, Z.; Zhao, L.; Lin, Q.; Lou, Y. A Tunable Graphene 0–90° Polarization Rotator Achieved by Sine Equation Voltage Adjustment. Nanomaterials 2019, 9, 849.
