NiS2@rGO Nanosheet Wrapped with PPy Aerogel: A Sandwich-Like Structured Composite for Excellent Microwave Absorption

Key Laboratory of Science and Technology on Electromagnetic Environmental Effects and Electro-optical Engineering, The Army Engineering University, Nanjing 210007, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(6), 833; https://doi.org/10.3390/nano9060833
Received: 7 May 2019 / Revised: 22 May 2019 / Accepted: 24 May 2019 / Published: 31 May 2019

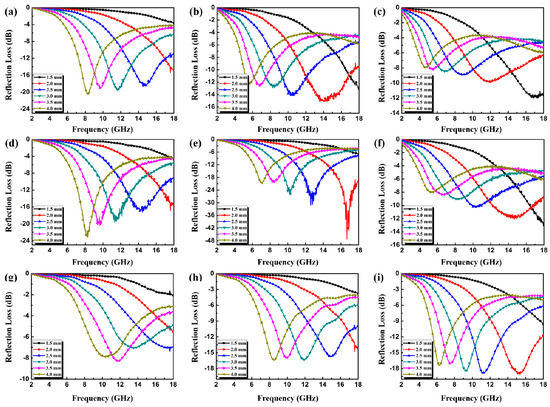

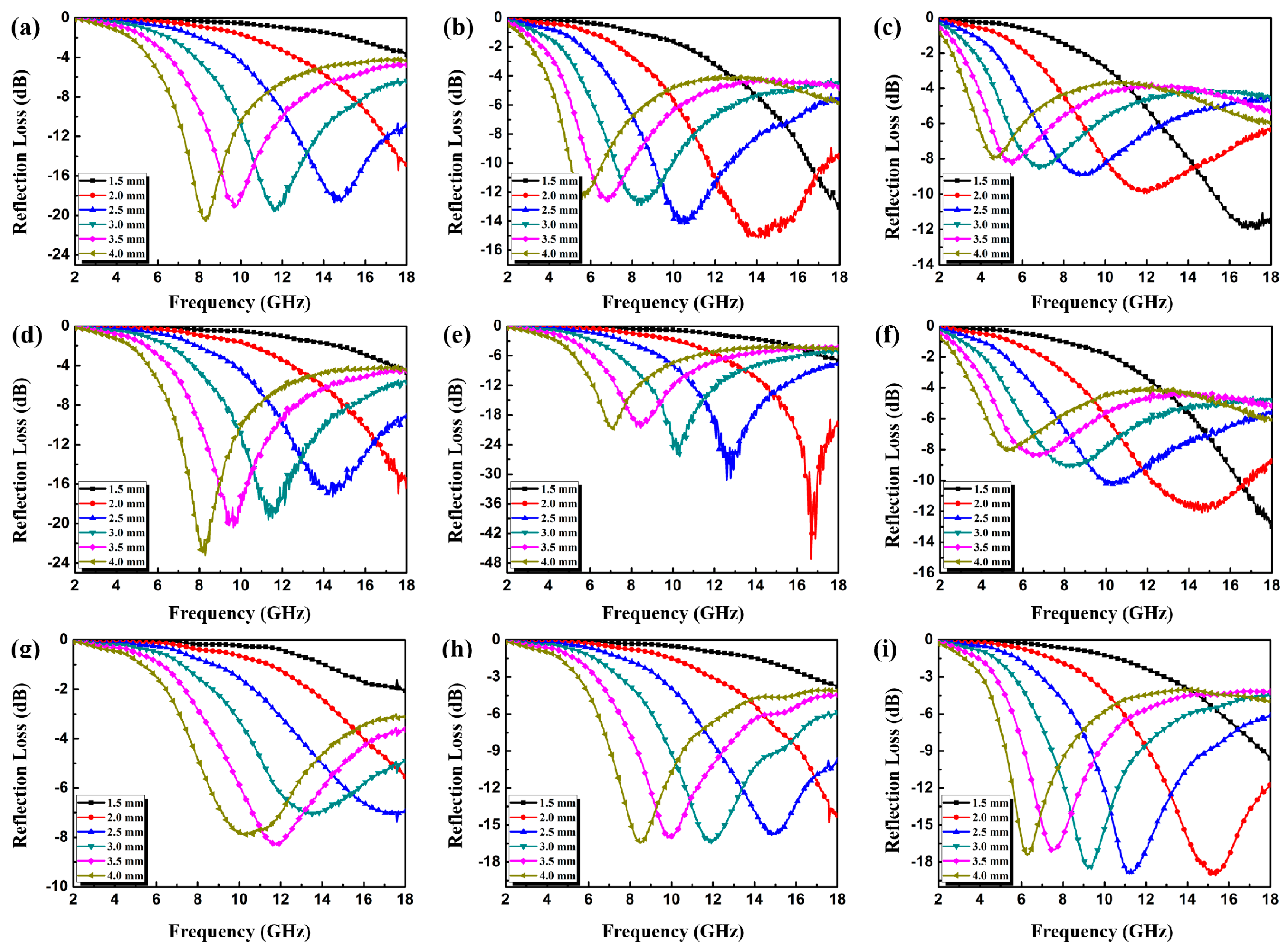

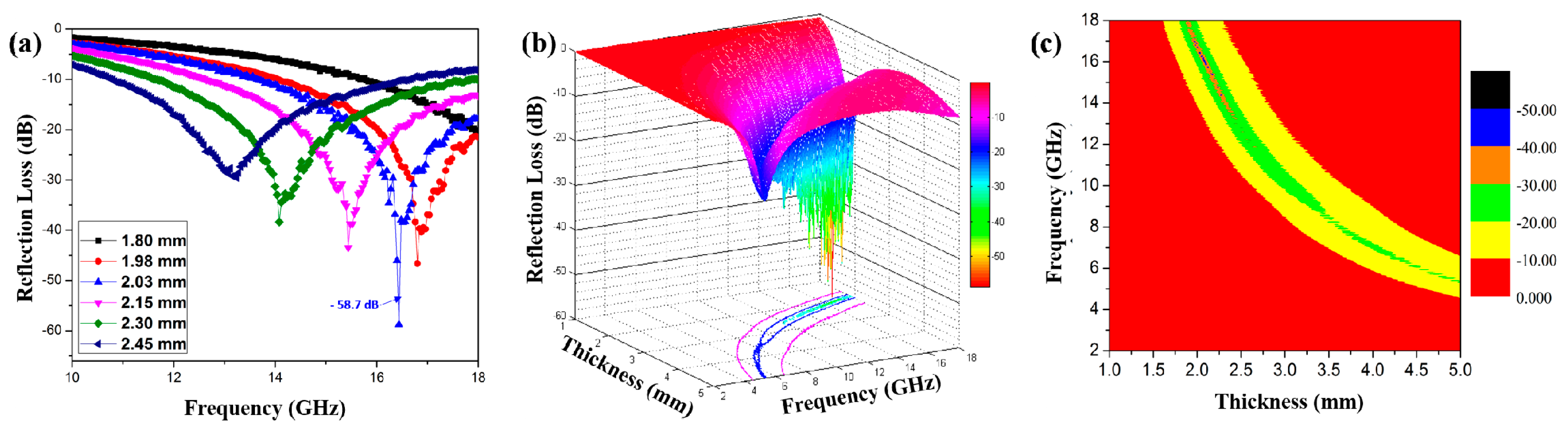

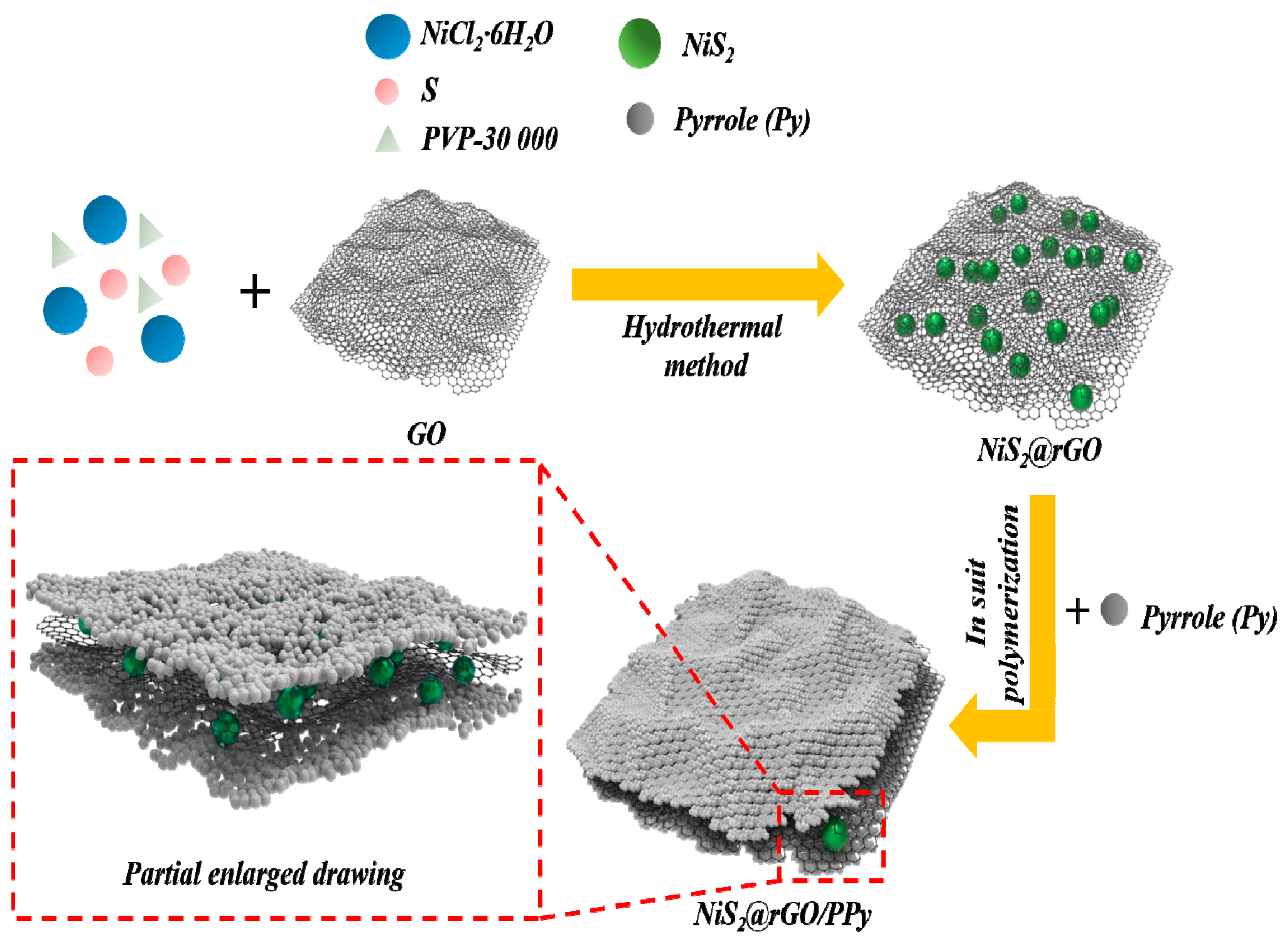

To reduce electromagnetic pollution as well as increase the accuracy of high-precision electronic equipment, more attention has been paid to new electromagnetic wave (EMW) absorbing materials, which have the advantages of strong absorption, wide absorption bands, and a narrow thickness. In this study, a novel ternary type of the NiS2@rGO/polypyrrole (PPy) sandwich-like structured composites was synthesized via a facile two-step method, in which the hydrothermal method was used to prepare NiS2@rGO binary composites and then the in situ polymerization method was used to synthesize the PPy, which acted as the outer layer of the sandwich-like structure. The morphologies and electromagnetic absorption performance of the NiS2@rGO/PPy were measured and investigated. A sample with 6 wt% NiS2@rGO/PPy loading paraffin-composite obtained an outstanding reflection loss (RL) of −58.7 dB at 16.44 GHz under a thickness of 2.03 mm. Simultaneously, the effective electromagnetic wave absorption bandwidth for RL < −10 dB, which covered 7.04 to 18.00 GHz (10.96 GHz), was achieved by changing the thickness of the absorber from 2.0 to 3.5 mm. The results not only suggest that the NiS2@rGO/PPy composite has excellent performance in the field of EMW absorption but also prove that the novel sandwich-like structure can contribute to appropriate impedance matching through multiple relaxation and interfacial polarization processes. View Full-Text
Keywords: graphene; polypyrrole; sandwich-like structure; electromagnetic absorption graphene; polypyrrole; sandwich-like structure; electromagnetic absorption
Show Figures

Figure 1

MDPI and ACS Style

Zhang, Z.; Lv, Q.; Chen, Y.; Yu, H.; Liu, H.; Cui, G.; Sun, X.; Li, L. NiS2@rGO Nanosheet Wrapped with PPy Aerogel: A Sandwich-Like Structured Composite for Excellent Microwave Absorption. Nanomaterials 2019, 9, 833.
