Nanomaterials 2019, 9(5), 666; https://doi.org/10.3390/nano9050666

Article
Improving Two-Step Prepared CH3NH3PbI3 Perovskite Solar Cells by Co-Doping Potassium Halide and Water in PbI2 Layer
1
Department of Electrical Engineering, National Cheng Kung University, Tainan 70101, Taiwan
2
Department of Chemical and Materials Engineering, National University of Kaohsiung, Kaohsiung 81148, Taiwan
3
Green Energy and Environment Research Laboratories, Industrial Technology Research Institute, Hsinchu 31040, Taiwan
4
Hierarchical Green-Energy Materials (Hi-GEM) Research Center, National Cheng Kung University, Tainan 70101, Taiwan
*
Authors to whom correspondence should be addressed.
Received: 25 March 2019 / Accepted: 23 April 2019 / Published: 27 April 2019

Abstract

:
Incorporating additives into organic halide perovskite solar cells is the typical approach to improve power conversion efficiency. In this paper, a methyl-ammonium lead iodide (CH3NH3PbI3, MAPbI3) organic perovskite film was fabricated using a two-step sequential process on top of the poly(3,4-ethylenedioxythiophene) polystyrene sulfonate (PEDOT:PSS) hole-transporting layer. Experimentally, water and potassium halides (KCl, KBr, and KI) were incorporated into the PbI2 precursor solution. With only 2 vol% water, the cell efficiency was effectively improved. Without water, the addition of all of the three potassium halides unanimously degraded the performance of the solar cells, although the crystallinity was improved. Co-doping with KI and water showed a pronounced improvement in crystallinity and the elimination of carrier traps, yielding a power conversion efficiency (PCE) of 13.9%, which was approximately 60% higher than the pristine reference cell. The effect of metal halide and water co-doping in the PbI2 layer on the performance of organic perovskite solar cells was studied. Raman and Fourier transform infrared spectroscopies indicated that a PbI2-dimethylformamide-water related adduct was formed upon co-doping. Photoluminescence enhancement was observed due to the co-doping of KI and water, indicating the defect density was reduced. Finally, the co-doping process was recommended for developing high-performance organic halide perovskite solar cells.
Keywords:
perovskite solar cells; water doping; potassium halide doping

1. Introduction

The first report on lead halide organic perovskites for photovoltaic applications was published in 2009 [1]. Kojima et al. used methylammonium lead iodide (CH3NH3PbI3, MAPbI3) to replace organic dyes in dye-sensitized solar cells (DSSCs), where mesoporous titanium oxide (TiO2) and a liquid electrolyte were used, achieving a power conversion efficiency (PCE) of 3.8%. Recently, the best solar cell efficiency achieved was 22%, giving perovskites a reasonable chance to reach commercial competiveness [2]. PCE of the MAPbI3-based solar cell has been close to 20% in both mesoporous structure devices [3] as well as in planar heterojunction architectures [4]. High temperature annealing (>400 °C) is required to crystallize the TiO2 layers used in mesoporous-type solar cells. Compared to the high-temperature processing of mesoporous solar cells, the planar heterojunction perovskite photovoltaics has the advantage of a low-temperature (100 °C) solution process, and, therefore, can be adopted in the roll-to-roll production of flexible devices [5].
One key aspect that affects the performance of planar heterojunction perovskite solar cells is the quality of the organic perovskite film, which is determined by the thermodynamics and the growth kinetics of the film [6,7,8]. Solution-processed perovskite films usually have abundant defects when compared to single-crystal samples. The introduction of additives into the perovskite precursor solution was reported to be an effective way to prepare a high quality perovskite film with fewer defects, leading to enhanced device performance [4,9,10,11]. Potassium halides were wildly used as additives in the perovskite precursor solutions adopted for solar cell research [12,13,14]. Potassium halide-doped perovskite solar cells that have a record PCE of more than 20%, without I–V hysteresis, have been constructed [13,15]. Potassium halides were found to significantly facilitate the crystal growth of perovskite films and ameliorate the perovskite morphology, resulting in a reduced density in trap states and enhanced device performance [13,16]. However, it is not easy to form a homogeneous organic precursor by adding considerable amounts of potassium halide salts due to its restricted solubility in some organic solvent used for organic perovskite processing, which limits the application of potassium halides as additives. Water is a good solvent for potassium halide salts. Additionally, water additives have been reported to enhance the property of a two-step processed MAPbI3 [17,18]. Water additives changed the characteristics of dimethylformamide (DMF), which is a general solvent for PbI2, thus helping to make a homogeneous PbI2 solution. A smooth and dense PbI2 film was fabricated by adding a small amount of water into the PbI2 precursor with DMF, and then a high-quality MAPbI3 was obtained after the methylammonium iodide (MAI) conversion. Therefore, water was considered to be a suitable candidate for a co-doping additive for potassium halides during the MAPbI3 solution process.
However, it is challenging to deposit high-quality organic perovskite films on PEDOT:PSS, which is wildly used as the hole-transporting material in planar heterojunction perovskite solar cells. To obtain a homogeneous film structure on top of an organic surface, such as the PEDOT:PSS film, through a simple-solution process is not easy for an ionic material (such as MAPbI3) [17]. Compared to MAPbI3, PbI2 is less polar and, therefore, can easily form a continuous film on the PEDOT:PSS surface. Therefore, the two-step sequential process (PbI2 layer + MAI conversion) is an appropriate way to fabricate a perovskite film when PEDOT:PSS is used as the hole-transporting layer [17]. However, very few studies have reported the effects of water or potassium halide additives on two-step processed perovskite solar cells [19]. According to this report, the alkali metal halides (KCl, NaCl, and LiCl) were incorporated with the PbI2 layer and chelated with Pb2+ ions, enhancing the crystal growth of PbI2 films that, in turn, improved the crystallinity of the perovskite films and their photovoltaic properties. However, to the best of our knowledge, no report has investigated the performance of a planar heterojunction perovskite device by considering their interactive effects by using both water and potassium halides.
In this work, we proposed an effective way to enhance the efficiency of the MAPbI3-based perovskite device through the co-doping of water and potassium halides (KI, KBr, and KCl) during the PbI2 deposition process. Systematic studies of the effects of water and potassium halides co-doping on the thin film and device were investigated and discussed. To construct a planar heterojunction perovskite solar cell, a two-step process was employed to fabricate the MAPbI3 film. PbI2 was first deposited on PEDOT:PSS film, then the MAI was spin-coated on the PbI2 layer, followed by thermal annealing. Water and potassium halides were added into the PbI2 precursor solution to elucidate their influence on the performance of perovskite solar cells. As a result, the PCE of devices made from these additive-enhanced perovskites increased from 8.8% (based on pristine perovskite) to 13.9%.

2. Materials and Methods

2.1. Chemicals

Lead (II) iodide (PbI2, 99.9985%), potassium iodide (KI, 99.995%), and potassium chloride (KCl, 99.997%) were purchased from Alfa Aesar. Anhydrous N,N-dimethylformide (DMF, 99.8%), 2-propanol (IPA, 99.5%), and chlorobenzene (CB, 99.8%) were purchased from Sigma-Aldrich (Saint Louis, MO, USA). Potassium bromide (KBr, IR spectroscopic) was purchased from Honeywell (Morristown, NJ, USA). Ultra-pure wa ter (Resistivity > 18.2 MΩ·cm at 25 °C, Baker Analyzed LC/MS Reagent) was purchased from J.T. Baker (Radnor, PA, USA). Poly(3,4-ethylenedioxythiophene) polystyrene sulfonate (PEDOT:PSS), methylammonium iodide (MAI, >98%), bathocuproine (BCP, >99.5%), and phenyl-C61-butyric acid methyl ester (PC61BM, >99.5%) were purchased from Uni-onward (New Taipei City, Taiwan). All materials were used as received.

2.2. Device Fabrication

The fabrication process of the referenced standard perovskite solar cell (Ref) was as follows: patterned ITO-coated (indium tin oxide) glass substrates were cleaned ultrasonically in acetone and isopropanol for 10 min, and then dried in an oven for 15 min at 110 °C. After a UV-ozone treatment of 30 min, the substrates were transferred into a N2-filled glovebox. Filtered PEDOT:PSS was spin-coated at 2000 rpm onto the ITO substrate and baked on a hot plate at 110 °C for 10 min. The PbI2 precursor was prepared by dissolving PbI2 in the DMF solvent (370 mg/mL) and heated to 70 °C on a hot plate. Following this, the hot PbI2-DMF precursor was spin-coated on top of the PEDOT:PSS layer and baked on a hot plate at 90 °C for 10 min. The MAI (45 mg/mL in IPA) precursor was spin-coated on the crystalline PbI2 layer and annealed at 110 °C for 1 h to form the MAPbI3 perovskite. After annealing for 20 min, the pure IPA solution was spun on the MAPbI3 layer to wash out redundant MAI, and then the annealing process continued for 40 min. The PC61BM (20 mg/mL in CB) was spin-coated on the perovskite. BCP of 10 nm and Al of 150 nm were sequentially evaporated on the top with a deposition rate of 0.4 Å/s and 3–5 Å/s, respectively. For the co-doping samples, H2O with a 1, 2, or 3 volume percent, and potassium halide of various concentrations were added into the PbI2- DMF solution. The water added into the precursor was ultra-pure water.

2.3. Characterizations

The crystallinity of the MAPbI3 film was examined by X-ray Diffraction (XRD) with ultraX 18 (Tokyo, Japan). The microstructure of the films was characterized by high resolution scanning electron microscope (HR-SEM) SU8000 (HITACHI, Tokyo, Japan). The electrical analysis was performed by E5270B Precision IV Analyzer (Keysight, Santa Rosa, CA, USA) under AM 1.5 G illumination. The absorption analysis was performed by UV-vis-NIR spectrophotometer U-4100 (HITACHI, Tokyo, Japan). The photoluminescence (PL) was performed by Jobin Yvon LabRAM HR micro-Raman system (HORIBA, Kyoto, Japan) and the excitation laser wavelength was set to 532 nm. The Fourier transform infrared spectroscopies (FTIRs) were performed by Nicolet FTIR instrument (Thermo Fisher Scientific, Waltham, MA, USA). The Raman spectroscopy was performed by Raman microscope (Renishaw, Wotton-under-Edge, UK). The depth profiles were performed by Auger Electron Spectroscopy MICROLAB 350 (Thermo Fisher Scientific, Waltham, MA, USA).

3. Results and Discussion

The photovoltaic properties of the devices (structure: glass/ITO/PEDOT:PSS/MAPbI3/PC61BM/ BCP/Al) were investigated. Figure 1 displays the photocurrent density–voltage (J–V) curves of the perovskite solar cells prepared with and without the incorporation of water and potassium halide additives in the PbI2-DMF precursor. The concentration of each cell was at the optimal conditions for cell properties. Table 1 lists the corresponding cell parameters. The cell performance was measured using an aperture metal mask of 2.2 mm × 3.2 mm to a device active area of 2 mm × 3 mm. The PCE of device that was prepared using the 2 vol% water-doped PbI2 precursor increased from 8.8% (without water) to 12.0% with a short-circuit current density (JSC) of 22.5 mA·cm−2, an open-circuit voltage (VOC) of 0.9 V, and a fill factor (FF) of 59.2%. The photovoltaic performance, as a function of the water content, is illustrated in Figure S1, and the corresponding photovoltaic parameters are listed in Table S1. It was found that the PCE of devices that were prepared using a water content below 3 vol% were improved, and that the best performance was achieved by adding 2 vol% water in PbI2. The VOC and FF increased slightly, and the JSC increased markedly by increasing the water content to 2 vol%, resulting in the best PCE. Further increasing the water content to 3 vol% degraded the cell property. It has been reported that a planar heterojunction solar cell based on a high-quality perovskite film has a power conversion efficiency of 18% with a remarkably high FF value of 0.85 [17]. The study indicated that adding small amounts of water into the PbI2-DMF precursor made the solution more uniform, forming a smooth PbI2 film on top of the PEDOT:PSS, with high crystallinity and large crystalline domains. The perovskite film fabricated from the high-quality PbI2 film was highly pure and dense, without any pinhole. Our research showed similar observations. Water addition improved the morphology and crystallinity of the PbI2 films, as revealed in the SEM images (Figure S2). Moreover, the thickness of the PbI2 films increased with the content of water. The thickness was 156, 192, 189, and 194 nm for 0, 1, 2, and 3 vol% water incorporated PbI2 films, respectively. Figure S3 shows the MAPbI3 films fabricated from the water-doped PbI2 films. The grain size of all of the three water-incorporated films, Figure S3b–d, was larger than the film without water (Figure S3a). It has been observed that a rapid crystallization of organo-halide perovskites into the expected tetragonal cell for MAPbI3 occurred on exposure to small amounts of moisture [20]. You et al. have proposed a growth mode via thermal annealing of the perovskite precursor film in a humid environment (e.g., ambient air) to greatly improve the film quality, grain size, carrier mobility, and lifetime [21]. They indicated that, due to the strong hydroscopic nature of MAI, exposing the perovskite precursor to moisture during film formation could result in the accumulation of moisture within grain boundaries, inducing grain boundary creep and, subsequently, merging adjacent grains together. In addition, moisture could also provide an aqueous environment to enhance the diffusion length of the precursor ions, further promoting perovskite grain growth. The PbI2 films fabricated by the water-containing precursor possibly retained residual water or a water-related function group, which helped perovskite grain growth, until the deposition of MAI.
Conversely, the PCE of photovoltaic devices fabricated by the PbI2-DMF precursor with potassium halides (KI, KBr, and KCl) as the only additives became worse. As displayed in Figure 1, the PCE deteriorated from 8.8% for pristine MAPbI3 to 7.5%, 8.2%, and 8.0%, by adding 1 mg/mL KI, KBr, and KCl, respectively. For KCl- and KI-doped samples, the degradation of PCE was caused by the decrease in the JSC and the fill factor, while for KBr-doped samples, only the fill factor decreased. Figure S4 illustrates the changes in photovoltaic performance of the potassium halide-doped devices as a function of the amount of potassium halide added. Notably, the devices were further improved by incorporating potassium halide into the water-PbI2-DMF precursor. By co-doping with 2 vol% water and potassium halides, the PCE was improved from 8.8% (pristine perovskite) to 13.9% (4 mg/mL KI), 11.9% (1 mg/mL KBr) and 12.8% (2 mg/mL KCl). The changes in the photovoltaic performance of the water and potassium halide co-doped devices as a function of the potassium halide additives is also illustrated in Figure 2. The performance of devices was enhanced by adding KI or KCl into the 2 vol% water-doped PbI2-DMF precursor, while KBr-doped devices had inferior properties than those without KBr. Using 4 mg/mL KI as the additive provided the best performance of the device. Figure S4 further plots the cell parameters as functions of the content of the potassium halides for devices prepared by PbI2 without water; all of the cell parameters degraded and Table S2 lists the corresponding photovoltaic parameters of the devices.
Figure 3 shows comprehensive XRD analyses of the potassium halides-doped PbI2 and MAPbI3 films with and without water incorporated with PbI2. The PbI2 and MAPbI3 films were deposited on ITO/PEDOT:PSS. Without water, the XRD intensity increased markedly for all the KCl-, KBr-, and KI-doped PbI2 films (Figure 3a). However, the XRD of the MAPbI3 films prepared on the potassium-doped PbI2 were similar to that without doping (Figure 3c). Water incorporation increased the XRD intensity of PbI2, but did not affect the XRD intensity of the perovskite film (Figure 3a,c). Co-doping of water and potassium halide increased the XRD intensity of both the PbI2 and MAPbI3 significantly (Figure 3b,d). The increase in the XRD intensity was also accompanied by an increase in the grain size.
Figure 4 shows the top-view and cross-section SEM images of the PbI2 films that were co-doped with 2 vol% water and potassium halides (KI: 4 mg/mL, KBr: 1 mg/mL, and KCl: 2 mg/mL). The film thickness was unchanged by the potassium halides, but the surface coverage was improved and the grain size was enlarged, which agreed with the XRD observation. Figure 5 displays the SEM images of the co-doped films. Adding potassium halides (especially KI and KBr) to the 2 vol% water-incorporated PbI2 precursor enhanced MAPbI3 grain growth, which was denser with higher continuity, allowing for effective charge generation and dissociation in perovskite films. Such a highly continuous and large grain structure was also beneficial for carriers to transport through the film.
To exploit the effect of co-doping water and potassium halides in the PbI2 layer, the Fourier transform infrared spectroscopy and Raman spectroscopy were adopted, as shown in Figure 6. The PbI2 films were prepared on Si/PEDOT:PSS because glass absorbs the IR light. In Figure 6a, characteristic peaks related to the C=O stretching were found around 1715 cm−1 [22]. According to the literature, the C=O vibration shifts to lower frequency around 1650 cm−1 for DMF, which forms Lewis adducts due to the reaction of the PbI2 layer [23,24]. In our sample, the C=O stretching was found to be blue-shifted, which might be caused by the formation of a PbI2-DMF-H2O adduct by incorporating water through a Lewis acid–base reaction. The other possibility was that the PbI2-DMF precursor reacted with the PEDOT:PSS under-layer because of the incorporation of water by partially dissolving the PEDOT:PSS near the PbI2/PEDOT:PSS interface. A similar observation has been reported by Winther et al. [25]. Figure 6b shows the Raman spectra of the PbI2 layer with or without potassium halides and water. Si-related signals were found at 521 cm−1 (Si–Si LO), 940, and 987 cm−1 (Si–OH) [26]. Notably, the O–H and C–H stretching of PEDOT split into two peaks at 2865 and 2945 cm−1, owing to the incorporation of metal halides and water, particularly for KBr- and KCl-doping [27]. Evidence from FTIR and Raman spectroscopies indicated that the doping of water and potassium halides could form some new adducts and change the interfacial chemistry near the PbI2/PEDOT:PSS.
Figure 7 displays the absorption spectra (Figure 7a) and PL spectra (Figure 7b,c) of the perovskite-glass structures prepared on the PbI2 layers that were doped with water, potassium halides, and potassium halides and water co-dopants. In the visible region (470–800 nm), the absorbance of the MAPbI3 on PbI2, prepared with the co-doped potassium halides and water, increased, indicating improved crystallinity. With potassium-only additives, the absorbance of MAPbI3 decreased. The PL-quenching effect of KBr-doping was observed (Figure 7b), while PL enhancement was found in the KI- and KCl-doped films. The steady-state photoluminescence (PL) was an effective way to detect the trap states within the perovskite layer. The higher PL intensity indicated fewer traps or defects within the films and improved crystallinity. Figure 7c shows the PL spectra of the co-doped water and potassium halides for MAPbI3 films. The PL intensity of the perovskite films obviously increased by co-doping, except for the KBr-doped film. In particular, the PL intensity of the co-doped KI and water increased by five times. Therefore, it was concluded that the co-doping of water and potassium halides increased the grain size of MAPbI3 and eliminated radiative defects that contributed to the strong PL response.
Auger electron spectroscopy (AES) was used to investigate the elementary depth distribution of the full device structure using KI and 2 vol% water co-doping, as shown in Figure 8. The potassium signal was found to be uniformly distributed across the perovskite and penetrated into the PEDOT:PSS. It has been reported that KI can provide an extra I-ion source that affects the coordination with Pb2+ and compensates for the I vacancy [15]. Therefore, in addition to the positive effect due to water- and potassium halides-induced grain growth, the enhancement of PL intensity can be associated with the passivation of the K+ cation and halide anions on the grain boundaries of perovskite film [15,16] and the perovskite interface, thus, reducing the trapped states. In other words, the addition of potassium halides and water improved the quality of the perovskite by reducing the traps and interfacial radiative recombination centers, allowing for effective charge generation and collection. Such a highly continuous and large grain structure was also beneficial for carriers to transport through the film. This improvement reduced series resistance (RS) and increased shunt resistance (RSH), improving the JSC, FF, and VOC as observed in Table 1. Some studies partially attributed good photovoltaic performance to a significant absorption improvement because the use of additives led to a denser perovskite film with less pinholes [14,28]. However, our research results showed water and/or potassium halide additives only slightly enhanced the absorption of perovskite. The pristine MAPbI3, prepared by our process, exhibited a compact microstructure with pure tetragonal structure phases, and the absorption effect was considered to be minor. It is worth noting that the KBr additive was harmful to the device, where even its physical properties, shown in Figure 3, Figure 4 and Figure 5, seemed as good as KI. We attributed this to the possible formation of a small amount of MAPbBr3, through the incorporation of Br even though no secondary phase was found in the XRD spectra. The existence of MAPbBr3 within the MAPbI3 film may cause an energy barrier and inhibit charge transport from the perovskite layer to the ITO [12].
However, incorporation of potassium halides had little influence on the microstructure of the perovskite without any water additive. As shown in Figure S5, the surface morphology and the cross-section images of the films were similar, regardless of the types of potassium halides. The grain size was unchanged by the potassium halide additives, which is in agreement with the unchanged XRD FWHM (full width at half maximum) observation shown in Figure 3. The additive effect of each potassium halide can be clearly observed in Figures S6–S8. To conclude, the potassium halides had positive influences on the film quality and the device, only if they were co-doped with the water additive. Without water, the potassium halide additive made the solution more inhomogeneous, worsening the film properties. Because the solubility of potassium halides in PbI2-DMF was low, they were unevenly dispersed within the solution without water, forming an inhomogeneous film. The different optimal concentration of each potassium halide for the photovoltaic properties was influenced by their solubility.

4. Conclusions

In conclusion, a way to improve the perovskite solar cells (structure: glass/ITO/PEDOT:PSS/ MAPbI3/PC61BM/BCP/Al) was proposed by co-doping water and potassium halides in the PbI2 layer, which was coated on the PEDOT:PSS layer based in a two-step sequential process. When only potassium halides were added to PbI2, the PCE of the devices became worse, while the PCE of the devices prepared using the 2 vol% water-doped PbI2 precursor increased from 8.8% (without water) to 12.0%. By co-doping with the 2 vol% water and a potassium halide, the PCE was improved from 8.8% (pristine perovskite) to 13.9% (4 mg/mL KI), 11.9% (1 mg/mL KBr), and 12.8% (2 mg/mL KCl). XRD results showed that the incorporation of water and a potassium halide improved the crystallinity and enlarged the grain size. SEM images showed that the grain of PbI2 became coarse and continuous upon co-doping. FTIR spectra showed characteristic peaks, related to C=O stretching, around 1715 cm−1, which was probably caused by the formation of a PbI2–DMF–H2O adduct or an interfacial reaction near the PbI2/PEDOT:PSS interface. Raman spectra revealed that O–H and C–H stretching of PEDOT split into two peaks at 2865 and 2945 cm−1, owing to metal halides and water incorporation. Obvious PL enhancement was caused by the co-doping of water and KI, reducing the defect density. Together with the AES observations, it was found that KI distributed uniformly within the perovskite layer and penetrated into the PEDOT:PSS layer, which suggested that the elimination of the defects in the film and interface upon KI doping was one of the reasons to improve the KI–water co-doped solar cell.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/5/666/s1: Figure S1: The tendency of photovoltaic performance of the water-doped devices as a function of water amount; Table S1: The corresponding photovoltaic parameters of devices in Figure S1; Figure S2: SEM morphology and cross-section of PbI2 films with (a,e) 0%, (b,f) 1%, (c,g) 2%, and (d,h) 3% water; Figure S3: SEM morphology of perovskite films prepared by PbI2 with (a) 0%, (b) 1%, (c) 2%, and (d) 3% water; Figure S4: The (a) VOC; (b) JSC; (c) FF; (d) PCE of the potassium halide-doped devices as a function of doping amounts of KI, KBr and KCl; Table S2: The corresponding photovoltaic parameters of devices in Figure S4 and Figure 2; Figure S5: The SEM cross-sectional images of the potassium halide-doped MAPbI3 films (without water additive), (a) ref, (b) 1 mg/mL KI, (c) 1 mg/mL KBr, and (d) 1 mg/mL KCl; Figure S6: SEM surface morphology of the perovskite films with different KI and water additives in the PbI2 layer; Figure S7: SEM surface morphology of the perovskite films with different KBr and water additives in the PbI2 layer; and Figure S8: SEM surface morphology of the perovskite films with different KCl and water additives in the PbI2 layer.

Author Contributions

Conceptualization, Y.-T.C. and C.-F.S.; Data curation, H.-T.W. and C.-C.L.; Formal analysis, H.-T.W. and Y.-T.C.; Investigation, H.-T.W. and S.-H.W.; Methodology, Y.-T.C.; Project administration, H.-T.W. and C.-F.S.; Resources, C.-C.L., S.-H.W. and C.-F.S.; Supervision, C.-C.L. and C.-F.S.; Validation, H.-T.W. and Y.-T.C.; Writing—original draft, H.-T.W. and C.-C.L.; Writing—review & editing, H.-T.W., S.-H.W. and C.-F.S.

Funding

This research received no external funding.

Acknowledgments

The authors are grateful for the support of the Ministry of Science and Technology of the Republic of China under Contract No. MOST 106-2221-E-006-225- and MOST 107-2221-E-006-160-, Taiwan. This work was also financially supported by the Hierarchical Green-Energy Materials (Hi-GEM) Research Center, from The Featured Areas Research Center Program within the framework of the Higher Education Sprout Project by the Ministry of Education (MOE) and the Ministry of Science and Technology (MOST 107-3017-F-006-003) in Tainan. The authors are also grateful for the support of the Department of Industrial Technology, Ministry of Economic Affairs, Taiwan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef]
  2. Shin, S.S.; Yeom, E.J.; Yang, W.S.; Hur, S.; Kim, M.G.; Im, J.; Seo, J.; Noh, J.H.; Seok, S.I. Colloidally prepared La-doped BaSnO3 electrodes for efficient, photostable perovskite solar cells. Science 2017, 356, 167–171. [Google Scholar] [CrossRef]
  3. Saliba, M.; Matsui, T.; Seo, J.-Y.; Domanski, K.; Correa-Baena, J.-P.; Nazeeruddin, M.K.; Zakeeruddin, S.M.; Tress, W.; Abate, A.; Hagfeldt, A.; et al. Cesium-containing triple cation perovskite solar cells: Improved stability, reproducibility and high efficiency. Energy Environ. Sci. 2016, 9, 1989–1997. [Google Scholar] [CrossRef] [PubMed]
  4. Chiang, C.-H.; Nazeeruddin, M.K.; Grätzel, M.; Wu, C.-G. The synergistic effect of H2O and DMF towards stable and 20% efficiency inverted perovskite solar cells. Energy Environ. Sci. 2017, 10, 808–817. [Google Scholar] [CrossRef]
  5. Zuo, C.; Vak, D.; Angmo, D.; Ding, L.; Gao, M. One-step roll-to-roll air processed high efficiency perovskite solar cells. Nano Energy 2018, 46, 185–192. [Google Scholar] [CrossRef]
  6. Bi, C.; Wang, Q.; Shao, Y.; Yuan, Y.; Xiao, Z.; Huang, J. Non-wetting surface-driven high-aspect-ratio crystalline grain growth for efficient hybrid perovskite solar cells. Nat. Commun. 2015, 6, 7747. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Moore, D.T.; Sai, H.; Tan, K.W.; Smilgies, D.-M.; Zhang, W.; Snaith, H.J.; Wiesner, U.; Estroff, L.A. Crystallization Kinetics of Organic–Inorganic Trihalide Perovskites and the Role of the Lead Anion in Crystal Growth. J. Am. Chem. Soc. 2015, 137, 2350–2358. [Google Scholar] [CrossRef]
  8. Fei, C.; Guo, L.; Li, B.; Zhang, R.; Fu, H.; Tian, J.; Cao, G. Controlled growth of textured perovskite films towards high performance solar cells. Nano Energy 2016, 27, 17–26. [Google Scholar] [CrossRef]
  9. Song, X.; Wang, W.; Sun, P.; Ma, W.; Chen, Z.-K. Additive to regulate the perovskite crystal film growth in planar heterojunction solar cells. Appl. Phys. Lett. 2015, 106, 033901. [Google Scholar] [CrossRef]
  10. Wu, Y.; Xie, F.; Chen, H.; Yang, X.; Su, H.; Cai, M.; Zhou, Z.; Noda, T.; Han, L. Thermally Stable MAPbI3 Perovskite Solar Cells with Efficiency of 19.19% and Area over 1 cm2 achieved by Additive Engineering. Adv. Mater. 2017, 29, 1701073. [Google Scholar] [CrossRef]
  11. Ke, W.; Xiao, C.; Wang, C.; Saparov, B.; Duan, H.-S.; Zhao, D.; Xiao, Z.; Schulz, P.; Harvey, S.P.; Liao, W.; et al. Employing Lead Thiocyanate Additive to Reduce the Hysteresis and Boost the Fill Factor of Planar Perovskite Solar Cells. Adv. Mater. 2016, 28, 5214–5221. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, P.; Wang, J.; Zhang, X.; Wang, H.; Cui, X.; Yuan, S.; Lu, H.; Tu, L.; Zhan, Y.; Zheng, L. Boosting the performance of perovskite solar cells through a novel active passivation method. J. Mater. Chem. A 2018, 6, 15853–15858. [Google Scholar] [CrossRef]
  13. Tang, Z.; Bessho, T.; Awai, F.; Kinoshita, T.; Maitani, M.M.; Jono, R.; Murakami, T.N.; Wang, H.; Kubo, T.; Uchida, S.; et al. Hysteresis-free perovskite solar cells made of potassium-doped organometal halide perovskite. Sci. Rep. 2017, 7, 12183. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Nam, J.K.; Chai, S.U.; Cha, W.; Choi, Y.J.; Kim, W.; Jung, M.S.; Kwon, J.; Kim, D.; Park, J.H. Potassium Incorporation for Enhanced Performance and Stability of Fully Inorganic Cesium Lead Halide Perovskite Solar Cells. Nano Lett. 2017, 17, 2028–2033. [Google Scholar] [CrossRef]
  15. Abdi-Jalebi, M.; Andaji-Garmaroudi, Z.; Cacovich, S.; Stavrakas, C.; Philippe, B.; Richter, J.M.; Alsari, M.; Booker, E.P.; Hutter, E.M.; Pearson, A.J.; et al. Maximizing and stabilizing luminescence from halide perovskites with potassium passivation. Nature 2018, 555, 497. [Google Scholar] [CrossRef]
  16. Son, D.-Y.; Kim, S.-G.; Seo, J.-Y.; Lee, S.-H.; Shin, H.; Lee, D.; Park, N.-G. Universal Approach toward Hysteresis-Free Perovskite Solar Cell via Defect Engineering. J. Am. Chem. Soc. 2018, 140, 1358–1364. [Google Scholar] [CrossRef]
  17. Wu, C.-G.; Chiang, C.-H.; Tseng, Z.-L.; Nazeeruddin, M.K.; Hagfeldt, A.; Gratzel, M. High efficiency stable inverted perovskite solar cells without current hysteresis. Energy Environ. Sci. 2015, 8, 2725–2733. [Google Scholar] [CrossRef]
  18. Xiu, G.; Meng, L.; Xiao-Bo, S.; Heng, M.; Zhao-Kui, W.; Liang-Sheng, L. Controllable Perovskite Crystallization by Water Additive for High-Performance Solar Cells. Adv. Funct. Mater. 2015, 25, 6671–6678. [Google Scholar] [CrossRef]
  19. Boopathi, K.M.; Mohan, R.; Huang, T.-Y.; Budiawan, W.; Lin, M.-Y.; Lee, C.-H.; Ho, K.-C.; Chu, C.-W. Synergistic improvements in stability and performance of lead iodide perovskite solar cells incorporating salt additives. J. Mater. Chem. A 2016, 4, 1591–1597. [Google Scholar] [CrossRef]
  20. Bass, K.K.; McAnally, R.E.; Zhou, S.; Djurovich, P.I.; Thompson, M.E.; Melot, B.C. Influence of moisture on the preparation, crystal structure, and photophysical properties of organohalide perovskites. Chem. Commun. 2014, 50, 15819–15822. [Google Scholar] [CrossRef] [PubMed]
  21. You, J.; Yang, Y.; Hong, Z.; Song, T.-B.; Meng, L.; Liu, Y.; Jiang, C.; Zhou, H.; Chang, W.-H.; Li, G.; et al. Moisture assisted perovskite film growth for high performance solar cells. Appl. Phys. Lett. 2014, 105, 183902. [Google Scholar] [CrossRef]
  22. Sison, E.S.; Rahman, M.D.; Durham, D.L.; Hermanowski, J.; Ross, M.F.; Jennison, M.J. Dielectric and chemical characteristics of electron-beam-cured photoresist. In Proceedings of the SPIE’s 1995 Symposium on Microlithography, Santa Clara, CA, USA, 9 June 1995; p. 14. [Google Scholar]
  23. Cao, X.; Li, C.; Li, Y.; Fang, F.; Cui, X.; Yao, Y.; Wei, J. Enhanced performance of perovskite solar cells by modulating the Lewis acid–base reaction. Nanoscale 2016, 8, 19804–19810. [Google Scholar] [CrossRef] [PubMed]
  24. Cao, X.B.; Li, Y.H.; Fang, F.; Cui, X.; Yao, Y.W.; Wei, J.Q. High quality perovskite films fabricated from Lewis acid–base adduct through molecular exchange. RSC Adv. 2016, 6, 70925–70931. [Google Scholar] [CrossRef]
  25. Winther-Jensen, B.; West, K. Vapor-Phase Polymerization of 3,4-Ethylenedioxythiophene:  A Route to Highly Conducting Polymer Surface Layers. Macromolecules 2004, 37, 4538–4543. [Google Scholar] [CrossRef]
  26. Xu, J.; Wang, C.; Wang, T.; Wang, Y.; Kang, Q.; Liu, Y.; Tian, Y. Mechanisms for low-temperature direct bonding of Si/Si and quartz/quartz via VUV/O3 activation. RSC Adv. 2018, 8, 11528–11535. [Google Scholar] [CrossRef]
  27. Wilamowska, M.; Kujawa, M.; Michalska, M.; Lipińska, L.; Lisowska-Oleksiak, A. Electroactive polymer/graphene oxide nanostructured composites; evidence for direct chemical interactions between PEDOT and GOx. Synth. Met. 2016, 220, 334–346. [Google Scholar] [CrossRef]
  28. Chang, J.; Lin, Z.; Zhu, H.; Isikgor, F.H.; Xu, Q.-H.; Zhang, C.; Hao, Y.; Ouyang, J. Enhancing the photovoltaic performance of planar heterojunction perovskite solar cells by doping the perovskite layer with alkali metal ions. J. Mater. Chem. A 2016, 4, 16546–16552. [Google Scholar] [CrossRef]
Figure 1. Photocurrent density–voltage (J–V) curves of perovskite solar cells prepared without and with water and/or potassium halide additives under their optimized concentrations.
Figure 1. Photocurrent density–voltage (J–V) curves of perovskite solar cells prepared without and with water and/or potassium halide additives under their optimized concentrations.
Nanomaterials 09 00666 g001

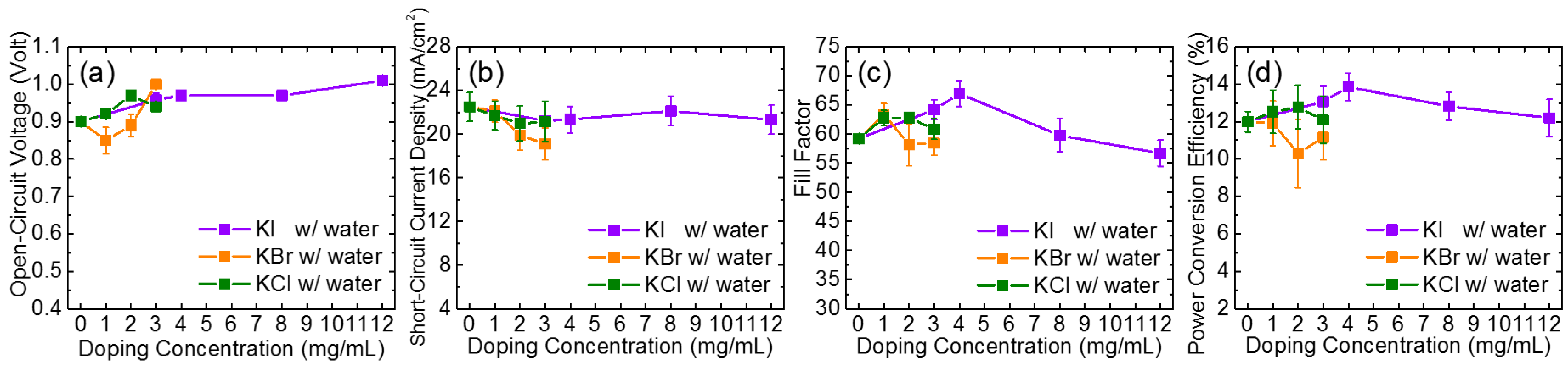

Figure 2. The changes in (a) VOC; (b) JSC; (c) FF (fill factor); (d) power conversion efficiency (PCE) of the potassium halide-doped devices with 2 vol% water co-doping as a function of doping amounts of KI, KBr, and KCl.
Figure 2. The changes in (a) VOC; (b) JSC; (c) FF (fill factor); (d) power conversion efficiency (PCE) of the potassium halide-doped devices with 2 vol% water co-doping as a function of doping amounts of KI, KBr, and KCl.
Nanomaterials 09 00666 g002

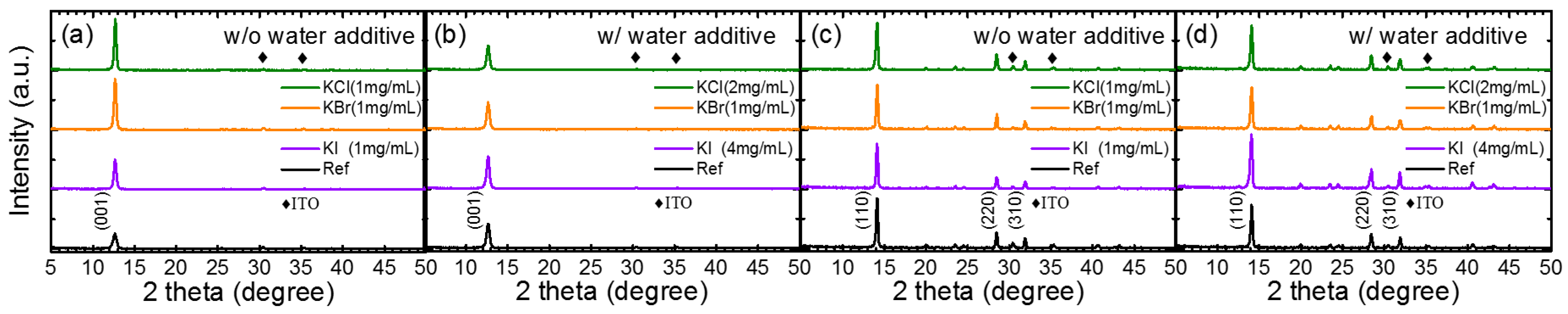

Figure 3. X-ray Diffraction (XRD) of PbI2 prepared by incorporating (a) KCl, KBr, and KI (without water) and (b) KCl, KBr, and KI with water additives. XRD of MAPbI3 on PbI2 prepared using the same conditions as (a) and (b) are shown in (c) and (d), respectively.
Figure 3. X-ray Diffraction (XRD) of PbI2 prepared by incorporating (a) KCl, KBr, and KI (without water) and (b) KCl, KBr, and KI with water additives. XRD of MAPbI3 on PbI2 prepared using the same conditions as (a) and (b) are shown in (c) and (d), respectively.
Nanomaterials 09 00666 g003

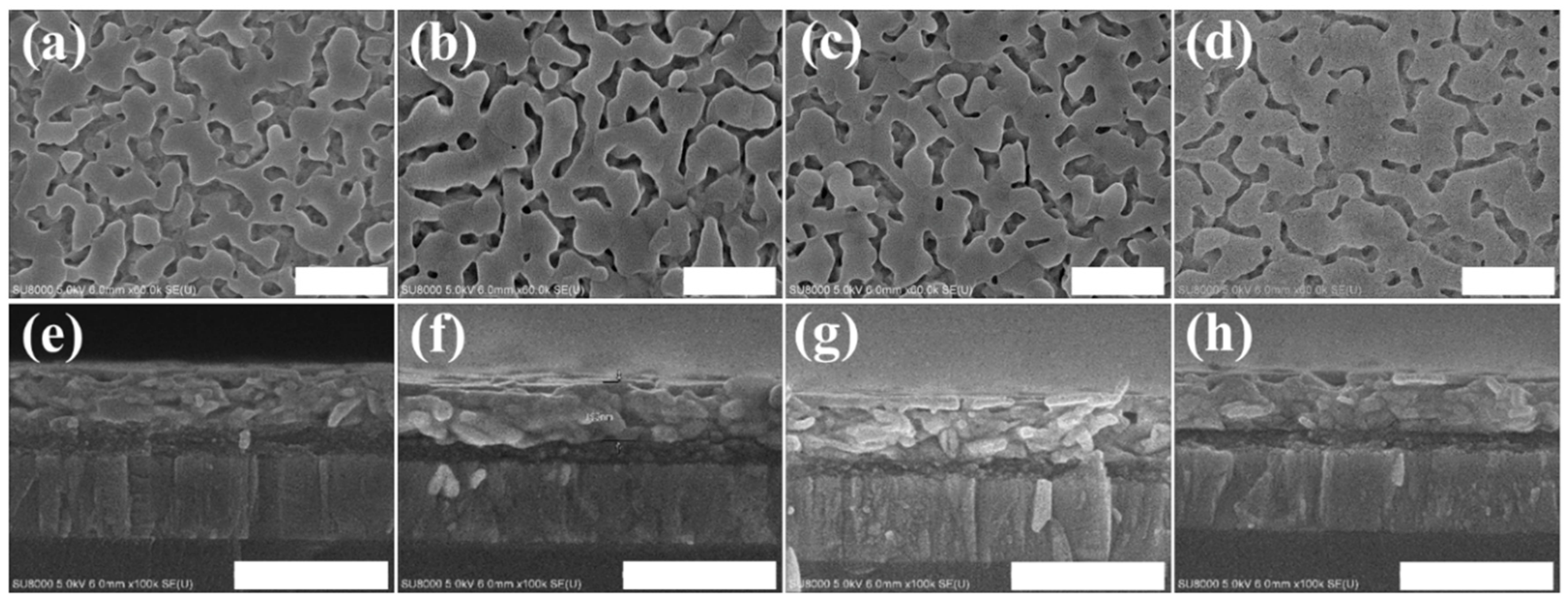

Figure 4. Plane and cross-section scanning electron microscope (SEM) images, respectively, of PbI2 prepared with (a,e) 2% water, (b,f) 2% water + KI (4 mg/mL) (c,g) 2% water + KBr (1 mg/mL), and (d,h) 2% water + KCl (2 mg/mL). (Scale bar = 500 nm).
Figure 4. Plane and cross-section scanning electron microscope (SEM) images, respectively, of PbI2 prepared with (a,e) 2% water, (b,f) 2% water + KI (4 mg/mL) (c,g) 2% water + KBr (1 mg/mL), and (d,h) 2% water + KCl (2 mg/mL). (Scale bar = 500 nm).
Nanomaterials 09 00666 g004

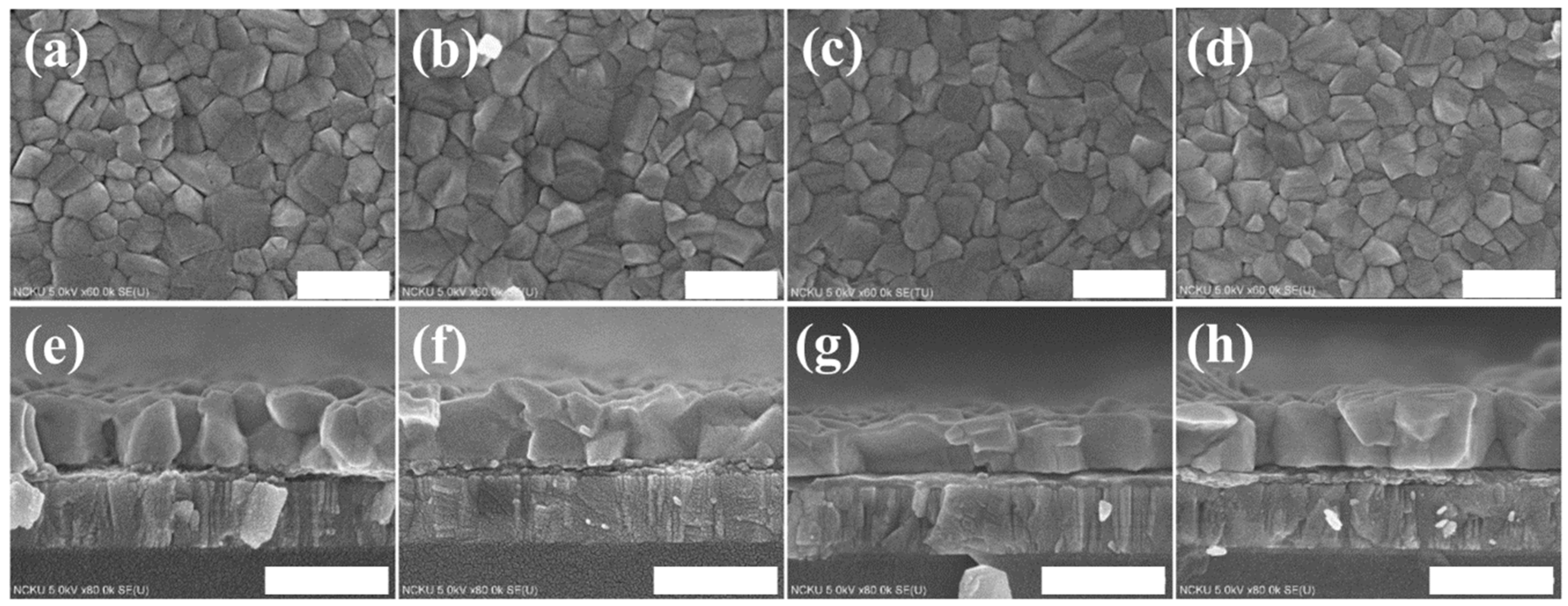

Figure 5. Plane and cross-section SEM images, respectively, of MAPbI3 on PbI2 with (a,e) 2% water, (b,f) 2% water + KI (4 mg/mL) (c,g) 2% water + KBr (1 mg/mL), and (d,h) 2% water + KCl (2 mg/mL). (Scale bar = 500 nm).
Figure 5. Plane and cross-section SEM images, respectively, of MAPbI3 on PbI2 with (a,e) 2% water, (b,f) 2% water + KI (4 mg/mL) (c,g) 2% water + KBr (1 mg/mL), and (d,h) 2% water + KCl (2 mg/mL). (Scale bar = 500 nm).
Nanomaterials 09 00666 g005
Figure 6. (a) Fourier transform infrared (FTIR) and (b) Raman spectroscopies of PbI2 films doped using potassium halides with and without water.
Figure 6. (a) Fourier transform infrared (FTIR) and (b) Raman spectroscopies of PbI2 films doped using potassium halides with and without water.
Nanomaterials 09 00666 g006

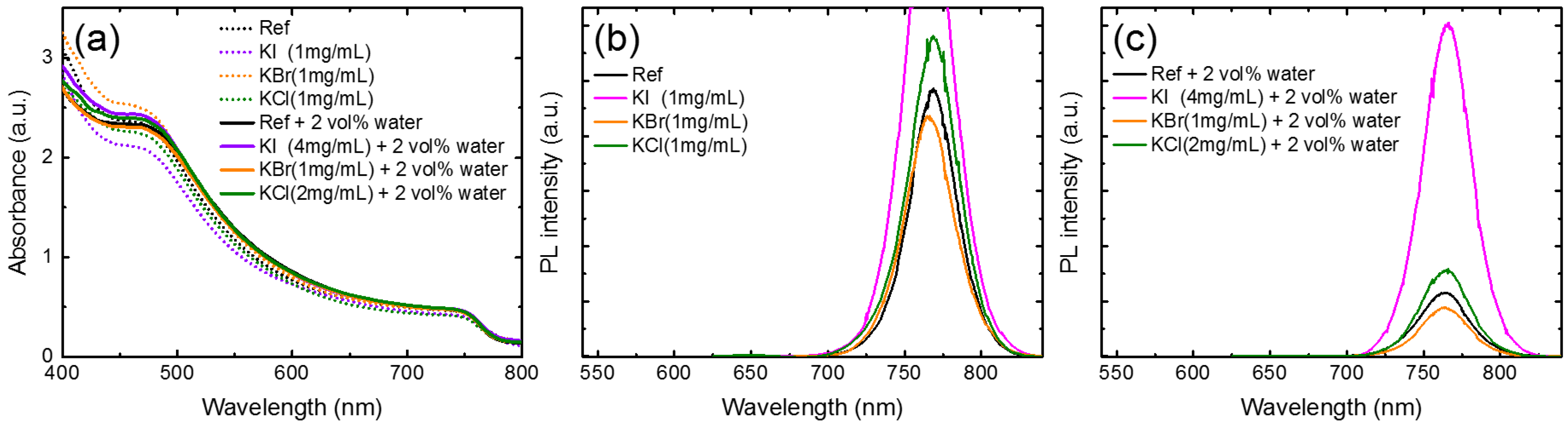

Figure 7. (a) Absorption spectra and (b,c) photoluminescence (PL) spectra of perovskite films prepared using PbI2 with different potassium halide and water additives. The samples were measured with this structure: glass/ITO/PEDOT:PSS/MAPbI3/PC61BM.
Figure 7. (a) Absorption spectra and (b,c) photoluminescence (PL) spectra of perovskite films prepared using PbI2 with different potassium halide and water additives. The samples were measured with this structure: glass/ITO/PEDOT:PSS/MAPbI3/PC61BM.
Nanomaterials 09 00666 g007
Figure 8. Auger electron spectroscopy (AES) depth profile of MAPbI3 prepared on PEDOT:PSS coated ITO (indium tin oxide) glass.
Figure 8. Auger electron spectroscopy (AES) depth profile of MAPbI3 prepared on PEDOT:PSS coated ITO (indium tin oxide) glass.
Nanomaterials 09 00666 g008
Table 1. The corresponding photovoltaic parameters of devices in Figure 1.
Table 1. The corresponding photovoltaic parameters of devices in Figure 1.
SamplesVOC (V)JSC (mA/cm2)FFPCE (%)RSH (Ω·cm2)RS (Ω·cm2)
Ref0.79 ± 0.0319.7 ± 1.456.3 ± 1.68.8 ± 1.1340 ± 997.2 ± 0.7
KI (1 mg/mL)0.99 ± 0.0215.1 ± 0.850.1 ± 1.57.5 ± 0.6262 ± 408.8 ± 1.6
KBr (1 mg/mL)0.79 ± 0.0519.8 ± 3.952.2 ± 4.88.2 ± 2.5220 ± 7011.7 ± 3.3
KCl (1 mg/mL)0.96 ± 0.0316.0 ± 1.052.4 ± 2.18.0 ± 0.6337 ± 13712.5 ± 1.8
Ref + water0.90 ± 0.0122.5 ± 1.359.2 ± 0.612.0 ± 0.6168 ± 403.6 ± 0.1
KI (4 mg/mL) + water0.97 ± 0.0121.3 ± 1.267.0 ± 2.213.9 ± 0.7555 ± 395.5 ± 0.7
KBr (1 mg/mL) + water0.85 ± 0.0422.1 ± 1.063.4 ± 1.911.9 ± 1.2264 ± 463.8 ± 0.3
KCl (2 mg/mL) + water0.97 ± 0.0121.0 ± 1.662.8 ± 0.812.8 ± 1.21217 ± 1064.7 ± 0.3
