Nanomaterials 2019, 9(3), 389; https://doi.org/10.3390/nano9030389

Large Improvement in the Mechanical Properties of Polyurethane Nanocomposites Based on a Highly Concentrated Graphite Nanoplate/Polyol Masterbatch

Division of Semiconductor and Chemical Engineering, Chonbuk National University, Baekjedaero 567, Jeonju 54896, Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Received: 5 February 2019 / Revised: 27 February 2019 / Accepted: 2 March 2019 / Published: 7 March 2019
(This article belongs to the Special Issue Processing of Thermoplastic-Matrix Polymer Nanocomposites)
Full-Text   |   PDF [3400 KB, uploaded 7 March 2019]   |

Abstract

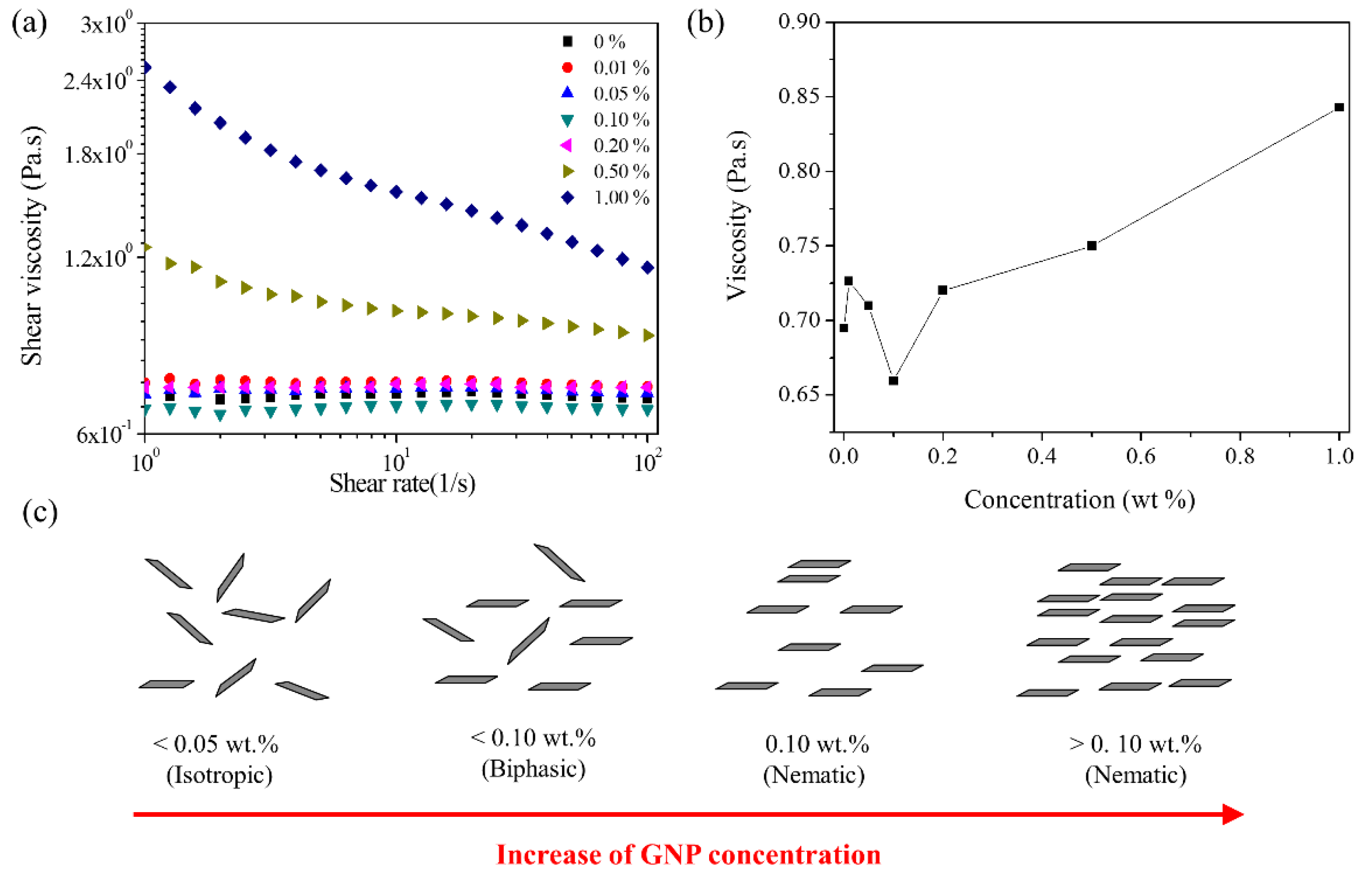

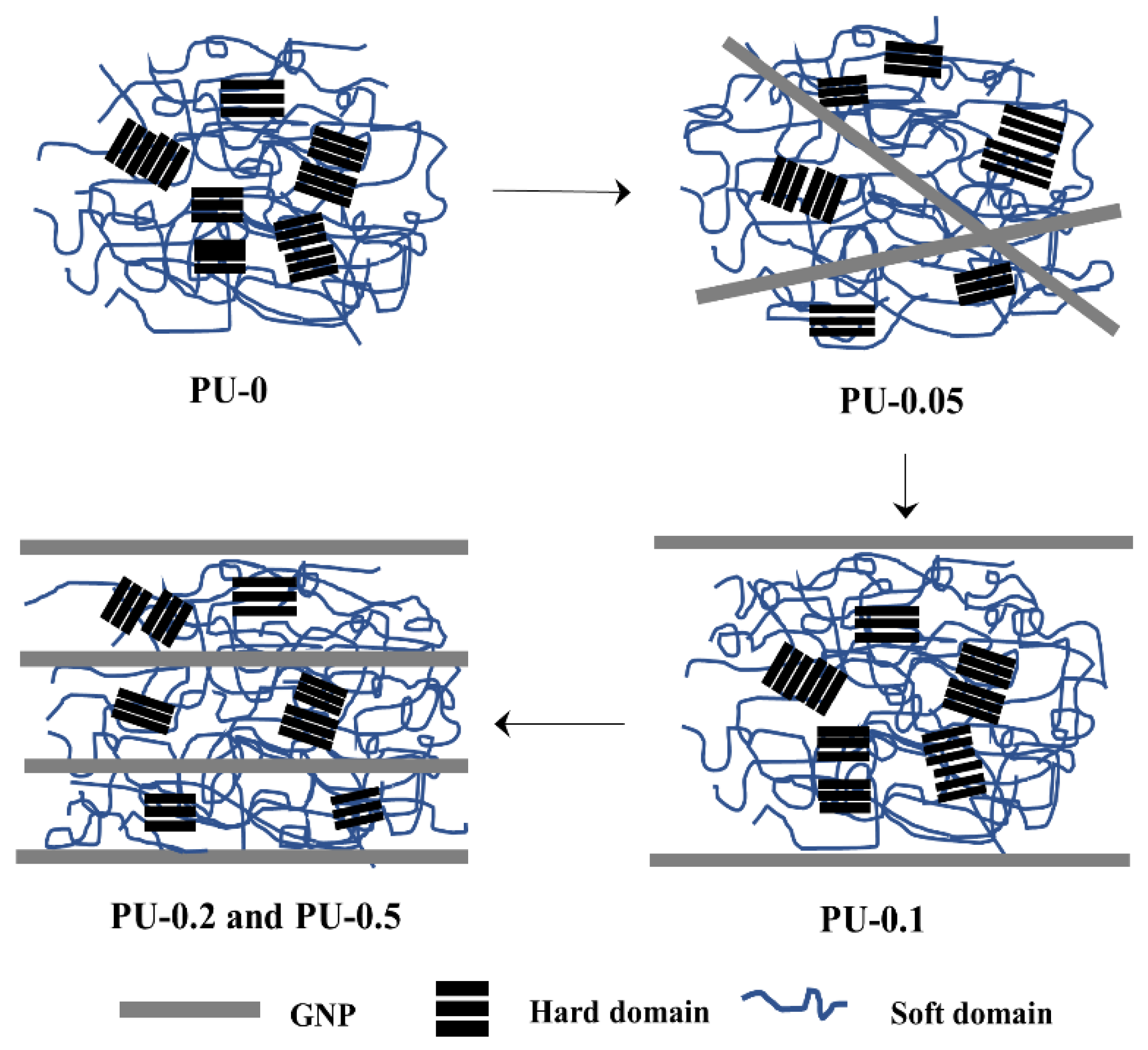

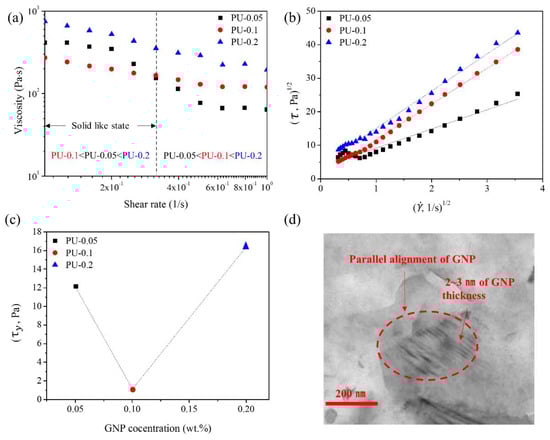

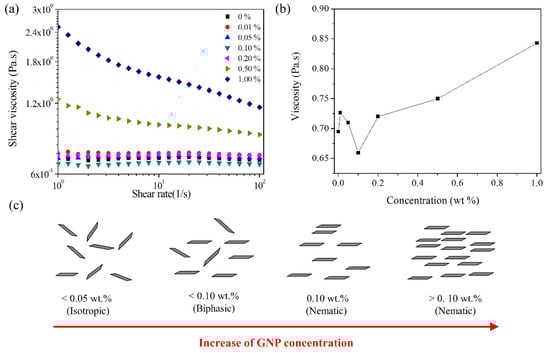

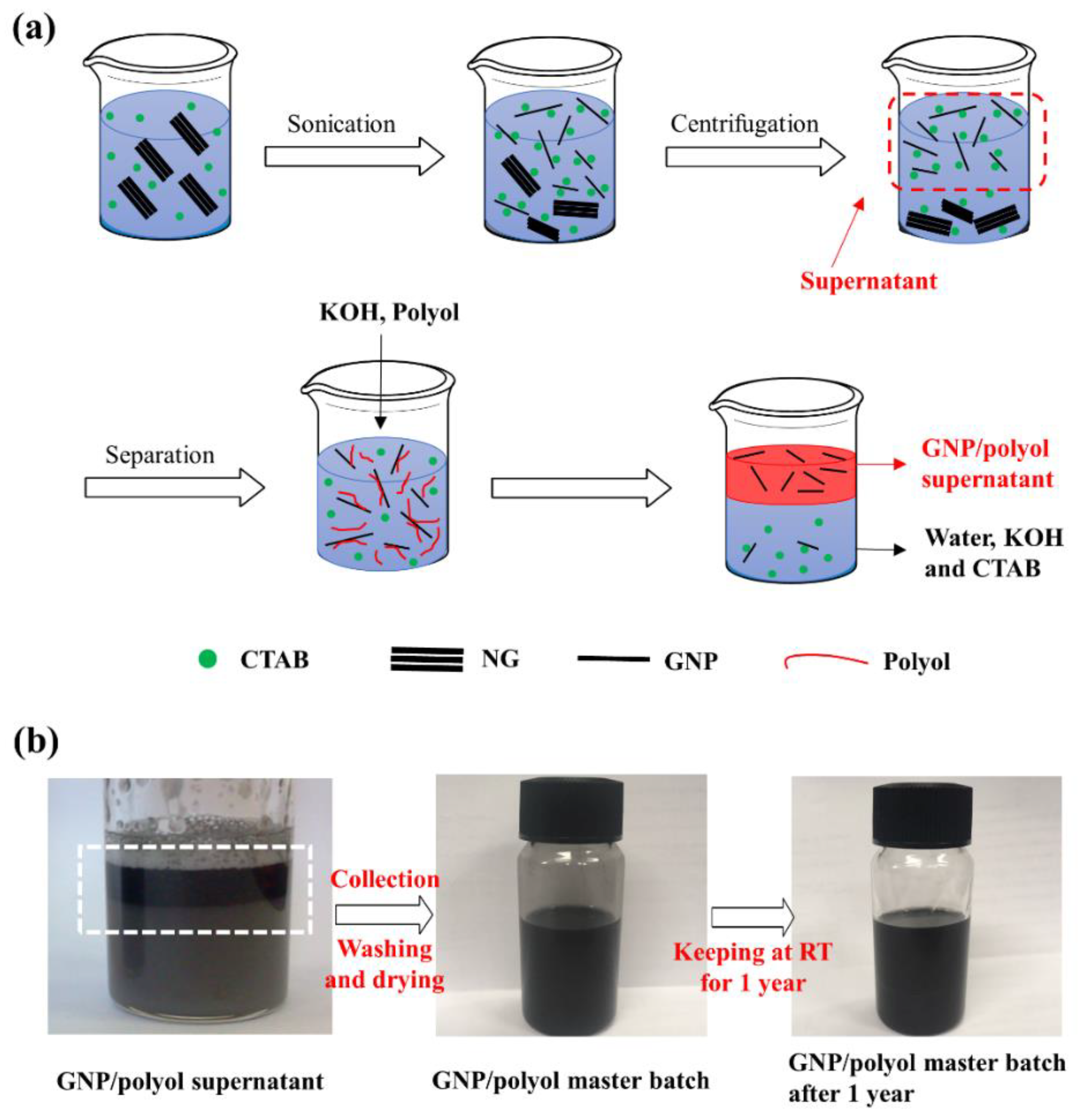

In this study, a highly concentrated graphite nanoplate (GNP)/polyol masterbatch was prepared by the exfoliation of natural graphite in an aqueous system using cetyltrimethylammonium bromide and the replacement of aqueous solution with a polyol, viz. poly(tetramethylene ether glycol), and it was subsequently used to prepare polyurethane (PU) nanocomposites by simple dilution. The polyol in the masterbatch efficiently prevented the aggregation of GNPs during the preparation of PU nanocomposite. In addition, the dispersed GNPs in the masterbatch exhibited rheological behavior of lyotropic liquid crystalline materials. In this study, the manufacture and application methods of the GNP/polyol masterbatch were discussed, enabling the facile manufacture of the PU/GNP nanocomposites with excellent mechanical properties. In addition, the manner in which the GNP alignment affected the microphase separation of PU in the nanocomposites was investigated, which determined the improvement in the mechanical properties of the nanocomposites. High-performance PU/GNP nanocomposites are thought to be manufactured from the GNP/polyol masterbatch by the simple dilution to 0.1 wt% GNP in the nanocomposite. View Full-Text
Keywords: graphite nanoplate; polyurethane; nanocomposite; master batch; lyotropic liquid crystalline behavior graphite nanoplate; polyurethane; nanocomposite; master batch; lyotropic liquid crystalline behavior
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Lee, S.-H.; Oh, C.-R.; Lee, D.-S. Large Improvement in the Mechanical Properties of Polyurethane Nanocomposites Based on a Highly Concentrated Graphite Nanoplate/Polyol Masterbatch. Nanomaterials 2019, 9, 389.
