Nanomaterials 2019, 9(2), 288; https://doi.org/10.3390/nano9020288

Article
Electrochemical Characterization and Inhibiting Mechanism on Calcium Leaching of Graphene Oxide Reinforced Cement Composites
Guangdong Provincial Key Laboratory of Durability for Marine Civil Engineering, Shenzhen Durability Center for Civil Engineering, College of Civil Engineering, Shenzhen University, Shenzhen 518060, China
*
Author to whom correspondence should be addressed.
Received: 24 January 2019 / Accepted: 15 February 2019 / Published: 19 February 2019

Abstract

:
Calcium leaching is a degradation progress inside hardened cement composites, where Ca2+ ions in cement pore solution can migrate into the aggressive solution. In this work, calcium leaching of graphene oxide (GO) reinforced cement composites was effectively characterized by combined techniques of electrochemical impedance spectroscopy (EIS) and scanning electron microscope (SEM). Inhibiting mechanism of GO on calcium leaching of the composites was also examined. The obtained results show that the diameter of the semi-circle of the Nyquist curves of leached samples with GO addition decreased less than that of controlled samples. After leaching for 35 days, loss rate of model impedance RCCP of leached samples with 0, 0.05, 0.1, 0.15, and 0.2 wt.% GO addition was 94.85%, 84.07%, 79.66%, 75.34%, and 68.75%, respectively. Therefore, GO addition can significantly mitigate calcium leaching of cement composites, since it can absorb Ca2+ ions in cement pore solution, as well as improve the microstructure of the composites. In addition, coupling leaching depth and compressive strength loss were accurately predicted by using the impedance RCCP.
Keywords:
graphene oxide; cement composites; calcium leaching; electrochemical impedance spectroscopy; scanning electron microscope; inhibiting mechanism

1. Introduction

Cement composites are the most commonly used man-made materials worldwide and usually exposed to aggressive environments where physical and chemical attacks impair the durability of the composites [1,2,3,4]. Loss of durability further leads to the decrease of the service life of structures, the increase of the environmental burdens, and the increase of the economic costs from maintenance. In particular, calcium leaching is one of the most significant factors that affect the durability of the composites, and generally occurs in infrastructures that have contacted with aqueous environments with the pH value lower than 12.5 over long periods of time such as dams, harbors, cisterns, bridge piers, underground pipes, and nuclear waste storage facilities [5,6].
Calcium leaching is a combined diffusion-dissolution process inside hardened cement composites. Aggressive environments around a structure can result in the concentration gradients of Ca2+ ions in pore solution and surrounding environments, which leads to the diffusion of Ca2+ ions into surrounding environments [7]. This transfer process modifies the chemical balance of Ca2+ ions in cement system [8] and further results in the dissolution of calcium hydroxide (CH), ettringite, and calcium silicate hydrate (C-S-H) [9], which leads to the microstructural changes of the composites. The changes in the microstructure produce detrimental effects on the composites such as the decrease in mechanical properties. According to Gaitero et al. [10], after 28-day curing and 9-day leaching accelerated by 6 mol/L ammonium nitrate (NH4NO3) solution, plain cement paste with water to cement ratio (w/c) of 0.4 suffered a compressive strength reduction of approximately 75%. Similarly, Arribas et al. [11] found that after 21-day leaching, plain cement paste with w/c of 0.5 suffered the strength reduction of approximately 85%.
To mitigate calcium leaching of cement composites, one effective approach includes the addition of nanomaterials [10,12,13,14]. Among diverse nanomaterials, graphene oxide (GO) is a mono-layer of mixed sp2 and sp3 hybridized carbon atoms with abundant functional oxygen groups such as carboxyl (–COOH), hydroxyl (–OH), carbonyl (–C=O), and epoxy [15]. As the derivative of graphene, GO shares some characteristics with graphene, such as super-high specific surface (~2600 m2/g), high Young’s modulus (~1100 GPa), and tremendous mechanical strength (~1060 GPa) [16]. Due to these properties, GO has been generally used to reinforce the composites at the micro-molecular level [17,18,19]. In terms of calcium leaching, Long et al. [20] investigated the effect of GO on calcium leaching of cement pastes by chemical composition analysis and microstructure analysis. The results indicate that GO addition can decrease CH dissolution, refine the pore structure of leached pastes, and effectively mitigate calcium leaching of the composites. Although the application of GO on leaching inhibition of the composites has been reported, the studies about the inhibiting mechanism of GO on calcium leaching have still been limited.
Currently, a variety of traditional methods have been employed to characterize calcium leaching of cement composites, including phenolphthalein solution test [21], thermo-gravimetric analysis [22], chemical analysis [7], and porosity analysis [23]. However, these methods require samples to be removed from the original structure and further manufactured. Thus, these methods are generally used in laboratory settings, rather than applied in practice engineering, especially in the structure where the timescale exceeds the designated service life such as cross-sea bridges. To monitor the performance changes of infrastructures exposed to calcium leaching, electrochemical impedance spectroscopy (EIS) has been used as an advanced non-destructive testing method to characterize calcium leaching of plain cement pastes [24]. The principle of EIS method is by means of an applied alternate current regime to detect the electrochemical impedance response of cement composites that is affected by aggressive environments [25]. In addition, the relationship between electrochemical impedance and leaching depth has been built. Although EIS method has been used to interpret leaching behaviors of plain cement pastes, the application of EIS method to characterize calcium leaching of GO reinforced cement composites has been still scarce. It should be noted that GO addition makes the electrochemical behaviors of the composites more complicated. According to Long et al. [26], GO addition can significantly increase the electrochemical impedance of the composites.
Based on the aforementioned review, calcium leaching of cement composites reinforced with GO (containing 0, 0.05, 0.1, 0.15, and 0.2 wt.% of cement) was systematically investigated in this study. The experiments were conducted under 6 mol/L ammonium chloride (NH4Cl) solution for 7, 14, 21, 28, and 35 days. EIS method was applied as a novel testing technology to characterize calcium leaching of GO/cement composites. Scanning electron microscope (SEM) test was employed to reveal the inhibiting mechanism of GO on calcium leaching of the composites. In addition, macroscopic characterizations including leaching depth and compressive strength were used to explain the feasibility of EIS method on practice engineering. Combined advanced characterizations from the macroscopic, microstructural, and electrochemical perspectives contribute to not only reveal deep insights on leaching behaviors of GO/cement composites, but also monitor the performance changes of leached infrastructure incorporating GO.

2. Materials and Methods

2.1. Raw Materials

Ordinary Portland cement (OPC, PI 42.5R) that conformed to the requirements of Chinese Standard GB175 [27] was used in this research. The chemical composition and physical properties of OPC are given in Table 1. The particle-size distribution of OPC was determined using a laser particle-size analyzer, as shown in Figure 1. Graphite oxide powder (Sixth Element Ltd., Changzhou, China) was used for the preparation of the GO solution in the experiment. The properties of graphite oxide powder are given in Table 2.
Polycarboxylate-based high-range water-reducing admixture (PCE) was used to improve the fluidity of the fresh cement composites, conforming to the requirements of Chinese Standard JG/T223 [28]. The maximum rate of water reduction was in the range of 30–35%. In addition, GO will become agglomerate in such a high alkaline environment like cement pore solution due to strong Van der Waal’s force and ionization interference. Therefore, PCE also served as a surfactant to disperse GO in pore solution through electrostatic repulsion and steric stabilization. The characteristics of the chemical admixtures are listed in Table 3.

2.2. Test Methods

2.2.1. Preparation and Characterization of GO Solution

A specified amount of graphite oxide powder was mixed with deionized water for 30 min using a magnetic stirrer. The resulting aqueous suspension of graphite oxide with a concentration of 5 g/L was sonicated with an ultrasonic homogenizer (400 W, 25 Hz, model JY98-IIIN, Ningbo Xinzhi Biotechnology Ltd., Ningbo, Zhejiang, China) for 2 h. The ultrasonicator was carried out in cycles—an operation period of 2 s followed by an interval of 2 s—to avoid the suspension overheating. After ultrasonication, the morphology of the obtained GO was scanned by atomic force microscopy (AFM, type ICON-PT-PKG, Bruker, San Diego, CA, USA) and transmission electron microscopy (TEM, type Talos F200X, FEI, Hillsboro, OR, USA). The chemical bonding characteristics of GO were examined by Fourier transform infrared spectroscopy (FTIR, type AVANCE 600 MHz, Bruker, Switzerland). In addition, GO was detected by Raman scattering (type inVia Reflex, Renishaw, London, UK).

2.2.2. Mix Proportioning and Sample Preparation

The mix proportions of GO/cement composites are listed in Table 4. Different amounts of GO used in this study were 0.00%, 0.05%, 0.10%, 0.15%, and 0.20% by weight of cement, respectively. It can be generally accepted that GO is an excellent sorbent due to super-high specified surface area, which results in the absorption of the maximum amount of free water. Thus, the PCE/GO ratio was selected as 3.0 to ensure the adequate workability of the samples.
To achieve the good dispersion of GO in pore solution, GO was preferentially mixed with the same content of PCE in this study [29]. Thus, the mixing procedure of the samples was as followed. First, the GO solution with a specified dosage of PCE (represented as mixture 1) and the water with the rest of PCE (represented as mixture 2) were thoroughly stirred, respectively. Then, cement was added to the mixture 2 and mixed at low rotation speed (62 ± 5 r/min) for 30 s, followed by the addition of the mixture 1 and mixed for 1 min and 30 s. Finally, it was mixed at high rotation speed (125 ± 10 r/min) for another 1 min and 30 s. The obtained GO/cement paste was cast into two molds (dimensions: 30 × 30 × 30 mm3 and 40 × 40 × 40 mm3) at 20 ± 2 °C and >95% relative humidity, and covered using a plastic film to prevent water loss. After demolding, the samples were cured in a moisture room under the same conditions for 28 days, confirming to the requirements of the Chinese standard GB/T 50081 [30].

2.2.3. Leaching Solution Selection

Calcium leaching in nature is a slow process. It was reported that the leaching front of concrete exposed to still field water for 100 years was only about 5 to 10 mm [31]. Therefore, most of the researches have applied accelerated leaching methods, for example, using 6 mol/L NH4NO3 solution [32], or 6 mol/L NH4Cl solution [33], or deionized water [34], or using electrochemical method [35]. Among these methods, 6 mol/L NH4NO3 solution has been regarded as the most effective method, which can accelerate the leaching speed two orders and still get the same end products. However, this is also the raw materials for production of explosives. Considering the safety of the experiments, the NH4Cl (>99.5% purity, Meilune Biotechnology Ltd., Liaoning, China) was used in this study. The accelerated principle of 6 mol/L NH4Cl solution is to promote chemical reaction between CH and NH4Cl, which forms gaseous ammonia and calcium chloride that is highly soluble in water (see Equation (1)).
Ca ( OH ) 2 + 2 NH 4 Cl = Ca 2 + + 2 OH + 2 H + + 2 NH 3 ( ) + 2 Cl = CaCl 2 + 2 NH 3 ( ) + 2 H 2 O

2.2.4. Leaching Test

After curing for 28 days, the samples were placed in the sealed containers filled with 6 mol/L NH4Cl solution (solubility: 37.2 g/100 mL at 20 ± 2 °C) to undergo calcium leaching for 7, 14, 21, 28, and 35 days. The volume ratio of an NH4Cl solution to a sample was kept constant at 20 to observing phenomena in a short time. In addition, the leaching tests were performed at 20 ± 2 °C and the leachant was not renewed during the tests. After leaching, the samples were removed from the containers, and further manufactured for the next experiments.

2.2.5. Leaching Depth Test

In this experiment, phenolphthalein pH indicator solution was applied to measure the leaching depth of a leached sample. It was prepared by diluting a mixture of 1 g of phenolphthalein and 90 mL of 95.0 V/V% ethanol aqueous solution to 100 mL with deionized water. First, a leached sample with a dimension of 30 × 30 × 30 mm3 was transversely split into two sections. Then, one of exposed fresh surfaces was immediately cleaned and sprayed with the phenolphthalein solution. Finally, four leaching fronts of the sample were determined using a digital caliper with a measurement accuracy of 0.01 mm. Each front was tested at three appropriate points (Figure 2) and three samples from each group were examined. As a result, the leaching depth of a group was calculated by averaging the thirty-six tested points.

2.2.6. Compressive Strength Test

Three leached samples with a dimension of 40 × 40 × 40 mm3 from each group were prepared for the compressive strength test, which was performed at the computerized universal testing machine (YHZ-300) with a loading rate of 2400 N/s, confirming to the Chinese standard GB/T 17671-1999 [36]. Similarly, the strength for each group was calculated by averaging the three tested values.

2.2.7. Electrochemical Impedance Spectroscopy (EIS) Measurement

To characterize leaching process of the GO/cement composites, a leached sample with a dimension of 30 × 30 × 30 mm3 was tested using the electrochemical workstation (type PARSTAT 4000, AMETET Ltd., San Diego, CA, USA) over the frequency range of 1 Hz to 1 MHz at a sinusoidal potential perturbation of 100 mV. It should be noted that leaching in 6 mol/L NH4Cl solution can generate unnecessary white crystals on the surface of a leached sample (Figure 3a). The crystals can significantly increase the electrical conductivity of the sample, as shown in the comparison of Figure 3b,d. To be consistent with real conditions on infrastructure, a leached sample was immersed in the tap water (the volume ratio between a sample and the water was 1:3) before test and gently shook to remove the white crystals. A new sample used for this test can be seen in Figure 3c. After the preparation for the samples, the test procedures are as followed. First, the moisture on the surface of the sample need to be wiped. Then, the sample was placed between two parallel electrodes mounted in a tested mold, and directly contacted with the electrodes. Finally, the tested results were analyzed by using the ZSimpWin software.

2.2.8. Microstructural Analysis

To characterize the microstructural changes of GO/cement composites exposed to calcium leaching, the leached samples were detected by scanning electron microscope (SEM) tests. Before test, the leached samples were immersed in anhydrous ethanol to avoid carbonation and to replace cement pore solution for further discussion. After that, the samples were cut from the original one based on a specified region. Then, the sample was placed in an oven at a temperature of 60 °C for 1 d, followed by the SEM tests using a GeminiSEM 300 (Zeiss, Thuringia, Germany). In addition, an energy disperse spectroscopy (EDS) was used to determine the elemental composition of the region of interest.

3. Results and Discussion

3.1. GO Characterization

The AFM image and spectra of GO are shown in Figure 4a,b, respectively. These results indicate that GO possessed an irregular plane shape with a dimension of about 0.7 μm and a thickness of about 1.8 nm. Figure 4c shows the TEM image of GO morphology. It can be found that GO was consisted of many wrinkled and folded areas due to intercalating abundant functional oxygen groups. Furthermore, FTIR spectra exhibits the chemical bonds of the functional oxygen groups of GO, as shown in Figure 4d. The typical characteristic peaks of GO were 3400, 1720, 1634, and 1058 cm−1, corresponding to –OH, C=O, C=C, and C–O, respectively. These functional oxygen groups made GO easily dispersible in aqueous solutions. In addition, Figure 4e presents the Raman spectrum of GO, where three dominant peaks can be observed. The first band (G-band, at 1620 cm−1) was due to the stretching of C-C bond in the graphite mode. The second band (D-band, at 1380 cm−1) originated from the diamondoid mode. The third band (2D–band, at 2900 cm−1) was the second order of the D peaks. In particular, the ID/IG mass ratio of GO is higher than that of graphite, since GO has a disordered structure due to the presence of functional oxygen groups [37].

3.2. Macroscopic Characterizations for Leached GO/Cement Composites

3.2.1. Leaching Depth Analysis

Leaching depth tests are carried out by spraying the phenolphthalein solution on the clean surface of the leached samples. The experiments are based on the principle that when sprayed with phenolphthalein, the intact zone of the samples becomes pink due to the existence of alkali, while the degraded zone still keeps grey. Generally, leaching depth can be used to describe the leaching process of cement composites.
Figure 5 shows the average of the time-varying leaching depths for the samples exposed to 6 mol/L NH4Cl solution. As can be seen from the figure, the growth rate on the leaching depths for all samples decreased progressively due to the reduction of the concentration gradients of Ca2+ ions between cement pore solution and the surrounding environments [20]. Furthermore, leaching depths for the samples decreased with the increase of GO content. After leaching for 35 days, the leaching depths for R0, G1, G2, G3, and G4 were 9.34, 8.66, 8.29, 7.58, and 6.48 mm, respectively. In particular, the leaching depth for G4 after leaching for 35 days was still lower than that (7.55 mm) for R0 after leaching for 21 days. According to previous literature [38,39], GO addition can generate a strong barrier effect on the chloride ion transport of cement composites. Therefore, it suggests that GO addition can restrict the diffusion of Ca2+ ions and detrimental ions such as NH4+ and Cl ions, thus mitigating calcium leaching of cement composites.
To further determine the relationship between the leaching depth and the exposure duration, the test data from Figure 5 were fitted to the formula described by Fick’s law: d = k t , where d is the leaching depth (mm), k is the leaching coefficient related to ionic diffusion coefficient, and t is the leaching duration (day). Figure 6 shows the linear fitting on the leaching depth in relation to the square root of the leaching duration. The leaching coefficients (k), correlation coefficient (R), determination coefficients (R2), and probability value (p-value) are also given in the figure, while the equations of the fitting curves are shown in the figure caption. It can be clearly seen that all R2 of the fitting curves were higher than 0.980, indicating that the curves were highly correlated with the measurement points. In this study, the leaching coefficients k of R0, G1, G2, G3, and G4 were 1.642, 1.524, 1.438, 1.292, and 1.131, respectively. According to Forster et al. [6], smaller leaching coefficient (k) indicated slower leaching process. In addition, Tang et al. [40] reported that the leaching coefficient can represent the leaching rate of a sample. Therefore, the leaching rate of R0 was the highest, followed by G1, G2, G3, and G4. In addition, the leaching rate of R0 was above 1.45 times than that of G4. These results further reveal that GO addition can effectively retard leaching process of cement composites.

3.2.2. Compressive Strength Analysis

One of the most important tests from the practical engineering point of view is compressive strength test [10]. As another macroscopic method used in this study, the test provided the parameters that assessed the validity of GO/cement composites for their application in infrastructure exposed to calcium leaching.
Figure 7 shows the compressive strengths for the samples leached for 0, 7, 14, 21, 28, and 35 days in 6 mol/L NH4Cl solution. Before leaching, the compressive strength of the samples increased with the GO content. When compared to R0, the compressive strength of G1, G2, G3, and G4 increased by 6.60%, 15.80%, 17.92%, and 24.98%, respectively. It can be attributed to the super-high specified surface area of GO which acted as nucleation sites to promote cement hydration, and the good dispersion of GO which provided reinforcement at nano-micro structural level [17]. After leaching, compressive strength of the samples decreased gradually with the leaching duration.
To reveal the effect of GO on calcium leaching of cement composites, compressive strength loss of the leached samples in relation to leaching duration is shown in Figure 8. It can be clearly seen that the compressive strength loss of the leached samples decreased with the increase of GO content. After leaching for 35 days in 6 mol/L NH4Cl solution, the compressive strength loss of R0, G1, G2, G3, and G4 was 78.54%, 76.33%, 72.10%, 70.80%, and 68.87%, respectively. In particular, the compressive strength loss of R0 was above 1.14 times than that of G4. These results indicated that GO addition can significantly mitigate calcium leaching of cement composites. In addition, the loss rate on the compressive strength of the leached samples progressively slowed down with the leaching duration. This phenomenon can be explained by the dissolution of CH and C–S–H. According to previous literature [22,41], the dissolution of CH and C–S–H can be divided into three steps: the quick dissolution of CH, partial dissolution of C–S–H, and quick and total decalcification of the partially leached C–S–H. It suggests that calcium leaching process is firstly dominated by the dissolution of CH, followed by the dissolution of C–S–H. Moreover, the dissolution of CH results in the amount increase of the capillary pores (5 to 5000 nm), while the decalcification of C–S–H results in the amount increase of gel pores (0.5 to 10 nm). When compared to gel pores, the capillary pores are responsible for the reduction in strength of cement composites [5,42]. Consequently, the rapid reduction at early age can be attributed to the additional capillary pores produced by the dissolution of CH, while the deceleration can be due to the additional gel pores formed by the decalcification of C–S–H.

3.3. Electrochemical Characterizations for Leached GO/Cement Composites

To characterize calcium leaching of GO reinforced cement composites, the EIS method was applied as an advanced technique in this study. First, three modifications of the equivalent circuit model were proposed. Then, the effects of leaching duration and GO addition on the Nyquist curves of the leached samples were discussed. Finally, the model impedance RCCP were used to further present the inhibiting effect of GO on calcium leaching of the composites, and predict coupling leaching depth and compressive strength loss of the leached samples.

3.3.1. Modifications of Equivalent Circuit Model for Leached Samples

According to Song et al. [24], a novel equivalent circuit model used to explain calcium leaching behaviors of plain cement pastes was proposed, as shown in Figure 9. However, there are several confusions in this model. Thus, this model is updated here through three modifications. First, cement composites are an electrochemical system which has three current channels: continuous conductive paths (CCPs) composed of continuously connected micro-pores, discontinuous conductive paths (DCPs) consisted of discontinuous micro-pores, and “insulator” conductive paths (ICPs) from continuous cement matrix [43]. In the model, the CCPs, ICPs, and DCPs should be viewed as a resistor, a capacitor, and a series connection of resistor and capacitor, respectively. Then, there are two regions in the leached samples: the degraded zone and the intact zone. In the degraded zone, the DCPs can be neglected rather than the ICPs since the DCPs are degraded in such a greater extent. Finally, the description code of this model can be described as (Qmat (QDP RCP) RCCP) (QL RL), and the modified equation of the total impedance Z of the model (Qmat (QDP RCP) RCCP) (QL RL) can be expressed by Equation (2):
Z = R CCP ( 1 + R CP j ω Q DP ) ( 1 + R CCP j ω Q mat ) ( 1 + R CP j ω Q DP ) + R CCP j ω Q DP + R L 1 + R L j ω Q L
where j = 1 and ω is the angle frequency. The physical significance of each circuit elements are captioned in Figure 9. Based on a novel model proposed by Song et al. [24], this modified one was applied in this study for analyzing calcium leaching of GO reinforced cement composites.

3.3.2. Effect of Leaching Duration on the Nyquist Curve of Leached Samples

Figure 10 shows the Nyquist curves of G2 samples exposed to different leaching durations. It can be found that the diameters of the semi-circles of the Nyquist curves decreased with the increase of leaching duration. According to Long et al. [26], the diameters of the semi-circle of the Nyquist curves are proportional to the density degree of pore structure of the composites. Thus, the decrease on the diameters of the semi-circles can be attributed to the increment of the porosity of leached composites from the dissolution of ettringite and CH, and the decalcification of C-S-H. In particular, there was a sudden reduction on the diameter of the semi-circle of the Nyquist curve for G2 samples after leaching for 7 days, when compared to before leaching. Combined with the results from macroscopic characterizations, this phenomenon can be explained by the evolution of concentration gradients of Ca2+ ions, and the appearance of additional capillary pores at early age. In addition, same trends can be found in the Nyquist curves of R0, G1, G3, and G4, as shown in Figure S1.

3.3.3. Effect of GO Addition on the Nyquist Curve of Leached Samples

To investigate the effect of GO addition on calcium leaching of cement composites, the Nyquist curves of R0, G2, and G4 before and after leaching for 28 days are shown in Figure 11. As can be seen from the figure, the diameters of the semi-circle of the Nyquist curves of the samples decreased after leaching for 28 days, when compared to before leaching. Furthermore, the diameters of the semi-circle of the Nyquist curves of the leached samples with GO addition decreased less than that of the samples without GO addition. This phenomenon became more obvious in the case of the higher GO content. These results show that GO addition can effectively inhibit the impedance loss of leached composites. According to previous literature [16,44,45], GO can be agglomerate in Ca(OH)2 solution due to the reaction between the functional oxygen groups with Ca2+ ions. It suggests that GO addition can absorb Ca2+ ions in cement pore solution via its functional oxygen groups, therefore mitigating calcium leaching of cement composites. In addition, the diameters of the semi-circle of the Nyquist curve of the unleached samples increased with the GO contents. This is due to the fact that GO addition promoted the cement hydration, therefore forming a denser microstructure. More information about the Nyquist curves of the samples after leaching for 0, 7, 14, 21, 28, and 35 days is shown in Figure S2.

3.3.4. Model Impedance RCCP Analysis and its Fitting Results

The values of the model impedance RCCP from the equivalent circuit model (Qmat (QDP RCP) RCCP) (QL RL) at different leaching durations are listed in Table 5. It can be clearly seen that the value of RCCP decreased with increase of leaching duration. Moreover, the loss percentages of RCCP in R0, G1, G2, G3, and G4 were 94.85%, 84.07%, 79.66%, 75.34%, and 68.75%, respectively. In particular, the loss percentage of RCCP in R0 was almost 1.4 times than that in G4. These results quantitatively indicate that GO addition can inhibit calcium leaching of cement composites.
In theory, the impedance values of the leached GO/cement composites can be used not only to reveal the inhibiting effect of GO on calcium leaching, but also to reflect the performance changes of the composites. Figure 12a,b show the predictions of leaching depth and compressive strength loss of G2 during leaching for 28 days, respectively. Predictions of leaching depth and compressive strength loss of R0, G1, G3, and G4 are given in Figure S3. The correlation coefficient (R), determination coefficients (R2), and probability value (p-value) of the fitting curves are provided in the figures, while the equations of the fitting curves are shown in the figure caption. It can be clearly seen from R2 that the curves were highly correlated with the measurement points. In addition, the prediction of compressive strength loss is more accurate than that of leaching depth. Table 6 and Table 7 summarize the measured results and the predicted results of leaching depth and compressive strength loss in all samples at leaching for 35 days. In particular, the maximum variation was only 12.80%. Therefore, the application of EIS method for monitoring the leached infrastructure with GO addition is reliable.

3.4. Microstructural Characterization for Leached GO/Cement Composites

Durability of cement composites is closely related to their microstructural characteristics. Figure 13a–c show the cutting surfaces of R0, G2, and G4 after leaching for 14 days, respectively. Figure 14 shows the EDS data for a specified line in G4 surface. It can be clearly seen from these figures that there were two different regions in the leached samples, which correspond to the degraded zone and the intact zone in the equivalent circuit model, respectively. With the increase of GO content, the differences between these zones in the leached samples became indistinct. Furthermore, several micro-cracks can be found in the interface between these zones. It suggests that the bonding between the degraded zone and the intact zone was corroded by calcium leaching, and the rapid evaporation of anhydrous ethanol aggravated the separation of these zones. In addition, the micro-cracks in the leached samples were improved by the GO addition. These results exhibit the reinforced effect of GO on microstructure of leached samples.
The degraded zone and intact zone of R0, G2, and G4 after leaching for 14 days were characterized, as shown in Figure 15. From the comparison of Figure 15a,c,e, the degradation of the microstructure for R0 suffered the most, including the appearance of many leaching products and micro-pores, followed by G2 and G4. This indicates that GO addition can refine the microstructure of leached samples. From the comparison of Figure 15b,d,f, the morphology of portlandite crystals in the intact zone of the leached samples transforms from the hexagonal-like form into the block-like form. Besides, the amount and volume of block-like products increase with the GO content. These phenomena can be attributed to the promoted effect of GO on cement hydration.
It should be noted that Cl ions cannot be found in the block-like hydrated products of R0, as shown in the region 1 of Table 8. Since GO addition increases the resistance of the sample towards ionic transport [26], Cl ions should be also absent in G2 and G4 under the same experimental conditions. However, the regions 2 and 3 of Table 8 demonstrate the existence of Cl ions in the G2 and G4, respectively. This indicates that GO surface possessed positive charges due to the accumulation of Ca2+ ions, which leads to the attraction of Cl ions. It should be noted that the effects of K+ and Na+ ions on surface potential of GO were not considered, since these ions cannot react with the functional oxygen groups of GO [46].

3.5. Inhibiting Mechanism of GO on Calcium Leaching of Cement Composites

Through a series of advanced characterizations, it can be concluded that GO addition can effectively mitigate calcium leaching of cement composites. From SEM and EDS characterizations, this inhibition can be partially due to the functional oxygen groups of GO that can absorb Ca2+ ions in cement pore solution, and partially owing to the reinforced effect of GO on the microstructure of cement composites. Based on this mechanism, the systematical explanations for calcium leaching of GO reinforced cement composites were as followed.
Electrochemical impedance of unleached samples increased with GO content—On one hand, GO addition can promote cement hydration [47], which can densify the microstructure of the composites, therefore increasing the resistance towards the migration of conductive ions. On the other hand, promoted cement hydration due to GO addition can also increase ion contents in pore solution, which resulted in the increment on the conductivity of the solution. According to Dong et al. [25], the impedance was inversely proportional to the amounts of conductive ions and ionic paths. Therefore, the number of ionic paths was dominated in electrochemical impedance of the composites, when compared to the number of conductive ions. In addition, there was a non-negligible charge shielding effect [48] that separation of every proton from GO surface in the electrolyte was resisted by the electrical field created by “free” ions in pore solution. Therefore, massive metallic ions, including K+, Na+, and Ca2+ ions, can be gathered by GO surface, which hindered the increment of the conductivity of the solution. It should be noted that since the conductivity of pore solution mainly derived from K+, Na+, and OH ions [49], the decrement on Ca2+ ions in pore solution at this stage contributed little to the increment on the conductivity of the solution.
Loss rate of electrochemical impedance of leached samples decreased with the increase of GO content—In general, calcium leaching is a combined diffusion and dissolution process inside hardened cement composites, which indicates that leaching can decrease the number of conductive ions and the conductivity of pore solution. However, the changes on the conductivity of the solution become more complicated, when the composites leached in 6 mol/L NH4Cl solution. This is due to the fact that K+, Ca2+, Na+, and OH ions in pore solution can diffuse along with the concentration gradients. In addition, NH4+ and Cl ions in aggressive environments can intrude on. Since it is very difficult to physically extract cement pore solution for measuring its conductivity [50,51] and the amount of ionic paths plays a dominated role on electrochemical impedance, the amount of ionic paths is used in this study to explain this deceleration phenomenon. On one hand, since GO can absorb Ca2+ ions in pore solution, the reduction of Ca2+ ions in pore solution can decrease the dissolution of CH and C–S–H, therefore inhibiting the formation of additional capillary and gel pores in leached samples. On the other hand, GO addition can increase the crack tortuosity of unleached samples [52], which prolongs the escaping distance of Ca2+ ions and further decreases the loss of Ca2+ ions in pore solution.

4. Conclusions

In this study, cement composites reinforced with GO (containing 0, 0.05, 0.1, 0.15, and 0.2 wt.% of cement) were exposed to 6 mol/L NH4Cl solution for 7, 14, 21, 28, and 35 days to undergo calcium leaching. EIS method was applied to characterize leaching process of GO/cement composites. SEM and EDS tests were employed to reveal the inhibiting mechanism of GO on calcium leaching of the composites. In addition, macroscopic characterizations including leaching depth and compressive strength were used to explain the feasibility of applying EIS method on practice engineering. Based on the test results, the following conclusions can be drawn:
  • Leaching depth of the samples decreased with the increase of GO content. After leaching for 35 days, leaching depths of R0, G1, G2, G3, and G4 were 9.34, 8.66, 8.29, 7.58, and 6.48 mm, respectively. Furthermore, the leaching coefficient of R0 was above 1.45 times than that of G4. These results demonstrate that GO addition can effectively mitigate calcium leaching of cement composites.
  • After leaching for 35 days, the compressive strength loss of R0, G1, G2, G3, and G4 was 78.54%, 76.33%, 72.10%, 70.80%, and 68.87%, respectively. In particular, the rapid loss of compressive strength at early age was attributed to the additional capillary pores produced by the dissolution of calcium hydroxide.
  • A modified circuit model was proposed to explain the impedance response of the samples exposed to calcium leaching. After leaching for 35 days, loss rate of model impedance RCCP of leached samples with 0, 0.05, 0.1, 0.15, and 0.2 wt.% GO addition was 94.85%, 84.07%, 79.66%, 75.34%, and 68.75%, respectively. In addition, coupling leaching depth and compressive strength loss were accurately predicted by the model parameter RCCP, which indicated that EIS method can be applied to monitor the performance change of the leached infrastructure incorporating GO.
  • The leached samples can be divided into two regions: the degraded zone and the intact zone, which is consistent with the model. After leaching for 14 days, the number of leaching products and micro-pores in the degraded zone of the samples decreased with the increase of GO content, indicating that GO addition can refine the microstructure of leached cement composites.
  • GO addition can significantly mitigate calcium leaching of cement composites. This is due to the fact that GO can absorb Ca2+ ions in cement pore solution, as well as improve the microstructure of GO/cement composites.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/2/288/s1. Figure S1: The Nyquist curves of the leached samples undergoing different leaching durations: (a) R0, (b) G1, (c) G3, and (d) G4; Figure S2: The Nyquist curves of the samples before leaching and after leaching for 7, 14, 21, 28, and 35 days: (a) before leaching, (b) after leaching for 7 days, (c) after leaching for 14 days, (d) after leaching for 21 days, (e) after leaching for 28 days, and (f) after leaching for 35 days; Figure S3: Predictions on leaching depth and compressive strength loss of leached samples using RCCP: (a) leaching depth of R0, (b) compressive strength loss of R0, (c) leaching depth of G1, (d) compressive strength loss of G1, (e) leaching depth of G3, (f) compressive strength loss of G3, (g) leaching depth of G4, and (h) compressive strength loss of G4.

Author Contributions

W.-J.L. designed and conducted the core experiments and wrote the draft of the manuscript. T.-H.Y. performed analysis of the electrochemical properties and inhibiting mechansim. L.-X.L. designed the microstructural and macroscopic analysis and G.-L.F. supervised the research. All authors contributed to the analysis for results and conclusions and revised the paper.

Funding

This research was supported financially by the National Natural Science Foundations of China (Nos. 51778368, 51578341).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Joshaghani, A.; Balapour, M.; Ramezanianpour, A.A. Effect of controlled environmental conditions on mechanical, microstructural and durability properties of cement mortar. Constr. Build. Mater. 2018, 164, 134–149. [Google Scholar] [CrossRef]
  2. Ortega, J.M.; Sánchez, I.; Climent, M.A. Impedance spectroscopy study of the effect of environmental conditions in the microstructure development of OPC and slag cement mortars. Arch. Civ. Mech. Eng. 2017, 10, 569–583. [Google Scholar] [CrossRef]
  3. Ramezanianpour, A.A. Effect of curing on the compressive strength, resistance to chloride-ion penetration and porosity of concretes incorporating slag, fly ash or silica fume. Cem. Concr. Compos. 1995, 17, 125–133. [Google Scholar] [CrossRef]
  4. Williams, M.; Ortega, J.; Sánchez, I.; Cabeza, M.; Climent, M. Non-Destructive Study of the Microstructural Effects of Sodium and Magnesium Sulphate Attack on Mortars Containing Silica Fume Using Impedance Spectroscopy. Appl. Sci. 2017, 7, 648. [Google Scholar] [CrossRef]
  5. Liu, L.; Wang, X.; Zhou, J.; Chu, H.; Shen, D.; Chen, H.; Qin, S. Investigation of pore structure and mechanical property of cement paste subjected to the coupled action of freezing/thawing and calcium leaching. Cem. Concr. Res. 2018, 109, 133–146. [Google Scholar] [CrossRef]
  6. Forster, A.M.; Szadurski, E.M.; Banfill, P.F.G. Deterioration of natural hydraulic lime mortars, I: Effects of chemically accelerated leaching on physical and mechanical properties of uncarbonated materials. Constr. Build. Mater. 2014, 72, 199–207. [Google Scholar] [CrossRef][Green Version]
  7. Tang, Y.J.; Zuo, X.B.; He, S.L.; Ayinde, O.; Yin, G.J. Influence of slag content and water-binder ratio on leaching behavior of cement pastes. Constr. Build. Mater. 2016, 129, 61–69. [Google Scholar] [CrossRef]
  8. Mainguy, M.; Tognazzi, C.; Torrenti, J.M.; Adenot, F. Modelling of leaching in pure cement paste and mortar. Cem. Concr. Res. 2000, 30, 83–90. [Google Scholar] [CrossRef]
  9. Faucon, P.; Bescop, P.L.; Adenot, F.; Bonville, P.; Jacquinot, J.F.; Pineau, F.; Felix, B. Leaching of cement: Study of the surface layer. Cem. Concr. Res. 1996, 26, 1707–1715. [Google Scholar] [CrossRef]
  10. Gaitero, J.J.; Campillo, I.; Guerrero, A. Reduction of the calcium leaching rate of cement paste by addition of silica nanoparticles. Cem. Concr. Res. 2008, 38, 1112–1118. [Google Scholar] [CrossRef][Green Version]
  11. Arribas, I.; Vegas, I.; García, V.; Villa, R.V.D.L.; Martínez-Ramírez, S.; Frías, M. The deterioration and environmental impact of binary cements containing thermally activated coal mining waste due to calcium leaching. J. Clean. Prod. 2018, 183, 887–897. [Google Scholar] [CrossRef]
  12. Gaitero, J.J.; Zhu, W.; Campillo, I. Multi-Scale Study of Calcium Leaching in Cement Pastes with Silica Nanoparticles. In Nanotechnology in Construction; Springer: Berlin/Heidelberg, Germany, 2009; Volume 3. [Google Scholar]
  13. Muthu, M.; Santhanam, M. Effect of reduced graphene oxide, alumina and silica nanoparticles on the deterioration characteristics of Portland cement paste exposed to acidic environment. Cem. Concr. Compos. 2018, 91, 118–137. [Google Scholar] [CrossRef]
  14. Singh, L.P.; Bhattacharyya, S.K.; Mishra, G.; Ahalawat, S. Reduction of calcium leaching in cement hydration process using nanomaterials. Mater. Process. Rep. 1999, 27, 233–238. [Google Scholar] [CrossRef]
  15. Dreyer, D.R.; Todd, A.D.; Bielawski, C.W. The Chemistry of Graphene Oxide. Chem. Soc. Rev. 2009, 39, 228–240. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, H.; Monasterio, M.; Cui, H.; Han, N. Experimental study of the effects of graphene oxide on microstructure and properties of cement paste composite. Compos. Part A Appl. Sci. Manuf. 2017, 102, 263–272. [Google Scholar] [CrossRef]
  17. Qureshi, T.S.; Panesar, D.K.; Sidhureddy, B.; Chen, A.; Wood, P.C. Nano-cement composite with graphene oxide produced from epigenetic graphite deposit. Compos. Part B Eng. 2019, 159, 248–258. [Google Scholar] [CrossRef]
  18. Alharbi, Y.; An, J.; Cho, B.H.; Khawaji, M.; Chung, W.; Nam, B.H. Mechanical and sorptivity characteristics of edge-oxidized graphene oxide (EOGO)-cement composites: Dry- and wet-mix design methods. Nanomaterials 2018, 8, 718. [Google Scholar] [CrossRef]
  19. Wang, L.; Zhang, S.; Zheng, D.; Yang, H.; Cui, H.; Tang, W.; Li, D. Effect of graphene oxide (GO) on the morphology and microstructure of cement hydration products. Nanomaterials 2017, 7, 429. [Google Scholar] [CrossRef]
  20. Long, W.-J.; Ye, T.H.; Gu, Y.-C.; Li, H.-D.; Xing, F. Inhibited effect of graphene oxide on calcium leaching of cement pastes. Constr. Build. Mater. 2019, 202, 177–188. [Google Scholar] [CrossRef]
  21. Jebli, M.; Jamin, F.; Pelissou, C.; Malachanne, E.; Garcia-Diaz, E.; Youssoufi, M.S.E. Leaching effect on mechanical properties of cement-aggregate interface. Cem. Concr. Compos. 2018, 87, 10–19. [Google Scholar] [CrossRef][Green Version]
  22. Jain, J.; Neithalath, N. Analysis of calcium leaching behavior of plain and modified cement pastes in pure water. Cem. Concr. Compos. 2009, 31, 176–185. [Google Scholar] [CrossRef]
  23. Wan, K.; Xu, Q.; Lin, L.; Wei, S. 3D porosity distribution of partly calcium leached cement paste. Constr. Build. Mater. 2013, 48, 11–15. [Google Scholar] [CrossRef]
  24. Song, Z.; Liu, Y.; Jiang, L.; Guo, M.; Chen, J.; Wang, W.; Xu, N. Determination of calcium leaching behavior of cement pastes exposed to ammonium chloride aqueous solution via an electrochemical impedance spectroscopic approach. Constr. Build. Mater. 2019, 196, 267–276. [Google Scholar] [CrossRef]
  25. Dong, B.; Qiu, Q.; Gu, Z.; Xiang, J.; Huang, C.; Yuan, F.; Feng, X.; Wei, L. Characterization of carbonation behavior of fly ash blended cement materials by the electrochemical impedance spectroscopy method. Cem. Concr. Compos. 2016, 65, 118–127. [Google Scholar] [CrossRef]
  26. Long, W.-J.; Gu, Y.-c.; Xing, F.; Khayat, K.H. Microstructure development and mechanism of hardened cement paste incorporating graphene oxide during carbonation. Cem. Concr. Compos. 2018, 94, 72–84. [Google Scholar] [CrossRef]
  27. 175-2007, G.T. Common Portland Cement; Chinese National Standard: Beijing, China, 2007.
  28. 223-2007, J.T. Polycarboxylates High Performance Water-Reducing Admixture; Chinese Construction Industry Standard: Beijing, China, 2007.
  29. Long, W.J.; Li, H.D.; Fang, C.L.; Xing, F. Uniformly dispersed and re-agglomerated graphene oxide-based cement pastes: A comparison of rheological properties, mechanical properties and microstructure. Nanomaterials 2018, 8, 31. [Google Scholar] [CrossRef]
  30. 50081-2002, G.T. Standard for Test Method of Mechanical Properties on Oridinary Concrete; Chinese National Standard: Beijing, China, 2003.
  31. Ryu, J.S.; Otsuki, N.; Minagawa, H. Long-term forecast of Ca leaching from mortar and associated degeneration. Cem. Concr. Res. 2002, 32, 1539–1544. [Google Scholar] [CrossRef]
  32. Wan, K.; Li, Y.; Sun, W. Experimental and modelling research of the accelerated calcium leaching of cement paste in ammonium nitrate solution. Constr. Build. Mater. 2013, 40, 832–846. [Google Scholar] [CrossRef]
  33. Tang, Y.J.; Zuo, X.B.; Yin, G.J.; He, S.L.; Ayinde, O. Influence of slag on leaching behavior of cement mortar lined in ductile iron pipe under a flowing solution. Mater. Des. 2016, 114, 612–622. [Google Scholar] [CrossRef]
  34. Haga, K.; Sutou, S.; Hironaga, M.; Tanaka, S.; Nagasaki, S. Effects of porosity on leaching of Ca from hardened ordinary Portland cement paste. Cem. Concr. Res. 2005, 35, 1764–1775. [Google Scholar] [CrossRef]
  35. Cai, X.; He, Z.; Shao, Y.; Sun, H. Macro- and micro- characteristics of cement binders containing high volume fly ash subject to electrochemical accelerated leaching. Constr. Build. Mater. 2016, 116, 25–35. [Google Scholar] [CrossRef]
  36. GB/T17671-1999. Method of Testing Cements-Determination of Strength; Chinese National Standard: Beijing, China, 1999.
  37. Chen, C.M.; Zhang, Q.; Yang, M.G.; Huang, C.H.; Yang, Y.G.; Wang, M.Z. Structural evolution during annealing of thermally reduced graphene nanosheets for application in supercapacitors. Carbon 2012, 50, 3572–3584. [Google Scholar] [CrossRef]
  38. Du, H.; Gao, H.J.; Pang, S.D. Improvement in concrete resistance against water and chloride ingress by adding graphene nanoplatelet. Cem. Concr. Res. 2016, 83, 114–123. [Google Scholar] [CrossRef]
  39. Du, H.; Pang, S.D. Enhancement of barrier properties of cement mortar with graphene nanoplatelet. Cem. Concr. Res. 2015, 76, 10–19. [Google Scholar] [CrossRef]
  40. Tang, Y.-J.; Zuo, X.-B.; Yin, G.-J.; Davoudi, H.; Li, X.-N. Influence of calcium leaching on chloride diffusivity in cement-based materials. Constr. Build. Mater. 2018, 174, 310–319. [Google Scholar] [CrossRef]
  41. Wan, K.; Lin, L.; Wei, S. Solid–liquid equilibrium curve of calcium in 6 mol/L ammonium nitrate solution. Cem. Concr. Res. 2013, 53, 44–50. [Google Scholar] [CrossRef]
  42. Hou, D.; Li, D.; Hua, P.; Jiang, J.; Zhang, G. Statistical modelling of compressive strength controlled by porosity and pore size distribution for cementitious materials. Cem. Concr. Compos. 2019, 96, 11–20. [Google Scholar] [CrossRef]
  43. Song, G. Equivalent circuit model for AC electrochemical impedance spectroscopy of concrete. Cem. Concr. Res. 2000, 30, 1723–1730. [Google Scholar] [CrossRef]
  44. Li, X.; Korayem, A.H.; Li, C.; Liu, Y.; He, H.; Sanjayan, J.G.; Duan, W.H. Incorporation of graphene oxide and silica fume into cement paste: A study of dispersion and compressive strength. Constr. Build. Mater. 2016, 123, 327–335. [Google Scholar] [CrossRef]
  45. Zhou, C.; Li, F.; Hu, J.; Ren, M.; Wei, J.; Yu, Q. Enhanced mechanical properties of cement paste by hybrid graphene oxide/carbon nanotubes. Constr. Build. Mater. 2017, 134, 336–345. [Google Scholar] [CrossRef]
  46. Chuah, S.; Li, W.; Chen, S.J.; Sanjayan, J.G.; Duan, W.H. Investigation on dispersion of graphene oxide in cement composite using different surfactant treatments. Constr. Build. Mater. 2018, 161, 519–527. [Google Scholar] [CrossRef]
  47. Lin, C.; Wei, W.; Yun, H.H. Catalytic behavior of graphene oxide for cement hydration process. J. Phys. Chem. Solids 2016, 89, 128–133. [Google Scholar] [CrossRef]
  48. Lei, W.; Lin, L.; Bin, G.; Rafael, M.O.C.; Ming, Z.; Hao, C.; Zuhao, Z.; Hao, W. Aggregation kinetics of graphene oxides in aqueous solutions: Experiments, mechanisms, and modeling. Langmuir 2013, 29, 15174–15181. [Google Scholar]
  49. Snyder, K.A.; Feng, X.; Keen, B.D.; Mason, T.O. Estimating the electrical conductivity of cement paste pore solutions from OH, K and Na concentrations. Cem. Concr. Res. 2003, 33, 793–798. [Google Scholar] [CrossRef]
  50. Buckley, L.J.; Carter, M.A.; Wilson, M.A.; Scantlebury, J.D. Methods of obtaining pore solution from cement pastes and mortars for chloride analysis. Cem. Concr. Res. 2007, 37, 1544–1550. [Google Scholar] [CrossRef]
  51. Pilvar, A.; Ramezanianpour, A.A.; Rajaie, H. New method development for evaluation concrete chloride ion permeability. Constr. Build. Mater. 2015, 93, 790–797. [Google Scholar] [CrossRef]
  52. Pan, Z.; He, L.; Qiu, L.; Korayem, A.H.; Li, G.; Zhu, J.W.; Collins, F.; Li, D.; Duan, W.H.; Wang, M.C. Mechanical properties and microstructure of a graphene oxide–cement composite. Cem. Concr. Compos. 2015, 58, 140–147. [Google Scholar] [CrossRef]

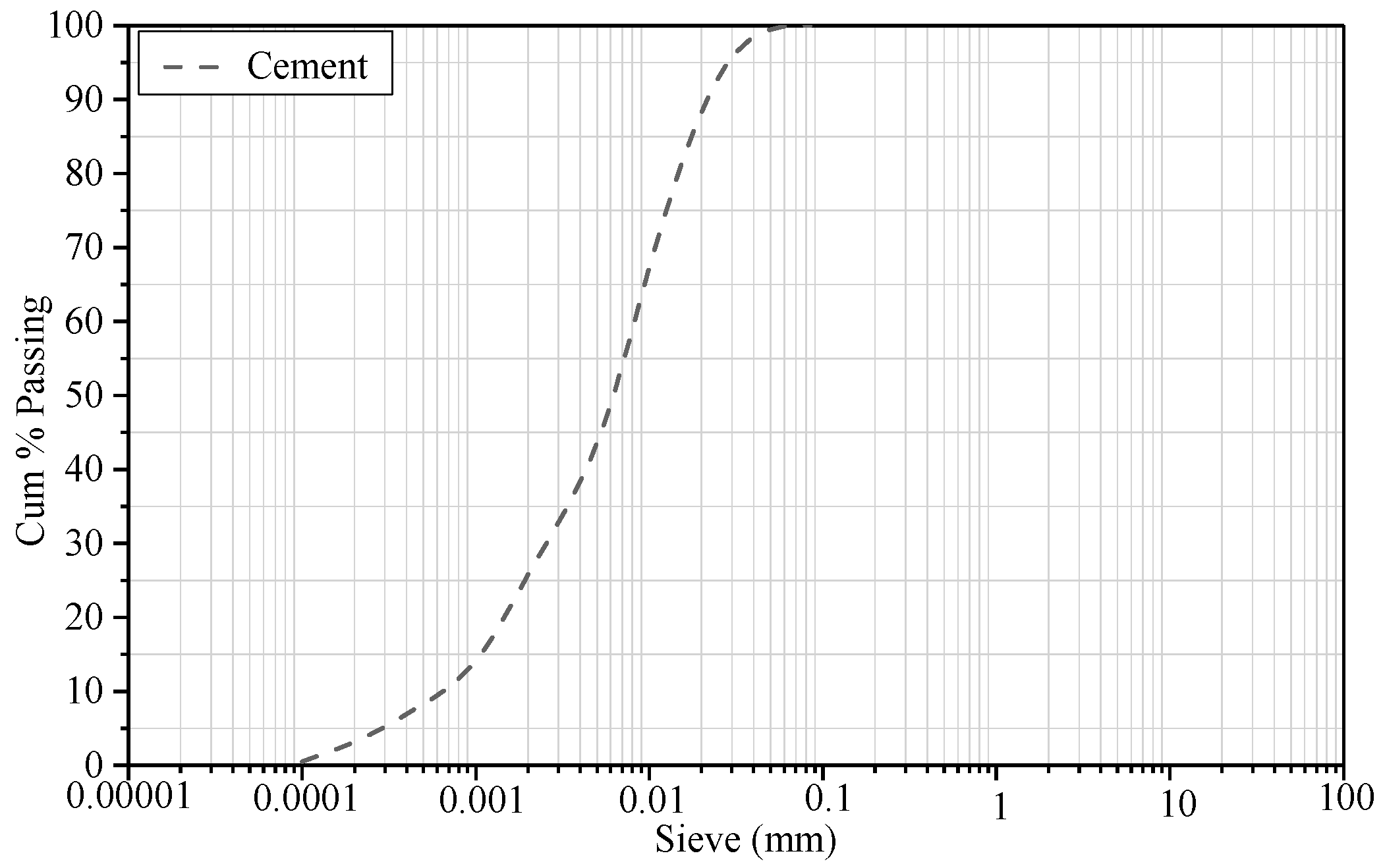

Figure 1. Particle size distribution of OPC.
Figure 1. Particle size distribution of OPC.
Nanomaterials 09 00288 g001

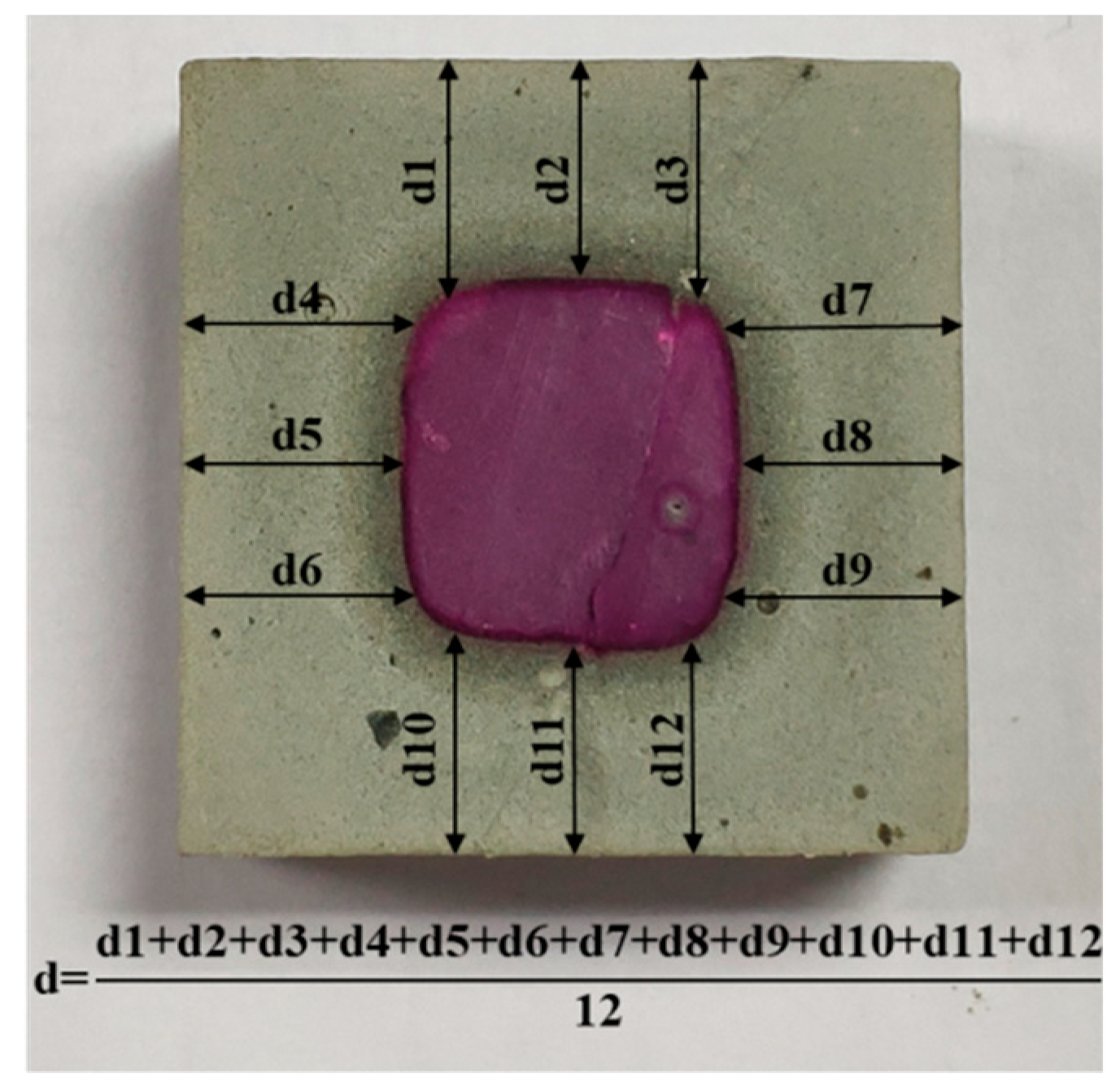

Figure 2. Leaching depth test for the sample exposed to 6 mol/L NH4Cl solution.
Figure 2. Leaching depth test for the sample exposed to 6 mol/L NH4Cl solution.
Nanomaterials 09 00288 g002

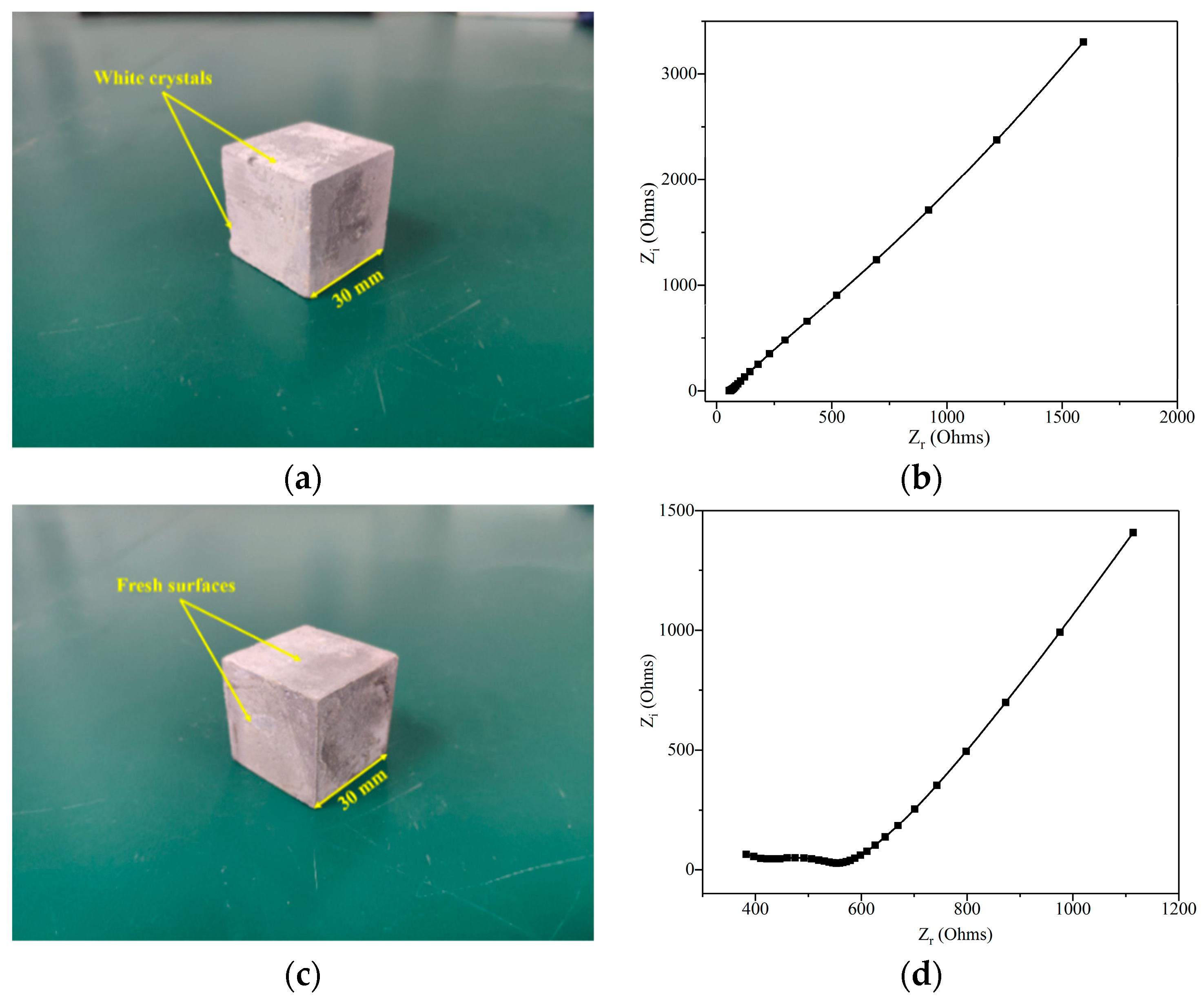

Figure 3. Morphology and the Nyquist curve of G1 after leaching for 7 days: (a) morphology of G1 before immersion; (b) the Nyquist curve of G1 before immersion; (c) morphology of G1 after immersion; and (d) the Nyquist curve of G1 after immersion.
Figure 3. Morphology and the Nyquist curve of G1 after leaching for 7 days: (a) morphology of G1 before immersion; (b) the Nyquist curve of G1 before immersion; (c) morphology of G1 after immersion; and (d) the Nyquist curve of G1 after immersion.
Nanomaterials 09 00288 g003

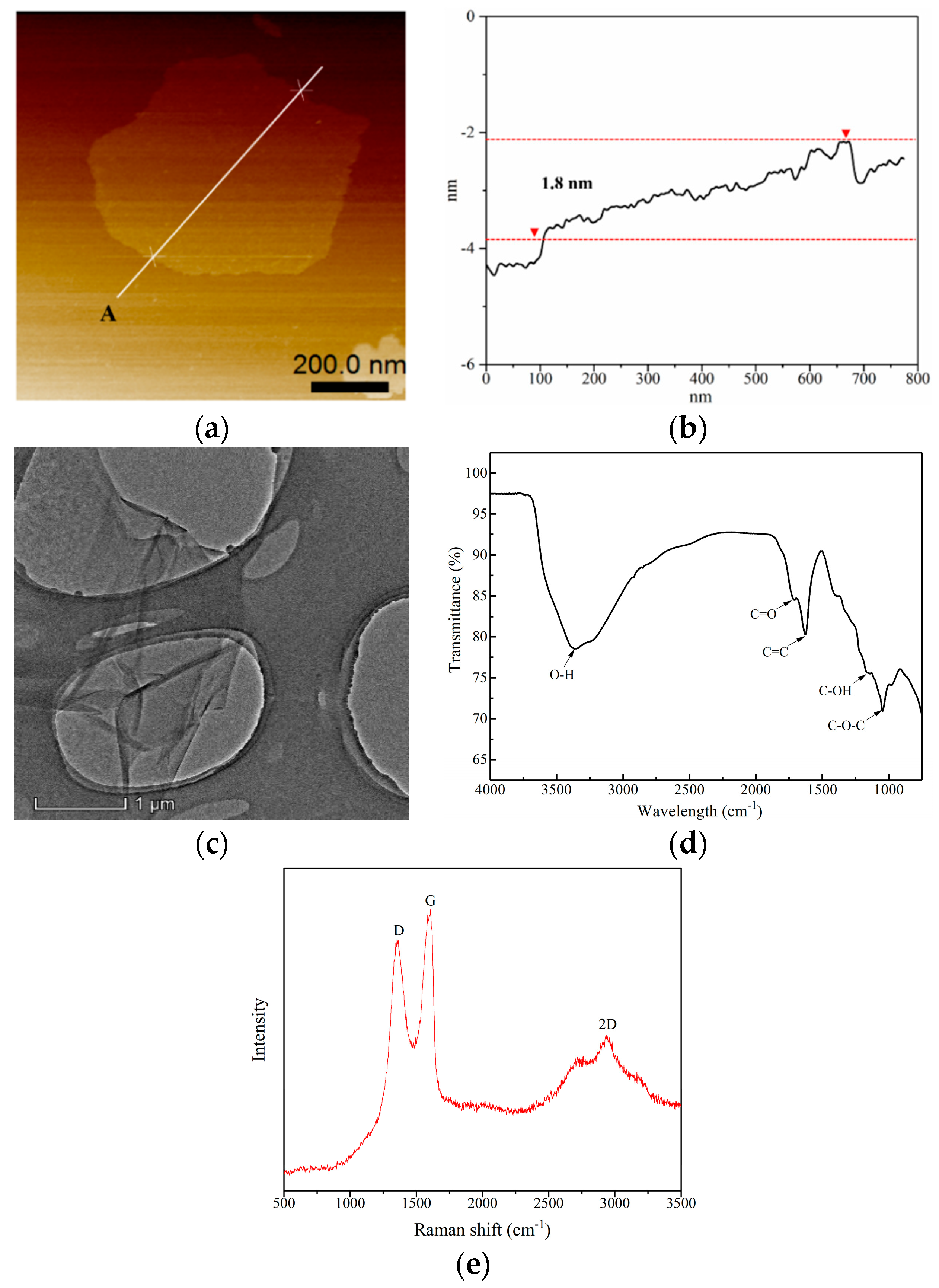

Figure 4. Characterization of GO: (a) AFM image; (b) AFM spectra; (c) TEM image; (d) FTIR transmittance spectra; and (e) Raman spectrum.
Figure 4. Characterization of GO: (a) AFM image; (b) AFM spectra; (c) TEM image; (d) FTIR transmittance spectra; and (e) Raman spectrum.
Nanomaterials 09 00288 g004

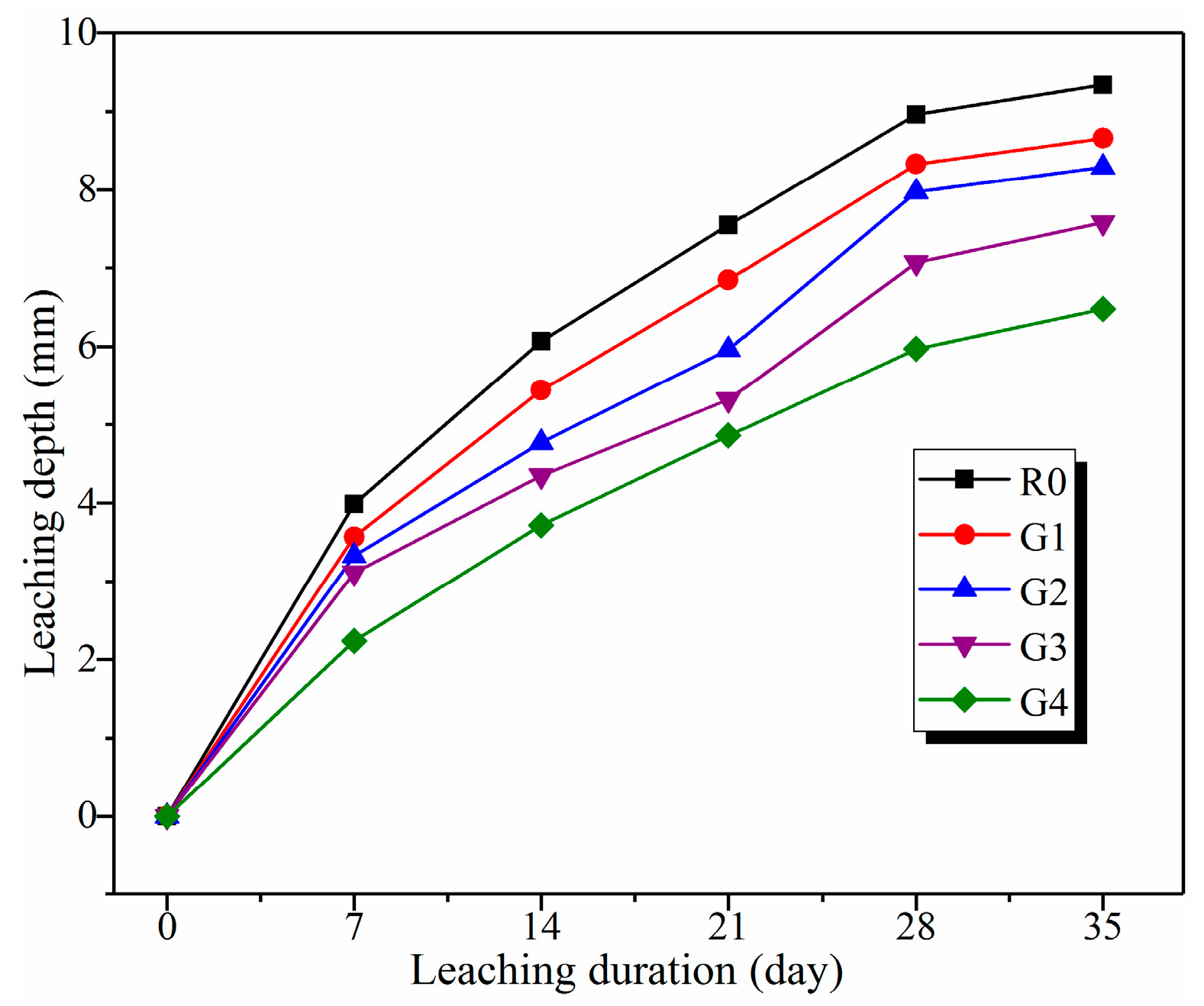

Figure 5. Time-varying leaching depths for the samples exposed to 6 mol/L NH4Cl solution.
Figure 5. Time-varying leaching depths for the samples exposed to 6 mol/L NH4Cl solution.
Nanomaterials 09 00288 g005

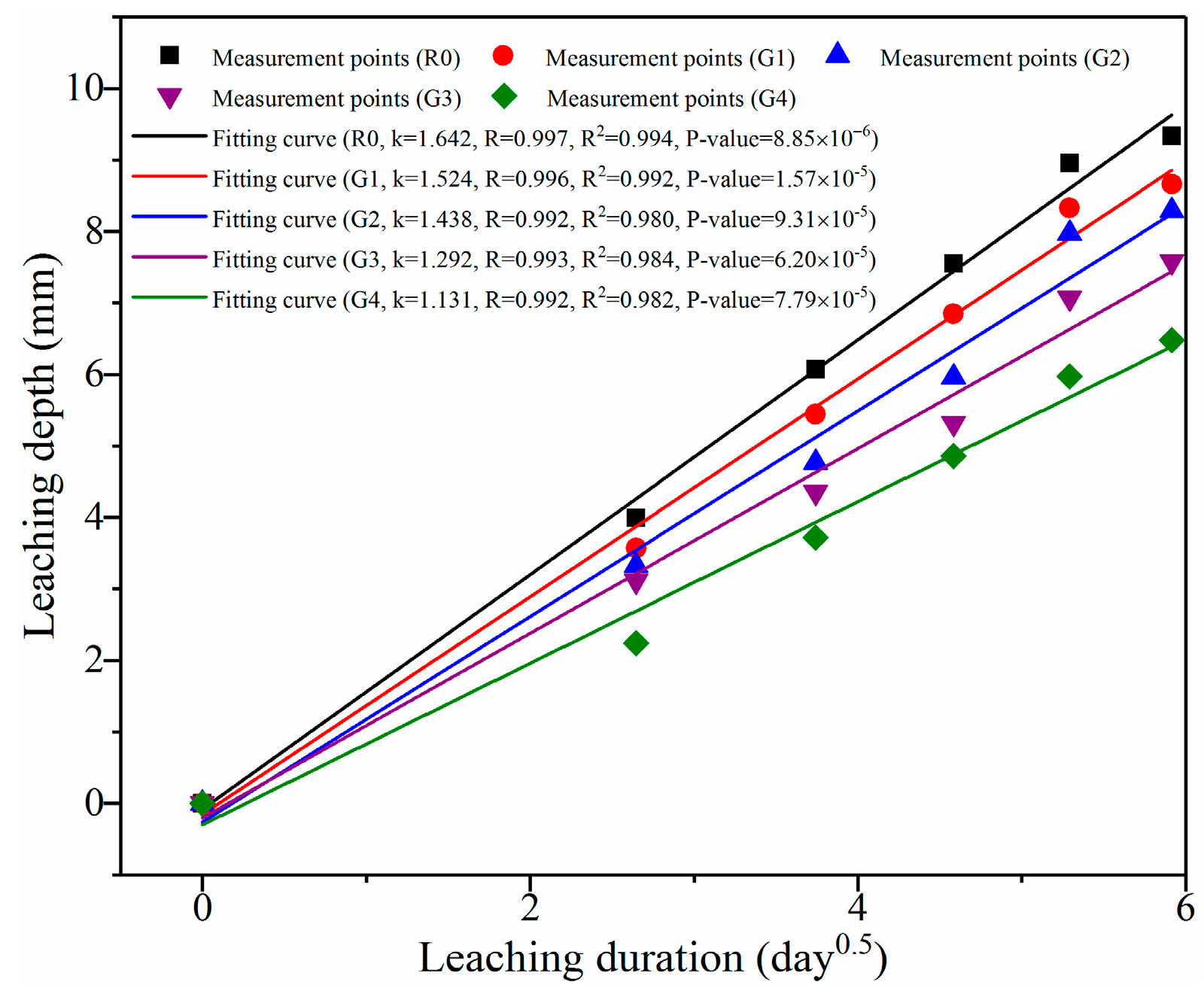

Figure 6. Linear fitting of the leaching depth of the samples in relation to the square root of the leaching duration. Note: the equations of the fitting curves of R0, G1, G2, G3, and G4 are y = 1.642x − 0.083, y = 1.524x − 0.156, y = 1.438x − 0.263, y = 1.292x − 0.204, and y = 1.131x − 0.300.
Figure 6. Linear fitting of the leaching depth of the samples in relation to the square root of the leaching duration. Note: the equations of the fitting curves of R0, G1, G2, G3, and G4 are y = 1.642x − 0.083, y = 1.524x − 0.156, y = 1.438x − 0.263, y = 1.292x − 0.204, and y = 1.131x − 0.300.
Nanomaterials 09 00288 g006
Figure 7. Compressive strengths for the samples leached for 0, 7, 14, 21, 28, and 35 days in 6 mol/L NH4Cl solution.
Figure 7. Compressive strengths for the samples leached for 0, 7, 14, 21, 28, and 35 days in 6 mol/L NH4Cl solution.
Nanomaterials 09 00288 g007
Figure 8. Compressive strength loss of the leached samples in relation to leaching duration.
Figure 8. Compressive strength loss of the leached samples in relation to leaching duration.
Nanomaterials 09 00288 g008

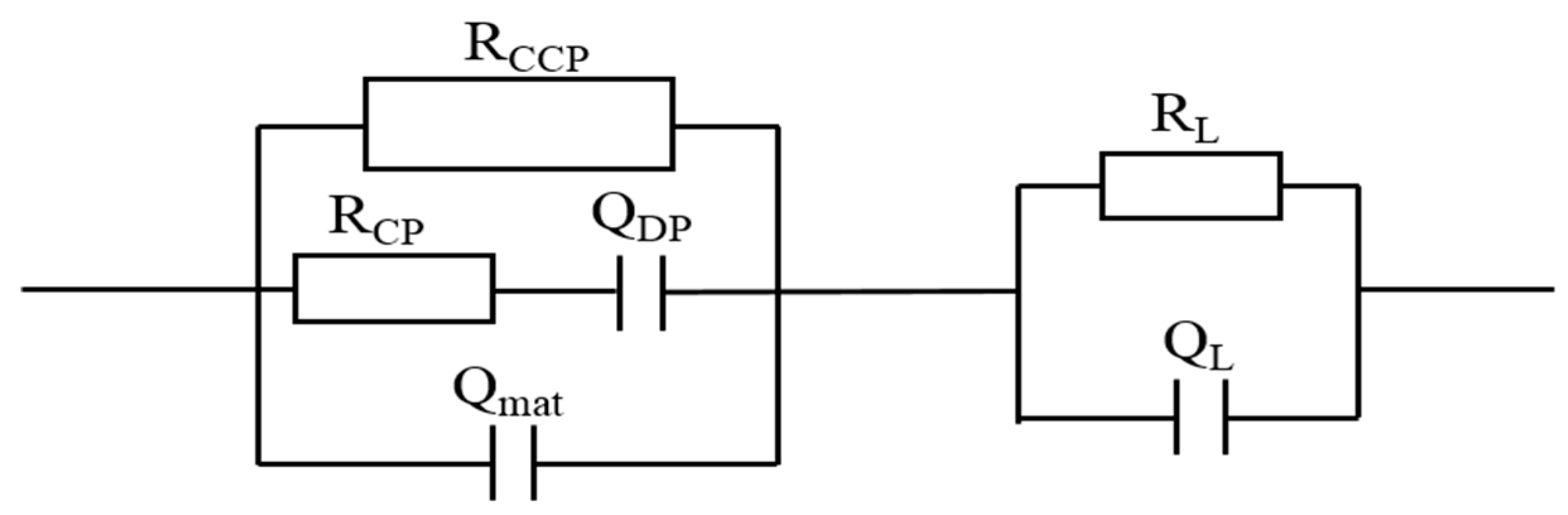

Figure 9. Equivalent circuit model for calcium leaching of cement composites, where RCCP is the resistance of the CCPs in the intact zone; QDP is the double layer capacitance of the DCPs in the intact zone; RCP is the resistance of the DCPs in the intact zone; Qmat is the double layer capacitance of the ICPs in the intact zone; RL is the resistance of the CCPs in the degraded zone; and QL is the double layer capacitance of the ICPs in the degraded zone.
Figure 9. Equivalent circuit model for calcium leaching of cement composites, where RCCP is the resistance of the CCPs in the intact zone; QDP is the double layer capacitance of the DCPs in the intact zone; RCP is the resistance of the DCPs in the intact zone; Qmat is the double layer capacitance of the ICPs in the intact zone; RL is the resistance of the CCPs in the degraded zone; and QL is the double layer capacitance of the ICPs in the degraded zone.
Nanomaterials 09 00288 g009

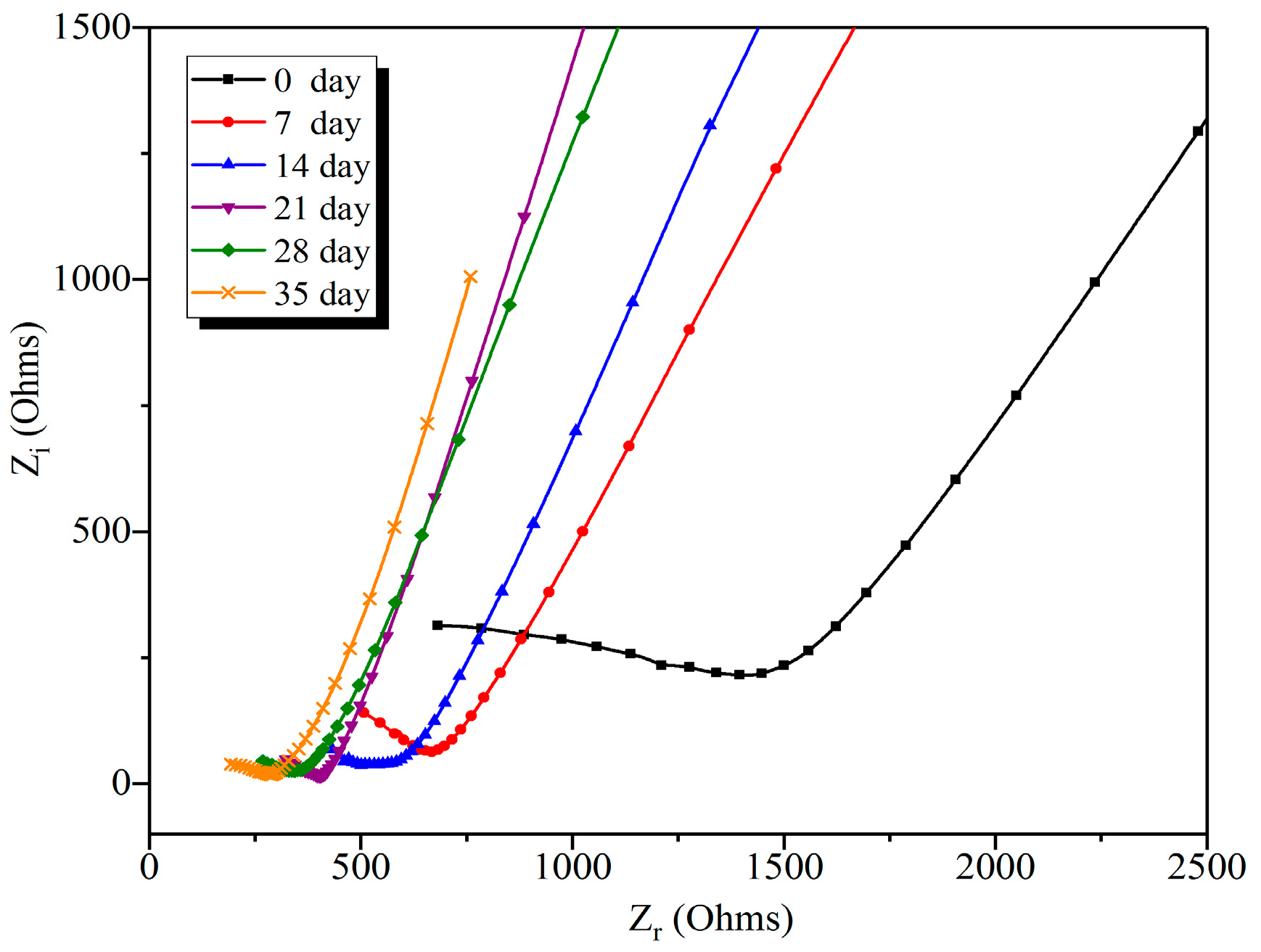

Figure 10. The Nyquist curves of G2 samples undergoing different leaching durations.
Figure 10. The Nyquist curves of G2 samples undergoing different leaching durations.
Nanomaterials 09 00288 g010

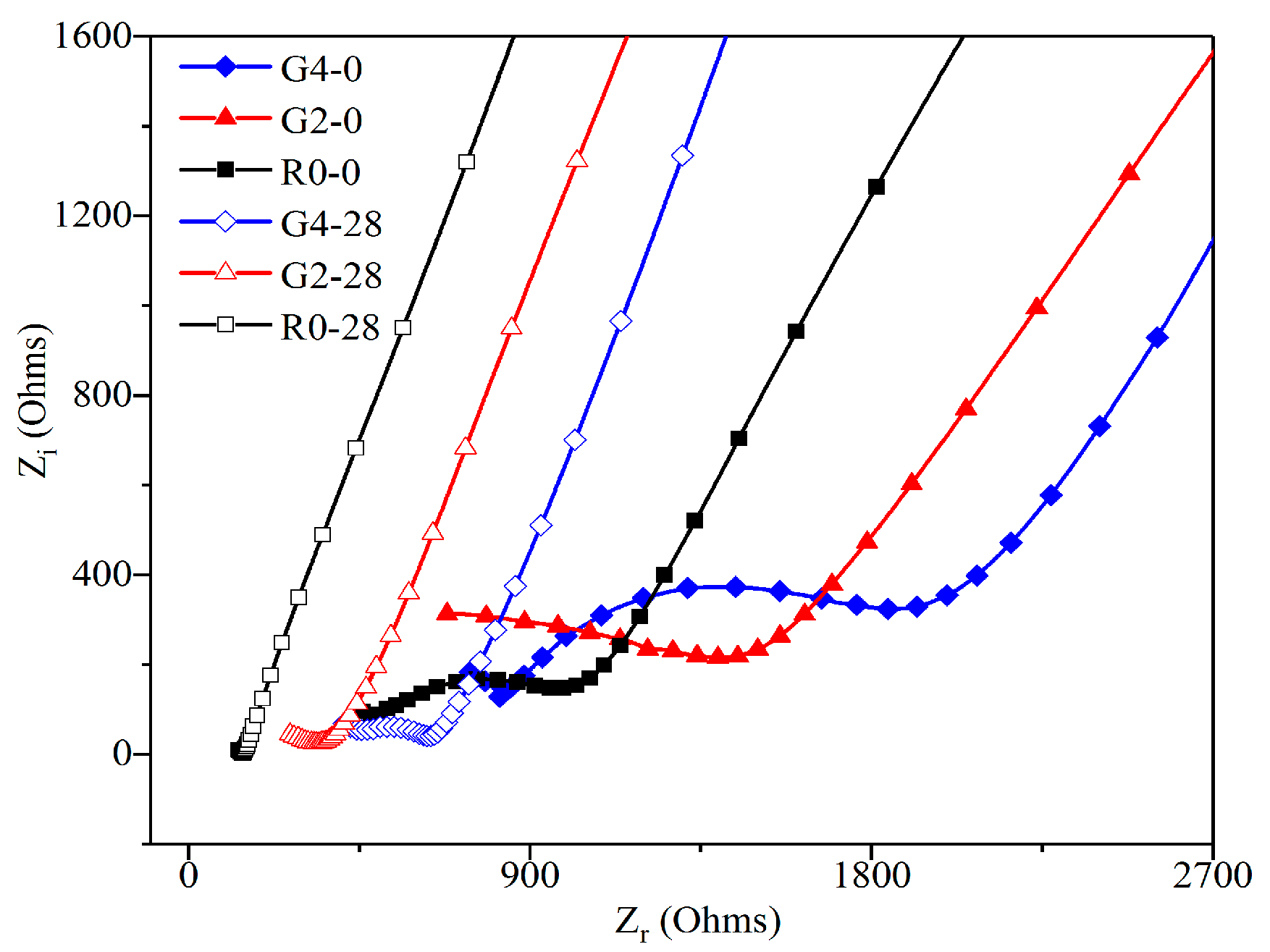

Figure 11. The Nyquist curves of R0, G2, and G4 before leaching and after leaching for 28 days.
Figure 11. The Nyquist curves of R0, G2, and G4 before leaching and after leaching for 28 days.
Nanomaterials 09 00288 g011

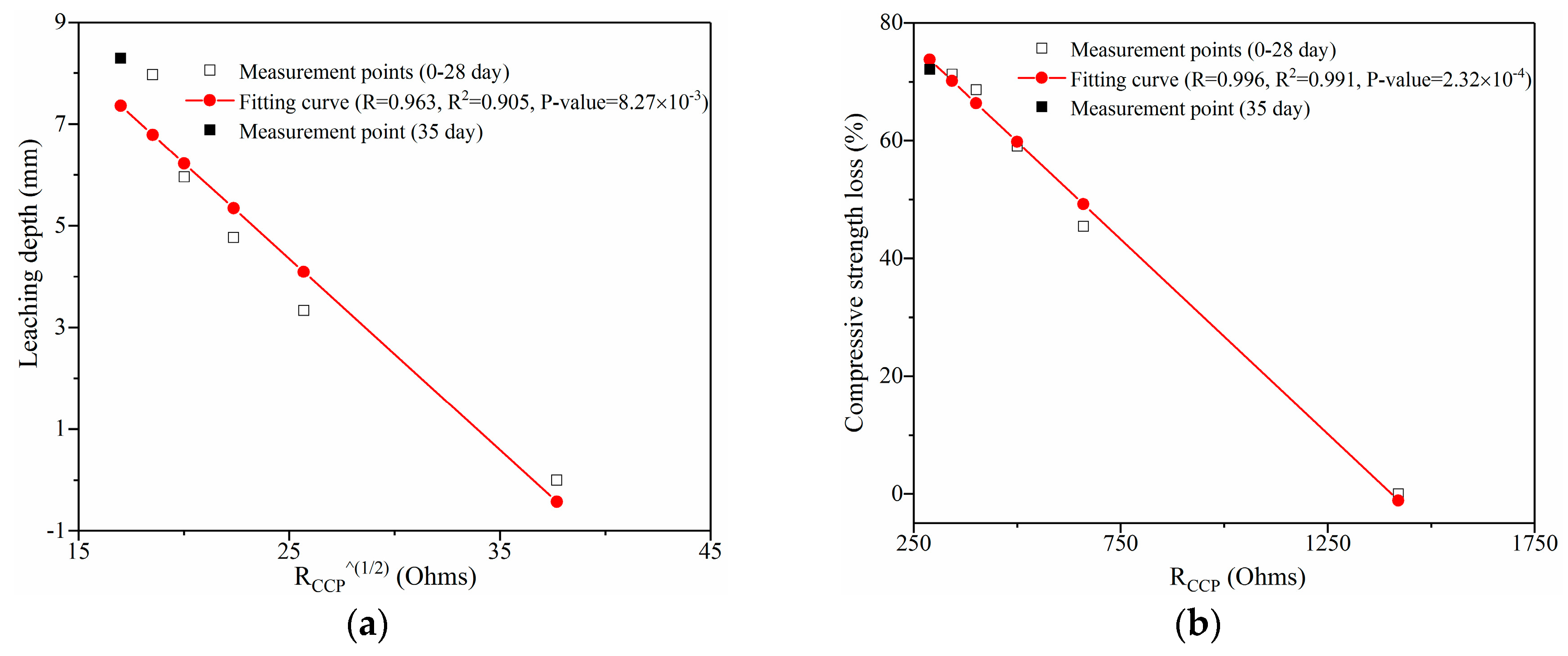

Figure 12. Prediction on leaching depth and compressive strength loss of G2 using RCCP: (a) leaching depth and (b) compressive strength loss. Note: the equations of the fitting curves of (a) and (b) are y = 13.750 − 0.376x and y = 92.841 − 0.066x, respectively.
Figure 12. Prediction on leaching depth and compressive strength loss of G2 using RCCP: (a) leaching depth and (b) compressive strength loss. Note: the equations of the fitting curves of (a) and (b) are y = 13.750 − 0.376x and y = 92.841 − 0.066x, respectively.
Nanomaterials 09 00288 g012
Figure 13. Cutting surfaces of R0, G2, and G4 after leaching for 14 days: (a) R0; (b) G2; and (c) G4.
Figure 13. Cutting surfaces of R0, G2, and G4 after leaching for 14 days: (a) R0; (b) G2; and (c) G4.
Nanomaterials 09 00288 g013

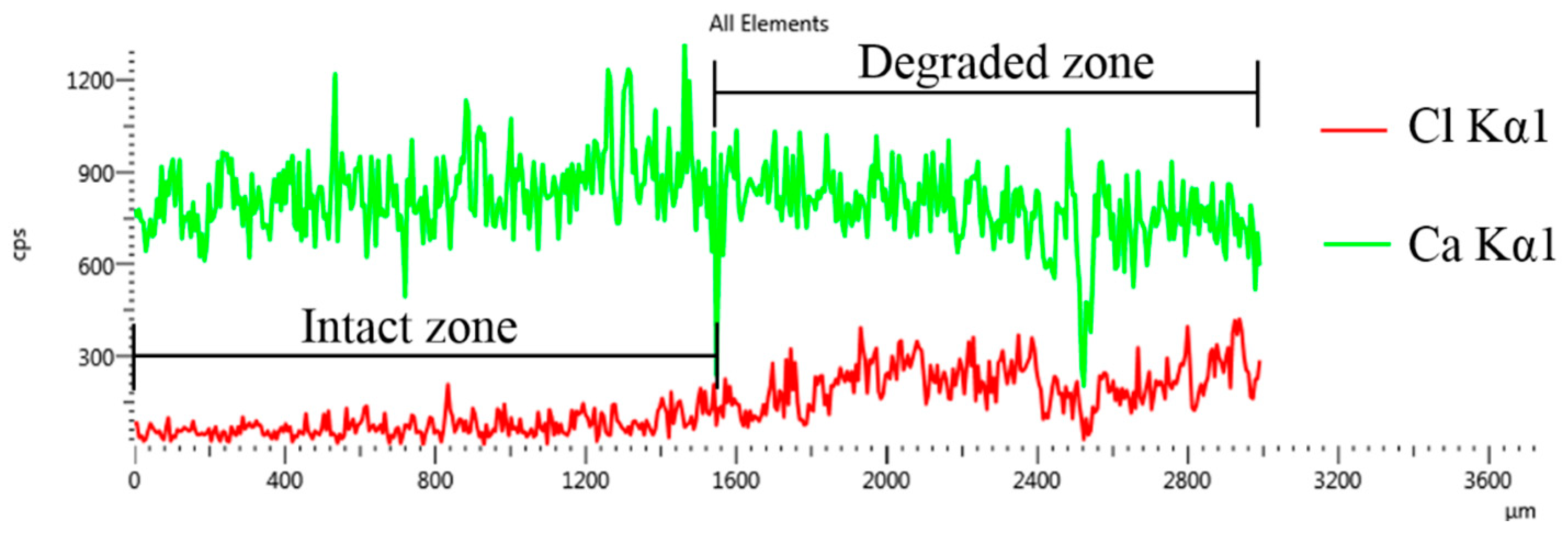

Figure 14. The EDS data for a specified line in Figure 13c.
Figure 14. The EDS data for a specified line in Figure 13c.
Nanomaterials 09 00288 g014
Figure 15. Microstructure characterizations of R0, G2, and G4 after leaching for 14 days: (a) the degraded zone of R0; (b) the intact zone of R0; (c) the degraded zone of G2; (d) the intact zone of G2; (e) the degraded zone of G4; and (f) the intact zone of G4.
Figure 15. Microstructure characterizations of R0, G2, and G4 after leaching for 14 days: (a) the degraded zone of R0; (b) the intact zone of R0; (c) the degraded zone of G2; (d) the intact zone of G2; (e) the degraded zone of G4; and (f) the intact zone of G4.
Nanomaterials 09 00288 g015
Table 1. Chemical composition and physical properties of OPC.
Table 1. Chemical composition and physical properties of OPC.
Chemical CompositionIngredientCaOSiO2Al2O3Fe2O3MgOSO3K2ONa2OLOI
Content (mass %)64.4220.525.623.782.112.100.280.200.87
Physical propertiesSpecific surface area (m2/g)ρ0 (g/cm3)Setting time (min)Flexural strength (MPa)Compressive strength (MPa)
0.5813.00InitialFinal3 d28 d3 d28 d
1121456.509.2034.8058.00
Table 2. Properties of graphite oxide.
Table 2. Properties of graphite oxide.
AppearanceSolid Content (mass %)pHViscosity (Pa·s)Absorbance Ratio A230/A600Carbon (mass %)Molar Ratio (O/C)
Brown paste43 ± 1≥1.2≥2000≥4547 ± 50.6 ± 1
Table 3. Characteristics of chemical admixtures.
Table 3. Characteristics of chemical admixtures.
DesignationStateDensity (g/m3)pHSolid Content (mass %)
RCM–3liquid1.1025.049.98
CP–WRM50liquid1.1144.550.79
Table 4. Mix proportions of GO/cement composites.
Table 4. Mix proportions of GO/cement composites.
SampleCement (g)Water (g)W/C RatioGO (g)PCE/GO
R0100400.40
G1100400.40.053.0
G2100400.40.13.0
G3100400.40.153.0
G4100400.40.23.0
Note: the samples are represented according to the contents of GO.
Table 5. Fitting results of RCCP based on the modified model (Qmat (QDP RCP) RCCP) (QL RL) for the leached samples at different leaching durations (Ohms).
Table 5. Fitting results of RCCP based on the modified model (Qmat (QDP RCP) RCCP) (QL RL) for the leached samples at different leaching durations (Ohms).
Leaching Duration (day)R0G1G2G3G4
09701287142115451843
73205566608011012
14255421500625883
21182289401481710
28143255343440635
3550205289381576
Table 6. Comparisons of measured results and predicted results for leaching depth.
Table 6. Comparisons of measured results and predicted results for leaching depth.
Leaching DurationMeasured vs. Calculated DepthGO Content
0%0.05%0.1%0.15%0.2%
35 daysMeasured depth (mm)9.348.668.297.586.48
Predicted depth (mm)10.198.107.366.615.82
Variation (%)9.106.4711.2212.8010.19
Table 7. Comparisons of measured results and predicted results for compressive strength loss (%).
Table 7. Comparisons of measured results and predicted results for compressive strength loss (%).
Leaching DurationMeasured vs. Calculated LossGO Content
0%0.05%0.1%0.15%0.2%
35 daysMeasured loss78.5476.3372.1070.8068.87
Predicted loss82.9076.7073.7471.7171.25
Variation5.550.482.221.293.46
Table 8. The EDS data for the specified regions in Figure 15: (a) region 1 in Figure 15b; (b) region 2 in Figure 15d; and (c) region 3 in Figure 15f.
Table 8. The EDS data for the specified regions in Figure 15: (a) region 1 in Figure 15b; (b) region 2 in Figure 15d; and (c) region 3 in Figure 15f.
ElementsRegion 1Region 2Region 3
wt.%σwt.%σwt.%σ
Ca54.10.346.50.247.70.3
O33.90.338.40.232.00.2
C7.30.310.40.210.00.3
Si4.70.13.70.17.70.1
Cl1.00.12.60.1

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
